ASPECT-ORIENTED ANALYSIS APPLIED TO THE SPACE

DOMAIN

André Marques, Ricardo Raminhos, Ricardo Ferreira, Rita Ribeiro, Sérgio Agostinho

UNINOVA – Instituto de Desenvolvimento de Novas Tecnologias 2829-516 Caparica, Portugal

João Araújo, Ana Moreira

CITI/Dep. de Informática Universidade Nova de Lisboa 2829-516 Caparica, Portugal

Keywords: Early Aspects, XML technologies, metadata, analysis, specification, space domain.

Abstract: This paper presents an aspect metadata approach, which has been developed in the scope of the “Aspect

Specification for the Space Domain” project. This approach is based on XML and XML Schema

technologies, enabling a rigorous knowledge representation. The proposed approach has been applied to a

real complex system, the “Space Environment Support System”, enabling a comparison and evaluation

between the proposed approach and the “traditional” requirements analysis methods used during the

development of the original version of the system. This paper presents a full description of both the

identified metadata concepts and their relationships. The metadata concepts and associated instances have

been stored in a Metadata Repository that provides simple navigation facilities between concepts. The

Metadata Repository also enables the automatic generation of documentation.

1 INTRODUCTION

Separation of concerns refers to the ability of

identifying, modularizing and possibly reusing

system concerns (e.g., functionalities and global

properties) in a software program. Crosscutting

concerns are usually identified at the final stages of

software development, namely at the

implementation level using aspect-oriented

techniques. However, it is good practice to identify

the system’s crosscutting behaviour as soon as

possible, addressing possible conflicts between

concerns as early as the requirements phase, not

postponing this task to the latter stages of

development.

Different approaches have been proposed for the

representation of concerns structure ((A. Rashid,

2003), (Grundy, 1992), (Lamsweerde, 2001)),

including metadata (R. Ferreira, 2005). This work

proposes a refinement to the “early aspects”

structural metadata (R. Ferreira, 2005), using XML

and XML Schema technologies that provide a

rigorous representation. A full description of the

identified metadata concepts is presented, as well as

the relations between them. The approach is applied

to a real case study in the space domain, the “Space

Environment Support System”, currently operational

at the European Space Technology Centre

(ESA/ESTEC).

Within the scope of “early aspects” a

multidimensional approach (I. Brito, 2004) has been

used for the identification of crosscutting concerns.

This multidimensional approach proved to be a

better way of identifying user needs, when compared

with the traditional bi-dimensional approaches based

on a dominant decomposition using viewpoints, use

cases or goals (e.g. (A. Rashid, 2003)).

This paper is organized as follows. Section 2

presents the ASSD project. Section 3 presents the

concepts specification. Section 4 introduces the

“Space Environment Support System” case study

and identifies the advantages and drawbacks in

applying the proposed methodology and concepts to

a complex operational system. Section 5 discusses

some related work. Finally, Section 6 provides an

overview evaluation of the current proposal and

finishes by drawing some conclusions.

2 ASPECT SPECIFICATION FOR

THE SPACE DOMAIN (ASSD)

Various programming paradigms have increased the

modularity of software, but there are still some

Marques A., Raminhos R., Ferreira R., Ribeiro R., Agostinho S., Araújo J. and Moreira A. (2007).

ASPECT-ORIENTED ANALYSIS APPLIED TO THE SPACE DOMAIN.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 71-79

DOI: 10.5220/0002385800710079

 SciTePress

properties that classical software development

methods are unable to modularize. These properties

cut across several base (code) modules, producing

scattered and tangled code that is difficult to

maintain and evolve. This is called a crosscutting

concern. A match point is composed by a set of

concerns that need to be composed together. One of

the concerns plays the role of base concern on which

the behaviour of the remaining concerns needs to be

weaved.

The main objective of the ASSD project is to

apply an Aspect-Oriented methodology

to the

ground segment of space domain projects, at the

early stages of software development. Taking as a

case study an already (successfully) deployed

project using a traditional requirements

methodology, the consortium addressed how

“aspects” could be employed in order to reduce

system complexity, development time and

improving maintenance and evolution tasks. The

development of a “meta-aspect” repository

architecture was also proposed, for storing the

aspects specification identified in the case study,

intended for reuse in further projects. For further

validation, a second application shall be tested by

the industrial partners of the project.

The ASSD project used and adapted two main

technologies, namely the Metadata Repository (see

Section 2.1) for storage purposes and the Aspect-

Oriented Requirements Analysis method presented

in (I. Brito, 2004),(I. Brito, 2006), for the early

stages of software development.

The advantages of a repository for storing

metadata were already assessed in the scope of the

Space Environment Information System for Mission

Control Purposes (SEIS) project (M. Pantoquilho,

2004). However, the hybrid combination of the two

technologies (aspect methodology and metadata

repository) as proposed in the ASSD project was

never attempted.

2.1 Metadata Repository

The Metadata Repository is a by-product of the

SEIS project developed for ESA and currently

operational at ESOC. The SEIS project, like many

other large projects, is composed of many sub-

systems, where every module has a need for sharing

metadata. The Metadata Repository is used as a

technology infrastructure where all metadata is

stored in a structured way, and accessible to other

system components.

Methodology enabling modularization of crosscutting

concerns.

The Metadata Repository enables the

management of the metadata in a coherent way.

Coherency, and consistency, is achieved due to the

absence of replication and available versioning

support. To increase the flexibility of the metadata

structure, XML Schema documents are used to

define and validate different types of metadata

information.

By including all ASSD metadata in a specialized

Metadata Repository, the validation effort (both

structural and referential) is performed at the server

side and made transparent to the client applications.

Further, the Repository enables metadata

reutilization (especially at the concern level),

navigation and traceability between concepts.

Finally, the Metadata Repository is able to

automatically generate documentation, handling

ASSD metadata in order to create a set of outputs

according to the proposed ASSD methodology.

A specific terminology has been used to identify

each type of information as a layer. Layer M0

represents the objects to be described using

metadata in the above layer. These objects are part

of the host system and are not to be stored in the

Metadata Repository (e.g., a record in a database

table). Layer M1 represents metadata information

about M0. In the Metadata Repository context, this

information is called instances and is stored as XML

documents (e.g., “security”, “concern”). Layer M2

defines the format and rules for each type of

metadata to be stored in the M1 layer. These are

called concepts. A concept is a definition of a

structure to specify a type of metadata and is

represented as an XML Schema (e.g. the “concern”

concept). This paper focuses on the metadata level

M2 for the definition of concepts. Instances (M1

level) are handled by the Metadata Repository while

applying the proposed ASSD Aspect-Oriented

methodology.

3 CONCEPT SPECIFICATION

This section introduces the concepts required for the

representation and logic structure of early aspects.

Seven main structures are proposed: System,

Concern, Stakeholder, Decomposition Node,

Stakeholder Requirement, System Requirement and

Test Case. All concepts are defined through

templates with three columns: attribute name,

cardinality and description.

Considering the authors’ previous work, System,

Concern and Stakeholder structures have been

extended with new fields, and system related

ICEIS 2007 - International Conference on Enterprise Information Systems

information has been gathered in the system concept

(in order to make Concern and Stakeholder

independent). The remaining concepts are proposed

for the first time in this paper.

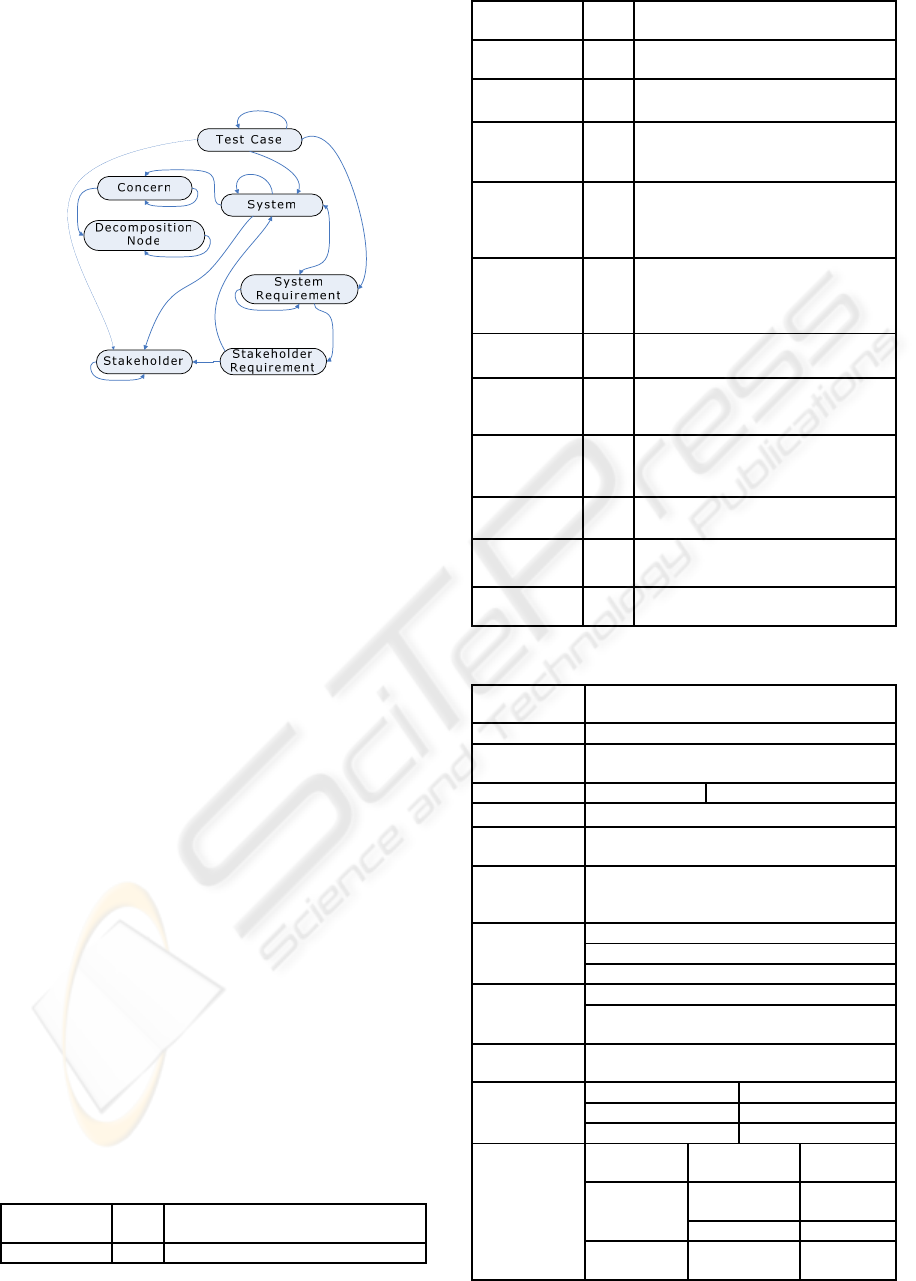

Figure 1: Concept’s main relations.

Figure 1 depicts the main relations for the

proposed concepts. Each arrow represents how the

relation scheme is defined as its navigability.

Analysing the relations some concepts are

independent from the others, such as

DecompositionNode, Stakeholder and Concern. The

System concept, which represents a collection of

interacting and interrelated elements, links together

concepts like Concern, Stakeholder,

StakeholderRequirement and SystemRequirement.

This way, system dependent information is stored in

the main System concept. All references linking the

System concept to the independent concepts are

intended to promote instance reusability.

The following section presents the concepts

required for structuring all the information regarding

the Aspect Specification analysis. Such specification

is important individually for each concern and as a

whole for the definition of a supporting

infrastructure for early-aspects storage.

3.1 System

The structural representation for the System template

is depicted in Table 1, describing the system in

terms of the context in which it is applicable and

defining the consequences resulting from its usage.

Table 2 presents an instance (i.e., an example) of

the System concept regarding a simple log

component.

Table 1: The System template.

Attribute

name

# Description

Name

1 The System name.

Description

Short description of the intended

behaviour of the system.

Aliases

0..N

Additional names (synonyms) that

also identify the system.

URLs

0..N

List of URL references valuables in

the system understanding.

Parent

reference

0..1

Points to the parent system of this

system, enabling hierarchy between

systems.

Context

Description of the environment in

which the problem and solution

occur and for which the solution is

desirable.

Known uses

0..N

Presents a set of “real world”

applications that implement the

system, providing some “warranty”

over its quality.

Motivations

1..N

Description of problematic situations

(examples).

Similar

systems

0..N

List of similar systems, enabling a

navigation mechanism between

them.

Stakeholders

1..N

List of stakeholders involved in the

system that have a direct or indirect

influence in the system.

Concerns

1..N

List of concerns involved in the

problem modelling.

Keywords

0..N

List of keywords of this system for

searching purposes.

Extension

0..1

Additional extensions to the

definition of the system.

Table 2: The LOG’s System concept instantiation.

Attribute

name

Instantiation

Name

Log

Description

The Log component registers all the task

activities from SESS components.

Aliases

Logging Log

URLs

None.

Parent

reference

Data Processing Module

Context

While Data Processing Module applications

are executing, actions of these applications

are registered by the LOG component.

Information Systems

Critical Systems

Known uses

Banking Systems

Data traceability.

Motivations

Need to show data in simple and structured

way.

Similar

systems

None.

Name Role

Developer Developer

Stakeholders

Administrator Administrator

Concern

Name

Stakeholder

Stakehold

er Priority

Administrator

Very

Important

Logging

Developer Important

Concerns

Persistence

Administrator

Very

Important

ASPECT-ORIENTED ANALYSIS APPLIED TO THE SPACE DOMAIN

Developer Important

Keywords

Log Catalogue Event

Extension

None.

The Stakeholder attribute (the Stakeholder

concept is defined in Table 5) contains a list of

stakeholders involved in the system that have a

direct or indirect influence (e.g. “Administrator”,

“Application”, “Client”, “Company”). Since the

ASSD project will provide a client tool allowing the

possibility of generating UML use cases, there is

still the possibility to define if a system’s

stakeholder is an actor or not, i.e., if a given

Stakeholder will be part of a UML use cases

diagram. The Concern attribute (the Concern

concept is defined in (Table 3) contains the list of

concerns that compose the system. For each concern,

a list of needed or requested concerns is available. A

list of stakeholders is associated to each Concern,

where each stakeholder has a priority towards the

concern: “Very Important”, “Important”, “Medium”,

“Low”, “Very Low” or “Don’t Care”. Since a

concern results from a system requirement, a list of

system requirements (the System Requirement

concept is defined in (Table 8) that need this concern

can be defined. A concern can be decomposed

through a decomposition node and for each

decomposition, a value of this analysis is given:

“Satisficed

”, “Weakly satisficed”, “Undecided”,

“Weakly denied”, “Denied”, or “Conflict” (L.

Chung, 2000). Finally, and for extensibility

purposes, a Mapping of each concern to an artefact

can be made at a later stage of software

development.

3.2 Concern

Table 3 presents the template for describing a

concern, while Table 4 presents an instance

example. The Classification attribute identifies the

concern according to its type, e. g. functional or non-

functional (Sommerville, 2004): “Delivery”,

“Efficiency”, “Ethical”, “External”, “Functional”,

“Implementation”, “Interoperability”, “Legislative”,

“Organisational”, “Performance”, “Portability”,

“Privacy”, “Product”, “Reliability”, “Safety”,

“Space”, “Standards”, or “Usability”.

Table 3: The Concern template.

Attribute

name

# Description

Concern name

1 The name of the concern.

Satisfice: decide on and pursue a course of action

satisfying the minimum requirements to achieve a goal.

Description

Short description of the intended

behaviour of the concern.

Parent

reference

0..1

Concern related with the current

one. This reference points to the

parent concern of this concern,

permitting hierarchy between

concerns.

Sources

0..4

States the concerns origins:

stakeholder, concern, catalogue

and/or system.

Classification

This attribute helps the selection

of the most appropriate approach

to specify this concern.

Contributions

0..N

List of concerns that are affected

positively/negatively

by this

concern.

Similar

concerns

0..N

List of similar concerns, enabling

a navigation mechanism between

them, not necessarily from the

same System.

Decomposition

node

0..1

Reference to the root of the

Decomposition Node of the

current concern.

Keywords

0..N

List of keywords of this concern

for searching purposes.

Extensions

0..N

Additional extensions to the

definition.

Negative contributions are analysed to identify potential

conflicts between concerns

ICEIS 2007 - International Conference on Enterprise Information Systems

Table 4: The Configurability’s Concern instance.

Attribute name Description

Concern name

Configurability

Description

The capability of defining the

configuration and behaviour of an

application.

Parent reference

None.

Sources

Stakeholder

Classification

Implementation

Concern Name

Contribution

Value

Client Portability +

Modularity +

Contributions

Server Portability +

Similar concerns

None.

Decomposition

node

None.

Keywords

Configuration, Extensibility.

Extensions

None.

3.3 Stakeholder

Table 5 presents the template for describing a

stakeholder.

Table 5: The Stakeholder template.

Attribute name # Description

Stakeholder

name

The name of the Stakeholder’s

instance.

Description

Short description of the intended

behaviour of the Stakeholder.

Parent

reference

0..1

Stakeholder related with the

current one. This reference points

to the parent stakeholder of this

stakeholder, allowing a hierarchy

between stakeholders.

Contact

information

0..1

General stakeholder information:

address(es), email(s), phone and

fax numbers..

Keywords

0..N

List of keywords of this concern

for searching purposes.

3.4 Decomposition Node

Table 6 presents an example of the Decomposition Node

concept. The Is operationalization attribute

determines if the current decomposition provides

operations, processes, data representation,

structuring, or specific constraint. That is, it informs

if it provides a concrete functional mechanism to

accomplish the decomposition or not. This is known

in the literature as operationalization (L. Chung,

2000). The Decomposition contributions attribute

refers to the nodes that contribute with a given value

(“Make”, “Help”, “Unknown”, “Hurt” or “Break”

(L. Chung, 2000)) to the current Decomposition; yet

a justification for the choice of the Decomposition

Contributions’ value can be applied to this. The

Decomposition operator attribute describes which

logical operator (i.e., “AND”, “OR”) decomposes

the current node. A justification can be applied to

support or deny the way target components are

selected.

Table 6: A Decomposition Node example.

Attribute name Description

Name

Encryption

Description

The capability to make the contents of

a message or file unintelligible to

anyone not authorized to read it.

operationalization

False

Decomposition

contributions

None.

Or decomposition

Decomposition

operator

RSA 3DES

Keywords

Security Cryptography

3.5 Stakeholder & System Requirement

The Stakeholder Requirement template is presented

in Table 7. The Classification attribute allows to

choose from an enumeration of values

(Sommerville, 2004): “Delivery”, “Efficiency”,

“Ethical”, “Functional”, “Implementation”, “Space”,

“Interoperability”, “Performance”, “Safety”,

“Portability”, “Privacy”, “Reliability”, “Standards”,

or “Usability”, whereas the System Reference

attribute is mandatory in the way that it directly

points to the system that owns the current

Stakeholder Requirement. The Priority attribute

defines the priority of the current Stakeholder

Requirement in the scope of the System, which is

referred in the System Reference attribute. The

MoSCoW rules (Stapleton, 1997) were used for this

purpose.

Table 7: The Stakeholder Requirement template.

Attribute

name

# Description

Name

1 The Stakeholder Requirement name.

Description

Short description of the intended

behaviour of the Stakeholder

Requirement.

Source

stakeholder

The stakeholder that is responsible

for elicitation of this requirement.

Classification

1 Classification of the requirement.

System

reference

The system that is referenced by the

current stakeholder requirement.

Priority

Priority of the Stakeholder

Requirement.

Keywords

0..N

List of keywords for searching

purposes.

Table 8 presents the template for describing a

System Requirement. The Stakeholder Requirement

attribute holds a list of all stakeholder requirements

ASPECT-ORIENTED ANALYSIS APPLIED TO THE SPACE DOMAIN

that complies with the current System Requirement.

The System Reference attribute is mandatory in the

way that it directly points to the system that owns

the current System Requirement. The Type attribute

describes the category of the System Requirement

that can be either “Private”, “Internal” or “Public”.

Table 8: The System Requirement template.

Attribute

name

# Description

Name

1 The System Requirement name.

Description

Short description on the intended

behaviour of the System

Requirement.

Parent

reference

0..1

System Requirement related with this

one. This reference points to the

parent System Requirement of this

System Requirement, enabling

hierarchical structure between

System Requirements.

Stakeholder

requirement

0..N

List of Stakeholder Requirements

that complies with the current

requirement.

System

reference

Reference to the system that owns

the current system requirement.

Type

1 Type of the requirement.

Classification

1 Classification of the requirement.

Priority

1 Priority of the System Requirement.

Keywords

0..N

List of keywords of this System

Requirement for searching purposes.

3.6 Test Case Concept

The Test Case description is presented in Table 9.

Table 9: The Test Case template.

Attribute

name

# Description

Name

1 The name of the Test Case.

Description

Short description of the intended

behaviour of the test case.

Expected

tester profile

The profile of the tester that shall

perform the test (e.g. “Administrator”,

“User”).

Test method

Specifies the test method to be applied:

“Testing”, “Code Inspection” or

“Review”.

System

reference

1 System to which this test case refers to.

Test Objective

Description

Description of the

test case objective.

Objective

Tested

Requirements

A set of references

for the tested

requirements.

Test

dependencies

0..N

References to the tests that shall be

executed before this test case.

Pre-

requisites

Requisites required to

perform the test.

Inputs

Data required to perform

the test.

Test details

0..N

Procedure

Description of the test to

be performed.

Outputs

Generated

outputs

description.

Expected

Results

Pass

Criterion

Condition for

the test to be

successful.

Test Campaign

Type of test

System Version

System

version that

was tested.

Name

Tester name.

Tester

Profile

Tester

profile.

Test case

executions

0..N

Result

Test Result

Keywords

0..N

List of keywords of this test case for

searching purposes.

4 CASE STUDY APPLICATION

The main objective of the Space Environment

Support System (SESS) system is to provide

accurate real-time information about the ongoing

Space Weather (combination of conditions on the

sun, solar wind, magnetosphere, ionosphere and

thermosphere) conditions and spacecraft onboard

measurements along with predictions for supporting

the decision-making process. Within this system the

Data Processing Module is a critical component.

This module is responsible for all file retrieval,

parameter extraction and further transformations

applied to all identified data, and validation

mechanisms, ensuring that all real-time availability

constraints are met.

In the scope of the ASSD project both the

methodology and defined concepts were applied to

this module. For this purpose, an independent team

performed the Aspect-Oriented analysis for the

proposed case studies, that were later validated by

the developer team of the actual SESS project.

4.1 The Data Processing Module

The design of the data processing module was

inspired on a typical ETL architecture, but following

a completely different paradigm of implementation.

Instead of creating specific code for downloading

and extracting information for each input file, a

declarative language (based on XML technology)

and an engine for processing ETL scripts (named

File Format Definitions) were created. The Data

Processing Module components and interactions are

depicted in Figure 2: (i) the File Retriever (FR)

Engine acquires near real-time data from multiple

I.e. “Unit Tests”, “Integration Tests”, “System Tests”,

and “Acceptance Tests”.

ICEIS 2007 - International Conference on Enterprise Information Systems

external sources in the Internet holding scientific

data, based on a set of schedulers, and using a set of

well-known protocols like HTTP, FTP or Web

Service invocation. For each downloaded file, a

local copy is placed in a File Cache for backup

purposes and the file is sent for processing by the

FET component; (ii) the File Extractor and

Transformer (FET) Engine applies a File Format

Definition to each input file, extracting all relevant

information and delivering it to the Data Delivery

interface (data entry point for the Data Integration

Module); (iii) all File Format Definition files are

generated by the File Format Definition Editor

graphical application, based on a sample of an input

file and user annotations over that file; (iv) all

information regarding the description of the files to

download, File Format Definitions and applications

configurations are stored in a Metadata Repository.

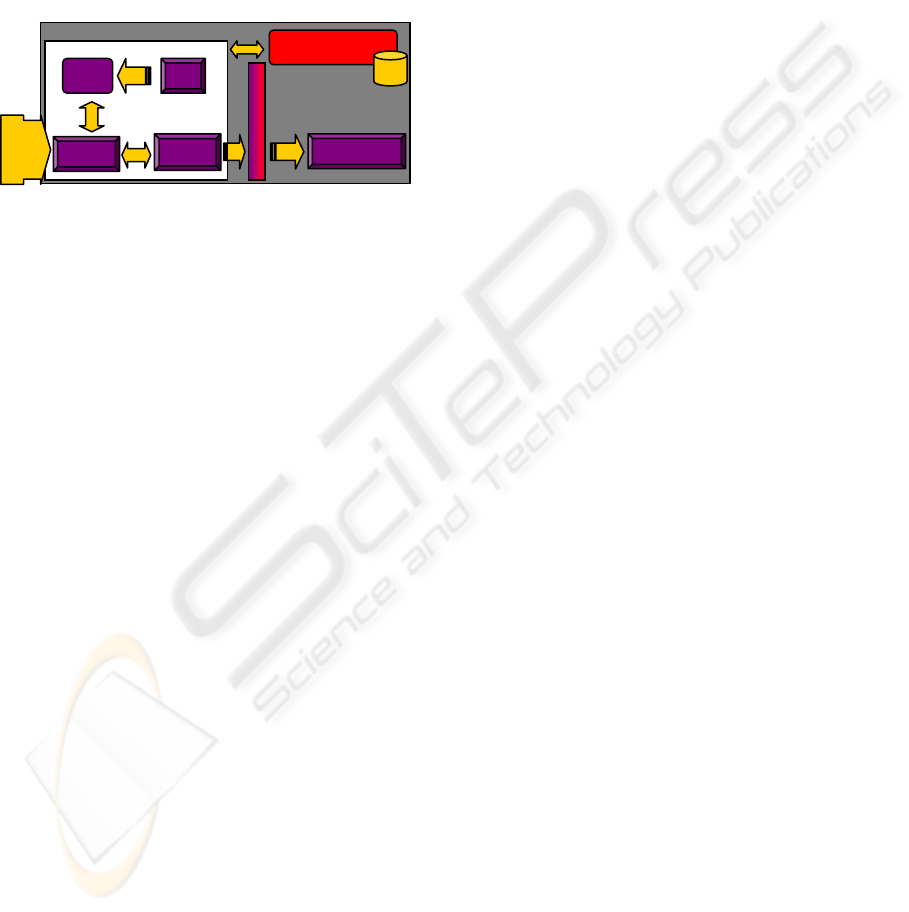

Figure 2: The Data Processing Module architecture.

4.2 Analysis / Discussion of the Results

An analysis of the DPM component focusing on the

newly identified concepts has been performed for

the main DPM’s components: File Retriever, File

Format Definition Editor and File Extractor and

Transformer. Instances for these proposed concepts

have been inserted in the Metadata Repository

describing all DPM components. All this

information was then manipulated by the Metadata

Repository (via the XSLT language) applying the

methodology proposed in ASSD project and the

resulting outputs have been formatted to HTML.

From these outputs, relevant information and

characteristics (in both textual and graphical format)

can be extracted: (i) the Concerns contributions (i.e.,

positive, negative, inexistent) and relations are

represented pictorially in a tabular format, which

enables a high-level validation of the analysis

correctness; (ii) conflicts between concerns are

automatically identified and an explanation facility

is available for determining the reason of the conflict

as the stakeholders that must be contacted to

unblock the conflicting situation. Many conflicts are

thus resolved at the early steps of the software

development instead during the implementation

phase; (iii) concerns conflicts are resolved through

prioritization that will be followed during the

implementation phase; (iv) crosscutting

functionalities are detected for each module,

enabling a better strategy for their future

implementation.

Comparing the proposed aspect-oriented

methodology with the traditional requirement

analysis (supported by UML 2.0 diagrams) that was

applied initially to the SESS system, several

advantages have been identified: (i) almost all the

conflicts that were found during the implementation

of SESS have been identified at the early stages of

the software lifecycle using the aspect-oriented

paradigm. Since these conflicts were only detected

during implementation, some functionalities had to

be refactored since the initial implementation

collided with other system functionalities that were

found to be more important. The adjustment of

these functionalities conducted to an unnecessary

waste of resources; (ii) the initial analysis of SESS

although complete, offered some level of ambiguity

in some system functionalities, namely in their

prioritization. Using the aspect-oriented approach a

better prioritization was accomplished between

system concerns. This feature enabled the developer

to focus on the development tasks, and not to

suspend them in order to solve analysis ambiguities;

(iii) by applying the aspect-oriented analysis,

stakeholders had a more active participation in the

project, due to their direct involvement in the

definition of priorities for the system functionalities.

Using the herein proposed concepts and

methodology, there is a higher participation and

inter-activity in the project between stakeholders,

facilitating the communication among them and

perception of the project for all; (iv) due to the

feature of automatic identification of crosscutting

behaviour, the developer may “think ahead”, prior

to the start of the actual implementation, the best

way to implement the crosscutting behaviour,

instead of refactoring this behaviour at later

development stages.

In the following two subsections a set of

representative examples of these features are

presented for the File Retriever and File Extractor

and Transformer components.

4.2.1 File Retriever

Regarding the analysis of the File Retriever

component, the most significant negative

contributions are due to the Bandwidth Usage, CPU

Usage, Response Time and Space Performance

concerns. These negative contributions appears for

the Bandwidth Usage and CPU Usage concerns

since the File Retriever system intends to minimize

the use of network bandwidth (as much as possible,

since this component downloads multiple input files,

sometimes simultaneously) and the CPU Usage

since most performed operations are I/O bound and

not CPU bound. Space Performance also appears

with many negative contributions due to the

existence of the File Retriever’s cache, where copies

of all downloaded files are stored for backup

Data Processing

Module

Metadata

Repository

External

Data

Service

Provider

File

Cache

FFDE

FET En

ine

FR En

ine

Data Delivery Module

Staging Area

(DIM Component)

ASPECT-ORIENTED ANALYSIS APPLIED TO THE SPACE DOMAIN

purposes. Finally, Response Time have multiple

negative contributions since the duration for the

input file download must be minimized as possible

in order to accomplish the real-time constraint that

data must not take more than five minutes from the

moment the download starts (FR responsibility) until

data it made available to the user in the client tools.

Four concerns have been identified as the most

required within the File Retriever system, namely:

Configurability, Bandwidth Usage, Data Recovery

and Error Notification.

The Configurability concern is required by many

FR’s operations since all download activity is

configured, or based, on metadata (e.g. the sites for

the data service providers, URLs, port numbers,

protocols, path and names of the files to download).

Bandwidth Usage is also fairly required since the

main goal of FR is to download data from external

sites. Finally, Data Recovery and Error Notification

are also important since failed download activities

must be reported to the system administrator and to

the scheduler threads that may try to recover the lost

data.

Two main clusters of conflicts have been identified

for the system: (i) Bandwidth Usage versus Data

Format Interoperability / Data Delivery / Data

Recovery / Transfer Data Using a Web Service /

Transfer Data Using FTP Protocol and Transfer

Data Using HTTP Protocol: all download and data

delivery activities affect the network bandwidth

resource; (ii) CPU Usage versus Data Processing:

although minimum, Data Processing is required for

managing the scheduling of operations, thus

requiring the use of the CPU resource.

The following concerns have been identified as

crosscutting, as they interfere with multiple system

functionalities: Backup, Bandwidth Usage,

Configurability, Data Delivery, Data Format

Interoperability, Data Recovery, Error Notification,

Persistence, Scheduling, Transfer Data Using a Web

Service, Transfer Data Using FTP Protocol and

Transfer Data Using HTTP Protocol.

4.2.2 File Extractor and Transformer

Regarding the analysis of the File Extractor and

Transformer component, most significant negative

contributions are related with Bandwidth Usage and

CPU Usage. This pattern confirms the performed

analysis since the FET system is a major resource

user, thus affecting negatively these two concerns.

Five concerns have been identified as the most

required within the File Extractor and Transformer

system, namely: Configurability, Data Format

Interoperability, Data Recovery, Error Notification

and Validity.

These concerns are required very often since

they are strongly coupled to the Validity concern that

is an important issue for the FET system. The FET

system must, on the one hand, process all input files,

determining if the extracted data is valid or if the

input file format has changed. When detecting these

abnormal cases, the system must not be

compromised nor compromise other processing

requests (Data Recovery) and the system

administrator must be advised as soon as possible

that some input files are not being processed (Error

Notification). The FET component requires both

internal configuration (ETL script configuration for

each particular input file) and parameterization

(regarding the Data Delivery Web Service), which

justifies the strong need for the Configurability

concern. Finally, the FET component needs to

interchange data with data delivery interfaces and

with the FR component, so data communication

normalization is required (Data Format

Interoperability).

Regarding conflicts, these have been identified in

four match points: Computation in Parallel, Data

Delivery, Data Processing

and Transfer in Parallel.

From these the most representative clusters are: (i)

Bandwidth Usage versus Data Delivery / Data

Format Interoperability / Data Recovery / Transfer

in Parallel: Data Delivery usually refers to a

considerable amount of data requiring high

Bandwidth Usage. That is also affected by

interoperability constraints, possible recovery

actions and simultaneous transfer connection; (ii)

Data Recovery versus Response Time / Parallelism:

Data Recovery slows down Response Time while

Parallelism makes the system prone to error (due to

concurrent execution flows).

The following concerns have been identified as

crosscutting (as they affect multiple system

functionalities): Bandwidth Usage, Configurability,

Data Delivery, Data Format Interoperability, Data

Recovery, Error Notification, Transfer Data Using a

Web Service and Validity.

5 RELATED WORK

Some approaches have been proposed related with

the work presented in this paper. In (I. Brito, 2006)

an initial approach for the representation of a

Concern template is provided. However, this

approach is limited to the Concern concept (e.g. no

requirement information is available) and the

navigation between concepts is limited. On the other

ICEIS 2007 - International Conference on Enterprise Information Systems

hand, the work described in (Grundy, 2000) refers a

repository for storing aspect components. However,

the repository is not structured and merely associates

code files to a component name. Searching

capabilities are restricted and the solution is specific

to the domain and problem.

The authors previous work (R. Ferreira, 2005) in

this domain provided a better expressiveness in

terms of available concepts and relations between

them, comparing with the existing work. However,

in a more rigid evaluation of these concepts’

modularization some shortcomings have been

identified: (i) only the concepts closely related with

the representation of systems and concerns were

identified. Concepts regarding the representation of

requirements and test cases were missing; (ii) almost

all concepts could not be reused in other case

studies, since metadata specific to each case study

was being stored at the concept level (e.g. Concern)

instead at a case study level (i.e. System); (iii) only

one case study had been applied to the proposed

specification, resulting in non- independent and

generic concepts.

6 CONCLUSIONS

This paper presented a refinement to early-aspects

specification. For this purpose a set of concepts have

been introduced and validated using a set of real

case studies. Applying the proposed approach, a

better traceability regarding the decisions took from

requirement elicitation to testing was achieved by

the inclusion of Stakeholder Requirement and

System Requirement concepts. Further, Concerns

can be decomposed via the Decomposition Node

concept and tested with the Test Case concept. In

this way more information is available to describe

systems. Another major improvement is the concept

independence from the system information,

increasing instance reusability. In order to solve the

problem of the “tangled information”, metadata

previously present at Concern or Stakeholder

concept that were system dependent had been moved

to the System concept. This allowed the reuse of

stakeholder and concern instances, allowing in a

special way the creation of a Concern library

(enhancing normalization).

All concepts have been validated in a thorough

way with different sets of case studies that acted as

independent training and testing sets. This

methodology was applied to the Data Processing

Module (partially presented herein) of a real

application on the Space domain.

As future work, a structural improvement has to

be performed in the concern attribute at the system

concept, since the stakeholders’ priorities for the

concerns need to be prioritized not generally at the

system level but particularly at the match point level

(I. Brito, 2004). This results, as explained in (I.

Brito, 2006), that a same stakeholder may have

different interests on the same concern depending on

the selected system.

REFERENCES

A. Rashid, A. Moreira, J. Araújo 2003 Modularisation

And Composition Of Aspectual Requirements. ACM

Press, International Conference on Aspect-Oriented

Software Development (AOSD 2003), ACM Press,

Boston, USA

J. Grundy 1992 Aspect-Oriented Software Engineering – a

Use Case Driven Approach. Addison-Wesley,

J. Grundy 2000 Storage and retrieval of Software

Components using Aspects. Australian Computer

Science Conference, Canberra, Australia

I. Brito, A. Moreira 2006 Aspect-Oriented Requirements

Analysis (Internal document).

I. Brito, A. Moreira 2004 Integrating the NFR framework

in a RE model. Early Aspects 2004: Aspect-Oriented

Requirements Engineering and Architecture Design,

workshop of the 3rd International Conference on

Aspect-Oriented Software Development, Lancaster,

UK, 22-26 March 2004

L. Chung, B. A. Nixon, E. Yu, J. Mylopoulos, Non-

Functional Requirements In Software Engineering.

2000, Kluwer Academic Publishers

A. Lamsweerde 2001 Goal-Oriented Requirements

Engineering: A Guided Tour. 5th Int’l Symp. On RE,

IEEE CS Press,

M. Pantoquilho, N. Viana, R. Ferreira, J. Moura Pires, A.

Donati, A. Baumgartner, F. Di Marco, L. Peñin, T.

Hormigo 2004 SEIS:A Decision Support System For

Optimizing Spacecraft Operations Strategies.

R. Ferreira, R. Raminhos, A. Moreira 2005 Metadata

Driven Aspect Specification. Workshop on Aspect-

Oriented Modeling, MoDELS/UML 2005, Jamaica

I. Sommerville, Software Engineering. 7th ed.

International Computer Science Series. 2004,

Addison-Wesley

J. Stapleton, Dynamic Systems Development Method: A

Framework For Business Centered Development.

1997, Addison-Wesley

ASPECT-ORIENTED ANALYSIS APPLIED TO THE SPACE DOMAIN
