INTERACTION-ORIENTED COLLABORATIONS

Giorgio Bruno

Dip. Automatica e Informatica, Politecnico di Torino, Torino, Italy

Keywords: Collaborative business processes, binary collaborations, choreographies, abstract orchestration models.

Abstract: This paper addresses binary collaborations and choreographies, based on web services technology. The

nature of the problem leads to two complementary approaches: one focuses on activities, and the other on

interactions. This paper follows the interaction-oriented approach and proposes a modeling notation, called

Interaction-Oriented Nets (IONs), which allows binary collaborations, choreographies and abstract

orchestration models (i.e. abstract business processes made up of communication activities) to be

homogeneously represented.

1 INTRODUCTION

In the domain of collaborative business processes,

collaboration is the term denoting the situation in

which two or more participants (i.e. their business

processes) exchange messages so as to achieve a

common goal. Before carrying out the actual

collaboration, the participants have to agree on an a

priori model, called collaboration model or

choreography, specifying how the interactions have

to take place. The models defining the interactions

between two participants are called binary

collaboration models.

Collaboration models are addressed from two

perspectives: one is focusing on the observable

activities of the participants, and the other on the

interactions. These approaches are not conflicting: in

fact, a one-way interaction subsumes two activities,

a sending activity in one participant, and a receiving

activity in the other.

The activity-oriented collaboration models are

also called inter-organizational (or cross-

organizational) workflows. They are global models

defining the observable activities of the participants

as well as their ordering constraints.

The major issues addressed in this area of

research are the modeling language for the global

model, and the mapping from the global model to

the local (i.e. pertaining to a given participant)

business processes, also called local workflows or

abstract processes.

This approach is appealing as the global model is

similar to a business process, and for this reason the

modeling language is the same. As to the mapping,

several techniques have been proposed. The Public-

To-Private technique (van der Aalst and Weske,

2001) follows a top-down approach consisting of

three steps: the participants agree on a global Petri

net, then the public model is partitioned into public

parts, one per participant, and finally each

participant refines its public part into a private

workflow. The private workflows are guaranteed to

conform to the global model, as the private

refinement is based on a specific notion of

inheritance. The technique (Zhao, Liu and Yang,

2005) based on relative workflows follows a bottom-

up approach, since each participant can expose

different public parts, called relative workflows, to

the other participants. A mixed approach is the one

based on workflow views (Orlowska and Schulz,

2004). Workflow views are the public parts of a

cross-organizational model, called a coalition

workflow: private workflows interact with workflow

views and workflow views interact with each other,

either directly or through a mediator.

The approach focusing on interactions is more

abstract. In fact, interactions, which are of two types,

i.e. one-way interactions and two-way ones, are

abstract entities, as in reality they are carried out by

sending activities and receiving ones. Interaction-

oriented binary collaboration models were first

proposed in the e-business domain by the RosettaNet

consortium (Damodaran, 2004), which adopted the

UMM modeling notation (UMM, 2003) and the

ebXML BPSS textual description (BPSS, 2001). The

content of application messages in a variety of

202

Bruno G. (2007).

INTERACTION-ORIENTED COLLABORATIONS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - SAIC, pages 202-207

DOI: 10.5220/0002376502020207

 SciTePress

business cases, quality of service requirements and

transactional features are the key issues of this

initiative. A recent proposal is the Web Services

Choreography Description Language (WS-CDL,

2005): it is an XML-based language addressing

peer-to-peer collaborations.

This paper follows the interaction-oriented

approach and proposes a modeling notation, called

Interaction-Oriented Nets (IONs), which addresses

binary collaborations and choreographies

homogeneously. On the contrary, UMM does not

deal specifically with binary collaborations, and

BPSS handles binary collaborations only. The same

notation can also be used to represent abstract

orchestration models (AOMs), an AOM being a

local (i.e. pertaining to a given participant) business

process restricted to communication activities and

control-flow ones.

This paper is organized as follows. Section 2

presents Interaction-Oriented Nets and shows how

binary collaborations can be represented. Section 3

illustrates light choreographies, which are meant to

complement binary collaborations by capturing the

global constraints. Section 4 addresses abstract

orchestration models and section 5 presents the

conclusion and the future work.

2 BINARY COLLABORATIONS

Two examples of binary collaborations are shown in

Fig. 1. They are based on a special kind of Petri nets,

called Interaction-Oriented Nets (IONs), which can

be informally described, as follows.

There are two types of transitions in an ION, i.e.

ordinary transitions and interaction-oriented ones.

The latter represent either one-way interactions, such

as order, or two-way interactions, such as rfq/quote

(rfq stands for request for quote). In two-way

interactions, a slash (/) separates the request message

from the response one. As in RosettaNet, application

messages, such as rfq, quote and order, are

acknowledged by means of signal messages; usually

a signal message acknowledges that an application

message has been received and has been

syntactically validated. Signal messages do not need

to be shown in collaboration models. The types of

the messages are defined in an XML schema file

associated with the collaboration model.

A binary collaboration takes place between two

participants, denoted by two conventional roles, i.e.

requester and provider. An interaction also takes

place between two participants, denoted by two

conventional roles, i.e. initiator and responder. The

collaboration requester coincides with the initiator of

the first interaction. If an interaction is initiated by

the collaboration provider, the request message is

underlined (this case does not appear in Fig. 1).

There are similarities with the work done by the

Language/Action community: in fact, the notions of

business act, action pair and business transaction

(Lind and Goldkuhl, 2003) are similar to the notions

of one-way interaction, two-way interaction and

binary collaboration, respectively, although the

former appear to be more abstract than the latter.

Binary collaborations are meant to be used in

abstract orchestration models and in choreographies;

then, more specific roles (e.g. buyer and seller),

instead of the conventional ones, will be adopted, as

will be shown in the next sections.

An ION has a source place (initially marked) and

a sink place: moreover, it is case based, as it

describes the life cycle of a single collaboration. To

make the model more compact, places are absorbed

in links, unless they have two or more incoming

links or two or more outgoing links.

rfq/quote

order

rfq/quote

order

Annotations:

t1{quote.d = rfq.tq;}

t2{order.d = t1.rfq.to;}

(a) Collaboration RO (b) Collaboration ROa

timeout

Annotations:

t1{quote.d = rfq.tq; in = xor;}

t2{order.d = t1.rfq.to; in = xor;}

t3{g: quote.negotiable; p = 1;}

timeout

rfq/quote

order

rfq/quote

order

Annotations:

t1{quote.d = rfq.tq;}

t2{order.d = t1.rfq.to;}

(a) Collaboration RO (b) Collaboration ROa

timeout

Annotations:

t1{quote.d = rfq.tq; in = xor;}

t2{order.d = t1.rfq.to; in = xor;}

t3{g: quote.negotiable; p = 1;}

timeout

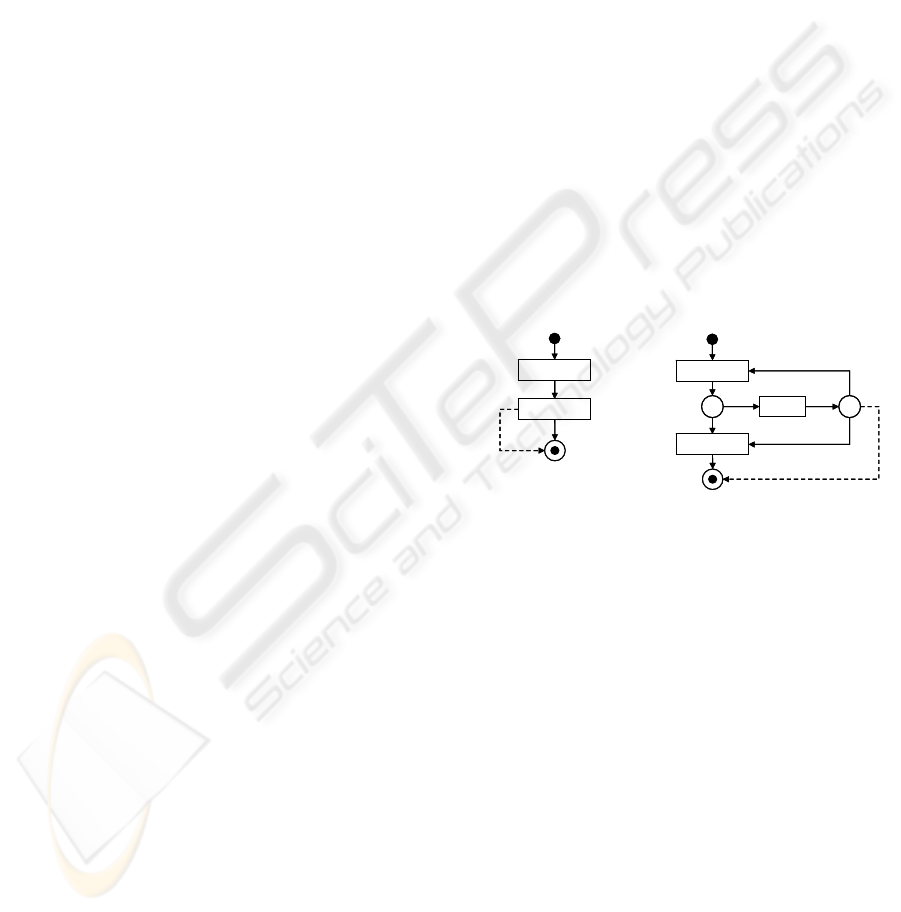

Figure 1: Binary collaborations RO (a) and ROa (b).

In collaboration RO, shown in Fig. 1a, the

requester sends a request for quote, rfq, to the

provider, and then waits for a quote. If the quote is

accepted, the requester will send an order to the

provider.

As in UMM, interactions have attributes, the

most important of which are the deadlines (“d”) of

the messages involved. If a message is not

sent/received before its deadline, the corresponding

interaction will fail, unless a timeout path is

provided. If an interaction fails, the whole

collaboration gets blocked; the parties, however, can

agree on a protocol for unblocking collaborations.

The scripts used in the annotations, i.e. “quote.d

= rfq.tq” and “order.d = t1.rfq.to”, mean that the

deadlines of messages quote and order will be set to

the values read from attributes tq and to of the rfq.

INTERACTION-ORIENTED COLLABORATIONS

203

Past messages can be used in the scripts as global

variables.

Timeout links introduce timeout paths, i.e. those

paths to be followed when interactions fail. In Fig. 1,

timeout links, i.e. the dashed links, lead to the sink

state, and hence conclude the collaboration. In fact,

the order is optional, and its absence is not a reason

for making the collaboration fail.

Collaboration ROa, shown in Fig. 1b, presents a

more complex protocol, in which a quote is assumed

to include a flag indicating whether it is negotiable

or not. After receiving a quote, the requester can

send a purchase order or, if the quote is negotiable, it

can send a revised request for quote. If the quote is

negotiable, two alternative paths are possible, one

consisting of interaction order and the other starting

with interaction rfq/quote.

The choice of a path can be either data-driven or

event-driven. In the first case, the choice must be

based on public information, visible to both parties:

such public information is given by the contents of

past messages, i.e. the messages exchanged by the

parties before the choice is made. In the second case,

the choice depends on the arrival of future messages.

When collaboration ROa is in state s1, a data-driven

choice takes place, depending on the contents of the

last quote. Transitions can have guards (“g”) and

priorities (“p”), whose default value is 0. If the quote

is negotiable, transition t3 fires, otherwise transition

order is enabled.

State s2 determines an event-driven choice. An

event-driven choice (also called deferred choice)

occurs when a place is followed by two or more

interactions in the same direction. While the sender

is free to select which message to send, the receiver

is assumed to be able to receive whichever message

will be sent, therefore the term “deferred choice”

expresses the viewpoint of the receiver.

In order to fire, a transition may require all its

input places to be marked (i.e. non-empty) or just

one; in the first case its parameter “in” is set to

“and” (the default value), and in the second case it is

set to “xor”. Transitions rfq/quote and order have

both a “xor” input behavior, as they have two input

places, which are never jointly marked.

3 LIGHT CHOREOGRAPHIES

Choreography usually denotes an a priori global

model meant to capture all the interactions taking

place for a given purpose among a number of

participants. As such it is a much debated notion. It

is often associated with the idea of a leading

organization having the authority of imposing the

required behavior on the participating organizations.

Three points of weakness have been pointed out

(Zhao, Liu and Yang, 2005): a leading organization

may not exist, a participant may be willing to select

its own partners, and participants are exposed to

unnecessary information.

This paper proposes a weaker notion of

choreography, called light choreography, which is

meant to complement binary collaborations.

Binary collaborations express necessary

precedence constraints on the interactions taking

place between pairs of participants; however

additional constraints might be needed. Light

choreographies are meant to make such additional

constraints explicit and public to all the parties

involved, so that each party can work out an

appropriate abstract orchestration model. A case

study requiring a light choreography is as follows.

The case study is a simplified supply chain

involving a buyer, a distributor and a supplier, which

are denoted by their initials, b, d and s.

The buyer sends a purchase order (bo = buyer

order) for certain goods to a distributor which can

fulfil the order in two ways: a) with one delivery (dd

= distributor delivery) coming from an internal

warehouse; b) with two deliveries, a distributor

delivery (dd) and an external delivery (sd = supplier

delivery) coming from an external supplier.

After receiving the buyer order, in case b, the

distributor selects a supplier with a reverse auction

similar to collaboration RO shown in Fig. 1a, and

then informs the buyer of the supplier selected with

a notification message (dn = distributor notification).

Message dn includes attribute deliveryN, whose

value can be 1 or 2; in case the value of deliveryN is

2, message dn also includes a reference to the

supplier involved. Then the buyer sends some

delivery information (bi = buyer information) to the

supplier, if it is the case.

After the deliveries have been performed, i.e.

messages dd and sd (if it is the case) have been

received by the buyer, the buyer makes a payment in

favor of the distributor and sends it a payment

notification (bp = buyer payment).

After delivering the goods to the buyer, the

supplier sends a payment request (sr = supplier

request) to the distributor; after making the payment

in favor of the supplier, the distributor sends a

payment notification (dp = distributor payment) to

the supplier.

For the sake of simplicity, deadlines and

exceptions are ignored.

ICEIS 2007 - International Conference on Enterprise Information Systems

204

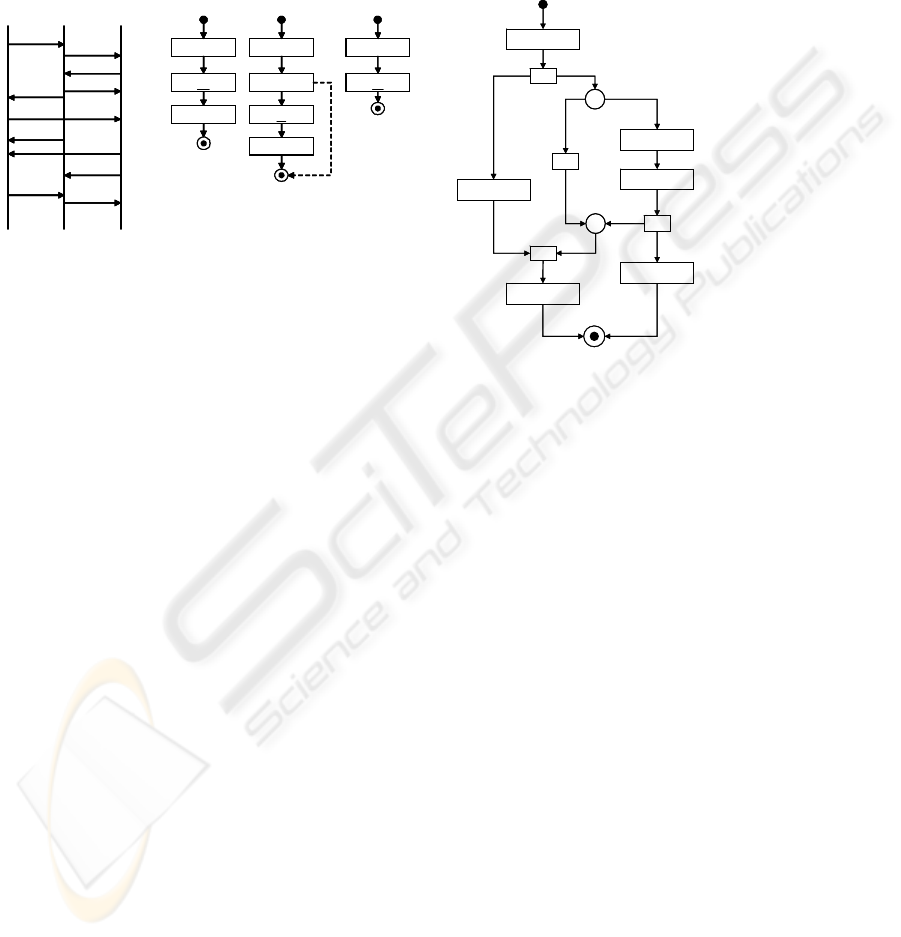

A business case with two deliveries is informally

presented in the sequence diagram shown in Fig. 2a.

Three binary collaborations are implied, i.e. BD,

DS and BS, as shown in Fig. 2b; they are identified

by the initials of the participants in capital letters,

the first letter denoting the requester. The

interactions, such as dd and sr, that are initiated by

the collaboration provider are shown underlined.

bd s

rfq

bo/dn

rfq/quote

(a) (b)

quote

order

timeout

bd s

rfq

bo/dn

rfq/quote

(a) (b)

quote

order

timeout

Figure 2: Sequence diagram (a) and binary collaborations

(b) for the case study.

This case study presents the routing pattern

called request with referral (Barros, Dumas and ter

Hofstede, 2005) as the buyer sends message bi to the

supplier that is indicated in message dn received

from the distributor.

The (light) choreography for the case study is

shown in Fig. 3; it is based on the binary

collaborations shown in Fig. 2b. A choreography

model is an ION with two additional annotations,

one defining the participants in terms of their roles,

and the other declaring the binary collaborations

needed.

This choreography involves three participants

denoted by their initials; if a message is meant to

contain a reference to a participant, this message is

shown next to that participant, as in the case of

message bd.dn, which is shown, within parentheses,

next to participant s.

The collaborations section lists the binary

collaborations needed along with the participants

involved and gives them suitable identifiers; as an

example, bd identifies collaboration BD taking place

between the buyer and the distributor. The

interactions in the choreography are preceded by the

appropriate collaboration identifiers, e.g. bd.dd and

bd.bo/dn.

The choreography shown in Fig. 3 features two

forks and one join. Fork f1 is needed because the

two deliveries may take place in any order. Fork f2

enables both join j1 and the request for payment (sr)

from the supplier. Join j1 is needed because the

payment in favor of the distributor is made after the

deliveries.

Place s1 determines a data-driven choice: if

attribute deliveryN of message bd.dn is equal to 1,

transition t10 fires and moves the token form s1 to

s2. In this case the buyer waits for the distributor

delivery only.

bd.bo/dn

bs.bi

bd.dd

bs.sd

bd.bp

ds.sr

Participants: b, d, s (bd.dn).

Collaborations: bd = BD(b,d), ds = DS(d,s), bs = BS(b,s).

Transitions: t10{g: bd.dn.deliveryN == 1; p = 1;}

t10

bd.bo/dn

bs.bi

bd.dd

bs.sd

bd.bp

ds.sr

Participants: b, d, s (bd.dn).

Collaborations: bd = BD(b,d), ds = DS(d,s), bs = BS(b,s).

Transitions: t10{g: bd.dn.deliveryN == 1; p = 1;}

t10

Figure 3: Light choreography for the case study.

The precedence between dd and bp in binary

collaboration BD is necessary but not sufficient; in

fact, the choreography shows that, when two

deliveries are needed, bp has to be preceded by sd,

as well. In this sense BD is a weak binary

collaboration, while RO and ROa shown in Fig. 1

are strong binary collaborations.

The solution given to the case study is based on a

number of considerations.

Firstly, choreographies do not replace binary

collaborations. The main reason is to expose only

the interactions needed for global coordination,

while those related to the details of binary protocols

are not revealed. In fact, the choreography shown in

Fig. 3 does not include interactions ds.rfq/quote and

ds.order, because they are of no interest for the

buyer. Moreover, interaction dp is not included in

the choreography, as it follows interaction sr on the

basis of binary collaboration DS. Binary

collaborations are needed as they drive the

implementation; a previous paper (Bruno and La

Rosa, 2006) has shown how to automatically

generate WSDL documents and BPEL processes

from binary collaboration models.

Secondly, choreographies are not global models;

they do not capture all the interactions taking place

for a given purpose, but only those necessary for

global coordination. A critical issue is the presence

INTERACTION-ORIENTED COLLABORATIONS

205

of several participants playing the same role: as a

matter of fact, several suppliers are involved in the

reverse auction conducted by the distributor. In such

situations, multiple interactions such as those

illustrated in the next section are likely to appear.

While a global model is meant to represent all of

them, in a choreography only one representative per

role is needed.

4 ABSTRACT ORCHESTRATION

MODELS

While collaboration models establish how the parties

have to interact so as to achieve a common goal, it is

up to each party to orchestrate (i.e. to combine) the

collaborations it is involved in. An abstract

orchestration model (AOM) fits that purpose. It

provides the so-called behavioral interface (Barros,

Dumas and Oaks, 2006) of a given participant, from

which an actual orchestration process can be

developed.

In this paper AOMs are meant to organize the

interactions pertaining to a given participant in a

proper control structure: hence they are still

interaction-oriented nets (IONs) enriched with

specific features, in particular multiple interactions

and nested interactions. They are abstract models,

for a number of details, as will be illustrated in this

section, are left unspecified.

bd.bo/dn

bs.bi

bd.dd

bs.sd

bd.bp

t10

s2j1

Partners: d, s (bd.dn).

Collaborations: bd = BD(self,d), bs = BS(self,s).

Transitions: t10{g: bd.dn.deliveryN == 1; p = 1;}

ds.rfq/quote

ds.sr

ds.dp

bs.sd

bs.bi

Partners: b, d.

Collaborations: ds = DS(d,self), bs = BS(b,self).

Transitions:

t1{quote.d = rfq.tq;}

t2{order.d = t1.rfq.to;}

(a)

(b)

ds.order

timeout

bd.bo/dn

bs.bi

bd.dd

bs.sd

bd.bp

t10

s2j1

Partners: d, s (bd.dn).

Collaborations: bd = BD(self,d), bs = BS(self,s).

Transitions: t10{g: bd.dn.deliveryN == 1; p = 1;}

ds.rfq/quote

ds.sr

ds.dp

bs.sd

bs.bi

Partners: b, d.

Collaborations: ds = DS(d,self), bs = BS(b,self).

Transitions:

t1{quote.d = rfq.tq;}

t2{order.d = t1.rfq.to;}

(a)

(b)

ds.order

timeout

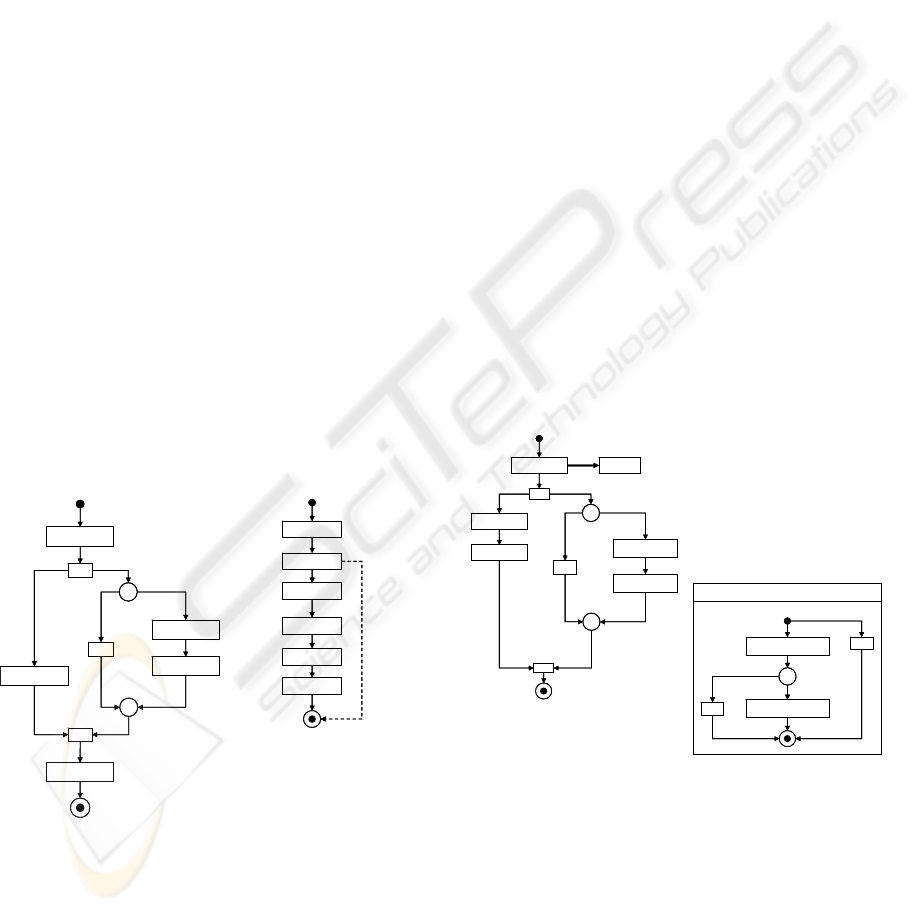

Figure 4: Abstract orchestration models of the buyer (a)

and of the supplier (b).

In Fig. 4 the buyer AOM and the supplier one

are presented, while the distributor AOM is shown

in Fig. 5.

Specific annotations list the binary

collaborations needed along with the other

participants.

The buyer interacts with a distributor and a

supplier; as the supplier is introduced by the

distributor to the buyer with message dn, this

message is shown in the partners section, next to the

supplier.

AOMs are based on binary collaborations; as

binary collaborations do not specify the specific

roles involved, it is the AOM task to declare which

binary collaborations it needs along with the role it

plays (self) and the role of the other participant. The

buyer is involved in two binary collaborations, bd

and bs, playing the requester role in both of them.

The distributor is involved in several

collaborations ds, each with a different supplier, as it

is supposed to conduct a reverse auction with them.

Notation “ds* = DS(self,s)*” defines ds* to be a

collection of similar collaborations (ds indicates one

of them).

The thick link from bd.do/dn to d1 in Fig. 5 is

the nesting operator used in AOMs: its source is a

two-way interaction and its destination is a

component AOM. In fact, the distributor, after

receiving a purchase order from the buyer and

before replying with a dn message, is meant to

operate as indicated in the nested AOM.

bd.bo/dn

bd.dd

bd.bp

Partners: b, s*.

Collaborations: bd = BD(b,self), ds* = DS(self,s)*.

Transitions: t10{g: bd.dn.deliveryN == 1; p = 1;}

ds.sr

ds.dp

t10

ds*.rfq/quote

ds.order

bd.bo/dn

bd.dd

bd.bp

Partners: b, s*.

Collaborations: bd = BD(b,self), ds* = DS(self,s)*.

Transitions: t10{g: bd.dn.deliveryN == 1; p = 1;}

ds.sr

ds.dp

t10

ds*.rfq/quote

ds.order

Figure 5: Abstract orchestration model of the distributor.

Transitions t1 and t2 in d1 are abstract, for there

are no annotations associated with them. In fact, t1 is

meant to fire if the distributor decides not to involve

any supplier, and t2 is meant to fire if it decides not

to accept any of the quotes received. In both cases,

only the distributor delivery will take place.

Interaction ds*.rfq/quote is called a multiple

interaction and indicates a multiplicity of

interactions rfq/quote each taking place between the

ICEIS 2007 - International Conference on Enterprise Information Systems

206

distributor and a different supplier. The exact way

(e.g. in parallel or in sequence), in which such

interactions will be performed, is an implementation

detail and the AOM is not concerned with such

aspects. After those interactions have been

completed, the buyer is meant to select the best

quote and, if there is any, it will send an order to the

corresponding supplier.

While it is possible (Barros, Dumas and Oaks,

2006) to automatically obtain an orchestration model

for each participant from a choreography model, this

paper, nevertheless, considers binary collaborations

to be essential, for two reasons.

Firstly, they enforce the protocol at the lower

level. In fact, binary collaborations can give rise to

run-time entities which maintain the state of the

actual collaborations. This is particularly useful

when multiple collaborations are involved. In fact,

the orchestration process of the distributor could

mistakenly send the order to a supplier that did not

provide any quote. Therefore the run-time checks

performed by a run-time collaboration entity can

prevent a process from sending or receiving a

message in wrong order (or not complying with

timing constraints).

Secondly, run-time collaboration entities can

implement the proper interaction protocol (based on

timeouts and retrials) thus relieving the orchestration

processes of this burden.

5 CONCLUSION AND FUTURE

WORK

This paper has presented a modeling notation, called

Interaction-Oriented Nets (IONs), which addresses

binary collaborations, light choreographies and

abstract orchestration models (AOMs)

homogeneously.

Current work proceeds in several directions.

While binary collaborations are well understood, in

choreographies and in AOMs there are still several

issues to be settled.

Choreographies are subject to well-formedness

rules, which are related to their particular use. As an

example, it does not make sense to say that an

interaction between x and y precedes an interaction

between w and z (with x, y, w and z indicating

different participants), as there is no way to enforce

that precedence, without the participants being

coordinated by a central entity.

Choreographies and binary collaborations have

joint operational purposes. Each participant can

obtain an AOM from them, as shown in Fig. 4 and in

Fig. 5, and then it can complete it with internal

activities. AOMs have to be validated against the

choreographies and the binary collaborations they

are based on. Moreover, a first-cut AOM can be

automatically obtained from a choreography model,

and then manually enriched. As an example, the

buyer AOM shown in Fig. 4 can be easily obtained

from the choreography presented in Fig. 3 by means

of suitable reduction rules.

REFERENCES

Barros, A., Dumas, M., ter Hofstede, A.H.M., 2005.

Service interaction patterns. In Lecture Notes in

Computer Science, 3649, 302-318. Springer. Berlin.

Barros, A., Dumas, M., Oaks, P., 2006. Standards for web

service choreography and orchestration: status and

perspectives. In Lecture Notes in Computer Science,

3812, 61-74.

Bruno, G., La Rosa, M., 2006. From collaboration models

to BPEL processes through service models. In Lecture

Notes in Computer Science, 3812, Springer. Berlin.

Damodaran, S., 2004. B2B Integration over the Internet

with XML – RosettaNet successes and challenges.

Retrieved February 20, 2007, from

http://doi.acm.org/10.1145/1013367.1013398.

BPSS, 2001. Business Process Specification Schema,

Version 1.01. Retrieved February 20, 2007, from

http://www.ebxml.org/specs/ebBPSS.pdf.

Lind, M., Goldkuhl, G., 2003. The constituents of business

interaction - generic layered patterns. Data &

Knowledge Engineering, 47, 327–348.

Orlowska, M.E., Schulz, K.A., 2004. Facilitating cross-

organisational workflows with a workflow view

approach. Data & Knowledge Engineering, 51, 109-

147.

UMM, 2003. UN/CEFACT Modeling Methodology

(UMM) User Guide. Retrieved Retrieved February 20,

2007, from http://www.unece.org/cefact/umm/

UMM_userguide_V20030922.pdf.

van der Aalst, W.M.P., Weske, M., 2001. The P2P

approach to Interorganizational Workflows. In Lecture

Notes in Computer Science, 2068, 140-156. Springer.

Berlin.

WS-CDL, 2005. Web Services Choreography Description

Language, Version 1.0. Retrieved February 20, 2007,

from http://www.w3.org/TR/ws-cdl-10/.

Zhao X., Liu C., Yang Y., 2005. An organisational

perspective on collaborative business processes. In

Lecture Notes in Computer Science, 3649, 17-31.

Springer. Berlin.

INTERACTION-ORIENTED COLLABORATIONS

207
