BACKWARDS COMPATIBLE, MULTI-LEVEL

REGIONS-OF-INTEREST (ROI) IMAGE ENCRYPTION

ARCHITECTURE WITH BIOMETRIC AUTHENTICATION

Alexander Wong and William Bishop

Department of Electrical and Computer Engineering, University of Waterloo, Waterloo, Ontario, Canada

Keywords:

Multi-level image encryption, ROI, backwards compatibility, biometrics.

Abstract:

Digital image archival and distribution systems are an indispensable part of the modern digital age. Organi-

zations perceive a need for increased information security. However, conventional image encryption methods

are not versatile enough to meet more advanced image security demands. We propose a universal multi-level

ROI image encryption architecture that is based on biometric data. The proposed architecture ensures that dif-

ferent users can only view certain parts of an image based on their level of authority. Biometric authentication

is used to ensure that only an authorized individual can view the encrypted image content. The architecture

is designed such that it can be applied to any existing raster image format while maintaining full backwards

compatibility so that images can be viewed using popular image viewers. Experimental results demonstrate

the effectiveness of this architecture in providing conditional content access.

1 INTRODUCTION

Digital image management systems have become an

integral part of many organizations, ranging from hos-

pitals to military institutions. The popularity of stor-

ing scans of conﬁdential documents as images has led

to the need for increased support for image encryp-

tion. Examples of scanned document images include

military maps, legal agreements, and medical docu-

ments. Such conﬁdential images are often encoded as

binary data and protected using conventional crypto-

graphic techniques such as block ciphering systems.

A number of image encryption algorithms using

conventional techniques have been proposed and in-

vestigated (Dang and Chau, 2000; Hou and Wang,

2003; Ziedan et al., 2003). Image-speciﬁc crypto-

graphic techniques also exist (Seo et al., 2003; Chen

et al., 2005; Salleh et al., 2003; Zhang et al., 2003).

Such techniques utilize the characteristics of images

to yield better overall computational performance, but

have been shown to be less secure than conventional

techniques (Li et al., 2004a; Li and Zheng, 2002a; Li

et al., 2004b; Li and Zheng, 2002b). While such cryp-

tographic techniques are effective for providing ﬁle-

level security for documents, the techniques diminish

the legibility of the images and render them useless in

content-based document searches. More importantly,

existing cryptographic techniques are not designed to

provide image encryption capabilities for speciﬁc re-

gions of interest (ROI). This feature is very important

for concealing only the information that needs to be

protected while making the rest of the image available

for general viewing. Traditional image encryption al-

gorithms also fail to provide different levels of access

to a document image. This feature is important in sit-

uations where different users are authorized to view

some but not all of a document image. Therefore, tra-

ditional image encryption algorithms are not versatile

enough to fulﬁll many important advanced encryption

requirements.

Recently, an extension to JPEG 2000 known as

JPSEC (Dufaux et al., 2004) was proposed as a frame-

work for securing image content. One of the tools

provided by this framework is the ability to support

conditional access to an image. This feature allows

access to regions of an image to be restricted. One

approach to accomplishing this using JPSEC is pre-

sented in (Dufaux et al., 2004; Dufaux and Ebrahimi,

2004) where the information within speciﬁed regions

is scrambled with pseudorandom noise. The seed val-

324

Wong A. and Bishop W. (2007).

BACKWARDS COMPATIBLE, MULTI-LEVEL REGIONS-OF-INTEREST (ROI) IMAGE ENCRYPTION ARCHITECTURE WITH BIOMETRIC AUTHENTI-

CATION.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 320-325

DOI: 10.5220/0002140903200325

 SciTePress

ues used to generate the pseudorandom noise are then

encrypted and placed inside the JPSEC codestream.

The receiver can then use the encryption key to re-

trieve the seeds for the purpose of descrambling the

regions. Furthermore, the use of multiple encryption

keys enables the ability to provide multiple levels of

access to the image. JPSEC effectively provides a so-

lution for multi-level ROI image encryption.

There are a number of important issues that are

not currently addressed by JPSEC. First, the condi-

tional access approach used by JPSEC is integrated

into the JPEG 2000 framework. This approach can-

not be easily used for many popular formats includ-

ing TIFF, BMP, GIF, PNG, and JPEG. This limitation

is particularly important since JPEG 2000 is not yet

widely supported by image editing and web brows-

ing applications. The lack of a backwards compati-

bility for JPSEC is a limiting factor for its usefulness.

Another important issue is that JPSEC does not pro-

vide an explicit means to authenticate the user. This is

problematic for securing highly conﬁdential data. If

an attacker is able to obtain the encryption keys, the

attacker gains full access to the secured image con-

tent. Obtaining encryption keys is often made eas-

ier by the fact that strong encryption keys are very

difﬁcult to remember and are often secured by weak

passwords that are easy to crack. Therefore, a secure

method is desired to ensure that the user accessing the

content is actually an authorized individual.

This paper introduces a backwards compatible,

multi-level ROI image encryption architecture using

biometric authentication. The proposed architecture

addresses the issues of backwards compatibility and

user authentication. These issues are not currently

addressed by JPSEC. In this paper, the theories under-

lying the proposed architecture are presented in Sec-

tion 2 along with a discussion of the issues associated

with backwards compatibility. An outline of the pro-

posed architecture is also provided in Section 2. Ex-

perimental results demonstrating the effectiveness of

the proposed architecture are presented in Section 3.

Finally, conclusions are drawn and future work is dis-

cussed in Section 4.

2 THEORY

Prior to outlining the proposed image encryption ar-

chitecture, it is important to introduce some of the the-

ory behind the key concepts of the architecture. First,

the basic concept of multi-level ROI encryption is pre-

sented along with a simple method of implementing

such a system. This serves as a building block for

the proposed architecture. The issues dealing with

backwards compatibility are described in detail and

practical solutions are provided to clarify how such

a system can be integrated into existing widely used

image formats while maintaining format compliance.

Finally, the concept of biometric authentication is ex-

plained in detail along with a method to integrate such

a technique into the system to ensure only authorized

individuals are given access to the image content.

2.1 Multi-level ROI Encryption

The goal of multi-level ROI encryption is to encrypt

an uncompressed raster image such that an image

viewer can view speciﬁed regions within the image

based on authentication. Multi-level ROI encryption

allows a single image to be used by several users for

different purposes. Upon creation, the levels of au-

thentication are speciﬁed and regions of interest are

assigned to each of the levels of authentication. Con-

sider the following example. Alice would like to post

a legal document in the form of a scanned document

image for Bob, Carol, and Donna to validate. Alice

wants Bob to check the legal validity of the terms in

the contract but does not want Bob to know the names

of the parties involved or the signatures of the par-

ties. Alice wants to give Carol a higher level of access

than Bob to view the terms of the contract as well as

record the names of the parties involved but does not

want Carol to see the signatures of the parties for pri-

vacy reasons. Finally, Donna is Alice’s manager and

so Alice would like to give Donna full access to the

scanned document image. Multi-level ROI encryp-

tion allows for this type of ﬂexibility by encrypting

the image such that the speciﬁed access rights may

be ensured. As such, Alice is able to e-mail the same

scanned document image to all three individuals with-

out the need to create three versions of the document.

Consider another important example. A company

that provides high-resolution satellite images would

like to post the maps on a public website. It is desir-

able for the general public to be able to view most of

the map with the exception of certain restricted gov-

ernment sites. However, for military use the restricted

government sites could be accessible to army ofﬁcers

with the appropriate security clearance level. Multi-

level ROI image encryption provides support for this

functionality.

For the purpose of the proposed algorithm for

multi-level ROI image encryption, the sender inputs

an image into the image encryption system along

with information about the ROI within the image that

needs to be encrypted and the level of authority re-

quired for each ROI. Typically, the user performs the

ROI selection process manually. However, in the

BACKWARDS COMPATIBLE, MULTI-LEVEL REGIONS-OF-INTEREST (ROI) IMAGE ENCRYPTION

ARCHITECTURE WITH BIOMETRIC AUTHENTICATION

325

case of standardized document images, systems have

been introduced that perform automatic ROI selec-

tion (Wong and Bishop, 2006). Such systems have

been shown to be effective at reducing human inter-

action during the encryption process. Automatic ROI

selection algorithms simplify the task of encrypting a

standard set of document images.

Using the speciﬁed ROI information, ROI that lie

within the same level of authority i are encrypted with

a cipher key CK

using a secure conventional stream

cipher such as RC4, SEAL (Rogaway and Copper-

smith, 1998), SCREAM (Halevi et al., 2002) or a

block cipher such as DES and AES on a bit-stream

level. Therefore, a different cipher key is needed

for each available level of authority. This encryption

scheme allows for different regions within an image

to be encrypted differently depending on the level of

authority required to view the region. An example of

how the encryption process works is shown in Fig-

ure 1.

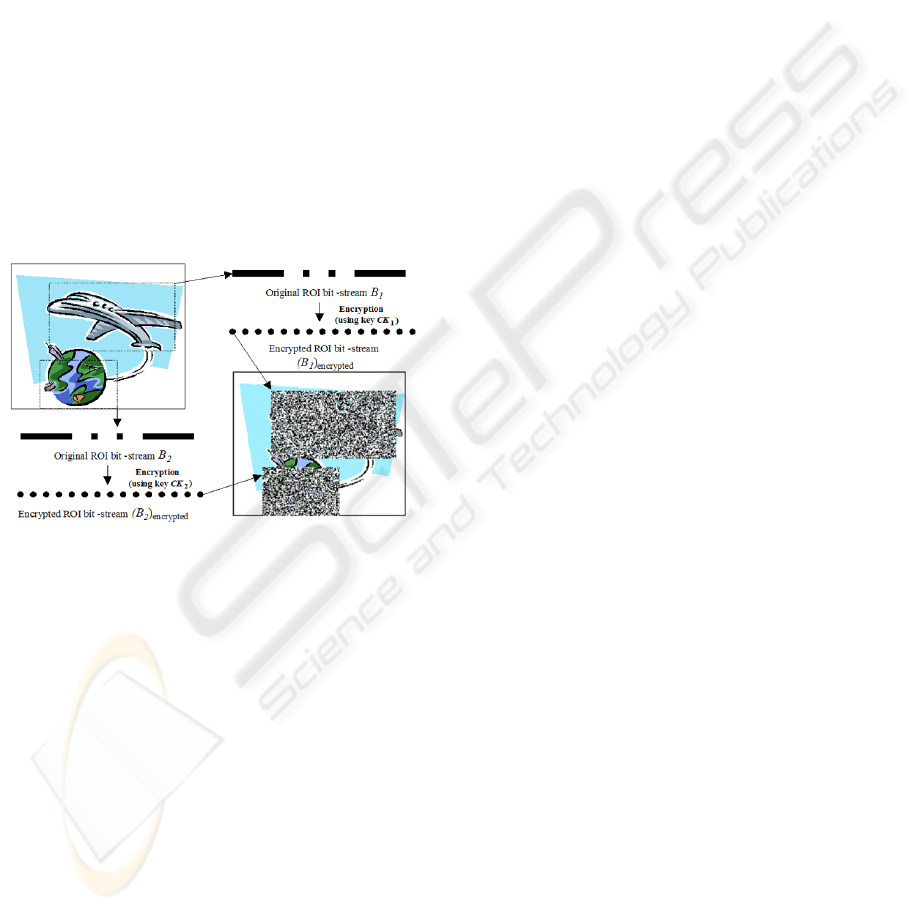

Figure 1: ROI Encryption Process.

If a strong encryption scheme is used with strong

cipher keys, the resulting image content in the ROI

should resemble random noise. A secure conven-

tional cipher was used as opposed to the pseudoran-

dom noise for a number of reasons. First, while the

pseudorandom noise approach used by JPSEC (Du-

faux et al., 2004) reduces the complexity of the pro-

tection process, it is not a secure method for protect-

ing highly conﬁdential data within an image. This is

particularly important for institutions such as govern-

ment agencies, where conﬁdentiality is a high prior-

ity. Therefore, the improved level of security gained

from using a conventional cipher outweighs the efﬁ-

ciency gained from using the simple pseudorandom

noise approach.

To improve the level of security achieved by this

method, a unique identiﬁer (UID) is combined with

each encryption key to form a ﬁnal encryption key

used for each level of authority. What this accom-

plishes is to ensure that, in the case where stream ci-

phers are used, different images are encrypted with

different key-streams even if they share a common en-

cryption key. Once the ROI of the image have been

encrypted, the ROI and level of authority information

are stored in the image. Finally the image can be sent

to its recipients who can then use the set of encryption

keys that they possess based on their level of authority

to access encrypted versions of the image.

2.2 Backwards Compatibility

The ultimate goal of this paper is to devise an archi-

tecture that allows multi-level ROI image encryption

to be used with any widely adopted, raster-based im-

age format. A number of issues need to be addressed

for the multi-level ROI image encryption algorithm

described in Section 2.1 to be integrated into exist-

ing widely used formats such as BMP, TIFF, PNG,

JPEG, and GIF while maintaining backwards compat-

ibility. The ﬁrst issue deals with public content. One

motivation for a backwards compatible, multi-level

ROI architecture is that there are situations where it

is desirable for the general public to be able to view

an encrypted image using any standard image viewer

or web browsing application, while only individuals

with special image decryption software and the ap-

propriate keys can view the encrypted regions of the

image that they are authorized to view.

One possible approach to addressing this issue

is through the use of a mixed raster content (MRC)

model. Using this approach, an image is segmented

into multiple layers: a public layer and an encrypted

layer for each level of authority. Only those with the

appropriate keys can retrieve image content from the

encrypted layers. An advantage to this approach is

that ROI and level of authority information does not

need to be explicitly stored as it is implicitly deﬁned

by the layering of the image. However, the main dis-

advantage to this approach is that most widely used

image formats, besides TIFF, do not provide support

for layers. Furthermore, segmenting and storing the

image as individual layers adds complexity to the

problem. Therefore, to allow the architecture to be

used by the widest range of popular image formats, a

simple approach of storing public and encrypted im-

age content in a single layer is used.

Another issue that needs to be addressed is the

storage of additional encryption-related information

such as ROI and level of authority information as

well as the UID. This can be easily accomplished

in formats such as TIFF and JPEG due to the fact

that both formats support the storage of custom meta-

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

326

data within the image ﬁle. Therefore, the encryption-

related information can be arranged into a data frame

and stored directly in the meta-data area of the im-

age. However, many widely used image formats do

not provide a standard for embedding custom meta-

data. These include BMP, GIF, and PNG. Therefore,

an alternative approach must be devised to store the

encryption-related information without affecting for-

mat compliance for the algorithm to support such im-

age formats. To remedy this problem, encryption-

related information is encoded and then hidden within

the image content data itself using digital image wa-

termarking techniques.

The actual encoding scheme for the encryption-

related information depends on a number of factors,

such as the acceptable shapes of the ROI and the num-

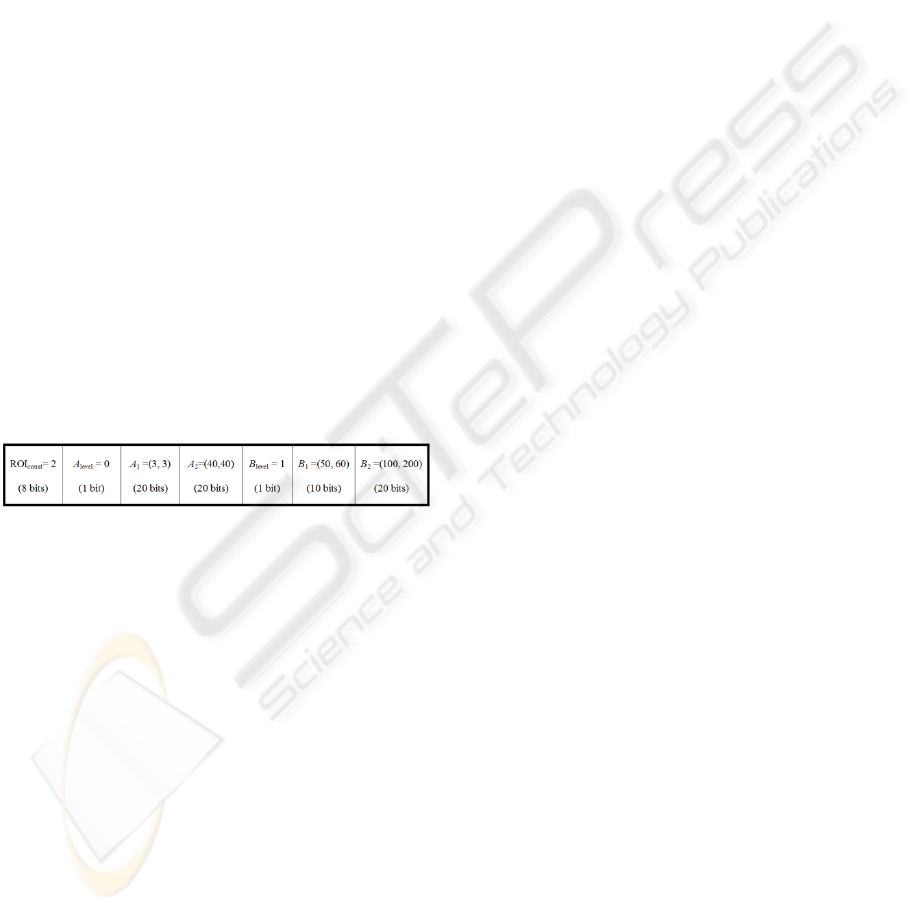

ber of levels of authority supported. A sample frame

for a 1024×1024 image with 2 regions of interests (A

and B) and 2 levels of authority (0 and 1) is shown

in Figure 2. One side beneﬁt of storing the encoded

encryption-related information directly into the im-

age using watermarking techniques is that no addi-

tional storage space is required to hold the informa-

tion. The watermarking technique is performed af-

ter image compression if a lossy image compression

scheme is used in the image format. This ensures that

the encoded encryption-related information is not lost

due to lossy image compression.

Figure 2: Sample ROI Information Frame.

2.3 Biometric Authentication

A major issue that needs to be addressed is the need

for user authentication. This issue is not addressed in

JPSEC and related works on image encryption. How-

ever, it is very important to ensure that the person

viewing the secure content is in fact the person who

is authorized to view the information. A traditional

method for authenticating a user is through the use

of passwords. To access the desired content, the user

sends a password to an authentication server. If the

password used is correct, the server sends a strong

encryption key back to the user which can then be

used to decrypt the data. However, this is not very se-

cure since passwords are often short and chosen such

that they are easy to remember. An attacker can eas-

ily determine passwords using a combination of brute

force methods, guesses, or phishing attacks that en-

tice users to reveal passwords. A more effective so-

lution to providing user authentication is through the

use of biometric authentication. In biometric authen-

tication, biological characteristics that are unique to

the user are used for authentication. These biological

characteristics include ﬁngerprints, iris patterns, and

speech. Unlike methods using passwords, biometric

information is a unique characteristic of an individ-

ual and therefore less susceptible to physical theft if

the biometric system is properly implemented. There

are numerous different biometric recognition methods

available depending on the type of biometric data is

used. A survey on biometric techniques can be found

in (Delac and Grgic, 2004). For the purpose of this

research, the focus is on presenting a method for in-

tegrating biometric user authentication into the pro-

posed multi-level ROI image encryption architecture.

The basic concept of the proposed biometric ap-

proach is similar to that described for password-based

authentication. However, rather than sending a pass-

word, biometric data pertaining to the user is used to

construct a unique biometric key and the biometric

key is sent instead. Furthermore, two individuals with

the same level of authority must be able to view the

same content. Therefore, a way to allow more than

one person to the same content is needed.

Recall the example involving Alice, Bob, Carol,

and Donna from Section 2.1. This example can be

extended to integrate biometric authentication. To do

so, we introduce an authentication server (denoted as

AS) that also acts as a key management server. As

such, the AS possesses a database of biometric tem-

plates that include those of the participating parties.

When Alice wishes to protect the legal document, she

makes a request to the AS for a set of encryption keys

(one for each level of authority) and a UID. Alice also

sends the AS information regarding the level of au-

thority each of the participating parties have for the

image. The AS sends Alice the requested information

through a secure channel and stores a record of the

UID, the set of generated encryption keys, the level

of authority each key is associated with, and the level

of authority of each individual. Alice then encrypts

the image using the proposed multi-level ROI encryp-

tion techniques. The encrypted image is sent to Bob,

Carol, and Donna. When Bob views the image, he

sends his username, the biometric key constructed us-

ing his biometric information, and the UID of the im-

age to the AS through a secure channel. The AS then

takes the biometric key and matches it with the bio-

metric template associated with Bob. If the biometric

key matches that of the biometric template, the AS re-

trieves the set of encryption keys associated with the

level of authority assigned to Bob by Alice and sends

them to Bob. Bob can then use the set of encryption

BACKWARDS COMPATIBLE, MULTI-LEVEL REGIONS-OF-INTEREST (ROI) IMAGE ENCRYPTION

ARCHITECTURE WITH BIOMETRIC AUTHENTICATION

327

keys to decrypt the portions of the image that he is

authorized to view. When Donna wishes to view the

content she is authorized to see, she undergoes the

same process that Bob goes through. However, since

Donna is at the highest level of authority, she receives

the entire set of encryption keys for all levels of au-

thority. This approach allows the encryption keys to

be bound to the level of authority and not the indi-

viduals. Furthermore this approach ensures that the

individuals accessing the information are veriﬁed us-

ing biometric user authentication. The above example

(showing only Alice, Bob, and Carol) is illustrated in

Figure 3.

Figure 3: Example image encryption and authentication

ﬂow.

3 EXPERIMENTAL RESULTS

For testing purposes, the proposed architecture was

implemented as a document management system us-

ing the RC4 stream cipher with 128-bit keys and

the TIFF format with the lossless PackBits compres-

sion scheme. Since the TIFF format was used, the

encryption-related information was stored as meta-

data. The biometric authentication system used for

the test system was a simple ﬁngerprint-matching

system using normalized correlation. Since any ci-

pher and biometric matching algorithm can be used

in the proposed framework, RC4 and the ﬁngerprint-

matching algorithm were chosen for testing purposes

due to their simplicity. For scenarios that require a

higher level of security, a block cipher such as AES

and more advanced biometric authentication tech-

niques can be used. This test system was designed

primarily to demonstrate the effectiveness of the pro-

posed image encryption architecture. The test set

consists of different document images from the Uni-

versity of Waterloo Registrar’s Ofﬁce, with multi-

ple ROIs selected for each document image and en-

crypted at three levels of authority. Four sample en-

crypted document images are illustrated in Figure 4.

These images were obtained using the proposed ar-

chitecture. It can be seen that the proposed system is

effective at maintaining image legibility while provid-

ing conditional content access at multiple levels.

Figure 4: Sample Encrypted Document Images from a 3-

level ROI encryption scheme; Top-left: Image encrypted

for public viewing; Top-right: Im age viewed with level-

1 access; Bottom-left: Image viewed with level-2 access;

Bottom-right: Image viewed with level-3 access.

4 CONCLUSION

This paper proposes a novel architecture for multi-

level ROI image encryption using biometric authenti-

cation. The proposed algorithm is highly efﬁcient and

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

328

ﬂexible, and can be used with existing widely used

image formats. Furthermore, the use of biometric au-

thentication ensures that only authorized individuals

have access to secure image data. It is our belief that

this method can be successfully implemented in dig-

ital image archival and distribution infrastructures to

provide ﬂexible image information security. Future

work includes the application of the proposed algo-

rithm for multi-level ROI video encryption.

ACKNOWLEDGEMENTS

This research has been sponsored in part by Epson

Canada and the Natural Sciences and Engineering Re-

search Council of Canada.

REFERENCES

Chen, R., Lai, J., and Lu, W. (2005). Image encryption

using progressive cellular automata substitution and

SCAN. In Proceedings of the International Sympo-

sium on Circuits and Systems, volume 2, pages 1690–

1693.

Dang, P. and Chau, P. (2000). Image encryption for secure

internet multimedia applications. IEEE Transactions

on Consumer Electronics, 46(3):295–403.

Delac, K. and Grgic, M. (2004). A survey of biometric

recognition methods. In Proceedings of the 46th Inter-

national Symposium on Electronics in Marine, pages

184–193.

Dufaux, F. and Ebrahimi, T. (2004). Video surveillance

using JPEG 2000. In Proceedings of SPIE: Appli-

cations of Digital Image Processing XXVII, volume

5558, pages 268–275.

Dufaux, F., Wee, S., Apostolopoulos, J., and Ebrahimi, T.

(2004). JPSEC for secure imaging in JPEG 2000. In

Proceedings of SPIE: Applications of Digital Image

Processing XXVII, volume 5558, pages 319–330.

Halevi, S., Coppersmith, D., and Jutla, C. (2002). Scream:

a software-efﬁcient stream cipher. Technical Re-

port 2002/019, Cryptology ePrint Archive. http:

//eprint.iacr.org/2002/019.

Hou, Q. and Wang, Y. (2003). Security trafﬁc transmis-

sion based on EZW and AES. In Proceedings of IEEE

Intelligent Transportation Systems, volume 1, pages

86–89.

Li, C., Li, S., Zhang, D., and Chen, G. (2004a). Crypt-

analysis of a chaotic neural network based multime-

dia encryption scheme. In Proceedings of Advances

in Multimedia Information Processing (PCM 2004),

volume 3, pages 418–425.

Li, S., Li, C., Chen, G., and Mou, X. (2004b). Cryptanalysis

of the RCES/RSES image encryption scheme. Tech-

nical Report 2004/376, Cryptology ePrint Archive.

http://eprint.iacr.org/2004/376.

Li, S. and Zheng, X. (2002a). Cryptanalysis of a chaotic im-

age encryption method. In Proceedings of the Inter-

national Symposium on Circuits and Systems, pages

708–711.

Li, S. and Zheng, X. (2002b). On the security of an im-

age encryption method. In Proceedings of the Inter-

national Conference on Image Processing, pages 925–

928.

Rogaway, P. and Coppersmith, D. (1998). A software op-

timized encryption algorithm. Journal of Cryptology,

11(4):273–287.

Salleh, M., Ibrahim, S., and Isnin, I. (2003). Enhanced

chaotic image encryption algorithm based on Baker’s

map. In Proceedings of the International Symposium

on Circuits and Systems, volume 2, pages 508–511.

Seo, Y., Kim, D., Yoo, J., Suijit, D., and Agrawal, A. (2003).

Wavelet domain imag e encryption by subband selec-

tion and data bit selection. In Proceedings of the

World Wide Congress (3G Wireless).

Wong, A. and Bishop, W. (2006). Expert knowledge

based automatic regions-of-interest (ROI) selection in

scanned documents for digital image encryption. In

Proceedings of the Third Canadian Conference on

Computer and Robot Vision, page 51.

Zhang, H., Feng, W., Hui, L., Hai, L., and Chou, L. (2003).

A new image encryption algorithm based on chaos

system. In Proceedings of Robotics, Intelligent Sys-

tems and Signal Processing, volume C16, pages 1–8.

Ziedan, I., Fouad, M., and Salem, D. (2003). Application

of data encryption standard to bitmap and JPEG im-

ages. In Proceedings of the Twentieth National Radio

Science Conference, volume C16, pages 1–8.

BACKWARDS COMPATIBLE, MULTI-LEVEL REGIONS-OF-INTEREST (ROI) IMAGE ENCRYPTION

ARCHITECTURE WITH BIOMETRIC AUTHENTICATION

329
