A ROBUST NON-LINEAR FACE DETECTOR

Antonio Rama, Francesc Tarrés

Dept. Teoria del Senyal i Comunicacions, Universitat Politècnica de Catalunya (UPC), Barcelona, Spain

Jacek Naruniec

Faculty of Electronics and Information Technology, Warsaw University of Technology (IPW), Warsaw, Poland

Keywords: Face detection, fuzzy integral, adaboost.

Abstract: A novel face detector using the non-linear Fuzzy

Integral operator is presented in this paper. The main

advantage of this method is that it has a much lower false detection rate with the same optimal set of

features as the state-of-the art Adaboost face detector. Furthermore, this novel face detector seems to have a

better generalization capability than the Adaboost method. Preliminary results show a positive face

detection rate higher than the 92% having a false detection rate lower than the 2% when using a four stage

cascade scheme.

1 INTRODUCTION

Face detection is a fundamental first-step in many

applications based on face processing, such as face

recognition, video coding, and intelligent human-

computer interfaces. The goal of this step consists in

detecting and localizing an unknown number of

faces in an image. Since human faces are rigid and

have high variability in size, shape, color, and

texture, face detection is still a difficult problem.

The proposed techniques can be broadly classified

into two main categories:

 Kno

wledge-based methods. These algorithms

express the a priori information of the face in

terms of rules. Typically, these rules are based

on the relationships between the facial features

(Yang, 1994) (Yang, 2002).

 A

ppearance-based methods. On the other hand,

this second group tries not to assume any prior

knowledge about the appearance of the face but

rather to extract some important features

directly from a representative training set of

faces. In other words, appearance-based

techniques incorporate the a priori information

of the face implicitly into the system through

training schemes (

Rowley, 1998), (Turk, 1991).

This category includes the state-of-the-art

AdaBoost face detector (Viola, 2001).

For a comprehensive review of face detection

ethods, the reader is referred to (Yang, 2002),

(Hjelmas 2001).

Face detection approaches should have two

portant properties: high performance and low

computational cost in the recognition stage. Usually,

face detection is the previous stage in a complete

face recognition system. Thus, the face should be

well localized, for a latter normalization step, and it

should also require a low percentage of the

processing time of the system since the recognition

stage demands usually a higher computational

burden, especially for huge databases. Adaboost face

detector fulfills the previous two requirements (fast

and robust); therefore it has been quite accepted for

real-time applications, like a control access point or

an intelligent cash machine.

In this paper we present a novel face detector

base

d on the non-linear Fuzzy Integral operator.

This technique, as preliminary results stated, could

be a good alternative to the Adaboost method.

The rest of the paper is organized as follows. In

sect

ion 2 and 3, the fundamentals of the Adaboost

method and the Fuzzy Integral operator are

reviewed. Section 4 describes the proposed Fuzzy

Integral face detector, whereas section 5 describes

the experiments performed so far and some

preliminary results. Finally, section 6 contains the

conclusions together with the future research.

421

Rama A., Tarrés F. and Naruniec J. (2007).

A ROBUST NON-LINEAR FACE DETECTOR.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 411-416

DOI: 10.5220/0002137704110416

 SciTePress

Face

feature

Decision

δ(O)

Sub-window

of the image

(24x24)

Compute

Feature

Figure 2: Adaboost cascade scheme.

Stage 1 Stage 2 Stage N

Face

STRONG

CLASSIFIER

Objects Rejected

(No face)

Figure 1: Adaboost weak classifier.

2 ADABOOST: A QUICK REVIEW

Object detection using AdaBoost classifier was

introduced by Viola and Jones (Viola, 2001). Their

face detection approach has shown how local

contrast features found in specific positions of the

object can be combined to create a strong face

detector. The main idea is that each feature (different

Haar filters at different positions of an image sub-

window) will be evaluated by a weak classifier in

order to decide if the sub-window corresponds to a

face (accept) or not (reject) as shown in Figure 1.

If the feature is above a certain threshold θ then the

sub-window will be classified as a face. Separately,

each weak classifier achieves a low performance but

when combining some of them into a strong

classifier the detection rate grows exponentially as

depicted in the dashed rectangle of Figure .

Non-Linear

Fuzzy

Integral

Face

Detector

Data Set

n features

(Haar Filters)

∫

⋅=

dfY

Nevertheless, although the detection rates of

a strong classifier can reach more than the 99%,

achieving very low false detection rate, computation

time of a very large set of features is very long. For

this reason, Viola and Jones proposed a cascade

scheme of strong classifiers like the one presented in

Figure . Each stage corresponds to a strong classifier

and is trained with all the examples that the previous

stage has misclassified plus some new ones. This

leads to an optimal selection of features in each

cascade which are able to detect always harder

examples. In other words, the first stages can discard

sub-windows which are very different from faces,

whereas the latter stages could reject more difficult

examples like balloons, soccer balls, etc… For more

details about the Adaboost face detection approach,

the reader is addressed to the original paper (Viola,

2001).

3 FUZZY INTEGRAL BASICS

The theory of Fuzzy Measures is based on the work

of Sugeno (Sugeno, 1974). The introduction of fuzzy

sets (Zadeh, 1965) encouraged the redefinition of set

measures. Sugeno achieved this

definition by introducing so-called fuzzy measures,

with respect to which fuzzy Integral can be defined.

Thus, fuzzy measures generalize classical measures,

i.e. probability measures. Here only a brief overview

of how fuzzy integral can be used for classification

problems is presented and the reader is addressed to

(Aureli, 2004) for more precise details. The main

idea is to use a fuzzy integral classifier with an

extended set of Haar features for face detection. The

fuzzy integral (Aureli, 2004) is a non-linear operator

that can be used as a classifier. Fuzzy Integrals are

generalizations of integral operators that include

non-linear operations on the data set. In the context

of classification, the most frequently used fuzzy

integrals are the Choquet integral and the Sugeno

integral. We propose to use a Choquet integral for

the data fusion process. The main ideas and the

process of computing the Choquet integral are given

hereafter:

Consider we have a vector of feature attributes

{

}

xxxX ,...,,

where x

may represent a pixel,

an audio sample or (as in our case) a haar feature at

a given position of the sub-window. Given this set of

features we collect a number of M samples for the

training stage. The attributes of the features at each

sample are represented by a vector:

(1)

Mapping from n features to real axis

threshold

NO FACE FACE

Figure 3: Fuzzy Integral face detector.

{

}

),...,,(),...,,(),...,(),(),(

32131321

xxxxxxxx

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

422

The Choquet integral consist in a two stage process:

Rearrangement of the feature values vector in

non decreasing order, such that

(2)

where is a certain permutation of

. And f(x

)',...,','(

21 n

xxx

),...,,(

21 n

xxx

’) can be any nonnegative

function on X.

The Choquet integral is then obtained by

computing:

(3)

The training of the classifier consists in selecting

the optimal fuzzy measures on the objective of

minimizing the misclassification rate. There are a

number of alternatives for estimating the fuzzy

measures but most of them are based on soft-

computing strategies. In this work, we are following

an approach based on neural networks for estimating

the set of fuzzy measures.

One of the interesting peculiarities of the Fuzzy

Integral as a classifier is that once the fuzzy

measures have been determined, the classification is

computationally very efficient. As depicted in

Figure the fuzzy integral maps the input set of

features to a unique scalar (real axis). Then

depending on a threshold, this mapped value is

classified as face (Class i) or no face (Class j).

Good performance of this method comes from

the use of the fuzzy measure and the relevant

nonlinear integral, since the nonadditivity of the

fuzzy measure reflects the importance of the feature

attributes, as well as their inherent interaction,

toward the discrimination of the points. In fact, each

feature attribute has a respective important index

reflecting its amount of contribution in the final

decision. Furthermore, the global contribution of

several feature attributes to the final classification is

not just the simple sum of the contribution of each

feature, but may vary nonlinearly. A combination of

the feature attributes may have a mutually

restraining or a complementary synergy effect on

their contributions toward the final decision. In fact,

this aspect of features being mutually restraining is

the explanation of why the fuzzy integral face

detector could reject the negative examples faster

than the state-of-the art Adaboost approach.

In the next section the proposed face detector

based on the Fuzzy Integral will be explained.

4 FACE DETECTOR BASED ON

THE FUZZY INTEGRAL

4.1 Feature Selection

In this paper we propose a novel face detector based

on a cascade of Fuzzy Integral classifiers as depicted

Figure . One of the main drawbacks when using

the fuzzy integral is that the number of

computational operations grows exponentially with

the number of features used to train the system.

Thus, it will be impractical to train the system like in

(Viola, 2001) (Lienhart, 2002) considering all

possible positions of each Haar feature in each

image sub-window, i.e. 117,941 features for a 24x24

sub-window if we use the feature set depicted in

Figure (Lienhart, 2002). Thus, a Fuzzy Integral face

detector is proposed which uses the optimal subset

of features computed by the Adaboost approach. For

that, we have selected the following configuration of

the Adaboost approach after some exhaustive probes

(Braup, 2006):

 11 stages of strong classifiers.

 3325 face positive examples (the same set for

all stages) + 4500 negative examples in each

stage.

 All set of features presented in

Figure .

 Minimum face detection rate at each stage of

99.5%.

 Maximum false detection rate at each stage of

30%.

Using this optimal configuration we train the system

and get the optimal subset of features for each stage.

For example, the first strong classifier (first stage) of

the Adaboost detector includes only 6 features:

Haar-Y2 at 3 different positions, Haar-X4 at 2

positions, and Haar-Y4 at one position. The same 6

features will be used to train the first stage fuzzy

integral classifier of the cascade scheme presented in

Figure .

Stage 1

Feature

Set 1

Face

Objects Rejected

(No face)

Fuzzy

Integral

Stage 2

Fuzzy

Integral

Feature

Set 2

Stage N

Fuzzy

Integral

Feature

Set N

Figure 4: Fuzzy Integral Cascade Face detector.

'(f)'()'(

21 n

xxfxf

≤

⋅⋅≤≤

⋅

)

[]

{}()

∫

∑

+−

⋅−=⋅

niiii

xxxxfxfdf

',...,',')'()'(

μμ

A ROBUST NON-LINEAR FACE DETECTOR

423

Edge Features

Line

Features

Center Surround

Features

HaarX2

HaarX3

HaarX4

Tilted HaarX2

HaarY2

Tilted HaarY2

Tilted Point

Tilted

HaarX3

Tilted

HaarX4

Tilted

HaarY3

Tilted

HaarY4

HaarY3

HaarY4

Point

Figure 5: Feature Set used for training Adaboost.

4.2 Training Stage of the Fuzzy

Integral Face Detector

In (Aureli, 2004) and (Sugeno, 1974) genetic

algorithms have been proposed to train the system.

In our case, we use a learning algorithm based on the

following control equation:

(5)

where

)'(xf

are the feature values normalized by the

power of the features. This normalization function is

necessary to scale and balance the magnitudes of

diverse feature attributes such that an optimal match

of the feature attributes in the Choquet Integral

toward the classification can be found. These feature

values are then rearranged in non-decreasing order

as mentioned in Eq. 3, σ is the adaptive step size and

error is a parameter that can take the values -1, 0 or

1 depending on the decision of the classifier (0

means that the sample has been correctly classified).

And finally

)'(xfΔ

is the difference between all the

attributes involved in the fuzzy measure we are

updating.

5 EXPERIMENTS AND RESULTS

5.1 Face Database

All experiments have been carried out on a database

which is composed of 4000 face images which has

been previously normalized to a 24x24 pixel

resolution (see

Figure ). For the negative examples

more than 2000 images of different resolutions that

don’t contain any face have been downloaded from

the World Wide Web. Dividing these 2000 images

in 24x24 sub-windows leads to a total of more than

Figure 6: Positive examples of faces.

. The half of the positive examples and only 50000

of the 2M negative examples have been used to train

a 4-stage Fuzzy Integral Face Detector. The rest of

samples have been used as test samples.

5.2 Face Detection Results: 4-Stage

Classifier

A 4-stage fuzzy integral face detector has been

implemented. The 4 stages will use 6, 9, 11 and 21

different Haar features respectively. The positive

face detection rate is above the 92% but the most

impressive thing is that more than 99 % of the non-

faces have also been correctly discarded. The first

stage of the fuzzy integral cascade face detector

alone rejects more than the 95% of non-faces sub-

windows. Figure 8 and Figure 7 represents an

extreme example of this concept.

Figure 8 represents the outputs of a one-, two-,

three-, and four-stages Adaboost cascade scheme,

whereas Figure represents a one-, two-, three-, and

four-stages Fuzzy Integral cascade scheme. For a

more fair comparison between both techniques, no

post-processing step for eliminating overlapped

windows has been used.

Results show that our method (Figure 7) detects

all faces and discard almost all negatives sub-

windows (only 7 positive negatives and 6

correspond to complete overlapped windows). On

the other hand, the Adaboost classifier detects also

all faces (one is not totally detected) but still more

than 25 non-faces are accepted (only half of them

are partially overlapped).

The fuzzy integral face detector shows a better

trade-off between detection rate and false detections.

This is especially remarkable in the first stages (top

pictures of Figures 7 and 8), where the Fuzzy

Integral face detector rejects more than the half of

false detections of the Adaboost approach.

Furthermore, continuing with this example, if more

stages are performed in the Adaboost classifier, the

(error ⋅⋅+

))'(())'((

xfxfxf

Δ=

μμ

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

424

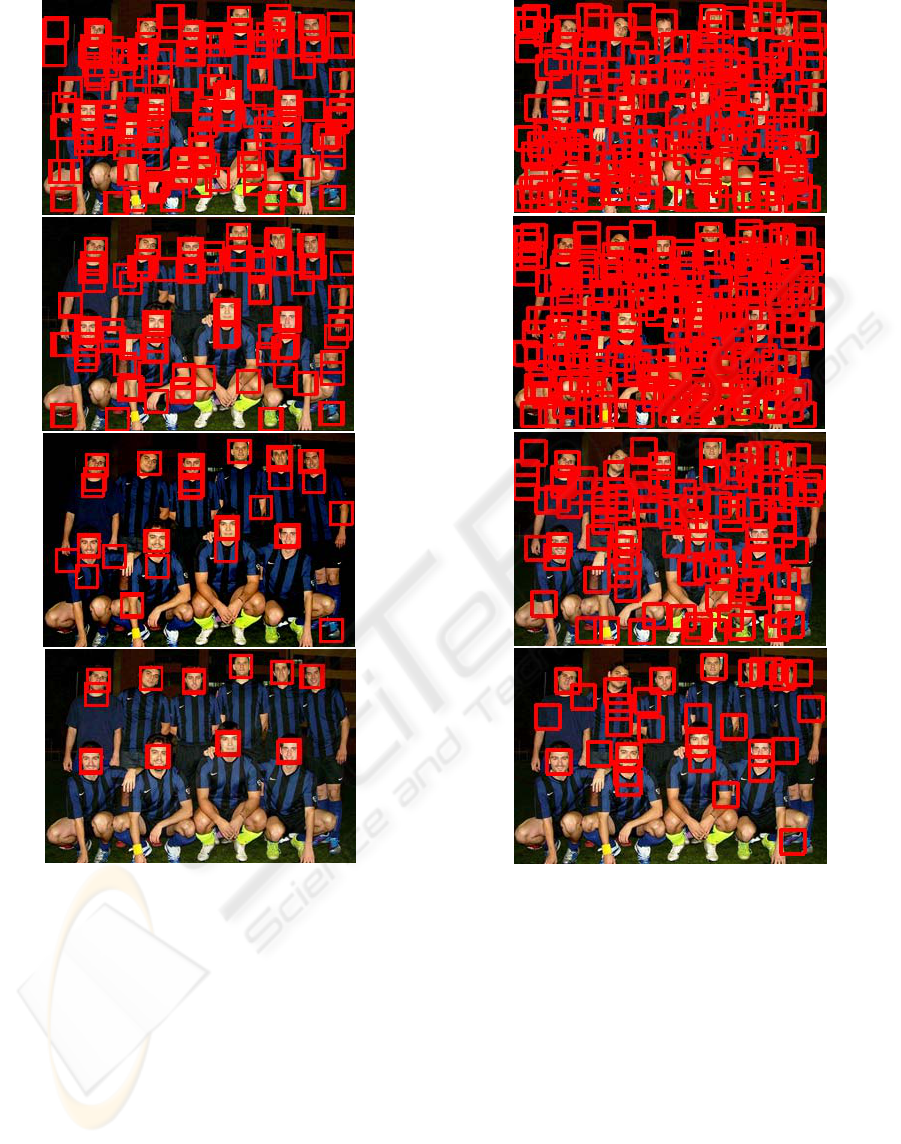

Figure 7: Fuzzy Integral Results. (From Top to Bottom are

the outputs of the 1

, 2

, 3

and 4

stage Fuzzy Integral

face detector cascade scheme.).

best results are obtained for a 7-stages face detector

which rejects all non-faces but only detects 8 of the

10 faces of the image as illustrated in Figure . These

results are worse than the ones obtained for our 4-

stages Fuzzy Integral Face Detector. Nevertheless, it

should also be commented that if more stages of the

Fuzzy Integral Face Detector are implemented, the

two non-detected faces of Figure will be also

misclassified.

Figure 8: Adaboost Results. (From Top to Bottom are the

outputs of the 1

, 2

, 3

and 4

stage Adaboost cascade

scheme).

6 CONCLUSIONS AND FUTURE

WORK

In this paper a novel face detector approach based on

the non-linear Fuzzy Integral operator has been

presented. Preliminary results show a better trade-off

between positive detection and negatives detection

than state-of-the art Adaboost technique.

Nevertheless, the face detection rate is similar on

A ROBUST NON-LINEAR FACE DETECTOR

425

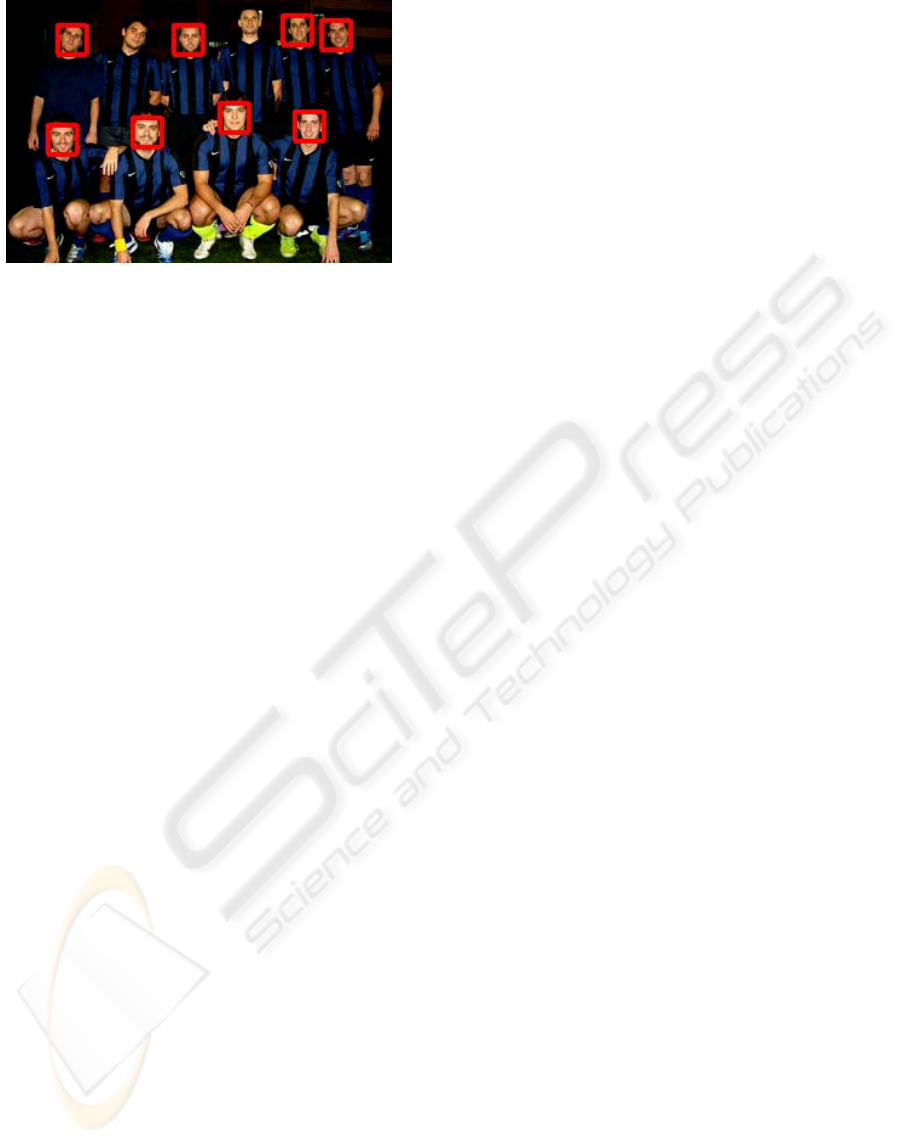

Figure 9: Best Results for Adaboost Face Detector (7

stages)

both approaches, so a more extended analysis of the

results should be done in order to determine under

which conditions or constraints one approach is

better than the other. This could lead to some hybrid

approach where both classifiers could be fused at

different levels (first stages using Fuzzy Integral,

and the latter ones Adaboost, or combining the

opinions of both classifiers).

Special attention should also be focused to the

training stage. One main drawback of the Fuzzy

Integral is that its computational cost during the

training stage grows up exponentially with the

number of features. Hence, it would not be possible

to train the system for all Haar-features in all

positions of the sub-window like explained in

Section 4.1. On the other hand, once the features

have been selected, the Fuzzy Integral face detector

needs fewer positive and negative samples than the

Adaboost approach. This could be foreseen as a

better generalization capability of the Fuzzy Integral

face detector.

Another important topic that should be also

analyzed is the values of the fuzzy measures. These

measures aim to evaluate the relative importance of

each feature in the final classification. So it would

be possible to reduce the set of features to an

optimal smaller subset by analyzing the fuzzy

measures. This would lead to a substantially

improvement of the computational cost required in

the detection stage since only the important ones

will be considered.

Finally, a complete study, of the computational

cost of each approach should be reported. In this

paper, no results of this aspect have been presented

since both techniques have been implemented under

different frameworks with different programming

languages.

Summarizing, the proposed novel technique not

only shows very promising results but also opens

some new issues that could be exploded in order to

get even better results.

ACKNOWLEDGEMENTS

The work presented was developed within VISNET

II, a European Network of Excellence funded under

the European Commission IST FP6 programme.

REFERENCES

Yang, G., and Huang, T. S., 1994. “Human Face

Detection in Complex Background” in Pattern

Recognition, vol. 27, no. 1, pp. 53-63.

Yang, M.-H., Kriegman, D. and Ahuja, N., 2002.

“Detecting Faces in images: a Survey”, in IEEE

Transactions on Pattern Analysis and Machine

Intelligence 24, nº1, pp.34-58.

Rowley, H. A., Baluja, H. A., and Kanade, T., 1998.

“Neural network-based face detection”, in IEEE

Transactions Pattern Analysis and Machine

Intelligence 20, 23–38.

Turk, M. A., Pentland, A. P., 1991. “Face recognition

using eigenfaces”, in Proceedings of the IEEE

Computer Society Conf. on Computer Vision and

Pattern Recognition, pp. 586-591, Maui, Hawaii.

Viola P., Jones M., 2001. “Rapid Object Detection using a

Boosted Cascade of Simple Features, in Computer

Vision and Pattern Recognition.

Hjelmas, E., and Low, B. K., 2001. “Face Detection: A

Survey”, in Computer Vision and Image

Understanding, vol. 83, no. 3, pp. 236-274.

Sugeno, M., 1974. “The Theory of Fuzzy Integrals and Its

Applications”, PhD thesis, Tokyo Institute of

Technology, Japan.

Zadeh, L. A., 1965. „ Fuzzy sets“, Information Control,

pp. 338–353.

Aureli Soria-Frisch, 2004. “Soft Data Fusion in Computer

Vision”, PdD thesis, Fraunhofer Institut fuer

Produktionsanlagen und Konstruktionstechnik, Berlin,

Germany.

Lienhart, R., and Maydt, J., 2002. “An Extended Set of

Haar-like Features for Rapid Object Detection”. in

IEEE International Conference on Image Processing

2002, Vol. 1, pp. 900-903, Sep. 2002.

Braup, J. M., Tarres, F., 2006. “Anàlisi de vídeo per la

detecció automàtica de cares”. Master Thesis in

Catalan at the Technical University of Catalonia –

Escola Politècnica Superior de Castelldefels.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

426
