HYBRID RAY TRACING

Ray Tracing Using GPU-Accelerated Image-Space Methods

Philippe C. D. Robert, Severin Schoepke and Hanspeter Bieri

Institute of Computer Science and Applied Mathematics, University of Bern

Neubr

uckstrasse 10, 3012 Bern, Switzerland

Keywords:

Hybrid Ray Tracing, Object Intersection Buffer, Image-Space Rendering Techniques.

Abstract:

In recent years, interactive ray tracing has become a reality, although mainly by using clustered workstations

and sophisticated acceleration structures. On non-clustered computer architectures this is still not an easy

task, especially when rendering animated scenes, even though the computation power of modern worksta-

tions is increasing rapidly. In this paper we propose known image-space rendering techniques to be used

for accelerating ray tracing. Firstly, we describe a GPU-based visibility preprocessing algorithm to perform

interactive ray casting by applying the standard depth testing capability of graphics processing units. This

method – called object intersection buffer (OIB) – is particularly suitable for ray casting animated scenes, as it

completely avoids the necessity of creating and updating any kind of spatial acceleration structures in order to

achieve high frame rates. Then we integrate shadow rendering into our ray caster using the shadow mapping

technique to avoid computationally expensive shadow rays. Then, we convert our GPU-based ray caster into

a hybrid ray tracer by computing reﬂection and refraction rays on the CPU using a spatial acceleration struc-

ture. This allows us to exploit parallel rendering to increase the overall frame rate. Finally, we compare our

implementations to each other and analyse their advantages and disadvantages in terms of visual quality and

rendering performance.

1 INTRODUCTION

Image-space rendering techniques have been used to

accelerate ray tracing since the late 1980s. At that

time graphics hardware was not yet as powerful as

today, so there was no advantage in using hardware

accelerated methods to speed up ray tracing. In the

last few years this has changed substantially and our

paper intends to exploit some of these new possibili-

ties. We propose the object intersection buffer (OIB)

technique as a means to accelerate the ﬁrst hit compu-

tations based on common screen-space visibility pro-

cessing methods using capabilities of programmable

graphics processing units (GPU) .

In a ﬁrst application we utilise the OIB to perform

interactive ray casting, thereby eliminating the neces-

sity of creating and updating any kind of spatial accel-

eration structures in order to achieve high frame rates.

This is particularly useful for rendering animated or

dynamic scenes. We then compare this approach with

an implementation which is based on traditional ray-

object intersection testing. In addition, we describe

ways to further speed up the rendering performance

using interleaved sampling and colour interpolation

techniques. Moreover, we integrate shadow rendering

into our ray caster and avoid common shadow feel-

ers by using the shadow mapping technique, instead.

As it has become feasible to perform general-purpose

computations on programmable graphics hardware,

we also describe an implementation of our ray caster

that runs completely on the GPU. This makes it possi-

ble to use the processing power of the host computer

for other purposes, such as advanced shading or non-

rendering related tasks. In a second application we

apply the OIB to increase the performance of stan-

dard ray tracing using a hybrid rendering pipeline.

Whereas we compute the primary rays on the GPU

using an OIB we compute secondary rays on the host

processor. Even though this requires a spatial accel-

eration structure we are able to increase the render-

ing performance by sharing the load between the CPU

and the GPU using a parallel execution mode.

1.1 Related Work

The idea of using screen-space coherence to acceler-

ate ray tracing came up in the late 1980s. Weghorst,

Hooper and Greenberg introduced a method based on

305

C. D. Robert P., Schoepke S. and Bieri H. (2007).

HYBRID RAY TRACING - Ray Tracing Using GPU-Accelerated Image-Space Methods.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - GM/R, pages 305-311

DOI: 10.5220/0002081603050311

 SciTePress

item buffers to reduce the total number of intersection

tests for primary rays (Weghorst et al., 1984). Item

buffers simply store the indices which reference those

objects within the scene which are visible at the given

location in the image plane. As a consequence, a triv-

ial lookup operation can be used to determine the vis-

ible object for a speciﬁc pixel, hence no acceleration

structure is needed to produce high frame rates. This

approach is the basis of many contributions, including

ours (Salesin and Stolﬁ, 1989; Lamparter et al., 1990;

Kim et al., 2000).

With the advent of programmable graphics hard-

ware it has become feasible to ofﬂoad arbitrary com-

putational tasks to the GPU using a stream processing

model (Bolz et al., 2003; Buck et al., 2004; Fatahalian

et al., 2004; Owens et al., 2005; Lefohn et al., 2006).

In (Carr et al., 2002) the authors were able to im-

plement a ﬁxed-point ray-triangle intersection testing

engine on an ATI R200. Around the same time Pur-

cell et al. (Purcell et al., 2002) developed a complete

ray tracing pipeline on a GPU simulator. Since then

others have implemented classical ray tracers on the

GPU using the extended feature set of modern GPUs

(Karlsson and Ljungstedt, 2004; Christen, 2005). In

(Weiskopf et al., 2004) a non-linear ray tracer on the

GPU is implemented using several acceleration tech-

niques, such as early ray termination and adaptive ray

integration. In (Simonsen and Thrane, 2005) vari-

ous ray tracing acceleration structures on the GPU are

compared, whereas in (Foley and Sugerman, 2005)

the kd-tree acceleration structure is used to perform

ray tracing on the GPU. In (Carr et al., 2006) a method

for quick intersection of dynamic triangular meshes

on the GPU is introduced, based on a threaded bound-

ing volume hierarchy built from a geometry image.

The method we propose in this paper builds on this

previous work by combining and extending a number

of techniques in a novel way to increase the rendering

performance of ray tracers.

2 RENDERING ALGORITHMS

In the following sections we will outline the OIB

method and – shortly – the shadow mapping tech-

nique. For the sake of simplicity and rendering perfor-

mance we thereby concentrate on rendering triangles.

2.1 Object Intersection Buffer

One of the biggest challenges when performing inter-

active ray tracing is how to reduce the total number of

ray-object intersection tests to a minimum (Reshetov

et al., 2005). Usually this is done by dividing the 3D

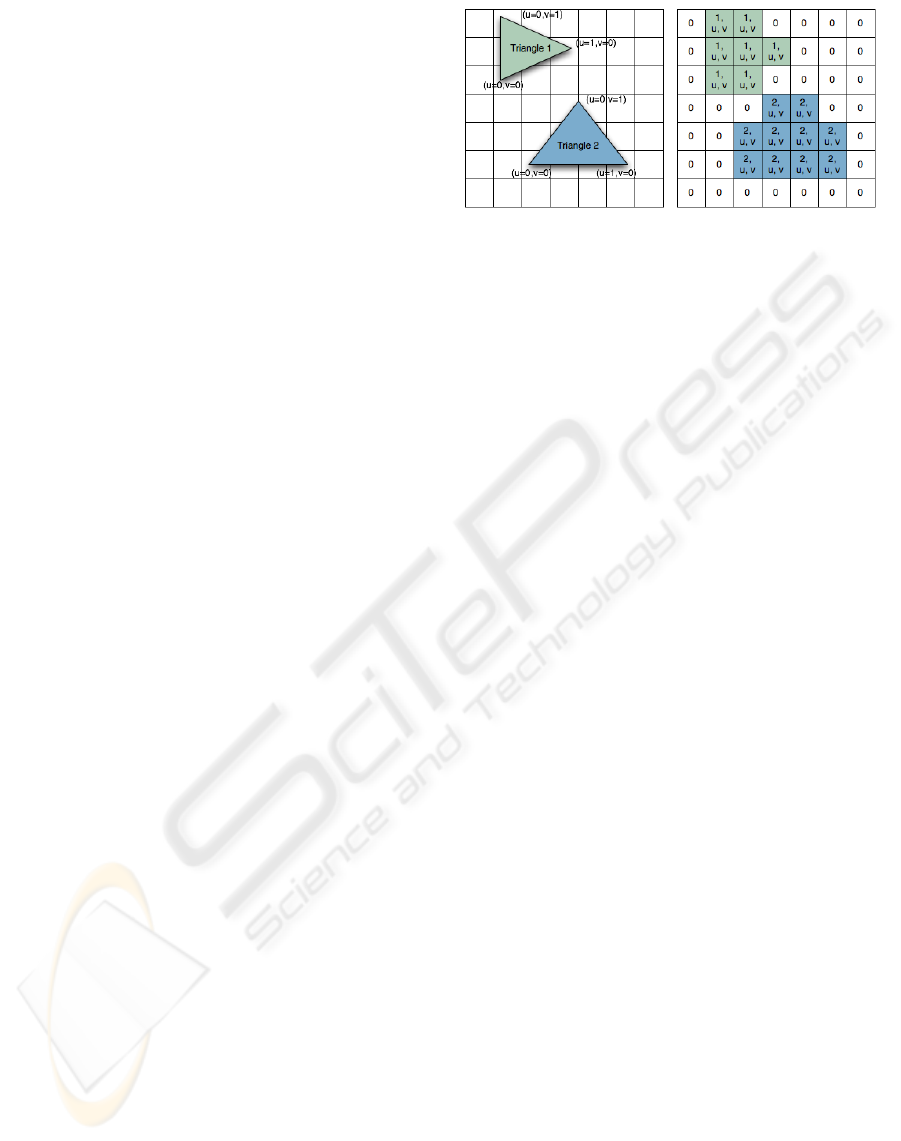

Figure 1: The OIB data structure contains the object indices

(right) as well as the interpolated (u, v)-coordinates of the

visible triangles (left).

space into subsets, each containing a certain number

of objects. For this purpose some kind of acceleration

structure is used – e.g., kd-trees, grids or bounding

volumes. Fast traversal routines can then be applied

to decide which subsets of the scene to pick in order to

compute the proper ray-object intersection. Unfortu-

nately, creating and updating acceleration structures is

time- and memory-consuming, especially when ren-

dering dynamic scenes. We propose a method to com-

pute the ﬁrst hits using an object intersection buffer

(OIB), based on hardware-accelerated triangle raster-

isation. For each pixel the OIB stores a reference to

the triangle which is visible at that position as well

as the (u, v)-coordinates of the hit point, which are

given for each vertex and interpolated for the rest of

the triangle; this is outlined in Figure 1. We describe

two algorithms to build the OIB. The ﬁrst is a direct

extension of the item buffer method, the second is bet-

ter adapted for GPU acceleration. Our ﬁrst algorithm

works as follows:

1. The index of every triangle is encoded into a RGB

colour value. In this way it is possible to address

up to 2

triangles.

2. Every triangle of the scene is rendered using

OpenGL; its index is thereby passed to the GPU

as a vertex colour. During this process we perform

hidden surface removal.

3. For every pixel the visible triangle is determined

by a triangle lookup operation using the properly

decoded triangle index from the framebuffer.

4. For each visible triangle exactly one ray-triangle

intersection test is performed and the result is

stored in the OIB.

Based on the information stored in the OIB we

can now perform the shading operations or compute

secondary rays. In either case the ﬁnal performance

heavily depends on efﬁcient and reliable visibility

processing. Commonly this is done using the z-buffer

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

306

hidden-surface algorithm (Sutherland et al., 1974).

We use the hardware accelerated OpenGL depth test-

ing which guarantees a high rendering performance.

Please note that since this is a screen-space based

method, it is even possible to scale the creation of

the OIB using distributed sort-ﬁrst parallel rendering

(Molnar et al., 1994) by applying multiple GPUs.

To further increase the OIB creation performance

we propose a second algorithm based on (u, v)-

mapping (Heckbert, 1986), called direct rendering.

Instead of performing ray-triangle intersection tests

we use a GPU-based (u, v)-mapping to determine the

ﬁrst hits. Moreover, rather than passing the triangle

indices as vertex colours we use texture coordinates –

thus, we avoid the encoding and decoding stages al-

together. A vertex shader then stores the indices as

well as the (u, v)-coordinates in gl TexCoord, which

for every fragment of the triangle gets written to the

target buffer by the subsequent fragment shader.

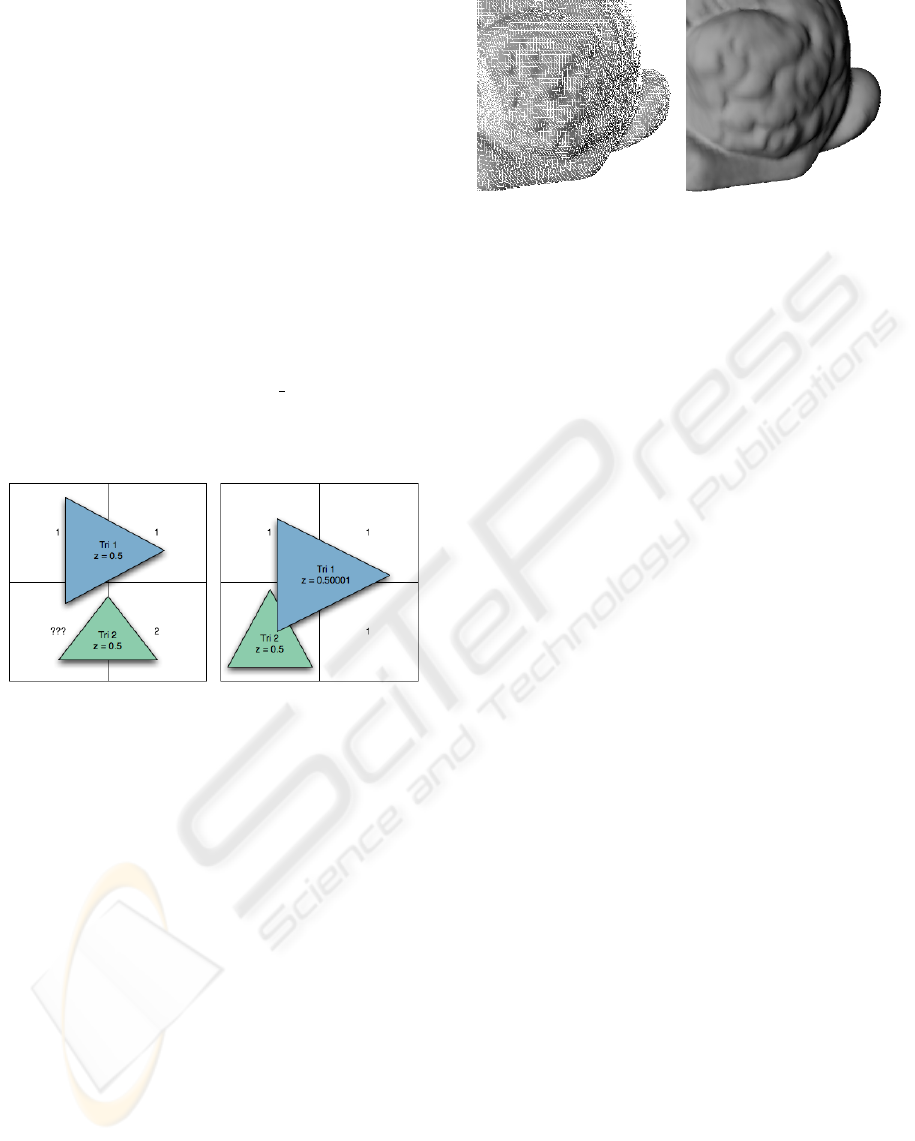

Figure 2: Two triangles with the same z-value z = 0.5 (left)

and two overlapping triangles with almost the same z-value

where the depth test fails (right).

When calculating the ray-triangle intersections as

opposed to using the (u, v)-mapping, the GPU’s depth

buffer reveals a bothering constraint. On current

graphics hardware the depth buffer is scaled loga-

rithmically and limited to 24 bit precision. Under

some circumstances this can cause artefacts because

of failing ray-triangle intersection tests. This happens

whenever the OIB contains references to ”wrong” tri-

angles due to wrong depth test results. This is shown

on the right of Figure 2. A similar problem may ap-

pear at the borders of neighboured triangles where the

index of a wrong triangle may be written to the OIB

due to the limited resolution of the framebuffer – this

is depicted on the left of Figure 2. Unfortunately both

problems can appear simultaneously. We try to over-

come these shortcomings by applying multisampling

as described in Section 3 in order to determine the

correct intersections for all primary rays. The results

are visually appealing; a typical example is given in

Figure 3.

Figure 3: Artefacts without multisampling and interpolation

(left), and no visible artefacts with 3 × 3 multisampling and

interpolation (right) [part of the Stanford bunny].

2.2 Shadow Mapping

Because it is not feasible to compute shadow rays ef-

ﬁciently by only using an OIB, we perform shadow

rendering using the image-based shadow mapping

technique (Williams, 1978) which also depends on

the depth buffer hidden-surface algorithm. Shadow

mapping is thus fully accelerated on the GPU. The

most important aspect of this technique is that the

depth buffer generated by rendering the scene from

the light’s point of view is the same as a visibility test

over the light source’s viewing volume. It can thus

be used directly as a shadow map which partitions the

view in both illuminated and shadowed regions.

The algorithm itself is simple: First, the scene is

rendered from the light’s point of view. Consequently,

the z-values for the objects closest to the light source

are stored in the depth buffer resulting in the shadow

map. Then the scene is rendered from the camera’s

point of view, and as each fragment is generated it is

transformed into the light sources coordinate system

and tested for visibility. If the distance to the fragment

is greater than the value stored in the shadow map,

there is some object in front of it and thus it lies in

the shadow. Otherwise it is illuminated. Please note

that the shadow map only needs to be updated when

the scene is subject to changes while rendering – e.g.,

moving light sources or altering the geometry.

3 IMPLEMENTATION

In this section we outline different approaches to im-

plement the OIB. Please note that we do focus solely

on the OIB itself, other aspects of the implementa-

tion are kept at a basic level. We do not use any

SIMD functionality of modern CPUs to exploit ray

coherence, and we use the simple Phong illumination

model, for example. Advanced shading and texturing

models can be integrated easily, though.

HYBRID RAY TRACING - Ray Tracing Using GPU-Accelerated Image-Space Methods

307

3.1 Ray Casting on the CPU

Integrating the OIB based visibility processing and

shadow mapping into a ray caster leads to the fol-

lowing multi-pass rendering algorithm: At ﬁrst, we

create an OIB which holds the indices and of all

currently visible triangles including the correspond-

ing ﬁrst hit coordinates. For this purpose we use a

32bit ﬂoating point off-screen framebuffer object

(FBO) with a depth attachment. Then for every light

source we create a shadow map by rendering the en-

tire scene from the light’s point of view. Again we use

an FBO to accomplish this task. Finally the OIB and

the shadow maps can be transferred from the GPU

to host memory to perform the shading. To hide the

delay caused by this operation we perform an asyn-

chronous memory transfer using the OpenGL pixel

buffer object extension (PBO). This allows us to

begin with the shading or intersection testing before

the entire OIB is downloaded completely.

If we do not use (u, v)-mapping to detect the ﬁrst

hit points we have to perform standard ray-triangle

intersection testing. Our ray-triangle intersector code

is based on the algorithm introduced in (M

oller and

Trumbore, 1997). For every primary ray we perform

one ray-triangle intersection test, the correct triangle

is thereby quickly determined using a trivial lookup

operation based on the index stored in the OIB. If

there is an intersection we shade the pixel accord-

ing to the shadow map and lighting model, if the test

fails we perform additional intersection tests to avoid

rendering artefacts. This is done using the following

”lazy multisampling” strategy: if the ﬁrst intersection

test fails we loop over the local n × n neighbourhood

in the OIB and perform n

− 1 ray-triangle intersec-

tion tests with the triangles referenced by the indices

of the surrounding buffer entries. In most cases we

are able to ﬁnd correct intersections. If not, we inter-

polate the pixel colour using the surrounding pixels.

Using this multisampling strategy the OIB has exactly

the same dimensions as the framebuffer.

To further accelerate the rendering we imple-

mented interleaved rendering. In this mode we only

shoot every nth primary ray, the remaining pixels are

then coloured using interpolation in a second render-

ing pass. Because this technique leads to higher frame

rates than normal rendering but also to a blurred im-

age, it is especially useful when visualising camera

animations. In Figure 4 we compare interleaved and

normal rendering. Another approach to avoid the arte-

facts mentioned before would be to supersample the

entire scene. The obvious drawback of this method is

that many more primary rays have to be computed in

order to produce the ﬁnal image.

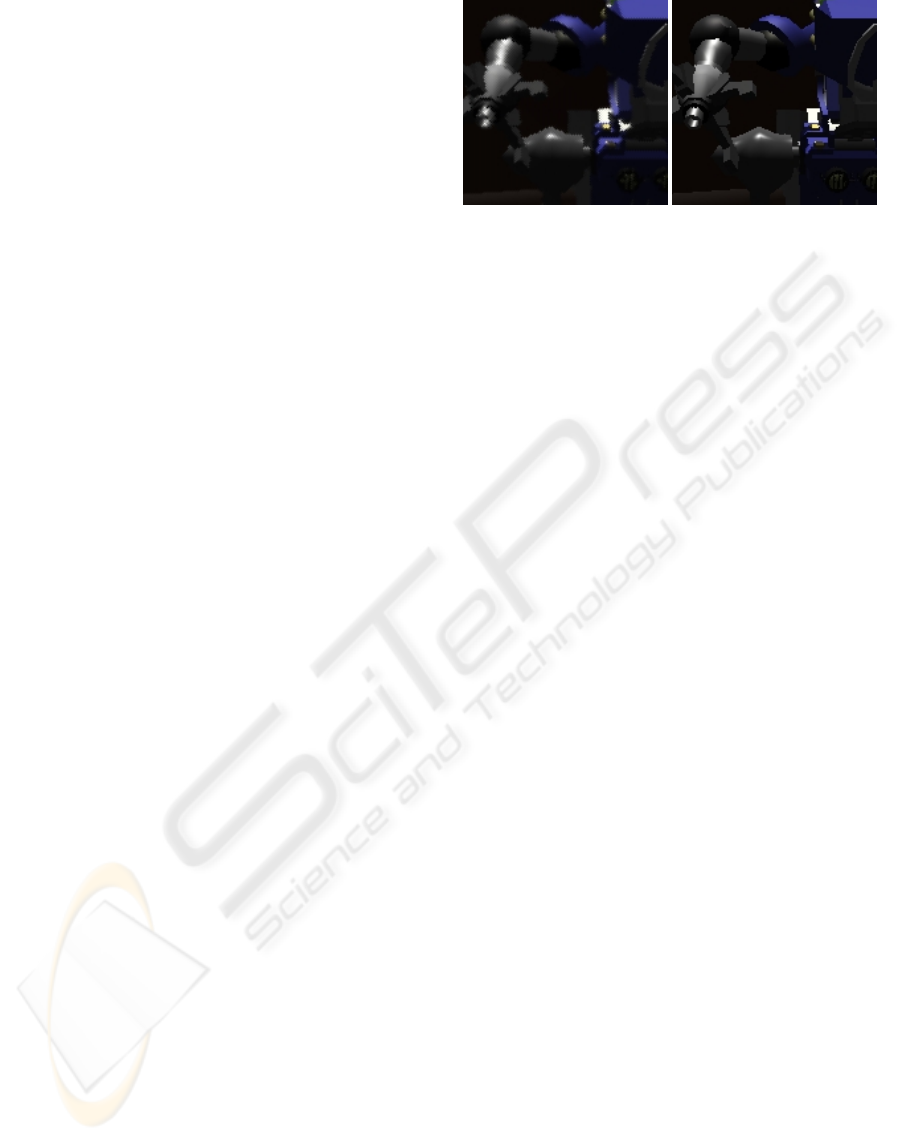

Figure 4: Interleaved rendering (left) leads to higher frame

rates than normal rendering (right), but also to a blurred im-

age (part of the BART robots scene (Lext et al., 2000)).

3.2 Ray Casting on the GPU

To achieve a higher rendering performance we

rewrote our ray caster to run completely on the GPU

using a fragment shader program. Among other im-

provements this allows us to get rid of the OIB and

shadow map readback operations. On the other hand,

to access the scene data on the GPU – such as ver-

tices, normals, colours, etc. – we have to transfer it

to the GPU using multiple 32bit ﬂoating-point RGBA

textures. Still, we do not only proﬁt from the superior

performance and parallelism of modern GPUs but we

may also use the free CPU cycles for other purposes;

e.g., advanced shading and texturing.

The ﬁrst step of the GPU-based ray caster – OIB

creation – is done similarly to that of the CPU based

version. But instead of reading the data back to host

memory it remains on the GPU as a texture. The same

holds for the shadow maps. We then activate our ray

caster fragment shader and draw a screen-sized quad

enforcing one fragment shader pass per pixel. For

every pixel the shader reads the index from the OIB

texture and performs the intersection test or uses the

interpolated (u, v)-coordinates to determine the inter-

section point on the referenced triangle. If a hit has

been detected the pixel is shaded appropriately.

3.3 Hybrid Ray Tracing

While ray casting based on the OIB leads to high

frame rates, the visual quality is less stunning. To

improve this we add support for reﬂections and re-

fraction by shooting secondary rays (Figure 5).

We do this by ﬁrst rendering the primary rays for

frame n on the GPU using an OIB as described in

3.2 and then transfer the results to the host computer

where the additional rays are traced using a kd-tree

acceleration structure; meanwhile the GPU processes

the primary rays for the next frame n+1. This parallel

execution introduces one frame of latency but ideally

also hides the OIB memory transfer from the GPU to

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

308

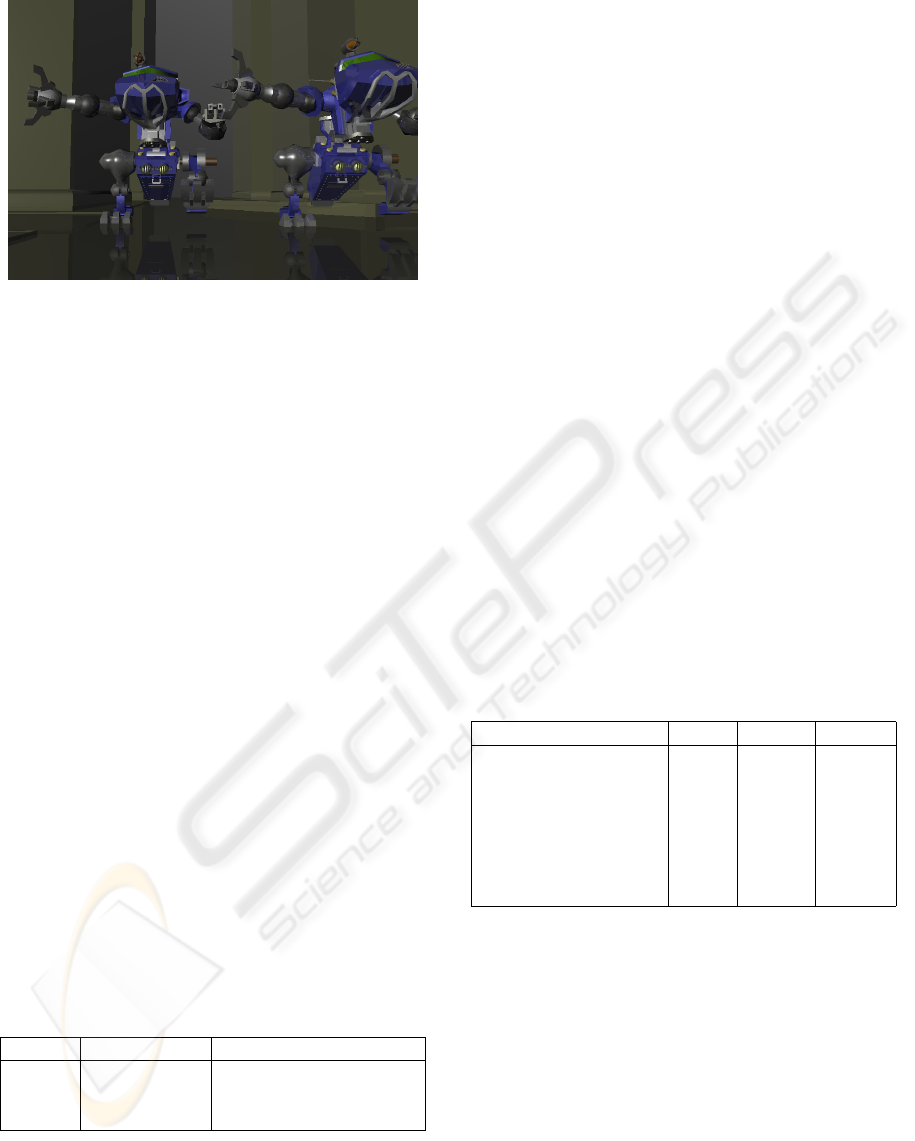

Figure 5: The animated robots scene rendered with reﬂec-

tions by our hybrid ray tracer.

the host memory.

In order to optimise the rendering performances

we implemented a surface area heuristic (SAH) for

creating the kd-tree, closely related to that of (Wald

and Havran, 2006). This approach leads to faster

tree traversals but also introduces considerable pre-

processing costs and is thus more or less inappropri-

ate for rendering dynamic scenes. It would be feasi-

ble though to improve this using an implementation

solely based on the GPU. The host processor could

then be used for updating the acceleration structure.

4 DISCUSSION AND RESULTS

We benchmarked our implementations on an AMD

Athlon64 3500+ / GeForce 7800GT workstation run-

ning Windows XP. Tests on a dual 2.8 GHz Xeon CPU

workstation running Fedora Core 5 Linux led to com-

parable results. For the benchmarks we used three

different scenes of various complexity, i.e. a simple

torus, the well-known Stanford bunny and the hier-

archically animated robots scene from the BART ray

tracing benchmark (Lext et al., 2000); see Table 1.

One light source is enabled while rendering, screen

resolution is always 800 by 600 pixels.

Table 1: The sample scenes and their number of triangles.

Name Triangles Notes

Torus 1024 A simple scene

Bunny 69451 The Stanford bunny

Robots 71708 An animated scene

Since the base number of primary rays is the same

for all three scenes we expected other factors to be

signiﬁcant with respect to frame rate differences; e.g.,

the OIB and shadow map creation costs, OIB multi-

sampling or dynamic scene updates. In order to ac-

cess the OIB on the CPU we have to perform a frame-

buffer readback operation. Now, unlike in the past,

due to the high bandwidth of the new PCI Express

for Graphics (PEG) standard this does not lead to

a dramatic performance penalty anymore, especially

when using asynchronous memory transfers. Along

the same lines, OIB creation takes between 3ms and

15ms depending on the scene. This could be further

optimised using advanced OpenGL rendering tech-

niques instead of the immediate mode rendering, as

it is the case with our code.

4.1 Ray Casting

The OIB based ray caster seems to perform reason-

ably well compared to a traditional implementation

based on a kd-tree – see Table 2 for the results. When

comparing the frame rates of the CPU and GPU based

implementations it becomes obvious that the latter is

faster almost by an order of magnitude. This can be

explained by the fact that we proﬁt from the paral-

lelism on the GPU whereas we did not use multiple

threads to perform the ray shooting or shading on the

host. In addition, we did not have to perform memory

transfers between the GPU and the host memory, only

the dynamic robots scene is slowed down by frequent

data texture updates.

Table 2: Rendering performances (fps) measured with and

without shadow rendering (without multisampling).

Torus Bunny Robots

CPU (kd-tree) 1.7 1.3 0.2

CPU 8.0 8.5 3.0

CPU, shadows 6.9 7.5 1.4

GPU 112 36 18

GPU, shadows 105 35 2.4

GPU, direct 165 47 18

GPU, direct, shadows 129 46 2.4

Not surprisingly, direct rendering using (u, v)-

mapping leads to higher frame rates than calculat-

ing the intersection points. The achieved speedup for

static scenes is in the range of 25 to 50 percentage.

Again though, in case of the dynamic robots scene,

this advantage is virtually negligible as recomputing

the shadow map every frame has a much higher im-

pact on the total performance. The reason for the

relatively high frame rates of the bunny is that the

model ﬁlls the viewport to a lesser extent than the

other scenes and thus less intersections occur, leading

to fewer shading operations.

It is obvious that when performing OIB multi-

sampling, the rendering performance drops notice-

HYBRID RAY TRACING - Ray Tracing Using GPU-Accelerated Image-Space Methods

309

Table 3: Rendering performances (fps) measured with and

without (lazy) multisampling (without shadow mapping).

Torus Bunny Robots

CPU 8.0 8.5 3.0

CPU, interleaved 10.2 10.0 4.3

CPU, lazy 3 × 3 7.6 5.5 2.9

CPU, lazy 5 × 5 7.5 4.3 2.8

CPU, 3 × 3 4.8 3.7 2.3

CPU, 5 × 5 3.3 2.2 1.9

ably. In most cases ”lazy multisampling” therefore

represents the best compromise between performance

and quality – as long as (u, v)-mapping is not appli-

cable; see Table 3. Multisampling every single pixel

only leads to a computational overhead.

While rendering, most of the time is spent with

shading and – if enabled – intersection testing. The

results for the GPU variant on the other hand are much

more inﬂuenced by the OIB creation costs and – in

case of the dynamic robots scene – the scene graph

updates which enforce expensive data texture updates

once per frame.

Another advantage of our OIB ray caster is that

the frame rate remains more or less constant when

rendering animations or ﬂy-throughs, as long as the

entire viewport is ﬁlled by the scene, no matter how

the triangles are distributed in space. The curves in

Figure 6 depict the frame rate over time while render-

ing the animated robots scene without multisampling

on the CPU.

0.5

1.5

2.5

0 5 10 15 20 25 30 35 40

FPS

Frame

without shadows

with shadows

Figure 6: The almost constant frame rate, benchmarked on

the slightly slower Xeon workstation (robots scene).

Last but not least we analyse the visual quality.

The results are in most cases encouraging; the differ-

ences between the GPU and CPU based versions are

insigniﬁcant. Only if a scene contains many tiny tri-

angles – such as the Stanford bunny – and intersection

testing is enabled, a higher item buffer multisampling

rate is required to produce good results – if there are

Table 4: Frames per second of a traditional ray tracer using

a kd-tree and our hybrid ray tracer (ray depth 3).

Torus Bunny Robots

traditional 0.9 0.6 0.1

traditional, interl. 1.6 1.1 0.1

hybrid 1.6 1.0 0.1

hybrid, interleaved 2.7 1.6 0.2

hybrid, direct 1.6 1.0 0.1

hybrid, direct, interl. 2.8 1.7 0.2

too many such tiny-sized triangles close to each other

visual artefacts are inevitable. We try to overcome

them by shading the missing pixels using colour in-

terpolation. We think that in this case the achieved

quality is fulﬁlling the expectations – especially for

dynamic scenarios; again see Figure 3.

4.2 Ray Tracing

When ray tracing, our hybrid renderer increases the

rendering performance almost by a factor of 2 com-

pared to a traditional implementation based on a kd-

tree acceleration structure. Interleaved rendering – as

expected – increases the frame rates even more; see

Table 4 for the benchmarks. This speedup is mainly

caused by the efﬁciency of the OIB ray caster and

due to the parallel execution of the hybrid rendering

pipeline. It is noteworthy that in this case the per-

formance is largely determined by the kd-tree updat-

ing process, which unfortunately can be very slow. In

case of the animated robots scene this takes roughly

2s − 2.5s. It is apparent that in this case the perfor-

mance advantage of the direct renderer is more or less

negligible, instead, additional acceleration techniques

have to be applied to ray trace dynamic scenes (Wald

et al., 2003).

5 CONCLUSION

In this paper we presented the object intersection

buffer (OIB), a graphics hardware accelerated exten-

sion to the item buffer algorithm based on (u, v)-

mapping rather than ﬁrst hit intersection testing. We

demonstrated that it is feasible to combine the raw

power of GPUs and image-space rendering tech-

niques to accelerate ray tracing. We used the OIB

to implement an interactive ray caster without inte-

grating any spatial acceleration structure. Moreover,

we implemented shadowing using the shadow map-

ping technique instead of shooting shadow rays. This

facilitates the rendering of dynamic scenes at high

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

310

frame rates. We described two implementations of

our ray caster, both accelerated by the graphics hard-

ware. The ﬁrst one only uses the graphics hardware to

build the OIB and the shadow maps, the second one

executes completely on the GPU. We showed that the

GPU based implementation leads to a superior perfor-

mance. Consequently we used the OIB to implement

a hybrid ray tracer by sharing the load between the

host processor and the GPU using parallel rendering.

ACKNOWLEDGEMENTS

The authors would like to thank Sonja Sch

ar, Stefan

Eilemann, John Hutchison and all other reviewers for

valuable assistance and discussions.

REFERENCES

Bolz, J., Farmer, I., Grinspun, E., and Schr

oder, P. (2003).

The GPU as Numerical Simulation Engine. In Pro-

ceedings of SIGGRAPH 2003. ACM Press.

Buck, I., Foley, T., Horn, D., Sugerman, J., Fatahalian,

K., Houston, M., and Hanrahan, P. (2004). Brook

for GPUs: Stream Computing on Graphics Hardware.

ACM Trans. Graph., 23(3):777–786.

Carr, N. A., Hall, J. D., and Hart, J. C. (2002). The Ray En-

gine. In Proceedings of the ACM SIGGRAPH/EURO-

GRAPHICS conference on Graphics hardware, pages

37–46. Eurographics Association.

Carr, N. A., Hoberock, J., Crane, K., and Hart, J. C. (2006).

Fast GPU Ray Tracing of Dynamic Meshes using Ge-

ometry Images. In GI ’06: Proceedings of the 2006

conference on Graphics interface, pages 203–209.

Christen, M. (2005). Ray Tracing on GPU. Master’s thesis,

University of Applied Sciences Basel.

Fatahalian, K., Sugerman, J., and Hanrahan, P. (2004).

Understanding the Efﬁciency of GPU Algorithms for

Matrix-Matrix Multiplication. In Graphics Hardware

2004, pages 133–137.

Foley, T. and Sugerman, J. (2005). Kd-Tree Acceleration

Structures for a GPU Raytracer. In HWWS ’05: Pro-

ceedings of the ACM SIGGRAPH/EUROGRAPHICS

conference on Graphics hardware, pages 15–22, New

York, NY, USA. ACM Press.

Heckbert, P. (1986). Survey of texture mapping. IEEE Com-

put. Graph. Appl., 6(11):56–67.

Karlsson, F. and Ljungstedt, C. J. (2004). Ray Tracing Fully

Implemented on Programmable Graphics Hardware.

Master’s thesis, Chalmers University of Technology.

Kim, S., ye Kim, S., and hyun Yoon, K. (2000). A Study

on the Ray-Tracing Acceleration Technique Based on

the ZF-Buffer Algorithm. In IV ’00: Proceedings of

the International Conference on Information Visuali-

sation, page 393, Washington, DC, USA. IEEE Com-

puter Society.

Lamparter, B., M

uller, H., and Winckler, J. (1990). The

Ray-z-Buffer—An Approach for Ray Tracing Arbi-

trarily Large Scenes. Technical Report report00021.

Lefohn, A., Kniss, J. M., Strzodka, R., Sengupta, S.,

and Owens, J. D. (2006). Glift: Generic, Efﬁcient,

Random-Access GPU Data Structures. ACM Trans-

actions on Graphics, 25(1):60–99.

Lext, J., Assarsson, U., and M

oller, T. (2000). BART:

A Benchmark for Animated Ray Tracing. Techni-

cal Report 00-14, Chalmers University of Technology,

Goeteborg, Sweden.

oller, T. and Trumbore, B. (1997). Fast, Minimum

Storage Ray-Triangle Intersection. J. Graph. Tools,

2(1):21–28.

Molnar, S., Cox, M., Ellsworth, D., and Fuchs, H. (1994).

A Sorting Classiﬁcation of Parallel Rendering. IEEE

Computer Graphics and Algorithms, pages 23–32.

Owens, J. D., Luebke, D., Govindaraju, N., Harris, M.,

uger, J., Lefohn, A. E., and Purcell, T. J. (2005).

A Survey of General-Purpose Computation on Graph-

ics Hardware. In Eurographics 2005, State of the Art

Reports, pages 21–51.

Purcell, T. J., Buck, I., Mark, W. R., and Hanrahan,

P. (2002). Ray Tracing on Programmable Graph-

ics Hardware. ACM Transactions on Graphics,

21(3):703–712.

Reshetov, A., Soupikov, A., and Hurley, J. (2005). Multi-

Level Ray Tracing Algorithm. ACM Trans. Graph.,

24(3):1176–1185.

Salesin, D. and Stolﬁ, J. (1989). The ZZ-Buffer: A Sim-

ple and Efﬁcient Rendering Algorithm with Reliable

Antialiasing. In Proceedings of the PIXIM ’89 Con-

ference, pages 451–66.

Simonsen, L. O. and Thrane, N. (2005). A Comparison of

Acceleration Structures for GPU Assisted Ray Trac-

ing. Master’s thesis, University of Aarhus.

Sutherland, I. E., Sproull, R. F., and Schumacker, R. A.

(1974). A Characterization of Ten Hidden-Surface Al-

gorithms. ACM Comput. Surv., 6(1):1–55.

Wald, I., Benthin, C., and Slusallek, P. (2003). Dis-

tributed Interactive Ray Tracing of Dynamic Scenes.

In Proceedings of the IEEE Symposium on Parallel

and Large-Data Visualization and Graphics (PVG) ,

pages 77–85.

Wald, I. and Havran, V. (2006). On building fast Kd-Trees

for Ray Tracing, and on doing that in O(N log N). In

Proceedings of the 2006 IEEE Symposium on Interac-

tive Ray Tracing, pages 61–69.

Weghorst, H., Hooper, G., and Greenberg, D. P. (1984).

Improved Computational Methods for Ray Tracing.

ACM Trans. Graph., 3(1):52–69.

Weiskopf, D., Schafhitzel, T., and Ertl, T. (2004). GPU-

Based Nonlinear Ray Tracing. In Eurographics 2004,

volume 23, pages 625–633.

Williams, L. (1978). Casting Curved Shadows on Curved

Surfaces. In SIGGRAPH ’78: Proceedings of the 5th

annual conference on Computer graphics and interac-

tive techniques, pages 270–274, New York, NY, USA.

ACM Press.

HYBRID RAY TRACING - Ray Tracing Using GPU-Accelerated Image-Space Methods

311
