INVERSION OF A SEMI-PHYSICAL ODE MODEL

Laurent Bourgois, Gilles Roussel and Mohammed Benjelloun

Laboratoire d’Analyse des Syst

`

emes du Littoral (EA 2600)

Universit

´

e du Littoral - C

ˆ

ote d’Opale

50 rue Ferdinand Buisson, B.P. 699, 62228, Calais Cedex, France

Keywords:

Semi-physical modeling, gray-box, inverse dynamic model, neural network, model fusion.

Abstract:

This study proposes to examine the design methodology and the performances of an inverse dynamic model

by fusion of statistical training and deterministic modeling. We carry out an inverse semi-physical model

using a recurrent neural network and illustrate it on a didactic example. This technique leads to the realization

of a neural network inverse problem solver (NNIPS). In the ﬁrst step, the network is designed by a discrete

reverse-time state form of the direct model. The performances in terms of generalization, regularization and

training effort are highlighted in comparison with the number of weights needed to estimate the neural network.

Finally, some tests are carried out on a simple second order model, but we suggest the form of a dynamic

system characterized by an ordinary differential equation (ODE) of an unspeciﬁed r order.

1 INTRODUCTION

Generally, inverse problems are solved by the in-

version of the direct knowledge-based model. A

knowledge-based model describes system behavior

using the physical, biological, chemical or economic

relationships formulated by the expert. The ”success”

of the data inversion, i.e. the restitution of a nearest

solution in the sense of some ℓ

2

or ℓ

∞

norm distance

from the exact sources of the real system, depends on

the precision of the model, on the noise associated

with the observations and on the method.

Whereas the noise is inherent in the hardware and

conditions of measurement and thus represents a con-

straint of the problem, on the other hand, the two con-

trols an engineer possesses to improve quality of the

estimated solution are the model and the method. The

approach we propose thus relates to these two aspects.

It aims at overcoming several difﬁculties related to the

deﬁnition of the model and its adjustments, and to the

search for a stable solution of the sought inputs of the

system.

2 SEMI-PHYSICAL MODELING

Obtaining a robust knowledge-based model within the

meaning of exhaustiveness compared to the variations

of context (one can also say generic), is often tricky

to express for several reasons. One ﬁrstly needs a per-

fect expertise of the ﬁeld to enumerate all the physical

laws brought into play, all the inﬂuential variables on

the system and an excellent command of the subject

to make an exhaustive spatial and temporal descrip-

tion of it. Even if the preceding stage is completed, it

is not rare that some parameters can not be measured

or known with precision. It is then advisable to es-

timate these parameters starting from the observable

data of the system under operation. Once the phys-

ical model has been ﬁxed, it is endowed with good

generics.

A black-box model is a behavior model and de-

pends on the choice of a mathematical a priori form

in which an engineer has a great conﬁdence on its

adaptability with the real behavior of the system. In

the black-box approach, the model precision is thus

dependent on the adopted mathematical form, on the

approximations carried out on the supposed system

order (linear case), on the assumptions of nonlinear-

ity, and on the quantity and the quality of data to make

the identiﬁcation of the model. Many standard forms

of process (ARMA, ARMAX, NARMAX) (Ljung,

1999) are able to carry out a black-box modeling.

Other techniques containing neural networks have the

characteristic not to specify a mathematical form but

rather a neural structure adapted to the nature of the

system (static, dynamic, linear, nonlinear, exogenic

364

Bourgois L., Roussel G. and Benjelloun M. (2007).

INVERSION OF A SEMI-PHYSICAL ODE MODEL.

In Proceedings of the Fourth International Conference on Informatics in Control, Automation and Robotics, pages 364-371

DOI: 10.5220/0001641803640371

Copyright

c

SciTePress

input, assumptions on the noise). Neural networks are

known for possessing a great adaptability, with the

properties of universal approximator (Hornik et al.,

1989), (Sontag, 1996) if the available training ex-

amples starting from validated observations are in a

signiﬁcant number. Nevertheless, black-box models

are less parsimonious than knowledge-based models

since the mathematical functions taking part in the lat-

ter are exact functions (not leaving residues of the out-

put error, without noise). The second disadvantage of

neural black-box models is the least generic behavior

with respect to the new examples which do not form

part of the base of training set. However some tech-

niques exist to improve the generalizing character of

a neural network, like the regularization or the abort

(early stopping) of the training when the error of val-

idation increases.

Between the two types of models previously ex-

posed, (Oussar and Dreyfus, 2001) introduce the

semi-physical or gray-box model. This type of model

fulﬁlls at the same time the requirements of preci-

sion, generics, parsimony of the knowledge-based

models, and also possesses the faculty of training

and adaptability. Close approaches were proposed

by (Cherkassky et al., 2006). These approaches of-

ten consist in doing the emulation of physically-based

process models starting from training of neural net-

works with simulated data (Krasnopolsky and Fox-

Rabinovitz, 2006). If the knowledge model is difﬁ-

cult to put in equation because of its complexity, the

idea will be to structure a looped neural network (case

of dynamic complex systems) using knowledge on the

fundamental laws which govern the system. Then, we

add degrees of freedom (neurons) to the network to

adapt it to the ignored parts of the system. The recall

phase (production run) then makes it possible to carry

out the predicted outputs in real time.

3 INVERSE NEURAL MODEL

3.1 Principle

The inversion of a physical model generally consists

in estimating information on the nonmeasurable pa-

rameters or inputs starting from the measurable ob-

servations and a priori information on the system. We

propose here to use the training of an inverse model

using a neural network. Some ideas for forward and

inverse model learning in physical remote measure-

ment applications are proposed by (Krasnopolsky and

Schillerb, 2003). It consists in estimating parameters

of the network so that the outputs correspond to the

inputs (or the parameters) desired for training set of

examples (ﬁgure 1). In recall phase, the network es-

timates the amplitudes of the parameters or the se-

quence of the input vector for the measured observa-

tions (ﬁgure 2), by supposing here that the real model

does not evolve any more after the last training. Here

the model is structured by the inverse model starting

from the direct deterministic model.

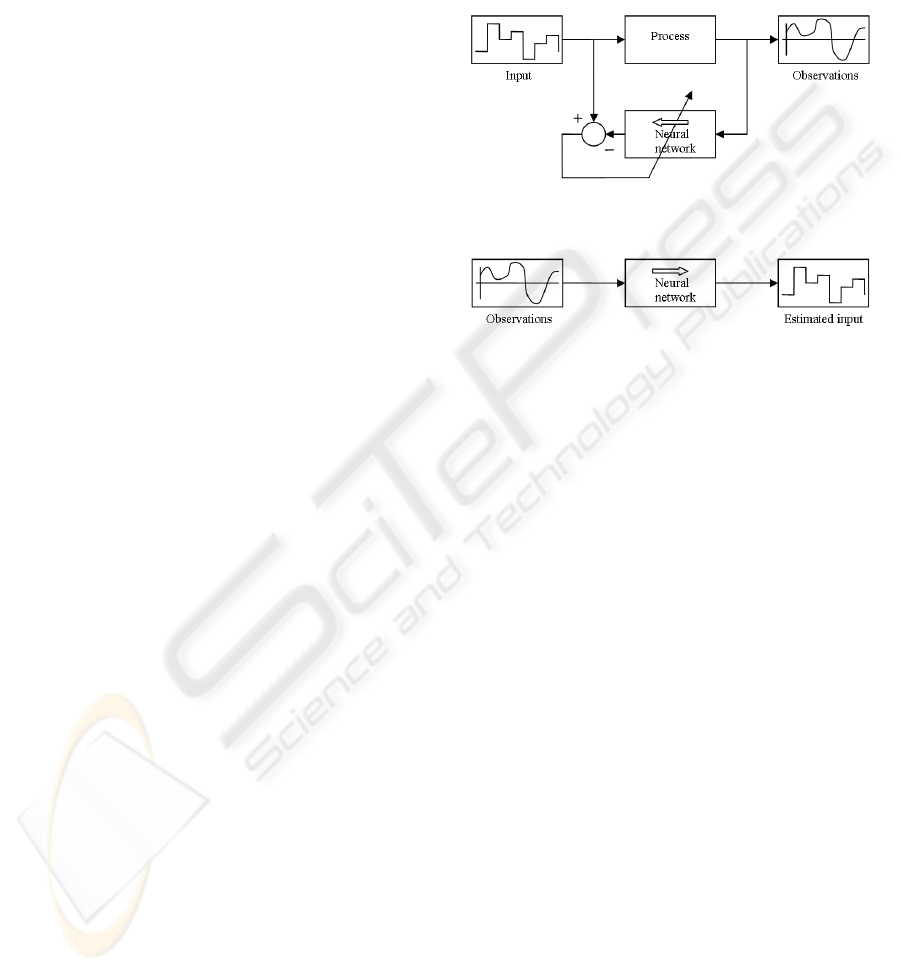

Figure 1: Training phase of the inverse neural model.

Figure 2: Recall phase of the inverse neural model.

3.2 Regularization and Inverse Neural

Model

Inverse problems are often ill posed within the mean-

ing of Hadamard (Groetsch, 1993). They can present:

1. An absence of solution;

2. Multiple solutions;

3. An unstable solution.

To transform ill posed problems into well con-

ditioned problems, it is necessary to add a priori

knowledge on the system to be reversed. There

are several approaches which differ by the type of

a priori knowledge introduced (Thikhonov and Ars-

enin, 1977), (Idier, 2001), (Mohammad-Djafari et al.,

2002).

However, can we pose the problem of the regular-

ization in the case of the NNIPS ? In fact, it is clear

that the neural network provides a solution to the pre-

sentation of an input example. Even if this example is

unknown, the network answers in a deterministic way

by a solution, which could be false. From its prop-

erty of classiﬁer and autoassociativity, it will provide

in best case, the most similar solution to the class in-

cluding the test examples. That thus answers difﬁcul-

ties 1 and 2 of the inverse problems, even if the sug-

gested solution can prove to be false. In addition, we

saw above that regularization during training phase,

improves generalization with respect to the examples.

INVERSION OF A SEMI-PHYSICAL ODE MODEL

365

It avoids the problem of overtraining which precisely

results in an instability of the solutions in the vicin-

ity of a point. It is remarkable that the early stopping

method should have an interesting effect on general-

ization and constitute a particular form of the regular-

ization. In other words, we have found, with the neu-

ral networks the techniques usually exploited for the

analytical or numerical inverse problems regulariza-

tion so as to answer risk 3. This conﬁrms our opinion

to use the neural networks like an inverse model.

4 RECURRENT NEURAL

SYSTEMS MODELING

4.1 General Case

In particular, we have been interested in dynamic sys-

tems represented by recurrent equations or ﬁnite dif-

ferences. We have chosen to represent the models

by a state space representation because of systems

modeling convenience and for the more parsimonious

character compared to the input-outputs transfer type

models. We have thus made the assumption that

the system can be represented by the following state

equations:

x(n+1) = ϕ[x(n),u(n)]

y(n) = ψ[x(n)]+b(n)

(1)

ϕ is the vector transition function, ψ is the out-

put vector function and b(n) is the output noise to in-

stant n. Under this assumption of output noise, neural

modeling takes the following canonical form (Drey-

fus et al., 2004):

x(n+1) = ϕ

RN

[x(n),u(n)]

y(n) = ψ

RN

[x(n)]+b(n)

(2)

The observation noise appearing only in the ob-

servation equation does not have any inﬂuence on the

dynamic of the model. In this case, the ideal model is

the looped model, represented on ﬁgure 3.

4.2 Dynamic Semi-Physical Neural

Modeling

The semi-physical model design requires that one

should have a knowledge-based model, usually rep-

resented in the form of an algebraic equation whole,

differential, with partial derivative, sometimes non-

linear coupled. We have examined the modeling of a

system represented by an ordinary differential equa-

tion. To expose the principle, we have again taken

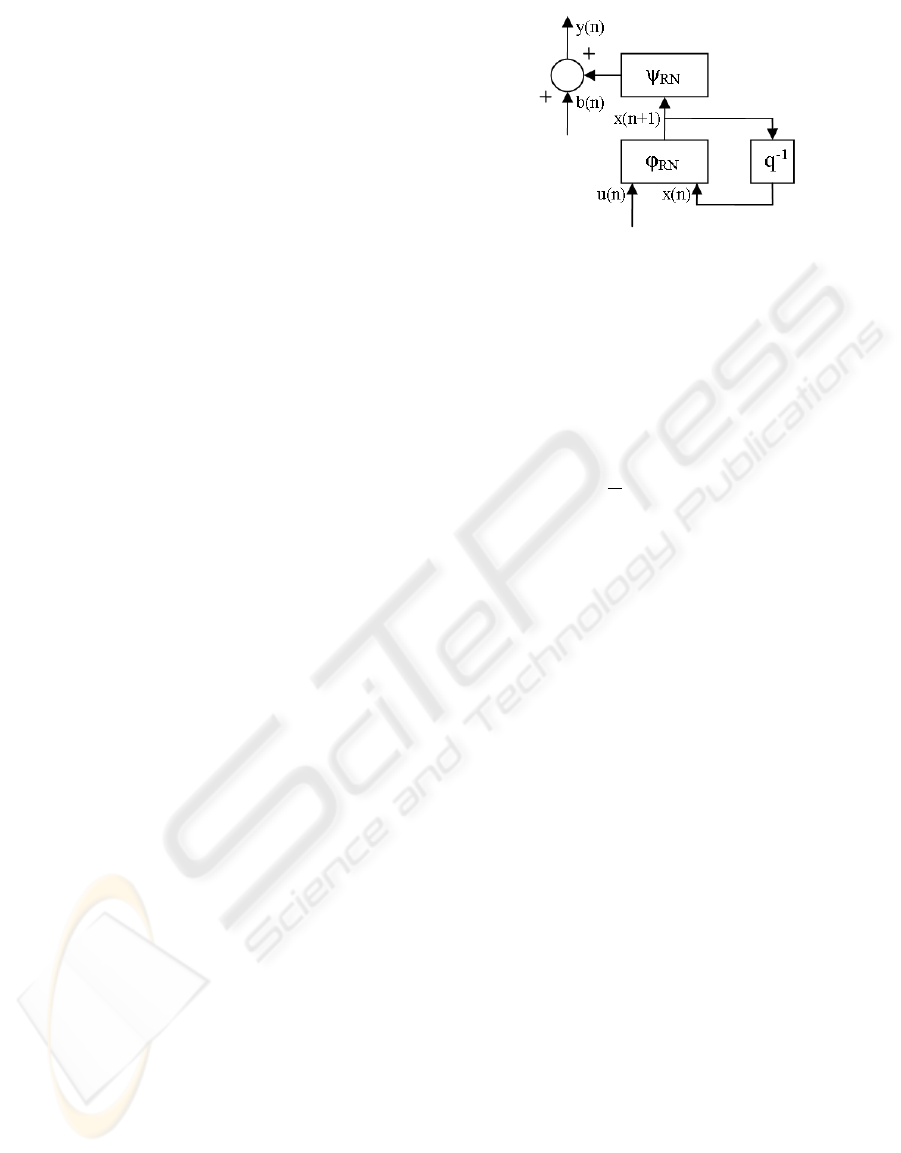

Figure 3: Ideal direct neural model with output noise as-

sumption. The q

−1

operator stands for one T sample time

delay.

the essential phases of semi-physical neural modeling

more largely exposed in (Oussar and Dreyfus, 2001),

(Dreyfus et al., 2004). We have also supposed that

the starting model can be expressed by the continu-

ous state relations:

dx

dt

= f [x(t),u(t)]

y(t) = g[x(t)]

(3)

Where x is the vector of state variables, y is the

output vector, u is the command inputs vector, and

where f and g are vector functions. The functions f

and g can however be partially known or relatively

vague. In a semi-physical neural model, the functions

which are not precisely known are fulﬁlled by the

neural network, after the preliminary training of the

latter from experimental data. The accurately known

functions are maintained in their analytical form, but

one can also adopt a neural representation whose ac-

tivation function is known and does not use of ad-

justable parameters. The design of a semi-physical

model generally includes four stages:

• Obtaining the discrete knowledge-based model;

• Designing the network in the canonical form (2)

by adding degrees of freedom;

• Initializing from a knowledge-based model simu-

lator;

• Training from the experimental data.

We have applied these steps to an inverse semi-

physical model by adding a stage of inversion of the

discrete model before training.

4.3 An Academic Example: the Direct

Second Order Ode Model

We have studied the deconvolution problem for lin-

ear models governed by an ordinary differential equa-

tion in order to test the method. However, this work

has been only one ﬁrst step with more general inverse

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

366

problem, which aims, starting from some observa-

tions of the system at carrying out the training of the

inverse model for then being able to estimate the in-

puts and the observable states (within the observabil-

ity sense of the states) of the system. Let us suppose

a system represented by the differential equation:

d

2

y

dt

2

+2ξω

n

dy

dt

+ω

2

n

y = c

1

u(t)

(4)

This second order differential equation could be

the representation of a mechanical system (mass,

spring, shock absorber) or of an electric type (RLC

ﬁlter) excited by a time depending input u(t). This

physical model where the kinematic parameters of

damping ξ, natural pulsation ω

n

, and static gain c

1

are

not a priori known, can be represented by the model

of following state:

dx(t)

dt

=

"

0 1

−ω

2

n

1−2ξω

n

#

x(t)+

"

0

c

1

#

u(t)

y(t) =

h

1 0

i

x(t)

(5)

The ﬁrst stage is supplemented by the discretiza-

tion. By supposing that we have collected the data

with T sampling period, we have proceeded to the dis-

cretization by choosing the explicit Euler method. For

the system (5) to which one has added an observation

noise b(n), the discrete equation of state is obtained:

x(n+1) = Fx(n)+Gu(n)

y(n) = Hx(n)+b(n)

(6)

With:

F =

"

1 T

−ω

2

n

T 1−2ξω

n

T

#

G

T

=

h

0 T

i

H =

h

c

1

0

i

(7)

The model in the form of looped neural network of

the nondisturbed canonical system (6), is represented

on ﬁgure 4.

The transfer functions represented on ﬁgure 4 are

purely linear, being the ideal neural model. No new

degrees of freedom are added to the direct model, this

one being only intermediate representation, nonessen-

tial to the study. It simply illustrates with an example,

the general form of the ﬁgure 3.

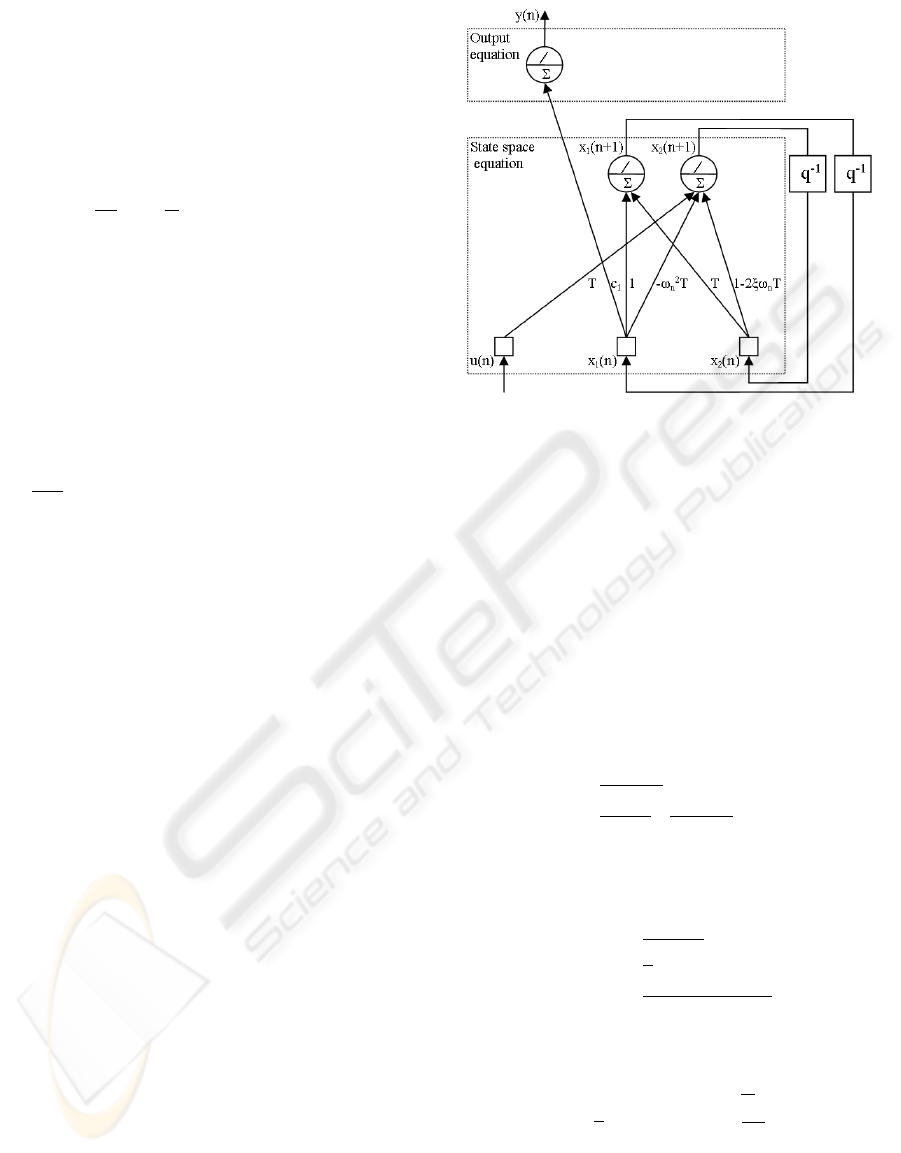

Figure 4: Direct second order neural model.

5 INVERSE SEMI-PHYSICAL

NEURAL MODEL

5.1 Case of Second Order Model

From the preceding model we have expressed the out-

put u(n) according to the input y(n). The particular

shape of Kronecker of matrices G and H in the re-

lation (6), has enabled us to isolate x

1

(n), x

2

(n) and

u(n):

x

1

(n) =

y(n)−b(n)

c

1

x

2

(n) =

x

1

(n+1)

T

−

y(n)−b(n)

c

1

T

u(n) = αx

1

(n+1)+βx

2

(n+1)+γ[y(n)−b(n)]

(8)

With:

α =

2ξω

n

T−1

T

2

β =

1

T

γ =

(ω

n

T)

2

+(1−2ξω

n

T)

c

1

T

2

(9)

And ﬁnally, one has obtained the matrix form:

x(n) =

"

0 0

1

T

0

#

x(n+1)+

1

c

1

−

1

c

1

T

[y(n)−b(n)]

u(n) =

h

α β

i

x(n+1)+γ[y(n)−b(n)]

(10)

Of course, this noncausal equation is realistic only

if we calculate the recurrence by knowing the state at

INVERSION OF A SEMI-PHYSICAL ODE MODEL

367

the moment n + 1 to determine the state at the mo-

ment n. This is more natural to the inverse problem

where we seek to reconstitute the input sequence at

the origin of the generated observations. The equa-

tion now reveals the output noise as a correlated state

noise b(n) and as a noise on the input u(n) with a rate

of ampliﬁcation equivalent to the real γ. The ideal

looped neural network representation of the model

(10) is given on ﬁgure 5. We preserve the delays q

−1

between the states x(n + 1) and x(n) because of the

presentation of the output y(n) and the calculation of

u(n) in reverse-time. In addition, this model remains

stable for any T, the eigenvalues of the reverse-time

state matrix being null for this example.

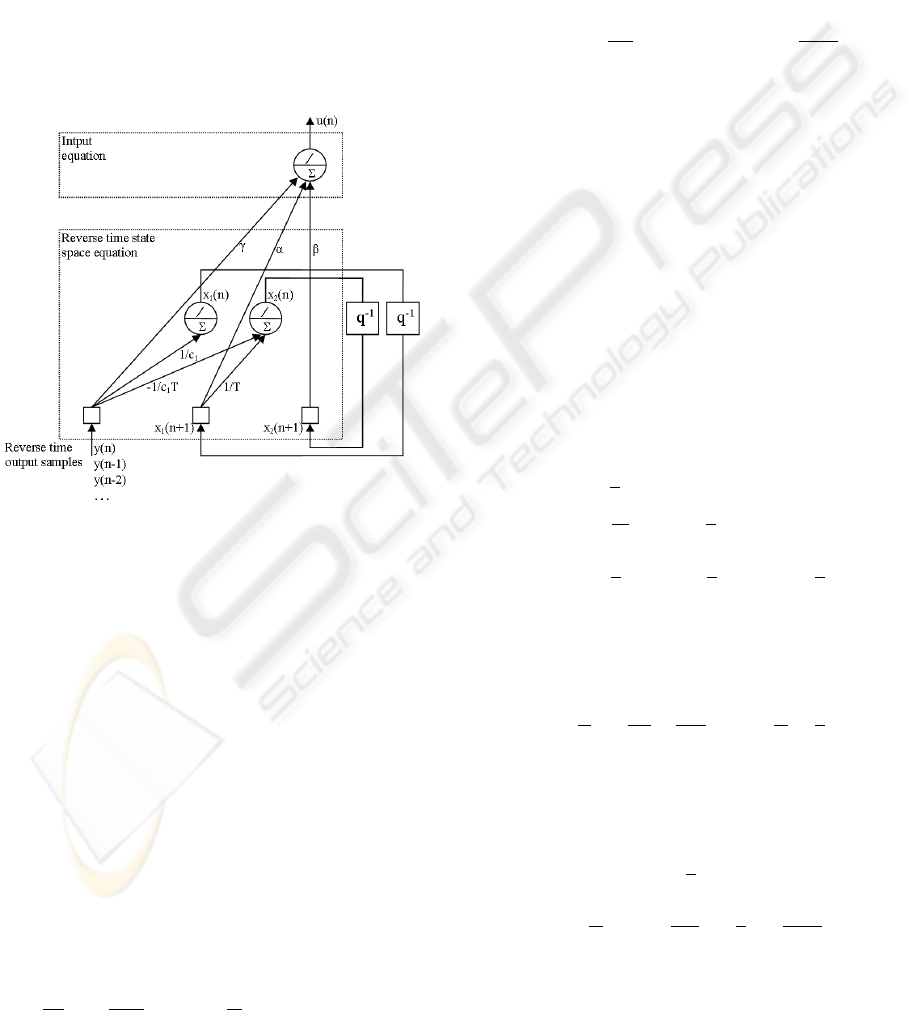

Figure 5: Inverse second order neural model.

If the sampling period is generally known, coefﬁ-

cients α, β and γ of the physical model can be impre-

cise, or completely unknown. The degrees of freedom

that can be added to the network can relate to these

parameters, themselves resulting from a combination

of physical parameters. It is then optionally advisable

to supplement this network by adding additional neu-

rons on some internal links where parameters must be

estimated.

5.2 General Case for r Order Ode

without Derivative Input

The general case of the ODE mono input, mono out-

put, continuous, without derivative from the input is

expressed as follows:

a

r

d

r

y

dt

r

+a

r−1

d

r−1

y

dt

r−1

+

· · ·

+a

1

dy

dt

+a

0

y = c

1

u(t)

(11)

In time discretization by sample interval of a low

width T by the Euler’s ﬁnite differences method, the

shape of the direct equation matrices F, G and H are

then:

F =

1 T 0 0

0 1 T

.

.

.

1 T 0

0 0 1 T

−

a

0

T

a

r

· · · −

a

r−1

T

a

r

+1

G

T

=

0 · · · 0 T

H =

c

1

0 · · · 0

(12)

A new system is obtained with the inverse model

expressed in reverse-time:

x(n) = F

I

x(n+1)+G

I

[y(n)−b(n)]

u(n) = H

I

x(n+1)+I

I

[y(n)−b(n)]

(13)

Where the matrices of the inverse state equation

F

I

, G

I

, H

I

and I

I

are all dependent on T. The retro-

grade lower triangular state matrix, of size dim(F

I

) =

r× r and of rank (r− 1), takes the form (14).

F

I

=

0 0

1

T

0

−

1

T

2

1

T

.

.

.

0

−

−

1

T

r−1

−

−

1

T

r−2

· · ·

1

T

0

(14)

The output application matrix G

I

, of dimension

dim(G

I

) = r× 1 becomes (15).

G

T

I

=

1

c

1

−

1

c

1

T

1

c

1

T

2

· · ·

1

c

1

−

1

T

r−1

(15)

The input matrix of dimension dim(H

I

) = 1× r is

worth (16).

H

I

=

h

0 · · · 0

1

T

i

+

a

0

a

r

· · ·

a

r−2

a

r

−

1

T

1−

a

r−1

T

a

r

F

I

(16)

The direct application matrix I

I

of the output to the

input, of dimension dim(I

I

) = 1× 1 is given by (17).

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

368

I

I

=

a

0

a

r

· · ·

a

r−2

a

r

−

1

T

1−

a

r−1

T

a

r

G

I

(17)

If it is considered that the representation of the in-

verse model (1) takes the form (18), the general neu-

ral representation of the inverse model takes the form

shown on ﬁgure 6.

x(n) = ϕ

I

RN

[x(n+1),y(n)]

u(n) = ψ

I

RN

[x(n+1),y(n)]

(18)

In Which ϕ

I

RN

(F

I

,G

I

) is related to transition to

reverse-time and Ψ

I

RN

(H

I

,I

I

) represents the restoring

function of the input. On the numerical level, the

eigenvalues of the matrix F

I

in ODE case being all

null, thus there is no risk of instability.

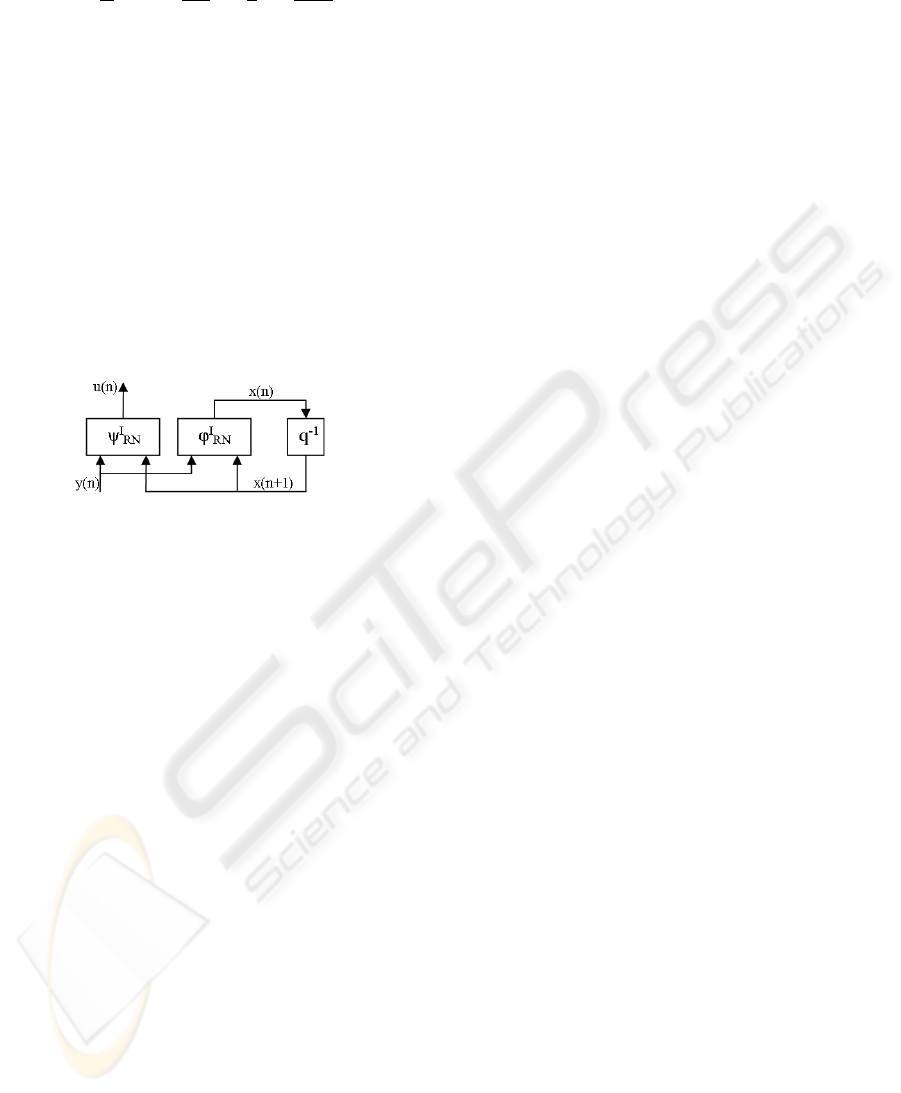

Figure 6: Neural representation of the reverse state model.

6 RESULTS

The goal of this section is to check the assumptions

of awaited quality concerning the two NNIPS (black-

box and gray-box models) in terms:

• of robustness with respect to an unknown input

from the base of training compared to the inverse

state model;

• of robustness with respect to the noise on the out-

put (i.e. the regularizing effect) compared to the

inverse state model;

• of gain in effort of training.

The black-box neural model is an Elman network

with two linear neurons on its hidden layer, and with

one neuron on its output layer. This neural network

is fully connected, and the weights and biases are

initialized with the Nguyen-Widrow layer initializa-

tion method (Nguyen and Widrow, 1990). The semi-

physical model design is carried out from the preced-

ing black-box model which has been modiﬁed to ob-

tain the neural representation of the ﬁgure 5. For that,

the coefﬁcients depending on the parameters T, c

1

,

α, β and γ are left free. Only three coefﬁcients have

been forced to be null to delete corresponding con-

nections. We have also connected the inputs layer to

the output layer, but we have not added any additional

neuron. These two models are subjected to a training

with (pseudo) experimental disturbed data. For the

numerical tests, we have adopted the parameters ac-

cording to ω

n

= 5 rad.s

−1

, ξ = 0.4, T = 0.05 s and

c

1

= 1. It is noticed that this choice of parameters en-

sures, for the matrix F of the system (6), a spectral

radius lower than 1, and consequently the stability of

the direct model.

To construct the sets of training, we have gener-

ated a N samples input random sequence to simulate

the direct knowledge-based model. This signal is a

stochastic staircase function, resulting from the prod-

uct of an amplitude level A

e

by a Gaussian law of

average µ

e

and variance σ

2

e

, of which the period of

change T

e

of each state is adjustable. T

e

inﬂuences the

input signal dynamics, and thus the spectrum of the

system excitation random signal. For all the tests, we

have ﬁxed A

e

= 1, µ

e

= 0, σ

2

e

= 1, T

e

= 60T, T

b

= 3T

and µ

b

= 0. This input signal provides a disturbed

synthetic output signal. The variance σ

2

b

, the average

µ

b

, as well as the period of change of state T

b

charac-

terize the dynamics of the noise.

Weights Initial Value: The stage of coefﬁcients ini-

tialization being deterministic for the quality of the

results in the black-box model case, we have cho-

sen to reproduce hundred times each following exper-

iments. Indeed, some initial values can sometimes

generate mean squared error (MSE) toward inﬁnite

value. These results will then be excluded before car-

rying out performances and average training efforts

calculation.

6.1 Test On Modeling Errors and

Regularizing Effect

We have measured the generalization and regulariza-

tion contribution of the inverse neural model com-

pared to the inverse state model. For that, we have

compared the mean square errors of the inverse state

model with those obtained in phase of recall of the

two inverse neural form models.

6.1.1 Training and Test Signals and Comparison

of Restorations

We have tested ﬁve training sequences length N = 300

samples. The variances which characterize the dy-

namics of the noise in the pseudo experimental sig-

nals σ

2

b

are worth 0, 0.03, 0.09, 0.25, and 1. They

generate for the process output signal several values

of signal to noise ratio (SNR) from around 20 dB to

inﬁnity. Then we have compared the MSE of decon-

volution in recall phase with new disturbed random

INVERSION OF A SEMI-PHYSICAL ODE MODEL

369

signals with the same variances and applied to the in-

verse black-box and semi-physical models.

6.1.2 Numerical Results

Let us underline the fact that only seventy-six experi-

ments have been retained for calculation of averages.

The black-box model have not provided (due to a bad

initialization of the coefﬁcients) suitable restoration

in 24% of the cases. The ﬁgure 7 gathers the results

of MSE for the three inverse models. The ﬁgure 8

illustrates the signals obtained for the output signals

deconvolutions with a SNR of 33 dB.

19 33 44 55 Inf

0

0.2

0.4

0.6

0.8

1

1.2

1.4

1.6

1.8

2

SNR in dB of signal to reverse

Mean squared error

Comparison of performances of regularization for differents SNR values

Inverse state model

Black−box neural network

Semi−physical neural network

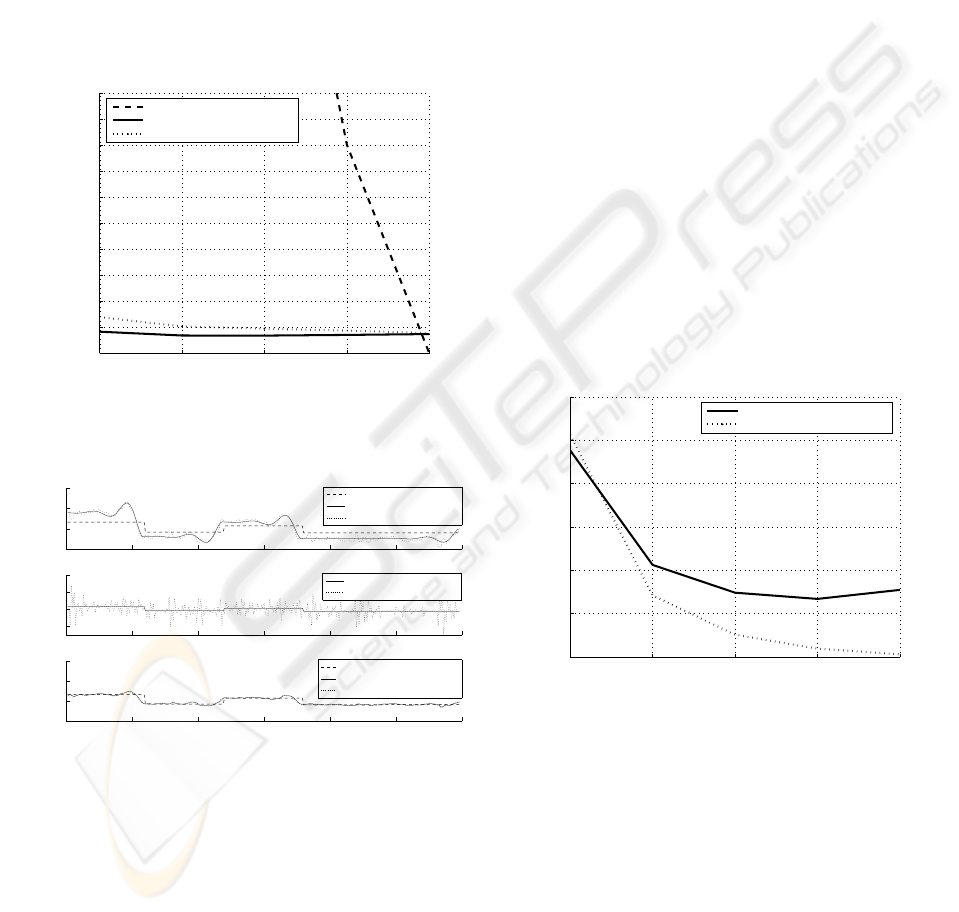

Figure 7: Impact of neural models on the regularization:

evolution of the three models MSE according to the SNR.

0 50 100 150 200 250 300

−5

0

5

10

Time

Signals

Input and output signals

0 50 100 150 200 250 300

−10

0

10

20

Time

Signals

Comparison between the test input and the estimated input (inverse state model)

0 50 100 150 200 250 300

−5

0

5

10

Time

Signals

Comparison between the test input and the estimated input (inverse models)

Test input

Estimated input (black−box neural network)

Estimated input (semi−physical neural network)

Test input

Estimated input (inverse state model)

Test input

Second−order output (without noise)

Second−order output (with noise)

Figure 8: a) Test signals (SNR of 33 dB), b) Deconvolution

by the reverse state model, c) Deconvolution by the inverse

neural models.

Noiseless case: In absence of noise in training and

test signals, black-box and semi-physical models pro-

vide similar mean performances (MSE of approxi-

mately 0.18) and in addition relatively near to the in-

verse state model.

Noisy case: When the noise grows in the training and

test signals, the two neural models are much less sen-

sitive to the noise than the inverse state model (ﬁgure

7). The regularizing effect is real. The semi-physical

model has good performances but, the constraint im-

posed by the structure of the network and the more

reduced number of connections (synapses), decreases

the robust effect to the noise (loss of the neural net-

work associative properties) and slightly places this

model in lower part of the black-box model. It is

thus noted that performances in term of regulariza-

tion are much better than for the inverse state model,

but a little worse than for the black-box model (MSE

increases more quickly). The performances seem to

be a compromise between the knowledge-based and

the black-box model. Let us note that this difference

grows with a higher order model and also increases

the number of neurons.

6.2 Test On Learning Effort

For this test, we have compared the product of the

MSE by the number of epochs, i.e. the ﬁnal error

ampliﬁed by the iteration count of the training phase.

Learning stops if the iteration count exceeds 250 or if

MSE is lower than 0, 03. We have made a distinction

between errors at the end of the training (ﬁgure 9) and

errors on the test as a whole (ﬁgure 10).

19 33 44 55 Inf

10

15

20

25

30

35

40

SNR in dB of signal to reverse

MSE

1

*epochs

Comparison of the training efforts for differents SNR values

Black−box neural network

Semi−physical neural network

Figure 9: Curves of learning effort on the training set.

As learning effort depends on the number of neu-

rons, one compares the black-box and gray-box net-

works with an equal number of neurons. In the ﬁrst,

all the weights of connections are unknown. In the

second, one considers all the weights with the excep-

tion of the three coefﬁcients corresponding to non-

existent connections and being null. On ﬁgure 9, we

note that the gray-box model is more effective when

the noise is weak. Physical knowledge supports the

convergence of the weights so that the behavior ap-

proaches the data. This seems to be checked un-

til SNR of about 20 dB as in our example. Beyond

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

370

19 33 44 55 Inf

30

35

40

45

50

55

60

65

70

SNR in dB of signal to reverse

MSE

2

*epochs

Comparison of the training efforts for differents SNR values

Black−box neural network

Semi−physical neural network

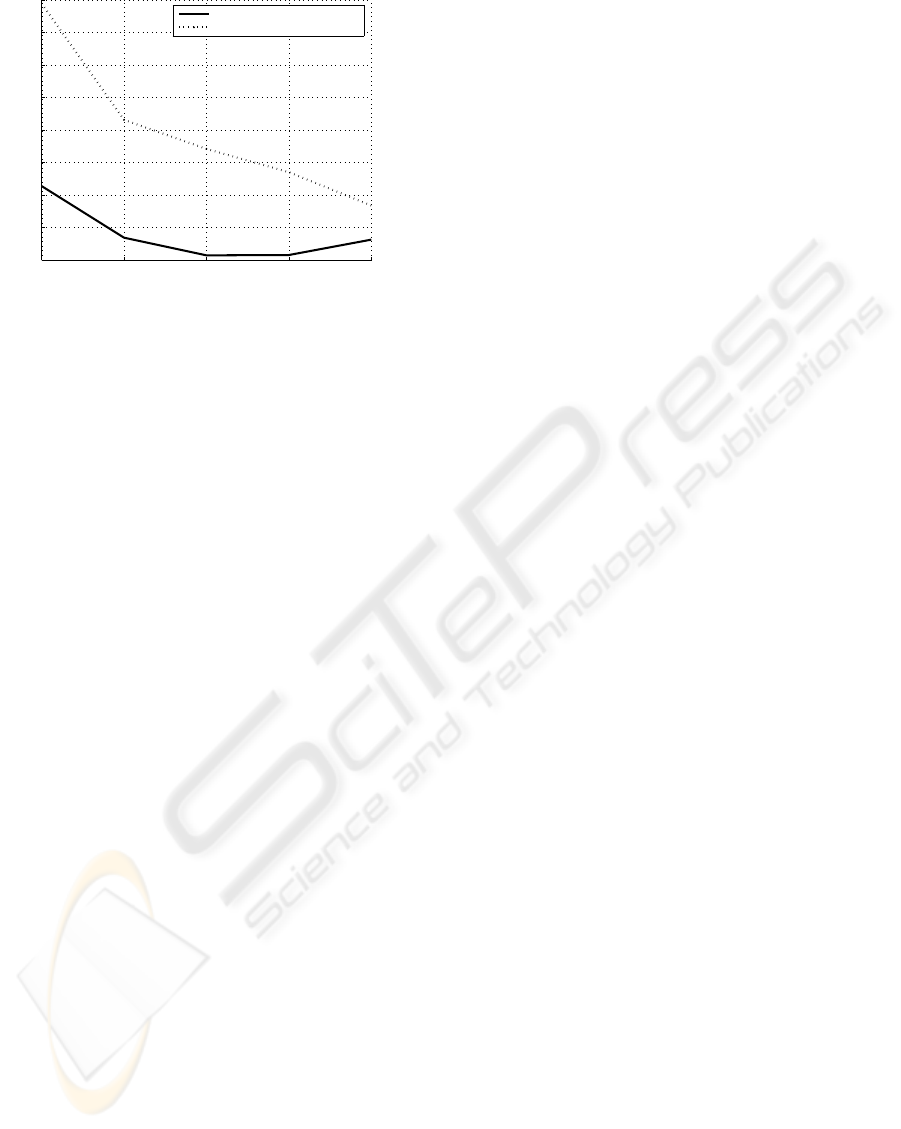

Figure 10: Curves of learning effort on the test set.

that, it is the black-box which is slightly more effec-

tive. On ﬁgure 10, the tendencies are the same for the

black-box model. The gray-box model is penalized

by the constraint imposed by the neural framework

and the more reduced number of connections. Within

the framework of a traditional second order ODE, the

semi-physical model seems to require a greater effort

with the test set than the black-box model. Indeed,

within the framework of this example, the number of

coefﬁcients remaining free for the gray-box model be-

ing relatively low, it leads to a loss of the generaliza-

tion capacity compared to the black-box model. How-

ever, this supremacy is quite relative since only 76%

of the tests carried out have been conclusive for the

black-box model and 100% for the gray-box model.

7 CONCLUSION

We have examined the performances of an inverse dy-

namic model by fusion of statistical learning and de-

terministic modeling. For the study, our choices have

gone toward the design of an inverse semi-physical

model using a looped neural network. We have com-

pared the latter with an inverse fully connected neu-

ral network. Experimental results on a second order

system have shown that the inverse gray-box neural

model is more parsimonious and presents better per-

formances in term of learning effort than the inverse

black-box neural model, because of knowledge in-

duced by the deterministic model. The performances

in term of inverse modeling precisions are visible

since the input restoration errors are weak. The neu-

ral training plays the part of statistical regressor and of

regularization operator. Finally, a higher order model

increases the number of neurons and then improves

the robust effect to the noise of the gay-box model.

REFERENCES

Cherkassky, V., Krasnopolsky, V. M., Solomatine, D., and

Valdes, J. (2006). Computational intelligence in earth

sciences and environmental applications: Issues and

challenges. Neural Networks, 19, issue 2:113–121.

Dreyfus, G., Martinez, J. M., Samuelides, M., Gordon,

M. B., Badran, F., Thiria, S., and H

´

erault, L. (2004).

R

´

eseaux de Neurones: M

´

ethodologies et Applications.

Eyrolles, 2

`

eme

´

edition, Paris.

Groetsch, C. W. (1993). Inverse Problems in the Mathemat-

ical Sciences. Vieweg Sohn, Wiesbaden.

Hornik, K., Stinchcombe, M., and White, H. (1989). Multi-

layer feedforward networks are universal approxima-

tors. Neural Networks, 2:359–366.

Idier, J. (2001). Approche Bayesienne pour les Probl

`

emes

Inverses. Trait

´

e IC2, S

´

erie Traitement du Signal et de

l’Image, Herm

`

es, Paris.

Krasnopolsky, V. M. and Fox-Rabinovitz, S. F. (2006).

Complex hybrid models combining deterministic and

machine learning components for numerical climate

modeling and weather prediction. Neural Networks,

19:122–134.

Krasnopolsky, V. M. and Schillerb, H. (2003). Some neural

network applications in environmental sciences. part i:

Forward and inverse problems in geophysical remote

measurements. Neural Networks, 16:321–334.

Ljung, L. (1999). System Identiﬁcation, Theory for the

User. Prentice Hall, N. J.

Mohammad-Djafari, A., Giovannelli, J. F., Demoment, G.,

and Idier, J. (2002). Regularization, maximum en-

tropy and probabilistic methods in mass spectrometry

data processing problems. Int. Journal of Mass Spec-

trometry, 215, issue 1:175–193.

Nguyen, D. and Widrow, B. (1990). Improving the learning

speed of 2-layer neural networks by choosing initial

values of the adaptive weigths. Proceedings of the

International Joint Conference on Neural Networks,

3:21–26.

Oussar, Y. and Dreyfus, G. (2001). How to be a gray box

: Dynamic semi-physical modeling. Neurocomputing,

14:1161–1172.

Sontag, E. D. (1996). Recurrent neural networks : Some

systems-theoretic aspects. Technical Report NB, Dept

of mathematics, Rutgers University, U.S.A.

Thikhonov, A. N. and Arsenin, V. Y. (1977). Solutions of ill

Posed Problems. John Wiley, New York.

INVERSION OF A SEMI-PHYSICAL ODE MODEL

371
