BESA-ME: Framework for Robotic

MultiAgent System Design

David M. Flórez, Guillermo A. Rodríguez, Juan M. Ortiz and Enrique González

SIDRe Research Group, Pontificia Universidad Javeriana, Bogotá, Colombia

Abstract. BESA-ME is a software middleware designed to make easier and to

improve the construction of robotic control systems based on multi-agent

techniques. BESA is a behavior-oriented, event-driven and social-based general

purpose architecture designed to build concurrent applications using the multi-

agent paradigm. The BESA abstract model incorporates the concept of behavior

and the management of asynchronous events, which are very useful in the

construction of robotic systems, thus it allows to design robot control

architectures in a natural and direct fashion. BESA-ME, micro-edition, is the

adapted BESA model that is well suited to be implemented over

microcontrollers in embedded systems. Initially, it has been developed for the

PIC18F chip family, and then adapted for dsPIC60F chip family, both under the

real time operating system FreeRTOS ™.

1 Introduction

When dealing with the construction of complex systems, a design methodology

usually includes splitting the system in a set of smaller simple tasks. This approach

allows dealing with complexity and makes possible to improve the efficiency of the

system implementation by distributing the execution of these tasks on a set of

processing units. The agent paradigm provides a conceptual framework where

systems can be analyzed and synthesized as a collection of interacting entities, using a

high level abstraction, which fits in a natural fashion with the implicit concurrent

requirements of robotic systems.

The development of new products implies the incorporation of innovative and

more complex functionalities. The actual tendency of the technology used to improve

the system efficiency is to construct multi-processor, multi-core or multi-thread

machines [1]. This approach has the advantage of being easily scalable; however, in

this case it is necessary to include specialized mechanisms to solve synchronization

and communication problems. In addition to the high computational power

requirements, some applications like smart home systems [2], robotics, automation,

industrial machines and multi-robot systems [3] require that the embedded hardware

communicates frequently with external stand alone systems. As a consequence,

design of software for embedded systems must: generate modular concurrent

solutions to deal with complexity, take advantage of hardware parallelism, and be

adequate to interact in a natural fashion with external stand alone systems. It’s

M. Fl

orez D., A. Rodr

ıguez G., M. Ortiz J. and Gonz

alez E. (2007).

BESA-ME: Framework for Robotic MultiAgent System Design.

In Proceedings of the 3rd International Workshop on Multi-Agent Robotic Systems, pages 64-73

 SciTePress

requirements to have models and platforms that ease the system design, taking

advantage of the parallel processing capabilities of the actual and future processors.

In the context of robotic systems, the design problems previously introduced are

amplified due to the fact that robots must be able to evolve in a not completely

observable environment under real time constrains. In order to deal with these critical

conditions, the designer must also take into account the following issues:

• manage complex synchronization of non-deterministic events coming from

sensors and controlled actuators.

• distribute the application into several processes, using communication taking

advantage of the parallel and specialized hardware.

• use an unified model in both the embedded and the external components of

the system.

• use of a holistic approach where the robot control unit is modeled as a unique

composed system; the system is seen as a collection of logical units, which

can be physically deployed in the available hardware (embedded or not).

The actual software tools to model, design and implement embedded distributed

and real-time systems covers different needs. Real Time Operating Systems (RTOS)

are used for the implementation of systems with time-response constraints [9]. For

instance, TURTLE [6] offers an environment based on the Unified Modeling

Language (UML) for the formal model [7]. Another interesting approach uses the

synchronous language LUSTRE, designed for the development of critical control

software [8]. These approaches are process oriented, where the basic processing units

are processes or tasks that usually communicate by message passing mechanisms.

Even if the conceptual model provided by the notion of process is very useful, general

and flexible, it has a low level of abstraction, which makes it difficult to be used in the

design of complex systems. For instance, when designing a robot or multi-robot

system, it would be preferable to use a conceptual model with higher degree of

abstraction, where notions as behaviors and goal-oriented entities could be modeled in

a more direct way.

A well suited approach to model complex problems is the Multi-Agent System

(MAS) paradigm. Different activities can be distributed into several cooperative

autonomous entities, and interactions are the basis for the dynamics of the system.

Agents respond to events coming from its environment or derived from its

interactions with other agents. The communication is the basis to construct the social

level which emerges from the inter-agent interaction [10]. A MultiAgent System,

MAS, is a computational cooperative system capable of executing concurrent tasks

through its agents.

BESA is a MAS architecture [5] [17] that aims to solve the problems that where

depicted in the precedent paragraphs. BESA provides an abstract model to construct

multi-agent systems. The initial implementation of the BESA model was developed to

work in a Java distributed environment. The BESA micro-edition, BESA-ME, is

introduced in this paper. The BESA-ME model, architecture and implementation have

been developed for embedded systems using RTOS as software support, running in

microcontrollers and DSP hardware platforms. This development is mainly motivated

to deal with the requirements involved in the design of multirobot systems, where a

recursive organizational approach is applied.

In this paper the BESA-ME conceptual model and architecture are explained.

Then, the RTOS software and hardware considerations are analyzed in order to adjust

the model to fit the constraints of a practical embedded application. Finally, the

implementation strategy is depicted and the obtained results are analyzed.

2 BESA Architecture

The BESA architecture defines a conceptual model for the implementation of an

agent framework. The construction of a complex and concurrent application must use

this agent conceptual abstraction to model the system. Then the implementation of the

system can be performed in a direct fashion exploiting the facilities provided by the

BESA application framework.

2.1 Abstract Model

The BESA abstract model is supported by three principal concepts, which provide a

theoretical frame that integrates a behavior-oriented, event-driven and social based

approach in a coherent structure.

• Behavior-oriented: agents are composed by a collection of behaviors, simple

entities charged of the treatment of a set of related events.

• Event-driven: asynchronous events unleash the behavior execution. They

represent signals that could be perceived by the agents. The behavior

execution is controlled determined by a guard based selector mechanism;

guards forbid events to be processed if a desired condition is not attained.

• Social-based: the multi-agent system is created to form a social organization,

where well-known communication patterns can be used; it is also possible to

utilize mediator agents that help in the correct development of interaction

protocols between agents.

BESA is a concurrent oriented architecture; agents are internally seen as a

multithread system and the non-determinism, implicit in an event driven system, is

managed by a select (alting) mechanism.

2.2 Agent Level

The agents give a response to events coming from the environment or from other

agents. BESA events have a specific semantics and are marked with an event type

label. The agent has an associated treatment for each type of event. The treatment of

an event must include the rational response of the agent. When processing an event,

the data attached to the event and the internal state must be taken into account. The

response to an event can be produced by any kind of decision mechanism (neural

networks, fuzzy logic, procedural code, rule based system, etc.). This response can

include: the selection of the appropriated actions that must be executed, sending a

new event to other agents, and the modification of the internal state of the agent.

Events exchanged between agents usually follow well-defined communication

patterns, known as interaction protocols.

A BESA agent is structured with three main components: the channel, a set of

behaviors and the agent state. Figure 1 shows these components and the way they are

connected. The channel manages a mailbox where events are received, providing the

unique entry point to the agent. The received events are assigned to different ports

depending on their event type. Finally, they are transferred to the correct behavior, if

the guard condition is verified.

The behavior is an execution space that is activated when an associated event is

received. Then the corresponding treatment is executed, thus producing the rational

response to the received event. An agent can have several concurrent behaviors, thus

allowing to process several events at the same time. Notice that the way that the

parallel execution is performed depends on the capabilities of the executing

environment (hardware and software). Incoming events are received by the channel

and transferred to a queue in the appropriated behavior; events received by the same

behavior are processed in a sequential order. A guard verifying function and a

treatment function are associated to each type of event.

The agent state provides a mechanism to store information about the agent, the

environment, other agents and the global system; it is used to keep data in a persistent

way. This information usually is used in the treatment of events. The state is a

structured shared memory; thus, the concurrent access to this space must be

synchronized. The synchronization could be implemented with semaphores or other

operating system mechanisms.

2.3 Social Level

The social level aims to provide a set of predefined mechanisms and interaction

protocols that could be directly used to manage agent interaction. Some of the BESA

cooperation and communication services provide specialized ready to use agents that

act as mediators in the social organization. For instance, the group communication

service uses a mediator agent, actuating as a router, distributing events in the same

order to all the agents subscribed to the group. A more detailed presentation of the

social level is out of the scope of this paper. In [17], there is a more detailed

description of this level.

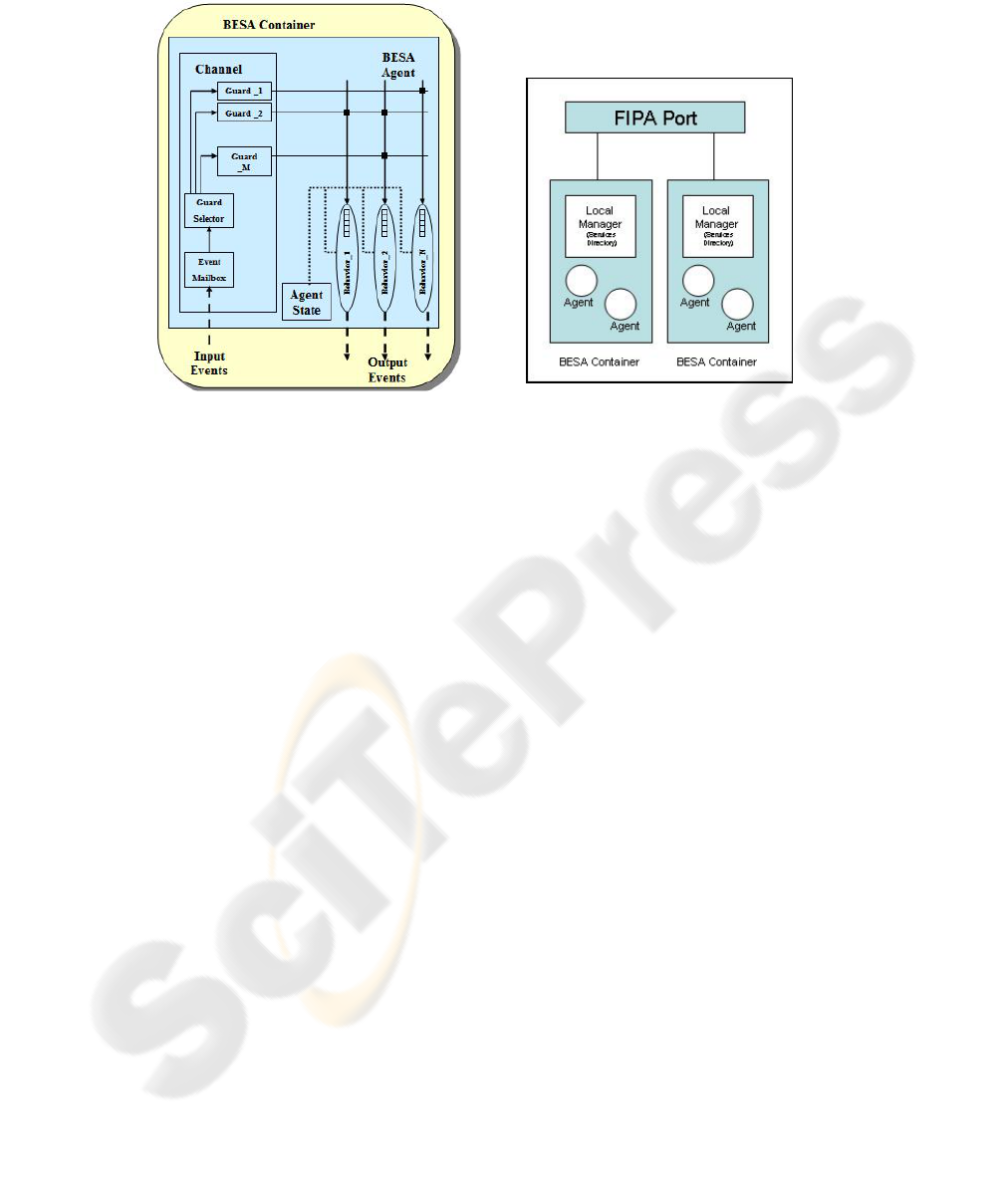

Fig. 1. Internal structure of a BESA Agent.

Fig. 2. BESA System Layer Model.

2.4 System Level

The system level is formed by a set of agent containers running in physical or virtual

machines. The container can be seen as the execution space for the agents (Figure 2).

A BESA container has a local manager in charge of handling the agent’s life cycle

and the directory services. The container also assures the correct communication

between agents “living” in different containers. The system level is designed to

comply with the FIPA standard [11]. The inter-agent interaction in the same container

is performed without the local manager intervention.

In order to make easy the communication between agents, BESA includes a

directory service. The white pages component allows to locate agents by an ID. The

yellow pages component makes possible to locate a group of agents that can provide a

specific service.

3 BESA-ME DESIGN

The goal of the BESA-ME design is to find how to implement the BESA model in an

embedded system, taking into account the BESA requirements and the constraints of

this kind of platforms.

The more important operating requirements of a BESA

framework are: the management of the shared resources and shared memory spaces,

and the multi-task operation and the concurrent treatment of events.

Real time operating systems are the proper tool to provide the services required to

implement BESA-ME. In particular, the communication and synchronization of the

agent behaviors requires semaphores and messages queues with blocking sending.

The concurrent operation of agents and their behaviors can be achieved by a multitask

preemptive operating system kernel. As BESA-ME is a framework for the

construction of embedded applications, usually implemented in micro- controllers and

DSPs, it is convenient to use a Real Time Operating System (RTOS) to provide the

required functionalities [5]. A BESA-ME application can be seen as a layered

structure, as shown in Figure 3. Upper layers use the abstraction and services

provided by the lower layers. The user application is designed using the abstraction of

the BESA abstract model. The BESA-ME components are implemented as concurrent

tasks using the inter-task communication mechanisms provided by the RTOS.

Finally, it is essential to adjust the BESA general model in order to fit the

constraints of a practical embedded application. In the BESA-ME implementation

model, some BESA elements are excluded in order to improve the performance and

reduce the amount of required memory. The conditions of the guard selector

mechanism are eliminated, thus reducing the control of the non-determinism implicit

in an event driven system, but improving the filtering speed of events in the channel

and allocating more memory to store events in the ports. In the container only the

white pages directory is used, so the agents can locate an agent if they know its

“alias”.

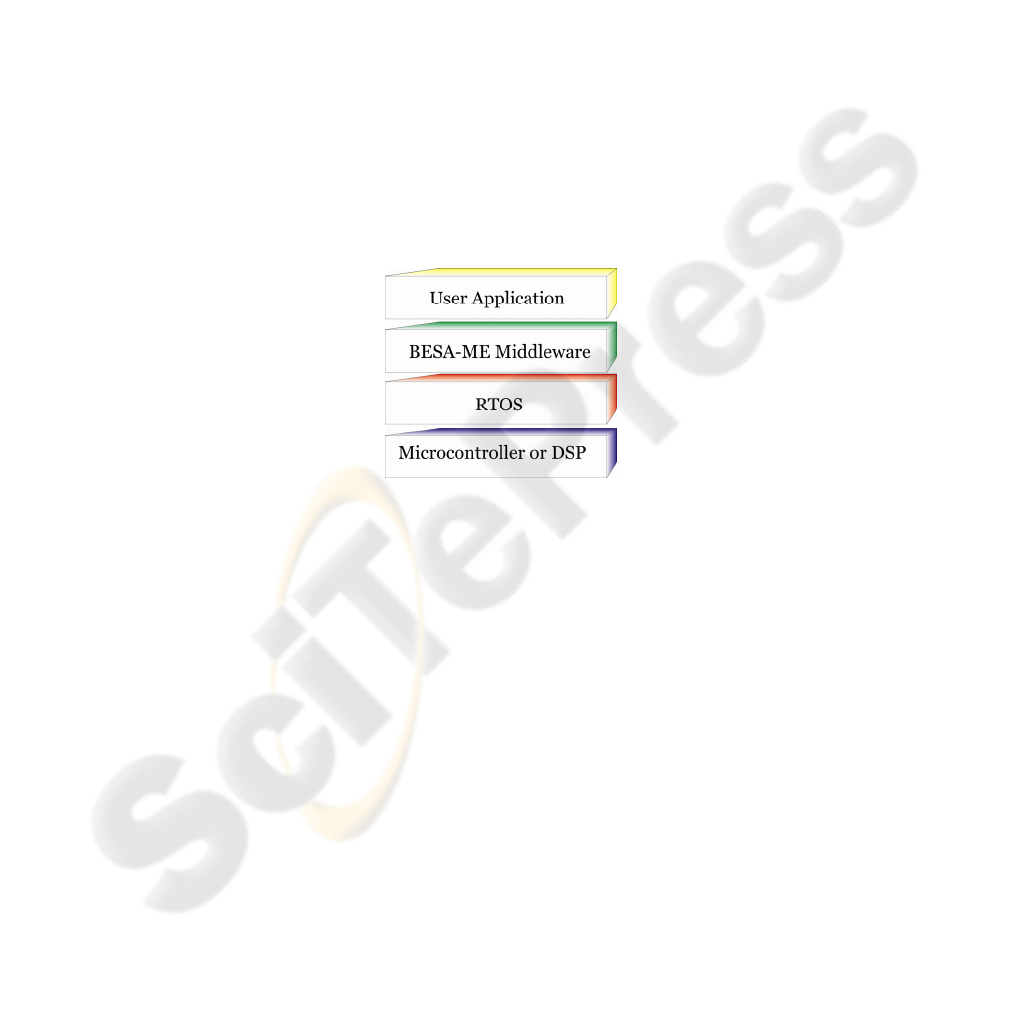

Fig. 3. Layers in a BESA-ME application.

4 Implementation

BESA-ME has been successfully implemented for the microcontroller family PIC18F

and the DSP dsPIC60F. The available RTOS that were selected as candidates to

support the BESA-ME implementation include the Salvo-RTOS [12], the µC/OS-II

[13], the CMX-TINY [14] and FreeRTOS [15]. Though several of the studied RTOS

were offered the required services, after a detailed analysis of their functionalities, the

FreeRTOS™ was selected. It was chosen because it’s a RTOS with a GNU license, it

is well-structured and easy to use; it also supports many microprocessors, micro-

controllers and DSPs.

4.1 Agent Level

The BESA agent is modeled by a data structure called stAgentBESA. It contains

pointers to the agent shared state and channel, an array of pointers to the behaviors

associated to the agent and the agent handler that contains the alias and the agent id.

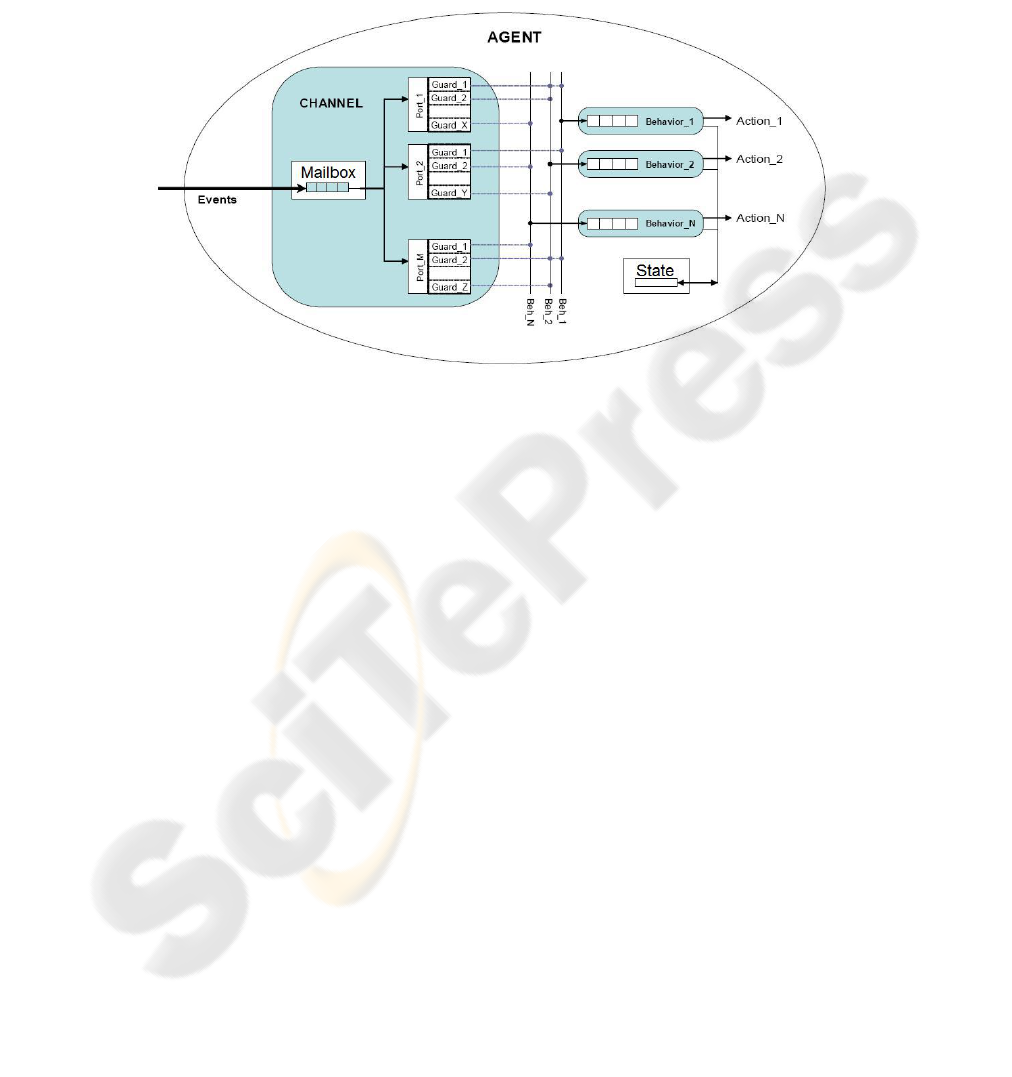

Fig. 4. BESA-ME agent level model. The boxes represent the data structures of the agent.

The Channel Task

The Channel Task has been implemented as a RTOS task, which is blocked waiting

for incoming events. This waiting mechanism is implemented using a RTOS message

queue service. When an event is received in the Channel Reception Queue this task

looks for the incoming event type and compares it with the defined registered ports; if

a match was found, the channel task sends a message to the behaviors interested in

this event type. The same code is used to implement and create the required channel

instances thanks to the parametric data structure used to represent an agent. When an

agent is built, a channel task is created. A similar approach is used for the behaviors

tasks. The channel parameters are contained in a data structure that includes a pointer

to the channel reception queue, an array of pointers to the channel ports and some

control variables.

The Behavior Task

The behaviors have been implemented as RTOS tasks, which are blocked waiting for

messages sent from the channel. The messages contain the event attached data and a

pointer to the adequate treatment function. The association between event types and

their treatment functions is defined when the guards are created and bind to ports.

When a message is received, the adequate treatment function is executed; it

receives the event data and a pointer to the agent state. The state is a shared memory

that has a read/write protection mechanism built with a binary semaphore. In the

treatment function the microcontroller peripherals are used, mathematic operations

are performed, the external hardware is controlled, events to other agents are sent, and

the logic that implements the rationality of the agent is included.

4.2 System Level

An agent system, implemented using BESA-ME is a distributed system composed by

one or more BESA containers running in one ore more physical or virtual machines

(Figure 5). In BESA-ME, there is only one container running in each processing

device (microcontroller or DSP). Each container has a unique ID registered in the

white pages directory. When a send event service is invoked, a search for the address

of the agent is performed. If the destination agent exists in the local container, the

event is directly sent to the appropriated message queue. If the destination is not local,

the event is sent to the other registered containers; only the container where the

receiver agents exist takes into account the event and transfers it to the appropriated

agent.

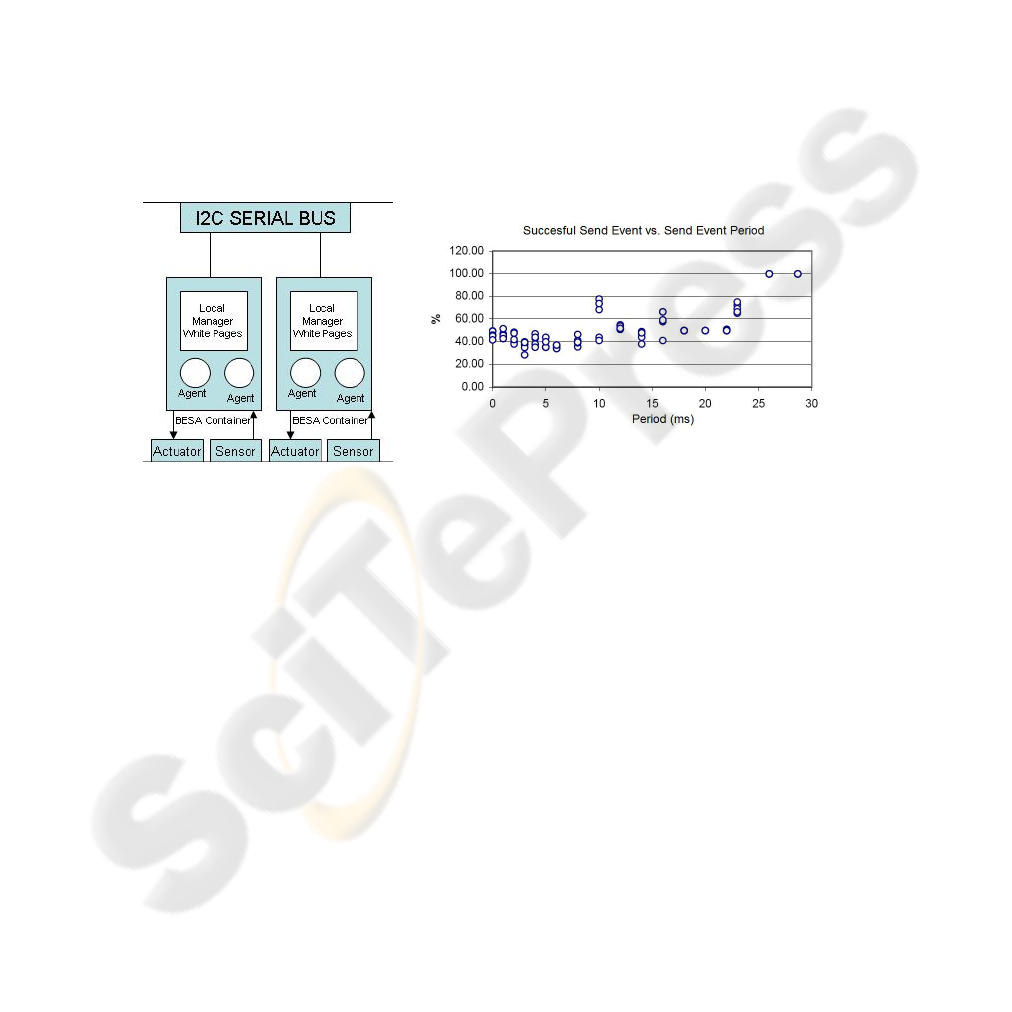

Fig. 5. BESA-ME System Layer

Model.

Fig. 6. Percentage of events received successfully by an

external agent.

In the actual implementation of BESA-ME, the communication between containers

is achieved through the use of a wired bus and the I2C low level communication

protocol. The I2C protocol has been implemented in an interrupt service routine. The

BESA-ME communication process is controlled with the I2C control bits at the

physical layer and a BESA acknowledge to inform if the event has been taken

properly by the destination agent. The information required to construct event and

acknowledgment packets is written in a transmit buffer protected by a binary

semaphore. The semaphore is free when the whole message has been send. Another

semaphore prevents that one other local agent start an external communication before

the reception of a pending acknowledgment packet.

5 Experimental Results

In order to verify that the BESA-ME execution is correct, a test protocol has been

designed. The controlled independent variables include the task’s stack size, the

number of BESA-ME elements (agents, behaviors, guards) and the event production

frequency. The measured dependent variables include the response time of the system

to extern and local events, the number of errors in the inter-agents communication,

and the evaluation of the general performance of the system.

The functional test was implemented in a couple of interconnected

microcontrollers PIC18F8720 and PIC18F8620, with a processor frequency of 4 MHz

and the I2C communication frequency of 100 KHz. This value of the intervenient

variables were found by gradual increments. In the agent level the maximum number

of behaviors is 11, with only one agent in the container. For one behavior the

maximum number of guards is 20, with only one port (one event type). The maximum

number of ports is 50. In the system level the maximum number of agents per

container is 5. An extensive communication test was applied to the BESA-ME system

level [16]. In summary, the results include the response time to events and the errors

rate, in local and extern communication. In figure 6 can be observed how the event

frequency affects the communication between agents placed in different containers.

The AgentCoop project aims to build a multirobot platform. This multirobot

system is controlled using the MRCC model (MultiResolution Cooperation Control),

which provides a flexible framework to built cooperative multiagent systems. In order

to deal with the complexity of this application, the AgentCoop architecture has been

designed using the BESA conceptual model. The robotic system is composed by a set

of agents that can be deployed in a distributed environment, where high performance

stand alone computers coexist with embedded processors The design of the

AgentCoop platform represents a complex problem with the characteristics previously

analyzed in section 1. The robots of the AgentCoop project are controlled using the

dsPIC30F6012. Thus, BESA-ME has been easily migrated to work with this platform,

proving the flexibility and modularity of the actual BESA-ME framework.

6 Conclusions

BESA-ME is a useful tool to solve complex problems in embedded applications. It

allows to split complex objectives into simpler tasks, and to allocate them to

dedicated agents. BESA-ME solve the low level synchronization problems, providing

a high level abstraction model to make a more easy design and implementation of

system. The use of the BESA-ME model allow the development of MAS oriented

distributed applications for microcontrollers in a easy and efficient way, reducing the

development time.

One of the more important BESA-ME facilities is the flexibility; if a system could

not be fitted in only one microcontroller it can be distributed in two ore more

processors only by changing configuration and declaration parameters of the

middleware. The required external communication between micro-controllers is

automatically detected and managed by the BESA-ME communication services.

A comparative evaluation of BESA-ME is projected. This evaluation will be

implemented comparing the AgentCoop development model for BESA-ME and the

implementation model if using only an RTOS without BESA-ME.

References

1. INTEL Corporation. “Intel® Dual-Core Processors: The first step in the multi-core

revolution”, www.intel.com/technology/computing/dual-core. January 15th 2007.

2. SMARTHOME. “Getting Started”, http://www.smarthome.com/starters.html. January 13th

2007.

3. The Robotics Institute. “Distributed Robots Architecture”, Carnegie Mellon University.

http://www.frc.ri.cmu.edu/projects/dira. January 12th 2007.

4. Liu, Jiming. “Multi – Agent Robotic Systems”. CRC Press, Boca Ratón, Fl. 2001.

5. Gonzalez Enrique, Avila Jamir, Bustacara César. "BESA: Behavior-Oriented, Event-Driven

And Social-Based Agent Framework". PDPTA'03, Las Vegas-Usa, Csrea Press, Vol. 3,

Junio 2003, PP 1033-1039. ISBN 1-892512-43-2.

6. P.De Saqui SanneS. “Conception basée modèle des systèmes temps réel et distributes”,

Rapport Laas No05403, Toulouse, France. 7 Juillet 2005.

7. Roques, Pascal, “UML en action”. Editions Eyrolles, France. June 2004.

8. Verimag. “Synchrone”, http://www-verimag.imag.fr/SYNCHRONE/. October 2006.

9. Stallings, William. “Operating Systems: Internals and Design Principles“. Prentice Hall.

USA. 2001.

10. Weiss, Gerhard. “Multiagent systems: A modern approach to Distributed Artificial

Intelligence”. MIT Press, U.S.A 1999.

11. Foundation for Intelligent Physical Agents. “FIPA Specifications”, http://www.fipa.org,

November 5th 2004.

12. PUMPKIN INC. “Salvo User Manual”, http://www.pumpkininc.com/, October 23rd 2004.

13. MICRIUM. “µC/OS-II Kernel Benefits”,

http://www.ucos-ii.com/products/rtos/kernel/rtos.html, November 18

2006.

14. CMX Systems. “TINY PLUS Real-Time Multi-Tasking Operating System for

Microprocessors and icrocomputers” http://www.cmx.com/, November 18

2006.

15. Barry, Richard. “FreeRTOS”, http://www.freertos.org, November 2004 – November 2006.

16. Florez, David, Rodrigez, Guillermo, Ortiz Juan. “BESA-ME: Arquitectura de sistemas

multi-agente para microcontroladores”. Pontificia Universidad Javeriana. Bogotá,

Colombia. 2005.

17. Gonzalez Enrique, Bustacara César, Avila Jamir,. "Agents For Concurrent Programming".

CPA 2003, Enschende-Holanda, IOS PRESS, Septiembre 2003, PP 157-166. ISBN 1-

58603-381-6.
