DETECTING ASPECTUAL BEHAVIOR IN UML INTERACTION

DIAGRAMS

Amir Abdollahi Foumani

IBM Rational Software Group, Montreal, Quebec, Canada

Constantinos Constantinides

Department of Computer Science and Software Engineering, Concordia University, Montreal, Quebec, Canada

Keywords:

Object-oriented design, Uniﬁed Modeling Language, production system, crosscutting, aspectual behavior,

aspect mining.

Abstract:

In this paper we discuss an approach to detect potential aspectual behavior in UML interaction diagrams. We

use a case study to demonstrate how our approach can be realized: We adopt a production system to represent

the static and dynamic behavior of a design model. Derivation sentences generated from the production repre-

sentation of the dynamic model allow us to apply certain strategies in order to detect aspectual behavior which

we categorize into “horizontal” and “vertical.” Our approach can aid developers by providing indications over

their designs where restructuring may be desired.

1 INTRODUCTION

During object-oriented development, certain concerns

cannot be directly mapped from the problem domain

to the solution space. As a result, their implementa-

tion tends to be scattered throughout the class hier-

archy of the system. Even though this “crosscutting

phenomenon” was initially observed over implemen-

tation artifacts, it does not originate in implementa-

tion but it propagates over from previous development

stages. In this work we are investigating the cross-

cutting phenomenon during design. Artifacts during

this stage are illustrated by the Uniﬁed Modeling Lan-

guage (UML) which provides a notation for repre-

senting a model of a system, capturing its structure

and behavior. We can represent the semantics and

metadata behind the UML model in a form that in-

dicates the ways in which the knowledge can be used.

More precisely each item of knowledge can be repre-

sented by a rule which combines data and semantics

and speciﬁes when to use it and how to use it. A rule

of this kind is called a production and a system which

represents knowledge as a set of productions is called

a production system. Our approach is based on ob-

taining a production system from a UML model and

applying certain strategies in order to capture cross-

cutting (or “aspectual”) behavior. The expected ben-

eﬁt of this approach is to provide developers with an

early indication of design spots where model transfor-

mation (restructuring) might be required or desirable.

Recently there has been an increasing number of

approaches into mining crosscutting concerns from

implementation artifacts and from requirements. Very

little work has been done on mining crosscutting con-

cerns from design artifacts and with this work we aim

in contributing to bridging this gap.

The rest of this paper is organized as follows: In

Section 2 we discuss the necessary theoretical back-

ground to this research. In Section 3 we discuss the

problem and motivation behind this research. In Sec-

tion 4 we present our proposal and in Section 5 we use

a case study to demonstrate and discuss our proposal.

In Section 6 we discuss related work and comparisons

to our proposal. We conclude our work in Section 7

with a summary, discussion and pointers to future re-

search directions.

2 THEORETICAL BACKGROUND

This section provides the necessary theoretical back-

ground to this research project.

378

Abdollahi Foumani A. and Constantinides C. (2007).

DETECTING ASPECTUAL BEHAVIOR IN UML INTERACTION DIAGRAMS.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 378-386

DOI: 10.5220/0001341203780386

 SciTePress

2.1 Aspect-oriented Programming

The principle of separation of concerns (Parnas,

1972) refers to the realization of system concepts into

separate software units and it is a fundamental prin-

ciple to software development. The associated bene-

ﬁts include better analysis and understanding of sys-

tems, high readability of modular code, high level

of reuse, easy adaptability and good maintainability.

Despite the success of object-orientation in the ef-

fort to achieve separation of concerns, certain prop-

erties cannot be directly mapped in a one-to-one fash-

ion from the problem domain to the solution space,

and thus cannot be localized in single modular units.

Their implementation ends up cutting across the in-

heritance hierarchy of the system. Crosscutting con-

cerns (or “aspects”) include persistence, authentica-

tion, synchronization and logging. The “crosscutting

phenomenon” creates two implications: 1) the scatter-

ing of concerns over a number of modular units and 2)

the tangling of code in modular units. As a result, de-

velopers are faced with a number of problems includ-

ing a low level of cohesion of modular units, strong

coupling between modular units and difﬁcult compre-

hensibility, resulting in programs that are more error

prone.

Aspect-Oriented Programming (AOP) (Kiczales

et al., 1997; Elrad et al., 2001) explicitly addresses

those concerns which “can not be cleanly encapsu-

lated in a generalized procedure (i.e. object, method,

procedure, API)” (Kiczales et al., 1997) by introduc-

ing the notion of an aspect deﬁnition, which is a mod-

ular unit of decomposition. There is currently a grow-

ing number of approaches and technologies to support

AOP. One notable technology is AspectJ (Kiczales

et al., 2001), a general-purpose aspect-oriented exten-

sion to the Java language, which has inﬂuenced the

design dimensions of several other general-purpose

aspect-oriented languages, and has provided the com-

munity with a common vocabulary based on its own

linguistic constructs. In the AspectJ model, an as-

pect deﬁnition is a new unit of modularity provid-

ing behavior to be inserted over functional compo-

nents. This behavior is deﬁned in method-like blocks

called advice blocks. However, unlike a method, an

advice block is never explicitly called. Instead, it is

activated by an associated construct called a point-

cut expression. A pointcut expression is a predicate

over well-deﬁned points in the execution of the pro-

gram which are referred to as join points. When the

program execution reaches a join point captured by

a pointcut expression, the associated advice block is

executed. Even though the speciﬁcation and level of

granularity of the join point model differ from one

language to another, common join points in current

aspect-oriented language speciﬁcations include calls

to methods and constructors as well as executions of

methods and constructors. Most aspect-oriented lan-

guages provide a level of granularity which speciﬁes

exactly when an advice block should be executed,

such as executing before, after, or instead of the code

deﬁned at the associated pointcut. Furthermore, much

like a class, an aspect deﬁnition may contain state and

behavior. It is also important to note that AOP is nei-

ther limited to object-oriented programming (OOP)

nor to the imperative programming paradigm. How-

ever, we will restrict this discussion to the context of

object-orientation.

2.2 Production Rules and Derivation

Sentences Over Uml Semantics

A formal description of semantics is essentially a

means to represent knowledge. We can represent

knowledge in a form that indicates the ways in which

the knowledge can be used. More precisely, each

item of knowledge can be represented by a rule which

speciﬁes when to use it and how to use it. Such a

rule takes the form “When a condition of type C oc-

curs, execute action A.” A rule of this kind is called a

production and a system which represents knowledge

as a set of productions is called a production system.

A sequence of rule applications is called a derivation

and the result of this process is called a derivation

sentence (Aho et al., 1986).

With UML we are able to model and visualize a

real world system based on object deﬁnitions and ob-

ject relationships. The semantics and metadata be-

hind the model can be represented as a set of abstract

rules, which can be production rules. By deﬁnition,

production rules must be ﬁnite, implying that in or-

der to represent the semantics of UML artifacts we

need a limited number of production rules. As a con-

sequence, our knowledge, as incorporated in the pro-

duction rules, must also be ﬁnite. It is the process

of using this knowledge that will be “productive.” In

effect, production rules can deﬁne an inﬁnite set of

scenarios. Derivation sentences can be deployed over

these production rules for representing a scenario.

In (Foumani and Constantinides, 2005a) and

(Foumani and Constantinides, 2005b) we presented

a set of production rules to represent the semantics

behind UML artifacts, where the static model is rep-

resented by a class diagram and the dynamic model

is represented by a set of interaction diagrams. More

speciﬁcally, the semantics of object-oriented artifacts,

, can be deﬁned in terms of a set of ﬁve elements,

each of which is ﬁnite. Let

G =

{

C, A, M, P, R

DETECTING ASPECTUAL BEHAVIOR IN UML INTERACTION DIAGRAMS

379

such that

is a set of classes.

is a set of attributes.

is a set of methods.

is a set of transformation rules that deﬁnes

object-oriented design semantics in terms of: a)

deﬁnition of classes, b) hierarchy of classes, c)

relationships between classes and d) system sce-

narios in terms of message passing between class

instances.

is set of relationships and concepts deﬁned

by the object-oriented methodology. We de-

ﬁne this set as

R =

{

[declares], [has],

[collection],

{

(guard)[calls]

}

[extends]

}, where

(guard)[calls]*

used to model dynamic behavior in UML artifacts

(message passing between objects and control

ﬂow in interaction diagrams). The rest of the

elements in the set are used for deﬁning the

semantics of the static model.

3 PROBLEM AND MOTIVATION

One might argue that the implementation stage should

be the appropriate place to look for aspectual behav-

ior, because this is where the phenomenon is obvi-

ous. Indeed our knowledge about crosscutting (de-

spite the fact that the term was coined in the mid 90’s)

dates back to the 80’s from observations, over code

artifacts, of conﬂicts between OOP and concurrency

(Briot and Yonezawa, 1987) which in the early 90’s

became known as “inheritance anomalies” (Matsuoka

and Yonezawa, 1993). In the mid 90’s composabil-

ity issues in OOP over several domains started to sur-

face

. A question one might put forward is whether or

not one should be concerned with crosscutting at the

design level, or whether crosscutting can even mani-

fest itself at the design level. A response to this can

be argued as follows: Mainly due to the fact that de-

sign artifacts during maintenance are many times not

synchronized with code and thus become inconsis-

tent, the code is indeed the only reliable source of the

current state of the system. Thus, focusing on code is

unavoidably the only option. As a result, maintainers

would normally not be highly concerned with docu-

mentation other than code. However, during devel-

opment, developers aim to produce a clean (tangled-

free) implementation and achieve the maximum ben-

eﬁts of advanced separation of concerns. To meet

cf. Proceedings of the ECOOP 2006 Workshop on

Composability Issues in Object-Orientation (entire volume)

this objective, the design artifacts themselves (such

as UML interaction diagrams and the class diagram)

must in turn explicitly address crosscutting concerns.

We therefore need to provide the means to identify

and model crosscutting concerns from the early stages

of the software life cycle. As a result, the explicit

capture of crosscutting concerns in code should be

the natural consequence of good and clean modularity

and not the result of a corrective measure (refactoring

activity) due to a tangled implementation. Is this a

real problem? One can argue that, as “early aspects”

approaches (see related work in Section 6) aim in

detecting and identifying crosscutting concerns from

the requirements stage, the design would be aspect-

free. Our response to this is that early-aspects can

perhaps guarantee an aspect-free requirements model,

but would not guarantee an aspect-free design, since

some aspects may appear during design. We need to

focus on the crosscutting which a) either has remained

after having deployed early-aspects approaches, or b)

originates in design. The motivation behind this re-

search is to be able to detect aspectual behavior in

order to aid developers in performing any necessary

model restructuring before mapping the design into

code.

4 PROPOSAL: DETECTING

ASPECTUAL BEHAVIOR

Consider the sequence of object-oriented analysis and

design activities as described in (Larman, 2004): A

scenario describes the interaction between an actor

and a system and it is usually described in a narra-

tive form as part of a use-case which is a collection

of related scenarios. The scenario refers to real-world

concepts which can be captured by the domain model.

The scenario can also be translated into a system se-

quence diagram, illustratingthe request events (gener-

ated by the actor) and the corresponding system oper-

ations which deﬁne system responsibilities. Each sys-

tem operation can then be translated into a UML in-

teraction diagram. The interaction diagram will cap-

ture the collaboration of software entities (extracted

or inﬂuenced from the domain model) in order to im-

plement the responsibility deﬁned by the correspond-

ing system operation. In creating UML interaction

diagrams, developers may apply general responsibil-

ity assignment software patterns (GRASP) and design

patterns in order to support software quality through

low coupling and high cohesion and to fully utilize

the beneﬁts associated with object-orientation which

include high level of reusability of elements and easy

adaptability of the system.

ICSOFT 2007 - International Conference on Software and Data Technologies

380

Our analysis is focused on the crosscutting which

manifests in UML interaction diagrams. As the inter-

action diagrams can be represented by a production

system, we plan to analyze the production system by

applying strategies in order to detect aspectual behav-

ior.

5 CASE STUDY: A PROJECT

MANAGEMENT SYSTEM

We provide a demonstration of our proposal through

a case study of a project management system. In this

system, resources can be given one or more assign-

ments to be undertaken on a given task. Each assign-

ment has a start date, ﬁnish date and duration and can

be “rolled-up” to the corresponding task, deliverable

and project level. Each project is a composition of

deliverables and tasks and each deliverable can con-

tain tasks (or other deliverables). Furthermore, re-

sources can also be assigned to the deliverables and

projects with different roles and responsibilities. The

system provides a number of services to project man-

agers such as 1) assign-unassign resources and 3)

level projects.

5.1 Static Model

A (partial) class diagram of the system is shown

in Figure 1, where the Work Breakdown Structure

(WBS) is organized in terms of a hierarchy between

Project

Deliverable

and

Task

. Tasks as leaf

nodes cannot have children. This condition can be

enforced by deﬁning an invariant for class

Task

. We

can provide a production system to represent the static

structure of the system as follows:

<class>::= {Assignment, Resource,

Deliverable, Task, Project}

<Assignment>::=[declares]<Resource>

<Assignment>::=[declares]<Deliverable>

<Resource>::=[declare]<name>

<Resource>::=[collection]<Assignment>

<Deliverable>::=[declares]<start_date>

<Deliverable>::=[declares]<finish_date>

<Deliverable>::=[declares]<duration>

<Deliverable>::=[declares]<name>

<Deliverable>::=[declares]<Project(Parent)>

<Deliverable>::=[collection]<Assignment>

<Task>::=[extends]<Deliverable>

+rollup()

+add(in Component)

+remove(in Component)

+getChild()

-startDate

-finishDate

-duration

-name

Deliverable <<Component>>

+rollup()

+add(in Component)

+remove(in Component)

+getChild()

+level(in date)

Project <<Composite>>

+rollup()

Task<<Leaf>>

+assign()

+unassign()

+level()

Assignment

-Children

1

-Parent

*

-name

Resource

*

1

0..*

1

Figure 1: UML class diagram illustrating the WBS hierar-

chy.

<Project>::=[extends]<Deliverable>

<Project>::=

[collection]<Deliverable(Children)>

5.2 Dynamic Model

The dynamic model is depicted by two scenarios: 1)

assign-unassign resources and 2) level projects.

5.2.1 Resource Assignment

Resource assignment entails obtaining an available

resource and assigning the resource to a node in the

WBS hierarchy, or unassigning a resource from a

node of the WBS hierarchy. The effect of these op-

erations must be rolled-up to the parent deliverable(s)

and eventually to the project level, followed by an up-

date of

startDate

finishDate

and

duration

at-

tributes appropriately. We deﬁne a

rollup()

oper-

ation which is responsible to consistently update the

WBS hierarchy whenever an operation modiﬁes one

of the

startDate

finishDate

and

duration

at-

tributes. We may have any level of nested deliver-

ables in a WBS hierarchy so that in order to model

the rollup process in a UML interaction diagram a

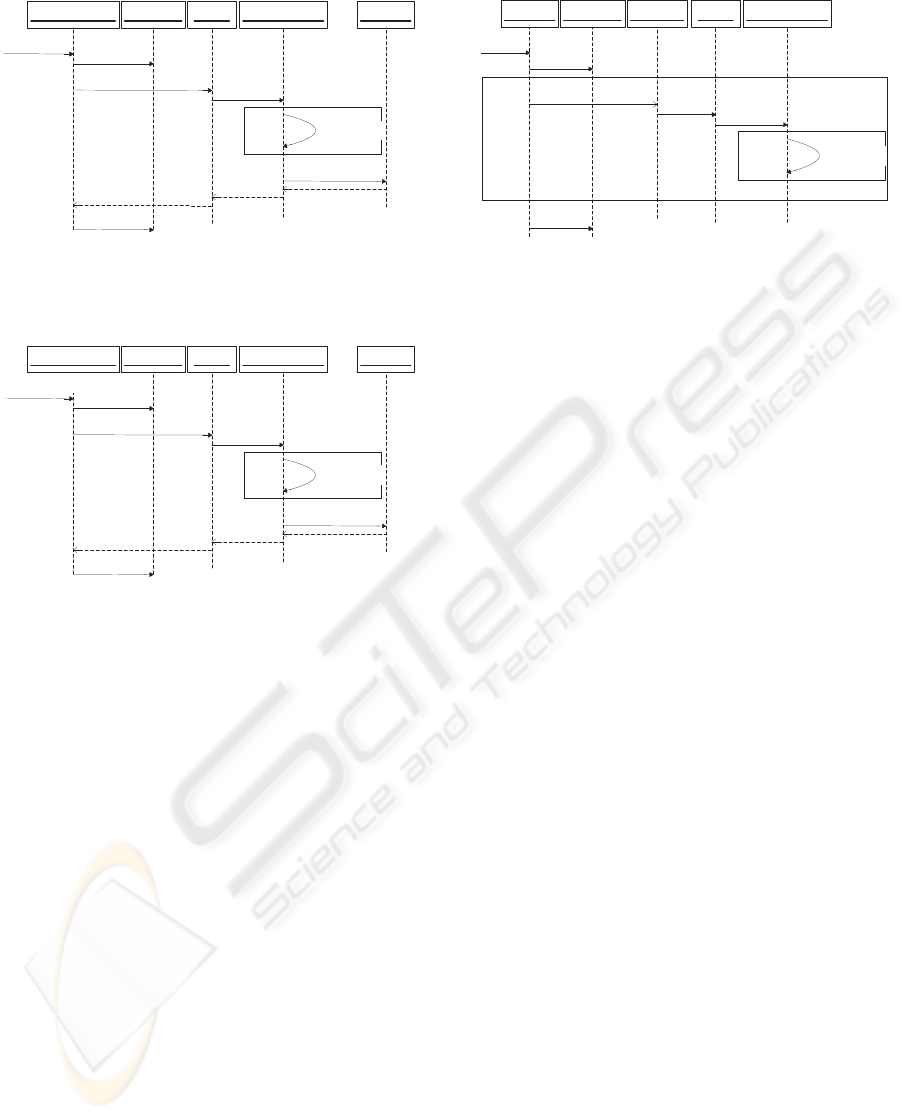

loop statement can be used. Figures 2 and 3 illus-

trate the process of assigning and unassigning a re-

source to a task. In these interaction diagrams, an

Assignment

object would invoke a new session be-

fore sending any other message. Upon completion

of the process,

Assignment

will decide to commit or

DETECTING ASPECTUAL BEHAVIOR IN UML INTERACTION DIAGRAMS

381

Assignment Task Deliverable Project

assign()

rollup()

loop

Session

start()

end()

Figure 2: Assigning a resource.

Assignment Task Deliverable Project

unassign()

rollup()

loop

Session

start()

end()

Figure 3: Unassigning a resource.

rollback the assignment operation based on the sit-

uation and status of the objects. Object

Session

responsible for the manipulation of the transaction

session. Class

Session

has methods

start()

and

end()

in order to indicate a session start and end re-

spectively.

5.2.2 Leveling

Figure 4 illustrates the project leveling process. By

leveling a project, a manager is able to move the start

date of a project and to adjust the WBS hierarchy ap-

propriately.

5.2.3 Building Derivation Sentences

By deploying production rules we can build the fol-

lowing derivation sentences for the operation of re-

source assignment and leveling, as follows:

<Assignment.assign()>::=<Session.start()>

<Assignment.assign()>

::=[calls]<Task.rollup()>

::={(parent is Deliverable)

[calls]<Deliverable.rollup()>}*

Assign. Task DeliverableProject

rollup()

loop

level()

loop

Session

start()

level()

end()

Figure 4: Project leveling.

::=[calls]<Project.rollup()>

<Assignment.assign()>::=<Session.end()>

<Assignment.unassign()>::=<Session.start()>

<Assignment.unassign()>

::=[calls]<Task.rollup()>

::={(parent is Deliverable)

[calls]<Deliverable.rollup()>}*

::=[calls]<Project.rollup()>

<Assignment.unassign()>::=<Session.end()>

<Project.level()>::=<Session.start()>

<Project.level()>

::={[calls]<Assignment.level()>

::=[calls]<Task.rollup()>

::={(parent is Deliverable)

[calls]<Deliverable.rollup()>}*

::=[calls]<Project.rollup()>}*

<Project.level()>::=<Session.end()>

5.3 Detecting Horizontal and Vertical

Aspects

We provide the following two deﬁnitions:

Deﬁnition 1 Behavior, deﬁned by sequences of mes-

sage passing between objects in a collection of UML

interaction diagrams over multiple levels of interac-

tion, can be referred to as “horizontal crosscutting.”

Subsequently we can adopt the term “horizontal as-

pect” to deﬁne this behavior.

Deﬁnition 2 Behavior, deﬁned by sequences of mes-

sage passing between objects in a collection of UML

interaction diagrams over a single level of interac-

tion, can be referred to as “vertical crosscutting.”

Subsequently we can adopt the term “vertical aspect”

to deﬁne this behavior.

ICSOFT 2007 - International Conference on Software and Data Technologies

382

Given a collection of UML interaction diagrams

(corresponding to one or possibly more use-case sce-

narios) of Figures 2, 3 and 4 and their correspond-

ing derivation sentences representing the execution

paths already deﬁned in 5.2.3, our objective is to de-

tect common subsequences. To do that, we proceed

in three steps discussed in the subsequent subsections

and illustrated in Figure 5.

5.3.1 Step 1: Bit Representation of Method

Invocations

We reserve a bit for each method of each class in

the system. In this case study, we can allocate 4-

bits for each class implying that each class is not ex-

pected to have more than four methods. A bit rep-

resentation of a message sequence is built by joining

these 4-bit sequences: We allocate the ﬁrst 4-bits to

class

Assignment

, the next four bits to class

Task

and similarly to classes

Deliverable

Project

and

Session

. The class-method pair bit representations

are shown as follows:

class-method pair Reserved bit

bit-pattern

Assignment.assign() bit(i)

Assignment.unassign() bit(i) + 1

Assignment.level() bit(i) + 2

reserved bit bit(i) + 3

Task.rollup() bit(i) + 4

reserved bit bit(i) + 5

reserved bit bit(i) + 6

reserved bit bit(i) + 7

Deliverable.rollup() bit(i) + 8

reserved bit bit(i) + 9

reserved bit bit(i) + 10

reserved bit bit(i) + 11

Project.rollup() bit(i) + 12

Project.level() bit(i) + 13

reserved bit bit(i) + 14

reserved bit bit(i) + 15

Session.start() bit(i) + 16

Session.end() bit(i) + 17

reserved bit bit(i) + 18

reserved bit bit(i) + 19

To model method invocations in a message se-

quence we set the corresponding bit of an invoked

method to 1. We can therefore represent the UML in-

teraction diagrams of Figures 2, 3 and 4 as follows:

Sa (Assign resource):

1000-1000-1000-1000-1100

Sb (Unassign resource):

1000-1000-1000-1000-1100

Sc (Project leveling):

0010-1000-1000-1100-1100

5.3.2 Step 2: Detecting Common Subsequences

In addition, we reserve a bit for each message se-

quence. To detect a pattern of aspectual behavior, we

perform a bitwise OR over the patterns for message

sequences to ﬁnd out which patterns are introduced

by which message sequences and we perform a bit-

wise AND over the patterns for method invocations.

The result of the bitwise AND operation identiﬁes the

methods that can be grouped together to form an as-

pect.

In the example, we perform a bitwise

AND over

Sa (Assign resource)

(Unassign resource)

and

Sc (Project

leveling)

. The bitwise AND operation will

yield

0000-1000-1000-1000-1100

which rep-

resents the method invocations

Task.rollup()

Deliverable.rollup()

Project.rollup()

Session.start()

and

Session.end()

. The

order of the method invocation identiﬁed by bit

patterns is deﬁned by production rules deﬁned for

the message sequences. The result of the bitwise

AND operation illustrates that {

Task.rollup(),

Deliverable.rollup(), Project.rollup(),

Session.start(), Session.end()

} can be

an aspect, whereas the production rules illus-

trate that we will have two different aspects:

{

Task.rollup(), Deliverable.rollup(),

Project.rollup()

} deﬁnes a horizontal aspect,

while {

Session.start(), Session.end()

}

deﬁnes a vertical aspect based on our deﬁnitions.

5.3.3 Step 3: Deﬁning Aspectual Behavior

We can follow the design dimensions and the

vocabulary introduced by the AspectJ pro-

gramming language to capture this common

behavior: For the horizontal aspect, the point-

cut is a predicate over all three external mes-

sages and it can be deﬁned as the disjunction of

Assignment.assign()

Assignment.unassign()

and

Assignment.level()

. The advice block

would be the sequence

<Task.rollup(),

DETECTING ASPECTUAL BEHAVIOR IN UML INTERACTION DIAGRAMS

383

Deliverable.rollup()*, Project.rollup()>

For the vertical aspect, the pointcut can be de-

ﬁned as the disjunction of

Assignment.assign()

Assignment.unassign()

and

Project.level()

We introduce two different advice blocks for starting

a session and ending a session: {

Session.start()

}

and {

Session.end()

6 RELATED WORK

A number of authors have discussed aspect mining

techniques. Almost all of them focus on mining of

aspects from source code or from execution traces. In

(Breu and Krinke, 2004) the authors describe an au-

tomatic dynamic aspect mining approach which de-

ploys program traces generated in different program

executions. These traces are investigated for recur-

ring execution patterns based on different constraints,

such as the requirement that the patterns have to ex-

ist in a different calling context in the program trace.

In (Krinke and Breu, 2004) the authors describe an

automatic static aspect mining approach, where the

control ﬂow graphs of a program are investigated for

recurring executions based on different constraints,

such as the requirement that the patterns have to ex-

ist in a different calling context. In (Robillard and

Murphy, 2002) the authors introduce a concern graph

representation that abstracts the implementation de-

tails of a concern and it makes explicit the relation-

ships between different elements of the concern for

the purpose of documenting and analyzing concerns.

To investigate the practical tradeoffs related to this ap-

proach, they present a tool (Feature Exploration and

Analysis Tool – FEAT) that allows a developer to

manipulate a concern representation extracted from a

Java system and to analyze the relationships of that

concern to the code base. In (Robillard and Mur-

phy, 2001) the authors describe concerns based on

class members. This description involves three lev-

els of concern elements: use of classes, use of class

members and class member behavior elements (use

of ﬁelds and classes within method bodies). Use of

classes is expressed by class-use production rules.

These rules specify whether an entire class or certain

features of it implement a given concern. In the latter

case, the rules indicate the class features which imple-

ment this concern. In (Bruntink, 2004), the author de-

ﬁnes certain clone class metrics for known maintain-

ability problems such as code duplication and code

scattering. Subsequently, these metrics are combined

into a grading scheme designed to identify interesting

clone classes for the purpose of improving maintain-

ability using aspects. In (Baxter et al., 1998), the

authors initially deploy parsing to obtain a syntacti-

cal representation of the source code, typically an ab-

stract syntax tree (AST). They then deploy algorithms

to search for similar subtrees in the AST which would

indicate duplicated code (“clones”). In (Parsamanesh

et al., 2006) we discussed a method of running use-

case scenarios and capturing the corresponding exe-

cution traces in a relational database followed by the

detection of patterns of messages, indicating candi-

date crosscutting concerns. In order to identify an

optimal solution while choosing an aspect among a

collection of candidate aspects, we deployed dynamic

programming algorithms.

Aspect mining at stages earlier to implementation

have mainly focused on requirements, giving rise to

the notion of “early aspects”, see for example (Mor-

eira et al., 2002) and a large collection of resources

at (Early Aspects Portal, 2007). In (Sutton, 2002)

the author introduces a general-purpose, multidimen-

sional, concern-space modeling schema that can be

used to model early-stage concerns to identify cross-

cuttings.

Aspect mining at the design stage has hardly been

explicitly addressed in the literature. We refer the

reader to the discussion in (van den Berg et al., 2006)

in which the authors adopt a cross matrix between two

consecutive phases such as design and implementa-

tion in order to identify the scattering of source ele-

ments along a collection of target elements, as well as

the tangling of source elements into single source el-

ements. In earlier work discussed in (Foumani and

Constantinides, 2005a) we proposed two strategies

for the detection of crosscutting concerns. Our ﬁrst

strategy used graph theory to detect entities with in-

dependent roles in scenarios, marking these entities

as candidate aspects. Our second strategy has two

goals: First, it works on graphs of communicating en-

tities and it deploys production rules and derivation

sentences as a tool to locate cycles among communi-

cating entities, thus complementing the ﬁrst strategy.

Second, it deploys production rules and derivation

sentences in order to detect duplication and scattering

of behavior. As a consequence of our second strat-

egy, we can detect aspects across various dimensions

of design. In (Foumani and Constantinides, 2005b)

we focused on our ﬁrst strategy for aspect mining and

we illustrated that alternative designs (remodulariza-

tion) over the same set of requirements cannot elimi-

nate crosscutting. We argued that the solution to the

crosscutting phenomenon is the reengineering of the

system.

ICSOFT 2007 - International Conference on Software and Data Technologies

384

Sa:100 1000-1000-1000-1000-1100

Sb:010 0100-1000-1000-1000-1100

Sc:001 0010-1000-1000-1100-1100

111 0000-1000-1000-1000-1100

BIT

OR

BIT

AND

Sa: Assign resource sequence

Sb: Unassign resource sequence

Sc: Level project sequence

Assignment.assign()

::=Session.start()

Assignment.assign()

::=<Task.rollup()

::={Deliverable.rollup()}*

::=Project.rollup()

Assignment.assign()

::=Session.end()

Assignment.unassign()

::=Session.start()

Assignment.unassign()

::=Task.rollup()

::={Deliverable.rollup()}*

::=Project.rollup()

Assignment.unassign()

::=Session.end()

Project.level()

::=Session.start()

Project.level()

::={Assignment.level()

::=Task.rollup()

::={Deliverable.rollup()}*

::=Project.rollup()}*

Project.level()

::=Session.end()

Session.start()

{Task.rollup()

::=Deliverable.rollup()}*

::=Project.rollup()}

Session.end()

Sequence

bit

pattern

Class-method

bit

pattern

Message

sequence

Figure 5: Detecting common method invocations in message sequences.

7 CONCLUSION AND

RECOMMENDATIONS

Software design is an integral activity of the devel-

opment lifecycle. An AOP implementation should

ideally be the natural mapping from a clean (well-

modularized) design, rather than a corrective mea-

sure (refactoring activity) due to a tangled imple-

mentation. Scattering and tangling of concerns can

cause problems with comprehensibility, traceability

and reusability of concerns and the overall adaptabil-

ity of the system.

In this paper we presented an approach to detect

aspectual behavior in UML interaction diagrams. We

built on earlier work discussed in (Foumani and Con-

stantinides, 2005a) by focusing on an aspect mining

strategy which adopts a production system to rep-

resent the static and dynamic behavior of a design

model, demonstrating our approach with a case study.

Our approach can aid developers by providing indi-

cations over their designs where restructuring may be

desired by explicitly capturing crosscutting concerns

(aspects).

In the future we plan to shift our focus on as-

pect mining over implementation artifacts. To aid the

maintenance of legacy object-oriented systems, we

plan to deploy the same strategies over implementa-

tion artifacts by parsing code and generating deriva-

tion sentences.

DETECTING ASPECTUAL BEHAVIOR IN UML INTERACTION DIAGRAMS

385

REFERENCES

Aho, A. V., Sethi, R., and Ullman, J. D. (1986). Compilers:

Principles, techniques, and tools. Addison Wesley.

Baxter, I. D., Yahin, A., Moura, L., Sant’Anna, M., and

Bier, L. (1998). Clone detection using abstract syntax

trees. In Proceedings of the International Conference

on Software Maintenance (ICSM).

Breu, S. and Krinke, J. (2004). Aspect mining using event

traces. In Proceedings of the 19th International Con-

ference on Automated Software Engineering (ASE).

Briot, J.-P. and Yonezawa, A. (1987). Inheritance and syn-

chronization in concurrent OOP. In Proceedings of the

European Conference on Object-Oriented Program-

ming (ECOOP).

Bruntink, M. (2004). Aspect mining using clone class met-

rics. In Proceedings of the WCRE Workshop on Aspect

Reverse Engineering.

Early Aspects Portal (2007). Early aspects: Aspect-

oriented requirements engineering and architecture

design. URL: http://early-aspects.net.

Elrad, T., Filman, R. E., and Bader, A. (2001). Aspect-

oriented programming. Communications of the ACM,

44(10):29 – 32.

Foumani, A. A. and Constantinides, C. (2005a). Aspect-

oriented reverse engineering. In Proceedings of the

9th World Multiconference on Systemics, Cybernetics

and Informatics (WMSCI).

Foumani, A. A. and Constantinides, C. (2005b). Reengi-

neering object-oriented designs by analyzing depen-

dency graphs and production rules. In Proceedings of

the 9th IASTED International Conference on Software

Engineering and Applications (SEA).

Kiczales, G., Hilsdale, E., Hugunin, J., Kersten, M., Palm,

J., and Griswold, W. G. (2001). An overview of As-

pectJ. In Proceedings of the 15th European Confer-

ence on Object-Oriented Programming (ECOOP).

Kiczales, G., Lamping, J., Menhdhekar, A., Maeda, C.,

Lopes, C., Loingtier, J.-M., and Irwin, J. (1997).

Aspect-oriented programming. In Proceedings of the

11th European Conference on Object-Oriented Pro-

gramming (ECOOP).

Krinke, J. and Breu, S. (2004). Control-ﬂow-graph-based

aspect mining. In Proceedings of the 1st WCRE Work-

shop on Aspect Reverse Engineering.

Larman, C. (2004). Applying UML and patterns. An in-

troduction to object-oriented analysis and design and

iterative development. Addison-Wesley, 3rd edition.

Matsuoka, S. and Yonezawa, A. (1993). Analysis of in-

heritance anomaly in object-oriented concurrent pro-

gramming languages. In Agha, G., Wegner, P., and

Yonezawa, A., editors, Research directions in concur-

rent object-oriented programming, pages 107–150.

MIT Press.

Moreira, A., Ara

ujo, J., and Brito, I. S. (2002). Crosscut-

ting quality attributes for requirements engineering.

In Proceedings of the 14th International Conference

on Software Engineering and Knowledge Engineering

(SEKE).

Parnas, D. L. (1972). On the criteria to be used in decom-

posing systems into modules. Communications of the

ACM, 15(12):1053 – 1058.

Parsamanesh, P., Foumani, A., and Constantinides, C.

(2006). Mining anomalies in object-oriented imple-

mentations through execution traces. In Proceedings

of the 1st International Conference on Software and

Data Technologies (ICSOFT).

Robillard, M. P. and Murphy, G. C. (2001). Analyzing con-

cerns using class member dependencies. In Proceed-

ings of the ICSE Workshop on Advanced Separation

of Concerns in Software Engineering.

Robillard, M. P. and Murphy, G. C. (2002). Concern graphs:

Finding and describing concerns using structural pro-

gram dependencies. In Proceedings of the 24th Inter-

national Conference on Software Engineering (ICSE).

Sutton, S. M. (2002). Early-stage concern modeling. In

Proceedings of the AOSD Workshop on Early Aspects:

Aspect-Oriented Requirements Engineering and Ar-

chitecture Design.

van den Berg, K., Conejero, J. M., and Hern

andez, J.

(2006). Identiﬁcation of crosscutting in software de-

sign. In Proceedings of the AOSD International Work-

shop on Aspect-Oriented Modeling.

ICSOFT 2007 - International Conference on Software and Data Technologies

386
