INTEGRATING BUSINESS PROCESSES AND INFORMATION

SYSTEMS

Giorgio Bruno

Dip. Automatica e Informatica, Politecnico di Torino, Torino, Italy

Keywords: Business processes, enterprise information systems, human tasks, control flow, information flow.

Abstract: While the need for a better integration between busine

ss processes and enterprise information systems is

widely acknowledged, current notations for business processes are inclined to emphasize control-flow

issues and omit to provide adequate links with two fundamental aspects of enterprise information systems,

i.e. the human tasks and the information flow among the tasks. This paper presents a notation for business

processes whose purpose is to overcome the above-mentioned limitations. This notation, called tk-nets

(task-oriented nets) supports four interaction patterns between process elements and human tasks. It is

exemplified with the help of a case study concerning a web-based application intended to manage the

handling of paper submissions to conferences.

1 INTRODUCTION

At a simplified conceptual level, an enterprise

information system (EIS) can be analyzed from two

major perspectives: the informational perspective

and the behavioral one. The informational

perspective is concerned with the structure of

information; the behavioral perspective, instead,

addresses the organization of the units of work

(called tasks) which enable the (human) users and

the system itself to operate on the underlying

informational base.

While the informational perspective is based on

one

kind of models, which show the classes of the

information items (called business objects) and their

relationships, for the behavioral perspective several

kinds of models have been proposed with different

purposes. Two of them, use cases and business

processes, deserve particular attention.

UML use cases (OMG, 2007) are mainly used

the requirements specification phase of the

software life cycle: they show the tasks and the roles

required for them, and can also point out the

structural dependencies (inclusion and extension)

among the tasks. What is missing from use case

models is the information flow, i.e. the indication of

the information items to be operated on by the tasks;

on the contrary, the information flow played an

important role in the old functional models, such as

the dataflow diagrams (Gane and Sarson, 1979).

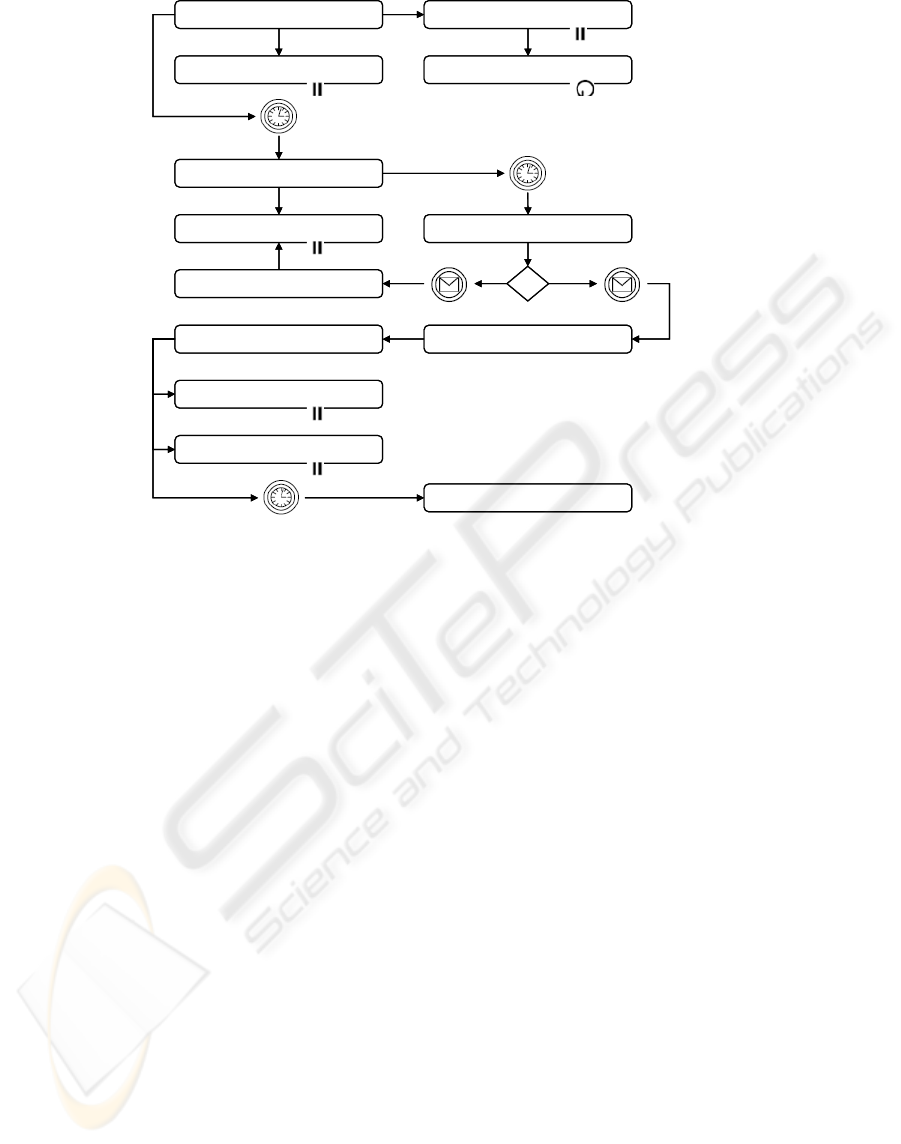

Business processes can be addressed with

fferent modeling notations, such as BPMN (OMG,

2006) and UML activity diagrams (OMG, 2007),

however they all have a point in common: the

emphasis placed on the control flow, on the basis of

the well-known workflow patterns (van der Aalst,

ter Hofstede, Kiepuszewski and Barros, 2003), and

the omission of the information flow (although

information items can be included for

documentation purposes).

Moreover, the interactions between the process

ele

ments and the human tasks are understated. In

fact, a business process is meant to be mainly an

orchestrator of external activities. There are two

main reasons for this: 1) the limited processing

capabilities of the current languages for business

processes, such as XPDL (WfMC, 2005); 2) the

consideration that the information resides in the EIS

and can be manipulated more effectively with

enterprise operations invoked through services. The

external activities are represented by the process

elements (or process steps), which also indicate how

to activate them. In particular, in BPMN, the

connection between a process step and a task is

obtained through an asynchronous service. The

process step indicates the performer required (in

terms of a single string or an array of strings), the

input message, which is meant to activate the task

and to provide it with the input information, and the

output message, which is meant to notify the

completion of the task as well as to return the output

Bruno G. (2007).

INTEGRATING BUSINESS PROCESSES AND INFORMATION SYSTEMS.

In Proceedings of the Second International Conference on Software and Data Technologies - Volume ISDM/WsEHST/DC, pages 79-86

DOI: 10.5220/0001327200790086

 SciTePress

information. This simple interaction pattern does not

address all the situations taking place in practical

applications. For example, if task “submitPapers” is

meant to enable an author to submit a number of

papers over a given period of time and to make each

paper immediately processed (i.e. assigned to some

reviewers), then this task will generate a number of

output messages, one for each paper submitted, not

only the completion one.

The selection of the performer for a human task

is a critical issue and several patterns have been

proposed (Russell, van der Aalst, ter Hofstede, and

Edmond, 2005). In some cases, the performer may

be selected among the users playing a given role,

with a load-balancing criterion. In other cases, the

selection may depend on the information flow: for

example, the performer of task “reviewPaper” is the

reviewer that has previously been associated with

the paper to be reviewed.

This paper presents a notation for business

processes whose purpose is to integrate the control

flow and the information one so as to provide a

better integration with human tasks. This notation,

called tk-nets (task-oriented nets), has a structure

similar to Petri nets, however the interpretation is

tailored to that purpose.

The organization of this paper is as follows.

Section 2 presents four interaction patterns between

process steps and human tasks. Section 3 introduces

a case study concerning a web-based application

intended to manage the handling of paper

submissions to conferences: it stresses the need for a

tight integration between the control flow and the

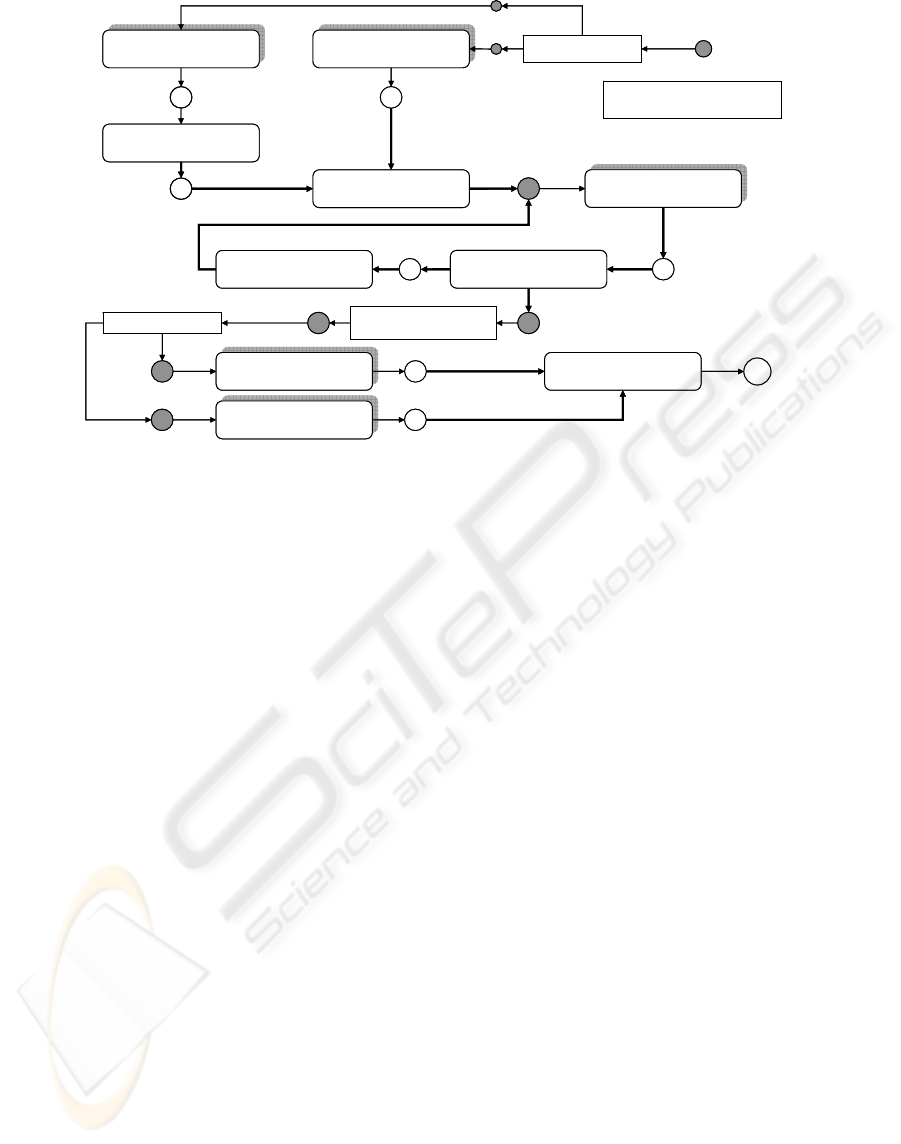

information one. Section 4 presents the tk-nets

notation exemplified on the case study. Section 5

provides a comparison with related work. Section 6

presents the conclusion and the future work.

2 INTERACTION PATTERNS

BETWEEN PROCESS STEPS

AND TASKS

A (human) task is a unit of work that a suitable user

(or actor) carries out with the help of a graphical

user interface (GUI) in order to achieve a particular

purpose. Placing a purchase order or filling in the

review form for a conference paper are examples of

tasks. As such, a task is an abstract entity: in reality,

a task encompasses both foreground actions, i.e. the

user entering pieces of information or commands,

and background actions, i.e. the system processing

the user’s inputs. Such background actions rely on

enterprise operations in order to operate on the

underlying business objects.

Tasks can be activated in two modes, denoted by

terms “pull” and “push”.

In the “pull” mode, tasks are referred to by the

menu items available in the GUI, according to the

role(s) played by the current user. A menu item,

such as “review paper”, denotes a potential task: if

the user clicks it, the system shows (either directly

or through a search) the actual instances of that task

the user is expected to perform (e.g. the papers to

review). In other terms, the user is pulling the

system. An actual instance of a task, such as “review

paper n. 123”, is called an actual task.

In the “push” mode, users are presented with a

to-do list showing the actual tasks that have been

assigned to them; by clicking an item of the list, a

user can activate the corresponding task.

The purpose of business processes is to make

users work in the “push” mode: in fact, the control

flow determines when a task has to be performed

and the information flow indicates the information

needed.

From an operational point of view, the bridge

between processes and tasks is provided by the to-do

list, which is based on a particular class of business

objects, called task assignments. A task assignment

basically designates the user in charge of the task

(the performer), the input information and the timing

constraints (the period in which the work has to be

performed). A task assignment goes through a

number of states, the major of which are “assigned”

(the initial state), “enabled”, “started” and “ended”.

When a task assignment is in state “enabled”, it can

be shown in the to-do list of the corresponding

performer. When the user begins working on the

actual task, the state of the task assignment becomes

“started”. A task is a long-running activity, as the

performer can stop and resume work several times,

until (s)he states it is ended.

To-do lists are handled by a specific architectural

component, called the task manager (TM). It is a

kind of mediator between the process manager (PM)

in charge of interpreting the descriptions of business

processes and the enterprise operations supporting

the GUI.

While processes are expected to assign tasks to

performers, current notations and languages do not

provide direct references to tasks, but only indirect

ones through intermediate services. In fact, a

business process, as described in BPMN or XPDL,

consists of a number of elements, or process steps,

and the connection between a process step and a task

is obtained through an asynchronous service: the

input message (with respect to the service) is meant

to activate the task and to provide it with the input

information, while the output message is meant to

notify the completion of the task as well as to return

the output information.

ICSOFT 2007 - International Conference on Software and Data Technologies

This simple interaction pattern does not cover all

the situations taking place in practical applications.

In terms of events, it addresses the case of one input

event (with respect to TM) and one output event: the

input event entails the generation of a task

assignment and the output event notifies the

completion of the task.

This paper proposes three more patterns so as to

cope with multiple events. The four patterns are

called task interaction patterns. The above

mentioned one is referred to as pattern (1, 1).

Pattern (1, *) indicates that the task (i.e. the

related enterprise operations) sends a number of

intermediate events before the completion one. Such

additional output events signify that the task has

produced information items requiring immediate

attention. For example, if task “submitPapers” is

meant to enable an author to submit a number of

papers over a given period of time and to make each

paper immediately processed (i.e. assigned to some

reviewers), then this task will generate a number of

intermediate events, one for each paper submitted.

Pattern (*, 1) indicates that the task receives

additional input events, after the activation one,

signifying that additional input information is

available. For example, task “assignPapers” is

activated with an initial group of papers and an

initial group of reviewers and then, during its

execution, it receives additional papers and

reviewers: this way, the conference chair is able to

continuously monitor the match between papers and

reviewers and, if needed, (s)he has time to involve

more reviewers.

The fourth pattern (*, *) denotes both a flow of

input events and a flow of output ones. For example,

task “evaluatePapers” is meant to receive a flow of

reviews and to provide a flow of papers evaluated,

each of which will trigger an immediate notification

to the author.

3 THE CASE STUDY

The case study addresses a fictitious web-based

application intended to manage the submissions of

papers to conferences.

In particular, attention is focused on process

ConferenceBP aimed at handling the life cycle of a

given conference. It is a case-based process, in the

sense that a particular instance of this process

handles the life cycle of a specific conference (i.e. a

case).

A conference is represented by a business object

of class Conference. The simplified class-model for

the business objects supporting this application is

shown in Figure 1 (the default multiplicity value for

association ends is *, i.e. many).

The users of the system belong to three major

roles: (conference) chair, author and reviewer; they

are represented by business objects of classes Chair,

Author and Reviewer, respectively. When the

process is started, the general information about the

conference (including the submission period, the

review period and the registration period) has

already been established; moreover the conference

business object has already been associated with the

chair business object.

Conference

Chair

Paper

Author

Reviewer Folder

Review

chair

author

reviewer

Conference

Chair

Paper

Author

Reviewer Folder

Review

chair

author

reviewer

Figure 1: Class model related to the case study.

The behavior of ConferenceBP is as follows.

During the submission period, users can get an

account as authors or reviewers. Authors can then

submit papers (an author can submit several papers).

As papers are submitted and reviewers join the

conference, the conference chair goes on assigning

papers to reviewers: in particular, all the papers

assigned to a reviewer are collected in a folder.

When the chair has finished, the reviewers can start

working on their folders: they are assumed to release

their reviews separately during the review period. As

reviews are released, the chair goes on evaluating

papers: if it happens that the number of reviews of a

given paper is not sufficient to take a decision, the

chair can involve other reviewers by providing them

with new folders containing the pending papers.

When all the decisions have been taken, a

notification is emailed for each paper and the

conference rate is automatically determined for each

author. Then, during the registration period, the

authors of accepted papers submit the final versions

and in parallel they also enter payment information

details. As final papers are submitted and payment

information is provided, the chair goes on defining

the conference program.

The requirements above indicate a number of

tasks which can be grouped on the basis of their

interaction patterns, as follows.

INTEGRATING BUSINESS PROCESSES AND INFORMATION SYSTEMS

(1, 1): getAuthorAccount, getReviewerAccount,

submitFinalPaper, enterPaymentInfo.

(1, *): submitPaper, reviewPapers.

(*, 1): assignPapers, reassignPapers, evaluate-

Papers, defineProgram.

4 MODELING BUSINESS

PROCESSES WITH TK-NETS

The model of ConferenceBP is shown in Figure 2.

The notation proposed in this paper, i.e. tk-nets, is

illustrated in this section.

Process ConferenceBP is a case-based process

describing the life cycle of a conference: this is

indicated with annotation “manages Conference” in

Figure 2, where Conference is the “managed” class,

i.e. the class of the business objects (called managed

objects) managed by the process instances.

There are two kinds of transitions (or process

steps) in tk-nets: those related to tasks (referred to as

task transitions) are represented as rectangles with

rounded corners, while regular rectangles represent

procedures that can automatically be performed by

the system. Each transition is mapped to a process

action describing its detailed behavior. An informal

definition of the process actions associated with

ConferenceBP is presented in Table 1. The role of

process actions will be discussed in subsection 4.1.

A task transition indicates the task involved, the

interaction pattern and the role of the performer: in

fact, the name of the task is the name of the task

transition, the interaction pattern is indicated by the

stereotype (e.g. <<1, *>>), and the role required is

written between parentheses. The action of a task

transition can give rise to a number of similar tasks;

in that case, for documentation purposes, the task

transition (e.g. “reviewPapers”) is shown shaded.

There are two kinds of places in tk-nets, i.e.

typed places and simple ones. Simple places are

depicted as small grey circles, such as “c1” and

“c2”; they only have a name. Typed places are

depicted as larger circles and have a label consisting

of the place name, followed by the place type.

The process elements, places and transitions, are

formal items, in the sense that they are a kind of

templates for the actual items belonging to the

process instances. In fact, a process instance is made

up of actual places, each actual place referring to the

corresponding formal place. Actual places contain

tokens: typed places contain typed tokens, while

simple ones contain simple (or empty) tokens. A

typed token is associated with a business object; the

class of the business object coincides with the type

of the corresponding formal place. A typed token

represents a state of the related business object; for

example, a token in place “p1” denotes a paper that

has just been submitted, in the context of a certain

instance of ConferenceBP.

The information flow and the control flow may

overlap at typed places, and, in order to explain what

it means, the notion of triggers is introduced.

From a logical point of view, a trigger is issued

by an actual place in three modes, as follows. If the

place is a fully triggering (or “ft”) place, it issues a

trigger as soon as it receives a token; if it is a non-

triggering (or “nt”) place, it never issues triggers; if

it is a partially triggering (or “pt”) place, it issues a

trigger only when an input transition ends. The “pt”

behavior is based on a special event, i.e. the ending

of an input (with respect to the place) transition. A

procedure ends when the corresponding action has

been performed, while a task transition ends when

all the tasks it has activated are completed. This

way, a task transition, besides activating a number of

tasks, can synchronize their completion.

The purpose of triggers is as follows. When a

trigger is issued by an actual place, say p, if the

corresponding formal place has just one outgoing

transition, the process manager (PM) tries to

perform that transition by calling the associated

process action. A process action incorporates a

guard, which can accept or reject the trigger on the

basis of the tokens available in the actual input

places, as will be discussed in subsection 4.1. In case

the formal place has two or more outgoing

transitions, PM call the corresponding actions in

sequence, on the basis of their priorities, until the

guard of one of them is successful. In Figure 2, the

priority is the same for all the transitions.

Simple places are always “ft” places: in fact,

they support the control flow only. The triggering

behavior of typed places is indicated by acronym

“ft”, “nt” or “pt” depicted in the circle. A graphical

alternative is adopted in Figure 2: the white typed

places denote “ft” places, and the grey typed places

denote “pt” places; there are no “nt” places.

The information flow of a transition is indicated

by its surrounding typed places. In order to make the

model more expressive, the input arcs and the output

ones of task transitions are shown thin or thick. A

thin input (with respect to a transition) arc means

that the task will receive a single token from the

corresponding input place. Likewise, a thin output

arc means that the task will deliver a single token to

the corresponding output place. In case of thick arcs,

the task will receive or deliver a number of tokens,

instead of a single one. For example, the outgoing

arc of “submitPaper” is thick, as an author can

submit several papers.

ICSOFT 2007 - International Conference on Software and Data Technologies

initialize

(public) <<1,1>>

getAuthorAccount

(public) <<1,1>>

getAuthorAccount

(public) <<1,1>>

getReviewerAccount

(public) <<1,1>>

getReviewerAccount

a1, Author

r1, Reviewer

(author) <<1,*>>

submitPaper

p1, Paper

manages Conference

(chair) <<*,1>>

assignPapers

f1, Folder

(reviewer) <<1,*>>

reviewPapers

(reviewer) <<1,*>>

reviewPapers

(chair) <<*,1>>

evaluatePapers

rv1, Review

sendNotifications

(author) <<1,1>>

submitFinalPaper

(author) <<1,1>>

submitFinalPaper

p2, Paper

computeRates

(author) <<1,1>>

enterPaymentInfo

(author) <<1,1>>

enterPaymentInfo

(chair) <<*,1>>

defineProgram

p4, Paper

p5, Paper

a2, Author

a3, Author

p6, Paper

end

(chair) <<*,1>>

reassignPapers

p3, Paper

initialize

(public) <<1,1>>

getAuthorAccount

(public) <<1,1>>

getAuthorAccount

(public) <<1,1>>

getReviewerAccount

(public) <<1,1>>

getReviewerAccount

a1, Author

r1, Reviewer

(author) <<1,*>>

submitPaper

p1, Paper

manages Conference

(chair) <<*,1>>

assignPapers

f1, Folder

(reviewer) <<1,*>>

reviewPapers

(reviewer) <<1,*>>

reviewPapers

(chair) <<*,1>>

evaluatePapers

rv1, Review

sendNotifications

(author) <<1,1>>

submitFinalPaper

(author) <<1,1>>

submitFinalPaper

p2, Paper

computeRates

(author) <<1,1>>

enterPaymentInfo

(author) <<1,1>>

enterPaymentInfo

(chair) <<*,1>>

defineProgram

p4, Paper

p5, Paper

a2, Author

a3, Author

p6, Paper

end

(chair) <<*,1>>

reassignPapers

p3, Paper

Figure 2: The tk-nets model of process ConferenceBP.

Table1: Actions of process ConferenceBP.

getAuthorAccount: < Æ “public”>;

getReviewerAccount: < Æ “public”>;

submitPaper: < Æ a1>;

assignPapers: <p1 or r1 Æ conference.chair>;

reviewPapers: for each f1 in f1* {<f1 Æ

f1.reviewer>};

evaluatePapers: <rv1 Æ conference.chair>;

reassignPapers: <p3 Æ conference.chair>;

submitFinalPaper: for each p5 in p5* {<p5 Æ

p5.author>};

enterPaymentInfo: for each a2 in a2* {<a2 Æ

a2>};

defineProgram:<p6 or a3 Æ conference.chair>;

sendNotifications: for each p2 in p2* send

acceptance message or rejection message according

to p2 state (i.e. accepted or rejected); deliver only

the accepted papers to place p4;

computeRates: compute the rates for the authors

of the papers accepted (those in p4*); deliver papers

to place p5 and authors to place a2;

4.1 Description of ConferenceBP

This subsection describes the behavior of the

instances of ConferenceBP as well as the role of the

process actions.

A process action is called by PM when an input

place has issued a trigger. An action incorporates a

guard, whose purpose is to check whether all the

tokens required are present in the input places. If the

guard is successful, the trigger is accepted and the

action takes such tokens (called the input tokens)

from the input places and operates on the business

objects associated with them. If the guard fails, the

action is not performed. If the guard is omitted, a

standard behavior is assumed, as follows: the trigger

is always accepted and the action automatically

takes the first token from the “ft” places and all the

available tokens from the “pt” places and the “nt”

ones.

Within the body of an action, the business

objects associated with the input tokens are referred

to with the names of the places: in particular, if one

token is taken from place p, the corresponding

business object is referred to as p, while, if several

tokens are taken from place p, the collection of the

business objects associated with them is referred to

as p*. The business objects associated with the input

tokens are also called the input business objects.

Task transitions are meant to produce task

assignments by means of task requests. A task

request basically designates the user in charge of the

task (the performer), the input information and the

timing constraints (the period in which the work has

to be performed). Task requests are shown, in the

actions, in the simplified form <i Æ p>, where i

denotes the input information, i.e. the input business

objects, and p denotes the performer. The managed

object, i.e. the current conference in this case, is

assumed to be implicitly part of the input

information. If the task is meant to receive a flow of

input information, i.e. its interaction pattern is <<*,

1>> or <<*, *>>, the effect of the task request is as

follows: if there is an ongoing task assignment, the

input information is added to it, otherwise a new

INTEGRATING BUSINESS PROCESSES AND INFORMATION SYSTEMS

task assignment is generated and the input

information is associated with it.

All the transitions in ConferenceBP have a

standard behavior, hence the guards are omitted.

When an instance of ConferenceBP is started,

procedure “initialize” is performed, and then the

actions of both “getAuthorAccount” and

“getReviewerAccount”, which are similar, are

carried out.

In the action of “getAuthorAccount”, task

request < Æ “public”> indicates that there is no

specific input information, apart from the current

conference. Moreover, the actual performer is not

specified; only a role name (“public”) is provided. In

fact, this task is not intended for a known user (i.e. a

user registered in the EIS): in the web page related

to the conference, there will be a menu item (e.g.

“getAuthorAccount”) enabling any interested user to

get an author account.

Task transition “getAuthorAccount” gives rise to

a number of actual tasks; in fact, as long as the

submission period is open, new authors can register.

However, as soon as an author has registered, task

“submitPaper” is assigned to them; for this reason,

place “a1” is a fully triggering place (i.e. a grey

place).

In the action of “submitPaper”, task request < Æ

a1> indicates that the performer is the user (an

author) denoted by business object “a1”, i.e. the

author who has just registered.

Task “assignPapers” features interaction pattern

(*, 1). In fact, it is meant: a) to receive a flow of

input information (papers and reviewers); b) to

deliver a number of folders to place “f1” (as shown

by the thick arc), but only one output event (i.e. a

trigger) to “f1”, when it ends (hence “f1” is a “pt”

place). Task request <p1 or r1 Æ conference.chair>

indicates that the performer is the conference chair:

in fact, “conference.chair” is a kind of navigational

construct which returns the chair (business object)

associated with the current conference on the basis

of its relational attribute “chair” (shown in Figure 1).

The input information consists of one paper or one

reviewer (i.e. the corresponding business objects), as

both places “p1” and “r1” send separate triggers.

When task transition “assignPapers” ends, task

transition “reviewPapers” is performed. Its action

contains a number of task requests, one for each

folder taken from place “f1”. Each task

“reviewPapers” is assumed to deliver a number of

reviews (as reviewers are not supposed to do their

work all at once) which are passed to task

“evaluatePapers”. This task can deliver two output

flows: the first flow, made up of the papers for

which a decision has been taken, is directed to place

“p2”, while the second one, consisting of the

pending papers, is directed to place “p3”. As the end

of the review period is approaching, the chair can

deliver the pending papers to place “p3” thus

activating task transition “reassignPapers” by means

of which (s)he can prepare new folders for other

reviewers. When all the papers have been evaluated,

task “evaluatePapers” ends and triggers procedure

“sendNotifications”. The behavior of the remaining

transitions is described in Table 1.

5 COMPARISON WITH

RELATED WORK

The various notations proposed for business

processes can be compared from different points of

view, such as the control-flow perspective (van der

Aalst, ter Hofstede, Kiepuszewski and Barros,

2003).

This section discusses how the control flow and

the information flow are handled in three major

notations, i.e. the Event-driven Process Chain,

Colored Petri Nets, and BPMN.

The Event-driven Process Chain (EPC) is an

informal notation which has been used to describe

the SAP R/3 reference model (Curran and Keller,

1998). It is based on the notions of event, function,

information item and organization unit. The control-

flow structure is based on events, functions and

control-flow links connecting events and functions,

while the information-flow structure is based on

information items, functions and information-flow

links connecting information items and functions.

Recent work (Mendling, Neumann and Nüttgens,

2005) has been aimed at formalizing the control

flow semantics under the pressure of the workflow

patterns (van der Aalst, ter Hofstede, Kiepuszewski

and Barros, 2003). However, the separation

between the control-flow links and the information-

flow links entails some redundancy.

In fact, if two functions operate in series, as the

information item produced by the first one is acted

on by the second one, then an intermediate event is

needed to propagate control from the first function

to the second one, in addition to the information

item.

In Colored Petri Nets (CPNs) (Kristensen,

Christensen and Jensen, 1998), the control-flow

structure and the information-flow one coincide: in

fact, transitions are token-driven processing units

and tokens carry pieces of information. As CPNs

have not been designed to specifically address

human tasks, transitions can only represent the first

of the task interaction patterns presented in section

2, and therefore places in CPNs correspond to only

one category of places in tk-nets, i.e. the fully-

triggering places.

ICSOFT 2007 - International Conference on Software and Data Technologies

(chair) assignPapers

(reviewer) reviewPapers start evaluatePapers

(chair) reassignPapers

send notificationscompute rates

(author) submitFinalPaper

initialize (public) getAuthorAccount

(author) submitPaper(public) getReviewerAccount

(author) enterPaymentInfo

(chair) defineProgram

pending papers all papers evaluated

(chair) assignPapers

(reviewer) reviewPapers start evaluatePapers

(chair) reassignPapers

send notificationscompute rates

(author) submitFinalPaper

initialize (public) getAuthorAccount

(author) submitPaper(public) getReviewerAccount

(author) enterPaymentInfo

(chair) defineProgram

pending papers all papers evaluated

Figure 3: The BPMN model of ConferenceBP.

BPMN (OMG, 2006) and UML activity

diagrams (OMG, 2007) provide the control flow, but

not the information flow (although for

documentation purposes information items can be

included).

In Figure 3, the model of ConferenceBP is

presented with the BPMN notation. The major

difficulty lies in representing human tasks (e.g.

“evaluatePapers”) that can receive and/or deliver a

flow of information, as will be discussed later on in

this subsection.

Process steps “getAuthorAccount” and

“getReviewerAccount” feature the multiple-instance

property (indicated by the parallel mark). In fact,

they activate a number (not known a priori) of the

corresponding human tasks. The BPMN

MI_FlowCondition attribute of “getAuthorAccount”

can be set to a particular value so as to produce an

output token at the end of each instance (i.e. when a

user has got an account): this way, step

“submitPaper” can be activated. The loop marker in

“submitPaper” indicates that this step can be

repeated; in fact, an author can submit a number of

papers.

Since task “assignPapers” is not strongly related

to the end of the previous tasks, it is activated after a

certain period of time after the “initialize” step, as

shown by the delay step represented by the watch

symbol. The information flow is not represented,

therefore it is up to the implementation of the task to

collect the business objects related to the papers

submitted and to the reviewers registered. When this

task is completed, the step ends and releases two

output tokens, one triggering the multiple-instance

“reviewPapers” step, and the other activating step

“start evaluatePapers”, after a certain delay.

Actually, step “start evaluatePapers” does not

coincide with human task evaluatePapers, because

this task may emit intermediate events in case of

(pending) papers to be reassigned to other reviewers.

A task issuing multiple events cannot be

represented in BPMN with a single process step. The

solution adopted in Figure 3 is to start the task

through a service (in step “start evaluatePapers”) and

then wait for one of two events to occur: in case of

event “pending papers”, step “reassignPapers” is

performed, while in case of event “all papers

evaluated”, step “sendNotifications” is carried out.

The analysis of workflow data patterns (Russell,

ter Hofstede, Edmond and van der Aalst, 2005)

mainly addresses the various ways in which data

items are represented and handled within a business

process; in tk-nets, however, data items are external

as they are part of the EIS.

6 CONCLUSION

While it is advocated (Dumas, van der Aalst, and ter

Hofstede, 2005) that EISs be aware of business

processes, the vice versa is no less true.

INTEGRATING BUSINESS PROCESSES AND INFORMATION SYSTEMS

This paper has proposed an approach aimed at

strengthening the relations between business

processes and EISs by making the processes aware

of the human tasks and the information flow. This

approach is based on a notation called tk-nets, which

is complemented by a procedural part, i.e. the

process actions, describing the detailed behavior of

transitions. A prototype of the interpreter for tk-nets

has already been implemented: current work is being

devoted to making the approach fully operational:

for this reason, process actions are mapped to

enterprise beans according to the Java EE standard,

and, moreover, simulation features for human tasks

are under development.

Another direction of research is concerned with

the use of tk-nets to represent business models on

the basis of different perspectives, such as the role-

activity perspective (Ould, 2005) and the

language/action one (Winograd, 1987-88).

REFERENCES

Curran, T., Keller, G., 1998. SAP R/3 Business Blueprint:

Understanding the Business Process Reference Model.

Prentice Hall.

Dumas, M., van der Aalst, W.M.P., ter Hofstede, A.H.M.,

2005. Process-Aware Information Systems: Bridging

People and Software Through Process Technology.

Wiley.

Gane, C.P., Sarson, T., 1979. Structured Systems Analysis:

Tools and Techniques. Prentice Hall.

Kristensen, L.M., Christensen, S., Jensen, K., 1998. The

Practitioner's Guide to Coloured Petri Nets.

International Journal on Software Tools for

Technology Transfer, 2, 98-132.

Mendling J., Neumann, G., Nüttgens, M., 2005. Yet

Another Event-Driven Process Chain. In Lecture

Notes in Computer Science, 3649, 428–433, Springer.

Berlin.

OMG, 2006. Business Process Modeling Notation

(BPMN), Final Adopted Specification, February 2006.

Retrieved March, 10, 2007, from http:

/www.bpmn.org/.

OMG, 2007. Unified Modeling Language: Superstructure,

version 2.1.1. Retrieved March, 10, 2007, from

http://www.omg.org/docs/formal/07-02-03.pdf.

Ould, M., 2005. Business Process Management: A

Rigorous Approach. The British Computer Society.

Russell, N., ter Hofstede, A.H.M, Edmond, D., van der

Aalst, W.M.P, 2005. Workflow Data Patterns:

Identification, Representation and Tool Support. In

Lecture Notes in Computer Science, 3716, 353-368,

Springer. Berlin.

Russell, N., van der Aalst, W.M.P., ter Hofstede, A.H.M.,

Edmond, D., 2005. Workflow Resource Patterns:

Identification, Representation and Tool Support. In

Lecture Notes in Computer Science, 3520, 216–232,

Springer. Berlin.

van der Aalst, W.M.P., ter Hofstede, A.H.M.,

Kiepuszewski, B., Barros, A.P., 2003. Workflow

Patterns. Distributed and Parallel Databases, 14, 5-

51.

WfMC, 2005. XML Process Definition Language, Version

2.00. Retrieved March, 10, 2007, from

http://www.wfmc.org.

Winograd, T., 1987-1988. A Language/Action Perspective

on the Design of Cooperative Work. Human-

Computer Interaction, 3, 3-30.

ICSOFT 2007 - International Conference on Software and Data Technologies
