THE PRIVACY ADVOCATE (PRIVAD)

A Framework for Negotiating Individual Privacy Contracts

Michael Maaser, Steffen Ortman and Peter Langendörfer

IHP microelectronics GmbH, Im Technologiepark 25, 15236 Frankfurt (Oder), Germany

Keywords: Privacy, negotiation, P3P, privacy contract, user preferences, personalization, mobile devices.

Abstract: Privacy has been a hot topic in research for several years. A lot of different approaches to protect privacy

have been proposed recently. Among these are several tools for negotiation of privacy contracts. In this

paper we present our privacy negotiation framework called “Privacy Advocat (PrivAd)”. It consists of three

main parts: the policy evaluation unit, the signature unit and the preferences. In addition our frame supports

an interface for negotiation strategies, so that they are independent of the framework. The preferences can

be expressed with a combination of P3P and APPEL. The test we executed using a state of the art PDA

clearly indicate that our framework can be used by mobile devices. The completion of a negotiation takes

about 2 sec. including message transfer via an 802.11b wireless link. The processing itself is done in less

than 250 msec.

1 INTRODUCTION

A lot of internet users are concerned about their

privacy (Cranor, 2000) . These concerns have led to

the development of P3P (Cranor, 2006) and APPEL

(Cranor, 2002) by the W3C. P3P provides means to

service providers to express which data is gathered

by the service provider as well as for which purpose

etc. APPEL provides means to service users to

express their preferences. The P3P approach is a

pure opt in or opt out model (Thibadeau,

2000)(Bennicke, 2003). Thus, if the user preferences

and the service provider policy do not fit to each

other the only option of the user is not to use this

service. The drawbacks of such a static approach are

on both sides. On one hand at least some service

users have to give up more privacy than what they

would prefer or are excluded from using interesting

services. On the other hand service providers have

to balance their requirements against the user

demands for privacy. A recent study (Druecke,

2006) shows that a significant percentage of users is

willing to provide additional data if the service

provider offers incentives like free trial version of

software, reduced prices for the service under

negotiation etc. Thus, privacy negotiation tools can

help to accommodate the needs of both parties, i.e.

more data for service providers, better prices or

better privacy for certain groups of users.

Privacy negotiation tools should provide service

providers and service users with means to express

their own requirements. Note by the term

negotiation, we really mean a kind of bargaining

about the content of the resulting privacy contract.

Unlike other tools or protocols the requirements do

not specify a list of alternatives which can be chosen

from exclusively. Our approach describes

requirements as negotiation intervals by stating their

boundaries but support use of discrete values as

well. We made both negotiation parties capable to

offer counterproposals based on those intervals and

former offers. Such intervals are especially useful

for measurable data such as charges and position

information.

In this paper we present our privacy negotiation

framework, named Privacy Advocate (PrivAd).

PrivAd provides means for service providers as well

as users to negotiate individual privacy contracts.

Thereby PrivAd is fully interoperable with already

existing P3P based infrastructure. Existing tools

such as Privacy Bird (Privacy Bird, 2006) can

effectively communicate with servers using PrivAd

as well as PrivAd clients can process static P3P

policies from regular web servers.

This paper is structured as follows. Section 2

provides a short state of the art. The extensions of

P3P that are needed to enable negotiations are

briefly discussed in section 3. In the following

section we present details of PrivAd and section 5

Maaser M., Ortman S. and Langendörfer P. (2007).

THE PRIVACY ADVOCATE (PRIVAD) - A Framework for Negotiating Individual Privacy Contracts.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 88-95

DOI: 10.5220/0001282100880095

 SciTePress

outlines its implementation. The paper concludes

with a summary and an outlook on further research.

2 RELATED WORK

There are several privacy related tools that are based

on P3P and APPEL specifications. AT&T’s Privacy

Bird is a free plug-in for Microsoft Internet

Explorer. It allows users to specify privacy

preferences regarding how a website collects and

stores data about them. When the user visits a

website, the Privacy Bird analyzes the provided

policy and indicates whether or not the policy

matches the user’s preferences. The Microsoft

Internet Explorer 6 and Netscape 7 embed a similar

behavior. They allow users to set some options

regarding cookies and are capable of displaying

privacy policies in human readable format. PAWS

also relies on P3P and APPEL but allows discovery

of privacy policies within ubiquitous environments.

The policy evaluation is not done on the mobile

device (Langheinrich, 2002). All these tools are a

valuable step into the right direction, but they still

lack means to individualize privacy policies.

There are approaches that allow users to choose

from a given number of alternatives presented by the

service provider (Preibusch, 2005) (El-Khatib,

2003). Such behavior does not characterize a real

negotiation to us. These approaches rely on the fact

that a non empty intersection of the user

requirements and the policies offered by the service

provider is given a priori. Such approaches are

widely used in protocols such as SSL and TLS. In

contrast to this we consider both negotiation

opponents as equal and they both are enabled to

offer proposals and counterproposals. (Yee, 2004)

presents an approach for negotiating privacy policies

using negotiation trees. This is similar to our

approach but the prototype is not capable of

automatic negotiation.

3 NEGOTIATION EXTENSIONS

To enable negotiation scenarios the following

documents are needed: Service and user preferences

that describe the respective requirements, proposals

and counterproposals from preferences and finally a

mutually agreed privacy contract as the outcome of a

successful negotiation.

Preferences are secret policies of each party that

are never exposed to the opposite side. The secret

preferences specify boundaries that span a certain

room to negotiate. These boundaries do not only

define certain values or enumerations but can

specify also single- or double-bounded intervals of

real numbers or any other value. Surely unique

requirements of users and service provider have to

be considered too. In order to enable

individualization a user has to state permissions and

prohibitions whereas the service providers state

requirements and facultative requests. This is done

in the secret preferences of each party by respective

tags that are added to the statements.

Proposals or counterproposals contain complete

envisioned contracts or parts of those. Further they

may contain requests for deletion of certain parts.

Such documents are exchanged alternately during

the negotiation process. A privacy contract

enumerates all data, purposes, recipients, etc. whose

release has been agreed on by both opponents during

the negotiation. Privacy contracts must not contain

any interval. All values have to be stated explicitly.

Our vision of a privacy contract is mostly

resembled by a P3P policy. Therefore we decided to

enhance the P3P standard with different language

features to enable negotiation possibilities. Since

P3P does not support a description of intervals as

needed for the preferences, we added tags to

describe those intervals first. This is done by

specifying boundaries with tags like

<atleast> and

<atmost>. Boundaries can be set for measurable

data i.e. accuracy of location. For remuneration of

service usage we integrated a special element to

represent the amount of money to be paid for a

service. Besides the necessary interval it contains

unit and currency tags to enable respective

conversion. Due to space limitation we omitted

detailed description of all extensions. Please refer to

(Maaser, 2006).

3.1 Permissions and Prohibitions

While requirements and facultative request at

service provider preferences are self-explanatory,

the permissions and prohibitions in user preferences

contain additional implications. Users are able to

define statements in their preferences, which are

explicitly prohibited or allowed. In this way users

are capable to prohibit single data or groups of data

for certain purposes, recipients or retentions. It is

also possible to prohibit data or groups of data for all

purposes or all recipients etc. That is, prohibitions

specify domains that are explicitly prohibited.

Preferences that are solely composed of prohibitions,

implicitly allow all non-stated data.

Similarly, permissions explicitly allow data for

certain purposes or recipients. If user preferences

contain permissions only, all non-stated data are

implicitly prohibited. Obviously, explicitly allowed

THE PRIVACY ADVOCATE (PRIVAD) - A Framework for Negotiating Individual Privacy Contracts

or prohibited content of statements is more

significant than comparable implicit ones.

Successful negotiations finish with a mutually

agreed policy, called contract. The basis for the used

signatures are digital certificates analogous to those

used by SSL. Since a contract is an individual

document regarding each pair of user and service

provider it must be digitally signed by both parties.

The P3P standard does not provide an opportunity to

integrate digital signatures. Thus, to ensure

backward compatibility, we use xml comments to

integrate the digital signatures. This way we avoid

misinterpreted policies by standard P3P applications.

Our negotiation protocol is not capable to choose

from a list of signature algorithms, analogue to SSL,

yet. Thus, both negotiation parties have to use a

predefined signature algorithm. Currently this is

fixed to SHA/DSA.

4 PRIVACY ADVOCATE

The Privacy Advocate (PrivAd) is a framework that

is capable to negotiate on the basis of P3P privacy

policies including the introduced P3P extensions. It

is designed for both negotiation parties and may be

used by service users as well as the service provider

side. Hence we implemented a PrivAd client and a

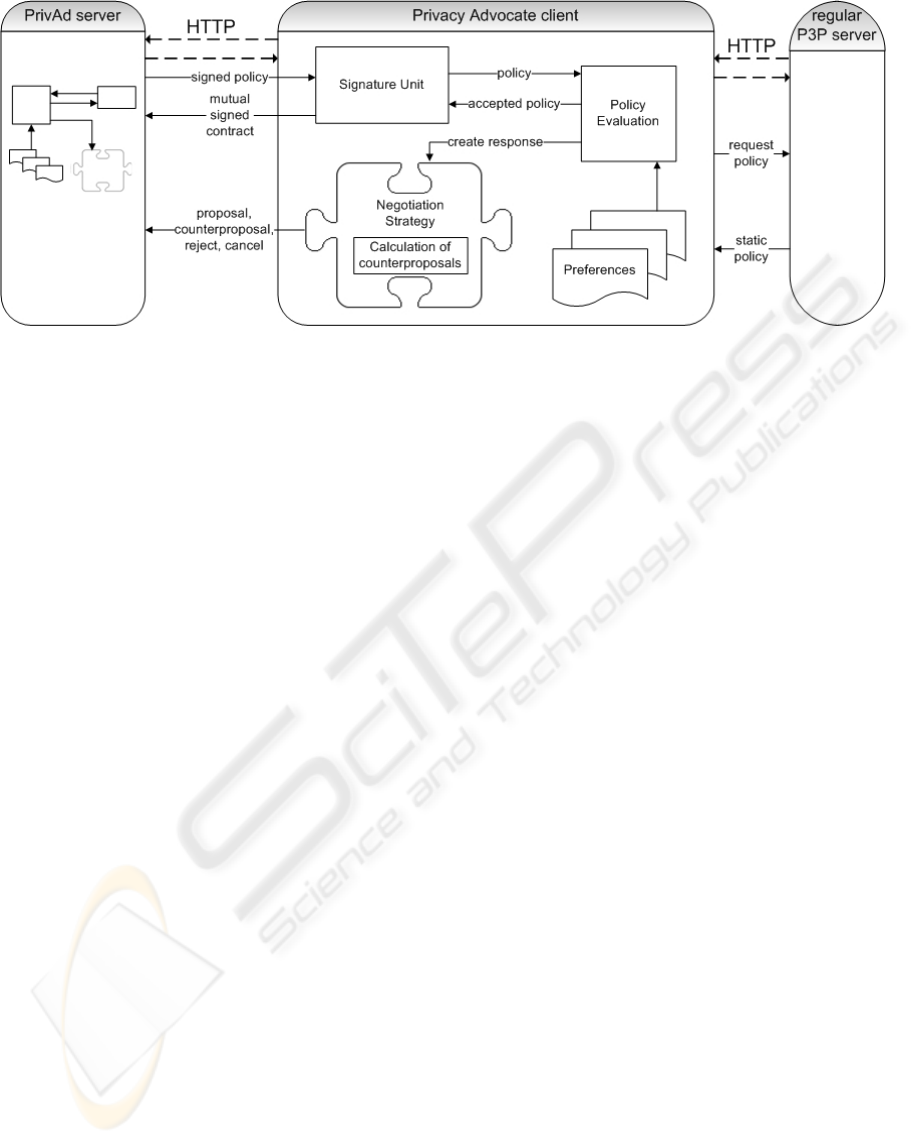

PrivAd server. The framework consists of a Policy

Evaluation Unit, a Signature Unit, a Repository for

preferences and signed policies, mechanisms for http

communications and an interface for exchangeable

Negotiation Strategies, see Figure 1. The graphical

user interface of the PrivAd client allows the user to

monitor and control the negotiation process and was

implemented for demonstration purposes only.

Surely an embedded Version of PrivAd does not

need such a graphical user interface and works

unseen in background. The Signature Unit verifies

signatures of incoming documents and signs

outgoing ones. The Policy Evaluation Unit is the

core of PrivAd and the negotiation concept. Every

incoming proposal or policy has to be evaluated and

compared with the preferences by this unit. The last

component, the Negotiation Strategy, is responsible

for calculating counterproposals. It is not a part of

the framework. We intentionally made this part

exchangeable to provide means to use alternative

strategies. Exemplary we implemented two

strategies described in Section 5.5, but the

framework could be be completed with any

Negotiation Strategy.

To create a negotiation enabled antagonist we

embedded PrivAd into a Tomcat Web Server. To

exchange negotiation messages between two

negotiation parties or to collect a policy of a static

device, the transport protocol http is used. Our

Privacy Negotiation Protocol (PNP) used by PrivAd

is a stop-and-go protocol in which each incoming

policy triggers its evaluation and sending of an

answer. Figure 1 displays the interaction of a PrivAd

client with a PrivAd server or a regular P3P enabled

web server respectively.

4.1 Negotiation Process

This section describes a single turn of the bargaining

procedure, when a PrivAd client receives a policy as

a proposal or counterproposal from a negotiation

enabled service provider using PrivAd server. The

Signature Unit verifies the signature of any received

policy first. Incorrect signatures lead to stop the

negotiation immediately. Policies that contain

correct signatures are forwarded to the Policy

Evaluation Unit that compares the content of the

policy with the client’s preferences. The Policy

Figure 1: Structure of the Privacy Advocate client and server.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

Evaluation Unit returns a Boolean value that states

whether or not the received policy matches the

client’s preferences. In case of a match PrivAd has 2

options:

1. PrivAd signs the policy and sends it back to the

service. If the incoming policy was already

single signed both sides have a mutually signed

contract now and may continue with fulfilling

the service.

2. PrivAd orders the Negotiation Strategy to create

a counterproposal although the policy was

acceptable. The Negotiation Strategy may create

a counterproposal that contains more favorable

terms and conditions for the client’s side which

is then send back.

In case of a mismatch with own preferences,

PrivAd has 3 options to response:

1. PrivAd cancels the negotiation because the

policy was unacceptable.

2. PrivAd orders the Negotiation Strategy to create

a counterproposal that matches own preferences

and returns it to the sender.

3. PrivAd cancels the negotiation because an

integrated assessment function indicates that the

negotiation process does not seem to advance

and become successful.

Note that the Policy Evaluation Unit and the

Negotiation Strategies are described in separate

subsections later. The PrivAd server handles

incoming proposals analogous.

To provide more flexibility, PrivAd uses an

independent Negotiation Strategy to create

counterproposals. As seen above, PrivAd does not

need a strategy to evaluate incoming documents but

for appropriate responses only.

It is possible that a complete bargaining needs

many negotiation rounds. Therefore PrivAd is

capable to store and adjust former proposals if

necessary. Thus, counterproposals do not need to

contain the complete policy. Only changes need to

be submitted. If a negotiation party agrees to the

proposal with all changes applied, a new contract

proposal containing all involved statements is

generated. That contract proposal is signed and send

to the opposite side.

Finally the case to «negotiate» with regular P3P

enabled web servers has to be considered, see

section 5.1 for further details. PrivAd sends no

document to such server but receives their static P3P

Policy Evaluation Unit as usual. PrivAd client

indicates the user about the acceptance of the policy

via a message on the screen. Due to the static server

no counterproposal is calculated in case of a

mismatch with own privacy requirements. So,

PrivAd provides the same functionality as existing

P3P tools.

In the case of especially tenacious strategies it

may occur that the negotiation will never find an

agreement, despite such agreement theoretically

exists. These cases cannot be prevented by design.

Thus PrivAd needs to provide an assessment

function that allows to monitor progress of the

negotiation as well as to calculate, whether a

negotiation should be cancelled. The assessment

function is independent of the strategies. Our current

assessment function accounts the percentage of

accepted statements to check the convergence of the

negotiation process. If this percentage of the current

negotiation round is less than the minimum of last

five negotiation rounds, PrivAd cancels the current

negotiation. In principle each user may define an

own assessment function or adjust the number of

negotiation rounds of the currently used function.

4.2 Policy Evaluation

This section describes the procedure of checking a

proposal against negotiation preferences. It is

essential that every incoming document can be

checked automatically. Therefore an algorithm and a

data-model were developed which will determine

acceptance of a document in relation to own

preferences. Surely these documents have to

conform to P3P with or without the introduced

extensions.

As stated before, the two possible results of this

check are the acceptance or denial of a proposal. For

further explanations the following naming

conventions are constituted. Statements of arrived

proposals are called paragraphs and statements of

preferences are called directives. The policy

evaluation passes three different stages starting with

the evaluation of individual elements of a statement

up to the complete proposal.

4.2.1 Elements of Statements

The paragraphs and directives are interpreted as

vectors of sets. These sets are purposes, recipients

and data_group. Thus, elements of a statement are

represented as follows.

statement =

({}purposes,{}recipients,{}data_group)

Depending on the use of the statement the sets

may also be Ω. Ω specifies all possible members of

a set, i.e. all purposes that are imaginable. Ω may be

used in the user preferences to prohibit or allow data

without referencing a certain purpose or recipient.

Hence, it can be assumed that each element of a

statement, which works as a paragraph, is neither

empty nor Ω. Obviously empty sets or Ω are allowed

THE PRIVACY ADVOCATE (PRIVAD) - A Framework for Negotiating Individual Privacy Contracts

to be used in directives only. Considering

paragraphs and directives as vectors of sets, just

these sets have to be compared. That is, we compare

purposes from paragraphs with purposes from

directives just etc. We call sets from directives with

permissions permitted sets and sets from directives

with prohibitions prohibited sets. The result of this

comparison is one of the following logical values.

`not affected` Æ The compared sets are

disjoint.

`definitely permitted` Æ The set of the

paragraph is a subset of the permitted set. Hence

it allowed.

`possibly prohibited` Æ The intersection

of the paragraph’s set and the prohibited set is

not empty but the paragraph’s set contains

elements that are not elements of the prohibited

one. So final decision whether or not the

paragraph can be accepted requires additional

calculations, see section 4.2.2.

`possibly permitted` Æ The intersection of

the paragraph’s set and the permitted set is not

empty but the paragraph’s set contains elements

that are not elements of the permitted one. So

further processing is required analogous to

`possibly prohibited `.

`definitely prohibited` Æ The set of the

paragraph is a subset of the prohibited set. Thus

it must be prohibited.

Each element gets one such value assigned and

is further processed in the next steps to finally

determine the acceptance of the proposal.

Table 1: Logical values of sets in paragraphs to the

respective sets in directives.

Directive is

permit prohibition / {}

prohibition /

{}

≠

Ω

§ ∩ D ≠ Ø,

§ ∩ D ≠ §,

§ ∩ D ≠ D

POSSIBLY

PERMITTED

DEFINITELY

PROHIBITED

POSSIBLY

PROHIBITED

§ ∩ D = Ø

NOT

AFFECTED

NOT

AFFECTED

NOT

AFFECTED

§ = D

DEFINITELY

PERMITTED

DEFINITELY

PROHIBITED

DEFINITELY

PROHIBITED

§ ⊂ D

DEFINITELY

PERMITTED

DEFINITELY

PROHIBITED

POSSIBLY

PROHIBITED

§ ⊃ D

POSSIBLY

PERMITTED

DEFINITELY

PROHIBITED

DEFINITELY

PROHIBITED

D = Ω

DEFINITELY

PERMITTED

DEFINITELY

PROHIBITED

DEFINITELY

PERMITTED

D = Ø

POSSIBLY

PERMITTED

DEFINITELY

PERMITTED

DEFINITELY

PROHIBITED

For easier notation the examined set from the

directive is D and the respective set from the

paragraph is §. According to this notation a lookup

table, see Table 1, is used to determine logical

values. Just see the headline to define the kind of

directive and the first column to assign the set of the

paragraph to determine the result. For determination

of logical values it must be taken into account

whether a directive is a prohibition or a permit.

Since prohibitions forbid the combination of certain

data for any of the stated purposes or recipients, we

have to distinguish OR-sets {}

and AND-sets {}

While OR-sets prohibit all possible combinations of

the contained elements, an AND-set only prohibits

the given combination of the set. Thus, the OR-set is

the more restrictive one. In permits this

classification of sets is not necessary because every

subset of them is also permitted.

4.2.2 Grading of Paragraphs

After determining the logical values of sets in

paragraphs, the next step of evaluation has to be

done. The logical values of sets in a paragraph have

to be concatenated to determine the logical value of

the complete paragraph in relation to the directive.

We use two additional lookup tables to define this

concatenation operation. One lookup table is

responsible for prohibiting directives and the other

one for permits. Example: A user prohibits the

combination of her data A and B for the purpose P

by a prohibiting directive. A service requests data A

for the purposes P and Q. According to Table 1 the

requested data is `possibly prohibited` and the

purposes are `definitely prohibited`. These logical

values are concatenated resulting in the value

`possibly prohibited`. Hence, the paragraph is

acceptable because it requests not all of the

prohibited data.

A special focus lies on paragraphs, which got the

logical values `possibly permitted` or `possibly

prohibited`. All paragraphs which have been

evaluated to those logical values have to be analyzed

again. Please notice that both values are not

equivalent. In the following we provide an example

for `possibly prohibited` paragraphs. Suppose a

directive with prohibited data {name, address, birth

date}. The combination of this data could be

misused to falsify an eBay account. Additionally

assume a proposal containing two paragraphs. One

paragraph requests the name and address, the other

one requests the birth date. Both paragraphs are

evaluated to `possibly prohibited` (refer Table 1)

because the requested data_groups are only subsets

of the prohibition {name, address, birth date}. So

these individual paragraphs would still be

acceptable, despite their combination is violating the

directive. To avoid such cases, all `possibly

prohibited` paragraphs are merged as long as

possible in order to determine effectively, whether

they are `definitely prohibited` or not.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

Thus, these two paragraphs have to be merged

into one paragraph if possible. Two paragraphs that

differ in one set only, can be merged to a single

paragraph where the differing sets are conjoint. In

our example the merged paragraph contains data

{name, address, birth date} after finishing the merge

operation and is checked again. Obviously this turns

out to be `definitely prohibited`. Consequentially the

logical values of both original paragraphs are

changed to `definitely prohibited`.

4.2.3 Aggregation of Acceptance of Proposal

After the logical values for all paragraphs of a

proposal are determined the results have to undergo

another evaluation step. It is checked whether a

certain paragraph was evaluated to `definitely

prohibited` or `possibly permitted`. If such a

paragraph exists in the proposal, the Policy

Evaluation Unit signals the non-acceptance of the

proposal. Otherwise it could be agreed to. In

(Maaser, 2005), the used data-model and the policy

evaluation are defined in more detail.

4.3 Protocol Issues

To exchange negotiation documents we used http as

transport protocol. This protocol is widespread and

ensures backwards compatibility with P3P. PrivAd

uses the http-post method to pick up and send

proposals or policies to negotiation enabled servers.

If PrivAd detects no authorization to send an http-

post request towards the negotiation opponent, a

regular P3P enabled web server is assumed. Thus

PrivAd will get the static policy, if available, by

using the http-get method. That enables PrivAd to

verify every existing static P3P policy.

Also our PrivAd server responds with a standard

policy at receiving an http-get request. That enables

the server to answer requests of clients that are

unable to negotiate such as most existing P3P tools.

If an http-post request is received, the PrivAd server

supposes a negotiation enabled client on the other

side. Therefore PrivAd client sends an initial request

to negotiation enabled server by http-post to initiate

the negotiation process. This post request can be

empty or contain a proposal.

5 IMPLEMENTATION

5.1 Mobile PrivAd Client

The main restriction while implementing PrivAd

client was to ensure that mobile devices can use it.

Therefore the PrivAd client was implemented

compatible to JDK 1.1.8. We use the JVM CrEme

(CrEme, 2004) to run PrivAd on PDA’s. The PrivAd

client PDA version contains a graphical user

interface to visualize the negotiation process on the

PDA for plausibility checks and demonstration. In

this GUI every transferred document and the

preferences of the client are shown. The user has to

choose a file with preferences and a URL as a target

for negotiation. Pushing a button to run the next

negotiation round enables the user to control the

progress of the negotiation process. All policy

evaluation and proposal generation is done by the

PrivAd client. Note the code size take about 150

Kbytes only.

The privacy negotiation process was tested on a

Toshiba Pocket PC e740 WLAN with a 400 MHz

xscale processor and 64 MB RAM. For this test we

used very simple policies that were compiled with

less than 4 statements on the PrivAd server and the

mobile PrivAd client. For the air link we used

802.11b with a nominal data rate of 11 Mbit/sec. We

measured results for accepted as well as for rejected

policies. Comparing the results for different

transmission speeds of the network shows clearly

that the communication time dominates the time

needed to complete the negotiation process. Using a

wired connection the complete negotiation cycles

were finished in less than 300 msec whereas it took

about 2000 msec using the wireless connection. The

pure calculation of proposals and counterproposals

takes less than 250 msec on the mobile PrivAd

client.

5.2 PrivAd Server

The server side is implemented as a Java Servlet that

runs in a Servlet container. For our reference

application we used Apache Tomcat (Tomcat,

2005). Similar to its client the PrivAd server is

backward compatible to existing P3P tools.

Therefore the server is able to behave like a regular

P3P enabled web server, if it is necessary. On a first

request the PrivAd server will respond with its initial

policy. If it is an http-post request, the PrivAd server

initiates the negotiation process with this client. By

receiving a simple http-get request the server only

replies with a default policy without any negotiation

interests which is fully compatible to P3P standard.

Hence the PrivAd server works interoperable with

already existing tools like Privacy Bird, Internet

Explorer or Netscape.

Using http-post for policy exchange may inhibit

options for invaders. This carries limited risk,

because incoming messages are parsed and validated

against the PrivAd schema. In worst case there will

be an error accounted by parsing the element. Since

all policies are interpreted as text and not as

THE PRIVACY ADVOCATE (PRIVAD) - A Framework for Negotiating Individual Privacy Contracts

executables, the risk, that malicious code can be

executed in system, is kept minimal.

5.3 Digital Signature

All contracts have to be signed digitally. This will

block man-in-the-middle-attacks, give proof of

identity and offers more integrity. Incorrect

signatures lead to cancellation of the negotiation

process. In addition the Signature Unit signs an

acceptable policy to generate a single signed

contract proposal. Accepted contract proposals from

the opponent are signed to generate a mutually

signed contract. For digital signing we implemented

the SHA/DSA algorithm in the Signature Unit. We

rely on existing PKI as SSL/TLS also does. For

future versions we intend to integrate selection

means for different signature algorithms.

5.4 Negotiation Strategies

Creation of a counterproposal depends on the

Negotiation Strategy in PrivAd and its secret

preferences. Simple Negotiation Strategies, for both

negotiation parties are developed and integrated. For

demonstration we implemented two strategies where

both sides try to find a mutual contract by

accommodating as fast as possible. To start we point

out operation methods of a simple service provider

strategy for PrivAd server. Consequently, the service

provider creates and proposes an initial policy,

which contains all requirements and facultative

requests. Additionally, most profitable values from

the intervals in the preferences are chosen in this

policy to gather a maximum of information and

money. On receiving a counterproposal it is applied

to previous proposals to get a combined proposal

and the provider strategy has to react in a more

complex way:

• The strategy acquires the logical values of all

statements that the Policy Evaluation Unit has

determined before. Logically statements that are

neither explicitly nor implicitly prohibited do not

require a counterproposal.

• All acceptable statements in the proposal are

mapped to respective statements in the

preferences.

• If all requirements are satisfied already, the

strategy creates a new contract proposal from the

combined proposal. All additionally acceptable

statements are surely added to gain as many data

as possible. The PrivAd server signs it and sends

that new contract proposal back to the user.

• If not all requirements are satisfied, a new

contract proposal or counterproposal has to be

created and proposed. Therefore all requirements

are requested.

• Unacceptable proposed statements are updated

by new values matching the intervals in the

preferences. Here the strategy may reduce the

proposed charge for the provided service by 10

percent or similar.

• If proposals instruct to discard statements that

are requirements, the provider strategy proposes

exactly these statements again since otherwise

the service cannot be provided. However, the

service provider never signs a policy, where not

all minimum requirements from its preferences

are included.

• The created counterproposal is passed to PrivAd

server that sends it back to the opponent.

While service providers normally try to retrieve

the highest possible amount of data, the users

naturally negotiate in the opposite way.

• The user gets an initial policy by querying the

service provider at first time.

• The PrivAd client checks the signature.

Proposals are applied to previous ones if those

exist. Then the acceptance of the combined

proposal is evaluated. Thereby the Policy

Evaluation Unit marks all statements in the

proposal with logical values to determine

prohibited ones.

• If the proposed policy does not contain any

prohibited statement this policy is signed by the

Signature Unit and is returned. If this policy was

a contract proposal, it is also signed by the

PrivAd client and becomes a mutually signed

contract. In that case both sides have a mutually

signed contract now and may start using the

service. Surely also an acceptable proposal could

be counterproposed here. Thereby the strategy

may cut the prizes for the service or adapt the

proposed values to improved ones.

• If it contains prohibited statements the strategy

component generates a counterproposal.

Prohibited paragraphs are the base for calculating

the counterproposal. Below we display an

operation breakdown on a single prohibited

paragraph. As mentioned before, statements in

preferences are called directives whereas

statements in proposals are called paragraphs.

First, the prohibiting directives for this

paragraph are searched in the client’s

preferences.

o Special focus is set on merged paragraphs.

Certainly all prohibited paragraphs that were

merged into one single paragraph have to be

rejected in their isolated form as well. Since

all paragraphs are numbered a rejection can

be accomplished by returning an empty

paragraph with that particular number.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

o Finally, the prohibited paragraph is

intersected with the prohibiting directive.

Here intersection means that all values of the

paragraph are adjusted to match the intervals

in the directive. The strategy may try to

approximate the values of the

counterproposal to the prefered boundary of

the interval.

o If the strategy has still not found an

appropriate intersection, the prohibited

paragraph has to be rejected without a

replacement.

o This process is repeated for every prohibited

paragraph of the unaccepted policy.

• Last step is to create a counterproposal

containing all changed and newly generated

paragraphs. All paragraphs, that were not listed

or explicitly rejected in counterproposal are

supposed to be accepted.

• The created counterproposal is passed to the

PrivAd client that sends it to the opponent.

6 SUMMARY & OUTLOOK

This article determined the situation in stating and

contracting privacy in the Internet. Lacking

negotiation capability has been identified as a

shortcoming. A privacy negotiation framework that

allows mobile users and service providers to

negotiate about data and its potential recipients,

purpose etc. was presented. This framework PrivAd

is downwards compatible with P3P and enables

negotiation scenarios between PrivAd clients and

static servers as well as between known P3P tools

and PrivAd servers. The process of evaluating a

counterproposals was explained. Tests, done with a

state of the art mobile device, prove that our mobile

PrivAd client is functional. Successful negotiations,

finishing with a mutually signed privacy contract,

take about 2 seconds via wireless link and about 0.3

seconds via a wired link, including all message

transfer. In the future the two negotiation parties and

their types of requirements shall be merged, in order

to create tools which can perform both sides of

negotiation at a time. This will enable negotiations

between enterprises and in the peer-to-peer domain.

REFERENCES

Bennicke, Langendörfer, 2003. Towards Automatic

Negotiation of Privacy Contracts for Internet Services.

Proceedings of 11th IEEE Conference on Computer

Networks, IEEE Society Press.

Cranor, 2000. Beyond Concern: Under-standing Net

Users' Attitudes About Online Privacy. Ingo

Vogelsang and Benjamin M. Compaine, eds. The

Internet Upheaval: Raising Questions, Seeking

Answers in Communications Policy. Cambridge,

Massachusetts: The MIT Press, p. 47-70.

Cranor, Langheinrich, 2002. A P3P Preference Exchange

Language 1.0. http://www.w3.org/TR/P3P-

preferences/.

Cranor, Langheinrich, Marchiori M., 2006. The Platform

for Privacy Preferences 1.1 (P3P1.1) Specification.

http://www.w3.org/TR/P3P11/.

CrEme, 2004. CrEme version 3.25, NSICOM,

www.nsicom.com.

Druecke, 2006. Attitudes to Privacy at using mobile

phones (in german), Technical Report, "Mobile

Internet Business", Nr. 3, ISSN 1861-3926.

El-Khatib, 2003. A Privacy Negotiation Protocol for Web

Services, Workshop on Collaboration Agents;

Autonomous Agents for Collaborative Environments

Halifax, Nova Scotia, Canada.

Langheinrich, 2002. A Privacy Awareness System for

Ubiquitous Computing Environments. In: Gaetano

Borriello, Lars Erik Holmquist (Eds.): 4th

International Conference on Ubiquitous Computing

(Ubicomp 2002), LNCS No. 2498, Springer-Verlag,

pp. 237-245.

Maaser, Langendoerfer, 2005. Automated Negotiation of

Privacy Contracts 29

Annual International Computer

Software and Applications Conference (COMPSAC

2005). Edinburgh, Scotland, UK. IEEE Computer

Society

Maaser, Ortmann, Langendoerfer, 2006. NEPP:

Negotiation Enhancements for Privacy Policies, W3C

Workshop on Languages for Privacy Policy

Negotiation and Semantics-Driven Enforcement.

Ispra, Italy.

Preibusch, 2005. Implementing Privacy Negotiation

Techniques in E-Commerce, 7

IEEE International

Conference on E-Commerce Technology, IEEE CEC

2005, Technische Universität München, Germany

Privacy Bird, 2006. AT&T Corporation,

http://privacybird.com.

Thibadeau, 2000. A Critique of P3P: Privacy on the Web.

The eCommerce Institute, School of Computer

Science, Carnegie Mellon University

Tomcat, 2005. Tomcat version 5.5, Apache Software

Foundation, tomcat.apache.org.

Yee, Korba, 2004. Privacy Policies and their Negotiation

in Distance Education. Instructional Technologies:

Cognitive Aspects of Online Programs. Idea Group

Inc. NRC 46555.

THE PRIVACY ADVOCATE (PRIVAD) - A Framework for Negotiating Individual Privacy Contracts
