DESIGNING TEMPLATES FOR MINING ASSOCIATION RULES

FROM XML DOCUMENTS

F. H. Ismail, H. K. Mohammed

Faculty of Computer Science, Misr International Univ. Cairo, Egypt

Faculty of Engineering, Ain Shams Univ. Cairo, Egypt

M. A. Ismail, I. EL-Maddah

Faculty of Engineering, Ain Shams Univ. Cairo, Egypt

Keywords: Mining association rules from semi-structured data, meta-rule guided mining of association rules,

discovering frequent structure from XML.

Abstract: Nowadays, some information is semi-structured. The main characteristic of semi-structured data (XML) is

that they have irregular structure. There is no distinction between data and structure. Even though, it is quite

common that semi-structured objects representing the same sort of information have similar, though not

identical, structure (pattern). Previous work has introduced templates for mining association rules from

XML based on prior knowledge about the structure of the XML document. If the users do not have any

knowledge about the structure in advance, what would be their clue in writing templates? In this paper, we

introduce a new approach for designing association rule templates based on the automatic discovery of

frequent structure in the XML document. Frequent structure serves as a schema built over the semi-

structured data. This layer guides the user to the useful structure that might yield useful associations rather

than choosing any piece of structure at random. The structured layer is displayed from which the user can

select templates of interest. Association rules that comply with the specified templates are generated.

1 INTRODUCTION

Many methods have been proposed and developed

for mining association rules from relational

database. However, the generated association rules

could be poorly focused or lack of interest to users.

According to Fu (1995 a), two major factors may

contribute to this phenomenon: (1) lack of focus to

the set of data to be studied, and (2) lack of

constraints on the forms and/or kind of rules to be

discovered. In the context of relational database, the

first problem can be handled by introducing a data

mining interface which specifies the set of data

relevant to a particular mining task. The work

introduced in Fu(1995 b) used an SQL-like interface

to specify the task relevant set for a data mining

query. For example, in order to find the general

characteristics of computer science graduate students

in Canada, a where-clause is used to retrieve only

those students of interest. What about semi-

structured data which is known to have irregular

structure and can be populated without having a

schema in advance? XML is the standard for

presenting semi-structured data. X-query also is the

standard XML query language (World Wide Web

Consortium, 2002). How can we exploit the

emerging XML query language to constrain the

knowledge to be discovered to avoid the second

problem mentioned above? Fing (2005) introduced

an XML-enabled data mining query language XML-

DMQL. The design philosophy of XML-DMQL is

based on allowing the user to declare what kinds of

interesting XML rules are to be mined. Users

provide templates to declare their interesting

knowledge. User defined templates are translated

into X-query statements to constrain the XML data

to be mined. Thus, the mining cost incurred is

proportional to what users want. The concept of

defining the rule-template by the user is not new. It

comes from relational database community.

However, the templates presented in Fing (2005) are

214

H. Ismail F., K. Mohammed H., A. Ismail M. and EL-Maddah I. (2007).

DESIGNING TEMPLATES FOR MINING ASSOCIATION RULES FROM XML DOCUMENTS.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Web Interfaces and Applications, pages 214-219

DOI: 10.5220/0001276802140219

 SciTePress

formed based on the users’ prior knowledge about

the XML structure. In our study, we provide an

automated discovery of templates that might yield

useful associations. We also allow the user to select

the interesting templates from the pool of useful

generated templates. We also introduce how to

exploit the expressiveness power of X-query to

generate association rules that comply with the

templates chosen by the user. In section 2 and 3, we

introduce the terms of association analysis and meta-

rule guided mining of association rules in relational

database. In section 4 and 6, we introduce the

meaning of the same terms but in the context of

XML. In section 6, the proposed system design is

discussed. In section 7, conclusions and future work

are introduced.

2 ASSOCIATION ANALYSIS

Association analysis is the discovery of association

rules showing attribute-value conditions that occur

frequently together in a given set of data.

Association analysis is widely used for market

basket or transaction data analysis. Let I = {I

,…… I

} be a set of items. Let D is a set of

database transactions where each transaction T is a

set of items such that T

⊆ I. Each transaction is

associated with an identifier, called TID. Let X be a

set of items. A transaction T is said to contain X if

and only if X

⊆ T. An association rule is an

implication of the form X

⇒ Y, where X ⊂ I, Y

⊂ I, and X ∩ Y =

. The rule X ⇒ Y holds in the

transaction set D with support s, where s is the

percentage of transactions in D that contain X

∪ Y

(i.e., both X and Y). This is taken to be the

probability, P(X

∪ Y). The rule X ⇒ Y has

confidence c in the transaction set D if c is the

percentage of transactions in D containing X that

also contain Y. this is taken to be the conditional

probability, P(Y|X) (Han, 2001).

3 META-RULE GUIDED MINING

OF ASSOCIATION RULES IN

RELATIONAL DATABASE

According to (Han, 2001), Meta-rule guided mining

of association rules is a rule template in the form of

∧ ….. ∧ P

⇒ Q

∧ ….. ∧ Q

" where Pi

(for i=1,…..,m) and Qj (for j=1,…,n) are predicates.

Each predicate name is an attribute name of a

database relation and can be instantiated by a certain

value. The rule template is used to describe what

forms of rules are expected to be found in the

database and used as a constraint in the data mining

process. However, relational databases are structured

with

a predefined schema. Suppose that as a market

analyst, you have access to the data describing

customers (such as customer age, address, and credit

rating) as well as the list of customer transactions.

You are interested in finding associations between

customer traits and the items that customers buy.

However, rather than finding all of the association

rules reflecting these relationships, you are

particularly interested only in determining which

pairs of customer traits promote the sale of

educational software. A meta-rule can be used to

specify this information describing the form of rules

you are interested in finding. An example of such a

meta-rule is P

(X,Y) ∧ P

(X,W) ⇒

buys(X,"educational software"); where P

and P

are

predicate variables that are instantiated to attributes

from the given database during the mining process,

X is a variable representing a customer, and Y and

W take on values of the attributes assigned to P

and

, respectively. Typically, a user will specify a list

of attributes to be considered for instantiation with

and P

. In general, a meta-rule forms a hypothesis

regarding the relationships that the user is interested

in probing or confirming. The data mining system

can then search for rules that match the given meta-

rule. For instance, the following rule matches or

complies with the above meta-rule.

Ages (X, "35-45")

∧

income(X, "40-60K")

⇒ buys(X,"educational software").

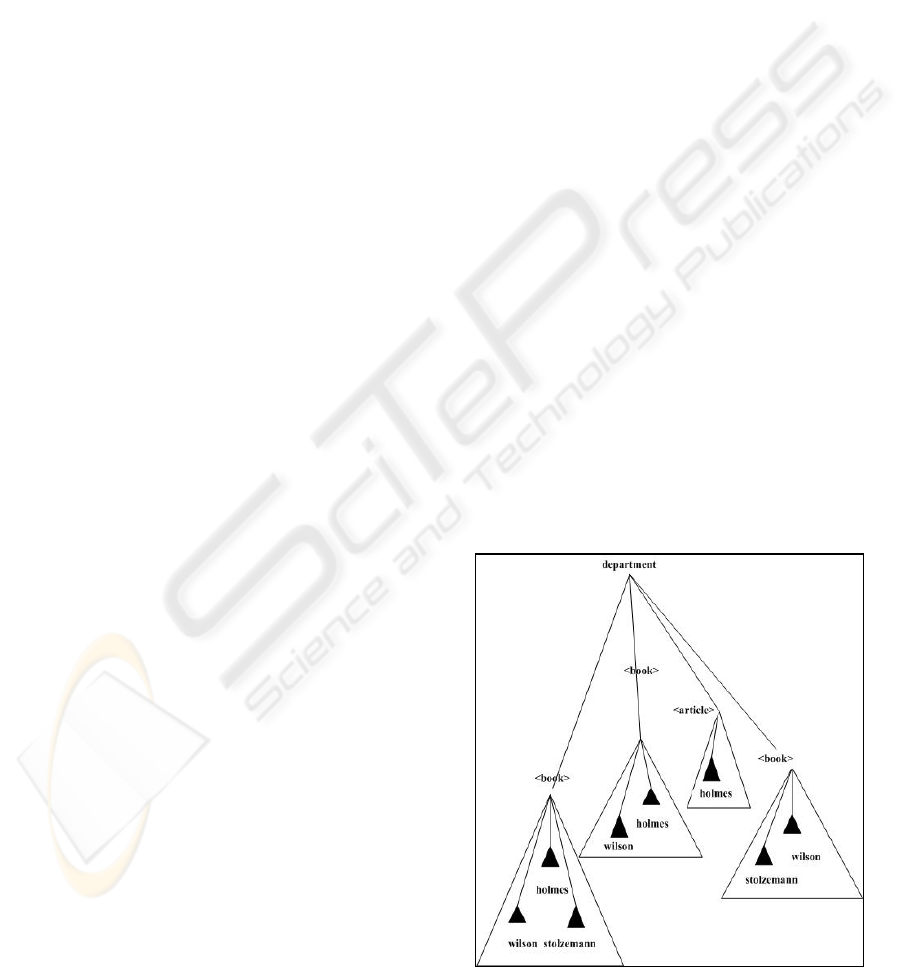

Figure 1: Research.xml.

DESIGNING TEMPLATES FOR MINING ASSOCIATION RULES FROM XML DOCUMENTS

215

4 ASSOCIATION RULES IN XML

(Fing, 2003; Nayak, 2005) presented an xml-enabled

framework for mining association rules. The

association rules in XML describe relationships

between tags

which tend to occur together in XML

documents that can be useful in the future. In XML

documents, tags and attributes contain data that

attracts the user interest. The path formed by

concatenating tags from the root to the current

element describes the meaning of the enclosed data.

To define association rules from XML documents,

(Baraga, 2003) mapped the basic concepts of

association rules in the XML context. As a working

example, (Baraga, 2003) introduced the XML

depicted in figure 1 research.xml. The problem of

mining frequent association among people that

appear as coauthors in the publications is

considered. i.e. associations in the form "<book>

<author> Wilson </author> </book>

⇒ <book>

<author>Holmes </author> </book>". Since any

part of an XML document is a tree (XML fragment),

both D, I are sets of trees. In particular, the

transactions T

∈

D are the XML fragments that

define the context in which the items I

∈ I must be

counted. The items I ∈ I are the fragments that must

be counted. If we consider the problem of mining

association rules among authors appearing in the

same papers, we have that D are the set of fragments

of the publications. The items I

∈

I are the set of

fragments of all the authors who appear in the works

published by people within the department. This

situation is depicted in figure 1 where an example of

research.xml document is represented. The white

triangles represent the fragments (transaction

objects) corresponding to the various publications

authored by people of the department. The black

triangles represent the fragments corresponding to

the authors who appear in various publications. The

value of the <author> tag is depicted at the bottom

of the black triangles thus a black triangle labeled

Wilson is equivalent to the XML fragment <author>

Wilson </author>. While the value of the white

triangle corresponding to a <book> tag represents an

entire XML fragment. In the example of figure 1, D

contains the four white triangles and I contains the

three black triangles corresponding to the authors

Holmes, Wilson and Stolzman. The support of

association rule Wilson

⇒ Holmes is 0.5 since the

fragments <author> Wilson </author> and <author>

Holmes </author> appear together in two white

triangles out of four. We can now compute the

confidence of the same rule which returns 0.66.

5 TEMPLATES FOR MINING

ASSOCIATION RULES FROM

XML

In XML documents, (Fing, 2003) extended the

notion of an item to a tree-structured item. A tree-

structured item is made up of a series of nodes (tags)

that are connected to each other.

For example in figure 2, If the users are interested in

associations among book titles, vdc titles and people

jobs, they can form a template with antecedent

predicates order/item/book/title and

order/item/vcd/title and consequent predicate

order/person/job.

The following association rule that complies with

the template can be generated by the system:-

Order/book/title/”startwarI” and

ordre/vcd/title/”starwarI”

⇒

order/person/job/”student“. The support of this rule

is 2/3 as well as its confidence.

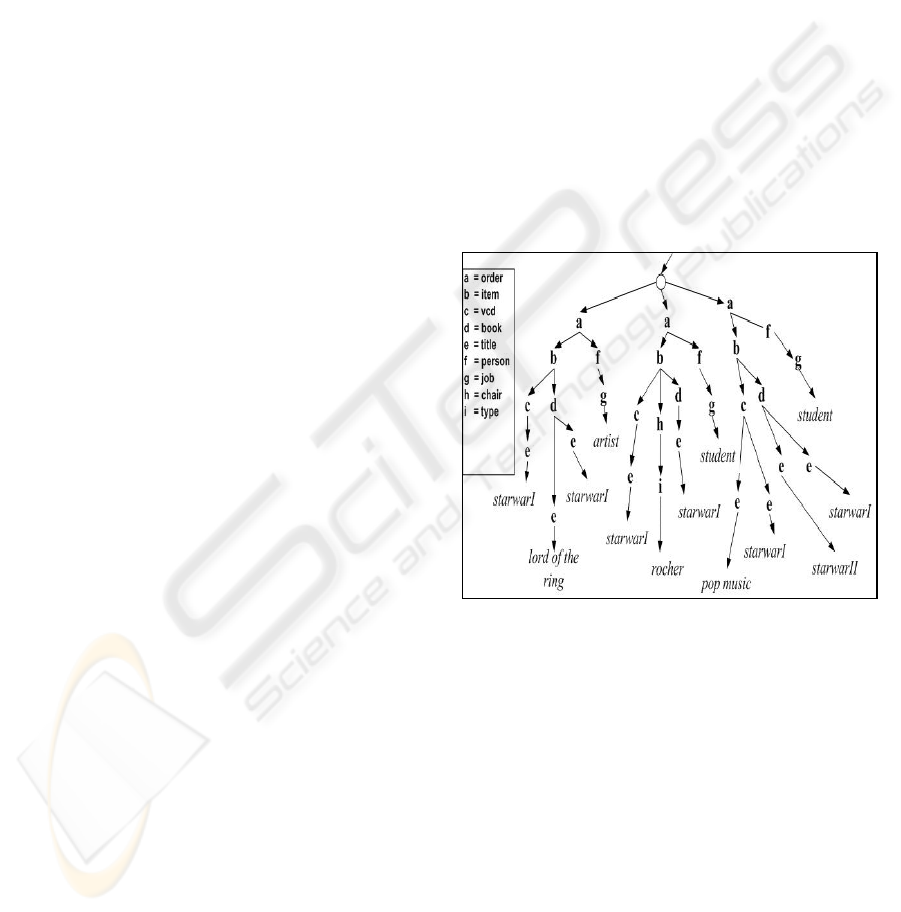

Figure 2: Orders.xml.

6 PROPOSED SYSTEM DESIGN

Our proposed system design contains two main

steps. The first step is discovering frequent structure.

The second step is generating association rules. The

users can interact with the system by constraining

the data to be mined and by choosing a template

from the automatically generated ones. The

following stages describe the system design.

6.1 Discovering Frequent Structure

(Maruyama, 2000) presented an Apriori-like

algorithm to mine frequent substructures based on

WEBIST 2007 - International Conference on Web Information Systems and Technologies

216

the "downward closure" property. They regarded the

XML tree as a set of tree expressions. Let p

denotes

path expression which is the concatenation of tags

from root node to leaf node. A k-tree expression is a

tree expression containing k leaf nodes. They first

found the frequent 1-tree-expressions that are

frequent individual label paths. Discovered frequent

1-tree-expressions are joined to generate candidate

2-tree-expressions. The process is executed

iteratively till no candidate k-tree-expressions is

generated. However, Apriori is one of the most

widely used algorithms in data mining applications

(Agrawal, 1994). This is a consequence of its good

performance when minimal support is high.

However, we introduce a pruning algorithm based

on pushing the support constraint into the selection

of 1-tree-expressions rather than counting all 1-tree

expressions. We also break up the black box of the

mining process to provide user interaction in an

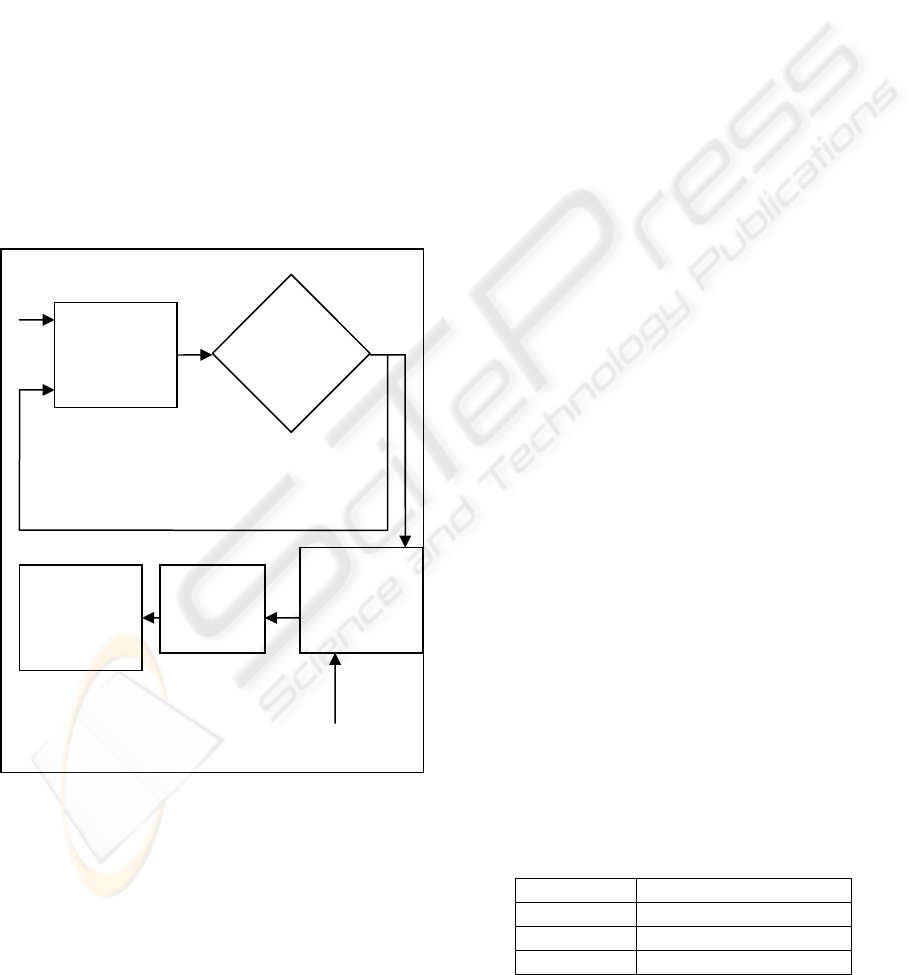

early stage. Figure 3 shows the system components.

Figure 3: Proposed system design.

6.1.1 Discovering Frequent

1-tree-Expressions

For each tag on a distinct path (identified uniquely

by the list of tags/nodes from root to the tag being

counted), the count of its appearances is computed

(for example, tag book appears 3 times on path

order/item/book).

An optimization technique can be adopted, based

on the knowledge that an ancestor is a superset of its

descendants: the search avoids examining paths

containing any tags whose ancestors do not have

minimum support. For each tag, the ratio of its count

in each distinct path to the total number of

transaction objects is calculated. If the ratio is less

than a certain threshold value, this tag and its

descendants will be pruned. The search is simplified

as a result of pushing the support threshold into the

discovery process. For example, the support of path

order/person/job is 3/3, while the support of

order/item/chair is 1/3. For a threshold value greater

than 40%, the path order/item/chair and all its

descendants will be pruned.

Each tag on a distinct path that passes the

support test will have a unique identifier and its full

path will be saved as a description on a table. Let the

identifier of the frequent path "order/item/vcd/title"

is P1 and its description is its path. For a threshold

value greater than 40%, table 1 will be constructed.

is an attribute describing the recorded orders. Its

support means that at least 40% of orders contain the

job of the persons issued that order.

6.1.2 Constraining the Data to be Mined

Upon discovering the 1-tree-expressions, the user is

given the chance to view them. This step is optional.

The importance of this step is to allow the user to

change the support value before the mining process

starts. Additionally, the user can get insight into the

data. For example, this stage can supply the user

with information about the most frequently repeated

structure. For example, The user might want to

constrain the search space to the orders issued by

students only. A where-clause expressed in X-query

can be used to retrieve the data of interest. This step

goes forward to open up the black box of the mining

process and to allow user interaction. If the user

changed the support value or chose to restrict the

search space, the discovery process would be

executed from the start again. Each transaction

object id contains frequent paths will be recorded

along with paths identifiers. For example order1

(ID=1) contains the frequent set P1, P2, P3.

Table1: Frequent 1-tree expressions.

Identifier description

P1 order/person/job

P2 order/item/book/title

P3 order/Item/vcd/title

Discover

Frequent

1-tree

expressions

Support

User

decision

Discover

Frequent

k-tree

expressions

ort

Change support or add

Select

Template

Generate AR

with

specified

confidence

DESIGNING TEMPLATES FOR MINING ASSOCIATION RULES FROM XML DOCUMENTS

217

6.1.3 Generating k-tree-Expressions

(Pavón, 2006) presented an algorithm named

MATRIX APRIORI, which incorporates the positive

characteristics from Apriori and FP-growth. Matrix

Apriori offers a simpler and more efficient solution

for the process of mining association rules than

previous proposals. The details of implementation

are mentioned in (Pavón, 2006). The generated

frequent 1-tree-expressions are passed as an input.

The output is frequent patterns that pass the

minimum support test. The set of frequent paths are

displayed to the user. The users can drag the paths of

interest to form the antecedent and the consequent

templates and can supply the support and confidence

of the rule as well. Frequent structure might yield

useful associations while infrequent structure will

never yield useful ones. The user can select a

template from the pool of frequent structure.

6.2 Generating Association Rules

In relational database, each predicate name is an

attribute name and can be instantiated by a certain

value. In terms of XML, a predicate is the full path

describing data. For example, "student" is the value

of attribute order/person/job. The only relation we

have now is the structured layer (set of frequent

paths). The attributes of the frequent structure can

guide the user to form an interesting template. The

user can supply the template, the rule support and

the rule confidence. Here, the user introduced two

support values, one for structure and the other for

association rules support (AR support.). The support

of structure is the frequency of paths relative to the

whole number of transaction objects. While the

support of AR is the frequency of a certain attribute

value relative to the transaction objects containing

this attribute. For example, suppose 50% of the

whole number of orders contains the job of the

customer. If the database contains 4 orders, it means

that 2 orders only contain the job. Assume the two

orders had "student" as a value. The support of

"student" will be 100%. The question now is how to

derive associations that comply with the chosen

templates? The answer is that we can apply the

algorithm of meta-rule guided mining of single

variable rules introduced in (Fu, 1995 a). (Fu, 1995

a) borrowed the concept of Apriori presented by

(Agrawal, 1994).

In a nutshell, the count of each

distinct value of each predicate is retrieved using

(DISTINCT, COUNT) X-query statements. Each

frequent predicate values can be joined to generate

more frequent candidates. Association rules that

satisfy the supplied confidence are generated.

7 CONCLUSIONS AND FUTURE

WORK

As the emerging standard for semi-structured data

(XML) has been widely used, the need to mining

XML becomes important. In this study, we proposed

a method for designing templates for mining

association rules from XML. (Fing, 2004) proposed

templates based on user's prior knowledge about

XML structure specifications. Our design differs in

that we don't assume users' knowledge because of

the irregular structure of XML. Discovering frequent

structure that satisfies the user support is the first

stage. To implement this stage, we applied an

Apriori-Matrix algorithm (Pavón, 2006) which

outperforms Aprioir and FP growth. While mining

frequent structure, we allowed the user exploration

of data to be able to define constrains on the mined

data even before the whole mining process starts. X-

query can be used to constraint the XML data

without the need to convert the whole xml into

relational database. Frequent paths serve as a

structured layer over the semi-structured data. Each

one of its paths can be considered as an attribute.

The users can select the paths of interest to define

the rule template. Now, the process of discovering

association rules can take the same direction of (Fu,

1995 a) in the context of relational database. There

are many open issues related to the implementation.

Highly friendly user interface is required to

encourage the user intervention. Also, tightly

coupling the implementation with X-query is a step

forward towards coupling the data mining process

with database servers. The idea of integrating the

data mining and data warehouse comes from

relational database world.

(Chaudhuri, 1998)

mentioned the advantages of such integration. Our

work can be used as an interface to the proposed

XML-DMQL (Fing, 2005).

REFERENCES

Agrawal, R. and Srikant, R., 1994. Fast algorithms for

mining association rules in large databases. In

Proceedings of 20th International Conference on Very

Large Data Bases, Santiago, Chile, September 12-15.

pages 487–499.

Baraga, D., Campi, A., Ceri, S., Klemettinen, M. and

Lanza, P., 2003. Discovering interesting information

WEBIST 2007 - International Conference on Web Information Systems and Technologies

218

in XML data with association rules. In Proc. Of the

Symposium on Applied Computing, Florida, USA,

March, pp.450-454.

Chaudhuri, S., 1998. Data Mining and Database Systems:

Where is the Intersection? In Data Engineering

Bulletin, 21(1):4–8.

Feng, L. and Dillon, T., Weigand, H. and Chang, E., 2003.

An xml-enabled association rule framework. In Proc.

Of the 14

Intl. Conf. on Database and Expert Systems

Applications, Prague, Czech Republic, September,

pp.88-97.

Feng, L. and Dillon, T., 2004. Mining xml-enabled

association rules with templates. In Proc. Of the Intl.

Workshop on Knowledge Discovery in Inductive

Databases, Pisa, Italy, September, pp.61-72.

Feng, L. and Dillon, T., 2005. an XML-enabled data

mining query language XML-DMQL. In Int. J.

Business and Data Mining, Vol. 1, No. 1, pp. 22-41.

Fu, Y. and Han, J., 1995 a. Meta-rule-guided mining of

association rules in relational databases. In Proc. 1st

Int'l Workshop on Integration of Knowledge Discovery

with Deductive and Object-Oriented Databases,

Singapore, Dec, pages 39-46.

Fu, Y. and Han, J., 1995 b. Exploration of the Power of

Attribute Oriented Induction in Data Mining. In

Advances in Knowledge Discovery and Data Mining.

Han, J. and Kamber, M., 2001. Data Mining: Concepts

and Techniques, Morgan Kaufmann Publishers, San

Francisco, California, USA.

Maruyama, K. and Uehara, K., 2000. Mining association

rules from semi-structured data. In Proc. Of the

ICDCS Workshop of Knowledge Discovery and Data

Mining in the World-Wide Web, April, Taipei, Taiwan.

Nayak, R., 2005. Discovering Knowledge from XML

Documents. In Wong, John, Eds. Encyclopedia of

Data Warehousing and Mining, Idea Group

Publications.

Pavón, J., Viana, S. and Gómez, S., 2006. Matrix Apriori:

Speeding Up the Search for Frequent Patterns. In

Proc. Of the 24

IASTED International Mukti-

conference on Database and Applications, Innsbruck,

Austria.

World Wide Web Consortium, 2002. XQuery 1.0: An

XML Query Language, April,

http://www.w3.org/TR/xquery-operators/.

DESIGNING TEMPLATES FOR MINING ASSOCIATION RULES FROM XML DOCUMENTS

219
