WIRELESS NETWORK ARCHITECTURE TO SUPPORT
MOBILE USERS
Maryna Komarova, Michel Riguidel
Ecole Nationale Supérieure des Télécommunications, 46 rue Barrault, Paris 13, France
Keywords: Mobility, Authentication, 802.11i, PANA.
Abstract. In this paper we propose a compound method for user authentication in a public access wireless LAN when
the latter requires separate authorization to access internal network services and the Internet. The approach
we develop aims to minimize a risk of attacks at network nodes conducted by unauthenticated users
provides key establishment and strong encryption between a mobile node and an access point and decreases
overall handover latency. An authorized user is granted network and Internet access as a result of a single
authentication process that combines 802.11i and PANA operations.
1 INTRODUCTION
With the growth of the number of wireless portable
devices, the need for Internet access anywhere is
also increasing. WiFi networks are low-cost and
they offer a relatively high quality of service (QoS)
level for their users. Public access WLANs, also
called hotspots, are becoming more numerous. The
natural consequence of the fact that coverage areas
of different network access points overlap is the
user’s need to move between them without an active
session interruption. The presence of roaming
agreements makes it possible for one hotspot
subscriber to use an infrastructure of another to
access the Internet.
Inter-domain handover management is not only a
technical issue. The possibility for this kind of
mobility depends on the providers’ good will and
policies.
Users of mobile terminals need to maintain
access to their services while moving between
different hotspots. Moreover, many applications,
such as VoIP, video transmission or remote program
execution, have real-time restrictions. That is why a
handover process must be transparent and not impact
on the QoS level. To satisfy these conditions,
authentication methods must not require user
intervention to chose an ISP or enter a
login/password.
Authentication and trust establishment
procedures take up the majority of the overall
handover latency. Some mobile devices are
equipped with two network interfaces and this
allows simultaneous connection to two networks. In
this case time restrictions are more tolerant, but the
duration of a soft handover is limited by the time of
a mobile node’s stay in a zone of different APs
coverage areas overlapping.
This paper is focused on reduction of user
authentication time in a foreign WLAN, protection
of visited network’s internal entities and negotiation
of user’s encryption key, all in a single process.
The rest of the paper is organized as follows:
Section 2 provides an overview of the current state
of the art in the public access wireless domain and
defines the purpose of the work, Section 3 describes
a modified method for user authentication in a
hotspot, and Section 4 provides a conclusion.
2 STATE OF THE ART AND
PURPOSE
Today some public access WLAN providers offer
services only for their subscribers, while others can
serve visitors, subscribed to a trusted domain. More
and more users need to have Internet access
anywhere. Several projects on the creation of
common wireless access areas are being proposed.
The Spanish provider FON, Skype and Google claim
that every Internet Service Provider (ISP) supports
their idea of shared wireless connection. Their goal
325
Komarova M. and Riguidel M. (2006).
WIRELESS NETWORK ARCHITECTURE TO SUPPORT MOBILE USERS.
In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 325-330
Copyright
c
 SciTePress

is to build 1 million shared hotspots by 2010 with
multi-level subscriptions (Jaanus 2006). Another
project starting in Chicago aims to cover the whole
city with WiFi networks (The Chicago Tribune
2006). If hotspots share access, it is natural to
presume that users will be nomad between them.
User’s mobility nowadays is not limited to a
home administrative domain, and therefore new
authentication technologies are being developed.
They take into account the more important handover
characteristics: latency and the level of security.
User’s Single Sign-On mechanism is destined to
meet the transparency requirement. The secure
roaming management problem can be broken down
into several tasks: (1) Fast user authentication in a
visited domain; (2) Dynamic trust establishment
between administrative domains in a user-
transparent manner; (3) Visited network identity
verification by the user; (4) Secure communication
between authentication servers; (5) Soft handoff
execution and (6) Fast and secure redirection of the
current session with a correspondent node (CN).
To get Internet access via a foreign network, a
mobile user must execute the following steps: (1)
Association with an access point (AP), (2) IP
address acquisition, (3) Communication with
external networks via an access router (AR) or
network access server (NAS) and (4) Redirection of
its current session with the CN.
Both the mobile node (MN) and the visited
network should be protected against spiteful
behavior. A fake AP can usurp a user’s identity with
the aim of using his account or conducting attacks in
his name. A malicious user presents several threats
to a network’s nodes and authenticated users.
IEEE 802.11i (IEEE 2003a), Web authentication
and PANA (Parthasarathy 2005, Forsberd et al
2005) are commonly used hotspot authentication
approaches today. The first one requires
authentication with an AP, others allow network
access to any user, but traffic from unauthorized
users is filtered by a gateway device. The Universal
Access Model offers user authentication via a portal
page, while communication between it and the user
is protected by an Https tunnel, and a gateway uses
the RADIUS protocol to communicate with a user’s
service provider. Liberty Alliance operates at the
application layer of the OSI model, using Web
services and Web redirection. Both may require user
interaction in an authentication process (entering
credentials and choosing a home service provider).
PANA is a protocol for an MN’s authentication
to a first access router. It serves to transport EAP
packets over an IP network and does not depend on
a link-layer carrier.
Authentication with an AP protects all internal
entities from unauthorized use while authentication
with an AR opens a possibility for different types of
attack on internal network nodes: on APs, DHCP
server etc. Web authentication presents the same
risks.
A compound layer-2 and Web authentication
scheme is proposed in (Matsunaga et al 2003) to
ensure cryptographically protected access in public
wireless LANs. According to this scheme, the user
first establishes an L2 session key by using 802.1X
guest authentication. After that he embeds an L2
session key digest in the web authentication. Guest
access to the network may cause a security problem:
an unauthenticated user can monitor a wireless
channel, acquire an IP address and perform DoS
attacks against network entities and authenticated
MNs. In addition, time taken by Web authentication
often does not permit a real-time application to
continue running.
A network can propose different types of
services. Some authenticated users need only to have
Internet access to continue a session, others need to
use internal network services. Such a scenario can
require a separate user’s authentication between a
link-layer connectivity provider and an Internet
service provider (Das 2003).
Authenticated
MN
AP
Audio
Video
Computation
cluster
Internet
access
AS
Unauthenticated
MN
MN
AP
Audio
Video
Computation
cluster
Internet
access
AS

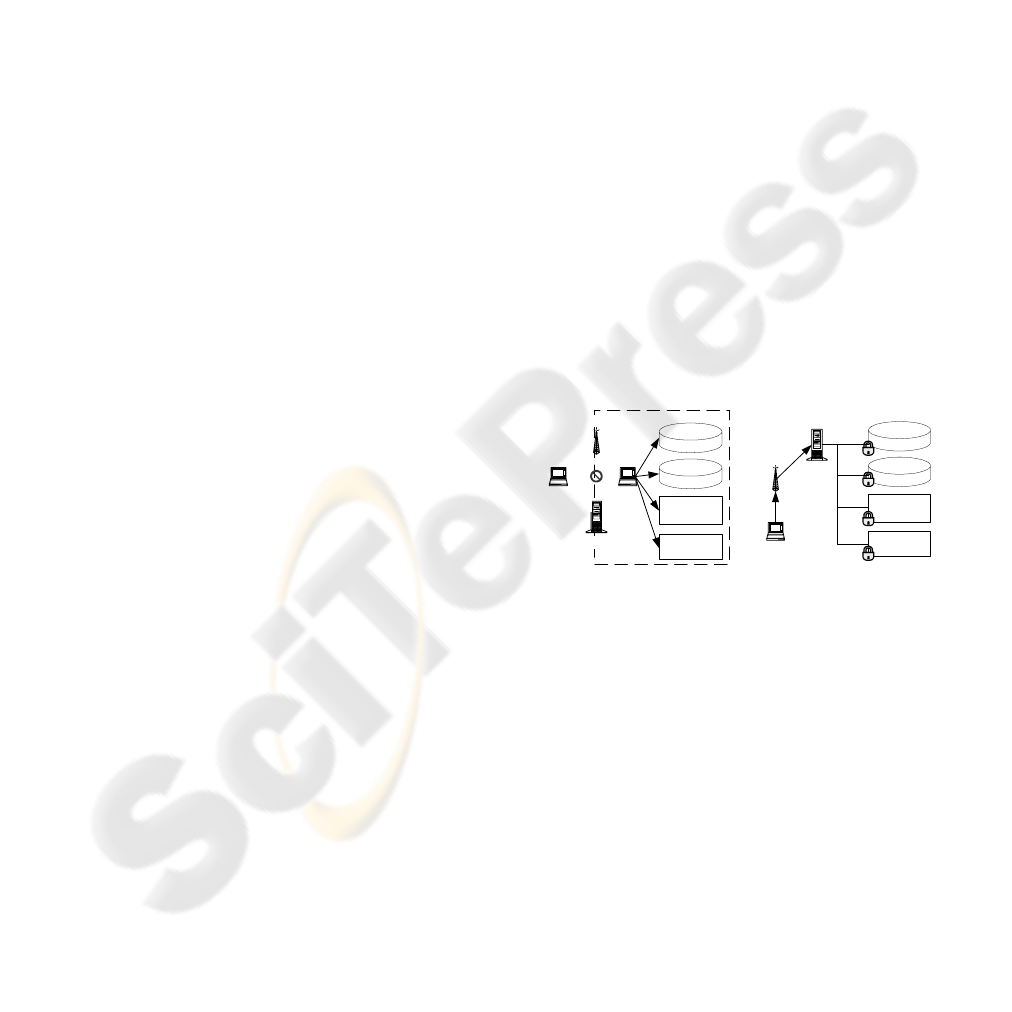

Figure 1: Types of users access to network services.
A mobile user arrives in a new network intending
to continue a real-time session with a certain
correspondent node. Fig.1 depicts two types of
network services access: network managed and user
managed. Several scenarios for user access to
services are possible: (1) The MN authenticates with
the AS via an AP using 802.11i and after that it has
access to all services in the network; (2) The MN
authenticates with the AS via an AP and must be
authenticated to get access to each service and (3)
The MN does not authenticate (or performs guest
authentication) with an AP and must be
authenticated to a network access server (the case of
PANA use).
The majority of mobile users need access to an
AR to communicate with external networks. To
prevent unauthorized network usage, the AR must
WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS
326

know the user’s identity. There are various ways to
achieve this: (1) When the MN authenticates with an
AP, the latter transmits its identity-related
information to an AR; (2) The MN must execute
authentication with an AR itself; and (3)
Authentication with the AP and the AR is done at
the same time.
For real-time applications the main requirement
is that the time taken to change a point of attachment
should be as little as possible. So, there is a need to
combine an authentication to an AP and
authorization to a service (an Internet service
provider) in a single process. Other services do not
require transparency.
The paper focuses on the first full user
authentication in a new administrative domain, but
fast authentication methods for subsequent cell and
subnet handovers; for example, 802.11i predictive
authentication (Bargh et al 2004, Kassab et al 2005)
and PANA mobility optimization (Patil, Tschofenig,
Yegin 2005) might be implemented.
3 MODIFIED AUTHENTICATION
PROCESS
3.1 Model and Assumptions
Certain networks may offer access to a limited
topology (link-layer connectivity and limited
network layer access) for unauthenticated visitors,
but any access beyond this topology requires
authentication and authorization (Das et al 2003).
To communicate with a PANA Authentication
Agent (PAA), an MN must have an IP address. The
PANA draft (Forsberd et al 2005) assumes that a
user can have different addresses before and after his
authentication. Unauthenticated clients cannot
communicate with internal network entities because

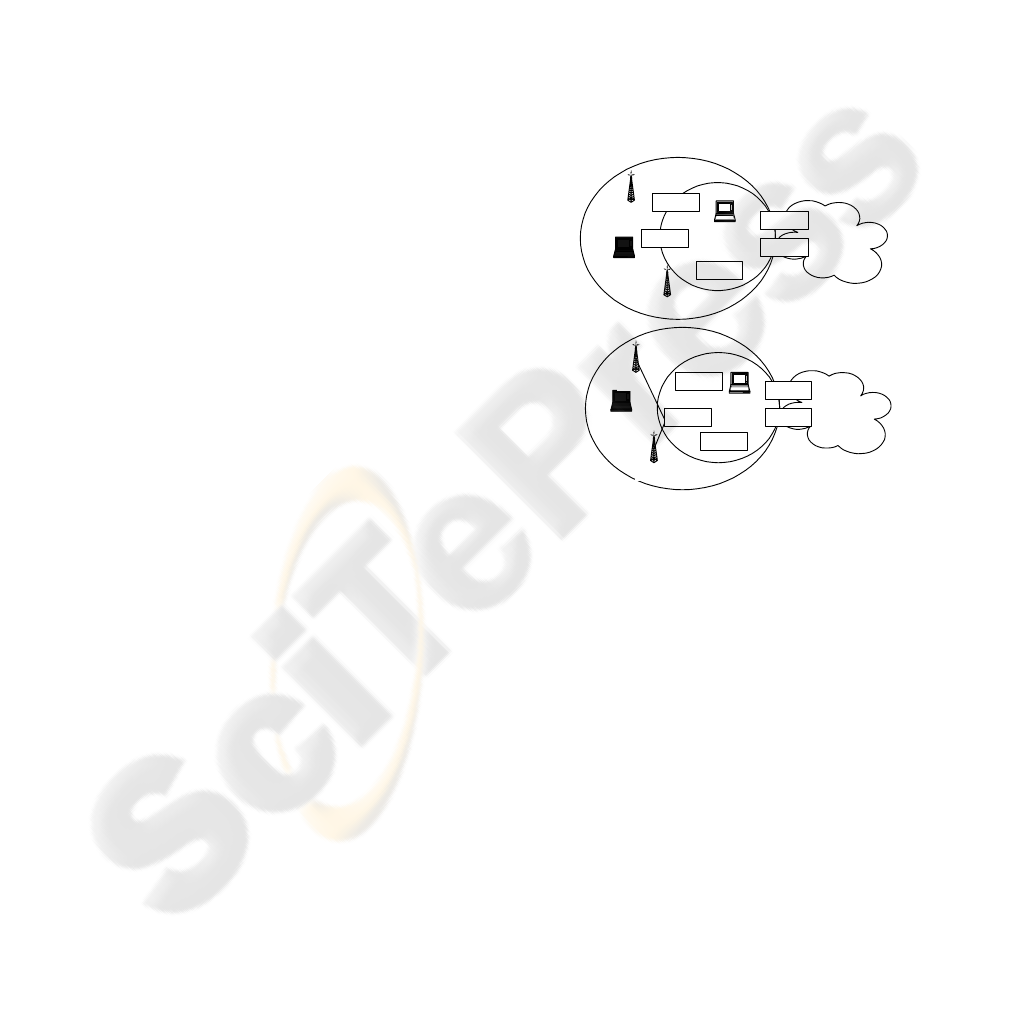

of address filtering (see Fig.2, a). The purpose of
this action is to separate the traffic of authorized and
unauthorized users to protect the former.
In this case the access network is divided into
two (or more) logical networks. The access process
consists of the following phases: (1) Association
with an AP; (2) Guest IP address acquisition; (3)
PANA authentication; (4) Key establishment
between the AP and the MN; (5) User IP address
acquisition and (6) Updating address information at
the PAA.
As the user can communicate with nodes in the
internal network before being authenticated, many
attack possibilities are open. Other shortcomings of
the scenario are: (1) All “guest” network
communications are insecure until cryptographic
keys are negotiated between the AP and the MN; (2)
Double address acquisition increases handover time
and (3) The DHCP server is situated in a
“demilitarized zone” (DMZ), all unauthenticated
users have access to it, and the service is vulnerable
to different kinds of attacks.
According to (Parthasarathy 2005), the PAA and
the AS, the PAA and the Enforcement Point (EP)
have a priori trust relationships and it is natural to
assume that paths between them are protected. An
arriving PANA authentication Client (PaC) does not
trust any network entity.
To reduce authentication latency and
vulnerability of internal network entities, a modified
architecture may be used (Fig. 2, b).
a)
non-authenticated
MN/PaC
DMZ
Internet
DHCP
AP
AP
PAA
AS
NAS
EP
authenticated
MN
b)
authenticated
MN
non-authenticated
MN
DMZ
Internet
DHCP
AP/PaC
AP/PaC
PAA
AS
NAS
EP
Figure 2: Authentication infrastructure: a) PANA model,
b) modified model.
In the proposed architecture an AP has trust
relationships with the PAA (via IPSec or TLS). All
network entities having an IP address are in the
protected internal network. Unauthenticated MNs
and all APs are situated in a kind of “quarantine
zone”. A non-authenticated MN has no IP address in
the candidate network; it associates with an AP that
opens a communication port only for authentication
messages. The AP asks for the MN’s identity and
acts as a PaC, sending messages to the PAA. EAP
authentication is executed between the MN and its
home AS via a local AS, the PAA and the AP/PaC.
A combination of 802.11i and PANA protocols
was chosen because the 802.11i standard provides a
way to secure layer 2 encryption and integrity keys
establishment between the MN and the AP. Non-
authenticated MNs must not have access to any
network entity (see Fig.2), and this is achieved by
using the 802.1X controlled/uncontrolled port
WIRELESS NETWORK ARCHITECTURE TO SUPPORT MOBILE USERS
327

scheme. PANA transports authentication messages
and grants or refuses network access to a user. It
does not provide key establishment for layer 2
communications. PANA and 802.11i share out tasks:
the former is employed for user authentication while
the latter - for key negotiation and granting general
network access. The authentication process is
proposed for the first MN’s authentication in an
administrative domain, which is longer than
subsequent ones in the same network.
There is much work to be done to develop a
secure context transfer scheme between
administrative domains (IEEE 2003b, Loughney et
al 2005). It is quite difficult to deliver any secure
information from one AP to another in different
domains, because APs often have only internal (non-
routable) IP addresses and cannot be directly
reached from an external world. Another problem
concerns establishing secure communications
between APs in different domains. That is why ARs
are attractive candidates to participate actively in
inter-domain context transfer and therefore it is
desirable to place authenticator functionality at the
AR.
For a proposed model the following assumptions
have been made: (1) all resident entities in an
“internal” network have trust relationships and
strong security associations. Paths between the AP
and the PAA, the PAA and the EP, the PAA (if they
are not integrated) and the local AS must be
protected by IPSec or TLS tunnels; (2) A visited
network should have a certificate, which is
understood by a visitor; (3) There are roaming
agreements between administrative domains, where
a mobile user can nomad, so that when an MN
presents its credentials, a local AS in a visited
network can recognize an MN’s home AS and (4) A
local AS puts authentication information into a
cache for each visitor.
The second requirement is not too realistic, but if
it is assumed that there are no a priori trust
relationships between an MN and a visited domain,
we must solve two tasks: (1) establishing dynamic
trust relations between domains, and (2) visited
network identity verification by the MN. This
assumption allows one part of the mobility
management problem described in Section 2 to be
worked out.
3.2 Authentication Process
The proposed authentication approach includes
operations of IEEE 802.11i, PANA and

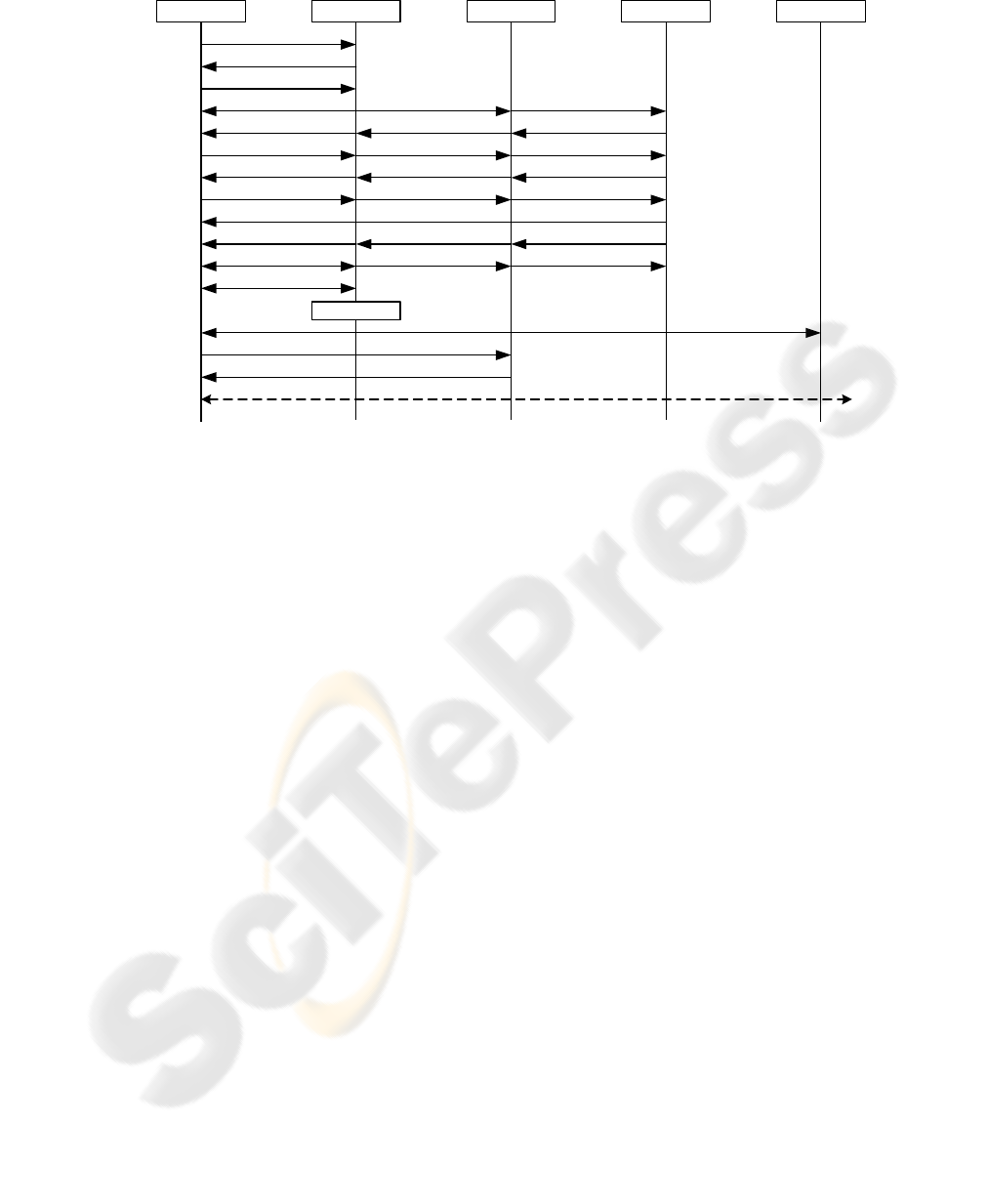

RADIUS/Diameter protocols. Fig.3 depicts a full
authentication process using EAP-TLS method. This
authentication method is set by default for Windows
XP users, provides strong mutual authentication, is
more high-performance than EAP-TTLS, and does
not require a user’s interaction.
Several modifications are proposed to the initial
methods. An AP, communicating with the MN, acts
as an 802.1X authenticator, and, communicating
with the PAA, acts as a PaC, sending PANA
messages to the PAA, instead of RADIUS messages
MN ASPAAAP/PaC
re-association request
PANA-Auth-Request
PANA Auth-Response
Access request
Access request
PANA-Bind-Answer
(PPAC)
open port
DHCP
Address configuration
PANA Update Request
PANA Update Answer
Data
4-way handshake
authentication request
authentication response
re-association response
EAP payload
PANA-Auth-Request
EAP payload
Server X.509 certificate
Access request Client X.509 certificate, cipher
Access requestPANA-Auth-ResponseEAP payload Change cipher
(Random session key)K pubServ Access requestPANA-Auth-RequestEAP payload
Key derivation
[MK][MK]
[MK]
Access acceptPANA-Bind-RequestEAP success
Account request (Start)
[PMK]
[PMK] [PMK]
2-way handshake
Figure 3: Authentication exchange, EAP-TLS method.
WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS
328

to a local authentication server. A discovery and
handshake phase is eliminated from the PANA
message exchange, since the AP knows the PAA
address and there is a secure channel between them.
MN presents its identity in the form of the
Network Access Identifier (NAI) (Aboba&Beadles
1999), which helps a local AS to find an MN’s home
AS: user@home_domain.com. The paper does not
concentrate on optimization of communications
between the local AS and the MN’s home AS.
After a re-association process, an AP connects to
a PAA. The AP acts on behalf of the user terminal,
and transmits an MN’s device identifier to the PAA.
The following authentication process is done in the
usual way. In the PANA-Bind-Answer the Post-
PANA address configuration option must be
indicated to inform a PAA that an MN will change
an IP address.
The PANA authentication process is optimized
according to (Forsberd et al 2005): all PANA-Auth-
Answer messages carry EAP payload instead of
acting as an acknowledgement. This optimization is
possible because there is a channel between the AP
and PAA; communications are carried by wired
media over a short distance, so there is a very low
probability of packet loss.
Normally, the visited network is not a home for
the MN, so a local authentication server must
operate in proxy mode. This proxy AS may either
know a path to an MN’s home AS (if there are
roaming agreements) or know a path to a central AS,
which redirects it to the MN’s home AS.
Communication with the AS in an MN’s home
network significantly increases the overall
authentication time because of round-trip time that
can be high value. Optimization of inter-AS
communication and routing is outside the scope of
this paper.
3.3 Performance Analysis
PANA packet retransmission timer values are too
large to meet fast handover requirements (the Initial
Retransmission timeout is 1 sec, Maximum
Retransmission Timeout is 30 sec (Forsberd et al
2005)), taking into account the high probability of
packet loss in a wireless network. If traffic is
managed by an AP at the MAC layer, detection of
lost packets and their retransmission takes less time
(the minimum value of acknowledgement timeout is
about 3 ms, the maximum value is about 52 ms).

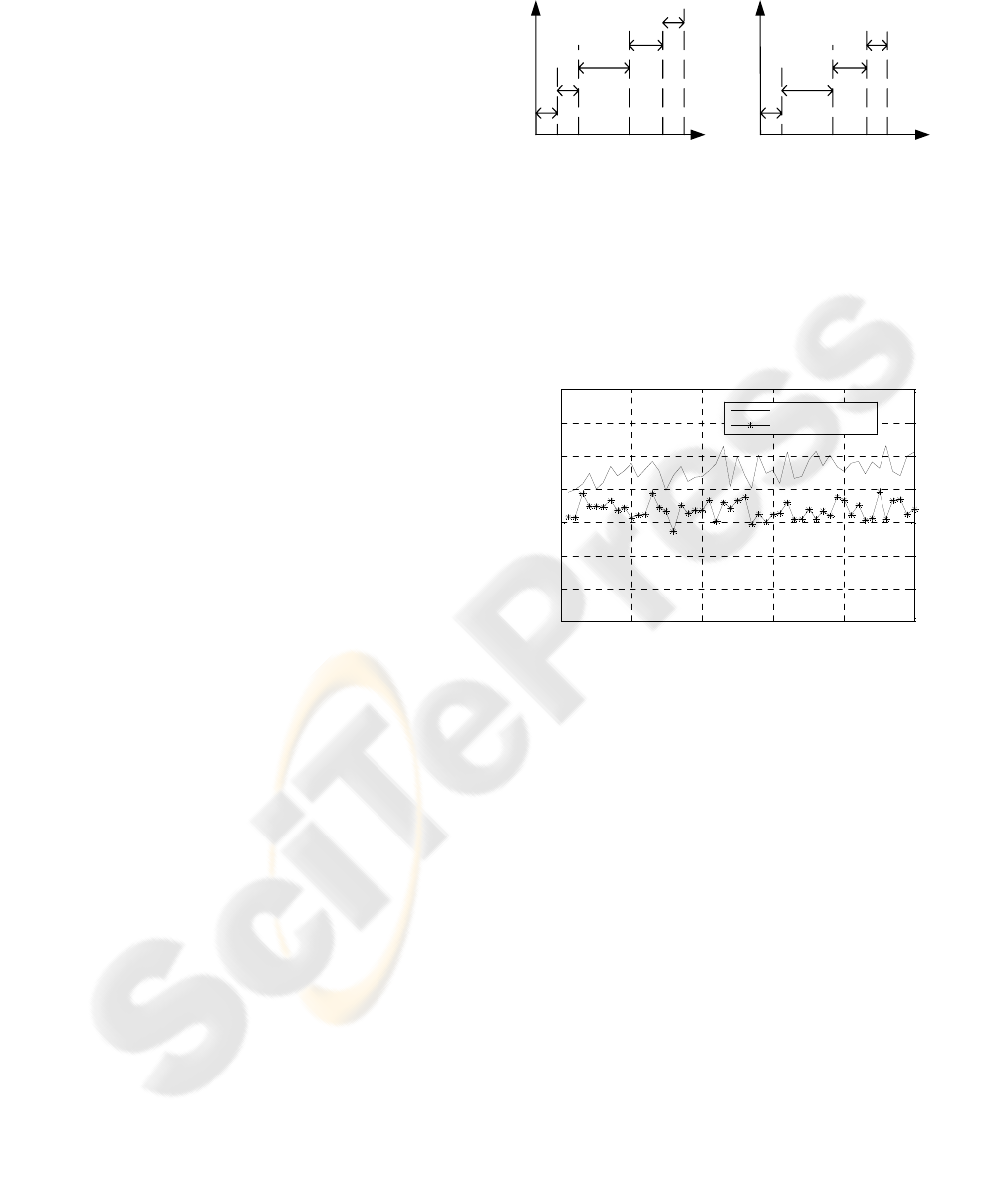

Fig.4 depicts a set of operations that the MN
must execute to be granted Internet access in the
visited network for initial (cf. Section 3.1) and
modified approaches. Time taken by both scenarios
is shown in Fig.5.
T2
T3
T4
T1
time
event
T2'
T3'
T4
T1
time
event
T2
a) b)
Figure 4: Network access time for standard (a) and
modified method (b).
T1 –association with an AP, T2 – DHCP operation, T2’ –
DHCP operation without its address discovery, T3 –
PANA authentication, T3’ – proposed authentication, T4 –
layer 2 keys establishment between the MN and the AP.
Figure 5: Authentication time for initial and proposed
methods.
A proposed scenario avoids double IP address
acquisition. Time value T
3
(Eq.1) consists of the
PANA Discover and PANA Authentication
phases. Value T
3
’ corresponds to an authentication
process. As all entities execute the same methods,
the message processing time and message exchange
time are supposed to be equal for both cases.
Message processing time for each entity is taken as
an average value of time to process different
messages by this entity. Links are supposed to be
symmetric.
Authentication time, taken by initial scenario
execution:
+
+=
+
=
−− PAAAPAPMNAuthPANAerDisPANA TTTTT __cov3 1010
procASprocPAAprocMNASPAA TTTT ____ 41057 +
+
+
+
, (1)
where
APMNT _ , PAAAPT _ , ASPAAT _ are times to
transmit a message between the MN and the AP, the
AP and the PAA, and the PAA and the AS
0 10 20 30 40 50
0
50
100
150
200
250
300
350
Authentication tim e
N um ber of e xper ime n ts
Authentication latency, msec
initial m ethod
proposed method
WIRELESS NETWORK ARCHITECTURE TO SUPPORT MOBILE USERS
329

respectively; procMNT _ , procPAAT _ and procAST _
present time to process a message by each
participant. The proposed authentication approach
takes up
+
+
+
== − ASPAAPAAAPAPMNAuthif TTTTT ___mod3 786'
procAPprocASprocPAAprocMN TTTT ____ 7484 +
+
++
. (2)
++=−=Δ PAAAPAPMN TTTTT __333 24'
procAPprocPAAprocMN TTT ___ 72 −++
. (3)
The time difference (Eq.3) shows that, in
comparison with PANA authentication, the proposed
authentication gains the time taken by the PAA
Discovery phase and loses the time taken by AP
message processing, which is relatively small.
4 CONCLUSIONS AND FUTURE
WORK
Parallel authentication permits a mobile user to
obtain Internet access as a result of a single
authentication in a multi-service network. The
proposed approach combines the operation of the
two most commonly used protocols to authenticate a
user to a network and a service and provide strong
link-layer encryption for communications. An AR is
a good candidate for the role of authenticator
because this scheme may serve for pre-
authentication using context transfer between
different administrative domains.
The proposed approach does not allow
communication between an unauthenticated MN and
internal network entities. It aims to protect the
DHCP server and access router from untraceable
DoS attacks. The performance of the process may be
improved due to the exclusion of PAA discovery
and handshake phase from authentication and double
IP address acquisition. The security level is not
compromised; all communications inside the
network are secured.
The paper does not take into account a time
interval taken by searching for and communicating
with an MN’s home authentication server, as it
concentrates on local authentication and
improvement of security of network access.
The handover process still takes a long time and
does not allow real-time applications to run without
soft handover support. It may be possible to reduce
the overall latency by using pre-authentication
between administrative domains.
REFERENCES
McCann, S., Hancoc, R., Hepworth, E. (2004). Novel
WLAN Hotspot authentication [Electronic version].
3G Mobile Communication Technologies, 59-63.
Jaanus (2006, February, 5). Skype invests in FON to
increase Wi-Fi availability. Retrieved March, 2006,
from http://share.skype.com/sites/en/news_events_milestones
The Chicago Tribune. It's a Wi-Fi kind of town (2006,
February, 17). Retrieved February 18, 2006.
IEEE Computer Society. IEEE 802.11i Standard (23 July
2003).
IEEE Computer Society, IEEE 802.11F Standard (14 July
2003).
Parthasarathy, M. (March 2005). Protocol for Carrying
Authentication and Network access (PANA) Threats
Analysis and Security requirements. RFC 4016.
Retrieved from www.ietf.org
Forsberd, D., Ohba, Y., Patil, B., Tschofenig, H., Yegin,
A. (July 2005). Protocol for Carrying Authentication
and Network access (PANA). draft-ietf-pana-pana-10.
Retrieved from www.ietf.org.
Patil, B., Tschofenig, H., Yegin, A. (2005, October, 21)
PANA mobility optimizations. draft-ietf-pana-
mobopts-01. Retrieved from www.ietf.org.
Aboba, B., Simon, D. (October 1999). PPP EAP-TLS
Authentication Protocol. RFC 2716. Retrieved from
www.ietf.org.
Bargh, M.S., Hulsebosch, R.J., Eertink, E.H., Prasad, A.,
Wang, H., Schoo, P. (2004, October, 1). Fast
authentication Methods for handovers between IEEE
802.11 Wireless LANs. WMASH’04. The ACM
Digital Library.
Kassab, M., Belghith, A., Bonnin, J.-M., Sassi, S. (2005,
October, 13). Fast Pre-Authentication Based on
Proactive Key Distribution for 802.11 Infrastructure
Networks. WMuNeP’05. The ACM Digital Library.
Loughney, J., Nakhjiri, Ed.M., Perkins, C., Koodli, R.
(July 2005). Context Transfer Protocol (CXTP). RFC
4067. Retrieved from www.ietf.org
Aboba, B., Beadles, M.(January 1999). The Network
Access Identifier. RFC 2486. Retrieved from
www.ietf.org
Rigney, C., Willens, S., Rubens, A., Simpson, W. (June
2000). Remote Authentication Dial In User Service
(RADIUS). RFC 2865. Retrieved from www.ietf.org.
Das, S., Patil, B., Soliman, H., Yegin, A. (2003, April, 28).
Problem Statement and Usage Scenarios for PANA.
draft-ietf-pana-usage-scenarios-06.txt. Retrieved from
www.ietf.org
Matsunaga, Y., Merino, A.S., Suzuki, T., Katz, R.H.
(September 2003). Secure Authentication System for
Public WLAN Roaming. WMASH’03. Retriewed from
http:\\berkeley.edu/paper
WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS
330
