SIDE INFORMATION INTERPOLATION WITH SUB-PEL MOTION

COMPENSATION FOR WYNER-ZIV DECODER

Sven Klomp, Yuri Vatis, J

orn Ostermann

Institut f

ur Informationsverarbeitung

Universit

at Hannover, Appelstr. 9A, 30167 Hannover, Germany

Keywords:

Distributed video coding, Wyner-Ziv, Slepian-Wolf, motion-compensated temporal interpolation, sub-pel mo-

tion estimation, side information.

Abstract:

Using Distributed Video Coding (DVC), the complex task of exploiting the source statistics can be moved from

the encoder to the decoder. Such a DVC decoder needs side information to exploit the statistics. In common

DVC codecs, the side information is obtained by interpolating the current frame from already decoded frames.

This paper proposes an interpolation technique for the side information that uses motion compensation with

sub-pel accuracy, and compares different interpolation ﬁlters for calculating the sub-pel values. Using a six

tab Wiener ﬁlter, we observe a gain of up to 1.8 dB for the DVC coded frames.

1 INTRODUCTION

Current video coding solutions, such as MPEG or

ITU-T H.26x standards, perform well for broadcast-

ing, streaming and other applications, wherein a video

is encoded once and decoded several times. The en-

coder of such a solution exploits the source statistics,

whereby the decoder can be kept very simple. For

opposite scenarios with many encoders, Distributed

Video Coding (DVC) might be more suitable than

conventional video coding since the decoder performs

the complex task of exploiting the source statistics.

DVC is based on the Slepian-Wolf (Slepian and

Wolf, 1973) and Wyner-Ziv (Wyner and Ziv, 1976)

theorems. These theorems state that it is possible to

compress two statistically dependent signals in a dis-

tributed way (separate encoding, jointly decoding) us-

ing a rate equal to that used in a system where the sig-

nals are encoded and decoded together. Current ap-

proaches mostly implement the unsymmetrical case,

where the two signals are coded with different bi-

trates.

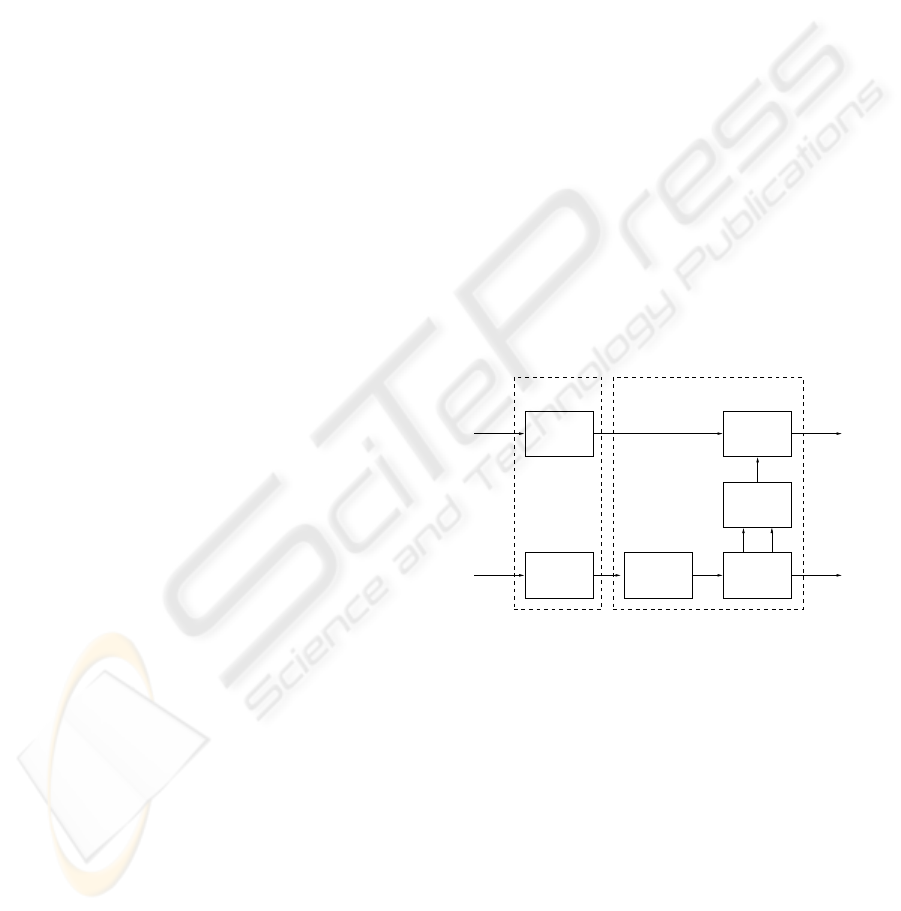

A general block diagram of an unsymmetrical

Wyner-Ziv (WZ) codec is shown in Figure 1. At the

encoder, the sequence is divided into key frames and

Wyner-Ziv frames controlled by the group-of-picture

(GOP) size (e.g. at GOP size 4 every fourth frame

is coded as key frame). The key frames are coded

with a conventional intra frame coder (e.g. H.264)

Distributed

Decoder

Frame

Interpolation

Frame

Buffer

Intra

Decoder

Intra

Encoder

Distributed

Encoder

Frames

Key

Frames

Decoded

WZ Frames

Decoded

Key Frames

Side Information

Transmitter Receiver

Figure 1: DVC Architecture.

and the Wyner-Ziv frames with a distributed coder.

This paper deals with the frame interpolation which

is independent of the distributed decoder. Therefore,

the exact approach on how the WZ bitstream is gen-

erated is not of importance here. Detailed informa-

tion about different distributed coder can be found

in (Girod et al., 2005) and (Puri and Ramchandran,

2002). Our results are based on the transform domain

Wyner-Ziv coder proposed in (Brites et al., 2006).

The frame interpolation block uses the previous (X

)

and next (X

) key frame to estimate the current WZ

frame. This estimation result is called side informa-

tion and is required by the distributed decoder as a

base for the decoding process. Since the side infor-

mation is only an estimation of the WZ frame, the

distributed decoder uses the WZ bits to correct errors.

178

Klomp S., Vatis Y. and Ostermann J. (2006).

SIDE INFORMATION INTERPOLATION WITH SUB-PEL MOTION COMPENSATION FOR WYNER-ZIV DECODER.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 178-182

DOI: 10.5220/0001569201780182

 SciTePress

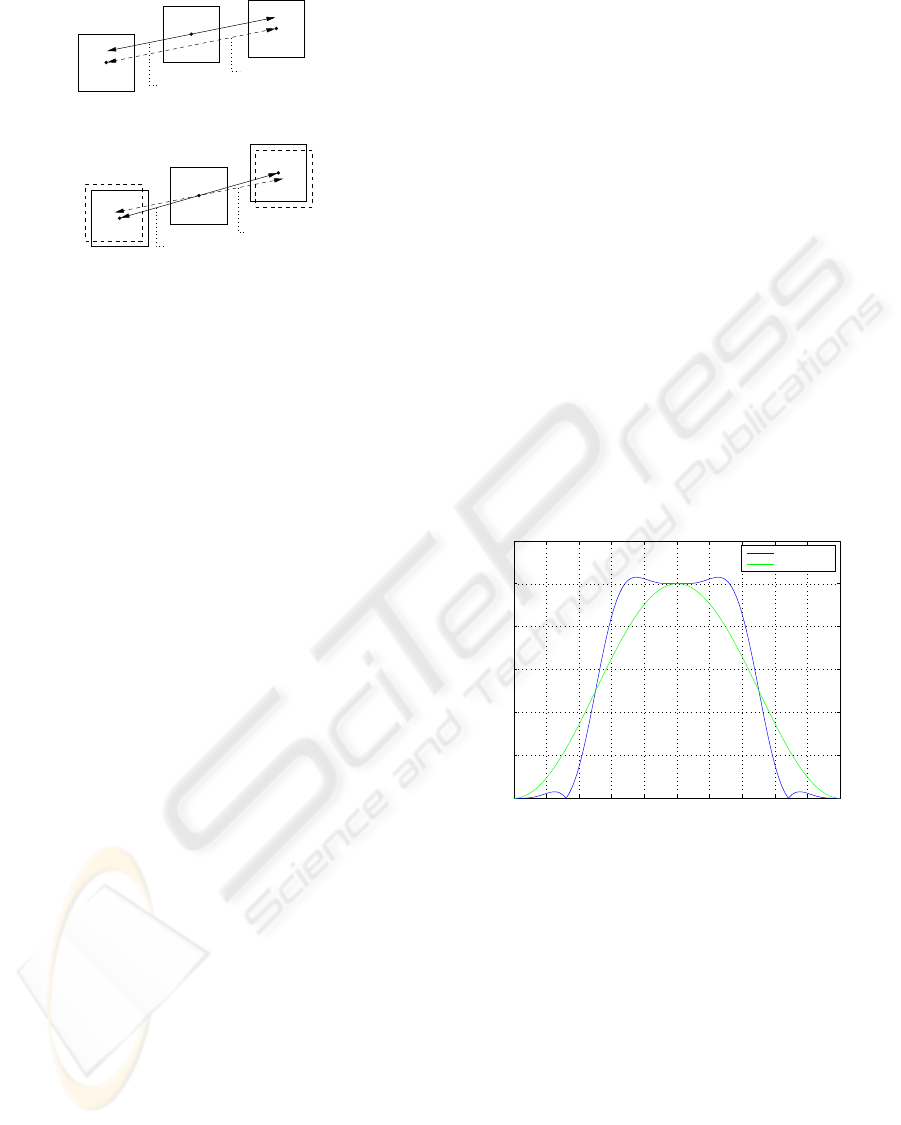

Key Frame

WZ Frame

Key Frame

Candidate MV

Selected MV

(a)

WZ Frame

Key Frame

Initial MV

Reﬁned MV

(b)

Figure 2: Motion Vector: a) Selection; b) Reﬁnement.

Therefore, the rate of the WZ bitstream is directly af-

fected by the quality of the side information.

Current approaches use motion-compensated tem-

poral interpolation (MCTI) (Ascenso et al., 2005) to

calculate the side information. In this paper, an im-

proved MCTI based on sub-pel motion estimation is

proposed. The new techniques for the temporal inter-

polation are introduced in Section 2. In Section 3, the

results obtained with these techniques are presented.

This paper ﬁnishes with conclusions in Section 4.

2 MOTION-COMPENSATED

TEMPORAL INTERPOLATION

WITH SUB-PEL ACCURACY

The frame interpolation block in Figure 1 uses MCTI

for calculating the side information. A full search

block matching algorithm estimates the motion vec-

tors between the previous (X

) and the next (X

)

key frame with full-pel accuracy. Since this vector

ﬁeld will result in overlapped and uncovered areas

after the frame interpolation, the motion estimation

scheme proposed by (Ascenso et al., 2005) is used:

For each 16x16 block of the interpolation frame, a

vector is selected from the previously estimated can-

didates that intercepts the interpolation frame closest

to the centre (Figure 2(a)). This motion vector is used

as initial value for the bidirectional motion estimation

where the motion is reﬁned for a smaller search range,

but with sub-pel accuracy. Since linear motion is as-

sumed between the key frames, the forward and back-

ward motion vector are symmetrical (Figure 2(b)). In

the last step, the motion vector ﬁeld is smoothed by

using weighted vector median ﬁlters (Alparone et al.,

1996). The WVM ﬁlter compares the motion vectors

of neighbouring blocks to detect outliers and to re-

duce the number of false motion vectors.

In order to estimate and compensate sub-pel motion

vectors, the key frames have to be interpolated at these

interim values.

Key Frame Interpolation

For the interpolation of the pixel values at half-pel

positions, a six tap Wiener ﬁlter as deﬁned in H.264

(Richardson, 2003) is used. The ﬁlter coefﬁcients are

deﬁned as

(1, −5, 20, 20, −5, 2) /32. (1)

All half-pel values that are horizontally or vertically

adjacent to integer positions are interpolated with this

ﬁlter. Then, the remaining values can be interpolated

with the already calculated samples, using the same

Wiener ﬁlter.

If higher precision motion vectors are required,

more sub-pel positions have to be calculated. In

H.264, quarter-pel samples are obtained by using a bi-

linear ﬁlter applied at the already calculated half-pel

positions and existing full-pel positions. The remain-

ing quarter-pel positions without neighbouring half-

pel or full-pel positions are obtained like the half-pel

positions by using already calculated samples.

−1 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1

0.2

0.4

0.6

0.8

1.2

ω/π

|H(jω)|/|H(0)|

Wiener Filter

Bilinear Filter

Figure 3: Frequency response of a Wiener ﬁlter and a b ilin-

ear ﬁlter.

Evaluations of the bilinear interpolated quarter-pel

samples have shown that the resulting motion vectors

are not suitable for motion compensated interpolation.

The frequency response of the bilinear ﬁlter (Figure

3) indicates, that the signal is distorted at low fre-

quencies. In addition, aliasing in the original frame

is not accurately suppressed by the ﬁlter. In contrast,

the Wiener ﬁlter, with its precipitous sides in the fre-

quency response, is more suitable for interpolation.

Therefore, the interpolation can be improved by us-

ing the Wiener ﬁlter for the quarter-pel values, too.

Knowing the impulse response of the common ﬁlter

at particular positions, the impulse response at other

positions can be computed by shifting the impulse re-

sponse (Vatis et al., 2005). This process is depicted

SIDE INFORMATION INTERPOLATION WITH SUB-PEL MOTION COMPENSATION FOR WYNER-ZIV

DECODER

179

in Figure 4: The six tap Wiener ﬁlter is interpolated

with a spline function. This function is shifted by 1/4

pel and thereafter again scanned at full-pel positions.

After quantisation of the impulse response, the new

ﬁlter coefﬁcients for quarter-pel positions are

(5, −18, 114, 37, −11, 1) /128. (2)

This ﬁlter is no longer symmetrical and is designed

for quarter-pel positions with a neighbouring full-pel

position on the left side. If the left neighbour is a half-

pel sample, the ﬁlter has to be mirrored. Likewise, the

remaining quarter-pel positions are calculated using

already calculated quarter-pel samples and the shifted

Wiener ﬁlter.

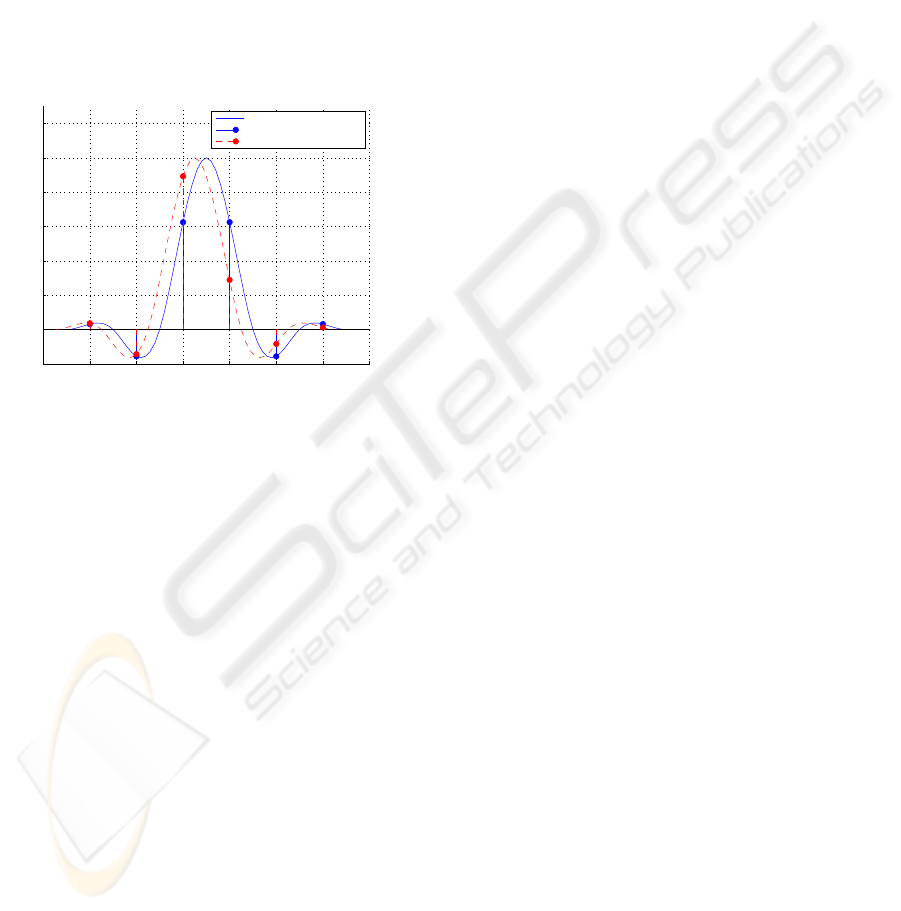

−3 −2 −1 0 1 2 3 4

−0.2

0.2

0.4

0.6

0.8

1.2

relative coordinates

filter coefficients

prediction

filter coefficients mv=1/2

filter coefficients for mv=1/4

Figure 4: Prediction of the impulse response of a 6-tap 1D

Wiener ﬁlter at quarter-pel positions from the impulse re-

sponse at half-pel positions.

3 EXPERIMENTAL RESULTS

For the evaluation of the rate-distortion performance,

four side information interpolation methods are con-

sidered: i) full-pel MCTI; ii) half-pel MCTI; iii)

quarter-pel MCTI with bilinear ﬁlter and iv) quarter-

pel MCTI with Wiener ﬁlter. The performance of the

H.264 intra frame coder is also considered for com-

parison. A transform domain Wyner-Ziv coder, as

proposed in (Brites et al., 2006), is used as distributed

coder.

All sequences have a frame rate of 15fps, except

for the CIF sequence Concrete (Figure 8), where the

frame rate is 30fps. To get similar PSNR for key and

WZ frames, the quantisation parameter of the H.264

coder is adjusted for each rate-distortion point.

Performance gains of up to 0.55 dB are achieved

with half-pel motion compensation for the ﬂower se-

quence (Figure 5). Quarter-pel MC with Wiener ﬁl-

ter actually yields up to 0.75 dB. In case of MCTI

with bilinear interpolation, quarter-pel motion com-

pensation produces results worse than half-pel mo-

tion compensation due to the distorting characteris-

tic of the ﬁlter. The gain of sub-pel motion compen-

sation decreases slightly for lower bitrates, since the

key frames are more distorted and thus lack details

required for accurate motion estimation.

For City (Figure 6), the performance is increased

by 0.6 dB and 0.75 dB for half-pel MC and quarter-

pel MC with Wiener ﬁlter, respectively. Quarter-pel

interpolation with bilinear ﬁlter does not improve over

half-pel MC.

The results for the Foreman sequence (Figure 7),

with up to 0.35 dB gain for half-pel MC, are well

below the other sequences. The same applies for

quarter-pel MC with Wiener ﬁlter with a gain of up to

0.45 dB. Pure intra frame coding using H.264 outper-

forms the WZ approach already at low bitrates, since

the intra prediction modes of the H.264 codec work

very well for the this sequence.

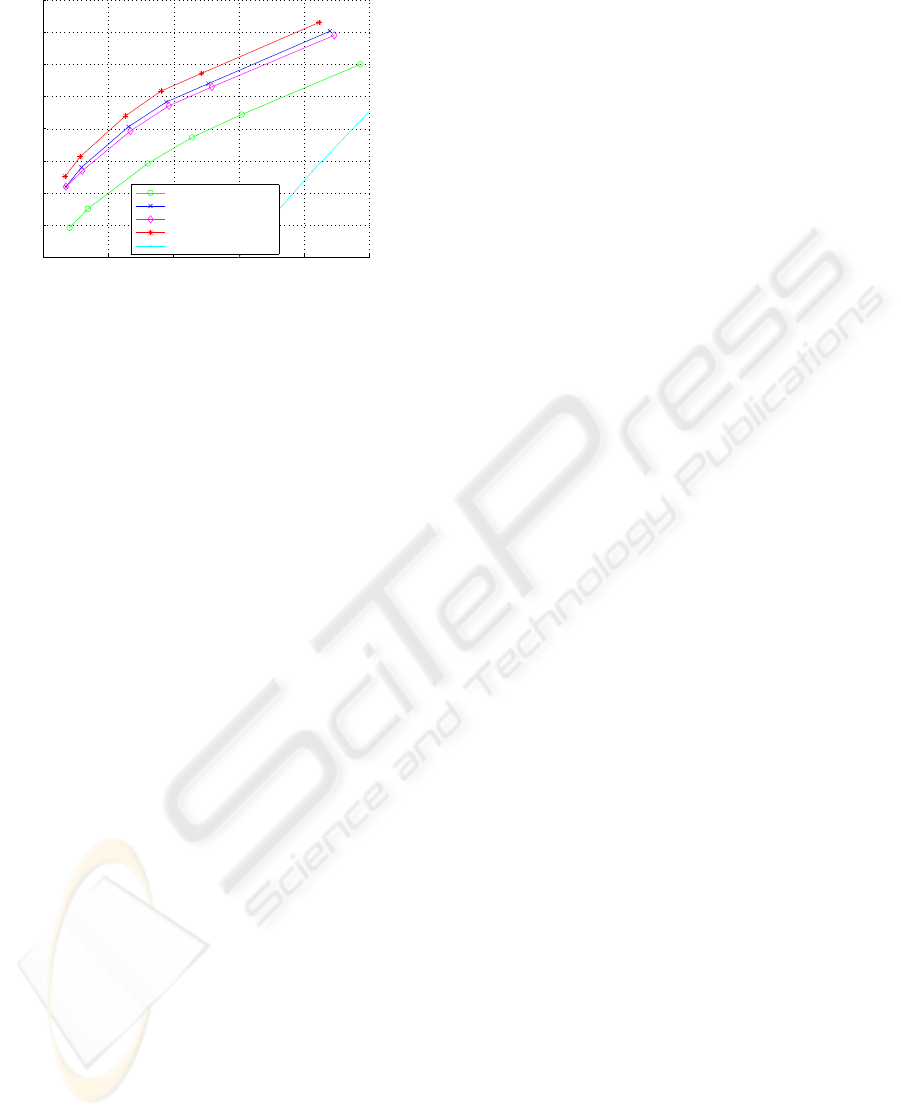

Figure 8 shows that for CIF sequences, the per-

formance can also be increased with sub-pel motion

compensation. Half-pel MC and quarter-pel MC with

Wiener ﬁlter yield of up to 1.4 dB and 1.8 dB, respec-

tively.

As mentioned in Section 1, this approach affects

only the side information and therefore useful for the

most WZ codecs. Examinations of a pixel based

WZ codec (Girod et al., 2005) have shown that the

performance gain for the sub-pel MC is almost the

same. These results are not further investigated, since

the overall performance of the pixel domain codec is

lower than the performance of a transform domain

codec.

In contrast to the results in (Li and Delp, 2005),

where only the side information is examined and not

the overall performance after WZ decoding, our re-

sults point out, that motion-compensated temporal in-

terpolation of side information is signiﬁcantly im-

proved by using motion estimation with half-pel ac-

curacy. By using a Wiener ﬁlter instead of a bilinear

ﬁlter for interpolating quarter-pel samples, the perfor-

mance is increased further.

4 CONCLUSIONS

In this paper, the advantage of sub-pel motion-

compensated temporal interpolation is investigated

and compared with common full-pel MCTI in the

context of Distributed Video Coding. For interpolat-

ing the sub-pel positions, the H.264 technique is used

and improved by a six tab Wiener ﬁlter for quarter-pel

samples. Compared to the full-pel MCTI, these mod-

iﬁcations achieve coding gains of up to 0.75 dB or up

to 20% WZ bitrate reduction for QCIF and up to 1.8

dB or up to 50% WZ bitrate reduction for CIF.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

180

ACKNOWLEDGEMENTS

The work presented was developed within DIS-

COVER (Distributed Coding for Video Services), an

European Commission Future and Emerging Tech-

nologies (FET) project, funded under the European

Commission IST FP6 programme. Further informa-

tion can be found at www.discoverdvc.org. The DIS-

COVER software started from the IST WZ software

developed at the Image Group from Instituto Superior

ecnico (IST) of Lisbon by Catarina Brites, Jo

ao As-

censo and Fernando Pereira.

REFERENCES

Alparone, L., Barni, M., Bartolini, F., and Cappellini, V.

(1996). Adaptive weighted vector-median ﬁlters for

motion ﬁelds smoothing. In IEEE ICASSP, Georgia,

USA.

Ascenso, J., Brites, C., and Pereira, F. (2005). Improv-

ing frame interpolation with spatial motion smooth-

ing for pixel domain distributed video coding. In 5th

EURASIP, Slovak Republic.

Brites, C., Ascenso, J., and Pereira, F. (2006). Improv-

ing transform domain wyner-ziv video coding perfor-

mance. In IEEE Int. Conf. on Acoustics, Speech, and

Signal Processing, Toulouse, France.

Girod, B., Aaron, A., Rane, S., and Rebollo-Monedero, D.

(2005). Distributed video coding. Proc. of the IEEE,

93(1):pp. 71–83.

Li, Z. and Delp, E. J. (2005). Wyner-ziv video side estima-

tor: Conventional motion search methods revisited. In

IEEE Int. Conf. on Image Processing, pages pp. 825–

828, Genova, Italy.

Puri, R. and Ramchandran, K. (2002). Prism: A new robust

video coding architecture based on distributed com-

pression principles. In Proc. of 40th Allerton Conf. on

Comm., Control and Computing, Allerton, IL.

Richardson, I. (2003). H.264 and MPEG-4 Video Compres-

sion, chapter 6.4.5.2. John Wiley & Sons Ltd., West

Sussex, England.

Slepian, J. and Wolf, J. (1973). Noiseless coding of cor-

related information sources. IEEE Trans. on Inform.

Theory, 19(4):pp. 471–480.

Vatis, Y., Edler, B., Wassermann, I., Nguyen, D., and Os-

termann, J. (2005). Coding of coefﬁcients of two-

dimensional non-separable adaptive wiener interpola-

tion ﬁlter. In VCIP 2005, Beijing, China.

Wyner, A. and Ziv, J. (1976). The rate-distortion function

for source coding with side information at the decoder.

IEEE Trans. on Inform. Theory, 22(1):pp. 1–10.

0 50 100 150 200 250 300

Rate of WZ frames [kbits/s]

PSNR [dB]

Flower QCIF

Full−pel MCTI

Half−pel MCTI

Quarter−pel MCTI bilinear

Quarter−pel MCTI Wiener

H.264 intra

Figure 5: RD performance for the Flower QCIF Sequence

coded with GOP size 2 (125 frames).

0 50 100 150 200 250 300 350

Rate of WZ frames [kbits/s]

PSNR [dB]

City QCIF

Full−pel MCTI

Half−pel MCTI

Quarter−pel MCTI bilinear

Quarter−pel MCTI Wiener

H.264 intra

Figure 6: RD performance for the City QCIF Sequence

coded with GOP size 2 (150 frames).

0 50 100 150 200 250 300 350

Rate of WZ frames [kbits/s]

PSNR [dB]

Foreman QCIF

Full−pel MCTI

Half−pel MCTI

Quarter−pel MCTI bilinear

Quarter−pel MCTI Wiener

H.264 intra

Figure 7: RD performance for the Foreman QCIF Sequence

coded with GOP size 2 (150 frames).

SIDE INFORMATION INTERPOLATION WITH SUB-PEL MOTION COMPENSATION FOR WYNER-ZIV

DECODER

181

0 500 1000 1500 2000 2500

Rate of WZ frames [kbits/s]

PSNR [dB]

Concrete CIF

Full−pel MCTI

Half−pel MCTI

Quarter−pel MCTI bilinear

Quarter−pel MCTI Wiener

H.264 intra

Figure 8: RD performance for the Concrete CIF Sequence

coded with GOP size 2 (250 frames).

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

182
