RENDERING (COMPLEX) ALGEBRAIC SURFACES

∗

J. F. Sanjuan-Estrada, L. G. Casado and I. Garc

´

ıa

Departament of Computer Archictecture and Electronic

University of Almeria

Ctra Sacramento s/n, 04120, Almeria (Spain)

Keywords:

Geometric computing, Roots of complex polynomials, Interval arithmetic, Rendering complex space, Ray

tracing.

Abstract:

The traditional ray-tracing technique based on a ray-surface intersection is reduced to a surface-surface in-

tersection problem. At the core of every ray-tracing program is the fundamental question of detecting the

intersecting point(s) of a ray and a surface. Usually, these applications involve computation and manipulation

of non-linear algebraic primitives, where these primitives are represented using real numbers and polynomial

equations. But the fast algorithms used for real polynomial surfaces are not useful to render complex polyno-

mials. In this paper, we propose to extend the traditional ray-tracing technique to detect the intersecting points

of a ray and complex polynomials. Each polynomial equation with some complex coefﬁcients are called

complex polynomials. We use a root ﬁnder algorithm based on interval arithmetic which computes veriﬁed

enclosures of the roots of a complex polynomial by enclosing the zeros in narrow bounds. We also propose a

new procedure to render real o r complex polynomials in the real and the complex space. If we want to render

a surface in the complex space, the algorithm must detect all real and complex roots. The color of a pixel will

be calculated with those roots with an argument inside a selected complex space and minimum magnitude of

the complex roots.

1 INTRODUCTION

The ray tracing technique has captured its place as

an extremely valuable tool in generating photoreal-

istic synthetic imagery. Ray tracing has been inten-

sively and successfully employed to emulate specular

reﬂections and/or refractions, as well as to delineate

illuminated regions from those in shadow.

In ray tracing, a ray is deﬁned as the set of points:

R =

(

x = a

x

+ t · V

x

;

y = a

y

+ t · V

y

;

z = a

z

+ t · V

z

;

)

(1)

where (a

x

, a

y

, a

z

) is the viewpoint of the scene, and

(V

x

, V

y

, V

z

) is the unit vector deﬁning the direction

of the ray. Intersections between R and a polynomial

surface deﬁned by f(x, y, z), is given by the set of

points in f(x, y, z) ∩ R, such that:

f(x, y, z) = f(a

x

+tV

x

, a

y

+tV

y

, a

z

+tV

z

) = 0 (2)

∗

This work has been partially supported by the Ministry

of Education and Science of Spain through grants TIC2002-

00228 and TIN2005-00447

If f(s(t)) 6= 0; ∀t ≥ 0 then f(x, y, z) ∩R = ∅ and

there is no intersection between the surface and the

ray. In the case where there exist one or more values

of t (t

0

, t

1

, . . . ; t

i

≥ 0) for which f(s(t

i

)) = 0, then

the point to visualize on the screen corresponds to the

smallest value of t

i

.

Polynomials form a fundamental class of mathe-

matical objects with diverse scientiﬁc applications.

According to the Fundamental Theorem of Algebra,

a polynomial of degree n, with real or complex coef-

ﬁcients, has n zeros (roots) which may or may not

be distinct. The task of computing accurate zeros

of polynomials has been one of the most inﬂuential

problem in the development of several important ar-

eas in mathematics.

Computer graphics can help to visualize complex

polynomials. An good example is the visualiza-

tion software developed by Bahman Kalantari, called

polynomiography. For a given polynomial equation,

the computer applies a speciﬁc root-ﬁnding method

to a large number of zeros (z). For each initial value,

the computer determines toward which root that value

converges and assigns a colour to the point, a differ-

139

F. Sanjuan-Estrada J., G. Casado L. and Gar

´

cıa I. (2006).

RENDERING (COMPLEX) ALGEBRAIC SURFACES.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 139-146

DOI: 10.5220/0001369901390146

Copyright

c

SciTePress

ent colour for each root. Shades of colour indicate

how fast that point comes close to the root (Kalantari,

2004).

In this work, we propose to extend the original

ray tracing technique to complex space. Unfortu-

nately, contemporary methods for ray-tracing polyno-

mial surfaces work with real number. So it is neces-

sary to design and implement a root ﬁnder algorithm

that works with complex number.

This paper is organized as follows. Section 2

presents the algorithm to ﬁnd roots of complex poly-

nomial. This algorithm uses an iterative scheme that

starts with an initial approximation of all the roots,

reﬁnes them and updates the error bound. Section 3

shows some improvements to exploit the spatial co-

herence and so to speed up the root ﬁnder algorithm.

Section 4 describes how to include these improve-

ments in ray tracing technique to render polynomial

surfaces in the complex space. Finally, several ex-

amples of real and complex polynomials rendered in

complex space are shown in Section 5.

2 ZEROS OF COMPLEX

POLYNOMIALS

In this paper, we apply the algorithm proposed in

(Hammer et al., 1995) to ﬁnd a single root of the inter-

section between a complex polynomical surface and

a ray. This algorithm is based on the fact that the

roots of the complex polynomial of degree n match

the eigenvalues of the companion matrix:

A =

0 · · · 0

−p

0

p

n

1

−p

1

p

n

.

.

.

.

.

.

1

−p

n−1

p

n

(3)

Hammer showed a formulation of the Newton itera-

tion to solve the eigenvalue problem with

g

∆

q

∆

z

= −R · d + R · ∆

z

·

∆

q

0

+

(I − R · J

f

) ·

∆

q

∆

z

(4)

where matrix R is the inverse of the Jacobian matrix

(J

f

), ∆

q

is the residual value of coefﬁcients of com-

plex polynomial, ∆

z

is the residual value of the eigen-

values, and

d = (A − ˜z · I) ·

˜q

p

n

(5)

where I is the identity matrix of dimension n, ˜q is an

approximation of the coefﬁcients of the deﬂated poly-

nomial and ˜z is an approximation of the exact root of

the complex polynomial p(z).

p(z) =

n

X

i=0

p

i

· z

i

, p

i

∈ C (6)

This algorithm is structured in two parts: the Ap-

proximation and the IntervalIteration.

2.1 Approximation Algorithm

First, the Approximation algorithm improves an ini-

tial approximation ˜z of a root of a complex polyno-

mial p(z) =

P

n

i=0

p

i

· z

i

. Approximation works by

transforming the original problem to the equivalent

problem of ﬁnding an eigenvalue and its correspond-

ing eigenvector for the companion matrix A of Equa-

tion (3).

It improves the approximations of a root and the co-

efﬁcients of the corresponding deﬂacted polynomial

to avoid overestimation during the ﬂoating-point in-

terval calculations. Approximation uses a residual it-

eration method to improve the initial approximation

of a root until the accuracy requirement of IntervalIt-

eration is achieved. No guarantee for the correctness

of the approximation computed by Approximation is

claimed.

In the following algorithm, the iteration

∆

(k+1)

= g(∆

(k)

) is done directly using some

loops that are equivalent to Equation (4).

Approximation(p, ˜z)

1. Termination criteria: = 10

−10

; k

max

= 50

2. Determination of an approximate eigenvector ˜q for

the initial polynomial zero ˜z

˜q

n−1

= p

n

˜q

i

= ˜q

i+1

· z + p

i+1

; for i = n − 2 to 0

3. Floating-point iteration of an eigenvalue ˜z and an

eigenvector ˜q

k = 0

(a) repeat

i. Compute the deﬂect d = (A − ˜z · I) · ˜q

d

0

= (−˜z · ˜q

0

− p

0

)

d

i

= (˜q

i−1

− ˜z · ˜q

i

− p

i

); for i = 1 to n − 1

ii. Compute the components of R, the inverse of

the Jacobian J

f

w

n−1

= ˜q

n−1

w

i

= (˜q

i

+ ˜z · w

i+1

); for i = n − 2 to 0

if w

0

= 0 then Err=”Inversion failed”

iii. Compute ∆

(k+1)

= g(∆

(k)

)

∆

k+1

n−1

= d

n−1

∆

(k+1)

i

= d

i

+ ˜z · ∆

(k+1)

i+1

; for i = n − 2 to 0

t = ∆

(k+1)

0

/w

0

∆

(k+1)

i

= −∆

(k+1)

i+1

+ t · w

i+1

; for i = 0 to

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

140

n − 2

∆

(k+1)

n−1

= t

iv. Update ˜q and ˜z

˜q

i

= ˜q

i

+ ∆

(k+1)

i

; for i = 0 to n − 2

˜z = ˜z + ∆

(k+1)

n−1

v. k = k + 1

(b) until

||∆||

∞

max(||(

˜

(q )

n−2

i=0

||

∞

,|˜z|)

≤ or (k = k

max

)

4. Return ˜q, ˜z, Err

We use k

max

= 50 as the maximum number of

iterations, and = 10

−10

as the value for the rela-

tive error. If the condition number of the inverse R is

extremely large, then the convergence of the residual

iteration is slow. To avoid the possibility of an un-

bounded number of iterations at step 3, we halt after

k

max

iterations. It turned out that k

max

and are good

values for minimizing the effort to get sufﬁciently ac-

curate approximations of ˜z and ˜q.

2.2 Interval Iteration Algorithm

The algorithm IntervalIteration computes a veriﬁed

enclosure of a root of a complex polynomial using

an interval iteration. Starting with good approx-

imations ˜z for a root of the complex polynomial

p(z) and ˜q for the coefﬁcients of the deﬂated

polynomial q(z) =

p(z)

z−˜z

, a veriﬁcation strategy

based on Schauder’s ﬁxed-point theorem is used to

determine (if possible) a guaranteed enclosure of a

polynomial root z

∗

(Granas and Dugundji, 2004) and

(Jimenez-Melado and Morales., 2005). In addition,

guaranteed enclosures of the coefﬁcients of the

deﬂated polynomial q

∗

(z) =

p(z)

z−z

∗

are returned.

IntervalIteration(p, ˜z)

1. Computation of the interval evaluation

(a) Compute an enclosure of d (Eq. (5))

[d]

0

= (−˜z · ˜q

0

− p

0

)

[d]

i

= (˜q

i−1

− ˜z · ˜q

i

− p

i

); for i = 1 to n − 1

(b) Compute an enclosure of [R], the inverse of the

Jacobian J

f

[w]

n−1

= ˜q

n−1

[w]

i

= (˜q

i

+ ˜z · [w]

i+1

); for i = n − 2 to 0

if 0 ∈ [w]

0

then Err=”Veriﬁed enclosure failed”

(c) Compute enclosures of ∆

(0)

q

and ∆

(0)

z

[∆]

(0)

n−1

= d

n−1

[∆]

(0)

i

= [d]

i

+ ˜z · [∆]

(0)

i+1

; for i = n − 2 to 0

[t] = [∆]

(0)

0

/[w]

0

[∆]

(0)

i

= −[∆]

(0)

i+1

+ [t] · [w]

i+1

; for i = 0 to

n − 2 [∆]

(0)

n−1

= [t]

2. Interval iteration

k = 0; = 10

−1

; k

max

= 10

(a) Repeat

i. Slightly enlarge the enclosure interval

[∆]

(k)

= [∆]

(k)

ii. Determine a new enclosure interval of (4)

[v]

n−1

= 0

[v]

i

= ([∆]

(k)

n−1

·[∆]

(k)

i

+˜z·[v]

i+1

); for i = n−2

to 0

[v]

0

=

[v ]

0

[w]

0

[∆]

(k+1)

i

= ([∆]

(0)

i

+ [v]

i+1

− [v]

0

· [w]

i+1

) for

i = 0 to n − 2

[∆]

(k+1)

n−1

= [∆]

(0)

n−1

− [v]

0

iii. k = k + 1

(b) until ([∆]

(k)

⊂ [∆]

(k−1)

) or (k = k

max

)

3. Veriﬁcation of the result

if ([∆]

(k)

⊂ [∆]

(k−1)

) then

[q]

i

= (˜q

i

+ [∆]

(k)

i

); for i = 0 to n − 2

[q]

n−1

= p

n

[z] = (˜z + [∆]

(k)

n−1

)

else Err=”Inclusion failed”

4. Return [q], [z], Err

We use k

max

= 10 as the maximum number of

iterations, and = 0.1 as the value for the epsilon

inﬂation. It turned out that these are good values for

minimizing the effort if no veriﬁcation is possible.

2.3 CAllPolyZero Algorithm

Hammer et al. designed an algorithm for ﬁnding a sin-

gle complex root (CPolyZero) which uses algorithms

Approximation and IntervalIteration (Hammer et al.,

1995). Because of our interest in ﬁnding all the com-

plex and real roots of polynomial, we have designed a

new algorithm called CAllPolyZero. By repeating the

deﬂation of a veriﬁed zero from the reduced polyno-

mial pdef lated[q], the approximation of a new zero

in the reduced polynomial and the veriﬁcation of the

new zero in the original polynomial, we get all simple

zeros of the polynomial. The new deﬂated polyno-

mial is computed by the algorithm IntervalIteration

based on the current value of [q]. For approximating a

new zero, the deﬂated polynomial pdeflated is used.

The veriﬁcation of the new zero is done in the orig-

inal polynomial p because zeros of the approximate

deﬂated polynomial are smeared out because [q] has

interval-valued coefﬁcients, while p has point-valued

coefﬁcients.

AllCPolyZeros(p, ˜z)

1. pdeflated = p

2. for i = 1 to n − 1 do veriﬁcation of a new zero

(a) Approximate a new zero of pdeﬂated:

Approximate(pdeflated, ˜z)

RENDERING (COMPLEX) ALGEBRAIC SURFACES

141

(b) Verify the new zero for p

(c) Deﬂate veriﬁed zero from pdeflated

This algorithm ﬁnds all roots of complex and real

polynomials. If AllCPolyZeros algorithm works with

a real polynomial (imaginary part of each coefﬁcient

is zero) and a real initial approximation of ˜z ∈ R, it

will never get enclosures of a pair of conjugate com-

plex zeros of p(z), because all complex arithmetic op-

erations deliver a real result. However, for ﬁnding

a complex conjugate zero of a real polynomial, All-

CPolyZeros algorithm must start with a non-real ini-

tial approximation ˜z.

3 SPATIAL COHERENCE

In this section, some improvements to speed up of

CAllPolyZero algorithm are shown. This algorithm

needs an initial approximation ˜z to start the process.

If this parameter is near to the exact root then it is nec-

essary a few number of iterations. This means that is

necessary to supply a good initial approximation ˜z to

reduce the algorithm execution time.

Numerous optimization methods for ray tracing

have been suggested since it was ﬁrst introduced

(Whitted, 1980). Many have suggested the exploita-

tion of spatial coherence (Glassner, 1989). Once a

single ray has been processed, a ray emitted for a

nearby pixel at a similar direction will hit, most likely,

a nearby target. We propose to exploit spatial coher-

ence, so that if a primary ray hit a surface in pixel

(j, k), it is very probable that the primary rays of

neighboring pixels hit the same object. These neigh-

boring pixels are (j−1, k−1), (j, k−1), (j+1, k−1),

(j − 1, k), (j + 1, k), (j − 1, k + 1), (j, k + 1) and

(j + 1, k + 1).

In order to ﬁnd the initial approximation of the root

associated to pixel (j, k), we propose to choose the

average value of the roots in the neighboring pixels.

Following, we show how to compute this average ini-

tial approximation ˜z for pixel (j, k):

1. CAllPolyZero only can use the roots associated to

pixels: (j − 1, k − 1), (j, k − 1), (j + 1, k − 1) and

(j − 1, k). Notice that the roots associated to the

remaining neighboring pixels have not been com-

puted yet.

2. If a primary ray does not hit an object in a neighbor-

ing pixel, then this pixel is not used in this average.

3. If every primary rays of neighboring pixels does

not hit an object then the initial approximation ˜z is

0 + i.

4. If several primary rays of neighboring pixels hit

some objects:

(a) If the primary rays hit the same object, we cal-

culate only a single average value of the initial

approximation.

(b) If the primary rays hit several objects, several

average values of the initial approximations are

computed, one for each object.

4 RAY TRACING IN COMPLEX

SPACE

The previous sections describes our general algorithm

for computing all roots of a polynomial, and compu-

tations are done in the complex space. In this section,

we will brieﬂy describe the technique used to com-

pute the colour of each pixel in an image rendered

by ray tracing techniques. The traditional ray tracing

uses the minimum positive root to assign the colour of

a pixel in real space. A complex number z = x + i · y

can be represented in complex space, like ρ · e

i·θ

, the

magnitude represents its modulus ρ and the angle θ its

complex argument (see Figure 1).

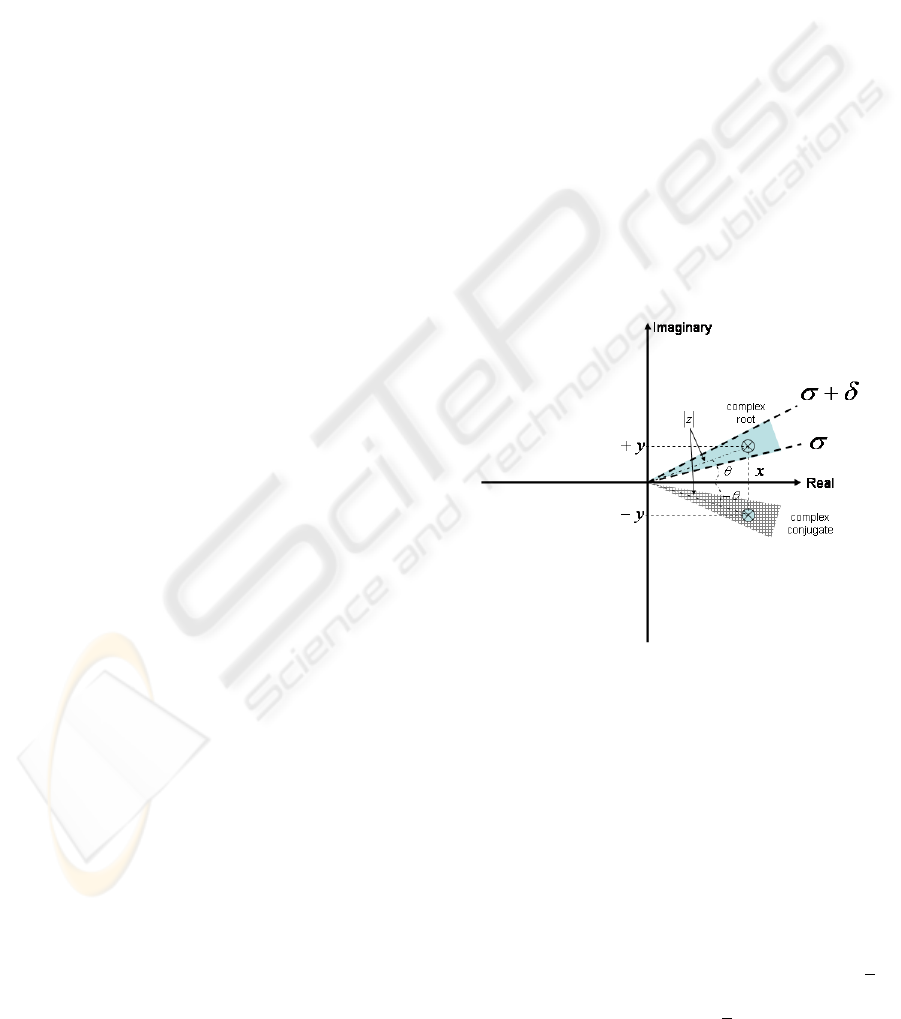

Figure 1: Sampling complex space.

In our algorithm the selected root is that with the

minimum magnitude and with its complex argument

θ in a selected range given by σ ≤ θ ≤ σ + δ. The

selected root will determine the ﬁnal colour of a pixel.

This means that the rendering process is guided not

only by the magnitude of the roots but also it can play

with their complex arguments. This algorithm will

allow to sample the complex space, so that different

images can be obtained by choosing the interval angle

[σ, σ + δ] (see Figure 1). For example, for rendering

a scene in the real space, σ = 0 and δ = 10

−10

are

appropriate values. However, for σ = 0.1 and δ =

π

4

,

the selected roots belong to the complex space with

angles between 0.1 ≤ θ ≤ 0.1 +

π

4

and their complex

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

142

conjugate −0.1 −

π

4

≤ θ ≤ −0.1. In this case, the

real roots are not included in the search space.

This procedure allows us to render three-

dimensional complex algebraic surfaces in the

complex space with an angle bounded. For rendering

all complex space using ray tracing, we can sample

all space with different values of δ and σ. Due to the

symmetry of the conjugate complex roots, it is only

necessary to sample the complex space determined

by σ ≥ 0 and σ + δ ≤ π .

When we render a scene deﬁned by complex alge-

braic surfaces, we can use a maximum δ value equal

to π (and σ = 0). The result is that we obtain a large

amount of roots associated to the same pixel because

we are dealing with the full complex space. Our pro-

posal consists of sampling the complex space with a

narrow aperture angle; i.e. small values of δ. This

method allows us to generate an animated sequence

of images, each corresponding to a different value of

δ. The animated sequence of images gives an interest-

ing information about the distribution of roots in the

complex space.

5 EXPERIMENTATION

We use the C-XSC library, a C++ class library for eX-

tended Scientiﬁc Computing, to implement the pro-

posed algorithm. Its wide range of numerical data

types, operators and functions for scientiﬁc compu-

tation makes C-XSC especially well suited as a speci-

ﬁcation language for programming with automatic re-

sult veriﬁcation.

The automatic veriﬁcation of the numerical results

is based on interval arithmetic. The easiest technique

for computing veriﬁed numerical results is to replace

any real or complex operation by its interval equiva-

lent and then to perform the computations using in-

terval arithmetic. This procedure leads to reliable and

veriﬁed results. However, the diameter of the com-

puted enclosures can be as wide as to be practically

useless. We have applied the principle of iterative re-

ﬁnement (IntervalIteration) to our algorithm, which

will allow us to compute an interval error less than a

desired accuracy. The veriﬁed enclosure of the solu-

tion is given by the approximation of the root and the

enclosure of its error.

In order to observe the performance of our algo-

rithm, we have used a set of polynomials with more

than twenty different polynomials. However, in this

paper, we only show six interesting polynomials due

to space limitations (see Table 1).

The CAllPolyZero algorithm needs the coefﬁcients

of polynomial obtained by Equation (2) to transform

f(x, y, z) in an univariate polynomial f(t). So that,

the sphere polynomial is p

2

· t

2

+ p

1

· t + p

0

, while the

Table 1: Polinomial surfaces.

Surface Polynomial equation f(x, y, z)

Sphere x

2

+ y

2

+ z

2

− 1

Whitney x

2

· z + y

2

Steiner x

2

· y

2

+ x

2

· z

2

+ x · y · z + y

2

· z

2

Chair x

4

− 1.2 · x

2

· y

2

+ 3.6 · x

2

· z

2

+

16 · x

2

· z − 7.5 · x

2

+ y

4

+

3.6 · y

2

· z

2

− 16 · y

2

· z−

7.5 · y

2

− 0.2 · z

4

− 7.5 · z

2

+ 64.0625

Tangle x

4

− 5 · x

2

+ y

4

− 5 · y

2

+ z

4

− 5 · z

2

+ 11.8

Boy −729 · x

6

+ 1374.6156 · x

5

· z−

2187 · x

4

· y

2

− 810 · x

4

· z

2

+ 324 · x

4

· z−

2749.23 · x

3

· y

2

· z − 305.47 · x

3

· z

3

−

2187 · x

2

· y

4

− 1620 · x

2

· y

2

· z

2

+

648 · x

2

· y

2

· z + 1832.82 · x

2

· y · z

3

−

1832.82 · x

2

· y · z

2

+ 324 · x

2

· z

4

−

144 · x

2

· z

2

− 4123.85 · x · y

4

· z+

916.41 · x · y

2

· z

3

− 729 · y

6

−

810 · y

4

· z

2

+ 324 · y

4

· z − 610.94 · y

3

· z

3

+

610.94 · y

3

· z

2

+ 324 · y

2

· z

4

−

144 · y

2

· z

2

− 216 · y + 432 · z

6

− 288 · z

5

+

64 · z

4

Whiney polynomial is p

3

· t

3

+ p

2

· t

2

+ p

1

· t + p

0

and

p

4

·t

4

+p

3

·t

3

+p

2

·t

2

+p

1

·t+p

0

for Bicube, Steiner,

Chair and Tangle polynomials. Finally, the degree of

Boy polynomial is six, like p

6

· t

6

+ p

5

· t

5

+ p

4

· t

4

+

p

3

· t

3

+ p

2

· t

2

+ p

1

· t + p

0

.

Figures 3 and 4 show a sphere where only p

0

is

a complex coefﬁcient. Both images are different be-

cause the ﬁrst one was rendered for σ = 0 and

δ =

π

18

, while δ =

7·π

18

in the second one. It is im-

portant to see how the complex roots transform a real

sphere (see Figure 2) in a sphere with special effects.

These effects can modify the texture, size and illumi-

nation of the surface.

The Tangle polynomial was rendered in real (see

Figure 2: Sphere polynomial where all coefﬁcients are real

numbers. This image was rendered in real space for σ = 0

and δ = 0.

RENDERING (COMPLEX) ALGEBRAIC SURFACES

143

Figure 3: Sphere polynomial where p

0

is a complex coefﬁ-

cient. This image was rendered in complex space for σ = 0

and δ =

π

18

.

Figure 4: Sphere polynomial where p

0

is a complex coefﬁ-

cient. This image was rendered in complex space for σ = 0

and δ =

7·π

18

.

Figure 5) and complex space. The images rendered

in complex space were represented by p

0

(see Fig-

ure 6) and p

2

(see Figure 7) as complex coefﬁcient.

All these images show big differences. On one hand,

same pieces of real surface disappear in the complex

space, as shown in Figure 6. On the other hand, it

is very interesting to highlight the shadows appearing

on the Tangle surface (see Figure 7).

Figure 9 shows the Whitney polynomial rendered

in the complex space for σ = 0 and δ =

π

18

. When

p

0

is a complex coefﬁcient then some shadows ap-

pear on the image. These shadows are very different

from Whitney polynomial rendered in real space (see

Figure 8). However, a new piece of surface around

imaginary axis of Whitney surface appears when we

sample the complex space between 0 and

π

18

.

The following sequence of images for Steiner sur-

face is very interesting. The complex roots of this

surface do not cover the object, but they are located

around three ”imaginary” axes of surfaces. For exam-

Figure 5: Tangle polynomial where all coefﬁcients are real

numbers. This image was rendered in real space for σ = 0

and δ = 0.

Figure 6: Tangle polynomial where p

0

is a complex coefﬁ-

cient. This image was rendered in complex space for σ = 0

and δ =

π

180

.

ple, the Steiner surface shows the three axes which ap-

pear in the complex space (see Figure 10). It is impor-

tant to show that this sequence is obtained sampling

the complex space, so that this allow us to analyse the

evolution of the complex roots for the Steiner surface.

Finally, we have rendered a sequence of images for

the Boy surface (see Figure 11). This sequence begins

with a representation of the Boy surface with all co-

efﬁcients in real space and rendered in the real space.

Later the Boy surface with p

0

, p

1

, p

2

, p

3

and p

4

as

complex coefﬁcients were rendered in complex space.

This example shows how the surface is disappearing

around the real axis of complex space when the co-

efﬁcient higher is a complex number. In this case,

the Boy surface completely disappear around real axis

when p

5

or p

6

are complex coefﬁcients. That means

that complex roots for these coefﬁcients are far from

real axis.

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

144

Figure 7: Tangle polynomial where p

2

is a complex coefﬁ-

cient. This image was rendered in complex space for σ = 0

and δ =

π

18

.

Figure 8: Whitney polynomial where all coefﬁcients are

real numbers. This image was rendered in real space for

σ = 0 and δ = 0.

6 CONCLUSION

We have designed and implemented a complex root

ﬁnder algorithm to render complex polynomial sur-

faces in complex space. For this problem, it is not

possible to use the Sturm sequences of a complex

polynomial as a root ﬁnder algorithm. This is due to

some of the polynomial coefﬁcients are complex and

additionally we are interested in the complex roots of

the intersection. We solve this problem as an eigen-

value problem, where we have used the polynomial

root ﬁnding algorithm proposed by Hammer with

some additional extras. On the one hand, we have

solved the problem of distinguishing zeros which are

very close one to each other with high accuracy. On

the other hand, we have extended this algorithm to

ﬁnd all the complex roots associated to each pixel of

the rendered image.

Finally, we have proposed a new procedure to ren-

der images with a ray tracing technique in the com-

Figure 9: Whitney polynomial where p

0

is a complex co-

efﬁcient. This image was rendered in complex space f or

σ = 0 and δ =

π

18

.

plex space. This technique allows us to build a se-

quences of images from which we can analyse the

evolution of the complex roots of several complex

and real polynomial surfaces in a three-dimensional

space. The typical effects of rendering real surfaces

such as reﬂection, refraction or translucent can also

be applied to rendering complex algebraic surfaces.

REFERENCES

Glassner, A. (1989). An Introdu ction to Ray Tracing. Aca-

demic Press, Boston.

Granas, A. and Dugundji, J. (2004). Fixed point the-

ory. Bulletin of the American Mathematical Society,

41(2):267–271.

Hammer, R., Hocks, M., Kulisch, U., and Ratz, D. (1995).

C++ Toolbox for Veriﬁed Computing I: Basic Numer-

ical Problems: Theory, Algorithms, and Programs.

Springer-Verlag, Berlin.

Jimenez-Melado, A. and Morales., C. (2005). Fixed point

theorems under the interior condition. Procceding of

the American Mathematical Society, 134(2):501–507.

Kalantari, B. (2004). Polynomiography and applications in

art, education, and science. Computers & Graphics,

28(3):417–430.

Whitted, T. (1980). An improved illumination model for

shaded display. Commun. ACM, 23(6):343–349.

RENDERING (COMPLEX) ALGEBRAIC SURFACES

145

Figure 10: From up-left to down-right, Steiner surface with all real coefﬁcients are shown, obtained using the following δ

values: 0,

π

180

,

π

90

,

π

60

,

π

45

and

π

36

. All Steiner surfaces are rendering for σ = 0.

Figure 11: From up-left to down-right, Boy surface are shown: A Boy surface with all real coefﬁcients was rendered in real

space for σ = 0 and δ = 0 in ﬁrst image. The others images show a boy surface with a complex coefﬁcient in

complex space for σ = 0 and δ =

π

18

. The evolution of these complex coefﬁcients was p

0

(second image), p

1

(third image), p

2

(fourth image), p

3

(ﬁfth image) and p

4

(sixth image).

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

146
