A FLEXIBLE REAL-TIME FRAMEWORK FOR PRE-CALCULATED

GLOBAL ILLUMINATION SOLUTIONS

Markus Lipp, Stefan Maierhofer and Robert F. Tobler

VRVis Research Center

Donau-City-Str. 1/3, A-1220 Wien

Keywords:

real-time rendering, shader programming, global illumination.

Abstract:

A framework for real-time application of view-independent pre-calculated global-illumination solutions, re-

taining the ability to adjust the intensity of light-sources after pre-calculation, is described. High dynamic

range scenes are fully supported. The framework is highly ﬂexible both in terms of light-source numbers and

target hardware: both high-end graphics-cards and older models are supported. Furthermore it is orthogonal

to the global-illumination solution method and the chosen tonemapping operator, and therefore easy to im-

plement into existing applications. Implementation details to both minimize memory footprint and maximize

performance and ﬂexibility are given. The performance of this framework has been evaluated in the context

of an existing CAD application.

1 INTRODUCTION

Global Illumination (GI) Solutions for computer

graphics are inherently expensive to calculate, as the

complex interaction of light with the scene has to be

accounted for. Therefore direct application to Real-

time Graphics is only possible if restrictions on the

scene are made. An often used approach is to deﬁne

the scene and light sources, as well as the light inten-

sities, as static, and precalculate a global illumination

solution. If the precalculations are view independent,

it is possible to apply the precalculated GI solution in

Realtime to the scene. The obvious drawback of this

approach is the inﬂexibility: After the precalculations

there is no way to change parameters of the scene

without doing the expensive precalculations again.

A straightforward extension to view independent

GI precalculations that lifts the restriction of static

light intensities is done the following way: The GI

precalculations are not executed for all lights at once,

instead they are done for subsets of all lights, called

light-groups. This creates one solution of the GI prob-

lem for every light-group. Those separated solutions

can then be combined in real-time with scaling factors

applied to each GI solution, enabling ﬂexible light-

intensities adjustments.

The main focus of this paper is to describe a frame-

work to allow this extension to be used in a highly

ﬂexible and efﬁcient fashion: There is no restriction

on the number of light-groups, and there are only

a few restrictions on the target graphics-hardware.

Techniques to reduce the memory footprint are de-

scribed, as well as implementation and optimization

details for various graphics-hardware.

1.1 Previous Work

Three main research-areas act as a base this frame-

work: The ﬁrst area, view independent GI, describes

how the precalculations are done as input for the

framework. Many methods for view independent GI

preprocessing have been proposed, with Photonmap-

ping (Jensen, 1996) being the method of choice as

base for this work. Every GI method that allows the

output of the precalculated data to textures can be

used as base for this framework. Therefore the choice

of the GI solution orthogonal to the described frame-

work, as long as the mentioned restriction holds.

The second area are methods of real-time render-

ing. To be more speciﬁc, high dynamic range (HDR)

texture storage and rendering, as well as program-

mable hardware shading are used in the framework.

HDR texture storage is required to store the results of

the GI pre-process. Only recent graphics-hardware

allow to use the straightforward way: store the re-

sults with ﬂoating point precision. Older hardware

335

Lipp M., Maierhofer S. and F. Tobler R. (2006).

A FLEXIBLE REAL-TIME FRAMEWORK FOR PRE-CALCULATED GLOBAL ILLUMINATION SOLUTIONS.

In Proceedings of the First International Conference on Computer Graphics Theory and Applications, pages 335-341

DOI: 10.5220/0001358303350341

 SciTePress

may use other methods: store in rgbe (Ward, 1991),

or store textures with multi-exposure levels (Cohen

et al., 2001). Note that these two methods are not im-

plemented in the framework, only ﬂoating point an

byte textures are supported at the moment. Program-

mable shading describes a new paradigm of real-time

computer-graphics: Instead of a conﬁgurable ﬁxed

function pipeline, parts of the pipeline are replaced by

programmable shaders (Mark et al., 2003). Shaders

are extensively used in the framework, as the only

way to enable ﬂexible precalculated GI combinations.

The third area is the process of tonemapping: Phys-

ically plausible GI methods produce images with

an high dynamic range of the output luminance.

This high dynamic range has to be compressed to

ﬁt the dynamic range of monitors. This process

is called tonemapping, refer to (Artusi, 2004) for

a good overview. Note that the described frame-

work is orthogonal to the problem of tonemapping,

as this framework creates source images to be used

with tonemapping. Therefore tonemapping is not in

the scope of this paper, however in Section 2.4.2 a

speed-up technique applicable to all luminance-based

tonemapping operators is described.

1.2 Organization of this Paper

This paper is structured in the following way: In Sec-

tion 2 the basics and the parts that make up the frame-

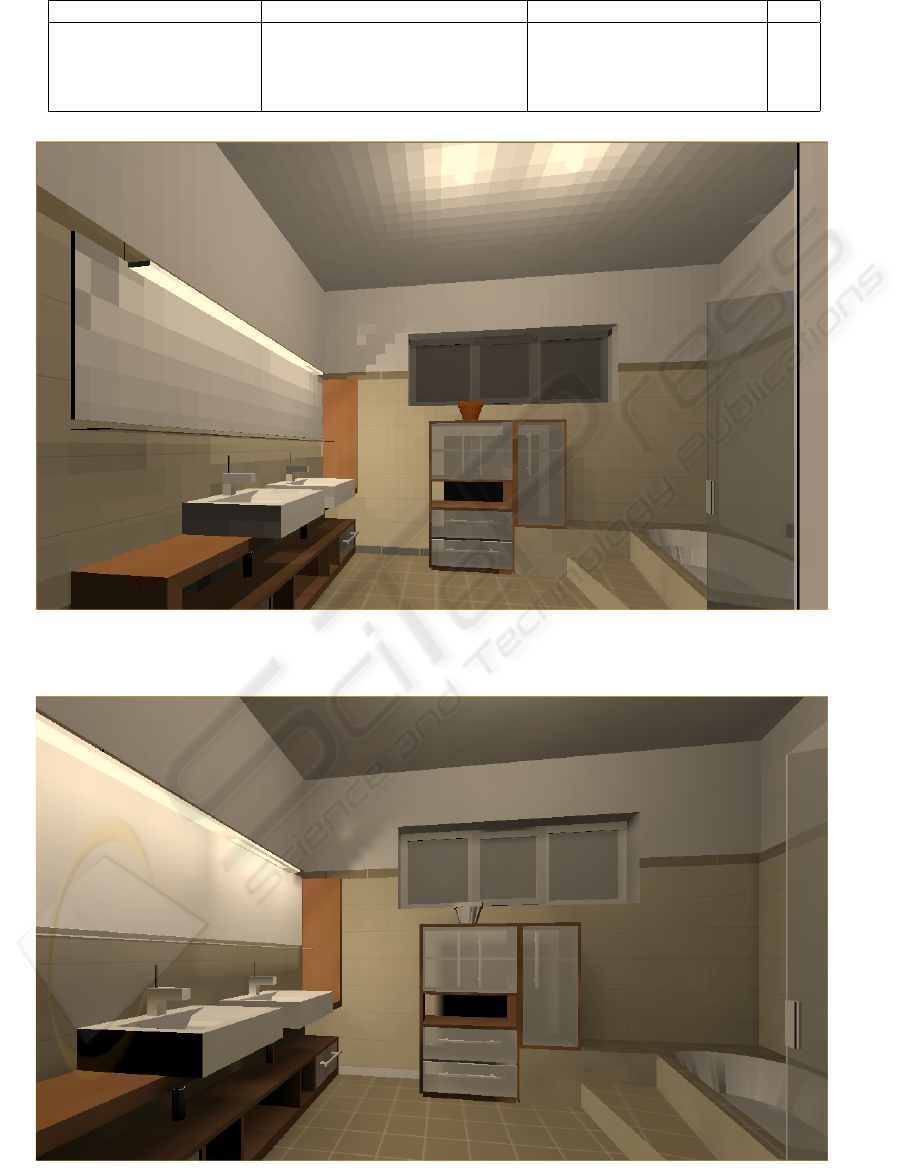

work are described. Section 3 shows performance

evaluations and screenshots obtained using the frame-

work. Section 4 serves as a conclusion.

2 METHODS

In this section we will at ﬁrst describe the extension

to view independent GI precalculation in more de-

tail. Then an overview of the framework is provided

in Section 2.2, followed by a discussion of hardware

speciﬁc issues in Section 2.3. Finally, Section 2.4 will

provide details on implementation of speciﬁc parts of

the framework.

2.1 Method Details

The basic idea of the extension is simple: At ﬁrst, the

GI precalculation are not created for the scene with

all light sources, instead they are calculated for each

light source (or group of light sources). After this step

multiple preprocessed GI data is now present for the

scene, one data set for each light source group. This

data can then be combined in Realtime, with arbitrary

scaling applied to either GI solution set. This way the

intensities of every group of lights can be changed in

real time without expensive precalculations.

There are some points to note. For this method to

be not only perceptually correct but physically plau-

sible, the light source interactions in the scene have

to be linear and thus separable for later combination.

Furthermore the combination of the multiple GI data

has to be performed in a linear space. This implies

following restriction on the format of the GI data: The

data must be stored either directly in a linear space, or

it must be stored in a way that can be decompressed

to a linear space for realtime combination. As actual

scenes may have a dynamic range of up to 1:400000

(Drago et al., 2003), the only way to directly store the

data in a linear space is by using ﬂoating point num-

bers.

2.2 Framework Overview

Figure 1 displays the components of the framework.

The framework takes n light-source descriptions as

input, and further splits them up into m ≤ n user

deﬁned light-groups. An external GI solver is now

called for each light-group, this solver then creates

a GI-solution set for each light-group. After all GI-

solutions are calculated, there are two ways to apply

these solutions to the scene in real-time.

The ﬁrst method is the fully hardware accelerated

path: Here a shader is generated based on parameters

determined during light-source splitup, as described

in Section 2.4.2. This shader is then applied during

scene-rendering and combines all GI-solutions. Af-

terwards tonemapping is performed on the combined

result.

The second method uses a software-fallback to

combine the solutions, the combined solution can

then be used during scene rendering. This approach

is described in Section 2.4.3.

2.3 Hardware Considerations

The linearity requirement described in Section 2.1

combined with the high dynamic range of actual

scenes, is the reason why this approach only works

straightforward on current graphics hardware, and can

not directly implemented into older hardware. To ex-

plain why this requirement poses a problem for older

graphics hardware, let us be more speciﬁc on how

view independent GI methods can be implemented

using current graphics hardware.

GI Implementation Let us assume a GI solution

that creates textures containing the lighting informa-

tion for the scene. These textures, called lightmaps,

contain the precalculated GI solution. Following the

previously described approach, multiple textures must

be created, one set for every light group. Those tex-

tures are used as source textures for a realtime frag-

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

336

Light-

group

Splitup

Dynamic

Shader

generation

Combination

Shader

Software

Fallback

Tone-

mapping

Framebuer

Parameters

for Shader

single

Lightmap

Solution

1 ... m

Solution

1 ... m

Solver

Lightgroup

1 ... m

Solution

1 ... m

Light 1

Light 2

Light n

FRAMEWORK

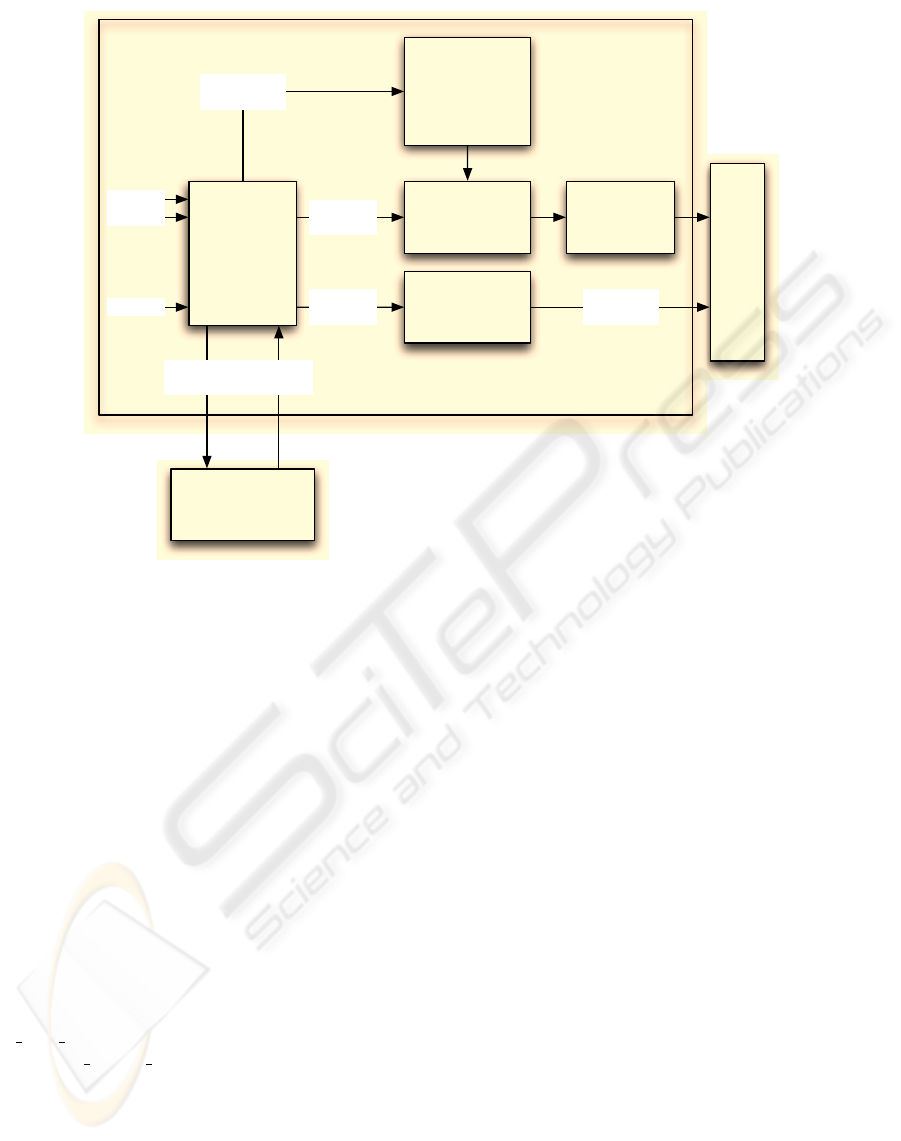

Figure 1: The components of the presented framework.

ment shader. The used fragment shader combines the

textures in realtime and applies tonemapping at the

end.

As textures are used for storage, the textures must

be able to contain the high dynamic range for a correct

linear combination later on. This restrains these tex-

tures to be in ﬂoating point format. Therefore limita-

tions of graphics hardware considering ﬂoating point

texture formats have to be analyzed. Table 1 shows

the capabilities regarding ﬂoating point texturing on

some generations of graphics hardware, and the cor-

responding OpenGL Extensions that are supported.

Floating Point Support As can be seen in this ta-

ble, only NVidia GeforceFX and Ati R300 series and

later series are able to handle ﬂoating point textures.

Further it can be seen that GeforceFX series cards

need the ﬂoating point textures to be provided via the

ﬂoat buffer, unlike the other cards that can han-

dle the ATI

texture ﬂoat extension. This extension

mismatch can only be resolved by providing different

render paths for these cards, as described in section

2.4.2.

Compatibility However, we want most graphics

cards, and not only the latest series to be able to run

the framework. Therefore two mechanisms are inte-

grated into the framework: The ﬁrst mechanism is a

software fallback for combination of the lightmap tex-

tures, as described in section 2.4.3. This fallback runs

on every hardware capable of texturing. Note that the

software combination has to performed only when the

light intensities are changed, not on every frame.

The second mechanism is to allow the use of 8 Bit

per channel textures for lightmaps. It is not possible

to use these textures in a naive way for most scenes,

as they only offer a dynamic range of 1 : 255. There-

fore values have to be packed into those textures in a

nonlinear manner during lightmap creation, and later

during combination in a fragment shader those values

must be unpacked again into a linear space. Arbitrary

functions are applicable during packing, as long as

they are reversible in an easy way for unpacking in

the fragment shader.

The exponential function

= f(x)=1− e

−x

with its inverse

x = f

)=−ln(1 − x

),x

∈ [0, 1[

is used in this implementation. With this function

a dynamic range of 1 : 1413 is achievable, as is

shown: The highest value x =1representable by

8Bit is x = 254/255 = 0.9961, this results in

(254/255) = 5.541 after unpacking. Therefore a

dynamic range of max/min =5.541/(1/255) =

1412.955 is achieved.

A FLEXIBLE REAL-TIME FRAMEWORK FOR PRE-CALCULATED GLOBAL ILLUMINATION SOLUTIONS

337

Table 1: Floating point capabilities of graphics-hardware. Sources: (nvi, 2005), (ati, 2005).

Vendor Graphics Processor Floating point capability supported via OpenGL Extension

NVidia Geforce 6 Series Full Support ARB texture ﬂoat, ATI texture ﬂoat

NVidia Geforce FX Series No Bilinear Filter NV ﬂoat buffer

NVidia Earlier Series No ﬂoating point support -

ATI R300 Series No Bilinear Filter ATI texture ﬂoat

ATI Earlier Series No ﬂoating point support -

To sum it up, if a scene does not exceed the dy-

namic range of 1 : 1413 a exponentially packed 8Bit

representation is sufﬁcient. Otherwise the software-

fallback must be used for correct results, or ﬂoating

point textures have to be used.

Note that other possibilities to get high dynamic

range without ﬂoating point textures have been pro-

posed (Ward, 1991) (Cohen et al., 2001). Those meth-

ods could also be integrated into the framework, how-

ever they are no implemented at this moment.

2.4 Implementation Details

To actually create an efﬁcient implementation of the

described framework, three points must be consid-

ered. At ﬁrst, the memory requirements have to be

optimized, as described in Section 2.4.1. Secondly,

the fragment shader used for recombination has to

be ﬂexible and efﬁcient. This is discussed in Sec-

tion 2.4.2. And lastly, a Software-Fallback must be

provided in order to run this framework on older

graphics-hardware. Section 2.4.3 describes this step.

2.4.1 Memory Footprint

To actually make the described method feasible, con-

siderations to reduce the memory footprint have to be

taken. The memory requirement is a possible prob-

lem, as multiple solutions of the GI have to be stored.

If every light has its own lightmap the memory foot-

print may be too large.

Light-Groups In order to reduce the amount of re-

quired GI solutions, Lights can be sorted into groups,

and every group gets its own lightmap set. Of course,

the ability to adjust light-intensity is thereby reduced

to the whole light-group, the separate lights in this

group can not be controlled anymore. It is up to the

user to decide whether lights should be combined to

group. It may be best practice do combine semanti-

cally equivalent lights (e.g. all ceiling lights) to one

group.

Luminance Packing Another method to reduce

memory footprint is to calculate one channel lumi-

nance maps of three channel RGB-Lightmaps. Four

of those luminance maps can then be packed to a

single RGBA Lightmap. The unpacking is then per-

formed in realtime by a fragment program. There-

fore the fragment program takes each component of

a packed RGBA-Lightmap and multiplies it with the

accumulated light source-colour of the corresponding

light group. The light source-colour is provided to the

fragment program via constant registers. It is impor-

tant to note that effects like colour bleeding can not

be reproduced this way, as colour information is re-

stricted to the light source colours only. Again, it is

up to the user do decide whether colour-bleeding is

important for the speciﬁc light group.

Lightmap Precision Reducing the precision of the

lightmap textures from 32 Bit ﬂoating point to 16 Bit

ﬂoating point (half) is another way to decrease the

memory requirements. The half format is probably

sufﬁcient for most scenes. If the dynamic range does

not exceed 1 : 1413, further reduction to 8Bit preci-

sion is possible, as described in Section 2.3.

2.4.2 Fragment Shader

Multiple steps are performed in the combination frag-

ment shader: At ﬁrst, the value of each lightmap at

the current texture coordinates is fetched. For packed

lightmaps each component of this value is then multi-

plied with the corresponding light source colour. Byte

textures are unpacked to a linear space. Every value

is then multiplied with a scaling factor provided via

constant registers. All scaled values are then summed

up.

This sum is then used for the tonemapping operator.

At the moment the tonemapping operator is directly

implemented in the fragment shader. We have chosen

Adaptive Logarithmic Mapping (Drago et al., 2003)

as the tonemapping operator. As the tonemapping

problem is orthogonal to the lightmap mixing prob-

lem, any tonemapping operator could be used here.

Optimization Note that the chosen tonemapping

operator is luminance based: Given an input lumi-

nance value l

, an output luminance value l

out

calculated. Therefore we need to calculate the lu-

minance value l

of our RGB colour-values c

rgb

ﬁrst. Using the ITU-R BT.601-4 deﬁnition of

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

338

luminance, this is done using a simple dot-product

= c

rgb

◦ (0.299, 0.587, 0.114). We then calculate

out

using the tonemapping operator. There is no need

in colour space conversions to get the tonemapped

color t

rgb

, the scalar product t

rgb

= c

rgb

· l

out

is sufﬁcient, as shown below:

We want to show that the luminance of t

rgb

= c

rgb

out

equals the luminance l

out

. The luminance of

rgb

is deﬁned as l

= t

rgb

◦ (0.299, 0.587, 0.114) =

· 0.299 + t

· 0.587 + t

· 0.114. Substituting t

rgb

· l

out

into this formula results in l

= c

out

·0.299+c

·l

out

·0.587+c

·l

out

·0.114.

This simpliﬁes to l

= l

out

·(c

·0.299+ c

·0.587+

· 0.114) =

out

· l

= l

out

Dynamic Shader Generation The source

lightmaps used in the fragment shader are ﬂexi-

ble in two ways: The number of lightmaps, and the

type of each lightmap. Each lightmap may either be

packed or unpacked, and may be in ﬂoating point or

8Bit format. Additionally the OpenGL extension to

be used for ﬂoating point-support varies depending

on the graphics hardware, as described in section 2.3.

Therefore the fragment shader used to combine the

textures must adapt to these parameters. In our imple-

mentation this is achieved trough a conﬁgurable lua

(Ierusalimschy, 2003) script: The script is conﬁgured

with the number of lightmaps for each possible type.

The type of OpenGL extension used toggles where

the textures should be fetched from: On the one hand,

NV_float_buffer requires textures to be bound

to NV_texture_rectangle, they must be sam-

pled via texRECT in cg, and additionally the tex-

ture coordinates must be scaled to absolute pixel po-

sitions. On the other hand, ATI_texture_float

textures must be bound to TEXTURE_2D and fetched

via tex2D.

Using this conﬁgurations, the script then gener-

ates a fragment shader using appropriate predeﬁned

textblock-connections. This fragment shader is then

bound during runtime.

Note that recent developments allow the generation

of dynamic shaders to be done via interfaces in Cg

(Mark et al., 2003). However, at the moment of im-

plementation the graphics-card driver support for this

feature was still in an early version. Therefore we re-

strained from using these interfaces, however in near

future it may be feasible to use those interfaces used

instead of lua-scripting.

2.4.3 Software fall-back for Combination

To make this framework compatible to older graph-

ics hardware, a fallback method for all hardware ca-

pable of texturing is required. This method takes all

lightmaps of the GI solutions and combines them on

the CPU. All the steps that are done in the shader

(including tonemapping), as described previously, are

now done on the CPU. A new set of lightmap tex-

tures is now created for storage of the combined re-

sult. This set is now used for simple textured render-

ing.

The combination step just has to be performed

every time the intensity values of the light-groups

change, not for every frame. As pointed out in the

results section, an combination step takes less than a

minute, and is thus much faster than a complete recal-

culation of the GI solution, which can require a few

hours.

3 RESULTS

The described framework was implemented for a

commercial CAD package. To conduct performance

tests, a bath-room scene is used. This scene features

4 lights. The test system has the following speciﬁ-

cations: Pentium 4 1.7GHz, 1Gb RAM, GeforceFX

5950 Ultra.

Following test-cases where used:

Test-Case 1 Every light is in the same light-group,

therefore no separate intensity-adjustment is possi-

ble. This effectively bypasses the described frame-

work. Just tonemapping is performed every frame.

Note that the tonemapping-operator is explicitly

speciﬁed in a fragment shader, using a lookup-

texture instead would improve performance.

Test-Case 2 Every light has its own light-group.

4 times as much texture memory is therefore

needed compared to test-case 1. Combination and

tonemapping are performed every frame, therefore

separate intensity adjustment is possible in real-

time.

Test-Case 3 Every light has its own light-group,

however these light-groups are now packed into a

single RGBA-Texture using the method described

in 2.4.1. The texture memory requirement is now

the same as for the ﬁrst test-case. Combination and

tonemapping are performed every frame, therefore

separate intensity adjustment is possible in real-

time. Figure 2 shows a screen-shot for this test-

case. The blocky appearence in this screenshot

is caused by the lack of linear-ﬁlter support for

ﬂoating-point textures on the GeforceFX.

Test-Case 4 Every light has its own light-group,

however the software-fallback is enabled for com-

bination. One combination step for this scene takes

approximately 30 seconds. This step has to be per-

formed everytime a light-group intensity changes.

Tonemapping is performed during the combination

step, therefore 8Bit textures are sufﬁcient for the

A FLEXIBLE REAL-TIME FRAMEWORK FOR PRE-CALCULATED GLOBAL ILLUMINATION SOLUTIONS

339

resulting combined texture. This reduces the re-

quired texture memory to 0.5. Figure 3 shows a

screen-shot for this test-case.

Table 2 summarizes the performance results for

those test-cases. As can be seen, the performance dif-

ference between un-adjustable lights and adjustable

lights is 6Fps at most. We think this slight drop in

framerate is worth the gained ﬂexibility. Software

fall-back is even faster than un-adjustable lights, as

no tonemapping is performed per frame, and faster

8Bit textures can be used. To sum it up, software

fall-back is a good compromise between performance

and ﬂexibility, while the hardware-accelerated-mode

allows instant adjustment of light-intensities on cur-

rent graphics-hardware without loosing too much per-

formance. Therefore the described framework scales

well on different graphics-hardware, and can thus be

considered usable for actual application on a wide

range of graphics-hardware.

4 CONCLUSION

We have described a framework that allows ﬂexi-

ble adjustment of light-source intensities without ex-

pensive recalculation of the GI solution. Limita-

tions of graphics-cards regarding this framework have

been observed, and implementation details for differ-

ent generations of graphics-hardware were discussed.

The results show that this framework is feasible on a

broad range of graphics-cards, as the increased ﬂexi-

bility only inﬂicts a small hit in performance.

REFERENCES

(2005). NVIDIA GPU Programming Guide. NVIDIA Cor-

poration.

(2005). Radeon 9500/9600/9700/9800 OpenGL Program-

ming and Optimization Guide. ATI Corporation.

Artusi, A. (2004). Real Time Tone Mapping. PhD thesis,

TU Vienna University of Technology.

Cohen, J., Tchou, C., Hawkins, T., and Debevec, P. E.

(2001). Real-time high dynamic range texture map-

ping. In Proceedings of the 12th Eurographics Work-

shop on Rendering Techniques, pages 313–320, Lon-

don, UK. Springer-Verlag.

Drago, F., Myszkowski, K., Annen, T., and Chiba, N.

(2003). Adaptive logarithmic mapping for display-

ing high contrast scenes. In Brunet, P. and Fellner,

D. W., editors, Proc. of EUROGRAPHICS 2003, vol-

ume 22 of Computer Graphics Forum, pages 419–

426, Granada, Spain. Blackwell.

Ierusalimschy, R. (2003). Programming in Lua. Published

by Lua.org.

Jensen, H. W. (1996). Global illumination using photon

maps. In Proceedings of the eurographics workshop

on Rendering techniques ’96, pages 21–30, London,

UK. Springer-Verlag.

Mark, W. R., Glanville, R. S., Akeley, K., and Kilgard,

M. J. (2003). Cg: a system for programming graphics

hardware in a c-like language. ACM Trans. Graph.,

22(3):896–907.

Ward, G. (1991). Real pixels. In Arvo, J., editor, Graphics

Gems II, pages 80–83. Academic Press.

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

340

Table 2: Performance evaluations.

Number of Lightgroups Type of Lightgroup-Textures rel. Texture Memory usage Fps

1, framework bypassed 1x 16 Bit RGBA Float 1.0 28

4 4x 16 Bit RGBA Float 4.0 25

4 1x Packed 16 Bit RGBA Float 1.0 22

4, software fallback 1x 8 Bit RGBA 0.5 36

Figure 2: Hardware accelerated combination (No bilinear ﬁlter as GeforceFX does not support this for ﬂoat-textures), combi-

nation every frame - 25fps.

Figure 3: Software fallback for combination, one combination at beginning - 36fps.

A FLEXIBLE REAL-TIME FRAMEWORK FOR PRE-CALCULATED GLOBAL ILLUMINATION SOLUTIONS

341
