USING RAY INTERSECTION FOR DUAL ISOSURFACING

Jaya Sreevalsan-Nair, Bernd Hamann

Institute for Data Analysis and Visualization (IDAV)

Department of Computer Science

University of California, Davis, CA 95616, U.S.A.

Lars Linsen

Department of Mathematics and Computer Science

Ernst-Moritz-Arndt-Universit

¨

at Greifswald

Greifswald, Germany

Keywords:

Computational Geometry, Geometric Modeling, Contour, Isosurface, Dual Isosurfacing, Triangulation.

Abstract:

Isosurface extraction using “dual contouring” approaches have been developed to generate a surface that is

“dual” in terms of the underlying extraction procedure used when compared to the standard Marching Cubes

(MC) method. These approaches address some shortcomings of the MC methods including feature-detection

within a cell and better triangles. One approach for preserving “sharp features” within a cell is to determine

isosurface points inside each cell by minimizing a quadric error functions (QEF). However, this category of

methods is constrained in certain respects such as ﬁnding just one isosurface point per cell or requiring Hermite

data to calculate an isosurface. We present a simple method based on the MC method and the ray intersection

technique to compute isosurface points in the cell interior. One of the advantages of our method is that it does

not require Hermite data, i.e., the discrete scalar values at vertices sufﬁce. We compute ray intersections to

determine isosurface points in the interior of each cell, and then perform a complete analysis of all possible

conﬁgurations to generate a look-up table for all conﬁgurations. Since complex features (e.g., tunnels) tend

to be undersampled with “dual” points sufﬁcient to represent sharp features and disjoint surfaces within the

cell, we use the look-up table to optimize the ray intersection method to obtain minimum number of points

necessarily sufﬁcient for deﬁning topologically correct isosurfaces in all possible conﬁgurations. Isosurface

points are connected using a simple strategy.

1 INTRODUCTION

Given a scalar ﬁeld discretized on a three-dimensional

grid, isosurfaces represent the geometry of a trivariate

function being equal to a constant scalar value. The

original Marching Cubes (MC) method used for iso-

surface extraction is a simple algorithm of marching

through all rectilinear hexahedral cells of a volumetric

grid and computing two-manifold isosurface for each

cell independently, in a piecewise fashion (Lorensen

and Cline, 1987). In each cell, the isosurface points

are computed as zero intersections on the edges which

are linearly interpolating the scalar values at its end-

points. With the help of a look-up table, a triangular

mesh approximation to the isosurface is obtained. The

overall 256 possible topological cases depending on

the conﬁguration of the sign of vertices in a cell can

be condensed to 14 by considering rotational symme-

try and mirror cases, that is, cases obtained by inter-

changing the positive and negative signs.

1

However, while the look-up table of the original al-

gorithm represents single topological result for each

of the 14 cases, further research has proven more

than one topological conﬁgurations in some cases.

Chernyaev (Chernyaev, 1995) extended the case-table

of 14 “sign-conﬁgurations” to obtain 33 “topological

conﬁgurations” to deal with complex topologies like

tunnels. This conﬁguration set was further reduced

to 31 distinct topological conﬁgurations in (Lopes

and Brodlie, 2003), which are analytically discussed

in (Nielson, 2003).

Recently, another class of algorithms, called “dual”

contouring algorithms, has been advancing. The mo-

tivation behind these methods has been to generate

1

Conventionally, the “sign” of a vertex is positive if the

value is greater than or equal to the isovalue; otherwise, is

negative.

34

Sreevalsan-Nair J., Hamann B. and Linsen L. (2006).

USING RAY INTERSECTION FOR DUAL ISOSURFACING.

In Proceedings of the First International Conference on Computer Graphics Theory and Applications, pages 34-42

DOI: 10.5220/0001352300340042

Copyright

c

SciTePress

isosurfaces with better triangles as well as to “pre-

serve features” within each cell. MC method gen-

erally misses the details in the cell interior, due to

undersampling of isosurface points by linear inter-

polation along the edges. Though this shortcoming

has been corrected using repeated subdivision of the

cells in the MC method, dual approaches eliminate the

overhead of extra storage and processing of the sub-

divided cells. The “SurfaceNets” algorithm (Gibson,

1998), the “Extended MC” method (Kobbelt et al.,

2001), and dual contouring using Hermite data (Ju

et al., 2002) represent initial work done in this ﬁeld.

However, these methods do not address the issue of

resolving and representing multiple disconnected iso-

surface components within one cell. Greß et al. (Greß

and Klein, 2003) extended dual contouring (Ju et al.,

2002) to use more than one point within each cell, us-

ing vertex splits. Dual contouring has been further

extended to obtain thin walls in isosurfaces by using

the calculated isosurface points from the primal grid

to make a dual grid (Schaefer and Warren, 2004) and

then implement MC on the new grid. Nielson (Niel-

son, 2004) improved the MC-surface in a two-step

procedure of generating a “MC-Patch” surface and a

“MC-dual” surface, which is dual to the MC-patch

surface. MC-patch surface is the MC-surface after

eliminating edges of triangles within the cell.

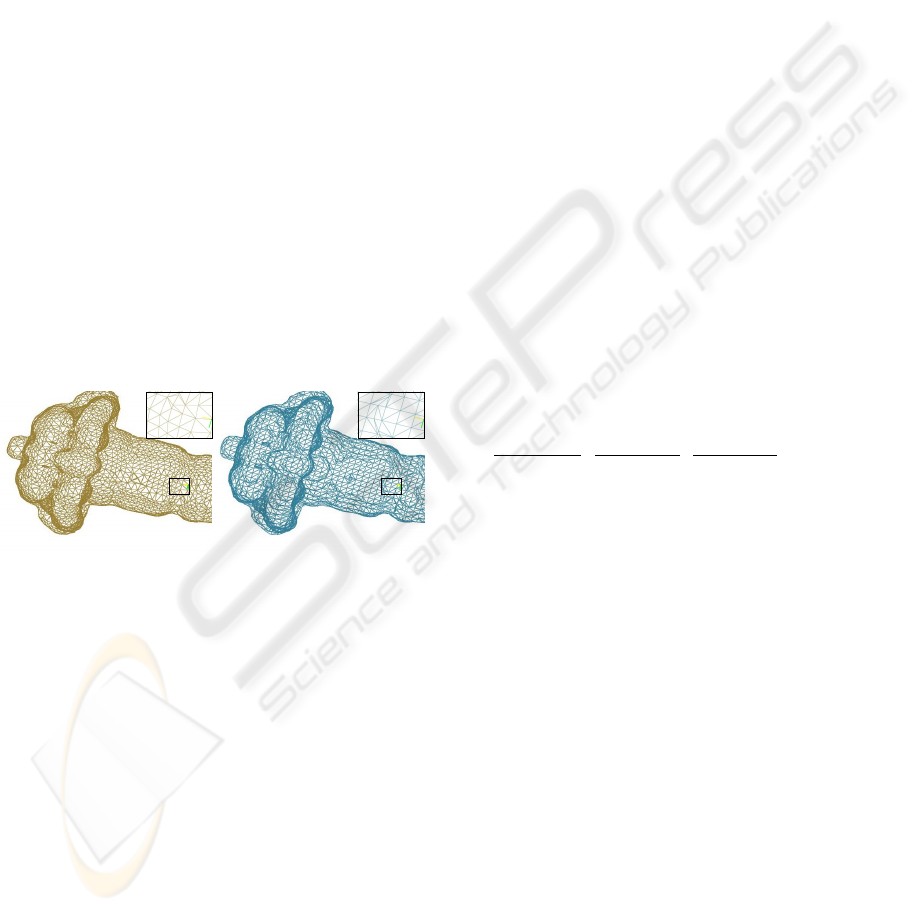

Figure 1: Better triangles in isosurface obtained using dual

contouring (left) than MC method (right) for the fuel dataset

(from http://www.volvis.org). The dual contouring result

is obtained from the isosurface points computed using our

method.

We present a dual isosurfacing method based on ray

intersection to determine isosurface points (Co et al.,

2003) (Parker et al., 1998). Since we are using a dual

approach, our algorithm has the typical advantages of

being able to extract sharp features, generating nice

triagulations, and being extendable to isosurface gen-

eration from adaptively reﬁned grids without gener-

ating discontinuities. Moreover, our algorithm gen-

erates topologically correct isosurfaces including tun-

nel cases and multiple isosurface components per cell,

computes exact points on the isosurface with respect

to trilinear interpolation, and does not require any nor-

mal information such as Hermite data.

For the computation of the ray-isosurface intersec-

tion, we determine the minimum number of rays nec-

essary for ﬁnding sufﬁcient number of points in each

cell to accomodate cases of single components, “mul-

tiple components” (i.e., disjoint pieces) of the isosur-

face as well as complex features like tunnels. We gen-

erate a look-up table based on all 31 topological con-

ﬁgurations of the cells (Lopes and Brodlie, 2003). In

Section 2, we provide a brief overview of trilinear

interpolation followed by the description of the ray-

intersection method. We formulate certain observed

properties of the cell diagonals used as rays in Sec-

tion 3, and enlist the rules used to optimize the ray-

intersections in Section 4.

For polygonization, we cluster isosurface points in

the neighborhood of each cell using connectivity in-

formation. Our simple strategy for connecting the

points also guarantees that multiple isosurface com-

ponents within each cell are rendered distinctly. We

explain the algorithm for computing isosurface points

and our simple polygonization strategy in Section 5.

2 BASIC MATHEMATICAL

FORMULATION

Let F (x, y, z) be the trivariate scalar ﬁeld de-

ﬁned over a structured rectilinear hexahedral

grid, and f(u, v, w) be its parametric rep-

resentation over the domain [x

min

,x

max

] ×

[y

min

,y

max

] × [z

min

,z

max

], i.e., F (x, y, z)=

f

x−x

min

x

max

−x

min

,

y −y

min

y

max

−y

min

,

z−z

min

z

max

−z

min

.

With (u

i

,v

j

,w

k

) being the parametric representa-

tion of the vertices of the cell (or voxel), for i, j, k, ∈

{0, 1}, the trilinear model f (u, v, w) is deﬁned as

1

i=0

1

j=0

1

k=0

(1 − U

i

)(1 − V

j

)(1 − W

k

)f(u

i

,v

j

,w

k

) .

(1)

where U

i

= |u − u

i

|, V

j

= |v − v

j

|, and W

k

=

|w − w

k

|.

A hexahedral cell is represented by vertices with

minimum coordinates (u

0

,v

0

,w

0

)=(0, 0, 0) and

maximum coordinates (u

1

,v

1

,w

1

)=(1, 1, 1), re-

spectively. A point interior to the cell has parame-

ters (u, v, w) ∈ [0, 1]

3

. An isosurface associated with

value I, in parametric form and set form can be written

as

T (I)={(u, v, w):f (u, v, w)=I,0 ≤ u, v, w ≤ 1}

(2)

For our ray-intersection approach, the diagonals are

used as rays and points of intersection with the trilin-

ear isosurface are computed. The equation of a ray

r(t) from vertex V to vertex W is given by

r(t)= V + t(W − V), 0 ≤ t ≤ 1, (3)

USING RAY INTERSECTION FOR DUAL ISOSURFACING

35

where r(t), V and W can be represented as position

vectors or in the parametric form.

The point p being the intersection of a ray

and an implicitly deﬁned isosurface satisﬁes Equa-

tions (1), (2) and (3). These conditions reduce to a

cubic equation in variable t, which corresponds to

the parametric representation of p on the ray, i.e.,

p = r(t), 0 ≤ t ≤ 1. The cubic equation can be

written as

G

3

t

3

+ G

2

t

2

+ G

1

t + G

0

=0. (4)

The computation of its coefﬁcients G

0

,G

1

,G

2

and

G

3

is explained in Appendix A.

We solve Equation (4) using the analytical Car-

dan’s method (Nickalls, 1993) in case the equation

has points of inﬂexion or the numerical Newton-

Raphson method (Press et al., 1986) otherwise. The

intersection point(s) p is then computed using the real

root(s) of Equation (4) in Equation (3).

The roots of Equation (4) depend on the behavior of

the discriminant of the cubic or the reduced quadratic

equation, summarized in Table 1. Discriminant D

3

for Equation (4) is evaluated based on the point of in-

ﬂexion (x

N

,y

N

) (Nickalls, 1993). We need to com-

pute

δ

2

=(G

2

2

− 3G

3

G

1

)/(9G

2

3

) ,

(x

N

,y

N

)=(−G

2

/(3G

3

),

G

3

x

3

N

+ G

2

x

2

N

+ G

1

x

N

+ G

0

), and

D

3

= y

2

N

− 4G

2

3

δ

3

. (5)

If G

3

=0, then the cubic equation reduces to a

quadratic one, and the quadratic discriminant D

2

de-

termines the nature of the roots.

D

2

= G

2

1

− 4G

2

G

0

. (6)

Table 1: Roots of governing cubic equation of trilinear func-

tion depending on its degree.

Degree Discriminant Nature of Roots

Cubic D

3

> 0 1 real,

2 imaginary

(G

3

=0) y

N

= D

3

=0 3 equal real

y

N

= D

3

=0 1 distinct real,

2 equal real

D

3

< 0 3 distinct real

Quadratic D

2

> 0 2 distinct real

(G

3

=0, D

2

=0 2 equal real

G

2

=0) D

2

< 0 2 imaginary

An intersecting ray can produce at most three iso-

points, by virtue of the governing cubic equation.

However, for most of the cases, either one or two so-

lutions result.

3 TERMINOLOGY

The sign of a vertex of a cell is positive, when the

scalar value at the vertex is greater than or equal to

a given isovalue, and negative otherwise. In the fol-

lowing, vertices will be denoted as “(+) vertices” and

“(-) vertices”, respectively.

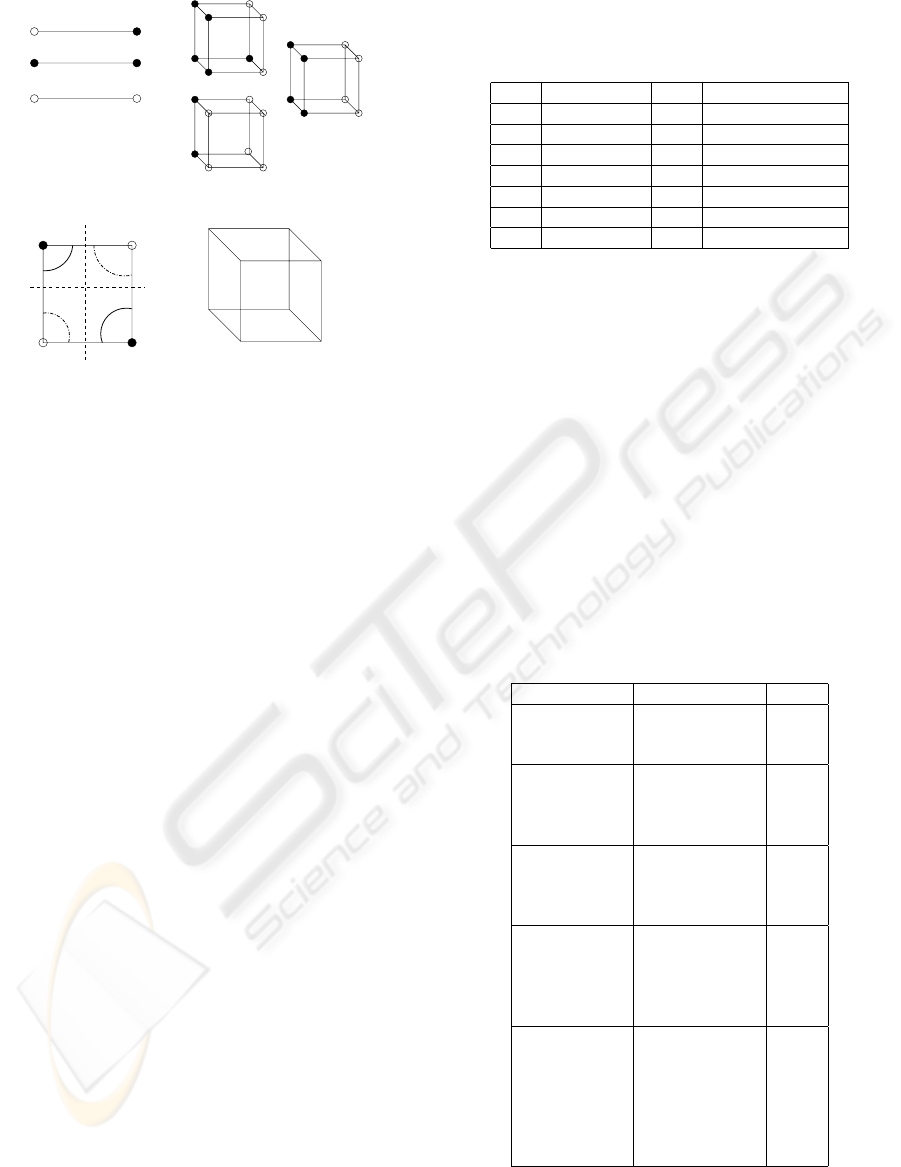

We use cell diagonals to deﬁne rays, and based on

the sign of the vertices on the ray, we can have ei-

ther same-sign ended rays (+/+ or -/-) or different-

sign ended rays (+/- or -/+). In the former case there

are either zero or two solutions to the cubic equa-

tion for ray-isosurface intersection, and in the latter

there are either one or three solutions. Intuitively, an

odd number of intersections (or zeros) causes a sign

change, and an even number maintains the same sign

at the endpoints. We denote edges with same-sign

endpoints as “(+/+) or (-/-) edges”, and different-sign

ended edges as “(+/-) edges”, see Figure 2(a).

When a cell has more (+) vertices than (-) vertices,

the cell is said to be a positive cell (“(+) cell”). Simi-

larly, if the cell has more (-) vertices than (+) vertices,

it has a negative sign and is called a negative cell (“(-

) cell”). If both (+) vertices and (-) vertices are equal

in number then, the cell is a neutral cell (“(0) cell”),

with no sign. Examples of positive, negative and neu-

tral cells are shown in Figure 2(b).

A cell face with four same-sign ended diagonals

and four (+/-) edges is called an ambiguous face.An

ambiguous face separated with respect to a speciﬁc

sign (Chernyaev, 1995) (Nielson and Hamann, 1991)

means a contour on the face is a rectangular hyperbola

and the sign is that of the vertices in the quadrants

containing the hyperbola, see Figure 2(c). The sign,

with respect to which an ambiguous face is separated,

is determined using the asymptotic decider (Nielson

and Hamann, 1991). A face separated with respect to

positive sign will be denoted as “(+) ambiguous-face,”

and that with respect to negative sign will be denoted

as “(-) ambiguous-face.” Equations for the asymptotic

decider are given in Appendix A.

4 OPTIMIZATION

We use the trilinear function exhaustively for all pos-

sible conﬁgurations, and determine the topology of

the analytical isosurface. We can observe from the

analytical isosurface that there are cases where more

than one diagonal of the cell intersect the same iso-

surface component. Since evaluating the intersection

point requires a signiﬁcant number of computational

operations, we optimize our algorithm by ﬁnding just

one point per disjoint piece of the isosurface within

the cell. We analyze each of the 31 cases from the ex-

haustive MC case-table (Chernyaev, 1995) (Nielson,

2003) (Lopes and Brodlie, 2003) to ﬁnd the diagonals

used for intersection. A priori knowledge of diago-

nals for intersection helps us in easy computation of

isosurface points. The choice of diagonals for inter-

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

36

(+/+) Ray/Edge

(+/−) Ray/Edge

(−/−) Ray/Edge

V1(T10)V0(T00)

V

3(T01) V2(T11)

V7(T011)

V0(T000) V1(T100)

V6(T111

)

V2(T110)

V3(T010)

V4(T001) V5(T101)

(b)

(c)

(a)

(−) Cell

(+) Cell

(0) Cell

(d)

Figure 2: (a) Sign of ray/edge (b) Sign of cell (c) Ambigu-

ous face with the notations used for vertices and their scalar

values in bilinear interpolation. Solid contours occur when

the face is separated with respect to positive sign, and dot-

ted contours occur when with respect to negative sign (d)

Notation for cell vertices for trilinear interpolation. Black

and white vertices are positive and negative, respectively.

section depends on the number of ambiguous faces

of the cell, the sign of the ambiguous faces (Nielson

and Hamann, 1991), and the sign of the diagonals’

vertices. However, the condition of “one-point-per-

disjoint-component” is relaxed in the case of com-

plex features inside the cell, like tunnels, as sufﬁcient

points are needed to capture the complexity of the

manifold.

We categorize the original 14 sign-conﬁgurations

(numbered 0 to 13) of the MC-case table to ﬁve cat-

egories, based on the number of ambiguous faces.

There can be only cases with zero, one, two, three,

and six ambiguous faces, by virtue of the possible

combinations of eight connected, signed vertices. We

observe that cells with same number of ambiguous

faces show similar choices for optimal number of

rays. We deﬁne rules to distinguish between differ-

ent topological conﬁgurations, and decide which di-

agonals are to be used for intersection. The conﬁgu-

ration are represented using numerical indices, which

were used in earlier works (Chernyaev, 1995) (Lopes

and Brodlie, 2003), of the form “x,” “x.y” or “x.y.z,”

where “x” is the sign conﬁguration, “y” the topolog-

ical conﬁguration, and subconﬁguration “z.” Niel-

son (Nielson, 2003) showed analytically that there

can be just three “levels of characterization” for the

cell conﬁgurations. We use DeVella’s necklace test

(which leads to a positive result exclusively in the

presence of tunnels) (Nielson, 2003) in a few cases

to distinguish its different topological conﬁgurations.

DeVella’s necklace test checks if two vertices on a di-

agonal are internally connected (Nielson, 2003). Its

associated equations are explained in Appendix A.

Table 2: Types of diagonals for the 14 sign conﬁgurations

(for (+) cell, in case of non-(0) cells).

Case Diagonal types Case Diagonal types

0 4 (-/-) 7 3 (+/-), 1 (+/+)

1 1 (+/-), 3 (+/+) 8 4 (+/-)

2 2 (+/-), 2 (+/+) 9 4 (+/-)

3 2 (+/-), 2 (+/+) 10 2 (+/+), 2 (-/-)

4 1 (-/-), 3 (+/+) 11 4 (+/-)

5 3 (+/-), 1 (+/+) 12 2 (+/-), 1 (+/+), 1 (-/-)

6 1 (+/-), 2 (+/+), 13 4 (+/-), 1 (-/-)

The following subsections explain the choice of

the diagonals for each sign-conﬁguration and their re-

spective topological conﬁgurations. Table 2 lists the

different types of diagonals in each of the sign con-

ﬁgurations, and Table 3 summarizes the rules for the

diagonals to be used for the ﬁve categories. In this

section, for cases of analysis of signed cells, we will

use the example of a (+) cell, and similar analysis can

be extended to a (-) cell, by interchanging the signs of

the diagonals, ambiguous faces and the cell.

Table 3: Rules used to choose diagonals in 31 topological

conﬁgurations based on the number of ambiguous faces (for

(+) cell, in case of non-(0) cells). Notations: “AF” implies

ambiguous faces, “IP” means isosurface points, T stands for

tunnel points, DS represents disjoint surface, and (+/-)

C

(in

case 13) is the (+/-) diagonal through the common vertices

of 3 (+) ambiguous faces and 3 (-) ambiguous faces, respec-

tively.

Cases Diagonals/Rays #IP.

0 AF: 1, 2, 5, For x (=4),1 (+/-) 1

8, 9, 11, For 4.1, 1 (-/-) 2

4 (4.1, 4.2) For 4.2, 2 (+/+) 4(T)

1 AF: 3 (3.1,3.2), For 3.1, 2 (+/-) 2

6 (6.1.1, 6.1.2, For 6.1.1, 1 (-/-) 2

6.2) For 6.1.2, 2 (+/+) 4 (T)

For x.2, 1 (+/-) 1

2 AF: 10,12 For x.1.1, 1 (+/+) 1

(x.1.1, x.1.2, x.2) For x.1.2, 2 (-/-) 4(T)

(case of 2 (+) AF. For 10.2, 1(+/+) 1

for x.1.z) For 12.2, 1 (+/-) 1

3 AF: 7 (7.1, 7.2, For 7.1, 3 (+/-) 3

7.3, 7.4.1, 7.4.2) For 7.2, 2 (+/-) 2

For 7.3, 1 (+/-) 1

For 7.4.1, 1 (+/+) 2

For 7.4.2, 3 (+/-) 3(T)

6 AF: 13 (13.1, For 13.1, 4 (+/-) 4

13.2, 13.3, 13.4, For 13.2, 3 (+/-) 3

13.5.1,13.5.2) For 13.3, 2 (+/-) 2

For 13.4, 1 (+/-) 1

For 13.5.1, 1(+/-)

C

3

For 13.5.2, 1(+/-)

C

1(DS)

& 3(+/-) &3(T)

Cases without Ambiguous Faces. Sign conﬁgura-

tions 0, 1, 2, 4, 5, 8, 9, and 11 have no ambiguous

faces, see Figure 3. We ignore case 0 in our diagonal

USING RAY INTERSECTION FOR DUAL ISOSURFACING

37

analysis, as it does not intersect the isosurface. Except

for case 4, these cases have just one topological con-

ﬁguration and one isosurface component each. It can

be seen from the analytical trilinear surface, shown in

Figure 3, that cases 1, 2, 5, 8, 9, and 11 can use a

(+/-) diagonal for intersection.

In case 4, two different topologies occur, depend-

ing on whether the vertices on the (-/-) diagonal are

“internally connected”. In conﬁguration 4.1, the con-

tour forms disjoint surfaces, and in conﬁguration 4.2,

they are internally connected to form a tunnel. We use

DeVella’s necklace test to distinguish between the two

subconﬁgurations (Nielson, 2003). For conﬁguration

4.1, the (-/-) diagonal is used for intersection, and for

conﬁguration 4.2, 2 of the 3 (+/+) diagonals are used

to obtain multiple points for deﬁning the tunnel.

case 1

case 2

case 4.1

case 4.2

case 5

case 8

case 9

case 11

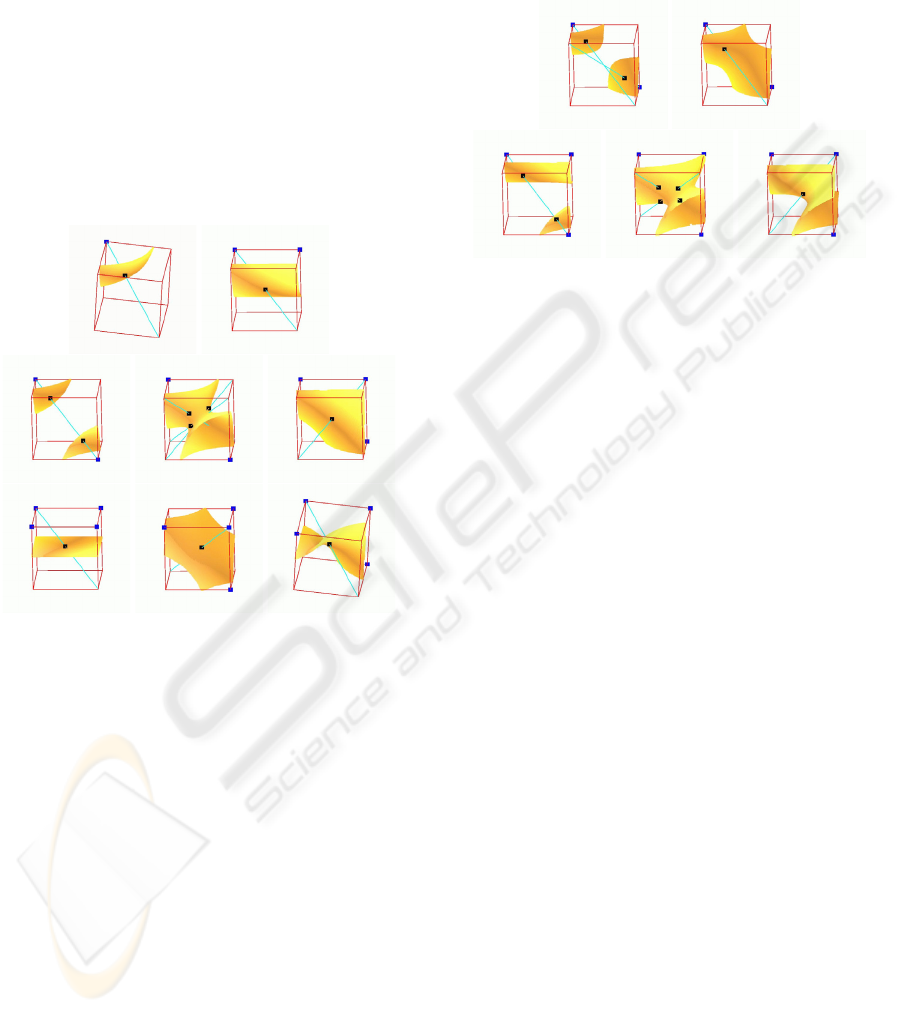

Figure 3: Topological conﬁgurations with no ambiguous

faces: trilinear model in yellow-orange, isopoints in black,

positive nodes in blue, rays in cyan.

Cases with One Ambiguous Face. Sign conﬁgu-

rations 3 and 6 have one ambiguous face each, as

shown in Figure 4. If a (+) cell has a (+) ambigu-

ous face (i.e., the same sign as the cell), then a sin-

gle isosurface component occurs; and if the (+) cell

has a (-) ambiguous face, then two isosurface com-

ponents occur. 3.1 and 6.1 are conﬁgurations where

there are two disjoint isosurface pieces, and 3.2 and

6.2 are conﬁgurations with a single isosurface piece.

In the case of 6.1, a same-sign ended diagonal inter-

sects the isosurfaces, and the vertices on the diagonal

may be internally connected (Nielson, 2003) to form

a tunnel. Thus, there are two subconﬁgurations 6.1.1

and 6.1.2, based on the absence and presence of a tun-

nel, respectively, and they are distinguished using the

DeVella’s necklace test. In the case of two isosurface

components and no tunnels (cases 3.1 and 6.1.1), for

a (+) cell, a (-/-) diagonal is used to obtain two inter-

section points. In case of 3.1, where there are no (-/-

) diagonals, two (+/-) diagonals are used to obtain an

intersection point each. For case 6.1.2, both (+/+) di-

agonals are used to obtain four intersection points on

the tunnel. In the case of a single isosurface compo-

nent, in cases 3.2 and 6.2, a (+/-) diagonal is used to

determine an intersection point.

case 3.1

case 3.2

case 6.1.1

case 6.1.2

case 6.2

Figure 4: Topological conﬁgurations with one ambiguous

face: trilinear model in yellow-orange, isopoints in black,

positive nodes in blue, rays in cyan.

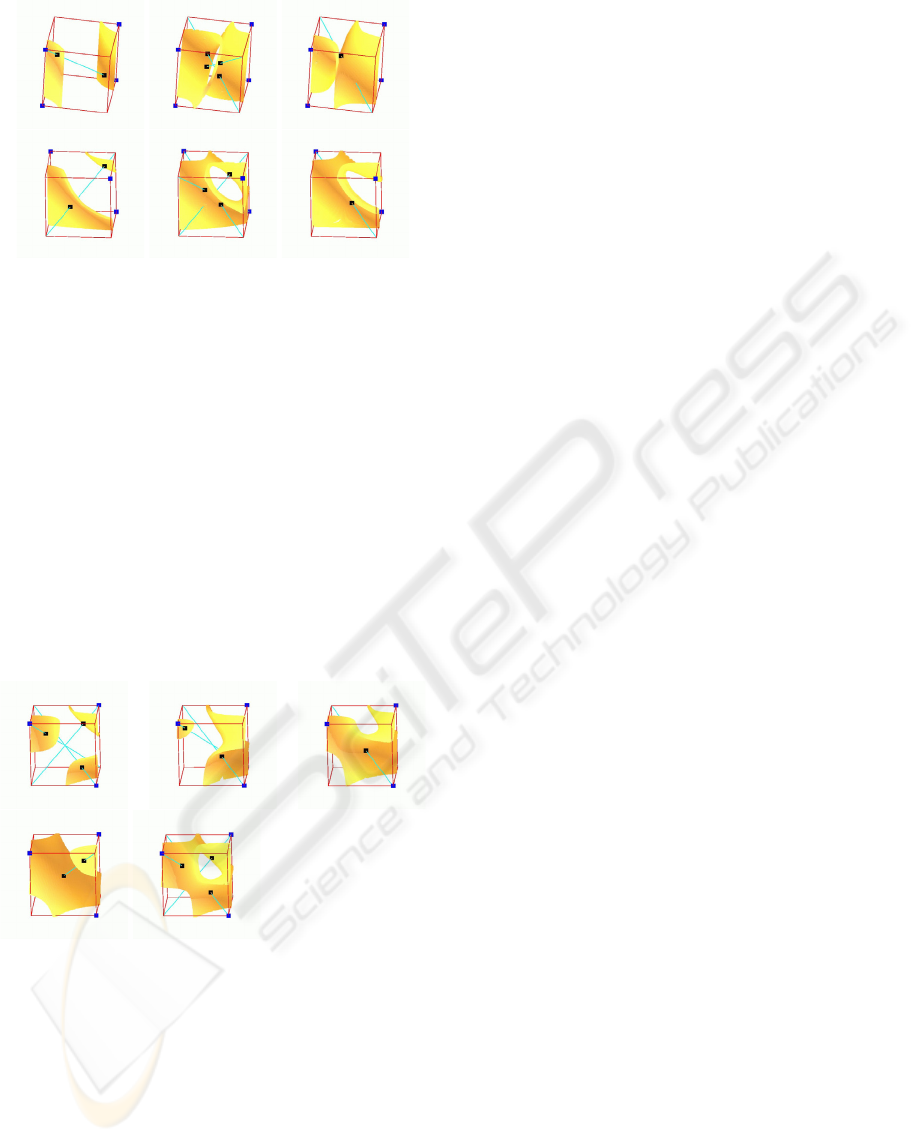

Cases with Two Ambiguous Faces. Sign conﬁgu-

rations 10 and 12 have two ambiguous faces, see Fig-

ure 5. In this case, there are two topological conﬁg-

urations based on the signs of the ambiguous faces.

If both ambiguous faces are separated with respect to

the same sign, then a same-sign ended diagonal of the

cell can intersect two disjoint isosurface pieces (cases

10.1.1 and 12.1.1), or the vertices of the diagonal can

be internally connected to form tunnels (cases 10.1.2

and 12.1.2). If the ambiguous faces are separated

with respect to different signs, then a single isosur-

face piece occurs (cases 10.2 and 12.2). In the case of

a single isosurface component (cases 10.2 and 12.2),

a (+/-) diagonal is used to obtain a single intersection

point. In the case of disjoint surfaces in a conﬁgura-

tion with two (+) ambiguous faces, a (+/+) diagonal

is used to obtain two intersection points. Similarly, in

the case of two (-) ambiguous faces and disjoint sur-

faces, a (-/-) diagonal is used. In the case of a tunnel

and two (+) ambiguous faces, two (-/-) diagonals (in

case 10.1.2) or one (-/-) diagonal and two (+/-) diag-

onals (in case 12.1.2) are used. A similar extension is

done for a tunnel and two (-) ambiguous faces.

Cases with Three Ambiguous Faces. Sign conﬁg-

uration 7 has three ambiguous faces, see Figure 6. In

a (+) cell, there are four possibilities of sign combina-

tions of the three ambiguous faces, represented in set

form as (1) (+,+,+), (2) (+,+,-), (3) (+,-,-), and (4) (-,-,-

). In conﬁguration 7.1, there are three (+) ambiguous

faces, which leads to three disjoint surfaces, and three

(+/-) diagonals are used as rays. In conﬁguration 7.2

with two (+) ambiguous faces and one (-) ambiguous

face, two disjoint surfaces are formed. In this case,

two (+/-) diagonals are used through the (+) vertices

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

38

case 10.1.1

case 10.1.2

case 10.2

case 12.1.1

case 12.1.2

case 12.2

Figure 5: Topological conﬁgurations with two ambiguous

faces: trilinear model in yellow-orange, isopoints in black,

positive nodes in blue, rays in cyan.

in one of the (+) ambiguous faces. These rays are

speciﬁcally used to ensure that one obtains one inter-

section point per surface. In conﬁguration 7.3, with

one (+) ambiguous face and two (-) ambiguous faces,

one surface occurs, and any one of the (+/-) diagonals

can be used. In conﬁguration 7.4 with three (-) am-

biguous faces, there are two disjoint surfaces. How-

ever, in this case the vertices on the (+/+) diagonal

can be internally connected to form a tunnel. Thus,

there are two topological subconﬁgurations, 7.4.1 and

7.4.2, with two disjoint surfaces and with a tunnel, re-

spectively. In case 7.4.1, a (+/+) diagonal is used to

obtain two intersection points. In case 7.4.2, all three

(+/-) diagonals are used to obtain three points on the

tunnel.

case 7.1

case 7.2

case 7.3

case 7.4.1

case 7.4.2

Figure 6: Topological conﬁgurations with three ambiguous

faces: trilinear model in yellow-orange, isopoints in black,

positive nodes in blue, rays in cyan.

Cases with Six Ambiguous Faces. Sign conﬁgura-

tion 13 has six ambiguous faces and four (+/-) diag-

onals, see Figure 7. There are seven possibilities of

sign combinations of the six ambiguous faces, which

are, (1) (+,+,+,+,+,+), (2) (+,+,+,+,+,-), (3) (+,+,+,+,-

,-), (4) (+,+,+,-,-,-), (5) (+,+,-,-,-,-), (6) (+,-,-,-,-,-),

and (7) (-,-,-,-,-,-). However, this can be reduced to

four cases, as (1) and (7), (2) and (6), and (3) and (5)

are pairs of mirror cases.

In conﬁguration 13.1 with all six (+) ambiguous

faces, four disjoint surfaces are formed and all the

diagonals are used. In conﬁguration 13.2 with ﬁve

(+) ambiguous faces and one (-) ambiguous face,

three disjoint surfaces are formed. Except for a diag-

onal through one of the two (+) vertices in the (-) am-

biguous face, all the other three (+/-) diagonals are

used. Speciﬁc rays are used in order to generate one

intersection point per surface piece. In conﬁguration

13.3 with four (+) ambiguous faces and two (-) am-

biguous faces, there are two disjoint surfaces. We ﬁnd

the (+) vertex that is common to all three (+) ambigu-

ous faces, and the (+/-) diagonal through this vertex is

one of the two rays used for isosurface computations.

Any one of the remaining three diagonals is used as

the second ray. In case of equal number of (+) and (-

) ambiguous faces, suppose A and B are two vertices

of the cell, such that A is common to all (+) ambigu-

ous faces and B is common to all (-) ambiguous faces.

AB is a diagonal of the cell. There are two possibil-

ities of this conﬁguration depending on the signs of

A and B. In conﬁguration 13.4, the sign of the com-

mon vertex is different from that of the faces (i.e., A

is a (-) vertex and B, a (+) vertex), and in conﬁgura-

tion 13.5, it is the same as that of the faces (i.e., A is a

(+) vertex and B is a (-) vertex). In conﬁguration 13.4,

there is one isosurface piece, and any one of the four

(+/-) diagonals can be used. In conﬁguration 13.5,

there can be three disjoint surfaces, which can reduce

to two, in case of internal connection. In conﬁguration

13.5.1, there are three disjoint surfaces, and three in-

tersection points are obtained from the (+/-) diagonal

through the common vertex of the three same-signed

ambiguous faces (i.e., AB). This is the unique case

where a (+/-) ray leads to three solutions. In conﬁg-

uration 13.5.2, two disjoint surfaces occur, of which

one is a tunnel. Hence, the diagonal through the com-

mon vertex of the three same-signed ambiguous faces

(AB) is used as a ray. The remaining three diagonals

are used as rays to ﬁnd isosurface points for the tun-

nel. Thus, all four diagonals are used in case 13.5.2.

However the difference in the diagonals used for the

two surfaces is to be stored for connectivity during

polygonization.

5 ALGORITHM

Our algorithm involves two major steps: (1) isosur-

face point computation and (2) triangulating the iso-

surface points.

We generate a look-up table for the choice of diag-

onals in each topological conﬁguration. This a priori

information saves a lot of computation time. Our al-

gorithm generates a vector or list of all the heteroge-

neous cells, and evaluates the topological conﬁgura-

tion of each cell. Based on its conﬁguration, the di-

USING RAY INTERSECTION FOR DUAL ISOSURFACING

39

case 13.1

case 13.2

case 13.3

case 13.4

case 13.5.1

case 13.5.2

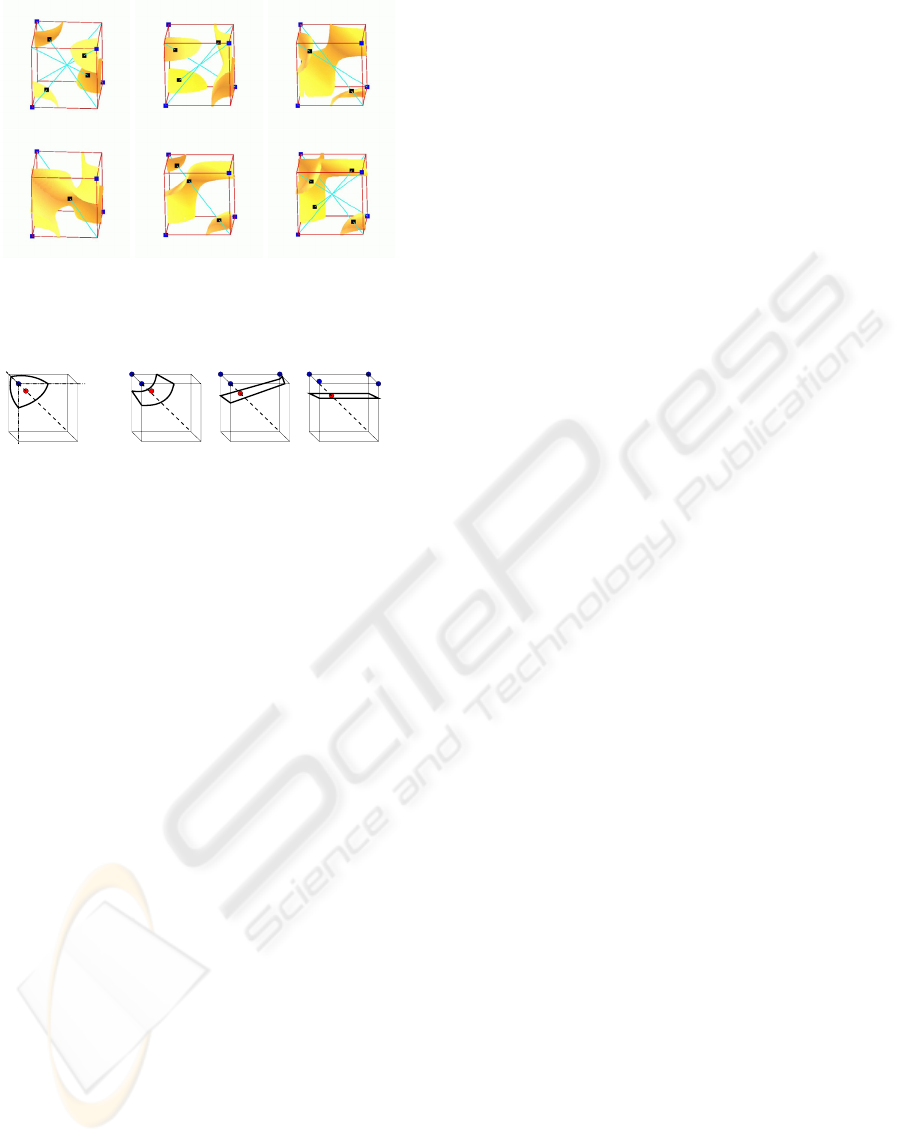

Figure 7: Topological conﬁgurations with six ambiguous

faces: trilinear model in yellow-orange, isopoints in black,

positive nodes in blue, rays in cyan.

e

A

e

e

(a)

A

B

(b)

B

A

B B

A

B

B

Figure 8: (a) Associations of isosurface point (in red) with

vertex A (in blue), which is the endpoint of the intersect-

ing diagonal closer to the isosurface (curved lines), and

the edges “e” containing A; (b) Conﬁgurations where iso-

surface point is associated with vertex A on the intersect-

ing diagonal, and additional associations between isosur-

face point and vertices, B, are made. Blue cell vertices are

associated with the red isosurface point, the bold dotted line

is the intersecting diagonal, and the curved boundary is the

isosurface.

agonals speciﬁed in the look-up table are used to ﬁnd

out the isosurface points.

We associate each isosurface point with an edge of

the cell, when the edge contains the end-point of the

diagonal (used for the respective intersection) near-

est to the isosurface point, as shown in Figure 8(a).

Certain conﬁgurations require additional associations

with vertices to make appropriate connectivity, see

Figure 8(b). The isosurface point is then associ-

ated with all the edges containing its associated ver-

tices. An edge is shared by four neighboring cells,

and thus, it can get associated with three or four

isosurface points (which are in different cells that

share the edge). The isosurface points associated

with an edge are connected to form one or two dis-

tinct non-overlapping triangles. This strategy is sim-

ilar to the connectivity used in earlier dual isosurfac-

ing works (Gibson, 1998) (Ju et al., 2002), and it re-

sults in a triangular mesh. In cases of tunnels, we

treat them as isolated cells with no neighbors and em-

ploy polygonization for its isosurface points indepen-

dently (Lopes and Brodlie, 2003).

We have applied the algorithm on some standard

datasets. Figure 1 and 9 show the resulting isosurfaces

in comparison to isosurfaces extracted using a state-

of-the-art MC method. Superposition of both surfaces

show their similarity.

6 CONCLUSIONS

We have presented a dual isosurfacing method based

on ray intersection to determine isosurface points.

Apart from having the typical advantages of dual ap-

proaches (being able to extract sharp features, gener-

ating nice triagulations, and being extendable to iso-

surface generation from adaptively reﬁned grids with-

out generating discontinuities), our algorithm gener-

ates topologically correct isosurfaces including tun-

nel cases and multiple isosurface components per cell,

computes exact points on the isosurface with respect

to trilinear interpolation, and does not require any nor-

mal information such as Hermite data.

The computation times of the points on the iso-

surface is considerably fast and comparable to the

performance of an MC algorithm. For the examples

shown in Figure 9, the computation times were 0.96s,

1.67s, 2.36s, and 4.08s (top to bottom). The perfor-

mance depends on the number of tunnel cases (e. g. 42

and 67 for the latter two examples). However, The

polygonization step still needs to be optimized. Using

efﬁcient data structures like kd-trees (Greß and Klein,

2003) would improve the performance of this method

tremendously. We also plan to generalize our method

for adaptive grids or irregular meshes. Other future

directions also include developing a meshless surface

construction from the isosurface points. Moreover,

we plan to analytically calculate the translation in

the axis, using the analytical trilinear model (Nielson,

2003), and employ the designated diagonals for inter-

section.

ACKNOWLEDGMENTS

This work was supported by the National Science

Foundation under contract ACI9624034 (CAREER

Award), through the Large Scientiﬁc and Software

Data Set Visualization (LSSDSV) program under

contract ACI9982251, through the National Part-

nership for Advanced Computational Infrastructure

(NPACI) and a large Information Technology Re-

search (ITR) grant; the National Institutes of Health

under contract P20 MH60975-06A2, funded by the

National Institute of Mental Health and the National

Science Foundation; and the U.S. Bureau of Reclama-

tion. We thank the members of the Institute for Data

Analysis and Visualization (IDAV) at the University

of California, Davis.

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

40

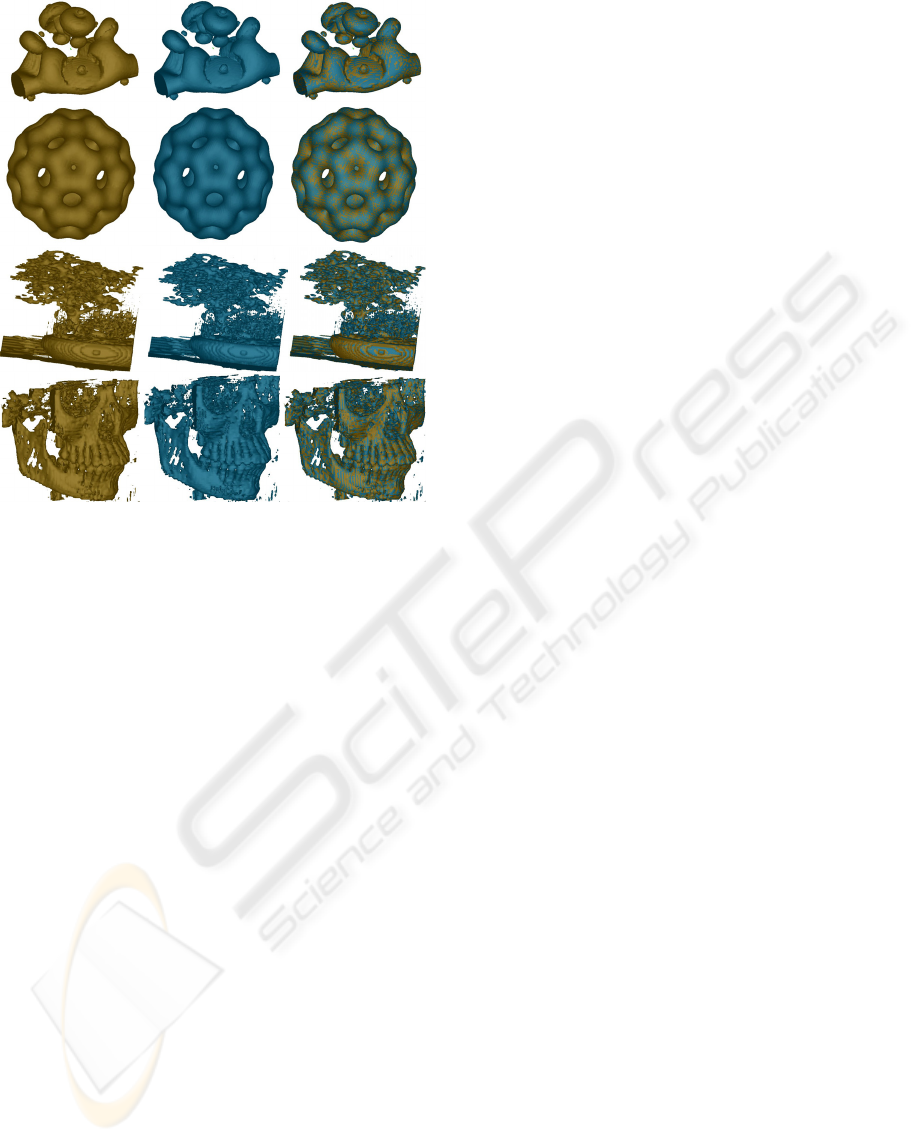

Figure 9: Dual contouring result (left), MC result (middle),

and comparisons of both surfaces by superposition for reg-

ular datasets of size 64x64x64 of Neghip (top) and Buck-

yball (second), and of size 256x256x256 (rendered in 1:4)

of Bonsai (third) and Skull (bottom). (Datasets available at

http://www.volvis.org.)

REFERENCES

Chernyaev, E. V. (1995). Marching cubes 33: Con-

struction of topologically correct isosurfaces.

In Technical Report CERN CN 95-17. CERN.

http://citeseer.ist.psu.edu/4145.html.

Co, C. S., Hamann, B., and Joy, K. I. (2003). Iso-splatting:

A point-based alternative to isosurface visualization.

In Rokne, J., Wang, W., and Klein, R., editors, Pro-

ceedings of the Eleventh Paciﬁc Conference on Com-

puter Graphics and Applications - Paciﬁc Graphics

2003, pages 325–334.

Gibson, S. F. F. (1998). Constrained elastic surface nets:

Generating smooth surfaces from binary segmented

data. In MICCAI ’98: Proceedings of the First In-

ternational Conference on Medical Image Computing

and Computer-Assisted Intervention, pages 888–898,

London, UK. Springer-Verlag.

Greß, A. and Klein, R. (2003). Efﬁcient representation and

extraction of 2-manifold isosurfaces using kd-trees. In

Proceedings of The Eleventh Paciﬁc Conference on

Computer Graphics and Applications - Paciﬁc Graph-

ics 2003. IEEE CS Press.

Ju, T., Losasso, F., Schaefer, S., and Warren, J. (2002). Dual

contouring of hermite data. In Proceedings of the 29th

annual conference on Computer graphics and inter-

active techniques - SIGGRAPH 2002, pages 339–346.

ACM Press.

Kobbelt, L., Botsch, M., Schwanecke, U., and Seidel,

H.-P. (2001). Feature sensitive surface extraction

from volume data. In Proceedings of the 28th an-

nual conference on Computer graphics and interac-

tive techniques-SIGGRAPH 2001, pages 57–66. ACM

Press.

Lopes, A. and Brodlie, K. (2003). Improving the robust-

ness and accuracy of the marching cubes algorithm

for isosurfacing. IEEE Transactions on Visualization

and Computer Graphics, 9(1):16–29.

Lorensen, W. E. and Cline, H. E. (1987). Marching cubes:

A high resolution 3d surface construction algorithm.

In Proceedings of the 14th annual conference on

Computer graphics and interactive techniques - SIG-

GRAPH 1987, pages 163–169. ACM Press.

Nickalls, R. W. D. (1993). A new approach to solving the

cubic: Cardan’s solution revealed. The Mathematical

Gazette, 77:354–359.

Nielson, G. M. (2003). On marching cubes. IEEE

Transactions on Visualization and Computer Graph-

ics, 9(3):283–297.

Nielson, G. M. (2004). Dual marching cubes. In VIS ’04:

Proceedings of the conference on Visualization ’04,

pages 489–496, Washington, DC, USA. IEEE Com-

puter Society.

Nielson, G. M. and Hamann, B. (1991). The asymptotic

decider: resolving the ambiguity in marching cubes.

In Nielson, G. M. and Rosenblum, L. J., editors, Pro-

ceedings of IEEE Conference on Visualization 1991,

pages 83–91. IEEE Computer Society Press.

Parker, S., Shirley, P., Livnat, Y., Hansen, C., and Sloan,

P.-P. (1998). Interactive ray tracing for isosurface ren-

dering. In VIS ’98: Proceedings of the conference on

Visualization ’98, pages 233–238, Los Alamitos, CA,

USA. IEEE Computer Society Press.

Press, W. H., Flannery, B. P., Teukolsky, S. A., and Vet-

terling, W. T. (1986). Numerical Recipes: The Art

of Scientiﬁc Computing. Cambridge University Press,

ﬁrst edition.

Schaefer, S. and Warren, J. D. (2004). Dual marching cubes:

Primal contouring of dual grids. In Paciﬁc Conference

on Computer Graphics and Applications, pages 70–

76.

APPENDIX A

The parametric equation for the isosurface (Equation (2)) in

Section 2 can be rewritten as:

F

i

(u, v, w, I)=Auvw+Buv +Cvw+Dwv +Eu+Fv+Gw+H,

(7)

where I is the given isovalue and T

ijk

= f(u

i

,v

j

,w

k

)

denote the vertices of a cell, see Figure 2(d). The values of

coefﬁcients are A = −T

000

+ T

010

− T

110

+ T

100

+ T

001

−

T

011

+ T

111

− T

101

, B = T

000

− T

010

− T

100

+ T

110

,

USING RAY INTERSECTION FOR DUAL ISOSURFACING

41

C = T

000

− T

010

− T

100

+ T

110

, D = T

000

− T

100

−

T

001

+ T

101

, E = −T

000

+ T

100

, F = −T

000

+ T

010

, G =

−T

000

+ T

001

, and H = T

000

− I. Let (u

r

0

,v

r

0

,w

r

0

) and

(u

r

1

,v

r

1

,w

r

1

) be the endpoints of the ray (in parametric

form). The intersection point is given, in parametric form,

by (u

∗

,v

∗

,w

∗

)=(u

r

0

+t∆u

r

,v

r

0

+t∆v

r

,w

r

0

+t∆w

r

),

where ∆u

r

= u

r

1

− u

r

0

, ∆v

r

= v

r

1

− v

r

0

, ∆w

r

=

w

r

1

− w

r

0

, and parameter t, 0 ≤ t ≤ 1, computed using

the ray equation (Equations (3) and (4)). The coefﬁcients

G

0

, G

1

, G

2

, and G

3

, of the cubic equation (Equation (4))

are obtained by using Equation (7), F

i

(u

∗

,v

∗

,w

∗

,I)=0.

G

0

= F

i

(u

r

0

,v

r

0

,w

r

0

,I),

G

1

= A(u

r

0

v

r

0

∆w

r

+ v

r

0

w

r

0

∆u

r

+ w

r

0

u

r

0

∆v

r

)+

B(v

r

0

∆u

r

+ u

r

0

∆v

r

)+C(w

r

0

∆v

r

+ v

r

0

∆w

r

)+

D(u

r

0

∆w

r

+ w

r

0

∆u

r

)+E∆u

r

+ F ∆v

r

+ G∆w

r

,

G

2

= A(u

r

0

∆v

r

∆w

r

+ v

r

0

∆w

r

∆u

r

+ w

r

0

∆u

r

∆v

r

)+

B∆u

r

∆v

r

+ C∆v

r

∆w

r

+ D∆w

r

∆u

r

, and

G

3

= A∆u

r

∆v

r

∆w

r

.

For the asymptotic decider test (Nielson and Hamann,

1991), one uses bilinear interpolation to compute a value

V = T

00

T

11

− T

01

T

10

− I(T

00

+ T

11

− T

01

− T

10

), for a

given isovalue I, see Figure 2(c). The test states that when

V<0, the isocontour is a rectangular hyperbola in the ﬁrst

and third quadrants, and when V>0, then the isocontour is

a rectangular hyperbola in the second and fourth quadrants.

DeVella’s necklace test states that if G[F

i

] < 0 and

DisC[F

i

] > 0, then there exists a tunnel in the cell (Niel-

son, 2003) for values G[F

i

] and Disc[F

i

] obtained from the

coefﬁcients of the isosurface equation(Equation (7)):

G[F

i

]=(AE − BD)(AF − BC )(AG − CD),

DisC [F

i

]=(AH)

2

+(BG)

2

+(CE)

2

+(DF )

2

−2ABGH − 2ACEH − 2ADF H − 2BCEG

−2BDF G − 2CDEF +4AE F G +4BCDH .

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

42
