GPRS-based Real-Time Remote Control of MicroBots

with M2M Capabilities

Diego López de Ipiña

, Iñaki Vázquez

, Jonathan Ruiz de Garibay

and David

Sainz

Faculty of Engineering, University of Deusto, Bilbao, Spain

Abstract. M

achine to Machine (M2M) communication is gathering

momentum. Many network operators deem that the future of the business on

data transmission lies on M2M. In parallel, the application of robotics is

progressively becoming more widespread. Traditionally, robotics has only been

applied to industrial environments, but lately some more exoteric (e.g.

domestic) robots have arisen. Anyhow, those robots usually offer very primitive

communication means. Few researchers have considered that a solution to this

issue would be to combine those two emerging fields. This paper describes our

experiences combining M2M with robotics to create a fleet of MicroBots,

which are remotely controllable through GPRS connection links. Those robots

can be used in dangerous environments to gather material samples or simply for

surveillance and security control. A sophisticated 3-tier architecture is proposed

that combined with a purposely built protocol, optimized for wireless

transmission, makes feasible the real-time control of remote m.

1 Introduction

Telemetry [1], i.e. remote monitoring and control of machines, is increasable

becoming popular. For instance, telemetry allows the operation of a whole factory to

be controlled from a single computerised station, accessible even remotely from the

factory premises.

The possibilities of Machine to Machine (M2M) [2] communication are ample.

Som

e application areas are: telemetry, data collection, remote control, robotics,

maintenance and security, logistics or telemedicine. For example, M2M is very useful

for vending machine providers to control when the stock in their machines needs

refilling. In fact, mobile telephony operators consider that wireless M2M may

definitely foster the consumption of data over their networks.

Robotics is slowly moving from exclusively industrial application domains to more

exote

ric fields, such as domestic [3] or air space [4] ones. The Mars Rovers,

unmanned land vehicles for exploration of the planet Mars, are probably the most

popular robots in the world. Those NASA produced robots posses sophisticated

communication mechanisms which have enabled them to send us pictures of the

surface of Mars. Unfortunately, most conventional robots have very primitive (if any)

communication mechanisms. The technology used for data transmission by the NASA

López de Ipiña D., Vázquez I., Ruiz de Garibay J. and Sainz D. (2005).

GPRS-based Real-Time Remote Control of MicroBots with M2M Capabilities.

In Proceedings of the 4th International Workshop on Wireless Information Systems, pages 42-51

DOI: 10.5220/0002567200420051

 SciTePress

robots is not commonplace. Thus, it would be interesting to correct this deficiency by

making use of readily off-the-shelf technology such as M2M and GSM/GPRS.

This paper describes our experiences combining the promising fields of robotics

and M2M, in order to achieve real-time telemetry over a GPRS data network. We

have named the deliverable of this research COMMunication MicroBots

(COMMBOTS, from now on).

The structure of this paper is as follows. Section 2 explains the COMMBOTS

concept. Section 3 describes the sophisticated multi-layer architecture designed for

COMMBOTS. Section 4 describes the MicroBot Protocol (MP) designed for the

wireless communication among Controls Stations and MicroBots. Section 5 offers

some performance results of the system. Section 6 reviews some related work.

Finally, Section 7 concludes the paper and suggests some further work.

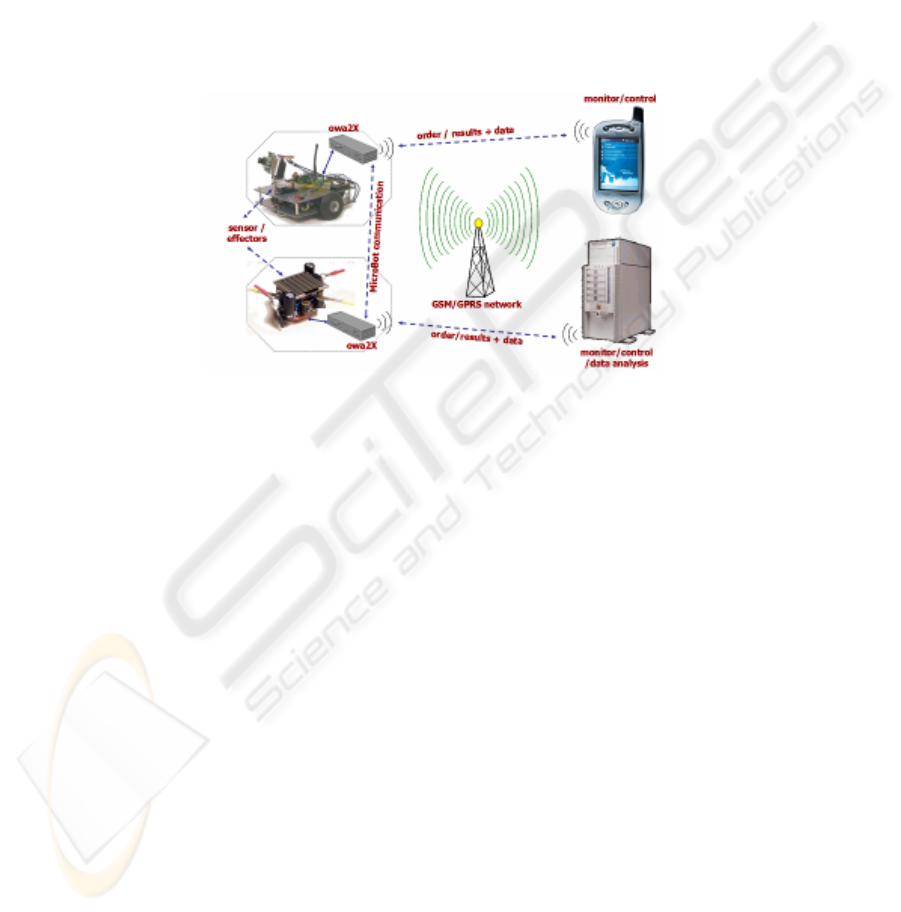

Fig. 1. COMMBOTS concept.

2 COMMBOTS

The COMMBOTS project aims to create a group of MicroBots equipped with mobile

communication and location (GPS) facilities. Those robots can be applied to carry out

emulations and activities in different environments, such as dangerous environments

where they can gather data and materials, or for surveillance and alarm control in

security zones.

Fig. 1 shows the two component types that constitute COMMBOTS: (1) MicroBots

and (2) Control Stations.

The MicroBots are devised to carry out diverse tasks, such as: obtaining and

measuring data by sensing, collecting samples, or recording and transferring images

to a central Control Station. A MicroBot is bundled with a mobile communication

module (GSM/GPRS), by means of which it can receive commands from the control

centres and send responses.

The Control Stations in COMMBOTS are available in two forms: (1) fixed stations

operated from a PC and (2) mobile ones operated from a PDA or mobile phone. These

Control Stations allow a user to monitor and control at anytime and anywhere the

whereabouts and actions of a fleet of MicroBots. Likewise, the MicroBots may notify

events of interest to the Control Stations (temperature too high, movement detected)

or delegate the processing of the data captured to third parties.

The major contribution of COMMBOTS is to combine the latest developments in

M2M and MicroBotics, to design a real-time remote control system operated over

public data networks (GPRS).

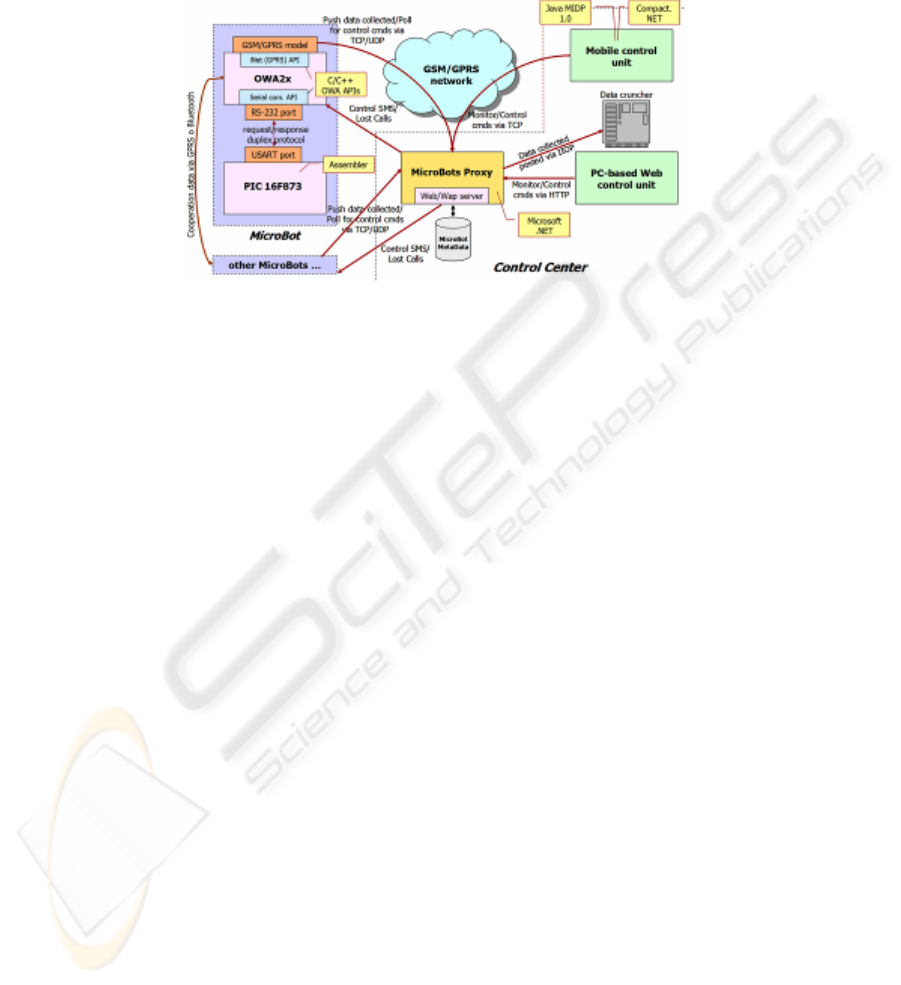

Fig. 2. COMMBOS concept.

3 The COMMBOTS Architecture

COMMBOTS presents a client/server/client architecture aimed to ease end-to-end

communication between Control Stations and MicroBots. Fig. 2 shows the different

components of this architecture together with the data and control flows exchanged

among them. In what follows, we detail those components: (1) MicroBots, (2)

MicroBots Proxy and (3) Control Stations.

3.1 MicroBots

Following the human body analogy, a MicroBot in COMMBOTS is composed of (see

Fig.3):

• Extremities, i.e. the wheels together with the engines that move them and give

mobility to the bot.

• Senses, i.e. sensors to capture information from its environment: luminosity,

temperature, images, and so on.

• Body, i.e. the framework that gives weight and stability to the bot and acts as

container of its different hardware components.

• Brain, i.e. the microcontrollers that manage the engines and sensors bundled with

the MicroBot, together with a communications module, such as the owa22A[2],

which allows data transmission with other robots and stations.

The control system of the MicroBot is composed by two entities which coordinate

their operation: a PIC16F873 [5] microcontroller, manufactured by MICROCHIP, and

the owa22A communication module, manufactured by OWASYS [2]. The

coordination between those two devices is achieved by a specially designed protocol.

This protocol uses 1 or 2 bytes long messages which are exchanged through the

RS232 ports of both devices.

Given the limited processing power of the microcontroller, the MicroBot’s CPU

intensive tasks are undertaken by the owa22A, equipped with a 60 MIPS CPU ARM7

and 2 MB RAM. The tasks undertaken by this module are: (1) communication

between the MicroBot and the MicroBots Proxy and (2) capture of digital images

from the attached CMUcam2 camera [6] and their compression before delivery. The

microcontroller undertakes simple tasks that would unnecessary delay the owa22A

module, such as control commands over the engines, sensors and effectors integrated

in the MicroBot.

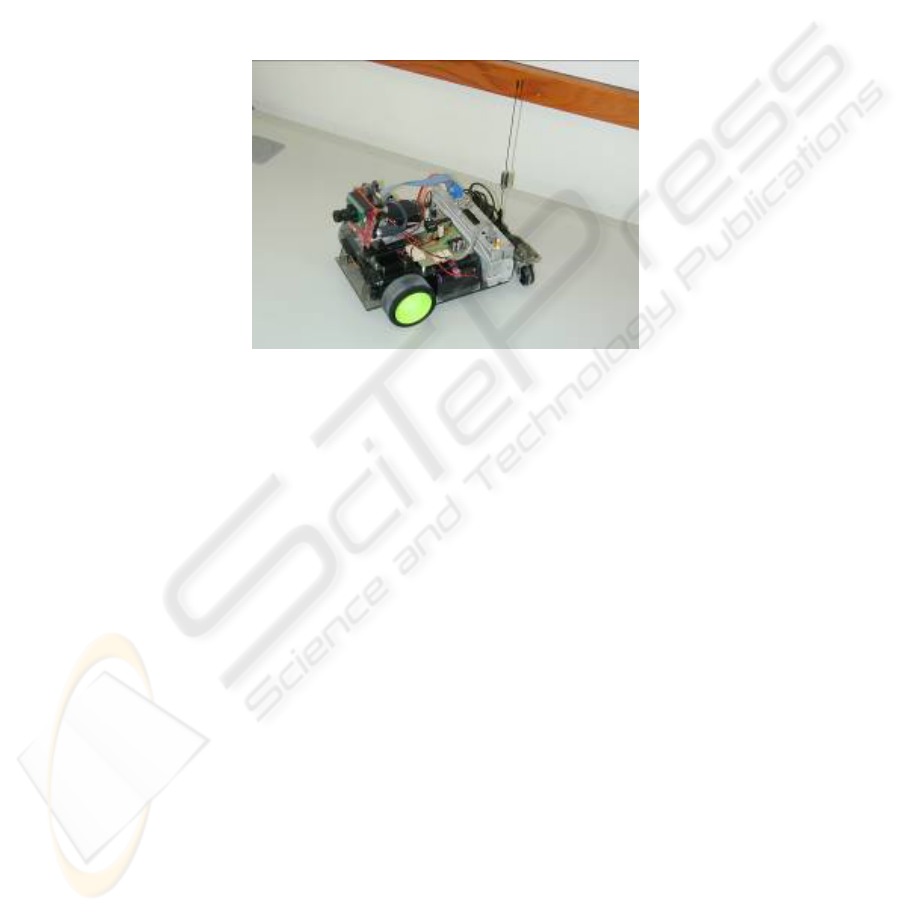

Fig. 3. The COMMBOTS MicroBot

3.2 MicroBots Proxy

The creation of this component which intermediates between MicroBots and Control

Stations is justified by the following reasons:

• The MicroBots operate under battery. Thus, it is convenient to reduce their power

consumption by avoiding having their communications modules actively listening

to requests.

• Many telephony operators assign NAT (Network-Address-Traslation) addresses to

GPRS connected devices. Those IP addresses are not accessible outside the

network operators LAN.

• Frequently, the mobile operators raise firewalls and other obstacles to avoid

connections to port 80 of GPRS mobile devices.

• Common functionality shared by both the static and mobile Control Stations can be

factored out and placed within the business logic of a single component, namely

the MicroBots Proxy. Thus, this component:

− Provides a cache to avoid redundant communications with the remote

MicroBots. The proxy caches the current status of the MicroBot, i.e. its latest

sensor values. So, the communication through GPRS will be reduced in one

step, minimizing the cost and reducing the latency.

− Ensures the fault tolerance of the MicroBot communications. In a transparent

fashion to the Control Stations, it is able to restart communications among itself

and the MicroBots.

The MicroBot communication module always initiates the connection with the

proxy. Between a communication module and a proxy the following three

connections are established:

1. Connection for the reception of MP commands and the delivery of responses. The

owa22A module, once the connection is opened, blocks waiting for the arrival of

commands.

2. Connection for the delivery of captured images. Once the MicroBot camera is

activated, the owa22A module continuously transmits images to the proxy, where

they are cached.

3. Connection for the delivery of alerts. Changes produced in the state of the

MicroBot (temperature, luminosity, battery status, etc.) are notified to the

MicroBots Proxy by means of this connection.

In order to prevent the MicroBot from having to keep opened a GPRS connection,

with the associated waste of battery power, even when a MicroBot is not being used

(controlled), the MicroBots Proxy allows for the delivery of control text messages,

which activate/deactivate and parameter the connection opened with the MicroBot

(e.g. the longest period a connection can remain opened). Moreover, the owa22A

modules have been programmed to connect/disconnect to the MicroBots Proxy when

they receive a lost call from the proxy phone number. The SMS messages and lost

calls are generated by a pair of web services we have made available at

http://www.ctme.deusto.es.

In essence, the MicroBots Proxy, acts as router of the requests arriving from the

Control Stations towards the MicroBots and, at the same time, propagates the data

generated by the MicroBots to the Control Stations.

3.3 Control Stations

The following varieties of Control Stations have been designed:

• The Web/WAP Control Stations transmit data through HTTP/WSP in XHTML or

WML format. The interface of these stations is generated dynamically by the web

component of the MicroBots Proxy. This web component uses the ASP.NET

Mobile Web Controls framework [7], which adapts the mark-up pages generated to

the target user agent (PC, PDA or mobile). Fig. 4 shows the same interface

displayed on a mobile WAP browser, a web browser in a PDA and a web browser

in a PC, respectively. Given that the browser in a Pocket PC emits the HTTP

Accept-Encoding: gzip, deflate header, i.e. it accepts XHTML

content in compressed format, the MicroBots Proxy web component compresses

the information before delivering it over GPRS.

• The Pocket PC Control Stations use TCP to transmit in binary MP commands to

the MicroBots Proxy. This component has been implemented with Compact.NET

[8], a .NET API for the development of applications in mobile devices. The left

hand side of Fig. 5 shows the appearance of the interface for Pocket PC.

• The J2ME Control Stations [9] run in every phone compatible with MIDP 1.0, i.e.,

in the majority of the currently sold mobile phones. The communication with the

proxy uses TCP sockets which transfer MP command and responses in binary

format. The right hand side of Fig. 5 shows the J2ME interface.

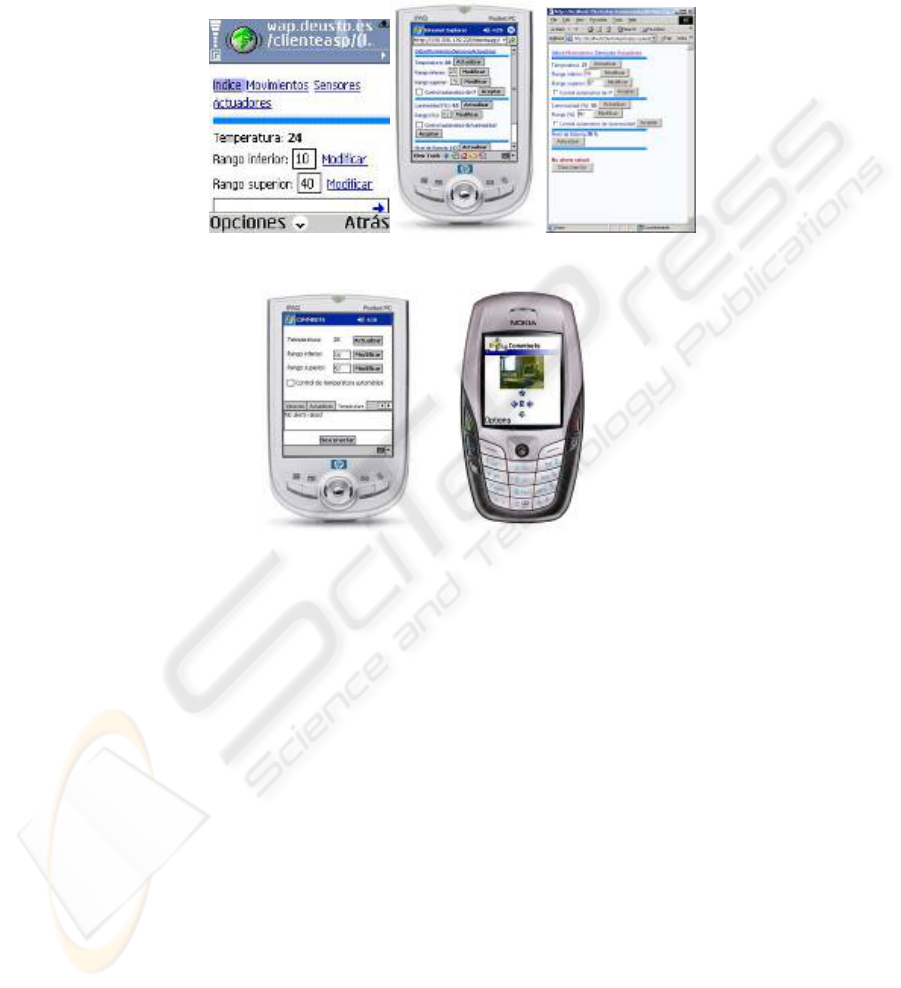

Fig. 4. Interfaces WAP (mobile) and web (PDA/PC) of a Control Station

Fig. 5. Compact.NET front-end for a PDA (left) and J2ME interface (right) for Control Station.

4 The MP Protocol

The data sent between the MicroBots Proxy and Control Stations, as well as between

the owa22A modules and the proprietary Control Stations (those not using a web

browser), conforms to the MicroBot Protocol (MP). Its design has followed a double

objective: (1) use the smallest size messages and (2) avoid every confirmation or

message communication not strictly necessary. This is to (1) incur in the minimum

possible GPRS costs and (2) to reduce the required bandwidth as well as the

communication latency.

MP follows the WBXML (WAP Binary XML) [10] principles to reduce the size of

the messages. The command/response latency is improved by minimizing the

messages delivered. A well known fact is that TCP in wireless environments behaves

better with few bigger segments that many small ones [11]. TCP was designed for

wired networks where latency is not a paramount factor, unlike the wireless case.

The MP commands are classified in three categories:

1. Movement commands.

• Nine different movement actions (left forward, forward, right forward, left, stop,

right, left backward, backward and right backward) are available.

• The speed can be set to fast, normal or slow.

2. Sensor commands.

• Temperature: commands to retrieve the current temperature and to set a

notification alarm when the temperature moves outside a range. The user may

activate the automatic temperature control by setting an upper and lower range.

• Luminosity: commands to retrieve the current luminosity level and to set the

automatic luminosity control.

• Anti-collision: commands to activate/deactivate the collision detection control,

which prevents the MicroBot from colliding against walls and obstacles

• Batteries: commands to retrieve the current battery value and receive alerts

when the value is under a threshold.

3. Effector commands.

• Digital camera: commands to retrieve the images captured by the CMUcam2

camera attached to the RS-232 port of the owa22A, and to move it around. The

MicroBot can move the camera up, left, center, right and down.

• Lights: commands to explicitly or implicitly (when the luminosity is below a

threshold) switch on/off the lights of the MicroBot.

The following MP commands are sent between the Control Stations and the

MicroBots Proxy, and between this latter one and the MicroBots:

• MODULE, STATION: it allows a client (module or station) to connect with the

proxy. The telephone number of the module connecting or to connect to will be

specified. For instance: MODULE +34609421898.

• LIST: it enumerates all the sensors and effectors allowed in the MicroBot.

• GET <control-element> [<param>(,<param>)*]: indicates the

sensor to obtain information from. For instance, GET TEMP_LOW_VALUE or

GET MV_MC_UP.

• SET <control-element> [<param>(,<param>)*]: indicates the

element to control and the values to assign. For instance, SET

TEMP_LOW_VALUE 20

On the other hand, the MicroBots respond to commands in the following format:

<response-code> <response-msg> CR-LF

Content-Length: <response-size> CR-LF

message-body

Noticeably, the MP format is very similar to HTTP [12]. However, the body of the

message will be delivered in binary format for performance reasons. It is not required

to specify the MIME type of the response, because each request waits for a response

in a predefined manner. Only the Content-Length header is required to facilitate

processing. The <response-code> in the answer indicates whether the request

was satisfied or not.

MP is a very simple and easily extensible protocol. By means of the LIST

message, all the elements which can be configured (SET command) and queried (GET

command) can be retrieved. The LIST <control-element> command

enumerates all the parameter types allowed to configure and retrieve data from a

control element.

5 Test Results

Table 1 illustrates the average latencies encountered while issuing MP movement

commands to a MicroBot from three different Control Stations: (1) the WAP browser

of a Nokia 6600 mobile, (2) the proprietary client running on a TSM 500 Pocket PC

and a (3) MIDP client running on a Nokia 6600. Observe that the best results are

obtained by using the MIDP client in the mobile phone, probably due to a more

efficient implementation of the TCP/IP stack in the mobile phone than in the PDA.

The worst results are obtained by the web client. Obviously, this is due to the fact that

apart from the commands and their responses, it is necessary to deliver the mark-up of

the pages to visualize. Moreover, the data transfer goes over HTTP, a level higher in

the protocol stack than TCP (used by the proprietary clients).

On the other hand, Table 2 compares the latency encountered in the transfer of an

image from the MicroBots proxy to the proprietary Control Stations via TCP and to

the web client through HTTP. Evidently, the best results correspond to the proprietary

clients using the MP protocol over TCP rather than the less efficient HTTP.

Table 1. Delivery of movement commands (50 bytes in size) between Control Stations and

MicroBots.

Device Mean (secs) Standard Deviation (secs)

Mobile Phone MIDP 1.0 (TCP) 2.68 1.23

PDA Compact .NET (TCP) 4 1.67

PDA Web (HTTP) 5.54 1.36

Table 2. Delivery of a 2.3K image between the MicroBots Proxy and the Control Stations.

Device Mean (secs) Standard Deviation (secs)

Mobile Phone MIDP 1.0 (TCP) 3.89 2.05

PDA Compact .NET (TCP) 3.724 2.722

PDA Web (HTTP) 6 1.91

6 Related Work

The PocketCERO [13] project has devised PDA interfaces that allow service robots,

those that assist people with special needs (e.g. elderly people), control the elements

in their environment. The COMMBOTS system was thought with a more industrial

purpose in mind. However, we are currently working on the definition of a new kind

of COMMBOTS, denominated CareBot, which will fulfil a similar care taking role.

The special requirements of the mobile communications with robots have been

studied thoroughly by other authors [14], which have also considered the use of

WAP-enabled phones for robot telemetry [15]. We have followed their guidelines in

the design of our MP protocol.

The KDDI mobile operator has also considered the combination of mobile phones

and microbots with Pirkus [16], a Bluetooth mobile phone controlled robot. In

COMMBOTS, we use GPRS instead, since it allows the control of microbots from

remote locations. This approach was previously followed by Fujitsu’s Maron [17], an

internet-enabled home robot capable of undertaking remote household monitoring,

remote control of household appliances, or to serve as a hands-free phone.

7 Conclusion and Further Work

With the implementation of COMMBOTS we have experienced the enormous

potential brought forward by the combination of two emerging fields: Robotics and

M2M communication. COMMBOTS has demonstrated the feasibility of adding

flexible, off-the-shelf, always available communication mechanisms to MicroBots.

Our research prototype should now be transferred to industrial applications. For

instance, the integration of M2M communication modules extended with sensors in

machines could allow their manufacturers to undertake preventive maintenance. They

could remotely check the “health” of a machine sold and send the required technical

staff to repair the problems even before the customers reported them. COMMBOTS

may be used as basis for future research projects aiming to remotely control and

monitor, in real-time, MicroBots or coordinated-machinery from a Control Station via

public communication networks (GSM/GPRS).

A useful extension of COMMBOTS would be to enable the utilisation of local

communication technology (PAN networks) when the control stations and the

Microbots are close to each other (within Wi-Fi or Bluetooth range). Moreover, the

cooperation among communicating microbots could be considered.

Our development of different wireless clients for COMMBOTS has allowed us to

study the feasibility of achieving real-time control of remote devices by means of

GPRS. The results obtained have shown that the control through web/WAP from a

mobile station is not feasible when real-time responses are required. Hopefully, when

UMTS data connections become the norm this issue will be solved. However, the

design of a protocol specially catered for wireless communication together with the

optimizations and caches of the central component in our 3-tier architecture, namely

the MicroBots Proxy, have shown that the real-time control of remote devices by

means of GPRS is possible from wireless Control Stations. The results and source

code of the COMMBOTS system are publicly available at [18].

Acknowledgements

This work has been financed by a SAIOTEK 2003-04 grant from the Basque

Government. In its implementation we have used resources facilitated by the Cátedra

de Telefónica Móviles at the University of Deusto (http://www.ctme.deusto.es).

References

1. Telemetry definition, Wikipedia, http://en.wikipedia.org/wiki/Telemetry, 2004

2. OWASYS owa2x M2M modules Family, http://www.owasys.com/en/

BOK_100_1000_R3D.pdf, 2004

3. When Robots Rule the World, http://www.wired.com/news/technology/0,1282,65408,00.

html, Wired News, October 2004

4. Mars Exploration Rover Mission, http://marsrovers.jpl.nasa.gov/home/, NASA, 2004

5. Microchip PIC 16F87X Data Sheet, http://ww1.microchip.com/downloads/en/DeviceDoc/

30292c.pdf, Microchip Technology, 2001

6. The CMUcam2, http://www-2.cs.cmu.edu/~cmucam2/, Robotics Institute, Carnegie Mellon

University, 2004

7. Microsoft ASP.NET Home Page, http://asp.net, Microsoft Corporation, 2004

8. Mobile Application Development Toolkit, http://www.microsoft.com/downloads/

details.aspx?FamilyID=f4328333-0fd4-4348-88c0-39d10fb64f0a&DisplayLang=en,

Microsoft Corporation, 2004

9. Java 2 Platform, Micro Edition (J2ME), http://java.sun.com/j2me/, Sun Microsystems,

2004

10. WAP Binary XML Content Format, http://www.w3.org/TR/wbxml/, W3C, June 1999

11. Xylomenos G., Polyzos G. and Mahonen P. TCP Performance Issues over Wireless Links,

IEEE Communications Magazine, April 2001

12. Hypertext Transfer Protocol, http://www.w3.org/Protocols/, W3C, 2004

13. Hüttenrauch H. and Norman M, PocketCERO – Mobile Interfaces for Service Robots.

Proceedings of Mobile HCI 2001: Third International Workshop on Human Computer

Interaction with Mobile Devices, Dunlop, September 2001

14. Gage, D.W, Network Protocols for Mobile Robot Systems, SPIE Proceedings, 3210.

Presented at Mobile Robots XII, Pittsburgh, PA, 14-17 October, 1997

15. Sgouros N. and Gerogiannakis S., Integrating WAP-Based Wireless Devices in Robot

Teleoperation Environments, Proceedings of IEEE ICRA 2002, pp. 1191-1196, ISBN 0-

7803-7273-5}, 2002

16. Pirkus: Bluetooth Mobile Phone Controlled Robot,

http://www.blueserker.com/html/modules.php?op=modload&name=News&file=article&si

d=290&mode=thread&order=0&thold=0, 2005

17. Fujitsu, PFU Launch Initial Sales of MARON-1 Internet-Enabled Home Robot to Solutions

Providers in Japan Market, http://pr.fujitsu.com/en/news/2003/03/13.html, 2003

18. COMMBOTS website, http://www.ctme.deusto.es/COMMBOTS, Universidad de Deusto,

2004
