Unsupervised Filtering of XML Streams

for System Integration

Ingo L

utkebohle, Sebastian Wrede and Sven Wachsmuth

Faculty of Technology, Applied Computer Science

Bielefeld University, P.O. Box 100131, 33501 Bielefeld, Germany

Abstract. In the last years, computer vision research is more and more shift-

ing from algorithmic solutions to the construction of active systems. One novel

approach to system construction combines data- and event-driven architectures,

concentrating on the ﬂow of information between components. A challenge in

data-driven architectures is to optimize communications behavior without chang-

ing component implementations. For example, in computer vision, a common

problem is that low-level components produce many very similar results whereas

on a higher level, only signiﬁcant changes are of interest. This distinction can be

deﬁned as a pattern recognition task that analyzes the data ﬂow in the system.

In the following, we will ﬁrst give a short introduction into the architecture, then

describe a generic solution for data-ﬂow reduction based on XML distance met-

rics. We present ﬁrst results on the application of this component in an integration

framework for a vision-based Human-Computer-Interface within an augmented

reality scenario.

1 Introduction

Most systems in computer vision are realized as a single multi-stage process mapping

images to higher-level descriptions. While this is sufﬁcient for speciﬁc pre-deﬁned ap-

plications in constrained settings, more general vision systems need to combine differ-

ent multi-stage components like object and action recognition, tracking, self-localization,

or scene analysis [1]. From a system engineering perspective, the decoupling of these

components is a key issue in the construction of more ﬂexible, multiple-purpose vision

systems [2]. However, the decoupling of processing components leads to a high commu-

nication load of the system. Lower level modules need to serve different purposes and,

therefore, permanently run on a maximum updating frequency. For example, in interac-

tive vision scenarios like augmented reality applications, object recognition results are

used for multiple purposes like recognizing action contexts, scene classiﬁcation, initial-

ization of tracking, scene labelling, etc. In order to control the data ﬂow in such systems,

a generic framework functionality has to be developed which dynamically reduces data

volume while keeping relevant information with regard to higher-level components.

Ahmad K. (2005).

Selective Visual Attention in Electronic Video Surveillance.

In Proceedings of the 5th International Workshop on Pattern Recognition in Information Systems, pages 204-212

DOI: 10.5220/0002564302040212

 SciTePress

1.1 VAMPIRE - An Interactive Vision Scenario

Within the VAMPIRE

project a generic system integration platform for interactive

cognitive vision systems is being developed. The project aims at the realization of a

personal augmented reality assistant including capabilities for localisation, context-

awareness, online learning, and information retrieval [3]. The current demonstration

system serves as a basis for implementing and evaluating our approach for compacting

data.

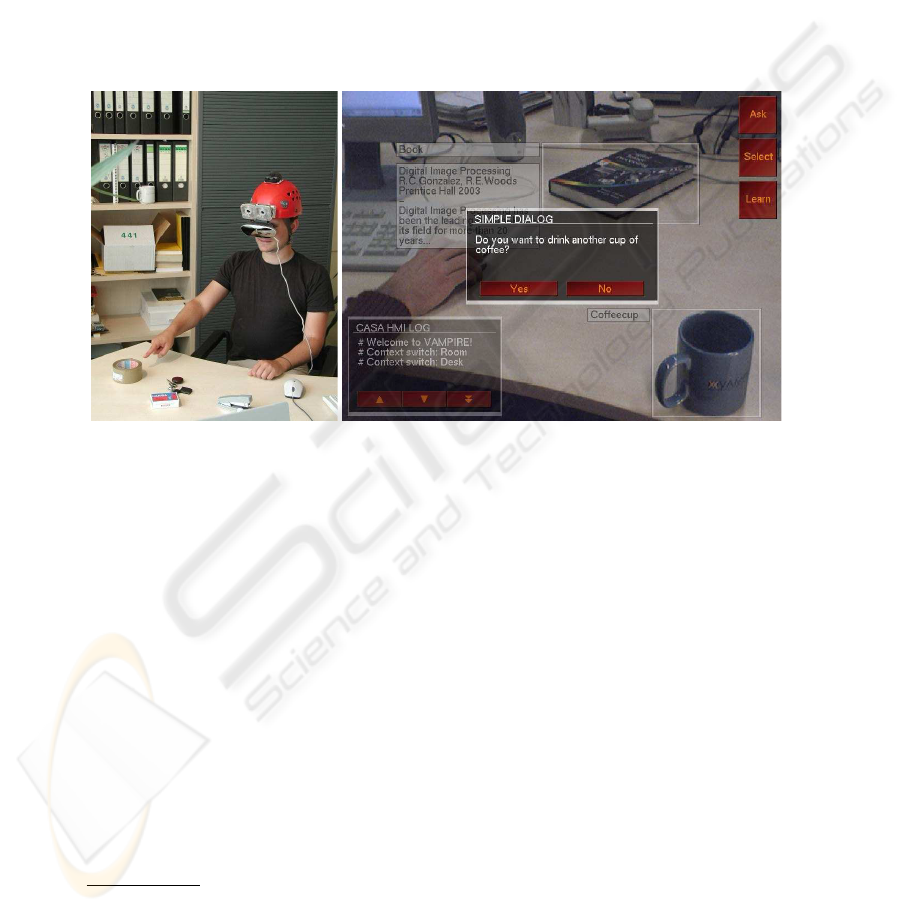

Figure 1(a) gives an impression of the user interacting with the system in an ofﬁce

environment in which the scene is observed from the users viewpoint by the two Fire-i

cameras being part of the augmented reality kit worn by the user.

(a) AR-Kit for HCI (b) Exemplary view through HMD

Fig.1. User with AR-Kit; Augmented scene as displayed in the users HMD.

Figure 1(b) shows a scene augmented by object recognition results and dialog dis-

plays. For the object recognition task, a two-way strategy is chosen: The detection of

objects with a common and only slightly varying appearance is achieved by a detec-

tor which is quite similar to the one introduced by Viola and Jones [4]. For a fast and

online trainable object recognition, VPL classiﬁers are applied [5]. Further recognition

modules provide complementary data, e.g. about the users head pose or his 3D position.

The additional information displayed to the user depends on the predicted intention of

the user which is inferred by contextual analysis [6]. For more details, see [7].

In this scenario, the goal is to increase the overall responsiveness of the system

by compacting the ﬂow of processing results reported by the various components, e.g.

symbolic object recognition results. They are input to the compacting component. Be-

sides the symbolic content, object hypotheses include a number of meta-level variables

like position, time, or reliability.

The developed approach has to ﬁt similar needs as the system integration framework

developed for VAMPIRE, i.e. ease of use, ﬂexibility to arbitrary data structures, and

Visual Active Memory Processes and Interactive REtrieval

205

independence of speciﬁc processing components. The system integration framework

will be described in section 2. XML messages form the basis of communication in

that approach. Because XML data is coding its own structure, the compacting method

can be realized as a framework component. A generic, XML-based similarity metric to

compare data is described in section 3 and the compacting approach using that metric

in section 4. Finally, we show some ﬁrst studies and evaluation results in the VAMPIRE

system and discuss future work. Prior to that, we will now give a short overview of

related work in the area of system integration for vision systems and analysis of XML

streams.

1.2 Related Work

Different approaches and tool-kits have been proposed to support the system and knowl-

edge engineering tasks that come along with a speciﬁc application [8–11]. However,

most of these suffer from overly rigid control strategies, narrowly deﬁned domains,

and/or insufﬁcent support for distributed asynchronous processing and integration of

externally developed modules. Resource control is typically centralized, contradicting

distributed and asynchronous processing needs. Although more ﬂexible computer vi-

sion frameworks have been proposed recently [12] or are under development [13, 14],

there is a huge need for computer vision frameworks that facilitate data integration and

reasoning over certain periods of time as well as offer meta-level reasoning capabilities

for unsupervised resource control.

As the high-level messages exchanged in our system are XML-based, XML forms

the input to our compacting process. The importance of structural information is em-

phasized by [15] who show that tags cannot simply be added to the content feature-set.

Both [16] and [17] use tree-edit distances, the former on streams, the latter on heteroge-

nous document collections. In both cases, structural differences are considered crucial

for the comparison. Additionally, [18] makes uses of tree-edit information to create

merged representative documents.

We do not compute tree-edit distances, but interpret XML elements as annotations

of the content. Nesting is taken to convey semantic differences between content while

element names and hierarchy are used to identify matching points where meaningful

comparison is possible. One could say that we take the “mark-up” metaphor for XML

quite literally.

Prior work on distance metrics for structured data will be discussed with the algo-

rithm proposed in section 3.

2 Active Memory Infrastructure

Accompanying the development of all the recognition processes described in section

1.1, a system architecture had to be developed which allows for a ﬂexible connection

of all these components. This task led us to the development of a generic software

framework for integration of computer vision systems, the Active Memory Infrastruc-

ture (AMI).

206

The interactive application scenario imposes several constraints on the software

framework. System components should be able to exchange data with soft real-time

performance and to memorize episodes, events and scenes. Given these requirements

we focussed on a shared repository and the distribution of algorithms. The AMI frame-

work consists of (1) the XML enabled Communication Framework (XCF) [19] that

allows to distribute components over several computing nodes, (2) the Active Memory

server and interface for coordination and data management, and (3) a supporting library

named XMLTIO that supports users with an XPath-based API for simple XML process-

ing. Although written in C++ for performance reasons, there are also bindings for Java

and Python. The complete integration software is licensed under the GPL and available

for download at Sourceforge [20].

Object

Recognition

Viola&Jones

Object

Recognition

VPL

Head-Pose

Analysis

Contextual

Analysis

Action

Recognition

Event

Matching

Compacting

Filter

Active Memory

Interaction

Controller

Fig.2. Exemplary data-ﬂow in the AMI.

Focussing on great ﬂexibility and ease of use, all information ﬂow (e.g. object

recognition results) within the VAMPIRE components is based on XML documents

that can reference attached binary data (e.g. images). XCF supports (non-)blocking re-

mote method invocation and publisher-subscriber communication semantics. Exposed

methods are bound and invoked dynamically, with schemas optionally providing run-

time type safety. The ICE communications engine forms the basis of this component

and was chosen for its high performance, especially low latency calls.

XML data like objects, actions or 3D locations and binary data like mosaics of

detected planar regions are fed into an active memory server and can be retrieved

via XPath statements. Coordination between the components is provided by a ﬂexi-

ble event-notiﬁcation mechanism. The event manager of the active memory server is

co-located with the persistence back-end, a native XML database, the Sleepycat DB

XML. Event subscriptions can specify an XPath to narrow down documents of interest.

Coordination is thus data-driven and not dependent on the presence of speciﬁc compo-

nents.

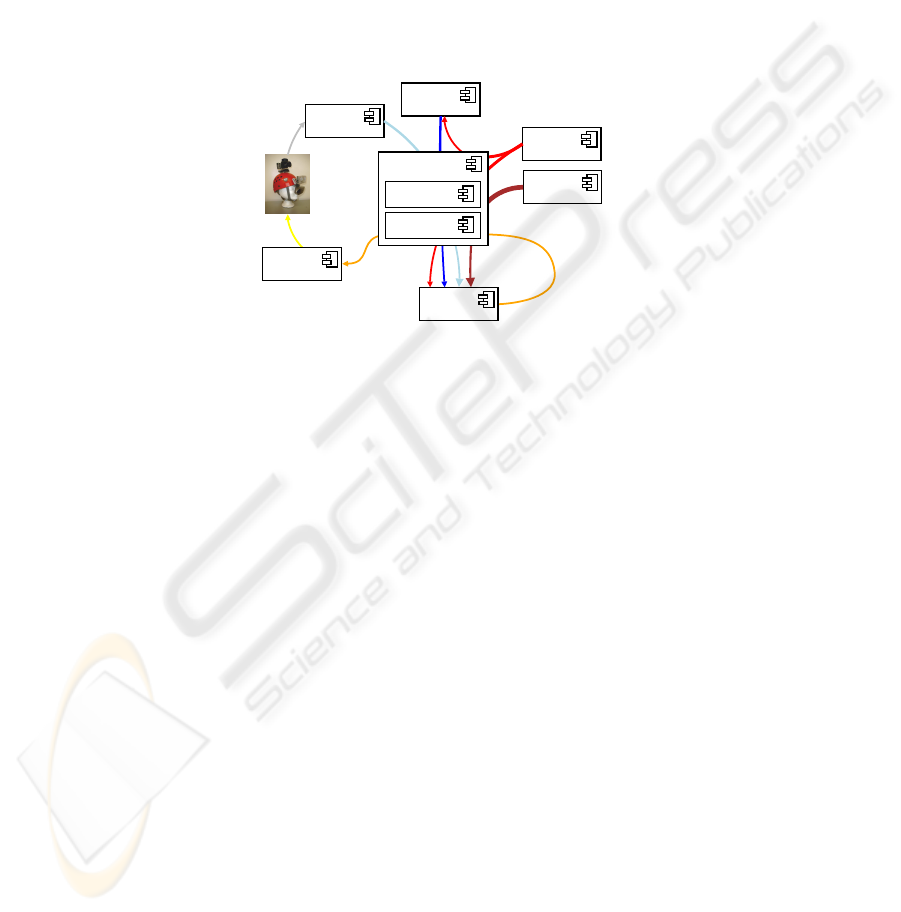

A prototypical part of the system that exempliﬁes data ﬂow and interaction between

different components and the active memory is given in ﬁgure 2. As shown in picture

3(a) parts of the transmitted data may be false when the user looks around, other data

may be redundant 3(b), e.g. when the user gazes at a static scene. In this situation object

recognition will work well and send nearly identical object recognition results at 50Hz.

Both, redundant and obviously false recognition results consume resources of the sys-

tem in terms of network bandwidth and overall system performance. The question how

207

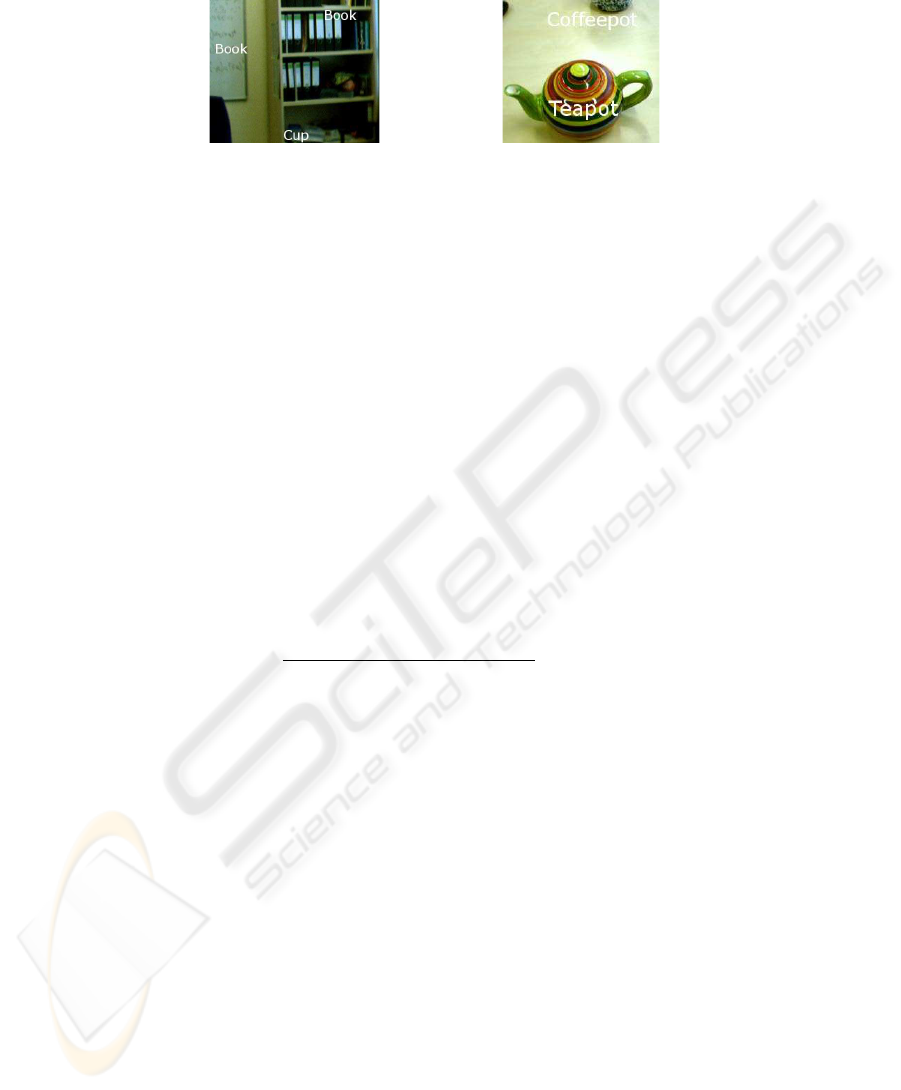

(a) Moving (b) Gazing

Fig.3. Typical object recognition results in an unconstrained environment.

to compact processed information and detect relevant changes in the streams of XML

information with a generic framework component will be answered in the following.

3 XML Kernel

We propose a similarity measure that includes a data integration mechanism and can

thus process data from a variety of sources coherently. It uses the label information in

XML document trees, the element name, to identify comparable values and to transpar-

ently handle missing, repeated or re-ordered occurrences of an element or sub-tree.

In any data integration task, care must be taken not to mix up data with different

semantics. E.g., in object recognition, the coordinates of an object and its label are not

on the same abstraction level. We therefore exploit nesting as a generic indicator of se-

mantic differences, taking advantage of an existing and established way of formulating

this crucial bit of information.

The similarity measure forms a kernel. It has been shown that many machine-

learning methods can be kernelized in a straightforward manner, either by using the

kernel in place of the scalar product or through a distance measure constructed from the

kernel, e.g. d(x, y) =

K(x, x) − 2K(x, y) + K(y, y) [21].

3.1 Kernel Over XML Documents

An XML document is a labeled tree rooted at the document node. In the following,

for a node n, let L(n) be its label, V (n) its value and C(n) be the set of children and

attributes. In the XML infoset, only attributes and text nodes have a value assigned but

for the purposes of this paper, we take element value to be composed of the immediate

text nodes:

Deﬁnition 1 (element value). The value of an element n with level l is the concatena-

tion of all text nodes with root n and level l + 1.

For the kernel deﬁnition, two cases are special: The empty comparison and non-

matching labels. For these, k(0, 0) = 1 respectively L(s) 6= L(t) : k(s, t) = 0.

For nodes, we adopt the idea of G

artner et al. [22] to exploit possible functional

dependencies by combining the similarity of parent and children:

k(s, t) = k

L(s)

(V (s), V (t))k(C(s), C(t))

208

Nodesets, despite the name, have document order but may be treated as both a set

or a list, with the corresponding kernels (and using the above). For sets: k(u, v) =

i,k

, v

) and for lists: k(u, v) =

k(u

, v

). Last, but not least, for basic nu-

meric values, a Gaussian: k(a, b) = e

−|a−b|

and for strings, a Hamming similarity:

k(m, n) = 1/k

i=1

δ(m

, n

) is applied.

4 Compacting Data Flows

To reduce the burden of redundant and/or bad results we ﬁlter elements in the Active

Memory. Firstly, the amount of new information present will be estimated and only if

the change is big enough elements will be forwarded for further processing. Secondly,

elements are clustered. When a close group is found, it is updated, otherwise a new

group will be created. This is called compacting.

Compacting at the framework level allows us to take advantage of global informa-

tion, e.g. when two redundant recognizers are present. For the implementer, it is beneﬁ-

cial to have a dedicated component for relevancy detection that can be changed to adapt

to new challenges. Last, but not least, our approach allows components to selectively

bypass compaction to receive all elements.

4.1 Detecting Relevant Elements

Detection of relevant elements requires an indication of the amount of new information

contained, relative to the elements already present in the memory. We use the violation

of the present clustering to determine signiﬁcance: New clusters are considered relevant.

To determine this, we observe the minimum distance between a new element and the

existing clusters over time and estimate the change using a moving average for the

parameters of a normal distribution p

∼ N

µ,σ

Let I be the current number of elements, and d

the minimum distance observed at

element number i, then the sample mean is ¯µ

i=I−k

and sample variance

analogous. A new cluster is created if p

i+1

) < t.

The parameter k allows for adaption to the result rate of the system, in our experi-

ments it is based on frame rate. t has been chosen constant (0.05), with the variability

in the system captured by the density p

4.2 Online Clustering

In the VAMPIRE system, elements arrive one-by-one, not batched and due to user inter-

action stationarity can only be assumed short-term. The relevancy detection determines

creation of new clusters but aims at fast reaction time more than at clustering quality and

it has to, because of the limited amount of information and the strictly limited process-

ing time. Fortunately, over time good clusters will acquire more support while outliers

won’t and this can be used to achieve good clustering quality in an online setting by

determining cluster size and removing unreasonably small ones. The exact cut-off to

choose depends on the variance in the input. In our experiments the mean has proven a

good choice.

209

5 Evaluation

When grouping data, especially with a new similarity metric, it is crucial to ascertain

that groupings are not an artefact of the algorithm but represent genuine structure in the

data. Therefore, we have evaluated the kernel on real-world data and analyzed how the

results relate to user activity and wether our relevancy heuristic matches at meaningful

points in time.

Results are from a 600 frame (50 second) sequence with multiple objects, a moving

viewpoint and objects being moved around.

5.1 Evaluation of Relevancy Detection

To verify that our simple minimum distance approach can identify relevant changes in

the environment, we have computed a clustering and tracked the minimum achievable

distance. The graph in ﬁgure 4(b) shows the distance for a book present in the scene.

Note, how distance is high at the beginning and end of a period in time (where distances

are zero, the book was not present).

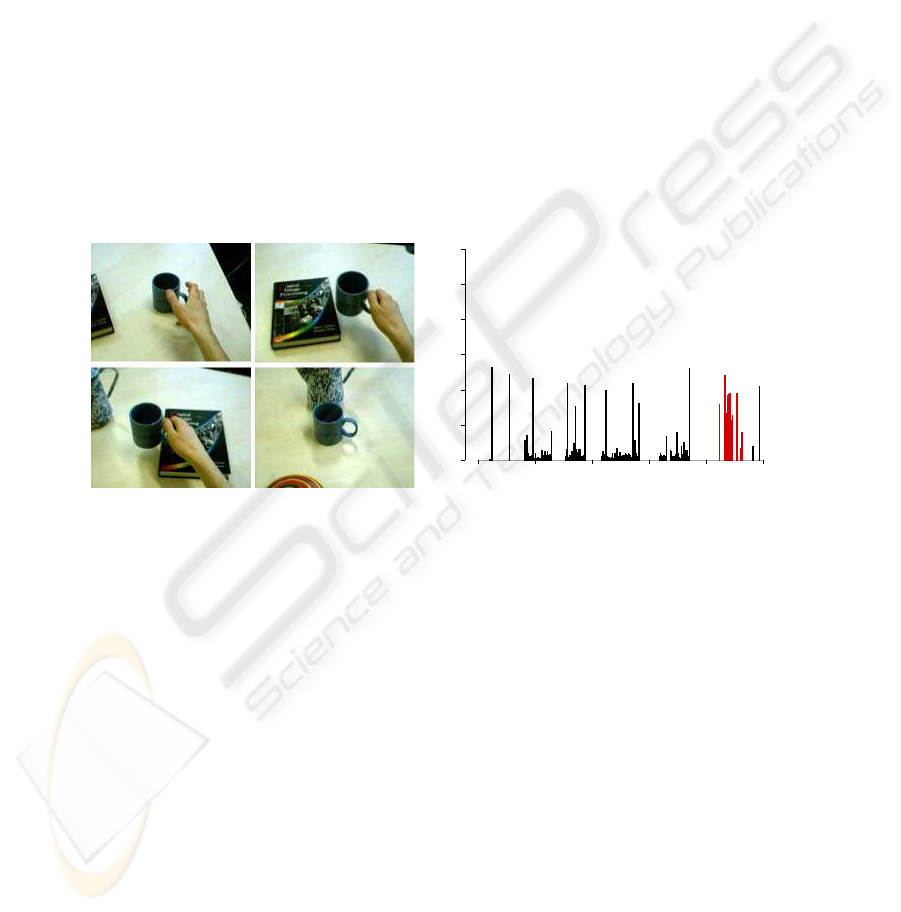

(a) frames 436, 443, 449, 453

minimum distance

frame number

0 100 200 300 400 500

0.0 0.2 0.4 0.6 0.8 1.0 1.2

(b) minimum achieved distance

Fig.4. Relevancy detection results with example sequence.

Note the shaded/red region which exhibits continually high distances. We have se-

lected four frames from that period and show them in ﬁgure 4(a). As you can see, the

book moves rapidly through the view and is partly obstructed at the same time, which

explains why a lot of change is perceived.

5.2 Evaluating Meta-Variable Similarity Metric

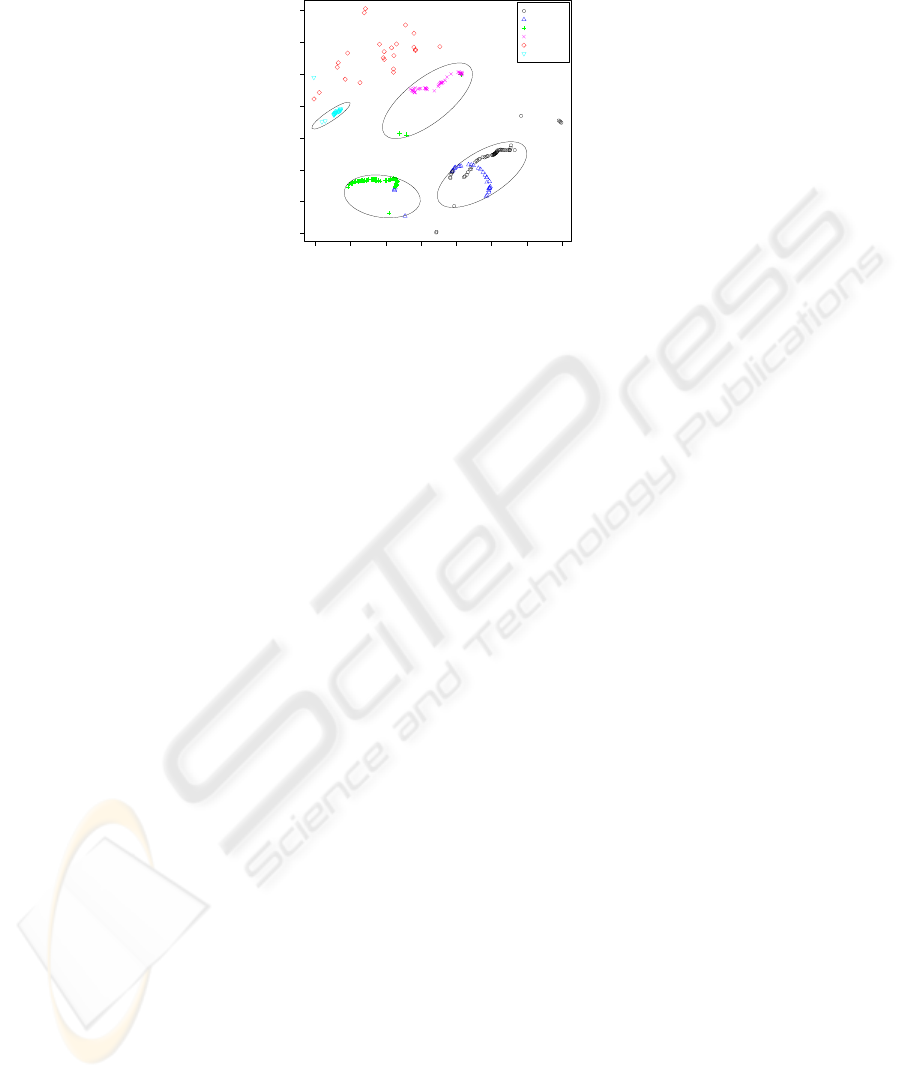

Figure 5 shows pairwise distances of object recognition results pertaining to the book,

from the same sequence as in section 5.1, plotted using multidimensional scaling (MDS).

Clusters are surrounded by ellipses, color and symbols redundantly specify distinct pe-

riods of presence for the book. Most clusters exhibit high internal coherence and strong

separation. One cluster contains results from two adjacent periods of time. The results

marked with a (red) diamond pertain to the episode shown in ﬁgure 4(a), with a rapidly

moving, partly obstructed object, these are grouped together with the outliers.

210

−0.6 −0.4 −0.2 0.0 0.2 0.4 0.6 0.8

MDS distance plot

0 − 140

141 − 200

201 − 300

301 − 400

401 − 500

501 − 577

Fig.5. Book clusters.

6 Conclusion

This paper introduced a ﬂexible framework for data-driven software integration which

was used successfully for the realization of vision-based HCI in an augmented reality

application. The main contribution was the presentation of a framework component for

unsupervised reduction of data-ﬂow volume in XML streams based on a new appli-

cation of kernels for structured data and a compacting approach utilizing a clustering

method. Regarding a ﬁrst evaluation, we showed how this metric can be used to detect

relevant changes in streams of XML data and that the similarities relate to the events in

the application scenario.

Future work will focus on more robust methods for online clustering, as well as the

evaluation of the overall system performance in terms of an increased responsiveness

and lower resource consumption.

Finally, we think, that as the proposed method is based on a generic XML distance

metric, it will make other kernel-based approaches from pattern recognition available

for direct use in XML-based information systems. Furthermore, we believe that com-

pacting of XML streams may also be usefully applicable in other XML exchanging

information architectures.

References

1. Aloimonos, Y.: Active Vision Revisited. In Aloimonos, Y., ed.: Active Perception. Lawrence

Erlbaum Associates (1993)

2. Wachsmuth, S., Wrede, S., Hanheide, M., Bauckhage, C.: An Active Memory Model for

Cognitive Computer Vision Systems. K

unstliche Intelligenz (2005) to appear.

3. Bielefeld University: The Vampire Project (2005) http://www.vampire-project.org.

4. Viola, P., Jones, M.: Rapid object detection using a boosted cascade of simple features. In:

Proc. CVPR. Volume 1. (2001) 511–518

5. Heidemann, G., Rae, R., Bekel, H., Bax, I., Ritter, H.: Integrating context free and context-

dependent attentional mechanisms for gestural object reference. In: Proc. ICVS. Volume

2626 of LNCS., Springer (2003) 22–33

211

6. Hanheide, M., Bauckhage, C., Sagerer, G.: Memory Consistency Validation in a Cognitive

Vision System. In: Proc. ICPR. Volume 2., IEEE (2004) 459–462

7. Bauckhage, C., Hanheide, M., Wrede, S., Sagerer, G.: A Cognitive Vision System for Action

Recognition in Ofﬁce Environments. In: Proc. CVPR. Volume 2. (2004) 827–832

8. Draper, B., Brolio, J., Collins, R., Hanson, A., Riseman, E.: The Schema System. Int. J.

Comput. Vision 2 (1989) 209–250

9. Mundy, J., Binford, T., Boult, T., Hanson, A., Beveridge, J.R., Haralick, R., Ramesh, V.,

Kohl, C., Lawton, D., Morgan, D., Price, K., Strat, T.: The Image Understanding Environ-

ments Program. In: Proc. of DARPA Image Understanding Workshop. (1992) 185–214

10. Rasure, J., Kubica, S.: The Khoros Application Development Environment. In Christenson,

H., Crowley, J., eds.: Experimental Environments for Computer Vision and Image Process-

ing. World Scientiﬁc Press, Singapore (1994)

11. Williams, T.: Image understanding tools. In: Proc. ICPR. Volume IV. (1990) 606–610

12. Draper, B., Bins, J., Baek, K.: ADORE: Adaptive Object Recognition. Videre 1 (2000)

13. Ponweiser, W., Umgeher, G., Vincze, M.: A reusable dynamic framework for cognitive

vision systems. In: Workshop on Computer Vision System Control Architectures. (2003)

14. Bruyninckx, H.: Open Robot Control Software: the OROCOS project. In: Proc. ICRA.

(2001) 2523–2528

15. Doucet, A., Ahonen-Myka, H.: Na

ıve clustering of a large XML document collection. In:

INEX. (2002) 81–87

16. Garofalakis, M., Kumar, A.: Correlating xml data streams using tree-edit distance embed-

dings. In: PODS ’03: Proc. 22nd ACM SIGMOD Symposium on Principles of Database

Systems, ACM Press (2003) 143–154

17. Dalamagas, T., Cheng, T., Winkel, K.J., Sellis, T.K.: Clustering XML Documents Using

Structural Summaries. In: EDBT Workshops. (2004) 547–556

18. Costa, G., Manco, G., Ortale, R., Tagarelli, A.: Clustering of XML Documents by Structure

based on Tree Matching and Merging. In: SEBD Workshops. (2004) 314–325

19. Wrede, S., Fritsch, J., Bauckhage, C., Sagerer, G.: An XML Based Framework for Cognitive

Vision Architectures. In: Proc. ICPR. Volume 1. (2004) 757–760

20. Wrede, S.: Active Memory Infrastructure (2005) Software and documentation available at

http://xcf.sf.net/.

21. Haussler, D.: Convolution Kernels on Discrete Structures. Technical Report UCS-CRL-99-

10, UC Santa Cruz (1999)

22. G

artner, T., Lloyd, J.W., Flach, P.A.: Kernels and Distances for Structured Data. Machine

Learning 57 (2004) 205–232

212
