WEB USAGE MINING USING ROUGH AGGLOMERATIVE
CLUSTERING
Pradeep kumar, P. Radha Krishna
Institute for Development and Research in Banking Technology, (IDRBT),
1, Castle hills, Masab Tank, Hyderabad - 500057
Supriya kumar De
XLRI Jamshedpur, C.H.Area(E ),
Jamshedpur,
INDIA
S Bapi Raju
University ofHyderabad,
Gochibowli,
Hyderabad,INDIA
Keywords: Data mining, rough sets, clickstream, web usage mining , similarity upper approximation.
Abstract: Tremendous growth of the web world incorporates application of data mining techniques to the web logs.
Data Mining and World Wide Web encompasses an important and active area of research. Web log mining
is analysis of web log files with web pages sequences. Web mining is broadly classified as web content
mining, web usage mining and web structure mining. Web usage mining is a techniques to discover usage
patterns from Web data, in order to understand and better serve the needs of Web-based applications. This
paper demonstrates a rough set based upper similarity approximation method to cluster the web usage
pattern. Results were presented using clickstream data to illustrate our technique.
1 INTRODUCTION
World Wide Web (WWW) is an unstructured
collection of pages and hyperlinks. People from
different backgrounds and interests access and
provide web pages. Application of data mining
approaches on World Wide Web is referred as web
mining. Web mining has attracted a lot of
researchers due to huge amount of active data
available on the World Wide Web. Broadly, web
mining tasks include web usage mining, web content
mining and web structure mining.
Web content mining is a process of discovering
i
nformation from millions of sources across the
World Wide Web. User interaction on the web are
recorded on a web logs. As each user interaction
corresponds to a mouse click it is oftenly referred as
clickstream. Web usage mining is performing
mining on web usage data or web logs. Extracting
patterns from on line information, such as HTML
files or E-mails is referred as web content mining.
Web content mining goes beyond basic Information
retrieval technology. Web structure mining is a
research field focused on using the analysis of the
link structure of the web, and one of its purposes is
to identify more preferable documents. The intuition
is that a hyperlink from document A to document B
implies that the author of document A thinks
document B contains worthwhile information.
Like conventional data mining clustering,
asso
ciation and sequential analysis are three
important operations in web mining. This paper
focuses on clustering, which is a unsupervised
learning method to partition a set of patterns into
315
kumar P., Radha Krishna P., kumar De S. and Bapi Raju S. (2005).
WEB USAGE MINING USING ROUGH AGGLOMERATIVE CLUSTERING.
In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 315-320
DOI: 10.5220/0002553003150320
Copyright
c
 SciTePress

groups (Bezdek, J., 1981). To show the viability of
our approach we applied upper similarity
approximation to cluster clickstream transactions.
In this paper, we present an agglomerative
clustering approach using upper similarity
approximation for mining clickstream data.
Clickstream is a sequence of URLs browsed by a
user within a particular website in one session. To
discover the pattern of groups of users with similar
interest and motivation for visiting that particular
website can be found by clustering users’
clickstream on a particular website. A user session is
the clickstream of page views for a single user in the
website. We considered each user session as a
clickstream transaction, which contains the sequence
of URLs (or hyperlinks) of a visitor visiting a web
site.
A lot of research has been done in the area of
Web Usage Mining (Cooley, R., 2000, Spiliopoulou,
1999, Manco, G et.al., 2003) which directly or
indirectly addresses the issues involved in the
extraction of web navigational patterns (
Spiliopoulou, M. and Faulstich, L. C., 1999),
ordering relationships (Mannila, H. and Meek, C.,
2000), prediction of web surfing behavior ( Pitkow,
J and Pirolli, P., 1999), and clustering of web usage
sessions (Fu . et. al , 2000) based on web logs,
possibly supplemented by web content or structure
information. Perkowitz and Etzioni (Perkowitz and
Etzioni, 2000) proposed the idea of optimizing the
structure of web sites based on co-occurrence
patterns of pages within usage data for the site.
Spiliopoulou and Cooley (Spiliopoulou, 1999;
Cooley, R., 2000) have applied data mining
techniques to extract usage patterns from web logs,
for the purpose of deriving market intelligence.
Well-developed mining techniques cannot be
applied directly for web data as web logs being
unstructured in nature. Clustering in web mining
faces several additional challenges (Jhoshi, A. and
Krishnapuram , R., 1998).The specific problem of
web usage clustering has been studied over the past
few years. In (De and Radha Krishna, 2002),
automatic personalization of a web site from user
transactions using fuzzy proximity relations is
presented. In (De and Radha Krishna, 2004), a
clustering algorithm is presented using rough
approximation to cluster web transactions from web
access logs. Web clusters tends to have fuzzy
boundaries. It is likelihood that an object may be a
candidate for more than one clusters. To deal with
the special challenges found in web usage data a
non-conventional clustering approach using rough
set theory has been presented in (Hogo, M et al.
,2004). Pawan Lingras (Lingras, P., 2003) has used
rough set theory for web mining clustering.
The rest of the paper is organized as follows:
section 2 describes the basics of rough set theory. In
section 3, we present an approach for grouping
clickstream using upper similarity approximation.
Experimental results are presented in section 4 and
we conclude in section 5.
2 ROUGH SET THEORY
Zdzisław Pawlak introduced Rough set theory
(Pawlak ,1982) to deal with uncertainty and
vagueness. Rough set theory became popular among
scientists around the world due to its fundamental
importance in the field of artificial intelligence and
cognitive sciences. This section provides a brief
summary of the concepts of rough set theory. The
building block of rough set theory is an assumption
that with every set of the universe of discourse we
associate some information in the form of data and
knowledge.
Let U denote a universe and let R ⊆ U × U be a
equivalence relation on U. The pair A = ( U,R ) is
called an approximation space. The equivalence
relation R partitions the set U into disjoint subsets.
Such a partition of the universe is denoted by
U/R = ( E
1
,E
2
,E
3
,….,E
n
) , where E
i
is an equivalence
class of R.. If two elements u, v ∈ U belong to the
same equivalence class E ⊆ U/R, we say u,v are
indistinguishable. The equivalence classes of R are
called the elementary or atomic sets in the
approximation space A = ( U,R).
Within the same equivalence class it is not
possible to differentiate the elements. Hence, one
may not get a precise representation for an arbitrary
set X ⊆ U in terms of elementary sets in A. Rather
its upper and lower bounds may represent the set X.
Lower approximation A
(X) is union of all the
elementary sets which are subsets of X.
A(
X) = { x ∈ U : ( x ) ⊆ X }
The upper bound ⎯A(X) is union of all the
elementary sets that have a non empty intersection
with X.
⎯A(X) = { x ∈ U : ( x ) ∩ X ≠ φ}
The pair (A(
X) ,⎯A(X) ) is the representation of an
ordinary set of X in the approximation space
A = ( U, R) or simply the rough set of X. Fig 1
illustrate the rough set approximation.
ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS
316

Lower Approximation of Set
U
pp
er A
pp
roximation of the set
Set
E
q
uivalence Class

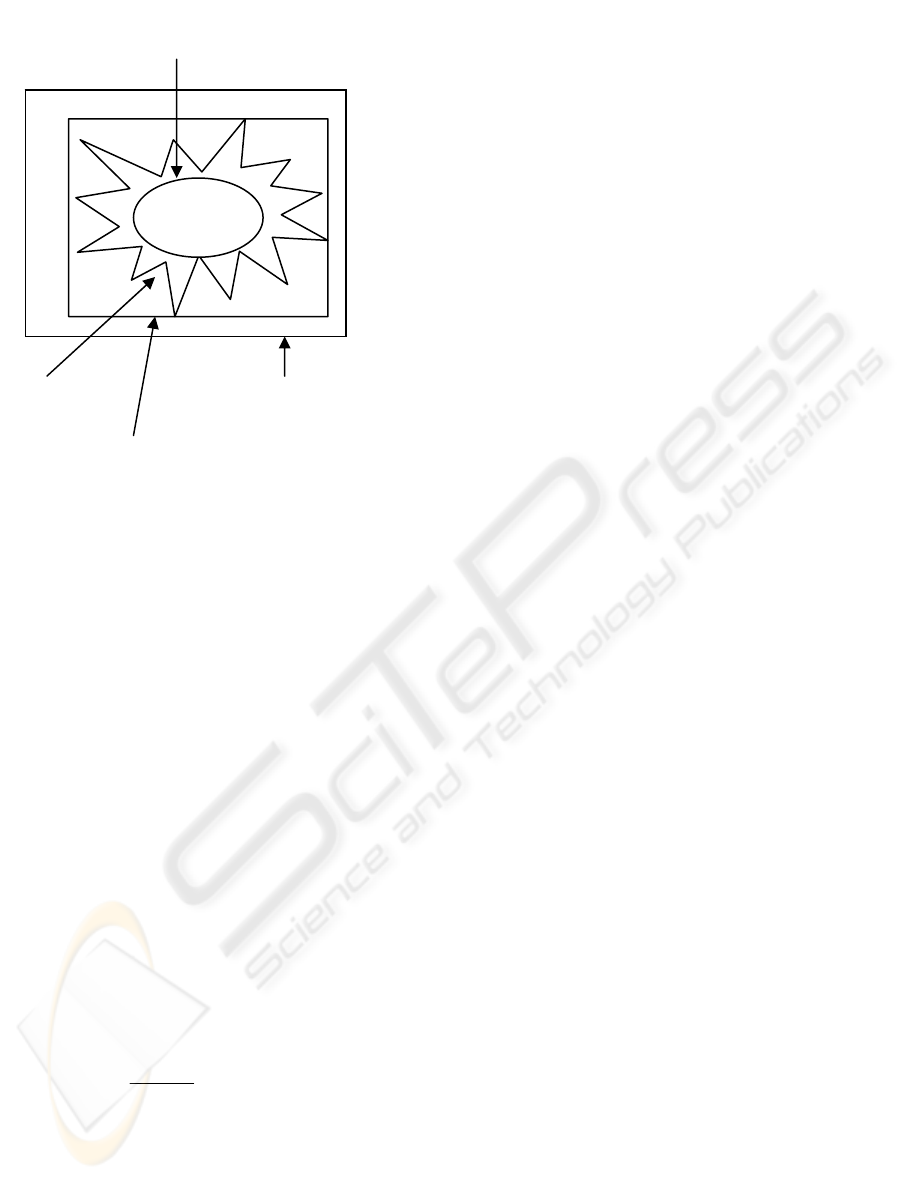

Figure 1: Rough set Approximation
3 CLUSTERING USING ROUGH
SETS
In this section, we present the agglomerative
clustering for clustering clickstream transactions
using upper similarity approximation. In rough set
theory, the lower approximation of a concept
consists of all objects that definitely belong to the
concept. The upper approximations of the concept
consist of all objects that possibly belong to the
concept. In our approach, we consider upper
approximation property to form clusters by defining
a similarity upper approximation.
We represent each transaction as a Jaccard
vector similarity function. The Jaccard similarity
penalizes on a small number of shared clicks. Let t
and s be the two clickstream transactions. The
similarity between the two transactions is computed
as
sim (t,s) =
||
||
st
st
∪
∩
Here, sim(t,s) Є (0,1). sim(t,s) will be equal to 1
when two transaction t and s are exactly same and
sim(t,s) is 0 when two transaction t and s are
completely dissimilar. The similarity measure
provides an idea of interest and motivation of users’
access pattern in their common area.
For a given threshold value, th ∈ (0,1), and for
any two user transactions t and s ∈ T, a binary
relation R on T denoted as tRs is defined by tRs iff
sim(t, s) ≥ th, where T is a set of all clickstream
transactions. The similarity class of t, denoted by
R(t), is the set of transaction which are similar to t is
given by R(t) = { s ∈ T, sRt }. For a fixed threshold
∈ (0, 1), a binary tolerance relation R is defined on
T.
For clustering clickstream transactions, we
compute a similarity upper approximation as
follows:
Let t
i
∈ T be a user clickstream. The upper
approximation ⎯⎯R(t
i
) is a set of transactions similar
to t
i
, that is, a user, who is visiting the hyperlinks in
t
i
, may also visit the hyperlinks present in other
transactions in ⎯R (t
i
). Similarly, ⎯R⎯R(t
i
) is a set of
transactions that are possibly similar to ⎯R(t
i
), and
this process continues until two consecutive upper
approximations for t
i
are same. The process of
finding the two equal consecutive upper
approximations is known as Similarity Upper
Approximation and denoted by S
i
.
Initially, each clickstream transaction has been
considered as individual cluster. The similarity
upper approximation for each clickstream
transaction is calculated for a given clickstream
transaction data set. In each iteration of
agglomerative clustering, the clusters are
agglomerates based on the similarity upper
approximation. The process of computing similarity
upper approximation is repeated for each
transaction, until the two consecutive upper
approximations are same.
Let S
1
, S
2
, S
3
,…S
n
be similarity upper approximation
for transaction t
1
, t
2
, t
3
, …., t
n
respectively. Now, if
S
i
= S
j
(i and j are distinct) allocate t
i
and t
j
in the
same cluster. Performing this way, we get a
distribution of m disjoint clusters. Let these m
clusters be C
j
(j = 1, 2, …, m). Here, C
j
‘s are all
distinct and ∪C
j
= T. These C
j
s represent the sub-
groups of the transactions representing the
transaction cluster.
WEB USAGE MINING USING ROUGH AGGLOMERATIVE CLUSTERING
317

The algorithm for clustering clickstream
transactions is given below:
Algorithm: Rough Agglomerative
Clustering
Input: A set of n objects in a data set
U = {x
1
, x
2
, ….x
n
}, Threshold θ,
the number of clusters p ( ≤ n)
Output: Cluster scheme C
Step 1 : Start
Step 2 : Initially consider each
object of U as a cluster of one
member C
i
= { x
i
} and C = { C
1
,
C
2
, ., C
n
}
Step 3 : For each pair of clusters C
i
and C
j
calculate
sim ( C
i
, C
j
) = (C
i
∩C
j
)/(C
i
U C
j
)
Step 4 :For each cluster C
i,
find out
the similarity upper
approximation S
i.
for a given
threshold θ.
Step 5 : If S
i
= S
j
, form a new
cluster C
ij
= C
i
∪ C
j,
i.e. put x
i
and x
j
in the same cluster.
Step 6: Update C
Step 7: Repeat Steps 5 and 6 till
there is no change in the number
of clusters.
Step 8 : Output C
Step 9. Stop
Let N be the total number of clickstream
transactions and L be the average length of the
transaction. The complexity of similarity
computation is in the order of O(N
2
log
2
L). Let R
be relation defined over T then the complexity of
upper approximation is in the order of O (T/R)
(Jamil and Jitender , 2001), which is same as
O(N/R). Merging of clusters takes place at each
iteration based on the similarity upper
approximation. Let k be the average number of
clusters merging in each iteration. The complexity of
merging k clusters is in the order of O (k
log k)
(Dash et.al., 2003) and there may be maximum of
N/k iterations. Thus, the complexity of merging
process is O((N/k) k log k ) = O (N
log k). So, the
complexity of rough agglomerative clustering is of
the order O (N
2
log
2
L)+ O (N/R) + O (N log k).
To explain the approach, consider navigation
patterns of user visiting a e-commerce site shown in
transaction set T.
T ={ t
1
, t
2
, t
3
, t
4
, t
5
, t
6
, t
7
, t
8
, t
9
, t
10
}
t
1
={ Home, Login, Help, Logout }
t
2
= {Register, Regport, Results, Regform1,
Regform2 }
t
3
={ Catalog, Product, P_Info, AddCart }
t
4
={ Home, Login, Help, Fdback, Shelf, Promo,
Download, Logout }
t
5
={Register, Regform1, Results }
t
6
={Regport, Regform2 }
t
7
={ Fdback, Shelf, Promo, Download }
t
8
={ Charge, Pay_req, Pay_rem, Freeze}
t
9
={Catalog, Product, P_Info, Cart, AddCart }
t
10
={Charge, Pay_req, Pay_rem }
t
1
t
2
t
3
t
4
t
5
t
6
t
7
t
8
t
9
t
10
t
1
1 0 0 0.5
0
0 0 0 0 0
t
2
0 1 0 0 0.6 0.4 0 0 0 0
t
3
0 0 1 0 0 0 0 0 0.8 0
t
4
0.5 0 0 1 0 0 0.5 0 0 0
t
5
0 0.6 0 0 1 0 0 0 0 0
t
6
0 0.4 0 0 0 1 0 0 0 0
t
7
0 0 0 0.5 0 0 1 0 0 0
t
8
0 0 0 0 0 0 0 1 0 0.6
t
9
0 0 0.8 0 0 0 0 0 1 0
t
10
0 0 0 0 0 0 0 0.6 0 1
Table 1: Similarity Matrix
ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS
318

Equivalent similarity matrix is shown in Table
1. Computing similarity upper approximation, we
get at threshold value 0.4, the equivalence classes
are
R(t
1
) = { t
1
, t
4
}, R(t
2
) = {t
2
, t
5
, t
6
},
R(t
3
) = {t
3
, t
9
}, R(t
4
) = {t
1,
, t
4
, t
7
},
R(t
5
) = { t
2
, t
5
}, R(t
6
) = { t
2
, t
6
},
R(t
7
) = {t
4 ,
t
7
}, R(t
8
) = {t
8
, t
10
},
R(t
9
) = {t
3 ,
t
9
}, R(t
10
) = { t
8 ,
t
10
}.
In the first step, we compute the upper
approximation of all ten transactions.
⎯R(t
1
) = { t
1
, t
4
},⎯R(t
2
) = {t
2
, t
5
, t
6
},
⎯R(t
3
) = {t
3
, t
9
}, ⎯R(t
4
) = {t
1,
, t
4
, t
7
},
⎯R(t
5
) = { t
2
, t
5
}, ⎯R(t
6
) = { t
2
, t
6
},
⎯R(t
7
) = {t
4 ,
t
7
}, ⎯R(t
8
) = {t
8
, t
10
},
⎯R(t
9
) = {t
3 ,
t
9
}, ⎯R(t
10
) = { t
8 ,
t
10
}.
Computing similarity upper approximation, we get
⎯R⎯R (t
1
) = { t
1
, t
4
, t
7
}, ⎯R⎯R (t
2
) = {t
2
, t
5
, t
6
},
⎯R⎯R (t
3
) = {t
3
, t
9
}, ⎯R⎯R (t
4
) = { t
1
, t
4
, t
7
},
⎯R⎯R (t
5
) = {t
2
, t
5
, t
6
}, ⎯R⎯R (t
6
) = {t
2
, t
5
, t
6
},
⎯R⎯R(t
7
) = { t
1
, t
4
, t
7
}, ⎯R⎯R (t
8
) = { t
8 ,
t
10
}.,
⎯R⎯R (t
9
) = {t
3
, t
9
}, ⎯R⎯R (t
10
) = { t
8 ,
t
10
}.
⎯R⎯R⎯R ( t
1
) = { t
1
, t
4
, t
7
},
⎯R⎯R⎯R ( t
5
) = {t
2
, t
5
, t
6
},
⎯R⎯R⎯R ( t
6
) = {t
2
, t
5
, t
6
},
⎯R⎯R⎯R ( t
7
) = { t
1
, t
4
, t
7
},
Now, the process stops as two consecutive
upper approximations for each transaction is same.
Thus, the clusters formed are { t
1
, t
4
, t
7
},{t
2
, t
5
, t
6
},
{t
3
, t
9
},and { t
8 ,
t
10
},that is, we have four clusters.
Since two or more clusters will agglomerate at each
stage the algorithm converges faster. Below we
describe the mean profile of each cluster.
Cluster1: It consists of three user navigation pattern
t
1
, t
4
, t
7
. Although both the t
1
and t
7
has navigated
different set of pages but with respect to t
4
both has
navigated at least 40% similar pages.
Cluster 2: It consists of three user navigation pattern
t
2
, t
5
, t
6
. All the three perform the same navigation
pattern at least 40% with respect to one another.
Cluster 3: It consists of two user navigation pattern
t
3
and t
9
. Both have them have navigated product
information site and their navigation pattern is at
least 40% similar.
Cluster 4: It consists of two user navigation pattern
t
8
and t
10
. Both have them have navigated product
information site and their navigation pattern is at
least 40% similar.
4 EXPERIMENTAL RESULTS
We implemented our approach using Java and
performed experiments on a 2.4 GHz, 256 MB,
Pentium-IV machine running on Microsoft Windows
XP 2002. We used the clickstream dataset
T40I10D100K(http://www.cs.helsinki.fi/u/goethals
/dmcourse/util.html.), a Hungarian on-line news
portal. The dataset contains 1,00,000 clickstream
transactions. This set can be generated using the
generator from the IBM Alamaden Quest Research
group(http://www.almaden.ibm.com/software/quest/
Resources/index.shtml). The clickstream transaction
dataset contains transaction as small as one click and
as large as thirty clicks. The average weighted length
of the clicks is 10.06. Intuitively, very small and
very large clickstreams may not provide any useful
information about the users’ navigation behavior.
Thus, transaction length having less than 5 clicks is
considered as a short transaction and transaction
length with greater than 15 clicks are considered as a
long transaction. In the preprocessing step, short and
long transactions are removed from the dataset.
Experiments are performed on preprocessed
dataset with 81,832 records. At threshold value 0.8
we got 1,131 clusters and it took around 15hours 58
minutes and 17 seconds. We randomly took 2000
records preprocessed it, at 0.29 thershold value we
got 154 clusters. Similarly, we took randomly
50,000 records preprocessed it , at threshold value
0.6 we got 1520 clusters.
WEB USAGE MINING USING ROUGH AGGLOMERATIVE CLUSTERING
319

5 CONCLUSIONS
Clustering is the task of grouping similar objects
into clusters. Hierarchical agglomerative clustering
approaches iteratively agglomerates the closest (or
similar) pair of clusters. In this work, we presented a
rough agglomerative clustering technique to cluster
clickstream transactions based on Upper similarity
approximation. We experimented our approach on a
clickstream dataset, which was collected from a
Hungarian on-line news portal. Each clickstream
transaction is of variable length. The presented
clustering technique is useful in discovering the
pattern of groups of users with similar interest and
motivation for visiting a particular website. This
study is also helpful in building-up adaptive web
server depending on the users’ behavior.
REFERENCES
Jhoshi, A. and Krishnapuram , R., “ Robust fuzzy
clustering methods to support web mining,
proceedings of the workshop on Data Mining and
Knowledge Discovery, SIGMOD ‘ 98, Seattle, pp.
15/1 – 15/8, June 1998.
Bezdek, J, C,. Pattern recognition and fuzzy objective
function algorithms, plenum Press , New York 1981.
Hogo, M., Snorek, M. and Lingras, P., Temporal versus
latest snapshot web usage mining using kohonen som
and modified kohonen som based on the properties of
rough sets theory , international journal on artificial
intelligence tools, vol. 13, no. 3 (2004) 569-591.
Cooley, R., Web Usage Mining: Discovery and
Applications of Interesting Patterns from Web data.
PhD thesis,Dept. of Computer Science, University of
Minnesota, May 2000.
Spiliopoulou, M. and Faulstich, L, C., WUM: A tool for
web utilization analysis. In Extended version of
Proc.EDBT Workshop WebDB’98, pages 184–203.
Springer Verlag, 1999.
Mannila, H. and Meek, C., Global partial orders from
sequential data. In Proc. 6th Intl. Conf. on
KnowledgeDiscovery and Data Mining (KDD2000),
pages 161–168, Aug 2000.
Pitkow, J. and Pirolli, P., Mining longest repeating
subsequences to predict world wide web surfing. In
Proc 2ndUSENIX Symposium on Internet
Technologies & Systems (USITS’99), Oct 1999.
Fu, Y., Sandhu, K. and. Shih, M., A generalization-based
approach to clustering of web usage sessions. In
Dash, M., Huan, L., Peter, S., KianLee, T.: Fast
Hierarchical Clustering and its Validation, Data and
Knowledge Engineering. 44(1) (2003) 109-138.
De, S, K., Radha Krishna, P.: Mining web data using
clustering technique for web personalization, Int. Jour.
of Computational Intelligence and Applications, 2(3)
(2002) 255-265.
De, S.K., Radha Krishna, P.: Clustering web transactions
using rough approximation, Fuzzy Sets and Systems
(2004) (In print).
Jamil, S., Jitender, S,D. : Concept Approximations Based
on Rough Sets and similarity Measures, International
Journal on Applied Mathematics and Computer
Science,2001,Vol.11,No.3,655 – 674.
Pawlak, Z., Rough Sets, International Journal of
Computer and Information Sciences, 11 (1982) 341-
356.
Perkowitz, M., Etzioni, O.: Towards adaptive web sites:
Conceptual framework and case study, Artificial
Intelligence, 118 (2000) 245-275.
Spiliopoulou, M.: Data mining for the web, In Principles
of Data Mining and Knowledge Discovery, Second
European Symposium, PKDD’99, (1999) 588- 589.
Manco, G., Ortale, R., and Sacca, D., Similarity-based
clustering of Web transactions, Symposium on
Applied Computing, Proceedings of the 2003 ACM
symposium on Applied computing pp. 1212 - 1216
ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS
320
