XML VIEWS, PART III

An UML Based Design Methodology for XML Views

Rajugan R., Tharam S. Dillon

Faculty of Information Technology, University of Technology, Sydney, Australia

Elizabeth Chang

School of Information Systems, Curtin University of Technology, Australia

Ling Feng

Faculty of Computer Science, University of Twente, The Netherlands

Keywords: OO conceptual models, XML views, Conceptual views, XML, UML, XML Schema

Abstract: Object-Oriented (OO) conceptual models have the power in

describing and modelling real-world data

semantics and their inter-relationships in a form that is precise and comprehensible to users. Today UML

has established itself as the language of choice for modelling complex enterprises information systems (EIS)

using OO techniques. Conversely, the eXtensible Markup Language (XML) is fast emerging as the

dominant standard for storing, describing and interchanging data among various enterprises systems and

databases. With the introduction of XML Schema, which provides rich facilities for constraining and

defining XML content, XML provides the ideal platform and the flexibility for capturing and representing

complex enterprise data formats. Yet, UML provides insufficient modelling constructs for utilising XML

schema based data description and constraints, while XML Schema lacks the ability to provide higher levels

of abstraction (such as conceptual models) that are easily understood by humans. Therefore to enable

efficient business application development of large-scale enterprise systems, we need UML like models

with rich XML schema like semantics. To address such issue, in this paper, we proposed a generic,

semantically rich view mechanism to conceptually model and design (using UML) XML domains to

support data modelling of complex domains such as data warehousing and e-commerce systems. Our

approach is based on UML and UML stereotypes to design and transform XML views.

1 INTRODUCTION

In software engineering, many methodologies have

been proposed to capture real-world problems into

manageable segments, which can be communicated,

modelled and developed into error-free maintainable

software modules/systems. Similarly, in the case of

data models, the main objective of conceptual data

models is to define real-world objects and their

relationships in such a way that they represent

meaningful units of information with respect to the

semantics of the domain in question (Jorge H.

Doorn, C. Rivero, & (eds), 2002). These models

span from early data centred models (e.g. ER/DFD)

to the modern Object-Oriented (OO) models, where

a software system is modelled at varying levels of

abstractions, namely conceptual, logical and

physical levels. Here the conceptual level being the

highest level of abstraction (being close to the real-

world), while the physical level being the

data/programming modules (being close to the

actual system and implementation specific).

Therefore, in building a well defined blue-print

of a softwa

re system, it is essential that, for a given

set of data objects, we capture all feasible contexts

for the data as possible. This is because all software

systems, during their lifetime provides not just one,

but many perspectives of the data that they transact

or store. Thus it is imperative that we cater for such

demand in early stages of the system development,

such as the conceptual model. In all conceptual

R. R., S. Dillon T., Chang E. and Feng L. (2005).

XML VIEWS, PART III - An UML Based Design Methodology for XML Views.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 19-28

DOI: 10.5220/0002534400190028

 SciTePress

models, there exist one or more constructs to capture

data objects and their inter-relationships such as; (1)

in ER, entities and relationships, (2) EER entities

and enhanced relationship and (3) in OO classes,

structural and role relationships (UML), but no

mechanisms to capture transitive and/or dynamic

data perspectives (views).

In database systems, views are persistent (Jacek

Blazewicz, Wieslaw Kubiak, Tadeusz Morzy,

Rusinkiewicz, & (eds), 2003); that is to say, view

definitions are stored unless they are changed or

deleted. In classical data oriented systems, views are

initially used to provide access control to the

underlying stored data. Later views, in addition to

user-access control, are used as a short-hard for

complex queries or frequently used user queries and

to complement various Application Programming

Interfaces (APIs) in the relational model. Thus they

form the external schema of the three-schema

architecture (or ANSI/SPARC architecture

[Tsichritzis & Klug 1978]); (1) the conceptual

schema, (2) the storage/internal schema, and (3) the

external schema of the relational models (Kim &

Kelly, 1995). Due to these implications, relational

view definitions are visible only at the lower levels

of the system development lifecycle and/or at the

operational phase of the systems. Thus, design of

views are normally left to database programmers and

done without consideration for other system aspects

such as flexibility, change and/or re-use. But with

new realizations for views in complex domains

(such as web, data warehousing/OLAP, ERP and e-

Commerce), coupled with new data

models/standards available (such as OO-DBMS

(Abiteboul & Bonner, 1991; Dillon & Tan, 1993;

Kim & Kelly, 1995)), the demand for a well defined

and maintained view mechanism has increased.

Also, with the introduction of XML (W3C-XML,

2004) (semi-structured data), the requirement for a

view mechanism has changed, as an XML view

mechanism has to deal with both its structure and

data (unlike in structured data, where data is

independent of its structure and depended on its data

model) (Abiteboul, 1999; Rajugan R., Chang,

Dillon, & Ling, 2003).

Since its introduction in 1996, XML has become

an increasingly important data format for both data-

centric and document-centric applications. This

includes semi-structured data (web applications) and

traditional structured data (legacy, database

applications) intended for dissemination,

manipulation and publication among both

homogenous and heterogeneous systems. An XML

document contains a non-scalar, set-based

hierarchical document tree with interconnected

nodes (branches) hosting special instructions (such

as entities, relationship, constraints etc) called tags

(defined by users), which enclose identifiable parts

of the document (Renguo Xiaou, Tharam S. Dillon,

Elizabeth Chang, & Ling Feng, 2001a). Thus XML

is said to be self-describing and since it separates

data from presentation (unlike HTML) it is reusable.

With the Introduction of DTD and later its

replacement XML Schema (W3C-XSD, 2004),

XML provides a flexible yet powerful data model.

The rest of this paper is organized as follows.

Section 1.1 briefly looks at some early view models,

definitions, conceptual data models and XML while,

section 1.2 outlines our own work done in this areas

followed by a motivating case study description

(Section 1.3). Section 2 and 3 provide a detailed

discussion on our XML view concepts, definitions

and modeling issues, while Section 4 provides a

discussion on XML view hierarchy. In section 5, we

highlight some real-world application scenarios that

use the XML view methodology. This is followed by

section 6 which concludes this paper with some

discussion on future research directions.

1.1 Related Work

Today motivation for views include; (1) user access

(Elmasri & Navathe, 2000), (2) user

perspectives/profiles (E. Chang & Dillon, 1994; E. J.

Chang, 1996; Rajugan R. et al., 2003), (3) data

perspectives (Abiteboul, Goldman, McHugh,

Vassalos, & Zhuge, 1997; Elmasri & Navathe,

2000), (4) performance (materialised views in Data

Warehouse/OLAP, web-data cache), (5) web portals

& profiles, (6) dimensional data modelling (Lucie-

Xyleme, 2001; Vicky Nassis, Rajugan, Dillon, &

Rahayu, 2004; Vicky Nassis, Rajugan R., Dillon, &

Rahayu, 2005) and (7) sub-ontology or ontology

views (Volz, Oberle, & Studer, 2003a, 2003b).

Though the usefulness of views are realized more

than their originally intended use (user access

control), and extensive research have been carried

out by both researchers and industry to improve their

design, construction and performance, the view

concept is still a data language and model

dependent, lower level construct (implementation).

Here we first briefly look at history of the view

mechanisms available today and some of the

proposals for an XML view mechanism.

The relational (classical) definition of a view is

based on ANSI/SPAC three-schema architecture,

where a view is treated as a virtual relation,

constructed by a query which is executed on one or

more stored relations (Elmasri & Navathe, 2000).

Later the concept of view was extended to support

complex queries and/or aggregate/summary queries.

During the OO revolution, the relational view

definitions were extended to OO data models by

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

Won Kim et al. (Kim, 1990; Kim & Kelly, 1995),

Abiteboul et al. (Abiteboul & Bonner, 1991), and

Chang (E. J. Chang, 1996). Here the views were

defined in a synonymous manner to the relational

model and/or extending the relational definition

(Kim, 1990), when a needed. They included the idea

of the virtual class. Both relational and OO view

concepts make two implicit assumptions; that the

underlying data is structured and there exists a fixed

data model and a data access/query language. But

only Chang et al. allows some form of abstraction at

a higher level, a view definition in the form of

Abstract views (E. J. Chang, 1996). All other view

definitions are defined at the data manipulation

language level. This we argue is not enough to

provide a real-world scenario and/or abstraction to

complex domain. We argue that, providing view

formalism at the conceptual level will improve the

resulting view implementation, similar to a

conceptual model of a software system.

Since the emergence of the Internet and XML,

the need for semi-structured data models, which

have to be independent of fixed data models and

data access, violates fundamental properties of

persistent data models. Many researchers attempted

to solve these issues by using graph based (Zhuge &

Garcia-Molina, 1998) and/or semi-structured data

models (Abiteboul et al., 1997; Liefke & Davidson,

2000). Again, the actual view definitions are only

available at the lower level of the implementation

and not at the conceptual level. One of the early

discussions on XML view was by Serge Abiteboul

(Abiteboul, 1999) and later more formally by Sophie

Cluet et al. (Cluet, Veltri, & Vodislav, 2001). They

proposed a declarative notion of XML views.

Abiteboul et al. pointed out that, a view for

XML, unlike classical views, should do more than

just providing different presentation of underlying

data (Abiteboul, 1999). This, he argues, arises

mainly due to the nature (semi-structured) and the

usage (primarily as common data model for

heterogeneous data on the web) of XML. Also he

argues that, an XML view specification should rely

on a data model (like ODMG model) and a query

language. In the paper (Cluet et al., 2001), they

discuss in detail on how abstract paths/DTDs are

mapped to concrete paths/DTDs. These concepts,

which are implemented in the Xyleme project

(Lucie-Xyleme, 2001; Xyleme, 2001), provide one

of the most comprehensive mechanisms to construct

an XML view to-date. The Xyleme project uses an

extension of ODMG Object Query Language (OQL)

to implement such an XML view. But, in relation to

conceptual modeling, these view concepts provide

no support. The view formalism is derived from the

instantiated XML documents (instant level) and is

associated with DTD in comparison to flexible XML

Schema. Also, the Xyleme view concept is mainly

focused on web based XML data.

To our knowledge, other than our work, there

exists no research direction that explores the

possibility of utilizing the view concept for

conceptual modeling. Though we mainly focus on

native XML data/document, our notation of

conceptual views and XML views (Rajugan R. et al.,

2003; Rajugan R., Chang, Feng, & Dillon, 2004) can

be mapped to any existing data models that provide

XML support, since it is defined at the higher level

of abstraction, the conceptual level. Since the view

definitions are not available at a higher level, it is a

time consuming effort to reflect an errors and/or

changes at the schema level of the domain to the

resulting view definitions as all resulting view

definitions have to re-written.

1.2 Our Work

Our work described in this paper includes; (1)

enable modeling conceptual views using UML (at

the conceptual level) and (2) map conceptual views

to XML view schemas (at the logical level). First we

propose an abstract notion of conceptual views

based on UML. Secondly we map these conceptual

views (in UML) to XML Views (XML Schema, at

the logical model/schema level). Due to its abstract

nature, XML conceptual views can be captured

using any high level modeling languages such as

Dillon & Tan notation (Dillon & Tan, 1993), UML

(OMG-UML™, 2003), XMSemantic Nets (Rajugan

R. et al., 2004) or Enhanced-ER (Enhanced or

Extended Entity-Relationship Model (EER))

(Elmasri & Navathe, 2000) models.

In the paper (Feng, Chang, & Dillon, 2002),

authors demonstrate how OO concepts can be

captured in semantic network based modeling

language in regards to XML domains and we have

extended that work in (Rajugan R. et al., 2004) to

model XML conceptual views. In this paper, we

adopt OMG’s UML as UML has established itself as

the de-facto modelling langue of choice. UML

provides a well defined rich collection of tools to

model a given domain into needed level of

abstraction. It can be said that, UML helps to

provide a well-defined blue print for a software

system that is easily understood both by users and

developers alike. UML also provides extensibility to

the modelling language in the form of stereotypes

which we utilise in defining our conceptual views

(discussed in Section 2). Another reason we adopt

UML is that, many authors (Conrad et al.) including

authors of the papers (Feng, Chang, & Dillon, 2003;

Xiaou et al., 2001a; Renguo Xiaou, Tharam S

Dillon, Elizabeth Chang, & Ling Feng, 2001b) have

XML VIEWS, PART III: An UML Based Design Methodology for XML Views

intuitively shown mapping UML models to XML

Schema, which we adopt as the mapping formalism

(with some extensions) between our XML

conceptual views (in UML) to XML views (XML

Schema).

Domain

View

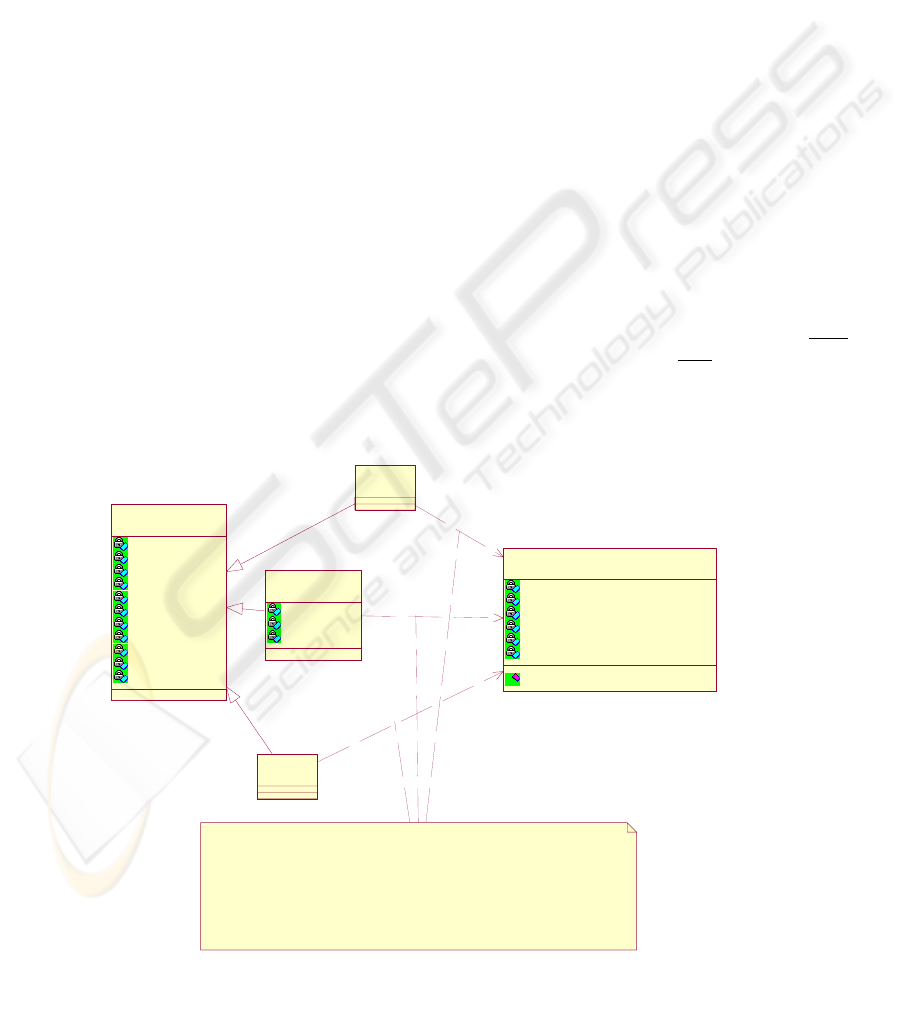

Figure 1: Case Study example (Level 0)

1.3 An Example Case-Study

As a motivating example/ case study, we use in this

paper is a simple Conference System (CS). A

conference

Paper consists of one or more (up to a

maximum of 6)

Author/(s). A Paper can be a

Short Paper, Long Paper or an Extended

Abstract

. A Journal Paper is similar to a

Long Paper except it contains very detailed

discussion on a subject and may have special

material/(s) associated with it. An

Abstract is part

of a

Paper. A Paper is classified as Short Paper,

Long Paper, Journal Paper or an Extended

Abstract

depending on number pages and the

depth of subject material covered in it.

Generally speaking, an

Extended Abstract

can be of maximum 2 pages, a Short Paper

between 5–12 pages, a Long Paper between 12–

20 pages and a

Journal Paper more than 25

pages. The page count for all papers includes all

appendices, supplementary and special materials.

There can be exception and this is only approved

by the Chairperson of each

Conference. For each

paper in the system, there must be a Conference

ShortPaper

LongPaper

Ext_Abstract

JournalPaper

Ins ititute

Ins t

_ID

Inst_Name

Inst_Business

Inst_Location

Inst_ContactPerson

Inst_Address

Person

<<OID>>

person_ID

person

_Title

person_FirstName

person_LastName

person_

Initials

person

_DOB

person_

person_ContactNo

person_Address

person_LoginName

person

_Pwd

belongs

_to

Chairperson

<<OID>>

cpFax

cpOffice

cpEmail

Conference

<<OID>>

conf_ID

conf_Name

conf_

Date

conf_Location

conf_Office

conf_Email

conf_Phone

conf_WWW

conf_ContactPerson

conf_Address

conf_

CFP

1..

organise

Author

Abstract

abstractContents

abstractKeywords

Referee

Proceedings

<<OID>>

proc_ID

proc_

ISBN

proc_Editors

proc_VolNo

proc_

Tit le

proc_Publisher

proc_Pages

1..

publish

Paper

<<OID>>

paper_ID

paper

_Title

paper_Keywords

paper_

Type

paper_PubYear

1..

2..

refereed

_by

Section

+subSection

{ 5<= paper_Length

<= 12 }

{ 12 < paper_Length

<= 20 }

{ 20 < paper

_Length }

{paper_Length

<= 2 }

{ paper_ID NOT IN

( get paper

_ID

where Referee->personID

< > Author->person_ID)

}

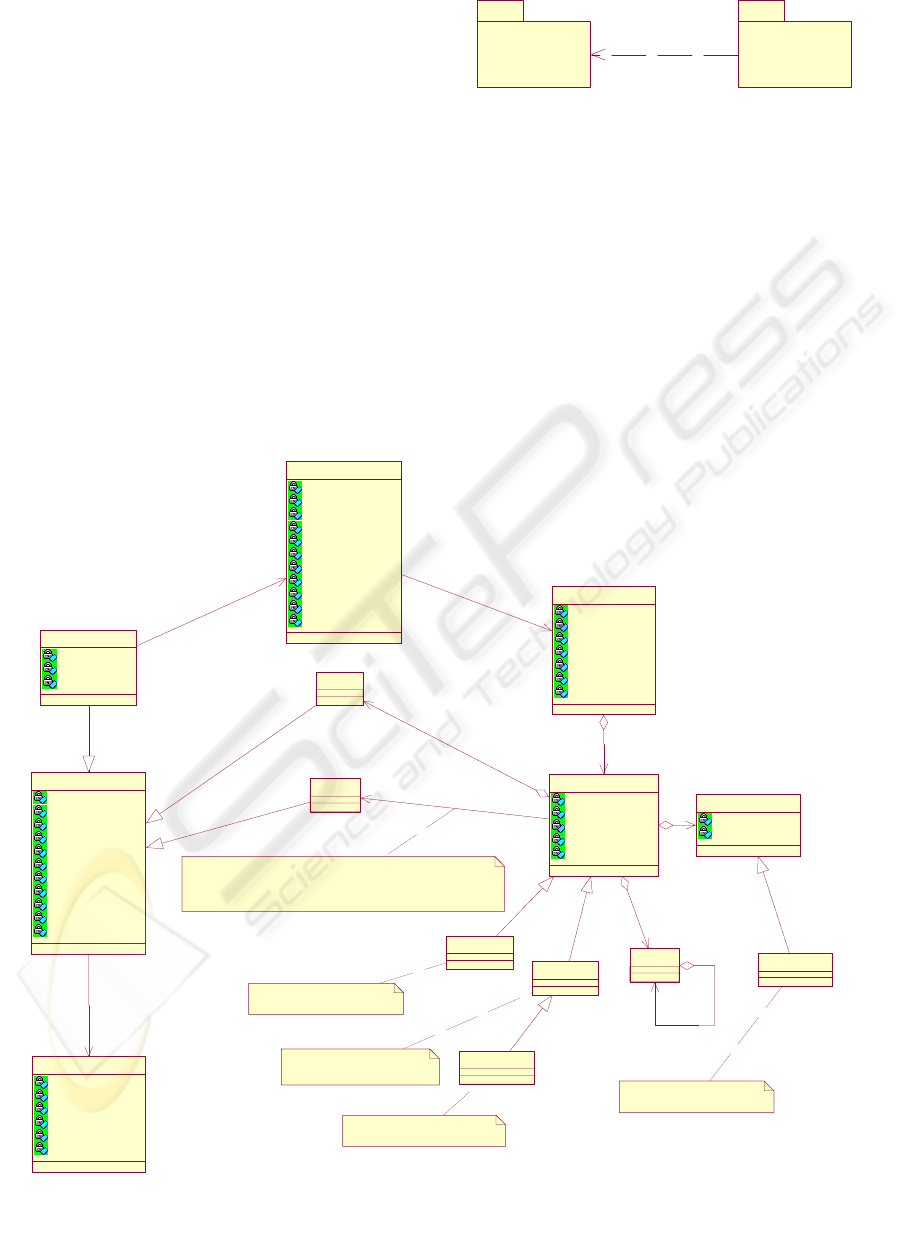

Figure 2: UML model of the example case study

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

associated with it together with two Referees (max

of 4). All Referees in the system has to be approved

by the conference chair with which s/he is associated

with. An

Author must belong to an Institute

(academic education or industry). When a paper is

submitted to a

Conference, at least one Author

of the paper has to register to attend the

Conference. A UML representation of this domain

model is given in Fig. 1 and 2.

2 CONCEPTUAL VIEWS

A conceptual view (Rajugan R. et al., 2003; Rajugan

R. et al., 2004) is the one which is defined at the

conceptual level with higher level of abstraction.

In simple terms, a conceptual view (shown in

Fig. 3 - 6 ) describes how a collection of XML tags

make sense to a domain user (here we use this term

very generally to refer to all people who are working

in a particular domain and not to task specific

people) at the conceptual/abstract level. A typical

XML domain may contain few XML documents to

many thousands of semantically related, clusters of

XML documents (and their related schemas)

depending on the real world requirement. At a given

instant, only a subset of these cluster of XML tags,

its specification and their data values (information)

may be of use or required by a domain user. This

subset of XML tags, collectively form a conceptual

view which is of interest to the domain user at a

point in time.

In related literature, the notion of conceptual

views is non-existent. From relational to semi-

structured and XML, the view concept begins at the

data manipulation language level.We argue that,

providing view formalism at the conceptual level

(abstract views) will improve the resulting view

implementation similar to that of a conceptual model

what does to a software system. An abstract view

formalism will; (1) Provide data abstraction to view

data set similar to a class (in OO) does to real-world

objects, (2) Enable the software designers (not the

programmers) to visualise, construct and validate

constructed data sets (views) that are normally left to

implementers, (3) Utilise as a tool to communicate

better with the domain users (DU) and to improve

domain user feedbacks (as DU usually used to

visualise data as a constructed data sets (views) than

a stored/modelled data class), (4) Be utilised in other

areas, such as User Interface Engineering (UIE),

where abstract constructs can be constructed at the

conceptual level to capture Abstract User Interface

(AUI) objects (E. J. Chang, 1996), where the user

interface objects are identified based on

what the

user interface does and not

how it is done and (5) Be

utilised by system designers to add additional data

semantics at a higher level of abstractions to data

intensive domains (such as XML based domains),

Person

(from Domain)

<<OID>> person_ID

person_Title

person_FirstName

person_LastName

person_Initials

person_DOB

person_Email

person_ContactNo

person_Address

person_LoginName

person_Pwd

Chairperson

(from Domain)

<<OID>> cpFax

cpOffice

cpEmail

Author

(from Domain))

Referee

(from Domain))

Address_Book

<<view>>

AB_Title

ABook_FirstName

ABook_LastName

AB_Initilas

AB_Email

AB_ContactNO

project (author U referee U chairperson)()

<<construct>>

Address_Book = {

(get ALL Author/[personTitle, personFirstName, personLastName,

personInitials, personEmail, personContactNO] )

UNION

(get ALL Referee/[personTitle, personFirstName, personLastName,

personInitials, personEmail, personContactNO])

UNION

get ALL Chairperson/[personTitle, personFirstName,

personLastName, personInitials, personEmail, personContactNO])}

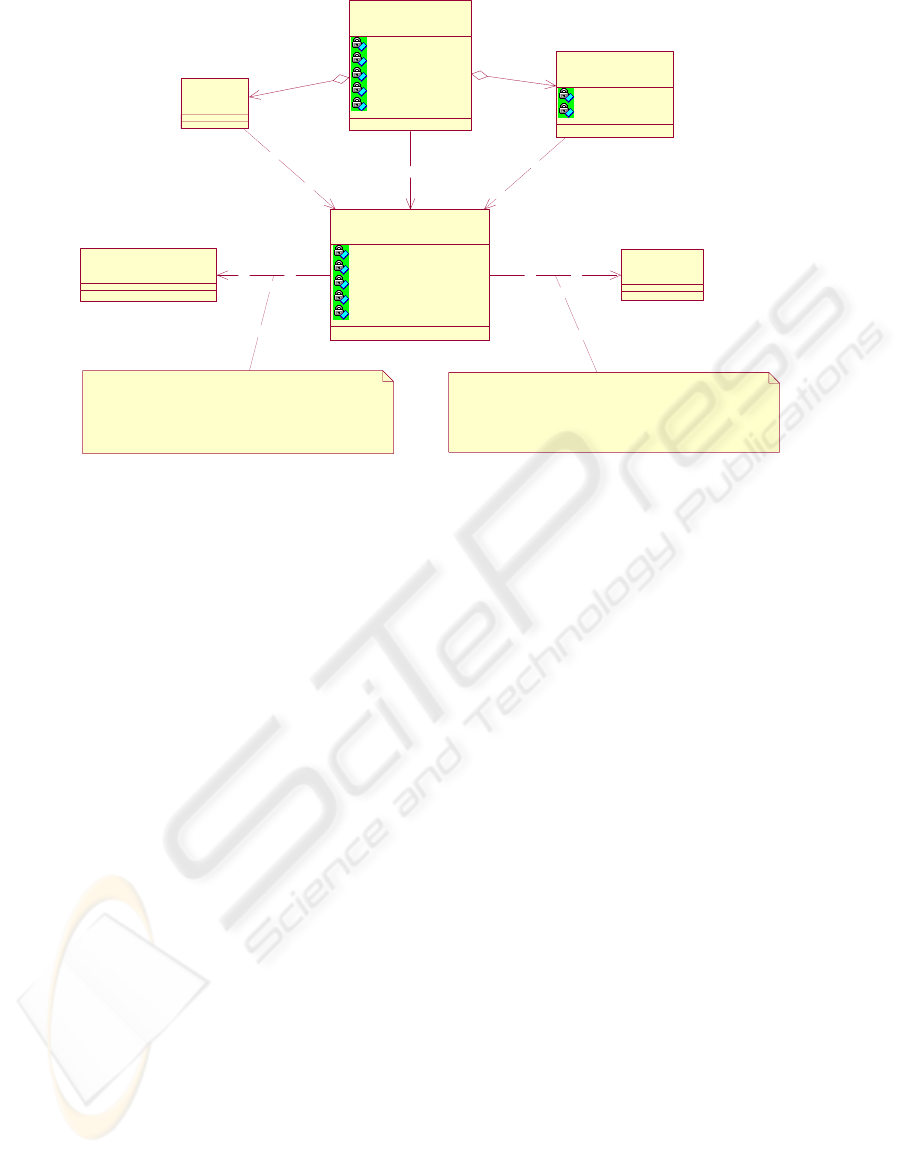

Figure 3: Conceptual view example (in UML)

XML VIEWS, PART III: An UML Based Design Methodology for XML Views

where the meaning of data is important than the data

itself. In doing so, the designers are motivated by the

fact that, they only need to worry about what is need

than how to do it.

view> >

<<construct

Vj= {constraint

1, constraint

2,.....}

Note: In this paper, we only consider static aspects

of the view mechanism (both in abstract and

concrete).

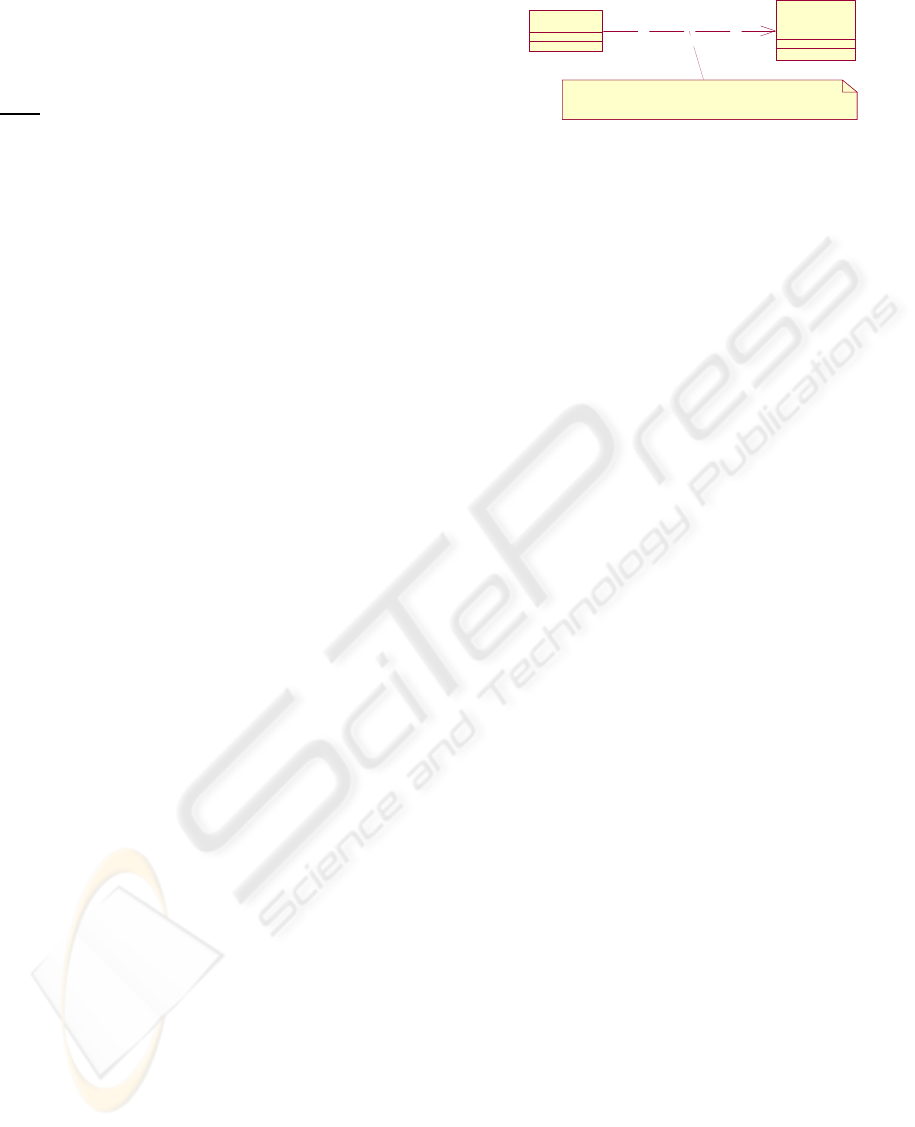

Figure 4: A conce

tual view (in UML)

2.1 Conceptual View and UML™

To model conceptual views in UML, we introduce a

set of stereotypes and conceptual operators. In

addition, to make view constraints more explicit and

visible, we use declarative view constraint

specification language (discussed in Section 2.2),

similar to OMG’s Object Constraint Language

(OCL). Though our future work will focus on OCL

for view constraints, to keep the concepts presented

in this paper simple and complex-free, we adopt the

declarative view constraint approach. In Fig. 3, 5

and 6 shows some example conceptual views

constructed for the example case study.

The conceptual operators (Rajugan R. et al.,

2004) enable systematic construction conceptual

views. These operators can be easily transformed

into query segments, user defined functions and/or

procedures for implementation. By doing so help the

modeller to capture view construct at the abstract

level without knowing or worrying about

query/language syntax. They are grouped into set

operators, namely union, difference, intersection,

Cartesian product and unary operators namely

projection, rename, restructure, selection and joins.

2.2 Constraint Specification

The constraint specification we used here is

declarative; that is, it is simple, OCL/SQL like and

helps to explain our view model (at the conceptual

level) more explicitly in UML. As shown in Fig. 4,

where a view V

is constructed from a stored class

, the view constraints are shown over the

<<construct>> relationship.

2.3 UML and Stereotypes

In UML, a stereotype is based on an existing base

model element or on a variant of the base model

element, to provide extensibility and model

management for an existing, well-defined model.

Here, we use UML stereotypes to provide

conceptual semantics to view formalism, defined

over a stored/domain data model such as shown in

Fig. 2. The following sections discuss some of the

main stereotypes used to capture conceptual views.

2.4 Constructor: <<construct>>

The show the relationship between a conceptual

view and the stored class/(es) from which it is

constructed, we use directed-dashed line with

<<construct>> keyword shown above the line

(Fig. 4). This is to avoid confusion with the built-in

UML dependency relationship and other stereotypes.

As shown in Fig. 4, where a view V

is constructed

from a stored class C

, the relationship is as

<<construct>> relationship; the relationship that

exists between a conceptual view and its stored

class/(es). If a conceptual view is constructed over

an existing conceptual view (view of a view), same

relationship is used show the hierarchy (the base

conceptual view and the new conceptual view).

2.5 Object Identifier: <<OID>>

In an OO system, an object has a unique system-

wide identifier that is independent of the values of

its attribute/(s), called Object Identifier or OID

(Dillon & Tan, 1993; Jacek Blazewicz et al., 2003).

When created, an object will be referred to, using its

system assigned OID during its entire existence. In

DBMS systems, OIDs can be either logical or

physical depending on it nature.

In many OO conceptual models and diagrams,

though the concept of OID is assumed to be an

implicit concept (unlike primary keys in E/ER), in

our work, with conceptual views, we have a need to

explicitly state the OIDs and should be available to

visualize at that highest level of abstraction.

Therefore, here, we provide a means of using OIDs

for the purpose of IDs, similar to that of

primary/foreign key constraints available in E/ER

models. We argue that, just utilizing OID (a unique

concept to OO systems) in our conceptual model

provides additional semantics, such as providing

Id/keys, referential and integrity constraints that are

visually lacking in many OO conceptual modelling

technique.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

To visually model OID in UML class diagram,

we define a stereotype

<<OID>>, shown in Fig. 2, 3,

and 5 as an attribute type. Together with attribute

name and optional type definition, OID stereotype

<<OID>> can be used in UML to indicate that the

attribute that is an OID. Later in the implementation

of the system, these OID can be mapped to XML

Schema specific ID/KEY and UNIQUE constraints.

Abstract

(from Domain)

abstractContents

abstractKeywords

Paper

(from Domain)

<<OID>> paper_ID

paper_Title

paper_Keywords

paper_Type

paper_PubYear

Author

(from Domain))

1..61..6

Abstract_List

<<view>>

AbsLst_PaperID

AbsLst_PaperTitle

AbsLst_Authors

AbsLst_PubYear

AbsLst_AbstractContents

Abstract_list_

By_Authors

<<construct>>

Abstract_List_by_Year

<<view>>

Abstract_List_by_Year = {

(get ALL Abstract_List/[AbsLst_PaperTitle,

AbsLst_Authors, AbsLst_PubYear,

AbsLst_AbstractContents])

SORT BY Abstract_List/[AbsLst_PubYear] }

<<construct>>

Abstract_List_by_Year = {

(get ALL Abstract_List/[AbsLst_PaperTitle,

AbsLst_Authors, AbsLst_PubYear,

AbsLst_AbstractContents])

SORT BY Abstract_List/[AbsLst_Authors] }

Figure 5: Another conceptual view example (the contents of the Abstract_List package)

2.6 Ordered Composition/Ordering

In real-world, composite objects being in an

aggregation with one or more sub-objects, they also

can be in a pre-defined order. For example in XML

Schema construct such as with

<xsd:sequence>,

we regularly observe that the tag

<xsd:sequence>

signifies that the embedded elements are not only a

simple assortment of components but these have a

specific ordering. This signifies an important OO

concept, ordered composition.

Simply said, to capture ordering, we add an

UML stereotype that allows capturing of the ordered

composition utilizing stereotypes to specify the

objects’ order of occurrence such as

<<1>>, <<2>>,

<<3>>, .… ,<<n>>

. In related work (Vicky Nassis et

al., 2004; Vicky Nassis, Rajugan R., Dillon et al.,

2005), we have extensively discussed defining such

ordered composition and mapping it to XML

Schema. Due to page limitation we do not include

that detailed discussion here.

3 XML VIEWS

An XML View is an imaginary XML document

which points to a collection of semantically related

XML tags from an XML domain and satisfies a

Conceptual View definition from the target XML

conceptual domain (Rajugan R. et al., 2003).

An imaginary XML document is said to be an

XML View if and only if, it has a document name, a

valid schema definition (which constrains and

validates the document), a collection of semantically

related tags and their namespaces (or domain), a set

of new tags (if any) and their namespaces which are

derived from others and a constructor that defines

how the document will be materialized.

Since an XML View document may result in a

few collections of XML tags to that of a whole

semantically related cluster of XML tags, for the

user, the resulting XML View document behaves as

another XML document.

3.1 Mapping Conceptual views to

XML views

An XML Schema is usually comprised of a set of

schema components, such as type definitions and

element declarations. There are 12 kinds of schema

components in total, falling into three groups. The

most used components include simple type and

XML VIEWS, PART III: An UML Based Design Methodology for XML Views

complex type definitions, attribute declarations, and

element declarations.

For example, in the example case study,

conceptual view

Address_Book will be mapped to

XML view schema as a

complexType in XML

Schema, while conceptual view attributes such as

ABook_FirstName and ABook_LastName, which

will correspond XML Schema

simpleType in

XML view (Schema). Some of the conceptual view

constraints are mapped to XML view schema in the

form of XML Schema constraints such as

ID /

IDREF

, KEY / KEYREF, USE, minOccurs /

maxOccurs, extension / restriction,

order, sequence etc. Similarly these constraints

can also be used to map the OO relationships

captured in UML to XML (view) Schema

constructs. For example

extension, can be used to

map a IS-A relationship for extending the base class,

while

ID combined with minOccurs/maxOccurs

can be used to map an association relationship

between two nodes. A more detailed discussion on

mapping OO generic concepts to XML Schema can

be found in (Feng et al., 2003; Xiaou et al., 2001a;

Xiaou et al., 2001b). In the following sections, we

briefly show how some of the main view

components (discussed in section 2) are mapped to

XML views (schema).

3.2 Stereotype: <<OID>>

The <<OID>> stereotype is mapped to XML view

(Schema) is shown below in the code listing.

<xs:complexType name="OIDType">

<xs:sequence>

<xs:element name="ID">

<xs:unique name="OID">

<xs:selector xpath="OIDType"/>

<xs:field xpath="ID"/>

</xs:unique>

</xs:element>

</xs:sequence>

</xs:complexType>

3.3 Stereotype: <<View>>

All conceptual views are initially mapped to a basic

XML view type and extended to fit the new view

definition. For example the basic <<view>> type is

mapped into XML Schema as shown in the code

listing below.

<xs:complexType name="viewType">

<xs:sequence>

<xs:element name="view_ID" type="OIDType"/>

<xs:element name="view_Name"/>

<xs:element name="view_Query" minOccurs="0"/>

</xs:sequence>

</xs:complexType>

And other conceptual views (in our example the

conceptual view “Address_Book”) are derived from

this basic view type. For example,

<xs:complexType>

<xs:sequence>

<xs:element name="Address_Book">

<xs:complexType>

<xs:complexContent>

<xs:extension base="viewType">

<xs:sequence>

<xs:element name="AB_Title"/>

<xs:element

name="ABook_FirstName"/>

<xs:element

name="ABook_LastName"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

4 VIEW HIERARCHY

In related work (E. J. Chang, 1996; Kim, 1990; Kim

& Kelly, 1995), we argued that, in OO systems, the

view hierarchy and the stored class hierarchy should

be kept separately from each other. In continuing the

discussion of view hierarchy to XML domain, to

avoid confusion, we need to clarify the issue of the

relationship between stored XML documents and

view documents (both conceptual and XML views).

In our work (Rajugan R. et al., 2003), we argued that

the view hierarchy in XML domain (both conceptual

and XML) should be kept separately from the stored

document hierarchy.

This is because, as in relational and OO systems,

modelling of XML documents share some relational

and many OO features. Naturally, new View

documents may form new document hierarchies

(inheritance, aggregation, nested etc.), may extend

the existing namespace of the stored XML

namespace/(s) and may be used to provide dynamic

windows to one or more stored heterogenous XML

domains. Views in XML domain may also be used

to provide imaginary schema changes (such new

simple/complex tags, new document hierarchy,

restructuring etc.). But, keeping in line with the

arguments presented for OO views in (E. J. Chang,

1996; Kim, 1990; Kim & Kelly, 1995), we believe

that the stored XML documents hierarchy and the

XML View documents hierarchy should be kept

separate. Many of the points made by Won Kim and

Chang and Dillon et al. (Dillon & Tan, 1993) for OO

views apply to XML views.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

4.1 UML Package Diagram

As we stated earlier, the role of conceptual views is

to provide different perspectives to a stored

document class hierarchy. Also in the previous

section we argued that, they can be grouped into

logical groups/hierarchies. Here, if we look closely,

each hierarchy/group that is very similar to that of a

subject area (Dillon & Tan ’93, Coad & Yourdon

’90) (Dillon & Tan, 1993) (or class categories Booch

1991) in OO conceptual modeling techniques. When

we allow logical grouping of conceptual views and

their associated relationships to clarify a given

perspective, we are giving the designer the

abstraction needed to model a cluster of conceptual

views, without worrying about external connectivity

of the view cluster (Vicky Nassis et al., 2004; Vicky

Nassis, Rajugan R., Dillon et al., 2005; Rajugan R.

et al., 2003).

In order to capture this logical grouping in UML,

we utilize the UML package construct. Intuitively,

based on OMG’s UML package specification

(OMG-UML™, 2003), it describes our logical

grouping of conceptual views into clusters (Vicky

Nassis et al., 2004; Vicky Nassis, Rajugan R., Dillon

et al., 2005). Given a conceptual view, in order to

include additional semantics/refinements, we can

construct additional new view-hierarchies. These

hierarchies may form additional structural or

dependency relationship with existing conceptual

views or view hierarchies. To model such view

hierarchy using UML packages, we introduced a

<<view>> stereotype construct for packages as

shown in Fig. 6. Some work has already been done

in investigated packages for dimensional modelling

(Sergio Lujan-Mora, Juan Trujillo, & Song, 2002a,

2002b). Here we use packages not just for grouping

tool, but also as a structural construct as well as a

new namespace model for the new view hierarchy.

5 REAL-WORLD APPLICATIONS

OF THE XML-VIEWS

Since XML and XML driven solution frameworks

are on the increase, it is important to provide models

and techniques for XML, which is at a high enough

level of abstraction but with rigorously defined

standards that are to be more widely understood by

both developers and non-technical users. To address

some of these issues, here we proposed a generic

XML view design formalism/methodology for XML

domains to provide view-driven-architecture

solutions for varied, yet complex enterprise systems.

For example, our work on XML views are

utilized in; (1) XML Document Warehouse design

(Vicky Nassis et al., 2004; Vicky Nassis, Rajugan

R., Dillon et al., 2005; Vicky Nassis, Rajugan R.,

Rahayu, & Dillon, 2005); where the proposed

conceptual design of a XML document warehouse

model uses XML views as dimensions, (2) web

engineering (Gardner, Rajugan R., Chang, & Dillon,

2004; Rajugan R., Gardner, Chang, & Dillon, 2005);

where user-centred web portal and website are

designed and implement using XML-view

formalism and finally (3) User Access Control

(UAC) design and implementation (Steele, Gardner,

Rajugan R., & Dillon, 2005), where XML-view

formalism is used as a middleware in providing

UAC for XML repositories and databases.

Abs tra ct_ L is t

<<view>>

6 CONCLUSION AND FUTURE

WORK

Figure 6: The UML model of a conceptual

view using UML “package”

Though very useful, existing view formalisms (for

all data models including XML) lacks higher level

modelling techniques and abstraction that is needed

to describe, model, and communicate complex

systems such as data warehouse and e-commerce

systems. Therefore, in this paper, we presented a

generic view design methodology for XML domains

at three levels (conceptual, logical and document

level) of abstraction. It is UML driven and

semantically rich for designing enterprise solution

and architectures.

For future work, a lot of issues deserve

investigation. First, the application of OCL in

specifying view constraints at the conceptual level

and mapping between OCL and XML Schema.

Second a well-formulated empirical study to focus

on validating the view design methodology. Third is

the investigation into dynamic perspectives of the

XML view formalism. Another area that deserves

investigation is the area of XML-view in the OMG

proposal on querying MOF based models for MDA

solutions.

XML VIEWS, PART III: An UML Based Design Methodology for XML Views

REFERENCES

Abiteboul, S. (1999). On Views and XML. 18th ACM

SIGMOD-SIGACT-SIGART (PODS '99), USA.

Abiteboul, S., & Bonner, A. (1991). Objects and Views.

ACM SIGMOD, ACM SIGMOD '91.

Abiteboul, S., Goldman, R., McHugh, J., Vassalos, V., &

Zhuge, Y. (1997). Views for Semistructured Data.

Work. on Mgmt. of Semistructured Data, USA.

Chang, E., & Dillon, T. S. (1994). Integration of User

Interfaces with Application Software and Databases

Through the Use of Perspectives. ORM '94, Australia.

Chang, E. J. (1996). Object Oriented User Interface

Design and Usability Evaluation. Doctor of

Philosophy (Ph.D), La Trobe University, Melbourne,

Australia.

Cluet, S., Veltri, P., & Vodislav, D. (2001). Views in a

Large Scale XML Repository. 27th VLDB '01, Italy.

Dillon, T. S., & Tan, P. L. (1993). Object-Oriented

Conceptual Modeling: Prentice Hall, Australia.

Elmasri, R., & Navathe, S. B. (2000). Fundamentals of

database systems (3 ed.): Addison-Wesley.

Feng, L., Chang, E., & Dillon, T. S. (2002). A Semantic

Network-based Design Methodology for XML

Documents. ACM Transactions on Information

Systems (TOIS), 20, No 4, 390 - 421.

Feng, L., Chang, E., & Dillon, T. S. (2003). Schemata

Transformation of Object-Oriented Conceptual

Models to XML. International Journal of Computer

Systems Science & Engineering, 18, No. 1(1), 8845-

8860.

Gardner, W., Rajugan R., Chang, E., & Dillon, T. S.

(2004). xPortal: XML View Based Web Portal Design.

17th Int. Conf. ICSSEA '04, Paris, France.

Jacek Blazewicz, Wieslaw Kubiak, Tadeusz Morzy,

Rusinkiewicz, M., & (eds). (2003). Handbook on Data

Mgmt. in IS: Springer, Berlin ; New York.

Jorge H. Doorn, C. Rivero, L., & (eds). (2002). Database

Integrity: Challenges & Solutions: Idea Group

Publishing, Hershey, PA.

Kim, W. (1990). Research Directions in Object-Oriented

Database Systems. Proc. of the 9th ACM SIGACT-

SIGMOD-SIGART, USA.

Kim, W., & Kelly, W. (1995). Chapter 6: On View

Support in Object-Oriented Database Systems. In

Modern Database Systems (pp. 108-129): Addison-

Wesley Publishing Company.

Liefke, H., & Davidson, S. (2000). View Maintenance for

Hierarchical Semistructured. DaWak '00, UK.

Lucie-Xyleme. (2001). Lucie Xyleme: A dynamic

warehouse for XML Data of the Web. IEEE Data

Engineering Bulletin, 24, No 2, 40-47.

Nassis, V., Rajugan, R., Dillon, T. S., & Rahayu, W.

(2004, September 1-3). XML Document Warehouse

Design. Proc. of DaWaK '04, Zaragoza, Spain.

Nassis, V., Rajugan R., Dillon, T. S., & Rahayu, W.

(2005). Conceptual and Systematic Design Approach

for XML Document Warehouses. Int. Journal of Data

Warehousing and Mining, 1, No 3.

Nassis, V., Rajugan R., Rahayu, W., & Dillon, T. S.

(2005, 9-12 May 2005). A Systematic Design

Approach for XML-View Driven Web Document

Warehouses. Int. Work. on Ubiq. Web Sys. & Intel.

(UWSI '05).

OMG-UML™. (2003). Unified Modeling Language™

(UML) Version 1.5 Specification: OMG.

Rajugan R., Chang, E., Dillon, T. S., & Ling, F. (2003).

XML Views: Part 1. Proc. of DEXA '03.

Rajugan R., Chang, E., Feng, L., & Dillon, T. S. (2004).

XML Views, Part II: Modeling Conceptual Views

Using XSemantic Nets. Workshop & SSS on

Industrial Informatics, The 30th IEEE IECON '04,

S.Korea.

Rajugan R., Gardner, W., Chang, E., & Dillon, T. S.

(2005, 9-12 May 2005). xWeb: An XML View Based

Web Engineering Methodology. Int. Work. on Ubiq.

Web Sys. & Intel. (UWSI '05).

Sergio Lujan-Mora, Juan Trujillo, & Song, I.-Y. (2002a).

Extending the UML for Multidimensional Modeling.

Int. Conf. on UML & Apps. (UML '02), Germany.

Sergio Lujan-Mora, Juan Trujillo, & Song, I.-Y. (2002b).

Multidimensional Modeling with UML Package

Diagrams. Proc. of the 21st Int. Conf. on (ER '02).

Steele, R., Gardner, W., Rajugan R., & Dillon, T. S.

(2005). Design of an XML View Based User Access

Control (UAC) Middleware. IEEE Int. Conf. EEE '05,

Hong Kong.

Volz, R., Oberle, D., & Studer, R. (2003a). Implementing

Views for Light-Weight Web Ontologies. Proc. 7th

IDEAS '03, Hong Kong.

Volz, R., Oberle, D., & Studer, R. (2003b). Views for

light-weight Web ontologies. Proc. of the ACM

Symposium on Applied Computing (SAC '03), USA.

W3C-XML. (2004, 4th February 2004). Extensible

Markup Language (XML) 1.0 (Third Edition). from

http://www.w3.org/XML/

W3C-XSD. (2004). XML Schema, 2004, from

http://www.w3.org/XML/Schema

Xiaou, R., Dillon, T. S., Chang, E., & Feng, L. (2001a).

Mapping Object Relationships into XML Schema.

Proc. of OOPSLA Work. on Objects, XML and DBs.

Xiaou, R., Dillon, T. S., Chang, E., & Feng, L. (2001b,

September 3-5). Modeling and Transformation of

Object-Oriented Conceptual Models into XML

Schema. 12th Int. Conf. on DEXA '01.

Xyleme. (2001). Xyleme Project, from

http://www.xyleme.com/

Zhuge, Y., & Garcia-Molina, H. (1998). Graph structured

Views and Incremental Maintenance. Proc. of the

14th IEEE ICDE '98, USA.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
