A BAYESIAN NETWORKS STRUCTURAL LEARNING

ALGORITHM BASED ON A MULTIEXPERT APPROACH

Francesco Colace, Massimo De Santo, Mario Vento

DIIIE, Università degli Studi di Salerno, Via Ponte Don Melillo 1, 84084, Fisciano (Salerno), Italy

Pasquale Foggia

DIS, Università di Napoli “Federico II”, Via Claudio, 21, 80125 Napoli, Italy

Keywords: Bayesian Networks, MultiExpert System

Abstract: The determination of Bayesian network structure, especially in the case of large domains, can be complex,

time consuming and imprecise. Ther

efore, in the last years, the interest of the scientific community in

learning Bayesian network structure from data is increasing. This interest is motivated by the fact that many

techniques or disciplines, as data mining, text categorization, ontology building, can take advantage from

structural learning. In literature we can find many structural learning algorithms but none of them provides

good results in every case or dataset. In this paper we introduce a method for structural learning of Bayesian

networks based on a multiexpert approach. Our method combines the outputs of five structural learning

algorithms according to a majority vote combining rule. The combined approach shows a performance that

is better than any single algorithm. We present an experimental validation of our algorithm on a set of “de

facto” standard networks, measuring performance both in terms of the network topological reconstruction

and of the correct orientation of the obtained arcs.

1 INTRODUCTION

Bayesian belief networks (or shortly Bayesian

networks) are powerful knowledge representation

and reasoning tool for managing conditions of

uncertainty. A Bayesian belief network is a directed

acyclic graph (DAG) with a conditional probability

distribution for each node. The DAG structure of

such networks contains nodes representing domain

variables, and arcs between nodes representing

probabilistic dependencies. In the last period this

model is becoming a popular representation for

encoding uncertain knowledge. The main

advantages of Bayesian Networks are discussed in

detail in various papers

(Heckerman,1997)(Cheng,1997) and can be

summarized in the following points:

• Bayesian

Networks can handle incomplete data

sets

• Bayesian Net

works allow learning about causal

relationships

• Bayesian

Networks facilitate the combination of

background knowledge and experimental data

avoiding the over fitting problem typical of

methods based exclusively on experimental data

An interesting problem is the learning of Bayesian

Net

works structure from a finite set of data samples.

This task is not easy to solve and in literature we can

find many different approaches for “structural

learning”. The main aim of structural learning

algorithms is to infer the relationships among the

entities of the domain and to specify the causality

dependencies from the observations of domain

variables values. Generally, these algorithms can be

grouped into two categories

(Singh,1995)(Bell,1997): the first category uses

heuristic search methods to construct a model and

evaluates it using a scoring measure. This process

continues until the score of the model obtained at the

current iteration is not significantly better than the

previous one. Different scoring criteria have been

proposed in these algorithms, such as, Bayesian

scoring, entropy based scoring, and minimum

description length

(Glymour,1987)(Cooper,1992)(Lauritzen,1989). The

second category builds the dependency relationships

by analysing pairs of nodes. The dependency

relationships are measured by using some kind of

194

Colace F., De Santo M., Vento M. and Foggia P. (2005).

A BAYESIAN NETWORKS STRUCTURAL LEARNING ALGORITHM BASED ON A MULTIEXPERT APPROACH.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 194-200

DOI: 10.5220/0002521401940200

 SciTePress

conditional independence (CI) test. The algorithms

described in (Fung,1990)(Cooper,1992) belong to

this category. Both of these two categories have

their advantages and disadvantages: generally,

algorithms in the first category have less time

complexity in the worst case (when the underlying

DAG is densely connected), but it may not find the

best solution due to its heuristic nature. The second

category of algorithms is usually asymptotically

correct when the probability distribution of data is

DAG-Isomorphic, but CI tests with large condition-

sets may be unreliable unless the volume of data is

enormous (Cooper,1992). In this paper we propose a

structural learning algorithm based on a multiexpert

approach. The proposed Multi-Expert System

combines five algorithms (Bayesian algorithm

(Heckermann,1995), K2 (Cooper,1992), K3

(Bouckaert,1993), PC (Spirtes,2001) and TPDA

(Cheng,1997)) selected among those presented in the

literature that show the better results. To evaluate

this algorithm, we present the experimental results

on eight networks datasets selected among those

regarded standard in the literature. The reported

experimental results show not only that proposed

system performances are better than the ones of

original experts but also the ability of the Multi-

Expert System of exploting the strengths of each

expert overcoming at same time its weakness. The

paper is organized as follows: in section 2 we

describe the general structure and the various

approaches of Structural Learning Algorithms, the

selected algorithms and our MultiExpert system. In

section 3 we describe the reference datasets and the

obtained results.

2 ALGORITHMS OF

STRUCTURAL LEARNING

As previously said the main aim of a structural

learning algorithm is to point out relationships

between the entities of a domain and to specify the

causality bonds starting from the observations of

domain variables values. In general a structural

learning algorithm includes the following steps:

• Collection of experimental data

• Determination of the network nodes from the

acquired data

• Construction of an initial graph

• Choice of the search method

• Initialitation of the Structural Learning process

• Costruction of the network

The earliest result in structure learning was the

Chow and Liu algorithm (Chow, 1968). This

algorithm learns a Bayesian Network whose shape is

a tree. Problems like structural learning become very

difficult when datasets are smaller because of

overfitting in the structure space. The main

limitation of the method by Chow and Liu was that

it did not take any countermeasure to reduce

overfitting. Most subsequents works on structural

learning apply standard statistical methodologies for

fitting models and avoiding overfitting. It is

important to note that the role of a statistical

methodology is to convert a learning problem into

an optimization problem in order to apply techniques

aimed at avoiding local minima. First family of

methods is based on the maximum likelihood or the

minimum cross entropy. The maximum likelihood

approach tries to find the network structure S

for

which the maximum likelihood over parameter θ

(characterizing associated to the given structure) is

the largest:

arg max max ( , )

Smm

sample S

The minimum cross entropy approach tries to find

the structure whose minimum cross entropy with the

data is the smallest. It has been demonstrated that

these two approaches are equivalent. For Bayesian

networks the maximum likelihood approach has

been applied by (Geiger, 1992). A number of

extensions to the maximum likelihood approach

have been proposed. They replace the sample

likelihood by a modified score that is to be

maximized. Examples of modified score can be the

penalized likelihood, Akaike information criteria

(AIC), the Bayesian information criteria (BIC).

Some algorithms minimize some information

complexity measure, for instance minimum

description lenght, minimum message length and

minimum complexity (Rissanen,1978). One

advantage of this approach is that it requires no “a

priori” knowledge and is hence objective. Da For

Bayesian networks, MDL has been applied by

(Suzuki,1999)(Lam,1994). Another class of

algorithms is based on the hypotesis testing

approach that is the standard model selection

strategy from classical statistics. As mentioned

before, the problem is that this approach is a viable

only if there is a small number of hypotheses that

need to be tested. Sub-Optimal search techniques

(e.g.) greedy search tecniques can help here by

reducing the number of hypothesis tests required.

Finally one of the most important families of

algorithms is based on the Bayesian approach.

Actually we can say that there is a rich variety of

Bayesian methods and most of the previous

methodologies can be reduced to some form of

A BAYESIAN NETWORKS STRUCTURAL LEARNING ALGORITHM BASED ON A MULTIEXPERT APPROACH

195

Bayesian approximation. In its complete form the

Bayesian approach requires specification of a prior

probabilities. The Bayesian approach has many

different approximations: the simplest is the MAP

approach. In general the full bayesian approach is

predictive: rather than returning the single best

network with respect to observer data, the aim is to

maximize the expected performance also for new

cases. The key distinction between Bayesian and

non Bayesian methods is the use of priors.

Unfortunately priors computation can be complex

mathematically, so poorly chosen priors can make a

Bayesian method perform worse than other methods.

Some approaches use a two phases algorithm: in the

first phase a statistical method is used to obtain a

reasonable estimate of prior probabilities which is

then exploited in the second phase bayesian method.

None of described approach obtains good results in

every case because, as previously described, they

have diffent strategies useful in well defined cases

(for example sparse networks, huge datasets). In

order to obtain a structural learning system able to

perform its task under the most diverse condition we

propose a new algorithm based on a MultiExpert

approach. We have selected five different algorithms

that represent all the categories previously described

and we have combined their results according to a

combining rule to obtain the final output of our

system. In the next subsections we will show the

selected algorithms and the architecture of our

MultiExpert System.

2.1 The Bayesian Algorithm

The bayesian algorithm resolves the problem of the

Structural Learning from data determining the

structure m that maximizes the probability

p(M=m|D), where Mε{m

, ...,m

} that is a set of

models that contains the true model of a domain X

and D is the set of the observed samples. According

to this approach if we have two models m

and m

representing the domain X, we will choose m

p(m

|D) > p(m

|D). We can choose as our scoring

function the logarithm of p(D|m). In fact with simple

passages we can show that:

log (p(m|D)) = log(p(m))+log(p(D|m))-log(p(D))

=log(p(D|m))+Constant

hence the model maximizing log(p(D|m)) will also

maximize p(m|D), under the condition that log(p(D))

and log(p(m)) are constant values (complete “a

priori” ignorance of the domain structure). This

formulation is based on the statistical criterion of

Maximum Likelihood; in cases where the models

have not the same prior probability (p(m)) the

algorithm can use instead the Maximum a Posteriori

principle (MAP). As regard the searching

methodology we can choose between two different

approaches:

model selection: the search is aimed at obtaining a

single model with in a family of considered models

chosen according to a scoring function. In case of

ties the algorithm performs a not deterministic

choice.

selective model averaging: the search is aimed at

obtaining a set of “good models”, i.e. models with

a good scoring value; then a single model obtained

by means of some averaging criterion over this set.

Many papers have experimentally shown that the

selection of a single model, using a greedy search

algorithm, supplies accurate models

(Chickering,1996)(Heckerman,1997). The selective

model averaging, instead, must be applied in

conjunction with sampling methods such as

Montecarlo method in order to obtain good results

(Heckerman,1997). In this paper we will refer to a

representative algorithm of this approach based on a

“model selection". In order to select the best model

the algorithm performs a “hill climbing search” with

respect to a fixed scoring function: given an initial

structure S (either a graph without arcs that

represents complete ignorance on the relationship

between the network variables or an acyclic graph

constructed inserting arcs in random way or a net

that represents the “a priori” expert knowledge) the

algorithm iteratively modifies the edges choosing at

each step the modification wich involves the

maximum gain in the scoring function. The

procedure ends when it find a local maximum of

scoring function or when it reaches the maximum

number of iterations.

2.2 The K2 Algorithm

This algorithm is representative of the approach

based on a bayesian framework with different

definition of the scoring function (Cooper,1992).

The K2 procedure differs from a typical bayesian

algorithm also for the initialization phase: while in

the pure bayesian approach the initial graph

incorporates the “a priori” knowledge of an expert,

in the K2 approach the user must provide the initial

topological ordering (from parents to children) of the

nodes. In fact this information gradely reduces the

cardinality of the searching space of the models.

However also with the sorting procedure, the

number of possible models remains high because the

distribution of combined probability P(X

,...,X

)

can be rewritten in many different ways even after

fixing one of the n! possible configurations. In this

approach the scoring function is defined as:

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

196

∏

iiss

XgBPDBp

),()(),(

where D is a data set of the k complete cases and M

is the structure of a bayesian network. The function

g(X

,π

) represents the variation obtained in the

scoring function after the introduction of a new

dependence relation and possibly of a new parent

node for X

. The core of this approach is a greedy

search algorithm starting from an initial structure

where nodes have no parents. The search for parents

nodes ends when all candidate nodes have been

examined or when the maximum number of parents

for a node has been achieved. The main

disadvantage of this approach is the impossibility of

deleting an arc after its introduction in the network.

2.3 The K3 Algorithm

This type of algorithm, introduced in the paper

(Bouckaert,1993), is based on a bayesian approach,

but as in K2 algorithm gives a new definition for the

scoring function. In this case the scoring function is

based on the Minimum Description Length (MDL)

metric. According to MDL approach

(Rissanen,1978) the optimal model minimizes the

total length of description. In other words it aims at

establishing the best statistical compromise between

the “a priori” complexity of the model and the

quality of the “a posteriori” estimates. In the MDL

approach the learned network must minimize the

total description length defined as the sum of the

description length of the samples (the source) and

the description length of a pre-existent network

structure supplied by an expert or generated in a

previous learning process. In this approach, samples

and the pre-existent network structure are considered

independent in order to process them separately. The

scoring function is defined as follows:

where B represents a possible structure, D is the n

samples of data set, the value r

represents the

number of states associated to node X

is the

number of possible configurations of parents nodes

for each node X

and N

ijk

are the occurrences in D of

with state k and fathers configuration j and

H(B,D) is the entropy. Also this approach needs an

initial ordering of the nodes.

2.4 The PC Algorithm

This algorithm is based on a constraint satisfaction

approach (Spirtes,2001). In fact it derives the

Bayesian network structure through suitable

statistical independence tests on the samples. The

PC algorithm needs, together with the observation of

the random discrete variables associated to nodes,

also a matrix whose element ij represents the

confidence about the indipendece of the nodes i and

j according to a fixed independence test. The PC

procedure consists of an initialization phase where a

fully connected DAG, associated to a domain X and

with iteration t equal to zero, is set up (so assuming

that all variables are mutually dependent) then

iteratively tha algorithm removes edges of this DAG

according to the D-Separation property derived from

statistical indipendence tests of the same orders as

the iterations number. The algorithm stops when it

can not find further nodes to each the D-Separation

can be applied. After this process we obtain a not

oriented graph: in order to determinate the arcs

orientation the algorithm use consideration based on

conditional independence. The reliability of the test

results is related to the number of samples number:

increasing the number of nodes we usually have an

increase of the dependencies and so the samples

number must be greater in order to obtain reliable

results. Concerning the significance level, its high

value means many dependencies to extract from the

database of samples. This is obvious because

increasing the threshold the probability that the

independence test can supply a incorrect result

increases. A high value of the confidence level

(>0.6) is used with small databases, on the contrary a

low value is appropriate in presence of a

considerable number of observations.

2.5 The TPDA Algorithm

111

( , ) log( ( )) * ( , ) log( )

( , ) log( )

(1)

ijk ijk

ijk

BD PB N HBD k N

HBD

kqr

===

=+ −

=−

∑∑∑

=−

∑

Also the TPDA (Three-Phase Dependence Analysis)

algorithm (Cheng,1997) is a dependence-based

algorithm and learns the Bayesian Network structure

starting from the independence relationships among

data. The input of the algorithm, like in the PC

algorithm, is the dataset and a threshold ε used in the

independence tests. The TPDA divides the process

of learning in three phases: Drafting, Thickening and

Thinning. The "Drafting" phase produces an initial

relations set through test on cross entropy value

between the variables of the domain. After this

phase we obtain is a single connected dag (i.e. there

is only one path connecting any to nodes). The

second phase, "thickening", adds no arcs if it is not

possible to d-separate two nodes. The resulting

A BAYESIAN NETWORKS STRUCTURAL LEARNING ALGORITHM BASED ON A MULTIEXPERT APPROACH

197

graph contains all arcs of the true model and some

extra-arcs. The third phase, "thinning", consists in

the examination of all arcs and their exclusion if the

two linked nodes are conditionally independent. At

the end of this phase the algorithm estabilishes the

arc’s orientation with an approach similar to PC

algorithm.

2.6 The proposed approach

The main idea of this paper is to use a multi expert

approach in the Bayesian networks structural

learning problem. The idea of combining various

experts with the aim of compensanting the wekness

of each single expert while preserving its own

strenght has been considered appealing by many

researchers in the last few years

(Ho,1994)(Kittler,1998). The rational of this

approach is that the performance obtained

combining the results of a set of expert can result

better than that of any single experts. The successful

implementation of a multiexpert system depends

both on the definition of suitable combining rule and

on the choice of experts that are as much as possible

complementary. One of the simplest combining

rules, the majority vote, assigns the input samples to

the class for which a relative or absolute majority of

experts agrees. In our approach we have adopted a

relative majority voting rule. In particular we used

this rule to decide both if an arc should be placed

between two nodes and which orientation should be

assigned to the arc. This rule has proved to be quite

effective and ha the advantage of not requiring the

training of a parameters set.

3 EXPERIMENTAL RESULTS

We have selected eight networks in order to test the

algorithms previously described. These networks are

mentioned in several papers and represent the

reference networks in literature (Table 1).

Table 1: Analysed Networks and Datasets

Network Name

Nodes

Number

Arcs

Number

Data

Set

Samples

Alarm (Pearl,1991) 37 46 10.000

Angina

(Cooper,1992)(Lauritzen,1989)

5 5 10.000

Asia (Glymour,1987) 8 8 5.000

College (Singh,1995) 5 6 10.000

Hailfinder (Cheng,1997) 56 66 20.000

Led (Fung,1990) 8 8 5.000

Pregnancy (Lauritzen,1989) 4 3 10.000

Sprinkler (Suzuki,1999) 5 5 400

3.1 Obtained Results

For evaluating the performance of our method we

have designed and implemented a Java based

software tool based on the previous scheme. We

have implemented all algorithms previously

described according the authors instructions and a

majority voting combiner. In order to evaluate the

performances of algorithm we have used two

indexes (Colace,2004):

Topological Learning =

Correct Arcs

Correct Arcs+ Missing Arcs+ Added Arcs

∑

∑∑ ∑

Global Learning =

Well Oriented Arcs

Well Oriented Arcs+ Wrong Oriented Arcs+ Added Arcs+ Missing Arcs

∑

∑∑ ∑∑

The first index measures the ability of the algorithm

in the learning of correct topology of the net. The

second index measures the ability of the algorithm in

the learning of correct networks. In figure 1 and 2

we show the results obtained by the proposed

MultiExpert System vs the best single expert.

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

198

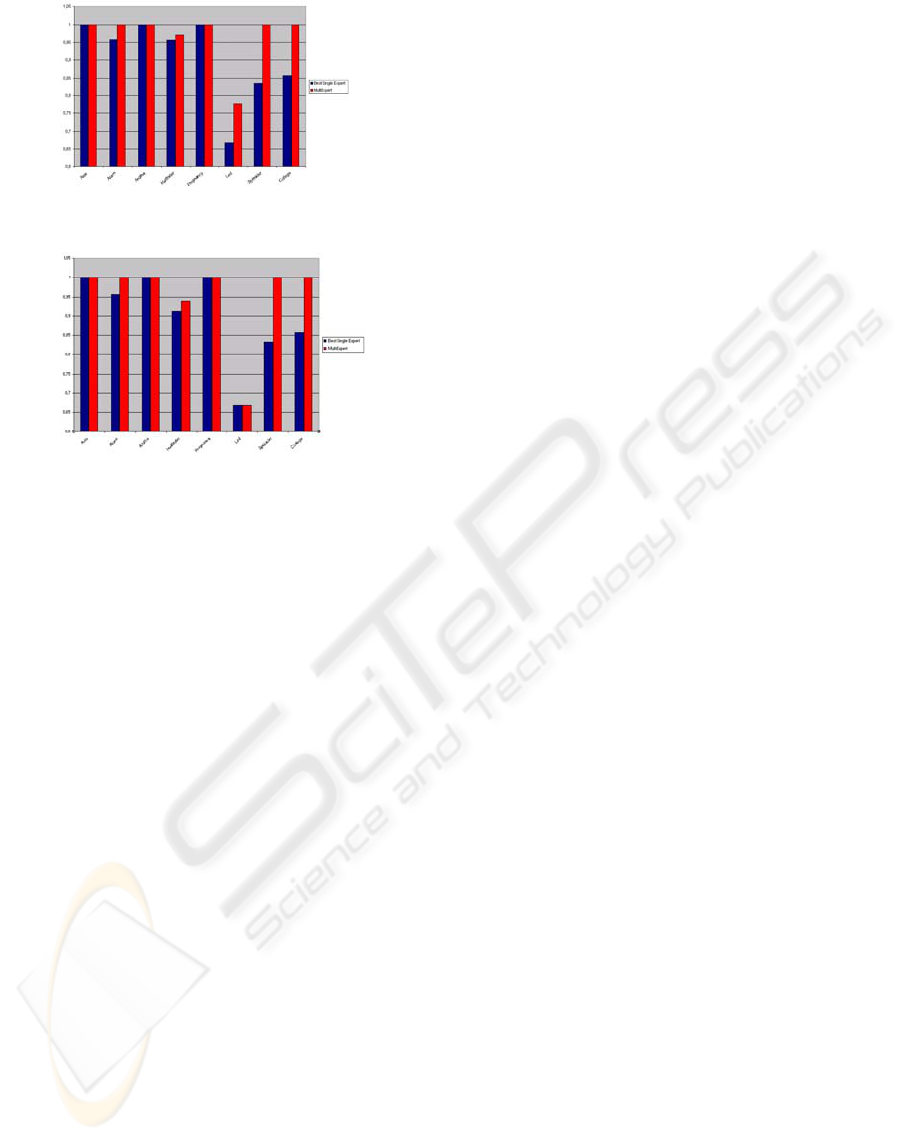

Figure 1: Obtained results fot the Topological Index (in

red the multiexpert results)

Figure 2: Obtained results fot the Global Index (in red the

multiexpert results)

The obtained results show that the multiexpert

approach has higher performances than the best

expert both from the topological point of view and

the global point of view. In particular the

MultiExpert approach is able to obtain the correct

network in the 75% of considered networks versus

the 37,5% obtained by the single best expert.

Furthermore there is no network for which the

multiexpert approach has performance lower than

that of any single expert. In general we have a

performance increase of multiexpert system versus

the best single expert. In particular in the case of

sprinkler network (a dataset with a very low number

of samples) the performance increase is very

impressive: 16.7%.

4 CONCLUSION

In this paper we introduced a MultiExpert system for

structural learning of Bayesian Networks. We

showed the most important approaches in literature.

None of these approaches allows a correct building

in every case. So we selected five algorithms in

order to build a MultiExpert system based on

majority vote approach. Aiming to evaluate the

results of our approach we selected eight networks

and their samples datasets. The obtained results

show that the multiexpert approach provide better

results than any single experts. In order to improve

the performance of MultiExpert system we are

working to the introduction of new experts and new,

more sophisticated, combining rules.

REFERENCES

Singh, M., Valtorta, M., Construction of Bayesian

Network Structures from Data: a Brief Survey and an

Efficient Algorithm. International Journal of

Approximate Reasoning, 1995, 12:111-131

Glymour, C., Scheines, R., Spirtes P. and Kelly, K.,

Discovering Casual Structure, Academic Press, 1987

Fung R. M., Crawford S. L., Constructor: a System For

The Induction of Probabilistic Models, Proceedings of

AAAI-90, 1990, 762-769

Pearl J., Verma T., A Theory of Inferred Causation,

Principles of Knowledge Representation and

Reasoning, 1991, 441-452, Morgan Kaufmann

Cooper G. F., E. Herskovits, A Bayesian Method For The

Induction of Probabilistic Networks From Data,

Machine Learning. 1992, 9, 309-347

Lauritzen S., Thiesson B., Spiegelhalter D., Diagnostic

Systems Created by Model Selection Methods: A Case

Study., AI and Statistics IV, Volume Lecture Notes in

Statistics, 143-152. Springer Verlag, New York, 1989

Suzuki J., Learning Bayesian Belief Networks Based on

the MDL Principle: an Efficient Algorithm Using the

Branch and Bound Technique, IEICE Trans. Inf. &

Syst., Vol. E82, No. 2 February, 1999

Cheng J., Greiner R., Learning Bayesian Belief Network

Classifiers: Algorithms and System, Lecture Notes in

Computer Science 2056, 141-160, 2001

D. M. Chickering, Learning Bayesian NP-Complete,

Learning from Data: AI and Statistics, Springer and

Verlag, 1996

D. Heckermann, Bayesian Networks for Data Mining,

Journal of Knowledge Discovery and Data Mining

1(1), pag. 79-119, Kluwer Academic Publishers, 1997

Bouckaert R., Probabilistic Network Construction Using

the Minimum Description Length Principle, Lecture

Notes in Computer Science, Vol. 747, 1993

Rissanen J., Modeling by shortest data description,

Automatica, Vol. 14, pp. 465-471, 1978

Spirtes, P., Glymour, C., Scheines, R, Causation,

Prediction and Search, MIT press, 2001

Cheng , J., Bell, D., Liu, W., Learning belief networks

from data: an information theory based approach,

Proceedings of the Sixth ACM International

Conference on Information and Knowledge

Management, 1997

Heckermann, D., Geiger, D., and Chickering, D.. Learning

Bayesian Networks. The Combination of Knowledge

and Statistical Data. Machine Learning, 1995

20(3):197-243

Cheng , J., Bell, D., Liu, W., Learning Bayesian networks

from data: an efficient approach based on information

A BAYESIAN NETWORKS STRUCTURAL LEARNING ALGORITHM BASED ON A MULTIEXPERT APPROACH

199

theory, Conference on Information and Knowledge

Management, 1997

Bell, D., Cheng , J., Liu, W., An Algorithm for Bayesian

Belief Network Construction from Data, Proceedings

of AI&STAT’97, Ft. Lauderdale, Florida, 1997

Chow, C.K., Liu, C.N., Approximating Discrete

Probability Distribution with Dependence Trees, IEEE

Trans. Information Theory, vol.14, 1968

Geiger, D., An Entropy Based Learning Algorithm of

Bayesian Conditional Trees, Dubois et al., pp. 92-97

Lam, W., Bacchus, F., Learning Bayesian Belief

Networks: an Approach Based on the MDL principle,

Computational Intelligence, Vol. 10-4, 1994

Colace, F., De Santo, M., Foggia, P., Vento, M., Bayesian

Network Structural Learning from Data: an

Algorithms Comparison, Proceedings of International

Conference on Enterprise Information Systems, Porto,

2004

Ho TK, Hull JJ, Srihari SN, Decision Combination in

Multiple Classifiers, IEEE Trans. On PAMI, vol. 16,

1994

Kittler J., Hatef D., Matas J., On Combining Classifiers,

IEEE Trans. On PAMI, vol. 20 n. 3, 1998

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

200
