Secure Mobility Infrastructure using Mobile IP
Mark W. Andrews, Ronan J. Skehill, Michael Barry, Sean McGrath
University of Limerick, Limerick, Ireland
Keywords: Mobility, Transparent, Mobile IP, Virtual Private Networks, IP Security, Internet Protocol, Internet Key
Exchange, Agent.
Abstract: Mobility has become an integral part of modern computing. It increases user flexibility by releasing the
potential of fixed data. Reliance on a static computing platform is not sufficient for the future needs of
nomadic users. Portable e-mail devices have become popular in recent years due to their simplicity and
functionality. These devices give the average user transparent access to their e-mail from any location.
Similar transparent access does not exist for general notebook or Personal Digital Assistant (PDA)
computing environments. This paper addresses such access, and details a secure mobility architecture from
which users can extract greater value. It utilises Mobile IP, IP Security, Internet Key Exchange and
Firewalls to provide a comprehensive mobility solution. It evaluates a test-bed in which this secure mobility
solution was deployed, and discusses the viability of a secure, transparent architecture which supports
Mobile computing is set to be the new growth driver
for overall PC sales worldwide. In 2004 worldwide
notebook sales grew 22.1% compared to 10.6% in
desktop computer growth (THG, 2005). This rapid
increase in demand for mobile hardware has
problems associated with data mobility. By its very
nature TCP/IP was designed for a fixed network
architecture where each computer is assigned a static
IP address. If a computer is moved to a different
network or subnet (i.e. if it changes location), the
computers IP address must be changed to reflect the
new location (Redi, 1998).
The ‘mobile nature’ of computing hardware like
notebooks and PDAs does not integrate in a
satisfactory manner with the static TCP/IP platform.
Accessing information is made more difficult due to
the fact that Mobile Nodes may be constantly
changing network location.
In 1996 C. Perkins published a protocol called
‘Mobile IP’ in Request For Comments (RFC) 2002.
This laid the foundations for mobility support in IP
networks – RFC 2002 has since been updated in
RFC 3344. Mobile IP provides a method for
transparent connectivity between the ‘home
network’ and Mobile Nodes connected to ‘foreign
networks’. However, it was never adopted in any
significant proportion by the computer industry.
Mobile IP’s lack of data encryption and Firewall
support functionality make it untenable for
deployment in most networking environments. Both
Firewalls and data encryption are critical for the
security of users, their ‘home networks’ and their
transmitted data.
This paper details a secure mobility architecture, in
which Mobile IP is adapted to support firewalls,
authentication and data encryption. The resulting
architecture allows individuals to roam between
different foreign networks in a secure, managed
fashion. The paper is presented in the following
manner; Section 2 describes network security, and
the elements of network security which complement
the secure mobility model presented later in the
paper. Section 3 highlights the Mobile IP protocol,
its operation and the effect Mobile IP has on
network security. Section 4 details the network
topology of the secure mobility model. Section 5
demonstrates the functional aspect of the solution, in
terms of the protocol interaction and configuration.
Section 6, analyses the solution in terms of its
operation and performance. Section 7 concludes the
paper by summarising the main points, and the
practical application of this secure transparent
mobility solution.
W. Andrews M., J. Skehill R., Barry M. and McGrath S. (2005).
SECURE TRANSPARENT MOBILITY - Secure Mobility Infrastructure using Mobile IP.
In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 41-48
DOI: 10.5220/0001410300410048
Data security is a pressing concern of users around
the world. CERT recorded 137,529 computer
security incident reports in 2003, compared to 1,334
in 1993. Protection of data is of serious importance
to users, as the increasing number of threats grows
significantly on a yearly basis (CERT, 2004).
The network security elements discussed in this
section are necessary for the successful
implementation of a secure mobility solution.
Computer network security is the process of
preventing and detecting unauthorised use of your
computer network resources. Prevention measures
help to avert unauthorised users from accessing any
part of your computer system or network. Detection
helps determine whether or not someone attempted
to break into a computer network, if they were
successful, and what they may have done to
compromise that system (Valenita, 2005).
Firewalls, Virtual Private Networks, IP Security
and Internet Key Exchange (IKE) are important
security protocols and technologies. A brief
overview of each is given in the following
2.1 Firewalls
Firewalls are the principal way a private network is
protected from intrusion by external nodes. A
Firewall is a system or group of systems that
enforces an access control policy between two
networks (CERT, 2001). In simple terms, a Firewall
is a security device that separates an internal
network from and external network. All traffic
passing between the two networks must traverse the
Firewall by virtue of the network topology. The
Firewall enforces security and access control
policies and protects the internal network from
malicious users. The majority of Firewalls today use
stateful inspection, whereby the Firewall tracks the
state of each traffic flow and then determines
whether a packet or connection should be allowed or
dropped. A Firewall monitors traffic from an
external host to a host in a Firewall-protected
network and conversely, monitors traffic from
internal hosts to external ones. Typically,
connections initiated from outside hosts to hosts on
the internal network are severely restricted
(Kopparapu, 2002).
2.2 Virtual Private Networks
A Virtual Private Network (VPN) is a network that
is constructed by using a public network
infrastructure to connect nodes. VPN’s use
encryption and other security mechanisms to ensure
that only authorised users can access the network,
and that the data cannot be intercepted (Webopedia,
Characteristically VPN’s are used to provide an
encrypted connection between a user’s distributed
sites over the Internet. By contrast, a private
network uses dedicated circuits (via leased lines or
otherwise) and possibly encryption. The encrypted
tunnel a VPN provides, is a secure path for network
applications to transmit data and requires no changes
to those applications.
A VPN generally uses Firewalls, encryption and
authentication to keep data and the connection
secure. The most common protocols that facilitate a
secure VPN connection will now be discussed
(Dunigan, 2004).
2.3 IP Security
The Internet Engineering Task Force (IETF) defined
IP Security (IPSec). It is a standard that provides a
common means of authentication, integrity and IP
encryption. It offers two modes of operation, tunnel
mode and transport mode.
IPSec packets can be routed and switched on any
network that supports IP traffic. No additional
support capabilities are required on the carrier
network. One of the benefits of this protocol is that
it is transparent to the application layer. Therefore,
it can be used in conjunction with existing
application layer security software. In addition,
VPN solutions using IPSec as the basis for a
common protocol can interoperate, opening up new
possibilities for securely sharing data (Atkinson,
IPSec uses two principal elements to protect
network communications:
Authentication Header (AH), this
provides source authentication and data
integrity. This ensures the data cannot be
altered without the recipient’s knowledge
and verifies the identity of the sending
Encapsulated Security Payload
(ESP), this provides confidentiality,
ensuring that data will not be intercepted,
read or copied. This security is provided
through encryption.
2.3.1 IPSec Authentication Header
In Authentication Header (AH) transport mode, an
AH header is inserted between the IP header and the
payload. This provides the Security Parameter
Index (SPI), sequence number and other
authentication data required (RFC1826).
2.3.2 IPSec Encapsulated Security Payload
In IPSec Encapsulated Security Payload (ESP)
transport mode, an ESP header is inserted between
the IP header and IP payload. An ESP trailer and
authentication MAC are added to the end of the
packet. In tunnel mode ESP, the entire packet is
encrypted and appended to a new ESP header and IP
header, with an authentication trailer added (Intel
Networking, 1999).
2.4 Internet Key Exchange
Internet Key Exchange (IKE) is defined as an IPSec
(IP Security) standard protocol used to ensure
security for Virtual Private Network (VPN)
negotiation. IKE defines an automatic means of
negotiation and authentication for IPSec SAs
(Security Associations). Security Associations are
security policies defined for communication between
two or more entities (Harkins, 1998). A key
represents the relationship between the entities. IKE
in essence, enables the establishment of a symmetric
key between two entities using a cryptographically
secure key exchange mechanism. This exchange is
called Diffie Hellman, and a key is established in the
following manner:
1. Alice and Bob select a prime
number p and calculate p’s generator g.
These two calculated values are public
2. Alice chooses a large private
number, such that x < p and transmits Bob
the remainder x from the equation:
x = g
mod p
3. Similarly Bob chooses a large
private number, such that y < p and
transmits Alice the remainder y from the
y = g
mod p
4. Alice calculates the remainder:
s = y
mod p
5. Bob calculates the remainder:
s` = x
mod p
6. The remainders s and s` are equal
s = s`= g
mod p
7. Thus Alice and Bob now share a
symmetric key s, which can be used for
fast encryption by both parties.
8. It is not possible to obtain the
value s from the two public keys passed
over the Internet, since the final value s
also depends on the two private values,
which remain secret (Diffe Hellman, 2004).
IKE also grants the ability to change encryption
keys during an IP Security session. This is useful in
situations where the lifetime of the key should be
changed frequently for security purposes.
2.5 General Comment
The security components discussed are necessary in
order to provide confidentiality, integrity,
authorisation and non-repudiation for the secure
mobility architecture. The final component, Mobile
IP, enables the transparent network connectivity
between mobile nodes and the ‘home network’.
Mobile IP, while not a viable solution by itself, can
be used in conjunction with other protocols such as
those already discussed, to provide a secure
cryptosystem that completes the overall architecture.
The fundamental need for Mobile IP arises when a
node connected to the Internet changes its point of
attachment (Redi, 1998). This means, when a
mobile node moves from its home network to a
foreign network, such as a public wireless hotspot,
there will be transparent network connectivity to the
home network from the new location.
TCP/IP was not designed to support this type of
connectivity. However, with the use of Mobile IP,
the mobile node can configure itself with the aid of
devices called ‘agents’ for such connectivity. This
process is transparent to users, allowing them to
maintain contact with the ‘home network’ at all
times by any network media.
Each agent device in Mobile IP carries out a
specific function. The ‘Home Agent’ resides on the
users ‘home network’. This device acts as a packet
forwarder. If the Mobile Node is attached to a
‘foreign network’, any packets destined for the
Mobile Node will be intercepted by the Home Agent
using proxy ARP (Address Resolution Protocol),
and forwarded using IP-in-IP encapsulation to the
‘foreign network’ using the mobile nodes Care-Of
Address (Perkins, 2002). Hence, the Home Agent
acts as the Mobile Nodes point of attachment to the
Internet when it is located on a ‘foreign network’.
Once the tunnelled packet reaches the ‘foreign
network’, a Foreign Agent decapsulates the data and
forwards it to the Mobile Node residing on its
network. Figure 2, illustrates the triangular route the
Mobile IP protocol typically uses between the
SECURE TRANSPARENT MOBILITY - Secure Mobility Infrastructure using Mobile IP
mobility nodes, Home Agent, Mobile Node and
Corresponding Node.
Figure 1: Mobile IP Triangular Routing
3.1 Mobile IP and Network Security
3.1.1 Mobile IP & Firewalls
Figure 2: Firewall Blocking Mobile IP Registration
Mobile IP does not interoperate with
Firewalls.Typically, a Firewall severely restricts the
type of connections initiated from outside hosts to
hosts on the internal network. This restriction
prevents a Mobile Node running Mobile IP to
register with the Home Agent, Figure 3 illustrates
The Foreign Agent will be seen as an
unauthorised host on the Internet, and thus will be
considered untrustworthy. The registration
datagrams cannot negotiate with the Home Agent,
which sits on the ‘home network’ and the mobile
process cannot be initiated.
3.1.2 Mobile IP & Data Security
Data protection has become a high growth market in
the computer systems environment (IT Facts, 2003).
Unprotected data routed around the Internet is no
longer considered safe practice, especially when that
data is of a sensitive nature. Vanilla Mobile IP
transmits data between nodes in plaintext, thus the
data can be intercepted when being routed around
the Internet. This data can then be easily deciphered
and used against the sender and receiver. These
issues make vanilla Mobile IP an unviable protocol,
due to its inadequate data payload security
3.1.3 Solution
The solution is to use the transparent mobility
functionality of the Mobile IP protocol, coupled with
the authorisation and encryption protocols IKE and
IPSec. In addition, the Firewall must complement
the overall solution to fulfil the security
requirements. Minor alterations can be made which
will support the mobility aspect of the solution,
while limiting the security impact on the private
network. The network design element will now be
The most secure network topology for secure
mobility is for the agent device to be integrated with
the Firewall. This ensures that an optimal security
policy can be enforced at the boundary between the
public and private networks. The Firewall is the
best security device for maintaining perimeter
security. It would be unsafe to place the Home
Agent outside the protection of the Firewall and into
the De-Militarised Zone (DMZ). A knowledgeable
attacker would compromise the Home Agent and
gain access to the home network via this path, thus
bypassing the Firewall.
Figure 3, illustrates the proposed secure
configuration arrangement for the secure Mobile IP
4.1 Firewall Design
The Home Agent functionality will be incorporated
within the Firewall design. The overall security
policy can be implemented in a more integrated
manner when one security perimeter device
monitors and controls access and security levels
between the private network and the Internet.

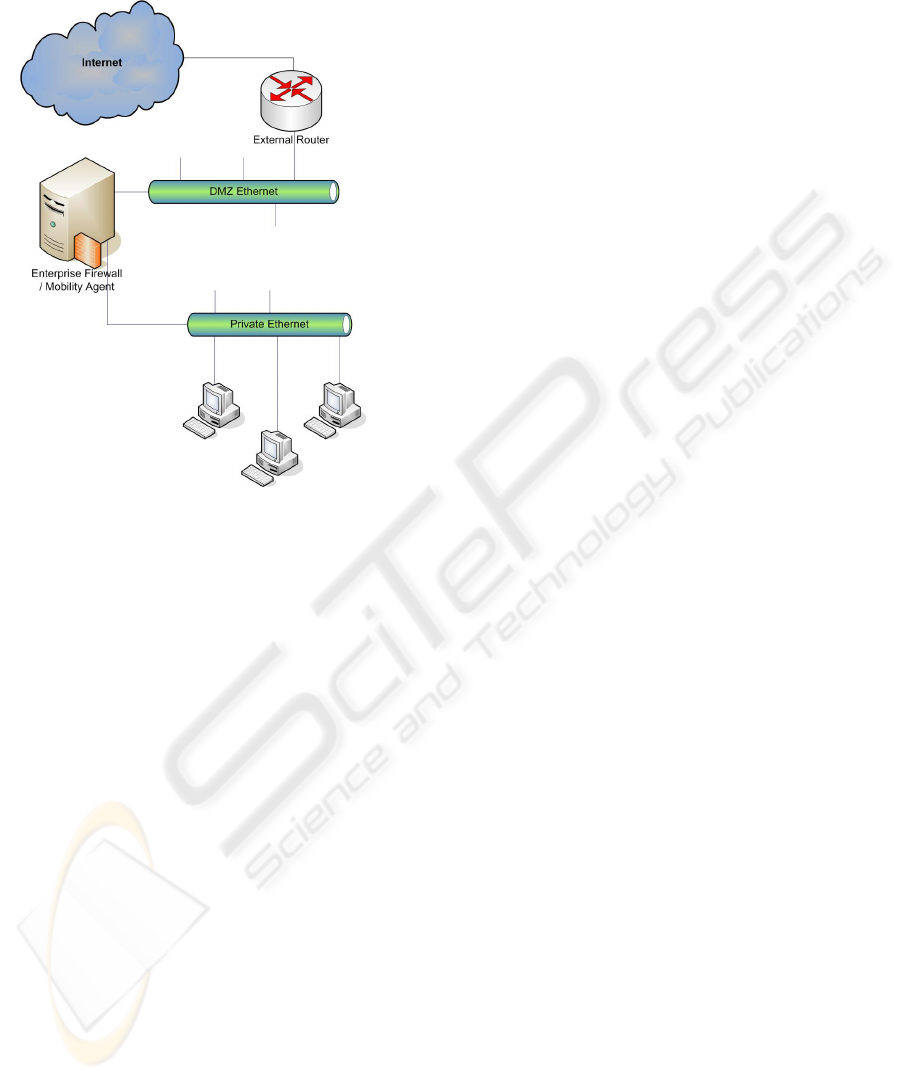

Figure 3: Proposed Home Network Device Architecture
The design of the Firewall must not impact on
the level of security it is designed to provide. It
must not interfere with the operation of the Mobile
IP protocol; it must work in conjunction with it to
provide the best functionality.
Reverse tunnelling is a prerequisite for security
purposes (Montenegro, 2001). Tunnelling back to
the Firewall gives guaranteed secure flow of data in
both directions. Thus the Firewall can enforce a
strict data flow policy, thereby protecting the ‘home
The Firewall stands as the primary defence for the
security of the ‘home network’. However, it is also
critical that the Mobile Node maintain a high level
of security, otherwise this could become the conduit
through which an attack is mounted against the
‘home network’. A software based stateful
inspection Firewall will be installed on the Mobile
Node. This adds the final layer of security into the
integrated network architecture.
5.1 Test-bed
Utilising the various technologies described,
comprising of: Mobile IP, IP Security, IKE and
Firewalls, a working model of these components
was implemented in a test-bed. The test-bed
provided an environment in which the solution could
be analysed. It also provided a data analysis
platform from which real network performance
statistics were obtained.
The test-bed consisted of a Home Agent/Firewall,
Foreign Agent, Corresponding Node, Mobile Node
and a Router. The Linux Open Source environment
was used as the Operating System platform due to
the availability of source code. The protocols were
adapted slightly, without alteration of their design
parameters, to work in conjunction with each other.
In addition, the Linux IPtables Firewall was adjusted
to authenticate Mobile IP datagrams. Details of the
protocol interaction will now be highlighted.
5.2 Protocol Interaction
The Message Sequence Chart (MSC) in figure 5,
illustrates the protocol interaction process. Firstly,
the Mobile node sends a Registration Request in
response to an Agent Advertisement, or as a result of
an Agent Solicitation. The Foreign Agent forwards
the Registration Request to the Firewall/Home
Agent. Once the Firewall detects a UDP
transmission to port 434 (the port Mobile IP uses for
registration), it allows that packet to negotiate with
the Firewall/Home Agent. If the request is accepted
(through authentication HMAC Message Digest 5
(MD5)) the Firewall/Home Agent sends a
Registration Reply, which the Firewall policy
allows. A reverse tunnel is then permitted between
the Care-of Address and the Firewall/Home Agent.
The Firewall restricts traffic in this reverse tunnel. It
only permits UDP traffic (from OpenVPN) to port
5000. Further, OpenVPN only allows this traffic
passage to the private network once the data flow
has been further authenticated and authorised. This
provides security against individuals inserting
unauthorised data into the reverse tunnel payload,
outside the VPN tunnel. Even if this data does enter
the tunnel, the Firewall will immediately disregard
without inspection. Once a location update is
received (i.e. a new Registration Request) the
Firewall closes access to the previous Care-of
Address – thus enforcing the security of the system.
The reverse tunnel acts as the primary data conduit
between the Firewall/Home Agent and the Foreign
Agent. Within this tunnel the VPN is established.
SECURE TRANSPARENT MOBILITY - Secure Mobility Infrastructure using Mobile IP

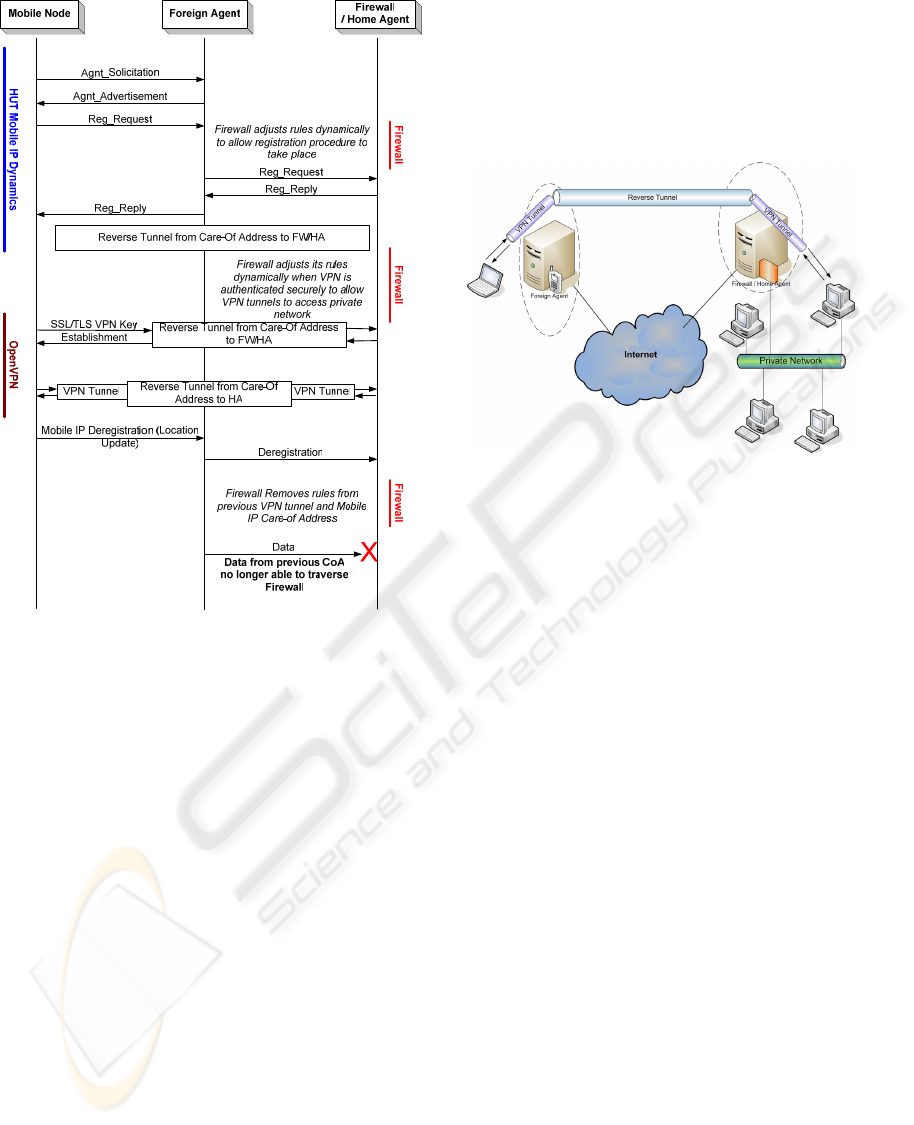

Figure 5: Protocol Interaction Message Sequence Chart
The VPN extends from the Firewall/Home Agent,
through the Foreign Agent and terminates at the
Mobile Node. This prevents nodes on the ‘foreign
network’ from being able to decipher data
transmitted between the Mobile Node and the ‘home
network’. The VPN utilises the technologies IKE
and IPSec to function as a secure extension of the
‘home network’. IKE and IPSec provide:
Authentication – The sending entity is
verified as the actual sending entity.
Integrity – Data cannot be intercepted and
changed without the receiving entity
detecting the change.
Confidentiality – The data transmitted
cannot be deciphered if it is intercepted.
This is achieved through the cryptographic
process of IPSec.
Non-repudiation – The sending node
cannot deny sending a transmission, when
in fact it did send that transmission. This
is useful in scenarios where auditing is
necessary, for example, in legal or
financial transactions.
When all the technologies are coupled together,
an overall picture of how each of the components
interacts is established; figure 6, illustrates this in
schematic form.
The net result is a cryptographically secure,
transparent, network connectivity solution from the
Mobile Node to hosts on the ‘home network’.
Figure 6: Solution Schematic
When moving the Mobile Node between the ‘home
network’ and the ‘foreign network’ the protocol
interaction configures the Mobile Node
transparently. The net result is a Mobile Node that
has connectivity to the ‘home network’ without user
alteration of any protocol, or configuration of any
network parameters. In addition, if TCP sessions
were established, when the node moves between
networks, that nodes TCP sessions would be re-
established without loss of the session. In situations
where a Database Management System, for
example, had a TCP connection to the Mobile Node
for update purposes, this feature of the Mobile IP
protocol maintains the connection without the need
to reinitialise it. This is one of the benefits of
Mobile IP. Even though the IP address changes, the
Mobile Node is always reachable, and it is able to
maintain its session connectivity.
6.1 Connection Oriented &
Connectionless Tests
The test-bed was used to evaluate the transparent
mobility functionality Mobile IP provides. This was
achieved through testing connectionless and
connection-oriented network traffic with the
solution. A more detailed network analysis is
undertaken in subsection 6.2.
Firstly, connectionless network traffic was
evaluated via media streaming. A media stream was
initiated and the Mobile Node was transitioned
between different networks. While the data
throughput was not as high as general network
routing, or vanilla Mobile IP; the test effectively
demonstrated that UDP streaming traffic works with
the secure solution.
TCP (connection-oriented) session traffic was
demonstrated using Secure Copy (SCP). Large files
were transmitted between a host on the ‘home
network’ and the Mobile Node. When the mobile
node migrated to the foreign network the SCP file
transfer session was re-established after a short
In summation, both reliable and unreliable
network traffic effectively worked with the secure
mobility solution. This was critical, since the
transparent aspect of Mobile IP grants users
seamless connectivity to static ‘home network’
resources without configuration. It was important
that the enhanced security and functionality did not
affect Mobile IP’s capabilities. Following the
successful testing of TCP and UDP traffic, network
performance statistics were evaluated.

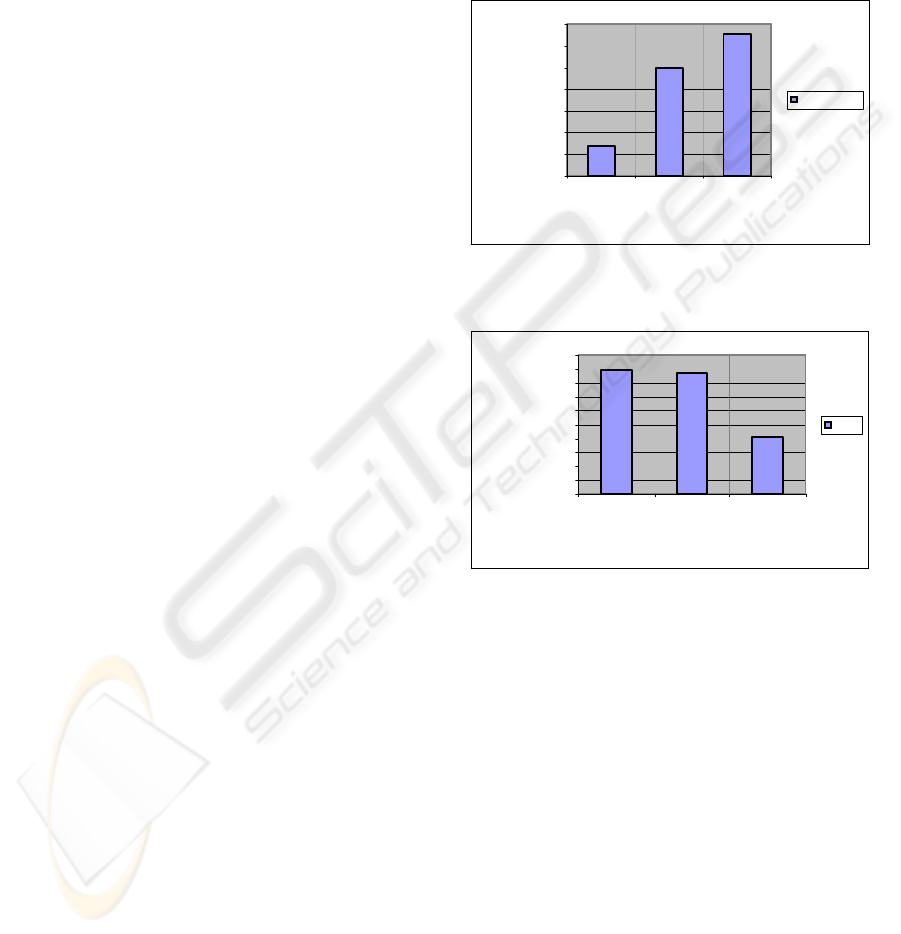

6.2 Network Performance
Network latency was tested between the Mobile
Node and a host on the ‘home network’. This test
was carried out with normal routing, using vanilla
Mobile IP and with the new secure mobility
solution. The results are illustrated in Figure 7. The
secure mobility solution did introduce a small
amount of lag in comparison to vanilla Mobile IP.
This indicates that the cryptosystem does not
introduce a network latency that would be
undesirable for real-time applications. In addition,
the media streaming test worked effectively and
there was no noticeable delay incurred.
Network throughput was calculated by
transferring various file sizes and data types across
the network. An aggregate throughput was
calculated over all the tests. This gives the average
performance level for general network traffic, and is
a more realistic estimation of actual network
performance, than a specific data transfer test.
Figure 8 illustrates the network throughput results
obtained from the test-bed.
When analysing the test-bed performance it is
clear that the increased authentication and
cryptography overhead impacts the maximum
transfer rate of the secure Mobile IP system. While
the bandwidth of Secure Mobile IP is not as fast as
standard network transfer rates, it is more than
sufficient for most applications. Ultimately, the
enhanced security of the solution was more critical
than its performance. The result is a transparent
secure mobility solution, which offers real benefits
to the end user.
Figure 7: Network Latency
Figure 8: Network Throughput
The applicability of the secure Mobile IP solution
spans across all areas of mobile computing.
Connectivity to Mobile Nodes throughout the
Internet despite the continuous change of IP address
brings an element of convergence to mobility
hardware and static computing platforms. The
secure element of this solution also brings a feasible
solution to businesses and individuals alike. It
provides transparent connectivity in a secure
Technology that provides security, functionality
and ease of use, can be adopted by the mass market.
The result is a solution that is user-friendly because
the users do not have to configure it, and secure, so
Local Vanilla Mobile
VPN/Mobile IP
Network Arrangement
Ping Latency
Latency Value
Local Vanilla Mobile IP Secure
VPN/ Mobil e IP
Net wor k A r r angement
Speed (Mbps)
SECURE TRANSPARENT MOBILITY - Secure Mobility Infrastructure using Mobile IP
those users can rest assured that their data is safe
from competitors or eavesdroppers. These critical
elements have been addressed with the secure
mobility model presented.
The result of this research, is a solution which is
based on established standards. Figure 9, illustrates
(in a basic manner) the relationship each component
has with each other.

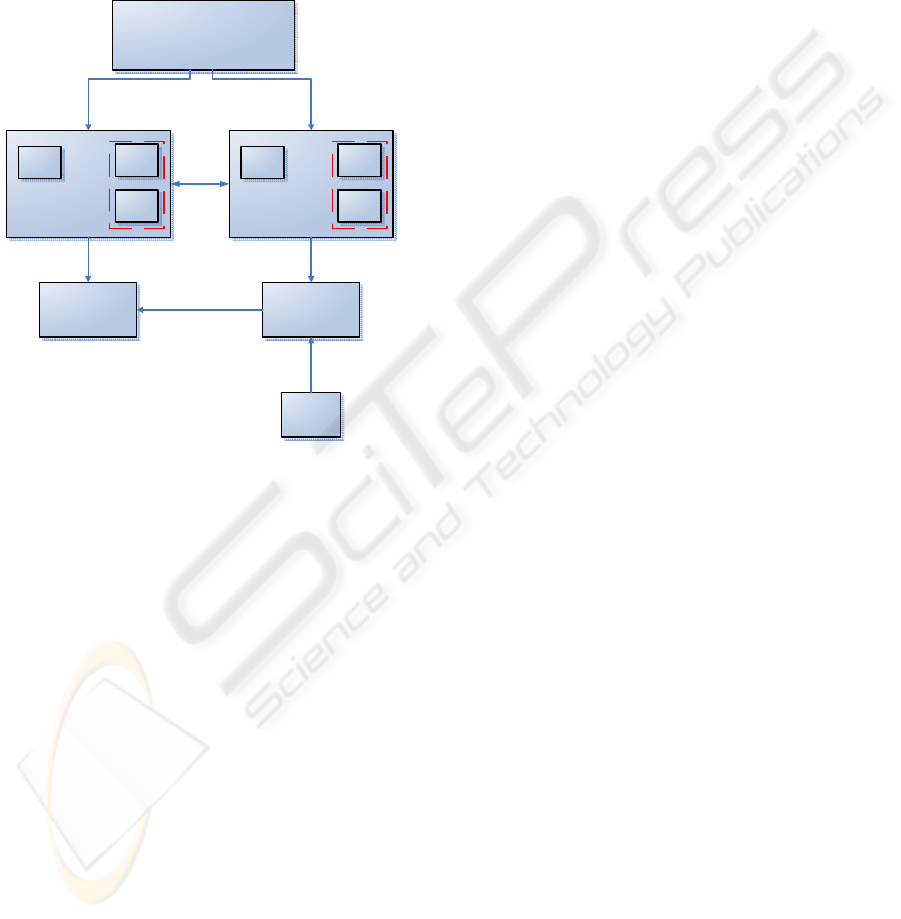

Figure 9: Solution Component Relationships
Further research will be conducted by enhancing
the performance of this solution by utilising VPN
accelerators. This technology should increase the
throughput of the cryptographic process by
removing some of the encryption and decryption
processes from Mobile Nodes, and Firewall/Home
Agents CPU. In addition, Mobile IP can be adapted
to simply use a single VPN tunnel, as opposed to an
unsecured bi-directional tunnel which encapsulates a
VPN tunnel. This will also have a positive effect on
the performance of the solution by decreasing the
encapsulation overhead.
The aim of this research is to evaluate a secure
mobility technology that is useful to the consumer,
and can enhance productivity while providing a safe
environment in which they can conduct their
Atkinson, R., 1995. RFC 1825. IP Security (IPSec).
Atkinson, R., 1995. RFC 1826. IP Authentication Header
CERT, 2005. CERT Coordination Centre Statistics 1988-
CERT, 2001. CERT Coordination Centre Home Network
Chandra Kopparapu, 2002. Load Balancing Servers,
Firewalls and Caches. WILEY.
Group 1 Internet, 2004. Firewall Technologies.
Harkins. D & Carrel. D, 1998. RFC2409. The Internet
Key Exchange (IKE).
Intel Networking, White Paper IP Security, 1999.
library/white_papers/products/ipsecurity/, 2003. Network Security Applicances Sales
Montenegro, G., 2001. RFC3024. Reverse Tunneling for
Mobile IP.
Perkins, C., 2002. RFC3344. IP Mobility Support for
Redi, J. & Bahl, P. 1998. Mobile IP: A solution for
transparent, seamless mobile computer
RocSearch, 2004-2005, Worldwide Market Potential and
Acceptability, RocSearch.
RSA Laboratories, 2004. Diffe Hellman.
Toms Hardware Guide. February 2005. Notebook
shipments at all time high.
Tom Dunigan, 2004. Virtual Private Networks.
Valentia Community College, 2005. Network Security,
Webopedia, 2005. VPN Definition.
Mobile Node
Mobile IP
Home Network
