UDDI ACCESS CONTROL FOR THE EXTENDED ENTERPRISE

Robert Steele, Juan Dai

University of Technology, Sydney, PO Box 123, Broadway, NSW 2007

Keywords: UDDI, access control, extended enterprise

Abstract: An Extended Enterprise is comprised of not only the enterprise itself but also the enterprise’s suppliers,

clients and other associated organizations. The Extended Enterprise, in response to business needs and

decisions, can dynamically alter these interrelationships, for example possibly swapping out some partners

and swapping in others. Web services are an appropriate technology choice to facilitate the Extended

Enterprise via supporting interoperability. Furthermore, the UDDI Web service standard and in particular a

private UDDI registry can enable partner organizations to lookup and discover services of their new

partners. As such a private UDDI registry is well suited to allowing potentially regularly changing business

partners in an Extended Enterprise to determine how to interoperate with each other. However, different

partners, depending on their role, should see a different set of the available services in an enterprises’

private UDDI registry. This is for security, business confidentiality and simplicity purposes. As such in this

paper we propose how a role-based access control scheme for a private UDDI registry can be utilized to

support the Extended Enterprise.

1 INTRODUCTION

Web Services are designed to provide easier

business-to-business integration among enterprises.

Although a public Universal Description, Discovery

and Integration (UDDI) service registry provides

centralized information storage and retrieval, due to

security concerns more and more organizations

prefer to build their own private UDDI registries in

their corporate network. In contrast to public

registries, private registries are hosted inside a

secure intranet or extranet and are only accessible by

invited business partners via some user

authentication mechanisms.

Such a private UDDI registry provides an

appropriate hub for the infrastructure of an Extended

Enterprise, as it allows dynamic discovery and

lookup of services, supporting the dynamic

partnering changes that are part of the Extended

Enterprise (Goldman, 1994; Whitman et. al., 1999).

Since an enterprise may only want certain

partners in the Extended Enterprise to see certain

services while hiding the other services, access

control inside private registries becomes essential.

As pointed out by Adams and Boeyen (2002),

confidentiality is one of the registry security

requirements as some content in the registry should

only be available to a particular subset of service

requesters. To do this it should be possible to specify

access permissions for every entry inside a UDDI

registry.

An access control-enable UDDI registry needs to

support a number of scenarios so as to be an

appropriate addition to the infrastructure of the

Extended Enterprise. It must be able to support the

case of a new partnering relationship being created,

a partner being removed and modification to a

partnering relationship.

Although XML SOAP gateways produced by

commercial IT vendors these days may be

configured to provide a form of access control for

Web services method invocation at runtime, we

argue that this has disadvantages to access control in

the UDDI registry. SOAP security gateways

normally understand the WSDL (Web Services

Description Language) documents of the web

services and therefore are able to understand the data

within the SOAP requests (Brose). They are able to

verify message senders by checking the XML digital

signatures or security assertions embedded inside

SOAP headers and communicate with the policy

server for access decisions (Brose). A gateway will

then either reject the request or forward the request

to the Web service server for processing based on

the predefined security policies about WSDL service

methods.

176

Steele R. and Dai J. (2005).

UDDI ACCESS CONTROL FOR THE EXTENDED ENTERPRISE.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 176-181

DOI: 10.5220/0001232601760181

 SciTePress

This feature of SOAP security gateways forbids

unauthorized users to invoke Web services methods

at runtime. However, this checking by the gateway

leads to a performance degradation in service calling.

Furthermore, access control inside the UDDI

registry is still essential to prevent unauthorized

users from reading certain information in the first

place. It is desirable for security, business

confidentiality and interface simplicity purposes to

present to users only the set of services they have

permission to access.

UDDI defines a standard way for businesses to

list their services and discover each other on the

Internet. An entry in the UDDI registry contains

references to the WSDL service interface description

file and the URL of the Web service. Typically

when a user searches the registry for a service, he

will get the service access point and a tModel

linking to the WSDL description file. The user is

then able to interact with the service based on the

access point and the WSDL description file.

Thus access control can be enforced on entries

inside the UDDI registry to allow only authorized

users to access information about a particular service

access point and tModel. For easier maintenance and

configuration, security policies may be defined in

XML and we can use the existing XML-based

access control specifications such as XACML to

exploit XML’s own ability to build access control in

the UDDI.

2 BACKGROUND

Extensive research has already been carried out on

access control to XML documents built upon XML-

based security policies. A number of access control

models (Bertino et. al., 2001; Damiani et. al., 2002a,

Gabillon & Bruno, 2001) were first proposed by

academia to regulate access to XML documents. For

example Gabillon and Bruno have proposed an

XML authorization model for pull-mode access

control. Similarly Damiani et. al. have proposed a

fine-grained access control system for pull-mode

access control. Bertino et. al. from the University of

Milan have proposed a java-based Author-X system

in 2001 for both pull and push mode access.

These models introduce XML-based access

control to XML documents at both instance and

schema level. They provide a way for security

administrators to define security policies in XML

format. Access control is based on the definition of

subjects, objects and authorization rules. Subjects

are user identifiers such as a login name which may

be used to access the system. Objects can be nodes

inside an XML XPath tree and are referred in XPath

language. Finally there are authorization rules

defining the access permissions for certain subjects

to access certain objects. The syntax of authorization

rules differs slightly from one model to another.

However they all define rules about who can access

what resources under which mode.

These authorization policies support access

control at different levels of granularity, from DTD

(Document Type Definition) schemas to individual

documents to elements within those documents.

Security policies specified at the DTD level will be

applied to all derived XML documents; On the other

hand policies specified on an element inside an

XML document may be defined in a recursive

approach applicable to all its sub-elements or in a

non-recursive approach only applicable to itself

(Damiani et. al., 2002b).

Once receiving the request, these systems check

for every element inside the requested document the

access privileges the user has on the element by

referring directly to the security policies as well as

calculating the implicit rules by propagation options

(Bertino et. al., 2001; Damiani et. al., 2002b). The

system fetches all relevant policies from the policy

base applicable to the element at both the instance

and the DTD levels. The system then applies its

conflict resolution policies to eliminate possible

conflicts. The pruning algorithm recursively

processes each secure policy and marks the

appropriate elements with “+” or “-”. Finally, as

indicated by Bertino, the system presents the

requester with a view of the requested documents by

pruning all unauthorized elements and attributes

from the original documents marked with “-” sign.

If a system has a large number of users, access

control policies may become tedious for security

administrators to manage. On the other hand quite

often access permissions to resources inside an

organization are normally determined by the role a

user plays. As pointed out by Ferraiolo and Kuhn

(1992), this role definition normally involves

“specification of duties, responsibilities and

qualifications”. Hence Role Based Access Control

(RBAC) was first introduced in 1992 by Ferraiolo

and Kuhn. With the Role Based Access Control

model, users will be assigned with security roles.

Security policies will be defined in the form of roles,

objects and permissions. Resources availability is

then determined by the role a user plays in the

interaction. By grouping users into security roles, the

Role Based Access Control model is a lot easier to

maintain.

Some of the above mentioned access control

models support role based access control by offering

ways for security administrators to define users and

user groups. For instance Gabillon and Bruno (2001)

proposed using a separate XML subject sheet (XSS)

UDDI ACCESS CONTROL FOR THE EXTENDED ENTERPRISE

177

to describe users and groups. Users and their

corresponding groups are defined inside XSS files in

a hierarchical structure.

Based on these access control models, OASIS

(2003) proposed the extensible access control

markup language (XACML) specification. XACML

specification defines standard XML-based policy

language and access control/decision language. It is

a non-proprietary language that provides standard

and generic means for policy-based access control.

Logically a typical XACML system comprises a

Policy Enforcement Point (PEP), a Policy Decision

Point (PDP) and a set of policies. As shown in figure

1, typically a request trying to access a resource is

sent to system’s PEP. Based on the requester’s

attributes, the requested object and type of operation,

PEP sends a new request to the PDP. The PDP

examines the request, checks the policies from the

policy repository, makes a denial or grant decision

and sends the decision back to the PEP. PEP then

grants or denies access to the requester. All security

polices are defined and stored in a repository. Policy

Combining Algorithm and Rule Combining

Algorithm are used to build complex policies and

handle conflict resolution (OASIS, 2003).

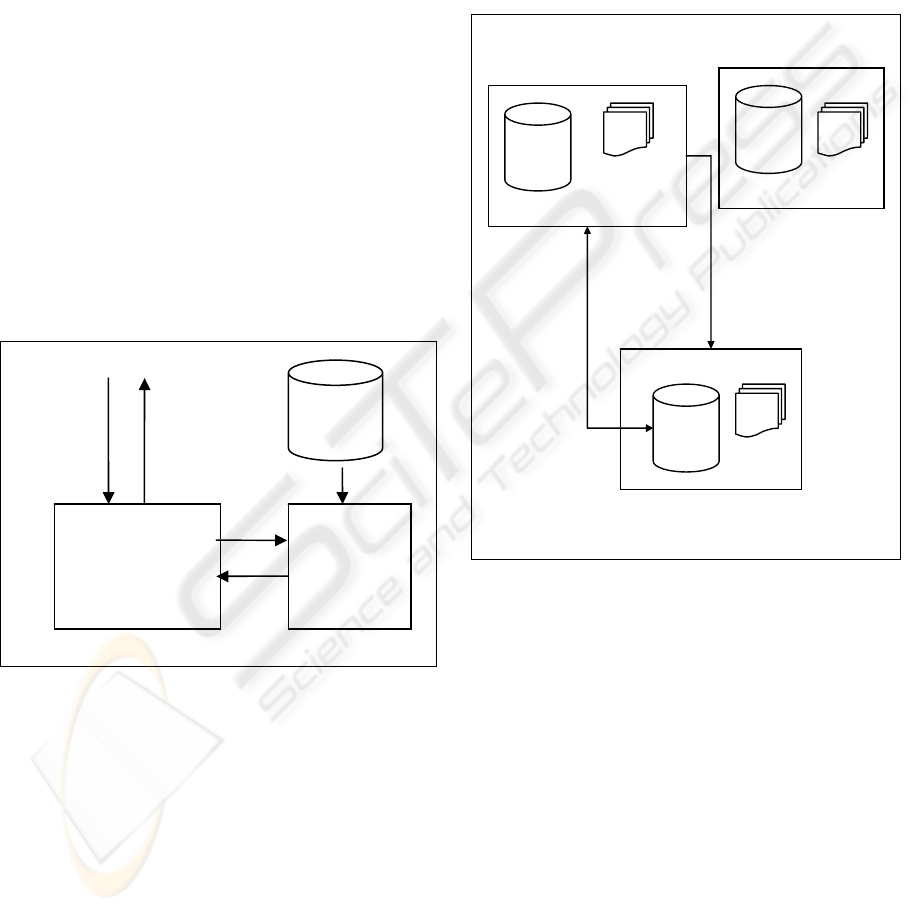

Figure 1: XACML system overview

To support role based access control, in February

2004, OASIS published the “XACML Profile for

Role Based Access Control (RBAC)” specification,

which defines the profile for use XACML for the

Role Based Access Control. The specification

defines normative profile to build role based access

control in XACML as well as non-normative

illustration of how to construct role based access

control in XAXML (OASIS, 2004). Security roles

can be expressed as attributes in XACML.

3 UDDI ACCESS CONTROL FOR

IMPLEMENTING THE

EXTENDED ENTERPRISE

The Extended Enterprise infrastructure architecture

involves an access control-enabled private UDDI

registry at each organization and a Partner Directory

at each organization. This registry contains entries

for all of the services provided by that enterprise.

UDDI

Private

Registry

UDDI

Private

Registry

UDDI

Private

Registry

Enterprise 1

Enterprise 2

Enterprise 3

2. Look up

registry of

partner 3 and

get list of

accessible

services

1. Add

partner 3 to

directory

3. Call

partner 3

service

Figure 2: Extended Enterprise infrastructure

3.1 Partner Establishment

When an enterprise establishes a new relationship

with another organization, the two organizations first

record the relationship role the other organization

has with it e.g. supplier, customer, sister company

etc. This role is stored by each organization in its

respective Partner Directory (see Figure 2). This

Partner Directory will store the set of roles for each

partner. The roles an organization and its partner

have with each other may typically be

complementary to each other.

The partners will now exchange URLs of their

private UDDI registries, allowing each to now

search and browse for services offered by the other.

Based on the access control mechanism, each

Policy

Set

Policy

Decision

Point

Policy

Enforcement

Point

Requests

Responses

WEBIST 2005 - INTERNET COMPUTING

178

partner only sees a certain set of the available

services, based on their role.

The UDDI access control system will make use

of the local Partner Directory in determining access.

When a request to access the UDDI registry comes

from a partner, the UDDI access control system will

first consult the Partner Directory to determine the

set of role(s) of that partner.

3.2 UDDI Access Control

Below we outline the Role Based Access Control

Model that we propose to use for the Extended

Enterprise infrastructure. More detail can be found

in (Dai, Steele, 2005). This access control model is

implemented with XACML, as XACML is a non-

proprietary language that provides standard and

generic means for policy-based access control and

supports role-based access control. A typical role

based access control model contains five basic

elements: users, roles, objects, operations and

permissions (OASIS, 2004). In our access control

model, the objects to be protected are entries in a

UDDI registry. The model will enable security

administrators to define users, security roles and

security policies all in XACML format.

Suppose suppliers are to have access to service

getSupplierQuote. While suppliers may have access

to the getSupplierQuote service, competitors should

not. In this scenario the access control model can

capture this functionality.

Below we give the example of how this can be

encoded based on Oasis XACML Profile for Role

Based Access Control specification (OASIS, 2004).

A security policy may be first defined as shown in

Figure 3 about granting access to service

getSupplierQuote. The policy Id (PolicyId) in this

case is permissions:for:supplier:role. This policy

will be hooked to security role supplier by

referencing the policy Id in the supplier role

definition as shown in Figure 4. Hence Figure 3 and

Figure 4 together define that security role supplier

has the permission to access service

getSupplierQuote. XACML also allows the

associating of a user or enterprise with various roles.

For example Enterprise 1 can be associated with the

role, supplier. When Enterprise 1 enters the system,

the XACML engine will be able to assign the

privileges of the supplier role to Enterprise 1.

The proposed access control model will do the

following after an enterprise authenticates with the

private UDDI registry:

<Policy PolicyId=

"Permissions:for:supplier:role"

RuleCombiningAlgId=

"urn:oasis:names:tc:xacml:1.0:

rule-combining-algorithm:first-

applicable”>

</Subjects>

</AnyResource>

</Resources>

</Actions>

</Target>

<Rule RuleId=”SupplierPolicies”

Effect=”Permit”>

</Subjects>

<ResourceMatch MatchId=

”&function;string-match”>

<AttributeValue DataType=

”&xml;string”>

getSupplierQuote

</AttributeValue>

<ResourceAttributeDesignator

DataType="&xml;string"

AttributeId=

"getQuoteSupplier"/>

</ResourceMatch>

</Resource>

</Resources>

<ActionMatch MatchId=

“&function;string-match”>

<AttributeValue DataType=

“&xml;string”>access

</AttributeValue>

</Action>

</Actions>

</Target>

</Rule>

</Policy>

Figure 3: Policy for getSupplierQuote

1. Role assignment

The system will read role definitions declared in

XACML to find authorized roles for the enterprise.

Once found, it will assign the security role to the

enterprise

2. Policy collection

The system will look at the policy set associated

with that role. By checking every policy ID declared

inside the policy set, the system will locate all

policies the role is granted to access. Different

policies assigned to a single role can lead to conflicts.

UDDI ACCESS CONTROL FOR THE EXTENDED ENTERPRISE

179

Conflict resolution will occur as per XACML

conflict resolution. This information can then be

used in building the partial views of UDDI search

results or browse results subsequently.

…

<PolicySet

PolicySetId="supplier:role">

<SubjectMatch MatchId=

”&function;string-equal”>

<AttributeValue

DataType=”&xml;string”>

supplier

</AttributeValue>

<SubjectAttributeDesignator

DataType="&xml;string"

AttributeId="supplierrole"/

</SubjectMatch>

</subject>

</Subjects>

</AnyResource>

</Resources>

</Actions>

</Target>

Permissions:for:supplier:role

</PolicySetIdReference>

</PolicySet>

…

Figure 4: Define the supplier role

The UDDI access control implementation will

work by maintaining two cached lists for each

authenticated user: one for determined accessible

services and one for determined inaccessible

services (Dai, Steele, 2005). These lists will survive

for the lifetime of the enterprises’ partnership and it

is assumed that the access control policies do not

change during this time. The system proposal can be

easily adjusted so as check for policy changes during

the lifetime of the partnership.

3.3 Partner Removal

When a partner relationship of some form between

two enterprises terminates, that role for a partner

organization will now be removed from the Partner

Directory. This means that new requests to search or

browse the UDDI registry will not be granted.

However, the security problem remains that the

services already known of by the partner will still be

known of and callable. One approach to overcome

this is to generate for any given service, unique

endpoints (URLs) per partner enterprise. These

unique URLs would be generated when the new

partnership is formed and requests to the private

UDDI registry are made. For example, these unique

URLs might contain the service name with a random

string of digits appended.

When a partner enterprise ceases to be a partner,

these URLs will cease to function as endpoints (will

not be recognized by the SOAP engine). As such,

future requests will not be responded to. The

enterprise that was previously a partner will still

know the service names but will no longer be able to

access the services.

The approach of having UDDI-based access

control as opposed to having a SOAP gateway check

every incoming SOAP message for access

permissions, has performance advantages. There will

not need to be an access permission check on every

incoming SOAP message, but rather permission

evaluation is done just once, at UDDI lookup time.

3.4 Relationship Modification

A third case exists of partner relationship

modification – that is, a change of Role. This case is

treated like partner removal followed by a partner

establishment but under a new Role. More efficient

approaches are possible, where common services are

maintained and only differing services added or

disabled, but such approaches are not considered

further here.

4 FUTURE WORK

Future work of interest includes extending the UDDI

access control to be more fine-grained: that is

providing access control on a per-method basis. The

current system allows access or denies access to a

whole service, which is described with a single

WSDL file and which typically might have a

number of methods. However, cases will occur

where a user should have access to some of a

service’s methods and not others. In this case, one

option is for a UDDI lookup to potentially “pruned”

WSDL files – service description files showing only

accessible methods and omitting others.

In this paper we have concentrated on access

control for UDDI lookup activities. UDDI also has

an API for publishing. That is, a set of services for

WEBIST 2005 - INTERNET COMPUTING

180

uploading or deleting services from the UDDI

registry. This aspect of UDDI functionality also

requires access control. For example, partner

organizations of sufficient closeness may be able to

publish new services or have permission to publish

in only certain UDDI categories. Other organizations

should not have write permissions to the private

UDDI registry.

5 CONCLUSION

Businesses today are facing the increasing need for

business collaboration among different partners

through time. Web services provide a solution for

easier B2B interaction and private UDDI registries

inside corporate networks are used for efficient

interaction between business partners. However

since an organization may only want the right

business partners to see only the right service

information they are entitled to, some kind of access

control mechanisms inside the private registry are

required. In this paper we described how access

control-enabled private UDDI registries can be used

to provide an appropriate infrastructure for the

Extended Enterprise. This approach to providing

access control for Web services has some

advantages over approaches based on SOAP

gateways.

REFERENCES

Adams, C. & Boeyen, S., 2002. UDDI and WSDL

Extensions for Web Services: A Security Framework,

Proceedings of the ACM workshop on XML security,

Session 2, p. 30-35.

Dai, J., Steele, R., 2005. UDDI Access Control. In

Proceedings of the 2005 International Conference on

Information Technology and Applications, Sydney,

Australia.

Bertino, E., Castano, S. & Ferrari, E., 2001. Securing

XML Documents with Author-X, IEEE Internet

Computing, Vol. 5, Iss. 3, pg. 21-31

Brose, G. Securing Web Services with SOAP Security

Proxies [Online], Available:

http://www.xtradyne.com/documents/whitepapers/Xtradyn

e-WebServices_Security_Proxies.pdf (Accessed

September 2004).

Damiani, E., Vimercati, S., Paraboschi, S. & Samarati, P.,

2002. A Fine-Grained Access Control System for

XML Documents, ACM Transactions on Information

and System Security, Vol. 5, No. 2, pg. 169-202

Damiani, E., Vimercati, S., & Samarati, P., 2002. Towards

Securing XML Web Services. Proceedings of the

2002 ACM workshop on XML security, Session 4, p.

90-96

Extensible Access Control Markup Language Version 1.0

[Online], 2003, Available: http://www.oasis-

open.org/committees/download.php/2406/oasis-

xacml-1.0.pdf

Ferraiolo, D. & Kuhn, R., 1992. Role-Based Access

Control. Proceedings of 15th National Computer

Security Conference, pg 554-563

Gabillon, A. & Bruno, E., 2001. Regulating Access to

XML Documents. Proceedings of the fifteenth annual

working conference on Database and application

security, pg. 299-314

Goldman, S.L., 1994. Co-operating to Compete: From

Alliances to Virtual Companies, in CMA. p. 13-17.

Oasis, 2003. A Brief Introduction to XACML [Online],

Available: http://www.oasis-

open.org/committees/download.php/2713/Brief_Introd

uction_to_XACML.html (Accessed September 2004)

Oasis, 2004. XACML Profile for Role Based Access

Control [Online], 2004, Available: http://docs.oasis-

open.org/xacml/cd-xacml-rbac-profile-01.pdf

Whitman, L., Krishnan, K., Agarwal, R., Bhandare, P.,

1999. Engineering the Extended Enterprise.

Proceedings of the 4th Annual International

Conference on Industrial Engineering Theory,

Applications and Practice, Nov 17-19, 1999, San

Antonio, Texas, USA.

UDDI ACCESS CONTROL FOR THE EXTENDED ENTERPRISE

181
