Enabling Spoken Dialogue Interaction About

Team Activities

Laura M. Hiatt

and Lawrence Cavedon

Computer Science Dept., Carnegie Mellon University, USA

CSLI, Stanford University, USA

Abstract. Spoken language dialogue is a powerful mode for human-robot inter-

action (HRI) in complex, dynamic environments. We describe extensions to an

existing dialogue management system that enables activity-oriented interaction

with multi-robot teams.

1 Introduction

There has been much research in the Multi-Agents Systems literature on frameworks

for robustly managing multi-agent/robot teamwork. Some of the more succesful ap-

proaches involve agents explicitly representing team-level goals and intentions, and

reasoning about their own actions in the context of the team activity (e.g. [1,2]). There

has also been much work on algorithms and techniques for automated task-allocation

and -negotiation, multi-agent planning, task coordination, etc.

Conversely, our approach is to facilitate human involvment in the multi-agent/robot

task environment. Rather than relying on automated management of multi-agent team

issues, our system engages in conversation with a human operator to perform task-

allocation and to resolve issues that may arise. This is not inconsistent with a partially-

automated approach (and our system does implement some automatic task-reallocation

on failure); however, for the purposes of our research, we delegate as much of the team-

level decision-making to the human operator, and provide the framework for collabo-

ration between human and agents via spoken-language dialogue. In general, we believe

an appropriate model is one of adjustable autonomy [3], whereby multi-agent team

processes are automated, but human-interaction is initiated when this is more appro-

priate. The spoken-language dialogue interface supports the human-robot interaction

within the context of multi-agent teamwork when required.

1.1 Human-Robot Interaction (HRI) via Task-Oriented Dialogue

Previously at CSLI we have built spoken-language dialogue interfaces for human in-

teraction with individual robots. The CSLI Dialogue Manager (CDM) is the core of a

multi-domain dialogue system that has been applied to a number of applications, in-

cluding control of a (simulated) robotic helicopter [4].

M. Hiatt L. and Cavedon L. (2005).

Enabling Spoken Dialogue Interaction About Team Activities.

In Proceedings of the 1st International Workshop on Multi-Agent Robotic Systems, pages 23-30

DOI: 10.5220/0001196400230030

 SciTePress

Collaborative speech-based dialogue offers a powerful medium for interaction be-

tween humans and complex robots operating in dynamic, real-time environments, con-

taining multiple concurrent activities and events which may succeed, fail, become can-

celled or revised. An interface to a robot operating in such conditions must be interrupt-

ible, context-dependent, and amenable to multiple threads of conversation, and this has

been one of our prime foci when building dialogue interface systems for human-robot

interaction. Task-Oriented Dialogue, i.e. dialogue about tasks jointly performed by the

human and robot, also requires the context of the task to be represented, to enable for ro-

bots to inform the human operator of progress on tasks, or to answer questions relating

to task-performance or status (e.g. “Why are you doing that?”).

These issues are exacerbated in multi-robot settings. The need for natural collabo-

rative interfaces is increased, due to the increased cognitive load involved in interacting

with multiple robots. Implementing dialogue interaction with multiple robots, however,

introduces new technical challenges, such as: discussing the various stages of team-

activity; minimizing the impact of information overload on the human operator; and

managing multi-party conversation (e.g. recognizing which robot is being spoken to).

1.2 Team Dialogue

The following short dialogue illustrates some of the functionality we have implemented.

This is taken from a (simulated) multi-robotic helicopter domain and illustrates: (i) a

team-formation sequence involving a robot acting as team-leader (1-6); (ii) individual

robots reporting on their actions (7-9); (iii) a sub-dialogue directed at a speciﬁc robot

that involves linking its individual sub-tasks to the overall team goal (10-15).

1. User: Organize a team to ﬁght the ﬁre at the tower.

2. Team Leader: OK. I will organize a team to ﬁght the ﬁre at the tower.

3. Team Leader: UAV1 will conﬁrm that there is a ﬁre at the tower, and then

UAV1 and UAV2 will ﬁght the ﬁre.

4. Team Leader: Have I formed an acceptable team?

5. User: Have UAV2 conﬁrm the ﬁre instead.

6. Team Leader: OK. UAV2 will conﬁrm that there is a ﬁre at the tower, and

then UAV1 and UAV2 will ﬁght the ﬁre.

7. UAV2: I am taking off and ﬂying to the tower.

8. UAV2: I have ﬂown to the tower. There is a ﬁre at the tower.

9. UAV1: I am taking off and ﬂying to the tower.

10. User: UAV2, what are you doing?

11. UAV2: I am ﬂying to the lake.

12. User: Why?

13. UAV2: To pick up water.

14. User: Why?

15. UAV2: Because we are ﬁghting the ﬁre.

This paper describes initial work extending the CSLI Dialogue Manager (CDM) to

allow it to support multi-agent task-oriented dialogues of the above form. The focus

These and other issues for multi-party dialogue systems are discussed in [5].

of this paper is not so much on linguistic issues. Rather, we focus on describing the

task-representation framework required to facilitate the type of interaction for human

support of multi-agent teams via dialogue. Our approach is to explicitly model team

activity, extending the single-agent model of activity implemented in the single-agent

version of the CDM. The team-activity model is reminiscent of team-plan approaches

to multi-agent teamwork (e.g. [1,2]) and is used by the CDM to relate individual-robot

activity to team-level tasks (e.g. as in 15 above). Other extensions to the CDM include

supporting discussion about team issues (such as team-formation and task-allocation,

as in 1-6 above), and allowing a mix of directly addressing the team (via the “team-

leader”), individual agents (for task updates), or not using direct-addressing at all (and

having the CDM determine the appropriate agent to respond, as in 13 and 15 above).

2 Dialogue System Architecture

The CSLI Dialogue System is designed around a component-based architecture, mak-

ing use of existing systems for speech recognition, natural language parsing and gen-

eration, and speech synthesis. These and other components (e.g. interactive map GUI)

are integrated using an event-driven loosely-coupled distributed architecture, allowing

easy replacement of components by others of similar functionality.

Incoming speech utterances from the user are analyzed and classiﬁed as a type of

dialogue move—i.e. as a command, question, answer to a question, etc.—and passed

on to the Dialogue Manager (CDM), which performs a number of processes: resolving

pronouns (e.g. “it”) and object descriptions (e.g. “the red car”) to actual objects in the

robot’s universe; resolving any ambiguous requests, or generating appropriate questions

to do so (e.g. “Which tower do you want me to ﬂy to?”); taking the appropriate action

corresponding to the incoming dialogue move (e.g. a command may activate a new

agent task); and generating any appropriate response (e.g. the answer to a question

asked by the user).

The two central components of the CDM are the Dialogue Move Tree (DMT) and

the Activity Tree. The DMT represents the history of the dialogue, in particular, the

most recent salient dialogue context; this is used to interpret incoming utterances. The

DMT is designed to support multi-threaded, multi-topic conversations, as required for

conversations in highly dynamic complex domains (see [4, 6]). Our focus here is on the

Activity Tree.

2.1 Task-Oriented Dialogue and the Activity Tree

The CSLI Dialogue Manager has been designed to support joint-activities which require

collaboration between the human operator and an intelligent agent/robot. As the human

operator works with the agent, it is critical that they maintain a shared conception of the

state of the world, and in particular the status of the activities being performed.

To facilitate this, the Dialogue Manager incorporates a rich Activity Model to me-

diate between it and the agent/robot. The Activity Model consists of a language for

writing activity recipes that support conversation about the activities the agent actually

performs. These activity representations play a number of important roles within the

Dialogue Manager: identifying the properties of activities that must be speciﬁed by fur-

ther dialogue (e.g. the destination of a “ﬂy” command); disambiguating requests; and

providing a framework for negotiating resource-conﬂict. We focus here on their use in

the Activity Tree to model the status of activity-execution.

A recipe is a declarative description of a command (such as ﬂy) and the slots to

be ﬁlled by the arguments the command takes (such as destination). Hence, a recipe is

reminiscent of a STRIPS planning operator, but is not used to control behaviour, only to

represent the actions an agent can perform in order to support conversation about them.

In this sense, the library of recipes is similar in concept to the use of plan libraries in

[7–9].

A spoken command uttered by the human operator is analyzed and translated into

a partially speciﬁed Unresolved Activity, which is added to the Activity Tree. An Un-

resolved Activity is a slot-based representation of the incoming utterance without fully

interpreting the language-based descriptions. For example, a command such as “Go to

the tower” generates an Unresolved Activity as follows:

action: verb(go)

arg: pp(to, [the tower])

where verb indicates the action word and pp indicates a phrase describing an argu-

ment to the action.

At this point, different possible activities could actually match the

request: e.g. a robot may walk or ﬂy to fulﬁll a “go” command, depending on its capa-

bilities (deﬁned via its Activity Model).

The system attempts to fully resolve the activity: mapping the verb to the appro-

priate Activity Model recipe,

ﬁnding objects that are referred to, or asking the human

operator questions in order to gather further information if required. Once the activity

has been fully resolved—i.e., once enough information has been gathered so the activ-

ity can be executed—it is sent to the agent to be executed. As it is executed, the agent

updates the state of the activity, which is reﬂected in the activity’s node on the Activity

Tree, and the dialogue manager in turn is notiﬁed of these updates: see Figure 1.

At any point, an activity can be in one of a number of states: not

resolved (par-

tially described), resolved(fully described), current, suspended, cancelled,

done, etc. The Activity Tree, then, mediates all communication between the dialogue

manager and the agent, providing a layer of abstraction by which the dialogue manager

can communicate with any task-oriented agent.

This architecture contrasts with a simple command-and-control approach in which

the dialogue manager simply sends off commands to the agent and then forwards all re-

ports sent to it by the agent to the human operator. First and foremost, the tree structure

provides an explicit means of representing the relationship among activities being exe-

cuted by the system. The decomposition allows the dialogue system to make intelligent

PP denotes prepositional phrase but the linguistic category is not important here.

Mapping rules to perform this are part of the Activity Model.

Ideally, this process keeps the Activity Tree synchronized with the agent’s own task execution,

although some lag is possible.

Activity Tree Agent

Goals

Execution

monitoring

commands

task status

updates

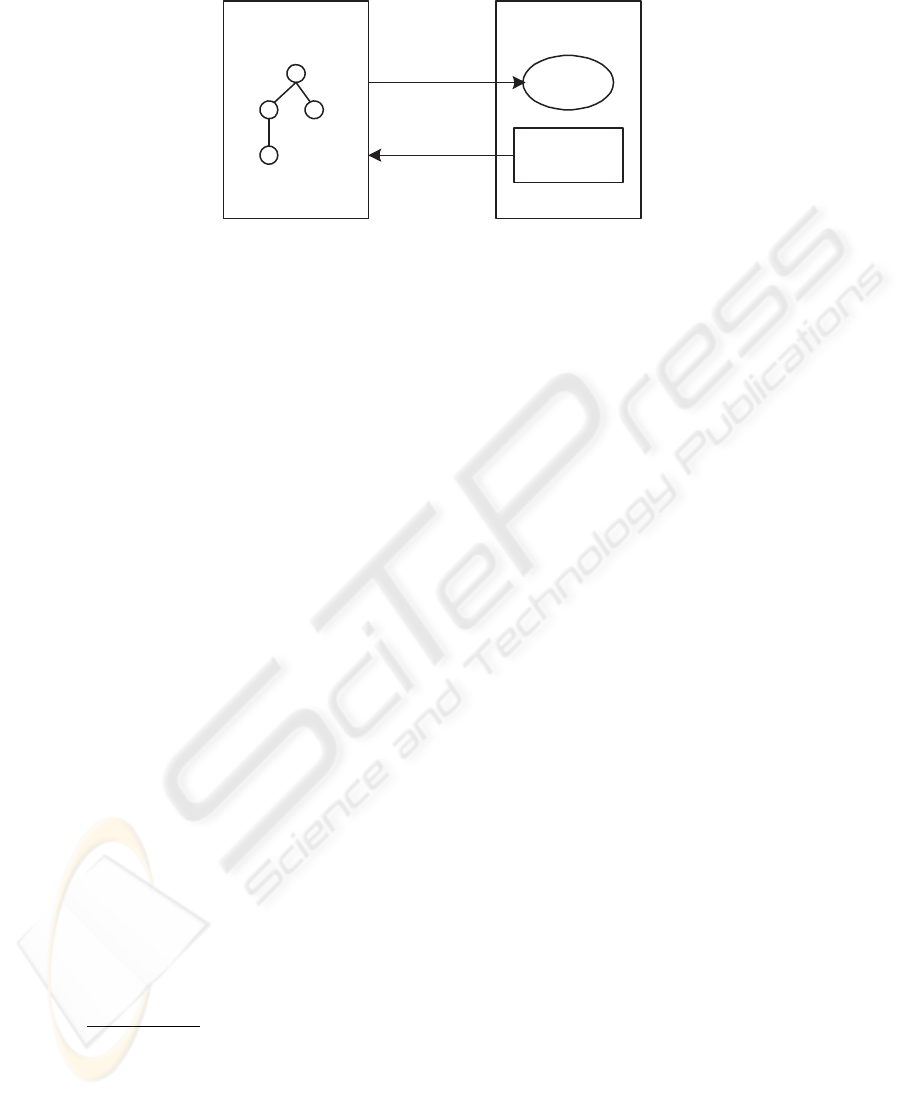

Fig.1. Interaction between Activity Tree and agent

decisions about what changes in the world are conversationally appropriate, and which

need not be mentioned.

Finally, the Activity Tree provides a framework for answering queries about activity

state (“What are you doing?”), revising a previous command or utterance (“Make that

the tower instead”), and for explaining behavior (“Why are you doing that?”); see [10].

3 Multi-Agent Dialogue Management

Extending the CDM to handle multi-agent dialogue involved two architectural changes:

1. adding an Agent Manager to mediate between the CDM and multiple agents;

2. extending the Activity Tree to contain activities performed by multiple agents.

3.1 Agent Manager

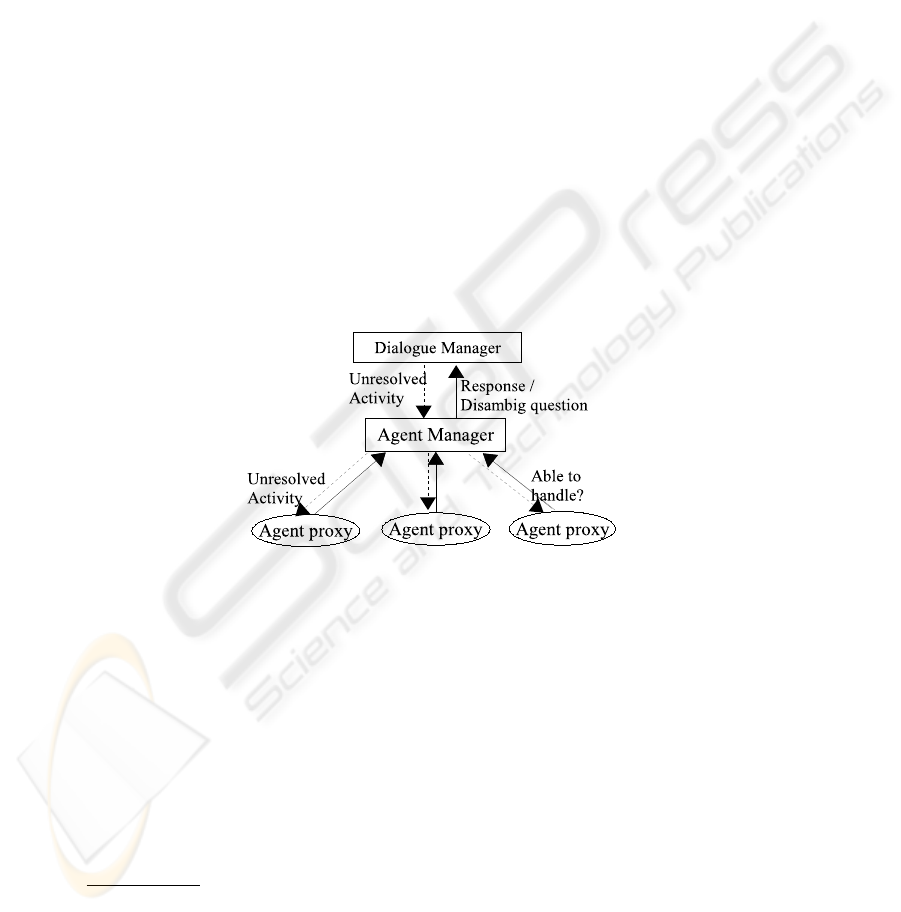

The Agent Manager is responsible for selecting the most appropriate agent to handle

an issued command, or to handle a query. Each dialogue-enabled agent registers itself

with the Agent Manager by providing:

1. a unique name;

2. a description of its capabilities (i.e. an Activity Model);

3. an agent DM proxy, i.e., agent-speciﬁc code that interprets the slot-based Unre-

solved Activity representation of commands as constructed by the Dialogue Man-

ager.

User utterances, particularly commands, are distributed to the appropriate device as

follows: when possible, a user utterance is assumed to continue an existing thread of

conversation, e.g. as in a follow-up question such as 12 or 14 in the example in Section

In general, the expectation is that task decomposition and execution is handled by some ex-

ternal plan-execution engine residing on the agent. This requires some integration with the

plan-executor itself—notiﬁcations of task status changes need to be sent to the Activity Tree.

1.2. If this is not the case—e.g. it is a new command—then the Agent Manager deter-

mines which agent should receive the utterance, based on capabilities. An Unresolved

Activity representation of the command is sent to each registered agent proxy, which

then attempts to interpret what the words and phrases in the Unresolved Activity mean,

and whether they correspond to actions that the agent can perform (i.e. whether the

action matches a recipe).

Each agent indicates whether it can deﬁnitely/possibly/not handle the command. If

one of the agents that can handle the command is the most conversationally salient one

(i.e. the agent to have most recently communicated with the user),

then this agent is

selected to handle the command. For some commands, it is possible that multiple agents

could handle it, even in different ways: e.g. a UAV or a ground robot could both handle

“Go to the tower”. In the absence of deﬁnitive selection criteria, the Agent Manager

generates a disambiguation question for the user to answer, thus collaborating with the

user in this decision-process:

User: Check if there is a ﬁre at the tower.

DM: There are two agents that can currently perform this task. Should I assign

this task to Robot1 or Robot2?

User: Robot1.

DM: OK.

Fig.2. Information ﬂow during task assignment from utterance

3.2 Multi-Agent Team-Task Management

In order to facilitate task-oriented communication between the user and multiple agents,

an integrated Activity Tree is maintained by the CDM, containing all tasks that any

agent has handled. The Activity Tree is synchronized with each agent’s task execution

management, which allows the dialogue manager to provide generic feedback about

the progress, success and failure of tasks belonging to any and all agents. Thus reports

about task status, completion, failures, etc., are still generated from the Activity Tree.

Salience is reset out after a speciﬁed time period.

Team tasks generally require multiple agents to execute them. Our approach in-

volves assigning a complex task to a single agent, designated as being in the role team-

leader. A team-leader agent’s Activity Model contains recipes corresponding to tasks

designed to be carried out by multiple agents. In effect, the multi-agent team task is

assigned to the team-leader agent, which is then responsible for delegating sub-tasks

to appropriate agents via the Agent Manager—i.e. if the team-leader agent’s Activity

Model contains a sub-task marked as to be performed by a different agent, then it sends

a request to the Agent Manager which allocates an agent to handle the sub-task.

The basic Activity Model scripting language has been extended to accommodate

the notion of task-delegation by allowing optional tags against tasks to specify which

agent should handle a sub-task. The special tag SOME-OTHER is used to designate

that a different agent (as opposed to the agent to which the task script belongs) should

be assigned the subtask. The tag ALL-AGENTS can also be used to designate that all

agents that support this activity should be assigned the subtask. If no appropriate agent

is found, then the parent task fails.

Deﬁning team behaviour via such team-activity recipes allows constraints to be set

on team activity across multi-robot activity. For example, a team search may specify

that different robots search different locations of the area to be searched. Further, the

notion of task success can be explicitly tied to success by a speciﬁc team-member, all

team-members, or any team-member. For example, a team search task can be deﬁned

to succeed if any robot involved in the task succeeds in ﬁnding the target object. Once

the team goal is successful, all team participants are informed of this fact, leading them

to terminate their own activity on any related sub-task (c.f. [1]).

In order to maintain agent-independent task execution, each agent only maintains

knowledge about its own sub-tasks and their progress. Further, the agent responsible for

the main task keeps a record of which agents were assigned to sub-tasks, but does not

maintain any information on further sub-task decomposition. Only the CDM’s Activity

Tree maintains a complete team-activity representation, and hence can support dialogue

on the complete team activity. Agents also maintain the relationship to the team-goals

that spawned their individual tasks: this is used to implement a commitment to the

team-goal, which is an important requirement for robust team-activity [1], and also

allows individual agents to support dialogue on how their current activity relates to the

team-level goals.

3.3 Dialogue About Team Formation

Explicit representation of team activity enables dialogue about the teamwork process

itself, such as team formation. For example, the process of assigning agents to roles

in a team Activity Model may be communicated to the user, who then has the option

of conﬁrming or modifying the team. This contrasts with the many techniques (e.g.

auctions, Contract Net-style bidding) used for team formation and task allocation in

the multi-agent literature, and particularly in role-ﬁlling in open agent societies [11];

again, our approach is that this is process is performed in collaboration with the user.

The ﬁrst part of the sample dialogue in Section 1.2 illustrates team formation. Team

formation dialogue can also be seen as a rudimentary form of negotiation, whereby the

team-leader agent proposes a team and the user accepts or revises it.

Similarly, the team-leader agent is able to reorganize a team if one of the members

fails to complete its sub-task. Again, this is done in consultation with the user—the

standard task-reporting functionality [6] of the CDM reports the task failure, and the

team-leader agent reports on attempts to re-assign the sub-task to a different agent.

4 Discussion

We have described initial steps towards ﬂexible dialogue with teams of robots, inter-

mingled with dialogue with individual team-members. We believe the approach is im-

portant: managing cognitive load during interaction with multiple robots and their tasks

requires the user to be able to shift level of discussion to the more abstract team-task

level, rather than necessarily conversing at the individual level and managing all coor-

dination and interactions between team members.

There are several directions to extend this work, both in terms of linguistic dialogue

modeling and in terms of team-management. For example, we need to address more of

the issues identiﬁed by Traum as problems in multi-party dialogue [5]. We also plan to

support more elaborate negotiation dialogues, following [12]. We also need to address

the information-overload issue that is exacerbated in the multi-robot setting; this could

be partly alleviated by robots being aware of the complete dialogue context, including

contributions by other robots.

References

1. Tambe, M.: Towards ﬂexible teamwork. J. Artiﬁcial Intelligence Research 7 (1997)

2. Howden, N., Ronnquist, R., Hodgson, A., Lucas, A.: JACK intelligent agents—summary of

an agent infrastructure. In: Int’l Conf. on Autonomous Agents, Montreal (2001)

3. Scerri, P., Pynadath, D., Tambe, M.: Toward adjustable autonomy for the real world. J. AI

Research (2002)

4. Lemon, O., Gruenstein, A., Battle, A., Peters, S.: Multi-tasking and collaborative activities

in dialogue systems. In: Proc. 3rd SIGdial W’shop on Discourse and Dialogue, Phil. (2002)

5. Traum, D.: Issues in multi-party dialogues. In Dignum, F., ed.: Advances in Agent Commu-

nication, LNAI 2922. Springer-Verlag (2004)

6. Lemon, O., Gruenstein, A., Peters, S.: Collaborative activities and multi-tasking in dialogue

systems. Traitement Automatique des Langues (TAL) 43 (2002)

7. Allen, J.F., Schubert, L.K., Ferguson, G., Heeman, P., Hwang, C.H., Kato, T., Light, M.,

Martin, N.G., Miller, B.W., Poesio, M., Traum, D.R.: The TRAINS project: A case study in

building a conversational planning agent. J. Experimental and Theoretical AI 7 (1995)

8. Fitzgerald, W., Firby, R.J.: The dynamic predictive memory architecture: integrating lan-

guage with task execution. In: IEEE Symp. on Intelligence and Systems, Wash. DC (1998)

9. Rich, C., Sidner, C.L., Lesh, N.: COLLAGEN: Applying collaborative discourse theory to

human-computer interaction. AI Magazine 22(4) (2001)

10. Gruenstein, A., Cavedon, L.: Using an activity model to address issues in task-oriented

dialogue interaction over extended periods. In: AAAI Spring Symposium on Interaction

Between Humans and Autonomous Systems over Extended Periods, Stanford (2004)

11. Dastani, M., Dignum, V., Dignum, F.: Role-assignment in open agent societies. In: AAMAS-

03, Melbourne (2003)

12. Traum, D., Rickel, J., Gratch, J., Marsella, S.: Negotiation over tasks in hybrid human-agent

teams for simulation-based training. In: AAMAS-03, Melbourne (2003)
