Modifying Neuro Evolution For Mobile Robotic

Behavior Development

Sekou Remy and Ashraf Saad

School of Electrical and Computer Engineering,Georgia Institute of Technology,

Savannah, GA 31407, USA

Abstract. This work examines the effect of two modiﬁcations of typical ap-

proaches to evolving neuro controllers for robotic behaviors. First evolutionary

methods were constrained to modify only one element of the population, the only

element to be evaluated in the robot. Secondly the algorithm was allowed to incor-

porate genotypes provided by external sources. These modiﬁcations were evalu-

ated through the use of a mobile robot simulator. Each was allowed to evolve in an

arena that allowed it to interact with other robots. Experiments were conducted to

investigate the effect of sharing genotypes and their corresponding ﬁtness among

homogeneous robots - the robots differed only in the initial random phenotype.

The experiments showed that the ability to incorporate successful genotypes from

others increased the rate at which evolution progressed. Communication of good

genotypes allowed behaviors to get ﬁtter faster, and made small initial population

sizes feasible.

1 Introduction

Autonomous mobile robots have long been desired by the research community. The

beneﬁts of interaction between a robot and other external, possibly human, agents has

been displayed for instance, see [5]. The ability to communicate has been shown to pro-

vide great advantages for teams of robots. [3] and [19], among others have highlighted

cases where communication assisted teams of robots in accomplishing given tasks. It

is not too far of a stretch to fathom that the sharing of knowledge or information can

also assist individual robots in a team to learn to follow a wall or execute some other

individually oriented task.

Communication, while a useful component, does not provide autonomy, in any de-

gree by itself. A necessary and sufﬁcient skill is the ability to decide what to do. The

ability of a mobile robot to make decisions is implicitly based on the premise that there

are choices, two or more options that can be selected, each with different merit.

Most work in robotics assumes that there is a preexisting set of choices to choose

from and a preexisting set of algorithms to make these choices. These assumptions are

by no means oversimpliﬁcations of the challenges of robotics tasks; e.g., path planning,

but in they do however produce brittle robots [12] that do not adapt to or take into con-

sideration changes in their environments or changes within themselves. If the robot’s

creators are able to identify every possible situation that the robot will encounter and

Remy S. and Saad A. (2005).

Modifying Neuro Evolution For Mobile Robotic Behavior Development.

In Proceedings of the 1st International Workshop on Multi-Agent Robotic Systems, pages 155-164

DOI: 10.5220/0001192901550164

 SciTePress

devise solutions for each of these, then brittleness would not be an issue worth mention-

ing. But if the robot exists in a dynamic, unknown, or unpredictable environment, has

noisy actuators, or sensors that produce noisy measurements, then adaptation and learn-

ing are qualities that are necessary to allow the robot to perform despite the presence of

challenging limitations.

It must be stated that autonomous decision making is closely linked to the desired

outcome or goal of the robot’s operation. Not only is it important to know the choices,

the effects of choices, and how to select between choices; it is also important to know

the desired goal or outcome as well. When dealing with mobile robotics it is helpful to

borrow a page from [1]; the choices that are to be made are choices between different

behaviors that the robot can manifest.

The ability to learn two-dimensionally, that is to learn how to execute a particular

behavior, as well as to learn when to choose to execute that behavior, allows a robot

to act autonomously in the face of dynamic environments, sensors, and actuators. This

work investigates enhancements to one approach to learning behaviors, the neuro con-

troller.

2 On Evolving a Neuro Controller

2.1 What is a Neuro Controller?

This research seeks to evolve a neuro controller that allows the robot to display a desired

behavior, in this case the wall following behavior. A neuro controller is an Artiﬁcial

Neural Network (ANN) structure similar to that shown in ﬁgure 3, that connects neurons

in such a manner that when the correct weights and biases are selected the controller

produces the desired output from its inputs.

2.2 What is a Genetic Algorithm?

Genetic algorithms (GAs) are often viewed as function optimizers [20]. They are also

heralded as tools that can provide robust and powerful adaptive search mechanisms

[16]. These two seemingly disparate deﬁnitions are two sides of the same coin. GAs

are a family of computational models that are loosely based on Darwinian evolution.

GA implementations begin with a typically random population of potential solutions,

and through a process of mutation and crossover, create new potential solutions. Each

solution is evaluated and given a ﬁtness value, which is a measure of how well that solu-

tion scored. As the algorithm is executed, the population as a whole evolves becoming

ﬁtter; the search for the ﬁttest element becomes the selection of the ﬁttest element in

the ﬁnal population. The ﬁttest element is also the solution that optimizes the ﬁtness

function. GAs have been applied to many types of problems including some attempts

for the evolution of neuro controllers [2,4,7].

2.3 Why Evolve the Solution?

The weights and biases are typically derived through some training method. Most train-

ing algorithms are based on a gradient descent method. Because of this they can get

trapped in a local minimum and sometimes, as in the case of multi modal or non dif-

ferentiable error functions, these methods are incapable of ﬁnding the global minimum

[21]. Since the GA is not crippled by such, it can be applied to determine the weights.

3 Modiﬁcations

3.1 Change 1

This work proposes the modiﬁcation of the family of GAs that allows a single genotype

to be actively evolved. This genotype will always be selected as one of the parents for

the crossover operation and one of its offspring selected to replace it. This genotype

will also be the subject of mutation and any other single parent evolutionary technique.

This modiﬁcation was developed for application to neuro controller evolution but can

be applied to domains with similar needs such as ANN classiﬁers [13,10].

3.2 Motivation

Traditional GA approaches employ random selection of the solutions used in the processes

that evolve the population. This creates a problem since the GA changes a population

in a random manner as generations evolve. There is no way to monitor a solution’s

progress over generations. This is relevant because each solution is directly mapped to

a phenotype that creates a neuro controller. Traditional approaches essentially evaluate

random attempts at creating the best controller. While this may work well for appli-

cations that are abstract in nature, when applied to a real robot it is problematic since

the changes can have catastrophic consequences especially when the robot is interact-

ing with external, possibly human agents. We believe that a better approach would be

to continuously modify an existing behavior in the search of better performance. This

approach does allow less variation but it reduces the possibly negative effects of uneval-

uated genotypes.

3.3 Change 2

This work also proposes a method that allows genotypes to be added to a population

from an external source.

3.4 Motivation

If the GA is able to incorporate other genotypes that are very ﬁt, the population will get

ﬁtter faster as the search is no longer completely random. Moreover, if multiple GAs

use the same ﬁtness function to evaluate genotypes and are operating over the same

solution space then the search should be faster since they are operating in parallel and

sharing the successes, in the form of high ﬁtness genotypes that they encounter.

4 Experimental Setup

4.1 The Behavior

In our experiments, robots are expected to learn the wall following behavior. This means

that upon completion of a learning period that the robot will be able to traverse the

outline of the arena without bumping into avoidable objects or getting trapped in corners

or other features of the arena. The expected path of the robot neither has a preference

for clockwise nor counter clockwise direction since both are acceptable in this case.

4.2 The Robot

This work was based on the capabilities of the Khepera robot. This robot was selected

because it was easy to interface with and did not possess any highly specialized sensors

or actuators. The devices found on this robot are common to many other mobile robots.

For this work eight proximity sensors, two actuator motors, and the communication

turret were used. The orientation of these sensors is shown in ﬁgure 1.

To learn to follow a wall, the robot will have to develop a mapping between the

proximity sensors readings and the actuator values. The mapping should have the effect

of allowing the robot to perform actions such as turn away from obstacles or drive for-

ward if there is no obstacle. The robot will have no cognitive layer so there is no stored

representation of the world or walls for example, but the behavior will be displayed in a

reactive manner based on the mapping from proximity sensors to left and right actuator

motors.

4.3 The Implementation Environment

The experiment was conducted completely using MatLab. The neural network was pro-

vided using the built in MatLab toolbox and the evolutionary algorithm was a modiﬁed

version of the GAOT toolbox [9]. Each robot operated in an arena that was populated by

other robots with which it could communicated, sharing genotype and ﬁtness informa-

tion if permitted. A snapshot of one such arena is shown in ﬁgure 2. The simulator used

was the KIKS simulator [18]. The arena and each robot in it were generated by individ-

ual instances of a KIKS simulator. In this work, each of these instances was initiated on

a single computer, Pentium II class or newer, that had at least 128MB of RAM.

4.4 Communication

The simulated robots communicated with each other using a simulated wireless commu-

nications channel. This capability mirrors those afforded to the real Khepera robot by its

communication turret, complete with bandwidth limitations, interference and message

segmentation and reassembly.

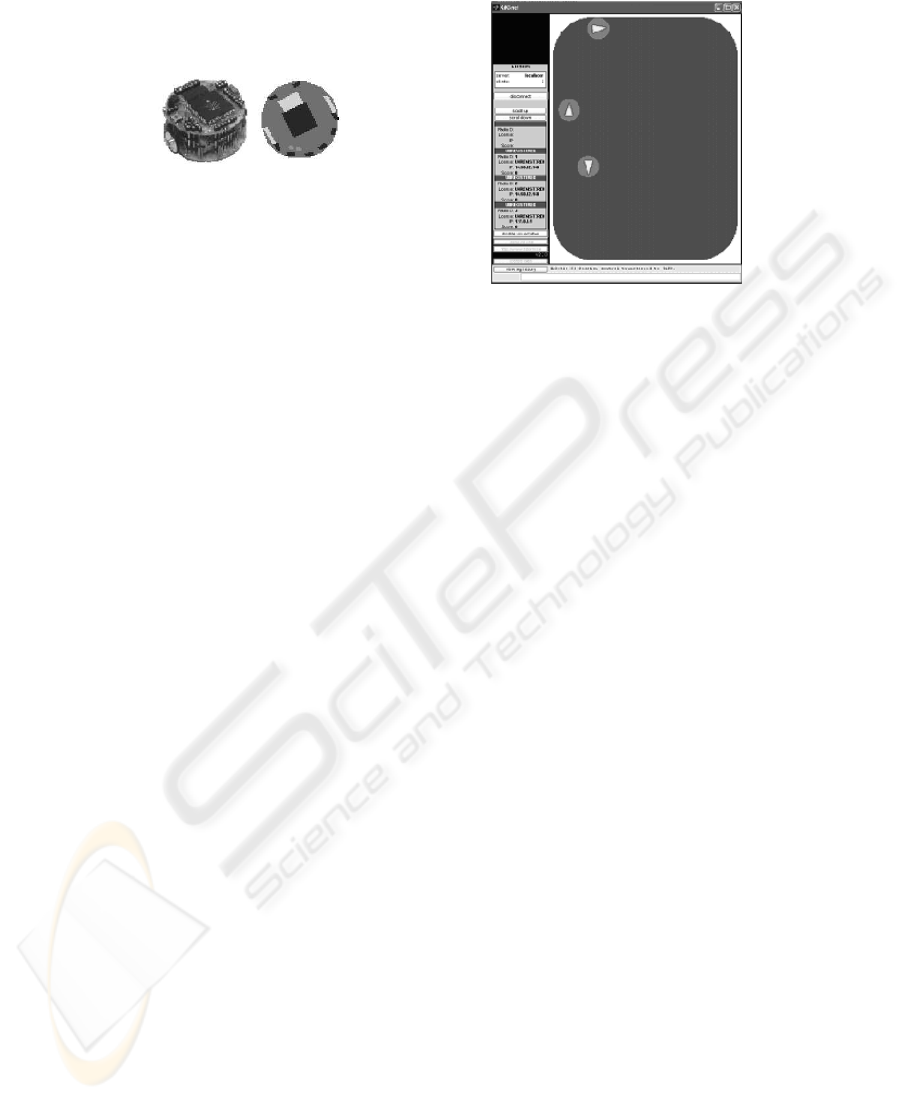

Fig.1. On the left an image of the Khepera

robot base, on the right a sketch of the same

showing wheels sensors and turrets

Fig.2. An arena with three robots

5 Implementation

5.1 The infrastructure

The genetic operations of selection, mutation and combination operated on the geno-

type. When the genotype’s ﬁtness was to be determined, it was decoded into a pheno-

type - an instantiation of a neurocontroller - that was evaluated in the robot. During

the process of evaluation, the robot interacted with its environment. The robot’s motion

was controlled only by the phenotype provided to it. If the robot was permitted to do

so it collected genotypes that were transmitted to it. When evaluation was complete it

returned these along with the current genotype which then sported an updated ﬁtness

value. The following sections discuss attributes of these components in closer detail.

5.2 The Neuro Controller

The input layer of the neuro controller contained eight input nodes, one node per sensor,

while the output layer contained two such nodes, one for each motor. There were ﬁve

nodes in the hidden layer. These nodes are connected ﬁrst by forty synapses from input

to hidden layer, and then ten from hidden to output layers. These numbers result from a

design choice that ﬁxed the number of hidden nodes, hence constrained the structure of

the neural network that served as the neuro controller. The network was fully connected

and did not utilize a bias value. The neuro controller being evaluated at any given time

is the current phenotype. Each of the input nodes was connected to a sonar sensor and

the output nodes to the actuators, one to the left and the other to the right motor.

5.3 The GA Parameters

The genotype was comprised of a vector of signed real numbered elements, one for each

synapse weight and, one extra for the ﬁtness of that genotype. The initial populations

were comprised of randomly generated genotypes. The GA used a value of 1e-6 for

epsilon, the resolution and a normal geometric selection function with parameter p =

0.08. All other parameters are included in tables 1 and 2

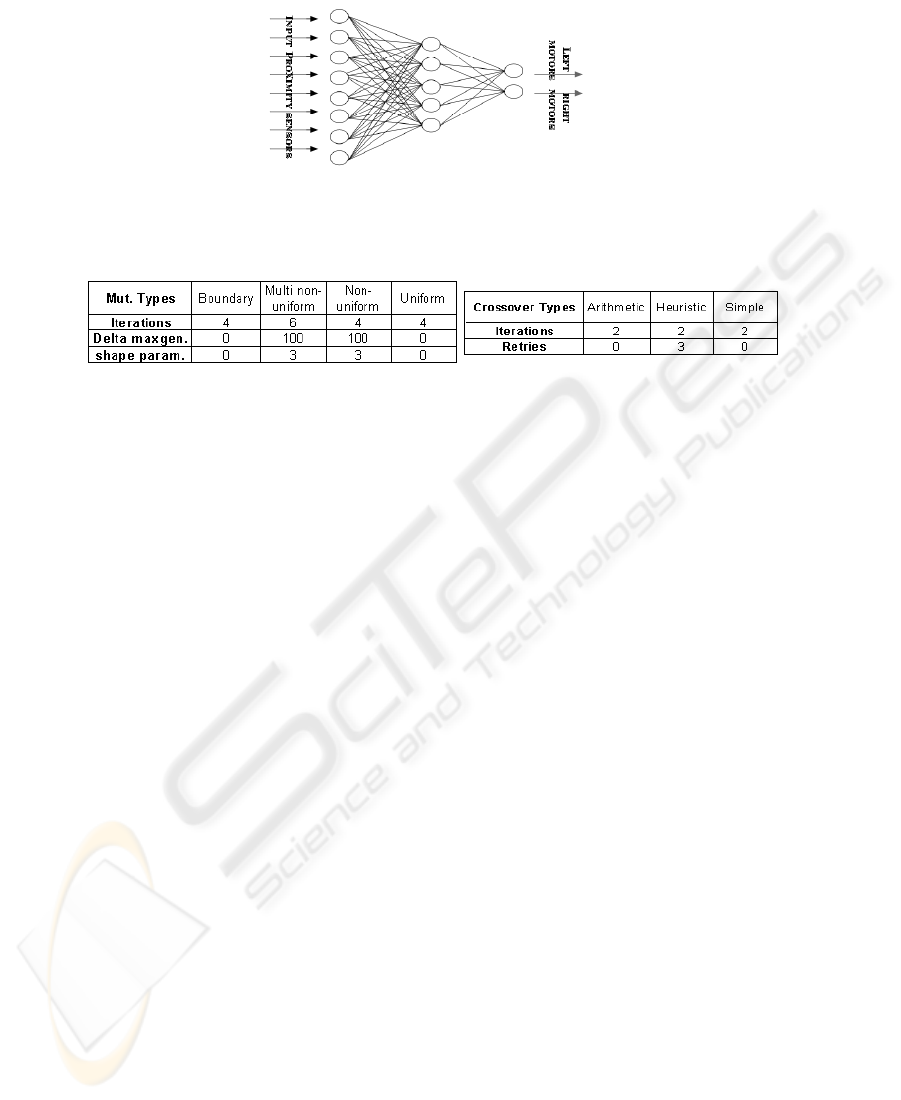

Fig.3. The neurocontroller

Table 1. Mutation parameters

Table 2. Crossover parameters

5.4 The Fitness Function

The ﬁtness function for this application was devised such that the robot would be re-

warded for having one of its sides close to the wall without touching the wall, and for

having no obstacle in front of it. Close was deﬁned as a sonar sensor reading between

seven hundred and nine hundred and ninety nine units. The reward was applied when

the side closest to an obstacle was within these prescribed bounds. There was also a

bonus reward applied for robots that displayed more forward motion than backward

motion. If the sonar abutted an object, the sensor would produce a reading very near to

1024. The aim was not to collide with objects, so sonar values larger than 999 were not

given a reward. We do not claim that this is the perfect ﬁtness function. However, this

one has been demonstrated via trial and error, to perform well for this application, and

hence was selected. There is much that can be said about the “art of selecting a ﬁtness

function” please refer to the work of [6,15, 11, 8] for further discussion of this issue.

5.5 The Experiment

Twelve arenas of three robots each were set up. The robots in each arena exercised the

same communication strategy and had the same maximum generation size for the GAs.

These experiments were run for generation sizes increasing from ten to thirty, and also

with and without the aid of communicated data. When communication was not allowed,

the data was transmitted and then destroyed by the reciever upon reciept, so each arena

and robot had the same communications load.

6 Results

A cursory glance at ﬁgure 4 may lead one to surmise that the modiﬁcations did not

produce good results. Closer inspection shows that this is not the case. Table 3 shows

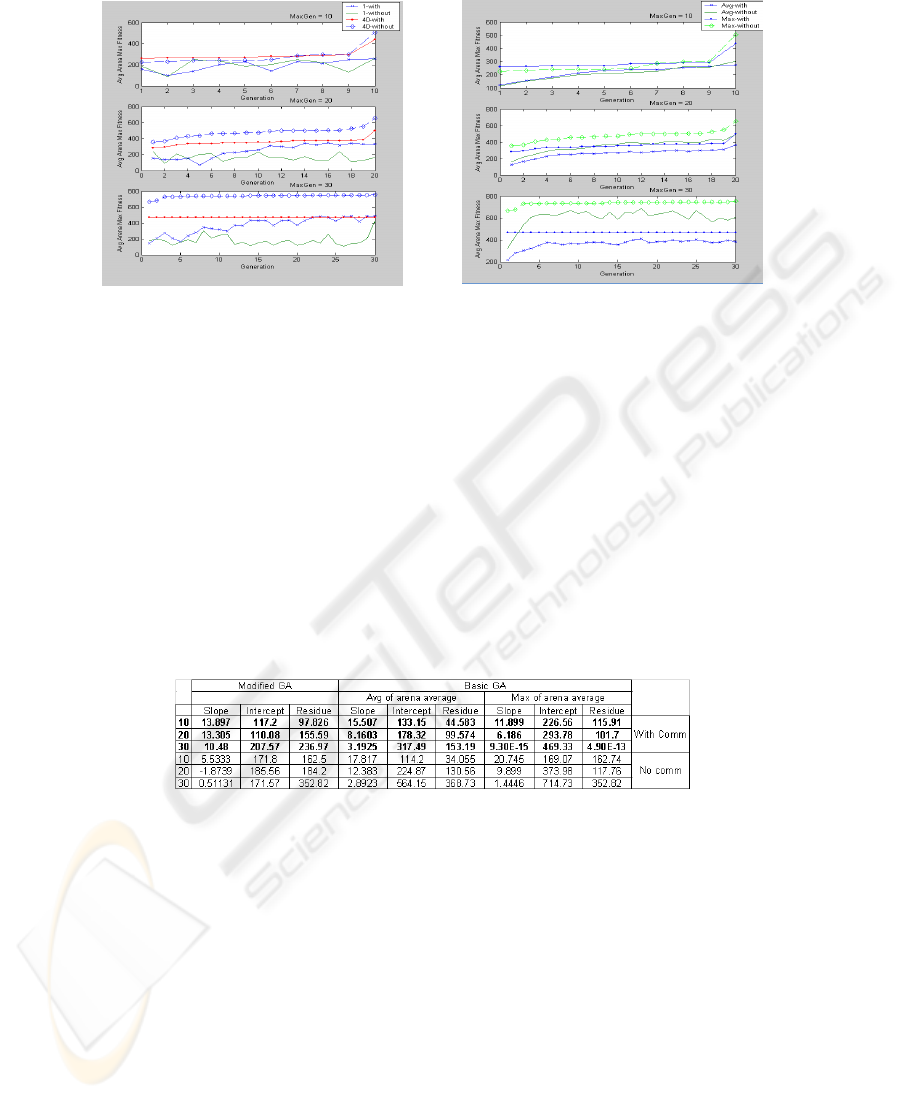

Fig.4. Avg. arena ﬁtness vs. generation size of

robots w/ & w/o the beneﬁt of communication

Fig.5. Avg. arena ﬁtness & max. arena ﬁt-

nesses vs. generation size using basic GA

the slope, intercept and residue of the trend lines of the graphs. The emboldened num-

bers indicate the use of data communicated from other robots. The apparently excellent

performance of the unchanged evolved neuro controller seems to be a result of good

initial populations, which are randomly generated. The rate of improvement, which is

captured by the slope value, is consistent in all cases that change #1 was not made or

both modiﬁcations were made.

Table 3. Slope, intercept and residue data for trend lines of graphs in Figures 4 and 5

There was deﬁnitely a beneﬁt to communication in the cases where the initial pop-

ulation size was one. This beneﬁt disappeared when the population size was increased

to forty. Figure 4 shows data for the average maximum arena ﬁtness of the populations

as a function of generation. Figure 5 shows this data and the average of the average

arena ﬁtnesses, giving a better view of the increasing ﬁtness of all the members of the

population over generations.

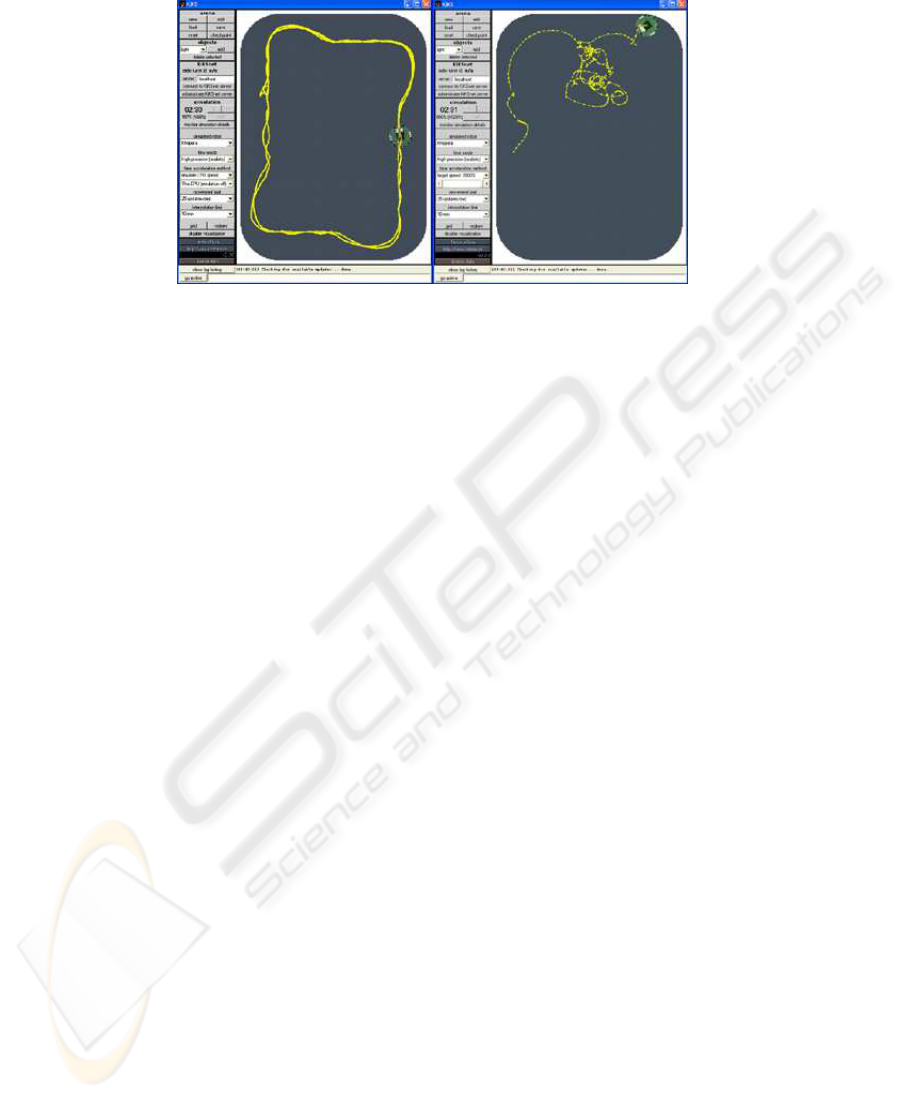

Figure 6 shows the paths of two different robots. The panel on top shows a robot

with a high ﬁtness, and the one below it, a robot with a low ﬁtness value. These images

give a sense of how the ﬁtness function can relate to demonstrated behavior.

Fig.6. Paths of two robots with displaying neurocontrollers of different ﬁtnesses

7 Future Work

These experiments while quite promising were very time consuming. There were time

gains that are yet to be fully investigated in the data sharing cases, but these experiments

were completed on the order tens of hours; the longest taking just over thirty hours. Such

long durations seem to be consistent when neuro controllers are evolved, and they make

large numbers of experiments prohibitive. Future work will include an implementation

of this work with fast genetic algorithms. Still on the challenges of genetic algorithms,

the advances made using subpopulations could be incorporated into future work. Neuro

Evolution of Augmenting Topologies [17] is also a promising research avenue.

A homogeneous set of robots were used for this research. The robots were identical

in their sensor and actuator collection as well as in their phenotype structures. Interest-

ing opportunities lie ahead for investigating non-homogeneous cases. This would hint

at the realm of interspecies communication and learning.

Close to the core of this work many potential modiﬁcations of interest remain.

Only weights of the neuro controller were evolved, the structure could have also been

evolved, perhaps even in concert with the weights [14]. The size of the arenas and the

number of robots operating in those arenas are also parameters of interest.

8 Conclusion

In robotic applications that evolve neuro controllers for robot motion, evaluation of

genotypes mean that the robot’s operation either has to be simulated or actually exe-

cuted. Since in many cases it is not feasible to simulate, actual operation is often neces-

sary. Testing unevaluated geneotypes in a mobile robots is akin to testing experimental

planes. There is a great deal of uncertainty, but each test provides great rewards, even in

failure. Reducing risk is an important goal in both of these efforts and we believe that

making changes to only one genotype allows the mobile robot do so. The risk reduc-

tion results because the robot should demonstrate greater consistency at each evaluation

since it is likely that most of that genotype remained unchanged.

As those familiar with statistics would expect, reducing the initial population size

of a traditional GA to one produced poor results. This work shows that this setback is

mitigated by endowing the GA with the ability to share and incorporate some infor-

mation about genotypes with other independent GAs operating on identical genotype

structures and ﬁtness functions. Thus the modiﬁcations suggested in this work can be

used to address these pitfalls.

Also, since each robot can be initialized with a single genotype, it can be seen that it

would be easy to begin the neuro evolution process with a genotype that was the result

of prior evolution. This allows a robot to receive a jumpstart. The evolution process does

not have to begin randomly, nor does it have to wait until the end of a generation. This

is the quality that allows these modiﬁcations to display the characteristic of knowledge

transfer across lifetimes. This also opens the door for an external agent to interact with

a robot’s neurocontroller, and to do so at any time.

Learning is a paradigm that is manifested in individuals over their lifetimes. Genetic

algorithms function as a proxy for learning since they are manifested by populations

over generations; they do this essentially by searching through a solution space. This

work modiﬁes the GA so that it more closely imitates learning.

We have shown the beneﬁt of teams of robots sharing information in accomplish-

ing a common task, that of behavior development. The research was performed using a

simulated robot. The code used to implement it can be used directly on a real Khepera

robot without functional modiﬁcation. The simulator used was ﬁrmly grounded in re-

ality, mimicking many of the challenges that real robots face, such as sensor noise and

wheel slippage. This is of import since it can then be expected that these results will

hold for a real robot as well. Plans are underway to do so.

Despite the promising results and the potential for future work, there are still some

major limitations of this line of research that have not been fully acknowledged by other

researchers. Foremost the robot, despite all its evolutionary capability, is still an object

of reaction. It has not yet been granted the ability to deliberate or even remember. It

acts based on sensor values and were any of those values to be severely ﬂawed the ro-

bot would no longer display the desired behavior. Furthermore, while this work places

no limitation on the number of behaviors that could be evolved, there is no infrastruc-

ture to control when those behaviors are displayed. [12] has done work to use GAs to

address this issue with the evolution of behavioral policies. This is of interest and will

be investigated to see if this or other methods of deliberation and decision making are

appropriate. These are the issues for autonomous robotics; neuro evolution of behaviors

is but a tool in a robotician’s toolbox.

References

1. Arkin, R. (1998). Behavior-Based Robotics. MIT Press, Cambridge.

2. Balakrishnan, K. and Honavar, V. (1996). Analysis of neurocontrollers designed by simu-

lated evolution. In Proc. of the IEEE International Conf. on Neural Networks.

3. Billard, A. and Dautenhahn, K. (2000). Experiments in social robotics: grounding and use

of communication in autonomous agents. In Adaptive Behaviour, volume 7.

4. Cliff, D., Husbands, P., and Harvey, I. (1993). Analysis of evolved sensory-motor controllers.

In Proc. of the Second European Conf. on Artiﬁcial Life.

5. Connell, J. and Viola, P. (1990). Cooperative control of a semi-autonomous mobile robot. In

Proc. of the 1990 IEEE International Conf. on Robotics and Automation.

6. Duvivier, D., Preux, P., C.Fonlupt, Robilliard, D., and Talbi, E.-G. (1998). The ﬁtness func-

tion and its impact on local search methods. In Proc. of the IEEE International Conf. on

Systems, Man, and Cybernetics, volume 3.

7. Floreano, D. and Mondada, F. (1994). Automatic creation of an autonomous agent: Genetic

evolution of a neural-network driven robot. In From Animals to Animats 3: Proc. of the Third

International Conf. on Simulation of Adaptive Behavior.

8. Hoque, T., Chetty, M., and Dooley, L. (2004). An efﬁcient algorithm for computing the

ﬁtness function of a hydrophobic-hydrophilic model. In Proc. of the IEEE International

Conf. on Evolutionary Computation, volume 1.

9. Houck, C., Joines, J., and Kay, M. (1995). A Genetic Algorithm for Function Optimization:

A Matlab Implementation. NCSU-IE TR 95-09.

10. Lippmann, R. P. (1989). Pattern classiﬁcation using neural networks. In IEEE Communica-

tions Magazine.

11. Maher, M. and Poon, J. (1995). Co-evolution of the ﬁtness function and design solution for

design exploration. In Proc. of the IEEE International Conf. on Evolutionary Computation,

volume 1.

12. Nehmzow, U. (2002). Physically embedded genetic algorithm learning in multi-robot sce-

narios: The pega algorithm. In Proc. of the Second International Workshop on Epigenetic

Robotics: Modeling Cognitive Development in Robotic Systems, volume 94, Lund, Sweden.

Lund University Cognitive Studies.

13. Ripley, B. D. (1994). Flexible non-linear approaches to classiﬁcation. In Cherkassky, V.,

Friedman, J. H., and Wechsler, H., editors, From Statistics to Neural Networks. Theory and

Pattern Recognition Applications, Berlin. Springer Verlag.

14. Saxena, A. and Saad, A. (2004). Genetic algorithms for ann-based condition monitoring

system design for rotating mechanical systems. In 9th Online World Conf. on Soft Computing

in Industrial Applications.

15. Sorokin, S. N., Savelyev, V. V., Ivanchenko, E. V., and Oleynik, M. P. (2002). Fitness func-

tion calculation technique in yagi-uda antennas evolutionary design. In Proc. of the IEEE

International Conf. on Mathematical Methods in Electromagnetic Theory, volume 2.

16. Spears, W. M., DeJong, K. A., Baeck, T., Fogel, D. B., and deGaris, H. (1993). An overview

of evolutionary computation. In Proc. of the 1993 European Conf. on Machine Learning.

17. Stanley, K. O. and Miikkulainen, R. (2002). Evolving neural networks through augmenting

topologies. In Evolutionary Computation, volume 10, Cambridge. MIT Press.

18. Storm, T. (2004). KIKS is Khepera Simulator 2.2.0. (http://www.tstorm.se/projects/kiks/).

19. Wagner, A. and Arkin, R. C. (2003). Internalized plans for communication-sensitive robot

team behaviors. In Proc. of the IEEE/RSJ Conf. on Intelligent Robots and Systems.

20. Whitley, L. D. (1994). A genetic algorithm tutorial. In Statistics and Computing, volume 4.

21. Yao, X. (1999). Evolving artiﬁcial neural networks. In Proc. of the IEEE, volume 87.
