Shun-Fa Chang , Li-Chen Fu, and Ming-Yu Tsai
Department of Computer Science and Information Engineering,
National Taiwan University, Taipei, Taiwan, R.O.C.
Keywords: B2B E-commerce, workflow, Inter-Enterprise, Broker, Adapter
Abstract: In recent years, the manufacturing technologies are more and more complex. Almost all production
processes need cooperation among multiple enterprises. It is true that todays manufacturing process is a
complex workflow forming a supply chain. Each enterprise provides their services to accomplish
professional processes. With the growth of Internet usage, there are more and more services able to be
processed on the web. Web-service is one of the applications on Internet and it can help enterprises
cooperate with one another in their services easily. In this paper, we propose a Hierarchical Broker
Framework to provide an advanced broker function for enterprises cooperation. In this framework, we can
classify all services to keep searching easier, to present the relations between two enterprises more flexibly,
to match buyers and sellers more precisely, and to cut down brokers loading. On the ride of an enterprise
client, we do not have to modify any existing enterprise architecture. Beside, we will also design an adapter
to connect the broker server and the existing enterprises. By these designs, we try to find an automatic way
to integrate these enterprise processes to improve efficiency and reduce their transaction overheads.
With the progress of computers, information
technology and Internet, people find a new way to
undertake business by electronic media that reduce
the time barrier and distance between sellers and
buyers. For enterprises, they need to respond to the
demands of customers quickly to gain an
advantageous position as global competition and
market pressures rise. They are seeking a new way
to decrease cycle time and to make operation more
productive. So far, there are many services that can
improve workflow efficiently on the internet. How
we can automatically and efficiently integrate these
services in the workflow is an important issue that
we need to cope with. In this paper, we propose a
new framework, Hierarchical Broker Framework, to
deal with this problem efficiently and elegantly.
Hierarchical Broker Framework is applied to
replace the existing marketplace and to add efficient
matching mechanism to it. In this framework, all
services will be clearly classified, and thus
customers can find their required services more
easily. The broker provides useful matching
mechanism to help buyers or sellers to find the
suitable partners very conveniently. By the
automating function, the integration and automation
of business processes will be simpler and more
With the integration of inter-enterprise processes,
enterprises will have no difficulties to outsource
some processes to complement their own weakness
and to reduce some unnecessary overhead. This
framework allows enterprises to focus on their core
technology while relying on partners to perform
other critical activities. In order to have all
enterprises easily join this Hierarchical Broker
Framework, we design an Adapter Agent to help
every one of them to be free of removing legacy
operating systems.
The remainder of the paper is structured as
follows. Section 2 summarizes the relation work. In
section 3, we propose a new business framework,
called the Hierarchical Broker Framework, to
replace the existing marketplace. Based on this
framework, we can successfully establish an
Intelligent Broker for matching buyers and sellers
and an Adapter Agent for connecting the new
framework and the legacy operating system in every
joined enterprise. We will introduce how these
different enterprise parties shall communicate with
one another in section 4. The implementation of this
Chang S., Fu L. and Tsai M. (2004).
In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 62-69
DOI: 10.5220/0002613500620069
framework is discussed in section 5. Finally, section
6 makes a conclusion of the paper.
The term “workflow” originated in the mid-1980s
and became popular in the early 90’s. Since then,
many service providers have offered
general-purpose workflow management systems
(IBM, WebSpere MQ Workflow). We used these
workflows in two ways. One is to lead ERP
(Enterprise Resource Planning) systems to adopt a
workflow component. Another one is to include
workflow functionality in the enterprise application.
WISE (Workflow based Internet SErvices) is a
project conducted at Swiss Federal Institute of
Technology (Alonso et al., 1999). The goals of
WISE are to develop and deploy the software
infrastructure necessary to support business to
business electronic commerce in the form of virtual
enterprises. The idea is to combine the tools and
services of different companies as building blocks of
a higher level system in which a process acts as the
blueprint for control and data flow within the virtual
enterprise. From this idea, the final goal is to build
the basic support for an Internet trading community
where enterprises can join their services to provide
added value processes.
CrossFlow is a European research project for
supporting cross-organizational workflow
management in virtual enterprises (Grefen et al.,
1999). Its goal is to develop and implement a
mechanism for connecting WfMS and other
WfMS-Like systems of different organizations in
cross-organization workflows and electronic
commerce settings. Crossflow defines a
service-oriented model for cross-organizational
workflows. In their service-oriented model, a service
provider of each service can be either an internal
resource (internal service) or an external
organization (external service). For an external
service, service selection at run-time will be based
on the QoS parameters given in service
Sangam is a universal interoperation protocol for
e-service broking communities using private UDDI
nodes (Helal et al., 2002) (Jagatheesan et al., 2003).
It aims to achieve more relevant and interoperable
brokering of e-services in a highly scalable and
dynamic environment of e-services.
3.1 Architecture and Technology
Hierarchical Broker Framework is a framework
which connects every service and marketplace on
the internet. The main idea of this framework comes
from the “domain name mechanism” on the internet
and the “inheritance concept” on object-oriented
programming. The former can help us create this
framework more uniformly, whereas the latter can
keep sellers to enter this framework with little
The traditional marketplace provides a place
where sellers can publish their services or products,
and buyers can search in this online catalog for those
services which they need. The marketplace owner
needs to maintain this online catalog. It has many
different domains and different presenting methods
in each marketplace, and it may be difficult for
buyers to find the desired services, thus the matching
mechanism is very important.
The main idea of Hierarchical Broker Framework
is to connect each special marketplace by a
classified framework. There are only two kinds of
components in this framework, Intelligent Broker
and Adapter Agent. Each Intelligent Broker can
independently be extended to a sub-marketplace, and
the Adapter Agent is a member in this

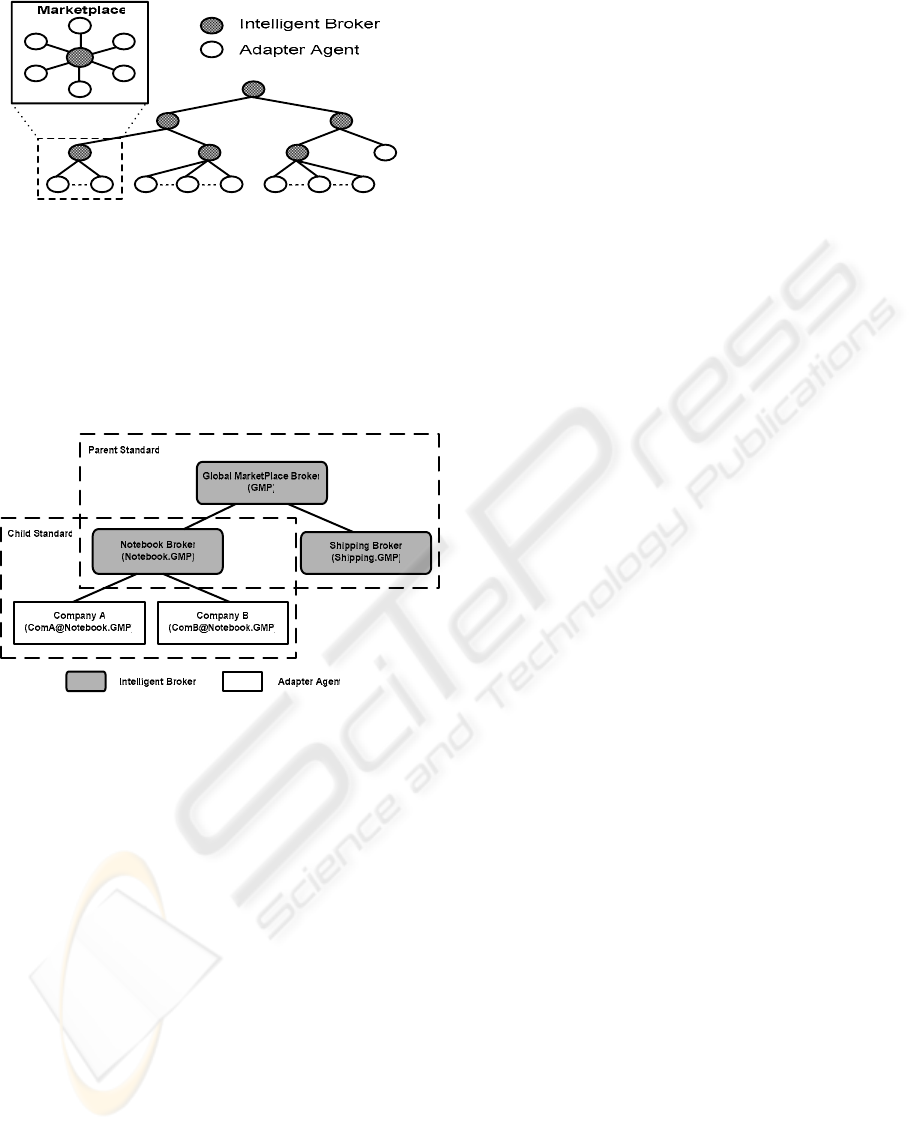

Figure 1: Traditional Marketplace & Hierarchical Broker
In this framework, an Intelligent Broker is
mapped to a sub-marketplace, whereas an Adapter
Agent is mapped to a service. In Figure 2, we can
see how this framework integrates these specific
Intelligent Brokers. By this framework, not only
services but also Intelligent Brokers have a unique
place in this classified framework. The unique place
stands for the position of this service and its relation
with other services in this framework.
Figure 2: Hierarchical Broker Framework
In Figure 3, it presents another aspect in this
framework. Components in the area surrounded by
the dotted line use the same standard to
communicate. One broker server can serve service
providers and other broker servers only if all of them
follow the same standard.
Figure 3: Part of Hierarchical Broker Framework
Each Intelligent Broker must build a special
marketplace into it, and hence an Intelligent Broker
stands for one specific marketplace. After this broker
is created, service providers can publish their
services on it. Each broker server has another
mission that it is responsible to manage all services
and sub-brokers under it. It must check regularly if
the services remain available or not. This
maintenance will require large efforts in a one-tier
traditional marketplace, but they will be handled by
each specific broker in the Hierarchical Broker
This design keeps each standard more stateless.
The child Broker Server Standard is able to flexibly
describe the specific domain in detail, and the Parent
Broker Server Standard is less domain-dependent
and can be generally used in any domain.
3.1.1 Broker Standard Inheritance Relation
Although in Hierarchical Broker Framework each
tier may have different standards, we use inheritance
concept to create the relations. By this idea, the
distributed broker standard will have some norms to
normalize it. This idea is from OOP (object-oriented
programming). The Child Broker Server Standard
will inherit from the Parent Broker Server Standard.
In this way, we can define a new child standard
easily by referring to the parent-broker standard.
3.1.2 Service Naming Mechanism
The other concept used in the Hierarchical Broker
Framework is the domain name mechanism on the
internet. This mechanism arises because most people
cannot remember 32-bit IP address and a mapping
from the pure-digits address to natural language
phrases is very helpful for us to memorize. Domain
name mechanism uses a tree structure to describe the
location on the internet. When we name a domain,
we try to make this name more representative. We
will name all Intelligent Brokers in this framework
so that each service will have a unique name. This
unique name mechanism will help workflow
designers to design the business workflow more
3.2 Definition of Data Unit
In this paper, we design several data units to help
these components to communicate with one another.
There are three kinds of data units: order, process,
and task.
The order is a fundamental unit that companies
will use to execute business actions. It is a unit used
to ask a provider to offer a complete service or
product. The process unit is used to dispatch this
action according to whether it is going to be finished
in a local place or needs to invoke a service in other
places. The task is an elementary action in this
framework, which connects this framework and the
legacy operating system within an enterprise. One
task is mapped to one traditional process in the
legacy operating system.

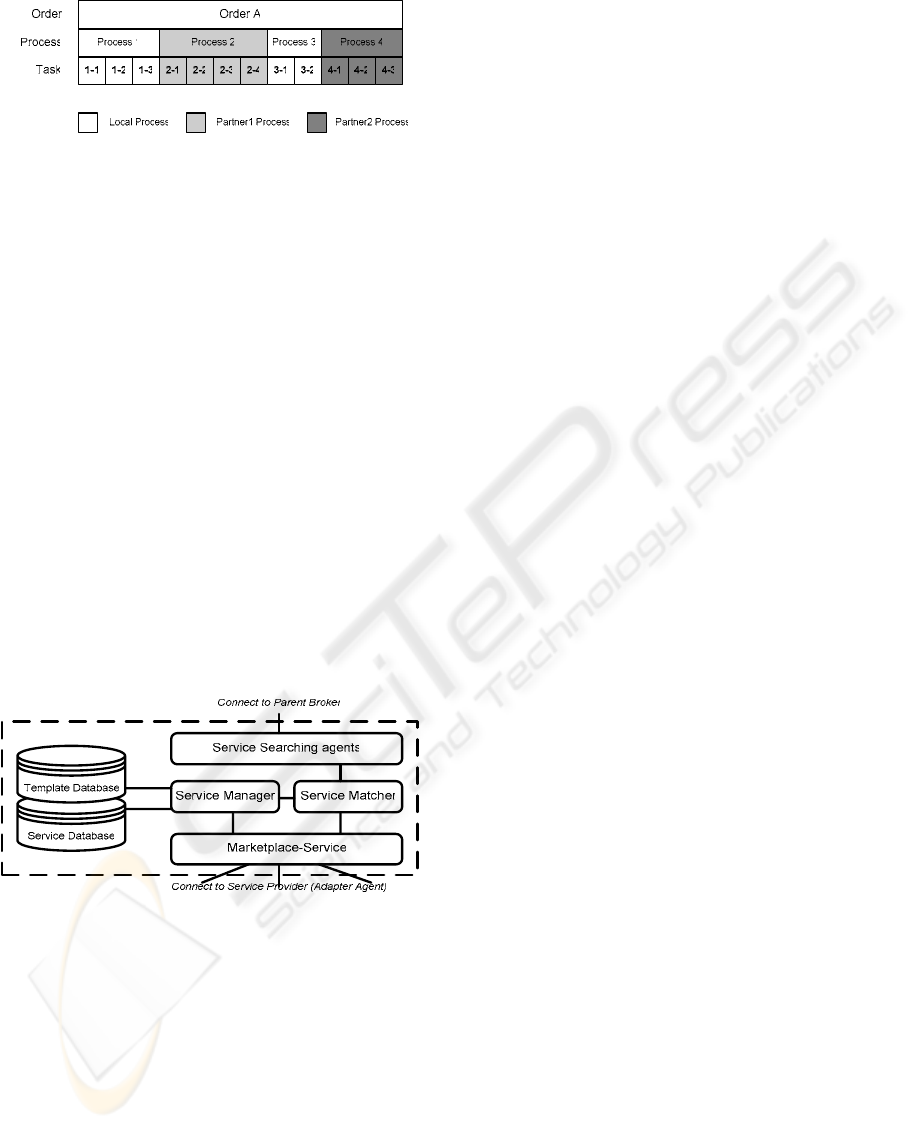

In Figure 4, we see the relations among orders,
processes, and tasks. It is clear that workflow is
constructed by tasks. These tasks directly
communicate with the legacy operating system,
maybe a manufacturing system. A sequence of tasks
can form a meaningful process, and a sequence of
processes stands for a complete workflow of a
product or a complete service.
Figure 3.4 Workflow
data unit
Figure 4: Workflow data unit
3.3 Basic Components Architecture
3.3.1 Intelligent Broker Node Architecture
The Intelligent Broker plays the role as a manager in
the framework. It is used to manage every service
under it. Besides, it manages sub-brokers under it,
too. A broker server has the following functions:
z Manage provider registry system;
z Store each service and maintain the service
z Store each template and maintain the template
z Provide the interface for inquiring services;
z Provide the matching mechanism;
z Provide a function to communicate with upper
and lower brokers.
All broker architectures look like that is shown in
the following figure:
Figure 5: Intelligent Broker Architecture
Marketplace-Service provides a basic
marketplace function. It can receive members’
requests of registrations and it can query members’
services actively. There are three kinds of actions
that a Marketplace-Service will receive from the
Adapter Agent. They are “register” action, “match”
action and “order” action. Service Manager Agent
is a bridge between the database and the main
program in the Intelligent Broker. All data including
broker information, service and template
information, service provider information, and
child-broker information will be loaded by the
Service Manager Agent. Service Manager Agent is
an information center in the broker. Service
Matching Agent is the control center in the
Intelligent Broker. All matching and ordering action
will pass through it. The Service Matching Agent
function is used to match the providers and buyers.
Template & Service Database explicitly store all
services and templates that belong to this broker.
Template is a kind of service specification, which
defines standard input, output and all variables. A
real process set is provided by a provider and
follows a template specification. So, one template
may have many services, and one service must have
one service provider associated with it. Searching
Agent is a component which is responsible for
communications with the Parent broker. It is a finder
because it finds other brokers in different domains.
Sometimes we need this component when one
broker can not find another broker and this target
broker is not under the inquired broker.
3.3.2 Adapter Agent Node Architecture
The Hierarchical broker framework is used to
connect all services on the Internet and to assist to
coordinate the service partners. In fact, each firm
generally has its own legacy operating system, so it
is a challenge to pass information to other systems.
Legacy operating systems generally invoke older
mainframe and minicomputer systems to manage the
key business processes in a firm covering a variety
of functional areas from manufacturing, logistics,
finance, and human resource, etc. Generally, it is
very costly and time-consuming to convert these old
systems to new systems.
The Adapter Agent has two kinds of interfaces,
one for the Intelligent Broker and the other for
legacy operating systems. The Adapter Agent rule
translates all actions between the Intelligent Broker
and the legacy operating system. There are many
necessary functions in the Hierarchical broker
framework. If the legacy operating system fails to
support some of those functions, our Adapter Agent
must provide it. The goal of the Adapter Agent is to
provide a complete interface to let enterprises
successfully join this framework.

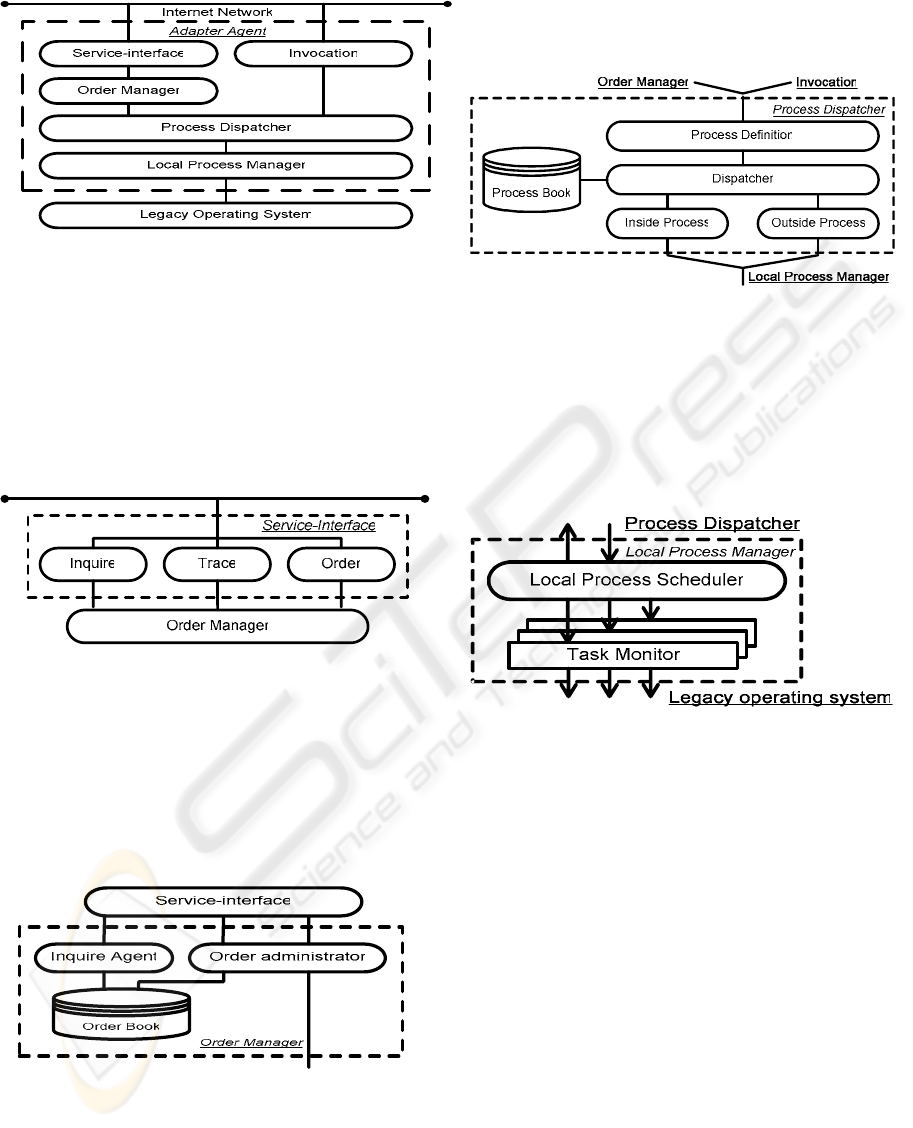

Figure 6: Adapter Agent Architecture
We decompose this agent into many components.
The Service-Interface provides an interface that
allows outside users to inquire services, make orders,
and trace the order’s progress. It must follow
communication standard in the framework. After
receiving a request, it translates the request and then
invokes the Order Manager inside the Adapter
Figure 7: Service-Interface
The Order Manager is a component to manage
all orders received from the Service-Interface. When
the order manager gets a new order, it will create a
unique order name and store the order in the order
book. It will also send the order to the Process
Dispatcher to classify and to dispatch each work.
Figure 8: Order Manager
The Process Dispatcher receives order from the
order manager, and the main mission is process
definition and process dispatching. When an order
enters this dispatcher, the first job for Process
Dispatcher is to define all processes in the order. In
other words, it will decompose the order to many
Figure 9: Process Dispatcher
The Local Process Manager is the only
component which actually invokes legacy operating
systems. It is used to connect the Adapter Agent and
the legacy operating systems. Because there are
many different legacy systems, the local process
manager must be designed case by case.
Figure 10: Local Process Manager
There are three kinds of elementary actions in this
framework. In Figure 11, it can be seen that all these
actions are communications between the Broker and
the Enterprise.
(1) Publish / unPublish: Service providers
advertise (publish) their e-services to one or more
broker servers. They may also unpublish the
advertisements of services from the registry.
(2) Match request: A buyer needs a seller. He can
set some requirements and send it to the broker to
request a matching list of suitable sellers.
(3) Match result: The broker will return a suitable
result for the buyer.
(4) Invoke: After matching the suitable provider
and verifying its quality, this service will be

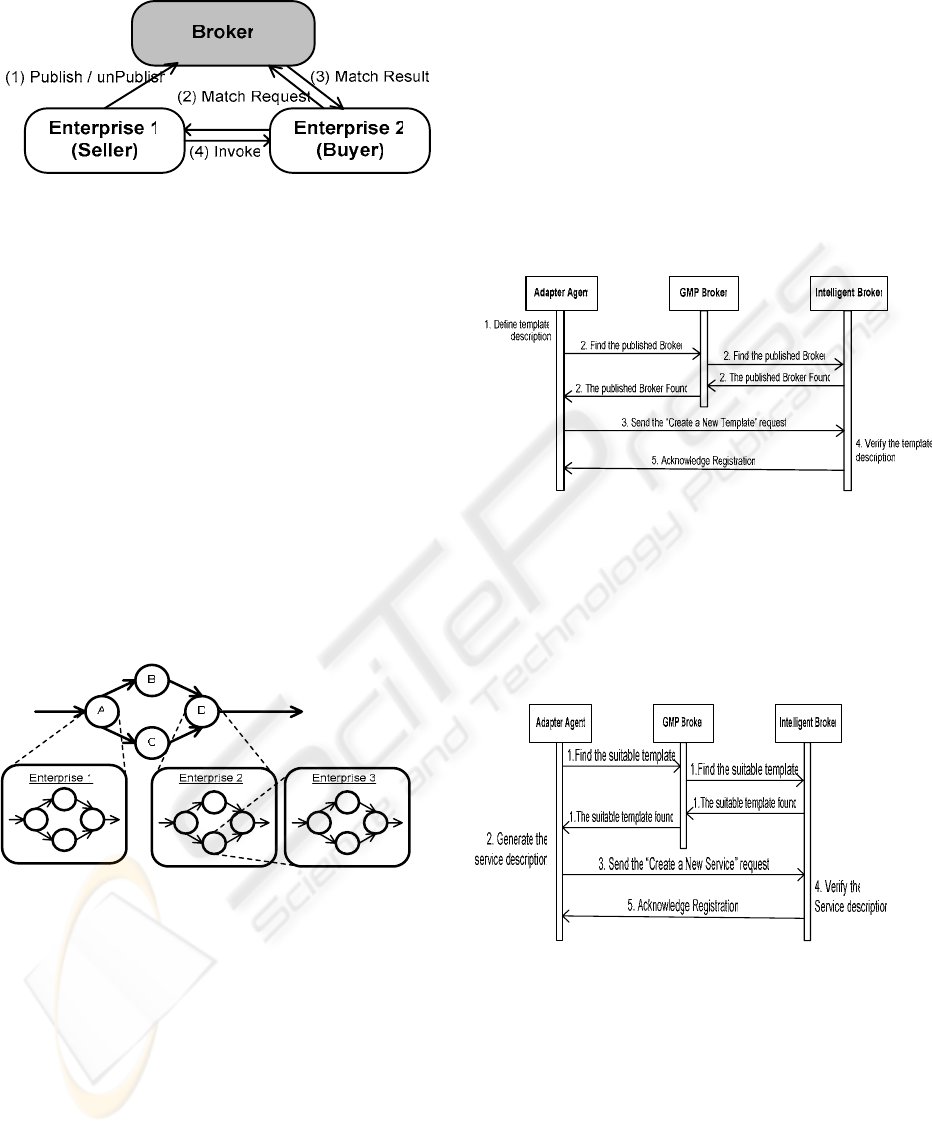

Figure 11: Elementary Broker Mechanism
Generally, an enterprise can publish its services
on the brokers, and these brokers will collect these
services and make an online catalog. If a buyer, not
only an individual customer but also an enterprise,
needs some services or products, he can ask the
broker to search for a suitable enterprise that can
provide the service. After matching, the buyer can
invoke these services that he needs.
Actually, these elementary actions can construct
more complex processes to present the real situation.
These buyer-seller relations connect enterprises to be
a chain. Production of a product may need cooperate
with many company’s processes, and
accomplishment of one company’s process may also
need coordination with more other companies’
processes. Under this concept, each enterprise will
play more than one role given one order
Figure 12: Integrated Inter-Enterprise Process
Figure 12, we aims to explain relations among
different enterprises in this integrated
inter-enterprise process from the process perspective.
We know that each complete service involves many
enterprises, and the Intelligent Broker and the
Adapter Agent will help us to create this
coordination process more easily.
4.1 Publication Mechanism
The publication mechanism gives the enterprise the
ability to publish their services on the internet to
wait for being invoked. There are two kinds of
information that will be published, templates and
In the Intelligent Broker, some service providers
will cooperate to design a standard template for
some designated services. It is a general
specification, and any service should follow so that
it will be easier to be used by buyers. When the
company has a new service, it will check if there is a
suitable template to use. If the Intelligent Broker
does not have a suitable template, the provider must
create a new one. The creating action is show below.
Figure 13: Template Publishing Action
In order to keep buyers able to find the service,
the enterprise must publish their services on the
broker. Before publishing services, the enterprise
must choose a suitable broker and a suitable
template to store their services. These are the steps
that a provider needs to take to publish a service.
Figure 14: Service Publishing Action
4.2 Locating Broker Mechanism
In the one-tier marketplace, each service is
published on the same online marketplace. If a user
needs to find the service, he just needs to search only
one catalog in the broker. In the Hierarchical Broker
Framework, in order to use the tree-like framework,
we separate one main broker from other sub-brokers.
The Locating Broker Mechanism is used to help
users to find the broker they need.
4.3 Matching Mechanism
The Matching Mechanism is used to help a buyer to
match a suitable seller (service provider). Different
industries or even the different services may need
different Matching Mechanisms to achieve more
precise matching. A suitable Matching Mechanism
can let the broker find the service provider while
satisfying the buyers constraints more precisely.
In Figure 15, we show a complete flow that
matches and invokes a service. First we will use the
matching method to find a service and then invoke it.
As for the invocation mechanism, we will introduce
in it in the next sub-section. When a user needs a
service, first he needs to find a suitable broker, and
then he can ask it to create a matching session. The
Intelligent Broker will invite the providers to join
the matching session and help the user to find a
suitable provider.
4.4 Invocation Mechanism
The Invocation Mechanism is the most important
mechanism in integrating inter-enterprise processes.
The automatic integration includes matching and
invoking of the services automatically.
Sometimes, the Invocation Mechanism is used
after the matching mechanism. The matching
mechanism provides a suitable service provider and
a suggested workflow. If the buyer accepts this
workflow, the mechanism will submit it and invoke
subsequent actions.

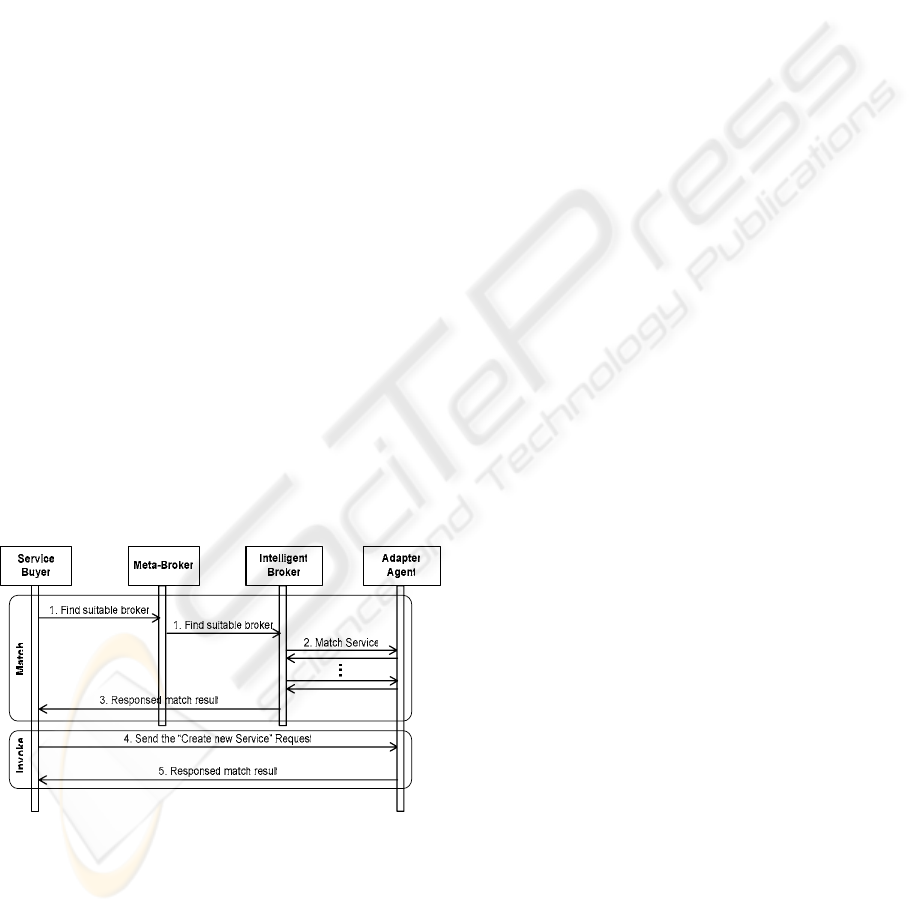

Figure 15: Matching & Invocation mechanism
We use the Java programs and the web-service
technology to accomplish the hierarchical broker
framework. The former can execute in any platforms
and the later is adopted by many organizations and
enterprises. On the strength of these characteristics,
clients and servers do not have special requirements
in your legacy system. The hierarchical framework
will be operated very easily and successfully. In
summary, the major advantages of our Hierarchical
Broker Framework to perform the automatic
integration workflow are listed here.
The Intelligent Broker and the Adapter Agent are
built as basic components. If we want to add a new
broker/adapter, we just need to reuse these existing
basic components to design a new broker/adapter to
join the Hierarchical Broker Framework.
z Because of using the browser as the
communication tool, users can manage and
monitor processes in an easy and friendly way.
z The Web-service standard (SOAP, WSDL and
UDDI) are open standards supported by W3C
and OASIS, adopting these standards reduces
the interoperability problems between
different systems that follow the standards.
Nowadays, producing a complex product needs
cooperation with many enterprise processes. How to
find suitable service providers to establish a perfect
workflow is a critical issue and is solved in this
paper. In order to provide more efficient matching
environment to deal with automatic integration of
processes, we designed a Hierarchical Broker
Framework. In this framework, we provide many
useful functions that a traditional broker can not
provide. It decomposes a main broker to many
sub-brokers and provides a tree-like framework. The
decomposition method uses a domain concept like
DNS on the Internet. It also provides for each
sub-broker a very flexible environment where the
sub-broker can design suitable data format and
matching method in its marketplace. The buyer and
the seller in the Hierarchical Broker Framework will
find each other more precisely. In the hierarchy, the
parent broker has the responsibility to validate the
child-brokers’ specification.
Then, based on this Hierarchical Broker
Framework, we established two main components,
the Intelligent Broker and the Adapter Agent. The
Intelligent Broker is a broker node in the framework.
It not only matches sellers and buyers, but also
manages sub-brokers and member providers. The
Adapter Agent is used to help some legacy operating
systems to be integrated into this framework more
easily. By these mechanisms, connecting business
processes between enterprises are more convenient
and efficient. Furthermore, enterprises have more
opportunities to find suitable partners in
[1] IBM, WebSphere MQ Workflow (formerly MQSeries
[2] G. Alonso, U. Fiedler, C. Hagen, A. Lazcano, H.
Schuldt, N. Weiler: WISE: Business to Business
E-Commerce. 9th International Workshop on
Research Issues on Data Engineering (RIDE-VE'99).
Sydney, Australia, March 23-24, 1999.
[3] P Grefen, Y Hoffner, CrossFlow -
Cross-Organizational Workflow Support for Virtual
Organizations, Proceedings of 9th International
Workshop on Research Issues on Data Engineering,
Information Technology for Virtual Enterprises,
Sydney, Australia, March, 1999.
[4] Sumi Helal, Stanley Su, Jie Meng, Raja Krithivasan,
and Arun Jagatheesan, The Internet Enterprise, IEEE
Applications and the Internet, 2002. (SAINT 2002).
Proceedings. 2002 Symposium on , Page(s): 54 -62
[5] A. Jagatheesan and A. Helal, Sangam: Universal
Interop Protocols for E-service Brokering
Communities using Private UDDI Nodes, Submitted
to the IEEE Symposium on Computers and
Communications - ISCC'2003, to be held in
Kemer-Antalya, Turkey, Hune/July 2003
[6] Kenneth C. Laudon and Carol Guercio Traver,
E-Commerce business. Technology. Society , Addison
Wesley, 2002.
[7] IDEF Family of Methods,
[8] M. Wahl, T. Howes, and S. Kille. "Lightweight
Directory Access Protocol (v3)," IETF RFC 2251,
December 1997.
[9] K. W. Edwards. Core Jini. Prentice Hall.
[10] Roy, J. and Ramanujan, A., Understanding Web
services, IT Professional , Volume: 3 Issue: 6 ,
Nov/Dec 2001 Page(s): 69 -73
[11] Curbera, F., Duftler, M., Khalaf, R., Nagy, W.,
Mukhi, N.and Weerawarana, S., Unraveling the Web
services web: an introduction to SOAP, WSDL, and
UDDI, Internet Computing, IEEE , Volume: 6 Issue:
2 , Mar/Apr 2002, Page(s): 86 -93
[12] Simple Object Access Protocol (SOAP) 1.1,
[13] Web Services Description Language (WSDL) 1.1,
[14] Universal Description, Discovery and Integration of
Web Services,
[15] Weiming Shen;, Distributed manufacturing
scheduling using intelligent agents, Intelligent
Systems, IEEE [see also IEEE Expert] , Volume:
17 Issue: 1 , Jan.-Feb. 2002 Page(s): 88 -94
