Too Constrained for Genetic Algorithms too Hard for Evolutionary

Computing the Traveling Tournament Problem

Kristian Verduin

1 a

, Sarah L. Thomson

2 b

and Daan van den Berg

1 c

Department of Computer Science, Vrije Universiteit Amsterdam and

Universiteit van Amsterdam, The Netherlands

Edinburgh Napier University, U.K.

Keywords:

The Traveling Tournament Problem, Constraints, Genetic Algorithms, Evolutionary Computing, Constraint

Hierarchy.

Abstract:

Unlike other NP-hard problems, the constraints on the traveling tournament problem are so pressing that it’s

hardly possible to randomly generate a valid solution, for example, to use in a genetic algorithm’s initial

population. In this study, we randomly generate solutions, assess the numbers of constraint violations, and

extrapolate the results to predict the required number of samples for obtaining a single valid solution for any

reasonable instance size. As it turns out, these numbers are astronomical, and we ﬁnish the study by discussing

the feasibility of efﬁcient sampling of valid solutions to various NP-hard problems.

1 INTRODUCTION

A long long time ago, before computers existed,

American kids played outside to entertain themselves.

Often baseball, a true American invention, which over

the years grew into the number #3 sport on the conti-

nent, having 19.1 million practitioners, and over 35

million TV spectators on a peak day (Bas, 2023).

With such enormous numbers of engagement, North

America is host to Major League Baseball (MLB),

founded in 1876 and consisting of 30 teams from the

United States of America and Canada, holding broad-

casting rights involving billions of dollars (Solberg

and Gaustad, 2022). It is therefore no surprise that

scheduling the matchups of teams is considered a cru-

cial part of the process.

What is a surprise though, is that until relatively

recently, this was done by hand by Henry and Holly

Stephenson, a married couple from Massachusetts.

Perhaps most astonishing is the level of expertise

these people must have possessed in creating these

schedules, especially retrospectively considering the

hardness of the problem. In the day (and maybe still),

teams, players, coaches and unions ﬁled a host of

complicating constraints: “Red Sox must be home on

https://orcid.org/0009-0005-8754-7635

https://orcid.org/0000-0001-6971-7817

https://orcid.org/0000-0001-5060-3342

Patriot’s Day”, “Blue Jays must be home on Canada

Day”, “a team on the road on Memorial Day must

be home on the 4

of July” are just some of the de-

mands the Stephensons processed – by mail – and

incorporated into the huge scheduling task the MLB

presented. But as a typical 21

-century’s informatics

history, computers came along and in 2004, after 24

years of manual labour, the Stephensons were outbid

by the Sports Scheduling Group, who teamed up with

Carnegie Melon and Georgia Tech (Press, 2004).

In time, most if not all human labour will likely

be outclassed by machines, but the timing of the ap-

pearance of MLB’s ﬁrst planning algorithm might

not have have been completely coincidental. Just a

few years earlier, Easton, Nemhauser and Trick for-

mulated the Traveling Tournament Problem (TTP)

which entails scheduling tournament rounds of an

even number of teams (n

teams

) (Easton et al., 2001).

In TTP, each team must play each other team twice

in the schedule (once at home, once away), which is

known as the double round-robin constraint. Addi-

tionally, when team A plays team B in one round,

the exact inverse match (B playing A) cannot take

place in the consecutive round, which is known as the

noRepeat constraint. Finally, there is the maximum

number of consecutive games any team can play at

not the to be confused with the Traveling Thief Prob-

lem, also abbreviated to TTP, which is clearly the fault of

Markus Wagner.

246

Verduin, K., Thomson, S. and van den Berg, D.

Too Constrained for Genetic Algorithms too Hard for Evolutionary Computing the Traveling Tournament Problem.

DOI: 10.5220/0012192100003595

In Proceedings of the 15th International Joint Conference on Computational Intelligence (IJCCI 2023), pages 246-257

ISBN: 978-989-758-674-3; ISSN: 2184-3236

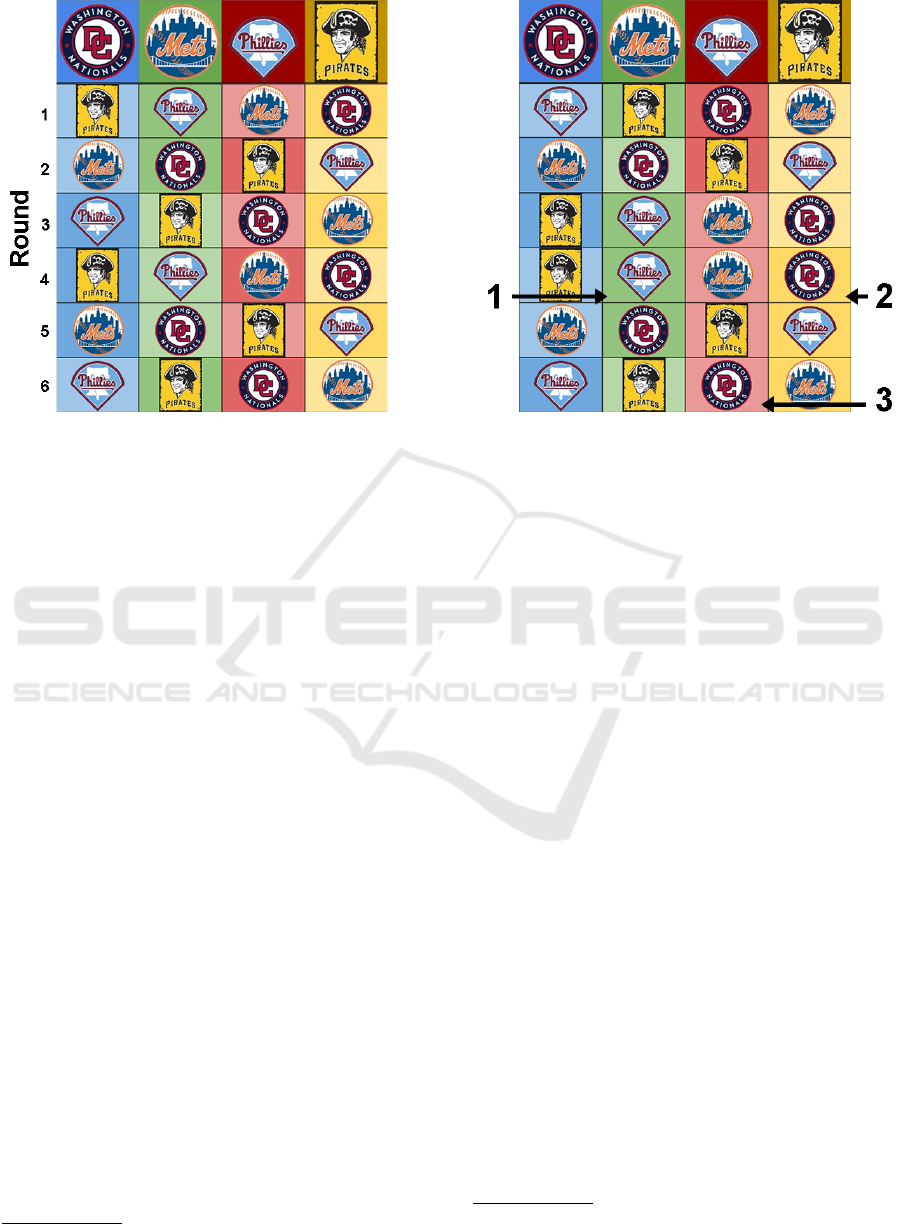

Figure 1: Left: A valid TTP schedule, with lighter backgrounds designating home games, and darker away. Right: An invalid

TTP schedule that has all three constraints violated: doubleRoundRobin (1) as the Mets play the Phillies at home twice in the

schedule, noRepeat (2) and maxStreak (3). Note that point (1) has a noRepeat violation, in addition to the doubleRoundRobin

violation.

home or away, the maxStreak constraint

. Usually,

maxStreak = 3 meaning any team can at most play

three consecutive rounds at home, or away, anywhere

in the schedule (Thielen and Westphal, 2011). Only

three constraints, but they can be violated many times

per schedule, especially for larger numbers of n

teams

(Figure 1). And as constraints go, it only takes one

violation to render the entire schedule invalid.

But the actual problem is not about satisfying

these constraints. The traveling tournament problem,

like the traveling salesman problem (TSP), has a dis-

tance matrix which holds the travel time between sta-

diums (or: cities), and the main task is to minimize

the total travel time. As we will shortly see however,

these three constraints are so asphyxiating, that travel

time optimization almost becomes auxiliary to ﬁnding

a valid schedule in the ﬁrst place.

From here, we will ﬁrst inspect the complexity

timeline of the TTP in Section 2. It took some time

before the 2001-formulation of the problem was fully

proved to be NP-complete, quite understandably as

these proofs are usually not very easy to construct.

In Section 3, we will discuss some of the algorithmic

approaches to TTP. This history is quite uncommon,

as it has relatively few metaheuristic applications, but

quite a number of approximation algorithms for var-

ious variants as well as for the seminal formulation.

After that, the experiment and the results are laid out

in Sections 4 and 5. Finally, in Section 6 we dis-

cuss how to interpret these results: can NP-hard opti-

Terminology varies slightly across literature.

mization problems be ranked on their constraints? We

make some suggestions for a classiﬁcation.

2 COMPLEXITY TIMELINE OF

THE TTP

The traveling tournament problem is hard. Its for-

mal classiﬁcation history starts in 2009 with a non-

peer reviewed preprint by Rishiraj Bhattacharyya who

showed that every instance of the traveling salesman

problem can be polynomially converted into an in-

stance of the traveling tournament problem (Bhat-

tacharyya, 2009). Thus, if the traveling tournament

could have been solved exactly in polynomial time,

so could the traveling salesman problem. The latter is

not the case: the traveling salesman problem requires

exponential time to solve exactly, and therefore, so

does the traveling tournament problem

. This initial

proof had a loose end though: Bhattacharyya’s proof

involved the TTP without the maxStreak constraint,

and even though he states “even without” this con-

straint the problem is NP-hard, there was no guaran-

tee that addition of this property would not actually

make the problem easier.

But as often happens in science, intuition pre-

cedes proof, and it turned out Bhattacharyya was

right. History threw a curveball though, as the proof

all assuming P 6= NP, which appears to be the majority

consensus in the scientiﬁc community.

Too Constrained for Genetic Algorithms too Hard for Evolutionary Computing the Traveling Tournament Problem

247

of full NP-completeness (including the maxStreak =

3 constraint as originally formulated by Easton &

Trick) appeared in 2011, not by a reduction from

TSP, but by a ‘classic’ reduction from satisﬁability

(SAT) (Thielen and Westphal, 2011). Bhattacharyya’s

original ‘streakless’ from-TSP-proof was nonetheless

peer reviewedly published in 2015 by Operations Re-

search Letters (Bhattacharyya, 2016). As a side note,

the terms NP-hard and NP-complete were apparently

used interchangeably in these studies.

Another 5 years later, in 2021, Diptendu Chatter-

jee further widened the insight by proving that indeed

for every maxStreak > 3, the problem is NP-hard. Al-

though the manuscript will undoubtedly walk a sim-

ilar path to a highly regarded journal, it is currently

only available as an arXiv preprint (Chatterjee, 2021).

The takeaway observation here is that it took at least

12 and at most 22 years of hard intellectual work to

obtain a full proof of NP-hardness for the TTP. The

historic trajectory itself is also interesting, as the ﬁrst

inning encompassed only a ‘no-maxStreak proof’,

the second inning a slightly wider but totally differ-

ent proof for maxStreak = 3, but still a third inning

was needed for the full proof with maxStreak > 3.

Furthermore, the constructed proofs differed substan-

tially, reducing from TSP, SAT and k-SAT respec-

tively, and we hypothesize that for these reasons, it is

quite likely that the maxStreak-constraint plays a key

role not only in the problem’s hardness classiﬁcation,

but also in the arduous task of solving its individual

instances.

In any case, one NP-hard problem is not the other.

Being in the same class might suggest hardness equiv-

alence, which might be true in a general sense, but is

certainly questionable when looked at with any de-

gree of resolution; the difﬁculty of ﬁnding an opti-

mal solution to an integer partition problem instance

(van den Berg and Adriaans, 2021), a traveling sales-

man problem instance (Liang et al., 2022; Sleegers

et al., 2020) or a traveling tournament problem in-

stance is very different in practice. One complicating

aspect seems to arise from the constraints of a prob-

lem and for TTP, these are pretty severe. In fact, we

will argue, it is almost impossible to generate a pop-

ulation of valid random individuals by the most basic

procedures, simply because its constraints invalidate

the vast majority of instances.

3 ALGORITHMS FOR THE TTP

Could it be for these reasons, the asphyxiating con-

straints on the traveling tournament problem itself,

that genetic algorithms are almost completely absent

from its algorithmic history? Possibly. A study

from 2023 showed that even for a very small in-

stance size of n

teams

= 30, which corresponds closely

to the MLB’s actual number of teams, the number of

constraint violations in a randomly generated sched-

ule is close to 3800, and increases quadratically in

teams

(Verduin et al., 2023). This means it is non-

trivial to create an initial population of valid indi-

viduals for a genetic algorithm to work with. We

would like to point out to the reader that the situa-

tion is quite different for the “closely related” travel-

ing salesman problem (in the same complexity class,

and one reduces the other) which has seen plethora

of population-based algorithms applied to it (Eiben

et al., 2003; Koppenhol et al., 2022; Potvin, 1996).

Still, a few hill climbing and simulated annealing

approaches have been applied to the TTP; these could

both be regarded as evolutionary algorithms with a

population size of 1 (Anagnostopoulos et al., 2006;

Lim et al., 2006; Jha and Menon, 2014) (the last one

applied to the mirrored traveling tournament problem,

a special, possibly easier variant of TTP). Also, there

is a non-evolutionary approach with ant colony opti-

mization (Uthus et al., 2009), tabu search (Gaspero

and Schaerf, 2007), an iterative ‘three strike algo-

rithm’ (Ruth et al., 2023), and some integer pro-

gramming in an experiment done by the problem’s

founders themselves (Easton et al., 2003). A rather

complex bound-driven version of beam search was

developed by Nikolaus Frohner and his colleagues,

augmented with a hint of randomness (Frohner et al.,

2020). Nonetheless, optimal solutions found in these

experimental setups usually range from n

teams

= 10 to

teams

= 16, a staggeringly small number, especially

when compared to the Euclidean traveling salesman

problem, which can be solved exactly by a (non-

general) approach up to many thousands of cities (Ap-

plegate et al., 2009).

There are a few internet documents reporting ap-

plication of a genetic algorithm to the TTP. Most of

these are either non-scientiﬁc papers, or provide so

little explanation on their methods that one could bet-

ter start anew. One notable exception is the work by

Meriem Khelifa and her team(Khelifa et al., 2017).

As a rare exception, these authors do report a full-

ﬂedged genetic algorithm for the TTP. It is rather

complicated, and utilizes mutations similar to the sim-

ulated annealing approach by Lim et al. (Lim et al.,

2006). Both approaches use construction of initial

valid schedules which might not be uniformly random

though, and whether the neighbourhood deﬁnitions

facilitate homogeneous exploration of the combina-

torial space, such as is the case with n-opt in traveling

salesman, also remains to be seen.

ECTA 2023 - 15th International Conference on Evolutionary Computation Theory and Applications

248

Quite interestingly, despite the scarcity of meta-

heuristic approaches to the TTP, its algorithmic his-

tory does in fact sport quite a number of approxi-

mation algorithms, which are in some sense of no-

bler blood. Approximation algorithms are usually

more difﬁcult to program, run in polynomial time,

but different from metaheuristics also give a guar-

antee on their solution quality, usually given as a

ratio (or ‘deﬁciency’) on the optimum. As an ex-

ample, the Christoﬁdes-Serdyukov algorithm for the

traveling salesman problem is a 1.5-approximation al-

gorithm, which means that it returns a solution for

a TSP-instance in polynomial time that is at most

50% longer than the optimal tour (Christoﬁdes, 1976;

Serdyukov, 1978; Karlin et al., 2021). Pretty good

when considering that an exact solution (which would

be equivalent to a deﬁciency of 1) requires exponen-

tial time – since the problem is NP-hard. But although

the TTP is arguably harder than the TSP, it does have

a number of approximation algorithms. Quite a few

actually.

On ﬁrst base, Clemens Thielen and Stephan West-

phal published an (3/2 + 6/(n − 4))- approximation

algorithm for TTP with maxStreak = 2 in 2010 (Thie-

len and Westphal, 2010), and in 2012, the same au-

thors expanded further on the problem in a publica-

tion that might be an extension to the former (Thie-

len and Westphal, 2012). For a more general case,

Stephan Westphal teamed up with Karl Noparlik to

produce a 5.875-approximation algorithm, which was

published in 2014 (Westphal and Noparlik, 2014). As

a forte, the approximation ratio is constant, but only

for n

teams

≥ 6 and maxStreak ≥ 4.

On second base, we have the approximation al-

gorithm by Miyashiro et al. from 2010 (Miyashiro

et al., 2012). It is possibly the ﬁrst approxima-

tion algorithm on TTP, and has a ratio of at most

2 + (9/4)/(n

teams

− 1), but the same team expanded

with Daisuke Yamaguchi published an improved ver-

sion exactly one year later (Yamaguchi et al., 2011).

Interestingly, the performance of the improved algo-

rithm depends on the maxStreak-parameter, which we

intuitively suspect to play a central role in the TTPs

constraint-hardness. Three years later, in 2014, the

same team published a 2.75-approximation algorithm

for the TTP (Imahori et al., 2014). A ﬂummoxing

low ratio, but the algorithm in this case applied to the

‘unconstrained TTP’, which had its maxStreak and

noRepeat constraints removed.

On third base are teams incorporating MingYu

Xiao. In 2016, he and XiaoWei Kou published an ap-

proximation algorithm for the incredibly constraining

variant of TTP with maxStreak = 2, providing a ratio

of (1 +4/n), which is very low (Xiao and Kou, 2016).

He improved the ratio to 1 + O(1/n) with coauthor

JingYang Zhao in 2021, for TTP with n

teams

/2 being

odd (Zhao and Xiao, 2021). The most recent addition

to their winning streak is a 2022 paper, this time for

maxStreak = 3, improving the approximation ratio to

1.598 + ε, which is remarkably close to Christoﬁdes-

Serdyukov ratio of 1.5 for Euclidean TSP (Zhao et al.,

2022).

So despite the scarcity of evolutionary algorithms

for the TTP, there is a widely developing outﬁeld of

approximation algorithms, the best of which provide

very promising ratios. Whoever hopes for the home

run of a 1-approximation algorithm, however, should

realize that this is very unlikely to happen. A 1-

approximation for the TTP would mean an optimal

solution in polynomial time, which can only happen

if TTP turns out to be in P instead of in NP. From mu-

tual reducibility, this would mean that the entire class

of NP would cease to exist, contradicting the commu-

nity’s consensus that probably P 6= NP. Having said

this, we do hope that the aforementioned teams keep

lowballing the approximation ratios, and are curious

to see whether the magical Christoﬁdes bound of 1.5

will be reached, or even broken for TTP as well.

4 EXPERIMENT

To gain insight into the numbers and distributions of

violatable constraints, we devised a naive but fast pro-

cedure that generated 5 × 1 million random schedules

for each n

teams

∈ {4, 6,8...46, 48,50}. It did not take

into account any of the three constraints while gener-

ating the schedule, but rather recorded the constraint

violations retrospectively. The reason for making 5 ×

1 million random schedules lies in the practicality of

getting a somewhat higher resolution of the initial cur-

vature in Figure 2, as well as and a reasonable aspect

ratio; theoretically, it should not make a difference.

A complete schedule for the TTP consists of

2(n − 1) rounds, each of which is randomly ﬁlled

up by randomly selecting an opponent, after which

one is designated as ‘home’ and the other ‘away’.

The opponent is then marked as ‘placed’ and can-

not be selected again in the same round. Round

by round, the entire schedule is ﬁlled up this way,

which can be done in linear time. Note that although

the method completely disregards the three TTP con-

straints (doubleRoundRobin, maxStreak, noRepeat)

it is still tighter than a complete random ﬁll: by us-

ing the ‘augmented permutation’, we ensure that ev-

ery team has exactly one opponent per round, pretty

much like a permutation in a TSP-instance ensures

every sequence is a full tour. Also, teams cannot play

Too Constrained for Genetic Algorithms too Hard for Evolutionary Computing the Traveling Tournament Problem

249

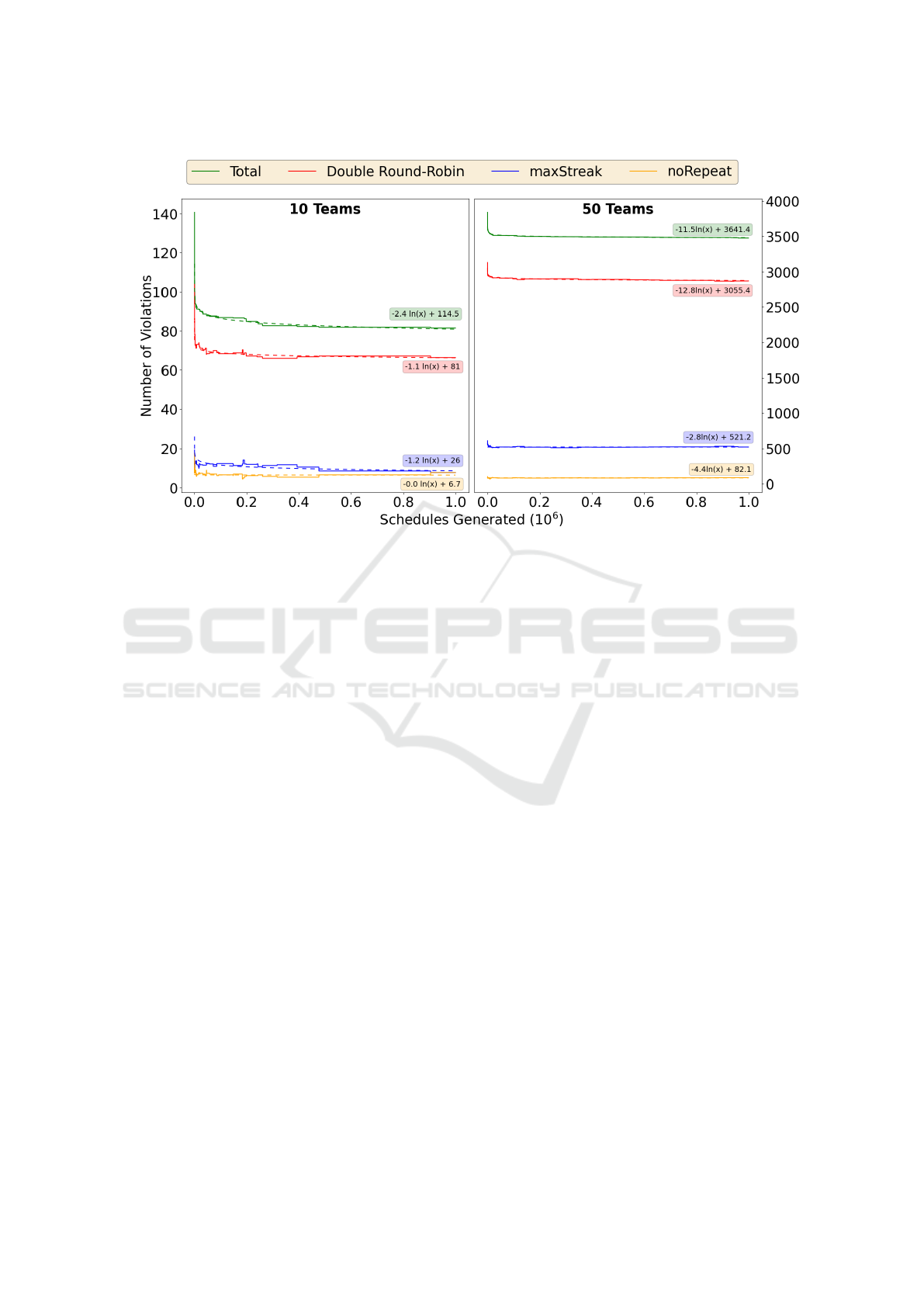

Figure 2: A run of one million randomly generated TTP schedules, retaining the best sample at each generation, produced

progressively better schedules, but failed to generate a single valid schedule for any value n

teams

> 4. Shown are values for

10 teams (left subﬁgure) or 50 teams (right subﬁgure), averaged over 5 runs, and characterized by a logarithmic function ﬁt

(dashed lines).

themselves, and each match holds one home and one

away team.

After ﬁlling up the schedule, the constraint viola-

tions are counted. If team A plays team B more than

twice, each game after the second counts as an addi-

tional doubleRoundRobin violation. If team A plays

team B only once, it is also counted as an additional

doubleRoundRobin violation. If team A does not play

team B exactly once at home and once away, an addi-

tional doubleRoundRobin violation is added. If team

A plays at their home or away venue more than three

games consecutively, each game after the third counts

as an additional maxStreak violation on the schedule.

Finally, if teams A and B play each other in more than

one consecutive round, each consecutive game after

the ﬁrst counts as an additional noRepeat violation.

For each n

teams

∈ {4, 6,8...46, 48,50}, ﬁve runs of

one million randomly generated schedules were com-

pleted, summing up to 120 million schedules. Note

that is is technically not impossible to look at uneven

values for n

teams

, but a ‘rest’ would be inserted as an

empty entry, which would be assigned twice for every

team in a double round-robin schedule. From the 120

million schedules, we took the following data:

1. For a single run with n

teams

, we kept track of the

lowest number of violations for generated sched-

ules in a run. The idea was to ﬁnd out how many

randomly generated schedules are needed for one

valid (zero-violations) schedule. Such random

valid schedules might then be used in creating

an initial population for evolutionary algorithms.

This hope however, turned out to be idle.

Nonetheless this data facilitated a forward projec-

tion. From the ﬁve runs, the average was taken on

each of the million points, through which a mono-

tonically decreasing function a · ln(x) + b was ﬁt.

From these characterizations, the required number

of random samples to obtain just one valid sched-

ule was projected for all numbers of n

teams

, by cal-

culating a · ln(x) + b = 0 (see columns 3, 4 and 5

in Table 1).

2. For each n

teams

, all 5 million samples were col-

lectively histogrammed, showing distributions for

all 3 violation types, as well as the total number

of violations. These histograms were then charac-

terized by the ﬁt of a normal distribution, which

was then used to assess the probability of sam-

pling a zero-violation schedule. As the normal

distribution is continuous, we took the chance of

the number of conﬂicts to be under 0.5 (see sec-

ond column in Table 1). Although these values

should correspond to the results of the previous

method, we did not try to reconcile them, as a

tiny difference in ﬁts might result in a huge dif-

ference in extrapolation values. Rather, we think

ECTA 2023 - 15th International Conference on Evolutionary Computation Theory and Applications

250

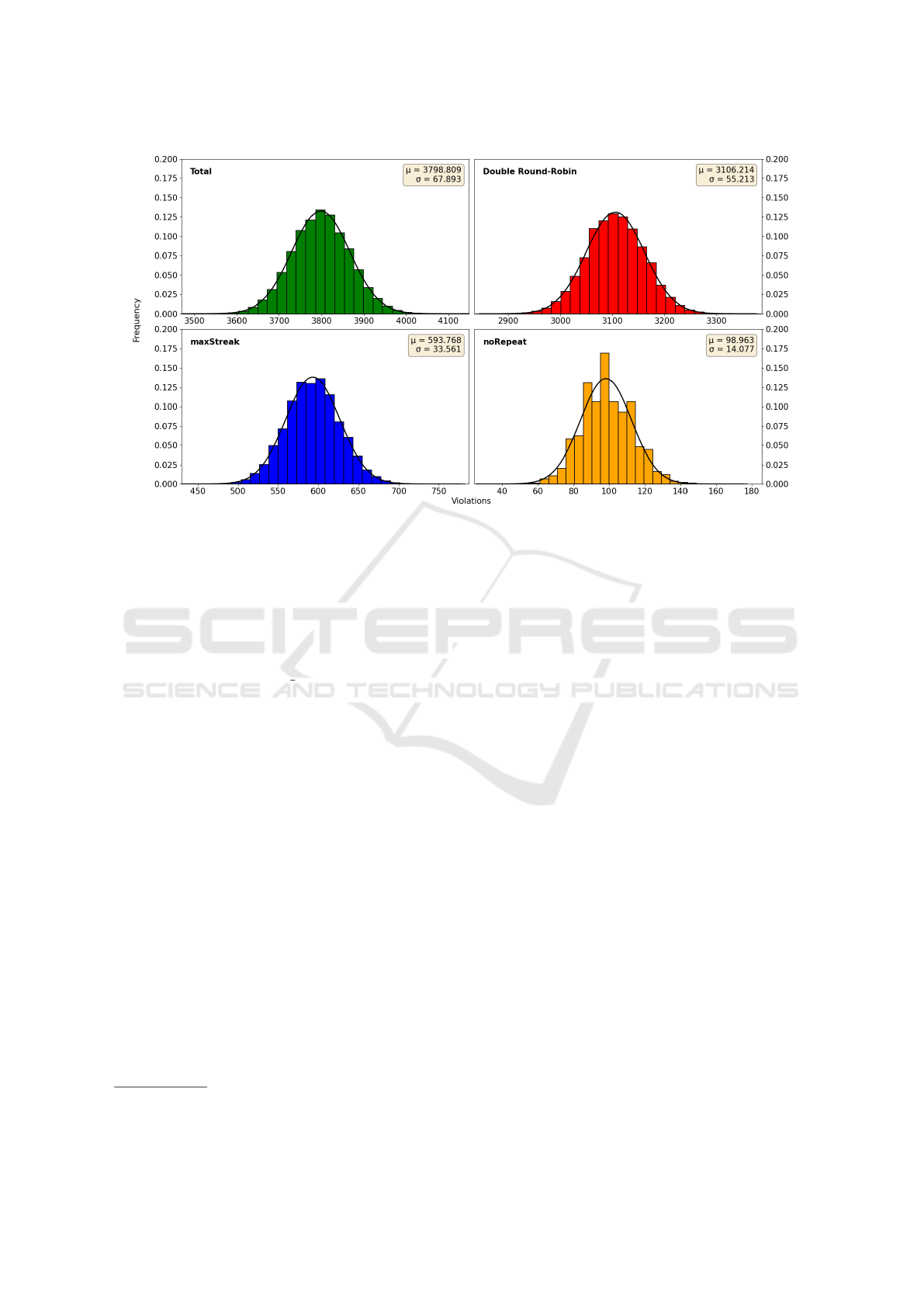

Figure 3: Distribution of constraint violations for the traveling tournament problem. An average randomly constructed sched-

ule for 50 teams has no less than 3799 violations, of which 3106 round-robin violations, 594 maxStreak-violations and 99

noRepeat violations (clockwise from top-left respectively).

both measurements will tell the same story from

a different angle: making random schedules hop-

ing for a valid result is idle. Still, calculating

one from the other might give inconsistent results

from reasons of precision. Fits were made with

the scipy.optimize.curve fit-package in python.

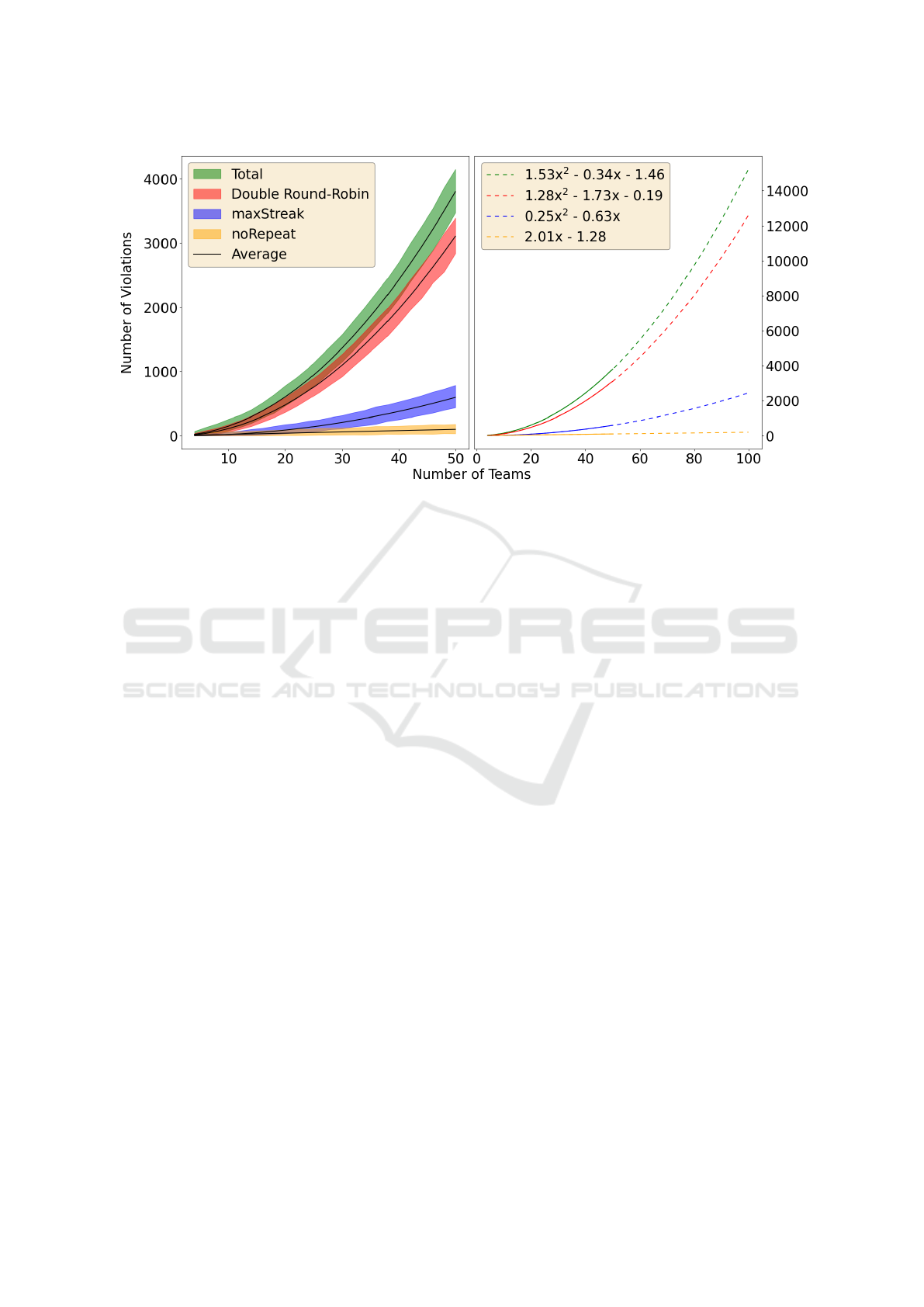

3. For all n

teams

, the minimum, maximum and av-

erage for all 3 types of constraint violations was

characterized by ﬁtting a quadratic function func-

tion through n

teams

, showing the expected num-

ber for each type of constraint violation, and how

these expected numbers grow through n

teams

. Re-

sults can be seen in Figure 4.

All generation was done in 24 threads on SURF’s Lisa

Compute Cluster

running Debian Linux in approxi-

mately one day, and our Python source code is pub-

licly available (Anonymous, 2023).

5 RESULTS

5.1 Numbers of Required Samples

A million samples in a run, retaining the best sched-

ule (having the fewest violations) turns out to be

hugely insufﬁcient for generating anything even re-

https://www.surf.nl/en/lisa-compute-cluster-extra-

processing-power-for-research

motely valid. Only for 4 teams, zero-violation sched-

ules were found: 606, 618, 619, 649 and 656 times

respectively for each of its 5 runs – an average of just

0.06%. For 10 teams, the number of violations never

dropped below 79, and for 50 teams, no value lower

than 3458 violations was ever found throughout the 5

runs of 1 million samples (Figure 2). The R

values

for the total number of violations doubleRoundRobin

were quite bad, over 0.63, possibly due to the high ini-

tial segment. The R

on noRepeat was below 0.003

for both nTeams, possibly for the inverse reason.

There appears to be some degree of indepen-

dence between the violation types. As can be seen

in the right subﬁgure of Figure 2, the numbers

of maxStreak-, noRepeat- and doubleRoundRobin-

violations can all temporarily increase even when the

total number of violations goes down. A future study

could address this issue; if it turns out that one type of

violation can be minimized with little or no effect on

the others, it might provide a method to generate (ran-

dom) valid schedules much faster. Intuitively, maybe

the noRepeat constraint can be resolved last.

5.2 Distributions of Violations

For each number of n

teams

, 5 million randomly

sampled schedules produced near-normal distribu-

tions for maxStreak-violations, noRepeat-violations,

doubleRoundRobin-violations, and the total number

of constraint violations (Figure 3 shows the values for

Too Constrained for Genetic Algorithms too Hard for Evolutionary Computing the Traveling Tournament Problem

251

Figure 4: Left: In creating random solutions for the traveling tournament problem, expectancy for most constraint violations

increases quadratically through n

teams

; only the noRepeat violations increase linearly. The color-ﬁlled area is the spread of

the violations (between max and min). Right: Dashed lines are the extrapolations of the violations.

50 teams).

The ﬁrst thing that stands out is the ﬁckleness of

the noRepeat-constraint. In ﬁgure 3, the ﬁt on the

noRepeat constraint has an RMSE of 0.012 while

other ﬁts have an error of at most 0.002 – quite a

difference. Though it would be easy to attribute the

bad ﬁt to the relatively low occurrence of the vio-

lation, something more peculiar seems to be going

on. When assessing the error of the ﬁts of the nor-

mal distributions, they consistently decrease as n

teams

increases. This is expected, as a larger range of values

accommodates for smoother distributions, and there-

fore lower ﬁt errors. But while this is true for the ﬁt

errors on doubleRoundRobin-, maxStreak-, and total

number of violations, which drop below 0.01 for all

values of n

teams

≥ 14, ﬁts on the noRepeat-violations

only drop below 0.01 three times in the range 4 ≤

teams

≤ 50, at values n

teams

∈ {34, 38, 40}. A provi-

sional, somewhat unsatisfying explanation might be

found in the fact that the noRepeat violations ‘only’

increase linearly through n

teams

while violations on

doubleRoundRobin and max Streak (and thereby also

the total number of violations) increase quadratically

(Figure 4). In any case, the number of noRepeat vio-

lations appears to stabilize much slower into a normal

distribution, and behaves more erratic for all n

teams

whereas all other violation types more clearly stabi-

lize, with progressively lower ﬁt errors.

5.3 Violations Grow Quadratically

From the violation distributions, the maximum, min-

imum and average values for each type of constraint

violation were recorded for each n

teams

, after which

a quadratic function was ﬁt to the average. On the

left side of Figure 4, the ﬁlled area shows the spread

of violations whereas the solid line gives the average.

On the right side, the ﬁtted quadratic functions are

shown, with extrapolated values in dashed lines. Both

the doubleRoundRobin violations and maxStreak vio-

lations show quadratic growth with n

teams

, as 1.22x

−

1.69x − 0.18 and 0.25x

− 0.63x respectively. The

noRepeat violations increase linearly with n

teams

2.01x − 12.27. All ﬁts are tight, with RMSE ≤ 0.06

for all ﬁtted functions. Results similar to these were

reported earlier (Verduin et al., 2023), with slightly

different function parameters.

6 CONCLUSION & DISCUSSION

It appears that the semi-naive (but really fast) way

of creating random initial schedules is unusable for

valid schedules of any reasonable n

teams

. In this ex-

periment, the minimum number of violations over 1

million random schedules with n

teams

= 10 only was

79 – nowhere near valid. For n

teams

= 20 this number

had increased to 464, after which it exploded to 1151,

2134 and 3468 for n

teams

= 30, 40 and 50 respectively.

Trying to generate valid schedules by uniform ran-

ECTA 2023 - 15th International Conference on Evolutionary Computation Theory and Applications

252

Table 1: Time needed to generate a random valid schedule. The second column is the probability of generating a valid

schedule from the ﬁts of the normal distributions. The third column is the estimated number of samples needed for obtaining

a valid schedule from the logarithmic ﬁts. The fourth and ﬁfth columns give a rough indication of required computation time.

teams

f easible

Req. samples Req. time (sec) Required time

4 2.10 × 10

−3

9.293 × 10

−6

1.369 × 10

−9

< 2 nanoseconds

6 2.96 × 10

−7

2.439 × 10

7.693 × 10

≈ 21 hours

8 1.21 × 10

−13

1.122 × 10

6.348 × 10

> 200 years

10 2.51 × 10

−22

6.110 × 10

5.309 × 10

> 16.8 billion years

12 1.18 × 10

−31

6.503 × 10

8.169 × 10

> 10

× age universe

14 3.74 × 10

−45

1.074 × 10

1.852 × 10

16 8.69 × 10

−61

1.253 × 10

2.834 × 10

18 7.84 × 10

−77

8.463 × 10

2.468 × 10

20 1.09 × 10

−96

3.995 × 10

1.404 × 10

22 1.30 × 10

−121

6.842 × 10

2.883 × 10

24 9.76 × 10

−145

3.142 × 10

1.566 × 10

26 1.28 × 10

−169

3.572 × 10

2.046 × 10

28 7.08 × 10

−199

1.375 × 10

9.129 × 10

30 3.17 × 10

−230

2.100 × 10

1.579 × 10

> 10

× age universe

32 1.94 × 10

−266

6.599 × 10

5.644 × 10

34 2.28 × 10

−301

5.297 × 10

5.079 × 10

36 ≈ 0 3.225 × 10

100

3.632 × 10

38 ≈ 0 1.057 × 10

1.302 × 10

40 ≈ 0 1.104 × 10

1.544 × 10

> 10

× age universe

42 ≈ 0 3.181 × 10

4.858 × 10

44 ≈ 0 5.583 × 10

9.359 × 10

46 ≈ 0 1.277 × 10

2.336 × 10

48 ≈ 0 9.694 × 10

104

1.946 × 10

103

50 ≈ 0 7.684 × 10

138

1.704 × 10

137

> 10

119

× age universe

dom sampling knocks the computational budget com-

pletely out of the ballpark, with an estimated 16.8 bil-

lion years of computation time for n

teams

= 10 on a

single core, up to many times the age of the universe

for n

teams

= 30 (the MLB size), and rising ever faster

beyond that, just to ﬁnd a single valid schedule.

No wonder therefore that Anagnostopoulos et al.

generate the initial schedule for their simulated an-

nealing by backtracking by which “[valid] schedules

were easily obtained” (Anagnostopoulos et al., 2006).

That study only uses n

teams

≤ 16, and as backtrack-

ing algorithms are of exponential time complexity,

much larger numbers are probably undoable by their

approach. Besides, these authors treat the noRepeat

and max Streak as ‘soft constraints’ and their muta-

tions might turn valid schedules into invalid ones. So

even for an algorithm as simple as simulated anneal-

ing, the constraints on the TTP appear problematic.

This is also seen in Lim et al. (Lim et al., 2006),

and the GA approach by Khelifa et al. (Khelifa et al.,

2017).

Gaspero & Schaerf (Gaspero and Schaerf, 2007)

and Ribeiro & Urrutia (Ribeiro and Urrutia, 2007)

both represent the schedules using one-factorization

of a graph. They then continue to generate a single

round-robin schedule, which is mirrored and reversed

to combine into a double round-robin. It should be

noted that the subclass of mirrored TTP might be eas-

ier than regular TTP because its deﬁned construction

eliminates the need for the noRepeat constraint. It

might also yield more expensive schedules than regu-

lar TTP, but nonetheless it is an often deployed tech-

nique in North American scheduling practice (Ribeiro

and Urrutia, 2007). Lim et al. (Lim et al., 2006)

(also) generate their initial solutions with the use of

a three-phase approach. These authors also mirror

their solution, and argue that doing so greatly reduces

the required time for ﬁnding a valid solution. Maybe

Too Constrained for Genetic Algorithms too Hard for Evolutionary Computing the Traveling Tournament Problem

253

the lesson here is that sacriﬁcing some quality in ex-

change for validity is not a bad tradeoff.

Combining these ﬁndings with the results pre-

sented in our study, the following conjectures spring

forth:

• The traveling tournament problem has severe con-

straints, making it hard to either to randomly gen-

erate solutions uniformly, or to mutate one solu-

tion to a TTP instance into another, as many mu-

tation types might turn valid schedules into invalid

ones. For the available mutation types from liter-

ature, the explorability of the resulting neighbour-

hood structure should be explored.

• It is harder to ﬁnd randomized valid solutions for

the traveling tournament problem than for other

NP-hard problems. This is unlike the number

partition problem, for which any random alloca-

tion of an integer to either subset is valid and

done in linear time (van den Berg and Adriaans,

2021; Sazhinov et al., 2023). This is unlike TSP,

for which any permutation of cities yield a new

subset of edges that forms a closed loop, and

thereby a valid solution. This is unlike the Job

Shop Scheduling Problem, for which most per-

mutations, after a construction phase, yield a new

and valid solution (de Bruin et al., 2023; Weise

et al., 2021) . This is a bit like 2D protein folding

though, in which one can constructively generate

a random solution with relatively little backtrack-

ing, but mutating from one solution to the next

is still problematic (van Eck and van den Berg,

2023; Jansen et al., 2023; Jamil and Yang, 2013).

TTP is on the higher end of this list, with only

(stochastic) backtracking to guarantee a valid uni-

form random initial solution, and mutation being

highly problematic.

• Although all problems mentioned in the previous

point are NP-hard, maybe they can be classiﬁed

into a hierarchy of constructibility, in which the

lower end of the scale holds problems with in-

stances for which randomized solutions are read-

ily created, and easily mutated into other solu-

tions, while the higher end of the scale holds prob-

lems for which the generation of valid solutions

takes a lot of time (either stochastically or deter-

ministically). As a complete swing for the fences,

we suggest a hierarchy on the complexity of the

fastest algorithm that generates a random initial

solution from all valid solutions with equal prob-

ability. A random valid solution to the partition

problem or the TSP can be made in linear time,

whereas a random valid solution to protein fold-

ing or the TTP might require exponential time in

the worst case. We are unaware whether such a hi-

erarchical classiﬁcation already exists, and which

place would be taken by the TTP.

7 STATEMENT

A pilot study on the quadratic ﬁts for the number of

conﬂicts has earlier been published as a late-breaking

abstract at EvoSTAR (Verduin et al., 2023), for which

the copyright lies with the authors. Although all ex-

periments have been redone, scaled up, this part of the

study might look somewhat similar. All other experi-

ments are new, as are the ﬁgures and the background

study on the problem.

ACKNOWLEDGEMENTS

We would like to express our respect to Henry and

Holly Stephensons, the married couple that have

scheduled the MLB baseball season for many years

by hand. I hope that one day, I may talk to you and

hear some of your stories.

A wink to our great colleague Markus Wagner, au-

thor of many papers on the traveling thief problem

(Chagas and Wagner, 2020; Sachdeva et al., 2020;

Yafrani et al., 2022; Chagas et al., 2021; Chagas and

Wagner, 2022b; Yafrani et al., 2017; Yafrani et al.,

2018; Wu et al., 2018; Martins et al., 2017; El Yafrani

et al., 2018; Wu et al., 2017; Wagner, 2016; Faulkner

et al., 2015; Wagner et al., 2018; Polyakovskiy et al.,

2014). The traveling thief problem should be abbre-

viated to “TThP”; that way it would also be more

aligned with the Thief Orienteering Problem, which is

abbreviated to “ThOP” (Chagas and Wagner, 2022a).

“Thief” is should be “Th”.

REFERENCES

(2023). Sports in the united states. Wikipedia. Consulted

June 21st, 2023.

Anagnostopoulos, A., Michel, L., Hentenryck, P. V., and

Vergados, Y. (2006). A simulated annealing ap-

proach to the traveling tournament problem. Journal

of Scheduling, 9:177–193.

Anonymous (2023). Repository containing source material:

https://anonymous.4open.science/r/TTPSchedules-

EE40/README.md.

Applegate, D. L., Bixby, R. E., Chv

atal, V., Cook, W.,

Espinoza, D. G., Goycoolea, M., and Helsgaun, K.

(2009). Certiﬁcation of an optimal tsp tour through

85,900 cities. Operations Research Letters, 37(1):11–

15.

ECTA 2023 - 15th International Conference on Evolutionary Computation Theory and Applications

254

Bhattacharyya, R. (2009). A note on complexity of travel-

ing tournament problem. Optimization Online, 2480.

Bhattacharyya, R. (2016). Complexity of the unconstrained

traveling tournament problem. Operations Research

Letters, 44(5):649–654.

Chagas, J. B., Blank, J., Wagner, M., Souza, M. J., and

Deb, K. (2021). A non-dominated sorting based

customized random-key genetic algorithm for the bi-

objective traveling thief problem. Journal of Heuris-

tics, 27(3):267–301.

Chagas, J. B. and Wagner, M. (2020). Ants can orienteer

a thief in their robbery. Operations Research Letters,

48(6):708–714.

Chagas, J. B. and Wagner, M. (2022a). Efﬁciently solv-

ing the thief orienteering problem with a max–min ant

colony optimization approach. Optimization Letters,

16(8):2313–2331.

Chagas, J. B. and Wagner, M. (2022b). A weighted-

sum method for solving the bi-objective traveling

thief problem. Computers & Operations Research,

138:105560.

Chatterjee, D. (2021). Complexity of traveling tourna-

ment problem with trip length more than three. arXiv

preprint arXiv:2110.02300.

Christoﬁdes, N. (1976). Worst-case analysis of a new

heuristic for the travelling salesman problem. Techni-

cal report, Carnegie-Mellon Univ Pittsburgh Pa Man-

agement Sciences Research Group.

de Bruin, E., Thomson, S. L., and Berg, D. v. d. (2023).

Frequency ﬁtness assignment on jssp: A critical re-

view. In International Conference on the Applications

of Evolutionary Computation (Part of EvoStar), pages

351–363. Springer.

Easton, K., Nemhauser, G., and Trick, M. (2001). The

traveling tournament problem description and bench-

marks. In Principles and Practice of Constraint Pro-

gramming—CP 2001: 7th International Conference,

CP 2001 Paphos, Cyprus, November 26–December 1,

2001 Proceedings 7, pages 580–584. Springer.

Easton, K., Nemhauser, G., and Trick, M. (2003). Solv-

ing the travelling tournament problem: A combined

integer programming and constraint programming ap-

proach. Lecture notes in computer science, pages

100–112.

Eiben, A. E., Smith, J. E., et al. (2003). Introduction to

evolutionary computing, volume 53. Springer.

El Yafrani, M., Martins, M., Wagner, M., Ahiod, B., Del-

gado, M., and L

uders, R. (2018). A hyperheuristic ap-

proach based on low-level heuristics for the travelling

thief problem. Genetic Programming and Evolvable

Machines, 19:121–150.

Faulkner, H., Polyakovskiy, S., Schultz, T., and Wagner, M.

(2015). Approximate approaches to the traveling thief

problem. In Proceedings of the 2015 Annual Con-

ference on Genetic and Evolutionary Computation,

pages 385–392.

Frohner, N., Neumann, B., and Raidl, G. (2020). A beam

search approach to the traveling tournament problem.

In Evolutionary Computation in Combinatorial Op-

timization, pages 67–82. Springer International Pub-

lishing.

Gaspero, L. D. and Schaerf, A. (2007). A composite-

neighborhood tabu search approach to the traveling

tournament problem. Journal of Heuristics , 13:189–

207.

Imahori, S., Matsui, T., and Miyashiro, R. (2014). A 2.75-

approximation algorithm for the unconstrained travel-

ing tournament problem. Annals of Operations Re-

search, 218(1):237–247.

Jamil, M. and Yang, X.-S. (2013). A literature survey

of benchmark functions for global optimisation prob-

lems. International Journal of Mathematical Mod-

elling and Numerical Optimisation, 4(2):150–194.

PMID: 55204.

Jansen, R., Horn, R., van Eck, O., Verduin, K., Thomson,

S. L., and van den Berg, D. (2023). Can hp-protein

folding be solved with genetic algorithms? maybe not.

(submitted).

Jha, S. and Menon, V. (2014). Bbmttp: Beat-based paral-

lel simulated annealing algorithm on gpgpus for the

mirrored traveling tournament problem. In Proceed-

ings of the High Performance Computing Symposium,

pages 1–7.

Karlin, A. R., Klein, N., and Gharan, S. O. (2021). A

(slightly) improved approximation algorithm for met-

ric tsp. In Proceedings of the 53rd Annual ACM

SIGACT Symposium on Theory of Computing, pages

32–45.

Khelifa, M., Boughaci, D., and A

ımeur, E. (2017). An en-

hanced genetic algorithm with a new crossover opera-

tor for the traveling tournament problem. In 2017 4th

International Conference on Control, Decision and

Information Technologies (CoDIT), pages 1072–1077.

IEEE.

Koppenhol, L., Brouwer, N., Dijkzeul, D., Pijning, I.,

Sleegers, J., and Van Den Berg, D. (2022). Exactly

characterizable parameter settings in a crossoverless

evolutionary algorithm. In Proceedings of the Genetic

and Evolutionary Computation Conference Compan-

ion, pages 1640–1649.

Liang, T., Wu, Z., L

assig, J., van den Berg, D., and Weise, T.

(2022). Solving the traveling salesperson problem us-

ing frequency ﬁtness assignment. In 2022 IEEE Sym-

posium Series on Computational Intelligence (SSCI),

pages 360–367. IEEE.

Lim, A., Rodrigues, B., and Zhang, X. (2006). A simulated

annealing and hill-climbing algorithm for the travel-

ing tournament problem. European Journal of Oper-

ational Research, 174(3):1459–1478.

Martins, M. S., El Yafrani, M., Delgado, M. R., Wagner, M.,

Ahiod, B., and L

uders, R. (2017). Hseda: a heuris-

tic selection approach based on estimation of distri-

bution algorithm for the travelling thief problem. In

Proceedings of the Genetic and Evolutionary Compu-

tation Conference, pages 361–368.

Miyashiro, R., Matsui, T., and Imahori, S. (2012). An

approximation algorithm for the traveling tournament

problem. Annals of Operations Research, 194:317–

324.

Too Constrained for Genetic Algorithms too Hard for Evolutionary Computing the Traveling Tournament Problem

255

Polyakovskiy, S., Bonyadi, M. R., Wagner, M.,

Michalewicz, Z., and Neumann, F. (2014). A

comprehensive benchmark set and heuristics for the

traveling thief problem. In Proceedings of the 2014

Annual Conference on Genetic and Evolutionary

Computation, pages 477–484.

Potvin, J.-Y. (1996). Genetic algorithms for the traveling

salesman problem. Annals of Operations Research,

63:337–370.

Press, A. (2004). Husband-wife team out bid after 24

years. ESPN online Numerical Optimisation. (Con-

sulted June 21st, 2023).

Ribeiro, C. C. and Urrutia, S. (2007). Heuristics for the mir-

rored traveling tournament problem. European Jour-

nal of Operational Research, 179(3):775–787.

Ruth, B., Jackson, S. J., and Mays, W. T. S. H. K. (2023).

The threestrike algorithm for winning matches: Say

it Ain’t So Joe. Journal of Baseball Algortihms,

37(1):1101–1503.

Sachdeva, R., Neumann, F., and Wagner, M. (2020). The

dynamic travelling thief problem: Benchmarks and

performance of evolutionary algorithms. In Neural

Information Processing: 27th International Confer-

ence, ICONIP 2020, Bangkok, Thailand, November

18–22, 2020, Proceedings, Part V 27, pages 220–228.

Springer.

Sazhinov, N., Horn, R., Adriaans, P., and van den Berg, D.

(2023). The partition problem, and how the distribu-

tion of input bits affects the solving process (submit-

ted).

Serdyukov, A. (1978). O nekotorykh ekstremal’nykh

obkhodakh v grafakh. Upravlyayemyye sistemy,

17:76–79. Original article in Russian is here: http://

nas1.math.nsc.ru/aim/journals/us/us17/us17 007.pdf.

Sleegers, J., Olij, R., van Horn, G., and van den Berg, D.

(2020). Where the really hard problems aren’t. Oper-

ations Research Perspectives, 7:100160.

Solberg, H. A. and Gaustad, T. (2022). International

sport broadcasting: A comparison of european soc-

cer leagues and the major north american team sports.

Sport Broadcasting for Managers, pages 84–102.

Thielen, C. and Westphal, S. (2010). Approximating the

traveling tournament problem with maximum tour

length 2. In Algorithms and Computation: 21st Inter-

national Symposium, ISAAC 2010, Jeju, Korea, De-

cember 15-17, 2010, Proceedings, Part II 21, pages

303–314. Springer.

Thielen, C. and Westphal, S. (2011). Complexity of the

traveling tournament problem. Theoretical Computer

Science, 412(4-5):345–351.

Thielen, C. and Westphal, S. (2012). Approximation algo-

rithms for ttp (2). Mathematical Methods of Opera-

tions Research, 76(1):1–20.

Uthus, D. C., Riddle, P. J., and Guesgen, H. W. (2009). An

ant colony optimization approach to the traveling tour-

nament problem. In Proceedings of the 11th Annual

conference on Genetic and evolutionary computation,

pages 81–88.

van den Berg, D. and Adriaans, P. (2021). Subset sum and

the distribution of information. In IJCCI, pages 134–

140.

van Eck, O. and van den Berg, D. (2023). Quantify-

ing instance hardness of protein folding within the

hp-model (accepted, publication pending). In IEEE

CIBCB 2023.

Verduin, K., Weise, T., and van den Berg, D. (2023). Why

is the traveling tournament problem not solved with

genetic algorithms?

Wagner, M. (2016). Stealing items more efﬁciently with

ants: a swarm intelligence approach to the travelling

thief problem. In Swarm Intelligence: 10th Inter-

national Conference, ANTS 2016, Brussels, Belgium,

September 7-9, 2016, Proceedings 10, pages 273–281.

Springer.

Wagner, M., Lindauer, M., Mısır, M., Nallaperuma, S., and

Hutter, F. (2018). A case study of algorithm selection

for the traveling thief problem. Journal of Heuristics,

24:295–320.

Weise, T., Li, X., Chen, Y., and Wu, Z. (2021). Solving

job shop scheduling problems without using a bias

for good solutions. In Proceedings of the Genetic

and Evolutionary Computation Conference Compan-

ion, pages 1459–1466.

Westphal, S. and Noparlik, K. (2014). A 5.875-

approximation for the traveling tournament problem.

Annals of Operations Research, 218:347–360.

Wu, J., Polyakovskiy, S., Wagner, M., and Neumann, F.

(2018). Evolutionary computation plus dynamic pro-

gramming for the bi-objective travelling thief prob-

lem. In Proceedings of the Genetic and Evolutionary

Computation Conference, pages 777–784.

Wu, J., Wagner, M., Polyakovskiy, S., and Neumann, F.

(2017). Exact approaches for the travelling thief prob-

lem. In Simulated Evolution and Learning: 11th Inter-

national Conference, SEAL 2017, Shenzhen, China,

November 10–13, 2017, Proceedings 11, pages 110–

121. Springer.

Xiao, M. and Kou, S. (2016). An improved approxi-

mation algorithm for the traveling tournament prob-

lem with maximum trip length two. In 41st Inter-

national Symposium on Mathematical Foundations of

Computer Science (MFCS 2016). Schloss Dagstuhl-

Leibniz-Zentrum fuer Informatik.

Yafrani, M. E., Chand, S., Neumann, A., Ahiod, B., and

Wagner, M. (2017). Multi-objectiveness in the single-

objective traveling thief problem. In Proceedings of

the Genetic and Evolutionary Computation Confer-

ence Companion, pages 107–108.

Yafrani, M. E., Martins, M. S., Krari, M. E., Wagner, M.,

Delgado, M. R., Ahiod, B., and L

uders, R. (2018). A

ﬁtness landscape analysis of the travelling thief prob-

lem. In Proceedings of the Genetic and Evolutionary

Computation Conference, pages 277–284.

Yafrani, M. E., Scoczynski, M., Delgado, M. R., L

uders,

R., Nielsen, P., and Wagner, M. (2022). On the ﬁtness

landscapes of interdependency models in the travel-

ling thief problem. In Proceedings of the Genetic

and Evolutionary Computation Conference Compan-

ion, pages 188–191.

ECTA 2023 - 15th International Conference on Evolutionary Computation Theory and Applications

256

Yamaguchi, D., Imahori, S., Miyashiro, R., and Matsui,

T. (2011). An improved approximation algorithm

for the traveling tournament problem. Algorithmica,

61(4):1077–1091.

Zhao, J. and Xiao, M. (2021). The traveling tournament

problem with maximum tour length two: A practical

algorithm with an improved approximation bound. In

IJCAI, pages 4206–4212.

Zhao, J., Xiao, M., and Xu, C. (2022). Improved approxi-

mation algorithms for the traveling tournament prob-

lem. In 47th International Symposium on Mathemat-

ical Foundations of Computer Science (MFCS 2022).

Schloss Dagstuhl-Leibniz-Zentrum f

ur Informatik.

Too Constrained for Genetic Algorithms too Hard for Evolutionary Computing the Traveling Tournament Problem

257
