Charge Management System of Water Companies
Luyao Li, Zhiyu Huang and Likun Lu*
School of information engineering Beijing Institute of Graphic Communication, Beijing, China
Keywords: Smart Water, Management System, Charge System, Tiered Billing.
Abstract: With the development of society and the advancement of urbanization, the domestic water consumption of
residents in our country is increasing, and users have higher and higher requirements for the water supply
guarantee of the water company. At present, it coincides with my country's promotion of "smart water affairs"
and the introduction of "water price reform" requirements. It is imperative to realize automated water fee
information management through scientific and advanced information technology. In line with this trend, this
article has done an in-depth study of the current China's more advanced water company charging management
system, and consulted some materials, and made a study and summary of my country's current water industry
charging management system. Based on the current charging management system that has been designed in
our country, this paper has made changes and summaries, and compiled a water company charging
management system. This system mainly uses Visual Studio as a development tool, the programming
language is C#, and the software support environment is Windows 7 and above.
1 INTRODUCTION
With the rapid development of my country's economy,
the construction of public services is also speeding up
and improving. The number of users of water supply
companies is increasing. Many small towns still use
the old set of charging management system for many
years. This is far from satisfying the current number
of users and the realization of management functions,
such as meter reading, summary, charging and other
services. The project only relying on manual or low-
level automated charging can no longer quickly and
conveniently realize the management and service of
tap water users. At present, when water fee
management is carried out in many areas in China,
manual meter reading and recording are performed,
and manual background operations are used to input
water consumption and calculate fees. This form is
firstly not conducive to error checking and correction,
and secondly, it requires a lot of manpower support,
and most importantly, it is not conducive to the
management of the water company, and there may be
artificial work records and other trends. Therefore,
the most important thing at present is to improve
work efficiency and office quality in order to
continue to develop in the increasingly competitive
tap water market and gain a long-term foothold
(China Water Network 2021).
1.1 Current Status of Foreign Research
The informatization of tap water charging
management in foreign countries has been around for
many years. Many places have already had a
complete set of fully informatized charging
management system, and there are also technology
companies that are developing various charging
management systems one after another. There is no
shortage of mature and excellent systems. Although
the development is not at the top, there are many
things that we can learn from.
1.2 Research State in China
China has also made a lot of efforts in the direction of
smart water affairs, but there are still some backward
areas that fail to realize the water charging system
with all big data networks.
My country has implemented measures such as
separation of government and enterprise, separation
of government and capital, and business separation,
and has achieved significant results. A large amount
of non-state capital has entered the water supply
industry, which has eased capital pressure to a certain
extent and improved operating efficiency in the
industry.
In order to adapt to the rapid development of
820
Li, L., Huang, Z. and Lu, L.
Charge Management System of Water Companies.
DOI: 10.5220/0011768300003607
In Proceedings of the 1st International Conference on Public Management, Digital Economy and Internet Technology (ICPDI 2022), pages 820-823
ISBN: 978-989-758-620-0
Copyright
c
 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

society and meet the increasingly large user groups
and user needs of the tap water industry, the
integration of management and informatization of the
tap water industry in my country is also accelerating.
The research and study on the charging management
system is also to meet this goal. Efforts will be made
to achieve a perfect fit between charge management
and computer network operation as soon as possible.
1.3 The Main Work of this Paper
Focus on analyzing the audience and business needs
of the water company's charging management system,
and initially design all the business function modules
of the system. The divided modules include: login
module (sub-authorization), basic file operation
module, expense business operation module, user
management Module, query statistics module, etc.
After the use case analysis of the divided modules,
the design of each core function is completed by
using the block-based idea and the modeling ideas
such as collaboration diagrams, sequence diagrams,
and operation diagrams.
After determining the basic requirements of the
system to be designed and the modules to be
implemented in this graduation project, the basic
methods and the entire framework to be used in this
graduation project are determined. Use visual studio
to realize the overall window function, and use
SQLserver2008 as the backend support to design the
database of relational data tables.
Debug the designed code and the entire system.
Make sure that there are no loopholes in the code to
ensure the smooth operation of the system. The
system is then tested to determine the smooth
operation of the login module, user addition and
deletion modules, payment module, and query
module of the system (Yusta 2020).
2 SYSTEM REQUIREMENTS
ANALYSIS
2.1 Functional Requirements
For a billing system to do all the work, it should
contain at least the following modules and content.
1.1
Authentication
1.2
Customer
information
mana gement
1.3
Customer
water
informati
on
managem
ent
1.4
Customer
expense
information
mana gement
1.5
Fee re gist ration
1.6
Aut hen ticat ion
1.7
Salesman
information
manageme nt
1.8
Water type
information
mana geme nt
1.9
Information
Service
Salesman
information file
Salesman informatio n file
Salesman
information
Processed
salesman
information
Customer
information
Processed
customer
information
Sale sma n
information file
Processed
customer water
information
Customer water
informa tion fi le
Customer fee
information document
Customer fee
information
Fee registration
information
Administrator
information file
Administrator
information
Treated water
type info rmation
Water use ty pe
information file
Authenticatio n
results
Administrator
information,
account number
and password
Water use ty pe
information
Fee reg istration information
salesman
salesman
salesman
salesman
salesman
salesman
salesman
administrators
administrators
admi nistrators
admi nis trato rs
admi nis trat ors
Administrator
information,
account number
and password
Authentication
results

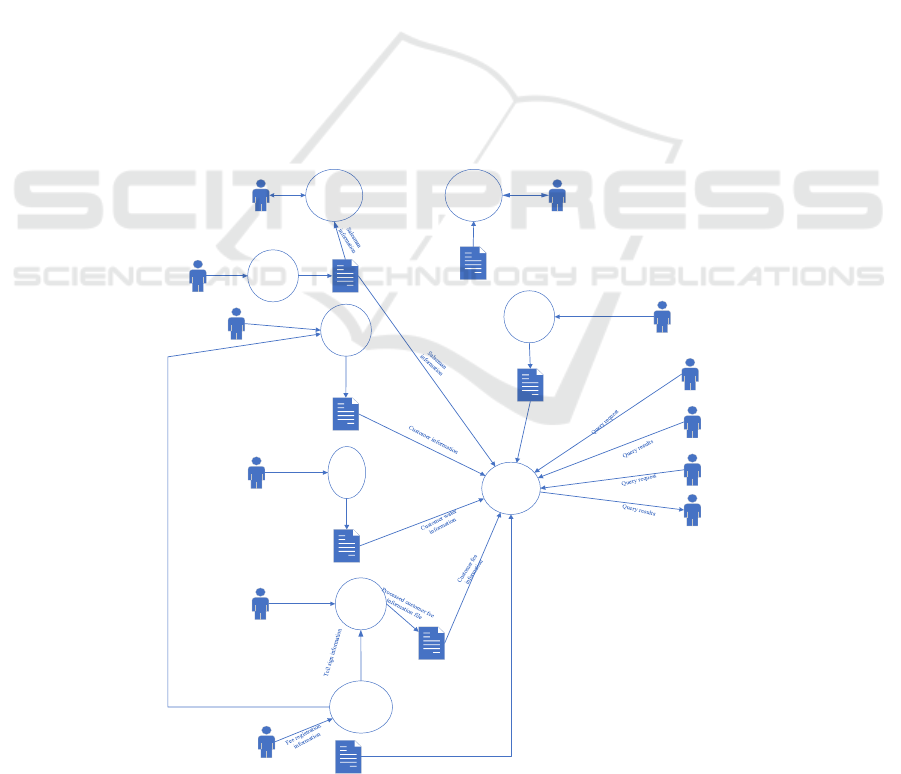

Figure 1: Network diagram of charging management system.
Charge Management System of Water Companies
821

2.2 Non-functional Requirements
1) Safety. Security can guarantee the realization
of other non-functional requirements of the charging
management system. Ensure that the data in the
system has the greatest privacy, not everyone can see
it, and it also prevents hackers from attacking
(Compagnucci, Spigarelli 2018).
2) Reliability. Reliability is the cornerstone of a
software system. With reliability as a guarantee, the
functional system that the system should implement
can be successfully completed under the specified
conditions and within the specified time.
3) Reusability. Reusability is an important factor
that reflects the practical value of a system. The
charge management system in this article should take
into account factors such as different companies
facing different objects, so good reusability is a must.
It can improve system quality, reduce costs and risks,
and improve production efficiency (Attaallah,
Algarni, Khan 2021).
3 INTERFACE DISPLAY
The client interface of this billing system is shown
below.
4 SYSTEM TEST
Software testing is an indispensable and important
part of completing a software design. System testing
includes black box testing and white box testing. Both
forms of software testing are carried out from the
aspects of the functions that the software should
complete.

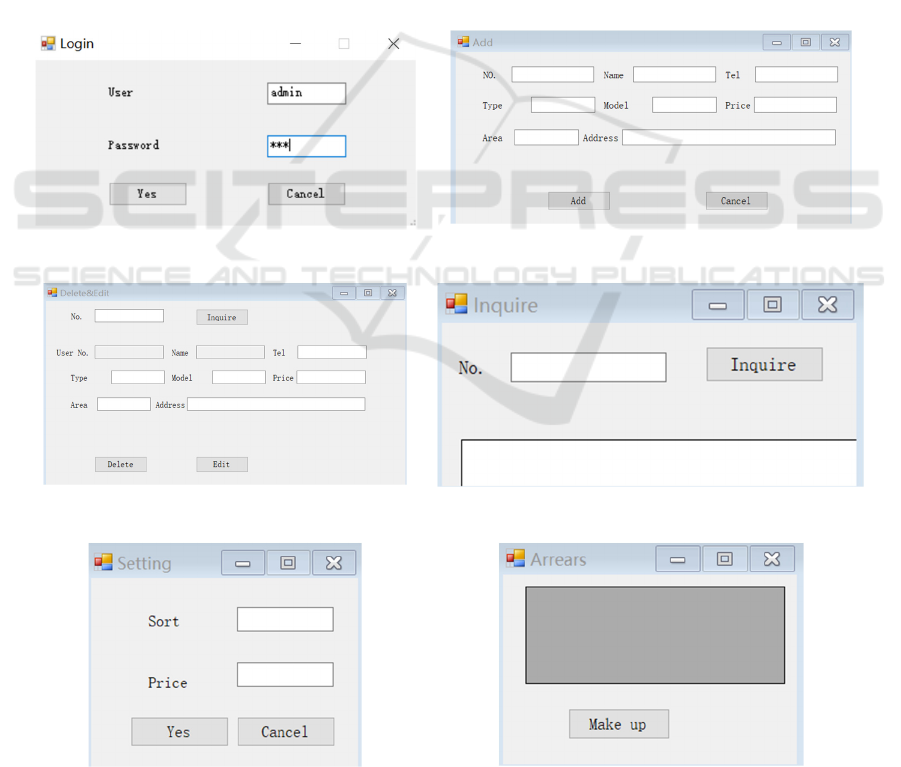

Figure 2: Login module. Figure 3: User Management.
Figure 4: User deletion and modification. Figure 5: User query.
Figure 6: Water fee setting module. Figure 7: Arrears inquiry.
ICPDI 2022 - International Conference on Public Management, Digital Economy and Internet Technology
822

4.1 White Box Testing
Use static white box testing and dynamic white box
testing to complete. Static white box testing is mainly
to conduct code review, including desktop inspection,
code review, teacher walkthrough, etc.
Use dynamic white box testing to complete
statement logic coverage and condition coverage, run
statement by statement, and check the possibility of
code execution results.
4.2 Black Box Testing
According to the step water price setting in the
sample area, enter the maximum and minimum water
fee settings to complete the water fee setting test;
Use the import and export function of the user
table to import the information of 10,000 users at a
time to test whether the system can import and export
smoothly;
Use other similar operation functions to complete
the black box test of the system.
5 SUMMARY AND OUTLOOK
5.1 Summary
This article is designed and implemented after
summarizing various existing charging management
systems in our country. This paper realizes the
original intention of helping the water company to
efficiently manage and work efficiently, and realizes
the perfect combination of charge management and
modern computer technology. Research and explain
the current development status of the tap water
industry, the specific functions of the charging
management system are divided into modules, and
the specific functions of each module are shown in
detail.
Functional and non-functional tests were
conducted on the completed charging management
system, and the degree of completion and
completeness of the design was determined.
5.2 Outlook
The existing charging management system in our
country can only be used by the managers of the
water company. This greatly guarantees the security
of the residents’ data. Although the charging
management system is very convenient at present,
users can use mobile devices to pay for water bills.
Inquiry and management, but when residents want to
handle more difficult business, they still have to go to
the water company for review and processing.
Therefore, I propose some ideas and further
research directions for the future development of the
water company:
Water companies can launch more intelligent
services, such as smart reminder services, which can
intimately remind users of their tap water usage.
Some busy water companies can also use self-service
check-in machines.
In addition, the water company can gradually
build its own smart water system, adding big data and
the concept of the Internet of Things, to realize the
coverage of water information in the whole city and
the whole region, and complete the construction of
water information integration, so that the water
company and branch companies can be integrated.
Information exchange and interconnection to realize
unmanned tap water charging management, saving
human resources, and facilitating residents to
complete online water fee payment without leaving
home (Albahari 2012, Stellman 2016).
REFERENCES
Attaallah, Abdulaziz; Algarni, Abdullah; Khan, Raees
Ahmad. (2021) Managing Security-Risks for
Improving Security-Durability of Institutional Web-
Applications: Design Perspective. CMC-
COMPUTERS MATERIALS & CONTINUA, 66:
1849-1865.
Andrew Stellman. (2016) Head First C#. O'Reilly Media,
Sebastopol, CA.
Compagnucci, L; Spigarelli, F. (2018) Fostering Cross-
Sector Collaboration to Promote Innovation in the
Water Sector. SUSTAINABILITY, 10.
China Water Network. (2021) Current Standards for Tiered
Water Price. https://www.h2o-china.com/price/view?
townid=80
Joseph Albahari / Ben Albahari. (2012) C# 5.0 in a Nutshell.
O'Reilly Media, Sebastopol, CA.
Yusta, Jose M. (2020) Water-energy management for
demand charges and energy cost optimization of a
pumping stations system under a renewable virtual
power plant model. Energies, No. 13: 11.
Charge Management System of Water Companies
823
