Network Support for AR/VR and Immersive Video Application: A Survey

Dongbiao He

, Cedric Westphal

and J. J. Garcia-Luna-Aceves

Department of Computer Science and Technology, Tsinghua University, Bejing, China

Department of Computer Engineering, University of California, Santa Cruz, Santa Cruz, CA, U.S.A.

Keywords:

AR/VR, 360 Degree Video, Field of View, QoE, Survey.

Abstract:

Augmented Reality and Virtual Reality are rapidly gaining attention and are increasingly being deployed over

the network. These technologies have large industrial potential to become next big platform with a wide range

of applications. This experience will only be satisfying when the network infrastructure is able to support

these applications. Current networks however, are still having a hard time streaming high quality videos. The

advent of 5G Networks will improve the network performance, but it is unclear it will be sufﬁcient to provide

new applications delivering augmented reality and virtual reality services. There are few surveys on the topic

of augmented reality systems, and their focus mostly stays on the actual displays and potential applications.

We survey the literature on AR/VR networking, and we focus here on the potential underlying network issues.

1 INTRODUCTION

With the continuous development of Augmented Re-

ality (AR) and Virtual Reality (VR) technologies, new

challenges have beed arisen in network area for sup-

porting these applications. Facebook and YouTube

have already deployed support for some immersive

videos, including 360 degree videos. These technolo-

gies are still in their infancy but many believe they

have huge potential to shape the next experience for

entertainment, education and commerce. Forecast-

ers suggest around 30 million devices will be sold by

2020 generating revenue of around $21 billion (New-

man, 2017).

Specialized head mounted display (HMD) devices

such as the Oculus Rift and HTC Vive hit the market

in 2016 and have been used mostly in gaming appli-

cations. A more mainstream experiences have come

from much cheaper wraparound containers for smart-

phones such as Google Cardboard and the Galaxy

Gear VR headset. While the very ﬁrst commercial

deployments, such as Google Glass for augmented re-

ality, were not as successful as hoped, new products

on the market keep trying to deliver an enhanced ex-

perience to users (Cass and Choi, 2015).

This experience will only be satisfying when the

network infrastructure will be able to support these

applications. Current networks however, are still hav-

ing a hard time streaming high quality videos. The ad-

vent of 5G Networks will improve the network to bet-

ter provide for new applications delivering augmented

reality and virtual reality services. The 5G white pa-

per (Alliance, 2015) speciﬁcally mentions augmented

reality, 3D-video and pervasive video as use cases for

dense urban networks. Yet, it is unclear that without

architecturalsupport in the network, such applications

will receive the required resource to be succesful with

consumers.

There are few surveys on the topic of augmented

reality systems (say, (Van Krevelen and Poelman,

2010)), and their focus mostly stays on the actual dis-

plays and potential applications. (Westphal, 2017)

listed some challenges for the network to support

AR/VR and proposed Information-Centric Network

as an architectural answer. We focus here on the po-

tential underlying network issues. We present some

of these issues in this survey.

We attempt to survey the literature to see how to

better deliver an immersive experience at the network

layer. There are different threads in this work. One

key issue to efﬁciently deliver a satisfying immersive

experience is to deliver what the user is viewing with

high quality. Namely, the viewport of the user should

be reliably provided in high resolution. However, de-

livering every possible view at high quality imposes a

prohibitive cost in bandwidth. One answer is to only

deliver the views that are actually seen at high quality.

In Section 2, we consider what can be done to pre-

dict the motion of the user’s view, so as to deliver only

the minimal amount of data that encompasses what

He, D., Westphal, C. and Garcia-Luna-Aceves, J.

Network Support for AR/VR and Immersive Video Application: A Survey.

DOI: 10.5220/0006941703590369

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 1: DCNET, ICE-B, OPTICS, SIGMAP and WINSYS, pages 359-369

ISBN: 978-989-758-319-3

359

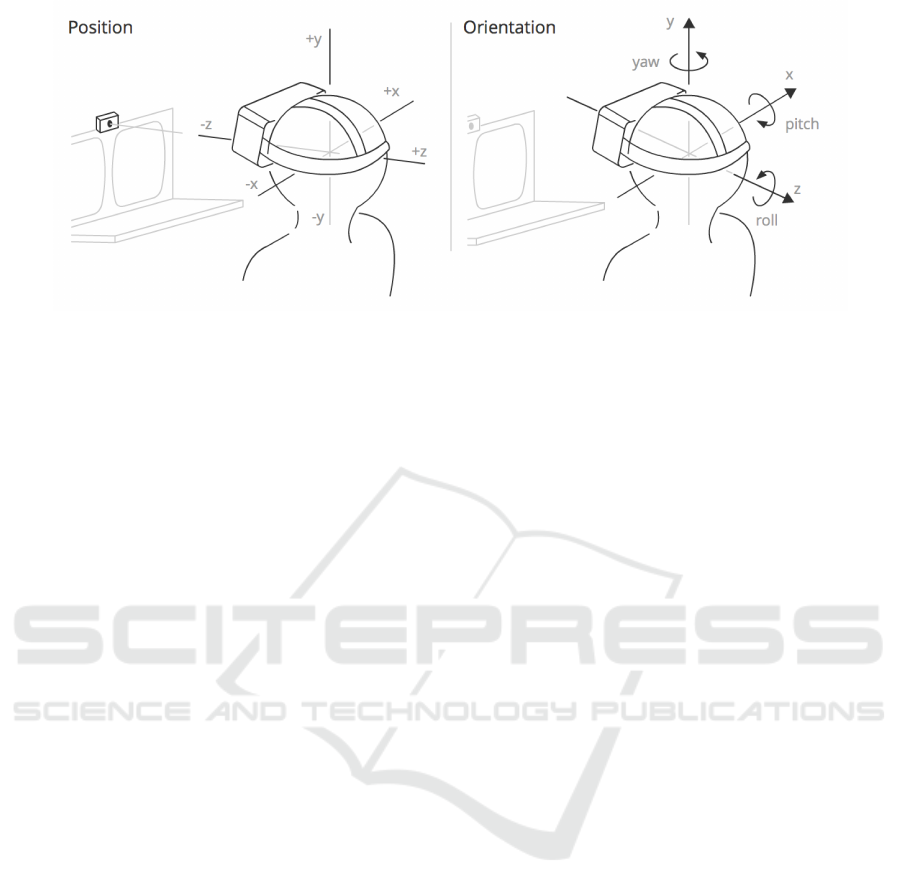

Figure 1: The head movement (web, 2018).

the user will be looking at in the immersive stream.

In Section 3, we look at the compression and coding

schemes to reduce the bandwidth footprint of the ap-

plication.

In Section 4, we study how to deliver an applica-

tion stream that is viewport dependent. Section 5 con-

siders the potential caching strategies at the network

layer to enhance immersive applications. Section 6

lists some of the empirical results and the datasets that

can be used for testing new enhancements. Finally,

Section 7 offers some concluding remarks.

2 PREDICTION OF THE USER’S

FIELD OF VIEW

360 degree videos (Sometimes refers as omnidirec-

tional videos), also known as immersive videos or

spherical videos, are video recordings where a view

in every direction is recorded at the same time, shot

using an omnidirectional camera or a collection of

cameras. During playback on normal ﬂat display the

viewer has control of the viewing direction like a

panorama. It can also be played on a displays or pro-

jectors arranged in a cylinder or some part of a sphere.

Every day, these videos are becoming more and

more ubiquitous due to the dramatic increase in the

popularity of the Internet services such as social net-

working, e-commerce websites, e-learning websites

etc. Determining the particular user’s characteristics

from its video stream is crucial to save bandwidth and

improve the QoE for the users.

As displayed in ﬁgure 1, 360 degree videos use the

position sensors to detect viewing information from

the HMD. This allows the user to continually up-

date a scene according to the head movement, rota-

tion, etc. Prefetching strategies should carefully bal-

ance two contrasting objectives, namely maximizing

quality and avoiding stalls in the played stream and

prefetch new content from different channels to pro-

vide a seamless switch.

Zhang Hui (Zhang and Chen, 2016) predicts user

service access information (such as occurrence time,

occurrence location, service type and service content)

in the next period by studying the user’s behavior.

They formulate a modiﬁed entropy weighted Markov

model to accurately predict the user’s service states

with an adaptive feedback based weight correction

method.

Andrew Kiruluta(Kiruluta et al., 1997) uses a

Kalman ﬁltering model to predict head movements.

The key idea is to recognize that head movement tra-

jectories can be assumed to be constrained on piece-

wise constant acceleration paths with an additional

noise componentto account for any perturbation from

these paths. (Vintan et al., 2006) proposes neural pre-

diction techniques to anticipate a person’s next move-

ment. They focus on neural predictors (multi-layer

perceptron with back-propagation learning) with and

without pre-training.

Mavlankar and Girod (Mavlankar and Girod,

2010) perform ﬁxation prediction in videos using fea-

tures like thumbnails, motion vectors, and naviga-

tion trajectories. With the advanced machine learning

technologies, various supervised learning methods in-

cluding neural networks are adopted for better feature

extraction and prediction accuracy in ﬁxation detec-

tion (Alshawi et al., 2016), (Chaabouni et al., 2016),

(Nguyen et al., 2013). Chaabount et al. (Chaabouni

et al., 2016) build a convolutional neural networkks

(CNN) architecture and use residual motion as the

features for predicting saliency in videos.

Alshawi et al. (Alshawi et al., 2016) observe

the correlation between the eye-ﬁxation maps and the

spatial/temporal neighbors, which provides another

way to quantify viewer attention on videos. Nguyen

et al. (Nguyen et al., 2013) propose to adopt the

information of static saliency (in images) and then

SIGMAP 2018 - International Conference on Signal Processing and Multimedia Applications

360

take camera motions into considerations for dynamic

saliency (in videos) prediction. (Fan et al., 2017) ad-

dresses the problem of ﬁxation prediction for 360 de-

gree video streaming to HMDs using two neural net-

works.

(Bao et al., 2016) are used for predicting head

movement in 360 degree video delivery. They col-

lect motion data for some subjects watching 360 de-

gree videos. From the collected data, they observe a

strong short-term auto-correlation in viewer motions,

which indicates that viewer motion can be well pre-

dicted based on motion history.

In (Liu et al., 2017), they employ a Field-of-View

(FoV) guided approach that fetches only the portions

of a scene the users will see. They also use big

data analytics to facilitate accurate head movement

prediction (HMP), a key prerequisite for FoV-guided

streaming. In addition, they propose enhancements

that allow 360 degree videosto be efﬁcientlystreamed

overmultiple network paths such as WiFi and cellular.

3 VIDEO COMPRESSION AND

CODING

Adaptive streaming of 360 degree video content in

a virtual reality setting is a challenging task which

requires smart encoding and streaming techniques to

cope with today’s and future application and service

requirements. Video compression standards aim to

minimize the spatiotemporal redundancies by exploit-

ing the characteristics of human visual systems along

with source coding techniques from information the-

ory. Moreover, a client can periodically switch to

neighboring captured views as the video is played

back in time when watching 360 degree video. The

technical challenge is to design coding structure to

facilitate periodic view switching, while providing

some level of error resiliency, so that error propaga-

tion due to differentially coded frames can be mit-

igated. Hence, most of coding strategies would be

viewport-dependent for saving resource cost in trans-

mission the video stream.

Begole (Begole, 2016) calculates that human can

process 5.2Gbps of data based on the physical charac-

teristics of human perception. This amount is beyond

even 5G network support, and is calculated based

upon the ability to distinguish 200 dots per degree

within the typical human foveal ﬁeld of view, with

at least 150 degrees horizontally and 120 degrees ver-

tically at a rate of 30 frames per second. However,

this number assumes a compression ratio and some

dedicated coding techniques.

To address this bandwidth scarcity problem, many

360 degree video streaming service providers have

been actively working to address the concerns in en-

coding and transmitting 360 degree videos. Much of

this effort has gone into encoding schemes that re-

duce the amount of information transmitted over the

network during streaming. For example, (Rondao-

Alface et al., 2017) proposed an end-to-end system

that could achieve real-time streaming of 360 content

at 16K resolution with very low latency over Wi-Fi or

LTE towards untethered, smartphone-based HMDs.

In (Yu et al., 2015), they put forward a framework

for evaluating the coding efﬁciency in the context of

viewing with a head-mounted display.

360 degree video requires increased video reso-

lution (4K and beyond) to support the wider ﬁeld of

view (360 degree ﬁeld of view vs regular 2D video

that typically covers around 60-90 degrees ﬁeld of

view). Hence the bitrate requirements are also higher

necessitating the need for efﬁcient compression tech-

niques for 360 degree video. The rest of this section

is the literatures focusing on the video encoding in the

system of multiview video streaming (IMVS) or 360

degree videos.

3.1 Encoding Overhead Optimization

(Graf et al., 2017) states that the state of the art video

codecs (AVC/H.264, HEVC/H.265, VP8, VP9) and

delivery formats (DASH/HLS) can be used to deploy

a basic adaptive streaming service of omnidirectional

video content. However, this is very inefﬁcient as

the typical Field of View of many VR devices is lim-

ited, and a lot of content is delivered, decoded, and

rendered for nothing (e.g., what is happening outside

of the users’ FoV). Viewport adaptive streaming has

been introduced to overcome this limitation but re-

quires multiple versions of the same content for each

view. That is, it adopts a similar strategy as in adap-

tive media streaming (DASH/HLS) but the number of

versions of the same content signiﬁcantly increases.

This impacts (cloud) storage and (content delivery)

network costs.

In (Cheung et al., 2011), they motivated the need

for an interactive multi-view video streaming system,

where an observer can periodically send feedback to

the server requesting the desired views out of the

many available ones. In response, the server will send

the corresponding pre-encoded video data to the ob-

server for decoding and display without interrupting

the forward video playback. Observing that one can

trade off expected transmission rate with a modest

increase in storage when designing the pre-encoded

frame structure, they formulated a combinatorial op-

timization problem, where the optimal structure con-

Network Support for AR/VR and Immersive Video Application: A Survey

361

tains the best mixture of I-frames (for random access),

P-frames (for low transmission rate) and merge or M-

frames (for low storage), trading off transmission rate

with storage.

In (Liu et al., 2013), they proposed a new frame

type called uniﬁed distributed source coding (uDSC)

frame that can both facilitate view switching and halt

error propagation. They then optimized transmission

strategies for coding structures with uDSC frames for

wireless IMVS multicast and wired IMVS unicast

scenarios.

(Ozcinar et al., 2017a) targets both the provider’s

and client’s perspectives and introduces a new

content-aware encoding ladder estimation method for

tiled 360 degree VR video in adaptive streaming sys-

tems. The proposed method ﬁrst categories a given

360 degree video using its features of encoding com-

plexity and estimates the visual distortion and re-

source cost of each bitrate level based on the proposed

distortion and resource cost models. An optimal en-

coding ladder is then formed using the proposed inte-

ger linear programming (ILP) algorithm by consider-

ing practical constraints.

Adaptivity to the current user viewport is a

promising approach but incurs signiﬁcant encoding

overhead when encoding per user or set of viewports.

A more efﬁcient way to achieve viewport adaptive

streaming, presented in (Skupin et al., 2016), is to fa-

cilitate motion-constrainedHEVC tiles. Original con-

tent resolution within the user viewport is preserved

while content currently not presented to the user is

delivered in lower resolution. A lightweight aggre-

gation of varying resolution tiles into a single HEVC

bitstream can be carried out on-the-ﬂy and allows us-

age of a single decoder instance on the end device.

(Zhang et al., 2018) studied a navigation-aware

adaptation logic optimization problem for interactive

free viewpoint video systems that is able to minimize

both the navigation distortion and the view-switching

delay. They provide an optimal solution based on a

dynamic programing (DP) algorithm with polynomial

time complexity, and an approximate algorithm with

effectiveperformanceto further reduce computational

complexity in practice. The algorithm properly takes

into account both video content characteristics and

user interactivity level, which is efﬁcient to ﬁnd the

proper tradeoff between view quality and number of

reference views in constrained resource networks.

(Corbillon et al., 2017b) investigated some theo-

retical models for the preparation of 360 degree video

for viewport adaptive streaming systems. They ex-

plored the interplay between the parameters that char-

acterize the video area in which the quality should be

better. They denote this special video area a Quality-

Emphasized Region (QER) and address a theoretical

model based on the fundamental trade-off between

spatial size of the QERs and the aggregate video bit-

rate.

In (Sreedhar et al., 2016), they put for-

ward a multi-resolution viewport adaptive projec-

tion schemes to measure the rate-distortion (RD)

performance between different projection schemes.

With the observation of their evaluations, the multi-

resolution projections of Equirectangle and Cubemap

outperform other projection schemes, signiﬁcantly.

3.2 Resource Allocation

(De Abreu et al., 2015) proposed a novel adaptive

transmission solution that jointly selects the optimal

subsets of views streams and rate allocation per view

for a hierarchical transmission in IMVS applications.

They consider a system where the network is charac-

terized by clients with heterogeneous bandwidth ca-

pabilities, and they aim to minimize their expected

navigation distortion. To do so, clients are clustered

according to their bandwidth capabilities and the dif-

ferent camera views are distributed in layers to be

transmitted to the different groups of users in a pro-

gressive way. The clients with higher capabilities re-

ceive more layers (more views), hence beneﬁting of

a better navigation quality. They have formulated an

optimization problem to jointly determine the optimal

arrangement of views in layers along with the cod-

ing rate of the views, such that the expected render-

ing quality is maximized in the navigation window,

while the rate of each layer is constrained by network

and clients capabilities. To solve this problem, they

have proposed an optimal algorithm and a greedy al-

gorithm with a reduced complexity, both based on dy-

namic programming.

(Chakareski et al., 2015) studied the scenario of

multicasting to a collection of clients. To address the

issue of heterogeneity amongst clients, they designed

a scalable joint source and channel coding scheme

for which they formulated a view-popularity-driven

source-channel rate allocation and a view packing

optimization problem that aims at maximizing the

expected video quality over all clients, under trans-

mission rate constraints and the clients’ view selec-

tion preferences. Their system is superior to state-

of-the-art reference systems based on H.264/SVC

and the channel coding technique they designed, and

H.264 and network coding. Finally, they developed

a faster local-search-based method that still optimizes

the source and channel coding components of their

system jointly at lower complexity. It exhibits only

a marginal loss relative to an exhaustive-search opti-

mization.

SIGMAP 2018 - International Conference on Signal Processing and Multimedia Applications

362

(Rossi and Toni, 2017) proposed an optimal trans-

mission strategy for virtual reality applications that is

able to fulﬁll the bandwidth requirements, while opti-

mizing the end-user quality experiencedin the naviga-

tion. In further detail, they consider a tile-based coded

content for adaptive streaming systems, and they pro-

pose a navigation-aware transmission strategy at the

client side (i.e., adaptation logic), which is able to op-

timize the rate at which each tile is downloaded.

In (Chen et al., 2017), the problem of resource

management is studied for a network of wireless vir-

tual reality users communicating over small cell net-

works (SCNs). In order to capture the VR users’ qual-

ity of service (QoS), a novel VR model, based on

multi-attribute utility theory, is proposed. This model

jointly accounts for VR metrics such as tracking ac-

curacy, processing delay, and transmission delay.

4 VIEWPORT-DEPENDENT

STREAMING

Virtual Reality devices are quickly becoming accessi-

ble to a large public. It is, therefore, expected that

the demand for 360 degree immersive videos will

grow consistently in the next years. In VR stream-

ing, the user is immersed in a virtual environment

and can dynamically and freely decide the preferred

viewing position, called viewport. Unfortunately, VR

streaming is often affected by low quality nowadays,

due to the high bandwidth requirements of 360 de-

gree videos. Viewport-dependent solutions have of-

ten been proposed for VR streaming, as they are able

to reduce the bandwidth required to stream the VR

video. Viewport-adaptive streaming has recently re-

ceived a growing attention from both academic and

industrial communities.

(Afzal et al., 2017) characterized 360 degree

videos from the point of view of network streaming,

and compared them to regular videos that have been

the popular media format until now. Their compari-

son shows that 360 degree videos have substantially

higher bit rates and a larger number of resolution for-

mats; however, they also ﬁnd that the bit rates for the

360 videos have less variability than regular videos,

which can be highly beneﬁcial for the network due

to the network provisioning for the peak rates. To

explain lower bit rate variability, they demonstrated

that the average motion for the 360 video is less than

that for a comparable regular video. They believe that

this is because the motion described in a 360 degree

video is that which is inherently in the scene, rather

than the rotation or panning of the camera in space.

This implies that the panning now occurs at the time

of user viewing the video. Thus, the new requirement

on the network is that it needs to be more responsive

to the user changing ﬁeld of view. They believe these

aspects have deep implications on networked video

streaming systems for both capacity and latency re-

quirements.

A 360 multiview video streaming (IMVS) sys-

temdegree video is captured in every direction from

a unique point, so it is essentially a spherical video.

Since current video encoders operate on a 2D rect-

angular image, a key step of the encoding chain is

to project the spherical video onto a planar surface

(showed in ﬁgure 2). The four projections that are

most discussed for 360 degree video encoding are

rectangular, cube map, pyramid and rhombic dodeca-

hedron. From the images that are projected on these

projections, it is possible to generate a viewport for

any position and angle in the sphere without informa-

tion loss. However, some pixels are over-sampled, in

the case of rectangular mapping, resulting in degra-

dation of performance of video encoders. On the

contrary, the projection into a pyramid layout causes

under-sampling. This results in distortion and infor-

mation loss in some extracted viewports.

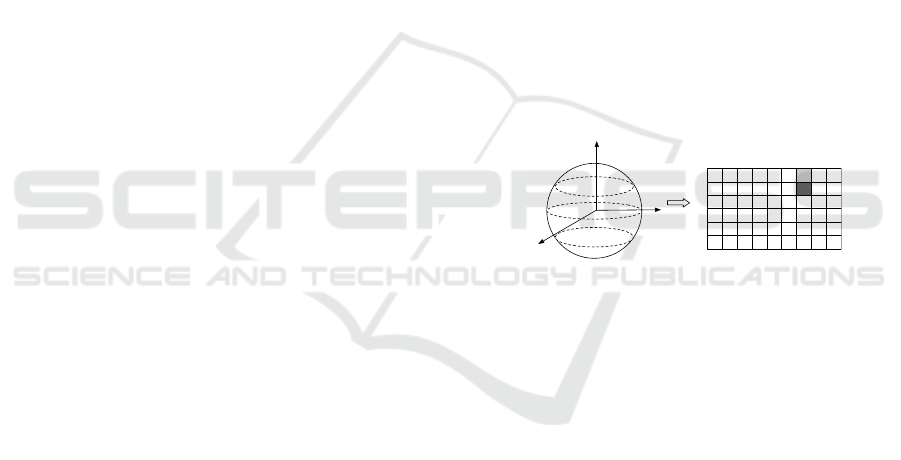

(a) Sphere (b) Plane

Figure 2: Tiles in 360 degree video.

(Nguyen et al., 2017a) analyzed and evaluated

the impacts of the response delay to tiling-based

viewport-adaptive streaming for 360 degree videos.

Preliminary results indicate that viewport-adaptive

streaming methods are effective under short response

delay only. Speciﬁcally, for viewport adaptive meth-

ods to outperform EQUAL when the frame rate

is 30fps, the buffer sizes in cases of the adapta-

tion intervals of 4, 32, and 64 frames should be

less than 1s, 0.5s, and 0.125s, respectively. When

the buffer size exceeds 2s, EQUAL, which is a

viewport-independent method, outperforms all con-

sidered viewport-adaptive methods. So, viewport

adaptive streaming seems to be ineffective when us-

ing existing HTTP Streaming solutions due to long

response delay.

He et al (He et al., 2018) looked at the joint adap-

tation of the ﬁeld of view with the rate under varia-

tions of the network delay and the congestion. They

proposed an algorithm to adapt the size of the ﬁeld of

view to be downloaded based upon the network and

buffering delay to retrieve and view the stream seg-

Network Support for AR/VR and Immersive Video Application: A Survey

363

ment so that it encompasses with high likelihood the

user’s viewport at the time of rendering.

4.1 QoE-driven Solution

Quality of Experience (QoE) is a measure of the de-

light or annoyance of a customer’s experiences with

a service such as web browsing, phone call and TV

broadcast (wik, 2018). QoE is one of major factors

for optimization 360 degree video streaming service.

However, the users’ QoE is far from trivial with the

adaptive streaming strategies. In this paper, we list

some papers with QoE guided solution for 360 de-

gree video streaming transmission, and in particular,

we investigate some literatures for bandwidth saving

in section 4.2.

(Ghosh et al., 2017) proposed a novel adaptive

streaming scheme for 360 degree videos. The basic

idea is to fetch the unviewed portion of a video at the

lowest quality based on users’ head movement pre-

diction, and to adaptively decide the video playback

quality for the visible portion based on bandwidth

prediction. Instead of using a robust manner requires

overcome a series of challenges, they ﬁrst deﬁne QoE

metrics for adaptive 360 degree video streaming, for-

mulating an optimization problem with a low com-

plexity solution. The algorithm strategically leverages

both future bandwidth and the distribution of users’

head positions to determine the quality level of each

tile. After that, they further provide theoretical proof

showing that their algorithm achieves optimality un-

der practical assumptions.

(Xie et al., 2017) leveraged a probabilistic ap-

proach to pre-fetch tiles so as to minimize viewport

prediction error, and design a QoE-driven viewport

adaptation system, 360ProbDASH. It treats user’s

head movementas probabilisticevents, and constructs

a probabilistic model to depict the distribution of

viewport prediction error. A QoE-drivenoptimization

framework is proposed to minimize total expected

distortion of pre-fetched tiles. Besides, to smooth

border effects of mixed-rate tiles, the spatial quality

variance is also minimized. With the requirement of

short-term viewport prediction under a small buffer, it

applies a target buffer-based rate adaptation algorithm

to ensure continuous playback.

(TaghaviNasrabadi et al., 2017) argued that play-

back is prone to video freezes which are very destruc-

tive for the Quality of Experience. They propose us-

ing layered encoding for 360 degree video to improve

QoE by reducing the probability of video freezes and

the latency of response to the user head movements.

Moreover, this scheme reduces the storage require-

ments signiﬁcantly and improves in-network cache

performance.

(Corbillon et al., 2017c) targets at the problem of

bandwidth waste: the Field of View (or viewport) is

only a fraction of what is downloaded, which is an

omnidirectional view of the scene. To prevent simu-

lator sickness and to provide good Quality of Experi-

ence, the vendors of HMDs recommend that the en-

abling multimedia systems react to head movements

as fast as the HMD refresh rate. Since the refresh rate

of state-of-the-art HMDs is 120 Hz, the whole sys-

tem should react in less than 10 ms. This delay con-

straint prevents the implementation of traditional de-

livery architectures where the client notiﬁes a server

about changes and awaits for the reception of content

adjusted at the server. Instead, in the current Virtual

Reality video delivery systems, the server sends the

full 360 degree video stream, from which the HMD

extracts the viewport in real time, according to the

user head movements. Therefore, the majority of the

delivered video stream data are not used.

4.2 Bandwidth Saving

(Graf et al., 2017) described the usage of tiles

— as speciﬁed within modern video codecs such

HEVC/H.265 and VP9 — enabling bandwidth ef-

ﬁcient adaptive streaming of omnidirectional video

over HTTP with various streaming strategies. There-

fore, the parameters and characteristics of a dataset

for omnidirectional video are proposed and exem-

plary instantiated to evaluate various aspects of such

an ecosystem, namely bitrate overhead, bandwidth re-

quirements, and quality aspects in terms of viewport

PSNR.

In (Hosseini and Swaminathan, 2016b) and (Hos-

seini and Swaminathan, 2016a), they proposed a dy-

namic view-aware adaptation technique to tackle the

huge bandwidth demands of 360 VR video streaming.

They spatially divide the videos into multiple tiles

while encoding and packaging, use MPEG-DASH

SRD to describe the spatial relationship of tiles in the

360 degree space, and prioritize the tiles in the Field

of View.

(Le Feuvre and Concolato, 2016) described how

spatial access can be performed in an adaptive HTTP

streaming context, using tiling of the source content,

MPEG-DASH and its SRD extensions. They describe

a conﬁgurable implementation of these technologies,

within the GPAC open-source player, allowing exper-

imentations of different adaptation policies for tiled

video content.

(Ozcinar et al., 2017b) introduced a novel end-

to-end streaming system from encoding to display-

ing, to transmit 8K resolution 360 degree video and

SIGMAP 2018 - International Conference on Signal Processing and Multimedia Applications

364

to provide an enhanced VR experience using Head

Mounted Displays (HMDs). The main contributions

of the proposed system are about tiling, integration of

the MPEGDynamic Adaptive Streaming over HTTP

(DASH) standard, and viewport-aware bitrate level

selection. Tiling and adaptive streaming enable the

proposed system to deliver very high-resolution 360

degree video at good visual quality. Further, the pro-

posed viewport-aware bitrate assignment selects an

optimum DASH representation for each tile in a view-

port aware manner.

Nguyen. et al (Nguyen et al., 2017b) also display

a very similar solution with tiling in order to save the

bandwidth, which tackles the aforementioned prob-

lems by proposing a novel adaptive tile-based stream-

ing method over HTTP/2. In order to solve the band-

width problem in streaming VR videos over HTTP/2,

a dynamic adaptation method is crucial. In this pa-

per, they propose a novel adaptive streaming method

based on tiled streaming. By using H.265 standard, a

video at the server is divided into spatial tiles, each

of which is subdivided into multiple temporal seg-

ments. In order to support adaptive streaming method

from client, each tile is also encoded into different

versions. The priority of tiles is deﬁned based on the

user’s viewport. Then, the priority feature of HTTP/2

is used to request the server to push the tiles of higher

priority ﬁrst.

In (Mangiante et al., 2017), they present a Field Of

View rendering solution at the edge of a mobile net-

work, designed to optimize the bandwidth and latency

required by VR 360 degree video streaming.

(Qian et al., 2016) also argues that fetching the

entire raw video frame wastes bandwidth. They con-

sider the problem of optimizing 360 degree video de-

livery over cellular networks. They ﬁrst conducted a

measurement study on commercial 360 degree video

platforms, then proposed a cellular-friendly stream-

ing scheme that delivers only the 360 degree videos’

visible portion based on head movement prediction.

In (Petrangeli et al., 2017b), they presented a

novel framework for the efﬁcient streaming of VR

videos over the Internet, which aims to reduce the

high bandwidth requirementsand storage costs of cur-

rent VR streaming solutions. The video is spatially

divided in tiles using H.265, and only tiles belonging

to the user viewport are streamed at the highest qual-

ity.

To save bandwidth, (Petrangeli et al., 2017a) spa-

tially tiled the video using the H.265 standard and

streamed only tiles in view at the highest quality. The

video is also temporally segmented, so that each tem-

poral segment is composed of several spatial tiles. In

order to minimize quality transitions when the user

moves, an algorithm is developed to predict where

the user is likely going to watch in the near future.

Consequently, predicted tiles are also streamed at the

highest quality. Finally, the server push in HTTP/2

is used to deliver the tiled video. Only one request

is sent from the client; all the tiles of a segment are

automatically pushed from the server.

5 IN-NETWORK CACHING

Historically, the Internet has evolved in an ad-

hoc manner where incremental patches were added

to handle new requirements as they arose. This

means that the underlying network model has not

changed over the last decades, while the services us-

ing the Internet did so drastically. Information Cen-

tric Networking (ICN) is a network architecture that

evolves from the traditional host-oriented communi-

cation model to a content centric model, which can

be extremely beneﬁcial in adaptive streaming (West-

phal (Editor) et al, 2016). Particularly, ICN relies

on location-independentnaming schemes, in-network

pervasive caching, and content-based routing to al-

low an efﬁcient distribution of content over the net-

work. Moreover, ICN nodes can seamlessly use all

the available network interfaces to retrieve content.

Content Centric Networking (CCN) and Named Data

Networking (NDN) are typical instantiations of the

ICN paradigm. (Zhang et al., 2017) proposed a VR

video conferencing system over named data networks

(NDN). (Westphal, 2017) made the case that ICN

could answer some of the issues of AR/VR network-

ing support. However, other caching solutions may

help as well.

Edge computing is expected to be an effective so-

lution to deliver 360 degree virtual reality videos over

networks. Cache is one of underlying resources for

enabling these applications. Mangiante et al. (Man-

giante et al., 2017) present a Field Of View rendering

solution at the edge of a mobile network, designed to

optimize the bandwidth and latency required by VR

360 degree video streaming. Jacob Chakareski et al.

(Chakareski, 2017) designed an optimization frame-

work that allows the base stations to select coopera-

tive caching/rendering/streaming strategies that max-

imize the aggregate reward they earn when serving

the users, given speciﬁc caching and computational

resources at each base station. Zhang Liyang et al. In

(Matsuzono et al., 2017), they propose a low latency,

low loss streaming mechanism, L4C2, convenient for

for high-quality real-time delay-sensitive streaming.

L4C2 is also built with in-network caching mecha-

nism.

Network Support for AR/VR and Immersive Video Application: A Survey

365

In particular, (Yeo et al., 2017) argues that client’s

increasing computation power and advancement in

deep neural networks allow us to take advantage of

long-term redundancy found in videos, which leads

to quality improvement at lower bandwidth cost for

Internet video delivery.

6 PUBLIC DATASETS

Recently, content and datasets for 360 degree video

have been made public so as to promote reproducible

research. Some researchers have built 360 degree

video testbeds for collecting traces from real view-

ers watching 360 degree videos using HMDs. The

collected datasets can be used in various 360 degree

video applications with viewers using HMDs.

As for researchers, they can: (i) analyze the

datasets for ﬁnding some key problems and get the

insights for the research work, (ii) apply the datasets

to validate and evaluate their systems and algorithms.

The followings are some collected datasets.

(Corbillon et al., 2017a) presented a dataset in-

cluding the head positions of 59 users recorded while

they are watching ﬁve 70 s-long 360 degree videos

using the Razer OSVR HDK2 HMD. They have pub-

lished the dataset on the website alongside the used

videos and the open-source software that they de-

veloped to collect the dataset. Finally they also in-

troduced examples of statistics that can be extracted

from the dataset to provide an overview of the users’

behaviour and the videos characteristics, focusing on

the viewport adaptive streaming scenario.

(Rai et al., 2017) presents a new dataset of 60 om-

nidirectional images with the associated head and eye

movement data recorded for 63 viewers. A subjective

experiment was conducted, in which they are asked to

explore the images for 25 seconds, as naturally as pos-

sible. In addition, an image/observer agnostic anal-

ysis of the results from this experiment is also per-

formed, which, in contrast to previous studies, con-

siders both head and eye tracking data. Furthermore,

they also provide guidelines and tools to the commu-

nity to evaluate and compare saliency maps in such

omnidirectional scenarios. They argue that the free

availability of this dataset to the research community

may help on the intensive research work that is being

done nowadays regarding immersive media technolo-

gies to provide the best possible QoE to the end users.

(Lo et al., 2017) presented the dataset collected

from ten YouTube 360 degree videos and 50 sub-

jects. Their dataset is unique, because both content

data, such as image saliency maps and motion maps,

and sensor data, such as positions and orientations,

are provided. Many 360 degree video streaming ap-

plications, both traditional ones (like R-D optimiza-

tion) and novelones (like crowd-drivencamera move-

ments) can beneﬁt from their comprehensive dataset.

In addition, the dataset can be extended in several

ways, such as adding eye tracking data of the eyes

movement as hints for future head movement.

The dataset presented by CIVIT (civ, 2018) pro-

vides four or eight different ﬁsheye views generated

from a Nokia OZO. This allows testing of multiple

algorithms like depth estimation or panoramas stitch-

ing.

In (Wu et al., 2017), they present a head tracking

dataset composed of 48 users (24 males and 24 fe-

males) watching 18 sphere videos from 5 categories.

For better exploring user behaviors, they record how

users watch the videos, how their heads move in each

session, what directions they focus, and what content

they can remember after each session.

7 CONCLUDING REMARKS

AR/VR and immersive video streaming push the

boundaries of the network capability. The upcom-

ing 5G roll-out will not alleviate all of the issues

and therefore these applications need both in-network

support as well as enhancements at the application

layer to be successfully deployed. As such, it is a

very active area of research. We attempted to depict

this research landscape in this document.

We have seen how user’s motion prediction could

assist with reducing the bandwidth; how coding and

compression schemes are being developed; how tiling

and FoV can be adapted to the network conditions;

how caching will assist with the deployment of such

applications; and what datasets are currently available

to researchers who would like to test new methodsand

algorithms.

Future research directions should include methods

to improve performance in three directions:

• bandwidth consumption should be minimized by

further improving prediction of the user’s behav-

ior, improved compression schemes, sharing and

multicasting using efﬁcient tiling, etc.

• delay responsiveness of the network should

be improved; 5G will signiﬁcantly reduce the

network RTT, but reducing the segment length

(together with the associated coded schemes),

bringing the servers to the edge, providing

QoS for immersive application, improving the

hardware, etc, are all required.

SIGMAP 2018 - International Conference on Signal Processing and Multimedia Applications

366

• reducing the computational impact on the net-

work; in order to support transcoding, or process-

ing of the AR/VR uplink streams (for sensor and

position data and for image and pattern recogni-

tion), the computing at the edge will signiﬁcantly

increase. Methods to minimize this impact, meth-

ods for better pattern recognition and for sharing

this processing among users, etc, still need to be

devised.

ACKNOWLEDGEMENTS

Dongbiao He is supported by the Tsinghua Scholar-

ship for Overseas Graduate Studies.

REFERENCES

(2018). 360-degree stereo video test datasets - civit.

http://www.tut.ﬁ/civit/index.php/360-dataset/. Ac-

cessed: 2018-05-28.

(2018). Quality of experience. https://en.wikipedia.org/

wiki/Quality

of experience.

(2018). Webvr concepts. https://developer.mozilla.org/. Ac-

cessed: 2018-06-13.

Afzal, S., Chen, J., and Ramakrishnan, K. (2017). Charac-

terization of 360-degree videos. In Proceedings of the

Workshop Viewing Dataset in Head-Mounted on Vir-

tual Reality and Augmented Reality Network, pages

1–6. ACM.

Alliance, N. (2015). NGMN 5G White Paper.

https://www.ngmn.org/uploads/media/NGMN

White Paper V1 0.pdf.

Alshawi, T., Long, Z., and AlRegib, G. (2016). Understand-

ing spatial correlation in eye-ﬁxation maps for visual

attention in videos. In Multimedia and Expo (ICME),

2016 IEEE International Conference on, pages 1–6.

IEEE.

Bao, Y., Wu, H., Zhang, T., Ramli, A. A., and Liu, X.

(2016). Shooting a moving target: Motion-prediction-

based transmission for 360-degree videos. In Big Data

(Big Data), 2016 IEEE International Conference on,

pages 1161–1170. IEEE.

Begole, B. (2016). Why the internet pipe will burst if

virtual reality takes off. http://www.forbes.com/

sites/valleyvoices/2016/02/09/why-the-internet-pipes

-will-burst-if-virtual-reality-takes-off/. Last accessed

September 14th, 2016.

Cass, S. and Choi, C. (2015). Google Glass, HoloLens,

and the Real Future of Augmented Reality. In IEEE

Spectrum.

Chaabouni, S., Benois-Pineau, J., and Amar, C. B. (2016).

Transfer learning with deep networks for saliency pre-

diction in natural video. In Image Processing (ICIP),

2016 IEEE International Conference on, pages 1604–

1608. IEEE.

Chakareski, J. (2017). Vr/ar immersive communication:

Caching, edge computing, and transmission trade-

offs. In Proceedings of the Workshop on Virtual Re-

ality and Augmented Reality Network, pages 36–41.

ACM.

Chakareski, J., Velisavljevic, V., and Stankovic, V. (2015).

View-popularity-driven joint source and channel cod-

ing of view and rate scalable multi-view video. IEEE

Journal of Selected Topics in Signal Processing,

9(3):474–486.

Chen, M., Saad, W., and Yin, C. (2017). Resource

management for wireless virtual reality: Machine

learning meets multi-attribute utility. In GLOBE-

COM 2017-2017 IEEE Global Communications Con-

ference, pages 1–7. IEEE.

Cheung, G., Ortega, A., and Cheung, N.-M. (2011). Interac-

tive streaming of stored multiview video using redun-

dant frame structures. IEEE Transactions on Image

Processing, 20(3):744–761.

Corbillon, X., De Simone, F., and Simon, G. (2017a). 360-

degree video head movement dataset. In Proceedings

of the 8th ACM on Multimedia Systems Conference,

pages 199–204. ACM.

Corbillon, X., Devlic, A., Simon, G., and Chakareski,

J. (2017b). Optimal set of 360-degree videos for

viewport-adaptive streaming. in Proc. of ACM Mul-

timedia (MM).

Corbillon, X., Simon, G., Devlic, A., and Chakareski,

J. (2017c). Viewport-adaptive navigable 360-degree

video delivery. In Communications (ICC), 2017 IEEE

International Conference on, pages 1–7. IEEE.

De Abreu, A., Toni, L., Thomos, N., Maugey, T., Pereira, F.,

and Frossard, P. (2015). Optimal layered representa-

tion for adaptive interactive multiview video stream-

ing. Journal of Visual Communication and Image

Representation, 33:255–264.

Fan, C.-L., Lee, J., Lo, W.-C., Huang, C.-Y., Chen, K.-

T., and Hsu, C.-H. (2017). Fixation prediction for

360 video streaming in head-mounted virtual real-

ity. In Proceedings of the 27th Workshop on Network

and Operating Systems Support for Digital Audio and

Video, pages 67–72. ACM.

Ghosh, A., Aggarwal, V., and Qian, F. (2017). A rate

adaptation algorithm for tile-based 360-degree video

streaming. arXiv preprint arXiv:1704.08215.

Graf, M., Timmerer, C., and Mueller, C. (2017). Towards

bandwidth efﬁcient adaptive streaming of omnidirec-

tional video over http: Design, implementation, and

evaluation. In Proceedings of the 8th ACM on Multi-

media Systems Conference, pages 261–271. ACM.

He, D., Westphal, C., and Garcia-Luna-Aceves, J. (2018).

Joint rate and fov adaptation in immersive video

streaming. In ACM Sigcomm workshop on AR/VR Net-

works.

Hosseini, M. and Swaminathan, V. (2016a). Adaptive 360

VR video streaming based on MPEG-DASH SRD. In

ISM, pages 407–408. IEEE Computer Society.

Hosseini, M. and Swaminathan, V. (2016b). Adaptive 360

vr video streaming: Divide and conquer. In Multime-

Network Support for AR/VR and Immersive Video Application: A Survey

367

dia (ISM), 2016 IEEE International Symposium on,

pages 107–110. IEEE.

Kiruluta, A., Eizenman, M., and Pasupathy, S. (1997). Pre-

dictive head movement tracking using a kalman ﬁlter.

IEEE Transactions on Systems, Man, and Cybernet-

ics, Part B (Cybernetics), 27(2):326–331.

Le Feuvre, J. and Concolato, C. (2016). Tiled-based adap-

tive streaming using mpeg-dash. In Proceedings of the

7th International Conference on Multimedia Systems,

page 41. ACM.

Liu, X., Xiao, Q., Gopalakrishnan, V., Han, B., Qian, F., and

Varvello, M. (2017). 360 innovations for panoramic

video streaming.

Liu, Z., Cheung, G., and Ji, Y. (2013). Optimizing

distributed source coding for interactive multiview

video streaming over lossy networks. IEEE Transac-

tions on Circuits and Systems for Video Technology,

23(10):1781–1794.

Lo, W.-C., Fan, C.-L., Lee, J., Huang, C.-Y., Chen, K.-T.,

and Hsu, C.-H. (2017). 360 video viewing dataset in

head-mounted virtual reality. In Proceedings of the

8th ACM on Multimedia Systems Conference, pages

211–216. ACM.

Mangiante, S., Klas, G., Navon, A., GuanHua, Z., Ran, J.,

and Silva, M. D. (2017). Vr is on the edge: How to de-

liver 360 videos in mobile networks. In Proceedings

of the Workshop on Virtual Reality and Augmented Re-

ality Network, pages 30–35. ACM.

Matsuzono, K., Asaeda, H., and Turletti, T. (2017). Low

latency low loss streaming using in-network coding

and caching. In INFOCOM 2017-IEEE Conference on

Computer Communications, IEEE, pages 1–9. IEEE.

Mavlankar, A. and Girod, B. (2010). Video streaming with

interactive pan/tilt/zoom. High-Quality Visual Experi-

ence, Signals and Communication Technology, pages

431–455.

Newman, N. (2017). Journalism, media, and technology

trends and predictions 2017.

Nguyen, D. V., Tran, H. T., and Thang, T. C. (2017a). Im-

pact of delays on 360-degree video communications.

In TRON Symposium (TRONSHOW), 2017, pages 1–

6. IEEE.

Nguyen, M., Nguyen, D. H., Pham, C. T., Ngoc, N. P.,

Nguyen, D. V., and Thang, T. C. (2017b). An adap-

tive streaming method of 360 videos over http/2 pro-

tocol. In Information and Computer Science, 2017 4th

NAFOSTED Conference on, pages 302–307. IEEE.

Nguyen, T. V., Xu, M., Gao, G., Kankanhalli, M., Tian,

Q., and Yan, S. (2013). Static saliency vs. dynamic

saliency: a comparative study. In Proceedings of the

21st ACM international conference on Multimedia,

pages 987–996. ACM.

Ozcinar, C., De Abreu, A., Knorr, S., and Smolic, A.

(2017a). Estimation of optimal encoding ladders for

tiled 360

◦

vr video in adaptive streaming systems.

arXiv preprint arXiv:1711.03362.

Ozcinar, C., De Abreu, A., and Smolic, A. (2017b).

Viewport-aware adaptive 360

◦

video streaming us-

ing tiles for virtual reality. arXiv preprint

arXiv:1711.02386.

Petrangeli, S., De Turck, F., Swaminathan, V., and Hosseini,

M. (2017a). Improving virtual reality streaming using

http/2. In Proceedings of the 8th ACM on Multimedia

Systems Conference, pages 225–228. ACM.

Petrangeli, S., Swaminathan, V., Hosseini, M., and Turck,

F. D. (2017b). An http/2-based adaptive streaming

framework for 360

◦

virtual reality videos. In ACM

Multimedia, pages 306–314. ACM.

Qian, F., Ji, L., Han, B., and Gopalakrishnan, V. (2016). Op-

timizing 360 video delivery over cellular networks. In

Proceedings of the 5th Workshop on All Things Cellu-

lar: Operations, Applications and Challenges, pages

1–6. ACM.

Rai, Y., Guti´errez, J., and Le Callet, P. (2017). A dataset of

head and eye movements for 360 degree images. In

Proceedings of the 8th ACM on Multimedia Systems

Conference, pages 205–210. ACM.

Rondao-Alface, P., Aerts, M., Tytgat, D., Lievens, S.,

Stevens, C., Verzijp, N., and Macq, J. (2017). 16k

cinematic VR streaming. In ACM Multimedia, pages

1105–1112. ACM.

Rossi, S. and Toni, L. (2017). Navigation-aware adap-

tive streaming strategies for omnidirectional video. In

Multimedia Signal Processing (MMSP), 2017 IEEE

19th International Workshop on, pages 1–6. IEEE.

Skupin, R., Sanchez, Y., Hellge, C., and Schierl, T. (2016).

Tile based hevc video for head mounted displays. In

Multimedia (ISM), 2016 IEEE International Sympo-

sium on, pages 399–400. IEEE.

Sreedhar, K. K., Aminlou, A., Hannuksela, M. M., and

Gabbouj, M. (2016). Viewport-adaptive encoding and

streaming of 360-degree video for virtual reality ap-

plications. In ISM, pages 583–586. IEEE Computer

Society.

TaghaviNasrabadi, A., Mahzari, A., Beshay, J. D., and

Prakash, R. (2017). Adaptive 360-degree video

streaming using layered video coding. In Virtual Re-

ality (VR), 2017 IEEE, pages 347–348. IEEE.

Van Krevelen, D. and Poelman, R. (2010). A survey of

augmented reality technologies, applications and lim-

itations. International Journal of Virtual Reality.

Vintan, L., Gellert, A., Petzold, J., and Ungerer, T. (2006).

Person movement prediction using neural networks.

Westphal, C. (2017). Challenges in networking to support

augmented reality and virtual reality. In IEEE ICNC.

Westphal (Editor) et al, C. (2016). Adaptive Video Stream-

ing in Information-Centric Networking (ICN). IRTF

RFC7933, ICN Research Group.

Wu, C., Tan, Z., Wang, Z., and Yang, S. (2017). A dataset

for exploring user behaviors in VR spherical video

streaming. In MMSys, pages 193–198. ACM.

Xie, L., Xu, Z., Ban, Y., Zhang, X., and Guo, Z. (2017).

360probdash: Improving qoe of 360 video stream-

ing using tile-based http adaptive streaming. In Pro-

ceedings of the 2017 ACM on Multimedia Conference,

pages 315–323. ACM.

Yeo, H., Do, S., and Han, D. (2017). How will deep learning

change internet video delivery? In Proceedings of

the 16th ACM Workshop on Hot Topics in Networks,

pages 57–64. ACM.

SIGMAP 2018 - International Conference on Signal Processing and Multimedia Applications

368

Yu, M. C., Lakshman, H., and Girod, B. (2015). A

framework to evaluate omnidirectional video coding

schemes. In ISMAR, pages 31–36. IEEE Computer

Society.

Zhang, H. and Chen, J. (2016). A novel user behav-

ior prediction and optimization algorithm for single-

user multi-terminal scenario. In Computational Intel-

ligence and Design (ISCID), 2016 9th International

Symposium on, volume 2, pages 144–147. IEEE.

Zhang, L., Amin, S. O., and Westphal, C. (2017). Vr

video conferencing over named data networks. In Pro-

ceedings of the Workshop on Virtual Reality and Aug-

mented Reality Network, pages 7–12. ACM.

Zhang, X., Toni, L., Frossard, P., Zhao, Y., and Lin, C.

(2018). Adaptive streaming in interactive multiview

video systems. IEEE Transactions on Circuits and

Systems for Video Technology.

Network Support for AR/VR and Immersive Video Application: A Survey

369
