Lightweight Call-Graph Construction

for Multilingual Software Analysis

Anne Marie Bogar

, Damian M. Lyons

and David Baird

Department of Computer and Information Science, Fordham University, New York NY, U.S.A.

Bloomberg L.P., New York NY, U.S.A.

Keywords: Software Engineering, Programming Languages, Multilingual Software, Call Graph Generation, Island

Grammars, Software and Systems Quality.

Abstract: Analysis of multilingual codebases is a topic of increasing importance. In prior work, we have proposed the

MLSA (MultiLingual Software Analysis) architecture, an approach to the lightweight analysis of

multilingual codebases, and have shown how it can be used to address the challenge of constructing a single

call graph from multilingual software with mutual calls. This paper addresses the challenge of constructing

monolingual call graphs in a lightweight manner (consistent with the objective of MLSA) which

nonetheless yields sufficient information for resolving language interoperability calls. A novel approach is

proposed which leverages information from a compiler-generated AST to provide the quality of call graph

necessary, while the program itself is written using an Island Grammar that parses the AST providing the

lightweight aspect necessary. Performance results are presented for a C/C++ implementation of the

approach, PAIGE (Parsing AST using Island Grammar Call Graph Emitter) showing that despite its

lightweight nature, it outperforms Doxgen, is robust to changes in the (Clang) AST, and is not restricted to

C/C++.

1 INTRODUCTION

Large companies and software projects often face

the challenge that, either for historical or for

functionality reasons, they include code in different

languages (Mushtak and Rasool, 2015). While

software engineering support for single-language

development has matured, support for multilingual

development is not as strong (Mayer, 2017). In prior

work (Lyons, Bogar, and Baird, 2017) we presented

the MLSA (MultiLingual Software Analysis)

architecture – a lightweight architecture concept for

static analysis of multilingual software, and we

showed that one important software engineering tool

for dealing with multilingual code is call graph

analysis. We showed how it was possible to stitch

multilingual programs into a single call graph which

could then be analyzed for safety, quality and other

software engineering metrics.

However, constructing a call graph, particularly

for languages with objects and first-class functions,

can be time-consuming: (Ali and Lhotak, 2012) cites

an example of a 30 second processing time to

produce a call graph for a “Hello World” program in

Java, due to the complications of dynamic dispatch.

Call graph generation is not a new topic and many

algorithms exist (e.g., (Bacon and Sweeney, 1996)

(Srivastava, 1992) (Dean, Grove, and Chambers,

1995)). While software that creates call graphs

already exist, such as Eclipse and Doxygen, these

tools usually do not provide adequate information for

multilingual analysis: handling pointers, first-class

functions and classes, as well as providing argument

value information (needed to disambiguate interope-

rability (Barrett, Kaplan, and Wileden, 1996) calls).

This paper proposes a novel approach to call

graph generation, PAIGE (Parsing AST using Island

Grammar Call Graph Emitter) with the following

characteristics:

• Lightweight: Leverage existing software to

extract the required information from source

code.

• Modular: Process the extracted information in

a manner that is not bound to a specific

language.

• Static Analysis: All potential calls are captured

rather than the subset seen in any single run.

328

Bogar, A., Lyons, D. and Baird, D.

Lightweight Call-Graph Construction for Multilingual Software Analysis.

DOI: 10.5220/0006911803280337

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 328-337

ISBN: 978-989-758-320-9

PAIGE operates on a textual Abstract Syntax

Tree (AST) generated by the same monolingual

compiler used to compile the code. PAIGE is written

as an Island Grammar (Moonen, 2002) so the

approach is not tied to a single language. This paper

focuses on PAIGE for C/C++ (using the Clang AST)

but the grammar has also been modified for Python

and JavaScript.

The next section briefly introduces MLSA, for

context. Next PAIGE is introduced, explaining the

AST and Island Grammar and their use in call graph

construction. Performance results are presented for a

100-program comparison of PAIGE and Doxygen,

showing PAIGE’s ability to leverage a full AST for

a superior result despite its lightweight, Island

Grammar implementation. Results are also presented

showing source language independence and

robustness to AST changes.

2 THE MLSA ARCHITECTURE

Modern software development is increasingly

multilingual: Developers might build a software

project from different language components for

functionality or style reasons, while at the same time

companies maintain a commitment to language

already used in company software, leading to an

increasingly crowded and complex landscape of

multilingual software development. Any solution

that is narrowly focused on the existing state-of-the-

art will find itself quickly outdated as new languages

or interoperability APIs or language embeddings

appear. For this reason, we propose the following

design principles for a software architecture for

MultiLingual Software Analysis - the MLSA

architecture.

1. Lightweight: Computation is carried out by

small programs, which we call filters, that

communicate results with each other. A

specific software analysis is built as a

pipeline of these programs.

2. Modular: Filter programs accept input and

produce output in a standard form, to allow

modules to be substituted or added with

minimum collateral damage.

3. Open: MLSA uses open-source software for

monolingual processing and for display.

4. Static Analysis: MLSA uses static analysis

as its principle approach

A generic example software analysis MLSA

pipeline is illustrated in Figure 1. Pipelines are

generally divided into three layers:

1. The initial filter programs consume a

monolingual AST generated by an

appropriate monolingual parser in the

monolingual layer of the architecture.

2. The programs that consume the monolingual

ASTs to process interoperability APIs must

be also language specific; this happens in

the interoperability layer.

3. In the final, multilingual layer, all the

program data has been transformed to

multilingual, and procedures in different

languages can be related to one another for

static analysis.

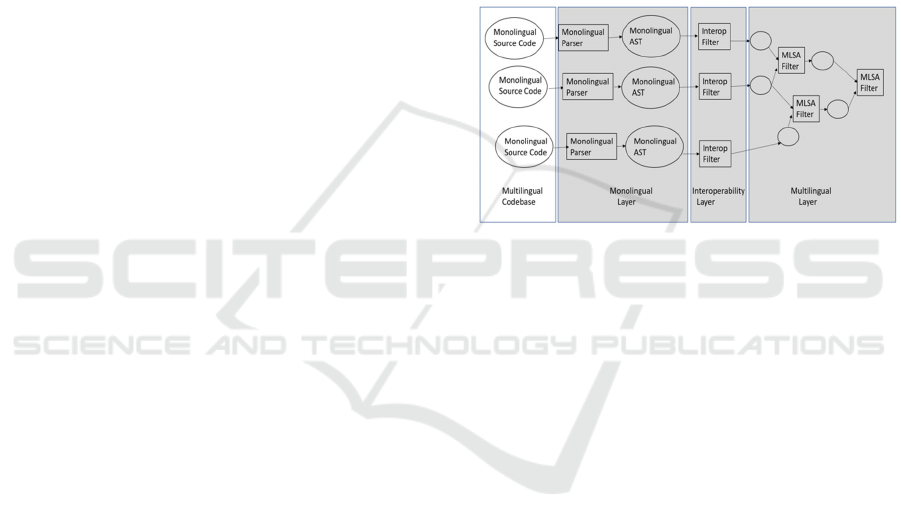

Figure 1: Example MLSA software analysis showing filter

programs (squares) and their standardized input and output

(circles) operating on a multilingual codebase (unshaded

right-hand side).

In (Lyons, Bogar, and Baird, 2017) we presented

an illustrative example of a Reaching Definitions

Analysis (Nielson, Nielson, and Hankin, 2005)

(RDA) pipeline for a C program.

− A monolingual AST filter CASN inputs the C

AST and generates an output data file of

variable assignment locations.

− A second filter CRCF generates the reverse

control flow as a data file.

− A multilingual filter RDA takes the variable

assignment location table and reverse control

flow table as inputs, calculates reaching

definitions for each variable, and writes those

to a data file.

Each filter is a small standalone program,

implementing a single analysis, illustrating the

lightweight design principle. Filter programs can be

written in different languages or can be shell scripts.

The PAIGE program operates as a filter at the

monolingual level of the architecture: It inputs

source files (C/C++ in this paper) and generates

procedure call information that can be later

Lightweight Call-Graph Construction for Multilingual Software Analysis

329

Figure 2: Clang C++ Abstract Syntax Tree, Example Procedure Call Node.

Figure 3: C++ Abstract Syntax Tree, Resolving Dynamic Dispatch.

processed by interoperability and multilingual

analysis filters. PAIGE can be a lightweight process

because it relies on two concepts: an Abstract

Syntax Tree generated by the monolingual compiler

as input, and an Island Grammar to specify how the

input is processed. We begin by reviewing these two

concepts in context.

3 ISLANDS AND TREES

An Abstract Syntax Tree (AST) is a tree structure of

the syntax of a program, in which each block – such

as an if-statement, variable assignment, or function

call – is a node with child nodes consisting of

attributes of that block and other blocks inside that

block. ASTs are generally used by compilers during

semantic analysis when language-specific errors,

such as type mismatch or out-of-scope variable

usage, are caught. ASTs are also generally used by

code analysis tools and IDEs such as Eclipse, as they

present the code in a detailed manner that is easy to

parse for specific types of blocks. MLSA uses the

AST specifically generated by Clang for C/C++

programs (e.g., Figure 2); the Python ast module is

used for Python and SpiderMonkey is used for

JavaScript.

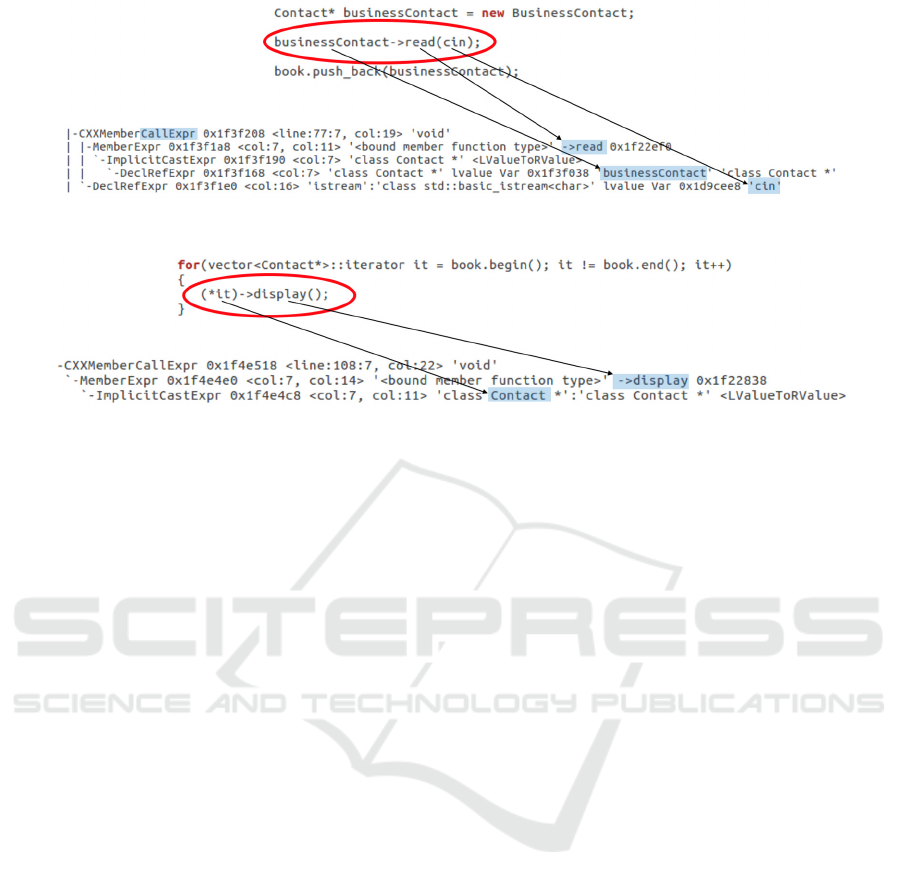

Figure 2 depicts how a function call in a program

is expressed in the Clang AST. The function call

node is identified by the keyword CallExpr or

CXXMemberCallExpr for member functions. The

name of the function, read, is a child node of the

CallExpr node, and the name of the object that

calls the member function, businessContact, is

a child node of the function’s name. The nodes

provide detailed information, such as each node’s ID

and the class, Contact, of the object. There is one

other child node of the CallExpr node, which is

the argument of the function call. The node states

the name of the argument, cin, the class,

istream, and the variable ID.

Leveraging the AST to analyze the code is

advantageous because:

• The AST provides ample information for

each node, including type and class without

recourse to the source code.

• The tree structure allows for easy parsing

(again, as compared to the source code).

• The AST allows for dynamic dispatch by

displaying dynamic class types for iterators

as simply class identifiers (Figure 3), which

otherwise might be difficult to extract.

Figure 3 depicts the Clang AST translation of an

iterator. The class associated with the member

function, display, is not of the iterator, but of the

class of the object to which the iterator points. This

allows the resulting call graph to display the correct

class associated with the function.

An Island Grammar (IG) (Moonen, 2002)

(Synytskyy, Cordy, and Dean, 2003) is a Context-

Free Grammar (CFG) that catches a specific lexicon

(island) and ignores all the rest (water). While other

CFGs operate by either accepting a word that

belongs to the Context-Free Language (CFL) or

rejecting a word that does not, an IG accepts all the

ICSOFT 2018 - 13th International Conference on Software Technologies

330

words that belong to the language and ignores the

rest. According to (Moonen, 2002), an Island

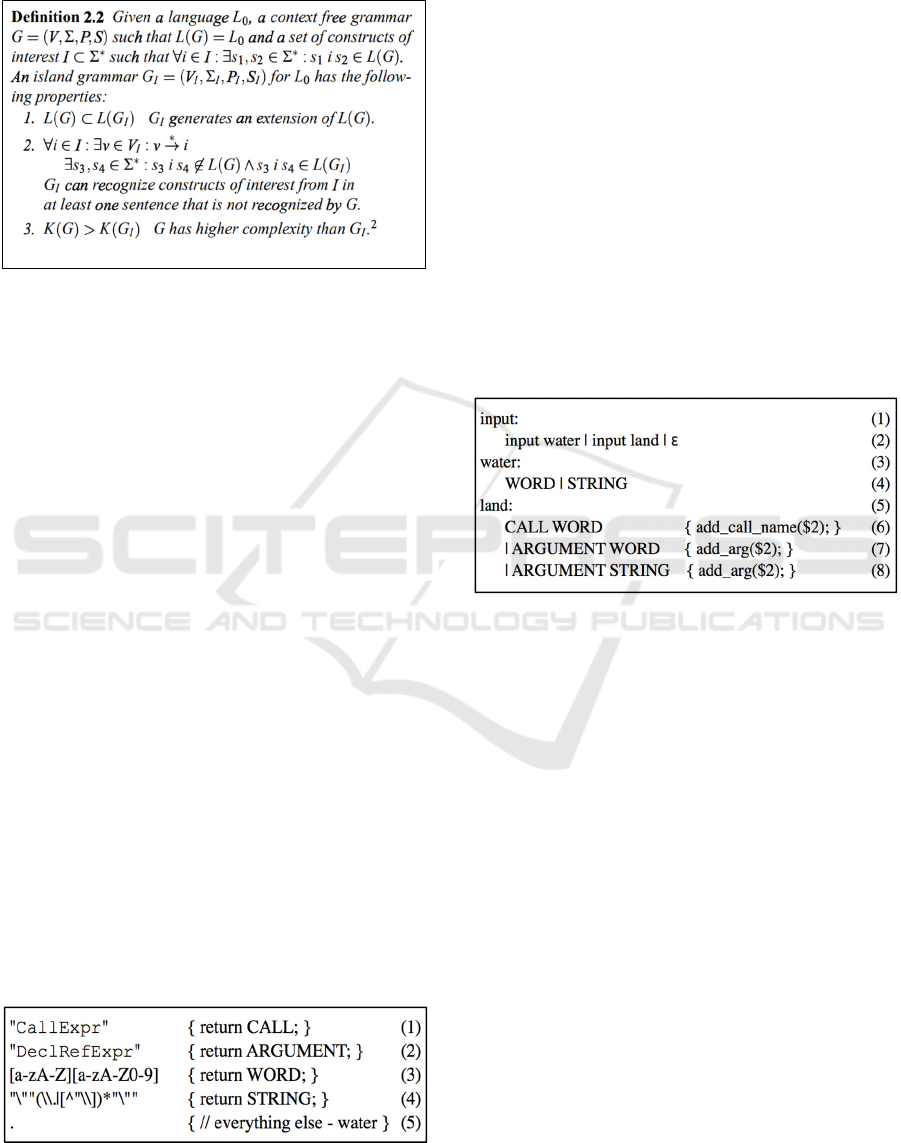

Grammar can be defined as follows:

An IG is a good choice for parsing an AST

because of the following:

• IGs are fast, because they will only search

for specific words in an AST (and ignore

the rest – and ASTs can be large).

• IGs are robust because the rules only apply

to a small portion of the AST and are

unaffected by the context or syntax changes

in the remaining AST.

In (Moonen, 2002), the Syntax Definition

Formalism (SDF) (Heering, Henriks, Klint, and

Rekers, 1989) is used to present IGs; here we chose

to use the common tools Bison and Flex. Flex

defines the specific lexicon that the grammar

accepts, such as certain keywords in the AST, e.g.,

CallExpr. Flex also uses regular expressions to

catch groups of words. For example:

“\””(\\.|[^”\\])*”\””

will catch all the strings in the textual AST. When

these keywords or defined groups of words are

caught and recognized by the program, Flex sends a

token identifying the word to Bison. The Bison

program defines the CFG by a collection of rules

using terminal and non-terminal language symbols.

All of these symbols are defined in Flex as the

lexicon. Once a word is accepted in Bison, C++ is

used for further evaluation to create an output CSV

format data file with all the function calls and their

related information.

Figure 4: Flex Lexical Syntax.

Figure 4 depicts a simplified version in Flex of

the lexical syntax of the C/C++ AST for extracting

function calls. In line 1, CallExpr is the keyword

used in the AST to denote that the block pertains to a

function call. When this line is found in the AST,

Flex returns the token CALL. Line 2 is similar, but

the keyword DeclRefExpr is in connection with

an argument of the function call.

Lines 3 and 4 utilize regular expression in lieu of

a keyword. Anytime Flex comes across a word (or

group of words in the case of a string) that fits the

regular expression, the appropriate token is returned.

In line 5, the period (.) represents everything else

that Flex could potentially come across that was not

specifically defined. This is considered water.

Because there is no code associated with the period,

Flex is instructed to do nothing, or ignore the

lexicon. Thus, Flex only acts when a line in the AST

could potentially be useful in obtaining details about

function calls.

Figure 5: Bison Context-Free Syntax.

Figure 5 depicts a simplified version of the Bison

rules for the CFL for finding function calls on the

C/C++ AST. Line 1 is the start nonterminal symbol,

input. Every word in the AST starts its analysis at

input. The recursive rule for input is in line 2. input

is either replaced by the nonterminal symbol water

or land. The terminal epsilon (ɛ) ends the recursion.

The rules for the nonterminal symbol water are

stated in lines 3 and 4. Water can either be replaced

by the terminals WORD or STRING, which are

defined in Figure 4 on lines 3 and 4 respectively.

The nonterminal water ensures that any WORD or

STRING that is found in the AST outside of the

specific lines for function calls are ignored.

The rules for the nonterminal symbol land are

found in lines 5 through 8. The first terminal option,

on line 6, states that every time the token CALL is

found in the AST, which is represented by the

keyword CallExpr defined in Figure 4 line 1,

there will be a token WORD, also defined in Figure

4, immediately afterwards. The C++ code associated

with this rule then sends the string value of WORD,

Lightweight Call-Graph Construction for Multilingual Software Analysis

331

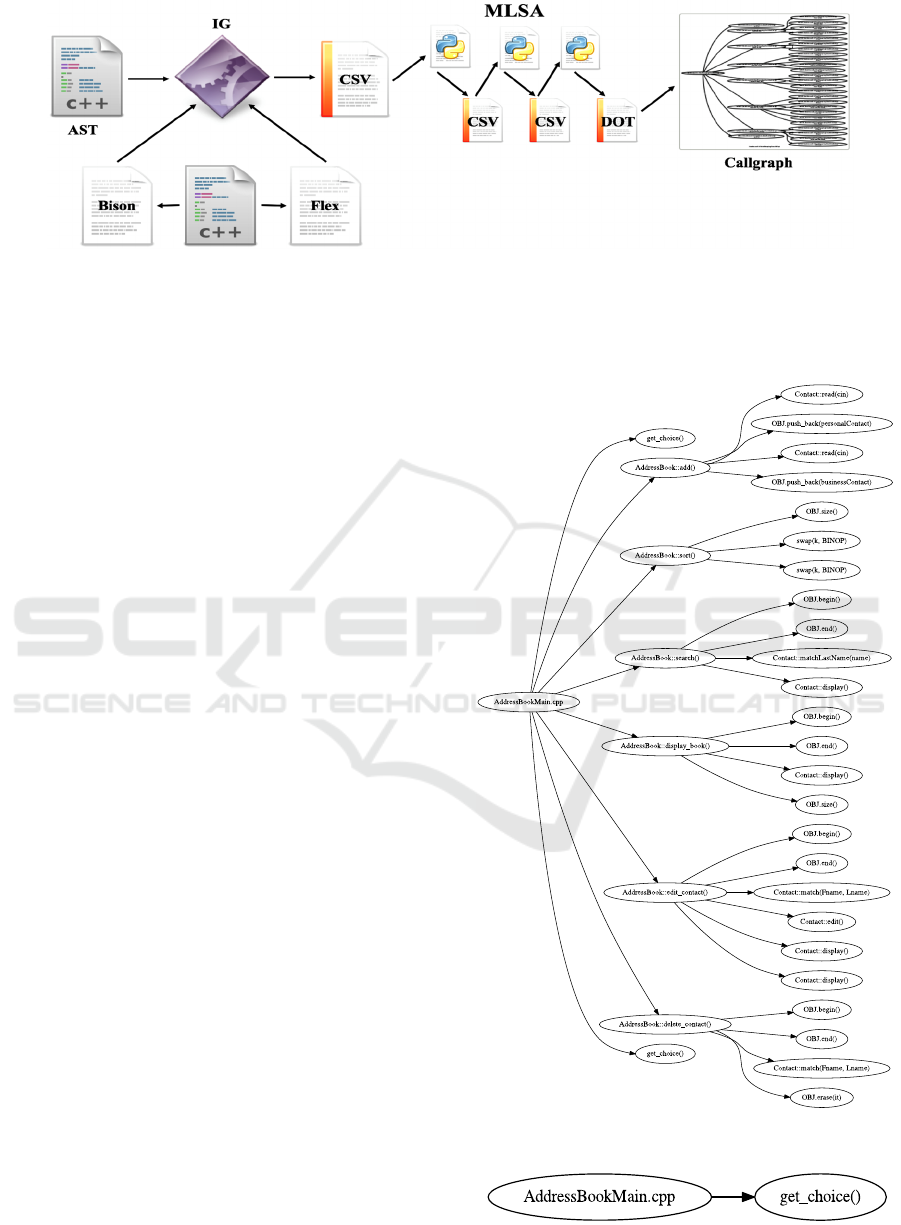

Figure 6: MLSA Architecture with Island Grammar.

(in the variable $2), to the PAIGE function

add_call_name.

The second option, on line 7, is for when the

AST comes across an argument block in which the

argument is a variable. The token ARGUMENT,

which is defined in Figure 4 line 2, begins the line

and is immediately followed by a WORD token,

which is the variable name of the argument. The

value of WORD is then sent to the function

add_arg.

The last option, on line 8, is chosen when an

ARGUMENT token is followed directly by a

STRING token, defined in Figure 4 line 4. Similar to

line 7, the value of STRING is sent to add_arg on

line 8.

4 CALL GRAPH ANALYSIS

The PAIGE filter is the first step in the production of

a multilingual call graph. These call graphs contain

the name of the function called as well as the

arguments in the call and the class (if the function is

a member function). In the MLSA architecture,

illustrated in Figure 1, the PAIGE filter is at the

monolingual level, where programs are analyzed

separately depending on the language. An IG for

function calls is designed for each language to be

processed. Our examples are limited to C/C++ in

this paper; we have built IGs also for Python and

JavaScript. The IG for C/C++ function calls was

designed to analyze the Clang AST; it was written

specifically to fit the C/C++ AST format and

keywords. The IG analyzes the AST and prints the

results in a CSV format output data file, which can

then be analyzed in MLSA’s multilingual level, as

shown in Figure 6. The multilingual level

incorporates all programs, regardless of language, to

create a multilingual call graph in a CSV format

output file. The open source Graphviz program is

used to generate a DOT format file containing a

visual representation of the call graph; Figure 7

shows an example call graph generated by PAIGE.

Figure 7: Example C++ Call Graph.

Figure 8: Straightforward Call Graph.

ICSOFT 2018 - 13th International Conference on Software Technologies

332

Figure 9: More Involved Case Call Graph.

Figure 8 is a simple call graph generated by

MLSA. get_choice is a function defined in the

body of the C++ program,

AddressBookMain.cpp. The function is called

by the main function in the program. get_choice

also has no arguments passed to it. These three

factors make the function call quite simple to parse

and display. The IG need only retrieve the name of

the function called and the scope of where that

function was called (for this example the scope

would be the main function in

AddressBookMain.cpp).

Figure 9 represents a call graph which is a bit

trickier to parse. In this example, there are functions

called which are defined in three different C++

programs – AddressBookMain.cpp,

AddressBook.cpp and Contact.cpp.

AddressBookMain.cpp can determine that it is

calling display_book from

AddressBook.cpp, but it cannot determine

which functions are called inside

display_book’s definition. Similarly,

AddressBook.cpp can determine that

display_book calls display from

Contact.cpp, but it does not know whether or

not display calls any functions. PAIGE must not

only track which function is being called, but also

which program contains the definition of that

function so that the function calls can be connected

later on in the call graph.

Another complication in this example is that both

display_book and display are class member

functions. The IG must determine that (1) the

function is a member function, and (2) of which

class the function is a member. If the function is a

member of a class defined in the program, the call

graph displays the function name as

Class::function. If the function is a member

of a class defined in a library, the function is

displayed as OBJ.function to distinguish the

two.

The third complication cannot specifically be

detected in the function. Inside the Contact

member function display, match is called via

the implied pointer this, which refers to the object

which called the display function. PAIGE

determines the class of the this pointer, which is

displayed differently in the AST, and presents the

function call as Contact::match in the call

graph.

The function Contact::match also has two

arguments, Lname and Fname. PAIGE must

determine what type of arguments they are – for this

example the two arguments are variables – and the

names of the arguments.

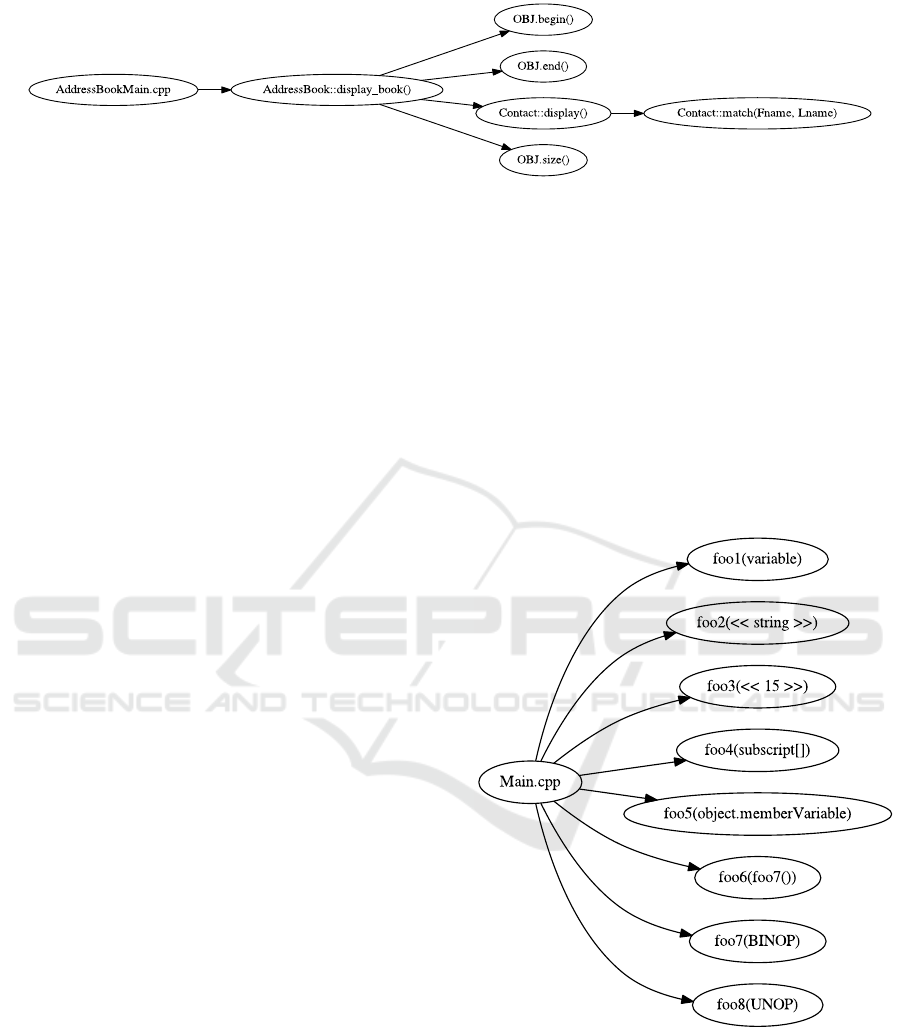

Figure 10: Call graph with Arguments.

The other types of arguments are displayed in

Figure 10. In descending order: (1) variable, (2)

string, (3) integer or double (4) subscript, such as

vector[0], (5) member variable, with the name of the

object, (6) the returned value of another function call,

displayed as the function call, (7) a binary operation,

such as 2+2, (8) a unary operation, such as k++.

Lightweight Call-Graph Construction for Multilingual Software Analysis

333

It was decided early on to have PAIGE produce

a tree structured call graph rather than a general

graph. A tree is arguably a simpler construct for a

designer to understand. Since PAIGE shows call

arguments, different calls to the same function are in

fact different branches anyway, and any recursive

calls are simply marked as recursive leaf nodes.

5 EXPERIMENTATION AND

RESULTS

5.1 Doxygen Comparison

To test the performance of the PAIGE approach, the

call graphs generated by PAIGE were manually

compared to those of the Doxygen automated

documentation system. Doxygen was developed to

automatically generate documentation from source

code, including call graphs. It uses a simple parser

for this and hence is lightweight in a similar sense to

PAIGE and is a good comparison. However, it deals

with the source code directly, whereas PAIGE looks

at the AST.

One hundred C/C++ programs were collected for

the experiment from online source repositories.

Programs were selected only if they produced a

Doxygen graph – that is, they needed to call at least

one function in the main function which was defined

in the program. This is because Doxygen does not

show library function calls in its call graphs.

Programs that included classes were preferred.

Both Doxygen and PAIGE were run on each

program, and the DOT files (visual representation of

the call graph, as in e.g. Figure 7) for each call graph

were manually compared. Because Doxygen

produces a graph and PAIGE produces a tree, only

one node for each function called was kept for

comparison. A better experiment would have been to

compare each individual function call to make sure

all were caught, but since Doxygen only shows one

node per function, this comparison was impossible.

Six features were measured for each call graph:

1. the total number of function calls caught by

each approach,

2. the number of member function calls caught,

3. the number of regular function calls caught,

4. the number of library function calls caught,

5. the number of arguments caught, and

6. the number of programs where recursion is

correctly listed.

Figure 11 shows the results of these six

measurements for the 100-program codebase for the

call graphs generated by Doxygen and those by

PAIGE. As can be seen, PAIGE collects twice as

many function calls as Doxygen, but about ¾ of

those are library function calls that Doxygen does

not show. The remaining ¼ of calls that PAIGE

catches that Doxygen does not are member

functions.

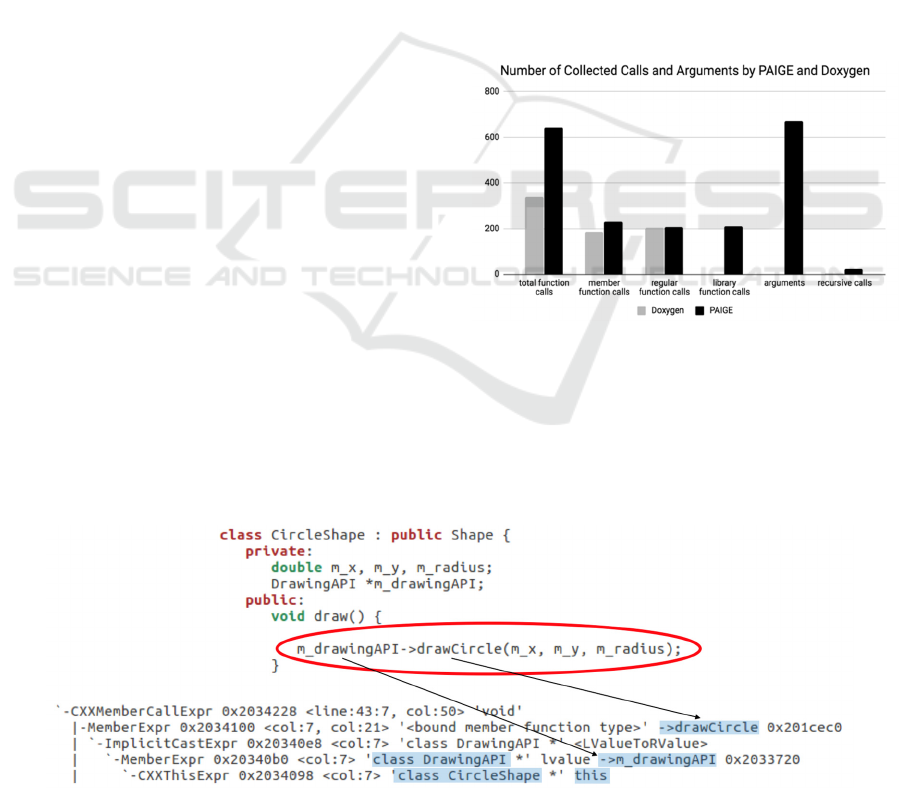

Figure 11: Doxygen and PAIGE Comparison Results.

The main reason that MLSA catches about 45

more member functions than Doxygen is that PAIGE

catches functions that are called with the implied

this pointer. The this pointer is used in member

function definitions and refers to the class object.

The this pointer can either be used when calling a

Figure 12: C++ AST with this Pointer.

ICSOFT 2018 - 13th International Conference on Software Technologies

334

member function of the same class or when

accessing member variables. The pointer can be

implied, meaning that this is not specifically written

but will still be invoked. Because the this pointer

information is explicit in the AST, PAIGE catches

both member functions called inside other member

functions as well as functions of another class called

inside member functions where the object of the

other class is a member variable of the first class.

Doxygen catches neither as it does not parse the this

pointer. An example of how the implied this pointer

looks in the C++ AST is presented in Figure 12.

In Figure 12, m_drawingAPI is a

DrawingAPI-type member variable of class

CircleShape. In the AST, not only is the class of

m_drawingAPI given, but the class of the this

pointer (CircleShape) is also given. Therefore,

PAIGE is able to connect the function

drawCircle to the function definition in the

DrawingAPI class definition.

There are two principal reasons for lapses in

PAIGE’s ability to catch functions that Doxygen

catches. The first principal reason is the state of

development of the Clang AST: it does not currently

accept template classes, for example, and does not

include this code in its AST, so any member

functions of a template class will not be displayed in

a PAIGE call graph. Also, the Clang AST views

static functions as regular functions instead of

member functions and therefore does not include the

function’s class. PAIGE does catch this function, but

displays it as a regular function (and therefore

cannot include any more function calls inside that

function’s definition).

The second principal reason that PAIGE may

catch fewer function calls than Doxygen relates only

to the current PAIGE IG: information is available in

the Clang AST, but has not yet been addressed in the

PAIGE IG. For example, using namespaces in class

definitions: The namespace and class are included in

the function call, but only the class name is included

in the class definition right now, causing some

functions not to show up in the final call graph. But

with some addition to the IG code, this problem

could be easily addressed. Another issue is the use

of function pointers: Doxygen catches the name of

the function, while PAIGE only catches the function

and displays a warning that the name of the function

cannot be caught. The function pointer is displayed

differently in the C++ AST than a regular function

call, so additional work needs to be done to catch the

name of the function. Handling polymorphism also

falls into this class.

One difference between PAIGE and Doxygen is

that PAIGE displays library function calls. This is

necessary because MLSA is meant to process

programs written in multiple computer languages

and display how they interact. Many of these

languages interact through library functions; for

example, Python.h allows python code to be

called in a C/C++ program, so library functions are

key for catching interoperability.

PAIGE also catches all the arguments in call

functions – recall that the PAIGE call graph is a tree

and not a graph – for the same purpose that it

catches library calls. These library functions that

allow interoperability take in arguments that indicate

what cross-language code is being called, giving for

example the name of a program or the actual code

itself.

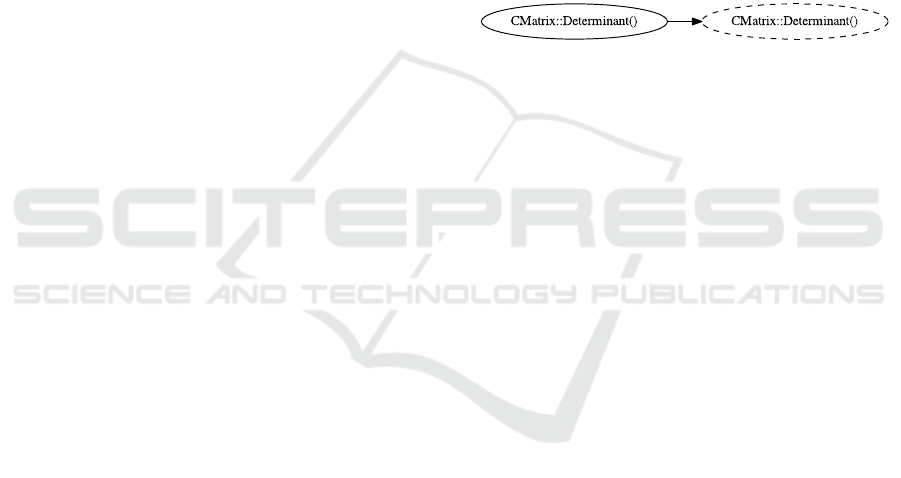

Figure 13: PAIGE Recursive Function.

Lastly, call graphs were compared to determine

whether recursion is displayed correctly. PAIGE

distinguishes a recursive function call by drawing it

as a leaf node and bordering the node in a dotted

line, as seen in Figure 13. Doxygen only caught

recursive functions in two of the 22 programs that

contained recursive functions. Catching recursion is

clearly important for analyzing a program.

5.2 Clang AST for Objective-C

Clang can process Objective-C source code as well

as C/C++ code. In theory, PAIGE should be able to

generate call graphs for Objective-C from the Clang

AST. PAIGE was tested on five Objective-C

programs. In fact, MLSA did catch all function calls

written in the C/C++-format that used the keyword

CallEpr, which some programs included.

However, it could not catch the majority of

Objective-C function definitions and function calls,

as they were displayed in the AST with Objective-C-

specific keywords – ObjCMethodDecl and

ObjCMessageExpr respectively; nonetheless, the

IG parsing did not crash either. Objective-C call

syntax can be easily included into the IG by just

adding a few keywords.

5.3 Time Comparison and Robustness

To evaluate the time performance of the IG

approach, PAIGE was tested against the original call

graph approach used in MLSA – ad-hoc string

Lightweight Call-Graph Construction for Multilingual Software Analysis

335

parsing with Python. Fifty-five of the 100 programs

were chosen on which to test the speed of each

approach’s execution. The programs were chosen

based on the criteria that they could in theory be

correctly processed into a call graph by the ad-hoc

software (which did not handle member functions

among other things). In the experiment, each

program was analyzed with both the ad-hoc

approach and the PAIGE approach, the time for each

program to be analyzed was recorded, and the results

are shown in Figure 14.

As can be seen in Figure 14, PAIGE outperforms

the ad-hoc approach by a factor of about 1:3. PAIGE

averaged a time per program of about 0.15 seconds,

whereas the ad-hoc approach averaged roughly 0.62

seconds per program.

Furthermore, while running the ad-hoc approach

on the 55 programs, the program crashed on 5 of the

runs. The reason for the crash has to do with an

incorrect parsing of the C/C++ AST by the ad-hoc

approach. The approach crashed while searching for

a specific line in the AST. Instead of parsing the

AST by lines and positions, the PAIGE approach

parses the AST by keywords. Not only is this

approach faster, but it also eliminates potential

crashes.

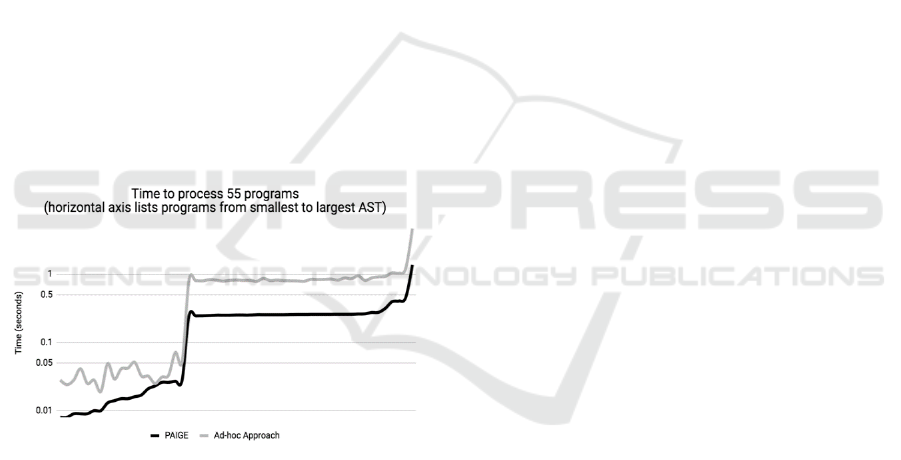

Figure 14: MLSA and PAIGE Time Comparison.

6 DISCUSSION

This paper has presented a novel lightweight tool for

analyzing multilingual codebases, a topic of

increasing importance to large software companies.

Within the context of our ongoing development of

MLSA – an architecture for Multilingual Software

Analysis – we have presented a lightweight and

modular approach to monolingual call graph

generation which can nonetheless provide sufficient

information about function calls and arguments to

allow interoperability API processing and the

construction of a single multilingual call graph from

a set of monolingual call graphs (Lyons, Bogar, and

Baird, 2017). The input to the call graph generator

PAIGE is a monolingual AST. The paper has

focused on a C/C++ monolingual generator using

the Clang AST as input, but we have constructed

similar tools for JavaScript and Python. The Clang

AST is very rich in detail, allowing PAIGE to

address (partially) more difficult issues such as

dynamic dispatch and iterators. An Island Grammars

(Moonen, 2002) was used to specify monolingual

call syntax in a robust (with respect to changes in the

AST syntax) and lightweight fashion. Performance

results were presented to show that PAIGE

performed better than Doxygen, another more

lightweight call graph generator, performed faster

than a call graph generator that processed the AST

text in an ad-hoc fashion, and showed robustness

that the ad-hoc version could not follow.

Many solutions to static call graph extraction

exist (see (Hoogendorp, 2010) for a nice summary).

Techniques for finding the target set of a call

expression such as CHA (Dean, Grove, and

Chambers, 1995), RTA (Bacon and Sweeney, 1996),

XTA (Tipp and Palsberg, 2000) are obliged to do

extensive reasoning about the program. By

leveraging the AST, PAIGE offloads this reasoning

to the compiler. This is a sensible division of

responsibilities; compilers will improve or change in

functionality to reflect the needs of the programming

community, and PAIGE can benefit from this trend.

PAIGE is not alone in using an AST for input;

The Eclipse IDE make the compiler AST available

for static analysis applications. However, many

approaches go the route of Doxygen and write their

own parser (e.g., Rigi (Kienle and Müller, 2010)) –

resulting in a potentially poorer performance than

using a full compiler, as seen here for Doxygen.

PAIGE has a specific parser – a very simple one

thanks to the use of Island Grammars – but it applies

this to the AST rather than the source code, and

hence is a good balance of lightweight and yet

strong performance. The MLSA software repository

containing the PAIGE software can be made

available by emailing the paper authors.

ACKNOWLEDGEMENTS

The authors acknowledge the contributions of Bruno

Vieira and Sunand Raghupathi in developing the

results in this paper. The authors are partially

supported by grant DL-47359-15016 from

Bloomberg L.P.

ICSOFT 2018 - 13th International Conference on Software Technologies

336

REFERENCES

Ali, K., and Lhotak, O. (2012). Application-only Call

Graph Construction. ECOOP'12 Proceedings of the

26th European Conference on Object-Oriented

Programming. Beijing.

Bacon, D., and Sweeney, P. (1996). Fast static analysis of

C++ virtual function calls. 11th ACM SIGPLAN Conf.

on OO Prog. Sys., Lang and App.

Barrett, D., Kaplan, A., and Wileden, J. (1996).

Automated support for seamless interoperability in

polylingual software systems. 4th ACM SIGSOFT

symposium on Foundations of software engineering.

New York.

Dean, J., Grove, D., and Chambers, C. (1995).

Optimization of object-oriented programs using static

class hierarchy analysis. LNCS 952, 77-101.

Heering, J., Henriks, P., Klint, P., and Rekers, J. (1989).

The Syntax Definition Formalism SDF. ACM

SIGPLAN Notices, 24(11).

Hoogendorp, H. (2010). Extraction and Visual

Exploration of Call Graphs for Large Software

Systems. Groningen Netherlands: University of

Groningen MS Thesis.

Kienle, H., and Müller, H. (2010). Rigi—An environment

for software reverse engineering, exploration,

visualization, and redocumentation. Science of

Computer Programming, 75(4).

Lyons, D., Bogar, A., and Baird, D. (2017). Lightweight

Multilingual Software Analysis. 12th Int. Conf. on

Software Technologies (ICSoft). Madrid, Spain.

Mayer, P. (2017). A taxonomy of cross-language linking

mechanisms in open source frameworks. Computing,

99(7).

Moonen, L. (2002). Lightweight Impact Analysis using

Island Grammars. 10th IEEE International Workshop

on Program Comprehension (IWPC '02). Washington

DC.

Mushtak, Z., and Rasool, G. (2015). Multilingual source

code analysis: State of the art and challenges. Int.

Conf. Open Source Sys. and Tech.

Nielson, F., Nielson, H., and Hankin, C. (2005). Principles

of Program Analysis. Springer.

Srivastava, A. (1992). Unreachable procedures in object-

orieted programming. ACM Lett. Prog. Lang. Sys.,

1(4).

Synytskyy, N., Cordy, J., and Dean, T. (2003). Robust

multilingual parsing using island grammars. Proc.

2003 conference of the Centre for Advanced Studies

on Collaborative research (CASCON '03).

Tipp, F., and Palsberg, J. (2000). Scalable Propagation

based call graph construction methods. ACM

SIGPLAN Notices, 35(10), 281-293.

Lightweight Call-Graph Construction for Multilingual Software Analysis

337
