Opening up New Fail-safe Layers

in Distributed Vehicle Computer Systems

Johannes Büttner, Markus Kucera and Thomas Waas

Ostbayerische Technische Hochschule Regensburg,

Faculty of Computer Science and Mathematics,

93053 Regensburg, Germany

Keywords:

Automotive, System Architecture, Safety Against Failure.

Abstract:

The automotive industry currently faces several challenges, including a growing complexity in system ar-

chitecture. At the same time, the task load as well as the needs for performance increase. To address this

problem, the A3F

research project evaluates scalable distributed concepts for future vehicle system architec-

tures. These can be seen as comparable to cluster-computing systems, which are applied in high-performance

or high-availability use-cases. Methods used in such scenarios will also be important features in future vehicle

architectures such as horizontal application scalability, application load balancing and reallocation, as well as

functionality upgrades triggered by the user.

This paper focuses on concepts and methods for the reliability of applications and hardware in future in-vehicle

distributed system architectures. It is argued that future automotive computing systems will evolve towards

enterprise IT systems similar to today’s data centers. Furthermore, it is stated these vehicle systems can beneﬁt

greatly from IT systems.

In particular, the safety against failure of functions and hardware in such systems is discussed. For this purpose,

various of such mechanisms used in information technology are investigated. A layer-based classiﬁcation is

proposed, representing the different fail-safe levels.

1 INTRODUCTION

Digitilisation has brought about enormous change in

many industrial sectors over the last two decades.

Through a higher online presence of individuals and

the associated expansion of IT infrastructures, such as

cloud computing services providers have been using

highly scalable, distributed systems productively for

years in order to ensure high availability and high per-

formance of their services – even under strongly ﬂuc-

tuating user numbers. Important features of such sy-

stems are ﬂexibility and the possibility of continuous

further development of both the applications offered

and the infrastructures themselves (upgradeability).

On the other hand, the size and complexity of

control software is increasing in the automotive in-

dustry, as (Reinhardt et al., 2016) notes. This is

accompanied by the need for increasing calculation

speeds and a higher communication bandwidth bet-

ween the software components. However, the hetero-

“Ausfallsichere Architekturen für Autonome Fahrzeuge”

– fail-safe architectures for autonomous driving vehicles

geneous network infrastructures in current vehicles is

reaching their limits (Weckemann, 2014). Assuming

that future connected cars as well as automated dri-

ving vehicles will require even more communication

bandwidth, the current network infrastructure is not a

proﬁtable option for such vehicles.

In addition, changing user expectations demand

ﬂexible architectural patterns and upgradeability wit-

hout the need to visit a garage. This establishes new

business models (“pay-per-use”). Instead of purcha-

sing special equipment-functions which require their

own ECU, customers should be able to subscribe to

or unsubscribe from that function in the future on de-

mand and without the need for costly hardware in-

terventions. Similar business models have been used

successfully in enterprise IT and cloud computing for

years. This also enables manufacturers to integrate

security-relevant, error-repairing or simply function-

enhancing software updates with little effort. Howe-

ver, the current, statically developed and conﬁgured

ECU topology does not offer any practicable possibi-

lities for this.

Büttner, J., Kucera, M. and Waas, T.

Opening up New Fail-safe Layers in Distributed Vehicle Computer Systems.

DOI: 10.5220/0006903600980102

In Proceedings of the 8th International Joint Conference on Pervasive and Embedded Computing and Communication Systems (PECCS 2018), pages 98-102

ISBN: 978-989-758-322-3

The desired ﬂexibility requires a fundamental re-

vision and redesign of the actual in-vehicle system

architectures. This is accompanied by the conver-

sion of structures and development processes of the

corresponding manufacturers (Conway, 1968). This

trend can often be found under the heading “service-

oriented architecture”. A new type of system architec-

ture is expected to meet future requirements in terms

of space, cost, performance and energy consumption

of the computing units in the vehicle, which arise on

the one hand as a result of applications such as au-

tomated driving, and on the other hand as a result of

changed user expectations.

Flexible, service-oriented architectural patterns

have proven themselves in information technology for

years. With the increasing spread of key technologies

such as automotive Ethernet and the use of service-

oriented architectures in vehicles, the synergy poten-

tial between these sectors is increasing (Doherty et al.,

2004). Therefore it naturally comes to mind to inves-

tigate technologies and concepts from the IT sector

and to evaluate their usability in the vehicle.

2 APPROACH OF THIS

RESEARCH

A similar development has taken place in the ﬁeld of

enterprise IT (cluster computing). Technologies such

as Ethernet, virtualization and ﬂexible software archi-

tectures have proven themselves here for years. Re-

levant infrastructures, for example from cloud com-

puting providers have commonly been used in high-

performance or high-availability applications. In the

research project A3F we investigate which of these

concepts and methods can be applied to modern vehi-

cle system architectures. Among other things, the aim

is to assess the synergy potential of the two sectors in-

formation technology and automotive industry, which

to date have very different orientations. However, this

synergy is expected to grow strongly in the course of

the developments mentioned above.

The aforementioned investigations are carried out

using a test cluster. In the following, the hardware

and software of this cluster and the reasons for their

selection will be discussed brieﬂy.

2.1 Hardware

Many applications of modern in-vehicle functions pri-

marily require high processing speeds, but are not de-

pendent on speciﬁc surrounding hardware and thus

can be executed on generic processors. Examples

of this are multimedia applications, algorithms for

image processing or calculations of optimal vehicle

speeds and routes.

In the A3F project, a computer cluster consisting

of sev- eral nodes is proposed, on which performance-

demanding and computation-intensive applications

are executed, e.g. the calculation of optimal vehicle

speeds and routes, but no real-time control functions.

We believe that such functions as well as special

control devices for actuators, sensors and possible ga-

teways for bus systems will continue to exist and re-

main connected to the computer cluster. The functi-

ons running on such a cluster should be executable on

almost any node.

There are several reasons why this is desirable:

• scalablility: It becomes easy to implement vehi-

cle platform equipment with a variable number of

computing units, which can be higher in premium

vehicles than in cheaper models, for example. At

the same time, it is possible to make simple chan-

ges to this equipment if required, for example if

a customer wishes to purchase additional features

and the existing hardware is no longer sufﬁcient.

• safety against failures: Certain functions must

be highly available for security reasons. These

can be executed redundantly on various nodes.

Furthermore, in case of hardware errors, software

functions can be moved to other nodes.

• performance: It is expected that a computer clus-

ter will provide enough computing power to solve

the tasks faced in autonomous vehicles.

• independence of manufacturers: By using generic

hardware units, these are interchangeable and ma-

nufacturers no longer have to keep their control

units in stock for decades.

• upgradeability: By enabling dynamic allocation

of functions to nodes, both hardware and software

can be easily exchanged, added or upgraded.

The proposed system consists of several Intel

NUC-Kits. These are often used in the relevant ﬁelds

as examples of homogeneous, powerful but generic

hardware units with high resources (e.g. CPU, RAM).

They are connected via an Ethernet network.

2.2 Software

The architecture examined in this project should make

it possible to ﬂexibly retroﬁt software updates into the

computer cluster. It should therefore be possible to

run individual applications on any node in the cluster,

largely independently of speciﬁc hardware. In addi-

tion, several software functions should be able to be

executed on individual hardware units. In addition, it

is evaluated whether and how functions can be added

Opening up New Fail-safe Layers in Distributed Vehicle Computer Systems

at runtime, moved within the cluster or updated (for

security updates, for example).

As frequently seen in cluster computing architec-

tures, the overall system is designed such that appli-

cations are not tightly coupled to a speciﬁc computing

unit. Instead, we use a container engine to encapsu-

late applications with their runtime environment and

dependencies. In this way, the infrastructure gains the

necessary ﬂexibility so that live migrations of appli-

cations between different computing units can be car-

ried out. Moreover, this provides an easy way to mo-

nitor applications per process as each container typi-

cally includes only one process. Finally, containers

offer a simple way to limit the resource consumption

of an application.

This step implies a fundamental redesign of the af-

fected software and ECU architecture of todays vehi-

cles, as some basic assumptions of traditional E/E ar-

chitectures become invalid. At the same time, the

shift towards distributed systems took place years ago

in a similar form in enterprise IT and cloud computing

infrastructures. The extent to which applied techno-

logies and concepts can be applied in modern vehicle

architectures will therefore be examined.

However, this requires a precise knowledge and

examination of the technical details and problems of

both sectors. Since safety is a high priority in the au-

tomotive sector, an overview of the various possibi-

lities for implementing safety against failures in IT

server systems is presented in this paper.

3 FAILOVER STRATEGIES

Looking at the various fail-safe mechanisms of server

systems used in information technology, one will ﬁrst

realize that there are a multitude of possibilities for

realizing this. Speciﬁcally, as depicted in 1, such sy-

stems can be divided into several logical layers, and

there are different approaches and procedures, depen-

ding on the level at which failover is implemented.

Therefore, the different layers of such a system will

be discussed in the following.

3.1 Logical Layers of Distributed

Systems

The layers mentioned above are in principle layers of

abstraction designed to ensure interoperability and in-

terchangeability. Fixed interfaces are deﬁned for the

levels adjacent above and below, so that the concrete

implementation of a level only has to adhere to these

interfaces. First of all, it should be mentioned that any

VMware ESXi, HyperV, Xen

CPU, RAM, Storage, Network

CORBA, MSMQ

Middleware

CentOS, Debian, ResinOS, CoreOS

Docker, rkt, LXC, OCI

Container

Hypervisor

Hardware

C, C++, Java, Erlang, ...

Applikation

Figure 1: Logical Layers of Distributed Systems, with ex-

amples.

number of layers can be deﬁned, which - depending

on the complexity of the respective application case -

represent a reasonable abstraction or an unnecessary

complication. An example of a proven layer model is

the well-known Open Systems Interconnection mo-

del (OSI model). It deﬁnes seven layers with which

communication between computing units in computer

networks can take place. This model is standardized

and is used to cope with the complexity of communi-

cation systems.

Such a model can also be deﬁned for server sy-

stems, although there is no standardized form here.

However, speciﬁed interfaces between the layers do

exist. In the course of this work the different levels

are needed for a classiﬁcation.

Hardware. The lowest level represents the physical

hardware of a computer system, such as CPU, me-

mory or non-volatile memory. Connections to perip-

heral devices and the network infrastructure also be-

long to this level.

Hypervisor. On server systems, virtual machines

have been used almost exclusively for several years.

These allow the often generously dimensioned resour-

ces of a server to be divided into smaller segments,

each equipped with its own operating system and ful-

ﬁlling its own task. In this way, several small servers,

each of which previously required its own hardware,

are merged on more powerful servers. A hypervisor

is used here as the administration instance. This is

shown schematically in ﬁgure 2.

Operating System. Servers today mostly use

Linux-based operating systems. Applications or pro-

grams are then programmed against a special standar-

dized interface (e.g. POSIX). One of the most impor-

tant tasks of an operating system in this context is to

run programs largely hardware-independent. An ope-

rating system must therefore have an exact knowledge

of the hardware on which it was installed.

PEC 2018 - International Conference on Pervasive and Embedded Computing

100

Hypervisor

App

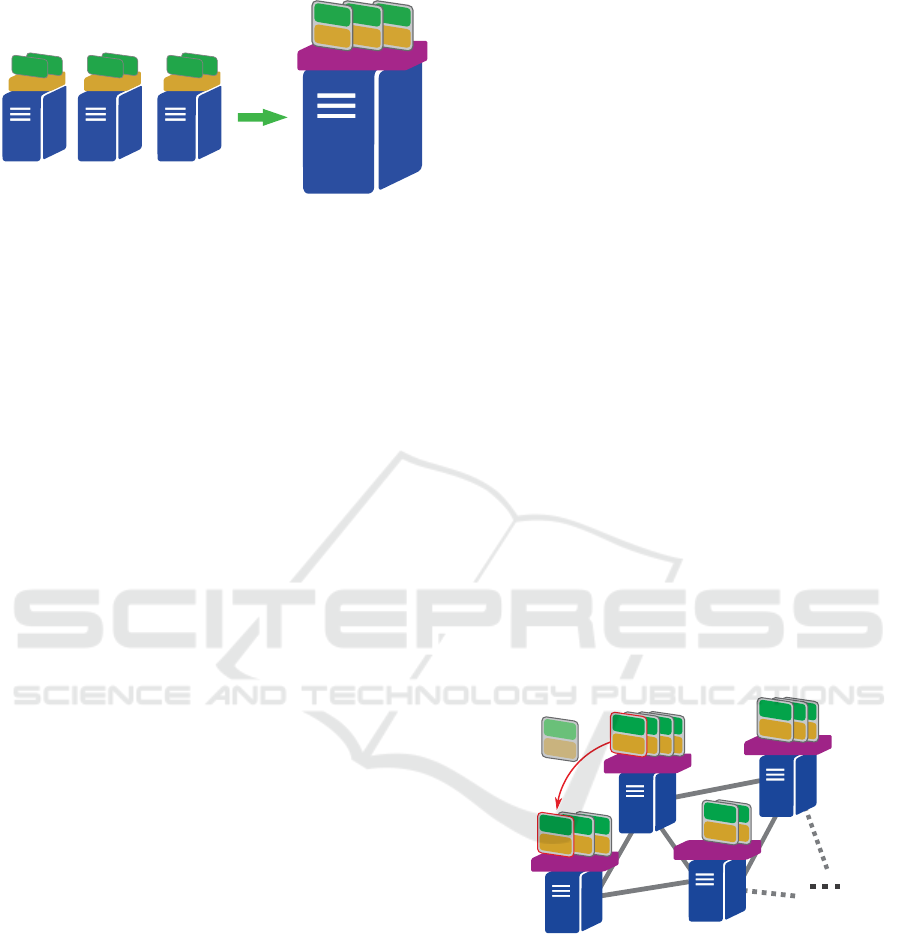

Figure 2: Consolidation of multiple small servers on power-

ful servers with hypervisor.

Container. With the arrival of web-distributed sys-

tems and applications that can be ﬂexibly scaled to be-

tween a thousand and ten thousand instances depen-

ding on the load, the virtual machine is once again of

lesser importance because it is too heavy to guarantee

this type of ﬂexibility. Examples include e-commerce

systems such as eBay or amazon, or media streaming

services such as Netﬂix or Spotify. To improve cus-

tomer satisfaction, they strive for constant availability

of their services - even under strongly ﬂuctuating user

numbers.

Lighter virtualization technologies, called contai-

ners, have therefore become established for such ap-

plications. As opposed to virtual machines, these do

not require their own operating system. Such contai-

ners can be started up at high speed on computers in

the event of an increase in user requests. Correspon-

ding investigations(Xavier et al., 2013) have shown

that container technology is superior to the virtual

machine in its performance. However, some ques-

tions remain unanswered with regard to security as-

pects(Mohallel et al., 2016) that do not arise with a

virtual machine.

Middleware. Middleware refers to one or more ab-

straction layers that ensure interoperability and trans-

parency. The exact deﬁnition is seen differently in the

literature. It is typically intended to hide the under-

lying infrastructure from application developers, thus

relieving them from paying attention to certain techni-

cal details, so that they can concentrate on the functi-

onalities. It can also add additional technical, non-

functional features.

There are different types of middleware. On the

one hand, there is the Remoting Middleware, which

enables method calls via the network. Examples are

CORBA, Java RMI and .NET Remoting. On the ot-

her hand, there is the messaging middleware, which

deals with communication with other components via

messages. Examples are MSMQ or MQSeries; there

are also standards such as MQTT.

Application. The application level represents the

highest level in a distributed server system and con-

tains the actual logic and functionality. Such applica-

tions are written in a programming language like C,

C++ or Java. They are closely linked to the operating

system on which they are to be executed.

After this classiﬁcation, we examine at which le-

vel existing fail-safe mechanisms are implemented

and which advantages and disadvantages result from

this.

3.2 Fail-safe Layers

There are various possibilities to realize safety against

failure. Characteristic for the strategies presented

here is that the task of one application is taken over by

a second (backup) application in the event of an error,

so that the overall system never fails. This strategy is

often referred to as „fail-operational“. It differs from

conventional strategies, which often only provide for

the safety-critical function to be switched off in the

event of a fault (fail-safe). It is assumed here that the

correct function of an automotive ECU can be gua-

ranteed by maintaining it - in the event of an error or

component failure - by a second, redundantly running

ECU. In addition, applications should be able to mi-

grate to a second ECU at runtime in order to be able to

reconﬁgure the entire system in the event of an error.

This corresponds to the usual procedure in the server

environment and is shown in 3.

Hypervisor

App

Hypervisor

App

Hypervisor

App

Hypervisor

App

Figure 3: Moving or migrating applications at runtime.

Hypervisor-layer. The hypervisor provider VM-

ware offers “vSphere FT” (VMWare, 2013) (Fault To-

lerant), which provides a solution to mirror calculati-

ons on one machine redundantly on a second virtual

machine in real time. If the active machine fails, the

backup machine takes over.

It should be noted that the failure of the ﬁrst ma-

chine must be detected very quickly. Since the so-

lution is designed to meet the requirements of Enter-

prise IT, in which a few seconds of downtime can cost

thousands of dollars but not human lives, it must be

Opening up New Fail-safe Layers in Distributed Vehicle Computer Systems

101

carefully examined whether such technologies can be

used in an automotive application with safety-critical

software. In addition, the constant alignment of the

two machines requires a high communication band-

width, which, although not a problem in a server en-

vironment, is again subject to different requirements

(EMC) in the vehicle and cannot necessarily be gua-

ranteed. The strategy of machines running in lock-

step, however, offers a high degree of reliability under

certain conditions and time requirements. The deter-

mination of exact times and concrete measurements is

no longer part of this work, but will be carried out in

a follow-up examination.

Container-layer. There are also solutions at contai-

ner level, such as the open source orchestration tool

„Kubernetes“ developed by Google, which offers the

possibility of running applications in containers re-

dundantly. Containers can encapsulate the executa-

bles of the application and all dependencies without

sacriﬁcing the performance of operating system vir-

tualization.

However, the disadvantage in terms of failover is

the lengthy detection of a failure, which is even lon-

ger than the VMware solution described above. In

general, the tool is more designed for scalability of

services and only offers good reliability mechanisms

at ﬁrst glance. These are not applicable to future auto-

motive control units; however, the container concept

could well be used here in general, since they offer

a high degree of ﬂexibility with simultaneous small

performance losses.

Application-layer. Concepts to ensure the reliabi-

lity of services at application level were also exa-

mined in the context of the work. Programming

languages (e.g. Erlang) or application frameworks

(e.g. Akka) with corresponding features are used. Ap-

plication developers use these features to distribute

the programs on a network of servers.

This offers the highest degree of ﬂexibility and

ﬁne granularity. Only those parts of a program that re-

ally need it can be designed redundantly. In addition,

the most reliable way to detect a failure is from the

application logic. However, the most capable develo-

pers are required for this. This type of programming

is perceived as particularly difﬁcult, but is ultimately

the safest option.

4 CONCLUSION

In this paper, fail-safe mechanisms on different levels

of a distributed system were presented. The closer

these mechanisms are placed near the hardware, the

faster and safer a redundant conﬁguration of several

processing units can be implemented. However, in

this case the ﬂexibility decreases and the performance

overhead increases. The more application-speciﬁc a

redundancy mechanism is, the lighter and ﬁner gra-

nular it can be.

However, redundancy alone is no guarantee for sa-

fety against failures, since failure detection cannot of-

fer sufﬁcient coverage when not taking all system’s

layers into account. Therefore mechanisms to imple-

ment this safety measures within all layers of the fra-

mework have to be provided.

ACKNOWLEDGEMENT

The authors gratefully acknowledge the ﬁnancial sup-

port by the Bavarian Ministry of Economic Affairs,

Energy and Technology, funding progamme “Infor-

mation and Communication Technology Bavaria” as

well as the support by project management organiza-

tion VDI/VDE Innovation + Technik GmbH.

REFERENCES

Conway, M. E. (1968). How do committees invent. Data-

mation, 14(4):28–31.

Doherty, P., Haslum, P., Heintz, F., Merz, T., Nyblom, P.,

Persson, T., and Wingman, B. (2004). A distributed

architecture for autonomous unmanned aerial vehicle

experimentation. In Distributed Autonomous Robotic

Systems 6, pages 233–242. Springer.

Mohallel, A. A., Bass, J. M., and Dehghantaha, A. (2016).

Experimenting with docker: Linux container and base

OS attack surfaces. In 2016 International Conference

on Information Society (i-Society), pages 17–21.

Reinhardt, D., Kühnhauser, W., Baumgarten, U., and Ku-

cera, M. (2016). Virtualisierung eingebetteter Echt-

zeitsysteme im Mehrkernbetrieb zur Partitionierung

sicherheitsrelevanter Fahrzeugsoftware. Universitäts-

verlag Ilmenau, Ilmenau. OCLC: 951392623.

VMWare (2013). Wie die Fault Tolerance funktionert.

Weckemann, K. (2014). Domänenübergreifende Anwen-

dungskommunikation im IP-basierten Fahrzeugbord-

netz. PhD thesis, lmu.

Xavier, M. G., Neves, M. V., Rossi, F. D., Ferreto, T. C.,

Lange, T., and De Rose, C. A. F. (2013). Performance

Evaluation of Container-Based Virtualization for High

Performance Computing Environments. pages 233–

240. IEEE.

PEC 2018 - International Conference on Pervasive and Embedded Computing

102
