Variability Modelling for Elastic Scaling in Cloud Computing

Mohamed Lamine Berkane

, Lionel Seinturier

and Mahmoud Boufaida

Computer Science Department, LIRE Laboratory, University Constantine 2, Algeria

University of Lille and Inria, CRIStAL UMR CNRS 9189, France

Keywords: Elasticity, Cloud Computing, Feature Model, Self-adaptive Systems, Variability.

Abstract: Elasticity is an increasingly important characteristic for cloud computing environments, in particular for

those that are deployed in dynamically changing environments. The purpose is to let the systems react and

adapt the workload on its current and additional (in an autonomic manner) hardware and software resources.

In this paper, we propose an approach that allows the combination of variability and reusability for

modelling elasticity. The used approach is based on self-adaptive systems and feature modelling into a

single solution. We show the feasibility of the proposed model through Znn.com scenario.

1 INTRODUCTION

Cloud computing represents one of major innovation

in Information Technology (IT). It describes a model

for enabling convenient, on-demand network access

to a shared pool of configurable computing

resources (e.g., networks, servers, storage,

applications, and services) that can be rapidly

provisioned and released with minimal management

effort or service provider interaction (Mell and

Grance, 2011).

One of the important characteristics provided by

cloud computing is elasticity. This concept permits a

system to adapt the workload on its current and

additional (in an autonomic manner) hardware and

software resources (Herbst et al., 2013). The

management of elasticity can be split in two

methods: horizontal scaling and vertical one. The

horizontal scaling permits to scale resources by

changing the number of virtual machines (adding

more virtual machines or devices to the computing

platform). The vertical scaling allows adding more

CPU, memory and disk depending on the application

memory, storage and network bandwidth (Paraiso et

al., 2014; Bahag and Madisetti, 2013; Marshall et

al., 2010).

In this paper, we propose an approach that

enables the modelling of elasticity in a modular way.

This approach eases the modelling of elasticity by

using an approach based on self-adaptive systems

(IBM, 2006) and feature modelling (Czarnecki and

Eisencker, 2000; Czarnecki et al., 2005; Greenfield

et al., 2004). The self-adaptive systems provide

mechanisms for modelling the structure and the

behaviour of systems that support elasticity. In

addition, the feature model provides a solution for

describing and implementing the commonalities and

variabilities of systems components.

The proposed approach supports the modelling

of an elasticity system for cloud computing with

three layers: Adaptation loop, Architectural Model,

and Elasticity System. These layers are ordered

hierarchically from very abstract to very concrete.

One of the important challenges of our work consists

in providing a solution for separating the reusable

parts from the system specific ones.

The remainder of this paper is organized as

follows. Section 2 presents the architecture for

modelling elasticity system. In Section 3, we present

the structural variability of modelling and Section 4

the behavioural one. Section 5 uses a case study to

demonstrate the feasibility of our approach with the

Znn.com application, and Section 6 implements and

evaluates this application. In Section 7, we present

some related work, and finally Section 8 concludes

and discusses some future work.

2 A MULTI-LAYER BASED

ARCHITECTURE FOR

MODELLING ELASTICITY

SYSTEMS

In this section, we present our architecture that

enables modelling elasticity in a modular way. The

Berkane, M., Seinturier, L. and Boufaida, M.

Variability Modelling for Elastic Scaling in Cloud Computing.

DOI: 10.5220/0006831607170724

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 717-724

ISBN: 978-989-758-320-9

717

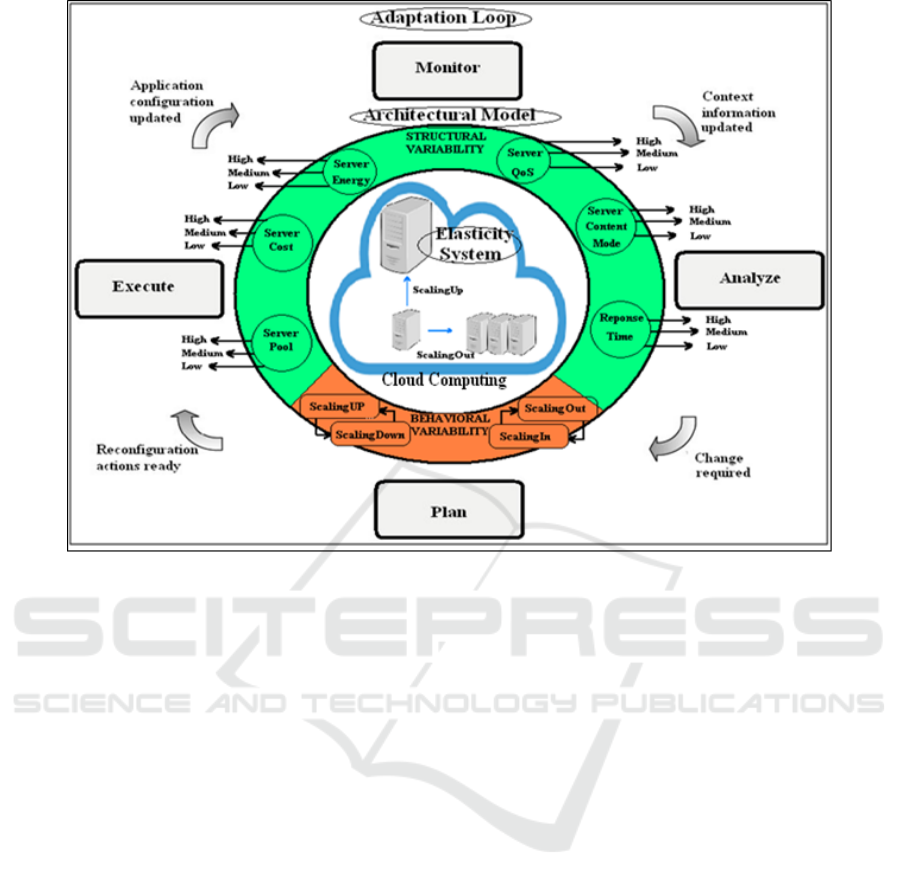

Figure 1: Overview of the proposed architecture.

proposed architecture defines three main layers:

Adaptation loop, Architectural Model, and Elasticity

System (Figure 1).

The Adaptation loop layer allows modelling the

skeleton for the overall structure of the system. The

Architectural Model layer defines the main functions

and properties of the elasticity system in structural

variability and behavioural one. The Elasticity

System layer is equipped with a set of computing

entities, such as sensors, which collect the

information and actuators that change the state of the

environment of cloud computing. To model

elasticity, we use a reference model for autonomic

control loops with four activities: Monitor, Analyze,

Plan, and Execute (IBM, 2006).

These activities can be seen as components,

which communicate (Knowledge component) to

adapt elasticity’s behaviour in response to change

requirements and environmental conditions. In this

layer, the Analyze component interprets the different

data provided by the Monitor component (sensors).

In addition, the Analyze compares the updated

values found from the sensors with specific

threshold values. Each threshold contains one or

more boundary values. These values are used to

represent boundaries between normal and abnormal

behaviours. Once the Analyze indicates a situation

when an adaptation might be needed, it creates a

trigger to the Plan component. This last component

selects the specific reconfigurations and show how

the reconfigurations can be executed at run time by

Execute component.

In the next section, we present the Architecture

Model in two phases: structural variability and

behavioural one.

3 STRUCTURAL VARIABILITY

This phase provides the structure of the system. It

refines the application components by using feature

modelling.

3.1 Extending Feature Model for

Structural Variability

The Feature Model can be used to build the

architectural model. It contains a set of Features,

and the relationships between the Features like:

implies and exclude (Czarnecki and Eisencker,

2000; Czarnecki et al., 2005; Greenfield et al.,

2004). In our work, we define a new concept called

Feature Level. It can represent the structure of

system at different level from abstract to concrete.

This new concept can be used to represent the

ICSOFT 2018 - 13th International Conference on Software Technologies

718

autonomic control loop, properties, physical

components and software ones of elasticity systems.

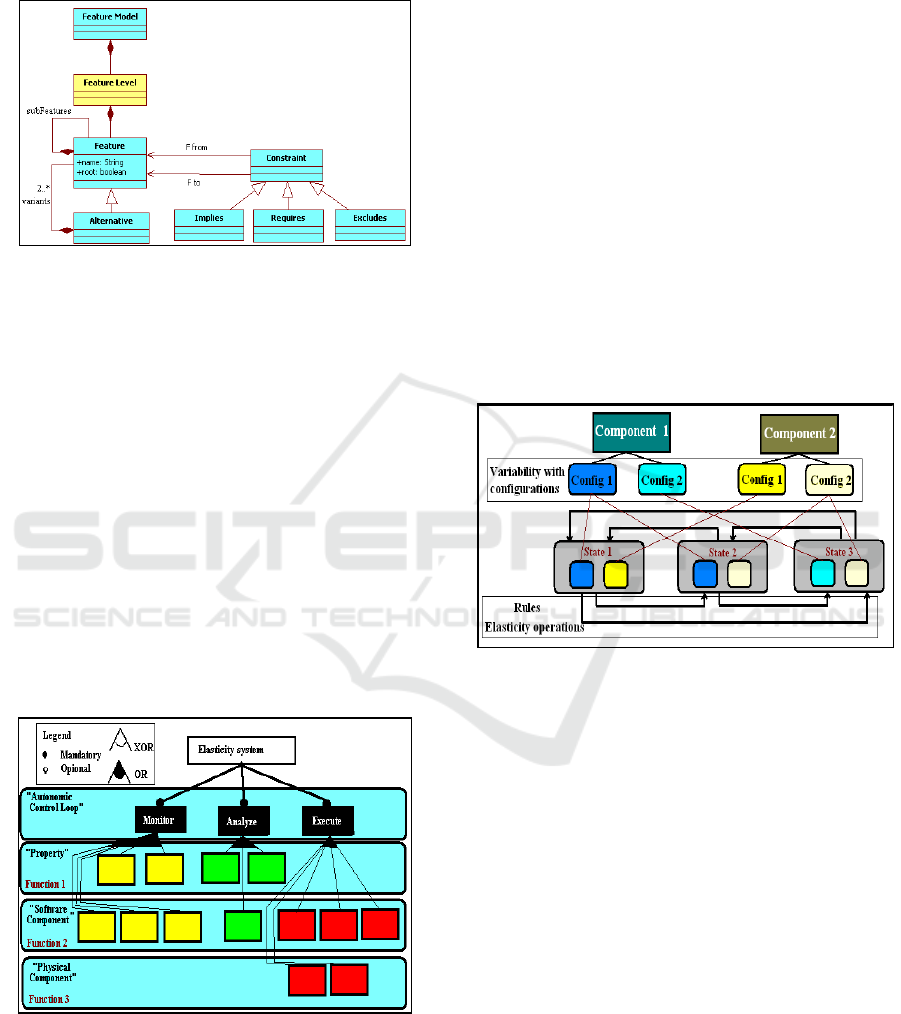

Our new feature meta-model is shown in Figure 2.

Figure 2: Feature Meta-model for structural variability.

3.2 Feature Model for Elasticity

System

In the elasticity system, we define four kinds of

layers: autonomic control loop, property, software

component and physical one. These layers are

specified by feature level (defined in feature meta-

model). In the first layer, we represent the common

architecture with Monitor, Analyze, and Execute

component (IBM, 2006) as mandatory features

(child features are required). In the other layers, we

define the different functions related to the

application as OR features (at least one of the child

features must be selected). These functions represent

the properties, the software components, and the

physical ones related to model elasticity systems

(Figure 3).

Figure 3: Structural variability.

The Plan component represents the different

rules of elasticity system. It will be represented in

the behavioural variability section.

4 BEHAVIOURAL VARIABILITY

In this phase, we specify the behaviour of the

elasticity system. For this, we combine the feature

model with a state transition diagram into a single

solution.

4.1 Feature Model with State

Transition Diagram

In this new model (state-transition part), each state is

composed of the sets of components (software

component and physical one). In addition (feature-

model part), these components are associated to a set

of configurations. The transitions between states

represent the rules. These rules represent the

different elasticity actions: scaling up, scaling out,

scaling in, and scaling down. The variability is

expressed by the different configurations and actions

defined by the components (Figure 4).

Figure 4: Behavioural variability.

4.2 Adaptation Behavioural of

Elasticity

In this section, we propose an algorithm that

considers the different scenarios of elasticity

adaptation. This algorithm represents the different

rules of elasticity system in Plan component.

We consider a system with a set of servers (S)

and computing capacities (C). We define three

parameters: MaxS, MaxC and Q. These three

parameters represent respectively, the maximum

number of servers in the pool, the maximum number

of computing capacities, and the quality of service of

the system (like response time) (see lines 1-5 in

Listing 1). In the elasticity adaptation, we define

four situations: The first situation determines the

number of servers in the pool and the computing

capacities under maximum (see lines 8-12 in

Listing 1). In the second situation, we consider that

the number of servers is in maximum and computing

Variability Modelling for Elastic Scaling in Cloud Computing

719

capacities under maximum (see lines 14-18 in

Listing 1). The third situation is the reverse of the

second one: the number of servers under maximum

and computing capacities is in maximum (see lines

20-24 in Listing 1). In the last situation, we consider

that the number of servers and the computing

capacities are in maximum (see lines 26-30 in

Listing 1).

We define four functions: ScalingOut,

ScalingUp, ScalingIn and ScalingDown (see lines

35-56 in Listing 1).

ScalingOut: increment the number of servers.

ScalingUp: increment the number of computing

capacities. ScalingIn: decrement the number of

servers. ScalingDown: decrement the number of

computing capacities.

1 S: #Server

2 C: #

ComputingCapacity (Memory)

3 MaxS:#max number of servers in the pool

4 MaxC: #

max number of computing capacities

5 Q:

QoS {Low, Medium & High}

7 Begin

8 If (S<MaxS & C<MaxC) then

9 If (Q=”Medium” | Q=”High”)

10 ScalingUp(C);

11 ElseIf (Q=”Low” )

12 ScalingOut(S);

14 If (S=MaxS & C<MaxC ) then

15 If (Q=”Low” | Q=”Medium”)

16 ScalingUp(C);

17 ElseIf (Q=”High”)

18 ScalingIn(S);

20 If (S<MaxS & C=MaxC)

21 If(Q=”Low”)

22 ScalingOut(S);

23 ElseIf(Q=”Medium” | Q=”High”)

24 ScalingDown(C);

26 If (S=MaxS & C=MaxC)

27 If (Q=”High”)

28 ScalingIn(S);

29 ElseIf(Q=”Low” | Q=”Medium” )

30 ScalingDown(C);

31 End

33 ScalingOut(S:Server):Server

34 {S<=S+1

35 Return(S)}

37 ScalingUp(C: ComputingCapacity):

ComputingCapacity

38 {C<=C+1

39 Return(C)}

41 ScalingIn(S:Server):Server

42 {S<=S-1

43 Return(S)}

45 ScalingDown(C: ComputingCapacity):

ComputingCapacity

46 {C<=C-1

47 Return(C)}

Listing 1: Adaptation behavioural.

5 CASE STUDY ‘Znn.com’

In this section, a case study is used to demonstrate

the feasibility of our approach. We have selected a

Znn.com scenario. Znn.com is an example that

motivates the need for dynamic adaptation of

elasticity system for cloud computing. It is one of

the exemplar case studies proposed by the Software

Engineering for Adaptive and Self-Managing

Systems (SEAMS) research community. It is a web-

based N-tier client-server system that provides news

content to its customers. The main business

objectives of Znn.com are (Cheng et al., 2009):

 News content provision in a reasonable response

time

 Minimization of operating server costs

 High quality content presentation

5.1 Structural Variability

In the structural phase, we have defined four

functions of Znn.com application (Figure 5):

Response time (represent a property), Server pool

(represent a physical component), Server cost

(represent a property) and Server content mode

(represent a software component). The Response

time function is represented by three states (Analyze

component): low, medium, and high. This function

can only be observed by sensors. In addition, the

server pool function has two actions (Execute

component): Increment server pool and decrement

one.

The first action increments the number of servers

in the pool size. The second action is responsible for

decrementing the number of servers in the pool size.

However, the server cost function determines if we

can increase the pool size (if the budget is under or

over). In this function, we define two states: under

budget and over budget. The last function specifies

the server content mode: graphics and text. With this

function, we can switch from graphical to textual

mode, or from textual to graphical mode. The Plan

component represents the different rules that can be

ICSOFT 2018 - 13th International Conference on Software Technologies

720

executed to adapt Znn.com application. In the next

section, we show the behaviour of this component.

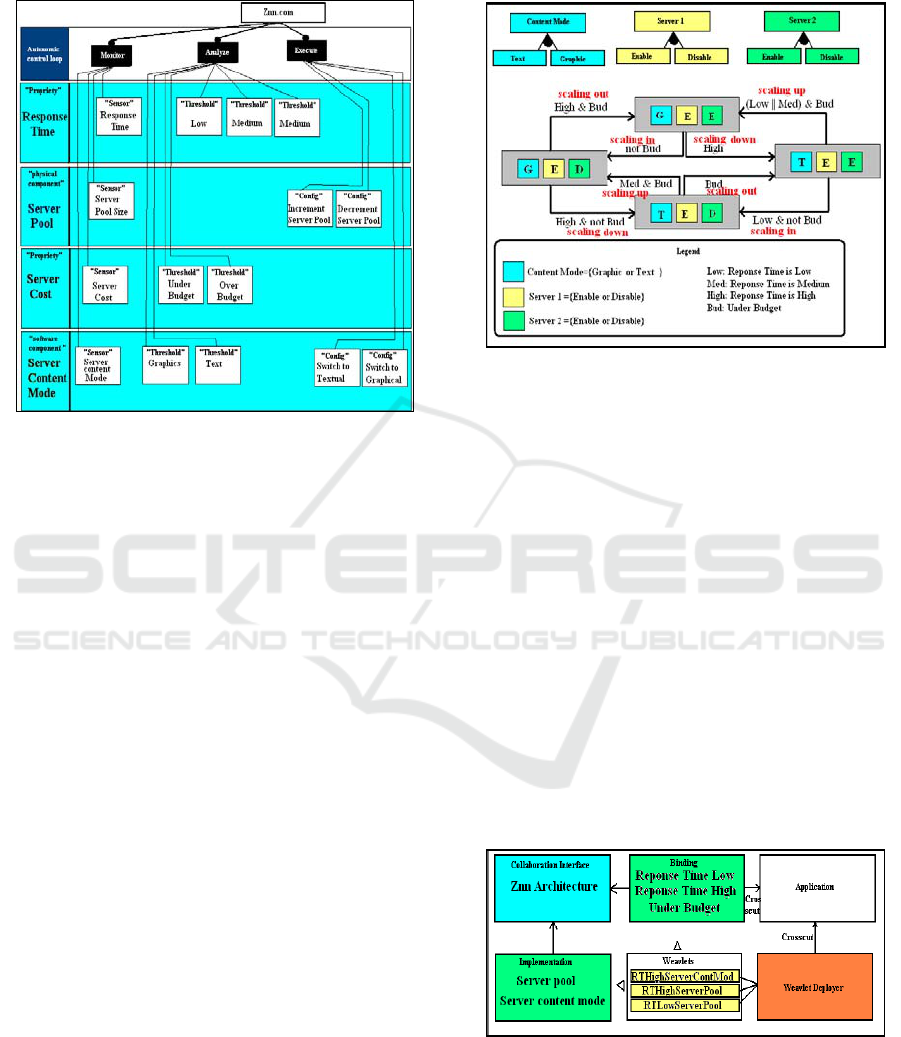

Figure 5: Structural representation of Znn.com application.

5.2 Behavioural Variability

In Znn.com application, we define four states. Each

state is represented by three components: two

components for two servers (physical components)

and one component for server content mode

(software component). For the server components,

we can find two configurations: enable and disable.

However, the server content mode component, we

can find also two configurations: textual and

graphical mode.

We represent three examples of scenarios

(behaviours) of Znn.com (Cheng et al., 2009) with

elasticity actions:

 Scenario 1: if the response time is high, Znn.com

will increment the number of servers in the pool

if the budget is not over (scaling out); otherwise,

Znn.com will switch the servers to textual mode

(scaling down);

 Scenario 2: if the response time is low, Znn.com

will decrement its server pool size if it is near

budget limit (scaling in); otherwise Znn.com

will switch the servers to graphical mode if they

are not already in that mode (scaling down);

 Scenario 3: if the response time is in the medium

range, Znn.com will switch to graphical mode if

it the mode is textual (scaling down), if the

server pool size may either be incremented to

decrease response time or decremented to reduce

cost (scaling out).

In Figure 6, we present all the (behaviours) scenarios

of Znn.com.

Figure 6: Behavioural representation of Znn.com

application.

6 IMPLEMENTATION AND

EVALUATION

We give some implementation aspects of elasticity

in Znn.com.

6.1 Implementation

CaesarJ is selected as a language to implement

Znn.com application. This language is an aspect-

oriented language that supports reusability (Nunez

and Gasiunas, 2015). It is an extension of Java and

integrates the features model. This language defines

five concepts to implement the application:

Collaboration Interfaces, Implementation, Binding,

Weavlets and Weavlet Deployer (Figure 7).

Figure 7: Znn.com application with CaesarJ language.

The modularity in CasearJ is materialized by

Collaboration Interfaces. In these interfaces, one

can separate the reusable parts from the application

specific ones.

Variability Modelling for Elastic Scaling in Cloud Computing

721

The Znn.com architecture is defined by the

Collaboration Interface (Listing 2). In this Interface

(represented by cclass concept), we define the

different principal components of Znn.com

application: Servers and Clients. In addition, this

interface is split in a provided part and an expected

one.

1 package znn;

2 abstract public cclass ZnnArch {

3 abstract public cclass Serveur {

4 abstract public void AdaptAction

(Client cl);}

5 abstract public cclass Client {

6 abstract public float Request();} }

Listing 2: Znn.com Architecture with Collaboration

Interface.

The provided part is implemented with reusable

CaesarJ components “Implementation”. This part

implements the different actions related to Znn.com

application (Listing 3). For server pool actions, we

can find two actions: increment server pool and

decrement one. However, the server content mode

actions, we can find: textual and graphical mode.

1 package znn;

2 abstract public cclass ScreenMode

extends ZnnArch {

3 abstract public cclass Serveur {

4 private float resptime;

5 public void AdaptAction (Client

cl){

6 float diff = cl.Resptime();

7 resptime -= diff; }}

Listing 3: Implementation part of Znn.com.

The expected part is implemented with CaesarJ

“Binding”. It implements the variabilities of system

(Listing 4). In this part, we can find two properties

response time and server cost. The response time is

represented by three states: low, medium, and high.

In addition, the server cost is represented by two

states: budget is under or over.

1 package bindingPart;

2 import znn.*;

3 import client.*;

5 abstract public cclass RTHigh extends

ZnnArch {

6 public cclass RequestClient extends

Client wraps InfoRequest {

7 public float resptime () {

8 return 5;}}}

Listing 4: Binding part of Znn.com.

The Weavlets are implemented through an empty

CaesarJ class that extends the Implementation and

the Binding. These Weavlets are deployed in the

application by “Weavlet Deployer”.

6.2 Evaluation

In this section, we evaluate the proposed approach

using two criteria: reusability and energy

consumption.

6.2.1 Reusability

Reusability refers to the degree to which existing

applications can be reused in new applications. In

this property, we compare a Java and CaesarJ

implementation of Znn.com application with some

criteria: separation of concerns (with two attributes:

concern diffusion over components CDC and

concern diffusion over operations CDO), coupling

(with coupling between modules attribute CBM)

and cohesion (with lack of cohesion attribute LCO)

(Cacho et al., 2006).

CDC counts the number of modules whose main

purpose is to contribute to the implementation of a

concern and the number of other classes and

collaboration interfaces that access them. CDO

counts the number of operations whose main

purpose is to contribute to the implementation of a

concern and the number of other methods and

advices that access them. CBM counts the number

of modules to which a module is coupled. LCO

counts the number of operations within a module

that does not access the same instance variable

(Cacho et al., 2006).

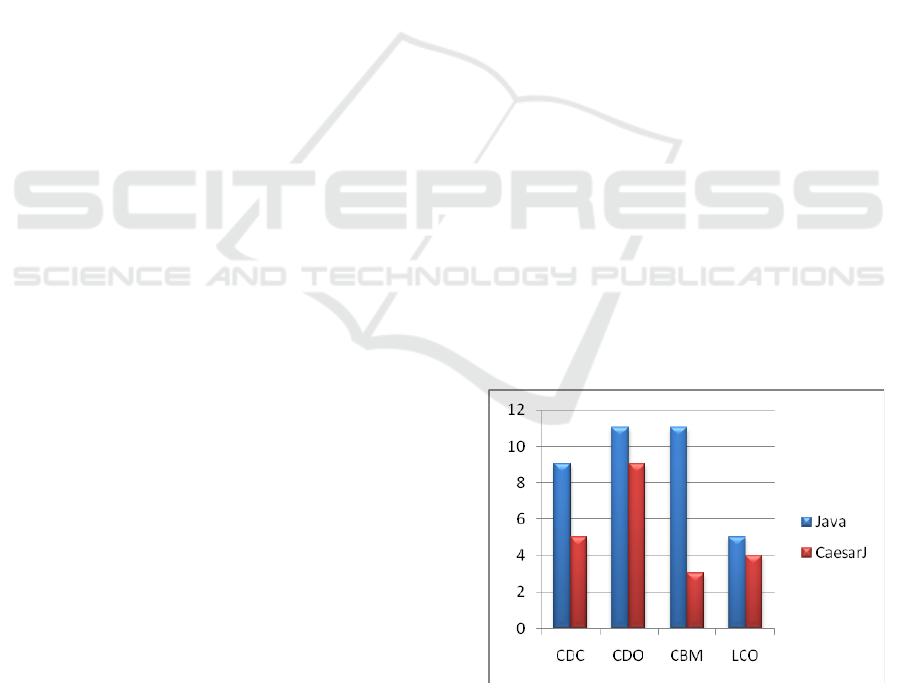

Figure 8: separation of concerns, coupling and cohesion in

Znn.com application.

The implementation of Znn.com application with

CaesarJ presents better results in terms of the

number of diffusion over components (CDC), the

ICSOFT 2018 - 13th International Conference on Software Technologies

722

number of operations whose main purpose is to

contribute to the implementation of a concern

(CDO) and the number of modules to which a

module is coupled (CBM).

In addition, the number of operations within a

module that does not access the same instance

variable (LCO) is not reduced (Figure 8).

6.2.2 Energy Consumption

This property represents the amount of energy

consumed in a system. We evaluate the energy

consumption in the client machine (with laptop) by

two properties: screen (by brightness) and battery.

We consider the battery level before adaptation

in 92% (175 minutes remaining). The level of the

battery is decreasing to the level 7% after 124

minutes without adaptation (Figure 9).

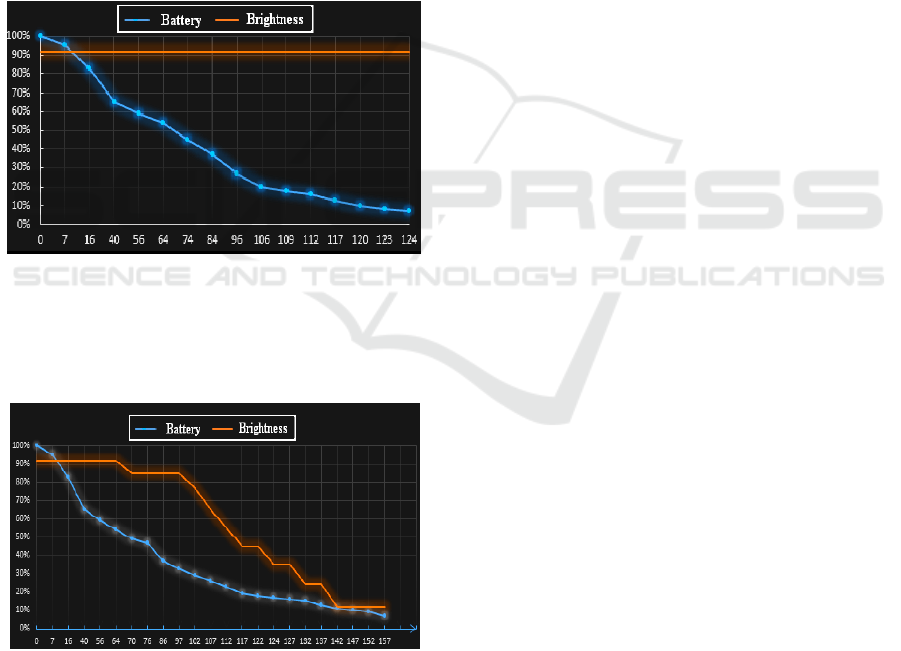

Figure 9: Level of battery without adaptation.

After the adaptation, the level of the battery is

decreasing to the level 7% after 157 minutes. We

have a gain of 33 minutes (Figure 10).

Figure 10: Level of battery with adaptation.

7 RELATED WORK

This section overviews selected efforts conducted by

researchers to facilitate the modelling of elasticity.

(Buyya et al., 2010) propose an architectural for

utility-oriented federation of Cloud computing

environments. They provide a federated cloud

infrastructure approach to represent elasticity for

applications. However, their solution does not

separate the components of architecture. In our case,

we have used MAPE-K component to represent the

components of system.

The authors in (Vaquero et al., 2011) present an

approach that manages the elasticity with both a

controller component and a load balancer one.

However, the authors do not clearly present the

behaviour of elasticity. In our solution, we have

combined the feature model with state transition

diagram into a single solution to show the behaviour

of elasticity system.

(Marshall et al., 2010) develop a model that

adapts services provided within a site, such as batch

schedulers, storage archives, or Web services to take

advantage of elastically provisioned resources.

However, their approach does not support adding

additional resources managers. With the

extensibility of our approach, we can easily add new

resource managers (functions or components in

horizontal axis or configuration in vertical axis).

(Paraiso et al., 2014) present an approach that

support portability, provisioning, elasticity, and high

availability across multiple clouds. The authors use

the annotations notion to express elasticity rules that

ensure the appropriate decisions. In addition,

(Berkane et al., 2015) propose an approach for

developing self-adaptive systems at multiple levels

of abstraction. This approach allows the combination

of variability with feature model and reusability with

design pattern into a single solution. In our solution,

we have used the feature model and MAPE-K

components to express the elasticity. The rules have

modelled by using the feature model with state

transition diagram.

8 CONCLUSION

In this paper, we have presented an approach for

modelling elasticity system for cloud computing in a

modular way. Based on self-adaptive systems and

feature modelling, our approach supports the

modularity of applications in structural and

behavioural phases. The first phase consists to

provide the skeleton for the overall structure of the

application by separating it into distinct components

based on functions of the application and MAPE-K

architecture. In the second phase, we have combined

the feature model with state transition diagram into a

Variability Modelling for Elastic Scaling in Cloud Computing

723

single solution to represent the different

configurations of applications. As for future work,

we are considering the dynamic variability of feature

model in systems. This dynamic variability permits

to represent the system at run-time (during

execution). We will also try to specify the elasticity

in a formal way by redefining the constraint of

system. This formal specification will open the door

to the reuse of features in the different system

contexts.

REFERENCES

Bahga, A., Madisetti, V., 2013. Cloud Computing: A

Hands-On Approach, CreateSpace Independent

Publishing Platform.

Berkane, M.L., Seinturier, L., Boufaida, M., 2015. Using

variability modelling and design patterns for self-

adaptive system engineering: application to smart-

home. In International Journal of Web Engineering

and Technology, 2015 Vol.10, No.1, pp.65

Buyya, R., Ranjan, R., Calheiros, R., 2010. Intercloud:

Utility-oriented federation of cloud computing

environments for scaling of application services. In

International Conference on Algorithms and

Architectures for Parallel Processing, pp. 13–31.

Cacho, N., Sant Anna, C., Figueiredo, E., Garcia, A.,

Batista, T., Lucena, C., 2006. Composing design

patterns: a scalability study of aspect-oriented

programming. In the 5th International Conference on

Aspect-Oriented Software Development, pp.109–121,

ACM.

Cheng, S.-W., Garlan, D., Schmerl, B., 2009. Evaluating

the effectiveness of the Rainbow self-adaptive system,

In 4th ICSE Workshop on Software Engineering for

Adaptive and Self-Managing Systems, SEAMS, IEEE.

Czarnecki, K., Eisenecker, U., 2000. Generative

Programming Methods, Tools, and Applications,

Addison-Wesley, Boston, MA, USA.

Czarnecki, K., Helsen, S., Eisenecker, U., 2005.

Formalizing cardinality-based feature models and their

specialization. Software Process Improvement and

Practice, Vol. 10, No. 1, pp.7–29.

Greenfield, J., Short, K., Cook, S., Kent, S., Crupi, J.,

2004. Software Factories: Assembling Applications

with Patterns, models, Frameworks and Tools, John

Wiley & Sons, New York.

Herbst; N. R., Kounev, S., Reussner. R., 2013. Elasticity

in Cloud Computing: What It Is, and What It Is Not. In

the 10th International Conference on Autonomic

Computing (ICAC 2013), San Jose, CA, June 24–28.

IBM, 2006. An Architectural Blueprint for Autonomic

Computing, Technical Report.

Marshall, P., Keahey, K., Freeman, T., 2010. Elastic site:

Using clouds to elastically extend site resources. In:

Proceedings of the 2010 10th IEEE/ACM

International Conference on Cluster, Cloud and Grid

Computing, pp. 43–52. IEEE Computer Society.

Mell, P., Grance, T., 2011. The NIST Definition of Cloud

Computing, National Institute of Standards and

Technology, U.S. Department of Commerce, NIST

Special Publication 800-145.

Nunez, A., Gasiunas, V., 2015. ECaesarJ User’s Guide

http://ample.holos.pt/gest_cnt_upload/editor/File/publi

c/ECaesarJ-manual.pdf [online], 2009, (accessed 2

March 2015).

Paraiso, F., Merle, P., Seinturier, L., 2014. soCloud: A

service-oriented component-based PaaS for managing

portability, provisioning, elasticity, and high

availability across multiple clouds, In Springer

Computing, Springer.

Vaquero, L., Rodero-Merino, L., Buyya, R., 2011.

Dynamically scaling applications in the cloud. In ACM

SIGCOMM Computer Communication Review 41(1),

45–52, 2011.

ICSOFT 2018 - 13th International Conference on Software Technologies

724
