Context-Aware System Analysis: Introduction of a Process Model for

Industrial Applications

Patrick Rosenberger

, Detlef Gerhard

and Philipp Rosenberger

Institute for Engineering Design and Logistics Engineering, TU Wien, Getreidemarkt 9/307, 1060, Vienna, Austria

Department of Technical Management, University of Applied Science FH Campus Wien,

Favoritenstraße 226, 1100, Vienna, Austria

Keywords: Context-Aware System Analysis, Context-Aware System Development, Contextual Process Model,

Context-Activity Matrix.

Abstract: The ability to record environmental conditions with sensors enables the development of applications that

can react to changing situations. These context-aware systems provide major benefits for their users, as they

allow the customization of their functionalities while decreasing the need for user interaction at the same

time. Despite these advantages, context-awareness still plays a minor role in industrial applications due to

reasons such as the increased efforts required during the development or the absence of tools to handle the

inherent complexity. To facilitate the implementation of context-aware systems, this publication introduces

a process model for analysing contextual requirements and defining contextual functionalities. The approach

allows the integration of context-awareness into systems and can be used in combination with all common

software development methodologies. Further, a method is proposed that reduces the complexity of context-

aware systems to a manageable level. To demonstrate how the presented approaches can be applied, this

paper finishes by showing the development a context-aware information system for the workers at the shop-

floor of an injection moulding company.

1 INTRODUCTION

During the last decades, sensors and smart devices

were deployed extensively in manufacturing

companies (Gungor and Hancke, 2009). This factor

enabled the development of systems that can

recognise change and act upon (Gröger and Stach,

2014; Monostori, 2014). These so-called "context-

aware" applications (Biegel and Cahill, 2004) offer

new possibilities in assisting their users while

decreasing the necessary user interaction at the same

time. Instead of requiring the operators to choose the

needed functionalities, context-aware systems

predict the desired services and execute them

automatically (Alegre et al., 2016). Despite their

potential, the deployment of these applications is

low due to the increased efforts needed for the

development (Fahy and Clarke, 2004) or the

diversity of data sources (Chen et al., 2014).

To support the elicitation of user requirements

and encourage the deployment of context-aware

systems, this publication addresses two major

problems. First, traditional project development

models do not meet the requirements of context-

aware systems. Therefore, developers have to come

up with their own "try and error" approaches. This

strategy is likely to increase the overall project

duration and costs and can even lead to the failure of

the project. Secondly, the number of contexts and

context-aware activities can be extensive even for

small systems. This can become a problem in later

development stages if the same contexts are used to

identify different activities.

The outline of this publication is as follows:

Section 2 starts with the introduction of a process

model for analysing and defining contextual

functionalities. The model is used in addition to

conventional techniques, so that the developers can

rely on traditional approaches to design the base

system and use the proposed model to incorporate

contextual features. To deal with the high number of

contexts used by these systems, section 3 proposes

the context-activity matrix, a lightweight tool for

handling the complexity that is inherent in most

context-aware systems. To show the applicability

and practicality of the proposed solutions, section 4

368

Rosenberger, P., Gerhard, D. and Rosenberger, P.

Context-Aware System Analysis: Introduction of a Process Model for Industrial Applications.

DOI: 10.5220/0006802703680375

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 368-375

ISBN: 978-989-758-298-1

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

presents an industrial use case: a context-aware

information system is designed for the shop-floor of

an injection moulding company. Finally, section 5

finishes with a critical discussion of the results.

2 CONTEXT-AWARE SYSTEM

ANALYSIS

The analysis of context-aware systems requires

additional efforts that are not covered by traditional

process models. To encounter this problem, many

research activities on issues such as customized

eliciting techniques (Sitou and Spanfelner, 2007;

Choi and Lee, 2012) or adapted contextual models

(Choi, 2008; Ruiz-López et al., 2013) have been

carried out. Despite their high relevance, these

publications were mainly focused on specific

problems and not the broader process. Some

publications that addressed this topic (Hong et al.,

2005; Choi, 2007; Desmet et al., 2007; Alegre,

2016) only considered it as a side issue. Therefore, a

general process model that characterizes the analysis

of context-aware system requirements is still

missing.

To fill this gap, this section introduces a holistic

method to elicit and define context-related system

requirements. The proposed process model should

not be seen as a stand-alone approach, but should

rather be used as an extension to already existing

system development methods. Using the model, the

following key questions are addressed:

 Which activities can be enhanced by using

context?

 How can these activities be enhanced?

 What consequences does this have on the

business process?

 Which contexts can be used to identify the

activities?

The proposed process model divides the analysis and

design activities of context-aware systems in three

phases:

 Activity determination: identification of

activities that can be assisted by contextual

functionalities.

 Process definition: definition of how the

system should react to the occurrence of a

context.

 Context elicitation: determination of the

contexts.

Figure 1 shows the three phases including their

activities. While the process model separates the

process definition and the context elicitation phases,

their tasks can also be carried out concurrently (see

section 2.4).

2.1 Activity Determination

The first step in developing a context-aware system

is to identify the activities that can be supported

contextually. Therefore, all tasks covered by the

system must be examined to decide whether

contextual features could assist the users. A

complete system description highlighting all

contextual-assisted activities should be created. To

improve comprehensibility, activity diagrams

emphasising contextual-enhanced tasks could be

created using modelling languages like UML or

SysML.

2.2 Process Definition

Based on the results of the activity determination,

the system’s behaviour and responses must be

defined. The goal is to further develop the system

and achieve an agreement between all stakeholders.

As stated by Perera et al. (2014), the different

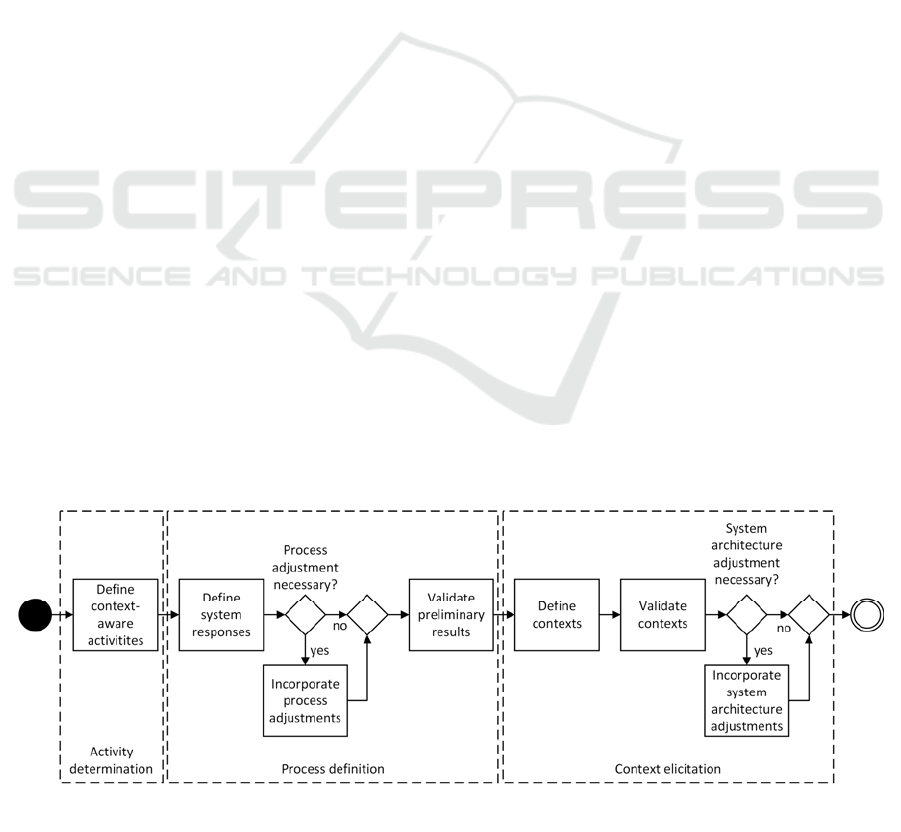

Figure 1: Contextual elicitation and analysis: process model.

Context-Aware System Analysis: Introduction of a Process Model for Industrial Applications

369

actions can be dived into two categories:

 Active execution: a predefined functionality

gets executed automatically.

 Passive execution: a set of options is

proposed from which the user can choose the

preferred one.

In case a system response triggers a new process

flow, changes of the systems functionalities must be

incorporated. This also requires the definition of

how the changes affect the users' and stakeholders'

working procedures. Regardless of the need for a

system adaption, the process definition phase ends

with the validation of the preliminary results.

2.3 Context Elicitation

Next, the contexts that identify the activities need to

be defined. Forming a central part of the contextual

requirements elicitation, many different approaches

have been proposed (Hong et al., 2005, Kolos-

Mazuryk et al., 2005, Munoz et al., 2006). In

general, the approaches can be divided into three

categories (Alegre, 2016):

 Category-based elicitation: the developers

list all measurable context types and then

determine the present ones for each activity.

 Model-centred elicitation: the developers

select the contexts by modelling a context-

unaware version of the system and then define

which contexts are needed to provide the

intended functionality.

 User-centred elicitation: the developers

determine the contexts by interviewing the

users or other stakeholders.

The approach suited best for industrial applications

strongly depends on the use case. In case of highly

deterministic process flows, the existing

documentation contains all needed information to

define the contexts. If we consider the automotive

industry where each manipulation is planned

carefully, the contextual enhancement can be

derived directly from existing process descriptions

using the category-based or model-centred

elicitation approach. If, on the other side, the process

flows are not deterministic, the existing

documentation will not be sufficient to fully define

the different contexts. Therefore, user-centred

techniques are suited best.

After defining the contexts, they must be

validated to ensure the following properties:

 Uniqueness: The contexts describing each

activity must be unique. Otherwise, the system

will not be able to differentiate between

activities.

 Measurability: All contextual data points

used by a context must be measurable. If not,

the system will not be able to sense related

contexts.

If one of these conditions is violated, the system will

not be able to operate in the intended way.

Therefore, the adaption of the system architecture

might be required. By introducing new elements

such as sensors, additional contextual data can be

acquired ensuring the uniqueness and measurability

of all contexts. If for example the state of a machine

should be measured without the availability of

internal sensors, external sensors can be used.

2.4 Joined-phase Elicitation for the

User-centred Approach

As stated above, it is possible to combine the tasks

of the process definition and context elicitation

phases (see Figure 2). By doing so, the

determination of the system's contexts and responses

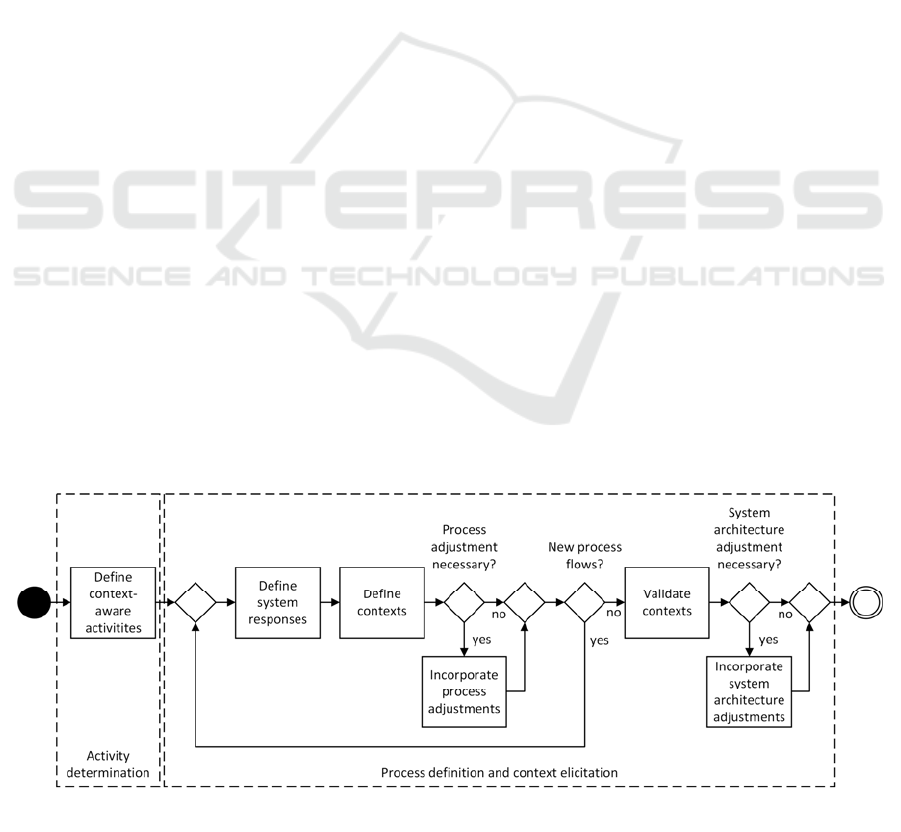

Figure 2: Contextual elicitation and analysis: joine

hase elicitation.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

370

are performed simultaneously, reducing the time

needed for these tasks. This is useful in case of a

user-centred elicitation, as the time and efforts

required from the users are decreased. Despite its

advantages, the condensed model is more error-

prone due to the missing intermediate validation.

Therefore, we discourage unexperienced developers

to use this approach.

Following the activity determination, the

system's response and the corresponding contexts

are determined concurrently. If necessary, process

adjustments are performed to align the system to the

changed requirements. As the adjustments are made

after the context elicitation, it is necessary for each

newly introduced process flow to repeat the response

and context definition steps. Finally, the validations

are combined and if necessary the system

architecture is adjusted which leads to the process

model shown in Figure 2.

3 CONTEXT-ACTIVITY MATRIX

Validating middle- and large-sized systems can be

challenging due to the high number of contexts that

need to be considered. To facilitate this task, we

introduce the context-activity matrix (see Table 1).

Using this method, the sensed contexts and the

underlying contextual data can be mapped clearly,

providing a comprehensive overview over the

context-awareness of an application. The matrix can

be considered as extension to the work of

Omasreiter and Metzker (2004) who used a slimmed

approach to identify dangerous driving situations

that require an automatic adaption of the cruise

control. While their work focused on identifying

critical circumstances, we enhance the matrix by

integrating different levels of abstraction and by

easing the validation of uniqueness and

measurability.

3.1 Basic Structure

The construction of the matrix starts by labelling the

rows with the contextually assisted activities and the

columns with the sensed context types. The specific

contextual data that makes up the individual contexts

is noted in the remaining fields. Finally, the top left

field is used to state the identifier that allows the

differentiation between different matrices. This

approach is quite different to the work of Omasreiter

and Metzker (2004) and we encourage the usage of

this layout for two reasons. First, in most cases a

limited set of context types is used to identify the

activities. This allows the usage of the same header

for different matrices. Secondly, this layout enables

the comparison of the contextual data. Their

uniqueness can be validated by comparing the

individual rows. The measurability can be secured

by ensuring that the system has the needed sensors

and functionalities to measure each contextual data.

3.2 Levels of Abstraction

As the number of activities and context types can be

extensive, introducing different levels of abstraction

can help to improve the clarity. While there is no

restriction on splitting the matrix, we encourage to

follow the use case breakdown. This provides a clear

line for separation and ensures that the subdivision is

aligned with other development approaches.

Furthermore, context types can be used for

separation. If for example different locations are

mapped, each matrix can contain the activities of

one location. We also encourage using separate

matrices for specialized applications with a unique

set of contexts. For example, monitoring the

characteristics of a machine with internal sensors

results in a specialized contextual data set.

Therefore, a clean separation from the other matrices

is possible.

4 USE CASE

In the following, the usage of the process model and

the context-activity matrix are demonstrated in an

industrial use case. Within the research project

FACTS4WORKERS (Facts4Workers, 2017), a

context-aware information system is developed for

the industrial partner Thermolympic. The objective

is to assist the workers of the production area in their

daily tasks. The company's shop-floor workforce can

be separated into two groups: operators and team

Table 1: Context-activity matrix: basic structure.

Identifier Context type 1 Context type 2 Context type 3 …

Activity 1 Contextual data 1/1 Contextual data 1/2 Contextual data 1/3 …

Activity 2 Contextual data 2/1 Contextual data 2/2 Contextual data 2/3 …

Activity 3 Contextual data 3/1 Contextual data 3/2 Contextual data 3/3 …

… … … … …

Context-Aware System Analysis: Introduction of a Process Model for Industrial Applications

371

leaders. Operators are responsible for deburring the

produced parts and performing visual quality

controls. If a part does not pass the test, it is sorted

out and the error is recorded. Additionally, they

prepare the parts for dispatch by packing them

according to the customer preferences. During their

daily tasks, the operators must be supplied with

different work instructions like the production order,

the product specifications, a listing of typical errors

and the dispatch specifications. Team leaders act as

supervisors who monitor the operators' tasks and are

the contact person in case of problems or

uncertainties. Additionally, they are responsible for

setting up the machines at production start, change

the machine parameters if environmental conditions

like temperature or humidity are changing and repair

the machines in case of errors. Therefore, they must

be provided with the production orders, machine

documentation as well as error and change reports.

To assist the workers, a context-aware information

provision system that can sense the different roles as

well as the users' location and activities is needed.

Due to the extent of the use case, the analysis will be

reduced to the central elements of the system.

4.1 Operator

During their work, the operators must perform visual

controls, sort out faulty parts, record errors and

prepare good parts for dispatch. A detailed model

stating the different activities can be seen in Figure

3. To ease understanding, the contextual assisted

activities are highlighted.

Following the process model stated in section 2,

the analysis starts by identifying the activities the

context-aware system is going to assist. For each of

the selected, tasks it is specified which

functionalities are needed to provide benefits to the

users. Building the base of the context-activity

matrix, the system responses are recorded in the first

column of the context-activity matrix. By assigning

each line with an identifier, the tractability between

the matrix and the process flow diagram is ensured.

As no new processes are triggered, an adaption of

the process flow is not necessary. After validating

the intermediate state with the workers and

management, the contexts are identified. Due to the

high degree of flexibility the operators have, we

choose a user-centred elicitation approach.

First, we describe the intention of the context-

aware system and how it would work. Then we

assist the workers in defining the contexts and

contextual data. After listing the results in the

context-activity matrix, a final validation is

performed.

As shown in Table 2, the four context types role,

location, activity and time are used. Playing a key

part, the role is used to differentiate the activities of

Figure 3: Process flow: operator.

Table 2: Context-activity matrix: operator.

Operator contexts Role Location Activity Time

[1] Display production

order

Operator

Machine location including

up to 1m distance

At the start of the

shift

[2] Display product

specifications and

typical errors

Operator

Machine location including

up to 1m distance

[3] Display dispatch

specifications

Operator Packaging area

Previously

processed product

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

372

Figure 4: Process flow: team leader.

Table 3: Context-activity matrix: team leader.

Team leader contexts Role Location Activity

Environmental

conditions

[1] Display production

order

Team leader

New production

order

[2] Provide navigation Team leader

Current location +

movement

[3] Display error report Team leader New error

[4] Display machine

documentation

Team leader

Machine location including

up to 1m distance

[5] Detect environmental

condition changes

Team leader

Temperature +

humidity

the operators from other users. As each machine

produces a specific part, the machine location is

used to distinguish between the different products.

This way one operator can work on different

machines and still receive the right information

automatically. An exception is the display of the

dispatch specifications. Here the systems recognize

the changed requirements when the worker enters

the packaging area. As one worker can process

different parts, the correct information is determined

by retrieving the last handled product. While

reporting an error could also potentially be

supported contextually, another system is used to do

so. Therefore, this activity is not considered.

4.2 Team Leader

Team leaders are assisted in daily tasks like setting

up the machines, changing their parameters, and

repairing them in case of a malfunction. The

different process flows can be seen in Figure 4.

Again, the contextual assisted activities are

highlighted.

The analysis starts with the identification of the

contextual assisted activities and the definition of the

system reactions. As changing environmental

conditions are triggering a new process flow, the

process steps are modelled, and the analysis is

repeated. Then, the context-activity matrix is

created. To decrease the matrix size and increase

clarity, we choose to split it up. The context type

"role" is used to differentiate between the two user

groups, assuring unique contexts. Finally, the

contexts are defined, and the results are validated by

using the user-centred elicitation approach.

Table 3 shows the corresponding context-activity

matrix. Whenever the production of a new product is

initiated, the production order is forwarded to the

Context-Aware System Analysis: Introduction of a Process Model for Industrial Applications

373

team leader automatically. He/she then inspects the

document and goes to the machine. If not already

requested, the system detects his/her movements and

provides navigation. In case of an error, the system

forwards the error report. Again, navigation is

provided upon request or movement. As soon as

he/she arrives to the machine, the corresponding

machine information is displayed. In case of

changing temperatures or humidity exceeding a

predefined threshold, the system notifies the team

leader. As producing plastic parts is dependent on

these conditions, this allows him/her to react before

faulty parts occur. Again, the team leader is assisted

by navigation and the display of the machine

documentation.

5 CRITICAL DISCUSSION AND

CONCLUSION

As context-aware systems extend the functionalities

of classical software systems, their development

requires higher efforts. Nevertheless, the benefits,

such as the increased usability or a decreased need

for user interaction, easily surpass the downsides.

This applies particularly to industrial applications

since the user interaction is not always easy. For

example, work clothes can prevent the usage of

touchscreens, or dirt and noise can complicate the

information intake. Therefore, automatically

providing the needed information and functionality

can result in an increased efficiency and worker

satisfaction.

To encounter the disadvantage of requiring more

complex development activities, the previously

proposed methods offer a convenient way to

facilitate context-aware system development

projects. As shown in the use case implementation,

the proposed process model provides a standardized

way for defining context-related activities,

determining system reactions and identifying

individual contexts. Further, the usage of the

context-activity matrix helps structuring different

contexts and assures their uniqueness and

measurability throughout the use case. This ensures

that identified contexts can be sensed and do not

overlap.

While the application of the proposed approaches

has shown promising results, their benefits must be

examined further. To make a general statement

about their efficiency, a variety of real-world tests

are required.

The application of the methods on a broader

scale will also allow to detect domain specific issues

that require an adaption or extension. Especially for

the context-activity matrix we expect varying

requirements in different areas.

To improve the methods, we encourage

developers to test and adapt the approaches to their

needs. Having an active community using these

methods will lead to their fast evolvement and the

extensive deployment of context-aware systems at

industrial companies.

ACKNOWLEDGEMENTS

The project on which this publication is based has

received funding from the European Union's

Horizon 2020 research and innovation program

under Grant Agreement n˚63677.

REFERENCES

Alegre, U., Augusto, J. C. and Clark, T. (2016),

"Engineering context-aware systems and applications:

A survey", Journal of Systems and Software, Vol. 117,

pp. 55-83.

Biegel, G. and Cahill, V. (2004), "A framework for

developing mobile, context-aware applications",

Proceedings of the Second IEEE Annual Conference

on Pervasive Computing and Communications, pp.

361-365.

Chen, M., Mao, S. and Liu, Y. (2014), "Big data: A

survey", Mobile Networks and Applications, Vol. 19,

No. 2, pp. 171-209.

Choi, J. (2007), "Context-driven requirements analysis",

Computational Science and Its Applications-ICCSA

2007, pp. 739-748.

Choi, J., (2008), "Context: From Birth to Design", 2008

International Conference on Advanced Language

Processing and Web Information Technology, pp. 347-

352.

Choi, J., and Lee, Y. (2012), "Use-case driven

requirements analysis for context-aware systems",

Computer Applications for Bio-technology,

Multimedia, and Ubiquitous City, Springer, Berlin,

Heidelberg, pp. 202-209.

Desmet, B., Vallejos, J., Costanza, P., De Meuter, W. and

D’Hondt, T. (2007), "Context-oriented domain

analysis", Proceedings of the Sixth International and

Interdisciplinary Conference on Modeling and Using

Context CONTEXT 2007, pp. 178-191.

Facts4Workers (2017), The Goals of FACTS4WORKERS,

Facts4Workers. Available at:

http://facts4workers.eu/index.php/the-goals/ (accessed

at 27.11.2017).

Fahy, P. and Clarke, S. (2004), "CASS-a middleware for

mobile context-aware applications", Proceedings of

the Workshop on Context Awareness within

MobiSys’04, pp. 1-6.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

374

Gröger, C. and Stach, C. (2014), "The mobile

manufacturing dashboard", Proceedings of the IEEE

International Conference on Pervasive Computing and

Communications Workshops (PerCom Workshops),

pp. 138-140.

Gungor, V. C. and Hancke, G. P. (2009), "Industrial

wireless sensor networks: Challenges, design

principles, and technical approaches", IEEE

Transactions on industrial electronics, Vol. 56 No. 10,

pp. 4258-4265.

Hong, D., Chiu, D. K. and Shen, V. Y. (2005),

"Requirements elicitation for the design of context-

aware applications in a ubiquitous environment",

Proceedings of the 7th international conference on

Electronic commerce - ICEC 2005, pp. 590-596.

Kolos-Mazuryk, L., Poulisse, G. J. and van Eck, P. A. T.

(2005), "Requirements engineering for pervasive

services", Second Workshop on Building Software for

Pervasive Computing, San Diego, California, USA,

2005, pp. 18–22.

Munoz, J., Valderas, P., Pelecha, V. and Pastor, O. (2006),

"Requirements engineering for pervasive systems. a

transformational approach", Proceedings of the 14th

IEEE International Requirements Engineering

Conference, pp. 351-352.

Monostori, L. (2014), "Cyber-physical production

systems: Roots, expectations and R&D challenges",

Procedia CIRP, Vol. 17, pp. 9-13.

Omasreiter, H. and Metzker, E. (2004), "A context-driven

use case creation process for specifying automotive

driver assistance systems", Proceedings of the 12th

IEEE International Requirements Engineering

Conference, pp. 334-339.

Perera, C., Zaslavsky, A., Christen, P. and

Georgakopoulos, D. (2014), "Context aware

computing for the internet of things: A survey", IEEE

Communications Surveys & Tutorials, Vol. 16 No. 1,

pp. 414-454.

Ruiz-López, T., Rodríguez-Domínguez, C., Rodríguez, M.

J., Ochoa, S. F., and Garrido, J. L. (2013), "Context-

aware self-adaptations: From requirements

specification to code generation", International

Conference on Ubiquitous Computing and Ambient

Intelligence, pp. 46-53.

Sitou, W., and Spanfelner, B. (2007), "Towards

requirements engineering for context adaptive

systems", 31st Annual International Computer

Software and Applications Conference (COMPSAC

2007), pp. 593-600.

Context-Aware System Analysis: Introduction of a Process Model for Industrial Applications

375
