Patterns for Modelling and Composing Flexible Workflows

from Cloud Services

Imen Ben Fraj, Yousra BenDaly Hlaoui and Leila Jemni BenAyed

Research Laboratory in Technologies of Information and Communication and Electrical Engineering (LaTICE), Tunisia

Institute of Sciences and Techniques of Tunis, Tunis, Tunisia

Keywords: Cloud Service, Flexible Workflow, Flexibility Patterns, Functional Specification, BPMN Model, Behavioural

Specification, State-chart Diagram.

Abstract: In this paper, we propose a Model-Driven Approach for the specification and the execution of cloud service

flexible workflow applications. We define two flexibility patterns based on BPMN that deals with changes of

resource requirements for workflow. The workflows are built on an abstract level, using a BPMN model for

the specification of the cloud service workflow structure based on flexibility patterns, and the state-chart

diagram for the specification of the cloud service workflow behaviour. The execution process is supervised

by a control system which is responsible for making decisions on the execution of the workflow based on the

behaviour defined by the state-chart diagram.

1 INTRODUCTION

1.1 Motivation

Nowadays, Cloud computing (Dillon and Chang,

2010) has emerged in the distributed computing

community, it is a new delivery model for IT services

based on Internet protocols. It has become an

important topic in both industrial and academic areas.

The basic goal of the cloud computing is to make a

better use of distributed resources and be able to solve

large scale computation problems. A cloud service is

a web service that provides a set of well defined cloud

interfaces and follows cloud specific conventions.

These services constitute a powerful basis for modern

and scientific applications development. In order to

enable users to compose their applications without

taking care of the lower level details, the concept of

cloud workflow has emerged as a method for

modeling complex and scientific application (Yubin,

Zeye, Zewei and Ximing, 2013). The problem of

building such applications requires composing and

orchestrating appropriate services which are most

vulnerable and it is frequently a delicate task. This is

due to the very large number of available services and

the different possibilities for constructing a flexible

workflow from matching services. Flexible

workflows (Yubin, Zeye, Zewei and Ximing, 2013)

is a solution to fasten information system

development in distributed and dynamical

environment like the Cloud. One of the expected

facilities of cloud is flexibility at different levels.

Therefore, we propose in this paper a model driven

approach for developing and executing flexible

workflow applications composed of cloud services.

Recently, several solutions have been proposed to

model applications from cloud services such as works

presented in (Amziani, Melliti and Tata, 2013;

Fengyu, Ying, Zheng, Wei and Xilong, 2015).

However, the proposed solutions need interaction

with user and guidelines or rules in the design of the

composed applications. In consequence, the resulting

source code is neither re-usable nor it promotes

dynamic adaptation facilities as it should. For

applications composed of cloud services, we need an

abstract view not only of the offered services but also

of the resulting application. This abstraction allows in

one hand the reuse of the elaborated application and

on the other hand reduces the complexity of the

composed applications. It has been proven from past

experiences that using structured engineering

methods makes easy the development process of any

computing system and reduce the complexity when

building large cloud applications. To reduce this

complexity and allow the reuse of cloud service

applications, we adopt a MDA approach. The MDA

(Gronmo and Jaeger, 2005) approach developing

starts with defining high-level models in BPMN

306

Fraj, I., BenDaly Hlaoui, Y. and Jemni BenAyed, L.

Patterns for Modelling and Composing Flexible Workﬂows from Cloud Services.

DOI: 10.5220/0006772903060313

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 306-313

ISBN: 978-989-758-298-1

(Allweyer, 2010), defines conversion rules from

BPMN to target platform BPEL4WS (Shen,

Grossmann, Yang, Stumptner, Schrefl and Reiter,

2007), and then use code generation to derive much

of the implementation code for desired platform.

1.2 Our Contribution

We propose a model driven approach to built flexible

cloud service workflow using BPMN to specify the

functional view of the flexible workflow, and the

state-chart diagram of UML (Group, O.M., 2005). To

describe the behavioural view of this workflow. We

use our model driven approach to help a user to

compose and develop her/his cloud service workflow

applications in an abstract way using BPMN. Then the

built model will be transformed into a specific cloud

service workflow platform such as BPEL platform. In

the modelling step, we guide the user to compose

her/his workflow using a set of flexibility specified

patterns that we have developed according to the cloud

service characteristics. Hence, we propose an

interactive approach for modelling and executing

cloud service workflows. In addition, we propose a

control system which controls the behaviour of the

BPEL engine based on the properties of flexibility

defined in a state-chart diagram using the ECA rules.

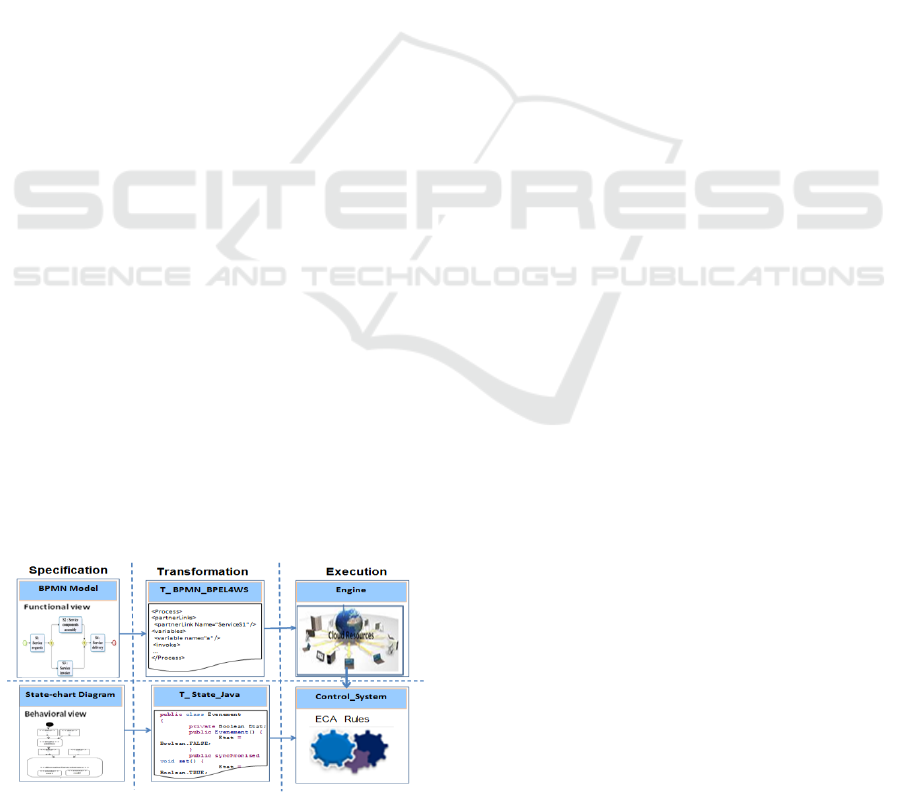

Figure 1 presents the architectural view of the

proposed approach. At the first step of the approach,

the user specifies its cloud service workflow, by

modelling a composition request using a BPMN

model (functional view). Another specification of the

cloud service workflow behaviour using a state-chart

diagram (behavioural view) should be defined

automatically. The provided request will be refined by

the composition system to build the flexible workflow

from available cloud services. Before being executed,

two transformations should be produced, the first one

is the transformation of the BPMN model into a

running platform model like BPEL4WS, the second is

the transformation of the state-chart diagram into a

running platform using a control system.

Figure 1: Architectural view of the approach.

1.3 Paper Reminder

This paper is organized as follows. Section 2 presents

the related work. Section 3 defines the flexible

workflow and the properties of flexibility for cloud

service workflow. Section 4 details the proposed

approach for modelling and running cloud services

workflow. Section 5 presents the flexibility patterns.

Section 6 details the behavioural specification through

the state-chart diagram. Section 7 presents a

transformation from BPMN model to BPEL4WS.

Section 8 illustrates the specification process based on

the proposed BPMN model and presents some

experiments results. Finally, section 9 concludes the

paper and proposes areas for further research.

2 RELATED WORKS

Several works and researches were carried out in the

field of modelling of flexible workflow of cloud

services like works presented in (Amziani, Melliti and

Tata, 2013; Fengyu, Ying, Zheng, Wei and Xilong,

2015). In (Fengyu, Ying, Zheng, Wei and Xilong,

2015) the authors propose a flexible UML-based

workflow model that is able to exhibit the architecture

of workflow engine and to adapt to the changes of

business process. They were based on UML diagrams

to describe the flexible workflow. This approach

would have been better if the composition were

automatically elaborated since the number of available

services is in increase with the existence of several

forms and manners to compose such services. In

(Amziani, Melliti and Tata, 2013), the authors,

propose a formal model elasticity for service-based

business processes (SBP). In this model, processes are

defined as Petri nets. Then, elasticity operations

(duplication and consolidation) are defined. Each

service is represented by at least one place (the set of

places of each service are related with an equivalence

relation). The transitions represent calls, transfers

between services according to the behavioural

specification of the SBP.

The originality of our contribution, relatively to

this work, is that first we save the user from the

dynamic refinement and execution as we propose an

MDA approach which separates the specific model

from the independent model. Second, we facilitate the

composition of flexible workflow as we guide the user

to compose her/his workflow using flexibility

patterns. Third, we consider the properties of

flexibility in the specification of the workflow in a

more natural way for the human user as we define the

functional and the behavioural views.

Patterns for Modelling and Composing Flexible Workﬂows from Cloud Services

307

3 CLOUD WORKFLOW

FLEXIBILITY

The flexibility is the capability to implement changes

of the requirements in the business process model and

instances by changing only those parts of the business

process model and instances that reflect the change.

Flexibility (Nurcan, 2008) has been the focus of many

researches (Regev and Wegmann, 2005; Rosemann

and Recker, 2006; Saidani and Nurcan, 2006;

Schmidt, 2005). There are many definitions of the

flexibility in literature (Shi and Danies, 2003). It is

defined in (Regev and Wegmann, 2005) as “the ability

to yield to change without disappearing”. Processes

flexibility means fast reactivity to internal and external

changes. It reflects the easiness to make evolve

business process schemes (when required). Flexibility

is also reflected by the ability that the support systems

have to take into account business changes. Thus,

flexibility refers to the executable ability to flexible

process definition of workflow management system

(WFMS). Flexibility of workflow means the dynamic

generation and modification on definition of process

instances during execution. Workflow have to provide

means to suit the flexibility and adaptability

requirements at any given time. Flexible workflow is

a solution to fasten information system development

in distributed and dynamical environment like the

Cloud. The Flexibility of workflows allows users to

maintain cloud-based workflows, depending on the

requirements of the particular job or end customer.

3.1 Flexibility Properties

In this section, we present the properties of flexibility,

it can be achieved by three ways in which the routing

of cases along workflow tasks or cloud services can be

changed (Van der Aalst, 2001):

 Extend. Each cloud service has a maximal

capacity of treatment over that the QoS of

the service decrease and we risk to have a

breakdown, thus the solution is adding new

tasks which (1) are executed in parallel, (2)

offer new alternatives, or (3) are executed in-

between existing tasks.

 Replace. An instance of cloud service could

be unavailable, so a task is re-placed by

another task or a subprocess (i.e.,

refinement), or a complete region is replaced

by another.

 Re-order. A cloud service instance cannot

follow the order defined in the workflow to

reduce the execution time. Changing the

order in which tasks are executed without

adding new tasks, e.g., swapping tasks or

making a process more or less parallel.

Thus, flexibility in cloud service workflows

remains a solution for optimizing the cloud

application performance and running costs of cloud

services.

4 THE PROPOSED APPROACH

The purpose of our approach, is to allow the

specification and the execution of flexible workflow

applications composed from cloud services. The

specification is based on semantic composition of

cloud services and on flexibility properties that should

be processed during the workflow run time. There are

three objectives to achieve by proposing an

architectural approach for developing distributing

computing applications:

1. To consider the flexibility properties in the

specification of the cloud service workflow,

2. To control the flexible workflow execution,

3. Ease the development of such applications.

To reach these objectives, our approach follows the

model driven architecture by separating the platform

development model from the platform specific model.

Thus, we propose to specify the workflow model by a

functional view using BPMN model (Allweyer,

2010). The model provides an abstract and

understandable description of the cloud application

which is obtained from the integration of cloud

services in a workflow. Once a model is created, it will

be transformed into the specific model to be

implemented and executed. To resume, our approach

is based on three steps, the first one is the specification

of the cloud service workflow, the second is the meta-

model transformation and the latter is the execution of

the flexible workflow application. These steps will be

detailed in the next sections.

4.1 Specification of the Cloud Service

Flexible Workflows

The flexible workflow is modelled by a BPMN model

based on different patterns of composition of

workflows. Each activity represents the cloud

service's operation that should provide the result. At

the same time, the specification of the cloud service

workflow behaviour is also defined using a state-chart

model for processing the flexible properties. The

composition is described in an abstract level using

BPMN model (Allweyer, 2010) by assisting the user

to compose her/his flexible workflow using the

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

308

appropriate pattern of flexibility. The workflow model

identifies the resource from one depicted cloud

service's operation to the next to build and compose

the whole application. In this paper we emphasize

upon the modelling of composed flexible workflows

only from Cloud services and not from sub-

workflows.

4.2 Meta-Model Transformation

This step is based on two transformations. The first,

transforms the BPMN workflow model into a specific

workflow model which will be executed using the

BPEL4WS engine. While the second, translates the

state-chart model describing the behaviour of each

cloud service into a control system implemented

language such as ADA (Woodruff and Van Arsdall,

1998).

4.3 Execution of the Flexible Workflow

Application

The workflow description document is sent to a

workflow engine that produces implementation code

for handling control-flow and data-flow. An execution

engine, such as BPEL4WS engine, executes different

workflow activities which are specified in a workflow

execution document in the correct order and with their

required input and output data. We extend BPEL

construct to support flexibility patterns that we have

defined. Before execution, the engine consider the

preliminaries and requirements mentioned by the

control system, the latter controls the execution

process based on the behaviour described by the state-

chart diagram. Thus, the real time meta-model

transformation is achieved. We will present the

different steps of the approach through an example

(Figure 2) of an online computer shopping service

(Amziani, Melliti and Tata, 2013) composed of four

services. Figure 2 models the normal workflow

functional behaviour, without considering the

flexibility. However, we can meet some anomalies

during this behaviour. These anomalies should be

considered in the functional model to predict any

abnormal behaviour.

In fact, the functional behavior of the workflow

depends on each cloud service behavior. We resume

these anomalies as follows:

 Anomaly 1: Each service has a

maximal capacity of treatment over what the

QoS of the service decrease and we risk to

have a breakdown (Amziani, Melliti and

Tata, 2013)

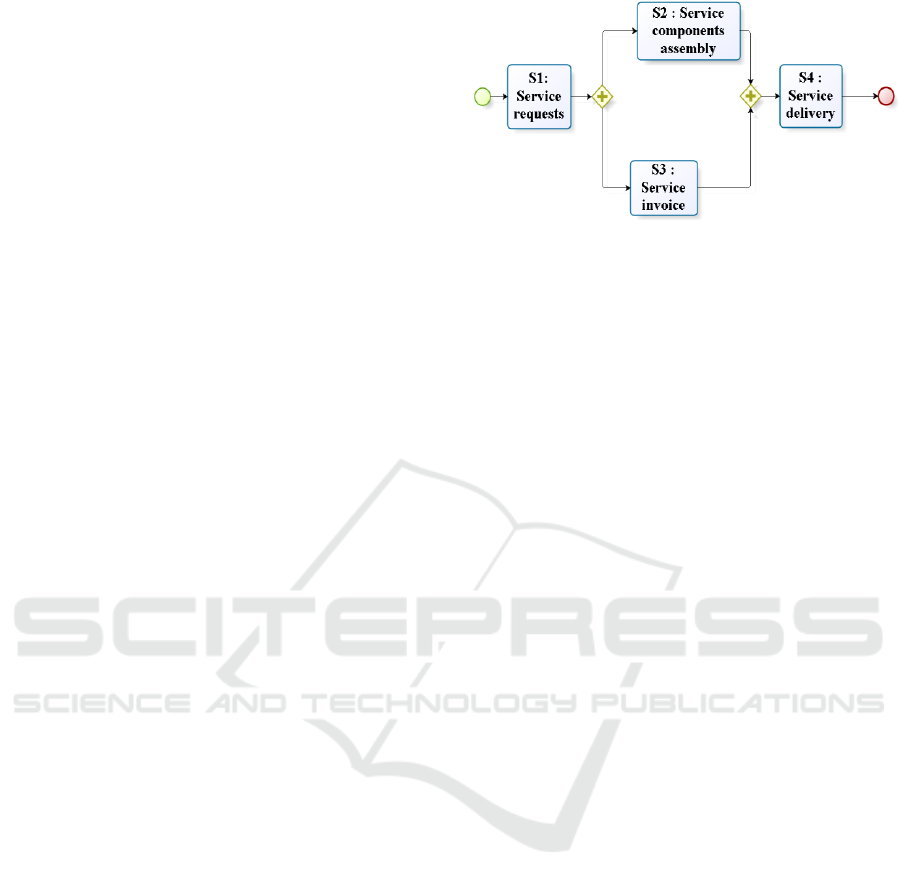

Figure 2: Workflow of an online shopping service.

 Anomaly 2: In case of quality satisfaction,

we are with another copy of service, already

created and useless (Amziani, Melliti and

Tata, 2013).

 Anomaly 3: At any state of the execution

process, we need a required resources, if it is

not available, the process of the execution

could be suspended and risks to fail.

The use of the flexibility properties is the solution for

these anomalies. We should update the initial

workflow model (e.g. the model of Fig. 2.) to consider

each of these properties based on the behaviour

parameter of the cloud service. Based on the

properties of flexibility we define three modelling

solutions:

 Solution 1 (Duplication): This solution

consists in duplicating (Amziani, Melliti and

Tata, 2013) the service which had an excess

treatment of requests. This copy is created

to treat the overloaded service.

 Solution 2 (Delete): If the number of the

requests decreases, then it is necessary to

delete the new service already created

(Amziani, Melliti and Tata, 2013).

 Solution 3 (Add Resource): This solution

consists in adding new resource when the

previous resource is unavailable, after a

delay of waiting, we should add the new

resource, to avoid the suspension of the

execution process.

These modelling solutions are described graphically

by BPMN patterns, that we have developed to define

and specify automatically these situations in the

workflow model, in order to help the user to compose

her/his flexible workflow. We add two patterns the

Duplicated Services Pattern, and the Alternative

Services Pattern, which should preserve the initial

semantics of the built workflow. The first pattern is

used to models the duplication and the delete

solutions. The second one describes the add resource

solution.

Patterns for Modelling and Composing Flexible Workﬂows from Cloud Services

309

5 SPECIFICATION OF THE

FUNCTIONAL VIEW OF THE

CLOUD SERVICE FLEXIBLE

WORKFLOWS USING BPMN

In the modelling step we predict the behaviour of each

cloud service based on its running history. This

history is represented by the QoS data which are

basically; time, cost and reliability. As the integration

of the flexibility patterns is systematic, we are

brought about defining a set of functions which allow

the selection of the right pattern to use in the

workflow model. In the following we define formally

these functions and predicates which depend on the

history of the implied cloud service.

5.1 Alternative Services Pattern

Formalization. When the cloud service of the

workflow is unavailable, then we should replace its

instance by another which is available, providing the

same result and having the same semantic description.

Let response_time(s) be a function, providing the time

response of each operation’s service. Another

function is used, max(s) which present the maximum

delay that the service could wait to be invoked. We

define the predicate alternative-service(s) as follows:

Alternative-service(s): S

→

{true, false}

Alternative-service(s) = True if

response_time(s)>max(response_time(s

))

False else.

response_time : S→IR

s→t

max : 2

→ IR

(t1....ti) → t

with response_time ∈ QoS and t is the maximum of

all the values. √i 1≤i≤n

Description. When the predicate Alternative-service

is applied on the current activity of the cloud service,

to be inserted in the workflow and it is evaluated as

true, the activity is involved in the workflow using the

pattern alternative-service.

Proposed Solution. In this solution the activity to

insert is modeled as a composed super activity with a

specified input data object and specified output data

object (Figure 3). The super activity is stereotyped as

AlternativeServiceInstance to indicate that its task

may be accomplished by a set of alternative service's

instances. These alternative service instances are

described with sub-activities. The sub-activities shall

be cloud service instances. It was up to decision

mechanism of the workflow execution engine to

choose which service instance in a such given

workflow node is to be invoked and executed.

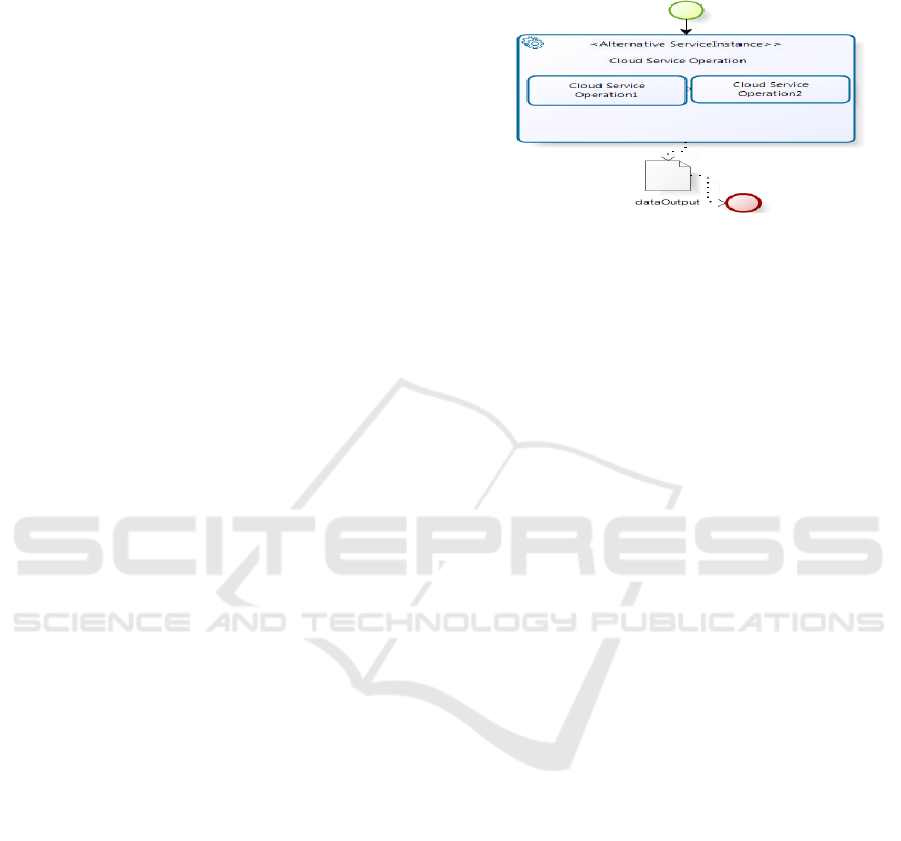

Figure 3: Alternative Service Pattern.

5.2 Duplicated Services Pattern

Formalization. When modeling workflows of cloud

services, a specific matching based on semantic

comparison could provide two or more different cloud

services performing each of them the required

operation. The Cloud registry could provide more than

one operation able to produce the required result, the

composition requires a specific pattern. Let nb_req(s)

be a function, providing the number of queries of each

service. Another function is used, max_req(s) which

present the maximum number of queries that the

service could be invoked. To capture this, we define a

predicate duplicated-service (s) presented as follows:

duplicated-service (s): S

→

{true, false}

duplicated-service (s) = True if nb_req(s) >

max -req (nb_req(s))

False else.

nb_req : S→IN

s→nb

max_req : 2

→ IN

(nb1....nbi) → nb

with nb_req ∈ QoS and nb is the maximum of all the

values. √i 1≤i≤n.

Description. When duplicated-service (s) = true, we

should duplicate the service s with another service s

providing the same result of s.

Proposed Solution. Semantically, several services

instances are invoked in parallel threads and will only

wait for the adequate flow to finish. In Fig. 4, we

present two same service’s operations

CloudService1Operation1 and CloudSer-

vice1DuplicatedOperation1 providing the same

output data DataOutput. In this solution the activity to

insert is modeled as a composed super activity (Figure

4). The super activity is stereotyped as

DuplicatedServiceInstance to indicate that its task

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

310

may be accomplished by one of two same service's

instances if one of them is overloaded. If the first

service is overloaded, we duplicate it to its copy (the

second service), nonetheless, we just use the first

service. Also, it was up to the decision mechanism of

the workflow execution engine to choose which

service instance in a such given workflow node is to

be invoked and executed.

Figure 4: Duplicated Service Pattern.

Back to the initial workflow (Figure 2), several

requests to its composing services might be

generated, suppose that the workflow receives 100

requests. If there is not any flexibility adopted, the

response time of the workflow will be equal to: 62s

(processing time of a request) × 100 (number of

requests) = 6 200s (Amziani, Melliti and Tata, 2013).

The solution is to duplicate some services of the

workflow, but not any services, we should not create

a constraint on the consumption of resources. So

back, to the initial workflow, the service S2 has the

maximum time and resource consuming. Thus we can

have an overload on this service when it has a lot of

calls, to avoid that, we model a flexible workflow

(Fig. 5) based on the Duplicated Service Pattern. This

pattern contains two services, the first is the service

S2, and the second is the duplication of the same

service named S2-D which will be invoked when it is

overloaded. When we have an overload we duplicate

the service as the number of requests, for this

example, we will have 100 copies of S2 in parallel.

Thus the response time for processing the requests

will be equal to 62s.

When we have an unload, the number of the

requests decreases, then it is not necessary to

duplicate the service, we just invoke the initial service

for this example S2. The choice of which service

instance, should be invoked and executed is leaded to

the mechanism of the workflow execution engine. In

this case, by applying to the DuplicatedService

Pattern, we can solve the two first anomalies

mentioned before.

Figure 5: Flexible workflow.

To solve the last anomaly, the solution consists in

adding a new resource when the previous resource is

unavailable, after a delay of waiting, we should add

the new resource, to avoid the suspension of the

running of the workflow. To fulfil, we apply to the

Alternative Service Pattern, which define a number of

resources available for the same service (Figure 6).

Back to the example, any services of the four services

can be replaced by this pattern, because at any time,

any service could not dispose of the required

resources. To simplify the representation, we choice

the service S3 as the service which lacks of resources.

The response time of the service S3 is 10s, the

maximum response time is 5s (here

response_time(S3) > max(response_time)). Thus, we

add another service named S3-R which provide the

same resources for the S3.

Figure 6: Adding resource for service S3.

6 SPECIFICATION OF THE

BEHAVIORAL VIEW OF THE

CLOUD SERVICE FLEXIBLE

WORKFLOWS USING SATE-

CHART DIAGRAM

In order to control the execution of the flexible

workflows, we should define the behaviour of each

cloud service involved into the workflow. The

definition of an adequate behaviour for dynamic

modifications in different situations could avoid any

eventual suspension of the workflow running process.

Patterns for Modelling and Composing Flexible Workﬂows from Cloud Services

311

The state-chart diagram models the behaviour to

recognize which services of flexibility patterns

should be involved, and is it also supervised by a

control system implemented by ADA (Woodruff and

Van Arsdall, 1998). It models as well the actions that

the control system should perform during the running

time. During its processing time, a cloud service

workflow could be in one of the three states: waiting,

running and terminated. The two first states are

composed of sub-states as shown in Fig. 7. (With E1:

event overload, C1: nb_req> max_req, A1: Add a

new instance of the cloud service, E2: event

unavailable resource, C2: response_time>

max_response_time, A2: Add a new resource for the

cloud service, E3: event unload, C3: nb-req< nb-max,

A3: delete the duplicated instance of the cloud

service)

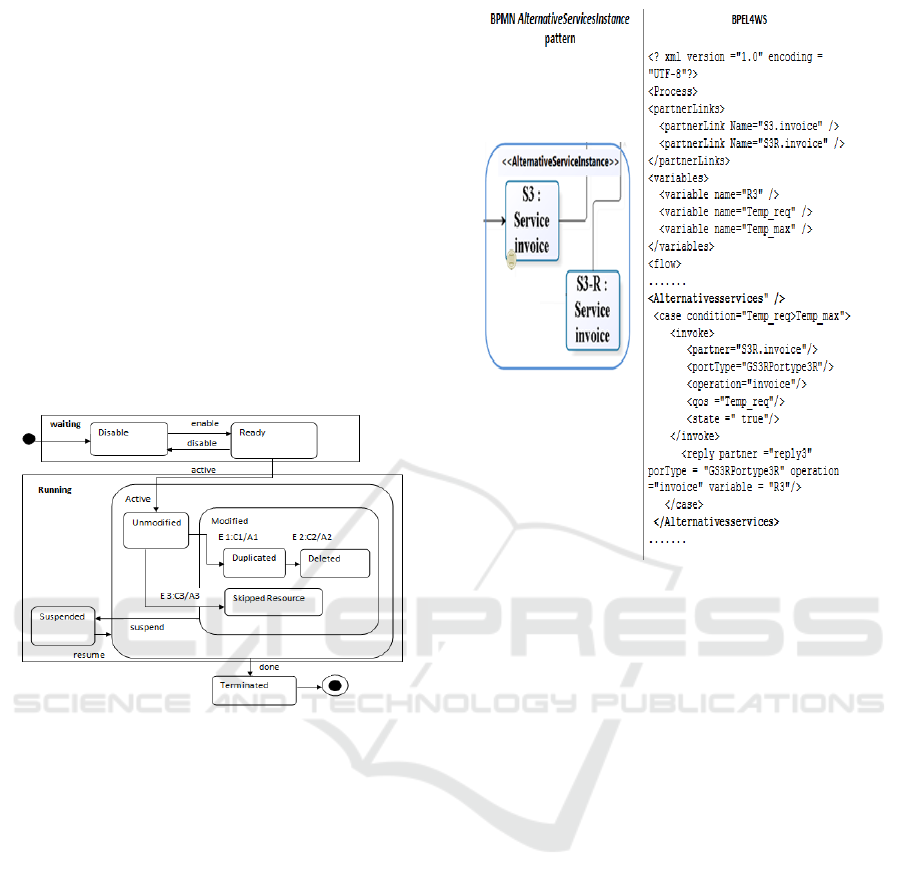

Figure 7: State-chart diagram.

7 TRANSFORMATION OF BPMN

ALTERNATIVESERVICEINSTA

NCE PATTERN TO BPEL4WS

BPEL4WS language with its standard constructs does

not support BPMN AlternativeServicesInstance

pattern. This later models the semantics that states

that the two operations are provided by two different

services but they require the same resource. To fulfill

this need, we have extended the BPEL4WS

constructs by alternativeservices construct as

BPEL4WS is an open source and an open system. To

be supported by the BPEL4WS execution engine, we

have defined for the alternativeservices construct a

JAVA code which is added to the BPEL4WS

execution engine JAVA code. The mapping pattern

between Alternative-services pattern and BPEL4WS

is presented next:

Figure 8: Transformation of BPMN alternative service

Instance to BPEL4WS.

To execute this construct, the BPEL4WS

execution engine will select the operation having the

higher quality of service in term of cloud service

response time or cloud service availability. Applying

on the BPEL model of Fig.8 the transformation

patterns defined between BPMN and BPEL4WS, we

generate a BPEL4WS model.

8 EVALUATION OF THE

FLEXIBILITY PATTERNS

In our experiment, we used an invocation scenario

that represents a calls arrival on the workflow. This

scenario applies for both Alternative Service Pattern

and Duplicated Service Pattern. For each pattern, we

generate a graph which represents all the possible

evolution of the workflow in term of duplicating,

deleting and adding resources. The analysis of this

graph shows the use of the Alternative Service Patten

(Figure 9 (a).), while the Duplicated Service pattern

is applied in (Figure 9 (b).). Thus, based on these

flexibility patterns, our approach helps the user to

avoid any eventual suspension of the running

workflow process and it reduces the cost of the

running time.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

312

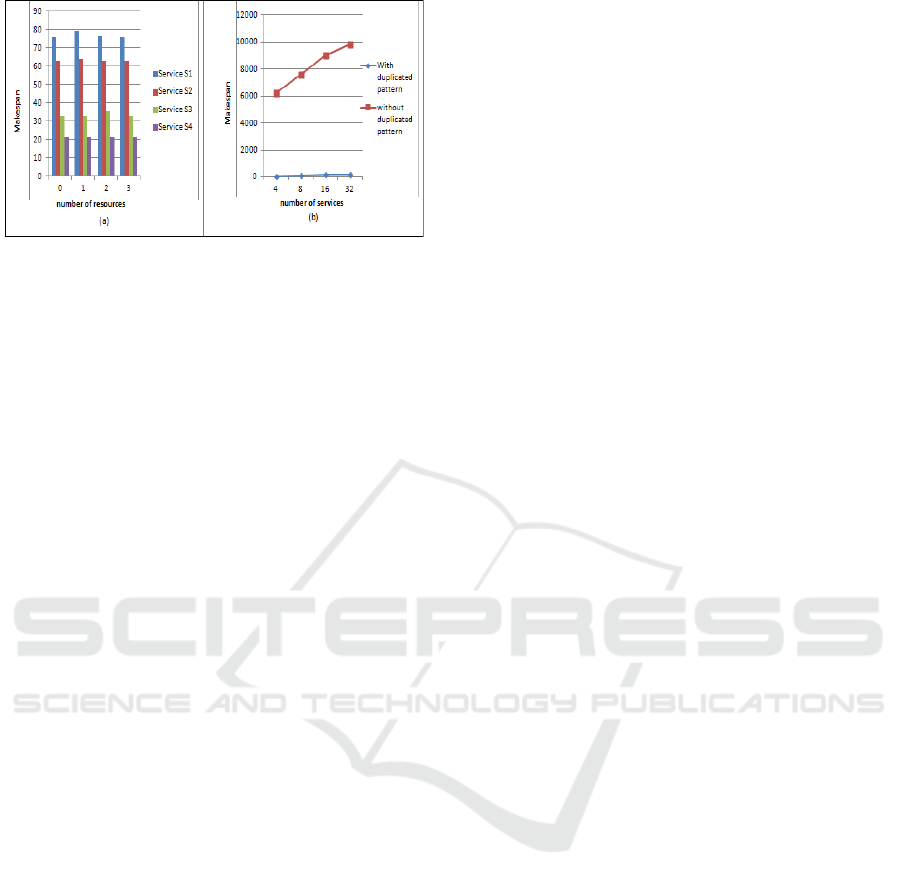

Figure 9: The evolution of resources and services using

flexibility patterns.

9 CONCLUSION

We have proposed an MDA approach for the

specification and the execution cloud workflow

applications from cloud services. We have detailed a

set of steps for integrating and matching,

systematically, cloud services in a workflow. In

addition, we have defined two patterns based on the

properties of flexibility and predicates which is used

in the execution process to depict the right cloud

service to involve in the workflow. The approach

shows also how the modelling proposed constructs

are applied to model and represent a flexible

workflow from cloud services by extending the

BPEL4WS constructs. This process was illustrated

under the example of an online computer shopping

(Amziani, Melliti and Tata, 2013). As a proposal for

further work, we propose to verify the semantic

preservation of the different transformations.

REFERENCES

Allweyer, T., 2010. BPMN 2.0: Introduction to the

Standard for Business Process Modeling.

Amziani M., Melliti, T., Tata, S., 2013. Formal Modeling

and Evaluation of Service-Based Business Process

Elasticity in the Cloud. Chapter On the Move to

Meaningful Internet Systems: OTM 2013 Conferences.

Volume 8185 of the series Lecture Notes in Computer

Science, pp 21-38.

Dillon, T., Wu, C., Chang, E., 2010. Cloud Computing:

Issues and Challenges. In 24th IEEE International

Conference on Advanced Information Networking and

Applications, pp 27-33.

Fengyu, Y., Ying, C., Zheng, H., Wei, Z., Xilong, D., 2015.

Design and Implement of a Flexible Workflow Model

Based on UML Modeling Technology. Applied

Mechanics and Materials Vols. 738-739, pp. 304-310.

Gronmo, R., Jaeger, M. C., 2005. Model-Driven Semantic

Web Service Composition. In. Proc. APSEC'05, Dec,

pp. 79-86.

Group, O.M., 2005. Uml 2.0 superstructure specification.

Technical report.

Hu, J. M., Zhang, S. S., Yu, X.Y., 2002. A Workflow Model

Based on ECA Rules and Activity Decomposition.

Journal of Software, 13(4), pp 761-767.

Nurcan, S., 2008. A Survey on the Flexibility

Requirements Related to Business Processes and

Modeling Artifacts. In Proceedings of the 41st Hawaii

International Conference on System Sciences.

Regev, G., Wegmann, A., 2005. A Regulation-Based View

on Business Process and Supporting System Flexibility,

Proc. of the CAiSE’05 Workshop, pp. 91- 98.

Rosemann, M., Recker, J., 2006. Context-aware Process

Design Exploring the Extrinsic Drivers for Process

Flexibility, BPMDS, Luxembourg.

Saidani, O., Nurcan, S., 2006. A Role-Based Approach for

Modelling Flexible Business Processes, The 7th

Workshop on Business Process Modelling,

Development, and Support (BPMDS'06), (in

association with CAISE'06), Springer Verlag (pub),

Luxembourg, 2006.

Schmidt, R., 2005. Flexible Support of InterOrganizational

Business Processes Using Web Services. Proceedings

of the CAiSE’05 Workshop, pp. 51-58.

Shen, J., Grossmann, G., Yang, Y., Stumptner, M., Schrefl,

M., Reiter, T., 2007. Analysis of Business Process

Integration in Web Service Context. Future Generation

Computing System, vol. 23, no. 3, pp.283–294.

Shi, D., Danies, R.L., 2003. A survey of Manufacturing

Flexibility: Implications For E-Business Flexibility.

IBM Systems Journal 42(3), p.414-427.

Van der Aalst, W. M. P., 2001. How to handle dynamic

change and capture management information? An

approach based on generic workflow models. In

Proceedings of the Fourth IECIS International

Conference on Cooperative Information Systems.

Woodruff, J. P., Van Arsdall, P. J., 1998. A Large

Distributed Control System Using Ada in Fusion

Research. In Proceedings of the 1998 annual ACM

SIGAda international conference on Ada, pp 121-131.

Yubin, G., Zeye, C., Zewei, L., Ximing, L., 2013. Design

and Implementation of a Flexible Workflow

Management System. Journal of Software, Vol 8, No

12, pp. 3060-3065.

Patterns for Modelling and Composing Flexible Workﬂows from Cloud Services

313
