Detection of Access Control Violations in the Secure Sharing of Cloud

Storage

Carlos Andr

e Batista de Carvalho

1,2

, Rossana Maria de Castro Andrade

, Nazim Agoulmine

and Miguel Franklin de Castro

Computer Science Department, Group of Computer Networks, Software Engineering, and Systems (GREat), Federal

University of Cear

a (UFC), Fortaleza, Brazil

Computer Science Department, Federal University of Piau

ı (UFPI), Teresina, Brazil

IBISC Laboratory, University of Evry (UEVE), Evry, France

Keywords:

Secure Storage, Data Sharing, Access Control Violations.

Abstract:

A cloud storage service implements security mechanisms to protect users data, including an access control

mechanism to enable the data sharing. Thus, it is possible to deﬁne users permissions, granting the access only

to authorized users. Existing solutions consider that the provider is honest but curious so that the designed

mechanisms prevent the access to the ﬁles by the provider. However, the possibility of executing illegal

transactions is not analyzed, and a malicious provider can perform transactions requested by unauthorized

users, resulting in access control violations. In this paper, we propose monitoring and auditing mechanisms to

detect these violations. As a result, new attacks are identiﬁed, especially those resulting from writing actions

requested by users whose permissions were revoked. Colored Petri Nets (CPNs) are used to model and validate

our proposal.

1 INTRODUCTION

Cloud computing is a distributed computing paradigm

that enables the sharing of computational resources

between many clients. It is possible to reduce the in-

frastructure costs by contracting a public cloud provi-

der and paying only for the consumed resources. Be-

sides, the services’ scalability allows the dynamic al-

location of resources, in accordance with customers’

needs. However, this technology comes with the main

drawback of losing control over the data stored in the

cloud infrastructures. Therefore, there is some resis-

tance in adopting public clouds, due to concerns about

security and privacy (Ardagna et al., 2015) (Luna

et al., 2015).

Among security concerns (e.g., data loss and

leakage, resource location, service disruption and

multi-tenancy issues), (Rong et al., 2013) stress that

the big concern is the assurance of the security in

cloud storage. Cloud providers have developed se-

curity mechanisms based on frameworks and secu-

rity guidelines elaborated by standardization bodies,

such as ISO (International Organization for Stan-

dardization), NIST (National Institute of Standards

and Technology) and CSA (Cloud Security Alliance)

(Luna et al., 2015). In Amazon S3 (Simple Storage

Service), for example, the SSL (Secure Socket Layer)

protocol is used to protect data transmission, and the

AWS KMS (Key Management Service) to protect

data at rest (Amazon, 2017a). The KMS facilitates

the creation, storage and distribution of keys. Besides,

the permission management, based on Access Control

Lists (ACLs), enables secure data sharing (Amazon,

2017b).

Security mechanisms are designed to prevent or

detect attacks, and the success of an attack results in

the violation of a security property (Stallings, 2016).

An access control mechanism, for example, is used to

allows the deﬁnition and updating of ﬁles’ permissi-

ons. In addition, the providers can be ”honest but cu-

rious”, requiring cryptographic solutions so that the

ﬁles cannot be accessed by the providers (Tiwari and

Gangadharan, 2015b) (Jiang et al., 2014). In this con-

text, the key management becomes essential, being

responsible for updating the keys and their distribu-

tion only for authorized users (Popa et al., 2011).

However, it is not possible to avoid all kind of at-

tacks, especially those performed by malicious pro-

viders. Therefore, the cloud customers request more

transparency and security guarantees from providers

124

Batista de Carvalho, C., de Castro Andrade, R., Agoulmine, N. and Franklin de Castro, M.

Detection of Access Control Violations in the Secure Sharing of Cloud Storage.

DOI: 10.5220/0006698701240135

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 124-135

ISBN: 978-989-758-295-0

(Ardagna et al., 2015). In this context, scienti-

ﬁc research has been realized to develop solutions

that improve the trust in cloud providers (Jin et al.,

2016) (Hwang et al., 2014a) (Tiwari and Gangadha-

ran, 2015a). These solutions can detect malicious be-

haviors that result in violations of security properties.

A malicious provider can, for example, ignore the

veriﬁcation of access control, performing unauthori-

zed transactions. This malicious behavior results in

a violation of access control that must be detected.

The existing mechanisms can detect, for example, an

illegal writing when this writing uses invalid keys re-

sulting in integrity violations. On the order hand, the

cloud customer can revoke a user’s write permission,

but this user can use an older encryption key and try

to write a new ﬁle (Kallahalla et al., 2003). In this

case, if the malicious provider commits this writing,

no integrity violation will be detected.

In this paper, we propose monitoring and auditing

mechanisms to detect access control violations in a

cloud storage service avoiding the provider to deceive

or deny the violation detection. An honest broker that

manages the cloud transactions (e.g., reading and wri-

ting) and informs users the current state of the system,

enabling the real-time detection. A private cloud or

other Trust Third Party (TTP), for example, can acts

as a honest broker. Otherwise, the broker can be dis-

honest, making the auditing necessary to identify the

violations.

The rest of this paper is organized as follows. In

Section 2, we detail the concepts related to secure

sharing in cloud storage. The proposed mechanisms

and the security evaluation are described in Section 3.

Next, the related work is discussed. Lastly, Section 5

presents the ﬁnal considerations and future work sug-

gestions.

2 SECURE SHARING IN CLOUD

STORAGE

In this section, we present the mechanisms, for access

control and violation detection, used as the basis for

this research. In addition, we enumerate attacks that

result in access control violations.

2.1 Access Control

The security of the stored data and ﬁle sharing are ty-

pical requirements of a cloud storage service. Then,

existing solutions include an access control mecha-

nism, allowing the ﬁle sharing while preventing data

leakage. In these solutions, a cloud customer (or

client administrator) can purchase the storage service,

and deﬁne permissions for cloud users that can, at le-

ast, read and write ﬁles. The cloud transactions are

managed by a broker and performed by a cloud provi-

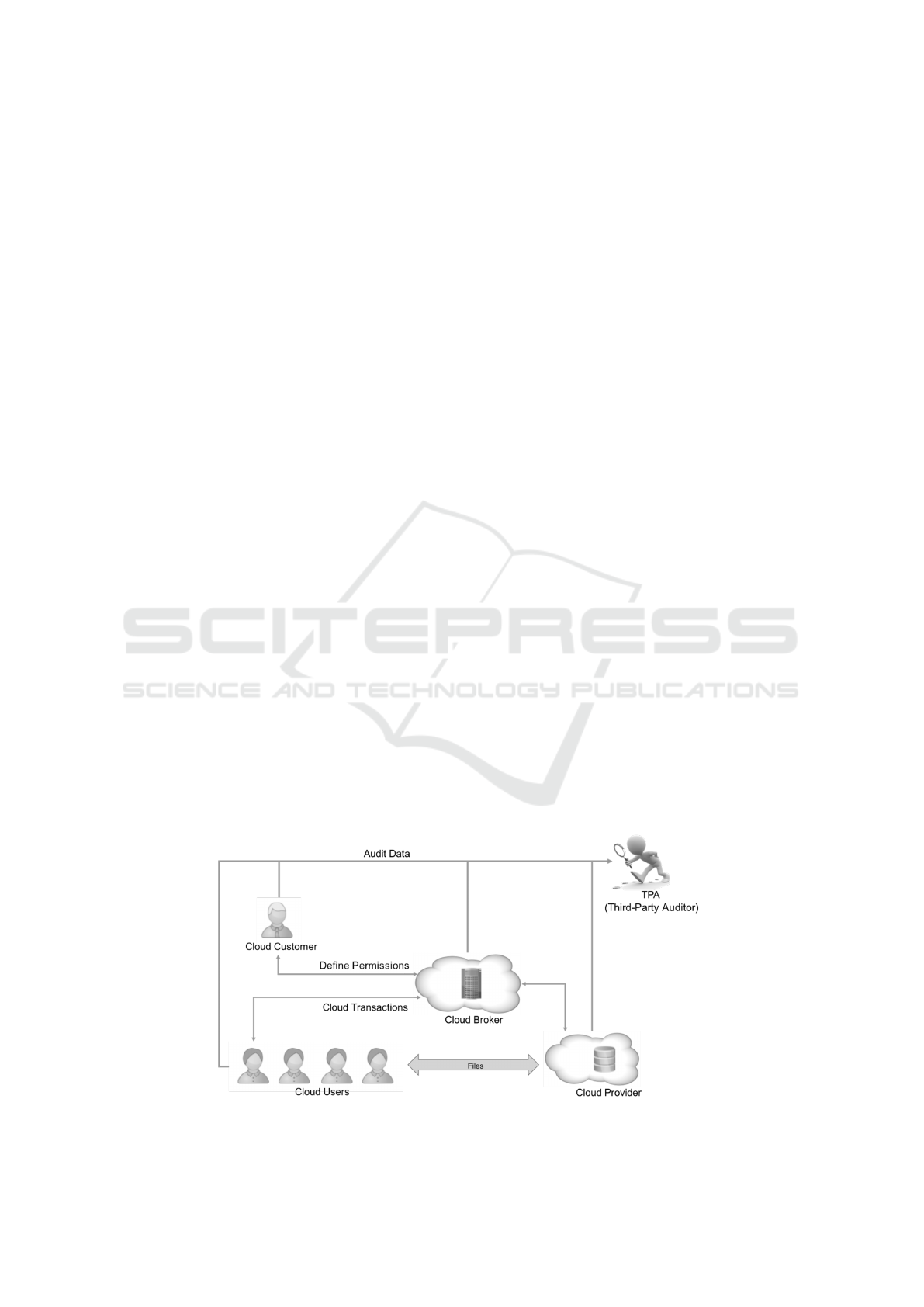

der. Figure 1 presents an overview of a cloud storage

service, and Table 1 describes the roles of each actor

of this service. Due to the possibility of the provi-

der and the broker act maliciously, the access control

violations can be detected by the users and the Third-

Party Auditor (TPA).

Security mechanisms must be designed to protect

a user against existing threats, which are, in the scope

of this research, data leakage and corruption. In this

context, these mechanisms provide data conﬁdentia-

lity and integrity, ensuring the data access or modi-

ﬁcation only by authorized users. An access control

mechanism allows the cloud customer to deﬁne who

can read and who can write in each ﬁle. The proxy re-

encryption (PRE), Attribute-Based Encryption (ABE)

and Access Control Lists (ACLs) are the approaches

used to design access control mechanisms (Thilaka-

nathan et al., 2014).

Figure 1: Storage service overview.

Detection of Access Control Violations in the Secure Sharing of Cloud Storage

125

Table 1: Cloud actors deﬁnition.

Actor Deﬁnition

Costumer

The person of an organization that administer the storage service. He/she is responsible

for deﬁne/modify the permissions and upload new ﬁles.

User

An employee that can read or write ﬁles in accordance with his/her permissions.

A user also checks the security properties based on the information received by the broker

Broker

The entity responsible for managing the transactions. It check permissions and

sends the keys and the current status of a ﬁle.

Provider The entity responsible for storing the ﬁles.

Third-Party Auditor (TPA)

The entity responsible for analyzing the transactions’ logs to demonstrate the security

or prove the occurrence of a violation.

The Access Control Lists (ACLs) has been used

in solutions that include mechanisms for violation de-

tection (Popa et al., 2011) (Jin et al., 2016). Due to its

suitability to be used in conjunction with other secu-

rity mechanisms, ACLs are used, in this research, to

specify users’ permissions. Each ﬁle has an ACL that

contains a list of users with their permissions. The

users have read or read/write permissions, and only

the cloud customer can change the permissions, gran-

ting or revoking access. For efﬁciency purposes, it

is possible to use one single ACL for authorizing the

access to a group of ﬁles (Kallahalla et al., 2003).

In addition to setting permissions, it is essential

to use cryptography algorithms to make effective the

access control so that providers do not have access

to the plaintext (Tiwari and Gangadharan, 2015b). A

symmetric cipher is used for data conﬁdentiality so

that only authorized users can encrypt or decrypt the

ﬁle, using the secret key (R). The data integrity is

ensured based on digital signature in which the pair of

keys (W and W

) is used, respectively, to sign the ﬁle

and verify its signature. These keys are generated by

the process deﬁned by the asymmetric cipher used for

digital signature. The security of the cryptographic

primitives used by cloud storage solutions is attested

by the scientiﬁc community and outside the scope of

this paper.

These keys that can be accessed in accordance

with the users’ permissions, enabling a granular

access control. Then, the key management is essential

to distribute the keys only to authorized users and up-

date the keys whenever necessary. It is recommended

to use different keys for each ﬁle and change the en-

cryption key when the permissions are updated, fol-

lowing the guideline to limit the amount of data en-

crypted by a single key (Barker, 2016) and avoiding

that revoked users can access a ﬁle (Kallahalla et al.,

2003).

In a simple and costly solution, while W

is kept

public, R and W can be encrypted with the public

key of each authorized user so that they are accessed

only by them. Due to the inefﬁciency of this appro-

ach, Broadcast Encryption has been used (Popa et al.,

2011) (Jin et al., 2016). The key and the group of

authorized users (G) are the inputs of a broadcast en-

cryption scheme (E

), generating a ciphertext that can

be deciphered only by users in G. (Boneh et al., 2005)

detail a scheme that enables the broadcast encryption.

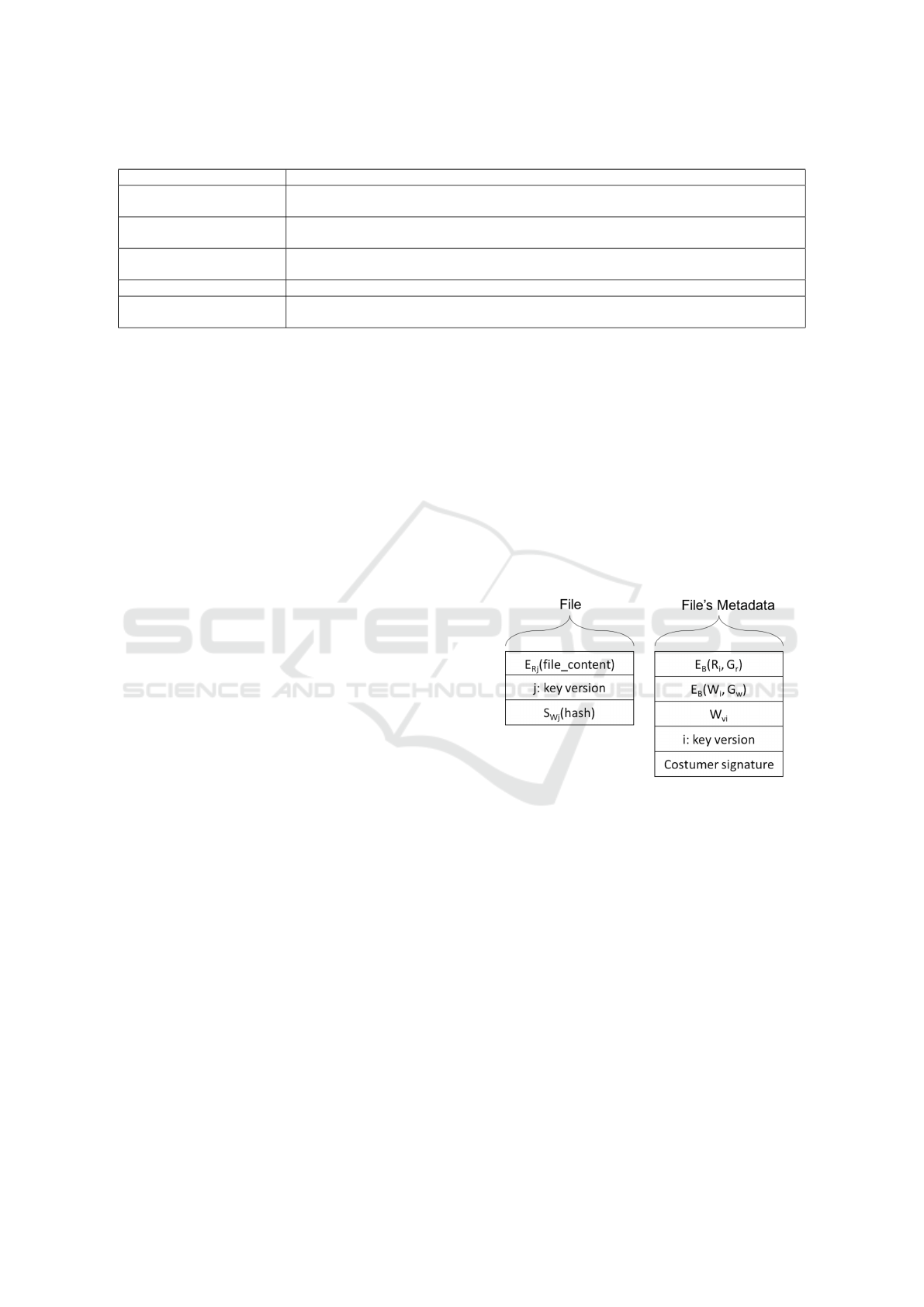

Figure 2 illustrates the layout of each stored ﬁle

and its metadata, detailing how each key is used. The

users with read or read/write permissions belongs to

the set G

and can decipher the E

, G

) and ex-

tract the key used to encrypt/decrypt the ﬁle. W

can

be obtain by users with read/write permissions (i.e.,

members of the set G

). Thus, authorized users can

modify a ﬁle, encrypt it and generate a valid signature.

Figure 2: File and ﬁle’s metadata layout.

In addition, there are different versions of the rea-

ding and writing keys, indicated by the indexes i and

j. The key version used to encrypt the ﬁle can be dif-

ferent from the key indicated in the metadata due to

the lazy revocation approach. This approach is fre-

quently adopted to reduce the overhead when permis-

sions are revoked (Jiang et al., 2014) (Tassanaviboon

and Gong, 2011). With lazy revocation, the keys are

updated, and the ﬁle is re-encrypted only in the next

writing transaction. When the permissions are upda-

ted, the key version (index i) in metadata is also up-

dated. However, the ﬁle is not re-encrypted so that its

key version (index j) remains unchanged.

The Key Rotation scheme is used to simplify the

keys updating when the permissions are changed and

enable the lazy revocation (Kallahalla et al., 2003).

In this scheme, only the customer can generate a se-

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

126

quence of keys from an initial key and a secret key

so that when the customer modiﬁes the permissions,

he/she creates the next key version and signs the new

metadata. After deciphering the ﬁle’s metadata, aut-

horized users can extract any previous version from

the current version, obtaining the correct key used to

cipher or sign a ﬁle. It is interesting to mention this

scheme can create keys to be used by symmetric and

asymmetric ciphers.

Besides the high cost of the immediate revocation,

the possibility of a malicious user making copies of

the ﬁles before losing his privileges encourages the

use of this approach (Popa et al., 2011). However, it

is necessary to mention the loss of security resulting

of the lazy revocation because it enables the occur-

rence of access control violations. When a user is re-

voked, he/she leaves the set of users that can decipher

the new metadata. Despite, the revoked user can keep

the reading or writing key extracted from the previous

metadata, making he/she able to access or modify the

ﬁle if these keys are not updated. Therefore, it is es-

sential to evaluate the impact of this approach in the

access control.

In accordance with (Thilakanathan et al., 2014),

the evaluation of the access control must analyze if

revoked users really lost their privileges and if the pro-

vider cannot collude with an unauthorized user, gran-

ting access to this user without the customer’s per-

missions. The collusion between entities must also be

evaluated when a third party is included to mediate

the communication between the users and the provi-

der (Tiwari and Gangadharan, 2015b).

On the other hand, the assumption that the pro-

vider is ”honest but curious” is common in this en-

vironment (Jiang et al., 2014) (Tiwari and Gangad-

haran, 2015b). In this context, access control me-

chanisms usually are evaluated to show the protection

against data leakage, demonstrating that the provider

and unauthorized users have not access to the keys

and, consequently, cannot read ﬁles or write uncor-

rupted ﬁles. However, the possibility of the provider

acting maliciously is not analyzed, and the execution

of an illegal transaction (e.g., unauthorized writing)

results in a violation that must be detected.

2.2 Violation Detection

The access control is a prevention mechanism and

must be combined with other security mechanisms

to detect malicious behaviors from malicious internal

entities, especially providers. Attacks from these en-

tities not always can be avoided and result in security

violations that must be identiﬁed. There are monito-

ring and auditing solutions for veriﬁcation of security

properties (Jin et al., 2016) (Tiwari and Gangadharan,

2015a).

In our preliminary paper (Carvalho et al., 2017a),

we propose mechanisms to improve the violation de-

tection, addressing attacks not analyzed by existing

solutions. So, in this subsection, we present an over-

view of this solution and then highlight the threats

related to access control violations that have not yet

been analyzed by existing solutions (Carvalho et al.,

2017b).

2.2.1 Log Analysis

The existing violation detection mechanisms are ba-

sed on log analysis of cloud transactions. This ana-

lysis allows to prove the occurrence or not of vio-

lations of security properties. Existing solutions ve-

rify the integrity, retrievability, freshness and write-

serializability of the data stored in the cloud. The in-

tegrity ensures the data modiﬁcation only by authori-

zed users. The retrievability is related to the data loss

veriﬁcation, and the freshness indicates the reading of

the updated ﬁle. The write-serializability controls the

writing order, ensuring that the new version of a ﬁle

overwrites the last version of it.

In accordance with (Carvalho et al., 2017a), each

log entry, called attestation, represents one cloud tran-

saction and contains the following elements: UserID,

UserLSN, FileID, FileVersion, FileHash, KeyVer-

sion, TransactionType, ChainHash and Signatures.

The UserID identiﬁes each user and, the UserLSN re-

presents the last sequence number used by each user.

The FileVersion is essential to verify the freshness

and write-serializability, and the FileHash to check

the signature of the received ﬁle. The type of the tran-

saction (i.e., reading or writing) indicate whether the

expect FileVersion must be replaced during an audi-

ting. The KeyVersion allows a user to derive the cor-

rect key, using a Key Rotation scheme. The Chain-

Hash is used to build the chain of attestations and is

computed over the data of the current attestation and

the ChainHash of the previous one. Last, all invol-

ved entities (i.e., broker, user and provider) sign the

attestation for non-repudiation purposes.

The veriﬁcation of security properties is perfor-

med in real-time (by monitoring of the cloud tran-

sactions) and in auditing. The monitoring enables to

detect violations early, reducing the damage resulted

from, for example, the use of an invalid ﬁle (Hwang

et al., 2014a). The users follow a protocol that enables

to verify security properties while read or write ﬁles

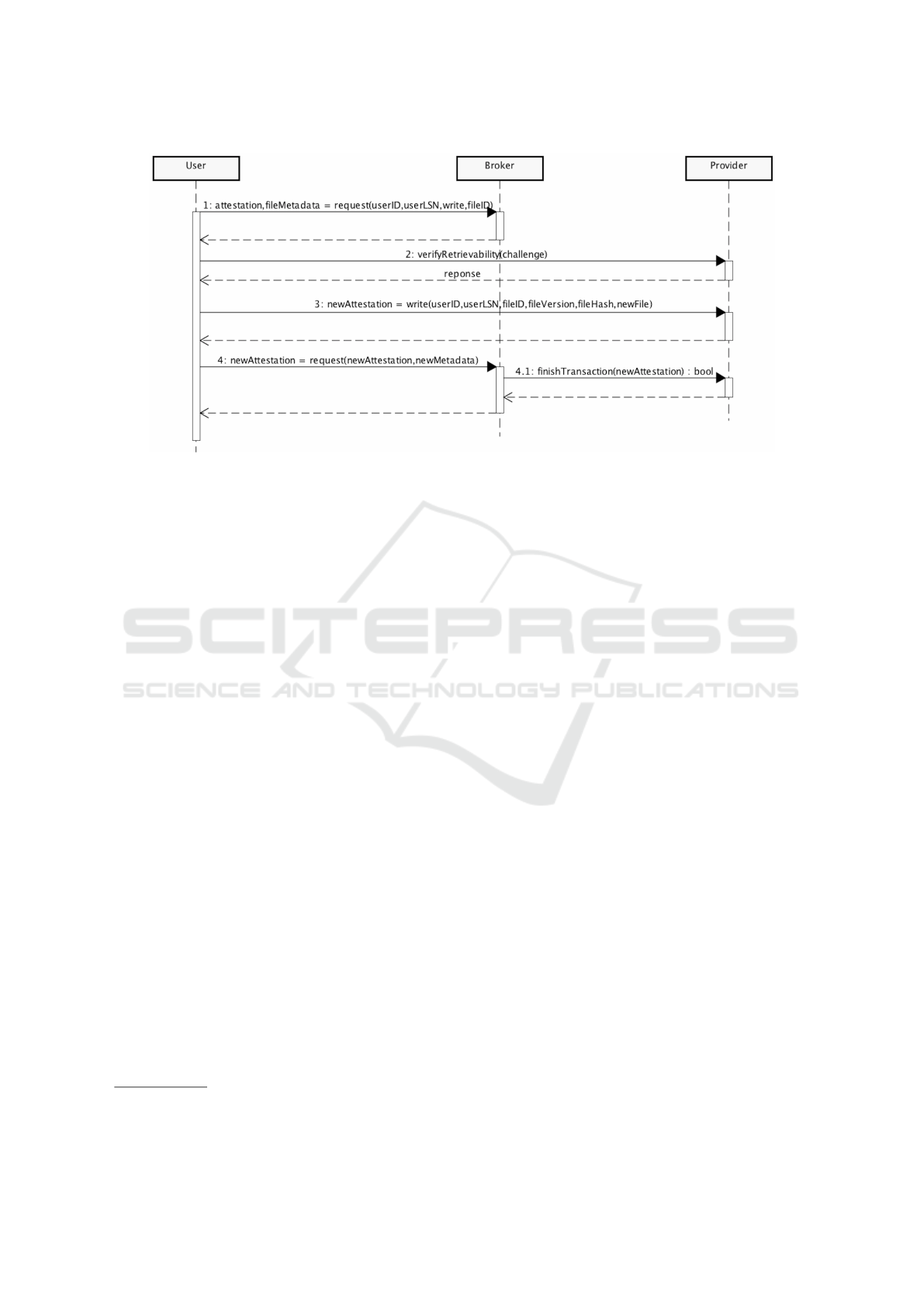

in the cloud storage. Figure 3 details, for example, the

writing protocol. Based on the attestation sent by the

broker, a user veriﬁes the integrity and freshness of

the stored ﬁle, or prepare a writing request that com-

Detection of Access Control Violations in the Secure Sharing of Cloud Storage

127

Figure 3: Writing a ﬁle.

plies with the write-serializability. However, the user

must be sure that the received attestation is really the

attestation regarding the last transaction, making in-

dispensable the participation of an honest broker to

manage the transactions. After an attack (e.g., in next

transaction), an inconsistency between the last attes-

tation and the stored ﬁle is identiﬁed.

Before the audit, the provider must send all at-

testations to the TPA, and the broker and users send

their last attestations. For each ﬁle, the TPA builds

the chain of attestations, ordering them, and analyzes

the sequence of the ﬁle’s versions to prove that no vi-

olation occurs. Besides, it also checks the presence of

all UserLSNs considering the chains of attestation of

all ﬁles. The attestations sent by users and broker are

used to verify whether the provider hides some tran-

saction. Otherwise, the TPA report a violation. Due

to the signature of attestations, no entity can deny a

violation. The auditing also includes a Proof of Re-

trievability (PoR) scheme to check if scarcely acces-

sed ﬁles were lost or not (Yang and Jia, 2012). After

the audit, the attestations can be discarded, except the

last attestation of each ﬁle that will be chained with

the attestations of the new epoch

2.2.2 Threat Model

The veriﬁcation performed by existing solutions is not

enough to detect all violations resulting from the exe-

cution of illegal transactions. The transactions are il-

legal when the malicious provider allows the reading

or writing by an unauthorized user. Normally, the

unauthorized users do not have the keys to read ﬁles,

The period between two consecutive audits is called

epoch (Popa et al., 2011)

and an unauthorized writing is detected by existing

solutions because the users cannot write ﬁles with a

valid signature.

On the other hand, a user can be, for example, dis-

missed, and his permissions being revoked. In this

case, this user can try to use his old credentials to

access or modify ﬁles. Due to the lazy revocation, re-

voked users can read ﬁles if they are not re-encrypt

yet. Besides, a malicious provider can ignore the

access control, and a revoked user can write new ﬁ-

les using old keys, which may be considered valid

(Kallahalla et al., 2003). Therefore, besides an access

control mechanism, a mechanism to verify the access

control is necessary to check if the provider performs

only authorized transactions.

These scenarios are not analyzed by existing solu-

tions (see Section 4), not verifying the possibility of

a malicious provider allowing the reading or writing

by a revoked user. Besides, the broker displayed in

Figure 1 can be trustworthy or malicious. So, a ma-

licious broker can collude with the provider, trying to

deceive violation detection, and must also be detected

by the proposed mechanisms.

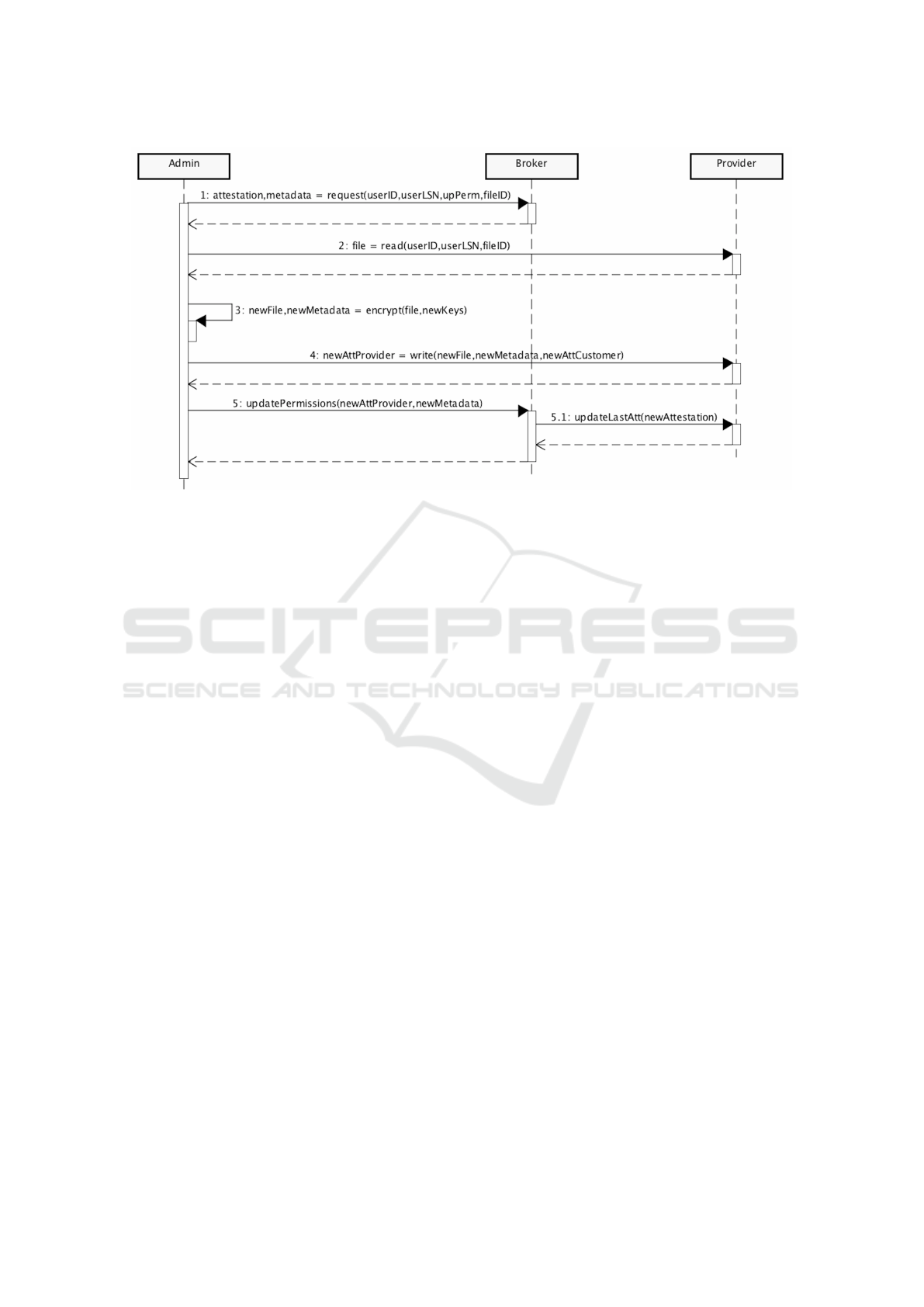

Lastly, there are transactions to modify permis-

sions, requested only by the cloud customer. These

transactions must be committed by the broker and

provider in order to update the ACLs and ﬁle’s me-

tadata. The malicious entities can also ignore these

transactions, allowing unauthorized readings and wri-

tings in the future.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

128

3 DETECTING ACCESS

CONTROL VIOLATIONS

In this paper, we extend our previous solution to iden-

tify also the access control violations. This section

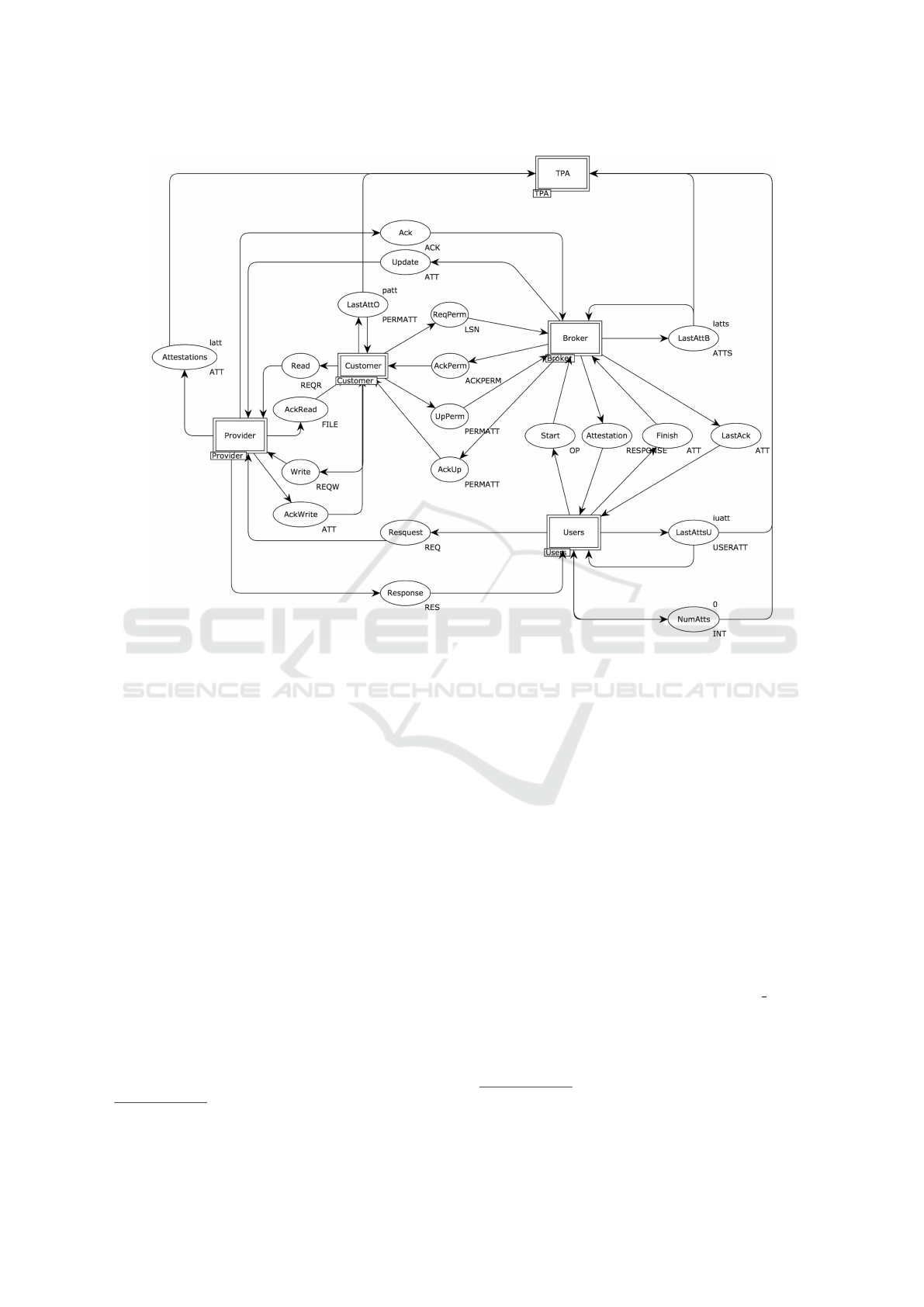

describes our proposal followed by the modeling and

validation of the proposed mechanisms using CPNs

(Colored Petri Nets), demonstrating that access cont-

rol violations are detected.

3.1 Proposal

An access control mechanism is used by a secure

storage service to provide data conﬁdentiality and

integrity in accordance with the permissions by the

cloud customer. In a data sharing environment, autho-

rized users read and write ﬁles in the cloud provider

while the cloud customer can also update the permis-

sions, granting or revoking privileges to users. The

cloud transactions are stored in logs that are scanned

for violation detection. Previously, only the reading

and writing transactions are addressed.

In this context, it is necessary to specify how to

represent the updating of permissions in the log. The

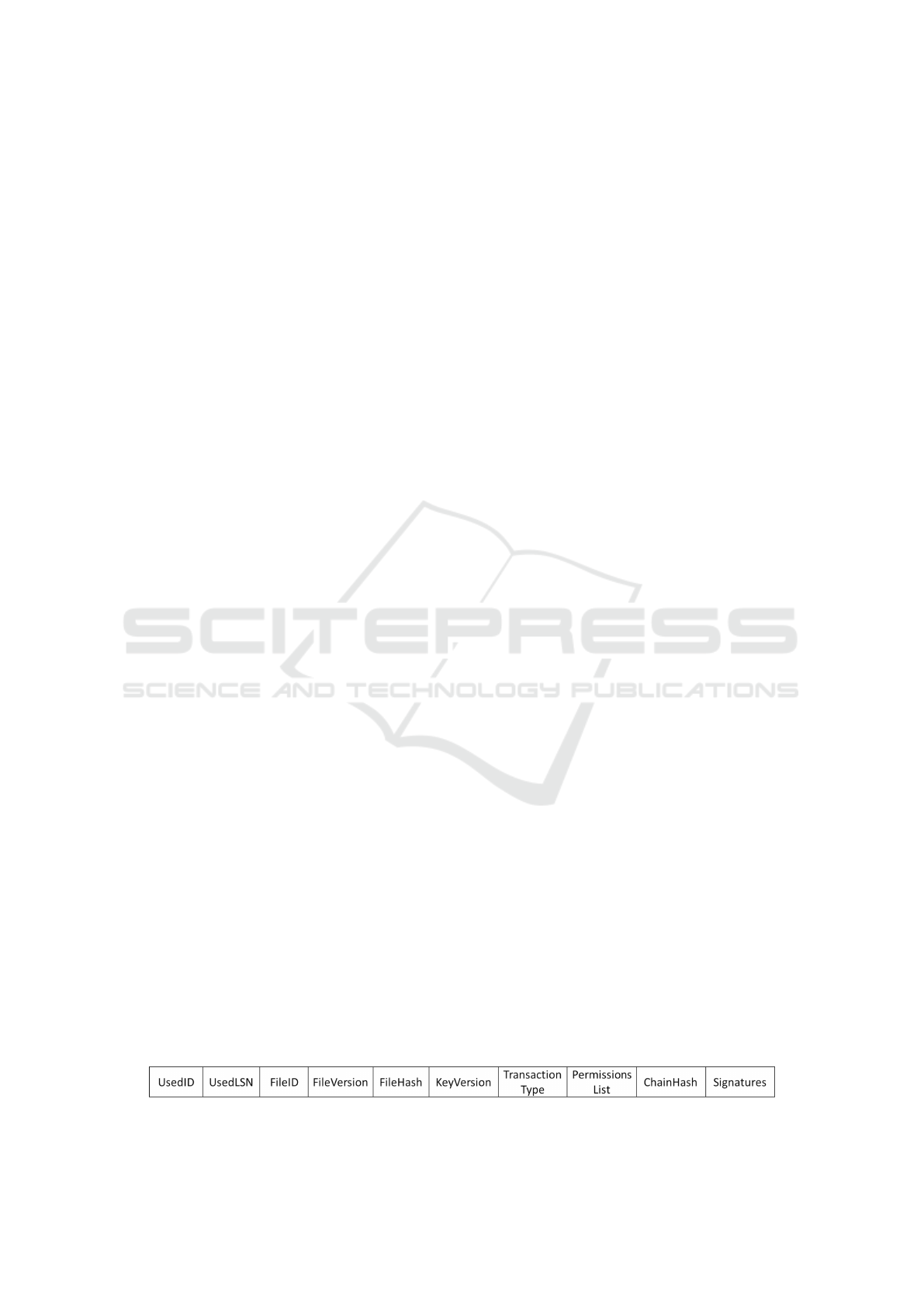

attestation of a permission update transaction inclu-

des a new ﬁeld (called PermissionList) with a list of

the modiﬁed permissions, as shown in Figure 4. This

ﬁeld appears only in attestations of transactions to up-

date permissions and each element of this list indica-

tes the UserID and his/her new permission. In order

to reduce the size of this list, only the users whose

permissions have been changed are added to the list.

It is interesting to mention that the cloud customer

has an ID as well as the other users and can request

reading and writing transactions. In addition, only the

cloud costumer can write a new ﬁle and, next, deﬁne

its permissions.

It is important to mention that the attestation of a

permission update transaction must be chained with

other transactions of a ﬁle. Besides the attestations,

the customer and the provider send to the TPA the cur-

rent permissions for auditing. Thus, the auditor verify

the correctness of the access control, observing if the

users had or not permission in the moment of each

transaction. A malicious provider cannot bypass the

violation detection, hiding an unauthorized writing,

because any writing modiﬁes the ﬁle’s signature, and

an attestation with this signature is sent to users for

integrity veriﬁcation. It is not possible to inform that

different users request the transactions, due to the sig-

nature of the attestations, and to change the content of

an attestation without breaking the chain of attestati-

ons.

On the order hand, a malicious provider can hide

an illegal reading without being detected if the unaut-

horized user also does not report this transaction. Ho-

wever, even if this user receives the ﬁle, he/she cannot

decipher it without the keys. Thus, the data leakage

can occur only if the lazy revocation is applied. In this

case, a revoked user can use the old key to access the

ﬁle if it has not been modiﬁed. So, due to the impact

of not detecting leaks, the lazy revocation approach is

not a security recommendation.

In this context, the customer re-encrypts the ﬁle

when the permissions are updated. Before the encryp-

tion, the customer receives the last attestation, the me-

tadata and the ﬁle. In addition, the customer creates

the new metadata and the new attestation that inclu-

des, respectively, the generated keys and the modi-

ﬁed permissions. The re-encryption is only required

if some user loses the reading privileges. Thus, it is

possible to remove the cost to encrypt the ﬁle and to

transmit the ﬁle from and to the provider.

The auditing is enough to detect access control vi-

olations. However, the use of an honest broker ena-

bles users to be sure that the attestation and the me-

tadata received are the last ones, making possible the

access control monitoring. When a violation is de-

tected, then TPA can perform an audit to avoid that

a user falsely accuses the cloud provider, solving any

conﬂict. Figure 5 details the protocol to change the

permissions, using a broker to manage the transacti-

ons. It is worth mentioning that the last step ﬁnalizes

the transaction so that the three parties have the attes-

tation signed by everyone.

A malicious provider can ignore the permissions,

executing illegal transactions. In this context, a revo-

ked user is able to write ﬁles that seem valid for other

users because the signatures generated with old keys

pass on integrity checks. In a practical way, a ma-

licious agent (software) in the provider can commit a

writing request by a revoked user, without the broker’s

participation during the communication. There is no

attestation of this writing because all attestation must

also be signed by the broker. Thus, this transaction

will not be represented in the chain of attestations. If

the broker is honest, the illegal writings are detected

when the FileHash of the last attestation is different

from the received ﬁle.

On the other hand, it is possible, in collusion with

Figure 4: Structure of an attestation.

Detection of Access Control Violations in the Secure Sharing of Cloud Storage

129

Figure 5: Updating ﬁle’s permissions.

the broker, to bypass the violation detection. In this

case, a valid attestation is created and signed by the

attackers (revoked user, provider and broker), perfor-

ming the writing as deﬁned in writing protocol (see

Figure 3). The difference is that the broker also igno-

res the permissions and accepts this transaction, sig-

ning its attestation. The broker also sends an old me-

tadata, indicating the same FileVersion of the ﬁle. In

next transaction, a user receives the ﬁle and the attes-

tation with the same FileHash. Thus, if the broker is

compromised, the users may not detect, in the monito-

red data, a trace of the violations because they do not

have the correct information about the current state of

the system.

Otherwise, the violation will be identiﬁed in audi-

ting. Although the attestation of the illegal writing is

rightly chained with the others attestations, the TPA

can report the violation, identifying that a user does

not have permission in the moment of the transaction.

The provider and broker can also try to hide the attes-

tation that indicates the revocation of the user’s per-

mission. In this case, the TPA cannot build a valid

chain of attestations, or one UserLSN of the cloud cu-

stomer is absent. Therefore, the auditing indispensa-

ble to identify the undetected violations analyzing the

historical transactions.

The broker is also responsible for controlling con-

current transactions, allowing access to different ﬁles

due to the no possibility of violation resulting from

such access. On the order hand, simultaneous access

to the same ﬁle can result in violations if the transacti-

ons end in a different order from which they started.

In this case, the blockade of simultaneous access en-

sures the order of execution of the transactions, avoi-

ding, for example, the reading of the previous version

of a ﬁle and the requests of writings with the same Fi-

leVersion. However, concurrent readings do not result

in violations and can be allowed.

Due to the signature of the attestations and ex-

changed messages, any involved entity can detect ot-

hers attacks (e.g., impersonation and replay attacks)

and cancel the unauthorized transaction. However, a

malicious behavior of the provider and/or broker re-

sults in a security violation. In this case, a penalty

and a recovery procedure can be applied as speciﬁed

in an SLA (Service Level Agreement). For example,

if an integrity violation is detected, it is possible to

restore the most up-to-date version in a backup, re-

ducing the damage. Last, it is interesting to mention

the holding of the users’ privacy because the metadata

and attestations do not have any sensible information

available to malicious entities.

3.2 Modeling and Validation

The evaluation of the security solution is an essen-

tial task of its development to demonstrate its secu-

rity. Due to the difﬁculty of demonstrating the secu-

rity only with experiments, the literature highlight the

advantages of using formal methods to model soluti-

ons and validate their security (Armando et al., 2014).

However, there are solutions for secure cloud storage

in which the evaluation is limited to an informal dis-

cussion about their security and a performance analy-

sis (Popa et al., 2011) (Hwang et al., 2014b) (Jin et al.,

2016).

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

130

Figure 6: Overview of the simpliﬁed CPN.

In this research, CPN Tools

is being used to for-

mally model and validate the proposed mechanisms.

The choice was based on the ease of use of this tool, of

the extensive documentation on CPNs, and its suitabi-

lity for specifying security protocols (Carvalho et al.,

2017a).

The modeling of a system in Petri Nets is done

by describing a graph composed of nodes that indi-

cate the places and the transitions of the system. Arcs

connect places to transitions or vice versa, but never

two places or two transitions. The places in a Petri

Net contain tokens, which can enable transitions to

be ﬁred. When a transition occurs, tokens from the

input places are consumed, and new tokens are ad-

ded at the output places, according to the arc expres-

sions. The choice for the transition to be ﬁred is non-

deterministic. The initial positioning of the tokens in

places is called the initial marking, and each marking

during the execution of a system represents a state of

this system.

The Colored Petri Net is an extension of the Petri

Net, which allows you to assign colors or values to the

tokens. Similar to programming languages it is pos-

http://cpntools.org

sible to deﬁne what type of information can be stored

in each place and also assign or verify the values of

the tokens. Thus, the size of the created models is

reduced. There are also other extensions, including

hierarchical and timed Petri Nets, which respectively

organizes a system into modules and adds timers to

the transitions. This topic is detailed in (Jensen and

Kristensen, 2009), with details on the types of CPNs

and formal deﬁnitions.

Here, we present the modeling of the proposed, as

well as, the security evaluation, showing the detection

of the attacks enumerated in Section 2.2.2. The mo-

deled CPN includes the protocols for auditing and for

monitoring cloud transactions (i.e., writing, reading

and permissions updating) to analyze the detection of

violations.

A simpliﬁed CPN of our proposal is available

at https://sites.google.com/site/candrebc/scss ac.zip

and the overview of this modeling is shown in Figure

6. The simpliﬁcations do not change it functioning

and include: i) the storage of a single ﬁle; ii) the exe-

cution of a single transaction each time; iii) the re-

The original ﬁle can be used for proper analysis and

simulations. A .pdf ﬁle is also available.

Detection of Access Control Violations in the Secure Sharing of Cloud Storage

131

presentation of the chain hash as a sequence number;

and iv) the assumption that all messages are authen-

tic. The modeled CPN is parametrized so that several

users can be easily added making our proposal theo-

retically scalable. These simpliﬁcations facilitate the

analysis of the modeling due to the reduction of its

complexity and of the space state.

This modeling represents the correct behavior of

the involved entities and simulations were realized to

verify the correctness and to evaluate the modeled me-

chanisms. Thus, no violation is detected because the

analysis of the space state reveals that no token is sto-

red in error places in any possible state. This result

is expected when the entities are trustworthy, but it is

also necessary to analyze if all possible attack is de-

tected, enabling the use of the proposed mechanisms

to demonstrate the security of a storage service.

Thus, it is essential to model the attacks that vio-

late the access control, showing if they are identiﬁed.

We modeled malicious behaviors of the provider, bro-

ker and users in different CPNs, simulating the viola-

tion scenarios. The changes in the modeling repre-

sent an entity’s ability to execute malicious software,

making possible to perform attacks that result in vi-

olations. Now, it is possible to verify if the attacks

performed by malicious entities can be detected. We

also deﬁne special places, indicating the execution of

malicious actions and the violation detection. The-

reby, if some attack is triggered, the users or auditor

detect it when a violate place is achieved.

Since the unauthorized users cannot obtain the

keys, they are unable to read a ﬁle or write with a

valid signature. Thus, we focused our analysis in ve-

rifying if revoked users can access the ﬁles in accor-

dance with the threats highlighted in Section 2.2.2.

Due to the ﬁle’s re-encryption when updating the per-

missions, the revoked users can no longer read the ﬁle.

So, it was veriﬁed if, using lazy revocation, the unaut-

horized readings are allowed.

In the experiments, revoked users can read a ﬁle

since this has not been updated. The unauthorized re-

adings were only detected in auditing and if the tran-

sactions were registered in the log. Otherwise, the

illegal reading attestation is not chained with the ot-

hers attestations, and the violation detection is by-

passed. In order to allow lazy revocation and avoid

data leakage, solutions of trusting computing must be

used so that accountability tools register all events in

logs that are tampered-free and cannot be deleted (Ko

et al., 2011). However, the study of these tools is

beyond the scope of this work.

In addition, a revoked user can write ﬁles using

the old keys with the help of the malicious provider.

If the broker is honest, this transaction cannot be per-

formed through the broker and is not registered in the

log. The experiments demonstrated that a user detects

the violation as soon as he/she executes a transaction,

comparing the signature of the received ﬁle and the

one indicated in attestation sent by the broker.

Although this modeling includes the broker, it is

not possible to be sure about its honesty, making ne-

cessary the auditing to detect collusion attacks. In this

case, the broker can collude with the provider and re-

voked user, generating a valid attestation of an illegal

writing. Thus, in the following transactions, the users

do not have enough information to detect the attacks.

It is interesting to mention that the ﬁle’s metadata is

also sent to users by the broker. So, make this attack

possible if the lazy revocation is not used, the broker

must send, after the attack, the last attestation and an

old metadata. With the lazy revocation approach, it is

not necessary to send an old metadata because, with

the current metadata, the users can extract the previ-

ous key, used by the revoked user.

Experiments with and without lazy revocation

were performed, and the collusion attacks were iden-

tiﬁed in auditing. It is interesting to mention that,

even if the broker is malicious it is possible to iden-

tify violations in real-time under certain conditions.

The users can detect attacks early when comparing

the FileVersion of the current transaction with that

of the last transaction. The current FileVersion can-

not be smaller than the previous one. Therefore, the

proposed monitoring and auditing mechanisms of the

access control detect these violations.

4 RELATED WORK

The monitoring and auditing will increase the transpa-

rency of cloud storage services, enabling the detection

and proof of violations. These violations result from

attacks that could not be avoided, especially the ones

resulting from malicious acts of the stakeholders, in-

cluding end users. The existing solutions combine,

mainly, access control mechanisms with violation de-

tection mechanisms to offer a secure storage solution.

Table 2 presents a comparison of related work, focu-

sing on violation detection mechanisms. Our proposal

is highlighted in the last line of this table.

These mechanisms can detect malicious behavi-

ors that result in violations of integrity, retrievability,

freshness, or write-serializability. While the veriﬁca-

tion of integrity checks if a received ﬁle is corrupt, the

others properties are related to data loss. The veriﬁ-

cation of retrievability identiﬁes, in auditing, the loss

of data scarcely accessed. Data freshness indicates

the reading of the most updated ﬁle, and the write-

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

132

Table 2: Comparison of related work.

Work

Violations Detected Real-time

Detection

Collusion

AttacksI F W R AC

Popa et al. 2011 Yes Yes Partially No No I Unfeasible

Albeshiri et al. 2012 Yes Yes Inefﬁcient Yes No I Unfeasible

Hwang et al. 2014b Yes Yes Partially No No I Unfeasible

Hwang et al. 2014a Yes Yes Partially No No I, F, W Not detected

Tiwari and Gangadharan 2015a Yes Yes Inefﬁcient Yes No I Unfeasible

Jin et al. 2016 Yes Yes Inefﬁcient Yes No I, F, W Not detected

Carvalho et al. 2017a Yes Yes Yes Yes No I, F, W Yes

Proposed Mechanism Yes Yes Yes Yes Yes I, F, W, AC Yes

I - Integrity; F - Freshness; W - Write-serializability; R - Retrievability; AC - Access Control

serializability controls the writing order (Jin et al.,

2016).

The secure storage service, proposed by (Popa

et al., 2011), is based on Access Control Lists

(ACLs) and audited for integrity, freshness and write-

serializability veriﬁcation. (Jin et al., 2016) add a

scheme for verifying the data retrievability. The

discard of old logs and management of concurrent

transactions are discussed by (Hwang et al., 2014b).

(Hwang et al., 2014a) specify a trusted third party,

called synchronization server, to enable real-time vi-

olation detection.

The detection of write-serializability violations

performed by (Albeshri et al., 2012), (Tiwari and

Gangadharan, 2015a) and (Jin et al., 2016) is inefﬁ-

cient because the reading is always required before

each writing. Besides, (Popa et al., 2011), (Hwang

et al., 2014b) and (Hwang et al., 2014a) do not detect

all violations, because only the logs are analyzed to

check the write-serializability, as discussed in our pre-

liminary study (Carvalho et al., 2016). Thus, we pro-

posed, in (Carvalho et al., 2017a), the use of a Proof

of Retrievability (PoR) scheme to check the ﬁle stored

by the provider without recovery the whole ﬁle (Yang

and Jia, 2012), improving the write-serializability ve-

riﬁcation.

The real-time detection is possible when a broker

(or other third entity) manages the cloud transactions

and informs users the current state of the system. In

(Jin et al., 2016), a broker is not speciﬁed, and the

freshness veriﬁcation depends on the knowledge of

the last root signing key. However, the real-time ve-

riﬁcation is possible only if the users are sure that the

key received is the last one, and the authors do not dis-

cuss it. If it is deployed in a private cloud, it is valid to

assume that the broker is honest. On the order hand,

an untrustworthy broker makes feasible the collusion

attacks, in which the broker informs a previous state

of the system, deceiving the real-time violation de-

tection. The auditing is indispensable to detect these

attacks, as discussed in (Carvalho et al., 2017a).

These mechanisms do not verify the data conﬁ-

dentiality because the protection against data leakage

is already provided by the access control mechanism.

However, these mechanisms do not detect the attacks

described in Section 2.2.2. This limitation is addres-

sed by the proposed mechanism that veriﬁes if the

transactions are authorized.

5 CONCLUSION

The literature reveals solutions that address security

issues in cloud storage, especially regarding the de-

tection of data corruption, loss and leakage. In gene-

ral, the solutions combine different security mecha-

nisms to protect the system against various threats.

For example, an access control mechanism is neces-

sary to allow data sharing, preventing unauthorized

access, while monitoring and auditing mechanisms

permit to detect attacks that cannot be avoided. The

attacks are identify in real-time if the broker is trust-

worthy. Otherwise, the auditing detect the violations.

Thus, these mechanisms improve the transparency of

security storage services, proving the honesty of the

provider or its malicious behaviors.

However, existing solutions do not detect access

control violations, especially resulted from transacti-

ons performed by revoked users. In this paper, we

described mechanisms to verify the correctness of the

access control. The transactions for permissions up-

dating must also be registered in the read/write tran-

sactions log. Thus, it is possible to analyze if only

authorized users accessed the ﬁles.

The proposed mechanisms detect all violations

enumerated in Section 2.2.2. However, a solution of

trust computing must also be used to avoid the reading

by revoked users if the lazy revocation is applied. An

honest broker enables the real-time detection, and the

auditing solves conﬂicts and identiﬁes malicious bro-

kers, detecting collusion attacks. The modeling with

CPNs enables a formal validation of the proposed me-

chanisms, demonstrating that detection of attacks in

Detection of Access Control Violations in the Secure Sharing of Cloud Storage

133

accordance with the speciﬁed threat model. The pro-

posed mechanisms improves the violation detection

and can be used with an SLA solution that speciﬁes

security guarantees (Luna et al., 2015).

Although our evaluation with CPNs demonstrate

the security of our proposal, it is interesting, as future

work, to deploy it in a cloud infrastructure in order

to evaluate its functioning in a real scenario and ana-

lyze performance aspects. After, it is possible to pro-

pose changes to improve the efﬁciency, without losing

the security. The proposed mechanisms can be adap-

ted to be combined with others access control mecha-

nisms (e.g., proxy re-encryption or Attribute-Based

Encryption). A robust solution should also include

mechanisms to address other security properties such

as availability and location. The broker, for example,

can manage the storage in multiple providers, impro-

ving the service availability.

ACKNOWLEDGEMENTS

This work was partially supported by the STIC-

AmSud project SLA4Cloud. Carlos Andr

e Batista

de Carvalho was also supported by CAPES/FAPEPI

Doctoral Scholarship.

REFERENCES

Albeshri, A., Boyd, C., and Nieto, J. G. (2012). A secu-

rity architecture for cloud storage combining proofs of

retrievability and fairness. In 3rd International Con-

ference on Cloud Computing, GRIDS and Virtualiza-

tion, pages 30–35.

Amazon (2017a). How amazon simple storage ser-

vice (amazon s3) uses aws kms. http://docs.aws.

amazon.com/kms/latest/developerguide/services-

s3.html. Accessed: 2017-07-06.

Amazon (2017b). Managing access permissions to your

amazon s3 resources. http://docs.aws.amazon.com/

AmazonS3/latest/dev/s3-access-control.html. Acces-

sed: 2017-07-06.

Ardagna, C. A., Asal, R., Damiani, E., and Vu, Q. H.

(2015). From security to assurance in the cloud: A

survey. ACM Comput. Surv., 48(1).

Armando, A., Carbone, R., and Compagna, L. (2014).

Satmc: A sat-based model checker for security-

critical systems. In Tools and Algorithms for the

Construction and Analysis of Systems, pages 31–45.

Springer.

Barker, E. (2016). Recommendation for key management,

part 1. NIST Special Publication 800-57.

Boneh, D., Gentry, C., and Waters, B. (2005). Collusion re-

sistant broadcast encryption with short ciphertexts and

private keys. In Advances in Cryptology CRYPTO

2005, volume 3621 of Lecture Notes in Computer

Science, pages 258–275. Springer Berlin Heidelberg.

Carvalho, C. A. B., Agoulmine, N., Castro, M. F., and An-

drade, R. M. C. (2017a). How to improve monitoring

and auditing security properties in cloud storage? In

35th Brazilian Symposium on Computer Networks and

Distributed Systems, pages 559–572.

Carvalho, C. A. B., Andrade, R. M. C., Castro, M. F., and

Agoulmine, N. (2016). Modelagem e deteco de fal-

has em solues para armazenamento seguro em nuvens

usando redes de petri coloridas: Um estudo de caso.

In XIV Workshop de Computao em Clouds e Aplicaes

(WCGA/SBRC), pages 17–30.

Carvalho, C. A. B., Castro, M. F., and Andrade, R. M. C.

(2017b). Secure cloud storage service for detection of

security violations. In 17th IEEE/ACM International

Symposium on Cluster, Cloud and Grid Computing,

pages 715–718.

Hwang, G.-H., Huang, W.-S., and Peng, J.-Z. (2014a).

Real-time proof of violation for cloud storage. In

CloudCom’14, pages 394–399.

Hwang, G.-H., Huang, W.-S., Peng, J.-Z., and Lin, Y.-W.

(2014b). Fulﬁlling mutual nonrepudiation for cloud

storage. Concurrency and Computation: Practice and

Experience.

Jensen, K. and Kristensen, L. M. (2009). Coloured Petri

nets: modelling and validation of concurrent systems.

Springer Science & Business Media.

Jiang, W., Wang, Z., Liu, L., and Gao, N. (2014). Towards

efﬁcient update of access control policy for crypto-

graphic cloud storage. In International Conference

on Security and Privacy in Communication Systems,

pages 341–356.

Jin, H., Zhou, K., Jiang, H., Lei, D., Wei, R., and Li, C.

(2016). Full integrity and freshness for cloud data.

Future Generation Computer Systems.

Kallahalla, M., Riedel, E., Swaminathan, R., Wang, Q., and

Fu, K. (2003). Plutus: Scalable secure ﬁle sharing on

untrusted storage. In Proceedings of the 2nd USENIX

Conference on File and Storage Technologies, pages

29–42.

Ko, R. K., Jagadpramana, P., Mowbray, M., Pearson, S.,

Kirchberg, M., Liang, Q., and Lee, B. S. (2011).

Trustcloud: A framework for accountability and trust

in cloud computing. In Services (SERVICES), 2011

IEEE World Congress on, pages 584–588.

Luna, J., Suri, N., Iorga, M., and Karmel, A. (2015). Le-

veraging the potential of cloud security service-level

agreements through standards. IEEE Cloud Compu-

ting Magazine, 2(3):32 – 40.

Popa, R. A., Lorch, J. R., Molnar, D., Wang, H. J., and

Zhuang, L. (2011). Enabling security in cloud storage

slas with cloudproof. In USENIXATC’11.

Rong, C., Nguyen, S. T., and Jaatun, M. G. (2013). Beyond

lightning: a survey on security challenges in cloud

computing. Computers and Electrical Engineering,

39(1):47–54.

Stallings, W. (2016). Cryptography and network security:

principles and practices. Pearson, 7 edition.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

134

Tassanaviboon, A. and Gong, G. (2011). Oauth and abe

based authorization in semi-trusted cloud computing:

aauth. In Proceedings of the second international

workshop on Data intensive computing in the clouds,

pages 41–50.

Thilakanathan, D., Chen, S., Nepal, S., and Calvo, R. A.

(2014). Secure data sharing in the cloud. In Secu-

rity, Privacy and Trust in Cloud Systems, pages 45–72.

Springer.

Tiwari, D. and Gangadharan, G. (2015a). A novel secure

cloud storage architecture combining proof of retrie-

vability and revocation. In ICACCI’15, pages 438–

445.

Tiwari, D. and Gangadharan, G. (2015b). Secure sharing of

data in cloud computing. In International Symposium

on Security in Computing and Communication, pages

24–35.

Yang, K. and Jia, X. (2012). Data storage auditing service

in cloud computing: challenges, methods and oppor-

tunities. World Wide Web, 15(4):409–428.

Detection of Access Control Violations in the Secure Sharing of Cloud Storage

135
