Towards a Lightweight Multi-Cloud DSL for Elastic and Transferable

Cloud-native Applications

Peter-Christian Quint and Nane Kratzke

ubeck University of Applied Sciences, Center of Excellence for Communication,

Systems and Applications (CoSA), 23562 L

ubeck, Germany

Keywords:

Cloud-native Applications, TOSCA, Docker Compose, Swarm, Kubernetes, Domain Speciﬁc Language,

DSL, Cloud Computing, Elastic Container Platform.

Abstract:

Cloud-native applications are intentionally designed for the cloud in order to leverage cloud platform features

like horizontal scaling and elasticity – beneﬁts coming along with cloud platforms. In addition to classical (and

very often static) multi-tier deployment scenarios, cloud-native applications are typically operated on much

more complex but elastic infrastructures. Furthermore, there is a trend to use elastic container platforms like

Kubernetes, Docker Swarm or Apache Mesos. However, especially multi-cloud use cases are astonishingly

complex to handle. In consequence, cloud-native applications are prone to vendor lock-in. Very often TOSCA-

based approaches are used to tackle this aspect. But, these application topology deﬁning approaches are

limited in supporting multi-cloud adaption of a cloud-native application at runtime. In this paper, we analyzed

several approaches to deﬁne cloud-native applications being multi-cloud transferable at runtime. We have not

found an approach that fully satisﬁes all of our requirements. Therefore we introduce a solution proposal

that separates elastic platform deﬁnition from cloud application deﬁnition. We present ﬁrst considerations

for a domain speciﬁc language for application deﬁnition and demonstrate evaluation results on the platform

level showing that a cloud-native application can be transfered between different cloud service providers like

Azure and Google within minutes and without downtime. The evaluation covers public and private cloud

service infrastructures provided by Amazon Web Services, Microsoft Azure, Google Compute Engine and

OpenStack.

1 INTRODUCTION

Elastic container platforms (ECP) like Docker

Swarm, Kubernetes (k8s) and Apache Mesos recei-

ved more and more attention by practitioners in re-

cent years (de Alfonso et al., 2017) – and this trend

still seems to continue (Kratzke and Quint, 2017).

Elastic container platforms ﬁt very well with exis-

ting cloud-native application (CNA) architecture ap-

proaches (Kratzke and Quint, 2017). Corresponding

system designs often follow a microservice-based ar-

chitecture (Sill, 2016; Kratzke and Peinl, 2016). Ne-

vertheless, the reader should be aware that the ef-

fective and elastic operation of such kind of elastic

container platforms is still a question in research – alt-

hough there are interesting approaches making use of

bare metal (de Alfonso et al., 2017) as well as public

and private cloud infrastructures (Kratzke and Quint,

2017). What is more, there are open issues how to

design, deﬁne and operate cloud applications on top

of such container platforms pragmatically. This is es-

pecially true for multi-cloud contexts. Such open is-

sues in scheduling microservices to the cloud come

along with questions regarding interoperability, appli-

cation topology and composition aspects (Saatkamp

et al., 2017) as well as elastic runtime adaption as-

pects of cloud-native applications (Fazio et al., 2016).

The combination of these three aspects (multi-cloud

interoperability, application topology deﬁnition/com-

position and elastic runtime adaption) is – to the best

of the authors’ knowledge – not solved satisfactorily

so far. These three problems are often seen in iso-

lation. In consequence, topology based multi-cloud

approaches often do not consider elastic runtime

adaption of deployments (Saatkamp et al., 2017) and

multi-cloud capable elastic solutions being adap-

tive at runtime do not make use of topology ba-

sed approaches as well (Kratzke and Quint, 2017).

And ﬁnally, (topology-based) cloud-native applicati-

ons making use of elastic runtime adaption are often

inherently bound to speciﬁc cloud infrastructure ser-

vices (like cloud provider speciﬁc monitoring, scaling

400

Quint, P. and Kratzke, N.

Towards a Lightweight Multi-Cloud DSL for Elastic and Transferable Cloud-native Applications.

DOI: 10.5220/0006683804000408

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 400-408

ISBN: 978-989-758-295-0

and messaging services) making it hard to transfer

these cloud applications easily to another cloud provi-

der or even operate them across providers at the same

time (Kratzke and Peinl, 2016). Furthermore, Hein-

rich et al. mention several research challenges and

directions like microservice focused performance mo-

nitoring under runtime adaption approaches (Heinrich

et al., 2017). All in all, it seems like cloud engineers

(and researchers as well) just trust in picking only two

out of three options. Is this really the best approach?

Therefore, this contribution strives for a more in-

tegrated point of view to overcome the observable iso-

lation of these mentioned engineering and research

trends (Kratzke and Quint, 2017) and tries to ana-

lyze how and whether the mentioned approaches can

be combined. We intentionally strive for a pragma-

tic and practitioner acceptance instead of richness of

expression like this is done by approaches like CA-

MEL (Rossini, 2015). Other than CAMEL, we focus

microservice architectures and elastic container plat-

forms only to reduce language complexity. So, we

do not follow an holistic approach considering every

imaginable architectural style of cloud applications.

We present a prototype for a domain-speciﬁc lan-

guage (DSL) that enables to describe cloud-native ap-

plications being transferable at runtime without do-

wntimes according to the following outline. The

key idea is to describe the platform independently

from the application. Our DSL has been develo-

ped according to a three step DSL design methodo-

logy: analysis, implementation and use as proposed

by (Van Deursen et al., 2000; Mernik et al., 2005;

Strembeck and Zdun, 2009). In Section 2 we analyze

common characteristics of elastic container platforms

and derive concepts that have to be covered by cloud-

native application deﬁnition DSLs. In Section 3 we

reﬁne these concepts into more concrete requirements

and analyze related work and existing DSLs like TO-

SCA. We found no existing language that fulﬁlls all of

our identiﬁed requirements completely. Accordingly,

we propose and present a prototypic implementation

for such a DSL and evaluate it in Section 4. Our eva-

luation shows, that cloud-native applications can be

transferred between different cloud service providers

like Azure and Google within minutes and without

downtime. We have executed our experiments on pu-

blic and private cloud service infrastructures provided

by Amazon Web Services, Microsoft Azure, Google

Compute Engine and OpenStack. This section closes

with a critical discussion. Finally, we conclude our

considerations and provide an outlook in Section 5.

2 CONTAINERIZATION TRENDS

According to (Kratzke and Quint, 2017), a CNA runs

on top of an elastic runtime environment. This can be

straightaway an Infrastructure-as-a-Service (IaaS) or

an elastic platform (Fehling et al., 2014). Container-

based elastic platforms are getting more and more wi-

despread. Such kind of elastic ECP are shown in Ta-

ble 1. For the aim to avoid vendor lock-in (Kratzke

and Peinl, 2016) we propose to make use of basic and

standardized IaaS service concepts only. Such con-

cepts are virtual machines, virtualized (block-)storage

devices, virtualized networks and security groups.

Elastic container platforms can be deployed on top

of these basic IaaS service concepts (Kratzke, 2017).

And on top of elastic container platforms arbitrary

cloud-native applications can be deployed (Kratzke

and Peinl, 2016).

Figure 1 illustrates such kind of ECP based CNA

deployments. (Kratzke, 2017) showed that arbitrary

ECPs can be operated using a descriptive cluster de-

ﬁnition model based on an intended and a current

state. Such kind of deﬁned clusters can be opera-

ted or even transfered across different cloud service

provider infrastructures at runtime. Obviously, this

is a great foundation to avoid vendor lock-in situati-

ons. While a descriptive cluster deﬁnition model can

be used for describing the elastic platform (Kratzke,

2017), there is also the need to describe the applica-

tion topology without dependency to a speciﬁc ECP.

This paper proposes to do this using a domain-speciﬁc

language which focuses on the layer 5 and 6 of the

cloud-native application reference model proposed by

(Kratzke and Peinl, 2016). This DSL is the focal point

of this paper. The central idea is to split the migration

problem into two independent engineering problems

which are too often solved together.

1. The infrastructure aware deployment and ope-

ration of ECPs: These platforms can be deployed

and operated in a way that they can be transferred

across IaaS infrastructures of different private and

public cloud services as (Kratzke, 2017) showed.

2. The infrastructure agnostic deployment of ap-

plications on top of these kind of transferable con-

tainer platforms which is the focus of this paper.

In order to enable an ECP-based CNA deployment

by a domain-speciﬁc language that is not bound to a

speciﬁc ECP, the particular characteristics and com-

monalities of the target systems have to be identiﬁed.

Therefore, the architectures and concepts of elastic

container platforms have to be analyzed and com-

pared. As representatives, we have chosen the three

most often used elastic container platforms Kuberne-

tes, Docker Swarm Mode and Apache Mesos with

Towards a Lightweight Multi-Cloud DSL for Elastic and Transferable Cloud-native Applications

401

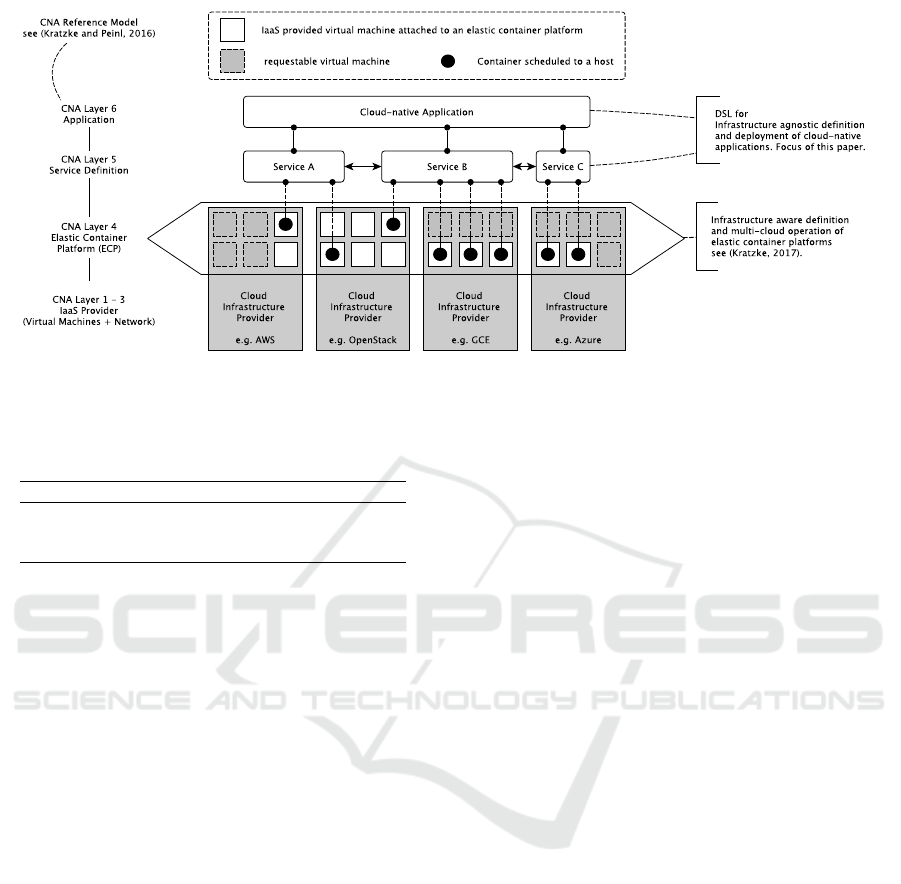

Figure 1: An ECP based CNA deployment for elastic and multi-cloud capable operation.

Table 1: Some popular open source elastic platforms. These

kind of platforms can be used as a kind of cloud infrastruc-

ture unifying middleware.

Platform Contributors URL

Kubernetes CNCF http://kubernetes.io

Swarm Docker https://docker.io

Mesos Apache http://mesos.apache.org

Marathon listed in Table 1. As Table 2 shows all

of these ECPs provide comparable concepts (from a

bird’s eye view).

Application Deﬁnition. All platforms deﬁne ap-

plications as a set of deployment units. The de-

pendencies of these deployment units are expressed

in a descriptive way. Apache Mesos uses Appli-

cation Groups to partition multiple applications into

sets. The dependencies are modeled as n-ary trees of

groups with applications as leaves. Kubernetes mana-

ges an application basically as a set of services com-

posed of pods. A pod can contain one or more con-

tainers. All containers grouped in a pod run on the

same machine in the cluster. ReplicationSet Control-

lers take care that the number of running pods is equal

to the amount of pods deﬁned in replication controller

conﬁgurations (Verma et al., 2015). The numbers of

running instances of a pod is deﬁned in a so called de-

ployment (YAML-ﬁle). Docker Swarm supports ap-

plication description using a single YAML-ﬁle that

deﬁnes a multi-container deployment consisting of

the container and there connections. YAML based

deﬁnition formats seem to be common for all ECPs

and a DSL should provide something like a model-to-

model transformation (M2M) to these ECP speciﬁc

application deﬁnition formats [AD].

Service discovery is the task to get service end-

points by name and not by a (permanently) changing

address. All analyzed ECPs supported service disco-

very by DNS based solutions (Mesos, Kubernetes) or

using the service names deﬁned in the application de-

ﬁnition format (Docker Swarm). Thus, a DSL must

consider to name services in order to make them dis-

coverable via DNS or ECP-speciﬁc naming services

[SD].

Deployment units. The basic units of execution

are named different by the ECPs. However, they mos-

tly based on containers. Docker Swarm is intentio-

nally designed for deploying Docker containers. A

Kubernetes deployment unit is called a pod. And a

pod whose the container can be operated by arbitrary

container runtime environments. But Rocket (rkt) and

Docker are the main container runtime environments

at the time of writing this paper. Only Apache Me-

sos supports by its design arbitrary binaries as deploy-

ment units. However, the Marathon framework sup-

ports container workloads based on Docker containers

and emerges as a standard for the Mesos platform to

operate containerized workloads. A DSL should con-

sider that the deployment unit concept (whether na-

med application group, pod or container) is the basic

unit of execution for all ECPs [DU].

Scheduling. All ECPs provide some kind of a

scheduling service that mostly runs on the master no-

des of these platforms. The scheduler assigns de-

ployment units to nodes of the ECP considering the

current workload and resource efﬁciency. The sche-

duling process of all ECPs can be constrained using

scheduling constraints or so called (anti-)afﬁnities

(Verma et al., 2015; Naik, 2016; Hindman et al.,

2011). These kind of scheduling constraints must be

considered and expressable by a DSL [SCHED].

Load Balancing. Like scheduling, load balancing

is supported by almost all analyzed platforms using

special add-ons like Marathon-lb-autoscale (Mesos),

kube-proxy (Kubernetes), or Ingress service (Docker

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

402

Table 2: Concepts of analyzed ECP Architectures.

Concept Mesos Docker Swarm Kubernetes

Application Deﬁnition Application Group Compose Service + Namespace

Controller (Deployment, DaemonSet, Job, ...)

All K8S concepts are described in YAML

Service discovery Mesos DNS Service names KubeDNS (or replacements)

Service links

Deployment Unit Binaries Container (Docker) Pod (Docker, rkt)

Pods (Marathon)

Scheduling Marathon Framework Swarm scheduler kube-scheduler

Constraints Constraints Afﬁnities + (Anti-)afﬁnities

Load Balancing Marathon-lb-autoscale Ingress load balancing Ingress controller

kube-proxy

Autoscaling Marathon-autoscale - Horizontal pod autoscaling

Component Labeling key/value key/value key/value

Swarm). These load balancers provide basic round-

robin load balancing strategies and they are used to

distribute and forward IP trafﬁc to the deployment

units under execution. However, more sophisticated

load balancing strategies should be considered as fu-

ture extensions for a DSL [LB].

Autoscaling. Except for Docker Swarm, all

analyzed ECPs provide (basic) autoscaling features

which rely mostly on measuring CPU or memory me-

trics. In case of Docker Swarm this could be extended

using an add-on monitoring solution triggering Doc-

ker Compose ﬁle updates. The Mesos platform provi-

des Marathon-autoscale for this purpose and Kuber-

netes relies on a horizontal pod autoscaler. Further-

more, Kubernetes supports even making use of cus-

tom metrics. So, a DSL should provide support for

autoscaling supporting custom and even application

speciﬁc metrics [AS].

Component Labeling. All ECPs provide a

key/value based labeling concept that is used to name

components (services, deployment units) of applica-

tions. This labeling is used more (Kubernetes) or less

(Docker Swarm) intensively by concepts like service

discovery, schedulers, load balancers and autoscalers.

These concepts could be also of use for the operator of

the cloud-native application to constrain scheduling

decisions in multi-cloud scenarios. This component

labeling can be used to code datacenter regions, pri-

ces, policies and even enable to deploy services only

on speciﬁc nodes (Kratzke, 2017). In consequence, a

DSL should be able to label application components

in key/value style [CL].

3 A DSL FOR CNA

For deploying arbitrary CNAs on speciﬁc elastic con-

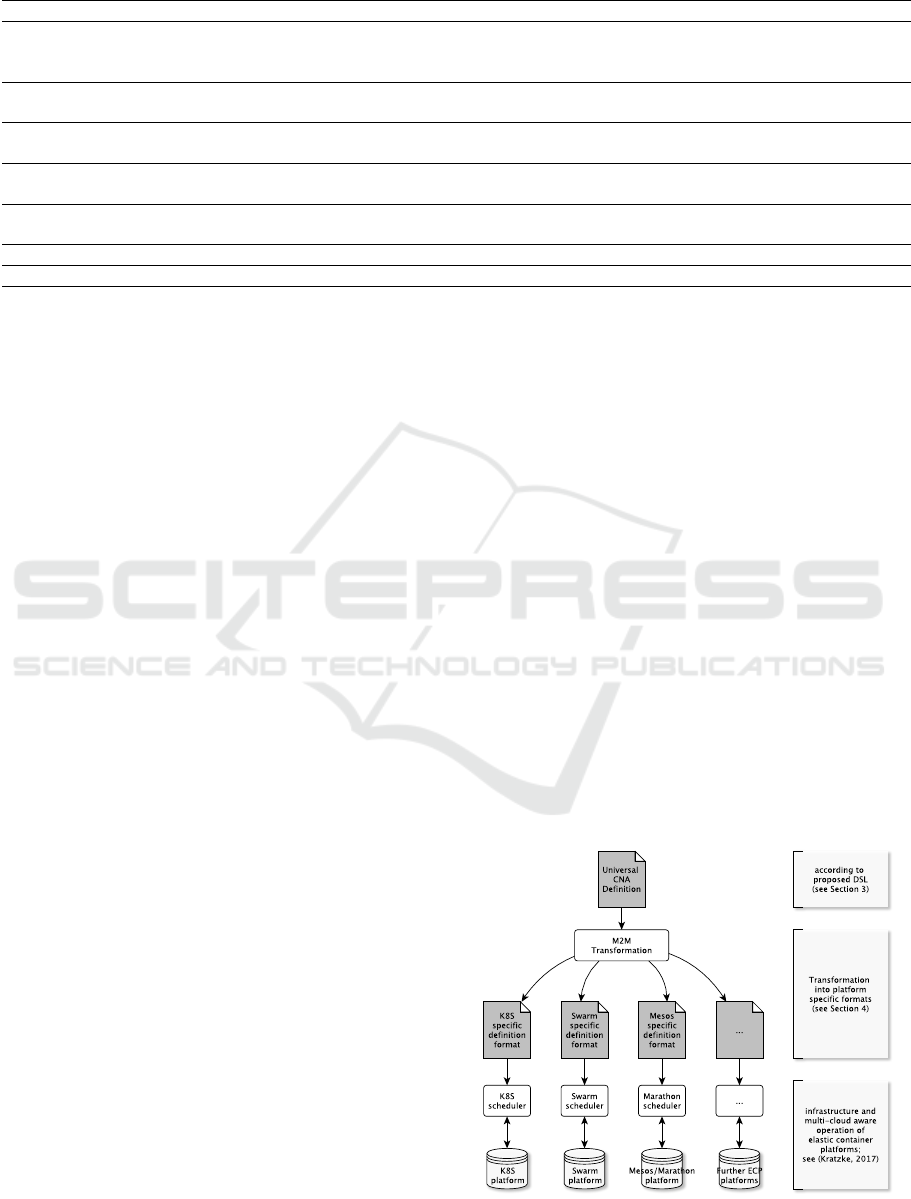

tainer platforms, we have developed a model-to-

model (M2M) generator. As shown in Figure 2, the

generated, ECP speciﬁc CNA description can be used

by a ECP scheduler to deploy a new application or

update a still running one. The operation of the ECPs

can be done in a multi-cloud way (Kratzke, 2017).

The elastic container platforms can be transferred

across different cloud service platforms or they can

be operated in a multi- or hybrid-cloud way. More

details can be found in (Kratzke, 2017).

To deﬁne a universal CNA deﬁnition DSL, we fol-

lowed established methodologies for DSL develop-

ment as proposed by (Van Deursen et al., 2000; Mer-

nik et al., 2005; Strembeck and Zdun, 2009). Ac-

cording to Section 2 the following requirements arise

for a DSL with the intended purpose to deﬁne elastic,

transferable, multi-cloud-aware cloud-native applica-

tions being operated on elastic container platforms.

• R1: Containerized deployments. Containers are self-

contained deployment units of a service and the core

building block of every modern cloud-native applica-

tion. The DSL must be designed to describe and la-

bel a containerized deployment of discoverable ser-

vices. This requirement comprises [SD], [DU], and

[CL].

Figure 2: Separation of concerns in deploying a CNA.

Towards a Lightweight Multi-Cloud DSL for Elastic and Transferable Cloud-native Applications

403

Table 3: Requirement Matching.

Requirement #

Container

Application

Scaling

Compendiously

Multi-Cloud

Support

Independence

Elastic

Runtime Env.

Implementations Describtion

CAMEL + - + + + R

CAMEL is designed for modeling and execution of multi-cloud applications (Rossini, 2015).

It integrates and extends existing DSLs like CloudML and supports models@run-time

(Blair et al., 2009),(Chauvel et al., 2013), an environment to provide a model-based representation

of the underlying running system, which facilitates reasoning and adaptation of multi-cloud applications.

CAML - - + R

CAML enables the use of provider-dependent services (described in the CAML Proﬁles) and the

deployment (described in the CAML Library). The cloud applications deployment

conﬁguration can be reused by using CAML templates (Bergmayr et al., 2014)

CloudML + + - + + + R

A DSL for multi-cloud application deployments. The CloudMF (Lushpenko et al., 2015)

framework consists of CloudML (Brandtzæg et al., 2012) and models@run-time (see row above)

Docker Compose + + + + - + P

Is an orchestration DSL and tool for deﬁning, linking, and running multiple containers

on any docker host, also on the container cluster Docker Swarm

Kubernetes + + + + - + P

Kubernetes (former Google Borg) is a cluster platform for deploying container

applications. All conﬁgurations like the scheduling units (pods) and the scaling properties

(replication controller) can be described in YAML ﬁles (Verma et al., 2015)

TOSCA + + - + + - R&P

A speciﬁcation for describing the topology and orchestration of cloud webservices, their

relations and components of composition and how to manage them (Binz et al., 2014)

MODACloudML + + - + + + R

Designed to specify the provision and deployment of applications in multi-cloud

environments (Arta

c et al., 2016). MODACloudsML is the DSL part of MODACloud and

also uses CloudMF (see row CloudML)

MULTICLAPP - + + - -

A framework for modeling cloud applications on multi-cloud environments,

independent from the IaaS-provider. Applications can be modeled with an UML proﬁle

Legend for column Implementation: P: Productive useable implementations available; R: Research implementations available

• R2: Application Scaling. Elasticity and scalability

are one of the major advantages using cloud compu-

ting (Vaquero et al., 2011). Scalability enables to

follow workloads by request stimuli in order to im-

prove resource efﬁciency (Mao and Humphrey, 2011).

The DSL must be designed to describe elastic servi-

ces. This requirement comprises [SCHED], [LB], and

[AS].

• R3: Compendiously. To simplify operations the DSL

should be pragmatic. Our approach is based on a sepa-

ration between the description of the application and the

elastic container platform. The DSL must be designed

to be lightweight and infrastructure-agnostic. This

requirement comprises [AD], [SD], and [CL].

• R4: Multi-Cloud-Support. Using multi-cloud-

capable ECPs for deploying CNAs is a major require-

ment for our migration approach. Multi-cloud support

also enables the use of Hybrid-cloud infrastructures.

The DSL must be designed to support multi-cloud

operations. This requirement comprises [SCHED],

[CL] and the necessity to be applied on ECPs opera-

ted in a way described by (Kratzke, 2017).

• R5: Independence. To avoid dependencies, the CNA

should be deployable independently to a speciﬁc ECP

and also to speciﬁc IaaS providers. The DSL must

be designed to be independent from a speciﬁc ECP

or cloud infrastructure. This requirement comprises

[AD] and the necessity to be applied on ECPs operated

in a way described by (Kratzke, 2017).

• R6: Elastic Runtime Environment. Our approach

provides a CNA deployment on an ECP which is trans-

ferable across multiple IaaS cloud infrastructures. The

DSL must be designed to deﬁne applications being

able to be operated on an elastic runtime environ-

ment. This requirement comprises [SD], [SCHED],

[LB], [AS], [CL] and should consider the operation of

ECPs in way that is described in (Kratzke, 2017) .

According to these requirements, we examined

existing domain-speciﬁc languages for similar kind of

purposes. By investigating literature and conducting

practical experiments in expressing a reference appli-

cation, we analyzed whether the DSL fulﬁlls our re-

quirements. The results are shown in Table 3. No of

the examined DSLs covered all of the requirements.

TOSCA, Docker Compose and Kubernetes fulﬁll the

most of our requirements. But Docker Compose and

the Kubernetes DSL are designed for a speciﬁc ECP

(Docker Swarm and Kubernetes). We decided against

TOSCA because of its tool-chain complexity and its

tendency to cover all layers of abstraction (especially

the infrastructure layer). Accordingly, we identiﬁed

the need for creating a new DSL (at least for our re-

search activities). Furthermore, to deﬁne a new DSL

provides the maximum ﬂexibility in covering all of

the mentioned and derived requirements.

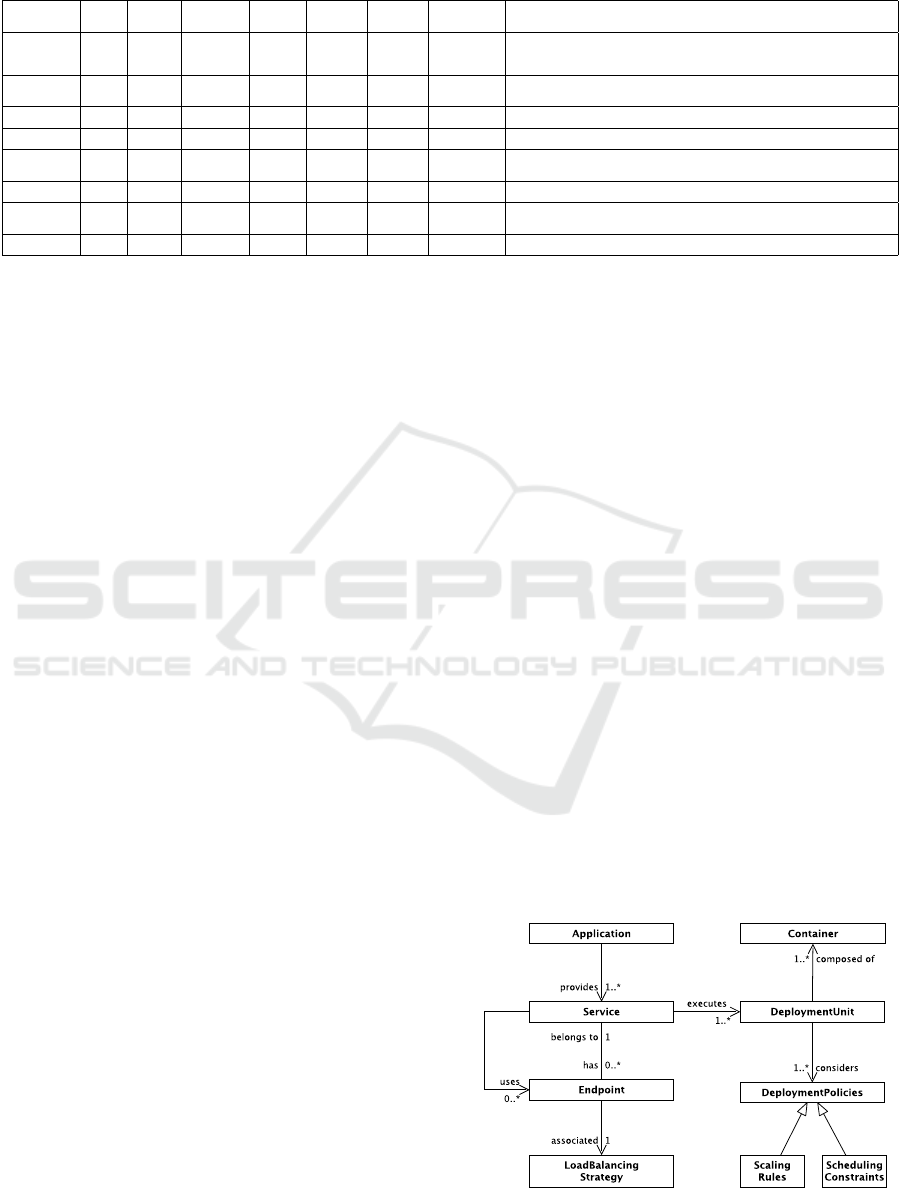

Figure 3 summarizes the core language model for

the resulting DSL. An Application provides a set of

Services. A Service can have an Endpoint on which

its features are exposed. One Endpoint belongs ex-

actly to one Service and is associated with a Load

Balancing Strategy. A Service can use other End-

points of other Services as well. These Services can

be external Services that are not part of the applica-

tion deployment itself. However, each internal Ser-

vice executes at least one DeploymentUnit which is

composed of one or more Containers. Furthermore,

schedulers of ECPs should consider DeploymentPo-

licies for DeploymentUnits. Such DeploymentPoli-

cies can be workload considering Scaling Rules but

Figure 3: DSL Core Language Model.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

404

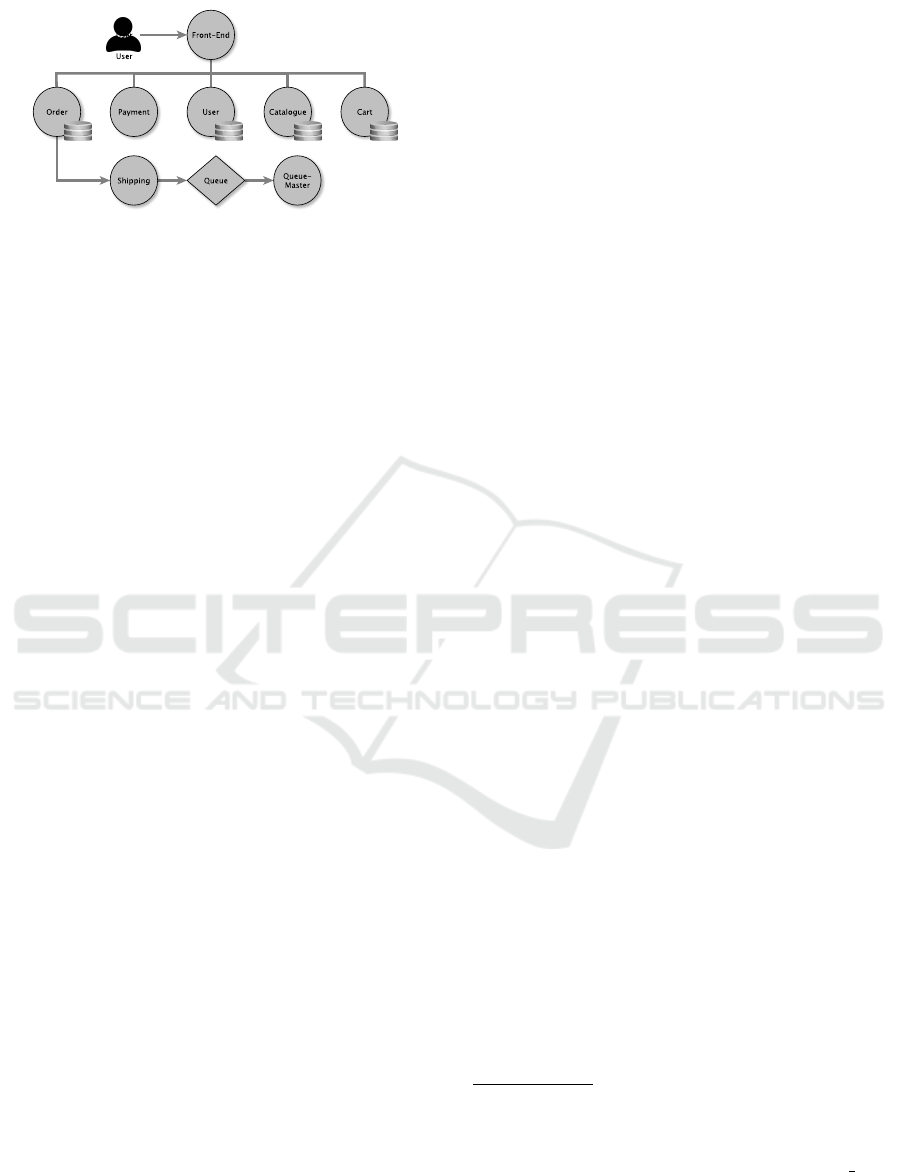

Figure 4: Architecture of the reference application Sock

Shop, according to (Weaveworks, 2017).

also general Scheduling Constraints.

Table 4 relates these DSL concepts to identi-

ﬁed requirements of Section 3 and initially identiﬁed

trends in containerization of Section 2. Multi-Cloud

support (requirement R4) is not directly mapped to a

speciﬁc DSL concept. It is basically supported by se-

parating the description of the ECP (Kratzke, 2017)

and the description of the CNA. Therefore, multi-

cloud support must not be a part of the CNA DSL

itself, what makes the CNA description less complex.

Multi-cloud support is simply delegated to the lo-

wer level ECP. This kind of multi-cloud handling for

ECPs is explained in more details by (Kratzke, 2017).

According to (Van Deursen et al., 2000) we im-

plemented this core language model as a declarative,

internal DSL in Java. Although Java is a quite un-

common language to build a DSL, as a full purpose

programming language it provides maximum ﬂexibi-

lity to ﬁnd DSL internal solutions. On the other hand,

making use of proven software patterns makes it even

possible to provide human readable forms of appli-

cation deﬁnitions (see Listing 1). To keep the des-

cription of a CNA simple to use and also short, we

used the Builder Pattern (Gamma et al., 2000). The

usage of this pattern allows a ﬂexible deﬁnition of a

CNA without having to pay attention to the order of

the description. The concrete syntax is shown exem-

plary using an example service as part of a SockShop

reference application that we used for our evaluation

(Listing 1).

4 EVALUATION

We validated that our DSL fulﬁlls all requirements we

deﬁned in Section 3 by three evaluation steps:

E1. To evaluate the usability of the DSL for des-

cribing a containerized (R1) , auto-scalable (R2) de-

ployment in a pragmatic way (R3), we described a

microservice demonstration application. Therefore

we selected Sock Shop, a reference microservice e-

commerce application for demonstrating and testing

of microservice and cloud-native technologies (We-

aveworks, 2017). Sock Shop is developed using

technologies like Node.js, Go, Spring Boot and Mon-

goDB and is one of the most complete reference ap-

plications for cloud-native application research accor-

ding to (Aderaldo et al., 2017). As shown in Figure

4, the application consists of nine services. Due to

page limitations, we only provide one description of

the payment-service as example in Listing 1.

E2. To evaluate multi-cloud-support (R4) and

ECP independence (part of R5) we deployed and ope-

rated the Sock Shop on two ECPs hosted on several

IaaS infrastructures. As type representatives we se-

lected Docker Swarm Mode (Version 17.06) and Ku-

bernetes (Version 1.7). The ECPs consist of ﬁve wor-

king machines (and one master) hosted on the IaaS in-

frastructures OpenStack, Amazon AWS, Google GCE

and Microsoft Azure.

E3. For demonstrating IaaS independence (R5)

we migrated the deployment between various IaaS

infrastructures of Amazon Web Services, Microsoft

Azure, Google Compute Engine and a research insti-

tution speciﬁc OpenStack installation. To validate all

migration possibilities we have done the following ex-

periments:

• E3.1: Migration OpenStack

⇔ AWS

• E3.2: Migration OpenStack ⇔ GCE

• E3.3: Migration OpenStack ⇔ Azure

• E3.4: Migration ⇔ and GCE

• E3.5: Migration AWS ⇔ Azure

• E3.6: Migration GCE ⇔ Azure

We have used Kubernetes and Docker Swarm

ECP for the Sock Shop deployment. Every experi-

ment is a set of migrations in both directions. E.g.,

evaluation experiment E3.1 includes migrations from

OpenStack to AWS and from AWS to OpenStack. All

migrations with OpenStack as source or target infra-

structure (E3.1-E3.3) have been carried out ten times,

all other (E3.4-E3.6) ﬁve times. The transfer times of

the infrastructure migrations are shown in Figure 5.

As the reader can see, the needed time for a infrastruc-

ture migration stretches from 3 minutes (E3.1 Open-

Stack ⇒ AWS) to more than 18min (E3.6 Azure ⇒

AWS). Moreover, the transfer time for migrating also

depends on the transfer direction between the source

Own Plattform, machines with 2vCPUs

Region eu-west-1, Worker node type m4.xlarge

Region europe-west1, Worker node type n1-standard-2

Region europewest, Worker node type Standard A2

Due to page limitations we only present Kubernetes

data. However, our experiments revealed that most runtime

is spent in infrastructure speciﬁc handling and not due to the

choice of the elastic container platform.

Towards a Lightweight Multi-Cloud DSL for Elastic and Transferable Cloud-native Applications

405

Table 4: Mapping DSL concepts to derived requirements (R1-R6) and containerization trends (AD, SD, DU, ..., CL).

Concept R1 R2 R3 R4 R5 R6 AD SD DU SCHED LB AS CL

Application x x

Service x x x

Endpoint x x x x

DeploymentUnit x x x x

Container x x x

DeploymentPolicies x x x x x x

LoadBalancingStrategy x x x x

Scaling Rules x x x x x x x

Scheduling Constraints x x x x x x x

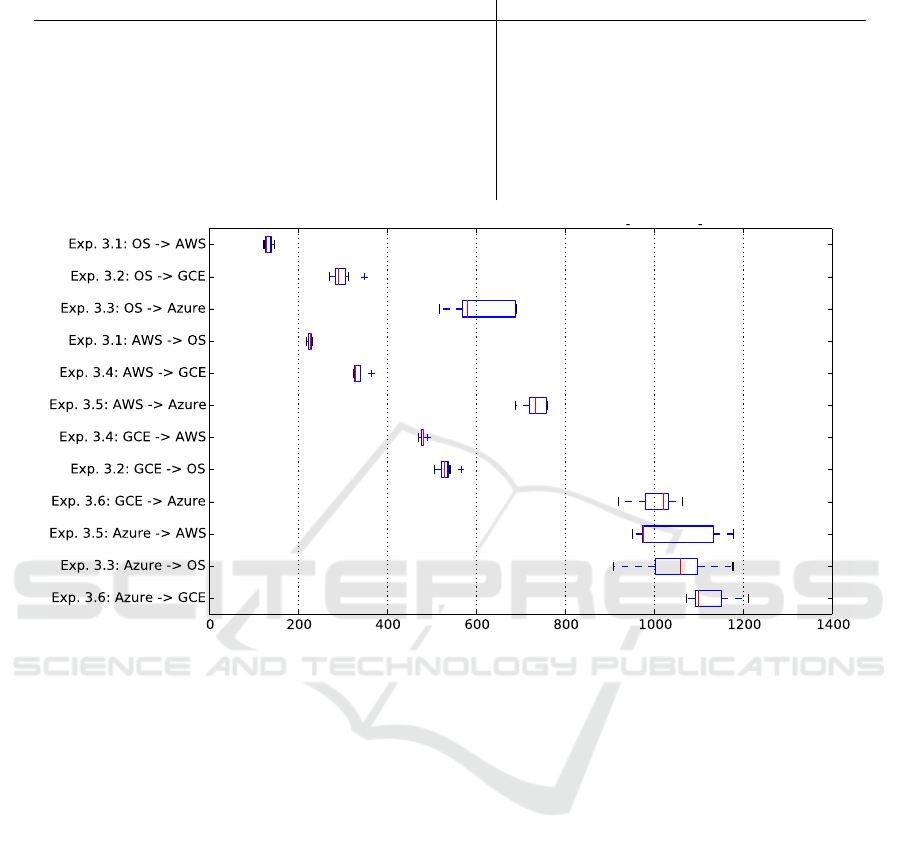

Figure 5: Measured durations of application migrations [seconds].

and the target infrastructure. E.g., as seen in E3.3, the

migration Azure ⇒ AWS takes four times longer than

the reversed migration AWS ⇒ Azure. Our analysis

turned out, that the differences in the transfer times

are mainly due to different blocking behavior of the

IaaS API operations of different providers. Especi-

ally providers whose terminating operation of virtual

machines or security groups are blocking operations

show signiﬁcantly longer reaction times. E.g., IaaS

terminating operations of GCE and Azure wait until

an operation is ﬁnished completely before starting the

next one. This takes obviously longer than just wai-

ting for the conﬁrmation that an infrastructure ope-

ration has started (IaaS API behavior of OpenStack

and AWS). However, and in all cases the reference

application could be transferred completely and wit-

hout downtime between all mentioned providers. The

differences in transfer times are due to different in-

volved IaaS cloud service providers and not due to

the presented DSL.

Limitations and Critical Discussion. In our cur-

rent work we have not evaluated the migration of a

stateful applications deployment with a mass of data.

This would involve the usage of a storage cluster

like Ceph or GlusterFS. The transfer of such kind

of storage clusters will be investigated separately.

We also rated the DSL pragmatism and practitioner

acceptance higher than the richness of possible DSL

expressions. This was a result according to discussi-

ons with practitioners (Kratzke and Peinl, 2016). This

results in some limitations. For instance, our DSL is

intentionally designed for container and microservice

architectures, but has limitations to express applicati-

ons out of this scope. This limits language complexity

but reduces possible use cases. For applications out-

side the scope of microservice architectures, we re-

commend to follow more general TOSCA or CAMEL

based approaches.

5 CONCLUSION

Open issues in deploying cloud-native applications to

cloud infrastructures come along with the combina-

tion of multi-cloud interoperability, application topo-

logy deﬁnition/composition and elastic runtime adap-

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

406

Listing 1: The payment service of the Sock Shop reference application expressed in the proposed DSL.

1 DeploymentPolicy dPo l i cy = new D e p l o y m e n t P o licy . B u ilder ()

2 . rul e ( D e p l o y m e n t P o l i c y . Type . NUMBER , 3)

3 . rul e ( D e p l o y m e n t P o l i c y . Type . SELEC TOR , " o p e n Stack . d c1 " )

4 . buil d ();

5 Containe r p a y m e n t C o n t a i n e r = new C o ntainer . B u i lder ( " payme n t " )

6 . imag e ( " w e a v e w o r k s d e m o s / p a yment : 0.4.3 " )

7 . por t (new E n d point . Builde r (). containerPort ( 80). build ())

8 . buil d ();

9 DeploymentUnit deploymen t U n i t = new DeploymentUnit . Build e r ( " p ayment " )

10 . container ( p a y m e n t C o n t ainer )

11 . t ag ( " app " , " n ginx " )

12 . d e p l oymentPolicy ( dPolicy )

13 . buil d ();

14 Servi c e servi c e = new S ervice . B uilder ( " p a yment " )

15 . deploymentUnit ( deploymentUnit )

16 . por t (new Port . Builder (" http " )

17 . protocol ( P ort . P r otocol . TCP ). c o n t a i nerPort (80). t a r g e t Port (80) . b uild ())

18 . buil d ();

20 new G e n e r ator . Builde r (). targetECP ( G e nerator . ECP_TYPES . KUBERNETES )

21 . deyploment ( s e rvice )

22 . buil d ()

23 . writ e (new F ile ( " / path / to / folder " ));

tion. This combination is – to the best of the authors’

knowledge – not solved satisfactorily so far, because

these three problems are often seen in isolation. It

seems that cloud engineers (and researchers as well)

just trust in picking only two out of these three opti-

ons. Therefore, this paper strived for a more integra-

ted point of view to overcome the observable isolation

of these mentioned engineering and research trends

(Kratzke and Quint, 2017). The key idea is to des-

cribe the platform independently from the application.

According to our lessons learned, the infrastructure

aware deployment and operation of ECPs should be

separated from infrastructure and platform agnos-

tic deployment of applications.

This paper focused on DSL design for the appli-

cation level. However, if we take further research

for the ECP and infrastructure level into considera-

tion (Kratzke, 2017), we are able to demonstrate that

a cloud-native application can be deﬁned in a des-

criptive and infrastructure and platform-agnostic way

simply using a specialized DSL. Our reference appli-

cation composed of nine services could be expressed

using the proposed prototypic version of such kind of

a DSL. Furthermore, the application could be trans-

ferred between different cloud infrastructures within

minutes and without downtimes.

Our DSL core language is implemented as inter-

nal DSL in Java to fulﬁll our own special demands

in a fast and pragmatic way. But we see the need

for a representation of our core language model wit-

hout the overhead of a full purpose language like Java.

Further research will investigate whether it is useful

to make use of more established topology DSLs like

TOSCA and how to realize a comparable expressive-

ness like CAMEL. However, we do not strive for the

technological possible, but also considere the balance

between language expressiveness, pragmatism, com-

plexity and practitioner acceptance.

ACKNOWLEDGEMENTS

This research is funded by German Federal Ministry

of Education and Research (13FH021PX4). Let us

thank all the anonymous reviewers and their com-

ments that improved this paper.

REFERENCES

Aderaldo, C. M., Mendonc¸a, N. C., Pahl, C., and Jamshidi,

P. (2017). Benchmark requirements for microservices

architecture research. In Proceedings of the 1st Inter-

national Workshop on Establishing the Community-

Wide Infrastructure for Architecture-Based Software

Engineering, pages 8–13. IEEE Press.

Arta

c, M., Borov

sak, T., Di Nitto, E., Guerriero, M., and

Tamburri, D. A. (2016). Model-driven continuous

deployment for quality devops. In Proceedings of

the 2nd International Workshop on Quality-Aware De-

vOps, pages 40–41. ACM.

Bergmayr, A., Wimmer, M., Kappel, G., and Grossniklaus,

M. (2014). Cloud modeling languages by example. In

Proceedings - IEEE 7th International Conference on

Towards a Lightweight Multi-Cloud DSL for Elastic and Transferable Cloud-native Applications

407

Service-Oriented Computing and Applications, SOCA

2014.

Binz, T., Breitenb

ucher, U., Kopp, O., and Leymann, F.

(2014). TOSCA: Portable Automated Deployment

and Management of Cloud Applications. In Advanced

Web Services, pages 527–549. Springer New York,

New York, NY.

Blair, G., Bencomo, N., and France, R. B. (2009). Models@

run. time. Computer, 42(10).

Brandtzæg, E., Mosser, S., and Mohagheghi, P. (2012).

Towards cloudml, a model-based approach to provi-

sion resources in the clouds. In 8th European Con-

ference on Modelling Foundations and Applications

(ECMFA), pages 18–27.

Chauvel, F., Ferry, N., Morin, B., Rossini, A., and Solberg,

A. (2013). Models@ runtime to support the iterative

and continuous design of autonomic reasoners. In Mo-

DELS@ Run. time, pages 26–38.

de Alfonso, C., Calatrava, A., and Molt

o, G. (2017).

Container-based virtual elastic clusters. Journal of Sy-

stems and Software, 127(January):1–11.

Fazio, M., Celesti, A., Ranjan, R., Liu, C., Chen, L., and

Villari, M. (2016). Open Issues in Scheduling Mi-

croservices in the Cloud. IEEE Cloud Computing,

3(5):81–88.

Fehling, C., Leymann, F., Retter, R., Schupeck, W., and Ar-

bitter, P. (2014). Cloud Computing Patterns: Funda-

mentals to Design, Build, and Manage Cloud Appli-

cations. Springer Publishing Company, Incorporated.

Gamma, E., Hehn, R., Johnson, R., et al. (2000). Design

patterns: Elements of reusable design. soil.

Heinrich, R., van Hoorn, A., Knoche, H., Li, F., Lwakatare,

L. E., Pahl, C., Schulte, S., and Wettinger, J. (2017).

Performance Engineering for Microservices: Rese-

arch Challenges and Directions. In 8th ACM/SPEC on

Int. Conf. on Performance Engineering Companion,

pages 223–226.

Hindman, B., Konwinski, A., Zaharia, M., Ghodsi, A., Jo-

seph, A. D., Katz, R., Shenker, S., and Stoica, I.

(2011). Mesos: A platform for ﬁne-grained resource

sharing in the data center. In Proceedings of the 8th

USENIX Conference on Networked Systems Design

and Implementation, NSDI’11, pages 295–308, Ber-

keley, CA, USA. USENIX Association.

Kratzke, N. (2017). Smuggling Multi-cloud Support into

Cloud-native Applications using Elastic Container

Platforms. In 8th. Int. Conf. on Cloud Computing and

Service Sciences, Porto, Portugal.

Kratzke, N. and Peinl, R. (2016). ClouNS - a Cloud-Native

Application Reference Model for Enterprise Archi-

tects. In 2016 IEEE 20th International Enterprise

Distributed Object Computing Workshop (EDOCW),

pages 198–207, Vienna. IEEE.

Kratzke, N. and Quint, P. C. (2017). Understanding cloud-

native applications after 10 years of cloud computing

- A systematic mapping study. Journal of Systems and

Software, 126(January):1–16.

Lushpenko, M., Ferry, N., Song, H., Chauvel, F., and Sol-

berg, A. (2015). Using adaptation plans to control the

behavior of models@ runtime. In MoDELS@ Run.

time, pages 11–20.

Mao, M. and Humphrey, M. (2011). Auto-scaling to mi-

nimize cost and meet application deadlines in cloud

workﬂows. Proceedings of 2011 International Confe-

rence for High Performance Computing, Networking,

Storage and Analysis on - SC ’11, page 1.

Mernik, M., Heering, J., and Sloane, A. M. (2005). When

and how to develop domain-speciﬁc languages. ACM

Computing Surveys, 37(4):316–344.

Naik, N. (2016). Building a virtual system of systems using

docker swarm in multiple clouds. In Systems Engi-

neering (ISSE), 2016 IEEE International Symposium

on, pages 1–3. IEEE.

Rossini, A. (2015). Cloud application modelling and exe-

cution language (camel) and the paasage workﬂow.

In Advances in Service-Oriented and Cloud Compu-

ting—Workshops of ESOCC, volume 567, pages 437–

439.

Saatkamp, K., Breitenb

ucher, U., Kopp, O., and Leymann,

F. (2017). Topology Splitting and Matching for Multi-

Cloud Deployments. In 8th Int. Conf. on Cloud Com-

puting and Service Sciences (CLOSER 2017).

Sill, A. (2016). The Design and Architecture of Microser-

vices. IEEE Cloud Computing, 3(5):76–80.

Strembeck, M. and Zdun, U. (2009). An approach

for the systematic development of domain-speciﬁc

languages. Software: Practice and Experience,

39(15):1253–1292.

Van Deursen, A., Klint, P., and Visser, J. (2000). Domain-

speciﬁc languages: An annotated bibliography. ACM

Sigplan Notices, 35(6):26–36.

Vaquero, L. M., Rodero-Merino, L., and Buyya, R.

(2011). Dynamically scaling applications in the cloud.

ACM SIGCOMM Computer Communication Review,

41(1):45.

Verma, A., Pedrosa, L., Korupolu, M., Oppenheimer, D.,

Tune, E., and Wilkes, J. (2015). Large-scale cluster

management at Google with Borg. Proceedings of the

Tenth European Conference on Computer Systems -

EuroSys ’15, pages 1–17.

Weaveworks (2017). Sock shop: A microservices demo ap-

plication. https://www.weave.works/blog/sock-shop-

microservices-demo-application/ . Accessed: 2017-

12-18.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

408
