Head Detection with Depth Images in the Wild

Diego Ballotta, Guido Borghi, Roberto Vezzani and Rita Cucchiara

Department of Engineering ”Enzo Ferrari”, University of Modena and Reggio Emilia, Italy

Keywords:

Head Detection, Head Localization, Depth Maps, Convolutional Neural Network.

Abstract:

Head detection and localization is a demanding task and a key element for many computer vision applications,

like video surveillance, Human Computer Interaction and face analysis. The stunning amount of work done

for detecting faces on RGB images, together with the availability of huge face datasets, allowed to setup very

effective systems on that domain. However, due to illumination issues, infrared or depth cameras may be

required in real applications. In this paper, we introduce a novel method for head detection on depth images

that exploits the classiﬁcation ability of deep learning approaches. In addition to reduce the dependency on

the external illumination, depth images implicitly embed useful information to deal with the scale of the target

objects. Two public datasets have been exploited: the ﬁrst one, called Pandora, is used to train a deep binary

classiﬁer with face and non-face images. The second one, collected by Cornell University, is used to perform

a cross-dataset test during daily activities in unconstrained environments. Experimental results show that the

proposed method overcomes the performance of state-of-art methods working on depth images.

1 INTRODUCTION

Human head detection is a traditional computer vision

research ﬁeld, and in last decades many efforts have

been conducted to ﬁnd competitive and accurate met-

hods and solutions. This task is a fundamental step

for many research ﬁelds based on faces, such as face

recognition, attention analysis, pedestrian detection,

human tracking, to develop real world applications in

contexts such as video surveillance, autonomous dri-

ving, behavior analysis and so on.

Variations in appearance and pose, the presence

of strong body occlusions, lighting condition changes

and cluttered backgrounds made head detection a very

challenging task in wild contexts. Moreover, the head

could be turned away from the camera or could be

captured in a far-ﬁeld.

Most of the current research approaches are based

on images taken by conventional visible-lights came-

ras – i.e. RGB or intensity cameras – and only few

works tackle the problem of head detection in other

types of images, like depth images, also known as

depth maps or range images. Recently, the interest on

the exploitation of depth images is increasing, thanks

to the wide spread of low cost, ready-to-use and high

quality depth acquisition devices, e.g. Microsoft Ki-

nect or Intel RealSense devices. Furthermore, these

recent depth acquisition devices are based on infrared

Figure 1: Head detection results (head center and head

bounding box depicted as a red dot and rectangle, respecti-

vely) on sample depth frames taken from the Watch-n-Patch

dataset, that contains kitchen (ﬁrst row) and ofﬁce (second

row) daily activities acquired by a depth sensor (i.e. Micro-

soft Kinect One).

light and not lasers, so they are not dangerous for hu-

mans and can be used in human environment without

particular limitations.

Some real situations, dominated for instance by

even dramatic lighting changes or the absence of the

light source, strictly impose the exploitation of light-

Ballotta, D., Borghi, G., Vezzani, R. and Cucchiara, R.

Head Detection with Depth Images in the Wild.

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 5: VISAPP, pages

56-63

ISBN: 978-989-758-290-5

invariant vision-based systems. An example can be

represented by a driver’s behavior monitoring system,

that is required working during the day and the night,

with different weather conditions and road contexts

(i.e. clouds, tunnels), in which conventional RGB

images could be not available or have a poor quality.

Infrared or depth cameras may help to achieve light

invariance.

Besides, head detection methods based on depth ima-

ges have several advantages over method based on

2D information. In particular, 2D based methods ge-

nerally suffer the complexity of the background and

when subject’s head has not a consistent color or tex-

ture. Finally, depth maps can be exploited to deal with

the scale of the target object in detection tasks, as des-

cribed below in Section 3.2.

In this paper, we present a method that is able to

detect and localize a head, given a single depth image.

To the best of our knowledge, this is one of the ﬁrst

method that exploits both depth maps and a Convo-

lutional Neural Network for the head detection task.

The proposed system is based on a deep architecture,

created to have good accuracy and to be able to clas-

sify head or non-head images. Our deep classiﬁer is

trained on a recent public dataset, Pandora introdu-

ced in (Borghi et al., 2017b), and the whole system is

tested on an another public dataset, namely Watch-

n-Patch dataset (Wu et al., 2015), collected by the

Cornell University, performing a cross-dataset evalu-

ation.

Results conﬁrm the effectiveness and the feasibi-

lity of the proposed method, also for real world appli-

cations.

The paper is organized as follows. Section 2 pre-

sents an overall description of related literature works,

about head detection and also pedestrian detection. In

Section 3 the presented method is detailed: in par-

ticular, the architecture of the network and the pre-

processing phase for the input data are described. In

Section 4 experimental results are reported and also a

description of datasets exploited to train and test the

presented method. Finally, Section 5 draws some con-

clusions and includes new directions for future work.

2 RELATED WORK

As described above, most of head detection methods

proposed in the literature are based on intensity or

RGB images. This is the case of the well-known

Viola-Jones object detector (Viola and Jones, 2004),

where Haar features and a cascade classiﬁer (Ada-

Boost (Freund and Schapire, 1995)) are exploited to

develop a real time and a robust face detector. A spe-

ciﬁc set of features has to be collected to handle the

variety of head poses. Besides, solutions based on

SVM (Osuna et al., 1997) and Neural Networks (Ro-

wley et al., 1998) have been proposed to tackle the

problem of face or head detection on intensity ima-

ges.

Very few works present approaches for head de-

tection only based on depth images. The recent work

of Chen et al. (Chen et al., 2016) presents a novel

head descriptor to classify, through a Linear Discrimi-

nant Analysis (LDA) classiﬁer, pixels as head or non-

head. Depth values are exploited to eliminate false

positives of head centers and to cluster pixels for ﬁnal

head detection. In the work of Nghiem et al. (Nghiem

et al., 2012), head detection is conducted on 3D data

as ﬁrst step for a fall detection system. This method

detects only moving objects through background sub-

traction and all possible head positions are searched

on contour segments. Then, modiﬁed HOG featu-

res (Dalal and Triggs, 2005) are computed directly on

depth data, to recognize people in the image. Finally,

a SVM (Cortes and Vapnik, 1995) is exploited to cre-

ate a head shoulder classiﬁer. Even if the presence

of other recent works that exploit CNNs with depth

data (Venturelli et al., 2017; Frigieri et al., 2017; Bor-

ghi et al., 2017a; Venturelli et al., 2016), we believe

that this paper proposes a novel approach for head de-

tection on only depth maps.

In some works, only head localization task is ad-

dressed, that is the ability to localize the head into the

image, assuming the presence of at least one head in

the input image. In these cases, it is frequently sup-

posed that the subject is frontally placed in respect

to the acquisition device. This is the case of (Fanelli

et al., 2011), where depth image patches are used to

directly estimate head location and orientation at the

same time with a regression forests algorithm. Also

in (Borghi et al., 2017b) the head center is predicted

through a regressive Convolutional Neural Network

(CNN) trained on depth frames, supposing the user’s

head is present and at least partially centered in fra-

mes acquired. In both cases, authors assume also that

head is always visible on the top of the moving human

body.

Head detection shares some common aspects with

face recognition and pedestrian detection tasks and

this is why face detection methods often cover the

case of human or pedestrian detection. Moreover,

most head detector rely on the assumption to ﬁnd

shoulder joints to locate head into the input image.

Gradient-based features such as HOG (Dalal and

Triggs, 2005), EOH (Levi and Weiss, 2004) are ge-

nerally exploited for pedestrian detection in gray le-

vel images. Techniques to extract scale-invariant in-

Head Detection with Depth Images in the Wild

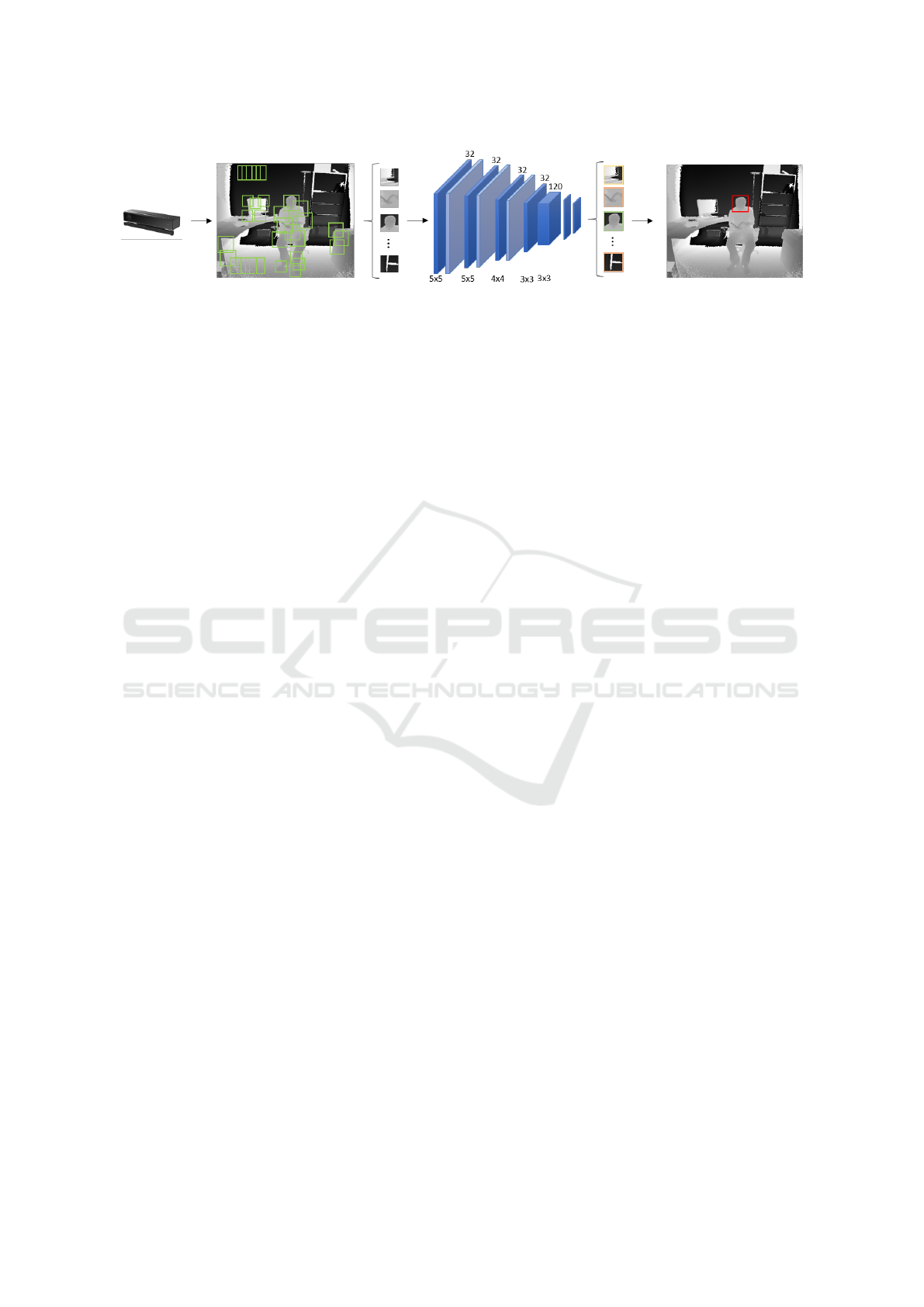

Figure 2: Overall schema of the proposed framework. From the left, depth frames are acquired with a depth device (like

Microsoft Kinect), then patches are extracted and sent to the CNN, a classiﬁer that is able to predict if a candidate patch

contains a head or not. Finally, the position of the head patch is recovered, to ﬁnd the coordinates into the input frame.

To facilitate the visualization, 16 bit depth images are shown as 8 bit gray level images and only few extracted patches are

reported.

teresting points in images are also exploited (SIFT,

(Lowe, 1999)). Other local features, like edgelets (Wu

and Nevatia, 2005) and poselets (Bourdev and Malik,

2009), are used for highly accurate and fast human

detection.

Recently, due to the great success of deep lear-

ning approaches, several methods based on CNN are

proposed (Zhu and Ramanan, 2012) to perform face

detection, pose estimation and landmark localization,

but only with intensity images.

A deep learning based work is presented in (Vu

et al., 2015), in which a context-aware method based

on local, global and pairwise deep models is used to

detect person heads in RGB images. In (Xia et al.,

2011) a human detector based on depth data and a

2D head contour model and 3D head surface model

is presented. In addition, a segmentation scheme to

extract the entire body and a tracking algorithm based

on detection results are proposed.

A multiple human detection method in depth ima-

ges is presented in (Khan et al., 2016) and is based on

a fast template matching algorithm; results are veri-

ﬁed though a 3D model ﬁtting technique. Then, hu-

man body is extracted exploiting morphological ope-

rators to perform a segmentation scheme. In (Ike-

mura and Fujiyoshi, 2011) a method for detecting hu-

mans by relational depth similarity features based on

depth information is presented: integral depth images

and AdaBoost classiﬁer are exploited to achieve good

accuracy and real time performance.

Shotton et al. proposes in (Shotton et al., 2013) a

method based on randomized decision trees to quickly

and accurately predict the 3D positions of body joints

from a single depth image (also the head is included)

and no temporal information are exploited.

3 FACE DETECTION

A depiction of the overall framework is shown in Fi-

gure 2. Given a single depth image as input, a set of

square patches, the head candidates, is extracted and

fed to a CNN based classiﬁer, which predicts if the

patch contains a human head or not.

Positively classiﬁed patches are further analyzed

to reﬁne the classiﬁcation and reject non-maxima pro-

posals. The ﬁnal output of the system are the {x

, y

}

coordinates of the detected face centers and the corre-

sponding bounding box sizes {w

, h

3.1 Depth Camera and Data

Pre-processing

Some features of the presented approach are related

to the acquisition device used to collect depth maps.

Thus, before describing the method, let us provide a

brief introduction to the acquisition devices that are

usually used to collect depth frames.

Both Pandora and Watch-n-Patch datasets exploit

the second generation Microsof Kinect One device, a

Time-of-Flight (ToF) depth camera. Thanks to its in-

frared light, it is able to measure the distance to an

object inside the scene, by measuring the time inter-

val taken for infrared light to be reﬂected by the object

in the scene. Kinect One is able to acquire data in real

time (30 fps), with a range starting from 0.5 to 8 me-

ters, but best depth information are available only up

to 5 meters. All distance data are reported in millime-

ters. The sensor provides depth information as a two

dimensional array of pixels (depth maps), like a gray-

level image. Since each pixel represents the distance

in millimeters from the camera, depth images are re-

presented in 16 bit. For this reason, in our system we

use 16 bit input images, and depth values are conver-

ted in standard 8 bit values (0 to 255) only for visual

inspection or representation.

Due to the nature of ToF sensors, noise is fre-

quently present in acquired depth images The noise is

visible as dots with zero value (random black spots)

and therefore input depth images are pre-processed to

remove these values through a 3×3 median ﬁlter. Ki-

nect One is able to simultaneously acquire RGB and

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

depth images with a spatial resolution of 1920×1080

and 512 × 424, respectively. In our approach, we

work only on depth frames with full resolution.

3.2 Patch Extraction

Apart from the pre-processing stage, the extraction

of candidate patches is the ﬁrst step of the system.

Without any additional information or constraint, a

face can be located everywhere in the image with an

unknown scale. As a result, a complete set of face

candidates can be obtained with a sliding-window ap-

proach performed at different scales. Empirical rules

can be used to reduce the cardinality of the candidate

set, for example by adopting pyramidal procedures or

by reducing the number of tested scales or the over-

lapping between consecutive spatial samples. As a

drawback, the precision of the method will be degra-

ded.

Differently from appearance images, depth maps

embed the distance of the object to the cameras. Ca-

libration parameters can be exploited to estimate the

size of a head in the image given its distance from

the camera and vice versa. Candidate patches can be

early rejected if the above mentioned constraint is not

satisﬁed.

More precisely, for each candidate head center

p = {x, y} within the image, the distance D

of the

object in that position is recovered by averaging the

depth values over a small square neighborhood of ra-

dius K around {x, y}. Given the average size of a real

human head and the calibration parameters, the corre-

sponding image size is computed and used as the uni-

que tested scale for that center position {x, y}. Analy-

tically, the width and the height of the extracted can-

didate patch (w

, h

) centered in p = {x, y} are com-

putes as follow:

· R

(1)

where f

, f

are the horizontal and the vertical focal

lengths of the acquisition device (expressed in pixels)

and R is a constant value representing the average

width of a face (200 mm in our experiments). To furt-

her reduce the amount of candidates, the head cen-

ter positions are sampled each K pixels. Thus, given

a input image of width and height (w

, h

), the total

number of extracted patches is computed as follow:

patches

· h

. (2)

Patches smaller than 15 × 15 pixels are discarded,

since they correspond to background objects.

With this procedure we obtain two major beneﬁts:

we do not need to implement any multiple-scale ap-

(a)

(b)

Figure 3: (a) Examples of extracted head patches for the

training phase of our classiﬁer. As shown, turned head,

prescription glasses, hoods and other type of garments and

occlusions can be present. (b) Examples of extracted non-

head patches, including body parts and other details. All

reported candidates are taken from Pandora dataset. For a

better visualization, depth images are contrast-stretched and

resized to the same size.

proach, like in (Viola and Jones, 2004), so the proces-

sing overhead is reduced; the second beneﬁt is that

we are able to extract square candidates that well ﬁt a

person head, if present, and only a minor part of the

background, as depicted in Figure 3 (a).

All the patches are then resized to 64 × 64 pixels.

Supposing the head in a central position in the pa-

tch, even if we include minor parts of the background,

we maintain only foreground, the person head, setting

to 0 all the depth values into the patch greater than

D + l, where l is the general amount of space for a

head and D is the same value computed above. Fi-

nal patch values are then normalized to obtain values

between [−1, 1]. This normalization is also required

by the speciﬁc activation function that is adopted in

the network architecture (see Section 3.3) and it is a

fundamental step to improve CNN performance, as

described in (Krizhevsky et al., 2012).

3.3 Network Architecture

Taking inspiration from (Krizhevsky et al., 2012),

we adopt a shallow network architecture to deal with

computation time and system performance. Another

relevant element is the lack of publicly available an-

notated depth data, that forced us to adopt deep mo-

dels with a limited number of internal parameters as

depicted in Figure 2. The proposed network takes as

input depth images of 64 × 64 pixels. There are 5

Head Detection with Depth Images in the Wild

Table 1: Comparison between different baselines of our method. In particular, the pixel area K is varied, inﬂuencing the

performance in terms of detection rate and frames per second. True positives, Intersection over Union (IoU) and frames per

second (fps) are reported. We take the best result for the comparison with the state-of-art.

Pixel Area (K) True Positives Intersection over Union Frames per Second

3 × 3 0.883 0.635 0.103

5 × 5 0.873 0.631 0.235

9 × 9 0.850 0.618 0.655

13 × 13 0.837 0.601 1.273

17 × 17 0.786 0.569 2.124

21 × 21 0.748 0.528 2.622

45 × 45 0.376 0.009 12.986

convolutional layers, where the ﬁrst four have 32 ﬁl-

ter with size of 5×5, 4×4 and 3×3 respectively, and

the last one has 128 ﬁlters, with size of 3 × 3. Max-

pooling is conducted only on the ﬁrst three convolu-

tional layers, due to the limited size of input images.

Three fully connected layers are then added with 128,

84 and 2 neurons respectively. We adopt the hyperbo-

lic tangent (tanh) as activation function in all layers:

tanh(x) =

1 + e

−2x

− 1 (3)

in this way network is able to map input [−∞, +∞] →

[−1, +1]. In the last fully connected layer we adopt

the softmax activation to perform the classiﬁcation

task.

We exploit Adam solver (Kingma and Ba, 2014),

with an initial learning rate set to 10

−4

, to resolve

back-propagation and automatically adjust the lear-

ning rate values during the training phase. We exploit

data augmentation technique to avoid over-ﬁtting phe-

nomena (Krizhevsky et al., 2012) and increase the

number of training data: each input image is ﬂip-

ped, so the ﬁnal number of input images is doubled.

The categorical cross-entropy function as been used

as loss.

4 RESULTS

In this section, experimental results of the proposed

method are presented. In order to evaluate its perfor-

mance, we use two public and recent datasets, Pan-

dora for the patch extraction and the network training

part and the second dataset, Watch-n-Patch for the tes-

ting phase, the same used in (Chen et al., 2016). Ex-

perimental results for (Nghiem et al., 2012) on Watch-

n-Patch dataset are taken from (Chen et al., 2016).

Generally, head detection task with depth images

task lacks of the availability of publicly datasets, spe-

ciﬁcally created for face or head detection in wild

contexts. Several datasets containing both depth data

and visible human heads were collected in this de-

cade, e.g. (Fanelli et al., 2011; Baltru

saitis et al.,

2012; Bagdanov et al., 2011), but they present some

issues, for example they are not deep learning orien-

ted, due to their very limited number of annotated

samples. Moreover, subjects are often still, perform

too static actions, and frontal face the acquisition de-

vice. Besides, we consider only dataset with Time-of-

Flight data, that contains frames with higher quality

and depth measures accuracy as described in (Sarbo-

landi et al., 2015), in respect with structured-light sen-

sors (like the ﬁrst version of Kinect).

As mentioned above, we exploit Pandora data-

set to generate patches of head and non-head, based

on skeleton annotations, to train our CNN. Non-head

candidates are extracted randomly sampling depth

frames, excluding head areas. An example of extrac-

ted head patches and non-head patches used for the

training phase is reported in Figure 3. Due to Pandora

dataset features, heads with extreme poses, occlusions

and garments can be present.

4.1 Pandora Dataset

Pandora dataset is introduced in (Borghi et al.,

2017b). It is acquired with Microsoft Kinect One de-

vice and is speciﬁcally created for the head pose esti-

mation task. It is deep oriented, since it contains about

250k frames divided in 110 sequences of 22 subjects

(10 males and 12 females). It is a challenging dataset,

subjects can vary their head appearance wearing pres-

cription glasses, sun glasses, scarves, caps and ma-

nipulate smart-phones, tablets and plastic bottles that

can generate head and body occlusions. It is a useful

dataset to extract patches due to the presence of head

with various poses and appearance. Skeleton anno-

tations facilitate the extraction of head and non-head

patches.

4.2 Watch-n-Patch Dataset

Wu et al. introduces this dataset in (Wu et al., 2015).

It is created with the focus on modeling human acti-

vities, comprising multiple actions in a completely

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

Table 2: Results on Watch-n-Patch dataset for head detection task, reported as True Positives and False Positives. The proposed

method largely overcomes literature competitors.

Methods Classiﬁer Features True Positives False Positives

(Nghiem et al., 2012) SVM modiﬁed HOG 0.519 0.076

(Chen et al., 2016) LDA depth-based head descriptor 0.709 0.108

Our CNN deep 0.883 0.077

unsupervised setting. Like Pandora, it is collected

with Microsoft Kinect One sensor for a total length

of about 230 minutes, divided in 458 videos. 7 sub-

jects perform human daily activities in 8 ofﬁces and 5

kitchens with complex backgrounds, in this way dif-

ferent views and head poses are guaranteed.

Moreover, skeleton data are provided as ground

truth annotations. Even if this dataset is not explicitly

created for head detection task, it is a useful dataset to

test head detection system on depth images, thanks to

its variety in poses, actions, subjects and background

complexity.

4.3 Experimental Results

First, we investigate performance of the proposed sy-

stem varying the size of K, the pixel area used to

compute the average distance D (see. Section 3.2)

between a point in the scene and the acquisition ca-

mera. The size of the pixel area K affects both the

computation time, due to the ﬁnal number of patches

generated on input images (see Equation 2), and the

head detection rate: a bad or corrupted estimation of

D generate low quality patches and could compromise

CNN classiﬁcation performance.

In our experiments, for a fair comparison with (Chen

et al., 2016), we report our results as true positives

number of head detected. We consider also Inter-

section over Union (IoU) metric and frames per se-

cond (fps) value to check time performance of the

Figure 4: Correlation between the pixel area K and speed

performance, in terms of fps, of the proposed method. As

expected, detection rate is low with high speed performance

and vice versa.

proposed system. A head is correctly detected and

localized (True Positive) only if

IoU(A, B) > τ (4)

IoU(A, B) =

|A ∩ B|

|A ∪ B| − |A ∩ B|

(5)

where A, B are ground truth and predicted head boun-

ding boxes, respectively. According to (Chen et al.,

2016), τ = 0.5.

If a patch is incorrectly detected as a head by CNN,

it creates one false positive and one false negative.

As above reported, we include also computation time,

that includes the part of patch extraction and the part

of CNN classiﬁcation. Results are reported in Table

1 . As expected, system accuracy decreases and time

computation increases with smaller K size. Thus, the

size of the pixel area K can be set based on the type

of ﬁnal application in which head detection is neces-

sary, where can be preferred accuracy or speed per-

formance. Tests have been carried on a Intel i7-4790

CPU (3.60 GHz) and with a NVIDIA Quadro k2200.

The deep model has be implemented and tested with

Keras (Chollet et al., 2015) with Theano (Theano De-

velopment Team, 2016) back-end.

Since we proposed a head detection only based on

depth images, we compare our method with two state-

of-art head detection systems based on depth data:

the ﬁrst one has been introduced by Chen et al. in

(Chen et al., 2016); the second one is a system for fall

detection proposed in (Nghiem et al., 2012). Com-

parisons with methods based on intensity images or

hybrid approaches are out of the scope of this paper.

Evaluations with other depth-based head localization

methods present in the literature reported in Section

2 (Fanelli et al., 2011; Borghi et al., 2017b) are not

feasible, since a speciﬁc context for acquired scenes

is strictly required, i.e. a person facing the acquisition

device, with only the upper body part visible.

For the experimental comparison, we exploit as

ground truth the skeleton data provided with the

Watch-n-Patch dataset. Results are reported as the to-

tal number of True Positive and False Positive of head

detection, given a subsequence of the Watch-n-Patch

dataset (2785 images). For the sake of fairness, we

exploited the same subsequences used in (Chen et al.,

2016; Nghiem et al., 2012), as stated by the authors.

Head Detection with Depth Images in the Wild

Figure 5: Example outputs of the proposed system. RGB frames are reported in the ﬁrst and third rows, while in the second

and the last rows are depicted the correspondent depth maps. Our prediction is reported as blue rectangle, also ground truth

(red rectangle) and some other patch candidates (green) are shown. Sample frames are collected from Watch-n-Patch dataset.

[best in colors].

This subset has been chosen by authors due to the pre-

sence of scene with good background quality, requi-

red by (Nghiem et al., 2012), and the presence of pe-

ople, to meet the assumption present in (Chen et al.,

2016) of existing heads in all input images. It is im-

portant to note that our approach do not rely on these

two strong assumptions. All data with wrong ground

truth annotations or missing depth data are discarded.

Table 2 reports the comparison with the state-of-

art. Our method achieves better performance in terms

of true positive number. In particular scenes, we

achieve a 100% of correct head detections and the

cross-dataset evaluation guarantees the generalization

capability of the proposed architecture. Finally, we

note that in (Chen et al., 2016; Nghiem et al., 2012) is

not clearly reported how the number of false positive

is computed.

5 CONCLUSIONS

A novel method to detect and localize a head from a

single depth image is presented. The system is ba-

sed on a Convolutional Neural Network designed to

classify, like a binary classiﬁer, candidates as head

or non-head. Results conﬁrm the feasibility and the

accuracy of our method, that can be a key element for

frameworks created for face recognition or behavior

analysis, in environments in which light invariance is

strictly required.

The ﬂexibility of our approach allows the possi-

bility of future work, that may involve the investiga-

tion of multiple head detection task in depth frames.

Generally, the acquisition of new data is needed, due

to the lack of speciﬁc dataset created for single and

multiple head detection with depth maps. Moreover,

future extensions are also related with the reduction

of the computation time.

REFERENCES

Bagdanov, A. D., Del Bimbo, A., and Masi, I. (2011). The

ﬂorence 2d/3d hybrid face dataset. In Proceedings of

the 2011 joint ACM workshop on Human gesture and

behavior understanding, pages 79–80. ACM.

Baltru

saitis, T., Robinson, P., and Morency, L.-P. (2012). 3d

constrained local model for rigid and non-rigid facial

tracking. In Computer Vision and Pattern Recogni-

tion (CVPR), 2012 IEEE Conference on, pages 2610–

2617. IEEE.

Borghi, G., Gasparini, R., Vezzani, R., and Cucchiara, R.

(2017a). Embedded recurrent network for head pose

estimation in car. In Proceedings of the 2017 IEEE

Intelligent Vehicles Symposium (IV).

Borghi, G., Venturelli, M., Vezzani, R., and Cucchiara, R.

(2017b). Poseidon: Face-from-depth for driver pose

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

estimation. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition (CVPR).

Bourdev, L. and Malik, J. (2009). Poselets: Body part de-

tectors trained using 3d human pose annotations. In

Computer Vision, 2009 IEEE 12th International Con-

ference on, pages 1365–1372. IEEE.

Chen, S., Bremond, F., Nguyen, H., and Thomas, H. (2016).

Exploring depth information for head detection with

depth images. In Advanced Video and Signal Based

Surveillance (AVSS), 2016 13th IEEE International

Conference on, pages 228–234. IEEE.

Chollet, F. et al. (2015). Keras.

Cortes, C. and Vapnik, V. (1995). Support vector machine.

Machine learning, 20(3):273–297.

Dalal, N. and Triggs, B. (2005). Histograms of oriented gra-

dients for human detection. In Computer Vision and

Pattern Recognition, 2005. CVPR 2005. IEEE Com-

puter Society Conference on, volume 1, pages 886–

893. IEEE.

Fanelli, G., Weise, T., Gall, J., and Van Gool, L. (2011).

Real time head pose estimation from consumer depth

cameras. In Joint Pattern Recognition Symposium, pa-

ges 101–110. Springer.

Freund, Y. and Schapire, R. E. (1995). A desicion-theoretic

generalization of on-line learning and an application

to boosting. In European conference on computatio-

nal learning theory, pages 23–37. Springer.

Frigieri, E., Borghi, G., Vezzani, R., and Cucchiara, R.

(2017). Fast and accurate facial landmark localization

in depth images for in-car applications. In Procee-

dings of the 19th International Conference on Image

Analysis and Processing (ICIAP).

Ikemura, S. and Fujiyoshi, H. (2011). Real-time human

detection using relational depth similarity features.

Computer Vision–ACCV 2010, pages 25–38.

Khan, M. H., Shirahama, K., Farid, M. S., and Grzegorzek,

M. (2016). Multiple human detection in depth images.

In Multimedia Signal Processing (MMSP), 2016 IEEE

18th International Workshop on, pages 1–6. IEEE.

Kingma, D. and Ba, J. (2014). Adam: A method for sto-

chastic optimization. arXiv preprint arXiv:1412.6980.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Advances in neural information pro-

cessing systems, pages 1097–1105.

Levi, K. and Weiss, Y. (2004). Learning object detection

from a small number of examples: the importance of

good features. In Computer Vision and Pattern Re-

cognition, 2004. CVPR 2004. Proceedings of the 2004

IEEE Computer Society Conference on, volume 2, pa-

ges II–II. IEEE.

Lowe, D. G. (1999). Object recognition from local scale-

invariant features. In Computer vision, 1999. The pro-

ceedings of the seventh IEEE international conference

on, volume 2, pages 1150–1157. Ieee.

Nghiem, A. T., Auvinet, E., and Meunier, J. (2012). Head

detection using kinect camera and its application to

fall detection. In Information Science, Signal Proces-

sing and their Applications (ISSPA), 2012 11th Inter-

national Conference on, pages 164–169. IEEE.

Osuna, E., Freund, R., and Girosit, F. (1997). Training

support vector machines: an application to face de-

tection. In Computer vision and pattern recognition,

1997. Proceedings., 1997 IEEE computer society con-

ference on, pages 130–136. IEEE.

Rowley, H. A., Baluja, S., and Kanade, T. (1998). Neural

network-based face detection. IEEE Transactions on

pattern analysis and machine intelligence, 20(1):23–

38.

Sarbolandi, H., Leﬂoch, D., and Kolb, A. (2015). Kinect

range sensing: Structured-light versus time-of-ﬂight

kinect. Computer vision and image understanding,

139:1–20.

Shotton, J., Sharp, T., Kipman, A., Fitzgibbon, A., Fi-

nocchio, M., Blake, A., Cook, M., and Moore, R.

(2013). Real-time human pose recognition in parts

from single depth images. Communications of the

ACM, 56(1):116–124.

Theano Development Team (2016). Theano: A Python fra-

mework for fast computation of mathematical expres-

sions. arXiv e-prints, abs/1605.02688.

Venturelli, M., Borghi, G., Vezzani, R., and Cucchiara, R.

(2016). Deep head pose estimation from depth data

for in-car automotive applications. In Proceedings

of the 2nd International Workshop on Understanding

Human Activities through 3D Sensors, ICPR works-

hop.

Venturelli, M., Borghi, G., Vezzani, R., and Cucchiara, R.

(2017). From depth data to head pose estimation: a

siamese approach. In Proceedings of the 12th Interna-

tional Joint Conference on Computer Vision, Imaging

and Computer Graphics Theory and Applications (VI-

SAPP).

Viola, P. and Jones, M. J. (2004). Robust real-time face

detection. International journal of computer vision,

57(2):137–154.

Vu, T.-H., Osokin, A., and Laptev, I. (2015). Context-aware

cnns for person head detection. In Proceedings of the

IEEE International Conference on Computer Vision,

pages 2893–2901.

Wu, B. and Nevatia, R. (2005). Detection of multiple, par-

tially occluded humans in a single image by bayesian

combination of edgelet part detectors. In Computer

Vision, 2005. ICCV 2005. Tenth IEEE International

Conference on, volume 1, pages 90–97. IEEE.

Wu, C., Zhang, J., Savarese, S., and Saxena, A. (2015).

Watch-n-patch: Unsupervised understanding of acti-

ons and relations. In The IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR).

Xia, L., Chen, C.-C., and Aggarwal, J. K. (2011). Hu-

man detection using depth information by kinect. In

Computer Vision and Pattern Recognition Workshops

(CVPRW), 2011 IEEE Computer Society Conference

on, pages 15–22. IEEE.

Zhu, X. and Ramanan, D. (2012). Face detection, pose es-

timation, and landmark localization in the wild. In

Computer Vision and Pattern Recognition (CVPR),

2012 IEEE Conference on, pages 2879–2886. IEEE.

Head Detection with Depth Images in the Wild
