Application of Decision Tree of Classification

English Premier League

Syaiful Bahri

, Maya Silvi Lydia

, Rahmat Widia Sembiring

Fakultas Ilmu Komputer dan Teknologi Informasi, Universitas Sumatera Utara, Medan-Indonesia

Politeknik Negeri Medan, Medan-Indonesia

Keyword: Football, Decision Tree, C4.5 Algorithm

Abstract: Football today has become a hobby for most people. For people who are very hobby will always be waiting

for the results of the final standings of the league's favorite club and hopes to become champion. Results

standings each season can be analyzed based on the attributes of the table standings. With a set of results of

the standings, each season can be classified how big the club is able to become a champion by most dominant.

Penelitian attributes using classification method C4.5 decision tree algorithm using software RapidMiner 8.1.

The dataset used is club Manchester United's season from 1992 through 2016, the number of goals that are

created, the number of goals conceded, the number of points and the status of champions or not at the end of

the season. The results of the study with the algorithm C4. 5 show that the club will be able to become a

champion at season's end goal number above 65 and points earned over 89 points. If the number of points at

the end of the season under 65, then the club has never been champions at the end of the season.

1 INTRODUCTION

Football cannot be avoided by technology. Football

nowadays always grow with the support of

technology. The development of technology in

predicting the fitness of players until the end of the

match result is always using technology. The result of

the match will be stored in the league table as a

determinant champion late in the season for that

position number 1. In the case of prediction with a

track record of a club can be classified results of the

standings every year. The classification results

predictions or conclusions can be drawn in various

ways, one of which is to classify what are the chances

that a club can win in the league with the final results

of the standings in the league a few years ago.

Decision tree whose methods are C.45 will make

the classification of the results of English premier

league standings from 1992 to 2016. The processed

data will classify the number of goals per season, the

number of goals conceded per season, the endpoints

of the season and the status of champions or not at the

end season will be tested with a sample club

Manchester United. With the existence of the

classification, it can be concluded in a number of

attributes which most determine the chances of the

club is able to champions in every season. To simplify

the classification of data, this study uses RapidMiner

8.1 applications.

2 METHODS

2.1 Data Mining

Data mining is the process of discovering interesting

knowledge, such as associations, patterns, changes,

significant structures, and anomalies, from large

amounts of the data stored in databases or data

warehouses or other information repositories (Han,

2006). Some techniques that are often mentioned in

the literature of DM include clustering, classification,

association rule mining, neural networks and genetic

algorithms (Lindawati, 2008). Stages of Data Mining

by (Budanis 2014), Data Mining has phases - phases

include:

1. Cleaning the data (data cleaning) Data cleansing is

the process of eliminating noise and inconsistent

data or data irrelevant.

452

Bahri, S., Lydia, M. and Sembiring, R.

Application of Decision Tree of Classiﬁcation English Premier League.

DOI: 10.5220/0010044704520456

In Proceedings of the 3rd International Conference of Computer, Environment, Agriculture, Social Science, Health Science, Engineering and Technology (ICEST 2018), pages 452-456

ISBN: 978-989-758-496-1

2. Integration of data (data integration) Data

integration is the combination of data from

different databases into the new database.

3. Selection of Data (Data Selection) Data contained

in the database is often not all used, therefore only

the appropriate data to be analyzed to be retrieved

from the database.

4. The data transformation (Data Transformation

Services) Data amended or merged into a format

suitable for processing in Data Mining.

5. The process of mining, It is a major process when

the method is applied to find valuable and hidden

knowledge from data.

6. Evaluation of the pattern (pattern evaluation) To

identify interesting patterns into knowledge-based

alerts.

7. Presentation of knowledge (knowledge

presentation) A visualization and presentation of

knowledge about the methods used to obtain the

knowledge acquired.

2.1.1 Classification

Classification is a data mining technique that maps

the data into predefined groups or classes. It is a

supervised learning method labeled roommates

training requires the data to generate rules for

classifying the data into predetermined test groups or

classes (Dunham, 2003). The method of classification

refers to the formation of groups of data by applying

known algorithms to the data warehouse under

examination. This method is useful for business

processes that require categorical information such as

marketing or sales. It can use various algorithms such

as nearest neighbor, decision tree learning, and

others.Decision Trees are also used to explore the

data, find hidden relationships among a number of

candidates for the input variables with a target

variable.The decision tree combines data exploration

and modeling, so it is great as a first step in the

modeling process even when used as the final models

of several other techniques.

2.2 Decision Tree

The decision tree is a prediction model technique that

can be used for classification and prediction of tasks.

The Decision Tree uses the technique of "divide and

conquers" to divide the problem-finding space into a

set of problems (Dunham, 2003). The process on the

decision tree is to change the shape of the data table

into a model tree. The model tree will generate rule

and simplified (Basuki & Syarif, 2003).

The advantages of the decision tree method are:

1. The area of decision making that was previously

complex and very global, can be changed to be

more simple and specific.

2. Elimination calculations are not necessary

because when using decision tree method the

samples tested was based criteria or a particular

class.

3. Flexible to choose features from the different

internal nodes, feature selected will distinguish

criteria other than the criteria in the same node.

The flexibility of this decision tree method

increases the quality of the resulting decisions

than when using the method of calculating the

phase of a more conventional

Figure 1. Decision Tree Concept

2.3 C4.5 Algorithm

There are several steps in making a decision tree

algorithm C4.5, Larose, namely:

1. Prepare the training data. The training data are

typically taken from historical data that never

happened before or referred to the past data and is

already classified in a particular class.

2. Calculate the root of the tree. The roots will be

taken of the attributes to be elected, by calculating

the value of the gain of each attribute, the highest

gain value which will be the first roots. Before

calculating the gain of attribute values, first,

calculate the value of entropy. To calculate the

value of entropy used the formula:

...................... .................. (1)

by:

S: The set Case

A: Features

n: number of partitions S

pi: The proportion of Si to S

4. Calculate the value of Gain using the

equation.

Application of Decision Tree of Classiﬁcation English Premier League

453

.............................. (2)

Information:

S = The set of cases

A = Features

n = number of partitions attribute A

| Si | = The proportion of Si to S

| S | = Number of cases in S

4. Repeat step 2 and step 3 until all the records

partitioned.

5. The process decision tree partition will stop when:

a. All records in the node N gets the same class.

b. No attribute in the record is partitioned again.

There are no records in the empty branch.

2.4 RapidMiner 8.1

RapidMiner is a neighborhood machine learning data

mining, Text mining and predictive analytics (Han,

2006). Work performed by text mining RapidMiner

is ranged with text analysis, extract patterns from

large data sets and combine with statistical methods,

artificial intelligence, and database. The purpose of

the analysis of this text is to obtain the highest quality

information from text that is processed.

RapidMiner provides procedures for data mining

and machine learning, it includes ETL (extraction,

transformation, loading), the data preprocessing,

visualization, modeling, and evaluation. The data

mining process is composed of operators nestable,

described by XML, and is made with a GUI. The

presentation is written in the Java programming

language.

2.5 Data Preprocessing

Data cleaning is applied to add the attribute is missing

or empty, and change the data inconsistent.

1. Data Transformation In this process, data is

transformed into a form suitable for data mining

processes.

2. Data Reduction Data reduction is done by

eliminating unnecessary attributes so that the size

of the database to be small, and only include the

required attributes in the data mining process, as

it will be more efficient on smaller data. Here is

a table of data sets to be used.

Table 1. The dataset of results Preprocessing



Data preprocessing is important in the process of data

mining. From these data still to be done preprocessing

so that the data is processed in accordance with that

required in the process.

3 RESULT AND DISCUSSIONS

3.1 Determining the Value Attribute

In the first set of sample data node elected, by

calculating the gain value of each attribute to

determine the selected node, use the value of the

greatest gain information. By using the equation -P

(+) log2P (+) - P (-) log2P (-).

At this stage of the study will be performed using

software RapidMiner 8.1 with decision tree method.

Data were processed using M.excel 2010, so in

RapidMiner 8.1 application using excel read operator

function to read the file to be processed. Then enter

operator Decision Tree to create processed data

generates decision trees.

Figure 2. First Process RapidMiner

3.2 Determining Parameters

The criterion used was gain_ratio based Opera-

obtained against intrinsic information which serves to

ICEST 2018 - 3rd International Conference of Computer, Environment, Agriculture, Social Science, Health Science, Engineering and

Technology

454

reduce the bias towards Multi-value attributes to take

into account the number and size of branches when

selecting attributes. On the choice of maximal depth

indicates the maximum number of long branching

from treetop branches.

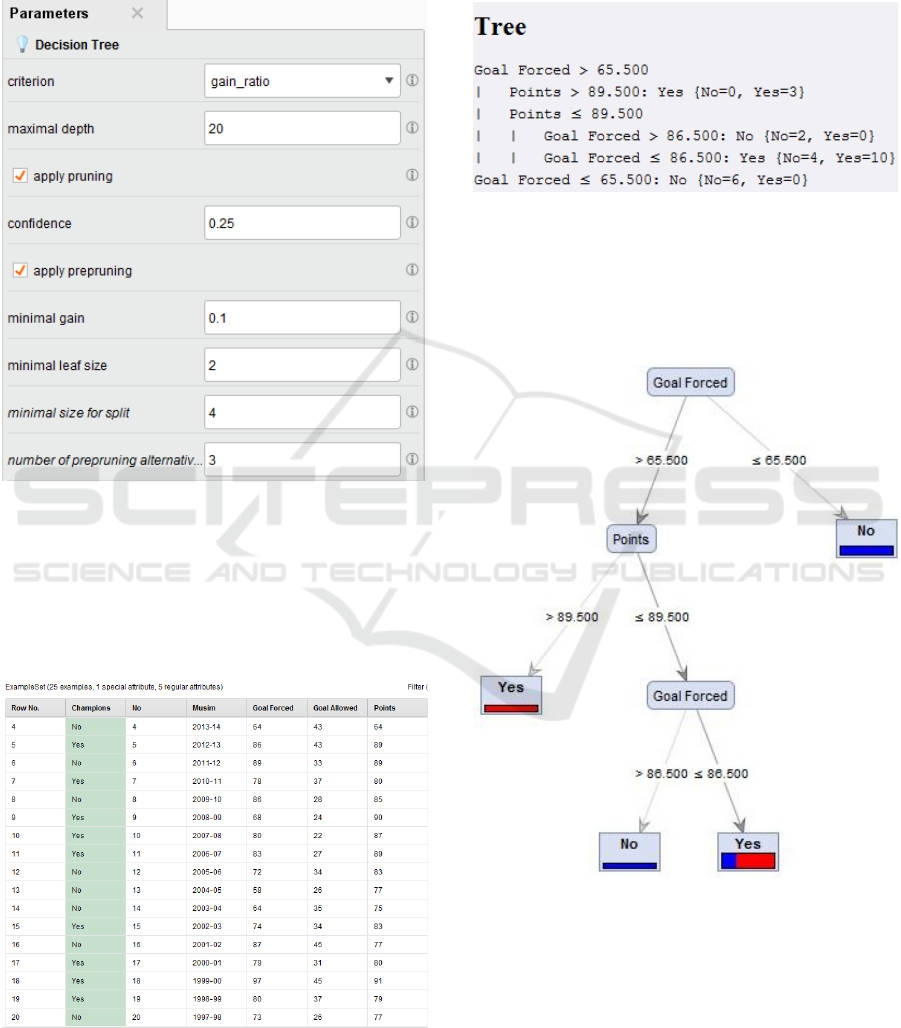

Figure 3. Setting Parameters

3.3 Example Set

The example set is a data set that has been uploaded

to the application RapidMiner 8.1. Here is the data set

that is ready to be processed by the application

RapidMiner 8.1.

Figure 4. Example Set

3.4 Description

The description describes the results of the

classification of the data sets in though. Results of the

description can be seen in the following figure.

Figure 5. Example set read excel

3.5 Graph View

Graph view shows the results of classification by

branching can be produced conclusions. Here is the

result of a decision tree.

Figure 6. Decision Tree Results

4 CONCLUSIONS

1. Decision tree method can be used to classify the

results of the final standings of the league to see

what are the chances of a club can win the final

table results of the previous season's standings.

Application of Decision Tree of Classiﬁcation English Premier League

455

2. The results of the data that has been processed

to show that the club Manchester United will be

champions if the acquisition point each season

89 or> 89. If the pointy end of the season under

65 it is ascertained that the club will not be

champion.

3. It turned out that the club was also able to get

the title 7 times apart from the number of points

above 89, but through a number of points below

89 and averaged 86 goals per season below.

REFERENCES

Basuki, Ahmad dan Syarif, Iwan, 2003. “Decision Tree”.

Surabaya: Politeknik Electronika Negeri

Dunham, Margareth H., 2003. “Data Mining Introductory

and Advanced Topics”. New Jersey:Prentice Hall.

Han, J. and Kamber, M., (2006) Data Mining: Concepts and

Techniques, Elsevier.

Tjahyono, A. dan Anggara, A. M., 2010, Sistem Pendukung

Keputusan Penerimaan Pegawai Baru pada PT.

Kanasritex Semarang, Techno.com, Vol. 9 No.3

Kursini, Luthfi. E. T. 2009. Algoritma Data Mining.PT

Andi Offset.

Lindawati (2008), Data Mining Dengan Teknik Clustering

Dalam Pengklasifikasian Data Mahasiswa Studi Kasus

Prediksi Lama Studi Mahasiswa Universitas Bina

Nusantara, Seminar Nasional Informatika (semnasIF

2008), ISSN :1979-2328

ICEST 2018 - 3rd International Conference of Computer, Environment, Agriculture, Social Science, Health Science, Engineering and

Technology

456
