Towards a Mechanism for Controlling Meta-model Extensibility

Santiago P. Jácome-Guerrero

and Juan de Lara

Departamento de Eléctrica y Electrónica, Universidad de las Fuerzas Armadas ESPE,

Av. General Rumiñahui S/N y Paseo Escénico Santa Clara, 1715231B, Sangolquí, Ecuador

Escuela Politécnica Superior, Universidad Autónoma de Madrid, Campus Cantoblanco, 28049, Madrid, Spain

Keywords: Model-Driven Engineering, Meta-modelling, Meta-model Extension.

Abstract: Model-Driven Engineering (MDE) considers the systematic use of models in software development. A

model must be specified through a well-defined modeling language with precise syntax and semantics. In

MDE, this syntax is defined by a meta-model. There are several scenarios that require the extension or adap-

tation of existing meta-models. For example, OMG standards such as KDM or DD are based on the exten-

sion of base meta-models, according to certain norms. However, these norms are not "operational", but are

described in natural language, and therefore not supported by tools. Although modeling is an activity regu-

lated by meta-models, there are no commonly accepted mechanisms to regulate how meta-models can be

extended. To solve this problem, we propose a mechanism that allows establishing norms of extensibility

for meta-models, as well as a tool that makes it possible to extend the meta-models according to those

norms. The tool is based on EMF, implemented as an Eclipse plugin, and has been validated to guide the ex-

tension of OMG standard meta-models such as KDM and DD.

1 INTRODUCTION

Model-Driven Engineering (MDE) is a software

development paradigm that connects more closely

the model to the application. In this way, the models

not only encapsulate the design of the application,

but are also actively used to simulate, test, verify and

generate the implementation of the system to be

built (García et al., 2013).

Although the modeling activity is regulated by

the corresponding meta-model, there are no com-

monly accepted mechanisms governing how meta-

models can be extended. This is because meta-

models often define languages, views and services

that are usually integrated in tools and are therefore

less likely to need user modification (Atkinson et al.,

2015). However, in some scenarios, it is common to

design meta-models in order to be extended by other

developersor (de Lara et al., 2014). For example,

some Object Mana-gement Group (OMG) specifica-

tions are intended to be used by extending a certain

part of the meta-model. This is the case of the meta-

model of the Knowledge Discovery Meta-Model

(KDM), and the Diagram Definition (DD). Howev-

er, the ways in which these extension need to be

carried out are expressed using natural language.

This is error prone, more when there is no automated

mechanism to check the extensions against what is

specified in the standard, or guide the developer in

the extension.

This situation contrasts with the well-established

instantiation mechanisms of meta-models. In our

view, there should be similar mechanisms to esta-

blish norms for the correct extension of a meta-

model (e.g., classes to be subclassified, references to

be redefined), as well as the operationalization of

such norms by means of tools.

To improve this situation, the present article pro-

poses a mechanism for the specification of rules for

the extension and adaptation of meta-models, as well

as a tool that allows their extension according to the

defined norms. The tool has been built as an Eclipse

plugin, on top of the Eclipse Modeling Framework

(EMF), the de facto meta-modeling standard nowa-

days (Steinberg et al., 2009). The tool has been vali-

dated in different scenarios, including the definition

of extensibility for the KDM (2011) and DD (2015)

standards.

The rest of the article is organized as follows.

Section 2 describes our mechanism for defining

extensibility and adaptability in meta-models. Sec-

tion 3 presents the tool support and a case study.

382

Jácome-Guerrero, S. and Lara, J.

Towards a Mechanism for Controlling Meta-model Extensibility.

DOI: 10.5220/0006462603820387

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 382-387

ISBN: 978-989-758-262-2

Section 4 compares with related work and section 5

ends with conclusions and lines of future work.

2 EXTENSION MECHANISM

There are situations in which meta-models are de-

signed for the purpose of being extended. Hence,

similar to object-oriented application frameworks

(Fayad and Schmidt, 1997), these are base meta-

models, from which more complex systems are

derived by subclassification and redefinition. How-

ever, there is currently a lack of mechanisms to

specify the way in which they can be extended.

Taking into account the need to have mechanisms

that regulate how meta-models can be extended or

adapted (mechanisms also referred to as "customiza-

tion"), this section describes the approach that al-

lows establishing norms of extensibility and adapta-

tion of meta-models. As shown in Figure 1, this

approach considers two phases.

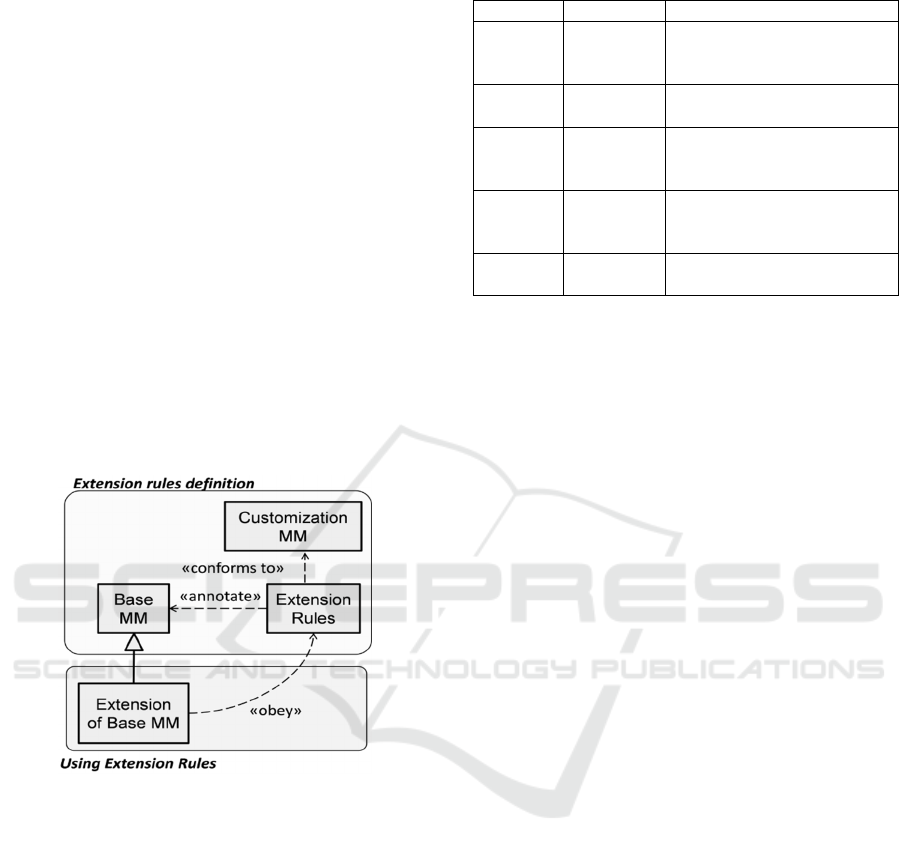

Figure 1: Definition and use of extension rules.

First, the extension rules of the base meta-model

are defined. These are specified as a model, con-

forming to a customization meta-model (Figure 2),

which annotates the elements of the base meta-

model. In the second phase, the base meta-model

can be extended according to the established rules.

We consider four types of rules (see Table 1)

which permit extending, deleting, updating or crea-

ting new classes, and control reference redefinition.

It is important to note that it is common that de-

fining the extension rules and the proper meta-model

extension will be performed by different developers

and will be supported by tools. This will provide

guidance to the developer to extend the meta-model,

as well as confidence that the extension made obeys

the extension rules. Section 3 gives an overview of

the developed tool.

Table 1: Supported extension rules.

Rule Applies to Description

Extend Class The tagged class is consi-

dered extensible: it is possi-

ble to add subclasses

Delete Class Permits tagging optional

classes

Update Class Tags a class as “open”: it

can be added new attributes

and references

New Meta-

model

Tags a meta-model as

“open”: it can be added new

classes

Redefine Reference Governs how/if references

can be redefined

In the scenario of extension of meta-models that

we handle, only the extension and redefinition rules

are relevant. These rules are created by instantiating

the Extend and Redefine classes.

Extension rules allow extending the class (crea-

ting subclasses) of the base meta-model selected by

the custom_extend reference. The extensionKind

attribute declares whether the subclass must be abs-

tract, concrete, or left to the engineer discretion. It is

also possible to specify the number of subclasses

allowed, using the min..max interval (where -1 for

max indicates unlimited). For example, it is possible

to specify whether a class must be extended exactly

once (interval 1..1), optionally at most once (interval

0..1), mandatorily one or more times (interval 1..- 1),

or zero or more times (interval 0..-1). It should be

noted that if a class of the base meta-model does not

have an associated extension rule, then it cannot be

extended.

It is possible to define rules that govern the re-

definition of references by instantiating the Redefine

class. Thus, given a class C that defines a reference

ref to a class D, we can indicate how many times ref

can be redefined each time C is extended (through

the min..max interval). In any case, the destination of

the ref redefinitions must be compatible with class

D. In addition, we can specify whether or not the

redefinitions should be composition, or any (compo-

sitionKind attribute). Finally, using the redefKind

attribute, we control the cardinality that can be as-

signed to each redefinition, with three possibilities:

1) Default. The cardinality of the redefinitions must

be that of the reference ref.

2) Restrictive. The cardinality of the redefinitions

must be an interval contained in ref. For example, if

the cardinality of ref is 0..2, then the redefinitions

can declare the intervals: 0..1, 0..2 and 1..2.

3) Anything. The cardinality of the redefinitions can

be any.

Towards a Mechanism for Controlling Meta-model Extensibility

383

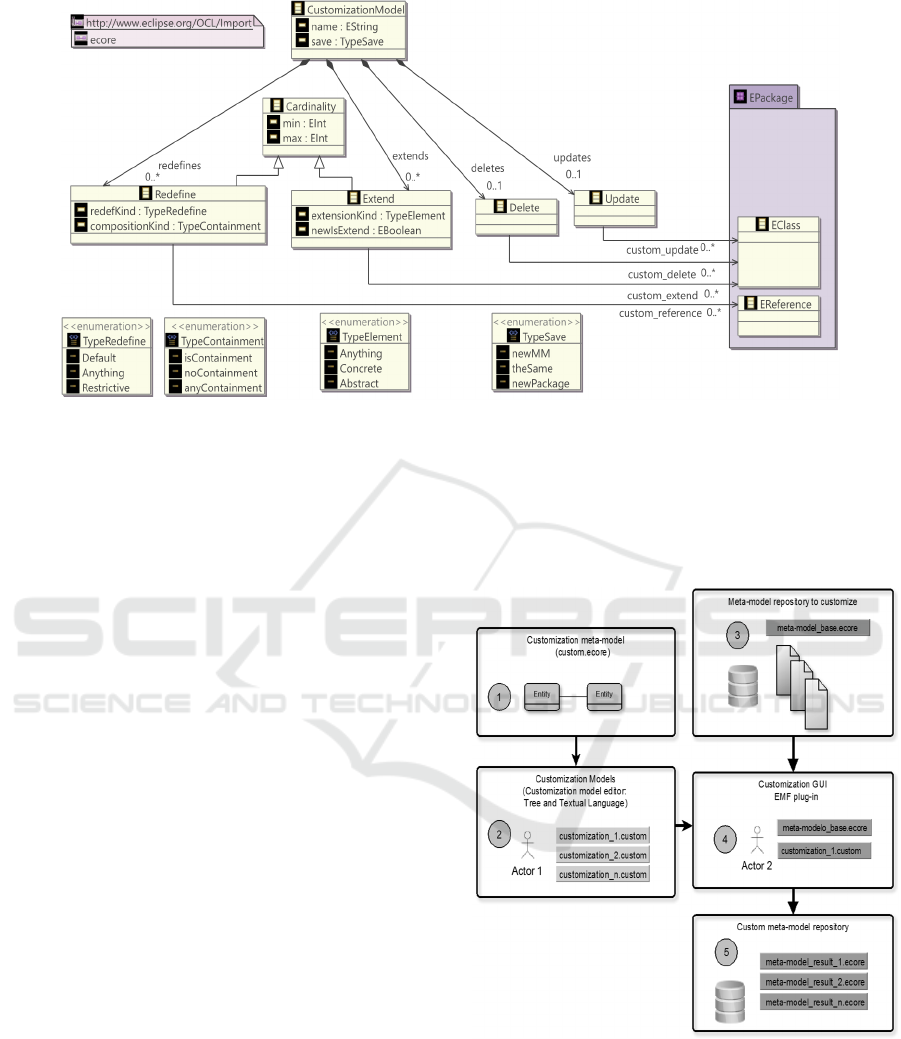

Figure 2: Customization meta-model.

When a reference ref is redefined by a series of

references ref

, ..., ref

, reference ref is seen as a

derived reference, resulting from the union of

ref

, ..., ref

. In terms of UML, ref

... ref

would

have a subsets relation with ref.

We consider three options for storing the exten-

ded meta-model:

1) newMM: makes a copy of the original meta-

model in another file for the modifications to be

made on the original meta-model.

2) theSame: modifications are made on the original

meta-model.

3) newPackage: the extensions are stored in a packa-

ge referencing the base one.

3 TOOL SUPPORT AND CASE

STUDY

This section describes tool support and we use KDM

as a case study.

3.1 Tool Support

In order to make the extension approach of meta-

models possible, we have designed an architecture

made of a pair of complementary tools that work

together. The customization architecture (Figure 3)

uses the meta-model "custom.ecore" (label 1, shown

in Figure 2), which specifies the operations that can

be performed on the meta-model to be customized.

Then, the customization meta-model is instantia-

ted, creating an extension and adaptation model (file

with extension *.custom). This model contains the

extensibility rules for the meta-model. To specify

this model, the developer can use either the default

EMF tree-based editor, or a textual editor that we

have created with Xtext (label 2). The meta-model to

be extended is loaded from a repository (label 3).

Figure 3: Customization architecture.

Once the extension rules are defined, the base

meta-model can be extended according to them. For

this purpose, we have created an intuitive graphical

user interface (GUI), which allows executing the

operations of the extension model (label 4). The cus-

tom meta-model is stored in a repository (label 5).

ICSOFT 2017 - 12th International Conference on Software Technologies

384

3.2 Case Study

In order to verify the feasibility of the proposed

approach, we have defined extensibility rules on

several meta-models, including standard meta-

models such as DD and KDM. This section de-

scribes the extension process for KDM v1.3. The

objective of this study is to define the rules of exten-

sion of the Core package (see Figure 4), and to use

them to create one of the packages of the standard

(Code package).

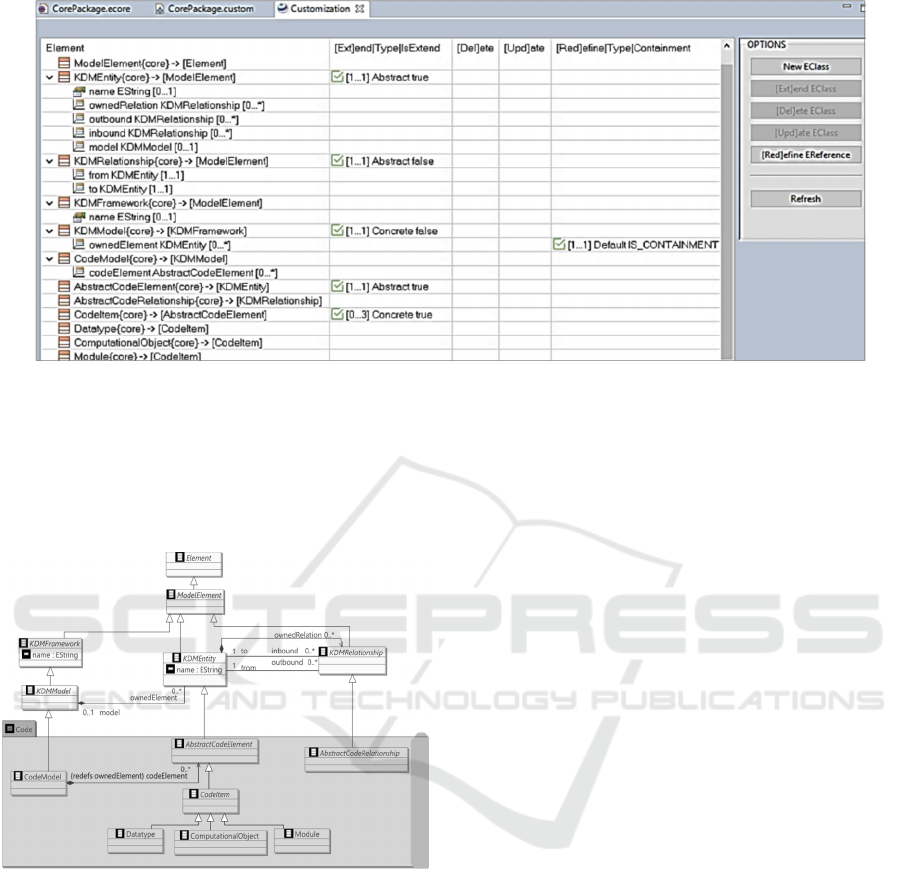

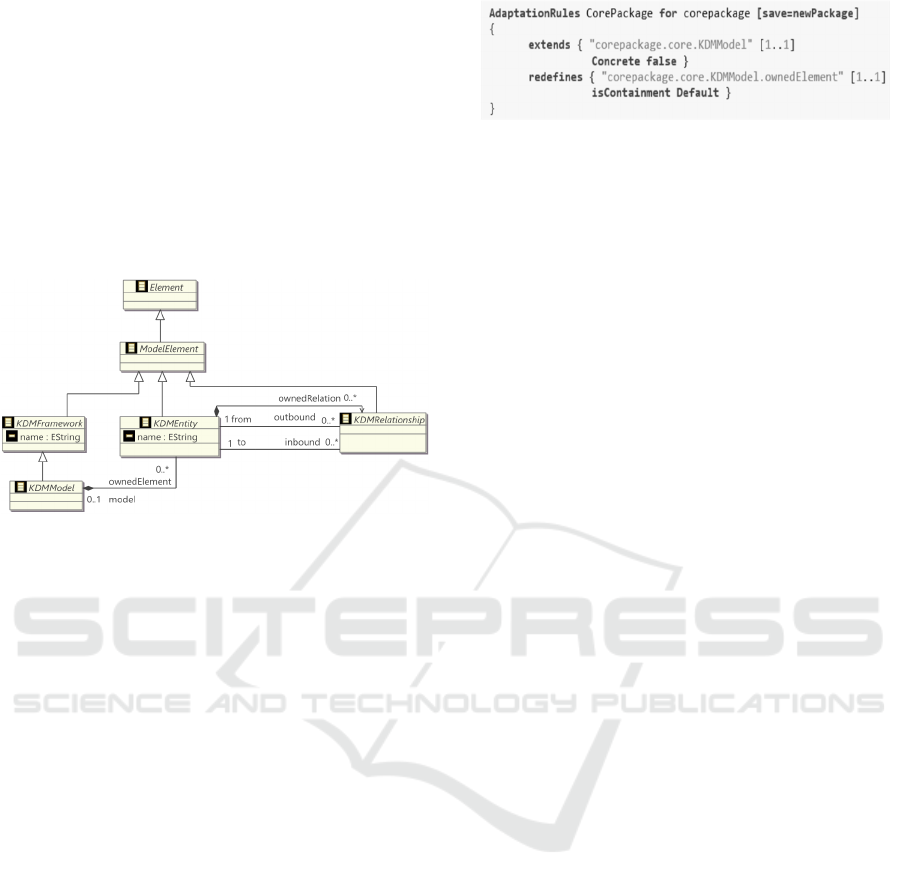

Figure 4: KDM Core package (excerpt).

KDM is a modeling standard in the area of soft-

ware modernization. According to the standard, the

KDM meta-model can be extended to represent

elements and specific relations of the language,

application or implementation. Its purpose is to

model the various artifacts of legacy applications,

such as source code or configuration files. Once the

legacy system is represented in the form of models,

these can be analyzed, optimized or can serve as a

basis for the modernization of the application with

more recent technologies.

According to the standard, extensions to this

package must be made using a uniform pattern. The

problem is that the KDM standard specifies these

extension rules in natural language, which are error

prone. That is, they are conventions that the deve-

loper can misinterpret, not understand or simply

ignore. In addition, de facto modeling standards,

such as EMF, do not support the redefinition of

relationships (which are necessary in this case).

Figure 5 shows some of the extension rules de-

fined with our textual language. The first line in

Figure 5 specifies that the rules are for the core

package, and that the extensions are to be saved in a

different package.

Figure 5: Some extension rules using the textual DSL.

Then the first rule (an Extend rule) specifies that

the class KDMModel should be extended mandatori-

ly (with cardinality [1..1]) by a concrete class, which

in its turn cannot be further extended. The second

rule (a Redefines rule) specifies that reference

ownedElement should be redefined mandatorily

(whenever KDMModel is extended) as a contain-

ment reference with same cardinality.

Once the extensibility rules are specified, they

can be used through the GUI of our tool (Figure 6).

This is organized into two sections, the first column

of the left section shows all the elements of the base

meta-model (classes, attributes and references),

which can be modified according to the extension

rules defined in the extension model and shown in

the columns on the right, next to each element of the

base meta-model. The [Ext]end|Type|IsExtend co-

lumn specifies that the KDMModel class (among

others) must be extended with a specific concrete

Type and cannot be further extended (IsExtend=

false).

The [Red]efine|Type|Containment column speci-

fies that the reference ownedElement must be rede-

fined exactly once, with default cardinality (i.e., the

redefinition cardinality should be the same as the

redefined cardinality). It is also specified that the

reference is of the container type. It should be noted

that a reference can be redefined only when the

classes involved have been extended. This way,

reference ownedElement is redefined by the code-

Element reference between the CodeModel (which

extends KDMModel) and AbstractCodeElement

(which extends KDMEntity). The target of the refe-

rence (AbstractCodeElement) is compatible with the

target of the reference ownedElement (KDMEntity).

The right section of the interface (panel labelled

“OPTIONS”) shows the operations in the form of

buttons that are activated or deactivated depending

on the extension rules specified for each element of

the meta-model and which are previously defined in

the extension model.

Towards a Mechanism for Controlling Meta-model Extensibility

385

Figure 6: Extension GUI being used to define the Code package, according to the defined extension rules.

Figure 7 shows the resulting Code package, built

with the extension GUI. Altogether, the use of our

approach ensures that any package extending the

Core package is defined as expected by the KDM

designers.

Figure 7: Resulting Code package.

4 RELATED WORK

The objective of the present work has been to pro-

pose an approach that allows controlling the exten-

sion and adaptation of meta-models. Next we com-

pare with some related efforts in this direction.

In (Bruneliere et al., 2015) it is proposed the a-

daptation of meta-models through a textual DSL that

allows the definition of extensions of the meta-

model. Extensions are created as meta-model anno-

tations by modeling experts, and can be created at

the time of development of the meta-model. Unlike

our approach, these mechanisms are concrete exten-

sions to a meta-model. Our approach defines rules

that must be fulfilled by any extension, and can

therefore be seen as complementary to this work.

In (Braun, 2015b) it is pointed out that UML pro-

files provide a valuable means for adapting existing

meta-models to specific platforms. The UML pro-

files constitute a lightweight extension mechanism

where it is possible to extend the meta-model with-

out overwriting the original elements. In (Langer et

al., 2012) the philosophy of profile extension to the

EMF-Ecore environment is adopted. Again, profiles

can be viewed as concrete extensions to a meta-

model, but not as rules that regulate their extension.

In (Braun, 2015a) a classification of extension

mechanisms is provided and the concept of hook is

considered, in order to leave open parts of a program

that can be specified later in classes, interfaces or

methods (Birsan, 2005), while other parts of the

software remain fixed.

In (Braun and Esswein, 2015) the authors con-

sider several MOF meta-model extension mecha-

nisms, based on an analogy with the extension prin-

ciples of the software engineering field, such as

hooks, aspects, plug-ins and add-ons. An approach

like ours would permit specifying the allowed exten-

sions.

En (Atkinson et al., 2015) analyses three exten-

sion mechanisms (built-in, meta-model custo-

mization and model annotation), identifying

strengths and weaknesses. The authors propose an

alternative mechanism through multi-level mode-

ling, which would remove the weaknesses of the

previously mentioned mechanisms.

In summary, we can see a large number of works

that analyze mechanisms for the extension of lan-

guages or DSLs, but there is a lack of mechanisms to

ICSOFT 2017 - 12th International Conference on Software Technologies

386

define extension rules governing how meta-models

can be extended, an aspect in which our work is

novel and complements these existing works.

5 CONCLUSIONS

In this article we have proposed a mechanism, archi-

tecture, and a set of tools that allow to define exten-

sion rules for meta-models, as well as to make spe-

cific extensions according to the defined rules. The

rules are defined by an extension model, typically

constructed by the designer of the meta-model to be

extended. Subsequently other engineers can use the

extension rules to extend the base meta-model. Our

tools guide in this extension ensuring that they obey

the defined rules.

The proposed approach has the advantage that it

is non-intrusive, and generic, that is, extension rules

can be linked to any meta-model. On the other hand,

an explicit definition of extension rules avoids the

introduction of accidental errors due to the use of

natural language.

We are currently improving the tool, and the ex-

pressiveness of the extension rules. Although the

current rules allow expressing the extensions des-

cribed in standards like KDM or DD, we will ana-

lyze other systems, to check if improvements are

necessary. We will improve the tool with an assis-

tant helping in the creation of suitable meta-model

extensions. Finally, we will extend the tool to handle

multi-level modeling and adaptation of DSLs.

ACKNOWLEDGEMENTS

This work has been partially funded by the Spanish

MINECO (project TIN2014-52129-R), and the Gov-

ernment of Madrid (project S2013/ICE-3006). As

well as by Escuela Politécnica del Ejército ESPE-

Ecuador.

REFERENCES

2011. Knowledge Discovery Meta-Model™ (KDM).

Version 1.3 [Online]. Available: http://www.

omg.org/spec/KDM/1.3/PDF/.

2015. Diagram Definition™ (DD™) [Online]. Available:

http://www.omg.org/spec/DD/.

Atkinson, C., Gerbig, R., Fritzsche, M., 2015. A multi-

level approach to modeling language extension in the

enterprise systems domain. Information Systems, 54,

289-307.

Birsan, D. 2005., On plug-ins and extensible architectures.

Queue, 3, 40-46.

Braun, R., Behind the scenes of the bpmn extension

mechanism principles, problems and options for

improvement. Model-Driven Engineering and

Software Development (MODELSWARD), 2015 3rd

International Conference on, 2015a. IEEE, 1-8.

Braun, R., Towards the state of the art of extending

enterprise modeling languages. Model-Driven

Engineering and Software Development

(MODELSWARD), 2015 3rd International Conference

on, 2015b. IEEE, 1-9.

Braun, R., Esswein, W., 2015. Extending the mof for the

adaptation of hooks, aspects, plug-ins and add-ons.

Model and Data Engineering. Springer.

Bruneliere, H., Garcia, J., Desfray, P., Khelladi, D. E.,

Hebig, R., Bendraou, R., Cabot, J., On Lightweight

Metamodel Extension to Support Modeling Tools

Agility. European Conference on Modelling Founda-

tions and Applications, 2015. Springer, 62-74.

de Lara, J., Guerra, E., Cuadrado, J. S., 2014. When and

how to use multilevel modelling. ACM Transactions

on Software Engineering and Methodology (TOSEM),

24, 12.

Fayad, M., Schmidt, D. C., 1997. Object-oriented

application frameworks. Communications of the ACM,

40, 32-38.

García, J., García, F., Pelechano, V., Vallecillo, A., Vara,

J., Vicente-Chicote, C., 2013. Desarrollo de Software

Dirigido por Modelos: Conceptos, Métodos y

Herramientas.

Langer, P., Wieland, K., Wimmer, M., Cabot, J., 2012.

EMF Profiles: A Lightweight Extension Approach for

EMF Models. Journal of Object Technology, 11, 1-29.

Steinberg, D., Budinsky, F., Merks, E., Paternostro, M.,

2009. EMF: eclipse modeling framework.

Towards a Mechanism for Controlling Meta-model Extensibility

387
