A Wise Object Framework for Distributed Intelligent Adaptive Systems

Ilham Alloui and Flavien Vernier

Univ. Savoie Mont Blanc, LISTIC, F-74000 Annecy, France

Keywords:

Object Oriented Design, Architecture Models, Adaptive Systems, Introspection, Decentralized Control.

Abstract:

Designing Intelligent Adaptive Distributed Systems is an open research issue addressing nowadays technolo-

gies such as Communicating Objects (COT) and the Internet of Things (IoT) that increasingly contribute to

our daily life (mobile phones, computers, home automation, etc.). Complexity and sophistication of those

systems make them hard to understand and to master by human users, in particular end-users and developers.

Those are very often involved in learning processes that capture all their attention while being of little interest

for them. To alleviate human interaction with such systems and help developers to produce them, we propose

WOF, an object oriented framework founded on the concept of Wise Object (WO). A WO is a software-based

entity that is able to learn on itself and also on the others (e.g. its environment). Wisdom refers to the experi-

ence (on its own behavior and on the usage done of it) such object acquires by its own during its life. In the

paper, we present the WOF conceptual architecture and the Java implementation we built from it. Require-

ments and design principles of wise systems are presented. To provide application (e.g. home automation

system) developers with relevant support, we designed WOF with the minimum intrusion in the application

source code. The adaptiveness, intelligence and distribution related mechanisms deﬁned in WOF are inherited

by application classes. In our Java implementation of WOF, object classes produced by a developer inherit the

behavior of Wise Object (WO) class. An instantiated system is then a Wise Object System (WOS) composed

of wise objects that interact through an event bus according to publish-subscribe design pattern.

1 INTRODUCTION

Designing Intelligent Adaptive Distributed Systems

is an open research issue addressing nowadays tech-

nologies such as Communicating Objects (COT) and

the Internet of Things (IoT) that increasingly con-

tribute to our daily life (mobile phones, computers,

home automation, etc.). Complexity and sophisti-

cation of those systems make them hard to under-

stand and to master by human users, in particular end-

users and developers. Those are very often involved

in learning processes that capture all their attention

while being of little interest for them.

New usages, amounts of information, multiplicity

of users, heterogeneity, decentralization, dynamic ex-

ecution environments result in new system design re-

quirements: new technologies should adapt to users

more than users should do to technologies. If we

take home automation systems for example, both end-

users and system developers face problems:

• end-users encounter at least the following prob-

lems: instructions accompanying the devices are

too complex and it is hard for non-expert users to

master the whole behavior and capabilities pro-

vided by the system; such systems are usually de-

signed to meet general requirements through a set

of predeﬁned conﬁgurations (a limited number of

scenarios in the best case). Information needed by

users is not necessarily the same from one to an-

other. A user may need a set of services in a given

context and a different set of services in another

context. A user does not need to use all what a

system could provide in terms of information or

services.

• developers of home automation systems lack soft-

ware support for building such systems, in par-

ticular self-adaptation mechanisms are not mature

yet: most existing approaches are either domain-

speciﬁc or too abstract to be helpful as stated in

(Abuseta and Swesi, 2015).

To illustrate our purposes, all along the paper we

use a simple example in home automation domain.

Let us consider a system composed of a roller shutter

(actuator) and a control key composed of two buttons

(sensors). In the very general case and in a manual

mode, with a one-button control key, a person uses

Alloui, I. and Vernier, F.

A Wise Object Framework for Distributed Intelligent Adaptive Systems.

DOI: 10.5220/0006426200950104

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 95-104

ISBN: 978-989-758-262-2

the button to: bring the shutter either to a higher or

to a lower position. With a second button, the user

can tune inclination of the shutter blades to get more

or less light from the outside. As the two buttons

cannot be activated at the same time, the user must

proceed in two times: ﬁrst, obtain the desired height

(e.g. 70%) then the desired inclination (e.g. 45%).

For such systems, three roles are generally deﬁned:

system developer, system conﬁgurator and end-user.

Assume an end-user is at his ofﬁce and that accord-

ing to time and weather, his/her requirements for the

shutter change (height and inclination). This would

solicit the end-user all along the day and even more

when there are several shutters with different expo-

sure to the sun. From a developer’s point of view,

very few support is dedicated to easily construct adap-

tive systems: when provided, such support is limited

to an application domain and cannot be reused with a

minimum of constraints. Generally, adaptation mech-

anisms and intelligence are merged with the applica-

tion objects which make them difﬁcult and costly to

reuse in another application or another domain.

To alleviate human interaction with such systems

and help developers to produce them, we propose

WOF, an object oriented framework founded on the

concept of Wise Object (WO) (Alloui et al., 2015).

A WO is a software-based entity that is able to learn

on itself and also on the others (e.g. its environ-

ment). Wisdom refers to the experience (on its own

behavior and on the usage done of it) such object ac-

quires by its own during its life. According to this ap-

proach, ”wise” buttons and shutters would gradually

construct their experience (e.g. by recording effect of

service invocation on their state, statistics on invoked

services, etc.) and adapt their behavior according to

the context (e.g. physical characteristics of a room,

an abstract state deﬁned by a set of data related to

the weather, the number of persons in the ofﬁce, etc.).

From the development perspective, we separate in the

WOF the ”wisdom” and intelligence logic (we name

abilities) of the objects from application services (we

name capabilities) they are intended to render.

To provide application (e.g. home automation sys-

tem) developers with relevant support, we designed

WOF with the minimum intrusion in the application

source code. The adaptiveness, intelligence and dis-

tribution related mechanisms deﬁned in WOF are in-

herited by application objects. We realized a Java im-

plementation of WOF and validate it on a home au-

tomation example.

In the paper, we focus mainly on the architecture

of the WO and WOS, their global structure and be-

havior. In Section 2, we discuss the challenges and re-

quirements for nowadays self-adaptive systems. Then

we present design principles and fundamental con-

cepts underlying WOF in Section 3. In Section 4 we

detail the structure and behavior of a WO and a WO

System (WOS). To illustrate how to use the WOF, we

give an example in the Home automation domain in

Section 5. Finally, in Section 6 we discuss our ap-

proach and conclude with ongoing work and some

perspectives.

2 REQUIREMENTS

A system based on new technologies should be able

at runtime to: (1) know by itself on itself, i.e. to

learn how it behaves, to consequently reduce the un-

derstanding effort needed by end-users (even experi-

mented ones); (2) know by itself on its usage to adapt

to users according to the way and to the context it is

used in. In addition like any service-based system (3)

such system should be capable of improving the qual-

ity of services it is offering. WOF aims at producing

such systems while meeting those end-user related re-

quirements:

• Requirement 1: We need non-intrusive systems

that serve users while requiring just some (and

not all) of their attention and only when nec-

essary. This in a sense contributes to calm-

technology (Weiser and Brown, 1996) that de-

scribes a state of technological maturity where

a user’s primary task is not computing, but be-

ing human. As claimed in (Amber, 2010), new

technologies might become highly interruptive in

human’s daily life. Though calm-technology has

been proposed ﬁrst by Weiser and Brown in early

90’s (Weiser and Brown, 1996), it is more than

ever, a challenging issue in technology design.

• Requirement 2: We need systems composed of

autonomous entities that are able to independently

adapt to a changing context. If we take two tem-

perature sensors installed respectively inside and

outside the home, each one lives its life and reacts

differently based on its experience (knowledge).

Typically a difference in temperature that is con-

sidered as normal outside (e.g. 5 degrees) may be

considered as signiﬁcant inside. This means that

collecting and analyzing contextual information is

also a key requirement for those systems. An-

other situation is when unexpected behavior oc-

curs: continuous switching on switching off of a

button. In such a case, the system should be able

to identify unusual behavior according to its expe-

rience and to decide what to do consequently (e.g.

raising an alert to the end-user);

ICSOFT 2017 - 12th International Conference on Software Technologies

• Requirement 3: In an ideal world, a system end-

user declares his/her needs (a goal) and the system

looks for the most optimal way to reach it. This

relates to goal-oriented interaction and optimiza-

tion. The home automaton system user in our ex-

ample would input the request ”I want the shutter

at height h and inclination i” and the system based

on its experience would choose the ”best” way to

reach this state for example by planning a set of

actions that could be the shortest one or the safest

or the less energy consuming, etc. depending on

non-functional criteria taken into account in the

quality of service support (Bass et al., 1998).

Many approaches are proposed to design and

develop the kinds of systems we target: multi-

agent systems (Wooldridge, 2009), intelligent sys-

tems (Roventa and Spircu, 2008), adaptive systems

(Salehie and Tahvildari, 2009), self-X systems (Hueb-

scher and McCann, 2008). In all those approaches, a

system entity (or agent) is able to learn on its envi-

ronment (including other entities) through its interac-

tions. Our intention is to go a step forward by enhanc-

ing a system entity with the capability of learning by

its own on the way it has been designed to behave.

We see at least two beneﬁts to this: (a) a decentralized

control: as each entity evolves independently from the

others, it can control actions to perform at its level ac-

cording to the current situation; (b) each entity can

improve its performance and then the performance of

the whole system.

On another hand, while valuable, existing design

approaches are generally either domain-speciﬁc or

too abstract to provide effective support to developers.

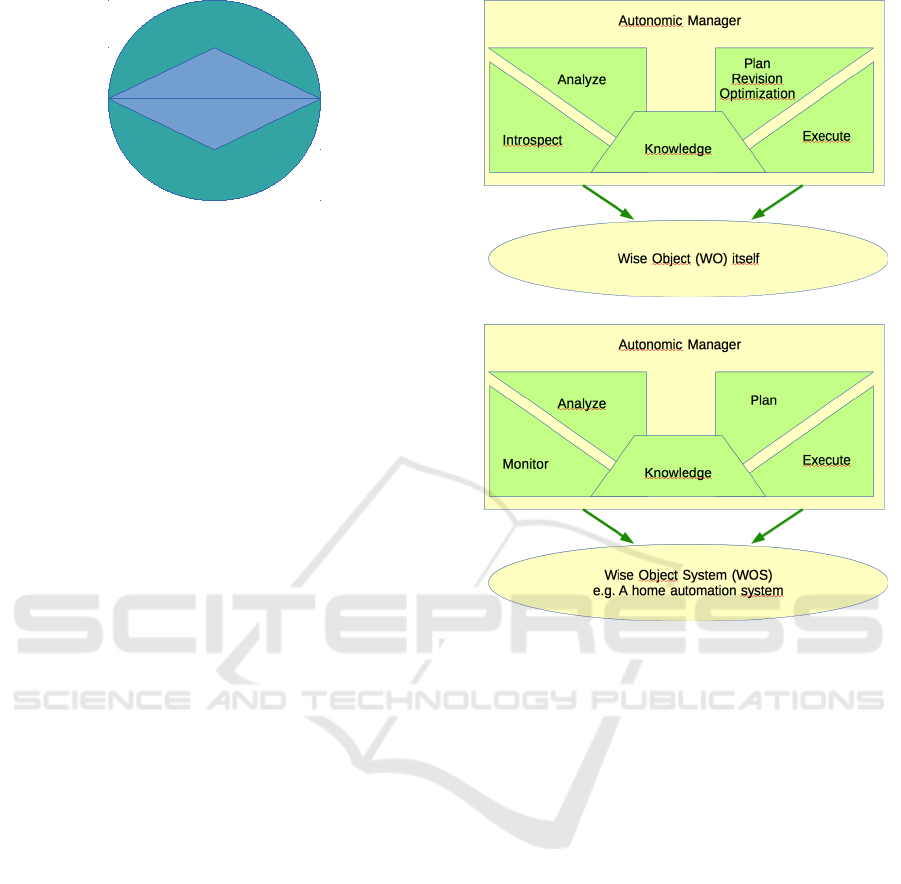

The IBM MAPE-K known cycle for autonomic com-

puting (IBM, 2005) is very helpful to understand re-

quired components for self-adaptive systems but still

not sufﬁcient to implement them. Recently, more

attention has been given to design activities of self-

adaptive systems: authors in (Brun et al., 2013) pro-

posed a design space as a general guide for developers

to take decisions when designing self-adaptive sys-

tems. In (Abuseta and Swesi, 2015), authors propose

design patterns for self-adaptive systems where roles

and interactions of MAPE-K components are explic-

itly deﬁned. Our primary aim is to offer developers an

object oriented concrete architecture support, ready

to use for constructing wise systems. We view this

as complementary to work results cited above where

more abstract architectures have been deﬁned.

From a system development perspective, our de-

sign decisions are mainly guided by the follow-

ing characteristics: software support should be non-

intrusive, reusable and generic enough to be maintain-

able and used in different application domains with

different strategies. Developers should be able to use

the framework with the minimum of constraints and

intrusion in the source code of the application. We

consequently separated in the WOF the ”wisdom” and

intelligence logic (we name abilities) of the objects

from application services (we name capabilities) they

are intended to render.

3 FUNDAMENTAL CONCEPTS

OF WOF

We introduce the fundamental concepts of WO and

WOS from a runtime perspective. We adapt to this

end the IBM MAPE-K known cycle for autonomic

computing (IBM, 2005).

3.1 Concept of WO

We deﬁne a Wise Object (WO) as a software object

able to learn by itself on itself and on its environ-

ment (other WOs, external knowledge), to deliver ex-

pected services according to the current state and us-

ing its own experience. Wisdom refers to the experi-

ence such object acquires by its own during its life.

We intentionally use terms dedicated to humans as a

metaphor. When human better succeed in observing

the others, a Wise Object would have more facilities

to observe itself by introspection. A Wise Object is

intended to ”connect” to either a physical entity/de-

vice (e.g. a vacuum cleaner) or a logical entity (e.g.

software component) (see Figure 1). In the case of a

vacuum cleaner, the WO could learn how to clean a

room depending on its shape and dimensions. In the

course of time, it would in addition improve its per-

formance (less time, less energy consumption, etc.).

A WO is thus characterized by:

• its autonomy: it is able to behave with no human

intervention;

• its adaptiveness: it changes its behavior when its

environment changes;

• its intelligence: it observes itself and its environ-

ment, analyzes them and uses its knowledge to de-

cide how to behave (introspection and monitoring,

planning);

• its ability to communicate: with its environment

that includes other WOs and end-users in a de-

centralized way (i.e. different locations)

We designed WO in a way its behavior splits into

two states we named Dream and Awake. The former is

dedicated to introspection, learning, knowledge anal-

ysis and management when the WO is not busy with

A Wise Object Framework for Distributed Intelligent Adaptive Systems

Introspection

Monitoring

Communication

...

Knowledge

Capabilities

Figure 1: Conceptual structure of a WO.

service execution. The latter is the state the WO is in

when it is delivering a service to an end-user or an-

swering an action request from the environment. The

WO then monitors such execution and usage done

with application services it is responsible for. We use

the word Dream as a metaphor for a state where ser-

vices invoked by the WO do not have any impact on

the real system: this functions as if the WO is dis-

connected from the application device/component it

is related to.

To ensure adaptiveness, each WO incorporates

mechanisms that allow it to perform a kind of MAPE-

K loops (IBM, 2005). Dream and Awake MAPE-

K are respectively depicted by Figure 2(a) and Fig-

ure 2(b). Let us call the dream MAPE-K a IAPE-K,

due to the fact that in the dream case the Monitoring

is actually Introspection.

When dreaming, a WO introspects itself to dis-

cover services it is responsible for, analyzes impact

of their execution on its own state and then plans re-

vision actions on its knowledge (experience). WO

constructs its experience gradually, along the dream

states. This means that WO knowledge is not neces-

sarily complete and is subject to revisions. Revision

actions may relate to adaptation, for instance record-

ing a new behavior, or to optimization like creating a

shortening of a list of actions to reach more quickly a

desired state. When awake, a WO observes and ana-

lyzes what and how services are invoked and in what

context. According to its experience and to analysis

results, the WO is able to communicate an emotion

if necessary. We deﬁne a WO emotion as a distance

between a current usage of its services and its com-

mon usage (usual one). With this metaphor, a WO

can be stressed if one of its services is more frequently

used or conversely, a WO can be bored. It can be sur-

prised if one of its services is used while it has never

been used before. WO emotions are intended to be

used as a new information by the system (other WOs)

and/or the end-users. This is crucial to adaptation at a

WOS level (e.g. managing a new behavior) and to at-

tract attention on potential problems (e.g. alerts when

temperature is unusually too high). With respect to

its emotional state, a WO plans relevant actions (e.g.

(a) WO Dream IAPE-K

(b) WO Awake MAPE-K

Figure 2: WO MAPE-Ks.

raising an alert, opening the windows and doors, cut-

ting off the electricity, etc.).

3.2 Concept of WOS (WO System)

We deﬁne a WOS as a distributed object system com-

posed of a set of communicating WOs. Communi-

cated data/information (e.g. emotions) are used by

the WOS to adapt to the current context. It is worth

noting that each WO is not aware of the existence of

other WOs. WOs may be on different locations and it

is the charge of the WOS to handle data/information

that coordinate WOs’ behaviors. The way this is done

is itself an open research question. In our case, we de-

ﬁned the concept of Managers Section 4 to carry out

communication and coordination among WOs. This

is close to the Implicit Information Sharing Pattern

introduced in (Weyns et al., 2013).

4 DESIGN MODELS OF WO AND

WOS

WOF is an object oriented framework build on the top

ICSOFT 2017 - 12th International Conference on Software Technologies

of a set of interrelated packages. This section intro-

duces our design model of the concepts presented in

the previous section.

4.1 Design Model of WO

Figure 3 shows the UML Class diagram of WO. This

model is intentionally simpliﬁed and highlights the

main classes that compose a WO.

-graph: Graph

-lastRealityState: Vector<Object>

-dream()

-wakeUp()

+methodinvocate()

+methodInvocated()

-resetState(state:Vector<Object>)

Runn ingAction

-currentState: Integer

-methodName: String

-expectdNextState: Integer

+RunningAction(currentState:Integer,methodName:String,

expectdNextState:integer)

<<Interface>>

Runn able

graph

Graph

-edgeNames: Vector<String>

-adjacentNodes: Vector<Vector<Node>>

-incidenceEdges: Vector<Vector<String>>

-transitionUsed: Vector<Vector<Vector<UsageInformation>>>

+addNode(fieldValues:Vector<Object>)

+addEdge(source:Integer,destination:Integer,

actionName:String)

+getNextState(state:Integer,action:String): Integer

+isComplete(): Boolean

Node

-stateNumber: Integer

-fieldValues: Vector<Object>

+Node(fieldValues:Vector<Object>)

Figure 3: Class diagram of a WO.

WO Class is an abstract class that manages the

knowledge of its sub-classes. Knowledge of a WO

is both a capability-related knowledge model and a

usage-related knowledge model. In our present exper-

iment, we have chosen a graph-based representation

for knowledge on WO capabilities (i.e. application

services) and its usage. Knowledge on WO capabili-

ties is stored in a state-transition graph while that on

WO usage is stored in a Markov graph where usage-

related statistics are maintained. The Markov diagram

clearly depends on the usage of an Object (a WO in-

stance). It is important to note that even if initially,

the state diagram depends only on a class (WO sub-

classes), according to its usage an object (WO sub-

class instance) can add transitions into its state dia-

gram. Therefore, the state diagram is considered as

an instantce attribute rather than a class attribute.

Let us recall that WO behavior is split into two

states. The dream state and the awake state, see Fig-

ure 4.

WO state diagram:

Dream

Awake

[IDLE]

[Service

request]

(a) WO short state diagram

WO detailed state diagram:

Dream

Behavior

graph

Awake

[IDLE]

[Service request]

Collecting

usage data

Servicing

Learn on itself

Learn on usage

Behavior graph

validation

(b) WO detailed state diagram

Figure 4: WO state diagram.

The dream state is dedicated to acquiring the ca-

pability knowledge and to analyzing the usage knowl-

edge. The awake state is the state where the WO exe-

cutes its methods invoked by other objects or by itself,

and, monitors such execution and usage.

To build its state diagram – its capability knowl-

edge – the WO executes the methods of its sub-class

(i.e. an application class) to know the effect on the at-

tributes of this sub-class. Each set of attribute values

produces a state in the diagram and a method invoca-

tion produces a transition. The main constraint in this

step is that the method invocation must have no effect

on other objects of the application when the WO is

dreaming. This is solved thanks to the system archi-

tecture described in Section 4.2.

Regarding knowldge on an application object us-

age, two kind of situations are studied: emotions and

adaptation of behavior.

As introduced in 3, an emotion of WO is a dis-

tance between its current usage and its common us-

A Wise Object Framework for Distributed Intelligent Adaptive Systems

age (i.e. unusual usage). WO can be stressed if one

of its methods is more frequently used or conversely,

a WO can be bored. WO can be surprised if one of its

method is used and this was never happened before.

Emotions of WO are a projection of its current usage

with regard to its common usage. When a WO ex-

presses an emotion, this information is catched by the

WOS that may consequently lead to behavior adapta-

tion. At the object level, two instances of the same

class that are used differently – different frequencies,

different methods... – may have different emotions,

thus, different behavior and interaction in the WO sys-

tem.

A WO uses its state diagram to compute a path

from a current state to a known state (Moreaux et al.,

2012). According to the frequency of the paths used,

a WO can adapt its behavior. For instance, if a path

is often used between non-adjacent states, the WO

can build a shortcut transition between the initial and

destination states and then build the corresponding

method within its subclass instance (application ob-

jet). This consequently modiﬁes the state diagram of

this instance.

4.2 Design Model of WOS

As explained in Section 3, WOs are not aware of the

existence of other WOs. They are distributed and

communicate data/information towards their environ-

ment. WOs may be on different locations and one

or many Managers carry out communication and co-

ordination among them. In this paper, we propose a

concrete architecture based on a bus system, where

any WO communicates with other objects through the

bus. This architecture has many advantages.

A ﬁrst one is the scalability. It is easier to add

WOs, managers, loggers... on this kind of architec-

ture than to modify a hierarchical architecture. More-

over, this architecture is obviously distributed and en-

ables distribution/decentralizion of WOs in the envi-

ronment.

The third main advantage is the ability for a WO

to disconnect/reconnect from/to the bus when needed.

This makes it possible the implementation of the

Dream state Section 3. Let us recall that in the dream

state, a WO can invoke its own methods to build its

state diagram, but these invocations must not have any

effect on the subject system. Thus, when a WO en-

ters the Dream state, it disconnects itself from the bus

and can invoke its methods without impact on the real

world system. More precisely, the WO disconnects

its ”sending system” from the bus, but it continues re-

ceiving data/information via the bus. Therefore, if a

WO in Dream state receives a request for another ob-

bus

<<singleton>>

EventBusService

+registerSubscriber(subscriber:Object)

+postEvent(event:Object)

GraphEvent

-senderId: String

-graph: Graph

+EventGraph(senderId:String,graph:Graph)

StateChangeEvent

-senderId: String

-event: String

+Event(senderId:String,event:String)

ActionEvent

-receiverId: String

-action: String

+Action(receiverId:String,action:String)

wiseApplication

SubClasse1 SubClasse2 ...

+sendGraph(): void

+onActionEvent(a:ActionEvent): void

+onStateChange(): void

graph

grap h

Rule

Manager

+onStateChangeEvent(e:StateChangeEvent)

+onGraphEvent(e:GraphEvent)

Figure 5: Class diagram of a WO system based on a bus.

ject, it reconnects to the bus, goes out from the Dream

state to enter into Awake state and serves the request.

Figure 5 shows the Class diagram of a WO sys-

tem based on the bus. This model is simpliﬁed and

highlights the main classes that compose a WO bus

system.

The system uses an Event/Action mechanism for

ICSOFT 2017 - 12th International Conference on Software Technologies

100

WOs’ interactions. On an event, a state change occurs

in WO, an action may be triggered on another WO.

These peers “Event/Action” are deﬁned by Event,

Condition, Action (ECA) rules that are managed by

a Manager. When this latter catches events (State-

ChangeEvent), it checks the rules and conditions and

posts a request for action (ActionEvent) on the bus.

From the WO point of view, if its state changes dur-

ing its Awake state, it posts a StateChangeEvent on

the bus. When a WO receives an ActionEvent, two

cases may occur: either the WO is in Awake state or

in Dream state. If the WO is in Awake state, it goes

to the end of its current action and starts the action

corresponding to the received request. If the WO is

in Dream state, it stops dreaming and enters into the

Awake state to start the action corresponding to the

received request.

In our Java implementation of WOF, object

classes produced by a developer inherit the behavior

of Wise Object (WO) class. An instantiated system

is deﬁned as a wise system composed of Wise Ob-

jects that interact through a (or a set of distributed)

Manager(s) implemented by an event bus according

to publish-subscribe design pattern.

5 AN ILLUSTRATING EXAMPLE

”HOME AUTOMATION”

The concept of WO has many scopes of application. It

can be used to adapt an application to its environment,

to monitor an application from inside, to manage an

application according to its uses... In this section, we

highlight the WO behavior within a home automation

application. This choice is justiﬁed by the fact that:

• home automation systems are usually based on a

bus where many devices are plugged on;

• home automation devices have behavior that can

be represented by a simple state diagram.

According to the ﬁrst point, a home automation sys-

tem can be directly mapped onto a WO system based

on a bus where the home automation devices are re-

lated to WOs. The second point avoids the combina-

torial explosion that can appear due to a large number

of states to manage in a state diagram.

Let us take a simple example a switch and a shut-

ter. The switch is modeled by 2 states “on” and “off”

and 3 transitions “on()” , “off()” and “switch()”.

Listing 1: Switch Java code.

p u b l i c c l a s s Sw i t c h e x t e n d s Wo {

p u b l i c b o o le a n p o s i t i o n ;

p u b l i c S w i t c h ( ) {

super ( ) ;

}

p u b l i c v o i d on ( ) {

i n v o k e ( ) ;

p o s i t i o n = t r u e ;

i n v o k e d ( ) ;

}

p u b l i c v o i d o f f ( ) {

i n v o k e ( ) ;

p o s i t i o n = f a l s e ;

i n v o k e d ( ) ;

}

p u b l i c v o i d s w i t c h ( ) {

i n v o k e ( ) ;

i f ( p o s i t i o n ){

p o s i t i o n = f a l s e ;

} e l s e {

p o s i t i o n = t r u e ;

}

i n v o k e d ( ) ;

}

The shutter is modeled by n states that represent its

elevation between 0% and 100%. If the elevation is

0%, the shutter is totally closed and if the elevation is

100%, the shutter is totally open. To avoid a contin-

uous system, the shutter can only go up or down step

by step.

Listing 2: Shutter Java code.

p u b l i c c l a s s R o l l i n g S h u t t e r

e x t e n d s Wo {

p r i v a t e i n t e l e v a t i o n = 0 ;

p r i v a t e s t a t i c i n t s t e p = 2 0 ;

p u b l i c R o l l i n g S h u t t e r ( ) {

super ( ) ;

}

p u b l i c v o i d down ( ) {

m e t h o d I n v o c a t e ( ) ;

i f ( t h i s . e l e v a t i o n >0){

t h i s . e l e v a t i o n −=

R o l l i n g S h u t t e r . s t e p ;

}

i f ( t h i s . e l e v a t i o n <= 0) {

t h i s . e l e v a t i o n = 0 ;

}

m e t h o d I n v o c a t e d ( ) ;

}

p u b l i c v o i d up ( ) {

m e t h o d I n v o c a t e ( ) ;

i f ( ! t h i s . e l e v a t i o n < 1 0 0 ) {

t h i s . e l e v a t i o n +=

R o l l i n g S h u t t e r . s t e p ;

i f ( t h i s . e l e v a t i o n >= 1 0 0 ) {

t h i s . e l e v a t i o n = 1 0 0 ;

}

A Wise Object Framework for Distributed Intelligent Adaptive Systems

101

}

m e t h o d I n v o c a t e d ( ) ;

}

As one design principle behind WOF is to mini-

mize intrusion within the application source code, we

have succeeded to limit them to the number of two

”warts”. The examples highlight those 2 intrusions in

the code. They are concretized by two methods im-

plemented in the WO Class – methodInvocate() and

methodInvocated() – and must be called at the begin-

ning and the end of any method of the WO subclass

(application class). Those methods monitor the exe-

cution of a method on a WO instance. We will discuss

about these ”warts” in the last section.

In our example, an instance of Switch and another

of RollingShutter are created. Two ECA rules are de-

ﬁned to connect those WOs:

• [ SwitchInstance.on? / True / RollingShut-

terInstance.up() ]

• [ SwitchInstance.off? / True / RollingShut-

terInstance.down() ]

They deﬁne that when the event “on” occurs on the

switch, the action – method – “up” must be executed

on the rolling shutter and that when the event “off”

occurs on the switch, the action “down” must be ex-

ecuted on the rolling shutter. For the experiment and

feasibility study, the action on the SwitchInstance –

”on()” and ”off()” invocations – are simulated us-

ing the WO simulator we are developing. The ac-

tions ”on” and ”off” occur according to a Poisson dis-

tribution and depend on the elevation of the rolling

shutter. The likelihood of action ”off” occurrence

is RollingShutterInstance.elevation/100, the likeli-

hood of action ”on” occurrence is inversely propor-

tional. When an action occurs, ”on” or ”off”, it can

occur x times successively without delay, where x is

bounded by the number of occurrences to reach the

bound of shutter elevation, respectively 100% and

0%.

Presently, a WO acquires its knowledge about its

capabilities using a graph representation. The knowl-

edge about its usage is the logs of all its actions/events

and can be presented by a Markov graph. The log-

ging presented in Log 1 shows the events occurred

on each WO of the system. This information is col-

lected from each WO. With this information each WO

can determine its current behavior and a manager can

determine the system behavior. This is discussed in

Section 6. Log 2 gives Markov graph logging repre-

sentation. Let us note that the Markov graph repre-

sentation hides time-related information as it is based

on frequency of occurrences. Log 2 shows that the

wise part of the Switch instance detects the 2 states

Log 1 ﬁrst event log stored on each WO.

SwitchInstance RollingShutterInstance

on off up down

0 1769 3 1774

1 6015 5 6016

1 6624 5 6625

4263 10435 4264 10436

8523 10435 8525 10444

9963 11026 9968 11028

9964 11026 9966 11028

10994 12615 10997 12616

10995 15811 10996 15816

... ... ... ...

Log 2 Switch log after 1000 iterations.

Graph:

2 States, 6 Transitions

0 1

0: 1 1

1: 1 1

State [0 , false] :

Adjacency on->[1 , true] - 0.313,

switch->[1 , true] - 0.0,

off->[0 , false] - 0.687,

State [1 , true] :

Adjacency off->[0 , false] - 0.311,

on->[1 , true] - 0.689,

switch->[0 , false] - 0.0,

Current State: 1

and the 6 transitions. It also shows a 2x2 adjacency

matrix followed by a description of the 6 transitions

including their usage-related statistics.

Log 2 shows for instance that from the state 0 with

the position attribute at false, the SwitchInstance may

execute method ”on()” or ”switch()” and go to state

1 or execute method ”off()” and remain in the same

state 0. Usage-related statistics show that method

”switch()” is never used from the state 0 all along the

1000 iterations.

Regarding the RollingShutter instance, the log-

ging after the 2nd iteration (Log 3) and the last Log 4

are given. Log 3 shows that the wise part of the

RollingShutter instance detects 6 states and 10 tran-

sitions (green values of adjacency matrix). Conse-

quently, it has not detected all the possible transitions

yet. This incomplete knowledge is not a problem,

during the next Dream state or if it uses those tran-

sitions during the Awake state, the WO part of the

application object will update its knowledge. The last

Log 4 shows that all states and transitions are detected

(learnt).

It is worth noticing that this example is intention-

ICSOFT 2017 - 12th International Conference on Software Technologies

102

Log 3 Rolling shutter log after the 2nd iteration.

Graph:

6 States, 10 Transitions

0 1 2 3 4 5

0: 1 1 0 0 0 0

1: 1 0 1 0 0 0

2: 0 1 0 1 0 0

3: 0 0 1 0 1 0

4: 0 0 0 1 0 1

5: 0 0 0 0 0 0

State [0 , 0 , 20] :

Adjacency down->[0 , 0 , 20] - 0.0,

up->[1 , 20 , 20] - 1.0,

State [1 , 20 , 20] :

Adjacency up->[2 , 40 , 20] - 1.0,

down->[0 , 0 , 20] - 0.0,

State [2 , 40 , 20] :

Adjacency down->[1 , 20 , 20] - 1.0,

up->[3 , 60 , 20] - 0.0,

State [3 , 60 , 20] :

Adjacency up->[4 , 80 , 20] - 0.0,

down->[2 , 40 , 20] - 0.0,

State [4 , 80 , 20] :

Adjacency down->[3 , 60 , 20] - 0.0,

up->[5 , 100 , 20] - 0.0,

State [5 , 100 , 20] :

Adjacency ,

Current State: 1

Log 4 Rolling shutter log after the last iteration.

Graph:

6 States, 12 Transitions

0 1 2 3 4 5

0: 1 1 0 0 0 0

1: 1 0 1 0 0 0

2: 0 1 0 1 0 0

3: 0 0 1 0 1 0

4: 0 0 0 1 0 1

5: 0 0 0 0 1 1

State [0 , 0 , 20] :

Adjacency down->[0 , 0 , 20] - 0.0,

up->[1 , 20 , 20] - 1.0,

State [1 , 20 , 20] :

Adjacency up->[2 , 40 , 20] - 0.653,

down->[0 , 0 , 20] - 0.347,

State [2 , 40 , 20] :

Adjacency down->[1 , 20 , 20] - 0.456,

up->[3 , 60 , 20] - 0.544,

State [3 , 60 , 20] :

Adjacency up->[4 , 80 , 20] - 0.443,

down->[2 , 40 , 20] - 0.557,

State [4 , 80 , 20] :

Adjacency up->[5 , 100 , 20] - 0.375,

down->[3 , 60 , 20] - 0.625,

State [5 , 100 , 20] :

Adjacency up->[5 , 100 , 20] - 0.0,

down->[4 , 80 , 20] - 1.0,

Current State: 1

ally simple as our goal is to highlight the kind of

knowledge a WO can currently acquire. State dia-

grams and usage logging are the knowledge base for

WOs. We discus about management and use of this

knowledge in Section 6.

6 DISCUSSION AND

CONCLUDING REMARKS

Our research addresses the problem of how to de-

sign self-adaptive intelligent systems that limit the in-

volvement of their users and developers to what is

necessary. We designed an object oriented frame-

work (WOF) with the concept of Wise Object (WO)

as the building block of such systems. As proof of

concept, we started developing a Java framework for

implementing these kinds of systems with the mini-

mum intrusion in the application code. Object classes

produced by a developer inherit the behavior of Wise

Object (WO) class. An instantiated system is then

a wise system composed of wise objects that interact

through an event bus according to the publish sub-

scribe design pattern. We believe that wise systems is

a promising approach to help humans integrate new

technologies both in their daily life as end-users and

in development processes as system developers. This

could also beneﬁt to domains, like health, that heav-

ily rely on human expertise. Authors in (Holzinger,

2016) and (Holzinger et al., 2016) propose interac-

tive Machine Learning (iML) to solve computation-

ally hard problems. With regard to this, WOF puts

the ”human-in-the-loop” in two cases: when deﬁning

ECA rules to connect distributed WOs and when val-

idating capability-related knwoledge constructed by

WOs. Human interaction remains however indirect.

In our ﬁrst experiment, we limited intrusion to the

inheritance and two warts: the WO methods method-

Invocate() and methodInvocated() that must be called

at the beginning and the end of application methods.

Different ways can be used to go further and remove

those warts. A ﬁrst way is to add dynamic java code

on-the-ﬂy at runtime. A second one is to use dynamic

proxy classes. A third one is based on Aspect Ori-

ented Programming (Kiczales et al., 1997). Those so-

lutions solve the problem and we plan to implement

them in future versions of WOF. The objective is to

restrict the intrusion to the inheritance relationship be-

tween the WO Class and application classes.

In this paper, we focused on adaptation, moni-

toring and communication mechanisms and showed

how Wise Object behave according to their experi-

ence. There are still many research issues we are in-

vestigating: A ﬁrst issue to handle is how to repre-

A Wise Object Framework for Distributed Intelligent Adaptive Systems

103

sent the knowledge in a Wise Object. State diagram

and Markov graphs are used in our ﬁrst approach, but

other approaches are envisaged. Knowledge, speciﬁc

to each Wise Object, represents an amount of infor-

mation that can be big but not necessarily relevant.

A second issue relates then to knowledge aggregation

by Wise Object so that they can extract relevant in-

formation to the whole system. This issue may in-

volve techniques from information fusion approaches,

multi-criterion scales and fuzzy modeling. Knowl-

edge aggregation allows us to represent emotion of

a Wise Object, namely the distance from its current

behavior to its usual behavior (surprise, stress, etc.).

A last issue is related to the use of aggregated knowl-

edge within the system during its execution. This is

typically a problem of information fusion. The goal is

to generate a (sub-)system knowledge/emotion from

the knowledge/emotion translated by the Wise Ob-

jects.

REFERENCES

Abuseta, Y. and Swesi, K. (2015). Design patterns

for self adaptive systems engineering. CoRR,

abs/1508.01330.

Alloui, I., Esale, D., and Vernier, F. (2015). Wise Ob-

jects for Calm Technology. In 10th International Con-

ference on Software Engineering and Applications

(ICSOFT-EA 2015), ICSOFT-EA 2015, pages 468–

471, Colmar, France. SciTePress 2015.

Amber, C. (2010). Amber case 2011, we are all cyborgs

now ted talk.

Bass, L., Clements, P., and Kazman, R. (c1998.). Software

architecture in practice /. Addison-Wesley,, Read-

ing, Mass. :. Online version: Bass, Len. Software

architecture in practice. Reading, Mass. : Addison-

Wesley, c1998 (OCoLC)605442178 Online version:

Bass, Len. Software architecture in practice.

Brun, Y., Desmarais, R., Geihs, K., Litoiu, M., Lopes, A.,

Shaw, M., and Smit, M. (2013). A design space for

self-adaptive systems. In de Lemos, R., Giese, H.,

uller, H. A., and Shaw, M., editors, Software En-

gineering for Self-Adaptive Systems II, volume 7475

of Lecture Notes in Computer Science, pages 33–50,

Dagstuhl Castle, Germany. Springer.

Holzinger, A. (2016). Interactive machine learning for

health informatics: when do we need the human-in-

the-loop? 3(2):119–131.

Holzinger, A., Plass, M., Holzinger, K., Crian, G. C., Pin-

tea, C.-M., and Palade, V. (2016). Towards interactive

machine learning (iML): Applying ant colony algo-

rithms to solve the traveling salesman problem with

the human-in-the-loop approach. In Availability, Re-

liability, and Security in Information Systems, pages

81–95. Springer, Cham.

Huebscher, M. C. and McCann, J. A. (2008). A survey of

autonomic computing—degrees, models, and

applications. ACM Comput. Surv., 40(3):7:1–7:28.

IBM (2005). An architectural blueprint for autonomic com-

puting. Technical report, IBM.

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C. V., Loingtier, J., and Irwin, J. (1997).

Aspect-oriented programming. In ECOOP, pages

220–242.

Moreaux, P., Sartor, F., and Vernier, F. (2012). An effec-

tive approach for home services management. In 20th

Euromicro International Conference on Parallel, Dis-

tributed and Network-Based Processing (PDP), pages

47–51, Garching. IEEE.

Roventa, E. and Spircu, T. (2008). Management of Knowl-

edge Imperfection in Building Intelligent Systems.

Studies in Fuzziness and Soft Computing. Springer

Berlin Heidelberg.

Salehie, M. and Tahvildari, L. (2009). Self-adaptive soft-

ware: Landscape and research challenges. ACM

Trans. Auton. Adapt. Syst., 4(2):14:1–14:42.

Weiser, M. and Brown, J. S. (1996). Designing calm tech-

nology. In PowerGrid Journal, 1.01.

Weyns, D., Schmerl, B., Grassi, V., Malek, S., Mirandola,

R., Prehofer, C., Wuttke, J., Andersson, J., Giese, H.,

and Goeschka, K. (2013). On Patterns for Decentral-

ized Control in Self-Adaptive Systems. In de Lemos,

R., Giese, H., M

uller, H., and Shaw, M., editors,

Software Engineering for Self-Adaptive Systems II,

volume 7475 of Lecture Notes in Computer Science

(LNCS), pages 76–107. Springer.

Wooldridge, M. (2009). An Introduction to MultiAgent Sys-

tems. Wiley Publishing, 2nd edition.

ICSOFT 2017 - 12th International Conference on Software Technologies

104
