A Survey on Domain Knowledge Representation with Frames

Vladislavs Nazaruks and Jānis Osis

Department of Applied Computer Science, Riga Technical University, Sētas iela 1, LV-1048, Riga, Latvia

Keywords: System Modelling, Frames, Knowledge Base.

Abstract: Domain knowledge acquisition, presentation and maintenance play an important role in software

development. Frame-based knowledge bases are used to support the decision-making process. We believe

that a use of a knowledge base that supports model transformations is not less important. To clarify the current

state of a use of frame systems we have investigated recent research in the field to find out about techniques

used for knowledge acquisition, frame elements, implementation technologies, existing limitations in

implementation and integration with other knowledge representation formats. The overview showed that

knowledge acquisition often is manual, procedural knowledge in frames can be separated, web-enabled

knowledge bases are the trend, and the frame systems can be used in hybrid knowledge bases. However, some

limitations in performance and integration with other knowledge representation systems exist due to support

of different world paradigms. The obtained results show that despite existing limitations, frame-based

knowledge systems still are in use and researchers found ways how to adapt them to the modern requirements.

1 INTRODUCTION

One of unsolved issues in software development is

inconsistency between the problem and its solution.

Some of the causes are insufficient understanding of

characteristics of the problem domain, their

instability, and a lack of formal means to represent,

maintain and provide domain knowledge for all the

stakeholders in the development process.

There are three core things that could be applied

to avoid (or solve) this issue, namely, unification,

standardisation and solid theories (Osis & Asnina

2011; Osis & Asnina 2014). Unification lead up to the

origin of Unified Modelling Language (UML) and

Business Process Model and Notation (BPMN).

Standardisation is an ongoing process, where

different technologies and approaches obtain

common interfaces that allow their common usage

and integration. Development of the solid theory (or

theories) is the hardest one.

The solid theory requires accurate understanding

of domain phenomena. The appearance of Model

Driven Architecture (MDA) (Miller & Mukerji 2001)

can be seen as the first step. MDA can be defined as

“an approach to system development and

interoperability that uses models to express and direct

the course of understanding, requirements elicitation,

design, construction, deployment, operation,

maintenance, and modification” (OMG 2010). The

key principle of the MDA is a separation of concerns

in specifications. Thus, a system is analysed from

three viewpoints and corresponding models, namely

a computation independent model (CIM), a platform

independent model (PIM) and a platform specific

model (PSM).

The CIM specifies domain knowledge, business

rules and processes, data vocabulary, and

requirements (Miller & Mukerji 2001). The CIM can

be represented by means of BPMN (Rhazali et al.

2016), Data Flow Diagrams (Kardoš & Drozdová

2010), UML diagrams (e.g. use case and activity

diagrams), user stories, business rules (Essebaa &

Chantit 2016), etc. Often it is unstructured text,

structured text, or semi-formal (or even informal)

graphical representations. These formats cannot keep

all the knowledge about the domain in the format

understandable for automated processing and

inferring. Therefore, one of the questions is how to

represent domain knowledge to have enough facts

and rules on the domain to automate knowledge

processing for model to model transformations.

346

Nazaruks, V. and Osis, J.

A Survey on Domain Knowledge Representation with Frames.

DOI: 10.5220/0006388303460354

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 346-354

ISBN: 978-989-758-250-9

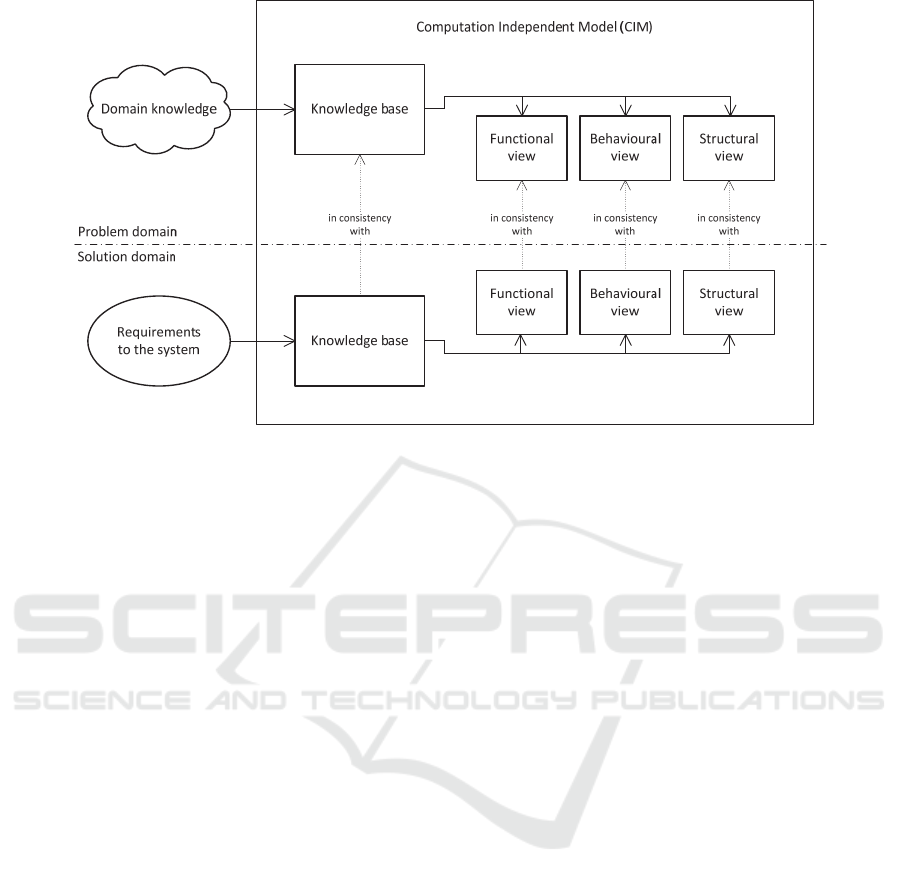

Figure 1: The place of the knowledge base in the computation independent model.

We believe that a domain knowledge base (or

bases) can serve as storage of this knowledge in the

consistent and computer-understandable format

(Figure 1). The knowledge base inferring mechanism

must help in avoiding untrue facts about the domain.

The knowledge base should maintain domain

knowledge related to system functionality, behaviour

and structure. Then this knowledge can be used in the

further analysis models that should be obtained by

automated transformation of this knowledge model.

Knowledge acquired from the solution domain must

be in consistency with problem domain knowledge.

Thus, consistency between corresponding analysis

models also should be kept. Then this analysis models

could be refined.

There are several formats for knowledge

representation such as frame networks, ontology,

concept networks, product rules etc. The very

interesting idea of keeping natural language

semantics in text in the so-called artificial natural

languages (e.g., Esperanto, Conlang, Lingvata) is

expressed in (Roux 2013), where the author states that

this may help translate semantics correctly from one

language to another. However, this field is very

specific and is out of scope of this paper.

Each of knowledge representation formats has its

own advantages and limitations. The limitations are

caused by two of the most fundamental problems in

the field of expert systems, namely knowledge

acquisition and representation (Kornienko et al. 2015)

and search (Kornienko et al. 2015; Marinov 2004).

As Minsky defines in (Minsky 1974), “a frame is

a data structure for representing a stereotyped

situation”. A frame can be thought of as a network of

nodes and relations. The “top levels” of a frame are

fixed, and represent things that are always true about

the supposed situation. The lower levels have many

terminals — “slots” that must be filled by specific

instances or data.

Collections of related frames are linked together

into frame systems. Originally, for implementation of

frame systems a frame representation language

(Foster & Juell 2006) was developed on the base of

Lisp programming language, however it did not

continue to be maintained and repaired. At the

present, there is no single language for

implementation of frames.

The distinction of the frame systems and

ontologies is in different inferring mechanisms. The

frame system supports the so-called closed-world

inferring paradigm (Detwiler et al. 2016), where all

facts that are presented in the system are true. If some

fact is not presented, that means that it is untrue. It

allows avoiding errors in inferring mechanism related

to the knowledge representation format. Other

formats as, for example, ontology, may support the

open-world paradigm, where all facts that are not

presented may also be true. This can lead to errors in

inferring mechanism, but on the other hand may allow

an engineer to discover new knowledge from the

existing facts. A frame-based knowledge base is one

of the typical models or a part of such models for

knowledge representation in expert and decision-

making systems (Kornienko et al. 2015).

In the current research, we overview research

work that deal with frame systems. The goal of this

A Survey on Domain Knowledge Representation with Frames

347

review is to summarize information about knowledge

acquisition, frame elements, implementation

technologies, existing limitations in implementation

and integration with other knowledge representation

formats.

Section 2 states the research questions and

research method. Section 3 gives an overview of the

related research. Section 4 summarizes the results.

2 PROCESS OF THE REVIEW

As previously mentioned, the knowledge base for

maintaining declarative and procedural knowledge

about the domain should be suitable for automated

model transformations. The frame systems can be

well integrated with the object-oriented paradigm

used in the MDA models. Therefore, we would like

to get answers of the following questions:

 Q1. What is a way of entering knowledge into the

frame systems: manual or automated?

 Q2. What are domains of knowledge represented

in the frame systems?

 Q3. What technologies are used to implement

frame systems?

 Q4. What elements of frames are used?

 Q5. What limitations exist?

 Q6. Does integration with other knowledge

representation systems exist, and what they are?

The research procedure was the following. We

have investigated the following publication databases

IEEE Xplore Digital Library, SpringerLink,

ScienceDirect, and ACM Digital Library. The search

keywords used were “frame-based knowledge

system”, “frame-based knowledge base”, “frame

system”, “knowledge frame”, “knowledge base”.

In the ACM Digital Library, there were found 14

publications on frames, 4 of whom were excluded

since either were not related to the frames, or

contained only detailed information of frame

elements. The following 10 publications on frames

were overviewed: (Beltrán-Ferruz et al. 2004;

Corcoglioniti et al. 2016; Foster & Juell 2006;

Gennari et al. 2005; Grigorova & Nikolov 2007;

Kramer & Kaindl 2004; Marinov 2004; Rector 2013;

Kim et al. 2008; Tan et al. 2007).

In the ScienceDirect database, there were found

the following 8 publications: (Al-Saqqar et al. 2016;

Bimba et al. 2016; Detwiler et al. 2016; Hernández &

Serrano 2001; Marinov 2008; Shiue et al. 2008; Xue

et al. 2012; Zopounidis et al. 1997).

In the SpringerLink database and the IEEE Xplore

Digital Library, there were found 2 publications:

(Tettamanzi 2006) and (Xue et al. 2010),

correspondingly.

3 DOMAIN KNOWLEDGE

REPRESENTATION WITH

FRAME SYSTEMS

The selected publications are overviewed in the

chronological sequence.

Frames as a part of hybrid knowledge-based

system are presented in (Hernández & Serrano 2001),

where they are integrated with product rules,

constraints and other knowledge representation

techniques. The knowledge base represents control

knowledge and domain knowledge required for the

emergency system. Design and implementation are

done using Knowledge Structure Manager tool and

the corresponding methodology.

The manual knowledge acquisition is described in

(Beltrán-Ferruz et al. 2004), where the frame system

represents Mikrokosmos system that is used in

knowledge-based machine translations. The

Mikrokosmos contains definitions of concepts that

correspond to classes of things and events in the

world. The world model is organized as objects,

events and properties set in a complex hierarchy. The

format of Mikrokosmos Ontology formally

introduces its syntax and semantics using a BNF

grammar. Ontology is saved in a text file using

Spencer notation that is based on XML. Another

possibility is to use notation called Beale that is based

on Lisp. The reasoning is implemented using JENA

and the DIG interface, as well there are two different

inference engines: RACER and FaCT. For ontology

implementation, they have developed an import plug-

in for Protege 2.0. The frames used contain a concept

name, slots, corresponding facets and filler(s). There

are two kinds of slot fillers: (1) ATTRIBUTE or

RELATION, that represent links between concepts in

the hierarchy; (2) special ONTOLOGY-SLOTs

dedicated to determining the structure of ontology.

Possible descendants for the latter one are

DEFINITION, DOMAIN, INSTANCES, INVERSE,

IS-A, RANGE and SUBCLASSES. A filler generally

contains either a name of a concept of the ontology or

an instance. The authors mention that some special

slots limit expressiveness. In the research, the authors

provide mappings from Mikrokosmos Ontology

frame system to descriptive logic language OWL that

supports SHIQ logic. Because of the transformation,

some knowledge is kept as annotations to description

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

348

logic concepts due to the limitation of description

logic expressiveness.

The authors in (Kramer & Kaindl 2004) also

discuss knowledge frame-based systems, which

contain frames with slots with values and rules in

form IF-THEN that are not attached to frames. The

authors believe that evaluation of modularization

metrics such as coupling and cohesion can help in

assessment of technical quality of such systems that

may suffer from inadequate representation of

knowledge. This evaluation should help quickly

understand potential problems with constructs in the

knowledge base.

The implementation of frames using XML

(eXtensible Markup Language) is discussed in

(Marinov 2004). Evolution of web-based knowledge

modelling languages opens new opportunities for the

application of Web-oriented frame-based knowledge

representation. The new generation of such languages

is DAMPL (DARPA Agent Markup Language), OIL

(Ontology Inference Layer) and SHOE (Simple

HTML Ontology Extension). They are system

independent and web compatible thanks to XML and

RDF support. The frame structure considered in the

research is classical one, where a frame consists of

slots, facets, and active slots with query procedures

and daemons, which represent product rules. As the

author mention in (Marinov 2008), tools for

implementation of frame systems may be Protégé

2000, Conceptually Oriented Design/Description

Environment (CODE4), and FrameD (a distributed

object-oriented database).

The authors in (Gennari et al. 2005) investigate

transformations between two fundamentally different

knowledge representation formats, namely frame

systems and relational databases. A frame-based

system was developed in Protégé that subscribes to

the Open Knowledge Base Connectivity. The authors

declare that a frame-based system has greater

expressiveness, and such transformation should lead

to the loss of some information.

The author in (Tettamanzi 2006) proposes a

frame-based formalism for representing imprecise

knowledge, combining it with fuzzy logic. The

formalism is based on frames, but frames are

simplified. According to this formalism, knowledge

consists of three basic types of objects: (1) knowledge

elements, which can be either atomic (atoms) or

complex (frames); (2) fuzzy sets, or linguistic values;

and (3) relations, which can be fuzzy rules or

subsumption relations.

The list of the basic methods for knowledge

representation (Grigorova & Nikolov 2007) state that

classification and inheritance in frame systems

support knowledge engineering efficiently. The

authors mean three disadvantages of frame-based

knowledge base: (1) it should work with completely

known object characteristics; (2) the knowledge

domain has to be static; and (3) the fact that

procedural knowledge is represented with

programming code inside the frame does not allow

reasoning about this knowledge (reasoning could be

done with it). The authors declare that frames are a

proper method for knowledge representation when

the goal is realization of a natural language sentences

analyser.

In (Tan et al. 2007), the authors use ontologies as

a structured and semantic representation of domain

knowledge. The authors propose a method for

building frame-based corpus for the domain of

biomedicine based on domain knowledge provided

by ontologies. They compared one frame to the

corresponding frame in BioFrameNet, and examined

the gaps between the semantic classification of the

target words in the domain-specific corpus and in

FrameNet and PropBank/VerbNet.

The authors in (Kim et al. 2008) describe frame

application for probabilistic dialog systems, namely,

they have introduced a frame-based state

representation. The frames have slots that can

dynamically update their values, and frames can be

grouped per indistinguishable user goal states.

Knowledge accusation methods and integration with

other knowledge representation formats are not

discussed.

Application of frames in banking expert systems,

which requires fast and up-to-date decision-making is

discussed in (Shiue et al. 2008). The basic knowledge

representation format for such systems are rules that

in the long run lead to decrease of the

understandability and accessibility of the knowledge

base as well as to increase of the complexity of

maintenance of knowledge rules. The knowledge

acquisition is manual. The frames are chosen since

they provide “an easy way for encapsulating

declarative knowledge with procedural one”. The

frames contain slots with decision-making criteria,

and corresponding procedures. Frame system

maintenance foresees changing rules stored in

objects. To create web-enabled interface for the

expert system, the authors use Jess (Java Expert

System Shell) and Object Web model, while an UML

class diagram is used for representation of the model

of the frame system. JavaBeans structures

encapsulate the knowledge objects in the knowledge

base. The limitation of such implementation is

decrease of the performance of the system inference

A Survey on Domain Knowledge Representation with Frames

349

and execution, when the knowledge frame structure

gets more complicated.

The authors in (Xue et al. 2010) propose a frame-

based ontological view specification language

(FOSL) that is based on the knowledge frame

paradigm and uses XML as encoding. XML

documents that hold knowledge frames allow

development of web-enabled information systems.

The authors suggest using the “ontological views” on

the conceptualization of the domain, thus establishing

a possibility of several such views, and integration of

ontological languages. The language uses a concept

of a frame that has four standard levels: frame, slot,

facet, and data. The authors also indicate on frame

paradigm characteristics, i.e. a trade-off between the

good expressiveness and the ease of inference.

Continuing their research in (Xue et al. 2012), the

authors analyse the capabilities of semantic

integration on the basis of the frame-based

ontological view, which can be created from the

information model of an information system.

The interesting discussion about representation

and inference possibilities of ontologies, frames and

UML is given in (Rector 2013). The author

distinguishes knowledge representation systems into

template-based (frames and UML) and axiom-based

(ontology) by their inference mechanisms. It

considers classical frame structures provided by

Protégé-Frames.

The authors in (Sim & Brouse 2014) uses Protégé-

Frames tool for implementation of OntoPersonaURM

model that consists of three interrelated ontologies.

This system like a system in (Shiue et al. 2008) is

foreseen to be web-enabled and able to check

constraints and run queries on the ontology by using

PAL plug-in toolset of Protégé-Frames.

The authors in (Al-Saqqar et al. 2016) use

knowledge frames to represent agent knowledge and

correspondent communicative commitments

presented by modal logic in multi-agent systems. The

knowledge frame based system is integrated with

model checking mechanism. However, it is not clear

what method is used to acquire knowledge to the

frame system.

The authors in (Bimba et al. 2016) provide very

exhaustive survey on knowledge representation,

implementation and acquisition techniques (for

2000–2015 years), i. e. the linguistic knowledge

bases, expert knowledge bases, ontology and

cognitive knowledge bases. The authors stress that a

use of production rules that contain expert knowledge

is not suitable for every knowledge type. The authors

found out that knowledge acquisition is manual

through communication with domain experts with

some automated methods such as LSPE and acquiring

English sentences from the Open Mind Common

Sense (OMCS) corpus. The authors have summarized

that there are different applications for Natural

Language Processing, Question Answering,

Information extraction/retrieval, classification,

knowledge discovery, engineering, health care,

education, finance, environment, business, machine

learning, robotics and forecasting. To implement

linguistic knowledge bases, FrameNet, WordNet and

ConceptNet supporting tools are used such as

Sesame, SWI, NTLK, and ADW. Programming and

mark-up languages used in such implementations

may be XML, Python, Java, SQL, RDF, SPARQL,

Perl, and JSON. In case of product rules in expert

systems Prolog is also used. In most linguistic

knowledge bases, frame elements, semantic networks

and semantic graphs (of frames, lexical semantic

associations between synsets and graphs) are used,

while expert knowledge bases make a use of IF-

THEN rules that join linguistic objects, values and

operators. One of big limitations of linguistic

knowledge bases are their dependence on volatile

expert knowledge, and expensiveness and difficulty

in building and expending the base. Besides that,

frame nets cannot handle text coherence and link

arguments across sentences. As the authors mention,

FrameNets integration with other knowledge

representation techniques is very difficult, and

transformation to them requires additional effort in

preserving richness of its annotations.

The authors is (Corcoglioniti et al. 2016) suggest

a new approach called PIKES that is implemented as

an open-source Java application. This approach is

dedicated to analysis of any text in a natural language

by means of several Natural Language Processing

tools. The resulting net is implemented in RDF

(Resource Description Framework) knowledge graph

by means of extended RDFpro tool and support of

SPARQL-like rule evaluation, where instances are

linked to matching entities in DBpedia using OWL

elements, and typed according to classes encoding

VerbNet, FrameNet, PropBank and NomBank frame

types.

The authors in (Detwiler et al. 2016) describe the

transformation of the Foundational Model of

Anatomy (FMA) represented in a frame system to the

modern semantic web language OWL2. The main

difficulty of the transformation lies in the difference

between closed-world assumption made in frame

systems and open-world assumption made in the

ontology. The open-world assumptions may lead to

mismatches in interpretations, since from its point of

view even if some fact is not stated in the system, it

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

350

does not mean that this fact is untrue (as it is in frame

systems). Therefore, some untrue facts may be

considered as possible. The frames in FMA are

characterized by names, slots and facets (that are used

as constraints to slot values). But there is no straight

correspondence between slots and class properties in

OWL, since slots may represent as frame structural

properties as relations to other frames. Besides that,

in frames the semantic of slots without values is not

clearly defined. Although it is possible to have such

slots in frames, in the ontology only those properties

that must have values are to be listed.

4 DISCUSSION AND

CONCLUSIONS

Summarizing overview results here and in tables

(Table 1, Table 2, Table 3), it is possible to conclude

that the most common way of entering knowledge

into the frame system is manual, i. e. a knowledge

engineer enters facts and assertions about the domain

based on results of interviews with domain experts

and other information about the domain. Only in case

of text analysers automated entering is applied, but

the amount of human participation in this process is

not clear.

The frame-based representation of declarative and

procedural knowledge has a wide application, but the

last decade tendency is the health care and

biomedicine (mostly for ontologies of terms),

forecasting and text/natural language processing (Q2

Table 1).

The most used implementation tool is Protégé-

Frames (

Table 2). The implementation languages

differ from the specific knowledge representation

languages like FOSL to general ones like Java. The

overview showed that many frame-based knowledge

systems are often integrated with other ontology nets.

Besides that, there is a tendency to make frame

systems more web oriented (

Table 2).

Limitations mentioned by authors are inadequate

representation of knowledge (Kramer & Kaindl

2004), greater expressiveness that can lead pure

ontologies to the loss of information in case of

transformation into them (Gennari et al. 2005; Bimba

et al. 2016; Detwiler et al. 2016), necessity to work

with the completely known characteristics and static

knowledge domain (Grigorova & Nikolov 2007),

representation of the procedural knowledge as

programming code inside frames (Grigorova &

Nikolov 2007), and the fact that complex structures

can decrease the performance of the system inference

and execution (Shiue et al. 2008; Xue et al. 2010).

There could be integration with other knowledge

representation systems such as product rules and

business constraints (Hernández & Serrano 2001),

OWL (Hernández & Serrano 2001; Corcoglioniti et

al. 2016; Detwiler et al. 2016), fuzzy logic

(Tettamanzi 2006), and modal logic (Al-Saqqar et al.

2016).

The obtained results show that frame systems are

still in use. There are made optimistic attempts to

adapt this knowledge representation format to new

technologies, especially web technologies. This

Table 1: Answers on Q1 and Q2.

Characteristics References

Q1. What is a way of entering knowledge into the frame systems: manual or automated?

Manual (Beltrán-Ferruz et al. 2004; Shiue et al. 2008; Bimba et al. 2016;

Detwiler et al. 2016)

Automated (Grigorova & Nikolov 2007; Xue et al. 2010; Xue et al. 2012;

Corcoglioniti et al. 2016)

Not discussed (assumed to be manual) (Hernández & Serrano 2001; Gennari et al. 2005; Tettamanzi 2006;

Tan et al. 2007; Kim et al. 2008; Shiue et al. 2008; Rector 2013; Sim &

Brouse 2014; Al-Saqqar et al. 2016)

Q2. What are domains of knowledge represented in the frame systems?

Emergency systems (Hernández & Serrano 2001)

Machine translation (Beltrán-Ferruz et al. 2004; Bimba et al. 2016)

Biomedicine, health care (Tan et al. 2007; Detwiler et al. 2016; Bimba et al. 2016)

Probabilistic dialog systems (forecasting) (Kim et al. 2008; Bimba et al. 2016)

Banking expert systems (Shiue et al. 2008; Bimba et al. 2016)

Not domain-specific (Natural language

processing, question answering,

information extraction/retrieval,

classification, machine learning, robotics)

(Kramer & Kaindl 2004; Marinov 2004; Marinov 2008; Gennari et al.

2005; Tettamanzi 2006; Grigorova & Nikolov 2007; Xue et al. 2010;

Xue et al. 2012; Rector 2013; Sim & Brouse 2014; Bimba et al. 2016;

Al-Saqqar et al. 2016)

A Survey on Domain Knowledge Representation with Frames

351

Table 2: Answers on Q3 “What technologies are used to implement frame systems?”.

Characteristics References

Tools Knowledge Structure Manager (Hernández & Serrano 2001); Protégé 2.(Beltrán-Ferruz et al. 2004;

Marinov 2008; Gennari et al. 2005; Rector 2013; Sim & Brouse 2014); CODE4 (Marinov 2004);

Jess (Shiue et al. 2008); RDFpro (Corcoglioniti et al. 2016);

Reasoning JENA and DIG interface that use RACER and FaCT inference engines (Hernández & Serrano

2001)

Implementation

Languages

Spencer notation based on XML (Beltrán-Ferruz et al. 2004); Beale based Lisp (Beltrán-Ferruz et

al. 2004); XML, DAMPL, OIL, SHOE (Marinov 2004); UML for graphical representation (Shiue

et al. 2008); Java (Shiue et al. 2008; Bimba et al. 2016; Corcoglioniti et al. 2016); FOSL (Xue et

al. 2010); Python (Bimba et al. 2016); SQL (Bimba et al. 2016); SPARQL (Bimba et al. 2016;

Corcoglioniti et al. 2016); Perl (Bimba et al. 2016); JSON (Bimba et al. 2016); Prolog (Bimba et

al. 2016);

Databases FrameD (Marinov 2004)

Ontologies BioFrameNet, FrameNet, PropBank/VerbNet (Tan et al. 2007; Rector 2013; Corcoglioniti et al.

2016); DBpedia, NomBank (Corcoglioniti et al. 2016);

Web

compatibility

XML (Marinov 2004; Marinov 2008; Xue et al. 2010; Sim & Brouse 2014; Bimba et al. 2016);

RDF (Marinov 2004; Marinov 2008; Bimba et al. 2016; Corcoglioniti et al. 2016); Web Object

model (Shiue et al. 2008; Xue et al. 2010)

Table 3: Answers on Q4 “What elements of frames are used?”.

Characteristics References

Frame name (Beltrán-Ferruz et al. 2004; Kramer & Kaindl 2004; Marinov 2004; Tettamanzi 2006; Kim et al.

2008; Shiue et al. 2008; Xue et al. 2010; Bimba et al. 2016; Detwiler et al. 2016)

Slots (Beltrán-Ferruz et al. 2004; Kramer & Kaindl 2004; Marinov 2004; Tettamanzi 2006; Kim et al.

2008; Shiue et al. 2008; Xue et al. 2010; Bimba et al. 2016; Detwiler et al. 2016)

Facets (Beltrán-Ferruz et al. 2004; Marinov 2004; Xue et al. 2010; Bimba et al. 2016; Detwiler et al. 2016)

Fillers (Beltrán-Ferruz et al. 2004; Kramer & Kaindl 2004; Tettamanzi 2006; Kim et al. 2008; Xue et al.

2010; Bimba et al. 2016)

Scripts,

daemons,

stored rules

(Marinov 2004; Tettamanzi 2006; Shiue et al. 2008; Bimba et al. 2016)

Separated

rules

(Kramer & Kaindl 2004; Bimba et al. 2016)

allows integrating frame-based knowledge systems

with already existing ontologies and other knowledge

representation techniques. This means that frame

systems can be applied also for our purpose

considering enumerated limitations and possibilities.

The further research is related to the design and

implementation of the frame-based or hybrid

knowledge base for software development based on

the model-driven paradigm. As mentioned in

Introduction, the goal of this knowledge base is to

support system modelling from the computation

independent viewpoint and corresponding knowledge

transferring to functioning, behavioural and structural

design models. Based on this research result, it

become clear that we should pay strong attention to

this system flexibility, maintainability, performance

and integration with web technologies.

REFERENCES

Al-Saqqar, F., Bentahar, J. & Sultan, K., 2016. On the

soundness, completeness and applicability of the logic

of knowledge and communicative commitments in

multi-agent systems. Expert Systems with Applications,

43, pp.223–236. Available at: http://dl.acm.org/citation

.cfm?id=2840535 [Accessed December 17, 2016].

Beltrán-Ferruz, P.J., González-Calero, P.A. & Gervás, P.,

2004. Converting Mikrokosmos frames into description

logics. Proceeedings of the Workshop on NLP and XML

(NLPXML-2004): RDF/RDFS and OWL in Language

Technology, pp.35–42.

Bimba, A.T. et al., 2016. Towards knowledge modeling and

manipulation technologies: A survey. International

Journal of Information Management, 36(6), pp.857–

871. Available at: http://linkinghub.elsevier.com

/retrieve/pii/S026840121630336X [Accessed

December 17, 2016].

Corcoglioniti, F., Rospocher, M. & Aprosio, A.P., 2016. A

2-phase frame-based knowledge extraction framework.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

352

In Proceedings of the 31st Annual ACM Symposium on

Applied Computing - SAC ’16. New York, New York,

USA: ACM Press, pp. 354–361. Available at:

http://dl.acm.org/citation.cfm?doid=2851613.2851845

[Accessed December 17, 2016].

Detwiler, L.T., Mejino, J.L.V. & Brinkley, J.F., 2016. From

frames to OWL2: Converting the Foundational Model

of Anatomy. Artificial Intelligence in Medicine, 69,

pp.12–21. Available at: http://www.aiimjournal.com

/article/S0933-3657(16)30152-X/abstract [Accessed

December 17, 2016].

Essebaa, I. & Chantit, S., 2016. Toward an automatic

approach to get PIM level from CIM level using QVT

rules. In 2016 11th International Conference on

Intelligent Systems: Theories and Applications (SITA).

Mohammedia: IEEE, pp. 1–6. Available at:

http://ieeexplore.ieee.org/document/7772271/

[Accessed February 17, 2017].

Foster, J. & Juell, P., 2006. A visualization of the frame

representation language. In Companion to the 21st

ACM SIGPLAN conference on Object-oriented

programming systems, languages, and applications -

OOPSLA ’06. New York, New York, USA: ACM

Press, p. 708. Available at: http://portal.acm.org/

citation.cfm?doid=1176617.1176685 [Accessed

December 17, 2016].

Gennari, J.H., Mork, P. & Li, H., 2005. Knowledge

transformations between frame systems and RDB

systems. In Proceedings of the 3rd international

conference on Knowledge capture - K-CAP ’05. New

York, New York, USA: ACM Press, p. 197. Available

at:

http://portal.acm.org/citation.cfm?doid=1088622.1088

666 [Accessed December 17, 2016].

Grigorova, D. & Nikolov, N., 2007. Knowledge

representation in systems with natural language

interface. In Proceedings of the 2007 international

conference on Computer systems and technologies -

CompSysTech ’07. New York, New York, USA: ACM

Press, p. 1. Available at: http://portal.acm.org/citation

.cfm?doid=1330598.1330670 [Accessed December 17,

2016].

Hernández, J.Z. & Serrano, J.M., 2001. Knowledge-based

models for emergency management systems. Expert

Systems with Applications, 20(2), pp.173–186.

Available at: http://linkinghub.elsevier.com/retrieve/pii

/S0957417400000579 [Accessed December 17, 2016].

Kardoš, M. & Drozdová, M., 2010. Analytical method of

CIM to PIM transformation in model driven

architecture (MDA). Journal of Information and

Organizational Sciences, 34(1), pp.89–99.

Kim, K. et al., 2008. A frame-based probabilistic

framework for spoken dialog management using dialog

examples. In Proceedings of the 9th SIGdial Workshop

on Discourse and Dialogue. Columbus, Ohio:

Association for Computational Linguistics,

Stroudsburg, PA, USA, pp. 120–127.

Kornienko, A.A. et al., 2015. Knowledge in Artificial

Intelligence Systems: Searching the Strategies for

Application. Procedia - Social and Behavioral

Sciences, 166, pp.589–594. Available at:

http://linkinghub.elsevier.com/retrieve/pii/S18770428

14067160 [Accessed October 7, 2016].

Kramer, S. & Kaindl, H., 2004. Coupling and cohesion

metrics for knowledge-based systems using frames and

rules. ACM Transactions on Software Engineering and

Methodology, 13(3), pp.332–358. Available at:

http://portal.acm.org/citation.cfm?doid=1027092.1027

094 [Accessed December 17, 2016].

Marinov, M., 2008. Using frames for knowledge

representation in a CORBA-based distributed

environment. Knowledge-Based Systems, 21(5),

pp.391–397. Available at: http://linkinghub.elsevier

.com/retrieve/pii/S0950705108000154 [Accessed

December 17, 2016].

Marinov, M., 2004. Using XML to represent knowledge by

frames. In Proceedings of the 5th international

conference on Computer systems and technologies -

CompSysTech ’04. New York, New York, USA: ACM

Press, p. 1. Available at: http://portal.acm.org/citation

.cfm?doid=1050330.1050350 [Accessed December 17,

2016].

Miller, J. & Mukerji, J., 2001. Model Driven Architecture (

MDA ), Available at: http://www.omg.org/cgi-

bin/doc?ormsc/2001-07-01.

Minsky, M., 1974. A Framework for Representing

Knowledge.

OMG, 2010. The MDA Foundation Model. SparxSystems,

pp.1–9. Available at: http://www.omg.org/cgi-

bin/doc?ormsc/10-09-06.pdf.

Osis, J.. & Asnina, E.., 2014. Is modeling a treatment for

the weakness of software engineering? In Handbook of

Research on Innovations in Systems and Software

Engineering. Hershey, PA: IGI Global, pp. 411–427.

Available at: https://www.scopus.com/inward/record

.uri?eid=2-s2.0-

84945334769&partnerID=40&md5=e2db06ac584778

1e2e7431d7bc86abc9.

Osis, J. & Asnina, E., 2011. Is Modeling a Treatment for

the Weakness of Software Engineering? In Model-

Driven Domain Analysis and Software Development:

Architectures and Functions. Hershey, PA: IGI Global,

pp. 1–14.

Rector, A., 2013. Axioms and templates: distinctions and

transformations amongst ontologies, frames, and

information models. In Proceedings of the seventh

international conference on Knowledge capture - K-

CAP ’13. New York, New York, USA: ACM Press, p.

73. Available at: http://dl.acm.org/citation.cfm?

doid=2479832.2479840 [Accessed December 17,

2016].

Rhazali, Y., Hadi, Y. & Mouloudi, A., 2016. CIM to PIM

Transformation in MDA: from Service-Oriented

Business Models to Web-Based Design Models.

International Journal of Software Engineering and Its

Applications, 10(4), pp.125–142. Available at:

http://dx.doi.org/10.14257/ijseia.2016.10.4.13

[Accessed February 16, 2017].

Roux, C., 2013. Can “Made Up” Languages Help

Computers Translate Real Ones?, Available at:

A Survey on Domain Knowledge Representation with Frames

353

http://www.xrce.xerox.com/About-XRCE/History/20-

Years-of-Innovation-in-Europe/Articles/Can-made-up-

languages-help-computers-translate-real-ones.

Shiue, W., Li, S.-T. & Chen, K.-J., 2008. A frame

knowledge system for managing financial decision

knowledge. Expert Systems with Applications, 35(3),

pp.1068–1079. Available at: http://linkinghub.elsevier

.com/retrieve/pii/S0957417407003247 [Accessed

December 17, 2016].

Sim, W.W. & Brouse, P., 2014. Towards an Ontology-

based Persona-driven Requirements and Knowledge

Engineering. Procedia Computer Science, 36, pp.314–

321. Available at: http://www.sciencedirect.com/

science/article/pii/S1877050914013489 [Accessed

October 7, 2016].

Tan, H., Kaliyaperumal, R. & Benis, N., 2007. Building

frame-based corpus on the basis of ontological domain

knowledge. In Proceedings of BioNLP 2011 Workshop.

Portland, Oregon: Association for Computational

Linguistics Stroudsburg, PA, USA, pp. 74–82.

Available at:

http://dl.acm.org/citation.cfm?id=2002913 [Accessed

December 17, 2016].

Tettamanzi, A.G.B., 2006. A Fuzzy Frame-Based

Knowledge Representation Formalism. In Di Gesú V.,

Masulli F., Petrosino A. (eds) Fuzzy Logic and

Applications. WILF 2003. Lecture Notes in Computer

Science, vol 2955. Springer Berlin Heidelberg, pp. 55–

62. Available at: http://link.springer.com/10.1007

/10983652_8 [Accessed December 17, 2016].

Xue, Y., Ghenniwa, H.H. & Shen, W., 2010. A Frame-

based Ontological View Specification Language. In

The 14th International Conference on Computer

Supported Cooperative Work in Design. IEEE, pp.

228–233. Available at: http://ieeexplore.ieee.org/

document/5471972/ [Accessed December 17, 2016].

Xue, Y., Ghenniwa, H.H. & Shen, W., 2012. Frame-based

ontological view for semantic integration. Journal of

Network and Computer Applications, 35(1), pp.121–

131. Available at: http://linkinghub.elsevier.com

/retrieve/pii/S1084804511000488 [Accessed

December 17, 2016].

Zopounidis, C., Doumpos, M. & Matsatsinis, N.F., 1997.

On the use of knowledge-based decision support

systems in financial management: A survey. Decision

Support Systems, 20(3), pp.259–277. Available at:

http://linkinghub.elsevier.com/retrieve/pii/S01679236

9700002X [Accessed December 17, 2016].

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

354
