EME: An Automated, Elastic and Efﬁcient Prototype for Provisioning

Hadoop Clusters On-demand

Feras M. Awaysheh, Tom

as F. Pena, and Jos

e C. Cabaleiro

Centro Singular de Investigaci

on en Tecnolox

ıas da Informaci

on (CiTIUS),

Universidade de Santiago de Compostela, Spain

Keywords:

MapReduce, Hadoop, Big Data, Cloud Computing, Prototyping, Elastic Computing, Quality of Service.

Abstract:

Aiming at enhancing the MapReduce-based applications Quality of Service (QoS), many frameworks suggest

a scale-out approach, statically adding new nodes to the cluster. Such frameworks are still expensive to acquire

and does not consider the optimal usage of available resources in a dynamic manner. This paper introduces a

prototype to address with this issue, by extending MapReduce resource manager with dynamic provisioning

and low-cost resources capacity uplift on-demand. We propose an Enhanced Mapreduce Environment (EME),

to support heterogeneous environments by extending Apache Hadoop to an opportunistically containerized en-

vironment, which enhances system throughput by adding underused resources to a local or cloud based cluster.

The main architectural elements of this framework are presented, as well as the requirements, challenges, and

opportunities of a ﬁrst prototype.

1 INTRODUCTION

In recent years, under the explosive increase of glo-

bal data, there has been an increasing emphasis on

Big Data, business analytics, and “smart” living and

work environments. Despite the success of large-

scale commodity clusters like Apache Hadoop, this

continuous data stacks require computational power

far beyond the capability of the cluster workstati-

ons (Herodotou et al., 2011) in the high season in-

tervals (i.e. when massive amount of jobs are submit-

ted to the cluster). Na

ıve solutions may propose to

add new computing nodes and scaling-out the tasks to

distributed systems, like in hybrid cloud computing.

Hence, two major concerns need to be addressed.

First, it could be necessary additional investments on

infrastructure (increasing the Total resources Cost of

Ownership (TCO)), or paying to rent cloud instances.

Second, the cost of data movement to and from the

cloud over the Internet, which can be expensive and

time-consuming.

As a comprehensive Big Data analytics plat-

form, Hadoop has become the de-facto technology

for storing and processing data-intensive applicati-

ons (DIA) (Hashem et al., 2015) and large-scale data

analytics. These processes mainly use parallel data

tasks operating, based in the MapReduce (MR) para-

digm (Dean and Ghemawat, 2008). Thus, many fra-

meworks aim at proposing scalable methods to sup-

port existent MR-based applications by enhancing the

throughput using different techniques, while keeping

in mind the QoS and the cost-beneﬁt ratio. For in-

stance, scaling Hadoop capacity horizontally and ver-

tically (scale-up/out techniques), as in (Chen et al.,

2014; Nghiem and Figueira, 2016) or adopting spe-

cial hardware accelerators, as in (Honjo and Oikawa,

2013) and (Chen et al., 2012).

Opportunistic Computing e.g., Enterprise Desktop

Grids (EDG) could provide free compute cycles by

harnessing idle CPUs in what is known as cycle sca-

venging technique (Anderson, 2004), enabling the use

of all available resources within the enterprise. Using

this underused resources to extend the Hadoop cluster

with low-cost, efﬁcient and elastic desktop machines

will improve throughput, making the most of the IT

infrastructure. In exchange, such use would indeed

increase the system complexity, so a powerful schedu-

ler and resource manager would be required. Though,

we argue that using cutting edge technologies like Li-

nux containers can tackle that issue.

In this paper, we present the EME project, short

for Enhanced Mapreduce Environment. EME extends

Hadoop with an adaptive hybrid (dedicated and non-

dedicated) heterogeneous task allocation and provi-

sioning on-demand. Its architecture combines High

Throughput Computing (HTC) and Docker contai-

Awaysheh, F., Pena, T. and Cabaleiro, J.

EME: An Automated, Elastic and Efﬁcient Prototype for Provisioning Hadoop Clusters On-demand.

DOI: 10.5220/0006379607370742

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 709-714

ISBN: 978-989-758-243-1

709

ners with large-scale dedicated clusters, leveraging all

available resources. This project aims for a new hy-

brid environment that can elastically tune the resour-

ces participation, optimizing the cluster throughput

without the need to add new and costly machines or

rent external cloud services.

2 BACKGROUND

There have been some proposals going towards mana-

ging, processing and maintaining massive datasets in

what is called data-intensive processing with MapRe-

duce Applications (MRA). This section presents a

brief background on MR programming model and the

Volunteer Computing systems alongside with related

work and our main motivation to start this project.

1. MapReduce model.

Ever since its introduction, MR framework has

grabbed much attention in its ability to cope with

parallel computing applications using a parallel

data approach to process large volumes of data

(terabytes or petabytes in size), which are typi-

cally referred to as Big Data. Apache Hadoop,

the MR open source implementation, was natu-

rally designed to be easily scalable, but it was not

designed to be auto-scale or elastic. Many stu-

dies have proposed a resizable compute capacity

in both local clusters (Ananthanarayanan et al.,

2012) and the cloud (Dahiphale et al., 2014).

2. Volunteer and Opportunistic Computing. Volun-

teer Computing (VC) is a form of network-based

distributed computing, which allows public parti-

cipants to donate their idle workstations and help

to run computationally expensive projects (Dur-

rani and Shamsi, 2014). Opportunistic Com-

puting (OC) is a computer technique that make

use not only of the resources available in the lo-

cal machine or cluster, but can also opportunisti-

cally scale-out on other resources of the environ-

ment, including those on underused desktop com-

puters, in a reliable and secure way (Conti et al.,

2010). Two major characters differ these para-

digms. First, the resource ownership, i.e., VC take

advantage of volunteer resources donated by par-

ticipants while OC make use of untapped internal

resources. Second, geographical topology, where

OC follows an intranet (LAN) topology, while VC

mainly follows Internet protocols (WAN). Corre-

spondingly, HTCondor (Thain et al., 2005) is an

open-source cluster resource manager aimed at

Distributed High Throughput Computing (HTC)

on collections of owned resources (EDG).

2.1 Related Work

Many related studies in the literature classify the per-

formance of MR data intensive computing into de-

dicated and non-dedicated resources. For instance,

MRA++ (Anjos et al., 2015) is a heterogeneous-

dedicated methodology example that proposed a solu-

tion by grouping the machines according to their com-

putational capabilities, calculating the execution time,

and distributing Map task according to these capabi-

lities. This proposal holds some drawbacks. First,

it is not applicable for opportunistic environments,

and volatility of data is ignored. Second, it does not

take into account data placement (locality). Further

examples include homogeneous-non-dedicated met-

hodology (Ji et al., 2013) and heterogeneous-non-

dedicated methodology (Jin et al., 2012). Apache

Myriad (Apache Software, 2017) is a case for multi-

tenant shared services clusters. Myriad is an open

source framework for scaling the YARN cluster into

Mesos, which allows to expand or shrink the capa-

city of the cluster managed by YARN in response to

events, as per conﬁgured rules and policies. Though,

it differs from our proposal in that it works only on

dedicated resources, like on a typical Data Center.

Correspondingly, some research using hybrid re-

source architecture has been carried out, where vo-

lunteer computing systems are supplemented by a set

of dedicated nodes to reduce the cost. Such research

includes MOON (Lin et al., 2010), which discussed

the problem of how to allocate a small set of dedica-

ted nodes to volunteer computing systems to offer re-

liable MR services on hybrid resource architectures,

adopting the LATE algorithm (Zaharia et al., 2008).

However, MOON focused on a single job and worked

on homogeneous environments only. Also, their so-

lution needs a third part to manage the resource avai-

lability. By comparison, our study will follow hybrid

resource architecture by adding some dedicated no-

des to non-dedicated cluster in not only heterogene-

ous computing environment but heterogeneous ope-

rating systems as well. This will be achieved by using

Docker based containers, which will allow us to build

and distribute applications on heterogeneous nodes,

thereby clearly differentiating our work from others.

2.2 Motivation

Nowadays, Hadoop resource elasticity and on-

demand provisioning have not yet fully exploited by

the present state-of-the-art MR execution architec-

ture. We note a lack of studies that examine, from

a resource perspective, the effect of resizable com-

pute capacity (i.e., elastic resource provisioning) on

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

710

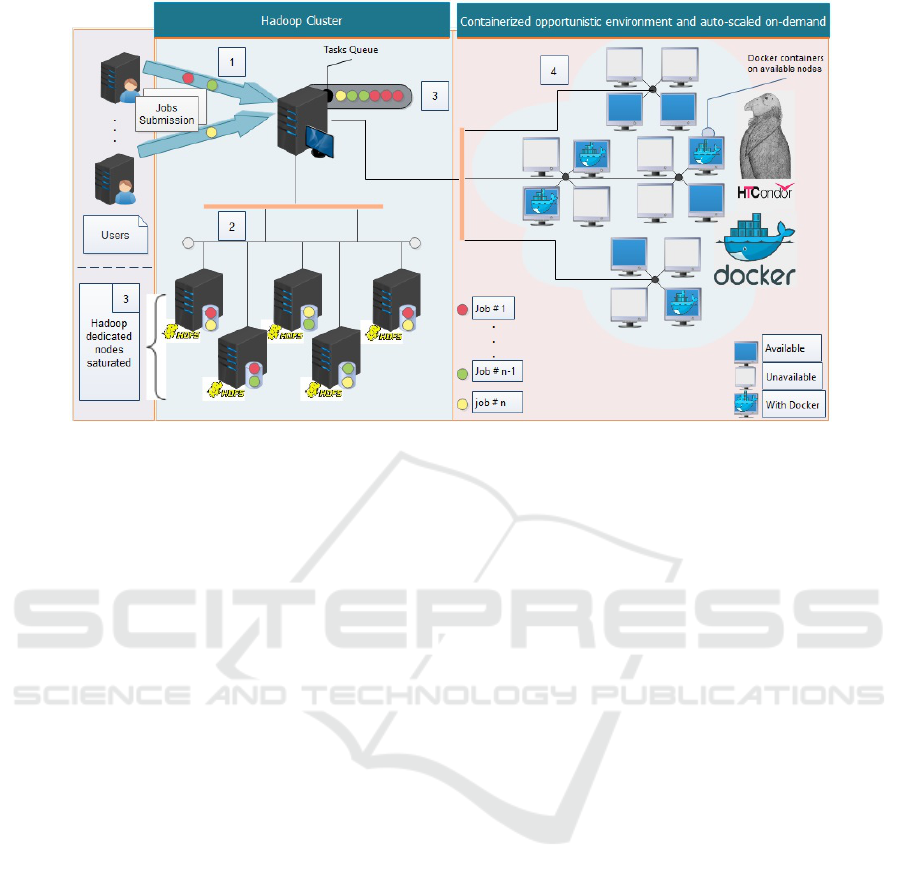

Figure 1: EME Proposed Framework Architecture.

MR applications performance. However, in this pro-

ject we are committed to design, build and evaluate

a hybrid distributed computing (dedicated and non-

dedicated resources) architecture. We will use hetero-

geneous clusters, with differences in both computing

power and availability (opportunistic computing), to

extend Hadoop’s MR task scheduling in a variety of

environments and operating systems, using containe-

rized based clusters on-demand.

The key challenges we are addressing in our work

can be summarized as the following:

• Deﬁning the Hadoop cluster threshold where re-

sources are stretched to the limit (big data wor-

kloads start queuing).

• Efﬁciently execute MR operations on non-

dedicated resources (isolated in containers).

• Opportunistically use resources that may be lig-

htly loaded for long periods of time within an en-

terprise

• Elastically provisioning Hadoops Yarn on-

demand with low-cost nodes.

• Enabling the two environments work harmoni-

ously for the beneﬁt of business and academia

• Making this framework automated (auto-scale),

fast and extensible to the prior Hadoop Yarn ar-

chitecture.

3 EME: FRAMEWORK

ARCHITECTURE

Prototyping a distributed application like MR is con-

sidered a hard and time-consuming task. In this

section, we will introduce EMEs design, goals and

architecture overview.

3.1 Design Overview

The proposed framework presented in Figure 1 con-

sists of three major components. First are the users,

EME’s framework targeting a composite (multi-

users/multi-jobs) architecture. Second, a dedicated

environment, i.e., a typical Hadoop cluster that fol-

lows master/slave technique, where Yarn is responsi-

ble for scheduling, monitoring and re-executing fai-

lure tasks on slave machines. Third, a non-dedicated

environment, which could be controlled using VC

middleware like BOINC (Kurochkin and Saevskiy,

2016). However, our approach adopts an elastically

and horizontally scaling (scaling-out) of resources in

a controlled LAN to opportunistically execute MR

tasks on collections of distributed, underused and ow-

ned resources on-demand. So, to manage and allo-

cate the non-dedicated nodes, HTCondor (to create

an EDG within LAN, i.e., an HTCondor pool) can

be used in EME. Thus, the proposed integrated archi-

tecture will reduce the system complexity and avoid

system degeneration due to overloaded Hadoop mas-

ter. Anyway, a lightweight scheduler has to be imple-

mented in HTCondor, which only consider container

EME: An Automated, Elastic and Efﬁcient Prototype for Provisioning Hadoop Clusters On-demand

711

deployment inside the opportunistic pool.

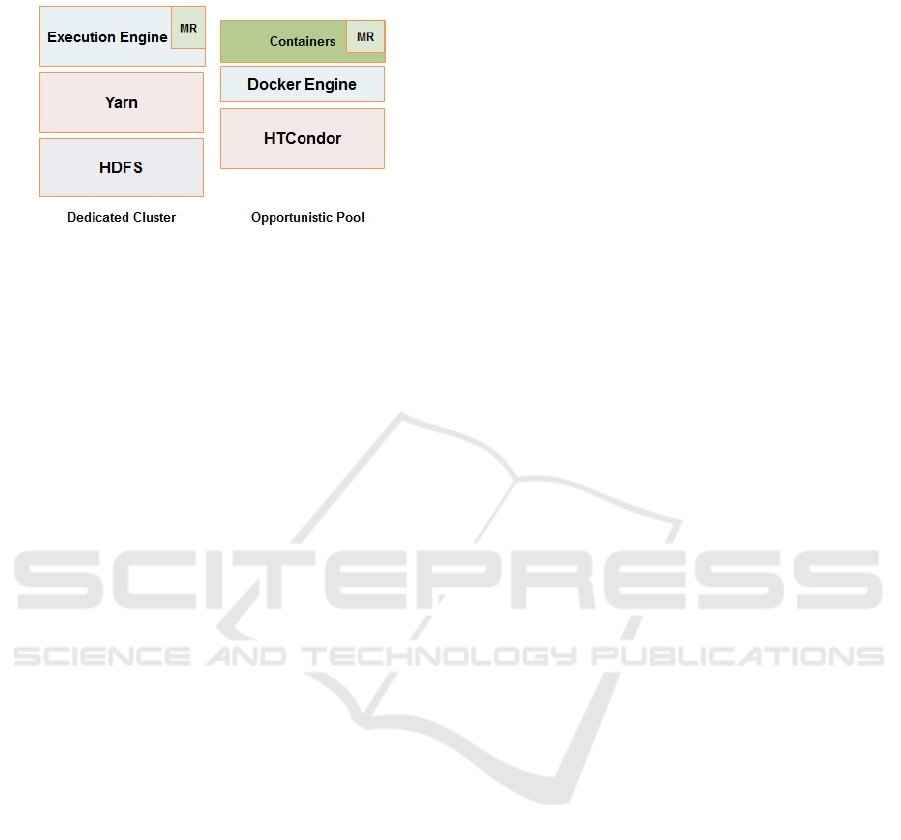

Figure 2: EME architecture layers and abstractions.

Figure 2 presents a layered architecture and ab-

stractions of both environments. For the opportunistic

environment, an operating system-level virtualization

environment (Docker containers) will be implemen-

ted, with HTCondor as its execution engine. This will

provide not only an efﬁcient use of the opportunistic

resources, but also an isolated fault tolerance environ-

ment with high scalability potentials.

With this additional nodes, the throughput will be

signiﬁcantly improved. So, with a minimal cost of

deployment, EME will improve scalability and opti-

mize idle resources utilization, which would imply, as

another direct impact, a greater return on infrastruc-

ture investments.

3.2 Fault Tolerance

The basic abstraction of Hadoop architecture is di-

rected to cluster and supercomputing paradigms. In

these environments, faults are less harming as most

nodes are reliable and will operate ﬂawlessly for an

extended period. Though, the failure of a node is

still a concern. Some techniques like task replication,

speculative execution of tasks, and heartbeats may li-

mit the threat on most scenarios. However, the en-

terprise grid (non-dedicated) environment may seem

more vulnerable. Accordingly, an advanced techni-

que that supports fault-tolerance, while minimizing its

impact on performance is a must.

In our work, we will concentrate on the enhan-

cement of fault-tolerance on the opportunistic pool.

Keeping in mind that no single point of failure is pre-

dicted at that environment, we propose two approa-

ches for solve this problem. On the one hand, tuning

the heartbeat may enable the NodeManager in the op-

portunistic resources to register dynamically on the

dedicated ResourceManager (see Figure 3). Additio-

nally, the nodes history (availability) will be added as

an additional policy to determine the global resources

availability.

On the other hand, the results obtained in the non-

dedicated environment will be checked using the ma-

jority voting technique (Moca et al., 2011). This will

add two main advantages to this scenario. At ﬁrst,

majority voting will require a minimum of three con-

tainers task replication to be implemented, which di-

rectly impact the fault tolerance by enhancing the task

failure recovery. Second, leaving the result submis-

sion (the work done ﬂag) until we collect two out of

three results for each work from different workers,

will provide high reliable results.

4 DISCUSSION

Docker provides a systematic way to automate the

faster deployment of variety applications and libraries

inside portable containers (isolated environment in

operating systems kernel). Also, Container as a Ser-

vice (CaaS) is considered as a particular case of IaaS

without the hypervisor layer for better performance.

Hence, EME proposes idle nodes as a viable way to

deploy an opportunistic environment using disposable

containers (deleted after executing the task) for provi-

sioning the Hadoop cluster.

On the other hand, HTCondor will provide a con-

sistent environment that continuously schedules new

containers when it is possible and quickly gives re-

sources back to the user when required. In our pro-

posed architecture, Docker will provide a runtime

service that ensures three aspects. First, isolation

between the MR-tasks and other resources operati-

ons with minimal conﬁguration on the HTCondor

pool. Second, secure containers deployment with lig-

htweight virtualization that runs on near bare-metal

performance. Finally, an extensible interface that co-

pes with Hadoop Yarn, where no rewrite for the MR

applications is required.

As Figure 1 illustrate, the framework can be di-

vided into four main phases that can be classiﬁed as

follows:

1. Job submission: The job/jobs are submitted to the

Hadoop master by the users via a job submission

manager. The job manager at the master will place

these jobs into a global job pool (task queue),

where tasks wait to be batched.

2. Task allocation: Yarn manages task allocation,

status monitoring, and reallocation failure tasks at

the dedicated environment. Each dedicated slave

shall run a NodeManager and a DataNode dae-

mon. Yarn will start an ApplicationMaster per

job, which asks the master (ResourceManager) for

resources. The ResourceManager will contact the

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

712

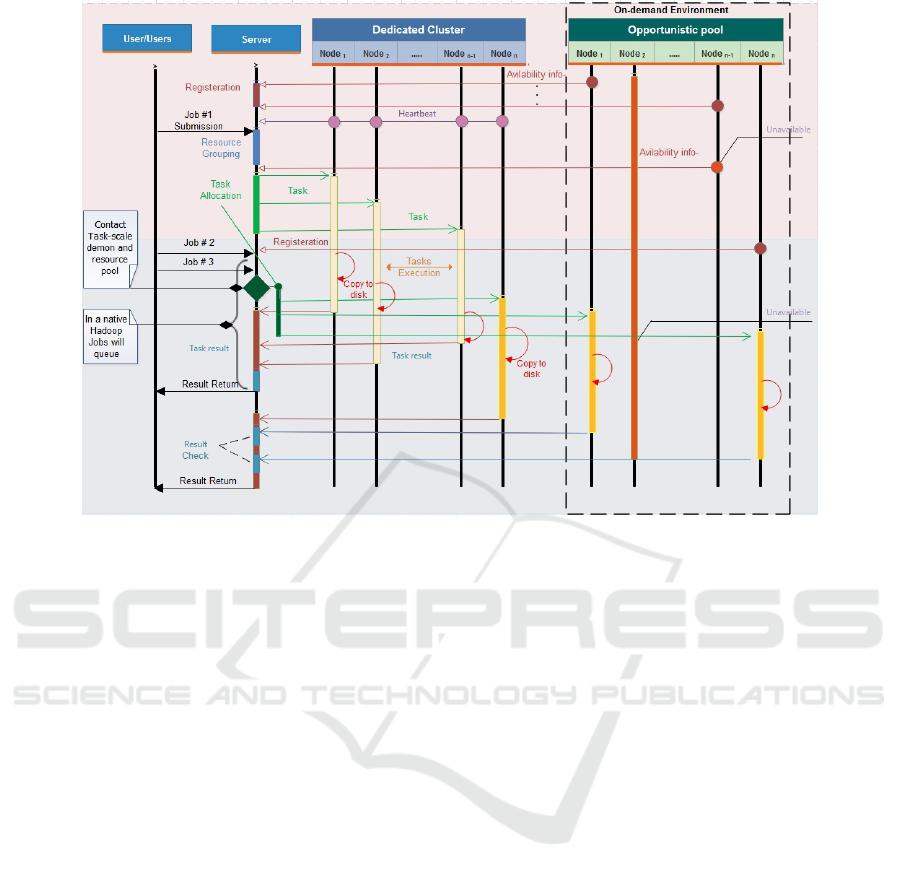

Figure 3: Framework sequence diagram.

NodeManagers, and will provide the required re-

sources in the form of containers. The Applicati-

onMaster will run the jobs in the allocated contai-

ners till the cluster reaches a predeﬁned threshold

where resources are fully utilized, and no more

tasks can be processes.

3. Cluster saturation: Under this circumstance, tasks

start queuing at the job pool. The Yarn decision

maker will use the global ResourceManager and

will ask for an offer from the available (registered)

resources at the opportunistic environment (i.e., in

a pull approach).

4. Opportunistic resources Provisioning: At this

point, the ResourceManager asks a special da-

emon (ContainerLauncher) to start containers

(Docker) at the available opportunistic resources.

These containers will run a NodeManager dae-

mon. The new containers will refresh the Resour-

ceManager offering these resources for the Ap-

plicationMaster, which only exist in the dedicated

environment.

Hence, the container launcher will create several

Docker containers on the idle nodes for executing the

independent task chunks in parallel. The Applicati-

onMaster will run these jobs in the allocated opportu-

nistic containers, and the results will be sent back to

the dedicated cluster via a result manager, which is in

charge of result checking. Figure 3 shows a sequence

diagram that explains the task execution phases in a

sequence action timeline.

5 CONCLUSIONS AND FUTURE

WORK

Over the past decade, Big Data analytics and data-

intensive applications industry witness many enhan-

cements regard large-scale processing. Apache Ha-

doop, with its ecosystem, is the dominant platform

and moving toward becoming a comprehensive OS-

like platform. However, current MapReduce imple-

mentations and resource managers are unable to em-

ploy lightly loaded resources within their control-

led network, which is not yet fully exploited in the

MapReduce state-of-the-art architectures.

To that end, EME project aims at improving data-

intensive computing performance in both local and

cloud-based clusters. EME offers a hybrid resource

architecture (dedicated and non-dedicated) that sup-

ports heterogeneous capabilities by extending Ha-

doops cluster beyond its dedicated nodes, with elastic

and low-cost resources on-demand. In particular, em-

ploying an opportunistically container-based cluster

with auto-scale capabilities. EME will allow to au-

tomatically adapting the cluster size to the resources

demand. This hybrid architecture aims to minimize

the capital expenditure on large private infrastructu-

EME: An Automated, Elastic and Efﬁcient Prototype for Provisioning Hadoop Clusters On-demand

713

res and to reduce operational costs. Additionally, it

improves the MapReduce infrastructure throughput,

performance, and QoS, helping to meet job deadlines.

This paper describes the EME project blueprint,

as well as the ongoing efforts behind it. Our work is

being developed with Hadoop Yarn as the supporting

resource manager, but we believe that the ideas pre-

sented in this research can easily be adapted to other

resource management frameworks, for instance, Apa-

che Mesos and Docker Swarm. As it is usual in the

literature, we will start prototyping EME in a virtuali-

zed cluster and, when proving its usefulness, test it in

a bare-metal environment. Additionally, it is expected

to deploy an enterprise desktop grid, and to develop

an opportunistically, elastic resource allocation sche-

duler to be integrated within its architecture.

ACKNOWLEDGEMENTS

This work has been partially funded by the Spanish

Ministry of Science and Innovation with the Project

No. TIN2016-76373-P and for the Xunta de Gali-

cia with the Project No. GRC2014/008, the Consel-

ler

ıa de Cultura, Educaci

on e OU (accreditation 2016-

2019, ED431G/08), the European Regional Develop-

ment Fund (ERDF), the European Network HIPEAC,

and the Spanish Network CAPAP-H.

REFERENCES

Ananthanarayanan, G., Douglas, C., Ramakrishnan, R.,

Rao, S., and Stoica, I. (2012). True elasticity in multi-

tenant data-intensive compute clusters. In Proc. 3rd

ACM Symposium on Cloud Computing, page 24.

Anderson, D. P. (2004). Boinc: A system for public-

resource computing and storage. In Grid Compu-

ting, 2004. Proceedings. Fifth IEEE/ACM Internati-

onal Workshop on, pages 4–10. IEEE.

Anjos, J. C., Carrera, I., Kolberg, W., Tibola, A. L., Arantes,

L. B., and Geyer, C. R. (2015). MRA++: Scheduling

and data placement on MapReduce for heterogeneous

environments. Future Generation Computer Systems,

42:22–35.

Apache Software (2017). Apache Myriad.

http://myriad.apache.org/. Accessed: 2017-01-

30.

Chen, K., Powers, J., Guo, S., and Tian, F. (2014). Cresp:

Towards optimal resource provisioning for MapRe-

duce computing in public clouds. IEEE Trans. on Par.

and Distributed Systems, 25(6):1403–1412.

Chen, L., Huo, X., and Agrawal, G. (2012). Accelerating

MapReduce on a coupled CPU-GPU architecture. In

Proc. of the Int. Conf. on High Performance Com-

puting, Networking, Storage and Analysis, page 25.

IEEE Computer Society Press.

Conti, M., Giordano, S., May, M., and Passarella, A. (2010).

From opportunistic networks to opportunistic compu-

ting. IEEE Communications Magazine, 48(9).

Dahiphale, D., Karve, R., Vasilakos, A. V., Liu, H., Yu,

Z., Chhajer, A., Wang, J., and Wang, C. (2014). An

advanced MapReduce: cloud MapReduce, enhance-

ments and applications. IEEE Transactions on Net-

work and Service Management, 11(1):101–115.

Dean, J. and Ghemawat, S. (2008). MapReduce: simpliﬁed

data processing on large clusters. Communications of

the ACM, 51(1):107–113.

Durrani, M. N. and Shamsi, J. A. (2014). Volunteer compu-

ting: requirements, challenges, and solutions. Journal

of Network and Computer Applications, 39:369–380.

Hashem, I. A. T., Yaqoob, I., Anuar, N. B., Mokhtar, S.,

Gani, A., and Khan, S. U. (2015). The rise of Big

Data on cloud computing: Review and open research

issues. Information Systems, 47:98–115.

Herodotou, H., Dong, F., and Babu, S. (2011). No one

(cluster) size ﬁts all: automatic cluster sizing for data-

intensive analytics. In Proceedings of the 2nd ACM

Symposium on Cloud Computing, page 18. ACM.

Honjo, T. and Oikawa, K. (2013). Hardware acceleration of

Hadoop MapReduce. In Big Data, 2013 IEEE Inter-

national Conference on, pages 118–124. IEEE.

Ji, Y., Tong, L., He, T., Tan, J., Lee, K.-w., and Zhang, L.

(2013). Improving multi-job MapReduce scheduling

in an opportunistic environment. In Cloud Computing

(CLOUD), 2013 IEEE Sixth International Conference

on, pages 9–16. IEEE.

Jin, H., Yang, X., Sun, X.-H., and Raicu, I. (2012). Adapt:

Availability-aware MapReduce data placement for

non-dedicated distributed computing. In Distributed

Computing Systems (ICDCS), 2012 IEEE 32nd Inter-

national Conference on, pages 516–525. IEEE.

Kurochkin, I. and Saevskiy, A. (2016). Boinc forks, issues

and directions of development. Procedia Computer

Science, 101:369–378.

Lin, H., Ma, X., Archuleta, J., Feng, W.-c., Gardner, M.,

and Zhang, Z. (2010). Moon: MapReduce on opportu-

nistic environments. In Proceedings of the 19th ACM

International Symposium on High Performance Dis-

tributed Computing, pages 95–106. ACM.

Moca, M., Silaghi, G. C., and Fedak, G. (2011). Distributed

results checking for MapReduce in volunteer compu-

ting. In Parallel and distributed processing workshops

and Phd Forum (IPDPSW), 2011 IEEE international

symposium on, pages 1847–1854. IEEE.

Nghiem, P. P. and Figueira, S. M. (2016). Towards efﬁcient

resource provisioning in MapReduce. Journal of Pa-

rallel and Distributed Computing, 95:29–41.

Thain, D., Tannenbaum, T., and Livny, M. (2005). Distri-

buted computing in practice: the Condor experience.

Concurrency and computation: practice and expe-

rience, 17(2-4):323–356.

Zaharia, M., Konwinski, A., Joseph, A. D., Katz, R. H., and

Stoica, I. (2008). Improving MapReduce performance

in heterogeneous environments. In Osdi, volume 8,

page 7.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

714
