ESKAPE: Information Platform for Enabling Semantic Data Processing

Andr

e Pomp, Alexander Paulus, Sabina Jeschke and Tobias Meisen

Institute of Information Management in Mechanical Engineering, RWTH Aachen University, Aachen, Germany

Keywords:

Semantic Computing, Semantic Model, Knowledge Graph, Internet of Things, Data Processing.

Abstract:

Over the last years, many Internet of Things (IoT) platforms have been developed to manage data from public

and industrial environmental settings. To handle the upcoming amounts of structured and unstructured data

in those ﬁelds, a couple of these platforms use ontologies to model the data semantics. However, generating

ontologies is a complex task since it requires to collect and model all semantics of the provided data. Since the

(Industrial) IoT is fast and continuously evolving, a static ontology will not be able to model each requirement.

To overcome this problem, we developed the platform ESKAPE, which uses semantic models in addition to

data models to handle batch and streaming data on an information focused level. Our platform enables users

to process, query and subscribe to heterogeneous data sources without the need to consider the data model,

facilitating the creation of information products from heterogeneous data. Instead of using a pre-deﬁned

ontology, ESKAPE uses a knowledge graph which is expanded by semantic models deﬁned by users upon their

data sets. Utilizing the semantic annotations enables data source substitution and frees users from analyzing

data models to understand their content. A ﬁrst prototype of our platform was evaluated by a user study in

form of a competitive hackathon, during which the participants developed mobile applications based on data

published on the platform by local companies. The feedback given by the participants reveals the demand for

platforms that are capable of handling data on a semantic level and allow users to easily request data that ﬁts

their application.

1 INTRODUCTION

Recent trends in Smart Cities, (Industrial) Internet of

Things (IoT), enterprise and mobile applications and

various other areas lead to an enormous increase of

data sources and available data. Due to the high de-

gree of globalization in today’s international compa-

nies, developers and data scientists face the problem

of utilizing data from multiple technically indepen-

dent company sites. Each site may use different data

formats or data models as well as different languages

resulting in a massive amount of heterogeneous data

sources, even within a single company structure.

However, the common idea of the Internet of

Things and various industrial and enterprise applica-

tions is to enable each participating object, which is

part of the system, to collect and exchange data that

can be used in multiple domains and sites at the same

time. One possible solution for solving this challenge

is the standardization of data models, formats and ex-

changed information. Here, it is necessary to create a

ﬁxed standard for each available information that may

be recorded by a sensor or be produced by an appli-

cation. An example for standardized sensor readings

is SensorML,

which provides a model consisting at

least of an identiﬁer, a deﬁnition and a unit of mea-

surement for each reading, whereas all attributes can

be chosen by the user but are ﬁxed afterwards.

However, deﬁning standardized data models leads

to different problems. If we want to solve the prob-

lem of heterogeneity by using standards and if we do

not want to violate the common idea of IoT, we have

to deﬁne them in such a way that they comprise all

existing concepts. For example, for the concept Tem-

perature, a standard also has to deﬁne all sub con-

cepts, such as Indoor, Ambient or Room Temperature.

To allow a common understanding of the general data

schema, the standard has to deﬁne at least those basic

concepts. Here, further problems arise since the us-

age of those concepts depends on their context. For

instance, if a person is located in a room, the room

temperature corresponds to the indoor temperature.

However, the ambient temperature may either be the

temperature outside the room or outside the build-

ing. Most of today’s data modeling approaches can-

not cope with such unpredictable cases.

http://www.ogcnetwork.net/SensorML

644

Pomp, A., Paulus, A., Jeschke, S. and Meisen, T.

ESKAPE: Information Platform for Enabling Semantic Data Processing.

DOI: 10.5220/0006324906440655

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 644-655

ISBN: 978-989-758-248-6

The example shows that the deﬁnition of standards

for a common data model among various sensors is al-

ready difﬁcult and it becomes more complicated when

considering further data sources. For the deﬁnition

of a corresponding standard to be successful, all soft-

ware developers and hardware manufacturers would

have to accord it and apply it to already rolled out

devices or software. While parts of these problems

can be simpliﬁed by limiting the standard to a spe-

ciﬁc domain, e.g., smart home or a speciﬁc company

site, it results in the drawback that those devices can

then only be used in this domain unless their standard

is translated to be compatible with another one. This

leads to additional work and is a contradiction to the

common idea of connected systems (e.g., Industrial

IoT) in which each participant’s data should be read-

able regardless of domain knowledge.

Another possibility for solving the described prob-

lems is the use of ontologies, which are widely spread

in the semantic web. Instead of standardizing data

models, we can use ontologies to deﬁne the current

view of the world. This allows the deﬁnition of se-

mantic models based on the ontology, creating an ab-

straction layer and thus being able to view the data

on an information level rather than a data level. This

meta level enables the comparability and analysis of

data sources with different data models but identical

information.

However, ontologies also suffer from various dis-

advantages. First, the deﬁnition of an ontology is

a complex task which in advance requires to collect

and model all the knowledge that will be required.

Second, ontologies suffer from inﬂexibility. Due to

the complex generation, an ontology is usually gener-

ated for a speciﬁc use case in a speciﬁc domain, e.g.,

medicine. Every annotation that is missing in the on-

tology will not be available when creating a semantic

model later on.

Since the (Industrial) Internet of Things is fast and

continuously evolving and new devices and sensors

are proposed every day, a static ontology will not be

able to model each requirement. In addition, covering

the complete required knowledge from the beginning

will also be challenging, even within an enterprise.

To solve the described problems of heterogeneous

data sources and the sophisticated deﬁnition of static

ontologies, we are developing the information-based

data platform ESKAPE (Evolving Semantic Knowl-

edge and Aggregation Processing Engine) for struc-

tured as well as unstructured batch and streaming data

that is capable of handling data on a semantic infor-

mation level. To feed data into ESKAPE, users (e.g.,

data source owners) can add data sources and describe

them with a custom semantic model. Instead of gener-

ating the model based on a pre-deﬁned ontology, users

create the semantic model either by using concepts

available in the knowledge graph managed by ES-

KAPE or by deﬁning their own domain-speciﬁc con-

cepts leading to an expansion of ESKAPE’s knowl-

edge graph. Hence, compared to ontologies created

top-down, this knowledge graph is capable of adapt-

ing new and unknown concepts and relations bottom-

up based on the added data sources and their seman-

tic models. Other users can use the published data

sources for analyzing data or developing applications

based on it.

We run ESKAPE in a closed enterprise environ-

ment, but due to compliance issues of enterprises, we

evaluated our approach in an open real-world sce-

nario. We set up a challenge in which teams had

to develop smart city applications based on various

data sets (batch and streaming data) that we collected

from different local providers, such as the local bus

company or bicycle sharing company. The evalua-

tion shows that the provided platform features, like a

semantic search, information conversion, data format

conversion or semantic ﬁltering simplify the develop-

ment of real-world applications signiﬁcantly. Hence,

ESKAPE forms the foundation for enabling true se-

mantics in the evolving IoT.

The remainder of this paper is organized as fol-

lows. Section 2 provides a motivating example and

Section 3 discusses related work. Based on the exam-

ple and current state of the art, we discuss the con-

cepts of ESKAPE in Section 4 as well as its function-

ality (Section 5) and architecture (Section 6). Finally,

we present the evaluation results in Section 7 before

we conclude in Section 8.

2 MOTIVATING EXAMPLE

In this section, we provide a motivating example illus-

trating the necessity for future IoT platforms to con-

sider knowledge about the semantics of data and to of-

fer a semantic-based processing. In addition, we dis-

cuss why usual ontologies are not sufﬁcient for mod-

eling the semantic knowledge of all data sources that

are added to the platform.

The scenario consists of an app developer D

, who

wants to create an application A

suggesting to the

end users if they should take a bus or rent a bicycle to

reach a certain location. For giving the suggestion, the

application uses the current weather conditions, the

current position of a bus and the number of available

bicycles at the nearest station.

To create the application, the developer searches

for data available in her city. On the local Open Data

ESKAPE: Information Platform for Enabling Semantic Data Processing

645

platform, multiple publishers P

offer data. P

offers

weather data DS

via its HTTP API. The weather data

is available in XML format and includes a timestamp,

the current temperature in

◦

C as well as the current

amount of rain. P

, a public transportation company,

provides DS

as an AMQP stream in JSON format

containing the current timestamp and the GPS posi-

tion of each available bus represented by bus number

and a target stop. P

offers DS

as CSV table available

via HTTP containing the current number of available

bicycles at a renting station, the position of this sta-

tion as address (city, street, house number) as well as

the date and time of the last update.

When examining this scenario, we identify dif-

ferent drawbacks of common solutions for the cur-

rent process of data publishing as well as data con-

suming. When using the data, D

currently has to

deal with three different data models in three differ-

ent formats (JSON, CSV, XML) available via two

different approaches (HTTP, AMQP) leading to un-

necessary implementation overhead. In addition, D

has to deal with information in different representa-

tion forms. There exist two different location formats

(address and GPS location), a temperature in a pre-

deﬁned unit as well as date and time information for-

matted either as date or as timestamp. These repre-

sentations again lead to a higher unnecessary imple-

mentation overhead.

When publishing data, the parties may also face

different challenges. A common platform without se-

mantics will not be able to provide any knowledge

about the data. For example, the platform would not

be aware of the unit of the temperature and could

therefore not convert it into an appropriate unit. If

we assume that the platform is already using an ontol-

ogy for representing information, the ontology would

need to cover any concept and relation that will be

available in data sets that are added in the future. Oth-

erwise, the platform could not link those unknown

data attributes to other data sets containing the same

information. While deﬁning a comprehensive ontol-

ogy may be possible in a closed and controllable en-

vironment (e.g., inside a single department of a com-

pany), it is very unrealistic for a global company with

multiple sites in different countries or in an open sce-

nario where data sources are added over a long time

period by multiple independent actors, such as local

companies, city administration or private end users.

This shows that we are in need of a more generic and

evolving approach when dealing with semantics in the

(Industrial) Internet of Things.

3 RELATED WORK

In a broad ﬁeld like the IoT, many other research

topics are related to our work. Such topics are data

integration and semantic model generation, ontol-

ogy learning, community-driven ontology engineer-

ing and IoT platforms.

In the area of data integration, multiple ap-

proaches focus on solving the problem of hetero-

geneous data sources, such as query reformulation

techniques (Global or Local as View) or ontology-

based information integration (Ahamed and Ramku-

mar, 2016).

The Stanford-IBM Manager of Multiple Informa-

tion Sources (TSIMMIS) (Garcia-Molina et al., 1995)

focuses on integrating and accessing heterogeneous

data sources by following a Global as View approach.

TTIMMIS acts as a translator between data sources

and a common data model (CDM) allowing to trans-

late queries to the CDM into data source speciﬁc

queries and returning the result back to the user in the

CDM. By additionally providing mediators, TSIM-

MIS identiﬁes data sources that contain queried infor-

mation. Compared to TSIMMIS, ESKAPE follows an

ontology-based information approach where the data

is integrated based on semantic models enabling the

use of queries on an information-focused level.

Knoblock et al. propose in multiple papers

(Taheriyan et al., 2014) (Knoblock and Szekely, 2015)

(Taheriyan et al., 2016) (Gupta et al., 2015) a plat-

form, called KARMA, which follows the ontology-

based information integration approach. This plat-

form allows integrating data of multiple formats

(JSON, XML, etc.) based on a pre-deﬁned ontology.

Data sources that are attached to Karma use seman-

tic models. For that, Knoblock et al. focus their work

on automatically creating semantic models based on a

ﬁxed ontology per use case where the ontology does

not evolve over time. Another project proposed by

Meisen et al. describes a framework for handling

heterogeneous simulation tools for production pro-

cesses by using semantics based on a static ontology

(Meisen et al., 2012). Compared to these approaches,

ESKAPE focuses on an evolving knowledge graph

that learns from semantic models that were created

by users for their provided data sources.

In the area of ontology generation and learning,

OntoWiki (Hepp et al., 2006) addresses the problem

of the complex ontology generation by crowdsourc-

ing ontologies with the help of community members.

In OntoWiki, users create Wiki articles for concepts

and describe them in natural language. If a concept

is missing, users can create a new article for it. How-

ever, the evolving ontology OntoWiki is created by

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

646

community members where each one can modify the

work of the other. Without well-deﬁned processes, the

ontology will not achieve stability. Hence, ESKAPE

mitigates this problem by supervising the knowledge

graph generation using external knowledge databases.

The approaches (Xiao et al., 2016) and (He et al.,

2014) deal with learning ontologies from unstruc-

tured text in an automatic fashion for coping with

the high effort that arises from creating ontologies by

hand. Therefore, the authors use DBPedia as a su-

pervisory tool for guiding a user during the learning

of an ontology. Their work is a ﬁrst attempt to au-

tomatically generate ontologies. Xiao et al. focus

on learning ontologies from unstructured text where

the learned ontology is created based on a ﬁxed cor-

pus of input sources that are not provided by differ-

ent users whereas ESKAPE’s knowledge graph learns

from user provided semantic models.

Furthermore, the project Semantic Data Platform

(SDP) proposed by (Palavalli et al., 2016) uses on-

tologies and semantic models to enable IoT-based ser-

vices. They also have the goal to deal with the num-

ber of upcoming heterogeneous data sources in the

Internet of Things. Palavalli et al. provide a concept

to solve the problem by allowing vendors to specify

semantic models for their new devices. These mod-

els are then used for evolving the underlying ontol-

ogy, which can be used as a common data model.

Based on SDP, devices and applications can subscribe

to events (e.g., temperature higher than 25

◦

C) that are

obtained from the collected IoT data. This collection

is enabled by the use of semantic queries. Palavalli et

al. just focus on adding devices with semantic mod-

els that were provided by vendors. Their work does

not consider other data sources, such as applications,

that may deliver data, as well as devices where the

semantic model may change over time (e.g., modular

smart phones). Moreover, the future work presented

includes extending the semantic approach to collabo-

ratively evolve IoT data model standard among device

vendors whereas our approach does not require to es-

tablish a standard.

Similar interest in interoperability of IoT systems

has been stated in a new project named ’BIG IoT’

(Dorsch, 2016). It focuses on the task of offering

a single API for multiple IoT applications, bridging

the gap between multiple independent data storages.

Another project, called Anzo Semantic Data Lake

(Cambridge Semantics, 2016), focuses on develop-

ing a data lake by adding context to all kinds of data

sources. In both projects, the participants do not state

how this task can be achieved but describe the need

for adding semantics to raw data sources.

4 CONCEPT

In this section, we will describe the concept behind

the platform, speciﬁcally the semantic concepts used

by ESKAPE. First, since there exist contrary deﬁni-

tions of terms used in literature, we deﬁne the follow-

ing terms to accomplish a common understanding in

the upcoming sections:

• Data Attribute: Property of a single point of

data; e.g., column in a table described by a header

or the key in a map identifying all values available

under this key.

• Data Value: Describes the value of one speciﬁc

Data Attribute (e.g., the cell in a table or the value

available under a certain key in a map).

• Data Point: Describes an actual object including

Data Values for Data Attributes (e.g., a row in a

table or a map with data values for available Data

Attributes).

• Data Set: Represents all available Data Points

(e.g., all rows in a table) that are present at a cer-

tain time.

• Batch Data: One Data Set that is completely

added to ESKAPE.

• Streaming Data: Consist of multiple Data Sets

where each Data Set arrives at an unknown time

t. Consequently, at a certain time t

multiple Data

Points can arrive simultaneously.

• Data Source: A source from which ESKAPE re-

ceives data, such as a stream, a ﬁle system or a

URL.

To address the challenges that we identiﬁed in the

motivating example and in the related work, we are

developing ESKAPE, an information-based platform

that is capable of integrating data from heterogeneous

data sources on a semantic level by using a main-

tained knowledge graph. Common approaches tend

to use ontologies for semantic data modeling (cf. Sec-

tion 3) or other static approaches to annotate data sets

with semantic information. A drawback of these ap-

proaches is the missing ability to adapt to changes in

a rapidly changing environment where new devices

come into play almost every day. With ESKAPE, we

want to provide a new approach of creating semantics

for data sources.

Using ESKAPE, a user typically starts with a data

model deducted from a sample data set. The data

model contains all data attributes which have been

found in the analyzed data points thus representing

the structure of the observed input data (Figure 1(a)).

The identiﬁed data model has to be mapped to a se-

mantic representation (cf. Section 5.1).

ESKAPE: Information Platform for Enabling Semantic Data Processing

647

ProdY

ModelDesc

Model

Main SideB SideA

ProductionSite

CarId

root

PartNo

(a) Data model

ProdY

ModelDesc

Model

Main SideB SideA

ProductionSite

CarId

production date

description

car model car part number car part number car part number

car factory

identifier

CustomCar

car

Year

year

Chassis

chassis

GermanLang

german

has

assembled in

consists of

has

procuded in

written in

(b) Semantic model

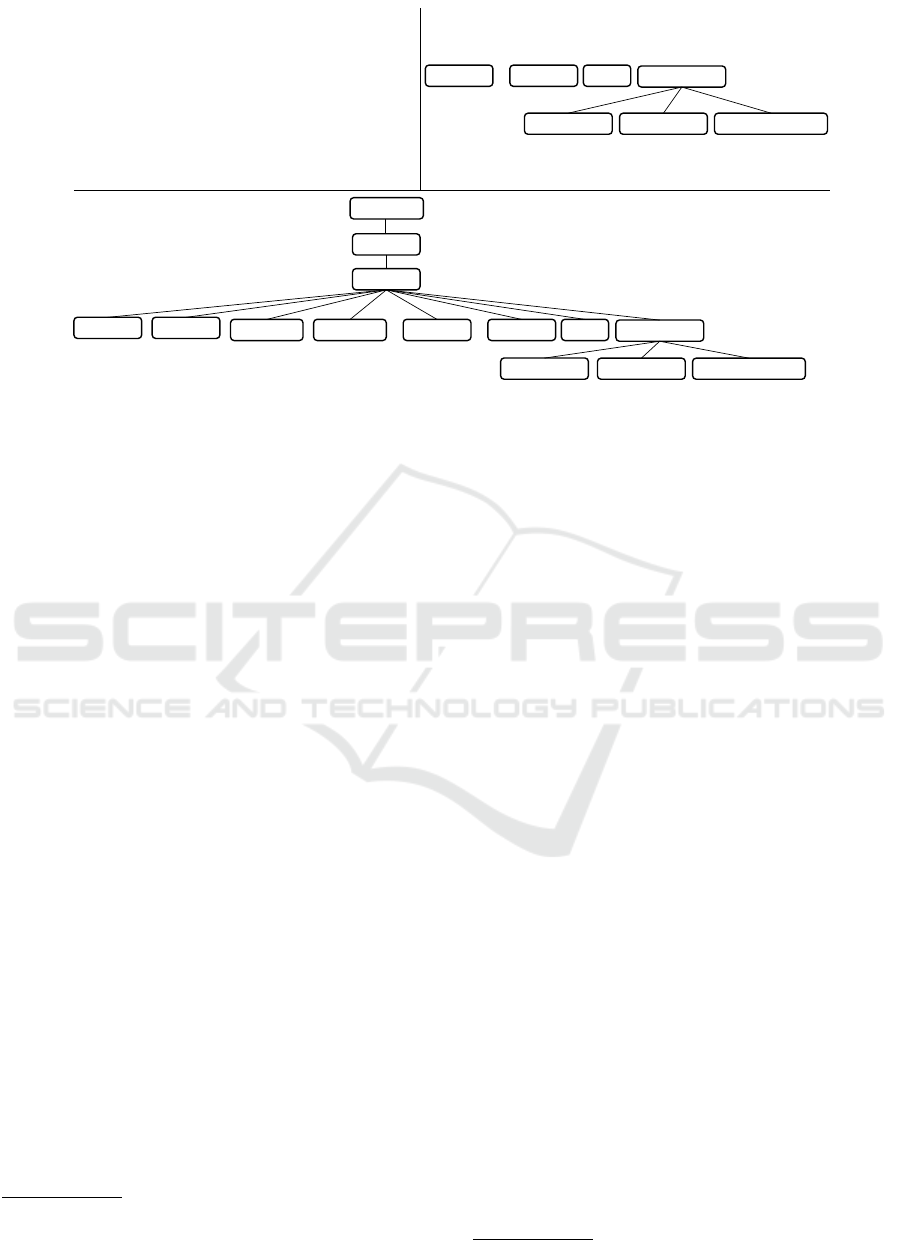

Figure 1: Identiﬁed data model and respective semantic model for an example data set of cars.

4.1 Semantic Models

ESKAPE extends the technique of matching data

source models to (static) ontologies and their vocab-

ulary. The platform uses semantic models to describe

single data sources. A semantic model is a semantic

annotation of a data model adding semantic vocabu-

lary and relations to it. This model gives a semantic

representation of the information contained in the raw

data points. The model itself is user maintained and

ﬁxed at the time the data integration starts.

A semantic model (see Figure 1(b)) is created by

instantiating an Entity Type for each data attribute

identiﬁed during the data analysis which is to be inte-

grated later. Each Entity Type contains a user-deﬁned

name for this attribute in this speciﬁc semantic model

(e.g., ’ProductionSite’) and has a semantic concept

assigned to it, deﬁning the semantic properties of this

attribute (e.g., ’car factory’). The Entity Type is there-

fore an instantiation of a generic concept for a spe-

ciﬁc semantic model and is deﬁned by it. Further-

more, the user is not limited to attribute-assigned En-

tity Types inferred by the source data and can deﬁne

advanced Entity Types to create more complex mod-

els (e.g., ’Chassis’). Those advanced types are not

related to a speciﬁc data attribute as they resemble a

higher order construct, either by combining multiple

Entity Types or by specifying an Entity Type in more

detail. We require that each Entity Type has a concept

assigned to it as well as each concept to be attached

to at least one Entity Type. To relate two inferred or

created Entity Types, the user can also deﬁne Entity

Type Relations between those two (e.g., CustomCar

has CarId). An exemplary result of a semantic model

for the data model shown in Figure 1(a) can be seen

in Figure 1(b).

4.2 Knowledge Graph

Upon submission of a ﬁnal semantic model in ES-

KAPE, the information contained in the model are

added to the knowledge graph, which is maintained

and supervised by the platform. The knowledge graph

cannot be modiﬁed directly by users and resembles

an auto-generated collection of semantic knowledge

from all available semantic models. It consists of

three types of core components:

• Entity Concepts: Entity Concepts are labeled

semantic descriptors which cover and uniquely

identify a generic or speciﬁc mental concept (e.g.,

car).

• Entity Concept Relations: Entity Concepts are

connected to other Entity Concepts via Entity

Concept Relations which describe invariant con-

nections (e.g., car has production date).

• Relation Concepts: Relation Concepts are de-

scriptors for kinds of relations, such as isA, pro-

ducedIn or consistsOf which might be used by

Entity Concept Relations and Entity Type Rela-

tions. Each Relation Concept contains a name

and a set of properties deﬁning the mathematical

classes of relations it belongs to like transitive, re-

ﬂexive, symmetric, etc.

With the availability of an evolving knowledge

graph, the creation of a semantic model for a data

source is simpliﬁed as elements from the knowledge

graph can be directly re-used in the annotation pro-

cess. Re-using elements from the knowledge graph’s

vocabulary saves the user from deﬁning common con-

cepts and relations multiple times. In addition, it cre-

ates links between elements of the newly created se-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

648

mantic model and the knowledge graph. This allows

ESKAPE to make suggestions during the modeling

process as well as using reasoning based on the previ-

ously available knowledge in the knowledge graph,

e.g., noticing if a relation is probably used in the

wrong direction. However, the user’s semantic model

can be valid even without elements of the knowledge

graph and will not be modiﬁed by the system auto-

matically.

The only exception to that is the auto-detection of

probable concepts during the analysis phase. Based

on learned patterns for certain concepts, ESKAPE

can provide an initial semantic model using only pre-

viously known concepts and relations. The system

learns about those patterns when data is integrated for

a speciﬁc semantic model. If concepts of the knowl-

edge graph have been reused, example values and/or

patterns for certain concepts can be identiﬁed and an-

alyzed to build patterns.

4.3 Evolving the Knowledge Graph

Upon submission of a new semantic model to ES-

KAPE, the knowledge graph adapts the newly gath-

ered information by merging a model’s concepts and

relations into the graph. Re-used elements act as an-

chor points for matching elements. Previously un-

known concepts are matched using heuristics and ex-

ternal resources to detect, e.g., synonyms. If no suit-

able match is possible, a new Entity Concept is cre-

ated from the custom concepts and added to the graph

using the provided relations to previously known ele-

ments of the graph. The same procedure is applied for

newly encountered relations, which are converted to

Relation Concepts. Entity Concept Relations are de-

ducted from Entity Type Relations (which implicitly

relate Entity Concepts) which occur multiple times,

further extending the knowledge graph. Figure 2 il-

lustrates the described information model schemes.

5 FUNCTIONALITY AND

IMPLEMENTATION

To enable users sharing their data with others, we

differentiate between providing data sources to

ESKAPE and retrieving and processing the provided

data sources from it. The former process includes an

initial analysis of the data source (cf. Section 5.1), the

semantic modeling of the available information (cf.

Section 5.2) as well as the data integration (cf. Sec-

tion 5.3). After ESKAPE integrated the data, users

can start different kinds of processes on the data in-

relates

Entity Concept

Relation

Concept

relates

contains

Semantic Model

(user maintained)

Knowledge Graph

(platform maintained)

Custom

Concept

defines

induces new

defines

induces new

defines

Entity Concept

Entity Type

Relation

Custom Entity

Type Relation

relates

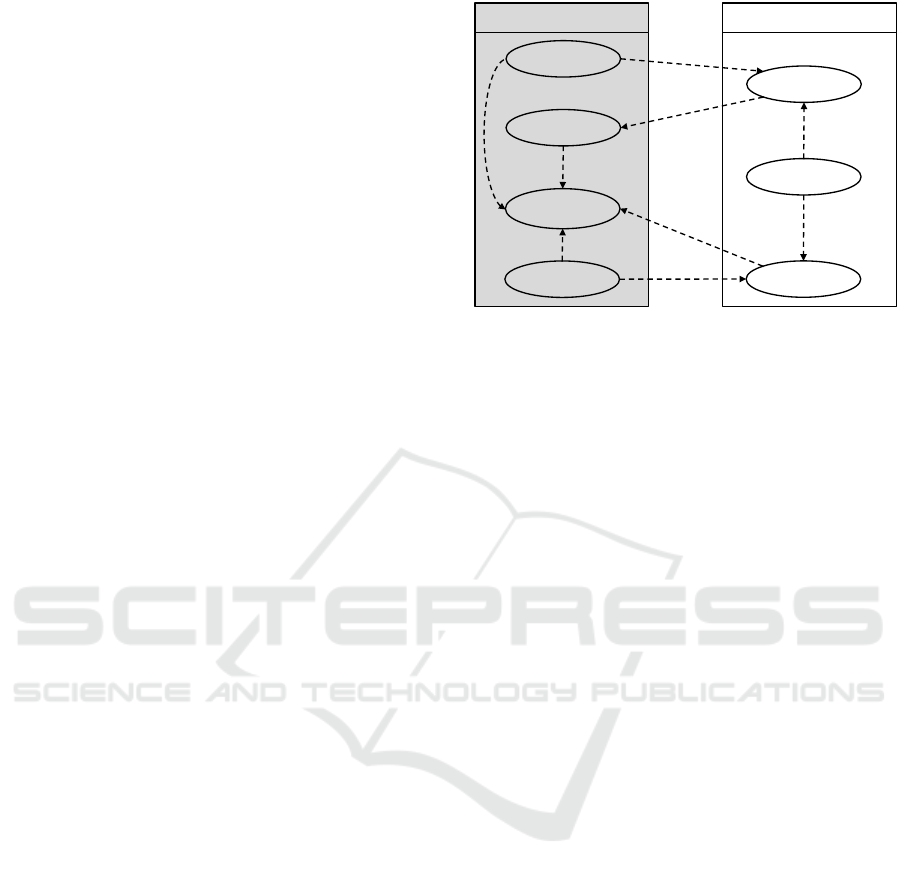

Figure 2: Overview about the different components that are

used for constructing semantic models for data sources and

their related elements in the knowledge graph.

cluding data enrichment, transformation or analysis

(cf. Section 5.4) as well as querying and obtaining

data (cf. Section 5.5).

5.1 Schema Analysis

When a user connects a data source to ESKAPE for

the ﬁrst time, it collects an example data set and an-

alyzes it to identify a potential schema. Afterwards,

ESKAPE presents and visualizes the result to the user

to simplify the semantic model creation in the next

step. However, gathering and analyzing the raw data

schema leads to different challenges.

For analyzing the schema, a sufﬁcient amount of

data points is required since a single data point may

not contain all data attributes. For batch data, no prob-

lems occur as it is a self-contained data set that does

not change over time and ESKAPE can just consider

each data point to obtain a comprehensive schema.

For streaming data, it is unknown if the number of

collected data sets and their included data points cover

the complete schema. Thus, our current solution ob-

serves streaming data for a certain amount of time

(conﬁgurable by the user). Based on all collected data

sets and data points, ESKAPE proposes a comprehen-

sive schema to the user. If the users recognize any

ﬂaws, they can reﬁne the schema, e.g., by manually

adding missing data attributes that were not covered.

When analyzing the schema, we are not interested

in a superﬁcial schema for the data format, but in the

relationship between multiple data points and espe-

cially the structure of a data point (more precisely, in

the relationship between the different data attributes

of a single data point). While a data set is available

in a ﬁxed format (e.g., CSV or JSON) and follows a

ESKAPE: Information Platform for Enabling Semantic Data Processing

649

Owner

Row

_id _uuid

_position _address Address

Location_1

latitude

longitude Needs_recording

…

Raw Data

XML Common Schema

XML Row Schema

Owner Address

Location_1

latitude longitude Needs_recording

…

Rows

Response

<row>

<owner>Private</owner>

<address>2110 Market St</address>

<landusetyp>restaurant</landusetyp>

<location_1 latitude="37.767" longitude="-122.429" needs_recoding="false"/>

</row>

Figure 3: The example illustrates a raw XML data snippet and two possible recognized schemas depending on the used format.

For the XML Common Schema, the result schema includes all available XML properties. In contrast, the result for the XML

Row Schema Analysis considers also the semantic structure of the data (table) and solely focus on the important concepts.

pre-deﬁned standard, (e.g., RFC 4180

for CSV), the

data may be represented in different ways. Depending

on the way these formats are used, the semantic of

the data attributes and data values inside these formats

changes. This might imply whether the data attribute

or value is signiﬁcant or not.

Thus, the schema analysis does not include all the

format speciﬁc details, but rather the semantics im-

plied when using the format. Figure 3 depicts an

example containing raw data from the San Francisco

Open Data platform

in XML format. When perform-

ing a common schema analysis for this data snippet,

we receive the result shown in the lower part. This

schema contains data attributes that do not generate

any actual semantic value (e.g., response, rows, row).

Thus, the user should not deﬁne a semantic model for

those parts of the data.

To increase usability for the semantic model cre-

ation (cf. Section 4), we examined multiple data

sets from different Open Data platforms and identi-

ﬁed patterns allowing to strip all the unnecessary data

attributes. One example (XML Row) is illustrated in

Figure 3. This schema implicitly considers that the

contained data represents a table consisting of mul-

tiple rows, just like a CSV ﬁle. Thus, this schema

analysis automatically strips all the data attributes that

should not be covered by the semantic model. Further

identiﬁed subtypes of formats are:

• CSV: covers all data sets where the values for data

attributes are separated by a delimiter.

https://www.ietf.org/rfc/rfc4180.txt

https://data.sfgov.org/Transportation/Parking/

9qrz-nwix

• JSON Lines: covers all data sets where the single

data points are in line separated JSON format.

• JSON Tabular: used for tabular data represented

as JSON. This format is recommended by the

W3C

for tabular data that contain additional meta

data.

• JSON Common: used for all JSON data sets that

are not covered by any other subtype (e.g., JSON

Tabular).

• XML Row: tabular data represented in XML for-

mat.

• XML Common: used for all XML data sets that

are not covered by any other subtype (e.g., XML

Row).

Since maintaining a schema analysis per subtype

leads to high implementation overhead, especially

when changing constraints for the analysis, we decide

to translate each identiﬁed subtype into a platform in-

ternal format (JSON) and perform the schema anal-

ysis based on this format. We deﬁne for each sub-

type an appropriate conversion process which trans-

lates the subtype into an equivalent representation in

JSON. This allows us to deﬁne all schema analysis

constraints based on a single format. If constraints

for a single subtype change, we just have to adopt the

corresponding translation process.

https://www.w3.org/TR/tabular-metadata/

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

650

5.2 Modeling Information of Data

Sources

After recognizing a schema for a data source, we

present the result to the user. Based on the deter-

mined schema, the user creates the semantic model

using the buildings blocks described in Section 4. Fol-

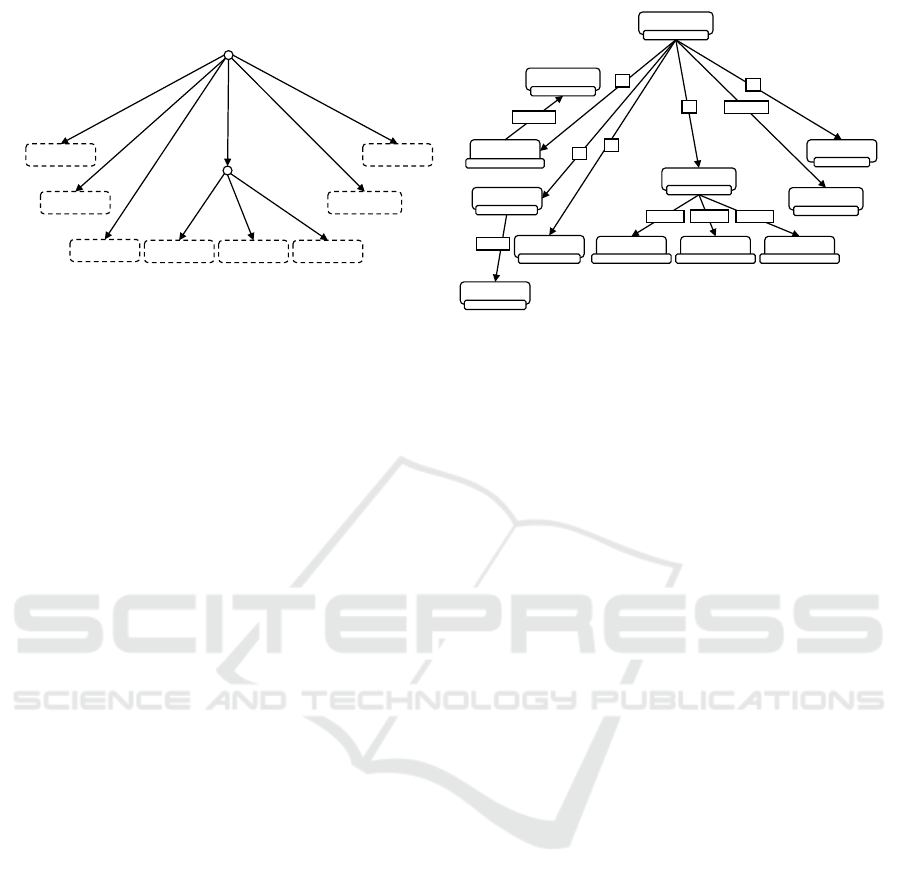

lowing the example illustrated in Figure 1, the user as-

signs each data attribute (ProdY, ModelDesc, Model,

Main, SideB, SideA, Plant, CarId) an Entity Type.

For instance, the Entity Type ModelDesc referencing

the Entity Concept description is assigned to the at-

tribute ModelDesc. In addition, the user deﬁnes more

complex Entity Types which are not mapped to data

attributes directly (e.g., CustomCar referencing the

Entity Concept car). By deﬁning Relations between

the Entity Types, the user completes the view of a

car entity and precisely deﬁnes the characteristic of

a custom car entity named ’CustomCar’ consisting

of attributes ’ProdY’(production date), ’Model’(car

model), ’Chassis’(chassis), ’ProductionSite’(car fac-

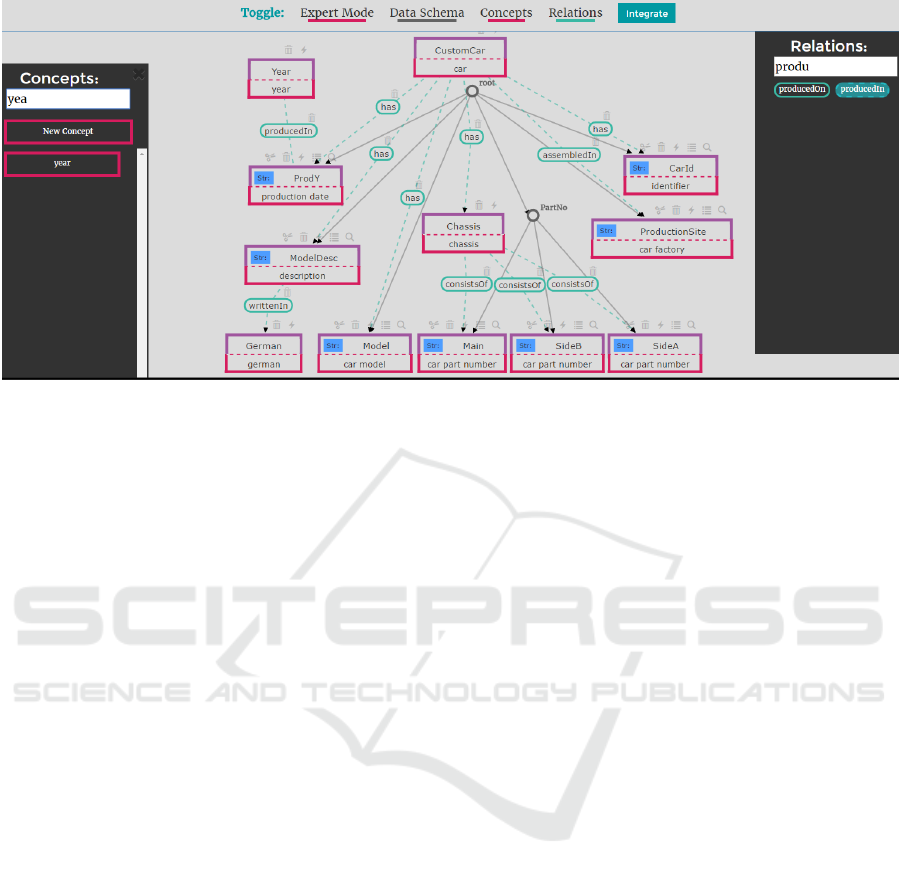

tory) and ’CarId’(identiﬁer). Figure 4 illustrates the

described scenario using the modeling GUI during

the semantic model creation phase in the prototype

web client of ESKAPE. The user creates new Entity

Types by dragging concepts onto attributes or into

free space. An Entity Type is then created automat-

ically, initially assuming the name of the attribute or

the concept, respectively.

Our approach comes with three novelties allow-

ing to continuously evolve the knowledge graph over

time. This is important for a growing system, such

as the Internet of Things, as it is constantly expanded

by newly added sensors and data emitters with new

semantic models. Thus, we ﬁrst allow the user to use

concepts that are not available in the knowledge graph

yet. If the user wants to deﬁne an Entity Type but no

appropriate Entity Concept is available, then the user

will add this concept to the knowledge graph. To en-

sure that the concept is added at an appropriate posi-

tion in the graph, we use external data sources, such

as semantic networks (cf. Section 4).

The second novelty is that the knowledge graph

learns from the semantic model how entities are re-

lated to each other. Let us assume that the Entity

Concept car was only connected to the Entity Con-

cepts description, identiﬁer and production date be-

fore the new semantic model was added to ESKAPE.

After deﬁning the semantic model and adding it to

ESKAPE, the knowledge graph learns that the entity

car can also have a car factory, a chassis, and a car

model which can then be proposed to users which

intend to add other data sets containing information

about cars.

Another novelty of our approach is that the data

attributes recognized by the schema analysis are not

mapped in a one-to-one fashion onto entities of the se-

mantic model. Instead, we allow the user to reﬁne the

schema and map the semantic model on the reﬁned

schema. In the example illustrated in Figure 1, we

created a semantic model where the SideA attribute

was modeled by a car part number Entity Concept

and a relation to the Chassis Entity Type. If the user

wants to deﬁne a more ﬁne granular model, she can

split the SideA attribute based on a regular expression

into two attributes c

and c

where c

contains the

serial number and c

the manufacturer number. By

mapping c

to a corresponding Entity Concept, such

as serial number, and c

to the Entity Concept manu-

facturer number a more detailed semantic model will

be created. Besides the splitting of a data attribute

into multiple ones, we also offer to split lists into

multiple lists or single data attributes by using reg-

ular expressions and deﬁning repetition cycles. We

call ﬁelds that are split into multiple ones Composite

Fields. Furthermore, we also allow users to remove

unwanted data attributes from the schema for publish-

ing.

This example shows that the deﬁnition of a seman-

tic model is not unique. The user just provides her

view of the data even if there might exist more pre-

cise semantic models.

5.3 Data Integration

After the user has created the semantic model for a

data source, ESKAPE is capable of integrating the

data. The main goals of the data integration are:

• Syntactic homogenization

• Splitting composites into single attributes

• Linking speciﬁed entity types to the data attributes

of the reﬁned schema

• Marking data values that could not be integrated

• Data point homogenization

• Discarding invalid data points

The syntactic homogenization ensures that all data

types (text, number, Boolean and binary values) are

integrated into a uniﬁed representation, which sim-

pliﬁes the later handling of the data. For instance,

Boolean values that occur as 0, 1 or F, T are mapped

to False and True and numbers are represented by the

American notation. We do not perform a semantic ho-

mogenization (e.g., convert all temperatures to a uni-

form unit such as

◦

F) since this information is en-

coded in the semantic model anyway and can thus be

used during processing.

ESKAPE: Information Platform for Enabling Semantic Data Processing

651

Figure 4: Prototype view of the modeling GUI of ESKAPE. For overview reasons, Entity Types and Entity Concepts are

combined. Node top: Entity Type (e.g., ’CustomCar’), node bottom: Entity Concept (e.g., ’car’). The view can be modiﬁed

by toggling displayed elements such as the data model.

In addition, the integration splits composite ﬁelds

into multiple data attributes and links all the data

attributes to their semantic entity type. If, for in-

stance, the splitting or the syntactic homogenization

fails (e.g., data type is marked as number but the

data value was a string), then the whole data value

is marked as invalid. We explicitly store those values,

since we do not want to lose information and we do

not know the scenario where the data might be used.

We only discard complete data points if errors occur

that do not allow us to link the data to its semantic

type (e.g., parsing errors).

After integrating data sets (batch or streaming),

ESKAPE stores the integrated data in our platform

speciﬁc Semantic Linked Tree format, called SLTFor-

mat. This format offers the user information about the

semantic type, the data value, the syntactic type and

if the value was successfully integrated, enabling true

semantic interoperability on the data sets. To addi-

tionally enable real-time analysis, streaming data are

directly forwarded to the next processing step.

5.4 Data Enrichment, Transformation

and Analysis

After the successful integration of data sources, the

data can be used for data enrichment, transforma-

tion and analysis. This step enables the user to per-

form heavyweight processing based on one or more

selected data sources, their semantic models and ad-

ditionally parameters deﬁned by the user. The result is

a new data source with its semantic model that again

is persisted and can be published on ESKAPE.

In processing, we differentiate between Data En-

richment, Data Transformation and Data Analysis.

We deﬁne Data Enrichment as the process of extract-

ing and persisting new information by using data at-

tributes that are already available in the data. For in-

stance, assumed we have a data source containing a

data attribute that holds a description text. A typi-

cal data enrichment step would be to determine the

language of the description, so we explicitly gener-

ate information that is implicitly available and persist

it. Moreover, the information that was added will not

change over time and is use case independent. Op-

posed to this, Data Transformation is the process of

transforming or converting data attributes based on

knowledge that is offered by the semantic model. An

example is the conversion of a data attribute contain-

ing temperature data in

◦

C into

◦

F. Compared to Data

Enrichment, Data Transformation changes the data

depending on the user’s use case. Finally, Data Anal-

ysis involves all tasks that extract new information by,

e.g., aggregating multiple data points or joining data

sources based on deﬁned criteria.

After the processing of the data was successful,

ESKAPE persists the newly created data source on the

storage and adds the corresponding semantic model to

the knowledge graph. In case of streaming data, the

data is directly forwarded to satisfy possible real-time

constraints.

5.5 Querying Data and Information

Aside from data integration and processing, users can

also extract data from ESKAPE. Since users have dif-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

652

Data Storage

• Raw Data

• Integrated Data

• Data Configurations

Information Model Storage

• Contains Semantic

Models for each data

source

External Data Sources

• Data sources for

feeding data into the

platform

Front End View & Logic

Processing Core

RESTful

• Creation of Semantic Models

• Information-oriented integration of

heterogeneous data sources

• Information-based processing of batch and

streaming data

• Trigger Semantic Model

Creation

• Control Data Integration

• Control Data Processing

Presentation Layer

Third-Party

Persistence

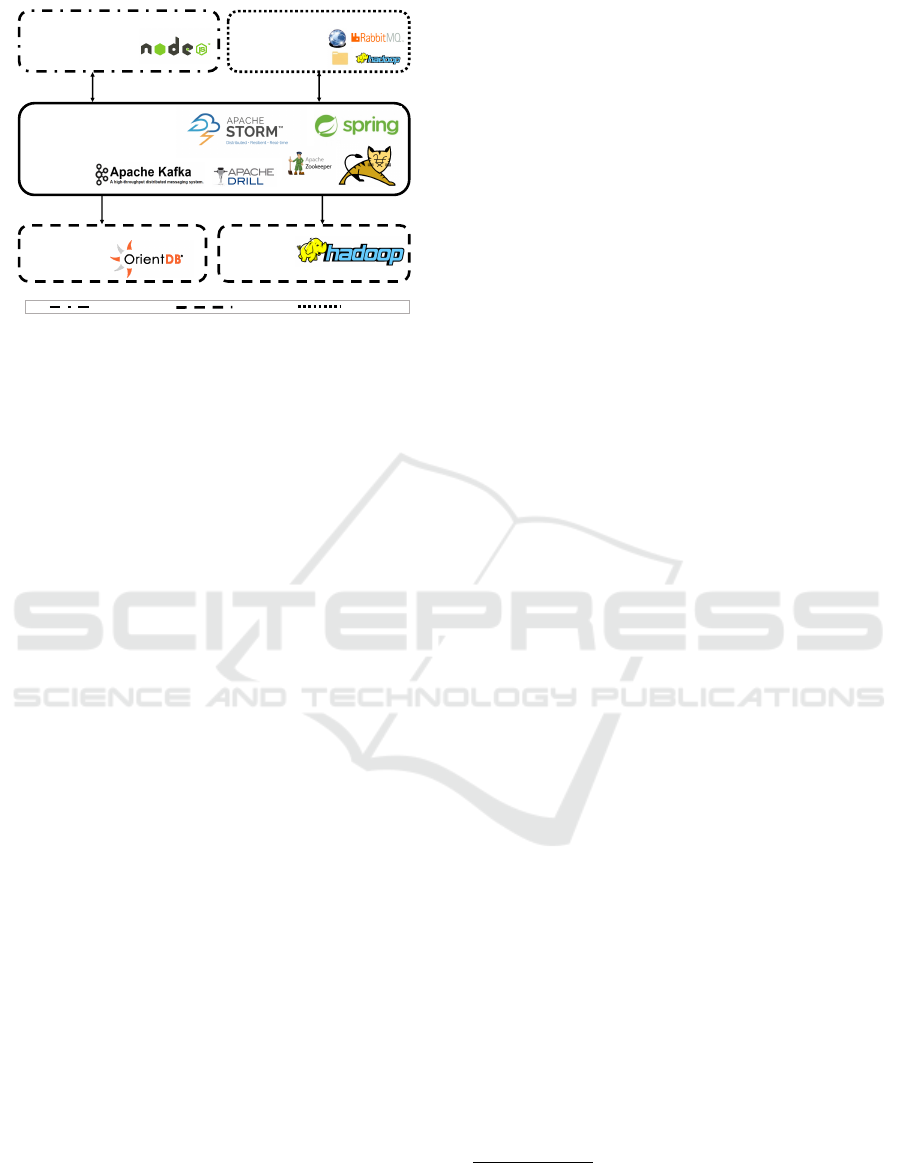

Figure 5: Overview about the architecture and technologies

of ESKAPE.

ferent requirements based on the use case, we offer

multiple approaches for the data extraction. The user

can either trigger the extraction for an available data

source on a semantic level by selecting a data source

and the semantic parts of it (e.g., selecting the con-

crete requested entity types) or by actively querying

for speciﬁc data sets using SQL, which, however, re-

quires the user to consider the semantic model.

For the semantic extraction, we offer the user to

perform additional ﬁlters and limits on the data and to

select a speciﬁc data format, such as XML or JSON,

in which the data should be extracted. The user can

also decide if she wants to receive the data as a stream

or as a ﬁle. When requesting batch data, a ﬁle can be

downloaded or emitted as stream for a certain amount

of time enabling the simulation of a data stream. For

streaming data, the data is sent directly to the user. We

do not offer to stream the data, which is persisted by

ESKAPE, into a ﬁle since it is identical to extracting

historic streaming data for a deﬁned time span.

The SQL extraction, on the other hand, addresses

expert users who want to perform more sophisticated

data extraction by using familiar SQL syntax on a se-

mantic level.

6 ARCHITECTURE AND

TECHNOLOGIES

To ensure scalability, reliability and performance of

ESKAPE, we are using technologies that allow us to

distribute tasks among a cluster. Figure 5 provides an

overview of the developed architecture and used tech-

nologies. The architecture of ESKAPE consists of a

data processing back end (Processing Core) and a vi-

sualization front end used to add data sources to ES-

KAPE, maintain their state and deﬁne their semantic

models. It also allows for deﬁning processing, e.g.,

enrichment steps on selected data sources and data

querying including visualization of the returned re-

sults. Furthermore, there exist several interfaces us-

ing popular data exchange formats to retrieve queried

and streaming data from ESKAPE.

To store the aforementioned knowledge graph and

the semantic models of each data source, we are us-

ing the graph database OrientDB

. Data storage is

handled in a Hadoop

cluster. This cluster contains

the raw acquired data from gathered data sources and

streams as well as the integrated data sets, including

enriched data sets and additional data from third-party

enhancements, such as text language analysis. The

cluster storage concept enables ESKAPE to redun-

dantly store all acquired data sets in the SLTFormat

(cf. Section 5.3).

ESKAPE performs data processing (cf. Section

5), in the Processing Core, which makes up for the

largest part of the platform. The Processing Core

uses Apache Storm

to process data sets in user-

deﬁned chains expressed as directed acyclic graphs

(DAGs) called topologies. A topology consists of

spouts, which represent various data sources, and

bolts, which contain processing logic inside the pro-

cess chain. Combining different spouts and bolts

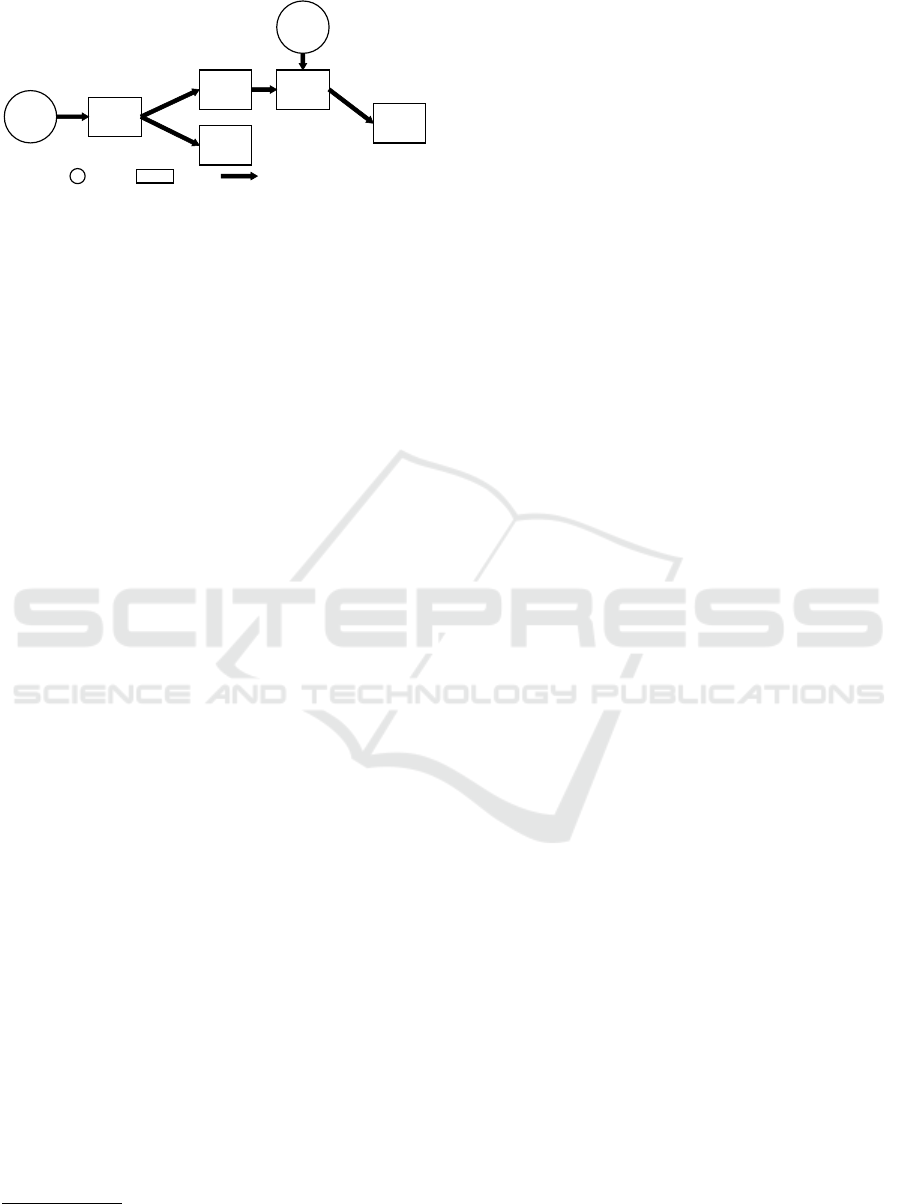

yield a DAG running in the Storm Cluster. Figure

6 shows an example of a simple stream processing

chain in a public transport domain. Each topology

is encapsulated in its own instance but may be dis-

tributed over several machines, called nodes. Those

topologies are used to form the processing part of any

heavy-weight operation as deﬁned in Section 5.4. For

each speciﬁc processing task, a new Storm topology

is created by ESKAPE, besides the always present

ones handling data integration and export. By design,

topologies run inﬁnitely, waiting for new data to be

emitted from the spouts, until ESKAPE shuts them

down. This is kept to process streaming data, how-

ever, on the batch integration part, a topology will be

shut down when the source does not yield any more

data. Continuous domain-speciﬁc data enrichment

tasks on integrated data sets deﬁned by users also tend

to run indeﬁnitely.

We implemented the communication between the

core platform and topologies running on the Storm

cluster using Apache Kafka

. It enables the core plat-

form to receive messages, such as errors or status up-

dates from all the topologies. Due to the Kafka de-

http://orientdb.com/orientdb/

http://hadoop.apache.org/

http://storm.apache.org/

http://kafka.apache.org/

ESKAPE: Information Platform for Enabling Semantic Data Processing

653

Stream

Stream-JSON

Converter

Hadoop

Persistor

Position

Computation

Delay

Computation

Database

Stream

Emitter

Spouts Bolts Data Flow

Figure 6: Example Storm processing chain for calculat-

ing public transportation delay from current vehicle posi-

tions, transmitted as a proprietary stream (not JSON), and

the scheduled timetable saved in the database.

sign, it also facilitates to directly persist those mes-

sages allowing for a detailed downstream analysis.

Data extraction from the Processing Core is done

in three ways. To distinguish between those ways,

one has to differentiate data extraction and data en-

richment. Topologies which are used to enrich data

contain a bolt to write the generated data back into

the Hadoop storage. In the case of stream process-

ing, the processed data is stored by default and also

forwarded to the aforementioned interfaces providing

data exchange technologies. ESKAPE currently sup-

ports stream-, HTTP- and ﬁle export, where in the

case of stream processing RabbitMQ

, an AMQP im-

plementation, is used.

To allow direct data extraction from the Hadoop

cluster (cf. Section 5.5), Apache Drill

provides an

interface to execute a limited set of SQL queries on

the integrated data. ESKAPE can then quickly export

the queried data from the Hadoop Cluster. If any kind

of processing is needed, which extends simple oper-

ations such as joining and ﬁltering data sets, a new

Storm topology is needed to handle those requests.

7 EVALUATION

As we could not evaluate ESKAPE in an enterprise

setting, we deﬁned an open-world scenario in the ﬁrst

place. For evaluating ESKAPE, we set up a hackathon

in which teams had to develop mobile applications

based on the data that were published on the plat-

form. The goal of this challenge was to get feedback

from users to identify potential design ﬂaws as well

as missing features.

To provide a sufﬁcient amount of data originating

from real-world sources, we teamed up with the local

city administration as well as local companies com-

ing from different domains. For example, the local

https://www.rabbitmq.com/

http://drill.apache.org/

bus company provided real-time data about the delay

of approaching buses for each stop via an HTTP API

and the regular schedule of each stop as CSV ﬁles.

Other parties published real-time weather data, the lo-

cations of available WiFi spots or the number of free

slots at bicycle rental stations. Altogether, nine differ-

ent parties provided 64 different data sets from which

15 were streaming data and 49 were batch data. All

streaming data was published via HTTP APIs, which

were polled in different time intervals (min=1min,

max=1day) whereas the batch data sets were pub-

lished as ﬁles (42) or via an HTTP API (7) without

any update frequency (one-time polling). From the

64 data sets, 20 were published as CSV, 11 as XLSX

(Excel), 2 as JSON Common, 2 as JSON Tabular, 10

as JSON Lines, 3 as PDF, 2 as SHP, 4 as WMS and 10

as XML Common. Since our prototype did not sup-

port all formats at the moment, we converted XLSX

ﬁles manually to CSV and we did not import PDF (not

a M2M format) as well as SHP and WMS resulting in

55 available data sets for the hackathon.

For developing applications, 92 persons grouped

into 25 teams participated in the hackathon. Each

submitted application used at least three different data

sets for developing their application. We discovered

that mobile applications developed for the Android

operating system requested the data as JSON whereas

the submitted iOS applications requested the data as

XML. Each team that requested data sets with the se-

mantic concept Temperature requested a conversion

before extracting the data from ESKAPE. Based on

interviews with the teams that used such features, we

conﬁrmed that the conversion for units as well as

formats simpliﬁes the development process for sev-

eral OS/platforms. However, we also received feed-

back about missing features, such as an HTTP API

(no team liked AMQP extraction) and merging of

data directly on ESKAPE (not enabled during the

hackathon). Two teams also requested to integrate

own processing logic into the processing pipelines,

which will be addressed by the analytic layer in the

future.

8 CONCLUSION AND FUTURE

WORK

In this paper, we presented our approach to enable se-

mantics in the continuously evolving (Industrial) In-

ternet of Things. The main idea to mitigate problems

of current solutions, such as dealing with heteroge-

neous data sources and deﬁning sophisticated static

ontologies, is a platform, called ESKAPE, that uses

semantic models based on a knowledge graph for de-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

654

scribing data sources. Instead of pre-deﬁning all con-

cepts and relations in the graph, we presented an ap-

proach where the graph is able to cope with new con-

cepts and relations from data sources that are added

to ESKAPE. To create the semantic models, we pro-

posed a detailed schema analysis for which we iden-

tiﬁed more ﬁne granular subtypes of data formats that

directly consider additional semantics, such as table

rows described in XML. Based on the schema analy-

sis and the user-deﬁned semantic models, the data is

integrated into a uniﬁed format that directly links se-

mantic concepts and data attributes. Afterwards, inte-

grated data can be used to perform data enrichment,

transformation and analysis and to extract the result

based on various approaches, such as SQL queries

or an extraction on a semantic level. The latter es-

pecially enables the subscription of processed, trans-

formed and enriched real-time data sources on a se-

mantic level, enabling true semantics for the Internet

of Things.

In the near future, we plan to improve the cur-

rent data processing by allowing the user to create

own topologies using the web interface. Currently,

all topologies are created and made available by ES-

KAPE’s developers. Enabling the user to create and

modify own topologies during runtime will allow for

complete autonomous usage of ESKAPE. Further-

more, modifying a pipeline requires a restart of the

running node resulting in potential data loss. A so-

phisticated buffering technique will prevent the data

loss during modiﬁcation.

In addition to these improvements, the user will

get advanced support when creating semantic mod-

els. Our goal is to analyze the given input data and

automatically propose a full semantic model to the

user. This requires more detailed analysis of the given

data attributes and machine learning approaches to

estimate the best assignment of Entity Concepts and

Types. In addition, adding the capability to change the

now ﬁxed semantic models during runtime will help

to adapt to changing data sources. By extending ES-

KAPE’s semantic search to support natural language

queries, we will additionally improve its usability.

Additional future work will focus on improving

the supervising of the knowledge graph creation. By

using appropriate machine learning approaches on the

provided data of the new concepts, we want to im-

prove the automatic supervising resulting in a more

resilient knowledge graph.

REFERENCES

Ahamed, B. and Ramkumar, T. (2016). Data integration-

challenges, techniques and future directions: A com-

prehensive study. Indian Journal of Science and Tech-

nology, 9(44).

Cambridge Semantics (2016). Anzo Smart Data Discovery.

http://www.cambridgesemantics.com/.

Dorsch, L. (2016). How to bridge the interoperability gap

in a smart city. http://blog.bosch-si.com/categories/

projects/2016/12/bridge-interoperability-gap-smart-

city-big-iot/.

Garcia-Molina, H., Hammer, J., Ireland, K., Papakonstanti-

nou, Y., Ullman, J., and Widom, J. (1995). Integrating

and accessing heterogeneous information sources in

tsimmis. In Proceedings of the AAAI Symposium on

Information Gathering, volume 3, pages 61–64.

Gupta, S., Szekely, P., Knoblock, C. A., Goel, A.,

Taheriyan, M., and Muslea, M. (2015). Karma: A

System for Mapping Structured Sources into the Se-

mantic Web: The Semantic Web: ESWC 2012 Satel-

lite Events: ESWC 2012 Satellite Events, Heraklion,

Crete, Greece, May 27-31, 2012.

He, S., Zou, X., Xiao, L., and Hu, J. (2014). Construc-

tion of diachronic ontologies from people’s daily of

ﬁfty years. In Proceedings of the Ninth International

Conference on Language Resources and Evaluation

(LREC 2014), Reykjavik, Iceland. ELRA.

Hepp, M., Bachlechner, D., and Siorpaes, K. (2006). On-

towiki: Community-driven ontology engineering and

ontology usage based on wikis. In Proceedings of

the 2006 International Symposium on Wikis, WikiSym

’06, pages 143–144, New York, NY, USA. ACM.

Knoblock, C. A. and Szekely, P. (2015). Exploiting seman-

tics for big data integration. AI Magazine.

Meisen, T., Meisen, P., Schilberg, D., and Jeschke, S.

(2012). Adaptive Information Integration: Bridging

the Semantic Gap between Numerical Simulations,

pages 51–65. Springer Berlin Heidelberg, Berlin, Hei-

delberg.

Palavalli, A., Karri, D., and Pasupuleti, S. (2016). Se-

mantic internet of things. In 2016 IEEE Tenth Inter-

national Conference on Semantic Computing (ICSC),

pages 91–95.

Taheriyan, M., Knoblock, C. A., Szekely, P., and Ambite,

J. L. (2014). A scalable approach to learn semantic

models of structured sources. In Proceedings of the

8th IEEE International Conference on Semantic Com-

puting (ICSC 2014).

Taheriyan, M., Knoblock, C. A., Szekely, P., and Ambite,

J. L. (2016). Learning the semantics of structured data

sources. Web Semantics: Science, Services and Agents

on the World Wide Web.

Xiao, L., Ruan, C., Yang, Zhang, J., and Hu, J. (2016). Do-

main ontology learning enhanced by optimized rela-

tion instance in dbpedia. In Proceedings of the Tenth

International Conference on Language Resources and

Evaluation (LREC 2016), Paris, France. ELRA.

ESKAPE: Information Platform for Enabling Semantic Data Processing

655
