Oil Portrait Snapshot Classification on Mobile

Yan Sun and Xiaomu Niu

School of Electronic Engineering and Computer Science, Queen Mary University of London, London, U.K.

Keywords: Scale-Invariant Feature Transform, Perception Hash, Support Vector Machines, Bag of Features, Perceptual

Hash Distance.

Abstract: In recent years, several art museums have developed smartphone applications as the e-guide in museums.

However few of them provide the function of instant retrieval and identification for a painting snapshot taken

by mobile. Therefore in this work we design and implement an oil portrait classification application on

smartphone. The accuracy of recognition suffers greatly by aberration, blur, geometric deformation and

shrinking due to the unprofessional quality of snapshots. Low-megapixel phone camera is another factor

downgrading the classification performance. Carefully studying the nature of such photos, we adopts the SIPH

algorithm (Scale-invariant feature transform based Image Perceptual Hashing)) to extract image features and

generate image information digests. Instead of popular conventional Hamming method, we applied an

effective method to calculate the perceptual distance. Testing results show that the proposed method conducts

satisfying performance on robustness and discriminability in portrait snapshot identification and feature

indexing.

1 INTRODUCTION

How to effectively analyze art paintings, understand

the subjects, recognize the style and identify the

corresponding artists have always been a challenge that

many computer scientists are eager to resolve since last

century. Quite a few research work have been

conducted in this area. For example, (Bartolini et al.,

2003) introduced and compared various image

processing techniques and algorithms which could be

applied in fine art researches. While work (Johnson et

al., 2008) presented an algorithm for certificating a

specific painting’s authenticity. Authors in (Nack et

al., 2001) proposed an approach that adopts low-level

descriptors to represent prototypical style elements,

and high-level conceptual descriptors to meet

contextual and intuitive demands. Other prior work

(Stork, 2009) (Martinez et al., 2002) (Pelagotti et al,

2008) have been carried out to study the similar

problems. However those methods mainly target at

professional high-resolution data and in the state of

theoretical evaluation. Practical applications which

could run on smartphones for multi-resolution

digitalized paintings are seldom investigated.

Resolution, aberration, light changes, and geometric

deformation are the main problems which exist in the

photos captured by smartphone camera. Moreover,

human perceptual and visual factors play important

roles in art identification which further complexes the

situation.

In this work, we developed a light weight software

on smartphone platform which can process and

analyze the oil portrait snapshots captured by the

mobile phone camera, aiming to classify the artist or

style of the paintings with feedback to the mobile

phone users. In order to reduce the interference caused

by the problems mentioned above, we adopt the SIPH

(SIFT (Scale-Invariant Feature Transform) based

Image Perception hash) to generate image digests. The

extracted features from SIPH are resistant to geometric

distortions such as shearing, scaling and rotation, as

well as with strong robustness to non-geometric attacks

including illumination changes, affine and projection

effects. Unlike the method of calculating perceptual

distance in image hash algorithm which only employs

the global threshold (Phash.org, 2016), we developed

a more effective method to calculate the perceptual

distance, with about 16% improvement under blur

influence, 8% improvement under mosaic and 7%

improvement under rotation and shearing as shown in

the testing results.

Besides the painting retrieval solution, a learning-

based classifier is also desired to classify a portrait

Sun Y. and Niu X.

Oil Portrait Snapshot Classiﬁcation on Mobile.

DOI: 10.5220/0006082401430149

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 143-149

ISBN: 978-989-758-225-7

143

which has no painting records in the current database.

Work (Gancarczyk and Sobczyk, 2013) proposed a

complex approach based on a data mining algorithm

which sets on a pixel level of the image to resolve the

tasks of art work identification and restoration. In this

paper, we adopted SVMs (Support Vector Machines)

classifier in conjunction with Bag of Features (BOF)

for machine learning and classification. To our best

knowledge, till now no similar work has been

presented in the literature. The main contributions of

the project are summarized as below:

 We design a light weight client and server

structure to allow photos taken by smartphone

camera can be processed and analysed at the

server side.

 We adopt the SIFT based perceptual hashing

method running at the server side to extract

prominent characteristics of images shoot by

smartphones. The approach has good

robustness to geometrical and non-geometrical

attacks and can effectively extract and match

visual features at different resolutions.

 We apply a new method which takes the human

perceptual factors into consideration in the

process of perceptual hash distance calculation

to further improve the accuracy. The distortion

of perceptual distance calculated from our

model is analysed by comparing with other

methods.

 A prototype implementation of the portrait

analysis application has been developed on

Android system with C#. The image processing

functions are realized at the server side to allow

the client side light weighted.

2 RELATED WORK

Interest operator is a method to extract significant

features of images, which are distinctive among

neighborhood pixels. In order to perform image

matching properly, the extracted features need to bear

a few properties and criteria (Haralick and Shapiro,

1992), such as distinctness, invariance, stability, global

uniqueness and interpretability. SIFT (Scale Invariant

Feature Transform) operator applies algorithms to

detect and describe local features in images by

transforming the image into a set of feature descriptors.

The algorithm used was firstly published by David

Lowe in 1999 (Lowe, 1999), and later improved in

2004. SIFT has good robustness to local geometric

distortion as invariant to variable attacks. As a stable

and robust interest operator, SIFT has been employed

in many different applications (Yun et al., 2007) (Tian

et al., 2014) ( Witek et al., 2014)( Susan et al., 2015),

yet few for art work analysis. According to the

theoretical and experimental results from (Koenderink,

1984) and (Lindeberg, 1998), feature detection using

SIFT follows five major filtering approach steps (Hess,

2010).Perceptual hashing (pHash) employs

algorithms to compare hashes in order to measure the

similarity between two objects. The essential

characteristics of pHash algorithm include perceptual

robustness, undirectional and collision resistance.

pHash can achieve image identification and

authentication by recognition and matching of image

digests. The PM function is to calculate the perceptual

hash distance between two media objects’ hash values:

),(

jiij

hhPMpd



(1)

where h

and h

indicate the hash values of two

media objects, and the perceptual distance pd

obtained using different computing methods, such as

Hamming distance, Manhattan Distance, Euclidean

distance and so on. Hamming is the most commonly

used.

In terms of machine learning, SVMs (Support

Vector Machines) are supervised-learning models

which applies learning algorithms to conduct data

analysis for classification or regression. In recent

years SVMs demonstrate the capability in pattern

recognition and classification problems (Vapnik,

1995). SVMs is developed from Statistical Learning

Theory and has many fine characters, such as

robustness, accuracy and effectiveness even with a

small training set (Vapnik, 1995), which is

particularly suitable for a smartphone app.

Derived from the Bag of Word (BOW), Bag of

features (BOF) is an algorithm model widely adopted

in computer vision area. Nowadays BOF becomes

more popular in the field of image classification. The

main idea of the BOF model is to treat images as

groups of independent patches, and to sample a

significant group of patches and generate visual

descriptors for each image. The distribution follows

the De Finetti’s Theorem (Kerns and Székely, 2006)

so the joint probability distribution underlying the

data can keep stable for transformation. Inspired by

above techniques, we employee the BOF based SIFT

combining with SVMs to construct the classifier.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

144

3 RECOMMENDATION SYSTEM

DESIGN

3.1 Hashing based Classifier Design

The whole process of image processing system can be

divided in two parts, “retrieval” and “classification”,

as in Figure 1. A modified hashing algorithm

combining with SIFT, called SIPH is adopted at the

server side. Figure 2 is the framework of proposed

SIPH algorithm. Firstly we select an arbitrary

hyperplane that passes through the mass center of

feature descriptors’ distribution to divide image

descriptors. Then we value each individual descriptor

as 1 or 0 according to its position to the hyperplane.

Totally N hyperplanes will be selected to repeat such

steps for each descriptor.

Eventually every selected descriptor will be given

an N-degree binary sequence, as an N*l hashes of the

image (image “fingerprint”). In general SIFT

algorithm, similarity of two images is measured by

calculating those interest points’ nearest neighbors.

And in traditional hash algorithm, rate of similarity

between two hashes is measured using the Hamming

distance (Choi and Park, 2012). For two tested image

hashes, the normalized Hamming distance (HD)

between them is defined equation (2):

nHnH









)()(

(2)

where H

and H

are the hash values of the l

and

images, L is the length of the hash value. The

normalized hamming distance HD between two image

hashes is negatively correlated to the similarity rate of

two images. The value of HD is approaching to 0 when

the two images become nearly identical. Referring to

(Watson, 1993), in this work, θ=0.5 is chosen to be the

threshold: if the HD < θ , the two images are

considered as similar; on the contrary, if HD > θ, or

they are considered as different.

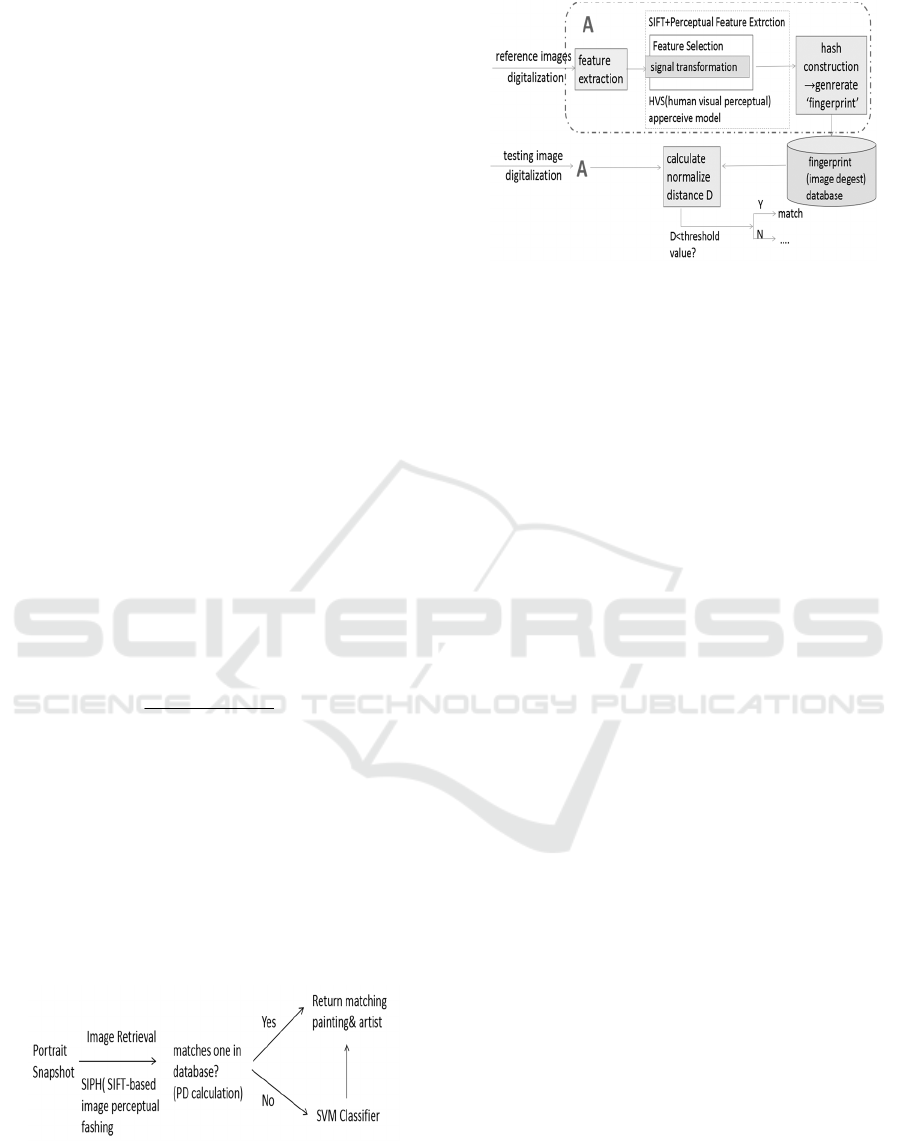

Figure 1: Overall Framework of the System.

Figure 2: Framework of SIPH algorithm.

In this work, we propose a novel method to

calculate the distance for similarity. Given two image

hash sequence b and b’ generated by SIPH procedure,

we consider each generated hash sequence as a number

of m-length binary strings. The number of binary

strings, the number of feature points and the size of the

string of images can be different from each other. For

the given sets of binary string of two images, b and b ',

we first find each element’s corresponding nearest

neighbor in the other set (N-length “0/1” string).

Nearest neighbors are defined as one element’s

corresponding binary strings in another collection

which have minimum hamming distance to the given

element, and the distance is less than a predefined

threshold β. Due to the high dimensionality of the hash

sequence of an image, the global threshold method is

not always the best solution. Therefore we employed a

method with more effectiveness with the following

steps:

1) Calculate the hamming distance between

given element and its nearest neighbour HD1 and

hamming distance between given element and its

second nearest neighbour HD2.

2) Then compare HD1/HD2 to a certain

threshold β1. If HD1/HD2<β1 is met, the

element matches its nearest neighbours.

3) After that calculate the ratio of matching

elements number N’ by min {size (b), size (b’)},

and the new perceptual distance was defined as

PD’ (3):

' _ '/ min{ ( ), ( ')}PD R ele N size b size b

(3)

where N’ is the total number of nearest elements

4) According to the testing results, we

calculated the new threshold β2. When

β2<PD’<1, as the value of PD’ increases, the

perceptual content of 2 images are more similar.

Oil Portrait Snapshot Classiﬁcation on Mobile

145

3.2 Learning based Classifier Design

For those oil portraits which has no matching image in

the current database, we design a machine learning

based classifier by applying SVMs (Support Vector

Machines) in conjunction with Bag of Features

(BOF). For the input data of training process, we

transfer the SIPH descriptors of portrait images into

visual key words using K-means clustering based on

BOF model.

Characterized by repetition, texture or brushwork

is recognized as a centralized expression of local

features, treated as basic element in this work. These

elements are clustered into k groups via k-means

clustering algorithm to form a word book. Those

groups act as visual vocabularies in the word book. In

order to allow the images to be described and

represented by the visual vocabularies in the word

book, each descriptor is expressed with a nearest

texture keyword in Euclidean distance which is to

minimize the sum of squared Euclidean distances

between the descriptors and their nearest cluster

centres. In that way, all the brush/texture descriptors

of the images can be replaced by visual keywords.

After that, by counting the number of descriptors

assigned to a centre, one image can be expressed as a

histogram of variable frequencies of texture keywords

predefined in the visual vocabulary dictionary

(codebook). It is assumed that each image can be

represented by a histogram:

),...,2,1( liRh





(4)

where l is the total number of the images.

SVMs model was firstly proposed by (Vapnik,

1995), which is widely adopted in many learning tasks

(Joachim, 1998) (Huang et al., 2002) (Roy, 2012). The

principle of SVM is employing a max-margin

classification hyper-plane. Given

),...,2,1)(,( liyx



while

represents the training dataset and

is the

corresponding label. Now we will solve the

optimization problem by maximizing the margin:

0and,...,1,1)(..

||||

min









iiii

Nibxwyts





）（

(5)

where C is the penalty factor, ξ is the slack factor

(Huang et al., 2002) (Roy, 2012), and w is the normal

value to the linear decision hyperplane. However only

a linear decision boundary (a hyperplane parametrized

by w) can be learned by this equation. In most of the

cases, the classes are not always separable by linear

boundaries. So the dual equation is adopted as (6):

(6)







jijiji

ayxKyyaa

111

),(

min





yats

0..

and

),...2,1(0 liCa





(6)

where a is Lagrange multiplier, By solving the

equation (6) , a can be obtained. Then we have (7) and

decision function (8):





iii

xyaw

(7)







jiiij

bxxKyay

),(

(8)

where K is the kernel function and b is a basis value.

Given

),...,3,2,1,(, ljiRxx





, the dual

formulation allows the use of the kernel trick and the

kernel function is defined as:

 )()(),(

jiji

xxxxK

(9)

where

 :

represents mapping the vector

Rx 

for input space to a high dimensional feature

space F.

A good SVM classifier is with satisfied

performance in terms of cohesion and separation. The

two terms based on the kernel function are defined in

(10) and (11) below:

 Cohesion: similarity within the class













)(

)(),()(),()(

)(

xxK

xxxxKw





(10)

 Separation: dissimilarity between classes











2211

)(,)(

),(

)(),()(

CxCxji

CxCx

xxK

xxKb



(11)

where

2,1,



are the centers of two clusters

(class), C1 represent Class 1, C2 represent Class 2, N1

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

146

represents the number of the cases in class 1 and N2

represents the number of the case in class 2.

To evaluate the quality of the classifier, we make

use of the combination of these two criteria as our

classification upper threshold, represented as Evl

(lower is better):

)(/)( KbKwEvl 

(12)

4 VALIDATION AND TESTING

In this work, the Mono for Android (developed by

Xamarin) is adopted to build the application client on

Android phone while running the core algorithms at

server side. C# language is chosen to write the core

algorithms of the application as it runs on the basis of

CLR (Common Language Runtime), which make it

easy to integrate with variable system and projects

written in other languages. The SVMs is implemented

in the libsvm package, which provides efficient multi-

class Support Vector Classification and Regression

results. Portrait paintings from two artists Rembrant

and Velasquezi are selected for classifying. In total,

we acquired 104 paintings of Rembrant and 52

paintings of Velasquez. Those portrait paintings were

downloaded from different online galleries. Therefore

the size, resolution and quality of images in database

vary a lot. This results in a more robust system to be

resistant to various attacks geometrically or non-

geometrically.

4.1 Validation of Hashing based

Classifier

We implement three different methods to verify the

robustness and accuracy of image matching of

proposed solution.



SIFT only: use SIFT operators to extract the

image feature points and quickly match the

closed/similar interest points



DCT based IPH: use DCT based perceptual

hash method to match the same image



SIFT based IPH: use the proposed method -

SIFT perceptual hash to match the image

The perceptual distance PD is calculated as

equation (8). Table 2:

Perceptual Distance of Three

Different Methods under various Attacks.

gives the PD

value between original portrait and the same image

after different kinds of attacks using three matching

approaches. The robustness and stability can be

estimated by the value of PD. The threshold in the

experiment was 0.5. Smaller PD value means better

robustness while when PD>0.5, the changes of images

are intolerable. From Table 2 and Table 2, the

proposed SIFT based perceptual hash method

performs better than the other two methods. It is also

worth pointing out that among all those attacks, the

Gaussian Noise is pretty severe for all three

approaches.

Table 1: Image identification accuracy of different

algorithms under Gaussian attacks.

Accuracy

Hamming

Distance

(θ  0.5

Nearest

Neighbour

(β1  0.8

Proposed

Method

(β2  0.6

Gaussian Noise

(μ  0.1

0.97 0.98 0.96

Gaussian Noise

(μ  0.5

0.83 0.87 0.90

Gaussian Noise

(μ  0.9

0.42 0.51 0.74

Table 2: Perceptual Distance of Three Different Methods

under various Attacks.

4.2 Oil Portrait Classification Testing

We test the smartphone application on both server side

and client side. The phone camera at the client takes

the pictures and sends them to the server via wireless

connections. At server side, the images are processed

by designed methods as introduced above. The

classification result is then feedback to the client via

wireless channel. Testing results are shown in Figure

3 to 6. Overall the implemented application is

functional well with satisfied classification accuracy.

Attack Intensity

PD of SIFT

only

PD of DCT

based IPH

PD of SIFT

based IPH

JPEG

1 (quality

factor)

0.046 0.022 0.058

Ga u s s ia n

Nois e

0.3

(average

value)

0.596 0.796 0.466

Median

Filtering

10 times 0.233 0.041 0.01

Blur 10 times 0.214 0.188 0.028

Rotation+

Shearing

10 degree 0.233 0.36 0.311

Mosaic

10 pixel-

window

0.099 0.1 0.011

Oil Portrait Snapshot Classiﬁcation on Mobile

147

Table 3: Accurate Rates of Classifying 2 Artists’ Portraits

with Different γ.



Accuracy

Classes γ= 2

= 3 γ= 4

= 5

Rembrand

81.97% 80.33% 77.05% 72.13%

Velasquez 83.02% 82.22% 79.02% 74.41%

Average 82.50% 81.28% 78.04% 76.77%

5 CONCLUSION

In this project, we design and implement an oil portrait

snapshot recognition application on smartphone. To

achieve successful classification of multi-resolution

digitalized image, we proposed an SIFT based pHash

to extract the image features and employed a

SIFT&BOF based SVM classifier. The results of

dimensional testing and experiments, the proposed

approach has a strong robustness and stability than

others algorithms and achieve an 82.5% accuracy on

classifying (identifying).

Figure 3: Server side: Noise added Testing Image--find a

closed one in training database.

Figure 4: Server Side: Noise and Scaling added Testing

Image --find a closed one in training database.

Figure 5: Client Side: Snapshot taken by smartphone --find

one consistent artist.

Figure 6: Client Side: Snapshot taken by smartphone -- find

a closed one in training database.

REFERENCES

Bartolini, F. et al., 2003. Applications of image processing

technologies to fine arts. In Optical Metrology (pp. 12-

23). International Society for Optics and Photonics.

Johnson, C. et al., 2008. Image processing for artist

identification. IEEE Signal Processing Magazine, 25(4),

pp.37-48.

Nack, F., et al., 2001. The role of high-level and low-level

features in style-based retrieval and generation of

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

148

multimedia presentations. New Review of Hypermedia

and Multimedia, 7(1), pp.39-65.

Stork, D. G., 2009. Computer vision and computer graphics

analysis of paintings and drawings: An introduction to

the literature. In International Conference on Computer

Analysis of Images and Patterns (pp.9-24). Springer

Berlin Heidelberg.

Martinez, K. et al., 2002. Ten years of art imaging research.

Proceedings of the IEEE, 90(1), pp.28-41.

Pelagotti, A. et al., 2008. Multispectral imaging of paintings.

IEEE Signal Processing Magazine, 25(4), pp.27-36.

Phash.org., 2014. pHash.org: Home of pHash, the open

source perceptual hash library. [online] Available at:

http://phash.org/ [Accessed 8 Sep. 2016].

Gancarczyk, J., Sobczyk, J., 2013. Data mining approach to

Image feature extraction in old painting restoration.

Foundations of Computing and Decision Sciences,

38(3): pp.159-174.

Haralick, R. and Shapiro, L., 1992. Computer and robot

vision. 2nd ed. Reading, Mass.: Addison-Wesley Pub.

Co., pp.78-120.

Lowe, D. G., 1999. Object recognition from local scale-

invariant features. In: Computer vision, 1999. The

proceedings of the seventh IEEE international

conference on (Vol. 2, pp. 1150-1157). Ieee.

Tian, X. et al., 2014. Feature integration of EODH and

Color-SIFT: Application to image retrieval based on

codebook. Signal Processing: Image Communication,

29(4), 530-545.

Yun S.U. et al., 2007. 3D scene reconstruction system with

hand-held stereo cameras. In: Proceedings of 3DTV

Conference, Kos Island, Greece, May 03-07, 2007.

Witek, J. et al., 2014. An application of machine learning

methods to structural interaction fingerprints—a case

study of kinase inhibitors. Bioorganic & medicinal

chemistry letters, 24(2), 580-585.

Susan, S. et al., 2015. Fuzzy match index for scale-invariant

feature transform (SIFT) features with application to

face recognition with weak supervision. IET Image

Processing, 9(11), 951-958..

Koenderink, J. J., 1984. The structure of images. Biological

cybernetics, Springer, 50(5), 363-370.

Lindeberg, T., 1998. Feature detection with automatic scale

selection. International journal of computer vision,

30(2), 79-116..

Hess, R., 2010. An open-source SIFT Library. In

Proceedings of the 18th ACM international conference

on Multimedia, ACM. pp. 1493-1496.

Vapnik, V., 1995. The Nature of Statistical Learning

Theory. Springer, New York, 2

edition.

Kerns, G. J., Székely, G. J., 2006. Definetti’s Theorem for

Abstract Finite Exchangeable Sequences. Journal of

Theoretical Probability, 19(3): 589-608.

Choi, Y. S., Park, J. H., 2012. Image hash generation method

using hierarchical histogram. Multimedia Tools and

Applications, 61(1): 181-194.

Joachims, T., 1998. Text categorization with support vector

machines—learning with many relevant features. In

Proceedings of the 10th European Conference on

Machine Learning, Chemnitz, Berlin Germany. pp. 137–

142.

Huang, C., Davis, L. S., Townshed, J. R. G., 2002. An

assessment of support vector machines for land cover

classification. International Journal of Remote Sensing,

23, 725–749.

Roy K., 2012. ART based clustering of bag-of-features for

image classification. In Image and Signal Processing

(CISP), 2012 5th International Congress on. IEEE.

A.B. Watson, 1993. DCT Quantization Matrices Visually

Optimized for Individual Images. Proc. SPIE, San Jose,

CA, USA, vol. 1913, Jan. 31, 1993, pp. 202–216.

Oil Portrait Snapshot Classiﬁcation on Mobile

149
