Cache Aware Instruction Accurate Simulation of a 3-D Coastal Ocean

Model on Low Power Hardware

Dominik Schoenwetter

, Alexander Ditter

, Vadym Aizinger

, Balthasar Reuter

and Dietmar Fey

Chair of Computer Science 3 (Computer Architecture), Friedrich-Alexander University Erlangen-N

urnberg (FAU),

Martensstr. 3, 91058, Erlangen, Germany

Chair of Applied Mathematics (AM1), Friedrich-Alexander University Erlangen-N

urnberg (FAU),

Cauerstr. 11, 91058, Erlangen, Germany

Keywords:

Environmental Modeling, Coastal Ocean Modeling and Simulation, Hardware Simulation, Hardware

Virtualization, Low Power Architectures.

Abstract:

High level hardware simulation and modeling techniques matured signiﬁcantly over the last years and have

become more and more important in practice, e.g., in the industrial hardware development and automotive

domain. Yet, there are many other challenging application areas such as numerical solvers for environmental

or disaster prediction problems, e.g., tsunami and storm surge simulations, that could greatly proﬁt from

accurate and efﬁcient hardware simulation. Such applications rely on complex mathematical models that

are discretized using suitable numerical methods, and require a close collaboration between mathematicians

and computer scientists to attain desired computational performance on current micro architectures and code

parallelization techniques to produce accurate simulation results as fast as possible. This complex and detailed

simulation requires a lot of time during preparation and execution. Especially the execution on non-standard

or new hardware may be challenging and potentially error prone. In this paper, we focus on a high level

simulation approach for determining accurate runtimes of applications using instruction accurate modeling

and simulation. We extend the basic instruction accurate simulation technology from OVP using cache models

in conjunction with a statistical cost function, which enables high precision and signiﬁcantly better runtime

predictions compared to the pure instruction accurate approach.

1 INTRODUCTION

Nowadays, unfortunately, the number of catastrophic

geophysical events like hurricanes or tsunamis is

steadily increasing. An important tool to predict

the implications of such natural disasters are accu-

rate simulations with regional or global ocean models

(two- or three-dimensional). To ensure in-time noti-

ﬁcation of to be affected regions, these simulations

have to be carried out in real time and the simulation

model has to offer sufﬁcient spatial resolution to guar-

antee no misestimation in the affected regions. More-

over, endangered regions often do not have reliable

communication and power infrastructure, which ren-

ders running such simulations and prediction on-site

difﬁcult or even impossible.

There is a number of state-of-the-art approaches

for ﬂood warning systems. Running simulations of

such numerical solvers at a coarser grid resolution or

relying on less accurate numerical methods are two of

that. Two other approaches are to scan a database of

precomputed scenarios, hoping to ﬁnd a similar set-

ting, or running the simulation not on-site but, e.g.

in a cloud environment. However, each of these ap-

proaches increases the risk of predicting either too

late or being too inaccurate, which can result in prop-

erty damage or even in loosing lives. As a conse-

quence, a minimum set of two requirements has to

be fulﬁlled, namely:

• The hardware must be able to complete the simu-

lation battery powered if the power infrastructure

collapses.

• The computation must be performed on-site to

guarantee in-time warning of inhabitants without

the need of a reliable communication network to

the rest of the world.

In 2015, we proposed a concept that enables the deter-

mination of suitable low power multi- and many-core

architectures for tsunami and storm surge simulations

fulﬁlling both of these requirements (Schoenwetter

et al., 2015). The concept relies on the virtual envi-

Schoenwetter, D., Ditter, A., Aizinger, V., Reuter, B. and Fey, D.

Cache Aware Instr uction Accurate Simulation of a 3-D Coastal Ocean Model on Low Power Hardware.

DOI: 10.5220/0006006501290137

In Proceedings of the 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2016), pages 129-137

ISBN: 978-989-758-199-1

129

ronment Open Virtual Platforms (OVP) to investigate

different hardware conﬁgurations, which enables em-

ulation and simulation of different low power multi-

and many-core hardware architectures on the instruc-

tion accurate level.

In this paper we investigate the accuracy of results

from the state-of-the-art instruction accurate simula-

tion environment OVP by means of comparing run-

time predictions for the NAS Parallel Benchmarks

with execution times on real hardware. We verify the

applicability of our ﬁndings to real world applications

on ARM

hardware by performing the same compar-

ison using the 3-D shallow-water solver UTBEST3D

(cf. Sec. 4.2).

Furthermore, we show how the accuracy with re-

spect to non-functional metrics such as runtime can be

improved by the addition of complex memory mod-

els. We present our developed memory and cache

models that can be used in conjunction with OVP as

well as a corresponding instrumentation mechanism

to track, record, and trace accesses to these models

within the simulation. Using this technique and mod-

els, we can offer a better understanding of memory

access patterns, which allows to analyze and compare

different algorithms and hardware systems. From

this, software and hardware developers can derive po-

tential improvements in their respective designs, al-

lowing for an overall better hardware-software co-

design. Furthermore, this approach permits a more

accurate performance modeling than conventional in-

struction accurate simulation techniques. For our

analysis and evaluation we compare the results from

our reference hardware, the Altera Cyclone V system

on chip (SoC) (cf. Sec. 3.2), to those obtained on the

emulated ARM part of the Altera SoC using OVP.

The rest of the paper is organized as follows: Sec-

tion 2 provides an overview of the state-of-the-art in

the use of low power architectures for high perfor-

mance computing (HPC) as well as approaches for

fast simulation and modeling. A description of the

simulation environment and used hardware is given

in Section 3, followed by details on the used bench-

marks and application in Section 4. Sections 5 and 6

present the instrumentation technique and obtained

results. The paper concludes with a summary and out-

look on future work.

2 RELATED WORK

In the last years, the research in the ﬁeld of of low

power architectures for high performance computing

http://www.arm.com/

(HPC) constantly increased.

Rajovic et al. highlighted that low power ARM

architectures have well suited characteristics for

HPC (Rajovic et al., 2013). Their investigations fo-

cused on reducing power consumption.

A study that had a detailed look on energy-to-

solution comparisons for different classes of numer-

ical methods for partial different equations by us-

ing various architectures was published by Goeddeke

et al. (G

oddeke et al., 2013). The results showed

that energy-to-solution and energy-per-time-step im-

provements up to a factor of three are possible when

using the ARM-based Tibidabo cluster (Rajovic et al.,

2014). This factor was determined by comparing

the Tibidabo cluster to a Nehalem-based x86 sub-

cluster of the LiDOng machine provided by TU Dort-

mund (ITMC TU Dortmund, 2015).

In 2013, Castro et al. (Castro et al., 2013)

compared the energy consumption and the perfor-

mance of different general-purpose as well as low

power architectures. They investigated energy- and

time-to-solution for the Traveling-Salesman prob-

lem on three architectures (Applegate et al., 2011),

namely an Intel Xeon E5-4640 Sandy Bridge-EP,

the low power Kalray MPPA-256 many-core pro-

cessor (KALRAY Corp., 2015) and the low power

CARMA board (NVIDIA Corp., 2015). In their study

both, the CARMA board as well as the MPPA proces-

sor, achieved better energy-to-solution results than the

Intel architecture.

Because of multi- and many-core hardware ar-

chitectures, detailed levels of modeling and simula-

tion are not an option, due to the fact that simula-

tion of such large systems is very time-consuming.

As a consequence, simulation approaches on higher

levels of abstraction are more promising. One such

approach is the statistical simulation, which mea-

sures and detects speciﬁc characteristics (branches,

load/store, etc.) during the execution of a program

and then generates a synthetic trace that guarantees

syntactical correctness. Afterwards, the trace is sim-

ulated (Eeckhout et al., 2004). The synthetic trace is

orders of magnitude smaller than the whole program.

As a consequence, the simulation is much more faster.

A concept of extending statistical simulation by

adding statistical memory modeling was put forward

by Genbrugge and Eeckhout in 2009 (Genbrugge and

Eeckhout, 2009). They model shared resources in

the memory subsystem of multi-processors as shared

caches, off-chip bandwidth and main memory.

An open-source hardware simulator for the

x86 architecture that uses various abstraction tech-

niques to provide accurate performance results is

Graphite (Miller et al., 2010), in which all hardware

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

130

models use further analytical timing models to guar-

antee accurate results. Using Graphite as the base,

Carlson et al. (Carlson et al., 2011) developed Sniper

that enhances the original simulator with an interval

simulation approach, a more detailed timing model,

and improvements concerning to operating system

modeling. Thus, exploring homogeneous and hetero-

geneous multi- and many-core architectures is faster

and more precise as in Graphite.

In the area of ﬂood prediction and ocean model-

ing, a broad number of numerical models is avail-

able and actively used. Due to the large domain

sizes and long simulation times, most applications

make use of parallelization techniques to reduce

the computation time, and for many of the estab-

lished frameworks exist performance studies or per-

formance models, e.g., POP (Worley and Levesque,

2004; Kerbyson and Jones, 2005), HYCOM (Wall-

craft et al., 2005; Barker and Kerbyson, 2005), FV-

COM (Cowles, 2008), HOMME (Nair et al., 2009),

ADCIRC (Tanaka et al., 2011; Dietrich et al., 2012),

MPAS (Ringler et al., 2013), or UTBEST3D (Reuter

et al., 2015).

Most of these codes employ numerical discretiza-

tions of lower order, based on Finite Difference, Fi-

nite Element, or Finite Volume schemes. However,

higher order numerical methods can be beneﬁcial in

the representation of convection dominated physical

processes, as outlined in a current paper by Shu (Shu,

2016). One such numerical scheme is the local dis-

continuous Galerkin method, introduced by Cockburn

and Shu (Cockburn and Shu, 1998) and applied to

geophysical ﬂows by Aizinger and Dawson (Aizinger

and Dawson, 2002; Dawson and Aizinger, 2005).

3 ENVIRONMENT

3.1 Simulation Environment

The simulation technology from Open Virtual Plat-

forms (OVP) runs unchanged binaries in an emulated

environment described by virtual hardware models,

which can contain multiple processors and peripheral

models. Its instruction accurate simulator was devel-

oped with high simulation speeds in mind and allows

to execute or debug applications (using the integrated

GDB interface) in the virtual environment, or evaluate

the virtual platform itself. OVP provides the ability to

create new processor models and other platform com-

ponents by writing C/C++ code using the application

programming interface (API) and libraries supplied

as part of OVP (Imperas Software Ltd., 2015).

The API deﬁnes a virtual hardware platform

called ICM (Innovative CPUManager Interface), that

includes functions for setting up, running and ter-

minating a simulation (icmInitPlatform, icmSimu-

latePlatform, icmTerminate), deﬁning components

for the simulation (e.g., icmNewProcessor), and

loading the application’s executable (icmLoadProces-

sorMemory).

icmInitPlatform(...);

icmNewProcessor(...);

icmLoadProcessorMemory(...);

icmSimulatePlatform(...);

icmTerminate(...);

Write Back Simulation Results

icmTerminate(...);

*.c

*.h

Cross-Compiler

Header Files Source Files

Cross-Assembler

Cross-Linker

*.lib

*.ld

Linker

ScriptLibraries

*.exe

Executable

Application

icmLoadProcessorMemory(...);

icmSimulatePlatform(...);

*.c

*.h

Host-Compiler

Header Files Source Files

Host-Assembler

Host-Linker

*.ld

ImperasLib

*.exe

Executable

Platform

Imp.

lib

Imp.

lib

RUN Executable Platform

Processor ApplicationHardware Platform

Simulation

Executable

Platform

Linker

Script

icmNewProcessor(...);

Figure 1: Operating Principle of Open Virtual Platforms

Simulations.

A minimal setup for an OVP simulation requires

the deﬁnition of one processor and an application that

is to be run on the virtual platform. Figure 1 gives

an example for such a setup using a processor model

and application both provided in the C programming

language.

OVP’s instruction accurate simulator represents

the functionality of a processor’s instruction execu-

tion without accounting for such artifacts as pipelines.

This is due to the fact that the provided instruc-

tion accurate simulation cannot make clear statements

about the time spent during pipeline stalls since cache

misses and other things are not modeled. Thus, con-

versions to runtimes will have limited accuracy when

compared to actual hardware.

The simulation environment can only provide the

total amount of instructions executed. Assuming

a perfect pipeline, where one instruction is executed

per cycle, the instruction count divided by the proces-

sor’s instruction rate in million instructions per sec-

ond (MIPS) yields the runtime of the program. To

measure the instruction counts within speciﬁc code

snippets of a larger application, the OVP simula-

Cache Aware Instruction Accurate Simulation of a 3-D Coastal Ocean Model on Low Power Hardware

131

Table 1: The speciﬁcations of the hard processor system on

the Altera Cyclone V SoC.

Processor: 2x ARM Cortex-A9 @ 925 MHz

Co-processor: 2x NEON SIMD double-precision FPU

Caches per proc.: 32 KiB instruction, 32 KiB L1

Shared caches: 512 KiB L2 cache

Main memory: 1 GiB DDR3 SDRAM

Mem. interface: 40-bit bus @ 400 MHz (25.6 Gbps)

tor provides the possibility for measuring instruction

counts in parts of a program.

3.2 Reference Hardware

We use Altera’s development kit board (Altera Corp.,

2016) with a Cyclone V SX SoC-FPGA as our refer-

ence hardware platform. This SoC-FPGA includes a

hard processor system (HPS) consisting of multipro-

cessor subsystem (MPU), multi-port SDRAM con-

troller, a set of peripheral controllers, and a high-

performance interconnect. The memory controller

supports command and data reordering, error correc-

tion code (ECC), and power management. Some rel-

evant speciﬁcations of the HPS are listed in Tab. 1.

The cache controller has a dedicated 64-bit master

port connected directly to the SDRAM controller and

a separate 64-bit master port connected to the system

level 3 (L3) interconnect. All blocks of the HPS are

connected with L3 multilayer AXI interconnect struc-

ture, and low-speed peripheral controllers reside on

the level 4 (L4) AXI buses that work in separate clock

domains for efﬁcient power management.

The programmable logic part of the SoC is a high-

performance 28 nm FPGA, which is connected to the

HPS part of the board via high-throughput (125 Gbps)

on-chip interfaces. All the applications presented in

this paper make only use of the HPS part of the SoC-

FPGA, the FPGA part is not used. The Cortex-A9

MPCore runs a Linux kernel version 3.16.0, and the

user space software is an ARM Arch Linux distribu-

tion utilizing a rolling release model.

3.3 Virtual Hardware

The virtual hardware description represents just the

relevant parts of the actual Altera Cyclone V SoC (Im-

peras Software Ltd., 2016) and neglects all units not

required for the execution of our benchmarks and ap-

plication. For example, the FPGA part of the board is

neither considered nor implemented in the virtualiza-

tion environment. Yet, all hardware components that

are necessary to run a Linux kernel and provide cor-

rect hardware functionality in our test cases are vir-

tualized. Fig. 2 depicts this subset of implemented

hardware components.

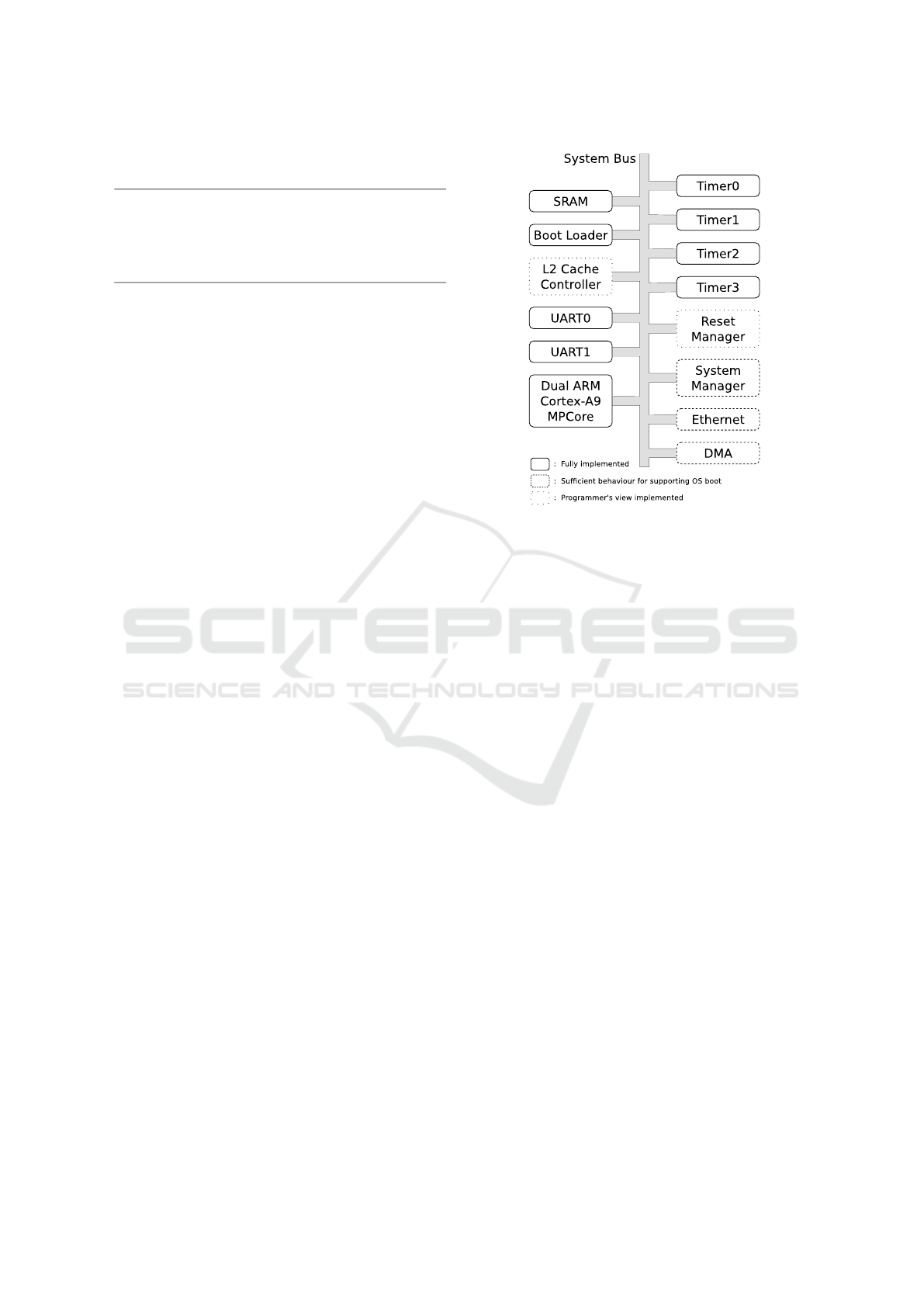

Figure 2: Schematic view of the implementation state of

the virtual Cyclone V SoC in OVP. All relevant hardware

components are sufﬁciently abstracted and implemented to

boot a 3.16 Linux kernel.

The virtual hardware is capable of booting the

same Linux kernel (3.16) as the real hardware. This is

very important for our considerations, as it does guar-

antee binary compatibility, i.e., the identical compiled

executable can be run on the real and virtualized hard-

ware.

4 APPLICATION AND

BENCHMARKS

Our investigations are based on an extensive artiﬁ-

cial benchmark set representing a broad range of typ-

ical computational ﬂuid dynamics (CFD) and HPC

application characteristics, e.g., compute and mem-

ory bound kernels. For that we use the NAS Paral-

lel Benchmark (NPB) suite (John Hardman, 2016),

i.e., the eight original benchmarks speciﬁed in NPB 1

consisting of ﬁve kernels and three pseudo applica-

tions. The ﬁndings from these benchmarks are ver-

iﬁed using a real world HPC application, the three-

dimensional regional ocean model UTBEST3D.The

individual characteristics of UTBEST3D and the

NAS benchmarks are described in the following.

We cross-compile the application and benchmarks

for both, real hardware as well as the OVP simula-

tion to ensure binary equality and thus the best possi-

ble comparability of the obtained results. For this,

we use gfortran-arm-linux-gnueabihf for the Fortan

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

132

based and gcc-arm-linux-gnueabihf for the C based

benchmarks (both in version 4.8.2) and run the same

binaries in the real and the virtual environment.

4.1 NAS Parallel Benchmarks (NPB)

Our benchmark suite consists of eight compute ker-

nels, which are listed in Tab. 2 and described in more

detail in the following.

Conjugate Gradient Benchmark – CG: This

benchmark computes an estimate of the largest

eigenvalue of a symmetric positive deﬁnite sparse

matrix using the conjugate gradient method (Bailey

et al., 1991). Its runtime is dominated by the sparse

matrix-vector-multiplication in the conjugate gradient

subroutine. Due to the random pattern of nonzero

entries in the matrix this requires a high number of

memory accesses, leading to a low computational

intensity of this memory bound benchmark.

Multi Grid Benchmark – MG: The MG bench-

mark is based on a multigrid kernel, which computes

an approximative solution of the three dimensional

Poisson problem. In each iteration of the algorithm,

the residual is evaluated and used to apply a cor-

rection to the current solution. Its most expensive

parts are the evaluation of the residual and the

application of the smoother, both of which are stencil

operations with constant coefﬁcients for the spec-

iﬁed problem. The update of a grid point involves

the values of neighboring points thus, even with

an optimal implementation, this requires between

four and eight additional memory access operations

per grid point. For constant stencil coefﬁcients,

the runtime is dominated by memory access rather

than the computational effort meaning that the MG

benchmark is memory bound.

Fourier Transform Benchmark – FT: The FT

benchmark solves a partial differential equation by

applying a Fast Fourier Transform (FFT) to the

original state array, multiplying the result by an

exponential, and using an inverse FFT to recompute

the original solution. Finally, a complex checksum

is computed to verify the result (Bailey et al., 1991).

The FFT implementation in the benchmark uses a

blocked variant of the Stockham FFT and dominates

the runtime of this benchmark. This procedure

is bound by memory operations however, due to

blocking, the limiting factor is not the memory but

rather the cache bandwidth.

Embarrassingly Parallel Benchmark – EP: EP is

an embarrassingly parallel kernel, which generates

pairs of Gaussian random deviates and tabulates

the number of pairs in successive square annuli,

a problem typical for many Monte Carlo simu-

lations (Bailey et al., 1991). The EP benchmark

is computationally expensive, complex operations

such as computation of logarithms and roots make

up a big portion of the total runtime whereas only

very few memory operations are necessary for both

random number generation and calculation of the

Gaussian pairs. The EP benchmark is compute bound.

Integer Sort Benchmarks – IS: This benchmark

sorts N integer keys in parallel, which are generated

by a sequential key generation algorithm. IS requires

ranking of an unsorted sequence of N keys, for which

the initial distribution of keys can have signiﬁcant

impact on the performance of the benchmark. Thus,

the initial sequence of keys is generated in a deﬁned

sequential manner. The performed sorting operations

are important in particle method codes and both,

integer computation speed as well as communication

performance are relevant (Bailey et al., 1991).

Lower Upper Benchmark – LU: LU uses a Gauss-

Seidel solver for lower and upper triangular systems

(regular-sparse, block size 5×5) resulting from a

discretization of compressible Navier-Stokes equa-

tions in a cubic domain and implements several

real-case features, e.g., a dissipation scheme. This

benchmark represents the computations associated

with the implicit operator of an implicit time-stepping

algorithm (Bailey et al., 1991).

Diagonal Block Matrix Benchmark – SP and BT:

The SP benchmark solves multiple, independent,

non diagonally dominant, penta-diagonal systems

of scalar equations. By contrast, BT solves multi-

ple, independent, non diagonally dominant, block

tri-diagonal systems of equations with block size

5×5. SP and BT are representatives of computations

associated with the implicit operators of CFD codes

and similar in many aspects with the essential

difference being the communication to computation

ratio (Bailey et al., 1991).

4.2 UTBEST3D

Our real-world application is UTBEST3D, a fully fea-

tured regional and coastal ocean model that, among

other applications, can be used for ﬂood prediction.

with a numerical solution algorithm The mathemat-

ical model is the system of hydrostatic primitive

equations with a free surface (Dawson and Aizinger,

Cache Aware Instruction Accurate Simulation of a 3-D Coastal Ocean Model on Low Power Hardware

133

Table 2: List of benchmarks in the NAS Parallel Benchmark suite with their respective characteristics.

Name Description Characteristic

CG Conjugate Gradient with irregular memory access and communication memory-bound

MG Multigrid on a sequence of meshes, long- and short-distance communication memory-bound

FT Discrete 3-D Fast Fourier Transform containing all-to-all communication cache-bandwidth bound

EP Embarrasingly parallel benchmark generating random numbers compute-bound

IS Integer sort with random memory access integer comp. / comm. speed

LU Lower-upper Gauss-Seidel solver with blocking CFD-kernel

BT Block tri-diagonal solver CFD-kernel

SP Scalar penta-diagonal solver CFD-kernel

2005; Aizinger et al., 2013; Reuter et al., 2015).

The discretization is based on the local discontin-

uous Galerkin (LDG) method (Cockburn and Shu,

1998) that represents a direct generalization of the

cell-centered ﬁnite volume method, the latter being

just the piecewise constant DG discretization. One of

the features of this method is a much smaller numeri-

cal diffusion exhibited by the linear and higher order

DG approximations compared to the ﬁnite difference

or ﬁnite volume discretization. The implementation

guarantees the element-wise conservation of all pri-

mary unknowns, supports an individual choice of the

approximation space for each prognostic and diagnos-

tic variable, demonstrates excellent stability proper-

ties, and can use mesh adaptivity.

The underlying prismatic mesh is obtained by,

ﬁrst, projecting a given unstructured triangular mesh

in the vertical direction to provide a continuous piece-

wise linear representation of the topography and the

free surface. The vertical columns are then subdi-

vided into layers. Due to the discontinuous nature of

the approximation spaces, no constraints need to be

enforced on the element connectivity. Hanging nodes

and mismatching elements are allowed and have no

adverse effects on stability or conservation proper-

ties of the scheme. This ﬂexibility with regard to

mesh geometry is exploited in several key parts of the

algorithm: vertical mesh construction in areas with

varying topography, local mesh adaptivity, and wet-

ting/drying.

UTBEST3D is written in C++ to provide clean

interfaces between geometrical, numerical, compu-

tational, and communication parts of the code. The

object-oriented coding paradigm is designed to enable

a labor efﬁcient development lifecycle of the model.

The programming techniques were carefully chosen

and tested with the view of guaranteeing a smooth

portability to different hardware architectures, oper-

ating systems, compilers, and software environments.

It is parallelized using MPI and OpenMP, however,

within this study only the serial and OpenMP-parallel

versions are used. A detailed description of the nu-

merical algorithm and the OpenMP-parallelization

can be found in (Reuter et al., 2015).

As model setup we choose a tidal scenario in

the Gulf of Mexico with an input mesh consisting

of ca. 15 000 triangles and up to 10 layers, result-

ing in ca. 18 000 prismatic elements. The simulations

are done using a barotropic model and an algebraic

vertical eddy viscosity parameterization with a total

of ca. 260 000 degrees of freedom. Simulated time

varies between 0.0001 days (UTB SER S / UTB OMP

S, cf. Sec. 6), 0.001 days (UTB SER M / UTB OMP

M), and 0.01 days (UTB SER L / UTB OMP L).

5 OVP INSTRUMENTATION AND

MODELING

The instruction accurate simulation environment of

OVP allows to track and trace each individual in-

struction in the program ﬂow. To utilize this func-

tionality to capture memory accesses, we designed

a light weight library that allows to start and stop the

recording of memory access instructions from within

the measured application to limit data acquisition to

the relevant region of interest. This can be simply

achieved by linking the application against our library

and calling the start / stop-routines before and after the

region of interest, respectively. Since most HPC ap-

plications are written in either C/C++ or Fortran, es-

pecially legacy applications use the Fortran program-

ming language, we have implemented the library in

C, allowing to interface with both programming lan-

guages and without any additional requirements.

Additionally to the development of our library, we

extended and enhanced an existing OVP cache model

for usage in conjunction with our library. That results

in separated and conﬁgurable L1 and L2 cache mod-

els. Both models consider and distinguish the amount

of cache read and write accesses. Due to further im-

provements of our model, we are now able to detect

which SMP CPU triggered the read or write access

for both, L1 and L2. By using a suitable cost function

(cf. Sec. 6), the cache read and write accesses can be

used to better estimate the runtime of the measured

application.

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

134

0.1

100

1000

BT CG EP FT IS LU MG SP

Runtime [seconds]

Benchmark / Application

Runtimes for NAS Parallel Benchmarks (Serial)

Runtime on real hardware

Runtime with cache model

Runtime without cache model

(a) Serial execution of NAS Parallel Benchmark.

0.1

100

1000

BT CG EP FT IS LU MG SP

Runtime [seconds]

Benchmark / Application

Runtimes for NAS Parallel Benchmarks (OMP-Parallel)

Runtime on real hardware

Runtime with cache model

Runtime without cache model

(b) OpenMP-Parallel execution of NAS Parallel Benchmark.

Figure 3: Comparison of runtimes for the execution on real hardware, along with OVP based simulations without a memory

model and the estimated runtimes based on our new cache model. In all cases our cache model improves the overall accuracy,

i.e., compared to the runtimes on real hardware, signiﬁcantly.

6 RESULTS

6.1 Benchmarks and Runtime

Estimates

We carried out extensive measurements for all NAS

benchmarks for both, serial and OpenMP parallelized

versions using problem class W, which is one of seven

supported classes and has a ﬁxed problem size for ev-

ery benchmark. All benchmarks are analyzed with

respect to their runtime behavior, i.e., we compare

the results from runs on the real hardware platform

with the runtimes in the simulation environment. For

the simulation we use two types of models: (i) a ba-

sic instruction accurate model and (ii) our extended

model including a level 1 (L1) and level 2 (L2) cache

(cf. Sec. 5). We conﬁgure the L1 and L2 cache in

our model in accordance with the reference hardware

platform (cf. Sec. 3.2).

Without our cache model, the basic runtime rt

basic

is estimated by dividing the total number of recorded

instructions from the instruction accurate simulation

by the ARM Cortex-A9 CPU’s clock speed

basic

#Instr

925 MHz

. (1)

Our observation (cf. Fig. 3) is that, generally, the es-

timated runtime rt

basic

using the basic instruction ac-

curate model in the simulation is lower than the exe-

cution on the real hardware. This is easily explained

with the fact that the simulation does not account for

the additional overhead connected to cache misses

in real hardware. The simulator assumes a constant

and thus generally too low latency for each mem-

ory access. In conjunction with our cache model,

we use a modiﬁed runtime estimate rt

cache

by adding

a penalty corresponding to the number of addition-

ally required cycles associated with an L1 or L2 cache

miss to the basic runtime estimate (1) and obtain the

total runtime as

cache

= rt

basic

+ rt

pen

. (2)

Using the recorded number of L1 cache misses (L2

cache hits) and L2 cache misses we can derive a

generic cost function

pen

#L1

miss

· 6 + #L2

miss

· 88

925 MHz

, (3)

where the penalty of 6 cycles for an L1 cache miss

(L2 cache hit) is based on the data sheet, stating a

best case delay of 6 cycles for an L1 cache miss. The

penalty of 88 cycles for L2 cache misses (data to be

fetched from main memory) was determined by us via

empirical testing.

When running the simulations with our cache

model, the results become more accurate (cf. Fig. 3).

In the best case, there is a deviation less than one per-

cent (serial SP benchmark). The same holds for the

case of OpenMP parallelization: the results are get-

ting more precise for all benchmarks when compared

to the basic instruction accurate simulations without

a cache model. While compute-bound benchmarks

(e.g., EP) still leave some room for improvement, sce-

narios that are dominated by memory access opera-

tions (such as memory bound benchmarks and CFD-

kernels) gain the most from the cache model.

6.2 Application Results

We verify our runtime estimation model (2) by

comparing the results obtained for the application

Cache Aware Instruction Accurate Simulation of a 3-D Coastal Ocean Model on Low Power Hardware

135

UTBEST3D on real hardware and in the simulation

environment. We measure a serial and an OpenMP-

parallel version of UTBEST3D with different simula-

tion lengths, divided into the three classes S, M, and

L (cf. Sec. 4.2). The results are shown in Fig. 4.

0.1

100

1000

10000

UTB SER S UTB SER M UTB SER L UTB OMP S UTB OMP M UTB OMP L

Runtime [seconds]

Benchmark / Application

Runtimes for UTBEST3D

Runtime on real hardware

Runtime with cache model

Runtime without cache model

Figure 4: Comparison of runtimes for the execution on

real hardware, along with OVP based simulations without

a memory model and the estimated runtimes based on our

new cache model for UTBEST3D.

Clearly, the runtime predictions for the real world

application are more accurate when using the cache

model with cost function (3) than the estimates ob-

tained from the basic instruction accurate simulation.

This conﬁrms our ﬁndings from the benchmark runs.

7 CONCLUSION AND FUTURE

WORK

In this paper, we investigate and improve the basic

instruction accurate simulation technology from OVP

in order to obtain more accurate results with respect

to the runtime prediction of applications. Our results

show that state-of-the-art instruction accurate simu-

lation can be signiﬁcantly enhanced by the use of

hardware speciﬁc cache models. This is an important

ﬁrst step towards increasing the accuracy of the hard-

ware simulation at little additional runtime overhead.

It is especially important as both complexity as well

as execution time for simulations of future software

systems are expected to increase steadily. Further-

more, the complexity for simulations increases expo-

nentially with the complexity and size of the simu-

lated software and hardware.

We use the NAS Parallel Benchmark suite, a se-

lection of individual serial and parallel kernels that

contains a broad and representative set of applications

corresponding to application classes in the HPC do-

main to quantify the improvements provided by our

cache model. These ﬁndings are conﬁrmed using the

real-world application UTBEST3D.

As a next step, we are going to develop and an-

alyze the impact of statistical pipeline models on the

accuracy of simulations. Since each additional level

of accuracy in the modeling phase corresponds to ad-

ditional overhead in the runtime of the simulations,

our goal is to ﬁnd the sweet spot between simulation

accuracy and runtime.

REFERENCES

Aizinger, V. and Dawson, C. (2002). A discontinuous

Galerkin method for two-dimensional ﬂow and trans-

port in shallow water. Advances in Water Resources,

25(1):67–84.

Aizinger, V., Proft, J., Dawson, C., Pothina, D., and Ne-

gusse, S. (2013). A three-dimensional discontinuous

Galerkin model applied to the baroclinic simulation of

Corpus Christi Bay. Ocean Dynamics, 63(1):89–113.

Altera Corp. (2016). Cyclone V SoC Develop-

ment Kit User Guide. https://www.altera.com/

en US/pdfs/literature/ug/ug cv soc dev kit.pdf. Last

visit on 31.03.2016.

Applegate, D., Bixby, R., Chv

atal, V., and Cook, W. (2011).

The Traveling Salesman Problem: A Computational

Study: A Computational Study. Princeton Series in

Applied Mathematics. Princeton University Press.

Bailey, D. H., Barszcz, E., Barton, J. T., Browning, D. S.,

Carter, R. L., Dagum, L., Fatoohi, R. A., Fred-

erickson, P. O., Lasinski, T. A., Schreiber, R. S.,

et al. (1991). The NAS parallel benchmarks – sum-

mary and preliminary results. In Proceedings of

the 1991 ACM/IEEE conference on Supercomputing,

pages 158–165. ACM.

Barker, K. and Kerbyson, D. (2005). A performance model

and scalability analysis of the hycom ocean simulation

application. In Proc. IASTED Int. Conf. On Parallel

and Distributed Computing.

Carlson, T. E., Heirman, W., and Eeckhout, L. (2011).

Sniper: Exploring the level of abstraction for scalable

and accurate parallel multi-core simulations. In In-

ternational Conference for High Performance Com-

puting, Networking, Storage and Analysis (SC), pages

52:1–52:12.

Castro, M., Francesquini, E., Ngu

e, T. M., and M

ehaut, J.-

F. (2013). Analysis of computing and energy perfor-

mance of multicore, numa, and manycore platforms

for an irregular application. In Proceedings of the

3rd Workshop on Irregular Applications: Architec-

tures and Algorithms, IA3 ’13, pages 5:1–5:8, New

York, NY, USA. ACM.

Cockburn, B. and Shu, C.-W. (1998). The Local Dis-

continuous Galerkin Method for Time-Dependent

Convection-Diffusion Systems. SIAM Journal on Nu-

merical Analysis, 35(6):2440–2463.

Cowles, G. W. (2008). Parallelization of the FVCOM

coastal ocean model. International Journal of High

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

136

Performance Computing Applications, 22(2):177–

193.

Dawson, C. and Aizinger, V. (2005). A discontinuous

Galerkin method for three-dimensional shallow wa-

ter equations. Journal of Scientiﬁc Computing, 22(1-

3):245–267.

Dietrich, J., Tanaka, S., Westerink, J., Dawson, C., Luet-

tich, R.A., J., Zijlema, M., Holthuijsen, L., Smith, J.,

Westerink, L., and Westerink, H. (2012). Performance

of the unstructured-mesh, swan+adcirc model in com-

puting hurricane waves and surge. Journal of Scien-

tiﬁc Computing, 52(2):468–497.

Eeckhout, L., Bell, R. H., Stougie, B., De Bosschere, K.,

and John, L. K. (2004). Control ﬂow modeling in

statistical simulation for accurate and efﬁcient proces-

sor design studies. In Proceedings of the 31st Annual

International Symposium on Computer Architecture,

2004, pages 350–361. IEEE.

Genbrugge, D. and Eeckhout, L. (2009). Chip Multi-

processor Design Space Exploration through Statis-

tical Simulation. Computers, IEEE Transactions on,

58(12):1668–1681.

oddeke, D., Komatitsch, D., Geveler, M., Ribbrock, D.,

Rajovic, N., Puzovic, N., and Ramirez, A. (2013). En-

ergy efﬁciency vs. performance of the numerical solu-

tion of PDEs: An application study on a low-power

ARM-based cluster. J. Comput. Phys., 237:132–150.

Imperas Software Ltd. (2015). OVP Guide to Using Pro-

cessor Models. Imperas Buildings, North Weston,

Thame, Oxfordshire, OX9 2HA, UK. Version 0.5,

docs@imperas.com.

Imperas Software Ltd. (2016). De-

scription of Altera Cyclone V SoC.

http://www.ovpworld.org/library/wikka.php?wakka=

AlteraCycloneVHPS. Last visit on 31.03.2016.

ITMC TU Dortmund (2015). Ofﬁcial

LiDO website. https://www.itmc.uni-

dortmund.de/dienste/hochleistungsrechnen/lido.html.

Last visit on 26.03.2015.

John Hardman (2016). Ofﬁcial NAS Parallel Bench-

marks Website. http://www.nas.nasa.gov/ publica-

tions/npb.html. Last visit on 12.04.2016.

KALRAY Corp. (2015). Ofﬁcial kalray mppa proces-

sor website. http://www.kalrayinc.com/kalray/ prod-

ucts/#processors. Last visit on 31.03.2015.

Kerbyson, D. J. and Jones, P. W. (2005). A performance

model of the parallel ocean program. International

Journal of High Performance Computing Applica-

tions, 19(3):261–276.

Miller, J., Kasture, H., Kurian, G., Gruenwald, C., Beck-

mann, N., Celio, C., Eastep, J., and Agarwal, A.

(2010). Graphite: A distributed parallel simulator for

multicores. In IEEE 16th International Symposium on

High Performance Computer Architecture (HPCA),

2010, pages 1–12.

Nair, R., Choi, H.-W., and Tufo, H. (2009). Computa-

tional aspects of a scalable high-order discontinuous

galerkin atmospheric dynamical core. Computers &

Fluids, 38(2):309 – 319.

NVIDIA Corp. (2015). Ofﬁcial NVIDIA SECO develop-

ment kit website. https://developer.nvidia.com/seco-

development-kit. Last visit on 31.03.2015.

Rajovic, N., Carpenter, P. M., Gelado, I., Puzovic, N.,

Ramirez, A., and Valero, M. (2013). Supercomput-

ing with commodity cpus: Are mobile SoCs ready for

HPC? In Proceedings of the International Confer-

ence on High Performance Computing, Networking,

Storage and Analysis, SC ’13, pages 40:1–40:12, New

York, NY, USA. ACM.

Rajovic, N., Rico, A., Puzovic, N., Adeniyi-Jones, C., and

Ramirez, A. (2014). Tibidabo: Making the case for an

ARM-based HPC system. Future Generation Com-

puter Systems, 36(0):322 – 334.

Reuter, B., Aizinger, V., and K

ostler, H. (2015). A multi-

platform scaling study for an OpenMP parallelization

of a discontinuous Galerkin ocean model. Comput

Fluids, 117:325 – 335.

Ringler, T., Petersen, M., Higdon, R. L., Jacobsen, D.,

Jones, P. W., and Maltrud, M. (2013). A multi-

resolution approach to global ocean modeling. Ocean

Modelling, 69:211 – 232.

Schoenwetter, D., Ditter, A., Kleinert, B., Hendricks, A.,

Aizinger, V., K

ostler, H., and Fey, D. (2015). Tsunami

and Storm Surge Simulation using Low Power Ar-

chitectures – Concept and Evaluation. In SIMUL-

TECH 2015 - Proceedings of the 5th International

Conference on Simulation and Modeling Methodolo-

gies, Technologies and Applications, pages 377–382.

Shu, C.-W. (2016). High order {WENO} and {DG} meth-

ods for time-dependent convection-dominated pdes:

A brief survey of several recent developments. Jour-

nal of Computational Physics, 316:598 – 613.

Tanaka, S., Bunya, S., Westerink, J. J., Dawson, C., and

Luettich, R. A. (2011). Scalability of an unstructured

grid continuous galerkin based hurricane storm surge

model. J. Sci. Comput., 46(3):329–358.

Wallcraft, A., Hurlburt, H., Townsend, T., and Chassignet,

E. (2005). 1/25 degree atlantic ocean simulation using

hycom. In Users Group Conference, 2005, pages 222–

225.

Worley, P. and Levesque, J. (2004). The performance evo-

lution of the parallel ocean program on the cray x1. In

Proceedings of the 46th Cray User Group Conference,

pages 17–21.

Cache Aware Instruction Accurate Simulation of a 3-D Coastal Ocean Model on Low Power Hardware

137
