HLogo: A Parallel Haskell Variant of NetLogo

Nikolaos Bezirgiannis

, I. S. W. B. Prasetya

and Ilias Sakellariou

Centrum Wiskunde & Informatica (CWI), P.O. Box 94079, 1090 GB, Amsterdam, The Netherlands

Dept. of Inf. and Comp. Sciences, Utrecht University, P.O. Box 80.089, 3508 TB, Utrecht, The Netherlands

Dept. of Applied Informatics, University of Macedonia,156 Egnatia Str. 54636, Thessaloniki, Greece

Keywords:

Agent-based Modeling, Agent-based Simulation, Concurrent Agent-based Simulation, Concurrent NetLogo.

Abstract:

Agent-based Modeling (ABM) has become quite popular to the simulation community for its usability and

wide area of applicability. However, speed is not usually a trait that ABM tools are characterized of attaining.

This paper presents HLogo, a parallel variant of the NetLogo ABM framework, that seeks to increase the

performance of ABM by utilizing Software Transactional Memory and multi-core CPUs, all the while main-

taining the user friendliness of NetLogo. HLogo is implemented as a Domain Speciﬁc Language embedded in

the functional language Haskell, which means that it also inherits Haskell’s features, such as its static typing.

1 INTRODUCTION

Agent-based Modeling (ABM) is a computer simula-

tion technique that uses intelligent agents as its build-

ing blocks. ABM has gained traction lately, espe-

cially for its ease of use and broad applicability, e.g.

in social sciences (Epstein and Axtell, 1996), ecol-

ogy (Grimm et al., 2005), biology (Pogson et al.,

2006), and physics (Wilensky, 2003). ABM offers

the right level of abstractions to construct large agent

populations that can exhibit interesting (from a sim-

ulation perspective) emergent patterns. This success

of ABM sprang off numerous frameworks to allevi-

ate the development of agent-based models (Tobias

and Hofmann, 2004; Railsback et al., 2006; Cas-

tle and Crooks, 2006). While research has been fo-

cused on the methodology (Salamon, 2011), ease of

use (Wilkerson-Jerde and Wilensky, 2010), portabil-

ity (Grimm et al., 2006) and expressiveness (Sakel-

lariou et al., 2008) of agent-based models, little has

been done in improving the performance of available

ABM frameworks (Riley and Riley, 2003).

The execution performance of ABM limits the

agent population size and increases simulation time,

which may impact the emergenceof sought-after phe-

nomena. To this end, we propose in this paper a new

ABM framework called HLogo, that strives to speed

up the simulation execution by harvesting the avail-

able parallelism of the ubiquitous, modern multi-core

CPUs. The framework’s language&engine is imple-

mented entirely in Haskell and is inspired much for

its user-friendliness by NetLogo (Wilensky, 1999), ar-

guably one of the most well-known and widely-used

ABM framework. Unlike NetLogo, our framework

offers three unique features which also constitute the

main contribution of this paper:

• agents inside the simulation framework can run

concurrently by utilizing a technology called

Software Transactional Memory (STM) (Shavit

and Touitou, 1995). Coupled with Haskell’s

lightweight (green) threads, the overall ABM exe-

cution enjoys signiﬁcant beneﬁts from multi-core

parallelism.

• the framework is embedded as a Domain Speciﬁc

Language (eDSL), which comes with the advan-

tage of ease of language, framework, and program

extensibility (via modules and plugins), but limits

the syntax to that of the host language Haskell.

• the HLogo language is statically typed with type

inference, which strengthens the ABM program

safety, yet not burden the user with writing type

annotations.

The rest of this paper is organised as follows. Sec-

tion 2 introduces the main concepts of ABM and their

realization in the HLogo language. Section 3 explains

how HLogo implements multi-core execution. In Sec-

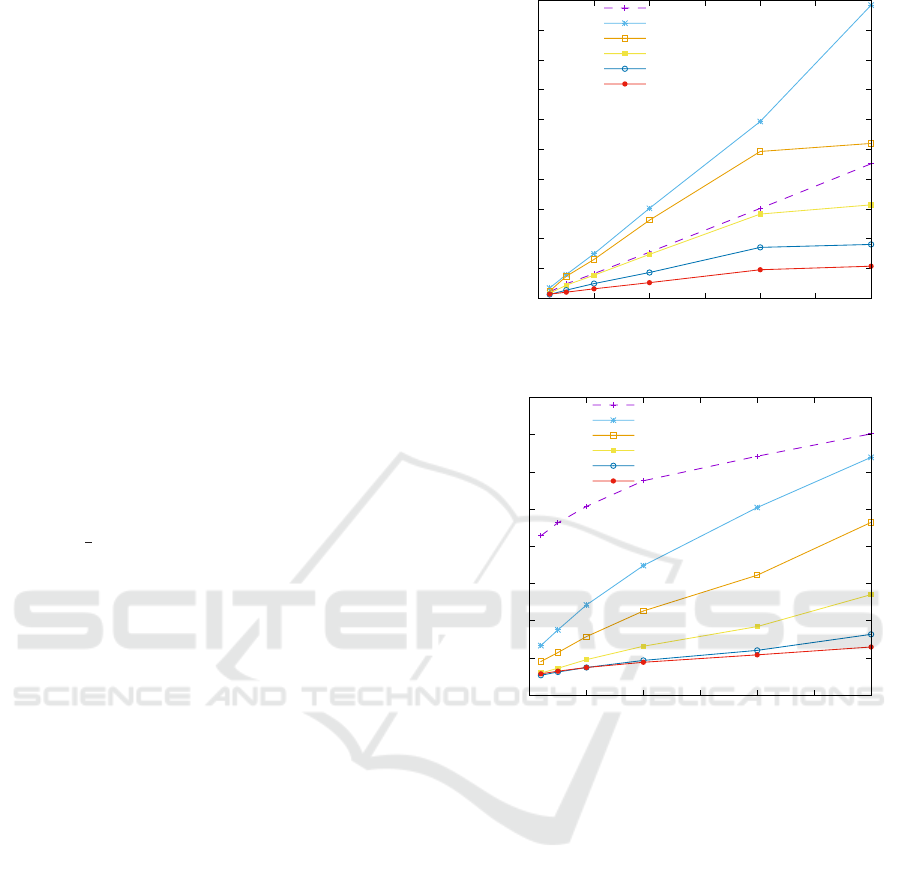

tion 4 we show the performanceand scalability results

of our benchmarking, which also includes a compari-

son with NetLogo. In Section 5 we visit related work

and how others have addressed the same problem. Fi-

Bezirgiannis, N., Prasetya, I. and Sakellariou, I.

HLogo: A Parallel Haskell Variant of NetLogo.

DOI: 10.5220/0005983501190128

In Proceedings of the 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2016), pages 119-128

ISBN: 978-989-758-199-1

119

nally, Section 6 maps out future research and con-

cludes.

2 HLOGO’S LANGUAGE

2.1 Main ABM Concepts

An agent-based model is a system of multiple agents

which are stateful entities, capable of carrying out ac-

tions and interact with each other. A simulation run

is the execution of such an agent model, where the

agents ‘drive’ the computation. Following NetLogo’s

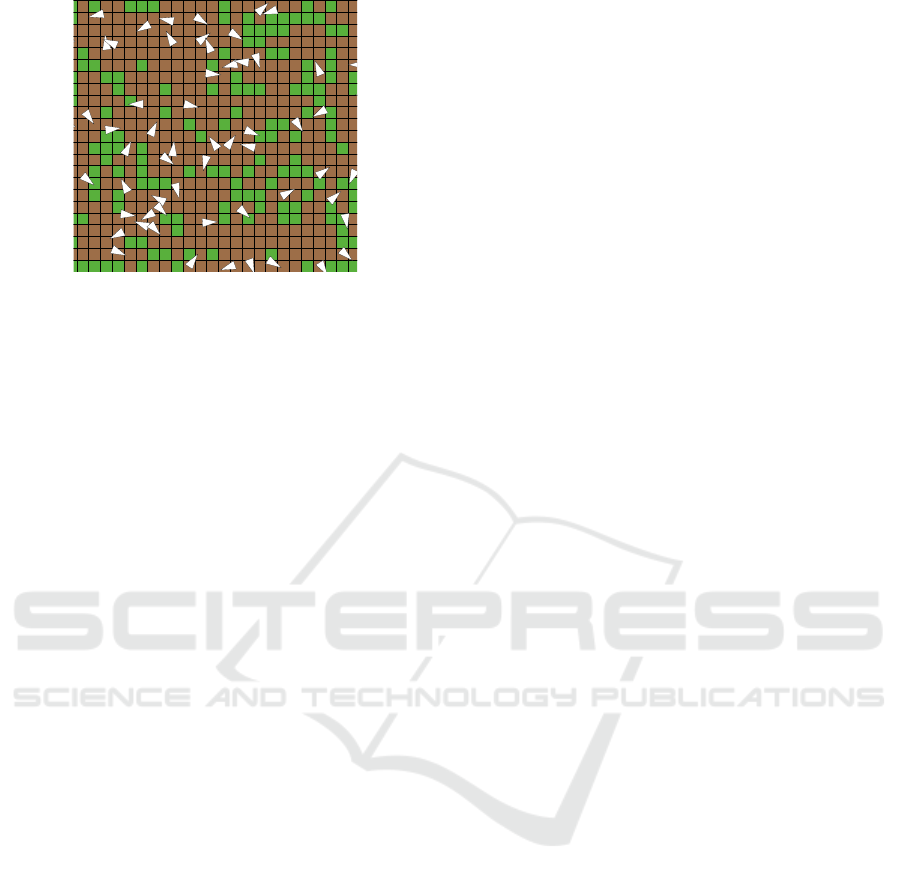

conventions, agents live in a tiled 2D and drawable

environment, which we will refer to as the canvas.

There are three types of agents: patches, turtles

, and

links. Patches are stationary, occupying a single tile

on the canvas; they are statically created at the start

of a simulation run and cannot be later destroyed.

Turtles can be programmatically created&destroyed,

and move around the canvas. Links are agents with a

dynamic lifespan as well; each representing a connec-

tion between two turtles.

Each type of agent has a different set of muta-

ble attributes that form its state; e.g. turtles have at-

tributes xcor and ycor to represent their position on

the canvas, patches have attribute pcolor to represent

the color of the tile, etc.. Besides standard attributes,

the user may introduce new attributes to the agents

by deﬁning ‘breeds’. A breed extends an agent-type

(turtle or link) with custom attributes, similar to the

object-oriented concept of ﬁnal class (cannot be fur-

ther subclassed). For example, the NetLogo code be-

low declares a turtle-breed called cows, with age and

hunger as extra attributes:

breed [cows cow]

cows-own [age hunger]

The declaration implicitly creates a global variable

cows

that contains all currently alive cows, as well as

getters and setters (such as

hunger

and

set hunger

)

to get and set the attributes of a cow.

An agent can command any other agent to ex-

ecute some code (e.g. for changing its state or

interacting with each other) through the

ask

oper-

ation. For example, if T is a set of cows, the

NetLogo statement

ask T [set color brown set

hunger 0]

commands every cow in T to change the

color of the patch it is currently on to brown (e.g. to

represent that the cow has eaten all the grass in the

Historically, the concept of ’turtle’ has its origin in the ed-

ucational programming language Logo, which was inspi-

rational for NetLogo.

patch), and then set its hunger attribute to 0 (repre-

senting ‘not hungry’). Two other operations are pro-

vided: ‘of’ queries a set of agents for their values, e.g.

[xcor] of turtles

, and ‘with’ ﬁlters an agentset

based on a given predicate, e.g.

patches with [

color = red]

. Besides built-in commands (e.g.

set

), an agent can execute custom commands by user-

deﬁned procedures. Lastly, the built-in variables

self

and

myself

refer to the currently executing agent

(similar to ‘this’ in OO), and the parent caller that

ask

ed this agent, respectively.

2.2 Haskell Embedding

Both NetLogo and HLogo are Domain Speciﬁc Lan-

guages (DSLs) to describe simulations. Whereas Net-

Logo is a native DSL, HLogo is embedded (eDSL)

inside a general purpose language

, namely Haskell,

which is a lazy-by-default functional language. An

eDSL is easier to build, as there is no need to create

a separate compiler or interpreter. Furthermore, an

eDSL inherits its host language’s features; e.g. (for

Haskell) the support for higher-order functions and

overloading make Haskell particularly attractive for

embedding DSLs (Bjesse et al., 1998; Elliott, 2003;

Peterson and Hager, 1999).

With the HLogo’s eDSL, the simulation user can

beneﬁt from the Haskell’s module system by organiz-

ing the agent program into separate modules, or im-

porting and reusing code from the already vast col-

lection of open-source Haskell libraries (Hackage).

NetLogo, on the other hand, currently (as of version

5.2.1) lacks a module system.

A second reason for choosing the eDSL approach,

is that HLogo can be more easily extended with new

language constructs, and plugins targeting the simula-

tion engine (e.g. visualization). Still, embedding does

mean that the syntax of HLogo is constrained by that

of Haskell. For example, in NetLogo binary operators

havehigher precedence than function application; e.g.

print 1+3

, whereas in Haskell the precedence is re-

versed; so, we have to write

print (1+3)

Typing. Other than the syntax, HLogo inherits

Haskell’s static typing: all HLogo expressions are

statically typed, which is in contrast to NetLogo’s

dynamic typing — NetLogo performs very minimal

type checking. For example, in HLogo the type error

A native DSL has a dedicated parser and a compiler or

interpreter to execute its code; e.g. NetLogo compiles its

code to Scala. An eDSL is a DSL embedded inside another

language (host). It tries to mimic a native DSL by provid-

ing its language constructs in terms of the constructs of the

host.

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

120

in the expression

1+non_number

will be detected at

compile time, whereas NetLogo will only detect this

later at runtime

. To this degree, we are allowed to

say that HLogo provides more safety for agent model

programs.

An additional signiﬁcant advantage of Haskell’s

typing is that HLogo can type-check not just simple

arithmetic expressions, but more elaborate statements

that contain some agent context: almost all built-in

Logo commands can be executed in a restricted agent

context (self,myself); e.g. the command

forward N

may only be executed by a turtle agent (and moves

the turtle N units forward on the canvas). In the ex-

ample that follows, we erroneously ‘ask’ a patch to

move forward (they are stationary) and die (cannot

be destroyed):

%% NetLogo: yields error only later at runtime

ask patch x y [forward 3

die]

-- HLogo: program does not type-check

ask (atomic (do forward 3

die)) =<< patch x y

Type-checking of such agent commands is

achievedthrough Haskell’s typeclasses, a similar con-

cept to OO interfaces used for ad-hoc polymorphism.

Speciﬁcally, every built-in HLogo command is typed

with its expected agent context, e.g. die takes the

Haskell type die:: ∀a.∀m.TurtleLink a ⇒ Logo a m ()

where TurtleLink is a typeclass that points to either a

turtle or a link, a is the self context and m is any my-

self context.

Haskell’s strong type system also comes with

Hindley-Milner type inference (Milner, 1978), which

makes type annotations optional. This overall pro-

vides type safety to the user, without the burden of

annotating the code with type signatures. As can eas-

ily be witnessed from the illustrated example above,

no type annotations were necessary for the HLogo

code since the underlying Haskell compiler can de-

rive the types of HLogo expressions — die expects

a TurtleLink, f orward expects turtle-only, so by im-

plication Haskell expects a turtle as the agent’s self

context.

Monads. Since agents are stateful, what they do

may also haveside effects on their own or each other’s

states. Haskell is by intent a purely functional lan-

guage that has no natural concept of side effect. Side

effect is brought into the language as instances of so-

called monad (Peyton Jones and Wadler, 1993), which

If the user insists on using dynamic typing, e.g. for

its ﬂexibility, it can also be done in Haskell through the

Data.Dynamic module.

is a generic concept representing a category of things

sharing a set of algebraic laws, e.g. associativity. A

monadic action e is an expression of type M t where

M is a type that speciﬁes the structure of the monad

e operates on (which could be a state), and t is the

type of the ‘return value’ of this action. So, if e is a

command to a turtle a, then M is a type describing a’s

state structure (and that of the patch a is on).

Monadic actions can be sequentially composed

with the do notation. E.g., suppose c is a monadic

action, then the expression:

do { z <- c; return

(z+1)}

is a new monadic action, that ﬁrst executes c,

captures its return value in z, then returns z+ 1. More

generally, the expression do{e

; e

; ...} will evalu-

ate the expressions e

, e

in the given order. When e

, ... are written vertically, and starts at the same col-

umn, we can drop the use of delimiter “{”, “}”, and

“;” to get a cleaner syntax. A

-sequence that does

not explicitly specify a return as the last expression

implicitly returns whatever the last expressionreturns.

For example, count is a monadic action that returns

given agentset’s size:

p <- patches

count p

There is also the e

=<<

d operator that can be used to

directly pipe the value returned by the monadic action

d as an input for e. So, the above code can also be

written more compactly as

count =<< patches

. In

HLogo, any agent action that has side-effects is ex-

pressed as a monadic action.

Procedures. Deﬁning a procedure in NetLogo is

done through the to ... end syntax. E.g. the code be-

low deﬁnes the move[p] procedure, which will turn all

cows 5 degrees to the right, then move them p points

forward:

to move [p]

ask cows [rt 5 fd p]

end

In Haskell, the same deﬁnition is achieved by a

top-level function bound to its corresponding right-

hand side monadic action:

move p = do

a <- cows

ask (atomic (do { rt 5; fd p} )) a

Or more compactly as:

move p = do

ask (atomic (do { rt 5; fd p } )) =<< cows

The built-in command

atomic

controls the con-

currency and will be detailed in Section 3. Haskell

HLogo: A Parallel Haskell Variant of NetLogo

121

(and thus HLogo) does not in principle support poly-

variadic procedures of NetLogo (procedures that al-

low variable number of arguments to be passed to

them), but there exist Haskell packages that can sim-

ulate this feature, e.g. HList (Kiselyov et al., 2004)

or Liquid Haskell (Vazou et al., 2014). Conversely, a

Haskell function uniﬁes the concepts of the NetLogo

procedure and the NetLogo reporter (procedure with

return value), and, moreover, can support anonymous

reporters via lambda abstractions (a current limitation

of NetLogo as of version 5.2.1).

Extending agents with new breeds or attributes

requires the user to deﬁne a new datatype, together

with a set of getter/setter functions. To avoid hav-

ing to write such boilerplate code, we employ Tem-

plate Haskell (Sheard and Jones, 2002), a compile-

time meta-programming technique that will generate

the needed code. The following Haskell code is a

preamble of an example HLogo model that showcases

the use of Template Haskell macros:

-- HLogo eDSL is a library

import Language.Logo

-- generates: cows ,cows_here ,...

breeds ["cows", "cow"]

-- generates getter/setters: energy

breeds_own "cows" ["energy"]

-- generates program ’s entrypoint

run ["setup", "go"]

Nearly the complete set of NetLogo’s standard li-

brary has been ported. A rudimentary support for vi-

sualization is present: the command

snapshot

can

be called at any place in HLogo code to save an im-

age of the current simulation’s 2D canvas to a fresh

postscript image. The code in Listing 1 shows an ex-

ample HLogo model of cows (turtles) moving & eat-

ing grass (patches), with its snapshot image in Fig. 1.

Live visualization, as offered by the NetLogo plat-

form, is part of future work.

3 HLOGO’S EXECUTION

The HLogo user arranges the agent model in a num-

ber of Haskell source ﬁles which are then compiled

via a Haskell compiler into native code and executed

to start the simulation run. A NetLogo model is in-

stead parsed and translated into intermediate bytecode

which gets interpreted by a JVM; however, nowadays

JVM employs regularly Just-In-Time (JIT) compila-

tion to native code. Both HLogo and NetLogo sim-

ulation engines use similar data-structures to store

the agents: 2-dimensional array for patches, map

1 setup

= do

ask (do

c <- one_of [green, brown]

atomic (set_pcolor c)

) =<< patches

cs <- create_cows 50

ask (do

x <- random_xcor

y <- random_ycor

atomic (do

set_color white

set_energy 50

setxy x y

)) cs

reset_ticks

17 go

= forever (do

t <- ticks

when (t > 10) stop

ask (do

move

eat_grass) =<< cows

snapshot

tick)

26 move

= do

r <- random 50

atomic (do

right r

forward 1)

32 eat

grass

= atomic (do

c <- pcolor

when (c == green) (do

set_pcolor brown

e <- energy

set_energy (e+30)))

Listing 1: An example of agent model in HLogo. Cow-

turtles move around and eat grass-patches to gain energy.

tree for turtles/links. Their principal difference is on

how their commandingoperators (ask/of/with) are ex-

ecuted: NetLogo calls each agent in turn (sequen-

tially), and the called agent runs the body of com-

mands to completion. NetLogo also provides the al-

ternative operator ‘ask-concurrent’ that does not run

in parallel, instead ‘simulates concurrency‘ by inter-

leaving the body of commands between the agents.

HLogo tries to parallelize the execution of ask/of/with

operators, by utilizing Software Transactional Mem-

ory (STM) and lightweight (green) threads, two tech-

nologies for parallelism provided by Haskell.

3.1 Software Transactional Memory

Software Transactional Memory (STM) is a concur-

rency control mechanism that allows concurrent pro-

cesses to transparently yet safely operate on com-

mon resources. It departs from the common lock-

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

122

Figure 1: An example of HLogo visualization output.

White triangles represent cows, patches are (eaten) grass.

ing mechanism by avoiding locks altogether. STM’s

concurrency relies on the so-called transactions. A

transaction is a sequence of reads and writes to a set

of transactional variables, or TVars for short, which

point to actual places in a shared memory; the trans-

action will not write to those places directly. TVars

are normally shared between transactions. A trans-

action is virtually atomic. That is, its intermediate

changes on its TVars cannot be witnessed by other

transactions. The idea originates from the ﬁeld of

Distributed Databases; indeed, people who are famil-

iar with SQL databases can view STM transactions as

the usual SQL atomic transactions albeit with a big-

ger focus on concurrency. Historically, Transactional

Memory was introduced a long time ago as a novel

extension to Lisp with suitable hardware modiﬁca-

tions to enable concurrency (Knight, 1986). The idea

was later reﬁned in (Shavit and Touitou, 1995), which

also coined the term Software Transactional Memory

by realizing a purely in-software implementation of

the approach. Recently, STM programs can be fur-

ther accelerated through hardware instruction-set ex-

tensions, e.g. with Transactional Synchronization Ex-

tensions (TSX) of Intel



Skylake processor.

Each transaction τ can in principle be assigned to

a separate thread that keeps a separate log of reads

and writes to the transaction’s TVars. These writes

are not committed yet. At the end of the transac-

tion, the thread checks for possible inconsistencies in

the log. If one is found, because another transaction

has in the mean time updated one of the TVars, τ is

aborted, and later retried again. Importantly, aborted

transactions have no side effect. If there are no in-

consistencies, the transaction is said to be successful,

and the changes made on the TVars are committed

(executed). Internally, the orchestration of a commit

is realized by automatically putting locks in proper

places in the shared memory, but this involved pro-

cess is hidden from the programmers, thus effectively

alleviating concurrent programming. For our case this

is important, since we want to maintain NetLogo’s

user friendliness. Using STM does incur overhead,

but still, considerable speedup is observed (Perfumo

et al., 2008).

Ultimately, transactions are run by threads for

concurrent execution. There are several options on

how to do this. The obvious choice is to run ev-

ery transaction on its own thread. Haskell provides

green (lightweight) threads. These are virtual threads

managed by a virtual machine (or by a language’s ad-

vanced runtime-system), as opposed to native threads

managed by the Operating System. Green threads

have a smaller memory footprint, and faster thread ac-

tivation and synchronization. A large number (thou-

sands; even millions) of such threads can be spawn

without running out of memory. Haskell runtime em-

ploys an M:N threading model, where M lightweight

threads are automatically mapped to N kernel (heavy-

weight) threads for multi-core parallelism. While this

maximizes the parallelism, the number of actual CPU

cores is usually much less than the number of agents.

The above solution would lead to performance degra-

dation. Subsection 3.2 discusses our solution.

The choice of Haskell was made for its strong and

quality-standard STM library (Discolo et al., 2006),

coupled with multi-core-enabled lightweight threads.

Moreover, it is important that the effects of a transac-

tion can be rollbacked, in case the transaction fails to

commit: the type system of Haskell guarantees that

STM effects cannot be intermixed with other effects

which cannot be rollbacked (e.g. doing IO by writing

to a ﬁle), since they belong to two different monads

(e.g. STM monad vs IO monad).

3.2 Parallelizing HLogo

During execution, the ask/of/with operators ‘drive’

the computation of simulation. In HLogo, the ask op-

erator is implemented as a function that takes as input

a block of commands and a set of agents. First, the

function splits the given agentset and the current ran-

dom number generator (RNG) into equal pieces —

the splitting is specialized for the agentset type (ar-

ray or treemap) and we make use of a high-quality

splittable treeﬁsh RNG library (Claessen and Pałka,

2013). Next, the function spawns as many lightweight

threads as there are CPU cores. Each spawned thread

will execute the block of commands for each agent

in its agentset slice in a modiﬁed (self,myself) agent

context. A Haskell pseudocode of the above descrip-

tion is given in Listing 2.

This simple motif of ‘divide and conquer’ is used

to parallelize the other two operators (of/with), the

HLogo: A Parallel Haskell Variant of NetLogo

123

ask cmds agentset = do

caller <- self

r <- currentRNG

cores <- getNumCapabilities

-- splits agentset in CPU-core slices

let splitted = split agentset r cores

threads <-forM splitted (

(slice ,rng)

→

forkIO (do

setRNG rng

forM slice (

callee

→

-- callee=>self , caller=>myself

executeIn (callee ,caller) cmds)

))

forM threads wait -- caller blocks

Listing 2: Pseudocode for HLogo ’ask’ implementation.

only difference being that the caller will collect/ﬁl-

ter back the results of the block. All ask/of/with op-

erators will make the caller block until the spawned

‘worker’ threads have ﬁnished (which implies that

all the workload of that operator has completed);

there is also a non-blocking variant of ask (named

ask_async

) where the caller immediately continues.

Again all these three operators support nesting; it is

perfectly allowed to call an ask inside an ask, ask

inside an of, or any other operator thereof; for ex-

ample the agent program

ask(ask eat_grass =<<

cows_here)=<<patches

(i) will have maximum

(N*N) (+1 for the caller) threads running; the Haskell

runtime system will automatically load-balance the

threads to the CPU cores if for example there are some

patches with less or no cows sitting on.

A Haskell thread expects to execute some code

with IO effects (an IO monadic action); as such the

IO effects will be applied in parallel to other threads.

In case of HLogo, if we allow the agent commands

to operate (apply their effects) in the IO monad, race

conditions might happen between the agents. Con-

sider an example HLogo procedure:

eat_grass = do

g <- grass

when (g > 30) (do

set_grass (g - 30)

e <- energy

set_energy (e + 30))

If we allow the above agent commands (getters/set-

ters of grass and energy) in the body of the procedure

to operate in IO, two race conditions may happen: a)

two cows eat grass from the same patch, but the patch

grass level is decreased only once; b) at another point

in the program, an agent ‘ask’s to (destructively)mod-

ify the energy of a currently-eating cow.

Instead, what Hlogo actually does is store all agent

attributes into TVars and restrict basic agent com-

mands (all standard library and getters/setters), to

be allowed only inside an STM transaction; in other

words, the code at (i) would not even type-check.

Multiple agent commands can then be monadically

sequenced as usual into a bigger STM transaction

block. We extend the language with the command

atomic

which given a transaction block will try to

‘run’ it; when the

atomic

succeeds, it means its ef-

fects have been committed as a whole to the out-

side (IO) world, and will not be again rollbacked.

The type of atomic is

atomic :: STM a -> IO a

which reads as a function that lifts an STM transac-

tion (monadic action) to an IO monadic action. To ﬁx

& type-check the HLogo code at (i) we simply sur-

round the whole

eat_grass

in an ‘atomic’ block:

ask

(ask (atomic

eat_grass)=<< cows_here) =<<

patches

, which is parallel, and race-condition free.

Does this mean that the user should create as large

transaction blocks as possible and merely surround

them with a single ‘atomic’? Not exactly, since larger

transactions can hurt performance, because of larger

kept STM logs and potentially more rollbacks caused

by other competitor-threads trying to commit their

own, related transactions. With HLogo, it is solely left

to the user to decide if the whole transaction should be

atomic or if it is safe to break it into smaller atomic

blocks. As an example, the following code albeit

faster, does not avoid race-condition (a) (but race-

condition (b) is avoided):

eat_grass = do

g <- atomic

grass

atomic

(when (g > 30) (do

set_grass (g - 30)

e <- energy

set_energy (e + 30)))

Despite the gain in parallelism, STM is not a ‘sil-

ver bullet’ to all the problems that are encounteredin a

parallel setting. Any executed STM transaction is in-

herently non-deterministic; in the simplest case, two

simultaneous threads competing to modify the same

TVar will not commit always in the same order: there

may be program runs where thread 1 commits before

thread 2 and vice versa. As a consequence, this turns

HLogo simulations non-reproducible, but still consis-

tent with respect to race-conditions. On the bright

side, HLogo’s engine guarantees that on 1-core con-

ﬁgurations and with no use of

ask_async

, the simu-

lation of the agent model is reproducible.

4 EXPERIMENTAL EVALUATION

To compare the performance of HLogo to that of

NetLogo, we ran the following benchmarks:

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

124

1. The benchmark Redblue has N turtles living on a

100 × 100 torus-shaped canvas. They move for-

ward one step on every tick. If they are on a red

patch, they also turn left by 30 degrees. If they

are on a blue patch, they turn right by 30 degrees.

This is simulated for 1000 ticks. In this bench-

mark, the agents never write to the same TVar,

and therefore the transactions never need to roll

back.

2. The benchmark Cows has N cows living on

a 100 × 100 torus-shaped canvas. They move

around and eat grass. If the grass on a patch is

consumed by a cow, after some time it will re-

grow. This is simulated for 1000 ticks. In this

benchmark, cows compete for the grass, so some

transactions may conﬂict and have to roll back.

The benchmarks are run on a system provided

by the SURF foundation with 16 cores Intel



Xeon

E5-2698, 128GB RAM, and Hyper-Threading dis-

abled. The OS Ubuntu 14.04 64bit was installed

with The Glorious Glasgow Haskell Compiler version

7.10.3, NetLogo 5.2.1 running Java-8 version Open-

JDK 1.8.0

72.

We benchmarked conﬁgurations with varying

number of cores (1,2,4,8,16), and varying the prob-

lem size (N). We executed 20 simulation runs for each

such conﬁguration and computed the average runtime

and resident memory; the results are shown in Ta-

ble 1 (plotted in Fig. 2 and Fig. 3). Note that the

NetLogo runtime includes only the actual execution

of the model, not including the model parsing, com-

piling and ﬁring up the JVM. We can clearly witness

speed gain in HLogo, the more we increase the num-

ber of cores; the performance scalability is retained.

The 16-core HLogo conﬁguration manages to be at its

best 87% faster than its NetLogo counterpart. Even

with two cores and while using much less memory

(74% less memory than NetLogo), HLogo manages

to match or surpass the speed of NetLogo, which is a

positive thing considering the fact that STM concur-

rency incurs a certain overhead.

The HLogo eDSL implementation, the

HLogo/Netlogo benchmarks and exam-

ples are open-source software situated at

http://github.com/bezirg/hlogo.

5 RELATED WORK

NetLogo (Wilensky, 1999) is one of the de-facto

agent-based modeling framework. Models are written

in the dynamically-typed NetLogo language, which

is a dialect of the educational programming language

0 5000 10000 15000 20000 25000 30000

Time (s)

Population

netlogo

hlogo1

hlogo2

hlogo4

hlogo8

hlogo16

Figure 2: NetLogo & HLogo execution time for ’RedBlue’.

0 500 1000 1500 2000 2500 3000

Time (s)

Population

netlogo

hlogo1

hlogo2

hlogo4

hlogo8

hlogo16

Figure 3: NetLogo & HLogo execution time for ’Cows’.

Logo. Internally, NetLogo is implemented in the

Scala programming language. A Scala-written com-

piler translates NetLogo code to Java bytecode to be

later run in a Java Virtual Machine (JVM). NetLogo

comes with a GUI to visualize simulation results, and

a rich collection of predeﬁned models, dealing with

aspects of Biology, Computer Science, Earth Science,

Social Science, Chemistry and others. ReLogo (North

et al., 2013) is a NetLogo clone embedded as a DSL

in Groovy (an OO language running in JVM). As is

the case with NetLogo, ReLogo is single-threaded

and comes with a rich GUI. Although Groovy version

2.0 and onwards introduced optional static typing, the

ReLogo language cannot type-check many of its ex-

pressions: agentsets are untyped, and ask/of/with clo-

sures cannot track the type information of their con-

text (self,myself). In such cases, the simulation user

has to either resort to typecasting or turn off Groovy’s

static typing in the pertinent code.

Both NetLogo and ReLogo support parameter

HLogo: A Parallel Haskell Variant of NetLogo

125

Table 1: Benchmarks results of NetLogo against HLogo. N is the agent model problem size.

runtime (sec) memory usage (MB)

NetLogo HLogo, #cores NetLogo HLogo, #cores

N 1 2 4 8 16 1 2 4 8 16

Redblue 1000 0.41 0.67 0.46 0.31 0.24 0.26 489 98 159 262 288 310

2500 0.95 1.57 1.46 0.86 0.53 0.39 621 102 136 222 351 616

5000 1.64 2.97 2.59 1.53 0.97 0.62 623 108 137 231 397 663

10000 3.08 6.03 5.23 2.93 1.71 1.03 625 121 155 246 405 737

20000 6.02 11.86 9.85 5.64 3.4 1.9 652 143 170 276 437 773

30000 9.02 19.68 10.39 6.26 3.6 2.14 671 157 231 357 603 1099

Cows 100 4.28 1.33 0.9 0.59 0.53 0.57 643 97 165 297 555 916

250 4.63 1.75 1.14 0.72 0.62 0.64 650 98 166 299 555 954

500 5.07 2.42 1.57 0.95 0.74 0.74 645 98 167 300 561 999

1000 5.76 3.48 2.26 1.31 0.93 0.88 650 100 167 301 569 1050

2000 6.42 5.04 3.22 1.84 1.20 1.08 646 102 170 303 571 1072

3000 7.02 6.39 4.64 2.70 1.63 1.29 649 104 155 267 498 929

sweeping (Koehler et al., 2005), for running multiple

instances of the same model in parallel while vary-

ing the model’s input parameters (e.g. initial random

seed); however, this method is orthogonal to HLogo’s

parallelism and could as well be combined with HL-

ogo: the purpose of parameter sweeping is to exploit

multi-core by replicating the model and running ‘dif-

ferent’ instances of it, whereas HLogo tries to inject

parallelism inside a single instance of a simulation

run. The latter case is crucial for large models or time-

critical simulations where any performance gain in a

single run is desirable.

To the best of our knowledge, the work described

here is the ﬁrst to apply Software Transactional Mem-

ory in Agent-Based Modeling. Other scientists in

the ﬁeld, however, have priorly investigated to speed

up ABM execution using various parallel techniques:

The work described in (Logan and Theodoropou-

los, 2001) proposes to execute Agent-based systems

through Distributed Discrete-Event Simulation. The

key problem as they state is the decomposition of the

environment which leads to the problem of fair load

balancing of the distributed machines. (Riley and Ri-

ley, 2003) propose another Distributed Agent Simu-

lation Environment called SPADES. SPADES tries to

address the concerns of Artiﬁcial Intelligence when

designing agent systems, while having distributed ex-

ecution and reproducibility of results. (Massaioli

et al., 2005) uses another parallelization technology,

called OpenMP, to speed up the execution of agent-

based models. However, the technique restricts the

implementation of ABM frameworks to only that

which provide an OpenMP implementation, i.e. C,

C++, Fortran. Also, it adds the requirement to the

simulation user to annotate simulation code with ex-

tra OpenMP pragmas, which is rather discouraging.

SASSY by (Hybinette et al., 2006) is a scalable agent

based simulation system that sits as a middle-ware

between an agent-based API and a Parallel Discrete

Event simulation (PDES) kernel. The difference in

SASSY compared to (Logan and Theodoropoulos,

2001) and (Riley and Riley, 2003) is that the ABM

framework can be built up from existing standard

PDES kernels. (D’Souza et al., 2007) proposes an

innovative method of executing mega-scale Agent-

Based Models in the massively parallel Graphics Pro-

cessing Unit (GPU). Although, it is well established

that this method can lead up to considerable speed

gains, we feel that the expressiveness of Agent-based

models that can be run on this platform is restricted.

A similar framework is Flame GPU, built on-top the

FLAME ABM framework (Kiran et al., 2010), and

has successfully been applied on project EURACE to

simulate the European economy model (Deissenberg

et al., 2008).

Concerning Haskell, our solution is the ﬁrst Logo-

based modeling framework to be implemented in the

Haskell programming language. There have been,

however, other Haskell simulation packages. E.g.

Aivika is a promising Haskell library that provides ex-

tensive system dynamics and discrete event simula-

tion. Event-monad, as the name suggests, provides an

event monad and monad transformer; it can be used as

a low-level helper library to build a simulation frame-

work. Users can create an event-graph simulation sys-

tem and schedule events to it. In principle, it does not

employ any parallelism, but it could theoretically be

used together with some parallel strategy to exploit

parallelism. Hasim is a library for process-based Dis-

crete Event Simulation in Haskell. It does not employ

any kind of parallelism.

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

126

6 CONCLUSION AND FUTURE

WORK

We have presented HLogo, a variant of the NetLogo

framework that utilizes Software Transactional Mem-

ory to beneﬁt in parallelism. Although the agent ex-

ecution may become non-reproducible, we still be-

lieve that there is room for applying HLogo, consid-

ering the potential speedup and the fact that NetLogo

is widely used as well for constructing Multi-Agent

Systems (where reproducibility is not a factor). The

HLogo language is embedded as a Domain-Speciﬁc

Language in Haskell, which has the advantage of in-

heriting the Haskell’s module system and allowing the

ease of import of existing Haskell libraries. Further-

more, the DSL is typed for all its expressions and

agent commands, which adds a certain level of safety

to Logo models. We managed to port NetLogo mod-

els to HLogo and benchmark two of those against the

frameworks. Execution results show that HLogo is

faster than NetLogo when increasing the number of

cores.

One of our future plans regarding the extension

of the presented approach, is to investigate if the

atomic

construct can be automatically inserted in cer-

tain places of HLogo programs that will retain con-

sistency while in the same time admit reproducibil-

ity; possibly as the result of static program analy-

sis. Moreover,some STM transactions can be acceler-

ated after applying certain optimizations, e.g. when a

cow moves, it may wiggle

atomic(do rt=<<random

50; lt=<<random 50)

. The above code can be op-

timized by

atomic(do i<-random 50; j<-random

50; lt(j-i))

which is faster since the STM trans-

action log is shortened through combining two mod-

iﬁcations of the turtle’s heading (right,left) to one

(left). The program remains consistent since this code

runs atomically: no other agent could have, in any-

way, witnessed the intermediate modiﬁcation.

Concerning HLogo’s engine, the ‘divide and con-

quer’ method of splitting the workload to the threads

does not involve any intelligence; it simply slices

equally the given agentset. This naive method can

possibly lead to unnecessary STM conﬂicts. By ex-

ploiting the spatial characteristics of the model we

could better (more cleverly) assign the work to the

threads, so that it minimizes the number of con-

ﬂicts (retries). In other words, interdependent agents

should end up in the same thread, whereas indepen-

dent agents should be distributed to different threads

(and CPU cores). This work clustering could be static

(on initialize), or adaptive (during runtime execution).

Since the Cloud has become very accessible, we

would like to investigate the execution of HLogo

simulations in a distributed setting. Compared to a

single physical multi-core system, a distributed set-

ting can enable Agent Based Models to run in High-

performance Computing (HPC); there is also the ex-

treme case where the model cannot ﬁt in a single

shared memory and has to be distributed to multi-

ple processing nodes. Haskell technologies, such as

Distributed Software Transactional Memory (Kupke,

2010) or Cloud Haskell (Epstein et al., 2011) could

help us achieve this task.

Finally, we have to note that our ideas are in no

sense restricted to NetLogo-like simulations; our ap-

proach is framework-agnostic and thus could be eas-

ily applied to other ABM frameworks too. However,

since NetLogo is a well-established platform, with a

large user base, we would also like to experimentally

extend the existing NetLogo engine with support for

one of the many Scala STM implementations. We ar-

gue that the NetLogo language again needs only to be

extended with an

atomic

construct, thus, remaining

close to NetLogo’s syntax and utilizing the original

Graphical User Interface.

ACKNOWLEDGEMENTS

This work was funded partially by the EU project

FP7-610582 ENVISAGE: Engineering Virtualized

Services (http://envisage-project.eu). All the bench-

marks in this work were carried out on the Dutch na-

tional HPC e-infrastructure, kindly provided by the

SURF Foundation (http://surf.nl).

REFERENCES

Bjesse, P., Claessen, K., Sheeran, M., and Singh, S. (1998).

Lava: Hardware design in haskell. In Proceedings of

the ThirdACM SIGPLAN International Conference on

Functional Programming, ICFP ’98, pages 174–184,

New York, NY, USA. ACM.

Castle, C. J. E. and Crooks, A. T. (2006). Principles

and concepts of agent-based modelling for developing

geospatial simulations.

Claessen, K. and Pałka, M. H. (2013). Splittable pseudoran-

dom number generators using cryptographic hashing.

In ACM SIGPLAN Notices, volume 48, pages 47–58.

ACM.

Deissenberg, C., van der Hoog, S., and Dawid, H. (2008).

EURACE: a massively parallel agent-based model of

the european economy. Applied Mathematics and

Computation, 204(2):541–552.

Discolo, A., Harris, T., Marlow, S., Peyton, and Singh,

S. (2006). Lock -free data structures using STMs in

haskell.

HLogo: A Parallel Haskell Variant of NetLogo

127

D’Souza, R. M., Lysenko, M., and Rahmani, K. (2007).

SugarScape on steroids: simulating over a million

agents at interactive rates.

Elliott, C. (2003). Functional images. In The Fun of Pro-

gramming, “Cornerstones of Computing” series. Pal-

grave.

Epstein, J., Black, A. P., and Peyton-Jones, S. (2011). To-

wards Haskell in the cloud. In ACM SIGPLAN No-

tices, volume 46, pages 118–129. ACM.

Epstein, J. M. and Axtell, R. (1996). Growing Artiﬁcial

Societies: Social Science from the Bottom Up. Brook-

ings Institution Press.

Grimm, V., Berger, U., Bastiansen, F., Eliassen, S., Ginot,

V., Giske, J., Goss-Custard, J., Grand, T., Heinz,

S. K., Huse, G., Huth, A., Jepsen, J. U., Jrgensen, C.,

Mooij, W. M., Mller, B., Peer, G., Piou, C., Rails-

back, S. F., Robbins, A. M., Robbins, M. M., Ross-

manith, E., Rger, N., Strand, E., Souissi, S., Still-

man, R. A., Vab, R., Visser, U., and DeAngelis, D. L.

(2006). A standard protocol for describing individual-

based and agent-based models. Ecological Modelling,

198(12):115–126.

Grimm, V., Revilla, E., Berger, U., Jeltsch, F., Mooij,

W. M., Railsback, S. F., Thulke, H.-H., Weiner, J.,

Wiegand, T., and DeAngelis, D. L. (2005). Pattern-

oriented modeling of agent-based complex systems:

Lessons from ecology. Science, 310(5750):987–991.

Hybinette, M., Kraemer, E., Xiong, Y., Matthews, G., and

Ahmed, J. (2006). SASSY: a design for a scalable

agent-based simulation system using a distributed dis-

crete event infrastructure. page 926933.

Kiran, M., Richmond, P., Holcombe, M., Chin, L. S.,

Worth, D., and Greenough, C. (2010). FLAME:

Simulating Large Populations of Agents on Parallel

Hardware Architectures. AAMAS ’10, pages 1633–

1636, Richland, SC. International Foundation for Au-

tonomous Agents and Multiagent Systems.

Kiselyov, O., Lmmel, R., and Schupke, K. (2004). Strongly

Typed Heterogeneous Collections. In Proceedings

of the 2004 ACM SIGPLAN Workshop on Haskell,

Haskell ’04, pages 96–107, New York, NY, USA.

ACM.

Knight, T. (1986). An architecture for mostly functional

languages. LFP ’86, page 105112, New York, NY,

USA. ACM.

Koehler, M., Tivnan, B., and Upton, S. (2005). Clustered

computing with netlogo and repast j: Beyond chewing

gum and duct tape.

Kupke, F. K. (2010). Robust Distributed Software Trans-

actions for Haskell. PhD thesis, Christian-Albrechts

Universitt Kiel.

Logan, B. and Theodoropoulos, G. (2001). The distributed

simulation of multiagent systems. 89(2):174185.

Massaioli, F., Castiglione, F., and Bernaschi, M. (2005).

OpenMP parallelization of agent-based models.

31(10):10661081.

Milner, R. (1978). A theory of type polymorphism in pro-

gramming. Journal of Computer and System Sciences,

17(3):348–375.

North, M. J., Collier, N. T., Ozik, J., Tatara, E. R., Macal,

C. M., Bragen, M., and Sydelko, P. (2013). Com-

plex adaptive systems modeling with repast simphony.

Complex adaptive systems modeling, 1(1):1–26.

Perfumo, C., Snmez, N., Stipic, S., Unsal, O., Cristal, A.,

Harris, T., and Valero, M. (2008). The limits of soft-

ware transactional memory (STM): dissecting haskell

STM applications on a many-core environment. CF

’08, page 6778, New York, NY, USA. ACM.

Peterson, J. and Hager, G. (1999). Monadic robotics.

In Proceedings of the 2Nd Conference on Domain-

speciﬁc Languages, DSL ’99, pages 95–108, New

York, NY, USA. ACM.

Peyton Jones, S. L. and Wadler, P. (1993). Imperative func-

tional programming. In Proceedings of the 20th ACM

SIGPLAN-SIGACT Symposium on Principles of Pro-

gramming Languages, POPL ’93, pages 71–84. ACM.

Pogson, M., Smallwood, R., Qwarnstrom, E., and Hol-

combe, M. (2006). Formal agent-based modelling of

intracellular chemical interactions. 85(1):3745.

Railsback, S. F., Lytinen, S. L., and Jackson, S. K. (2006).

Agent-based simulation platforms: Review and devel-

opment recommendations. SIMULATION, 82(9):609–

623.

Riley, P. F. and Riley, G. F. (2003). Next generation mod-

eling III - agents: Spades a distributed agent simula-

tion environment with software-in-the-loop execution.

WSC ’03, page 817825. Winter Simulation Confer-

ence.

Sakellariou, I., Kefalas, P., and Stamatopoulou, I. (2008).

Enhancing NetLogo to simulate BDI communicating

agents. In Darzentas, J., Vouros, G. A., Vosinakis,

S., and Arnellos, A., editors, Artiﬁcial Intelligence:

Theories, Models and Applications, number 5138 in

Lecture Notes in Computer Science, pages 263–275.

Springer Berlin Heidelberg.

Salamon, T. (2011). Design of agent-based models. Eva &

Tomas Bruckner Publishing.

Shavit, N. and Touitou, D. (1995). Software transactional

memory. PODC ’95, page 204213, New York, NY,

USA. ACM.

Sheard, T. and Jones, S. P. (2002). Template

meta-programming for haskell. SIGPLAN Notice,

37(12):60–75.

Tobias, R. and Hofmann, C. (2004). Evaluation of free java-

libraries for social-scientiﬁc agent based simulation.

Vazou, N., Seidel, E. L., and Jhala, R. (2014). Liquid-

haskell: Experience with reﬁnement types in the real

world. In Proceedings of the 2014 ACM SIGPLAN

Symposium on Haskell, Haskell ’14, pages 39–51,

New York, NY, USA. ACM.

Wilensky, U. (1999). NetLogo.

Wilensky, U. (2003). Statistical mechanics for secondary

school: The GasLab multi-agent modeling toolkit.

8(1):141.

Wilkerson-Jerde, M. and Wilensky, U. (2010). Restructur-

ing change, interpreting changes: The deltatick mod-

eling and analysis toolkit.

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

128
