Triple-based Sharing of Context-Aware Composite

Web Applications for Non-programmers

Gregor Blichmann, Carsten Radeck, Robert Starke and Klaus Meißner

Technische Universit

at Dresden, Dresden, Germany

Keywords:

Synchronous Collaboration, Rights Management, Mashups, End User Development.

Abstract:

Composite web applications are a promising way to support the long tail of user needs. While most mashup

platforms only support single-user scenarios, CRUISE enables the reconﬁguration of multi-user mashups dur-

ing runtime. Thereby, synchronizing different parts of an application based on black-box components from

different vendors causes special challenges for the rights management system. Cause we additionally fo-

cus on non-programmers as target group, an adequate user interface concept is needed. To overcome these

challenges, we present a triple-based rights management concept as well as a corresponding user interface

support. It supports ﬁne-grained sharing of whole applications, single components or UI parts of components

under conﬁgurable permissions. Thereby, users can select semantically compatible components during the

collaborative session. The practicability of our concept is validated by a prototypically implementation as

well as a user acceptance test.

1 INTRODUCTION

Within the last years, the number and acceptance of

collaborative web applications rapidly rose in a va-

riety of domains, like synchronous text and graphic

editing or project and document management. Tools,

like those of Google or Zoho, empower users very

well in fulﬁlling predeﬁned group tasks. But they do

not support an easy adaption of the collaborative ap-

plication to support individual user needs.

The trend of mass customization requires single-

user applications to be adaptable to respect individual

use cases which standard tools do not cover. Mashup

approaches like (Radeck et al., 2013) or (Picozzi,

2013) address this long tail of user needs. End users

without programming skills can build individual ap-

plications by composing heterogeneous components.

Thereby, platforms facilitate recommendation tech-

niques or visually hide applications’ complexity.

However today’s mashup application platforms

offer no or only limited support to use and build such

individual applications synchronously in a group of

users. We argue that combining the two paradigms

seems promising for users to use and adapt individu-

ally created applications for synchronous usage sce-

narios. Mashups following the universal composition

paradigm (Pietschmann, 2009) are composed of self-

contained black-box components which can exchange

data. Parts of such a black-box-based composite web

application (CWA) in form of single components can

easily be shared. This ensures they also work cor-

rectly when being isolated from the rest of the appli-

cation, what can not be guaranteed for traditional built

rich internet applications (RIAs).

But, to enable end users to build CWA for syn-

chronous usage, it ﬁrst is necessary to deﬁne a rights

management concept which is able to handle the spe-

ciﬁc requirements of a collaboration based on generic

black-box components. In addition, end users with

low or no programming knowledge require an ade-

quate user interface (UI) metaphor within a graphi-

cal editor to deﬁne new or reconﬁgure existing shar-

ing deﬁnitions. These deﬁnitions allow other users

to access a certain part of the application with spe-

ciﬁc rights. It is necessary to provide awareness about

all participants and their access rights to some parts

of the application. Parts can be either single compo-

nents or also parts of them in form of single UI ele-

ments whereby the rest of the component’s UI is hid-

den. Likewise, users have to be aware about all parts

of their application that were provided by others and

again the rights that are granted for them. In detail,

users have to understand which parts of the applica-

tion they can edit or which they can only observe and

which parts maybe blocked due to privacy needs.

Current platforms for mashup end user develop-

Blichmann, G., Radeck, C., Starke, R. and Meißner, K.

Triple-based Sharing of Context-Aware Composite Web Applications for Non-programmers.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 2, pages 17-26

ISBN: 978-989-758-186-1

ment (EUD) either do not support synchronous col-

laborative applications at all or lack in concepts for

handling various access rights on different parts of a

CWA as well as an adequate UI support.

The contributions of this paper are threefold:

1. Introduction of a triple-based rights management

concept for sharing and collaboratively using

CWA.

2. Presentation of a UI and interaction concept

which allows users without deep technical knowl-

edge to share parts of their application with others

and support them to be aware about all parts they

shared or received by others.

3. Evaluation by a user study based on a prototype as

part of a distributed mashup runtime environment.

The remainder of this paper ﬁrst discusses the pa-

per’s underlying research questions based on a ref-

erence scenario (Section 2). Section 3 describes the

conceptual foundation of our work. After Section 4

introduces the triple-based rights management, Sec-

tion 5 presents details of the UI support for end users.

Afterwards, Section 6 highlights results of our eval-

uation. Section 8 summarizes the paper and outlines

future work.

2 REFERENCE SCENARIO AND

RESEARCH QUESTIONS

To illustrate underlying research questions, a refer-

ence scenario is presented:

The scientists Peter and Mary are planing to join

a conference in Rome by the help of a collaboratively

used CWA. It includes an event editor, a calender to

store the conference date and duration, a map to dis-

play the conference’s location as well as hotels, and a

hotel search component. After passing the conference

date, duration and location to the calender, the lat-

ter triggers the search for available rooms during the

time of the conference sorted by the distance to the

conference location. Hotels are additionally visual-

ized in the map. To discuss the proposed hotels, Peter

shares the hotel search and map with Mary, which ac-

cepts the invitation and joins. While Peter’s applica-

tion includes three components, Mary’s only the hotel

search and the map. Because Peter provides Alice the

right to make changes, both can adjust the list of ho-

tels, which permanently gets synchronized. Because

Mary is not satisﬁed with the visual presentation of

the map, she exchanges her local map with an alter-

native from another vendor. Due to their semantic in-

teroperability, the different maps of Peter and Mary

can still be synchronized. In addition, Mary adds a

public transport component to her private part of the

application to ensure the hotels’ reachability without

informing Peter.

Because Peter prefers four-star hotels, he blocks

the corresponding input element on the UI for Al-

ice. Next, he integrates a component which allows the

digital request approval for business trips. After both

ﬁlled in the form, Mary likes to ask some colleagues

for veriﬁcation. Peter allows Mary to re-share the

component with others, but ﬁrst deﬁnes his personal

data to be visually hidden for others, like his corre-

spondent bank account. Mary creates a new group and

shares the component. After a member of the group

gives Peter and Mary hints for cheaper hotels, they re-

voke the sharing with the group and change the hotel

selection.

To support scenarios like these and solve the chal-

lenges mentioned in Section 1 several research ques-

tions have to be tackled: The basic question is,

how to provide users without deep understanding of

programming the possibility to share their individu-

ally created mashup application or parts of it with

other users during runtime for synchronous collab-

orative usage. As target group, we focus on non-

programmers which regularly use the web and are fa-

miliar with the usage of web based applications like

Google Mail or Docs. First, there is a need for a rights

management system which on the one hand is less

complex than existing approaches like in the domain

of operating systems and on the other hand faces the

challenges which have to be tackled to support CWA.

In detail, sharing of applications has to be uniform for

whole applications, single components or even parts

of them, even if the components used not offer col-

laborative features by themselves and have to be syn-

chronized using their public interface description. In

this context, respecting privacy issues in the sense of

blocking parts of the UI during synchronous usage is

also a challenging task when using black-box compo-

nents. Thereby, the system has to guarantee that com-

ponents with partly shared UIs are still usable. Addi-

tionally, the concept has to empower the user to un-

derstand which parts of his application he shared with

other users under which access rights and which parts

are granted to him by others. Also the synchroniza-

tion of semantically compatible components form dif-

ferent vendors causes special needs for a rights man-

agement UI.

Before we present our solution in Section 4 and 5,

we ﬁrst introduce the foundations of our work in the

next chapter.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

3 FOUNDATIONS

Our concept adheres to the universal composition ap-

proach introduced by (Pietschmann, 2009). Thereby,

CWA are built by combining arbitrary components

from all application layers, including data, logic

and UI. Necessary application information, like used

components, communication connections, layout,

screen ﬂows or the adaptive behavior are described

in a platform and technology independent composi-

tion model. A runtime environment interprets this

model and context-sensitively selects suitable compo-

nents from a component repository.

Components are realized as black-boxes and can

encapsulate arbitrary web resources like data feeds,

databases, web services, or UI widgets. All compo-

nents have a public interface comprising operations,

events and properties. Properties are uniquely typed

key value pairs and represent a snipped of a compo-

nent’s inner state. State changes, indicated by events,

can be used to invoke operations by passing a set

of parameters. The component model is realized in

XML by the Semantic Mashup Component Descrip-

tion Language (SMCDL). It declaratively describes

the component’s meta data, like information about

author or price, the already mentioned interface and

the component’s bindings. The latter include refer-

ences to all used frameworks and resources. Within

the SMCDL, the component developer can describe

the component’s functional as well as data semantic

by annotating concepts of third-party ontologies, e. g.,

describing the traveling domain.

Within Composition of Rich User Interface Ser-

vices for Everybody (CRUISE) the model-driven de-

velopment approach has been extended to support dy-

namic application reconﬁguration during runtime by

non-programmers. Among other things, the seman-

tic annotations of the SMCDL were extended by ca-

pabilities (Radeck et al., 2013). They can either de-

scribe general functionalities of components or spe-

ciﬁc ones of single interface elements, like operations

or properties. Therefore, basically a combination of

activities, like ”Search” or ”Select” and entities, like

”Weather Information” or ”Location” is used. Both

refer to concepts of third-party ontologies. Capabil-

ities can either describe possible user interactions or

system behavior. To represent cause and effect rela-

tions, it is possible to chain them. CSS selectors are

used to establish a link between functional semantic

describing capabilities and the UI by so called view

bindings. To detail, e. g., the cause of a capability,

interaction operators, like ”mouse click” or ”drag”,

can be attached. The extended semantic component

description, for example, is used to establish commu-

nication channels between components from different

vendors which have non-equal but semantically com-

patible interfaces (Radeck et al., 2014).

Amongst others, the CRUISE platform is realized

by a distributed client server runtime environment

(CSR). It uses a centralized architecture to offer, for

example, server-side execution of service components

or server-side coordination of multiple clients in case

of multi-user or multi-device scenarios. As presented

in (Blichmann et al., 2013), the synchronous usage

of CWA is supported by an architecture that blocks

the initial local execution of state changes on each

client to send them to the server ﬁrst. The server af-

terwards informs all corresponding clients about the

state change and ensures their parallel execution by a

globally synchronized event queue. Following the ad-

vantages of the transparent synchronization paradigm,

we consider that application components are usually

built for single user scenarios and therefore, do nei-

ther provide any functionality for synchronize states,

manage permissions of different users nor present

awareness information. It is supposed, that all of

these features are generically realized by the plat-

form which uses the SMCDL of the components ,

e. g., to synchronize state changes by utilizing proper-

ties. Thereby, we only consider components based on

HTML5 technologies (which are based on a DOM).

Due to their vanishing relevance, plugin-based tech-

nologies, like Flash, are not in scope of our approach.

How users can specify which parts of their CWA

are private and which should be synchronized with

a certain group of collaborating participants is de-

scribed in the next two sections.

4 TRIPLE-BASED RIGHTS

MANAGEMENT

In this section, after deﬁning basic terms and roles

ﬁrst, the proposed rights management concept for col-

laborative CWA is described in detail. Afterwards, its

runtime support is presented.

4.1 Basic Terms and Roles

To understand the proposed rights management, ﬁrst,

it has to be clariﬁed which parts of a CWA can be

shared during runtime with participants of the col-

laborative session. As proposed in Section 1, a

major advantage of using universal composition for

synchronous collaboration compared to traditional

CSCW tools is the possibility to share different func-

tional parts of the application with different users.

Triple-based Sharing of Context-Aware Composite Web Applications for Non-programmers

We deﬁne such arbitrary parts of a CWA as composi-

tion fragments which can for example represent whole

compositions, groups of connected components, sin-

gle components or only parts of them.

Every shared composition fragment, is associated

with exactly one owner. An owner is deﬁned as the

person who added the fragment to the application or

initialized the application in case the fragment equals

the whole composition. Owned fragments can be

edited, removed or shared at any time with any other

user. Thereby, users who are invited by an owner of

an application for synchronous usage, can still ex-

tend this application and receives the ownership for

the extended fragment. As for example presented in

Section 2, an application owned and shared by Pe-

ter, potentially can have multiple composition frag-

ments included, for example in form of single com-

ponents like the public transport component, owned

by Marry. Ownership cannot be restricted by, deleted

by or handed over to somebody.

4.2 Triple-based Sharing Deﬁnitions

All composition fragments are by default marked as

private for their owner and, thereby, can only be ac-

cessed and viewed by them no matter whether they

were initially part of the composition or are added

during runtime as long as they are not shared with

somebody.

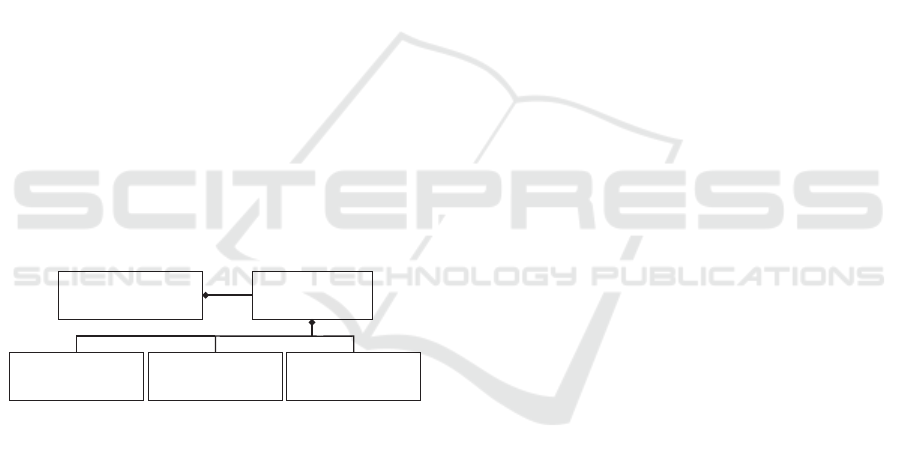

access control list

permissionobjectsubject

sharing triple

1...*

1 1 1

0...*

- single users

- group of users

- public

- edit

- edit and re-share

- view

- view and re-share

- block

- application

- couple of components

- single components

- parts of components

Figure 1: Basic triple scheme.

As presented in Figure 1, the rights management

is based on an access control list (ACL). To grant ac-

cess rights for different collaborating partners, we uti-

lize a set of sharing deﬁnitions based on triples which

basically comprise a subject, an object and a permis-

sion. The subject determines the person who I want

to share the part of my application with. It can be

further distinguished in public sharing deﬁnitions for

everybody and sharing deﬁnitions for groups of users

or single users. The object speciﬁes what the previ-

ously deﬁned subject should be able to access. This

includes all possible composition fragments, like the

whole application or some arbitrary parts of a single

component, like the location of an event or the list

of selected hotels in the hotel component of the ref-

erence scenario (Section 2). Third, the permission is

used to deﬁne how subjects can access the object. We

differentiate between the right to only view the shared

composition fragments as well as its state changes and

the right to edit them, e. g., by interacting with the UI.

The latter allows to interact with the UI of the object,

for example by dragging the marker of a map. In gen-

eral, the right to edit includes the right to view. The

chosen terms were proposed by users during our eval-

uation (Section 6) and replaced the previous, more

technical terms consume and contribute.

Within the process of sharing, an inviter is the user

who shares an object with a subject. This can be either

the owner of this composition fragment or a user with

the permission to re-share the objects he received ac-

cess to. The latter can be speciﬁed for each single

sharing deﬁnition independently and allows users to

share received objects with the permissions they have

(see permissions at Figure 1). The invitee is a per-

son which joins an application based on a previously

received invitation of the inviter.

Due to the usage of CWA where components ex-

change data via a channel-based publish subscribe

mechanism, sharing parts of an application has to take

care of communication channels. Consider the fol-

lowing example. Peter uses and shares a component

which presents the list of hotels based on the selected

location of a map with Mary, but keeps the map as

private. If Peter is changing the marker, his hotel

component will be updated. To updated the compo-

nent of Mary, the platform has to copy the event of

the map and additionally invoke the corresponding

operation ot Mary’s hotel component, even if Mary

does not have a map component at here client. Con-

sequently, users of our target group do not have to ex-

plicitly share communication channels as part of the

sharing deﬁnition, because they probably do not know

what they do and which data is transfered. In fact, as

motivated by the example, we assume that all events

on incoming or outgoing channels of a shared com-

ponent will be replicated to all users who received ac-

cess to the component no matter whether the channel

is connected to private or shared components. To add

a channel which has a shared component as subscriber

or publisher, the user has to have at least the right to

edit or has to be owner of the component.

4.3 Process of Sharing

Within the CSR triples are realized by synchronized

ACLs on client and server. The client-side ACL only

stores the triples which are related to this client. These

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

include all triples where the corresponding user of

the client is either the inviter or one of the invitees.

Thereby, the client-side ACL is used for the follow-

ing functionalities:

• view, edit or reconﬁgure parts of the application,

• determine the composition fragments the user is

allowed to share,

• present some awareness information about the

current access right conﬁguration.

The server-side ACL represents triples from all

collaboration partners. This is needed to fulﬁll the

following two functionalities:

• Routing the upcoming messages from each client

to all clients that are allowed to receive the mes-

sage, e. g., containing information about the state

change of a component.

• Provide a mapping between a sender’s and a re-

ceivers component interface in case of synchro-

nization of differently implemented components.

To enable users to create, reconﬁgure and delete

triple-based sharing deﬁnitions during runtime, the

platform facilitates the following invitation process.

If a user wants to share a composition fragment, he is

able to open a dialog box (see Section 5 for details)

and to deﬁne a new or adjust an existing triple. After

the user opens the corresponding UI dialog, the sys-

tem checks his current permissions via the client-side

ACL. All fragments which can not be shared due to

missing access rights are hidden. After its valid cre-

ation, the temporal sharing triple is send to the server

as part of an invitation and marked on the client-side

as to be approved. The server once again checks the

user’s permission to share the proposed triple. If the

invitation is valid, the server requests semantically

equivalent components from the component reposi-

tory for all components part of the object separately

for each subject to address individual user require-

ments. Thereby it facilitates the recommendation sub

system of the CRUISE platform (Radeck et al., 2012)

and attaches the list of alternative usable components

to the invitation. Details according to the calculation

of alternative components are not in scope of this pa-

per. Next, all clients which where part of the invita-

tion’s subject are informed. As soon as the invitation

arrives at a client-side runtime, a pop-up dialog ap-

pears. Therein, the invitee can decide to either reject

or accept the invitation. In case of rejection, an in-

vitation response is send back to the server, informs

the inviter, and causes the deletion of the temporally

created sharing triple. In case a user accepts the in-

vitation, additionally he can choose to either use the

component(s) initially shared by the inviter or to use

at least one of the alternatives presented, like the Bing

Map in the reference scenario (Section 2).

If the original component was selected, the invi-

tation response which is send to the server and for-

warded to the inviter leads to a persisting of the shar-

ing triple at the client of the inviter and invitee as well

as at the sever-side ACL. After ﬁnishing the invita-

tion process, the generated sharing triples are used

for example to route upcoming state changes of the

application to all clients which are allowed to receive

them. If the inviter wants to stop the sharing, he ei-

ther can delete the triple using the sharing dialog from

the beginning, or remove the corresponding composi-

tion fragment from his application. In this case, the

composition fragment is deleted by all invitees too,

including the related triples of the ACL. If an invitee

decides to remove a certain composition fragment, it

only will be deleted on his client. All other clients still

can use it. If the invitee stops the sharing by delet-

ing the corresponding triple, the inviter gets asked

whether the other user is still allowed to use a local,

not synchronized copy of the composition fragment.

To support users with no programming skills in

sharing arbitrary composition fragments during run-

time, extended user guidance and UI support is

needed and is discussed in detail in the next section.

5 UI-SUPPORT FOR RIGHTS

MANAGEMENT BY

NON-PROGRAMMERS

To support users of our target group during the shar-

ing process proposed in the last section, an adequate

UI is needed. Therefore, it adheres to the triple

metaphor, which promises the following advantages:

First, it eases the creation of new sharing deﬁnitions

while considering the challenges discussed in Sec-

tion 2. Second, it allows simple understanding of de-

ﬁned permissions. Thereby, the UI concept follows a

closed world assumption, i. e. all composition frag-

ments which are not explicitly shared by a sharing

deﬁnition are private.

5.1 Triple-based Rights Overview

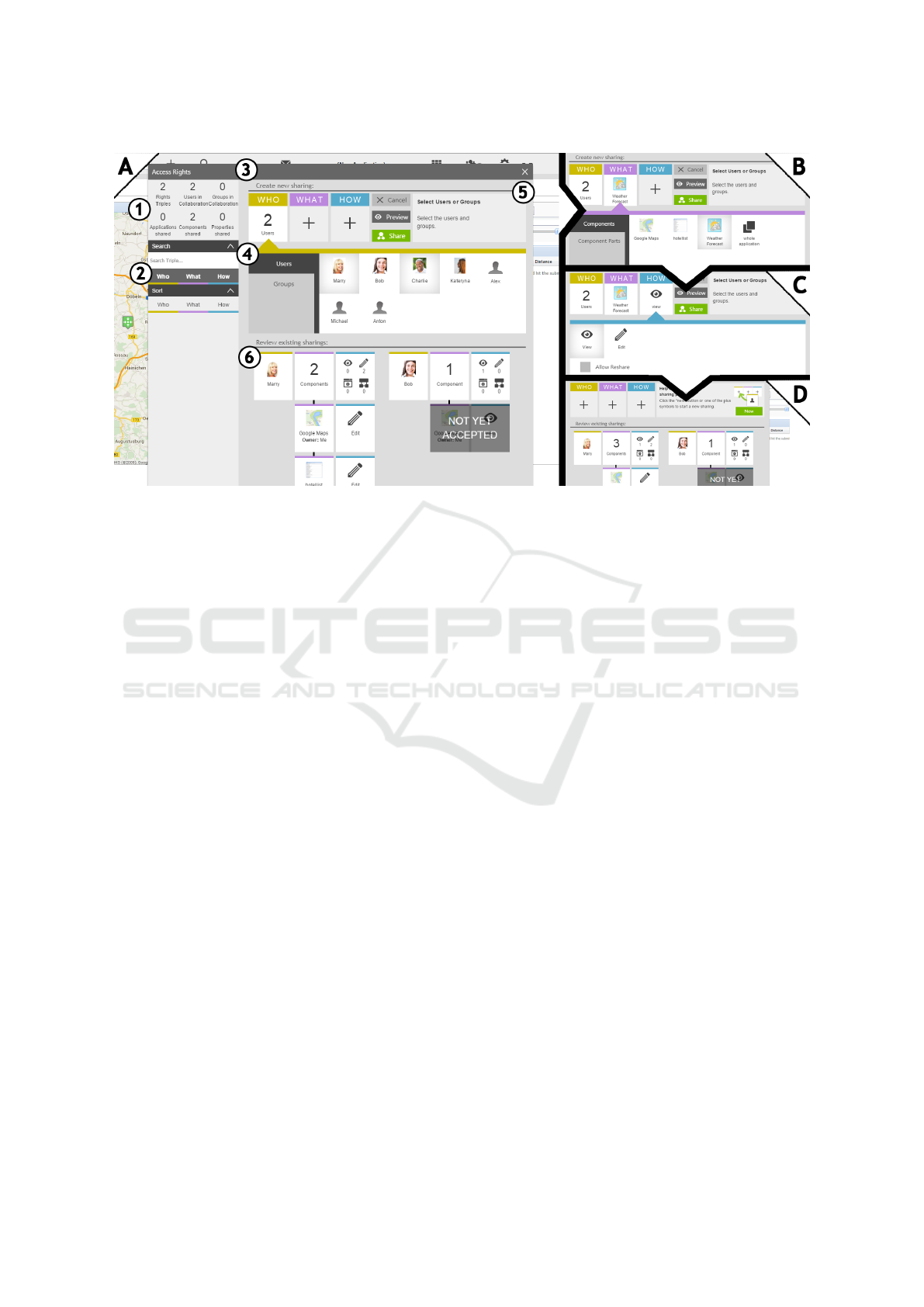

Figure 2 presents the triple-based overview panel in

screen A, which serves for managing sharing deﬁni-

tions. It is a separate window that overlays the appli-

cation’s UI. The panel basically consists of six parts.

¬ presents statistical information like the number of

triples currently shared, the number of collaborative

users and groups that currently exist as well as infor-

Triple-based Sharing of Context-Aware Composite Web Applications for Non-programmers

Figure 2: Prototypically implemented UI for sharing CWAs based on triples.

mation about open invitations. The ﬁlter and search

panel  enables to search, sort or ﬁlter the triples

of previously assigned rights displayed in ± by sub-

ject, object or permission. ® allows users to create

new sharing deﬁnitions by visually composing a new

triple. Therefore, the user is guided by a message

panel ° on the right side which includes a stepwise

instruction how to create a new triple. Already de-

ﬁned triples are displayed in a grid-based overview

at the bottom ± and are clustered by subjects. The

latter was one of the features requested by the user

study (Section 6). Thereby, as can be seen by the map

and hotel component of Marry, the top-most triple

summarizes the number of components and rights as-

signed. Initially, this triple is collapsed. Sharings

which are not accepted yet, are greyed out. The size

and amount of the triples displayed depends on the

size of the device’s display the user is currently using.

The presented triples include both, the ones where the

current user is the owner and the ones where the user

is one of the invitees. For each object, information

about the owner is attached.

To present the interaction steps necessary to cre-

ate a new sharing, Figure 2 extends the reference sce-

nario by a weather forecast component. Let us as-

sume, Peter wants to share this component with Marry

and Charlie. After clicking on the plus symbol of the

who area, a panel for selecting suitable collaboration

partners opens ¯. The user can select either a number

of single users currently registered at the platform or

individually deﬁned groups (see screen A). As indi-

cated in screen B, by clicking on the plus symbol be-

low what, a similar panel allows to select all compo-

nents the user is allowed to share. Next, within screen

C, the user can either select edit or view as permission

and additionally can activate the check box to allow

for re-share. Before the user clicks on the share but-

ton, he can test his sharing conﬁguration. Thereby, a

separated window is opened showing an instantiated

copy of the selected components with respect to the

selected permissions. Finally, indicated at screen D,

after Peter clicked on the share button, area ® will

be reseted to its initial state and ± includes the new

triples marked as to be approved.

By hovering the mouse over an existing triple, the

platform allows to delete or reconﬁgure it. For recon-

ﬁguration, the triple is loaded once again to ®.

As soon as an invitee accepts an invitation, the

triple is displayed without the grey highlighting. If

he rejects, the triple is removed. In both cases a short

notiﬁcation is presented to the user. If the invitee se-

lects an alternative component, again a notiﬁcation is

presented. In addition, the triple visualizes this by a

small icon at the area of the object. If a user hovers

the mouse over this icon, the alternative component is

displayed as object.

5.2 Awareness and Live View Support

As a result of our user study (Section 6), users rec-

ommended to integrate an easy to understand access

right representation on the application’s live view.

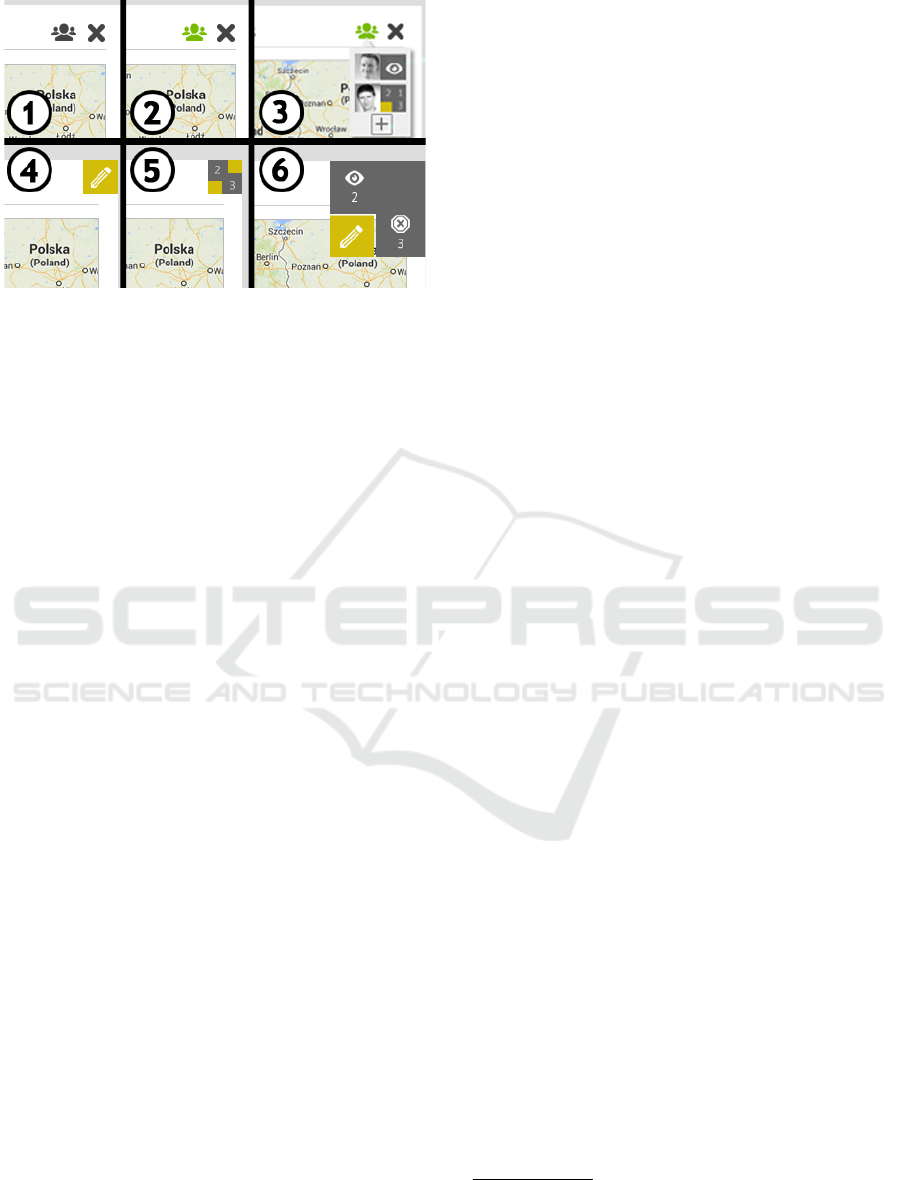

As indicated by Figure 3, the live view support is

realized by speciﬁc click-able icons at the top right

corner of each component. Thereby, three functional-

ities are integrated:

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

Figure 3: Live view support for inviters and invitees.

1. A short cut to share the corresponding component.

2. An indicator whether the component was already

shared in general and some details of the speciﬁc

collaboration partners and their access rights.

3. A representation that informs which components

or their parts are shared with the current user un-

der certain permissions.

To ease the overview of all components that can

be shared by the user, the icon presented in ¬ is used.

If the user already shared a component, the color

changes to green . On hovering the icon with the

mouse, a small dialog shows all users and their cor-

responding rights ®. By clicking the plus symbol the

user can open the share menu presented in Section

5.1. The same functionality is achieved by directly

clicking on the icon. In both cases, the triple-based

overview starts a new triple creation process and pre-

selects the component as object.

To indicate components that were owned by oth-

ers, the granted access right is represented at the top

right of the component, like for example the presented

icon for the edit right in ¯. If a component for ex-

ample additionally includes parts which are blocked

or parts which are only visible by read-only mode,

a mixed representation is used °, which can be en-

larged by hovering the mouse over this icon ±. If

users again hover the indicators for, e. g., blocked el-

ements, the platform highlights the corresponding ar-

eas of the component’s UI. Therefore, the CSS selec-

tors of the view bindings are used which were referred

by the capabilities that are part of the correspond-

ing object of the triple. If the whole application was

shared, each component of the application includes a

corresponding icon.

Presenting further awareness information about,

e. g., changed access rights are realized by a widget-

based conﬁgurable awareness subsystem (Blichmann

et al., 2015) and therefore are not part of this paper.

6 EVALUATION

The proposed rights management system as well es

the corresponding UI support for CWAs were evalu-

ated by a reference implementation within the exist-

ing CRUISE runtime environment (Section 6.1) and a

user acceptance test of this reference implementation

(Section 6.2)

6.1 Prototypical Implementation

The prototype is implemented as extension of the

CSR. The server-side coordination layer uses Enter-

prise Java Beans (EJB) and is implemented as a sin-

gleton for all clients. The client-side is realized by

pure HTML5, CSS and JavaScript (JS) technologies.

Additionally, we use Ext JS

and JQuery

to fasten

development. In order to provide a channel-based

web socket communication between client and server,

we use the Apache Apollo framework

As proposed earlier, the ACL was implemented

on client-side using JSON and on the server-side us-

ing plain Java. Updates between server and client are

exchanged by dedicated commands and events which

uses the communication channels of Apache Apollo.

The client-side ACL clusters triples by users to al-

low an easy look up for the triple-based overview.

Further, to detect owners of components, beside each

sharing triple, the platform stores an additional triple

with a permission representing the ownership. Each

triple is associated with a state, to indicate, e. g., al-

ready accepted invitations. On server-side, a mapping

for semantically compatible components is necessary.

Thereby, the corresponding triples will be marked as

alternatives. If a state change occurs at one client,

the server can easily determine the components of the

other participants that have to be informed. Poten-

tially necessary data transformations are realized by

the existing mediation infrastructure individually for

each client.

6.2 User Acceptance

We used the Thinking Aloud methodology to conduct

a user study which achieves two main goals: First,

test the general acceptance of the triple metaphor for

sharing applications and their parts. Second, analyze

the usability of the proposed UI concept. Therefore,

paper mockups were used to simulate the latter.

The user study was conducted with the help of ten

male and four female participants including ages from

https://www.sencha.com/products/extjs

https://jquery.com/

https://activemq.apache.org/apollo/

Triple-based Sharing of Context-Aware Composite Web Applications for Non-programmers

22 to 47 (average of 28.5). Six participants had no

programming skills, ﬁve considered themselves as be-

ginner and three were average-level programmers.

The process was three-staged: First, users get in-

troduced by a video as well as a basic scenario to un-

derstand what mashups are and how they potentially

can ease collaborative work. Second, they where en-

couraged to solve six tasks with increasing complex-

ity by using the paper prototype. The tasks were cre-

ated with the help of the reference scenario in Section

2. The moderator noted all comments and thoughts as

well as updated the prototype based on the desired in-

teractions of the participants. To get a comparable and

standardized result, the participants were asked to ﬁll

in the System Usability Scale (SUS) questionnaire.

The overall results were very positive. Basic UI

structures and metaphors were understood correctly

without further explanations by nearly all participants

(12/14). Three explicitly mentioned the colored sepa-

ration as helpful. We found, that users preferred to use

a share icon placed directly on top of the components

instead using the icon in the main menu bar. This ﬁnd-

ing caused the extended live view support presented

in Section 5.2. The used icons where understood by

all users quite well. 12 of 14 users were able to se-

lect multiple triple elements without help. Thereby,

we found out that users, probably due to their daily

usage of social networks, often thought in a group-

oriented way. This underlines the necessity of groups

as subject, which we provide. The component icon vi-

sualizing whether a component was shared or not was

instantly understood by 7 of 14 participants. All users

understood the messaging symbol and menu to read

and react on their invitation, the similarity to estab-

lished messenger programs like Facebook was con-

sidered very positive. But, 9 of 14 users criticized the

missing drag and drop support. The initially provided

dedicated dialog for creating new triples was not un-

derstood by 9 of 14 and therefore skipped in the ﬁ-

nal result and replaced by the presented inline editing

functionality in the triple overview panel. Icons were

used inconsistently, confusing participants, and were

therefore replaced by unique ones. Surprisingly, the

possibility to use an existing triple as template for a

new one was not considered as intuitive by the major-

ity and removed from the ﬁnal concept.

The average SUS score equals 77 with 62.5 as

lowest and 98 as highest single user rating, which we

consider as a promising result. The comments of the

users showed that the general approach was under-

stood and accepted very well. Suggested features or

misunderstood elements were re-worked and are al-

ready part of the presented concepts. Further limita-

tions are discussed in the next section.

6.3 Discussion

As already mentioned, some elements of the concept

are inﬂuenced by the results of the user study, thus

some concepts, like the ﬁnal selection of icons for

the live view, have to be validated in a second study.

However, the majority of features have successfully

been proven to be acceptable. Beside a good user

acceptance, further challenges for a successful shar-

ing support have to be discussed. First of all, to en-

able users, e. g., the blocking of single parts of the UI,

quite rich component descriptions are needed. Com-

ponent developers have to annotate semantic con-

cepts in form of capabilities and view bindings to

ensure that the platform can offer all functionalities

presented above. We argue that the additional effort

a component developer has to invest is quite less in

comparison to the beneﬁt users can achieve by using

the proposed functionalities. In addition, we support

component developers by a developer guide which in-

cludes best practices for, e. g., component annotation.

The components itself have to use technologies which

rely on the Document Object Model (DOM). From

our perspective, plugin-based technologies like Flash

can be omitted due to their decreasing dissemination.

The technology stack of HTML5 and CSS3 offers an

increasing number of functionalities and Application

Programming Interfaces (APIs).

Concurrency control is inevitable for collaborative

systems, but a detailed concept is very challenging

in context of black-box components and therefore not

part of this paper. Due to the usage of black-box com-

ponents, we can not prevent that component changes

already are ﬁnished locally before they can be pro-

cessed and synchronized with all other participants.

In case of conﬂicts, one of the conﬂicting state have

to be rolled back. This disturbs usability and confuses

the users. In addition, it is still challenging to give a

quick access right overview on the live view while al-

lowing speciﬁc restrictions on single UI elements.

7 RELATED WORK

The platform for distributed interactive workspaces

(DIWs) (Ardito et al., 2014) allows users to syn-

chronously use and edit component-based applica-

tions for joined learning. Thereby they can annotate,

live edit or freeze parts of the application and declare

theses changes as only private, public or group-width

visible. In contrast to our solution, no user guidance

during creating or reviewing access rights are given.

In addition, no concept to block or share parts of a

component’s UI to respect privacy needs is presented.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

Collaborative sessions where participants use differ-

ent components are not considered.

Tschudnowsky et al. (Tschudnowsky et al., 2014)

suggested an abstract architecture for mashup ap-

plications that can be used and reconﬁgurated syn-

chronously by multiple users. But, the approach does

not present any detailed concepts for rights manage-

ment as well as user guidance at all.

MultiMasher includes a visual tool for creating

multi-device mashups by marking parts of a web-

site’s UI and afterwards sharing them (Husmann et al.,

2013). Due to the focus on co-located scenarios, no

explicit awareness support about created right assign-

ments or support for different components exist. It is

also not possible to deﬁne single UI parts as private.

Therefore, different views for the same resource can

not be created. The component selection as well es

interactions between components are not discussed.

The personal learning environment (PLE) Graasp

(Bogdanov, 2013) enables the creation and sharing

of resources and widgets with participants by group-

ing into spaces. But, privacy settings are only main-

tained at space level and can not be conﬁgured more

ﬁne-grained. Additionally, the rights management is

based on a dedicated set of roles which may ease the

right assignment in collaborative learning scenarios,

but can not be used in generic application platforms

like the one we propose. Another PLE, CURE, fa-

cilitates a room key metaphor to restrict access rights

(Sch

ummer et al., 2005). CURE allows to share re-

sources during runtime by end users similarly to the

space approach of Graasp. Access rights are deﬁned

by keys which represent access to speciﬁc spaces.

This mainly focuses on sharing of documents and

works ﬁne so far. Sharing arbitrary functional parts

of an application under different rights with different

participants is not feasible with this metaphor.

Within social networks, the circle metaphor intro-

duced by Google+

tries to enable an easy grouping

of users that should receive the same content. This

particular solution is quite interesting for solving sub

problems but misses a strategy to represent different

rights for different parts of an application efﬁciently.

The most content or document management sys-

tems, like Typo3

, Drupal

or Joomla

, facilitates the

matrix metaphor to manage the user’s access rights on

different data objects. These approaches potentially

allow for ﬁne-grained sharing deﬁnitions with differ-

ent rights on all sub parts of a mashup application.

But, as the number of users and elements of the ap-

https://plus.google.com

http://typo3.org/

https://drupal.org/

http://www.joomla.de/

plication increases, the visualization gets quite com-

plex and hard to understand for non-programmers. In

addition, highlighting dependencies between sharing

deﬁnitions or respecting different used components of

different users is not possible.

A number of solutions, like (Angulo et al., 2012)

or (Drogkaris et al., 2014), presented UIs for deﬁning

and reviewing the consumption of private data of third

party service providers in websites. These approaches

work well for reviewing and conﬁguring requested

data access from, e. g., different API providers, but

do not offer any possibility to generically create ac-

cess deﬁnitions for parts of an application’s underly-

ing data model for collaborating participants.

In summary, non of the examined approaches of-

fer full support for the requirements and research

questions that arise when enabling end-users to indi-

vidually share parts of a CWA.

8 CONCLUSION

Today’s mashup platforms offer no or only limited

support for collaborative applications. We argue that

CWAs are promising for non-programmers to use

and adapt individually created applications for syn-

chronous usage scenarios. In this paper, we pre-

sented an approach for the rights management as well

as an adequate UI concept in context of collabora-

tively used CWA. After presenting the current state

of the CRUISE runtime environment for CWAs based

on black-box components, the basic rights manage-

ment concept using triples of subject, object, and per-

mission were introduced in Section 4. The access

right concept allows to assign multiple owners to dif-

ferent parts of an application. The proposed shar-

ing process is empowered by a client- and server-

side ACL. To support end users with no programming

skills in creating and managing different access rights

for their CWA during runtime, we propose a triple-

based overview dialog, with two major functionali-

ties: First, it provides a possibility to share parts of the

CWA with single users or a group of users during run-

time. Second, the UI enables an easy to understand

visualization of existing right assignments where the

user is the inviter or the invitee and their current state.

To present awareness information about shared com-

ponents and the present permissions in the applica-

tion’s live view, Section 5.2 introduced a set of icons

and interaction techniques. We demonstrate the tech-

nical feasibility of the approach by implementing the

complete rights management concept as well as ma-

jor parts of the UI within the CSR platform. Finally,

a user survey showed that the concepts work as ex-

Triple-based Sharing of Context-Aware Composite Web Applications for Non-programmers

pected and are accepted by the target group. Thereby,

the majority of mentioned drawbacks and suggestions

for improvements are already respected within the

presented concepts.

In future, we iteratively will re-work our approach

based on the results of a second user study. Thereby,

we primary focus on the sharing of component parts,

where we plan to conduct an A/B testing to com-

pare a task-centered sharing approach against a data-

centered sharing approach. In addition, we extend the

overall user guidance for sharing single parts of com-

ponents. In this context we strive for a concept to

identify and prevent erroneous or meaningless shar-

ings leveraging semantic annotations and heuristics.

ACKNOWLEDGEMENTS

Carsten Radeck is funded by the Free State of Saxony

and the European Union within the EFRE program.

Gregor Blichmann is funded by the German Federal

Ministry of Economic Affairs and Energy (ref. no.

01MU13001D).

REFERENCES

Angulo, J., FischerHbner, S., Wstlund, E., and Pulls, T.

(2012). Towards usable privacy policy display and

management. Information Management & Computer

Security, 20(1):4–17.

Ardito, C., Bottoni, P., Costabile, M. F., Desolda, G., Mat-

era, M., and Picozzi, M. (2014). Creation and use

of service-based distributed interactive workspaces.

Journal of Visual Languages & Computing, 25(6):717

– 726. Distributed Multimedia Systems {DMS2014}

Part I.

Blichmann, G., Radeck, C., Hahn, S., and Meißner, K.

(2015). Component-based workspace awareness sup-

port for composite web applications. In Proceedings

of the 17th International Conference on Information

Integration and Web-based Applications & Services

(iiWas 2015).

Blichmann, G., Radeck, C., and Meißner, K. (2013). En-

abling End Users to Build Situational Collaborative

Mashups at Runtime. In Proceedings of the 8th Inter-

national Conference on Internet and Web Applications

and Services (ICIW2013), pages 120 – 123.

Bogdanov, E. (2013). Widgets and Spaces: Personal &

Contextual Portability and Plasticity with OpenSocial.

Theses, Ecole Polytechnique F

erale de Lausanne

(EPFL).

Drogkaris, P., Gritzalis, A., and Lambrinoudakis, C. (2014).

Empowering users to specify and manage their pri-

vacy preferences in e-government environments. In

K, A. and Francesconi, E., editors, Electronic Govern-

ment and the Information Systems Perspective, vol-

ume 8650 of Lecture Notes in Computer Science,

pages 237–245. Springer International Publishing.

Husmann, M., Nebeling, M., and Norrie, M. C. (2013).

Multimasher: A visual tool for multi-device mashups.

In Sheng, Q. Z. and Kjeldskov, J., editors, Current

Trends in Web Engineering - ICWE 2013 International

Workshops ComposableWeb, QWE, MDWE, DMSSW,

EMotions, CSE, SSN, and PhD Symposium, Aalborg,

Denmark, July 8-12, 2013. Revised Selected Papers,

volume 8295 of Lecture Notes in Computer Science,

pages 27–38. Springer.

Picozzi, M. (2013). End-User Development of Mashups:

Models, Composition Paradigms and Tools. PhD the-

sis, Politcnico di Milano.

Pietschmann, S. (2009). A Model-Driven Development

Process and Runtime Platform for Adaptive Compos-

ite Web Applications. Technology, 2(4):277–288.

Radeck, C., Blichmann, G., and Meißner, K. (2013).

CapView - Functionality-Aware Visual Mashup De-

velopment for Non-programmers. In Daniel, F.,

Dolog, P., and Li, Q., editors, Web Engineering, vol-

ume 7977 of Lecture Notes in Computer Science,

pages 140–155. Springer Berlin Heidelberg.

Radeck, C., Blichmann, G., Mroß, O., and Meißner, K.

(2014). Semantic mediation techniques for compos-

ite web applications. In Casteleyn, S., Rossi, G., and

Winckler, M., editors, Web Engineering, volume 8541

of Lecture Notes in Computer Science, pages 450–

459. Springer International Publishing.

Radeck, C., Lorz, A., Blichmann, G., and Meißner, K.

(2012). Hybrid Recommendation of Composition

Knowledge for End User Development of Mashups.

In Proceedings of the Seventh International Confer-

ence on Internet and Web Applications and Services

(ICIW 2012).

Sch

ummer, T., Haake, J. M., and Haake, A. (2005). A

metaphor and user interface for managing access per-

missions in shared workspace systems. In Hemmje,

M., Nieder

ee, C., and Risse, T., editors, From Inte-

grated Publication and Information Systems to Vir-

tual Information and Knowledge Environments, Es-

says Dedicated to Erich J. Neuhold on the Occasion

of His 65th Birthday, volume 3379 of Lecture Notes

in Computer Science, pages 251–260. Springer.

Tschudnowsky, A., Hertel, M., Wiedemann, F., and

Gaedke, M. (2014). Towards real-time collabora-

tion in user interface mashups. In Obaidat, M. S.,

Holzinger, A., van Sinderen, M., and Dolog, P., edi-

tors, ICE-B 2014 - Proceedings of the 11th Interna-

tional Conference on e-Business, Vienna, Austria, 28-

30 August, 2014, pages 193–200. SciTePress.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies
