Towards Automated Integrity Constraints Modelling and Validation
A Survey and Approach
Sandra Bergner
Institute for Applied Computer Science, Universität der Bundeswehr,
Werner-Heisenberg-Weg 39, 85577, Neubiberg, Germany
Keywords: Knowledge Engineering, Semantic Web.
Abstract: Semantic web techniques based on ontologies are a possible means for modelling and validating complex,
safety-critical products like airplanes or automobiles. For validation purposes, checks based on the Open
World Assumption (OWA) as well as checks based on the Closed World Assumption (CWA) are both
valuable. Based on a survey of existing semantic-based approaches, we present a novel approach that
provides hybrid OWA/CWA checks and thereby reduces the maintenance burden for managing two
different kinds of checks.
1 INTRODUCTION
The design of complex, safety-critical products like
airplanes or automobiles is normally performed by
distributed, concurrent engineering teams. During
development, the overall system specification
emerges from several fragments of different sources.
Airbus, for example, is using ontologies based on
the OWL 2 ontology modelling language to specify
the product models of their aircrafts (Bergner, 2015).
Several domain engineers integrate their knowledge
into a common model of the aircraft. This common
model covers concepts from domains like cabin
layout, lighting and electrical wiring.
Airbus checks the consistency (Hitzler et al.,
2007) of these domain models by using OWA
checks performed by existing reasoners like Pellet
(Sirin et al., 2007).
Based on these consistent models, airline
customers like Lufthansa, Air Berlin or Emirates add
information to configure specific aircraft exemplars.
To check the completeness of such a specified
aircraft configuration, they have to switch from the
OWA to the CWA.
A real-world example for this transition arises,
for example, in the electrical wiring domain to
ensure that the connectors and sockets are correctly
plugged into each other. On a first view, it seems
rather simple to guarantee that, but imagine the great
number of cables that are necessary in an airplane
(see both sides of Figure 1).
Figure 1: Connectors Plugged into Sockets.
In the electrical wiring scenario, OWA checks
are well suited to detect inconsistencies like
connectors that are plugged into the wrong sockets.
However, OWA checks cannot easily detect whether
the wiring configuration is complete, that is, whether
there is a corresponding socket for each connector,
and whether all connectors are actually properly
connected and don’t dangle around.
Unfortunately, appropriate methods and tools
that combine OWA and CWA reasoning for system
validation do not exist yet. In the database and
knowledge management communities, CWA checks
are also known as integrity constraints (ICs). There
are many approaches on the topic of ICs, so that
getting an overview of the state of the art is a
challenge in itself. Thus, one of the main
contributions of this paper is to introduce and review
the different fields of research within the last couple
of years. To do this, Section 2 reviews the existing
Bergner, S..
Towards Automated Integrity Constraints Modelling and Validation - A Survey and Approach.
In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 453-461
ISBN: 978-989-758-158-8
Copyright
c
 2015 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
453

work with regard to the following research question:
Is there a practical approach that enables an
automated transformation of OWL 2 axioms to ICs,
thereby bridging the OWA/CWA gap?
Based on that survey, Section 3 presents a novel
approach for hybrid OWA/CWA checks based on a
combination of some of the most advanced existing
approaches. Section 4 then shows how these checks
can be automated based on existing tools and
libraries. Finally, Section 5 gives a short conclusion
and provides an outlook on further work.
2 EXISTING APPROACHES
As motivated in the introduction, the derivation and
handling of ICs for completeness checking is the
focus of this paper. Thus, we first survey and
evaluate the existing semantic-based approaches.
Based on that evaluation, we identify a set of
“compatible” approaches and techniques that can be
combined to achieve hybrid OWA/CWA checks.
All of the surveyed approaches are semantic-
based, that is, they use the same syntax with two
different semantics, one for the OWA and one for
the CWA.
2.1 Auto-Epistemic Extensions
Research on Integrity Constraints in the field of
auto-epistemic extensions is based on Reiter`s
statement (Reiter, 1992) that “constraints are
epistemic in nature; rather than being statements
about the world, they are statements about what the
knowledge base can be said to know.”
Based on that, Reiter points out that ICs should
be understood as epistemic First Order Logic (FOL)
sentences. More generally, his approach is based on
static constraints and the assumption that both
knowledge bases and ICs are a set of first order
sentences.
For example, the fact that every resident of the
USA must have a social security number is written
as a first-order logic sentence as follows:
(x)re s ide nt(x)

(y)ss #(x, y)
(1)
Reiter interprets this statement as concerning the
contents of the knowledge base. Thus, he introduces
the modal K operator (for “known”), resulting in the
following first-order logic sentence:
(2)
Hustadt agrees with Reiters view that an epistemic K
operator should be used for handling closed world
assumptions (CWA) in knowledge representation
languages (Hustadt 1994). Hustadt underlines the
non-decidability of theorems with K operators.
Furthermore, he suggests to “identify a fragment of
N L L to which we can add an epistemic operator
without losing decidability” (Hustadt 1994).
One step in this direction is the approach from
Donini et al. in (Donini et al., 2002), which is based
on the epistemic extension of Description Logics
(DLs). They suggest a Framework of Description
Logics with minimal knowledge and negation as
failure (MKNF-DLs).
To do this, they first divide the knowledge base
into two components called the „TBox“ (containing
the concepts and roles) and the „ABox“ (containing
the individuals). The framework then augments DLs
with modal operators K and A both on roles and
concept expressions. These operators are interpreted
according to the non-monotonic logic MKNF
(Lifschitz 1994). Hence, KC is defined as the set of
individuals that are known to be instances of concept
C, and KR is defined as the set of pairs of
individuals that are known to be instances of the role
R. Furthermore, the A operator is introduced as an
auto-epistemic assumption.
Doninis approach is based on Reiter’s view
(Reiter 1992) that ICs should be usually regarded as
queries. This results in the epistemic description
logic ALCK (Donini et al. 1992). Thus, ICs are
represented as epistemic DL axioms. The standard
DL KB defines the satisfaction of ICs as the
entailment of the epistemic IC axioms.
In (Grimm and Motik 2005), Motik et al. propose
an epistemic operator to realize a non-monotonic
extension of OWL. The approach is based on auto-
epistemic description logics (ADL) (Donini et al.
2002). “In other words, we believe that many
applications require OWA and CWA in parallel in
order to enable local closed world (LCW)
reasoning” (Grimm and Motik 2005). For them, such
reasoning is based on “the OWA augmented by the
possibility to explicitly close off parts of the world.”
(Grimm and Motik 2005). They introduce three
methods for local closed world reasoning based on
epistemic operators.
The approach in (Katz and Parsia 2005) by Katz
and Parsia is also based on Reiter's view on integrity
constraints, namely “asking the data only for known
facts”. They discuss “ALCK, a non-monotonic logic
that augments ALC with the epistemic operator K
and argue that a similar extension to OWL is
desirable”. The authors point out that the OWL
syntax is too inflexible to be extended in a natural
way. Therefore, they introduce their implementation
(x)K r esi dent (x)  (y)Kss#(x, y)
KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development
454

of ALCK as an extension to the tableau-based
OWL-DL reasoner Pellet (Sirin et al., 2007).
Another direction is to combine the Semantic
Web Rule Language (SWRL) and DL-safe rules
with the approaches for auto-epistemic extensions of
DLs. To do this, Motik et al. propose a novel logic
for hybrid MKNF knowledge bases similar to
(Donini et al., 2002), which is based on Lifschitz
(Lifschitz 1991). In addition, their “logic seamlessly
integrates OWL with Logic Programming”
(presented in (Motik et al., 2006)). Finding well-
founded semantics, “which is nontrivial because it
actually requires redefining the semantics of
MKNF” (Motik and Rosati, 2006) remains an open
point.
An epistemic query based approach is presented
in (Calvanese et al., 2007). This approach is based
on expressing ICs as epistemic queries. It evaluates
ICs by checking the epistemic query answer. The
epistemic queries are based on EQL-Lite (Q), which
is a fragment of EQL, a first order modal language
with equality and a single modal operator K.
The approach from Tao et al. (Tao 2010) reduces
Integrity Constraint validation to SPARQL query
answering and is based on Reiter’s view that “IC
should be epistemic FOL queries that will be asked
to a standard KB that does not contain epistemic
axioms.”
Based on (Tao, 2010), Tao suggests an IC
Semantics for OWL 2 that is different from the
standard OWL 2 semantics, but keeps the full
expressivity of SROIC DL. Furthermore, she
proposes a concept for IC validation that includes
the translation of rules from ICs to DCQ
not
queries.
Her “translation rules are similar in the spirit to the
Lloyd-Topor transformation” (Lloyd, 1987).
However, instead of generating rules, her core idea
is to translate IC axioms into negated queries, so-
called DCQ
not
queries. In case the IC is violated, the
KB entails the query. That means, if the answer of
the query is not empty, one can conclude that the IC
is violated.
On this basis, Tao et al. have built the prototype
IC validator Stardog (Clark and Sirin 2013) as an
extension of the OWL 2 DL reasoner Pellet (Sirin et
al. 2007). Their prototype reads ICs expressed as
OWL axioms and then translates each IC first into a
DCQ
not
query and then into a SPARQL query.
Evaluation
With regard to auto-epistemic extensions, the
approach of Tao et al. is the most advanced. The
approach has proven its feasibility and provides the
full expressivity of the SROIC DL. Furthermore, it
has been integrated into the Stardog tool (Clark and
Sirin, 2013), whose OWL 2 DL reasoner has been
enhanced by closed world reasoning. Although the
approach is already used in practice, we see it as a
significant disadvantage that the user still needs to
have knowledge of the Integrity Constraints and
needs to know how to formalize these constraints.
This results in significant modeling burden.
2.2 Circumscription
The main purpose of Circumscription approaches is
to not consider the whole knowledge, but only the
knowledge that is designated as closed world
information.
In (Etzioni et al., 1994), Etzioni et al. describe a
method for representing, inferring and updating local
closed world (LCW) information. They address the
problem of “redundant information gathering” in
(partial-order) planning. They state that “The agent
is not making a closed world assumption. Rather, the
agent has access to an action that yields closed world
information.” Consequently, they start with the
notion of an incomplete world. They formalize the
agent's incomplete information by a set of possible
world states, S. Those states are consistent with its
information. As they assume that the agent does
have correct information, the current world state w is
necessarily a member of S. Accordingly, S ⊨ φ
means that φ is known by the agent, just in case
∀
s
∈ S, s ⊨ φ applies. They assume that the agent
possesses complete information if S and w entail
exactly the same facts. Consequently, incomplete
information denotes that there are facts such that
neither S ⊨ φ nor S ⊨ ¬ φ; this means that φ is
unknown to the agent.
Hence, Etzioni et al. maintain a meta-level
database DC that contains sentences of the form
L(Φ), which record explicitly where (in the
database) the agent has closed world information.
Furthermore, they provide inference rules for LCW
as well as update rules for maintaining the
consistency of LCW with the world state.
“Agents must plan how they can achieve their goals”
(Heflin and Muñoz-Avila, 2002), particularly with
regard to the available information for that they
cannot make a closed world assumption. Via using
Local Closed world (LCW) information (Heflin and
Muñoz-Avila, 2002), they approach this problem by
explicitly stating which information can be assumed
to be complete. The approach is based on extending
two semantic web languages with the ability to state
LCW information. “LCW information is given as
Towards Automated Integrity Constraints Modelling and Validation - A Survey and Approach
455

meta-level sentences of the form LCW(Φ). The
semantics of L
(Φ) is that for all variable
substitutions θ, if the ground sentence Φ θ is true in
the world, then Φ θ is represented in the agent’s
knowledge base.” (Heflin and Muñoz-Avila, 2002).
Consequently, if a matching ground sentence is not
in the knowledge base, it is known to be false.
Furthermore, they suggest a concept that enables
agents to plan efficiently in distributed information
environments. The concept is based on ordered task
decomposition (OTD) in combination with LCW
information. It is an extension of OTD (Dix et al.
2003) that takes advantage of local closed world
information in the context of the semantic web. A
key component of the approach is the Mediator,
whose “main function is to evaluate the OTD Plan
Generator’s preconditions by accessing remote
information sites.” (Dix et al., 2003). One kind of
the LCW information is provided explicitly by the
information sources and is stated as locally closed.
The approach from Krisnadhi et al. in
(Krishnadhi et al., 2011) is a combination of open
and closed world reasoning – also called Local
Closed World Reasoning. The approach is based on
“Grounded Circumscription” and adapts the
circumscriptive description logic, which is
applicable to . It uses a knowledge base that
is based on description logic as usual. The authors
designate some predicates (concept names or role
names) as closed via augmenting them with meta-
information. More precisely, they “simplify the
circumscription approach by restricting their
attention to models in which the extension of the
minimized predicates may only contain known
individuals from the KB” (Krishnadhi et al. 2011).
They have pointed out that it would be preferable to
obtain a language, which is intuitively very simple to
understand by ontology engineers.
Evaluation
In the context of Circumscription, Etzioni et al. have
presented a sound and computationally tractable
method for representing, inferring and updating
Local Closed World Reasoning. The approach from
Krisnadhi et al. is applicable to SROIQ, but they still
have to investigate the complexity of their approach.
Both approaches are integrated into prototypes but
are not proven in practice. Thus, as of now they do
not provide a language for the closed world
reasoning which is intuitively very simple, appeals
to ontology engineers and is computationally
effective.
2.3 Rule based Formalisms
As introduced before, ICs need some sort of CWA.
“One way to add CWA to OWL is via integration
with logic programming (LP).” (Sirin et al. 2008). In
this line of approaches, “LP provides negation as
failure under CWA and thus can be used to express
ICs.” (Sirin et al., 2008).
The main idea here is to extend DLs by first-
order rules. In (Lloyd and Topor, 1984), Lloyd et al.
are using first-order formulas to express queries and
integrity constraints based on PROLOG. The
“requirement of implementing such a feature is a
sound form of the negation as failure rule.” (Lloyd
and Topor, 1984).
Mäs et al., (Mäs et al., 2005) introduce a
framework for using ontologies for the definition of
ICs. Those constraints are formalized in SWRL
(Semantic Web Rule Language), which is a
combination of OWL and RuleML (Rule Markup
Language). Thus, Mäs et al. are using integrity
constraints within ontologies that are expressed
through axioms.
The approaches in (Damásio et al. 2006)(Polleres
et al. 2006), (Lukasiewicz 2004) are based on logic
program transformation. Motik et al. (Motik et al.
2006) combine the logic program transformation
with auto-epistemic extensions. The approach in
(Motik et al., 2006), (Lukasiewicz ,2004) achieves
the integration of ICs with OWL by using a rule-
based formalism. The approaches are based on
Hybrid KBs (DL and KB).
The goal of (Polleres et al., 2006) by Polleres et
al. is to provide a context-aware rule language. The
core idea is to view scoped negation as an extension
of RDFS. Their outcome is a basis for a rule based
query language and they suggest SPARQL or N38
as an appropriate candidate to extend negation-free
RDF.
Schmidt et al. (Schmidt and Lausen, 2013)
propose a concept of how to consume linked data
with RDF Data Descriptions (RDDs). They present
design goals, syntax and formal semantics for RDDs
based on first-order logic. Constraints are defined by
first-order sentences known as tuple-generating and
equality-generating dependencies, which can be
implemented as SPARQL ASK queries. This is due
to the proof “that every first-order sentence can be
expressed in SPARQL” (Schmidt and Lausen,
2013).
Evaluation
This research area is still in its infancy. We disagree
with the opinion of Mäs et al. that constraints should
KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development
456

be part of the ontology and should not be treated
separately. We think that integrity constraints should
be treated separately from the ontology, because
they do not constitute knowledge about the world,
but are instead a way to check this knowledge. In
our opinion, it is important that the original state of
an ontology is retained, because we will use this
ontology or parts of it as a base model for specifying
a number of different products, each with specific
properties. This requires that the consistency and
completeness checks can be performed for each of
the derived products separately. Thence, in our
opinion the models (TBox), the products (ABox)
and the constraints (CBox) have to be orthogonal in
order to be able to combine and reuse them
arbitrarily.
Motik et al. extend the logic program
transformation by the auto-epistemic K operator.
However, following this approach, ontology
developers have to deal with two worlds. On the one
hand, they have to state rules, and on the other hand,
they have to model the domain with the ontology
language OWL. This results in considerable
modeling burden.
The approaches from Polleres and Schmidt both
suggest SPARQL as an appropriate candidate for
formalizing integrity constraints, but their
approaches are still on a conceptual level.
2.4 Special Purpose Boxes
The semantics of special purpose box approaches is
based on the notion of outer skolemization of first-
order logic formulae and minimal-model semantics.
The key idea in (Motik et al., 2007) Motik et al. is to
apply the approach of ICs from relational databases
to OWL. The approach introduces “extended DL
knowledge bases, which allow a modeller to
designate a subset of the TBox axioms as ICs”
(Motik et al. 2007). For ABox reasoning, these
axioms are interpreted as checks, with the intention
to check the proper form of the ABox. “Introducing
distinct individuals for each existential quantifier
can be justified by skolemization, the well-known
process of representing existential quantifiers with
new function symbols” (Motik et al., 2007).
Another approach in this line from Motik et al.
(Motik et al., 2009) is based on minimal Herbrand
models. The core idea is to “augment OWL with
ICs” (Motik et al., 2009). An “OWL IC axiom is
satisfied if all minimal Herbrand models of the KB
satisfy it” (Motik et al., 2009). By using this
approach, one only needs to tag some TBox axioms
as being ICs. Subsequently, those axioms cannot
imply new ABox facts, but are only used to check
whether an ABox axiom is in the appropriate format.
In contrast, “a constraint axiom can still imply a new
TBox axiom, e.g., a subclass relation might be
inferred by using ICs. (Sirin et al., 2008)”
Seylan et al. propose a DBox approach (Seylan
et al. 2009) that leverages the standard semantics of
relational databases. A DBox includes atomic class
or property assertions axioms such as “penguins are
birds”. Furthermore, a DBox includes the extensions
of predicates (classes and properties), which are
bounded by the DBox. Thus, predicates that do not
appear in the DBox remain open. Correspondingly,
the setup “generalizes both standard OBDA (only
open predicates permitted) and DBoxes (only closed
predicates permitted in data)” (Seylan et al., 2009)
and integrates open and closed predicates in one
ontology.
The core idea described in (Patel-Schneider and
Franconi, 2012) by Patel-Schneider et al. is to
“directly state that the extension of certain concepts
and roles is complete by making them DBox
predicates.” This proposal might eliminate the need
for special semantics.
In contrast to “the DBox approaches, the NBox
approach supports deduction on closed concepts and
roles” (Ren et al., 2010). Ren et al. describe an
approach “extending the syntax of DL SROIQ with
an NBox” (Ren et al., 2010). The NBox extends the
semantics with the concept of Negation as Failure in
order to specify the predicates to close. This
procedure is implemented in the TrOWL9
infrastructure. In (Pan and Ren, 2012) Pan et al.
allude to “the fact that NBox LCWR requires
support to enumerations (sets) in the ontology” (Pan
and Ren, 2012). It is still an open issue how
enumerations should be realized in a language that
does not support enumerations.
In (Lutz et al., 2013) Lutz et al. “carry out a non-
uniform analysis of the data complexity for query
answering with closed predicates”. “Admitting
closed predicates in OBDA” results in the problem
“that query answering becomes intractable regarding
data complexity” (Lutz et al., 2013).
Evaluation
The approach from Motik et al. is still on a
conceptual level. We agree with their idea that a
certain subset of TBox axioms can be designated as
constraints, but the question of how to designate
such axioms as constraints must still be solved.
Furthermore, the approach has to be transferred to
practice.
Towards Automated Integrity Constraints Modelling and Validation - A Survey and Approach
457

The DBox approach from Seylan et al. is a good
basis for our approach because it separates the
ABox, the TBox and the DBox, whereupon the
DBox should only include closed predicates. Hence,
those predicates that are not included in the DBox
remain open. The limitation of this approach is that
inference based on DBox predicates is prohibited in
a sense that no new instance can be inferred.
Furthermore, the disadvantage of this approach is
that it considers only the basic, propositionally
closed DL  and not more expressive DLs like
.
We agree with the idea described by Patel-
Schneider et al. that DBox should be made into the
analogue of database tables to eliminate the need for
special semantics.
2.5 Evaluation with Respect to the
Research Topic
The previous sections about the related work show
that the state of the art is very heterogeneous, typical
for the early stage of a technology that is not quite
ripe for practical applications. As could be seen,
there are many competing approaches and various
tools by different research teams and companies.
The challenge is to bring the theoretical approaches
into practical application by defining an approach
with the following properties:
 Formally Sound: The approach combines
existing, well-founded methods and techniques
for knowledge representation and for
consistency and completeness checking with
regard to OWA and CWA.
 Usable in Practice: The approach hides the
mathematical complexity of the formal
methods and techniques from the user,
automating the consistency and completeness
checks.
In order to achieve that, we select techniques that are
formally sound and sufficiently expressive to
support all necessary use cases for consistency and
completeness checks of complex, real-world
knowledge bases. Thus, we have chosen the
following techniques for our approach:
As the basis of our approach lies the auto-
epistemic extension technique from Tao (Tao et al.
2010) (see 2.1.1 Auto-epistemic Extensions). This
approach is formally sound and offers the full
expressivity of SROIQ. It already supports both
open world and closed world semantics for single
OWL 2 axioms as well as for complex expressions.
Furthermore, it is already well tested in real-world
scenarios.
As currently implemented, Taos approach is
rather laborious in practical applications, as the user
has to manually enter the same axioms twice, once
for the OWA checks and once for the CWA checks.
To improve that, we use syntactic axiom annotations
(Motik et al. 2009) that denote whether an axiom
should be checked with respect to OWA or CWA,
respectively. Thereby, the user has to enter each
axiom only once.
Adding a syntactical OWA/CWA axiom
annotation leads to two different semantics, which
must be clearly separated from each other. To
achieve that, we put the closed world interpretation
in a special purpose box (see 2.1.4 Special Purpose
Boxes). The details are given in Chapter 4. The
Approach.
3 HYBRID OWA/CWA CHECKS
In this chapter we introduce our approach for hybrid
OWA and CWA checks.
From a conceptual point of view, the following three
layers TBox, ABox and CBox are relevant for our
approach (see Figure 2):
Figure 2: Conceptual View.
 TBox: The TBox contains the terminological
knowledge in form of general concepts.
 ABox: The ABox covers the assertational
knowledge in form of individuals which are
specified according to the TBox concepts.
 CBox: The CBox is a contribution of this paper
and covers the constraint knowledge in form of
ICs. The ICs are derived from the TBox
concepts automatically.
From a technical point of view, an open world
reasoner like Pellet performs the OWA checks, and a
query engine performs the CWA checks (see Figure
2). The OWA checks are well established in tools
KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development
458

like Protégé (Knublauch and Fergerson, 2004) or
TopBraid Composer (Waldenmaier, 2011).
Unfortunately, no adequate mechanisms for CWA
checks are available to perform the CWA checks
automatically. Both Protégé as well as TopBraid
Composer support querying over SPARQL queries,
but not in an automated way. The users still have to
insert the SPARQL query with the appropriate
transfer parameter. This remains a maintenance
burden, and users need to have knowledge about
SPARQL. Thus, in this paper we introduce an
approach for applying the CWA checks
automatically.
As motivated in Section 2, we follow the
approach of Tao et al. and use the DCQ
not
mechanism for the closed world transformation.
Specifically, we use the DCQ
not
mechanism (Tao et
al. 2010) for defining the closed world semantics
exemplarily for the introduced scenario (section 3.
Scenario). We have applied the rules for the
transformation of a number of most relevant OWL 2
axioms in order to reduce the problem of IC
validation to query answering. As query language
we use SPARQL (DuCharme 2013), as it is the most
widely-used query language on the Semantic Web
and enables querying over OWL ontologies via
OWL entailment regimes. Furthermore, SPARQL
can express DCQ
not
. This is due to the fact that it has
the same expressive power as non-recursive Datalog
programs (Angles and Gutierrez, 2008).
Suppose we want to make sure that each
interface is plugged in to a provider. Then, we have
the following SROIQ axiom and we transform the
axiom to a DCQ
not
query via applying the mapping
rules introduced in (Tao et al., 2010).


 ⊑ ∃. 

≔


, 

⋀


∃. , 

≔



⋀

, 

⋀

, 
≔



⋀

, 

⋀




The result is then transferred to a SPARQL ASK-
NOT-EXISTS query. In the following, we explain
the definition of the SPARQL templates that we
have specified for almost all OWL 2 axioms and that
are used in our approach. We have specified ASK-
NOT-EXISTS templates, which are based on
theDCQ

approach from Tao and return “true” in
case an individual exists that does not fulfill the
constraint. Hence, it returns “false” if all individuals
fulfill the constraint.
In this section we have introduced an approach
for automated and hybrid OWA and CWA checks
for simple OWL 2 axioms.
It is possible to define a complex expression in

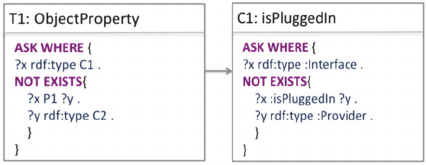

Figure 3: SPARQL template.
form of a SPARQL query manually and use it as IC
for a complex expression. However, this requires
manual effort. Thus, there is still an open issue with
regard to automate complex expressions.
Thus, it needs to be verified, if the approach is
scalable with regard to complex formulas or which
conceptual modifications need to be done for an
automatic transformation. The approach from Tao et
al. might be applicable for expressing complex
formulas, because currently her prototype reads ICs,
which are expressed as OWL axioms and translates
each IC first into a DCQ
not
query and then into a
SPARQL query.
Further consideration is needed regarding the
necessity of complex formulas. It might be the case
that engineers do only use simple expressions,
especially if they are using customized editors.
Otherwise, it could be possible, that engineers
need complex formulas for specific use cases that
have to be specified by an expert once and may not
modified regularly. Thus, an automated
transformation for complex formulas might not be
necessarily needed.
4 AUTOMATING CWA CHECKS
In this section, we show how the ASK-NOT-
EXISTS templates are used by a tool prototype to
realize automated CWA checks. Internally, this
prototype relies on the following steps:
1. Load Ontology: We load the ontology by using
the OWL API.
2. CBox and TBox: The interplay of the CBox and
the TBox is realized with the OWL API. For the
SPARQL templates and the automatic
transformation from SPARQL to SPIN, we use
the SPIN API from TopBraid (Knublauch n.d.).
To specify that a selected concept should be
interpreted as a closed world axiom (axiom
annotation), we use the Jena API (Foundation
2011).
3. Load ABox: We use the Jena API for loading
the ABox individuals.
Towards Automated Integrity Constraints Modelling and Validation - A Survey and Approach
459

4. Closed World Validation: For constraint
checking we use the Jena API in combination
with SPARQL. As mentioned above, our
templates are available as SPARQL queries (see
Section 4.4 Templates) and are transformed to
SPIN templates via the TopBraid API.
In the remainder of this section, we show how a
user might work with the tool prototype, again based
on the simple connector/plug example.
Figure 4: Completeness Check.
1. User selects TBox concept: The user selects the
TBox concept ‘Interface isPluggedIn Provider’
(see Figure 4 (1.)) via axiom annotation (Motik
et al. 2009) and triggers the closed world
transformation.
2. System automatically chooses the appropriate
template: The transformation from the TBox
concept to the CBox integrity constraint is
performed by the system automatically. To
choose the appropriate template the system reads
out the type of rdf-code of the selected TBox
concept. In this case the type of the selected
concept is ‘Object Property’ (see Figure 5).
Figure 5: RDF-Code Snippet.
Thus, the SPARQL template ‘Object Property’ is
chosen and the transfer parameter of the TBox
concept are filled in the template (see Figure 3).
3. User triggers Closed World Transformation:
Conceptually, this means that the TBox concepts
are interpreted as CBox ICs (see Figure 4 (2.))
and the completeness of the available ABoxes is
verified. Thus, the user receives feedback, if all
ABoxes are specified correctly, with regard to
the chosen CBox IC (see Figure 4 (3.)). In this
example the user receives an error message: ‘The
ABox instances are incomplete. No ABox
instance for the TBox concept Interface exists.
Please complete the ABox accordingly’. Thus,
the user adapts the ABox.
This process is performed iteratively until all
ABoxes are specified according to the CBox
integrity constraint.
5 CONCLUSION AND FUTURE
WORK
In this paper, we have reviewed the state of the art in
OWA/CWA reasoning. Based on this survey, we
have selected a number of compatible approaches as
the basis of a combination approach for hybrid
OWA/CWA checks.
In the future we will transfer this approach to the
domain of IT-Security in Critical Infrastructures
within the project Networked IT-Security of Critical
Infrastructures (Bergner et al. n.d.). Thus, we will
specify an ontology for IT-Security in Critical
Infrastructures and a methodology for defining
threat modelling and measurement handling and we
will predefine categories in form of complex
templates for modelling threats with regard to derive
the appropriate measures automatically.
ACKNOWLEDGEMENTS
First, I want to thank Dr. Klaus Bergner, Prof. Dr.
Andreas Rausch and Dr. Christian Bartelt. It was a
pleasure to work with you. A special thanks goes to
Axel Mauritz and Carsten Strobel from Airbus
Group Innovations in Ottobrunn and to their whole
team.
REFERENCES
Angles, R. and Gutierrez, C., 2008. The expressive power
of SPARQL. Available at:
Bergner, S., 2015. Methodology for an Ontology-Driven
Product Configuration Process. Technische Universität
Clausthal.
Bergner, S. et al., NETWORKED IT-SECURITY FOR
CRITICAL INFRASTRUCTURES – THE
RESEARCH AGENDA OF VESIKI Case Studies and
IT-Security Matchplays. , pp.1–4.
Calvanese, D., Giacomo, G. De and Lembo, D., 2007.
EQL-Lite: Effective First-Order Query Processing in
Description Logics. IJCAI. Available at:
Clark, K. and Sirin, E., 2013. On RDF validation, stardog
ICV, and assorted remarks. RDF Validation
Workshop. Practical Assurances for ….
KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development
460

Damásio, C. et al., 2006. Supporting open and closed
world reasoning on the web. Available at:
Dix, J. et al., 2003. IMPACTing SHOP: Putting an AI
planner into a multi-agent environment. Annals of
Mathematics and ….
Donini, F. et al., 1992. Adding Epistemic Operators to
Concept Languages. KR.
Donini, F., Nardi, D. and Rosati, R., 2002. Description
logics of minimal knowledge and negation as failure.
ACM Transactions on Computational ….
DuCharme, B., 2013. Learning SPARQL 2nd ed.,
O’Reilly.
Etzioni, O., Golden, K. and Weld, D., 1994. Tractable
closed world reasoning with updates. Proceedings of
the 4th ….
Foundation, T.A.S., 2011. Jena API. Available at:
https://jena.apache.org.
Grimm, S. and Motik, B., 2005. Closed World Reasoning
in the Semantic Web through Epistemic Operators.
OWLED.
Heflin, J. and Muñoz-Avila, H., 2002. Lcw-based agent
planning for the semantic web. Ontologies and the
Semantic Web.
Hitzler, P. et al., 2007. Semantic Web: Grundlagen.
Hustadt, U., 1994. Do we need the closed world
assumption in knowledge representation? KRDB.
Katz, Y. and Parsia, B., 2005. Towards a Nonmonotonic
Extension to OWL. OWLED.
Knublauch, H., TopBraid SPIN API.
Knublauch, H. and Fergerson, R., 2004. The Protégé OWL
plugin: An open development environment for
semantic web applications. The Semantic Web–
ISWC ….
Krishnadhi, A., Sengupta, K. and Hitzler, P., 2011. Local
closed world semantics: Keep it simple, stupid!
Lifschitz, V., 1994. Minimal belief and negation as failure.
Artificial Intelligence.
Lifschitz, V., 1991. Nonmonotonic Databases and
Epistemic Queries. Proceedings of the 12th
International Conference on Artificial Intelligence-
Volume 1, pp.381–386.
Lloyd, J. and Topor, R., 1984. Making Prolog more
expressive. The Journal of Logic Programming.
Lukasiewicz, T., 2004. Combining Answer Set
Programming with Description Logics for the
Semantic Web.
Lutz, C., Seylan, I. and Wolter, F., 2013. Ontology-based
data access with closed predicates is inherently
intractable (sometimes). Proceedings of the Twenty-
Third international ….
Mäs, S., Wang, F. and Reinhardt, W., 2005. Using
ontologies for integrity constraint definition.
Proceedings of the 4th international ….
Motik, B. et al., 2006. Can OWL and logic programming
live together happily ever after? The Semantic Web-
Iswc 2006.
Motik, B., Horrocks, I. and Sattler, U., 2007. Adding
Integrity Constraints to OWL. OWLED.
Motik, B., Horrocks, I. and Sattler, U., 2009. Bridging the
gap between OWL and relational databases.
… Semantics: Science, Services and Agents on ….
Motik, B. and Rosati, R., 2006. Closing semantic web
ontologies.
Pan, J. and Ren, Y., 2012. Local closed world reasoning: a
personal view on current status and trends. Journal of
Zhejiang University-Science C.
Patel-Schneider, P. and Franconi, E., 2012. Ontology
constraints in incomplete and complete data. The
Semantic Web–ISWC 2012.
Polleres, A., Feier, C. and Harth, A., 2006. Rules with
contextually scoped negation.
Reiter, R., 1992. What should a database know? The
Journal of Logic Programming.
Ren, Y., Pan, J. and Zhao, Y., 2010. Closed world
reasoning for OWL2 with NBox. Tsinghua Science
and Technology.
Schmidt, M. and Lausen, G., 2013. Pleasantly consuming
linked data with rdf data descriptions. arXiv preprint
arXiv:1307.3419.
Seylan, I., Franconi, E. and Bruijn, J. De, 2009. Effective
query rewriting with ontologies over DBoxes. IJCAI.
Sirin, E., Parsia, B. and Grau, B., 2007. Pellet: A practical
owl-dl reasoner. Web Semantics: science, ….
Sirin, E., Smith, M. and Wallace, E., 2008. Opening ,
Closing Worlds - On Integrity Constraints.
Proceedings of the Fifth OWLED Workshop on OWL:
Experiences and Directions, 432.
Tao, J., 2010. Adding integrity constraints to the semantic
web for instance data evaluation. The Semantic Web–
ISWC 2010.
Tao, J. et al., 2010. Integrity Constraints in OWL. AAAI.
Waldenmaier, C., 2011. TopBraid Composer - Getting
Started Guide.
Towards Automated Integrity Constraints Modelling and Validation - A Survey and Approach
461
