Software, Is It Poetry or Prose?

Conceptual Content at the Higher Abstraction Levels

Iaakov Exman

and Alessio Plebe

Software Engineering Dept., The Jerusalem College of Engineering – JCE - Azrieli, POB 3566, Jerusalem, Israel

Department of Cognitive Science, University of Messina, Messina, Italy

Keywords: Software Theory, Conceptual Content, Runnable, Understanding, Poetry, Prose.

Abstract: Software is it Poetry or Prose? It is part Poetry, part Prose. But it has much more in common with both

forms of natural language, than usually admitted: software concepts, rather than defined by syntactic

oriented computer programming languages, are characterized by the semantics of natural language. This

paper exploits these similarities in a two-way sense. In one way the software perspective may be relevant to

the analysis of natural language forms, such as poems. In the other way round, as its central message, this

paper uses properties of both Poetry and Prose to facilitate a deeper understanding of highest-level software

abstractions.

1 INTRODUCTION

This paper takes the position that before proposing a

theory of software engineering one must understand

the nature of software itself. Thus, this work focuses

on theoretical implications of natural language

aspects of highest-level software abstractions. It was

triggered by a dialogue of the authors during a

festive dinner at a conference in Rome last year and

continued by electronic means. The dialogue

inspired by the style of Galileo (Galilei, 1632) is

partially transcribed below as an introduction to the

issues at stake in this work.

1.1 Dialogue Concerning Two Chief

Software Views

Alessio – I may agree that in some sense software is

deeper than Chomskian theories, for me especially

in that Chomsky made a sharp division between

syntax and semantics, moving almost all the burden

of language on the syntax side. It is not, I think, the

way (natural) language works. Of course I'm not the

only one on this position. Most exponents of the so-

called cognitive linguistics enterprise challenged the

syntactocentricsm of generative grammar. One of

the first was George Lakoff, a former student of

Chomsky, who, trying to find examples of linguistic

expressions supporting the alleged autonomy and

independence of syntax, found so many

counterexamples instead, to become convinced of

the contrary (Lakoff, 1986). He became one of the

leading exponents of cognitive linguistics, together

with Langacker (Langacker, 1987), Fauconnier

(Fauconnier, 1997) and several others. But maybe

you have in mind other reasons why the Chomsky

account of language is limited with respect to

software.

Iaakov – Since I like gedanken (thought)

experiments (Brown, 2011) as much as the

cremeschnitte we ate at the dinner, I ask you to

imagine the following experiment. Assume that from

the birth of a person until age of fifteen one is

supposed to learn the mother tongue and use it

strictly according to grammatical, syntactic rules.

From the age of fifteen until the age of twenty one

gradually uses words with the same meaning as

before, but more and more liberated from

grammatical, syntactic rules. From the age of twenty

onwards one is totally free to speak poetry instead of

prose. Since the meaning of a word does not follow

from grammar, but may be assumed to be dependent

on a context – defined by an ontology – in such a

world Chomskian theories would be unimportant. So

is software, less grammar, more and more concepts.

Alessio – Your second issue is the analogy with

poetry, I must say I didn't caught it in Rome, maybe

now I can understand a bit more. Repeating a poem

to myself (mentally or aloud) corresponds somehow

Exman, I. and Plebe, A..

Software, Is It Poetry or Prose? - Conceptual Content at the Higher Abstraction Levels.

In Proceedings of the 6th International Workshop on Software Knowledge (SKY 2015), pages 9-17

ISBN: 978-989-758-162-5

to "executing" it. That's interesting. As the execution

of software will affect hardware components,

registers, memory content and so on, the "execution"

of a poem will elicit responses, in emotional brain

centers, recall long-term memories, activate

semantic networks. In both cases the meaning of the

code (poetic or software) is in the activation

resulting from its execution. It sounds fine. Of

course, one may raise several possible objections.

For example: what is special for poetry in this

analogy? Wouldn't be similar when reading a novel,

or a newspaper article? Maybe I'm still far from

catching completely the intents of your analogy.

Iaakov – Poetry is paradoxical. On the one hand, it

is more constrained by structures. On the other hand,

it is less grammatical, more audacious. This is like

object oriented software, more structured, and freer

in conceptual terms. But we are also aware of other

software assets which are prose-like.

Alessio – Now, I come to my point. What I shared

with you was a thought I had since long, but never

articulated in detail: the possibility that the road

taken by computation toward software in the 60's

has been the result of the influence of Chomsky. It

had the consequence of a paradigm shift from

mathematics to linguistics. In the early years of

computation, it was entirely within mathematics,

with central concepts like Dedekind's recursive

functions. Turing devised its foundational machine

in 1937 as a contribution to Hilbert's

Entscheidungsproblem (Turing, 1937). Even the

introduction of "compilation" by Grace Murray

Hopper in 1953 (Hopper, 1953) was totally

unrelated with linguistics. It was only after the

publication of Chomsky's "Syntactic Structures" in

1957 (Chomsky, 1957), and his huge success, that

John Backus (Backus, 1959) and John McCarthy

(McCarthy, 1960) launched the concept of

"programming languages", hinging at large inside

the Chomskian tools: generative grammar,

tokenization, parsing, translation, and so on.

Iaakov – I get your point.

Alessio – I remember you objecting that history does

not go with alternatives, it has no sense in imagining

a different destiny if contingencies were different.

That is correct, but my point is not historical, is

more ontological. There is an underlying widespread

assumption, that software is actually a sort of

language, not a spoken language, but one that

follows the same rules of natural languages, because

it is a language in its essence. I'm not saying that this

is wrong belief; I'm just saying that it is a belief

rooted in the contingencies of history – see also

(Nofre, 2014), for a sociological account of this

historical contingency – which could be true or

possibly wrong.

Iaakov – It is easier for me to agree with an

ontological point than with a historical one. I would

prefer to state that software proper – the runnable

part, not the requirements and other assets – is in

essence a complex semantic structure, rather than a

language. It is runnable meaning.

Alessio – The two alternatives do not affect anything

with regard to how efficient is to treat computation

using linguistic tools. But it is clearly important

when dealing with the ontological status of software.

Iaakov – I would add a cautious caveat. Efficiency

has more to do with the underlying machine, than

with the runnable meaning itself.

Alessio – Good, I will stop for now... Let me just

add that this sort of conversation is quite new for

me. But I'm interested in continuing, and it touches

two sides of my interests: from one side, the

philosophy of computing and on the other side

linguistic meaning. I'll do it with pleasure.

1.2 Paper Organization

The remaining of the paper is organized as follows.

Section 2 deals with software as Poetry, section 3

with refactoring Poetry, section 4 with software as

Prose, section 5 with Conceptual Software. The

paper ends with a discussion and conclusion.

2 SOFTWARE AS POETRY

Here we point out to features that poetry has in

common with software – see also (Gabriel, 2008) for

another paper analysing poetry, having in mind

software. We display poems in diagrams as if we

were describing a kind of software.

2.1 Poetry Has Structure

From the earliest to most modern samples, poems

have structure. Fig. 1 displays a modern sonnet by

Edna St. Vincent Millay (Millay, 1921). It has four

stanzas, with respectively 4, 4, 3 and 3 verses, and

classical rhymes, e.g. in the 1

stanza, ended rhymes

with extended, and all rhymes with fall.

SKY 2015 - 6th International Workshop on Software Knowledge

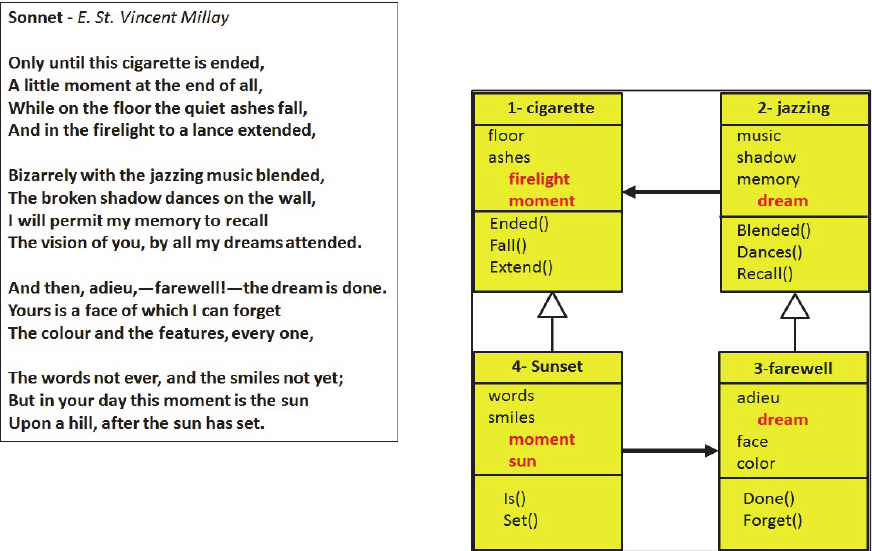

Figure 1: SONNET by E. St. Vincent Millay – Classical

structure of a modern poem with four stanzas, with 4, 4, 3

and 3 verses, displaying classical rhymes at the end of

verses.

To make the comparison of poetry with software

more concrete, we treat this poem as a piece of

software, providing its UML “class diagram”. Each

stanza is assumed to be a different class. This is seen

in Fig. 2. If the reader is not familiar with UML

(Booch, 2005), (OMG, 2015), one can think it as an

ontology graph containing concepts (classes).

Structure reflects meaning, thus class names

were chosen as the most meaningful word in each

stanza. Class attributes are significant nouns, and the

class functions are the significant verbs. Inheritance

links classes with related themes. Association links a

class with the previous one, of which it is aware.

The overall sonnet class diagram resembles a typical

software design pattern – like Observer or Mediator

(Gamma, 1995).

2.2 Poetry Has Metaphors

A metaphor is a figure of speech in which a term

refers to an object or action that it does not literally

denote, implying a resemblance. Metaphors are a

common way to generate new meanings of words,

indeed new words and idioms.

A neutral dictionary definition of cigarette is just

a smoking device: a small roll of finely cut tobacco

for smoking, enclosed in a wrapper of thin paper.

But if one reads just the first stanza in St. Vincent

Millay’s sonnet, a cigarette resembles a peculiar

device to measure time – by its gradual shortening

due to the falling ashes. It also implies momentary

memories of the end of an affectional relation – if

one reads the third and fourth stanzas.

Figure 2: UML CLASS DIAGRAM of the previous sonnet

– each class (in a yellow rectangle) corresponds to one

sonnet stanza. Class names are numbered by stanzas order.

The 1

one is “cigarette”. The middle part of each class

contains “nouns” (attributes). The lowest part contains

“verbs” (functions). The vertical white triangle

arrowheads denote inheritance, i.e. similar themes. Indeed

the bold red words are common to pairs of classes. The

horizontal black arrowheads denote associations, i.e. a

class aware of the previous one.

Similarly with the so to speak sunset, of the

faraway sun, the closest star to planet earth which is

actually rotating around the sun. Here the sun

represents a less peculiar device to measure a short

time and perhaps human vanity.

2.3 Poetry Is Runnable

Running a poem is to read it in one’s head or aloud,

once and again, to understand its contents. Running

means understanding.

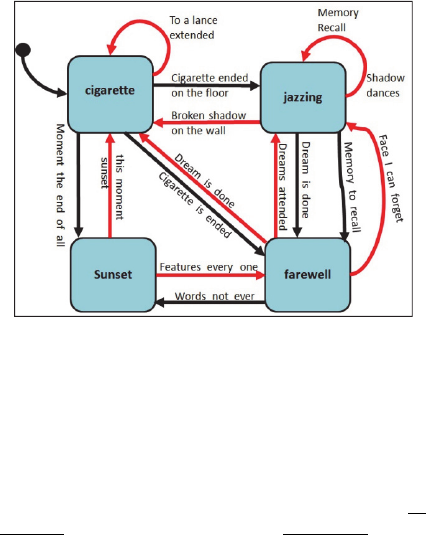

The statechart in Fig. 3 shows the actual reading

steps – as transitions between states – of the above

poem by one of the authors of this paper in order to

be satisfied by his understanding of the poem. The

starting point is the upper-left arrow out of the black

circle. The reader decides about the ending point that

could be at the sunset state, but not necessarily.

Software, Is It Poetry or Prose? - Conceptual Content at the Higher Abstraction Levels

Figure 3: RUNNING (reading in one’s head) THE

SONNET by E. St. Vincent Millay – In each of the four

states one reads the respective stanza (class). One may

proceed to the next state, to a related state or return to a

previous state. The reason for a specific transition is

written close to the transition arrow: this reason may be

either a difficulty to be solved or just an associative link.

For instance, in the upper transition from cigarette to

jazzing one has “cigarette ended on the floor”. Here “on

the floor” is associatively related to “on the wall” in the

opposite direction transition.

3 REFACTORING POETRY AS IF

IT WERE SOFTWARE

In this section we analyse a poem which illustrates a

case of analogy to software in which one needs to

refactor (Mens, 2004), (Fowler, 1999) classes.

3.1 Interrupted Stanzas

Poems may have shorter than expected stanzas,

which convey meaning by their very interruptions.

Fig. 4 displays a poem – named Edge – written by

Sylvia Plath (Plath, 1963). This poem has modern

characteristics, such as quite free structure and the

absence of rhyme.

Plath’s poem structurally has 10 very short

stanzas of 2 verses each. But after some “poem

running” in one’s head, one perceives that many of

the sentences of the poem are broken into

consecutive verses. For instance let us look at the

sentence:

Her bare

Feet seem to be saying:

It starts in the second verse of the third stanza (Her

bare) and continues in the fourth stanza (Feet seem

to be saying:). There is a whole blank line between

the stanzas strongly suggesting a deliberate

interruption – as part of the poem significance –

despite the fact that the word Feet begins with a

capital letter insinuating that it starts a new sentence.

Thus, the structure of the poem – in particular the

many interruptions – conveys semantics. Further

examination of the poem links these interruptions to

its main meaning.

Searching the Web – e.g. (Wikipedia, 2015) –

one finds that Edge was written a short time before

Sylvia Plath’s relatively young age suicide – a

drastic intentional interruption of her life. Given this

information, the title Edge, its broken sentences, and

the overall poem gets a possible meaning.

3.2 Refactoring Poetry Classes

If one persists in the one-to-one correspondence

between stanzas and UML classes, one would obtain

ten classes for Plath’s Edge poem class diagram.

In Fig. 5 one can see the corresponding class

diagram of Plath’s Edge poem. It contains just three

classes – named by their most significant words –

with attributes and functions given by considerations

similar to those that lead to the diagram in Fig. 2.

Why three instead of ten classes?

Resuming the “poem running” in one’s head, one

finds that in spite of the broken sentences, one has a

clear sense of continuity among groups of stanzas.

Paradoxically, the interruptions are rather links

between consecutive stanzas. One can divide the

latter into three groups.

The first group has stanzas 1 to 4. The common

subject is the woman and her body. It is perfected,

an accomplishment, and a Greek tragedy brings it

beyond the Edge, it is over.

The second group has stanzas 5 to 8. The garden

may be associated with a kindergarten, with the

Garden of Eden (the serpent and the woman), the

flowers and odors.

The third group with just two stanzas 9 and 10,

where a distant – detached – moon is staring at the

tragedy, but “nothing is to be sad about”, she (the

moon? the woman?) is used to this sort of thing.

So, instead of many too short stanzas, we

refactor the poem classes into just three consistent

ones.

Refactoring classes, see e.g. (Mens, 2004),

(Fowler, 1999) is a software technique which is

based upon semantics (and also efficiency)

considerations. Its aim is to facilitate comprehension

of the software system, for diverse purposes, such as

maintenance, reuse, and so on.

SKY 2015 - 6th International Workshop on Software Knowledge

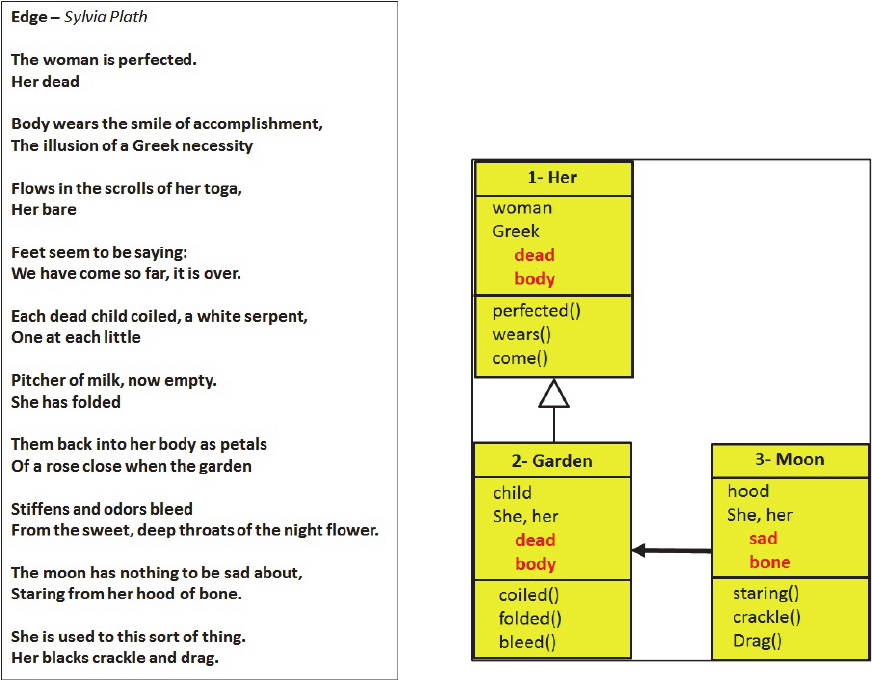

Figure 4: “EDGE” POEM by Sylvia Plath – It has ten very

short stanzas of only two verses. One perceives broken

sentences, which rather link stanzas into three groups.

A potentially interesting usage of the analogy

between poetry and software is for educational

purposes. It should be an instructive exercise for

software engineering students, to practice concurrent

factorization of poems and software systems and

their respective class diagrams. This would

emphasize and clearly illustrate the importance of

semantics for software.

4 SOFTWARE AS PROSE

Software assets other than runnable programs, e.g.

requirements, specification documents or user’s

guides, are essentially like prose. Let us see their

common properties.

4.1 Prose Is Easily Readable

By prose we mean all texts – literary, journalistic or

professional – excluding the following types: poetry,

text containing formulas (e.g. mathematical or

chemical), texts very specialized like philosophical

ones. The immediate quality of prose is to be easily

readable, as people are used to speak and write in

prose.

Figure 5: UML CLASS DIAGRAM of the Edge POEM –

each class (a yellow rectangle) corresponds to a group of

stanzas (see text). Class names are numbered by groups

order. The 1

one is “Her”. The middle class part has

“nouns” (attributes). The lowest part has “verbs”

(functions). The vertical white triangle arrowhead denotes

inheritance (similar themes): the bold red words are

common to pairs of classes. The horizontal black

arrowhead denotes association (a class aware of the

previous one).

4.2 Prose Also Has Metaphors

On the other hand, prose texts have varying degrees

of sophistication. Thus all the complex

characteristics of natural language – say ambiguity,

synonymy, use of metaphors etc. – may appear in

ordinary prose texts, eventually demanding deeper

comprehension.

5 SOFTWARE AS CONCEPTUAL

CONSTRUCTS

Software systems are hierarchical. From bottom up,

Software, Is It Poetry or Prose? - Conceptual Content at the Higher Abstraction Levels

one roughly encounters assembly language the

closest to a machine, next a high-level language as

Java, then UML and on top a small set of ontologies

relevant to the system domains. From the ontology

concepts (classes) one can derive UML classes.

Thus the highest-level of abstraction is conceptual

content, closest to human beings.

5.1 Conceptual Content of Abstract

Factory

In order to illustrate the idea of conceptual content

of software, we use a software design pattern class

diagram as a case study.

The class diagram of the Abstract Factory

software design pattern (Gamma, 1995) is seen in

Fig. 6. The purpose of this design pattern is to

provide an interface to create families of related

objects, without specifying their concrete classes.

A general observation, when looking at this class

diagram, is that none of its concepts is part of the

vocabulary (the reserved words) of a programming

language. So they are not intrinsic software artefacts.

Let us now specifically examine some of these

concepts. We start with “Abstract Factory”. Both

words “abstract” and “factory” appear in the English

dictionary as independent words with specific

meanings, having no necessary relation to software.

The word “abstract” has been incorporated with a

specific meaning into software. It denotes a special

kind of class.

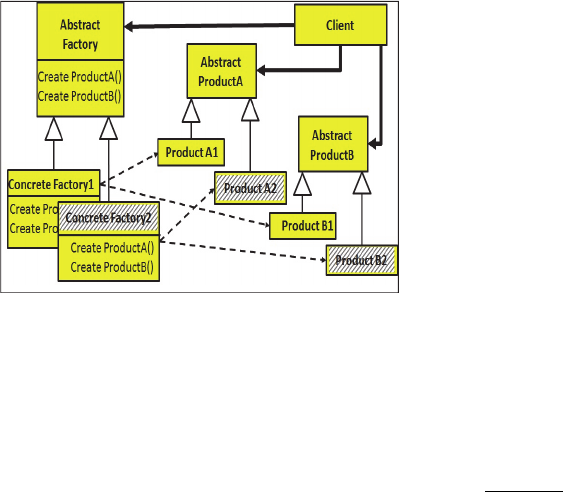

Figure 6: CLASS DIAGRAM OF THE ABSTRACT

FACTORY DESIGN PATTERN – The abstract factory

class may have any number (here 2) of concrete factory

sub-classes. Each concrete factory has the same family of

products (here Product A and Product B). For instance

Concrete Factory 2 has two products Product A2 and

Product B2. Concrete Factory 2 and its products have class

names with hatched background.

5.2 Software Also Has Metaphors

The concept “Abstract Factory” is a metaphorical

usage of natural language terms incorporated into

software. If one looks carefully at the Abstract

Factory class diagram, indeed all the concepts result

from metaphorical usage.

“Create” is another such example, meaning

construction of an object in an object oriented

programming language. A “factory” is thus a class

whose main purpose is to construct “objects”.

Moreover, “concrete factory” is a typical

example of ambiguity. It is not a factory that

fabricates concrete or itself made of concrete (in the

dictionary: concrete is a strong construction material

made of sand, conglomerate gravel, in a cement

matrix).

Even the explanation of the purpose of the

abstract factory design pattern using the term

“families” of related objects extends by analogy the

meaning of a non-software word, viz. “family”.

Summarizing our claim, the highest-level

abstraction of software is as set of concepts that may

be extracted from domain ontologies and included in

UML class diagrams. Since these concepts are

ordinary natural language words, all the

complexities of natural language, such as ambiguity,

synonymy, figures of speech as metaphors, are

fundamental for the understanding, development and

maintenance of software, and therefore should be

part of a basic theory of software.

Are these complexities so fundamental for

software? The immediate answer is that if software

itself should automatically manipulate software,

these complexities should be resolved.

5.3 A Metaphor Design Pattern

Given the fact that metaphors are so common in the

highest abstraction levels of software, we propose a

generic Metaphor design pattern. The purpose of

this design pattern is as follows: easily change or

addition of a new context for a given term with

multiple meanings.

This proposed design pattern is modelled after

the Strategy pattern (Gamma, 1995), with a sort of

inversion of roles. In the Strategy pattern a context is

fixed and strategies are variable. In the Metaphor

pattern a given term is fixed and its contexts

providing different meanings are variable.

The class diagram of this proposed Metaphor

pattern is shown in Fig. 7. Its generic classes are:

 Metaphor – it contains the several meanings of a

given term; it receives a term meaning as input

SKY 2015 - 6th International Workshop on Software Knowledge

and sets its specific context;

 Term – it is an (abstract) interface declaring a

SetContext() function and corresponding

Actions();

 Contexts – these are concrete classes with

different domains, each say given by an ontology

and its specific actions.

An example of a term is “bridge”. This term has

numerous different but metaphorically related

meanings given by the respective contexts: e.g. civil

engineering, odontology, card games, and even

design patterns.

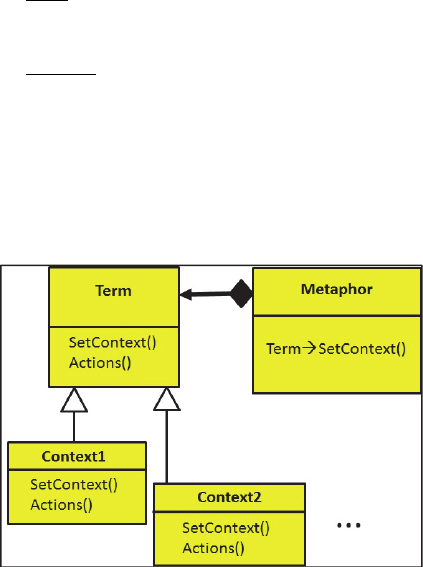

Figure 7: CLASS DIAGRAM OF A METAPHOR

DESIGN PATTERN – In a metaphor a single term is fixed

and its various meanings are set by variable contexts. In

this diagram only two contexts are shown, but they imply

that any number of contexts can be added.

6 DISCUSSION

This discussion deals with foundational issues,

practical implications for software and theoretical

implications.

For the purposes of this discussion, instead of

referring in separate specifically to the similarity of

software either to poetry or to prose, we jointly refer

to both under the rubric of software natural

language conceptual issues.

Before we embark in the discussion proper, it

should be pointed out that this paper stressed

metaphors. But different works also refer to other

figures of speech. For instance, (Noble, 2004) takes

care to differentiate metaphor from metonymy,

especially in the context of software design patterns.

In contrast to our approach, they refer to the pattern

functionality and not to the terms naming the pattern

classes.

6.1 Foundational Issues

Significant issues have been opened in the literature

concerning software conceptual contents. Is software

semantics intrinsic (inner) or extrinsic (outer)? In

other words, is software semantics just given by the

inner workings of the computing machine or is it

deeply related to the human conceptual (outer)

world?

White mentions various obstacles to solve this

symbol grounding problem (White, 2006): e.g. the

difficulty to assign a clear boundary between inside

and outside of the computer system. Piccinini argues

for “computation without representation” (Piccinini,

2006), i.e. instead of semantics, meaning of symbols

and states is given by functional properties of

computational systems. According to Smith's notion

of participatory computation (Smith, 2002), any

physical computing system is inherently situated in

its environment in a manner in which its processes

extend beyond the physical boundaries of the

system, which stands in semantic relations to distal

states of affairs.

Another foundational issue refers to universality.

Do the conceptual contents of software affect only

restricted classes of software systems? Absolutely

not: the referred characteristics of natural languages

– ambiguity, synonymy, figures of speech such as

metaphoric usage for new word invention – not only

are extensive at a given time, but also are expected

to persist along time. They are inherent to the

vitality and evolution of natural languages.

In this work we provided case studies to make

plausible that the highest software abstraction levels

do not refer at all to the machine and its semantics

works much like in ordinary human language. This

will be discussed at length in a subsequent paper.

6.2 Conceptual Software: Praxis

From the praxis criterion viewpoint, explicit

consideration of conceptual contents of software

enables various ways of software system

development in an ontology-oriented fashion – see

e.g. (Pan, 2013), (Exman, 2013). There also exist

tools for improvement of software system

modularity in terms of conceptual analysis (Lindig,

1997), (Ganter, 1999), (Exman, 2015).

The practical importance of semantic

considerations of the natural language concepts

found in the higher abstraction levels of software, as

opposed to the dominantly syntactic concerns in

lower abstraction levels – viz. code in programming

languages – refer to different aspects:

Software, Is It Poetry or Prose? - Conceptual Content at the Higher Abstraction Levels

a- Natural Language for Non-programmers –

nowadays software applications in mobile

devices – typically smartphones – are

increasingly used by non-programmers, meaning

that software is more and more exposed and

should be understood by people that do not

“speak” programming languages.

b- Software Systems Complexity – software systems

are growing in size, complexity and criticality,

with potentially life-threatening situations – e.g.

autonomous vehicles, remote surgery, and

largely automatic power stations. Design of such

complex systems is presented in increasingly

high abstraction levels to enable design

comprehension.

6.3 Conceptual Software: Theory

From a theoretical viewpoint an important issue is

formality. FCA (Formal Concept Analysis) (Ganter,

1999), (Ganter, 2005) is a well-developed formalism

dealing with concepts. It involves lattice theory and

related algebraic domains of mathematics. Besides

its theoretical importance, it has been shown to have

a variety of practical applications, including

software development.

One raises the issue of boundaries of the

formalism applicability: are there software systems

for which this formalism is insufficient? We

encourage exploration beyond these boundaries,

eventually leading to new discoveries.

6.4 Future Work

A final theoretical criterion we should consider is

precision and measurability with regards to formal

concept analysis. This is currently a topic of our

research, and we have enough reasons to assume that

results of interest are attainable.

Possible directions of measurability are

comparisons of two numerical values: 1- a structure

refactoring ratio, say in sub-section 3.2 we obtained

the class diagram by reducing the number of classes

in a 3/10 ratio; 2- a semantic meaning ratio which

would express sizes of sets of terms needed to

convey the same meaning.

7 CONCLUSION

The main contribution of this work is raising issues

concerning the importance of conceptual analysis for

software theory – which follows from inherent

characteristics of natural languages, rather than from

programming languages.

ACKNOWLEDGEMENTS

The authors wish to acknowledge significant

suggestions by two anonymous referees.

REFERENCES

Backus, J. W., 1959. The syntax and semantics of the

proposed international algebraic language of the

Zurich acm-gamm conference, in Proc. Int. Conf. on

Info. Proc.,Paris.

Booch, G., Rumbaugh, J. and Jacobson, I., 2005. The

Unified Modeling Language User Guide, 2

ed.,

Addison-Wesley, Boston, MA, USA.

Brown, J. R. and Fehige, Y., 2011. Thought Experiments,

The Stanford Encyclopedia of Philosophy, E. N.

Zalta (ed.). Web site:

http://plato.stanford.edu/archives/fall2011/entries/thought-

experiment/

Chomsky, N., 1957. Syntactic Structures, Mouton.

Exman, I. and Yagel, R., 2013. ROM: an Approach to

Self-consistency Verification of a Runnable Ontology

Model, in CCIS Vol. 415, 271-283, Springer.

Exman, I. and Speicher, D., 2015. Linear Software

Models: Equivalence of Modularity Matrix to its

Modularity Lattice, in Proc. 10

ICSOFT Int. Joint

Conference on Software Technologies, Colmar,

France, pp. 109-116, (July 2015). DOI =

10.5220/0005557701090116

Fauconnier, G., 1997, Mappings in Thought and

Language, Cambridge University Press, Cambridge

(UK).

Fowler, M., Beck, K., Brant, J., Opdyke, W. and Roberts,

D., 1999. Refactoring: Improving the Design of

Existing Code, Addison-Wesley, Boston, MA, USA.

Gabriel, R. P., 2008. Designed as Designer, in

OOPSLA’08.

Galilei, Galileo, 1632. Dialogue Concerning The Two

Chief World Systems, Italian, English translation by

Stillman Drake, University of California Press,

Berkeley, CA, USA, 1953.

Gamma, E., Helm, R., Johnson, R. and Vlissides, J., 1995.

Design Patterns, Addison-Wesley, Boston, MA, USA.

Ganter, B. and Wille, R., Formal Concept Analysis:

Mathematical Foundations, Springer, New York,

USA, 1999.

Ganter, B., Stumme, G. and Wille, R., 2005. Formal

Concept Analysis - Foundations and Applications.

Springer-Verlag, Berlin, Germany.

Hopper, G. M., 1953. Compiling Routines, Computers and

Automation, vol. 2, (4), pp. 1-5, (May).

Lakoff, G., 1986, A Principled Exception to the

Coordinate Structure Constraint, in Proceedings of the

SKY 2015 - 6th International Workshop on Software Knowledge

the Twenty-First Regional Meeting Chicago Linguistic

Society, Chicago Linguistic Society.

Langacker, R. W., 1987, Foundations of Cognitive

Grammar, Stanford University Press, Stanford (CA).

Lindig, C. and Snelting, G., 1997. Assessing Modular

Structure of Legacy Code Based on Mathematical

Concept Analysis, in ICSE’97 Proc. 19th Int. Conf. on

Software Engineering, pp. 349-359, ACM. DOI:

10.1145/253228.253354.

McCarthy, J., 1960. Recursive functions of symbolic

expressions and their computation by machine, Part I.,

Comm. ACM, Vol. 3 (4), pp. 184-195 (April).

Mens, T. and Tourwe, T., 2004. A survey of software

refactoring, IEEE Trans. Software Eng., Vol. 32, pp.

126-139. DOI: 10.1109/TSE.2004.1265817.

Millay, E. St. V., 1921. Second April, “Unnamed Sonnets

I-XII”, pp. 97-110, Mitchell Kennerley, New York,

NY, USA,

Modern American Poetry, Online Poems, Web site:

www.english.illinois.edu/maps/poets/m_r/millay/onlin

e_poems.htm

Noble, J., Biddle, R. and Tempero, E., 2002. Metaphor

and metonymy in object-oriented design patterns, in

ACSC’02 Proc. 25

Australasian Conf. Comp. Sci.,

Vol. 4, pp. 187-195. DOI: 10.1145/563857.563823

Nofre, D. et al., 2014. When Technology Became

Language, The Origins of the Linguistic Conception

of Computer Programming, 1950-1960, Technology

and Culture, vol 55, pp. 40-75.

OMG (Object Management Group), 2015. “Unified

Modeling Language” (UML) Specification version

2.5, (June 2015). URL Accessed September 2015:

http://www.omg.org/spec/UML/2.5.

Pan, J. Z. et al., 2013. (eds.), Ontology-Driven Software

Development, Springer, Heidelberg, Germany.

Piccinini, G., 2006. Computation without Representation,

Philosophical Studies. DOI= 10.1007/s11098-005-

5385-4.

Plath, S., 1963. Edge Poem, Web site:

http://www.poetryfoundation.org/poem/178970

Smith, B. C., 2002. The foundations of computing, in:

Scheutz, M. (ed.), Computationalism: New Directions,

pp. 2358, MIT Press, Cambridge, MA, USA.

Turing, A., 1937. On Computable Numbers with an

Application to the Entscheidungsproblem, Proc.

London Math. Society, vol. 42, pp. 230-265.

White, G., 2011. Descartes among the Robots – Computer

Science and Inner/Outer Distinction, Minds &

Machines. DOI= 10.1007/s11023-011-9232-4.

Wikipedia, 2015. Sylvia Plath, Wikipedia. Web site:

https://en.wikipedia.org/wiki/Sylvia_Plath

Software, Is It Poetry or Prose? - Conceptual Content at the Higher Abstraction Levels
