An Ontology-based Methodology for Reusing Data Cleaning

Knowledge

Ricardo Almeida

, Paulo Maio

1,2

, Paulo Oliveira

1,2

and João Barroso

ISEP-IPP – School of Engineering of Polytechnic of Porto, 431 R. Dr. Bernardino de Almeida, Porto, Portugal

GECAD – Research Group on Intelligent Engineering and Computing for Advanced Innovation and Development,

Porto, Portugal

UTAD – University of Trás-os-Montes and Alto Douro, Vila Real, Portugal

Keywords: Data Quality, Data Cleaning, Knowledge Reuse, Vocabulary, Ontologies.

Abstract: The organizations’ demand to integrate several heterogeneous data sources and an ever-increasing volume

of data is revealing the presence of quality problems in data. Currently, most of the data cleaning

approaches (for detection and correction of data quality problems) are tailored for data sources with the

same schema and sharing the same data model (e.g., relational model). On the other hand, these approaches

are highly dependent on a domain expert to specify the data cleaning operations. This paper extends a

previously proposed data cleaning methodology that reuses cleaning knowledge specified for other data

sources. The methodology is further detailed/refined by specifying the requirements that a data cleaning

operations vocabulary must satisfy. Ontologies in RDF/OWL are proposed as the data model for an abstract

representation of the data schemas, no matter which data model is used (e.g., relational; graph). Existing

approaches, methods and techniques that support the implementation of the proposed methodology, in

general, and specifically of the data cleaning operations vocabulary are also presented and discussed in this

paper.

1 INTRODUCTION

Globalization has resulted in a high number of

acquisitions, partnerships and/or fusions among

organizations worldwide. This has forced some

organizations to change their working methods and

business models. On the other hand, globalization

has also gave rise to technological advances, namely

in the way organizations and people communicate

with each other.

Information systems of the organizations are

being constantly challenged to adapt and to integrate

several and heterogeneous data sources. The

heterogeneity of the data sources mainly relies on

two issues: (i) the underlying data model (e.g.,

relational data model (Codd, 1970); object-oriented

(Booch, 1993); document-oriented (Han et al.,

2011); triples/graphs (Brickley and Guha, 2014));

and, (ii) the adopted schema which corresponds to a

conceptualization of a given domain/application and,

therefore, may differ on terminology, semantics and

granularity.

In this context of change, data of a single data

source is often: (i) collected under different

circumstances (e.g., application/device used to

collect the data; the applied business rules); and/or,

(ii) the result of (one or more) data integration

processes. Both situations can be the cause of quality

problems in the data. In the scope of this paper, Data

Quality Problems (DQPs) are problems that exist at

data/instance level, such as: missing values in

mandatory attributes; domain violations; uniqueness

violations; business rules violations; existence of

duplicates (equal; approximate; or inconsistent

(Oliveira et al., 2005a; 2005b)). Data cleaning is a

technique (or a process) for detection and correction

of DQPs (Milano et al., 2005), which cannot be fully

automatic, since it requires the intervention of an

expert (Dasu et al., 2003) for specifying the

detection and correction operations to be executed.

After analysing the extensive literature on this

subject (Fürber and Hepp, 2011; Knuth and Sack,

2014; Oliveira et al., 2009; Weis and Manolescu,

2007), three main conclusions were achieved.

First, all data cleaning methodologies/tools

follow a similar process that is highly dependent on

202

Almeida, R., Maio, P., Oliveira, P. and Barroso, J..

An Ontology-based Methodology for Reusing Data Cleaning Knowledge.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 202-211

ISBN: 978-989-758-158-8

the domain expert and rely on a large number of

detection and correction operations manually

specified. Usually, the process is made up of the

following steps: (i) ask the expert to specify the

detection operations; (ii) run the specified detection

operations; (iii) ask the expert to specify the

correction operations to be carried on the data to

solve the identified problems; and, (iv) run the

specified correction operations to clean the data.

Second, most of the existing methodologies/tools

are specific for a given data model (e.g., relational

databases) and, therefore, exploit the particularities

of that data model, preventing their applicability on

data sources with another data model (Almeida et

al., 2012). Even when the data model is the same,

usually there are differences between the schemas of

two data sources representing the same application

domain. It is not possible to apply the same set of

cleaning operations in two data sources if their

schemas are different. Thus, these approaches are

only suitable for scenarios were all data sources

share, the same data model and data schema.

Third, despite some of the analysed

methodologies/tools are targeted to a given

application domain (e.g., health), it has been

recognized that there are a significant amount of

DQPs and data cleaning operations that are generic

enough to be applied on different data sources (most

certainly with different schemas) from distinct

application domains (e.g., detection/correction of

DQPs in e-mail attributes; detection/correction of

DQPs in zip codes).

Nowadays, the concerns about the quality of data

and DQPs are especially important, because the

amount of generated and collected data has

exponentially increased, as exposed by advents such

as the Internet of Things (IoT) (Atzori et al., 2010),

and Big Data (Hashem et al., 2015; Snijders et al.,

2012). It is important to keep in mind that data by

themselves are not valuable. The value is in the

analysis done on the data and how the data are

turned into information and, eventually, into

knowledge. However, if the data is affected by

quality problems, the quality of the analysis will also

reflect that. This is known as the GIGO (garbage in,

garbage out) principle.

Previously, we have proposed a novel and

generic data cleaning methodology that intends to

assist the domain expert in the specification of the

cleaning operations (Almeida et al., 2015). The

methodology reuses cleaning knowledge previously

specified for other data sources, even if those

sources have different data models and/or schemas.

This paper details the methodology further by: (i)

specifying the requirements that a Data Cleaning

Operations Vocabulary (DCOV) must satisfy; (ii)

proposing the use of ontologies in RDF/OWL as a

data model for an abstract representation of any data

schema, no matter the data model in which it is

based (e.g., relational; graph); and, (iii) analysing the

literature in order to identify approaches, methods,

and techniques that support/facilitate the

implementation of the proposed methodology as a

whole and, specifically, of the DCOV.

The paper is organized as follows. Section 2

briefly describes and exemplifies the data cleaning

methodology (Almeida et al., 2015). In Section 3,

the requirements that a Data Cleaning Operations

Vocabulary (DCOV) must satisfy are described in

detail. The DQM ontology (Fürber and Hepp, 2011),

seen as the available vocabulary closest to cover

most of the DCOV requirements, is presented in

Section 4. Section 5 provides a brief description

about issues regarding the implementation of the

mapping, transformation and data cleaning

operations rewriting processes of the Bridge Layer

considered in the methodology. At last, in Section 6,

conclusions are presented as well as future work

directions.

2 DATA CLEANING

METHODOLOGY

The Data Cleaning Methodology proposed in

(Almeida et al., 2015) relies and promotes the

following principles: (i) the specification of Data

Cleaning Operations (DCOs) for a given data source

(say DS

) should be carried on by a domain expert

through an application operating as much as possible

closer to the human conceptual level and (ii) to

better assist the domain expert it is able to take

advantage of data cleaning knowledge (including

DCOs) specified previously on the context of

another data source (say DS

) whose domain

partially overlaps with DS

domain, even when DS

and DS

have a different data schema and/or model.

In the following, this methodology (depicted in

Figure 1) is briefly described and complemented

with a running example based on the scenario

introduced in Example 1.

Example 1 (Scenario). Consider the scenario where

an organization (say Org1) in result of an on-going

business integration process ends up with three

distinct databases (say DB

, DB

and DB

) about

An Ontology-based Methodology for Reusing Data Cleaning Knowledge

203

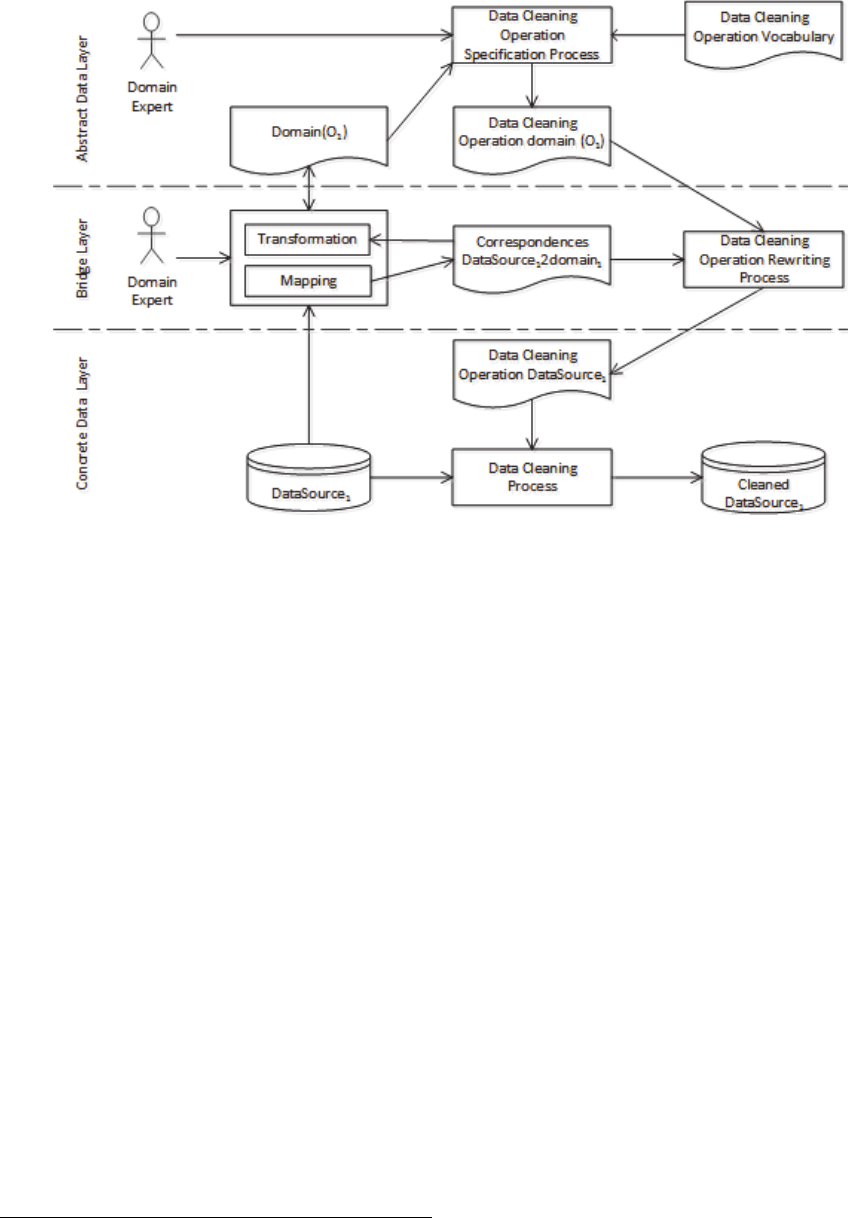

Figure 1: Graphical representation of the adopted Data Cleaning Methodology.

respectively a graph-oriented and document-oriented

NoSQL databases having different schemas. Yet, it

was perceived that all databases have several DQPs

that need to be fixed.

The Concrete Data Layer (CDL) comprehends a

specific automatic Data Cleaning Process (DCP) that

is able to interpret and execute a set of DCOs

specified according to (i) the DCP’ requirements

(e.g. required DCOs’ specification language) and to

(ii) the particularities (e.g. schema and model) of the

data source to be clean. The result is a cleaned data

source that is a changed copy of the original data

source, so that the detected data quality problems are

solved (cf. Example 2). However, the domain expert

only specifies DCOs at the Abstract Data Layer

(ADL) supported by a Data Cleaning Operations

Specification Process (DCOSP).

Example 2 (Concrete Data Layer). From the

provided scenario description, one can say that Org1

has three concrete data sources to be clean: DB

and DB

. Yet, consider that Org1 has three

distinct DCPs (say DCP

, DCP

and DCP

). DCP

requires DCOs to be specified as SQL queries.

Conversely, DCP

requires DCOs to be specified as

SPARQL queries while DCP

requires queries

following a MongoDB

syntax.

https://www.mongodb.com

Besides the domain expert, the DCOSP requires

(i) a conceptualization of the domain of interest and

(ii) a Data Cleaning Operation Vocabulary (DCOV).

The vocabulary aims to univocally describe the

structure and semantics of (outputted) DCOs for any

domain of interest. Instead, the conceptualization

aims to capture and describe a domain of interest in

a more abstract and intuitive manner than concrete

data sources. Thus, the result of the DCOSP is a set

of DCOs specified at a conceptual level and,

therefore, independent of any concrete data source.

In this work, the team adopts OWL-DL

ontologies (McGuinness and Harmelen, 2004) to

capture either the vocabulary and the domain

conceptualization as ontologies are seen as the best

answer for the demand of having intelligent systems

operating closer to the human conceptual level

(Obrst et al., 2003) and they may vary in different

levels of expressiveness (e.g. ALC vs. SHOIN).

Moreover, on section 4 the team proposes and

describes a vocabulary fulfilling all the methodology

requirements (cf. section 3).

The Bridge Layer (BL) enables the

interoperability between the concrete and the

abstract data layers through a set of semi-automatic

processes that are able:

 To Generate a domain conceptualization from a

given concrete data source (cf. Example 3);

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

204

Example 3 (Conceptualization). Consider that

instead of adopting an existing domain

conceptualization of customers and purchased

products, Org1 decides to adopt its own

conceptualization grounded on the schema of DB

since it is seen as the most appropriate (or complete)

comparatively to DB

and DB

. Therefore, no

difference regarding terminology, semantics and

granularity would exist between DB

and O

. Details

on how this can be done are provided in section 5.

 To generate a set of correspondences between

entities of a concrete data source and the entities

of domain conceptualization (cf. Example 4);

Example 4 (Generating Correspondences). In our

scenario, the Mapping process needs to generate

three sets of correspondences: one between DB

and

(say A

); other between DB

and O

(say A

);

and another between DB

and O

(say A

). Details

on how this can be done are provided in section 5.

 To exploit previously established

correspondences to rewrite the DCOs specified

by the domain expert at the ADL according to

the target concrete data source (cf. Example 5

and Example 6).

Example 5 (Defining DCOs). Consider that Org1

adopts the DCOV described in this work (say

DCOV

Org1

) such that it describes (structurally and

semantically) all DCOs (say DCO

) defined at the

ADL by the domain expert with the support of a

given DCOSP over O

Example 6 (Rewriting DCOs). At the BL, is

responsibility of the rewriting process (DCORP) to

translate DCO

previously specified in order to be

correctly interpreted and executed by DCP

, DCP

and DCP

. For that, it takes as input the pair

<DCO

, A

> (or <DCO

, A

> or <DCO

>) and outputs DCO

(or DCO

or DCO

respectively) as being the DCOs to be executed on

(or DB

or DB

respectively) by DCP

(or DCP

or DCP

At last, it is worth noticing that (i) establishing

correspondences between a concrete data source and

a domain conceptualization and (ii) rewriting

conceptual DCOs to concrete DCOs are two

mandatory tasks. On the other hand, the task of

generating a domain conceptualization it is only

necessary in scenarios where there is not an

(available) domain conceptualization.

3 REQUIREMENTS FOR THE

DATA CLEANING OPERATION

VOCABULARY

This section describes the envisioned requirements

that a given Data Cleaning Operation Vocabulary

(DCOV) must satisfy. Such requirements are

specified via a use case model and a set of

competency questions. Further, in section 4, an

existing ontology is described and analysed

regarding the specified requirements.

3.1 Use Case Model

The DCOV is an artefact used by a DCOSP to

support the specification of DCOs, namely its

structure and semantics, which in turn are further

rewritten by a DCORP in order to be executed.

Considering this, both the DCOSP and the DCORP

have influenced the derived use case model depicted

in Figure 2, which is exclusively focused on

Detection DCOs (i.e. Correction DCOs were not

considered so far).

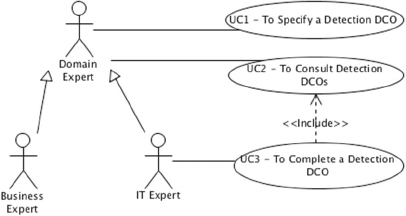

Figure 2: Partial Use Case Diagram.

From the depicted use case model, it is perceived

that the actor “domain expert” suggested in the

methodology is specialised in two distinct actors:

 Business Expert: corresponds to a person that has

a widely and deeply knowledge about the

domain of interest in hands (e.g. customers and

purchased products) and, therefore, (s)he is

aware of which detection DCOs must hold.

However, (s)he lacks some specific Information

Technology (IT) knowledge (e.g. the ability to

specify a regular expression or a functional

dependency between attributes) that might be

need for the specification of some kind of DCOs;

 IT Expert: corresponds to a person that has some

knowledge regarding the domain of interest in

hands, typically less than the one that the

Business Expert has, but having all the necessary

An Ontology-based Methodology for Reusing Data Cleaning Knowledge

205

IT knowledge for a complete DCOs

specification.

In the following, each identified use case is briefly

described.

UC1 - To Specify a Detection DCO: the domain

expert is somehow browsing the data elements (e.g.

concepts and properties) of the domain of interest

and aims to specify a detection DCO for a given (set

of) data element(s). The system supports the user by

presenting the supported kinds of DCOs and asks for

selecting one. Further, the user is guided (e.g.

through a wizard) to enter/identify the information

required to properly instantiate the selected kind of

DCO (distinct kinds of DCO have different

information demands). Additionally, information

regarding the provenance or the context on which

such DCO is applicable might be collected. Besides,

the system must handle underspecified DCOs (i.e.

DCOs having missing information).

UC2 - To Consult Detection DCOs: the domain

expert aims to know and analyse the DCOs that were

previously specified. The system must provide the

ability to list all the existing DCOs and support

filtering that list by multiple criteria such as (i) the

ones that apply on a given data element; (ii) the ones

that are of a given kind; (iii) the ones that are

underspecified.

UC3 - To Complete a Detection DCO: the IT

expert aims to complete the specification of a

previously selected DCO that is underspecified. For

that, the system might provide the already specified

information and ask for the missing one (e.g. to

detect misspelling errors the user must select the

dictionary that should be used).

3.2 Competency Questions

Based on the use case model and on a literature

analysis of typical data quality problems, the DCOV

must also satisfy the requirements arising from the

following competency questions:

CQ 1: Which kind of data cleaning operations can

be specified?

CQ 2: Which information needs to be collected in

order to instantiate properly a given data cleaning

operation, namely a detection DCO?

CQ 3: Which kind of information is used to

instantiate a detection DCO?

CQ 4: Which DCOs are underspecified, i.e. DCOs

having missing information?

CQ 5: Which detection DCOs apply on instances of

class C or values of property P?

CQ 6: Which DCOs were created by Person X?

3.3 Summary

In summary, the DCOV should provide a mean such

that a given DCOSP is able to know (i) the different

kinds of Detection DCOs that are possible to

instantiate; (ii) the variety of information that is

required to instantiate a given kind of Detection

DCO; (iii) the specified Detection DCOs and its

status (e.g. underspecified); (iv) the provenance or

context on which a DCO is applicable. On the other

hand, the DCOV should provide a mean such that a

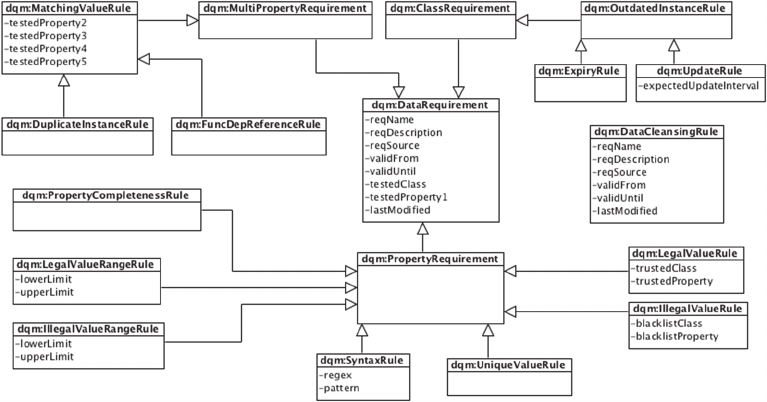

Figure 3: Partial UML representation of the DQM Ontology.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

206

given DCORP has proper meta-data regarding the

information collected during the instantiation of a

DCO in order to determine the conditions under

which a DCO is rewritable according to the terms of

the target data cleaning process.

4 ADOPTING A DATA CLEANING

OPERATION VOCABULARY

After an extensive literature review, to the best of

our knowledge, the DQM ontology (Fürber and

Hepp, 2011) is seen as the available vocabulary that

is closest to cover most of the DCOV’ requirements

identified previously (cf. section 3). Thus, in the

following, the main elements (classes and

properties) of the DQM ontology are introduced (cf.

section 4.1) and discussed in light of such

requirements (cf. section 4.2). Some complementary

examples are provided considering the domain

conceptualization introduced in Example 7.

Example 7 (Customer Conceptualization).

Consider that O

of Org1 comprehends a class

customer (

ex:Customer) and properties for

capturing customers’ name, address, tax number, the

maximum discount allowed (in percentage) and the

last time that customer information was updated

(

ex:name, ex:address, ex:taxNumber, ex:

maxDiscount

and ex:lastUpdate respectively).

4.1 DQM Ontology

The DQM ontology was designed to represent

knowledge regarding data quality monitoring, data

quality assessment and data cleaning operations in

RDF/OWL. However, in the context of this work,

the DQM ontology (partially depicted in Figure 3) is

described and analyzed regarding the representation

of DCOs only.

As previously introduced, data cleaning

operations are commonly distinguished between the

ones focused on detecting that some kind of quality

problem holds (called detection DCOs) and the ones

focused on resolving the detected quality problems

(called correction DCOs). The DQM ontology

makes this distinction through two main classes:

dqm:DataRequirement (as it is online available

or as originally published

dqm:DataQualityRule)

and

dqm:DataCleansingRule respectively. Each

kind of DCO is captured as being a sub-class of one

of these two classes, depending on its nature (i.e.

http://semwebquality.org/dqm-vocabulary/v1/dqm

detection or correction). Although, a given sub-class

(e.g.

dqm:PropertyRequirement) may represent

a kind of DCO that is not worth of being instantiated

since its purpose is serving as a logical arrangement

which may capture a set of characteristics shared by

its direct sub-classes. Given this, and seeing the

hierarchy of classes as a tree, just the leaves classes

(e.g.

dqm:UniqueValueRule) capture a kind of

DCO that worth of being instantiated. Currently,

detection DCOs are organized in three distinct

logical categories:

dqm:PropertyRequirement,

dqm:MultiPropertyRequirement

and dqm:

ClassRequirement.

The

dqm:PropertyRequirement represents

DCOs acting on a single property (

dqm:tested

Property1) of a given class (dqm:testedClass)

as shown in Example 8 and Example 9. Such DCOs

intend, for example, to check which instances of the

given class do not have specified a value for such

property (

dqm:PropertyCompletenessRule), or,

instead, if the property value is valid. The validity of

a value may be expressed using three alternative

perspectives: (i) by specifying a legal range of

values (

dqm:LegalValueRangeRule for numeric

values in a given interval or

dqm:LegalValueRule

for finite enumerated values); (ii) by specifying an

illegal range of values (respectively

dqm:

IllegalValueRangeRule or dqm:Illegal

ValueRule

); and (iii) by checking if the property

value meets a given syntax (

dqm:SyntaxRule)

expressed, for instance, as a regular expression. At

last, it can be verified if all values of the given

property are unique (

dqm:UniqueValueRule).

Example 8 (PropertyCompletenessRule). Taking

into consideration the known O

of Org1 and using

the DQM ontology as DCOV, one could define a

DCO to check if there is any customer whose tax

number is unknown. For this, the following

detection DCO could be specified as follows (using

Turtle syntax):

[] a dqm:PropertyCompletenessRule;

dqm:testedClass ex:Customer;

dqm:testedProperty1 ex:taxNumber.

Example 1 (LegalValueRangeRule). Consider that

Org1 establish that the maximum discount that any

customer might have is 20%. To check if there is

any customer currently having a discount higher

than 20%, one could define the following DCO:

[] a dqm:LegalValueRangeRule;

dqm:testedClass ex:Customer;

dqm:testedProperty1 ex:maxDiscount;

dqm:upperLimit “20%”.

An Ontology-based Methodology for Reusing Data Cleaning Knowledge

207

The

dqm:MultiPropertyRequirement

represents

DCOs acting on at least two properties

(

dqm:testedProperty1

dqm:tested

PropertyN

) of a given class (

dqm:testedClass

)

as shown in Example 10. Such DCOs intend, for

instance, to check the existence of duplicated

instances (

dqm:DuplicateInstanceRule

) or to

validate functional dependencies between properties

(

dqm:FuncDepReferenceRule

);

Example 10 (DuplicateInstanceRule). Consider

that Org1 aims to check the existence of duplicated

customers based on the customers’ name and

address. Thus, one could define the following DCO:

[] a dqm:DuplicateInstanceRule;

dqm:testedClass ex:Customer;

dqm:testedProperty1 ex:name;

dqm:testedProperty2 ex:address.

The

dqm:ClassRequirement

represents DCOs

acting on the instances of a given class as a whole

(cf. Example 11) in order to detect the existence of

instances of such class whose expiration date is

overcome (

dqm:ExpiryRule

) or whose last update

is too old and, therefore, needs to be updated

(

dqm:UpdateRule

Example 11 (UpdateRule). Consider that Org1

defines that customers information should be

updated in a max interval of four years (i.e. 1641

days). Thus, one could define the following DCO:

[] a dqm:UpdateRule;

dqm:testedClass ex:Customer;

dqm:testedProperty1 ex:lastUpdate;

dqm:expectedUpdateInterval “1461”.

In addition, every DCO may also have a set of

complementary information such as: (i) a name and

a description (respectively

dqm:reqName

and

dqm:reqDescription

); (ii) a temporal definition

of the DCO validity through the

dqm:validUntil

and/or

dqm:validFrom

properties; (iii) last time the

DCO was revised (

dqm:lastModified

); and (iv)

to keep track of the information source affording

such DCO (

dqm:reqSource

). Besides, it is

suggested to combine the DQM ontology with well-

known vocabularies (e.g. Dublin Core Metadata

) to

identify who is the DCO creator (

dc:creator

4.2 Improving DQM Ontology

According to authors of the DQM ontology, due to

http://www.dublincore.org/2010/10/11/dcelements.rdf

its early stage of development, it may have some

important elements missing. Besides, it is also

necessary to realize (i) which of the identified

requirements are already satisfied and how; and (ii)

which requirements still need to be satisfied and,

therefore, demanding that the DQM ontology is

improved and/or extended.

The hierarchy of sub-classes of class

dqm:Data

Requirement

and

dqm:DataCleansingRule

captures the kind of data cleaning operations that

can be specified (CQ 1) and allows them to be

somehow grouped according to a logical

perspective. Yet, accommodation of other (and

probably more complex) kind of DCOs is possible

by adding new sub-classes and new properties (cf.

Example 12).

Example 12 (Extending DQM Ontology). One

may require that the values of properties capturing

textual descriptions are written in accordance to a

particular natural language. Such kind of detection

DCO is not supported yet. To support that, a new

class (e.g.

new:SpellerSyntaxRule

) would be

added as depicted in figure 4.

In this respect, (the usage of) some properties may

also need to be slightly changed in order to allow a

better categorization and/or description of its values

since such information may be important for the

purpose of rewriting a DCO (cf. Example 13).

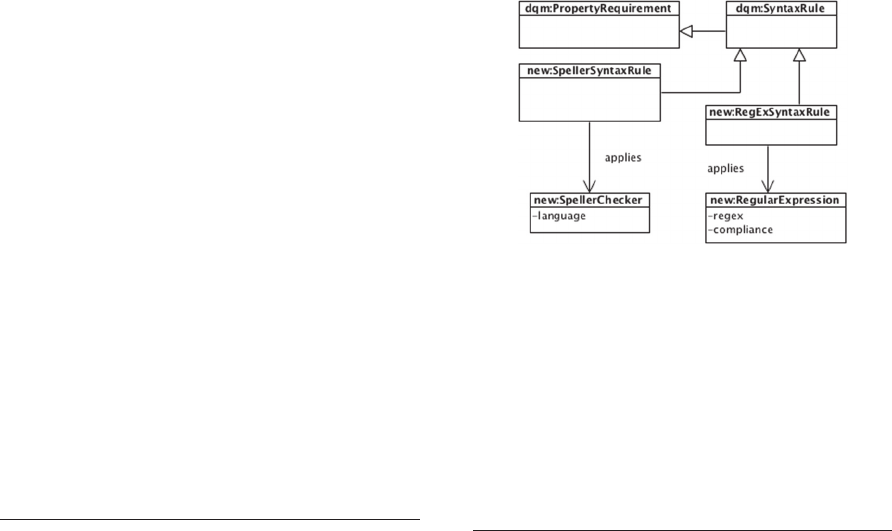

Figure 4: Extending partially the DQM Ontology.

Example 13 (Refining DQM Ontology). Currently,

the range of acceptable values for the dqm:regex

property is a string representing a regular

expression. This does not allow capturing the

compliance

in which regular expressions are

specified. To support this, DQM Ontology could be

refined as depicted in Figure 4.

By following and generalizing the approach taken in

Example 12 and Example 13 one would also

ISO/IEC/IEEE 9945:2009.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

208

explicitly identify additional kind of information

(CQ 3) that play a concrete role in the DCO

specification (e.g. new:SpellerChecker).

Information regarding a given instance of a DCO

is collected by means of a diverse set of available

properties (e.g.

dqm:testedClass, dqm:tested

Property1, dqm:reqDescription, dqm:req

Name). Still, no means is provided to identify which

information is mandatory and which is optional.

However, a mechanism for doing that would foster

the verification of if a given DCO instance is

properly instantiated (CQ 2) or, instead, it is an

underspecified instance (CQ 4). Regarding this

issue, it is envisaged to combine the DQM ontology

with an external vocabulary enabling such features.

Finally, it is worth noticing that questions similar

to CQ 5 and CQ 6 are answered by means of simple

SPARQL queries as the one shown in Example 14.

Example 14 (SPARQL Query). In order to know

which detection DCOs created by “Jim Jam” apply

on class

ex:Customer, one could executed the

following SPARQL query:

select ?dco where {

?dco a dqm:DataRequirement;

dqm:testedClass ex:Customer;

dc:creator “Jim Jam”. }

5 BRIDGING CONCRETE AND

ABSTRACT DATA LAYERS

This methodology also relies on the ability to

successfully interoperate between the so-called

Concrete Data Layer and the Abstract Data Layer.

Thus, this section provides a brief description about

issues regarding the implementation of the Mapping,

Transformation and DCO rewriting processes of the

Bridge Layer.

The Mapping process aims to establish, at the

conceptual level, a set of correspondences between a

concrete and an abstract data source. As proposed in

this work, the abstract data source corresponds to a

RDF/OWL ontology about the domain of interest in

hands. However, the concrete data source may be

any kind of repository (e.g. relational databases,

NoSQL databases). Given this, in order to facilitate

the process of establishing correspondences it is

envisioned an a priori task responsible for

translating in a direct way the schema of the

concrete data source to a RDF/OWL ontology.

Regarding this task, for relational databases it can be

used the Direct Mapping approach (Arenas et al.,

2012) or, alternatively, the R2RML (Das et al.,

2012) approach. Both are a W3C recommendation

for mapping relational databases to ontologies. For

non-relational databases the adoption of existing

similar approaches/tools is envisioned. Ultimately, if

those approaches/tools do not exist, a two-steps

approach might be adopted. First, from the non-

relational model (e.g., object-oriented) to the

relational model (e.g. through an ORM tool) and,

further, from the relational model to the ontological

model as previously described. After having the

schema of the concrete data source represented in a

RDF/OWL ontology several semi-automatic

techniques from the schema matching (Bellahsene et

al., 2011) and ontology-matching (Otero-Cerdeira et

al., 2015) domains can be applied to discover and/or

suggest the required correspondences.

Example 15 (Correspondences). As a result of the

mapping process, one could establish the following

equivalence correspondences between O

and DB

, O

and DB

): <ex: Customer,

:Customer>, <ex:Customer, DB

:Buyer>

and

<ex:Customer, DB

: Account>.

The Transformation process exploits the

correspondences established by the Mapping process

in order to transform (if necessary) the data (at the

extensional level) of a concrete data source (e.g.

, DB

) into data (i.e. instances) of the

abstract data source (e.g. O

). This process may rely,

for instance, in the SPARQL-RW approach (Makris

et al., 2012) or in the SBO approach (Maedche et al.,

2002).

The DCO rewriting process also exploits the

correspondences established by the Mapping process

to rewrite the DCOs specified for a given

domain/application (e.g. O

) at the abstract data

layer according to the target data source (e.g. DB

, DB

). Example 16, Example 17 and Example

18 demonstrates the intended feature.

Example 16 (Rewriting a DCO to a SQL Query).

Considering the equivalence correspondences

<ex:maxDiscount, DB

:DiscMax> and <ex:

Customer, DB

:Customer>, DCP

could rewrite

the DCO specified in Example 9 to a SQL query as

follows:

Select * From DB

:Customer

where DB

:DiscMax > 20%

Example 17 (Rewriting a DCO to a SPARQL

Query). Considering the equivalence

correspondences

<ex:maxDiscount, DB

:Max

DiscPerc>

and <ex:Customer, DB

:Buyer>,

An Ontology-based Methodology for Reusing Data Cleaning Knowledge

209

DCP

could rewrite the DCO specified in Example

1 to a SPARQL query as follows:

Select ?c where {

?c a DB

:Buyer;

?c DB

:MaxDiscPerc ?desc;

Filter (?desc > 20%)}

Example 18 (Rewriting a DCO to a MongoDB

Query). Considering the equivalence

correspondences

<ex:maxDiscount, DB

:Max

Discount> and <ex:Customer, DB

:Account>

DCP

could rewrite the DCO specified in Example

9 to a MongoDB query as follows:

Db.DB

:Account.find({

:MaxDiscount:{$gt: 20%} });

Yet, it is worth to underline that besides the target

data source, the output of the rewriting process

depends on the data cleaning process that will

execute the specified DCO on the target data source.

As such, DCOs may be rewritten to SQL or

SPARQL or MongoDB queries (as exemplified) or

to any other syntax that is required (e.g. Rule

Interchange Format recommend by W3C).

6 CONCLUSIONS

We have proposed a generic methodology that aims

to isolate the specification of DCOs from the

particularities of (concrete) data sources (namely of

their model and/or schema) and, therefore, is

targeted for reusing DCOs on different and diverse

data sources. For this, the proposed methodology

relies on the ability:

 To abstract the model and schemas of concrete

data sources into a conceptual level comprising

(i) a conceptualization of a domain of interested

(e.g. customers orders) for which the DCOs will

be specified and (ii) a vocabulary capturing

different types of DCO and representing their

structure and semantics in a way that is

independent of any domain of interest;

 To rewrite DCOs specified for a particular

domain of interest and according to the

aforementioned vocabulary to be in accordance

with the model, schema and any other

requirements of a concrete data source.

Regarding the domain conceptualization and DCO

vocabulary, this paper proposes the adoption of

RDF/OWL ontologies because: (i) ontologies are

seen as the best answer for the demand for

intelligent systems that operate closer to the human

conceptual level (Obrst et al., 2003); and, (ii)

ontologies conceptualizations may vary in different

levels of expressiveness (e.g. ALC vs. SHOIN).

Yet, as discussed and exemplified in section 5,

these abilities are successfully accomplished through

the establishment of mappings between the

conceptual elements (e.g. ontological concepts) of

the conceptualization of the domain of interest and

the schema elements of a concrete data source (e.g.

tables of a relational database) and, therefore, giving

a semantic meaning to the schema elements. Based

on these mappings is then possible to instantiate the

DCOs previously specified at the conceptual level

and propose or suggest their execution to the domain

expert at the schema level of a concrete data source.

A key point of the proposed data cleaning

methodology is the need of a DCO Vocabulary

(DCOV). In this respect, this paper complements

and refines our previous work, first, by specifying

the requirements that the DCOV should satisfy (cf.

section 3) and, second, by analysing candidate

vocabularies on light of the defined requirements

(cf. section 4). The requirements were specified via

a use case model and a set of competency questions.

Having these requirements as basis, an extensive

literature review was made to identify possible

candidates vocabularies. Consequently, we found

that the DQM ontology (Fürber and Hepp, 2011)

was able to cover most of the DCOV requirements.

The main elements of the DQM ontology were

introduced and discussed in the paper at the light of

the requirements. The purpose was to demonstrate

the DQM ontology was suitable for our purpose.

Due to its early stage of development we have

concluded that some elements are missing in the

DQM ontology. However, we also have concluded

that, as shown in section 4, missing elements can

easily be added by extending the DQM ontology. As

so, this ontology was adopted as the DCOV to

support the conceptual specification of the DCOs.

As future work, we intend to devote our attention

to the correction DCOs, since we have been focused

on the detection DCOs. We also plan to

refine/specify further the bridging process between

the abstract and concrete data layers. We have

already started doing this work, as can be seen in

this paper (cf. Section 5). Currently, this

methodology is being implemented and tested in

some case studies using real-word data.

Despite the proposed methodology is targeted for

reusing DCOs, we recognized that some operations

may be too specific of a data source (e.g. detection

of syntax violations in the product codes of a

company) and, therefore, chances of being useful in

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

210

another data source are diminish, which can be seen

as a serious limitation. For this kind of DCOs, the

traditional approach (i.e. specifying DCOs at the

schema level of the concrete data source) is still the

best option. However, our practical experience of

dealing with different data sources from several

domains has allowed us to conclude that: (i) there is

much data cleaning knowledge which can be applied

to different data sources from the same domain (e.g.

detection of business rules violations); (ii) there is

data cleaning knowledge which is so general that

can even be applied to data sources of different

domains (e.g. detection of a syntax violation in an e-

mail address). Hence, the proposed methodology

intends to explore both realities and promote the

reuse of data cleaning knowledge.

ACKNOWLEDGEMENTS

This work is supported by FEDER Funds through

the “Programa Operacional Fatores de

Competitividade - COMPETE” program and by

National Funds through FCT “Fundação para a

Ciência e Tecnologia”.

REFERENCES

Almeida, R., Maio, P., Oliveira, P., João, B., 2015.

Towards Reusing Data Cleaning Knowledge, in: New

Contributions in Information Systems and

Technologies. Springer, pp. 143–150.

Almeida, R., Oliveira, P., Braga, L., Barroso, J., 2012.

Ontologies for Reusing Data Cleaning Knowledge, in:

Semantic Computing (ICSC), 2012 IEEE Sixth Int.

Conf. on. IEEE, pp. 238–241.

Arenas, M., Bertails, A., Prud’hommeaux, E., Sequeda, J.,

2012. A direct mapping of relational data to RDF.

Atzori, L., Iera, A., Morabito, G., 2010. The internet of

things: A survey. Computer networks 54, 2787–2805.

Bellahsene, Z., Bonifati, A., Rahm, E. (Eds.), 2011.

Schema Matching and Mapping. Springer Berlin

Heidelberg, Berlin, Heidelberg.

Booch, G., 1993. Object-Oriented Analysis and Design

with Applications, 2 edition. ed. Addison-Wesley

Professional, Redwood City, Calif.

Brickley, D., Guha, R.V., 2014. RDF Schema 1.1 [WWW

Document]. URL http://www.w3.org/TR/2014/REC-

rdf-schema-20140225/

Codd, E.F., 1970. A relational model of data for large

shared data banks. Communications of the ACM 13,

377–387.

Das, S., Sundara, S., Cyganiak, R., 2012. R2RML: RDB

to RDF mapping language.

Dasu, T., Vesonder, G.T., Wright, J.R., 2003. Data quality

through knowledge engineering, in: Proceedings of the

Ninth ACM SIGKDD Int. Conf. on Knowledge

Discovery and Data Mining. ACM, pp. 705–710.

Fürber, C., Hepp, M., 2011. Towards a vocabulary for data

quality management in semantic web architectures, in:

Proc. of the 1st Int. Workshop on Linked Web Data

Management. ACM, pp. 1–8.

Han, J., Haihong, E., Le, G., Du, J., 2011. Survey on

NoSQL database, in: Pervasive Computing and

Applications (ICPCA), 2011 6th Int. Conf. on. IEEE,

pp. 363–366.

Hashem, I.A.T., Yaqoob, I., Anuar, N.B., Mokhtar, S.,

Gani, A., Khan, S.U., 2015. The rise of “big data” on

cloud computing: review and open research issues.

Information Systems 47, 98–115.

Knuth, M., Sack, H., 2014. Data cleansing consolidation

with PatchR, in: The Semantic Web: ESWC 2014

Satellite Events. Springer, pp. 231–235.

Maedche, A., Motik, B., Silva, N., Volz, R., 2002.

MAFRA—A MApping FRAmework for Distributed

Ontologies in the Semantic Web, in: Workshop on

Knowledge Transformation for the Semantic Web

(KTSW 2002), ECAI. pp. 60–68.

Makris, K., Bikakis, N., Gioldasis, N., Christodoulakis, S.,

2012. SPARQL-RW: Transparent Query Access over

Mapped RDF Data Sources, in: Proc. of the 15th Int.

Conf.on Extending Database Technology, EDBT ’12.

ACM, New York, NY, USA, pp. 610–613.

doi:10.1145/2247596.2247678

McGuinness, D., Harmelen, F. van, 2004. OWL Web

Ontology Language Overview [WWW Document].

URL http://www.w3.org/TR/owl-features/ (accessed

6.11.15).

Milano, D., Scannapieco, M., Catarci, T., 2005. Using

ontologies for xml data cleaning, in: On the Move to

Meaningful Internet Systems 2005: OTM 2005

Workshops. Springer, pp. 562–571.

Obrst, L., Liu, H., Wray, R., 2003. Ontologies for

corporate web applications. AI Magazine 24, 49.

Oliveira, P., Rodrigues, F., Henriques, P., 2009.

SmartClean: An Incremental Data Cleaning Tool, in:

Quality Software, 2009. QSIC’09. 9th Int. Conf. on.

IEEE, pp. 452–457.

Oliveira, P., Rodrigues, F., Henriques, P., Galhardas, H.,

2005a. A taxonomy of data quality problems, in: 2nd

Int. Workshop on Data and Information Quality. pp.

219–233.

Oliveira, P., Rodrigues, F., Henriques, P.R., 2005b. A

Formal Definition of Data Quality Problems., in: IQ.

MIT.

Otero-Cerdeira, L., Rodríguez-Martínez, F.J., Gómez-

Rodríguez, A., 2015. Ontology matching: A literature

review. Expert Systems with Applications 42, 949–

971. doi:10.1016/j.eswa.2014.08.032

Snijders, C., Matzat, U., Reips, U.-D., 2012. Big data: Big

gaps of knowledge in the field of internet science. Int.

Journal of Internet Science 7, 1–5.

Weis, M., Manolescu, I., 2007. Declarative XML data

cleaning with XClean, in: Advanced Information

Systems Engineering. Springer, pp. 96–110.

An Ontology-based Methodology for Reusing Data Cleaning Knowledge

211
